Contents

Halaman 1

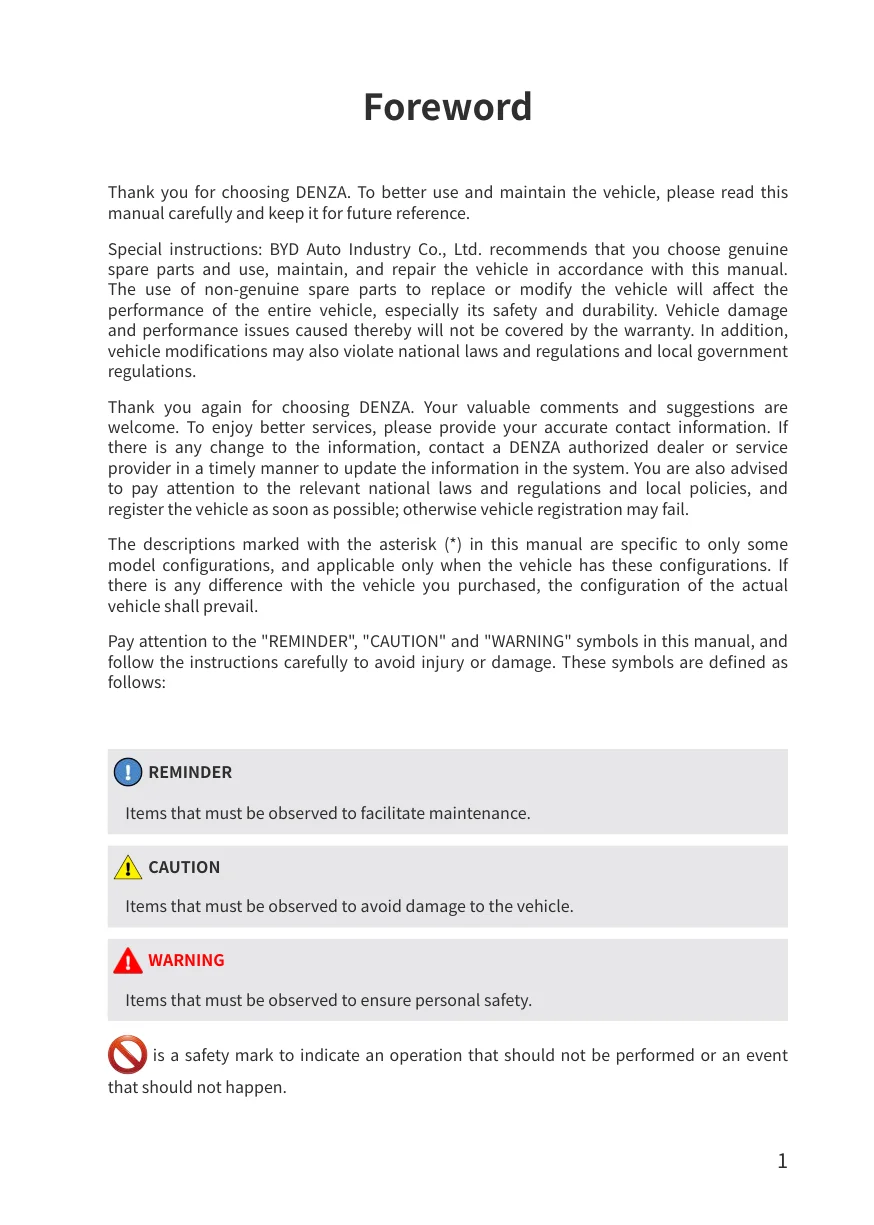

Foreword Thank you for choosing DENZA. To better use and maintain the vehicle, please read this manual carefully and keep it for future reference. Special instructions: BYD Auto Industry Co., Ltd. recommends that you choose genuine spare parts and use, maintain, and repair the vehicle in accordance with this manual. The use of non-genuine spare parts to replace or modify the vehicle will affect the performance of the entire vehicle, especially its safety and durability. Vehicle damage and performance issues caused thereby will not be covered by the warranty. In addition, vehicle modifications may also violate national laws and regulations and local government regulations. Thank you again for choosing DENZA. Your valuable comments and suggestions are welcome. To enjoy better services, please provide your accurate contact information. If there is any change to the information, contact a DENZA authorized dealer or service provider in a timely manner to update the information in the system. You are also advised to pay attention to the relevant national laws and regulations and local policies, and register the vehicle as soon as possible; otherwise vehicle registration may fail. The descriptions marked with the asterisk (*) in this manual are specific to only some model configurations, and applicable only when the vehicle has these configurations. If there is any difference with the vehicle you purchased, the configuration of the actual vehicle shall prevail. Pay attention to the "REMINDER", "CAUTION" and "WARNING" symbols in this manual, and follow the instructions carefully to avoid injury or damage. These symbols are defined as follows: REMINDER Items that must be observed to facilitate maintenance. CAUTION Items that must be observed to avoid damage to the vehicle. WARNING Items that must be observed to ensure personal safety. is a safety mark to indicate an operation that should not be performed or an event that should not happen.

Contents

Halaman 2

This manual is expected to help you use the product correctly, and does not provide any description of the configuration and software version of this product. For details about the product configuration and software version, please refer to the contract (if any) related to this product, or consult the dealer who sold the product to you. Copyright © BYD Auto Industry Co., Ltd. All rights reserved. It is forbidden to copy, store, or disseminate this manual electronically or in any other form without written authorization from BYD All rights reserved

Contents

Halaman 3

Illustration Index Exterior..............................................7 Dashboard......................................... 8 Center Console...................................9 Doors...............................................10 Safety Seat Belts.........................................12 Seat Belt Overview.................................. 12 Using Seat Belts.......................................12 Airbags............................................ 15 Airbag Overview...................................... 15 Airbag Types............................................ 17 Airbag Triggering Conditions..................18 Child Restraint Systems.................... 23 Child Restraint Systems.......................... 23 Anti-theft Alarm System....................27 Anti-theft Alarm System..........................27 Event Data Recorder System............. 28 Event Data Recorder System...................28 Instrument Cluster Instrument Cluster........................... 34 Instrument Cluster View..........................34 Instrument Cluster Indicators.................35 Controller Operation Doors and Keys.................................46 Keys..........................................................46 Locking/Unlocking Doors....................... 49 Power Sliding Doors................................55 Smart Access and Start System.............. 58 Child Protection Lock..............................59 Seats................................................60 Seat Precautions..................................... 60 Adjusting Front Seats.............................. 61 Adjusting Second-Row Seats.................. 62 Adjusting Rear Seats................................63 Head Supports.........................................64 Steering Wheel................................. 67 Steering Wheel.........................................67 Switches.......................................... 70 Light Switches......................................... 70 Wiper Switch............................................73 Driver's Door Switches............................ 75 Odometer Switch.................................... 77 Driver Assistance Switches..................... 77 Window Control Switch on Passenger Side........................................ 77 Automatic Window Closing*................... 78 Hazard Warning Light Switch..................78 Mode Switches........................................ 78 Sunroof Switch........................................ 79 Interior Light Switch................................80 Using and Driving Charging/Discharging.......................84 Charging Instructions..............................84 Charging...................................................88 Intelligent Charging.................................95 Charge Port Anti-theft Lock.................... 95 Driving Range Display............................. 96 Discharging Instructions*........................97 Battery.............................................98 High-Voltage Battery............................... 98 Low-Voltage Battery..............................101

Contents

Halaman 4

Usage Precautions.......................... 103 Break-in Period......................................103 Trailer Towing........................................103 Driving Safety Precautions....................103 Vehicle Use Suggestions....................... 104 Saving Energy and Extending Vehicle Service Life................................105 Carrying Luggage.................................. 106 Wading into Water.................................107 Fire Prevention...................................... 108 Snow Chains..........................................109 Starting and Driving........................110 Starting the Vehicle............................... 110 Driving....................................................111 Intelligent Chassis Control System (DiSus-C)*.............................................. 111 Gear Shift Controls................................ 112 Electronic Parking Brake (EPB).............113 Automatic Vehicle Hold (AVH)...............115 Driving Precautions...............................116 Driver Assistance............................ 117 Adaptive Cruise Control (ACC).............. 117 Intelligent Cruise Control (ICC).............121 Forward Collision Warning (FCW) and Automatic Emergency Braking (AEB).......................................................123 Front Cross Traffic Alert (FCTA) and Front Cross Traffic Brake (FCTB)........... 126 Traffic Sign Recognition (TSR)*.............127 Intelligent Speed Limit Control (ISLC)*.................................................... 128 Intelligent High Beam Control (IHBC).. 129 Lane Departure Assist (LDA)*................130 Emergency Lane Keeping Assist (ELKA)*...................................................132 Blind Spot Assist (BSA)..........................134 Driver Monitoring Systems (DMS)*....... 136 Head-up Display (HUD)*....................... 137 Tire Pressure Monitoring.......................138 Acoustic Vehicle Alert System (AVAS)... 139 Panoramic View System........................140 Parking Assist System........................... 142 Driving Safety Systems..........................145 Other Main Functions......................149 Interior Rearview Mirror........................149 Power Side Mirrors................................ 150 Wipers.................................................... 151 In-Vehicle Devices Infotainment System...................... 154 Infotainment System.............................154 Infotainment Touchscreen....................155 Vehicle Setting of the Infotainment System................................................... 156 Gestures and Responses.......................156 OTA Upgrade..........................................156 Calling DENZA Assistant........................157 Bluetooth Call........................................157 My Car.................................................... 157 Armrest Screen*.....................................158 A/C.................................................160 A/C Panel................................................160 A/C Operation Interface........................ 160 Function Definition............................... 161 Vents...................................................... 163 A/C Settings........................................... 164 Air Purification System..........................164 DENZA App..................................... 166 DENZA App.............................................166 Account Registration............................. 166 Vehicle Condition and Control..............167

Contents

Halaman 5

Individual Center and Vehicle Management..........................................167 NFC Digital Key*.....................................167 Storage.......................................... 168 Glove Box...............................................168 Bill Box................................................... 168 Rear Phone Holder*.............................. 168 Door Bin.................................................169 Center Console Cubby...........................169 Glasses Case.......................................... 169 Seatback Pockets.................................. 169 Cup Holder.............................................170 Other Devices................................. 171 Sun Visor................................................171 Grab Handles.........................................171 USB Ports...............................................172 12V Auxiliary Power...............................172 Wireless Phone Charger........................ 173 Window Sunshade*...............................175 Tray Table...............................................175 Refrigerator....................................176 Refrigerator Operation Interface.......... 176 Refrigerator Instructions.......................177 Maintenance Maintenance Information................182 Maintenance Cycle and Items...............182 Regular Maintenance...................... 187 Regular Maintenance............................ 187 Vehicle Corrosion Prevention............... 187 Paint Maintenance Tips.........................188 Exterior Cleaning................................... 188 Interior Cleaning....................................190 Power Sliding Door Maintenance......... 191 Self-Maintenance............................192 Self-Maintenance.................................. 192 Sunroof Maintenance............................194 Vehicle Storage......................................195 Hood...................................................... 195 Cooling System......................................196 Braking System......................................196 Washer................................................... 197 A/C System.............................................197 Wiper Blades..........................................198 Tire......................................................... 198 Fuses...................................................... 201 When Faults Occur When Faults Occur.......................... 208 Reflective vest........................................208 If Smart Key Battery Is Exhausted.........208 Emergency Shutdown System..............208 Vehicle Fire Rescue................................209 If a Collision Occurs...............................209 If the Vehicle Needs Towing..................210 If a Tire Goes Flat...................................212 Specifications Data............................................... 216 Vehicle Data...........................................216 Vehicle Identification............................ 220 Information....................................221 Warning Labels......................................221 Transponder Mounting......................... 222 Declarations of Conformity............. 222 Declarations of Conformity...................222

Contents

Halaman 6

Abbreviations Abbreviations.................................229

Contents

Halaman 7

Illustration Index Exterior 1 Locking/Unlocking the TrunkP51 Carrying Luggage P106 2 Power Side MirrorsP150 3 Using Mode 2 Charging CableP88 4 DoorsP49 5 Combination Lights P70 6 Opening the HoodP195 CoolantP196 Brake Fluid P196

Contents

Halaman 8

Dashboard 1 Wiper SwitchP73 2 Infotainment TouchscreenP155 A/C Settings InterfaceP160 3 Front Center Vent P163 4 START/STOP Button P110 5 Glove Box P168 6 A/C Panel ButtonsP160 7 P Gear Button P112 Electronic Parking Brake (EPB) Switch P113 8 Adjusting the Steering Wheel P70 Steering Wheel SwitchesP67 9 Instrument ClusterP34

Contents

Halaman 9

# Center Console 1. Gear Shift Controls **P112** 2. Cup Holder **P170** 3. Center Console Cubby **P169** 4. Using Seat Belts **P12** 5. Mode Switches **P78** 6. Front-Row USB Ports **P172** 7. Light Switches **P70** 9

Contents

Halaman 10

Doors 1 Interior Door Handle **P49** 4 Door Bin **P169** 2 Front Side Vents **P163** 5 Driver's Door Switches **P75** 3 Hood Handle **P195** 10

Safety

Halaman 11

# SAFETY 01 Seat Belts................................................. 12 Airbags..................................................... 15 Child Restraint Systems........................... 23 Anti-theft Alarm System.......................... 27 Event Data Recorder System.................. 28

Using Seat Belts

Halaman 12

Seat Belts Seat Belt Overview Studies have shown that proper use of seat belts can significantly reduce casualties in emergency braking, sudden steering or collisions. Please read the following information carefully and observe it strictly. WARNING ●Before driving, make sure all occupants are properly buckled up to prevent serious injury or death in emergency braking or in a collision. ●The seat belts are designed primarily for adults and are not intended for children. Make sure to choose an appropriate child restraint system according to your child's age and size (see P23). ●If a seat belt is damaged or malfunctions, immediately contact a DENZA authorized dealer or service provider for confirmation and handling. Until then, do not use the corresponding seat. ●All occupants should always fasten their seat belts while in the vehicle to avoid personal injury or death in case of an accident. ●The installed seat belts are designed for adults. Appropriate seat belt selections are necessary for different situations. ●It is recommended that children be seated in rear seats and always use seat belts and suitable child restraints. In case of emergency braking or a collision, unprotected children may be seriously injured and their lives may be endangered. Likewise, do not allow children to ride on someone's lap. This will render the children not adequately protected. Emergency Locking Retractor Function ●When the driver turns sharply or brakes suddenly, when there is a collision, or when the occupant leans forward too quickly, the seat belt automatically locks to effectively restrain and protect the occupant. ●When the vehicle travels smoothly, seat belts are pulled out and retracted as the occupants move slowly and smoothly, allowing the occupants to move freely. ●If the seat belt locks due to sudden retraction, pull on the seat belt webbing to create retractable slack in order to pull out the seat belt. Pretensioner and Force Limiter Function* When a severe front collision occurs and the triggering conditions of the pretensioner are met, the pretensioner quickly retracts part of the seat belt and locks it to improve the protection of the occupant. The force limiter limits the seat-belt restraint force to the occupant's body to a certain extent so as to avoid injury to the occupant due to an excessive restraint force. Using Seat Belts 1. Adjust the seat position and seatback angle (See P61) 2. Adjust the position of the three-point seat belt. ●Keeping a proper sitting posture, pull the seat belt out so that it is diagonally

Using Seat Belts

Halaman 13

across the chest. The belt should not go under the arm or across the back of the neck. ●Keep the lap section of the belt as close as possible to the hips. 3. Insert the latch into the buckle until it clicks, and then pull it back to make sure it is firmly locked. Do not fasten the belt with any part of the strap twisted. 4. Adjust the height of the (front) seat belts for optimum comfort and protection. ① Press the adjuster release button. ② Move the adjuster up or down to the intended position. Release the button to lock the adjuster. 01 SAFETY 5. Pull the belt firmly to check that the adjuster is locked. WARNING ●The shoulder belt should cross the center of the shoulder. The seat belt should be far from the neck and not liable to slip from the shoulder; otherwise, it cannot function well in the event of emergency braking or accident and may even cause severe injury. ●The lap belt should be positioned as low as possible around the hips to avoid serious injury due to the intense lap belt forces against the abdomen in an accident. ●The seat belt should be fitted tight to the body for better protection. 6. Unlock the seat belt. ●Press the red unlock button on the buckle. The latch plate pops out, and the seat belt automatically retracts. ●If the seat belt does not retract smoothly and automatically, pull it out and check whether it is twisted.

Rear Seat Belt Illustration

Halaman 14

WARNING ●One seat belt is for one occupant only. Each seat belt must be used by one occupant only. Do not share a seat belt with another occupant, not even with a child. ●Avoid traveling with the seatback leaning too far back. The seat belt protection performs best when the seatback is upright. ●Make sure that no seat belt or its spring bolt/buckle becomes pressed by the door or rear seatback; otherwise, the seat belt may be damaged. ●Check the seat belts regularly. for cuts, wear, looseness, and other abnormalities. If any problem is found, immediately contact a DENZA authorized dealer or service provider for confirmation and handling. Until then, do not use the corresponding seat. ●Do not remove, disassemble or modify the seat belts without permission. ●After an accident, have the seat belts checked at a DENZA authorized dealer or service provider. If the pretensioner function is activated, the seat belt must be replaced. Use an approved model whenever you replace the seat belt. WARNING ●In the event of a serious accident, even if there is no apparent damage, the seat belt should be replaced along with the seat assembly. The airbag system should also be thoroughly inspected. ●Pregnant women should also fasten the seat belt properly as other occupants, and pay special attention to the lap belt which should be positioned as low as possible around the hips to avoid serious injury to them and their fetus due to the intense lap belt forces against the abdomen in an accident. ●The method of wearing a rear seat belt is the same as that for a front seat belt. For normal functioning of the rear seat belt, please ensure that its latch is inserted into the corresponding buckle during use. The driver should ensure that all occupants are wearing seat belts before driving the vehicle. ●Do not insert foreign objects such as coins and clips into the buckle as they prevent proper connection between the latch and buckle. Using the Rear Middle Seat Belt Rear Seat Belt Illustration

Airbag Overview

Halaman 15

Seat Belt Reminders If any occupant has not buckled up after the vehicle is started, visual and audible alarms go off and continue until the corresponding seat belt is properly fastened. ●Seat belt reminder indicator Any unfastened seat belt will trigger corresponding indicator to light up and flash. ●Display of unfastened belt's seat The indicator for the seat with unfastened seat belt lights up and is steady on in case of abnormal conditions in the vehicle. ●Seat belt reminder for front passenger If the driver or front passenger has not buckled up after the ignition is switched on, the seat belt reminder indicator and the indicator associated with the corresponding seat light up. If the seat belt remains unfastened while driving, in addition to the reminder indicator, an audible alarm is given to alert the driver and the occupant. ●When the driver and the front passenger fasten their seat belts, the seat belt reminder indicator turns off and all indicators displayed for the corresponding seats turn off. 01 SAFETY WARNING ●In the event of abnormality or function failure, contact a DENZA authorized dealer or service provider. Do not use the corresponding seat until the functions return to normal. ●When driving, make sure all occupants have their seat belts properly fastened to prevent serious injury or death in emergency braking or in a collision. Airbags Airbag Overview ●Airbags are a part of the supplemental restraint system (SRS) and also a supplement to seats and seat belts. When the vehicle is involved in a serious collision and the airbag system meets its deployment conditions, relevant airbags will rapidly deploy and, along with seat belts, provide additional protection for heads and chests of the occupants to reduce the risk of personal injury or even death. ●Airbags are divided into front and side types, according to the type of collision. The front airbags include a driver airbag and a front passenger airbag, while the side airbags include

Airbag Overview

Halaman 16

front seat side airbags and side curtain airbags. ●As an integral part of the vehicle's passive safety protection system, the airbag system does not replace seat belts, and must be used in combination with seat belts to maximize protection. WARNING ●Occupants must sit in a proper position to maximize the protection provided by seat belts and the airbag system. ●Do not disassemble or assemble airbag components without authorization. ●Non-BYD genuine seat covers may worsen the airbag performance or result in injury. Do not place anything between the side airbag and the occupant. ●Do not apply excessive force to the side of seats equipped with side airbags. ●To ensure the normal operation of the airbag system, even if the airbag did not deploy, and the pretensioner did not lock the seat belt after a collision, it is recommeded to contact a DENZA authorized dealer or WARNING service provider for inspection as soon as possible. Airbag fault warning light ●This airbag system is governed by the ECU and has a self-diagnosis function. Its status is displayed by the warning lights on the instrument cluster. ●With the ignition on, if the airbag warning light stays on for about five seconds and then disappears, the system is running smoothly. WARNING ●The airbag warning light stays on in the presence of certain system faults. If this light stays on, please head to the nearest DENZA authorized dealer or service provider for an airbag system inspection, or it may affect the airbag funciton. ●If the vehicle is ingressed with water (wet carpet or vehicle submerged in water) or damaged by water, do not start the vehicle and the low-voltage battery needs to be disconnected. Otherwise, the airbags may deploy, resulting in serious injury or death.

Airbag Types

Halaman 17

Airbag Types ① Driver and front passenger airbags ② ③ Seat side airbags ④ Side curtain airbags Driver and Front Passenger Airbags This vehicle is equipped with driver and front passenger airbags, when the airbag system Electronic Control Unit (ECU) detects a moderate to severe front impact during driving and the triggering conditions are met, the airbags deploy to minimize the injury. Front airbag deployment ●In moderate to severe frontal crashes, a sensor detects a sharp deceleration and sends a signal to the ECU to trigger the front airbags. ●When there is a frontal crash, the seat belt secures the occupant's lower body and torso in place. The airbag cushions and protects the occupant's head and chest. 01 SAFETY ●When the severity of the impact does not reach the airbag deployment threshold, seat belts provide enough protection. ●The front airbag deflates immediately after inflation, without affecting the driver's vision and ability to operate the steering wheel or other controls. ●The airbag deploys within a thousandth of a second. ●A loud noise will be heard when the airbag deploys. It will not cause injury, but it may cause tinnitus or temporary deafness. ●A cloud of dust from the airbag surface may come off when the airbag deploys. Although such powder is non-toxic, individuals with respiratory problem might experience some temporary discomfort.

Airbag Triggering Conditions

Halaman 18

WARNING ●No accessories, such as telephone holders, cups, ashtrays, may be installed on airbag covers or within their action range. Otherwise, airbag deployment will increase the risk of injury in an accident. Seat Side Airbags If the vehicle is equipped with seat side airbags (mounted on the outside of seatback, marked with "AIRBAG" at both sides), When a moderate to severe side impact is detected during vehicle travel and the triggering conditions are met, the side airbag deploys to protect the occupant's chest. CAUTION ●If the seatbacks get wet from rain or splashes, the side airbag system may not work properly. ●Do not cover or replace seatback covers on you own. Unsuitable seatback covers may prevent airbag deployment. REMINDER ●In the event of a side impact, the airbag on the impacted side deploys when the airbag system meets its deployment conditions. ●For optimal side airbag protection, occupants must have their seat belts fastened and sit upright against the seatback. Side curtain airbags ●If the vehicle is equipped with side curtain airbags (mounted at the joint between the side walls of the body and the ceiling, with the A-pillar, B- pillar, and C-pillar shields marked with "AIRBAG", as shown in the illustration), when a moderate to severe side impact is detected during vehicle travel and the triggering conditions are met, the side curtain airbag deploys to protect the head of the occupant on the side of collision. ●Generally, only the airbag on the impacted side deploys in the event of a side impact. ●For optimum curtain airbag protection, the occupant must have their seat belt fastened and sit in an upright position. Airbag Triggering Conditions ●Airbag triggering conditions: In the event of a vehicle collision, whether an airbag will be triggered is decided by factors such as the amount of collision energy, accident type, collision angle, obstacles, and vehicle speed. The airbag system may be triggered in special collisions. ●The airbag system does not always work in any accident, and generally it will not be triggered in the event of a minor frontal collision, rear collision or rollover. In this case, the driver and passengers are protected by their properly fastened seat belts. ●Determinants of airbag system triggering: Decision is made by comparing the deceleration curve, generated in the collision and obtained by the ECU, and the set value. If signals, such as the deceleration curve generated and measured in the collision, are lower than the respective reference values preset in the ECU, the airbag system will not be triggered even if the vehicle may have been seriously deformed in the accident.

Cases When Airbags May Not Be Deployed

Halaman 19

●The ECU of the DENZA airbag system has been set up with considerations of common misuse and road conditions. However, due to the increasing changes in causes and forms of vehicle collisions, for your safety, please strictly follow this user manual, use the vehicle correctly, and avoid its misuse. Otherwise, there is no guarantee that the airbags will achieve their expected effect. Cases When Airbags May Be Deployed The vehicle's nose hits the ground when crossing a deep groove. The vehicle hits a bump or curbstone. The vehicle's nose hits the ground when going down a steep slope. 01 SAFETY One side of the vehicle is hit by another vehicle. Cases When Airbags May Not Be Deployed The vehicle hits a concrete column, tree, or other slim objects. The vehicle goes under a truck or another large vehicle.

Cases When Airbags May Not Be Deployed

Halaman 20

The tail of the vehicle is hit by another vehicle. The vehicle rolls over. The vehicle hits a wall or a vehicle at a side other than the front side. Parts other than the passenger compartment receive side impact. The lateral side of the vehicle is hit diagonally. The lateral side of the vehicle hits a columnar object.

Cases When Airbags May Not Be Deployed

Halaman 21

WARNING ●Airbags are designed for specific models. Any changes to suspension, tire size, bumpers, chassis and factory-equipped devices may adversely affect the airbag system. Users must not use any parts of the airbag system on other car models; doing so may lead to failure of the airbag system. ●Drivers should maintain a distance of at least 25 cm between their chest and the steering wheel, in order for the system to provide the most effective driver protection. ●Fasten your seat belt and sit properly while the vehicle is in motion. If the seat belt is not fastened, if the occupant is leaning forward or sitting improperly, airbag deployment can increase the risk of injury. ●Do not paste stickers, cover or decorate the hub cover of the steering wheel, the right side surface of the dashboard or the surface of A, B, and C-pillar trims. Clean these surfaces with a dry or damp cloth, without applying too much pressure. ●A child is not to be seated in the front passenger seat, nor WARNING are they to ride sitting on a front passenger's lap, to prevent serious injury or even casualty caused by airbag deployment. 01 ●Side airbags and side curtain airbags deploy quickly with high impact forces. Occupants must not lean against the doors of vehicles equipped with these airbags while these vehicles are in motion. Failure to do so could result in serious injury or even death. SAFETY ●Do not place any other accessories or items within the action range of side curtain airbags, including the windshield, side door glass, A-pillar trim, ceiling, B-pillar trim, C-pillar trim and auxiliary handles. When the side curtain airbag deploys, the accessories or items will be thrown by the impact force from the side air curtain airbag, or the side curtain airbag may not deploy normally, resulting in serious injury or even death. ●Do not modify or replace seats or trims of the seats with side airbags. These changes may prevent normal deployment of side airbags, and thereby cause airbag system failure or unintended deployment of side airbags, resulting in serious injury or death. ●When transferring vehicle ownership, make sure to pass on all of the vehicle's documents and keep the new ownership informed of airbag conditions and replacement dates. ●Do not disassemble or repair the A-pillar trim, ceiling, B-pillar trim

Cases When Airbags May Not Be Deployed

Halaman 22

WARNING or C-pillar trim, which contain side curtain airbags. These changes can cause failure of the airbag system or accidental deployment of curtain airbags, which may cause serious injury or even death. ●Do not change any component of the airbag system, including any corresponding label. It is recommended that any operation done to the airbags be performed by a DENZA authorized dealer or service provider. ●Airbags can only provide one-time accident protection. Once the airbag is triggered or damaged, the airbag system must be replaced. ●Follow safety regulations and procedures related to the scrapping of parts of the vehicle or its airbag system. ●The airbag system has strong anti- interference and anti-disturbance resistance to electromagnetic fields around it. However, to avoid accidents, do not use the vehicle in an electromagnetic environment that violates local regulations. ●The airbag system of this vehicle is designed with full consideration of common misuses and road conditions. However, in order to avoid accidents, do not have the bottom of the vehicle impacted or drive roughly in harsh road conditions. ●This vehicle's airbag system has been fully verified to seamlessly match the vehicle's original wiring harness system. Any wiring WARNING harness modification or alteration may cause the airbags to deploy mistakenly under normal conditions or fail to deploy in the event of a collision. It is recommended that you contact a DENZA authorized dealer or service provider immediately if any of the following situations occurs. ●The airbag has deployed. ●Instrument cluster airbag warning light lights up abnormally. If any of the following events occurs, the airbag system is faulty: ●This warning light turns on or flashes during driving. At this time, the airbag system may be faulty. It is recommended to drive the vehicle to a DENZA authorized dealer or service provider for inspection and maintenance as soon as possible. ●There is a collision with the front of the vehicle (highlighted area shown), but the front airbags do not deploy. ●The airbag cover has been scratched, cracked or otherwise damaged.

Child Restraint System Classification

Halaman 23

●Airbags need to be removed, disassembled, installed or repaired. ●Side airbags and curtain airbags have deployed. ●An impact to a vehicle door in an accident is not adequate to cause the airbag to deploy. ●The surface of the seat with a side airbag is scratched, cracked, or damaged similarly. ●Decorative (liner) parts at A-pillar with built-in curtain airbags, roof beam and C-pillar are scratched, cracked, or damaged similarly. Child Restraint Systems Child Restraint Systems ●Choose a suitable child restraint system for your child's age and stature. A child who cannot use a protection device for size reason must sit in the rear seat and have the seat belt fastened properly. ●Please correctly fix the child restraint system not used to a seat. Do not place it on a passenger seat or in the trunk arbitrarily. WARNING ●Be sure to use a seat belt or child restraint system for a child based on his/her age and size, so as to effectively protect the child in an accident or emergency stop. Holding a child in arms is not a substitute for a child restraint system. In an accident, the child may be crushed against the windshield or between you and the cabin. 01 SAFETY ●Vehicle with Side Curtain Airbags: Even though a child is in the child restraint system, do not allow his/her head or any other body part against any door, seat, front/rear pillar or roof side beam (which will be affected when side curtain airbags deploy). Otherwise, the considerable impact force generated when the curtain airbags deploy will cause serious or even fatal injury to the child. ●Please follow the installation instructions provided by the child restraint manufacturer to make sure the child restraint it is properly installed in the vehicle. Otherwise, emergency parking or an accident may result in serious or even fatal injury to the child. ●Children are not allowed to stand in the car or kneel on the seat when the car is moving to prevent serious injury or death in emergency braking or collision. ●DENZA strongly suggests you to install child restraint systems. Researches indicate that it is safer to install child restraints on the rear seats than the front seats.

Installing Child Restraint Systems with ISOFIX Rigid Anchor

Halaman 24

Installing Child Restraint Systems with ISOFIX Rigid Anchor Follow the installation instructions provided by the child restraint manufacturer. Secure the child restraints to the rear seats. Both the second- and the third-row seats are equipped with ISOFIX anchors for child restraints. Make sure to fasten the top tether when installing a child restraint. ●The second-row seats are equipped with special anchorages. (A label indicating the anchoring position is attached to the seat.) REMINDER ●The anchorages are located in the gap between the seat cushion and the seatback. ●The second-row seats are equipped with anchorages on the back. ●The rear outboard seats are equipped with special anchorages. (A label indicating the anchoring position is attached to the seat.) REMINDER ●The anchorages are located in the gap between the seat cushion and the seatback. ●The rear seats are equipped with tether strap anchorages on the back. Installing a child restraint 1. Check the position of the special anchorage and install the child restraint on the seat. Second-Row Seats

Installing Child Restraint Systems with ISOFIX Rigid Anchor

Halaman 25

Rear Seats 2. Lift the head support, engage the hook tightly to the anchorage at the back of the seatback, and tighten the top tether so that it is fastened. REMINDER ●To make it easier to align the child restraint anchor to the anchorage bar, it is recommended to purchase a child restraint with guide slots or add guide slots for convenience. Second-row seat installation position ① Top tether ② Anchorage 01 SAFETY Third-row seat installation position ① Top tether ② Anchorage 3. Adjust the head support to a proper position. ●If the driver seat obstructs the correct installation of the CRS, install it on the right rear seat. ●Never install a rear-facing child restraint on the seat protected by a front airbag (in the active state), otherwise in the event of an accident, the force of rapid deployment of the front passenger airbag will result in death or serious injury to the child.

Installing Child Restraint Systems with ISOFIX Rigid Anchor

Halaman 26

WARNING ●Push/Pull the child restraint in different directions to ensure it is securely installed. ●When using the lower anchoring device, make sure that no foreign objects are around the anchoring Recommended seating positions for installing child restraint systems Seat (or Other Positions) Weight Group Front passenger seat Second-row seat Rear Outboard Seat Rear Middle Seat Group 0 (up to 10 kg) X U U X Group 0+ (up to 13 kg) X U U X Group 1 (9-18 kg) X U/UF U/UF X Group 2 (15-25 kg) X UF UF X Group 3 (22-36 kg) X UF UF X Note: Table definitions: U: seat suitable for installing a universal child restraint certified for this weight group WARNING device and that the seat belt is not stuck behind the child restraint; make sure that the child restraint is securely fixed, otherwise emergency parking or an accident may result in serious even fatal injury to a child. ●Do not install a child restraint on the front passenger seat. ●Do not allow the child to play with the seat belt. Otherwise, emergency parking or an accident may result in serious injury to the child or even death. UF: seat suitable for installing a front- facing universal child restraint certified for this weight group

Anti-theft Alarm System

Halaman 27

X= X: seat position not suitable for installing a child restraint for this weight group Suitability of International Standards Organization Fix (ISOFIX ) seating positions for ISOFIX child restraint systems: Weight Group Size Fixed Module Front passenger seat Carrycot F ISO/L1 X X X X G ISO/L2 X X X X Group 0 E ISO/R1 X X X X (up to 10 kg) E ISO/R1 X X X X Group 0+ D ISO/R2 X X X X (up to 13 kg) C ISO/R3 X X X X D ISO/R2 X X X X C ISO/R3 X X X X Group 1 B ISO/F2 X IUF IUF X (9-18 kg) B1 ISO/F2X X IUF IUF X A ISO/F3 X IUF IUF X Note 1: For child restraint systems not identified with ISO/XX size classes (A-G), the vehicle manufacturer shall specify the in-vehicle ISOFIX child restraint systems recommended for each seating position with respect to their applicable weight groups. Note 2: Table definitions: IUF: seat position suitable for installing a front-facing universal ISOFIX child restraint certified for this weight group X=ISOFIX seating position not suitable for installing an ISOFIX child restraint system for this weight group and/or this size class. 01 Seat (or Other Positions) Rear Outboard Seat Rear Middle Seat Second- row seat SAFETY Anti-theft Alarm System Anti-theft Alarm System When armed, the system sounds an alarm and triggers turn signal flashes when any door or hood is opened.

Data Collection and Processing

Halaman 28

Arming the system 1. Switch the ignition off. 2. All occupants get off the vehicle. 3. Lock all doors. This makes the anti-theft indicator steady on. The anti-theft alarm system will arm automatically after 10s. and the anti- theft indicator will then begin to flash. 4. You can leave the vehicle after confirming that the indicator begins to flash. Since unlocking the door from inside the vehicle will activate the system, never let anyone stay in the vehicle with the system enabled. Triggering the alarm ●The system will raise an alarm in any of the following situations: ●Any door, trunk lid or hood is unlocked without using the smart key access function. Disarming the system ●Anti-theft alarm can be stopped by: ●Unlocking the doors or the trunk with a valid smart key. ●Using the microswitch to unlock the door by carrying a valid smart key. ●Opening the trunk remotely with a valid smart key. ●Unlocking the door with a valid NFC (card or phone) key. ●Starting the vehicle remotely with a valid smart key. ●Pressing the START/STOP button inside the vehicle while carrying a valid smart key. WARNING ●Do not modify the anti-theft alarm system by means of alteration or addition, otherwise the system may fail. Event Data Recorder System Event Data Recorder System ●This section provides you with some important information on how personal data is collected and processed when you use a BYD vehicle. ●For a more detailed overview on data processing, data protection and data subject rights, please read the current version of the privacy policy for the vehicle available at the infotainment system (Vehicle Settings → System Settings → More → Privacy Policy). ●This vehicle is equipped with an Event Data Recorder (EDR). EDR mainly records data in the event of a crash or near-crash (for example, airbag deployment or hitting on a roadside obstacle) to help comprehend the vehicle system operation, such as: ●Vehicle velocity ●Tire pressure condition ●Adaptive cruise control (ACC) system status

Vehicle Data Processing

Halaman 29

●Whether the seat belt is fastened ●The vehicle records EDR data only when there is a crash or when a near-crash event reaches a certain extent. The EDR does not record any data during the normal driving of the vehicle. ●The data recorded by the EDR system provides an understanding of the state of the vehicle's safety-related systems when an accident occurs, so that relevant parties can analyze the accident. ●The EDR data needs to be accessed and read by special equipment. DENZA discloses your personal data to third parties only if this is legally permissible or you have consented to it. In addition to the vehicle manufacturer, third-party agencies with professional equipment (such as government agencies) can also read the EDR data if they have access to the vehicle EDR and equipment (for example, they can read the data of SRS control unit to clarify the accident). Vehicle Data Processing ●Data is collected when the vehicle is used, such as data collected or transmitted by vehicle sensors or control units, which is necessary for the safe functioning of your vehicle. ●In some cases, the data is used to support driving (driver assistance systems) or to enable a specific comfort or infotainment function. ●Personal data that is collected and processed mainly include in-vehicle data, remote-services-related data, and other data, as further specified below. In-vehicle data Operation data ●When the vehicle is used, various vehicle status data (e.g., speed, battery level, and braking system) or environment (e.g., distance sensors, rain sensor, and temperature) data is collected and processed. 01 ●This data is not usually stored, but there are control units, sensors or other components installed in the vehicle that record such data, for example, to record maintenance requirements, error messages, or other information. SAFETY ●The in-vehicle data will only be stored in the equipment in the vehicle but can be read out via the legally required OBD ("On Board Diagnostics") interface, for example, by DENZA authorized dealer or service provider or other third parties. ●In case this access takes place during vehicle maintenance, the information can also be transmitted to DENZA engineers for quality assurance, product defect reports, or customer claim verification. Remote-services-related data Remote monitoring services ●The vehicle has remote monitoring services. These include remote diagnosis and over-the-air (OTA) updates and upgrades for security and safety purposes (subject to owner's approval). ●These monitoring services serve the following purposes: service provision (remote support/diagnostics), product development, and security/public safety. ●Depending on the country and setup, various vehicle information can be transmitted to DENZA data center in corresponding market for the above purposes, including vehicle location

Vehicle Data Processing

Halaman 30

information, vehicle status, such as energy consumption, vehicle speed, gear position, power mode, ESC status, steering system status, battery status, powertrain status, and overall vehicle performance status. Other Infotainment system ●Depending on vehicle configuration, data can be added to the infotainment system by the users themselves, such as media data for playing video on the infotainment system, address data for use in the navigation system, or data for use in online services. ●Depending on vehicle configuration, individual settings in and on the vehicle can also be entered. ●Data stored in the vehicle can be deleted at any time. ●DENZA has no control over data transferred to third parties (from the use of third party content, in particular as part of online services). Integration of mobile devices ●Depending on vehicle configurations, mobile devices can be connected and controlled through the vehicle's infotainment system. ●It may be necessary that the device's screen or audio is displayed/played through the infotainment system or transmitted to it. ●Additional data like positioning or vehicle information can be transmitted through applications for use in certain navigation systems, communication, or other third-party services. ●The specific type of data processing depends on the respective function and is controlled by the user or third parties such as the provider of the devices or corresponding services. Internet access and connected services ●Depending on vehicle configurations, the Internet can be accessed for certain functions or BYD services through the vehicle's infotainment system network devices. ●DENZA is not liable for any such services provided by any other party. ●In such cases, please obtain information about the use of data from the provider of the respective online service. Camera image recording/surrounding area monitoring ●Your vehicle is equipped with a number of cameras/sensors. ●The reason for this is that some vehicle functionalities require the vehicle's path to be detected and assessed which is done by cameras that detect objects in the vehicle's surroundings (e.g., obstacles). ●The images are transmitted to the respective control module for further analytics required to operate the systems. ●Some images are just processed on a volatile basis (RAM), others may be stored, depending on vehicle equipment. ●The vehicle may be equipped with an outward-facing camera (OFC) that can be used to take footage of the surrounding (for example, dashcam). ●The vehicle may also be equipped with an inward-facing camera (IFC), which can be used to take footage inside the vehicle. ●Both OFC and IFC footage is stored. ●You are responsible to check the laws of your residence before turning on your OFC or IFC (for instance, in some countries consent is required for the

Your Data Protection Rights

Halaman 31

use of IFC, and in others OFC is strictly restricted to dashcam purposes). ●For more camera details, see section "Panoramic View System" in this manual. Permanent Vehicle Transfer to Third Parties and Offline Mode ●In case of a permanent vehicle transfer, i.e., second hand vehicle, or vehicle transfer by a third party for permanent use, it must be noted that any personalization/user settings made via the infotainment system (e.g. address list, navigation system, etc.) may be accessed by the new owner. ●You can also restrict your vehicle's communication with the BYD data server and the processing of vehicle- related and personal data by setting the vehicle to offline mode. ●On the infotainment touchscreen, tap to turn Wi-Fi off. ●This can also be done by tapping → System Settings → Internet → WLAN → Off. Disclosure of Personal Data to Authorities ●DENZA discloses your personal data to third parties only if this is legally permissible or you have consented to it. ●However, subject to applicable laws, government agencies may be authorized to read out data from vehicles (e.g. data can be read from the airbag control unit to clarify an accident). ●If required by law, DENZA may also be obliged to disclose data upon request to governmental authorities in your country or region, e.g. in the investigation of a criminal offence. Your Data Protection Rights ●DENZA has staunch respect for its customer's privacy, and strictly complies with all data protection laws, in particular the General Data Protection Regulation (GDPR) and applicable local laws. 01 SAFETY ●According to these laws, owners have specific rights when their personal data is processed: ●Data subjects have the right of information and access, to rectification, erasure of personal data ("right to be forgotten") and the right to object to the processing of personal data or to restrict it (or to withdraw consent given earlier, as well as the right to data portability). ●These rights may be limited in some cases. For example, if we can show that we have a legal obligation to process your data, or if providing the information to you would disclose personal data about another person, or if we are legally prevented from disclosing that information. ●In some cases, this may mean that we can retain the data even if you withdraw your consent. ●For more information on data processing, data protection, and any rights you may have, please visit the latest version of the Privacy Policy available at the infotainment system (Vehicle Settings → System Settings → More → Privacy Policy).

Your Data Protection Rights

Halaman 32

32

Instrument Cluster

Halaman 33

02 INSTRUMENT CLUSTER Instrument Cluster............................34

LCD Instrument Cluster

Halaman 34

Instrument Cluster Instrument Cluster View LCD Instrument Cluster 1 Direction 2 Time 3 Speedometer 4 Gear status 5 Energy regeneration indicator REMINDER ●After OTA upgrade, the combination instrument will enter the simple mode, which is a normal phenomenon. Restart 6 Outside temperature 7 Total mileage 8 Power meter 9 Remaining driving range 10 State of charge (SOC) REMINDER the infotainment touchscreen to restore the display.

Indicators and Warning Lights

Halaman 35

Instrument Cluster Indicators Indicators and Warning Lights Turn signal indicator All-weather sensor indicator AVH indicator LSS indicator Exterior light switch indicator AEB indicator* BSD indicator High beam indicator ACC standby indicator* Sport mode indicator light Comfort mode indicator ACC fault indicator Position light indicator 02 Low beam INSTRUMENT CLUSTER Comfort mode indicator Hill descent control indicator Discharge indicator HMA indicator ICC indicator* ACC status indicator Economic mode indicator Snow mode indicator AVH standby indicator Function Safety indicator

Indicators and Warning Lights

Halaman 36

* **<img src="https://i.imgur.com/x0q4QfT.png" alt="Rear fog light indicator icon" width="20"/> Rear fog light indicator** * **<img src="https://i.imgur.com/vHq0L5O.png" alt="Headlight fault warning light icon" width="20"/> Headlight fault warning light** * **<img src="https://i.imgur.com/r6O0G8H.png" alt="Driver monitoring assistance system fault warning light icon" width="20"/> Driver monitoring assistance system fault warning light*** * **<img src="https://i.imgur.com/uR797dC.png" alt="Main alarm indicator icon" width="20"/> Main alarm indicator** * **<img src="https://i.imgur.com/dK3f3wJ.png" alt="Tire pressure fault warning light icon" width="20"/> Tire pressure fault warning light** * **<img src="https://i.imgur.com/2pD0Cnm.png" alt="ESC fault warning light icon" width="20"/> ESC fault warning light** * **<img src="https://i.imgur.com/e58nI3m.png" alt="Smart key warning light icon" width="20"/> Smart key warning light** * **<img src="https://i.imgur.com/0i1c51r.png" alt="TSR indicator icon" width="20"/> TSR indicator** * **<img src="https://i.imgur.com/4gQzP0i.png" alt="AEB fault light icon" width="20"/> AEB fault light** * **<img src="https://i.imgur.com/c4T4U82.png" alt="Seat belt reminder indicator icon" width="20"/> Seat belt reminder indicator** * **<img src="https://i.imgur.com/d8uS1u5.png" alt="Coolant overheating warning light icon" width="20"/> Coolant overheating warning light** * **<img src="https://i.imgur.com/v8tT9o9.png" alt="Powertrain fault warning light icon" width="20"/> Powertrain fault warning light** * **<img src="https://i.imgur.com/W2O2J4x.png" alt="Airbag fault warning light icon" width="20"/> Airbag fault warning light** * **<img src="https://i.imgur.com/s6r7c1v.png" alt="LSS fault warning light icon" width="20"/> LSS fault warning light** * **<img src="https://i.imgur.com/Gj3Hj54.png" alt="Blind spot detection (BSD) indicator icon" width="20"/> Blind spot detection (BSD) indicator** * **<img src="https://i.imgur.com/V2zXf2g.png" alt="Driving power limit warning light icon" width="20"/> Driving power limit warning light** * **<img src="https://i.imgur.com/k61p6yG.png" alt="ABS fault warning light icon" width="20"/> ABS fault warning light** * **<img src="https://i.imgur.com/R3xPzWv.png" alt="ESC OFF warning light icon" width="20"/> ESC OFF warning light** * **<img src="https://i.imgur.com/1O6mKkP.png" alt="AVAS OFF indicator icon" width="20"/> AVAS OFF indicator** * **<img src="https://i.imgur.com/K3Z6S74.png" alt="EPB indicator icon" width="20"/> EPB indicator** * **<img src="https://i.imgur.com/z4D7t7h.png" alt="TSR indicator (speed limit) icon" width="20"/> TSR indicator (speed limit)** * **<img src="https://i.imgur.com/1K4s9tL.png" alt="Low-voltage power system fault warning light icon" width="20"/> Low-voltage power system fault warning light** * **<img src="https://i.imgur.com/E8A2f1N.png" alt="High-voltage battery overheating warning light icon" width="20"/> High-voltage battery overheating warning light** * **<img src="https://i.imgur.com/X4yD89T.png" alt="Charging connection indicator icon" width="20"/> Charging connection indicator** * **<img src="https://i.imgur.com/j5T0Htd.png" alt="High-voltage battery fault warning light icon" width="20"/> High-voltage battery fault warning light** * **<img src="https://i.imgur.com/Pq9l31g.png" alt="Motor fault warning light icon" width="20"/> Motor fault warning light** 36

Indicators/Warning Lights Description

Halaman 37

Motor overheating warning light Steering system fault warning light Warning Lights/Indicators Description Smart key warning light ●If the key is not in the vehicle when the START/STOP button is pressed, the warning light will light up for a few seconds, a beep will be heard, and a "Key not detected" message will be displayed. ●If you carry the electronic smart key and press the START/STOP button, this warning light will not light up and the vehicle can be powered on. ●This warning light will disappear if the key is taken into the vehicle within a few seconds after the light turns on. ●If the warning light flashes after you press the START/STOP button, it indicates low battery of the key. Antilock Braking System (ABS) fault warning light ●This warning light comes on when the ignition is on. If the anti-lock braking system (ABS) is working properly, the light goes out in a few seconds. Thereafter, if the system fails, the light lights up again until the fault is cleared. ●When the ABS fault warning light is on (with the parking system fault warning light off), the braking system continues to operate whereas the ABS does not. ●When the ABS fault warning light is on (with the parking system fault Parking system fault warning light Door status indicator warning light off), since the ABS system does not operate, the wheels will be locked in case of emergency braking or braking on a slippery road. 02 INSTRUMENT CLUSTER ●If any of the following cases occurs, it means there is a fault in components monitored by the warning light system. In that case, contact a DENZA authorized dealer or service provider for vehicle inspection as soon as possible. ●This warning light does not come on or is steady on when the ignition is on. ●This warning light turns on during driving. REMINDER ●A warning light that lights up briefly during operation does not indicate a problem. ●If the ABS fault warning light is still on while the braking system warning light is on, immediately park the vehicle in a safe place. It is recommended to contact a DENZA authorized dealer or service provider. ●In this case, if brakes are applied, the ABS will not work and the vehicle will become extremely unstable. ●The ABS has a self-check function. Any detected fault will cause the ABS indicator to light up on the instrument cluster. This means the ABS fails,

Indicators/Warning Lights Description

Halaman 38

but the brake can still function as that of an ordinary non-ABS vehicle. It is recommended to contact a professional from a DENZA authorized dealer or service provider for vehicle inspection as soon as possible. ●If both ABS indicator and the braking system indicator are on and the electronic parking brake (EPB) is fully released, the braking force distribution system of front and rear wheels has also failed. ●If the brake pedal feels abnormal, take measures immediately. The braking system is dual-circuited, so partial failure cannot prevent the other two wheels from braking. In such a situation, you need to press the brake pedal further to slow the vehicle, and braking distance is longer. Decelerate the vehicle and safely move it to the roadside. A longer braking distance can present serious driving hazards, so the vehicle must be towed away for immediate repair. ●If you must drive under such conditions, proceed at low speed with extreme caution. Tire pressure fault warning light ●This warning light comes on when the ignition is on. It turns off in a few seconds if the tire pressure monitoring system is working properly. If the system fails, this warning light turns on again. ●When the tire pressure fault warning light comes on or flashes, the message "Please check TPMS" is displayed on the instrument cluster, and the tire pressure is displayed as "---", it indicates that the tire pressure system is faulty. ●When the tire pressure value displays "No Signal", it indicates that the tire pressure signal at the location of the vehicle may be disturbed or the tire pressure monitoring module is damaged. ●When the tire pressure fault warning light flashes rapidly, and one or more values turn red on the tire pressure screen on the instrument cluster, the corresponding tire is leaking rapidly. ●When the tire pressure fault warning light is solid on and one or more values turn yellow on the tire pressure screen on the instrument cluster, the corresponding tire is in under-pressure condition. When the temperature value of one or more tires turns yellow, it indicates that the tire temperature is too high. In the event of any of the situations above, it is recommended to contact a DENZA authorized dealer or service provider for inspection as soon as possible. ESC fault warning light ●This warning light comes on when the ignition is on. If Electronic Stability Controller (ESC) functions properly, the light goes out in a few seconds. If the system fails, this warning light turns on again until the system fault is cleared. ●If the ESC warning light flashes temporarily while the vehicle is in motion, it indicates the ESC system is working. ●When the ESC warning light turns on (with the ABS fault warning light and the parking system fault warning light off), the ESC fails, but the ABS and the braking system continue to operate normally. ●When the ESC warning light turns on (with the ABS fault warning light and

Indicators/Warning Lights Description

Halaman 39

the parking system fault warning light off), the ESC system does not work. This means the vehicle is extremely unstable at sharp turns or when the driver steers away from obstacles ahead. ●If any of the following cases occurs, it means there is a fault in components monitored by the warning light system. In that case, contact a DENZA authorized dealer or service provider for vehicle inspection as soon as possible. ●This warning light remains off (self- check not performed) after the vehicle is powered on. ●This warning light is steady on while driving. REMINDER ●A warning light that lights up briefly during operation does not indicate a problem. ●If the ESC warning light remains on while the warning lights for the ABS and the braking system are on, immediately stop the vehicle in a safe place and contact a DENZA authorized dealer or service provider. This is because braking at this time can render the vehicle extremely unstable, and the anti-lock braking system does not work at all. ESC OFF warning light ●With the ignition on, this warning light turns on for a few seconds and then disappears. ●When the ESC OFF switch is pressed, this warning light should remain steady on and the ESC system will not operate. When the ESC OFF switch is pressed again, this warning light should turn off and the ESC system resumes its normal operation. CAUTION ●While the ESC OFF warning light is on, the driver must stay alert and keep driving at a lower speed when making a sharp turn and when avoiding an obstacle which appears suddenly, because ESC system is malfunctioned at this time and braking will cause instability. 02 INSTRUMENT CLUSTER Driving power limit warning light When the power of the vehicle is limited, this indicator will come on. In this case, contact a DENZA authorized dealer or service provider in time. Headlight fault warning light ●A yellow warning light means one failed headlight, while a red warning light means both have failed. ●When this indicator is on, it is recommended to bring the vehicle to a DENZA authorized dealer or service provider for inspection. Main alarm indicator If this indicator goes on, check the fault prompt on the instrument cluster. ACC fault indicator When this indicator is steady on, it is recommended to bring the vehicle to a DENZA authorized dealer or service provider for inspection.

Indicators/Warning Lights Description

Halaman 40

Seat belt reminder indicator This warning light reminds the driver and the front passenger to fasten their seat belts. With the ignition on, if either you or the front passenger doesn't fasten a seat belt, the corresponding seat belt indicator will light up. It remains on until the seat belt is fastened. Airbag fault warning light ●With the ignition switched on, this warning light turns on and then goes off in a few seconds if the airbag system is working properly. This warning light is used to monitor the airbag ECU, collision sensors, inflation device, warning lights, connections, and power supply. ●If any of the following cases occurs, it means there is a fault in components monitored by the warning light system. In that case, contact a DENZA authorized dealer or service provider for vehicle inspection as soon as possible. ●When the ignition is switched on, this warning light remains off or is solid on after the ignition is switched on. ●This warning light turns on during driving. Parking system fault warning light If any of the following conditions occurs, immediately park the vehicle in a safe place. It is recommended to contact a DENZA authorized dealer or service provider. This warning light lights up in the following conditions: ●This warning light comes on when the ignition is switched on and the brake fluid level is low. REMINDER ●When the brake fluid level is low, park the vehicle because it is dangerous to continue driving. ●This warning light is solid on although after starting the vehicle, the brake fluid level and EPB system operation are normal (the EPB is engaged and released normally, and the message "Please check the EPB" is not displayed). ●The parking system fault warning light stays on with the ABS fault warning light. In this case, the braking system or the EPB may not work normally, lengthening the braking distance. Therefore, during braking, the ABS does not function, and the vehicle is unstable. Proceed with caution. REMINDER If any of the following conditions occurs, immediately park the vehicle in a safe place. It is recommended to contact a DENZA authorized dealer or service provider. ●When the drive motor is running, this light stays on even if the EPB is released. The brake may malfunction, resulting in extended stopping distances. Firmly press the brake pedal to initiate an emergency stop. ●The brake system warning light stays on with the ABS fault warning light. In this case, if brakes are applied, the ABS will not work and the vehicle will become extremely unstable.

Indicators/Warning Lights Description

Halaman 41

Steering system fault warning light ●When the steering system is faulty, this warning light is steady on. It is recommended to bring the vehicle to a DENZA authorized dealer or service provider for inspection. REMINDER ●The steering system features an electric motor to reduce the force required to turn the steering wheel. ●When turning the steering wheel, a hum may be heard from the running motor. This does not indicate that the motor is faulty. ●Do not turn the steering wheel to its limit position for more than five seconds, otherwise the temperature protection will be activated and the steering system will be damaged or steering will become heavy. ●If you have turned the steering wheel frequently with the vehicle staying put for a long time, the steering wheel may become difficult to turn even if the warning light does not turn on. This is not a fault. ●To prevent steering system overheating, the power assist effect will be reduced if the steering wheel has been frequently turned with the vehicle staying put for a long time. As a result, the steering wheel become difficult to turn. In this case, reduce steering frequency or power off the vehicle. The system will recover within 10 minutes. ●In cases where the low-voltage battery has low SOC. ●When the low-voltage battery voltage drops below the EPS working threshold of 9V, EPS will stop providing steering power. The low- voltage battery should therefore be inspected and charged or swapped if necessary. ●A dead motor may prevent the EPS system from working, so never turn off the motor during driving. If the motor dies while driving, hold on to the steering wheel, pull over immediately, and contact a DENZA authorized dealer or service provider. 02 INSTRUMENT CLUSTER REMINDER ●If the steering system fault warning light goes on, immediately park the vehicle safely, and contact a DENZA authorized dealer or service provider. Low-voltage power system fault warning light ●It lights up when the DC system or low- voltage battery fails. ●Charging and discharging stop when this warning light turns on. ●When this warning light lights up and remain steady on while driving, the vehicle speed will be limited. ●This light is used to warn about the operating state of the DC module and the low-voltage battery module when the vehicle is not being charged or discharging. ●If this warning light turns on while the vehicle is in motion, it indicates that there is a problem with the DC system or the low-voltage power system. Powertrain fault warning light

Indicators/Warning Lights Description

Halaman 42

●If the powertrain fails, this warning light turns on. ●If any of the following cases occurs, it means there is a fault in components monitored by the warning light system. In that case, contact a DENZA authorized dealer or service provider for vehicle inspection as soon as possible. ●This warning light is steady on when the ignition is switched on. ●This warning light turns on during driving. CAUTION ●Try not to drive the vehicle when the warning light is on. Contact a DENZA authorized dealer or service provider to check the problem as soon as possible. High-voltage battery overheating warning light ●If this warning light is on, it indicates that the high-voltage battery temperature is too high and the vehicle must be stopped to cool down. When the warning light flashes, it is recommended to immediately stop the vehicle safely and leave the vehicle as soon as possible. ●The high-voltage battery may overheat under the following operating conditions: ●Driving up a slope for a long time in hot weather ●Long period of stop-and-go traffic condition, frequent rapid acceleration, frequent hard braking, or vehicle running for a long time without pause. High-voltage battery fault warning light ●This warning light comes on when the ignition is switched on. If the high-voltage battery system is working properly, this warning light will turn off in a few seconds. Thereafter, if the system fails, this light will light up again. It is recommended to contact a DENZA authorized dealer or service provider for vehicle inspection as soon as possible. ●If any of the following cases occurs, it means there is a fault in components monitored by the warning light system. In that case, contact a DENZA authorized dealer or service provider for vehicle inspection as soon as possible. ●This warning light is steady on when the ignition is on. ●This warning light is steady on or occasionally turns on while driving. Motor coolant overheating warning light When this indicator is steady on, it indicates that the coolant temperature is too high. In that case, stop to cool down the vehicle. When the indicator flashes, it indicates the coolant level is low. Add coolant promptly. AEB warning light (red)* When this indicator is on or flashes, pay attention to the distance from the vehicle ahead, and do not get too close to it to prevent potential collision. TSR indicator*

Other Instrument Cluster Fault Prompts

Halaman 43

When this indicator lights up, it means that the vehicle system has recognized the speed limit value on current road section. Other Instrument Cluster Fault Prompts The instrument cluster may display the following fault prompts. Handle them as recommended. Symbol Fault Prompt Response Please check the OBC system Stop using remote driving for your safety. Stop using remote driving when it is abnormal. Please check the data network of the vehicle. Please check the memory system* EV power limited The EV function is limited. In this case, contact a DENZA authorized dealer or service provider immediately for a check. Please check the headlight The headlight is faulty. In this case, contact a DENZA authorized dealer or service provider. Please check the PCW system* The AEB function is limited* The AEB system is faulty. In this case, park the vehicle and contact a DENZA authorized dealer or service provider. Please check the BSD system* The BSD system for lane change is faulty. In this case, park the vehicle and contact a DENZA authorized dealer or service provider. The BSD function is limited* The BSD function is limited. In this case, park the vehicle, and contact a DENZA authorized dealer or service provider. The on-board charging system is faulty. In this case, check the charging connection, and reconnect the charging equipment. If the fault persists, contact a DENZA authorized dealer or service provider. 02 INSTRUMENT CLUSTER The vehicle may be disconnected from the data network. In this case, park the vehicle immediately, and contact a DENZA authorized dealer or service provider. The memory system is faulty. In this case, contact a DENZA authorized dealer or service provider. The PCW system is faulty. In this case, park the vehicle and contact a DENZA authorized dealer or service provider.

Other Instrument Cluster Fault Prompts

Halaman 44

Symbol Fault Prompt Response Please check the gear The shifter controller is faulty. In this case, park the vehicle immediately, and contact a DENZA authorized dealer or service provider. The multi-purpose camera is faulty. In this case, park the vehicle, and contact a DENZA authorized dealer or service provider. Please check the multi- purpose camera* The function of the multi-purpose camera is limited. In this case, park the vehicle, and contact a DENZA authorized dealer or service provider. The function of the multi- purpose camera is limited* Intelligent-camera is not available due to poor condition* The intelligent camera is unavailable. In this case, park the vehicle, and contact a DENZA authorized dealer or service provider. Please check the LDWS* The LDW system is faulty. In this case, park the vehicle and contact a DENZA authorized dealer or service provider. Please check the LKS* The lane keeping system (LKS) is faulty. In this case, park the vehicle, and contact a DENZA authorized dealer or service provider. The LKS function is limited.* The LKS function is limited. In this case, park the vehicle, and contact a DENZA authorized dealer or service provider. Please check HDC system The HDC system is faulty. In this case, contact a DENZA authorized dealer or service provider. This indicates the active suspension is not calibrated, which may affect your driving experience. Please contact a DENZA authorized dealer or service provider. IMU not calibrated*

Controller Operation

Halaman 45

03 CONTROLLER OPERATION Doors and Keys.................................46 Seats..................................................60 Steering Wheel..................................67 Switches............................................70

Electronic Smart Key

Halaman 46

Doors and Keys Keys The vehicle is equipped with keys, including electronic smart key, mechanical key (installed in the electronic smart key) and NFC key*. Electronic Smart Key Press the microswitch on the front door handle, while carrying the correct smart key, to unlock or lock all doors. When the vehicle is locked, press the microswitch on the rear door handle, while carrying the correct smart key, to unlock the vehicle and open the corresponding power sliding door. Press smart key buttons to lock/unlock doors, open/close the trunk, start/stop the vehicle remotely, or open/close the sliding doors. ① Indicator ② Lock button ③ Unlock button ④ Trunk open/close button ⑤ Start/Stop button ⑥ Right sliding door open/close button ⑦ Left sliding door open/close button WARNING ●The button (coin) battery in the smart key is hazardous and both new and used batteries are to be kept away from children at all times. ●If swallowed or placed inside any part of the body, a lithium button battery can cause severe or fatal injuries in two hours or less. ●Medical attention should be sought immediately if it is suspected the button battery has been swallowed or placed inside any part of the body. CAUTION ●The smart key is an electronic component. Observe the following instructions to prevent damage to the key: ●Do not expose the smart key to high temperatures, such as on the dashboard. ●Do not disassemble the smart key without authorization. ●Do not let the smart key hit other objects or fall down. ●Do not immerse the key in water or clean it in the ultrasonic scrubber. ●Do not place smart keys with devices that emit electromagnetic waves, such as the mobile phone. ●Do not attach to the smart key any objects (such as a metal seal) capable of cutting off electromagnetic wave signals. ●You can register a spare key for the same vehicle. For details,

Mechanical Key

Halaman 47

CAUTION contact a DENZA authorized dealer or service provider. ●If the electronic smart key cannot operate the door within the normal distance, or the key indicator light is dim or off: ●Check for nearby radio stations or airport radio transmitters that interfere with the normal operation of electronic smart keys. ●The smart key battery may be exhausted. Check the battery inside the electronic smart key. It is recommended to contact a DENZA authorized dealer or service provider for battery change. ●If you lose your smart key, it is recommended to contact a DENZA authorized dealer or service provider as soon as possible to reduce the risk of vehicle theft or accidents. ●Do not change the transmission frequency arbitrarily, increase the transmission power (including additional transmission frequency amplifier), or arbitrarily connect the external detection antenna or switch other transmitting detection antennas. ●Do not generate harmful interference to legal radio communication services when using the smart key. Once any interference is found, stop using the smart key immediately, and take measures to eliminate the interference before continuing to use it. ●The use of micropower radio equipment must be free from CAUTION interference of all radio services or from radiation of devices for industrial, scientific and medical applications. ●Do not use it near aircraft or airports. ●People implanted with pacemakers or defibrillators should stay away from the detection antennas of intelligent entry and start systems, as electromagnetic waves can affect the normal use of such devices. 03 CONTROLLER OPERATION ●In addition to people implanted with pacemakers or defibrillators, those who use other electronic medical devices should also consult the manufacturer on the use of such devices under the influence of electromagnetic waves. Electromagnetic waves may bring unknown consequences to the use of such medical devices. ●When leaving the vehicle, always carry your key and lock the vehicle. Never leave anyone (especially children) alone in the vehicle. Mechanical Key Use the mechanical key (inside the smart key) to lock or unlock the driver's door. When the key is not used, be sure to insert the mechanical key back into the smart key and close its back cover. Taking out the mechanical key Select a suitable tool and insert it into the square groove at the end of the smart key in the direction of arrow ①. Open the back cover of the key with upward force

NFC Key

Halaman 48

and take out the mechanical key from the back cover. ●Insert the mechanical key back into the smart key when it is not in use. REMINDER ●The number of the mechanical key is marked on the number plate. Please keep this plate properly. Do not place it in the vehicle. ●It is recommended to record the key number and keep the plate in a safe place. NFC Key ●Near Field Communication (NFC) key -- The vehicle supports NFC key card and NFC digital key* (only iPhone supports the digital key). ●Place the NFC key at the mark on the driver’s side mirror to unlock/lock all the doors. ●Place the NFC key on the NFC area under the auxiliary dashboard to authorize the vehicle start. CAUTION ●Some smartphone and wearable device models do not support NFC digital keys. CAUTION ●NFC key card is an electronic product. The following instructions must be observed to prevent function failure of or damage to the card: ●Do not place the NFC card in the charging area when the wireless charger is on (SeeP173). ●Do not attach any objects (such as a metal seal, and metal phone back shell) which cut off electromagnetic wave signals when using the card. ●Do not place the NFC card in a position exposed to high temperature, such as on the dashboard. ●Do not bend the card with force. ●Do not place the card with other hard objects. ●NFC key cards use near- field communication technology, requiring a detection distance of less than 2 cm. Hold your NFC card close to the side mirror for 1-2 seconds. ●It is recommended to carry the NFC card at all times to avoid situations where you may be unable to use the vehicle due to loss or malfunction of your phone or smart key. ●The NFC smart card is a key configured for the vehicle based on the near field communication method. In order to ensure vehicle safety, handle it with care. If it is lost, go to a DENZA authorized dealer or service provider for blocking of the lost card and re- configuration is recommended.

Locking/Unlocking with Smart Key

Halaman 49

Locking/Unlocking Doors Locking/Unlocking with Mechanical Key Pull the driver's door handle, insert the mechanical key into the grooves respectively as shown, and pry the snap upward with a little force to open the lock hole cover. Release the handle, insert the key into the key hole on the driver's door handle, turn and remove the key, and pull the door handle to open the door. ●Unlock the driver's door: Turn the key clockwise. ●Lock the driver's door: Turn the key counterclockwise. CAUTION ●After removing the mechanical key, pull the driver's door handle to open the door. Opening with Interior Door Handle ●When the vehicle is unlocked, pull the handle once to open the door from inside the vehicle. ●When the vehicle is locked, pull the handle twice to open the door from inside the vehicle. 03 CONTROLLER OPERATION WARNING ●Do not allow children to play with the door handle, so as to avoid the door opening while driving. ●If there are children in the vehicle, make sure to enable the child protection lock function. CAUTION ●As this vehicle is equipped with a child protection lock, the rear doors can only be opened with the interior door handle when the child protection lock is disabled. Locking/Unlocking with Smart Key ●The wireless remote control is used to unlock or lock all doors at a close distance, and complete additional functions. ●When you enter the active area while carrying a registered smart key, press the button on the smart key slowly and firmly to lock or unlock all doors.

Locking/Unlocking with Microswitch

Halaman 50

Locking: ●When all the doors and the hood are closed, press the lock button to lock all the doors. If the vehicle is powered off, the side mirrors will fold (Auto- Fold is enabled on the infotainment touchscreen → Vehicle Settings → Comfortable Use → Side Mirror Auto Fold) with turn signals flashing once. If the ignition has not been switched off, the side mirrors will not fold, the turn signals will not flash, and the alarm will sound once. Check whether all doors are securely locked. ●If a door, the hood or the trunk is not closed, the turn signals will not flash, and the horn will sound once. Unlocking: ●Press the unlock button to unlock all the doors at the same time. The turn signals flash twice. ●When you unlock all doors with the smart key, even if no door is opened, the interior lights (the DOOR function can be activated for the front interior lights) will stay on for 15 seconds and then go out. ●If the anti-theft alarm system is armed, open any door within 30 seconds after unlocking with the smart key. Otherwise, all the doors will lock automatically. ●If the key is in the vehicle when the doors are closed and locked, the vehicle will unlock automatically and the turn signals will flash twice. Finding the Vehicle with Smart Key ●When the vehicle is in anti-theft mode, press the lock button. The vehicle sounds a long beep and turn signals flash 15 times. Use this function to locate the vehicle when it cannot be found. ●When the vehicle is in car search mode, press the lock button again. The vehicle enters the next car search mode. Raising/Lowering Windows with Smart Key ●When the ignition is switched off: ●Press and hold the lock button on the smart key to raise the four windows. ●Press and hold the unlock button on the smart key to lower the four windows. ●To enable or disable key unlock/ lock/closing window functions, go to infotainment touchscreen → Vehicle → Locks. (Configurations of the actual vehicle prevail.) WARNING ●When using the remote control function to raise windows, pay attention to the safety of occupants in the vehicle, and use this function only after making sure the windows are clear from pinching anyone. Locking/Unlocking with Microswitch Locking

Locking/Unlocking the Trunk

Halaman 51

●With the doors closed but not locked, press the microswitch on the front door handle while carrying the smart key. All the doors are locked. If the vehicle is powered off, the side mirrors will fold (Go to infotainment touchscreen → Vehicle → Comfortable Use → Side Mirror Auto Fold) with turn signals flashing once. If the ignition has not been switched off, the side mirrors will not fold, the turn signals will not flash, and the alarm will sound once. ●If a door, the hood or the trunk lid is not closed, pressing the microswitch will still lock the closed doors, but the horn will only sound once, and the turn signals will not flash. Unlocking ●When doors are locked, press the microswitch ① on the front door handle while carrying the smart key into the activated area. All doors unlock and turn signals flash twice. ●When doors are locked, press the microswitch ② on the sliding door handle while carrying the valid smart key. All doors unlock, the sliding door on the corresponding side opens completely, and turn signals flash twice. ●If the anti-theft alarm system is armed, open a door within 30 seconds after the unlocking, or all doors will relock automatically. ●Pressing the microswitch does not work if: ●This is performed while a door is being opened or closed. ●The smart key is left in the vehicle. REMINDER ●If the smart key is too close to an exterior door handle or window, it may not be possible to activate the entry function. 03 Raising/Lowering Windows with Microswitch CONTROLLER OPERATION ●When the ignition is switched off, press and hold the microswitch while carrying the smart key to roll up or down all windows. (To enable or disable this function, go to the infotainment touchscreen → Vehicle → Locks.) Locking/Unlocking the Trunk Opening/Closing trunk with smart key Double-click the trunk opening button on the smart key, and the turn signals will flash twice. Press this button again to stop opening. Then double press it to close the trunk.

Locking/Unlocking the Trunk

Halaman 52

REMINDER ●If the trunk release button is pressed again while the lid is in motion, it will stop at its current position. Opening/Closing the trunk from inside the vehicle* ●When the trunk lid is closed, press the switch ①, and there are three situations: 1. Unlock the vehicle, and the lid will automatically unlock and open to the set height (maximum height by default). 2. With vehicle locked and powered off, no operation is made on the trunk lid. 3. When the vehicle is locked and powered on, a reminder is displayed on the infotainment touchscreen if no operation is made on the trunk lid. You can confirm whether to open the trunk on the screen. ●While the trunk lid is opening, pull this switch① again to freeze it in place. ●When the trunk is open, press the switch ②, the lid closes automatically. ●While the trunk lid is closing, press this switch ② again to freeze it in place. REMINDER ●If the vehicle speed is greater than 0.5 km/h, pressing ① button is useless. Opening the trunk with exterior switch ●With the vehicle unlocked, press the exterior trunk switch to open the trunk. ●With the vehicle locked, unlock the vehicle with the smart key and press the exterior switch to open the trunk. REMINDER ●If the switch is pressed again while the lid is in motion, it will stop at its current position. Closing the trunk automatically* ●When the trunk lid is open and stationary, press this button to close the lid. ●Press thsi button again to stop the lid at the current position. Press this button again to have the lid move in the opposite direction.

Emergency Trunk Release

Halaman 53

Vehicle lock button* When the ignition is off and the trunk is open, pressing the lock switch while carrying a valid smart key closes the trunk, locks the entire vehicle, and arms the anti-theft alarm system. Closing the trunk manually* When the vehicle is unlocked, the trunk can be closed manually. CAUTION ●Before closing the trunk electronically, make sure doors, windows and sunroof are properly closed. Emergency Trunk Release There is an emergency unlocking cover just above the trunk lock. Open the cover and pull the emergency unlocking rope or lever to open the trunk in an emergency. REMINDER ●When the vehicle is powered off, the trunk can be unlocked from the inside in case of emergency. Setting trunk opening height* ●Open the trunk manually or automatically to the desired position, keep it at this position, and then press and hold the interior trunk button for over three seconds. The speaker sounds for one second, indicating that the opening height is successfully set to the current position. 03 CONTROLLER OPERATION ●Set the trunk opening height by going to the infotainment touchscreen → Vehicle → Locks. Anti-pinch function The trunk will open or stop moving if it contacts any obstacle while closing or opening. When the trunk fails to act automatically Manually and completely close the trunk for recovery. When reconnecting the low-voltage battery Manually close the trunk to ensure the power trunk lid functions normally. WARNING ●In order to prevent serious injury, make sure to observe the following precautions: ●Never try to deliberately activate the anti-pinch function. ●Make sure to alert people nearby of the lid motion.

Emergency Vehicle Locking with Mechanical Key

Halaman 54

WARNING ●Make sure hands and fingers are clear from the lid area when it is closing. ●Make sure the surrounding area is safe when opening or closing the trunk. ●Make sure the trunk is properly closed when the vehicle is in motion. ●Make sure to remove any ice or snow from the area before opening the boot, otherwise the lid may close again. ●Do not manually interfere in lid motion when it is opening or closing. ●Be mindful of windy conditions when opening or closing the trunk. ●The anti-pinch function may fail to work if an object is caught right before the trunk is fully closed. ●The lid may start closing before fully opening. Opening or closing the trunk on slopes is more difficult than on level ground. Be mindful of the possibility of the lid to move on its own in such conditions. Before loading or unloading the trunk, make sure the lid is fully open and secure. ●The anti-pinch function may fail depending on the object shape. Be especially careful about hand and fingers. Locking/Unlocking with Central Locking Locking or unlocking the vehicle with the central locking See P76. Locking or unlocking doors automatically ●All doors automatically lock at vehicle speeds above 8 km/h. ●Press the START/STOP button to switch the ignition off. Then, all doors are unlocked automatically. Locking/unlocking all doors concurrently ●With the anti-theft alarm system disarmed, the backlight of the central lock button turns on if the vehicle is locked and off if the vehicle is unlocked. ●Pressing the central lock button locks all doors so that any attempt to open any door from the outside fails. At this time, pull the interior handle to unlock a door and pull a second time to open it. REMINDER ●All doors unlock automatically when the vehicle suffers a strong impact, depending on the impact intensity and accident type. Emergency Vehicle Locking with Mechanical Key When the central locking system or the smart key fails, use the mechanical key for emergency locking or unlocking. Locking 1. Remove the mechanical key from the smart key.

Opening/Closing the Sliding Door from Outside

Halaman 55

2. Open all doors other than the driver's door and move down the slider with the mechanical key as shown. You can then lock the doors by closing the them. 3. After locking the three doors, open the driver's door. 4. Insert the mechanical key into the keyhole, turn it counterclockwise as far as it can go, return it to the initial position and pull it out. (See P49 in this Chapter). 5. Release the handle and close the driver's door. 6. Check whether all doors are securely locked. Unlocking 1. Remove the mechanical key from the smart key. 2. Insert the mechanical key into the keyhole, turn it clockwise as far as it can go, return it to the initial position and pull it out. 3. Release the door handle and pull it again to open the driver's door. 4. Pull the interior handle twice to unlock the other three doors. Power Sliding Doors Opening/Closing the Sliding Door from Outside The vehicle is unlocked with the anti-theft alarm system disarmed: ●Press the microswitch on the power sliding door to open/close it. ●Pull the door handle to open/close the power sliding door. 03 CONTROLLER OPERATION Opening/Closing the sliding door with smart key ●When the sliding doors are closed, double-press the sliding door opening/ closing button on the smart key, and the door on the corresponding side opens. ●When the sliding doors are open, double-press the sliding door opening/ closing button on the smart key, and the door on the corresponding side closes. REMINDER ●When the sliding doors stop, double-press the sliding door button on the key, and the doors move in the opposite direction. When the doors are moving, press the button to stop them. ●When the sliding doors are locked, press the microswitch

Opening/Closing the Sliding Door from Inside

Halaman 56

REMINDER when carrying the smart key to unlock all doors and open the sliding doors. ●When the sliding doors are unlocked, press the microswitch without the smart key to open the sliding doors. ●When the sliding doors are moving, pressing the microswitch stops the doors. Press it again or pull the handle, the doors move in the opposite direction. ●The sliding doors cannot open completely when part of the window (>20%) has been rolled down. Opening/Closing the Sliding Door from Inside Opening/Closing the power sliding door The sliding door power switch buttons are on the auxiliary dashboard. The left button controls the opening/closing of the left sliding door; the right button controls the opening/closing of the right sliding door. The vehicle is unlocked with the anti-theft alarm system disarmed: ●Press the sliding door switch ② on the gearshift panel, and the door opens automatically with intermittent beeps. Press ① or ② to stop the sliding door. Similarly, press the corresponding switch again to open or close the sliding door. ●Press the sliding door switch ① on the gearshift panel, and the door closes automatically with intermittent beeps. Press ① or ② to stop the sliding door. Similarly, press the corresponding switch again to continue opening or closing. CAUTION ●When the sliding door is opening/ closing automatically, the motor may stop running in case of strong signal interference. After leaving the interference environment, use the door handle to close the sliding door, and the vehicle resumes the automatic operations after locating the door. Interior door handle ●Operate the door handle in the direction of ① to open the power sliding door. ●Operate the door handle in the direction of ② to close the power sliding door. ●When the sliding doors are moving, operate the door handle to stop the door.

Dynamic Protection of the Power Sliding Door

Halaman 57

Sliding door locking block ●Move the sliding block on the inside of the side door like ①, and the sliding door will be locked. At this time, the gray part of the block faces outward, and the door cannot be opened with the interior door handle and the button on the infotainment touchscreen. ●Move the sliding block on the inside of the side door like ②, and the sliding door will be unlocked. At this time, the red part of the block faces outward, and the door can be opened with the power switch, the interior door handle, and the button on the infotainment touchscreen. Anti-pinch function ●During closing, if the sliding door detects an obstacle which interferes with the closing, the anti-pinch function will be triggered with speaker alarms, and the sliding door will stop and move backward by 10 cm. ●During opening, if the sliding door detects an obstacle which interferes with the opening, the anti-pinch function will be triggered with speaker alarms, and the sliding door will close slightly and then stop. Dynamic protection of the sliding door ●When the vehicle speed is above 3 km/h, the sliding door cannot continue to open, but can only close, and the speaker gives a short alarm. 03 ●When the vehicle speed is above 3 km/h and the sliding door is not completely closed, the speaker continuously gives alarms to remind you to close the door. CONTROLLER OPERATION REMINDER ●When the charge port door/fuel filler cap is opened, the sliding door of the corresponding side fails to move automatically and can be opened/closed manually. When opening the sliding door manually, the mechanical block will prevent the door from being completely opened to avoid interference with the charge port/fuel filler cap. When the charge port door/fuel filler cap is closed, the sliding door of the corresponding side resumes its automatic operation. ●When the sliding door is locked, its automatic opening and closing function will be disabled. ●When function is disabled, the corresponding power-assisted attraction function will be retained. When the sliding door is half closed, the power attraction function is still triggered to ensure the complete closing of the sliding door.

Active Area

Halaman 58

REMINDER ●Do not switch the power sliding door on/off on the ramp to prevent accidents caused by the sudden loss of power of the sliding door. If it happens, to avoid the danger caused by sudden movement of the sliding door, the speed protection mode will be activated until the door is fully opened/closed. ●If you want to open the sliding door, it can only be closed and locked with attraction with the vehicle locked. ●When the sliding door is opened/ closed, or the anti-pinch function is enabled, the speaker gives alarms. Smart Access and Start System Use the smart key to unlock or lock the vehicle doors and start the vehicle. Access Use the smart key to unlock or lock the vehicle doors. (see P49 in this chapter.) Start-up With the smart key inside, press the brake pedal and the START/STOP button to start the vehicle (see P110 for details). Antenna Positions ① Interior antenna ② Exterior antenna Active Area The smart access and start functions take effect only when the registered smart key is within the active area. ① Active area of the access function: about one meter from the front door handle and the exterior trunk switch. ② Active area of the start function: inside the cabin. If another smart key is near this vehicle's smart key, unlocking may take longer than usual, which is normal. REMINDER In the following situation, smart access and start system may not work normally: ●There is a strong electromagnetic field nearby, such as TV towers, power stations, and broadcasting stations.

Child Protection Lock

Halaman 59

REMINDER ●The smart key is being carried along with a communication device, such as a two-way radio or mobile phone. ●The smart key is in contact with or covered by a metal object. ●The door handle is operated too quickly. ●Another wireless remote control function is being used nearby. ●When the smart key battery runs out. ●The smart key is close to high- voltage equipment or equipment that produces noise. ●The smart key is being carried along with another smart key or radio-wave-emitting device. ●Even within the active area, the smart key may not work properly in certain locations, for example, on the dashboard, in the glove box, or on the floor. ●If the smart access system is not working properly and it is impossible to enter the vehicle, the mechanical key can be used to lock/unlock the driver's door, or the wireless remote control function can be used to lock/ unlock all doors. ●Pressing the START/STOP button may not enable the start function due to: ●If the electronic smart key does not work, the smart key system warning indicator on the combination instrument flashes, and the message "Low key battery" is displayed on the information display screen in the middle of the combination instrument, indicating that the key battery may have run out. ●If the smart access and start system cannot work properly due to system failures, bring all smart keys to a DENZA authorized dealer or service provider for repair. Saving battery power ●The smart key communicates with the vehicle even when the vehicle is not running. Therefore, do not leave the smart key in the vehicle or within two meters from the vehicle. 03 ●Receiving strong electromagnetic waves for a long time drains the battery of the smart key quickly. The smart key must be kept at least one meter away from electrical equipment that generates a magnetic field, such as the following devices: CONTROLLER OPERATION ●TVs ●PCs ●Wireless telephone chargers ●Electroliers ●Fluorescent desk lamps Child Protection Lock Child protection locks are designed to prevent children in rear seats from accidentally opening rear doors. Such locks are provided on the sides of the left and right rear doors. Activating the child protection lock ●Toggle the switch as the arrow② indicates to activate child protection lock, then the door cannot be opened from inside the vehicle. Use the exterior door handle to open this door. Deactivating the child protection lock ●Move the latch in the direction of arrow① to turn off the child protection lock. The door can be opened from inside the vehicle.

Instructions for Seats

Halaman 60

WARNING ●Before driving, especially when a child is in the vehicle, ensure that the doors are closed and the child protection lock function is enabled. ●Proper use of seat belts and activation of child protection lock helps prevent the driver and passengers from being thrown out of the vehicle in an accident, and also prevents a door from being opened accidentally. ●After the child protection lock is locked, doors cannot be opened from inside the car, and the window switch for the corresponding rear door cannot be used to raise or lower the window. Seats Seat Precautions When the vehicle is moving, all passengers in the vehicle must fasten their seat belts, and rest their backs upright against the seatback. WARNING ●Do not drive the vehicle until occupants are seated properly. ●Sitting on a folded seatback or on cargo is prohibited. Improper seating position or improperly fastened seat belts can result in severe personal injury in case of emergency braking or a collision. ●It is prohibited to stand or move around the seats when driving, or passengers may get injured in case of emergency braking or a collision. CAUTION ●Adjust the driver's seat so that the pedals, steering wheel, and dashboard controls are all within the driver's easy control. REMINDER ●Do not adjust the seat while the vehicle is in motion, as unpredictable seat movement can cause the loss of vehicle control at this time. ●While adjusting a seat, do not let it hit against any passenger or the luggage. ●After manually adjusting the seat, always check that it is securely locked into place by attempting to push it forward and backward. ●After adjusting the seatback, lean back to confirm the seatback has been locked. ●Do not place any items under the seats. The driver may lose control of the vehicle because items placed there affect the

Adjusting Front Seat with Power

Halaman 61

REMINDER seat locking mechanism or accidentally push up the seat position adjustment lever, causing the seat to move suddenly. ●When adjusting the seat, do not place your hand under the seat or near its operating parts, to prevent being crushed. Adjusting Front Seats Adjusting front seat with power Power front seat adjustment include adjustment of seat position, cushion height, cushion angle*, and seatback angle. Choose the following methods according to the actual configuration of your vehicle. ①Seat position adjustment switch ●Move the seat position adjustment switch back or forth to slide the seat backward or forward. ●Move the front end of the switch up or down to adjust the seat base angle. ●Move the rear end of the switch up or down to adjust the height of the seat cushion. ②Seatback angle adjustment switch ●Toggle the seatback angle adjustment switch front and back to adjust the seat back angle. REMINDER ●Releasing the switch stops the seat in this position. Do not place anything under the seat as this may prevent the seat from operating. 03 Adjusting the lumbar support The seatback profile can be adjusted to fit the curvature of the occupant's lumbar spine. CONTROLLER OPERATION ●Press the front or rear portion of the switch to increase or decrease the curvature. ●Press the upper or lower portion of the switch to extend the curvature up or down. Front passenger seat adjustment by second-row seat passengers ●With the ignition on, adjust the front passenger seat on the seat armrest screen. REMINDER ●With the vehicle powered on, the second-row armrest screens do not light up automatically. Touch the screens twice to wake them up.

Adjusting Second-Row Seats

Halaman 62

REMINDER ●To adjust the seat, select the target seat on the screen. Memory System* Memory switch position The memory system switch is located on the infotainment touchscreen. Two driving positions can be recorded into memory. Setting function ●Memory setting conditions ●The ignition has been switched on and the vehicle speed is zero. ●The driver's seat and side mirrors have been adjusted to the desired positions. ●No operation is made on the driver's seat and side mirrors. Memory setting method ●Memory setting in OK mode ●Press and hold either "1" or "2" on the seat memory setting interface. Then the positions of the seats and side mirrors will be recorded, and the memory setting finishes. ●Press either "1" or "2" on the seat memory setting screen. Then the memory systems of seats and side mirrors will perform memory wake- up. ●If the position button on the memory switch has already been set, the position set will be overwritten. Memory wake-up function Memory wake-up function with the ignition on ●With the gearshift lever in the "P" position, the driver's seat and side mirrors memory systems will perform memory wake-up when the memory system switch is pressed if the following conditions are met: ●The anti-theft alarm system has disarmed. ●The vehicle speed is zero. ●Memory switch signals are valid. ●No operation is made on the driver's seat and side mirrors. Adjusting Second-Row Seats Second-row seat adjustment includes position adjustment, seatback angle adjustment, lumbar support adjustment, massage adjustment, and leg support adjustment. Choose the following methods according to the actual configuration of your vehicle. 1. Seat position adjustment switch ●Tap the position adjustment button on the seat armrest screen to move the seat backward or forward. 2. Seatback angle adjustment switch ●Tap the seatback angle adjustment button on the seat armrest screen to adjust the seatback angle. 3. Adjusting the Lumbar Support The seatback profile can be adjusted to fit the curvature of the occupant's lumbar spine. To allow you and your occupants to sit in the seats in a correct and relaxed manner, the seat support should support the occupants' lumbar spine. ●Tap the lumbar support adjustment button on the seat armrest screen to increase or decrease the curvature.

Adjusting Rear Seats

Halaman 63

●Tap the lumbar support adjustment button on the seat armrest screen to extend the curvature up or down. 4. Seat massage ●Tap the massage button on the seat armrest screen to start or stop the massage. 5. Leg support adjustment ●The leg support can be adjusted to the proper position on the seat armrest screen. ●Reset ●Press the seat side buttons to return the seatback and leg support to their original angles. Adjusting Rear Seats Adjusting seatback angle ●Passengers can adjust the the seatback angle through the cord on the seat side. ●Pull up the seat side adjustment cord, and lean back or forward to adjust the seatback angle. Release it when you have found the desired position. Folding the seatback flat 03 ●Straighten the seatback and pull the handle of the cord to unlock the seatback. CONTROLLER OPERATION ●Push the seatback forward/backward to fold it. You can fold the seatback forward until the back touches the cushion, or you can fold it backward until reaching the locking position (with a locking click). Adjusting forward and backwards Method One ●Adjustment handles are behind the seat. ●Open the trunk lid to adjust seat position with the handle.

Adjusting Front-Seat Head Supports

Halaman 64

Method Two ●Move the adjustment handle on the front side of the seat to adjust seat position. CAUTION ●Pay attention to the followings when folding the seats: ●Do not put the seatback down with the vehicle running. ●Do not fold the seats with the vehicle running. ●Occupants should be careful when accessing the third-row seats to avoid hitting feet. ●Make sure the second-row seats are fully locked before driving. ●The seatback adjustment handle and folding cord cannot be operated at the same time. Straighten the seatback and CAUTION reset the cord if there is a mis- operation. Head Supports Adjusting Front-Seat Head Supports Adjusting Front-Seat Head Supports* 1. Lifting a head support Lift the head support in the direction of its post until it is in the appropriate position, and then release it until a locking sound is heard. 2. Lowering a head support Press and hold the head support adjustment button, lower the head support to a proper position, slightly adjust the head support, and release the button after hearing a locking sound. Removing front-seat head supports* ●Configuration 1* 1. Removing a head support Press and hold the head support adjustment button, remove the head support, and release the button. 2. Installing a head support Insert the head support post into the bushing with the grooves facing

Adjusting Middle and Rear Seat Head Supports

Halaman 65

forward. Press the head support adjustment button, push down the head support to a proper position, and then release the button. ●Configuration 2* 1. Lifting a head support Hold the adjustment button on the left and raises the head support to the topmost position. 2. Unlocking one post Keep holding the adjustment button, and use a needle whose diameter is slightly less than 2 mm against the small round hole of plastic trim cover under the head support. Then, pull up one rod until the rod slot is exposed. 3. Unlocking the other post Repeat step two to unlock the other rod. 4. Removing a head support Pull the head support upward until it is fully detached from the seatback. Adjusting head support flanks* ●Move the head support flanks manually to adjust their the wrapping, so that the head support fits the head better, thus increasing comfort. Press the flanks to restore them to their original state when not in use. Adjusting Middle and Rear Seat Head Supports Adjusting second-row seat head supports The second-row head supports can be moved up/down or forward/backward, and their flanks can also be adjusted. The second-row head supports cannot be removed. ●Lifting a head support 03 ●Lift the head support in the direction of its post until it is in the appropriate position, and then release it until a locking sound is heard. CONTROLLER OPERATION ●Lowering a head support ●Press and hold the head support adjustment button, lower the head support to a proper position, and release the button after hearing a locking sound. ●Angle adjustment ●Move the lower head support up to adjust the support forward and backward, so that the head support fits the head better, thus increasing comfort. Adjust the head support forward to its limit position when not in use, and it will return to the original state. ●Flank angle adjustment ●The way to adjust the flank angle of second-row head supports is the

Adjusting Middle and Rear Seat Head Supports

Halaman 66

same as that of the front-seat head supports. Adjusting a third-row seat head support ●Lifting a head support ●Lift the head support in the direction of its post until it is in the appropriate position, and then release it until a locking sound is heard. ●Lowering a head support ●Press and hold the head support adjustment button, lower the head support to a proper position, slightly adjust the head support, and release the button after hearing a locking sound. ●Removing a head support ●Press and hold the head support adjustment button, remove the head support, and release the button. ●Installing a head support ●Insert the head support post into the bushing with the grooves facing forward. Press the head support adjustment button, push down the head support to a proper position, and then release the button. REMINDER ●Head supports protect vehicle occupants from head and neck injuries. Adjust the head support so that its center aligns with the back of your head for maximum protection. Adjust the head support to the proper position based on your actual height. ●When adjusting head support height, align the occupant's ear tip line with the center line of the head support. ●After adjusting the head support, ensure that it is locked into position. ●Do not drive the vehicle without head supports. ●Do not attach any objects to the head support levers.

Steering Wheel Switches

Halaman 67

Steering Wheel Steering Wheel Steering Wheel Switches 1 Panoramic view button 2 Custom button 3 Distance - button 4 Distance + button 5 ACC button 6 Lever 7 ICC button Left-hand buttons Adaptive Cruise Control (ACC) ●Turns the ACC system on or off. 03 CONTROLLER OPERATION 8 Call button 9 Speech recognition button 10 Right button 11 Scroll button 12 Left button 13 Mode button 14 Instrument cluster/Back button

Steering Wheel Switches

Halaman 68

REMINDER ●For instructions on using cruise control, see P117. Lever ●Reset /+: Activates the adaptive cruise control (ACC) system and uses the previous system settings. ●Settings /-: Sets the current speed to the target cruise speed. Distance - button ●Reduces the distance from the vehicle ahead by one notch when the ACC function is enabled. A total of four notches are available. Distance + button ●Increases the distance by one notch when the ACC function is enabled. A total of four notches are available. ICC button ●Press this button to enable or disable ICC system. Panoramic view button ●Press this button to enable or disable the panoramic view system. Custom button ●When the custom button is not customized to a function, press and hold it to enter the custom interface; when it is customized, press it to activate the function, or press and hold it to go to the custom screen, where you can re-customize or cancel. Right-hand buttons Scroll button ●Adjusting infotainment system volume when the instrument cluster is not in menu mode: ●Roll the button upward to increase the volume. The button is non- operational when the volume reaches the highest. ●Roll the button downward to decrease the volume. The button is non-operational when the volume reaches the lowest. ●Press down the button to mute. ●When the instrument cluster is in menu mode: ●Roll the button upward to select the upper level-2 or level-3 menu items. ●Roll the button downward to select the lower level-2 or level-3 menu items. ●Press down the button to go to the next-level menu or confirm the current setting. REMINDER ●The infotainment system is muted once the instrument cluster is set to the menu mode. To adjust infotainment system volume, exit the instrument cluster menu mode first. Left/Right button ●When the infotainment system is in radio mode: ●Press the button to play the previous radio station. ●Press the button to play the next radio station. ●When the infotainment system is in Universal Serial Bus (USB)/Bluetooth music/third-party music app/other modes: ●Press the button to play the previous track (track number -1).

Steering Wheel Switches

Halaman 69

●Press the button to select a record upward on the Bluetooth call record or phonebook screen. ●Press the button to play the next track (track number +1). ●Press the button to select a record downward on the Bluetooth call record or phonebook screen. ●In the menu mode: ●Press the button to switch to level-1 menu and its submenus on the left. ●Press the button to switch to level-1 menu and its submenus on the right. Call button ●Press this button to make or receive a call (the audio system is muted at the same time). ●When a Bluetooth-unrelated screen is currently displayed, press this button to switch to the phone selection screen if Bluetooth is disconnected, or to the Dial screen if Bluetooth is connected. ●After entering a phone number on the Dial screen or selecting a record on the Call Log or Contacts screen, press this button to dial the number. ●When Bluetooth is connected, but no phone number is entered on the Dial screen, press this button to switch to the Call Log screen. Press this button again to call the first dialed number on the call history. Voice recognition button ●Press this button for the infotainment touchscreen to switch to the voice recognition screen. ●After exiting the DENZA Assistant, press this button again to re-enter a voice command. Instrument cluster/Back ●When the instrument cluster is not in the menu mode, press Instrument cluster/Back to show the instrument cluster menu. ●When the instrument cluster is in menu mode, press this button to return to the upper-level screen, or to exit the menu if there is no upper-level screen. 03 ●When on the Bluetooth call screen, press this button to end the call. CONTROLLER OPERATION Mode button ●Selecting a mode: Press the Mode button to switch between media apps, peripherals, and pre-installed third- party audio/video apps. ●If speakers are turned off, press this button to turn them on and enter the memory playback mode, or switch to the radio mode if there is no playback source (for example, no external audio equipment) in the memory playback mode. Horn button ●Press the horn button area to honk the horn, and release to stop honking. CAUTION ●Avoid pressing honking for too long, as the horn may be damaged. REMINDER ●Observe the traffic laws and use the horn properly.

Light Switches

Halaman 70

Adjusting the Steering Wheel Manually To adjust the steering wheel position, hold it and operate as follows: ●Press the steering wheel adjustment handle, move the steering wheel to the desired angle, or adjust it to the desired axial position, and restore the handle to the locked position. WARNING ●Never adjust the steering wheel while driving, as this is under risk of impaired vehicle control, which can lead to accidents. ●After adjusting the steering wheel, move it up and down to verify that it is securely locked. Power-Assisted Steering Mode Settings ●The feel of steering assistance varies from person to person, and so do the evaluation and needs for this feel. ●Choose Comfort/Sport steering mode by going to the infotainment touchscreen → Vehicle → Intelligent Chassis → Steering Mode. REMINDER ●Setting the power steering to sport mode is suggested if the steering wheel feels light when REMINDER the vehicle is running at a high speed. Switches Light Switches Set the light switch to to turn off all lights except for daytime running lights. When the daytime light feature is enabled on the infotainment touchscreen, the daytime running lights are on; and when this feature is disabled, the daytime running lights turn off. Auto lights Set the light switch to . The body control module (BCM) captures the brightness data from the light intensity sensor to automatically turn the position lights and low beam on or off.

Light Switches

Halaman 71

REMINDER ●The light intensity sensor is located on the top of the windshield. Do not block the sensor or let anything splash on it. Position lights Set the light switch to to turn on position lights and license plate light. Low beam Set the light switch to to turn on the low beam. Rear fog lights Set the light switch to and rotate the fog light dial to to turn on rear fog lights. High beam 03 Set the light switch to and push the light switch lever down (away from the steering wheel) to turn on the high beam, push down again to turn it off. CONTROLLER OPERATION Overtaking light Pull up the lever (toward the steering wheel) to turn on the overtaking light. Release the lever for the light switch to automatically reset. The overtaking light turns off. Turn signals

Light Switches

Halaman 72

●Push up the lever to signal right turn. The right turn signal and its indicator on the instrument cluster flash. ●Pull down the lever to signal left turn. The left turn signal and its indicator on the instrument cluster flash. CAUTION ●Once turned on, turn signals continue flashing even after the handle is released. They will turn off after the vehicle goes around the bend. Depending on the driver's habit, the turn signal will reset after the vehicle turns around under some extreme conditions. Auto light off ●Conditions to activate the auto light off function: To activate this function, set the light switch to or and switch off the vehicle power. ●When the auto light off function is activated, the headlights, position lights, rear fog lights, and high beams turn off in 10 seconds if the driver's door is closed. ●When the auto light off function is activated, the headlights, position lights, rear fog lights, and high beams turn off in 10 minutes if the driver's door is open. ●After the lights turn off automatically, if the light status changes, these lights come on in the new status. If the conditions to activate the auto light off function are still met, the function is activated again. ●Disabling of the auto light off function: When the vehicle is powered on, the auto light off function is disabled, and the light switch can be operated normally. ●If the auto light off function has turned off the lights and the anti-theft alarm system has been armed, disarming the alarm system makes the lights come on again automatically. If the driver's door remains closed, the lights go off again after 10 seconds. But if any door is open, it turns off the light in 10 minutes. Advanced turn-on/delayed turn-off (Follow me home) of headlights and the dynamic greeting functions* ●Delayed turn-off of headlights: ●When the combination switch is turned to " "," "or " " and you are about to leave the vehicle and set the power mode to "OFF", execute the "Follow me home" function, corresponding lights will light up for 10s (or a set time), show the welcome light and then light off. ●Advanced turn-on of headlights: ●When the combination switch is turned to " "," "or " " and you approach and unlock the vehicle to execute the "Follow me home" function, corresponding lights will light up for 10s (or a set time).

Front Windshield Wipers and Washer

Halaman 73

CAUTION ●The time for the advanced turn-on/delayed turn-off of the headlights is 10s by default, but you can change it in the infotainment interface. ●The dynamic greeting function only works when the trunk, hood and four doors are closed. Wiper Switch Front Windshield Wipers and Washer ●Push up or pull down the lever to change the mode. It has five modes: : Fast. ● : Slow. ● : Auto/Intermittent Wipers ● : Wiper OFF ● : Point-wiping (pulling down the ● and the wipers wipe at a low speed until you release the lever). lever from Auto/Intermittent wipers ●The rain sensor automatically controls the operation mode of wipers based on the rainfall, and it is located in front of the interior rearview mirror on the front windshield inside the vehicle. ●To use the auto wiper function, turn the wiper switch to the automatic mode and go to the infotainment touchscreen Vehicle → Comfortable Use. ●To use the intermittent wiper function, turn the wiper switch to the automatic mode, and disable auto wiper on the infotainment touchscreen → Vehicle → Comfortable Use. 03 ●Turn the knob to change the rain sensor sensitivity based on real-time rain conditions. A total of four levels are available. CONTROLLER OPERATION ●Up: Reduce rain sensor sensitivity. ●Down: Increase rain sensor sensitivity. ●Enable or disable the auto wiper by going to the infotainment touchscreen → Vehicle → Comfortable Use → Auto Wiper. The wipers enter the intermittent mode after the automatic mode is deactivated. Turn the sensitivity adjustment knob to determine the wiping intervals. The narrower the rain bar, the longer the intervals. Front windshield washer ●To clean the front windshield, pull the switch lever backward (towards the steering wheel) so that the washer

Rear Windshield Wiper and Washer

Halaman 74

sprays washing fluid and the wipers operate. ●When the stick is released, or when it is held for over 10 seconds, the washer spray stops, and the wipers stop after operating for 1–2 cycles. Rear Windshield Wiper and Washer ●Set the wiper switch to to activate the rear windshield wiper; set it to or open the trunk to stop the wiper. ●Set the wiper switch to to activate the rear windshield wiper and washer simultaneously. ●Set the wiper switch to and release it. The wiper will operate once or twice after washing fluid has been sprayed. Link between rear wiper and trunk ●The wiper/washer won't work with the trunk opened and the vehicle powered on. If the wiper is working and the trunk is opened, it will stop and resume operation five seconds after the trunk is closed. If the front wiper is operating and the gear is shifted to "R", the rear wiper will operate intermittently. CAUTION ●Do not operate the washer for over 10 seconds, or when the washer fluid tank is empty, as those may cause motor overheating or damage. REMINDER ●Check and clean the wiper blades at regular intervals. ●Do not start the wipers while rain is starting, as the windshield cannot be cleaned and rainwater mixed with sand and dust may instantly blur your view, affecting driving safety. ●Use cleaning agent for glass. The use of water, or another type

Anti-pinch Function

Halaman 75

REMINDER of detergent, may damage the washer motor. Driver's Door Switches Power Window Switches ●When the ignition switch is on OK, all the window switches can lift up and down the window. After the vehicle is powered OFF, no power windows can be regulated. ●The window control switch at the driver's side contains four buttons to roll up or down windows on four doors, respectively. ●Press a switch to roll the window down. ●Pull a switch to roll the window up. ●While using the switch, release it to stop window halfway. ●Rolling down: Press a switch to the second notch and release. The corresponding window rolls down automatically. ●Rolling up: Pull a switch to the second notch and release. The corresponding window rolls up automatically. ●To stop the window halfway, gently push the switch in the opposite direction. Delay function* ●After the vehicle is powered off, if the front doors are not open, the four- door window controller has a 10min delay period. During this period, the windows can still be rolled up and down. ●If a front door is opened, the window switches won't work. WARNING 03 ●Before closing a power window, ensure occupants' hands are not placed upon the window glass; pinching of hands or fingers can result in serious injuries. CONTROLLER OPERATION Anti-pinch Function Anti-pinch function If someone or an object is caught by the window when it is rolling up, the window stops closing immediately, rolls down for a certain distance, and stops. Initialization of anti-pinch function ●If the low-voltage battery is disconnected while a window is being rolled up or down, the automatic rolling-up and anti-pinch functions both cease to work. ●Press the switch to close the window, release the switch, operate the switch and hold it for at least three seconds, and the anti-pinch function is recovered. WARNING Please follow the precautions below to prevent serious injury or death from window closing: ●Before operating the power windows, ensure that all

Central Locking

Halaman 76

WARNING passengers do not have any body parts that can be caught in the window. ●Do not allow a child to operate the power windows. CAUTION ●Excessively frequent activation of the anti-pinch function can activate the regulator motor's overheat protection. ●Never try to deliberately activate the anti-pinch function. ●The anti-pinch function may not work if an object is jammed into the window when it is almost completely closed. ●Contacting a DENZA authorized dealer or service provider for maintenance is recommended if the windows' automatic closing function or anti-pinch function is not working normally. Window Lock Button Press the switch to control the window switches of side doors. ●Press the right button, and the indicator turns on. Only the right front switches can be used to open/close four windows; the left front window switch can be used to open/close the window; the left window switch cannot be used to open/close the window, and the right window switch is not limited. ●Press the switch a second time. The indicator goes out, and the window switches on the rear row work normally. ●The operation of the right window lock button is the same as that of the left window. Central Locking The driver's door is equipped with power door lock switches to lock or unlock all doors. ① Unlock Press the central unlock button. All doors are unlocked and the red lock indicator turns off. ② Locking Press the central lock button. All doors are locked and the red lock indicator lights up. ●All doors unlock automatically when the vehicle suffers a strong impact, depending on the impact intensity and accident type.

Window Control Switch on Passenger Side

Halaman 77

Odometer Switch ●Press the odometer switch to switch between "Total Mileage" - "Mileage 1" - "Mileage 2" - "Total Mileage". The switching status is displayed accordingly on the instrument cluster. ●Press and hold "Mileage 1" and "Mileage 2" to clear the mileage information. Driver Assistance Switches The center console features a reversing radar switch* and AVH switch. ① Parking radar switch Press this switch to activate parking radar. SeeP142 for details. ② AVH Switch Press this switch to activate automatic vehicle hold. (SeeP115 for details.) CAUTION ●Press the light character area on the button. ●Keep sharp objects away from the control panel as far as possible to avoid scratches. ●Pressing the button continually and quickly activates the anti- touch or anti-play mode. At this time, the occasional no response is normal. Stop the operation, and the function returns to normal immediately. 03 CONTROLLER OPERATION Window Control Switch on Passenger Side ●When the ignition is on, use the front left door window switch to operate the corresponding window. ●When the ignition is on, use the left/ right sliding door window switch to operate the respective windows.

Mode Switches

Halaman 78

Automatic Window Closing* The automatic window closing function can be enabled/disabled on the infotainment touchscreen. Automatic window closing on rainy days ●When the function is enabled and the vehicle ignition is on, all windows close automatically if the wiper sensor senses a certain amout of rain. ●The enabled function works only once, and then works again after the vehicle is powered off and restarted. High-speed automatic window closing ●When the function is enabled and the vehicle exceeds a certain speed, all windows close automatically. Automatic window closing upon vehicle locking ●When the function is enabled on the infotainment touchscreen: If the ignition is switched off, the driver's door is opened, and the hood, trunk, and all doors are closed, press the lock button on the smart key to raise the four windows. Automatic window closing by A/C ●When the fresh air mode is switched to circulation mode, the open window closes automatically. Hazard Warning Light Switch button is pressed, all turn signals and turn signal indicators on the instrument cluster start flashing. They all stop flashing when the When the button is pressed again. CAUTION ●The hazard warning lights are used to alert drivers and pedestrians of possible risks. Mode Switches ① Regenerative braking adjustment lever ●Toggle up the lever to increase regenerative braking force. ●Pull the lever down to trigger standard regenerative braking. ② Driving mode stick ●Available driving modes include economy, sports and normal. Using the stick, choose among the different modes shown on the cluster to suit your different needs. ③ Snow mode button ●Although snow mode optimizes traction, driving performance, and

Opening/Closing Sunshade

Halaman 79

maneuverability, it is recommended to avoid sudden acceleration or high speed. CAUTION ●ESC system may limit the vehicle's torque. Therefore, temporarily shutting down the system may help if the vehicle skids and gets stuck in soft snow. The ESC system must be restarted after conditions are back to normal (see P145ESC operation instructions). Sunroof Switch Opening/Closing Sunroof The sunroof can only be operated when the vehicle is powered on or when the power-off delay has not expired. Opening the sunroof ●Press and hold the sunroof open button ① to open the sunroof manually. Release the button midway to stop the sunroof at its current position. ●If the sunroof has been initialized, pressing the sunroof open button ① and release it immediately, the sunroof tilts up for ventilation.Pressing the button again will set the sunroof to open automatically by about 80%. Touching the button once more will open the sunroof completely. For the sunroof to stop, press button ① or ② midway. Closing the sunroof 03 ●Press and hold the button ② to close the sunroof. The sunroof will stop if the button is released. CONTROLLER OPERATION ●If the sunroof has been initialized, releasing the sunroof close button ② immediately after touching it closes the sunroof automatically. For the sunroof to stop at its current position, press the ① or ② button midway. Sunshade Opening the sunshade ●Press and hold the sunshade open button ① to open the sunshade. Release the button midway to stop the sunshade. ●Release the button ① immediately after pressing it to open the sunshade automatically. For the sunshade to stop, press button ① or ② midway. Closing the sunshade

Interior Light Switch

Halaman 80

●Press and hold the button ② to close the sunshade and release the button midway to stop it. ●If the sunshade has been initialized, releasing the button ② immediately after pressing it closes the sunshade automatically. For the sunshade to stop, press button ① or ② midway. CAUTION ●When opening or closing the sunshade, avoid forceful contact with its curtain, to prevent damage. Sunshade linkage ●When the sunroof is opened, the sunshade will be opened together with the sunroof. Sunroof Anti-pinch If the sunroof or sunshade closing process is obstructed by anything, it will stop and slightly retract. WARNING ●Keep clear of the sunroof when it is opening or closing, or severe injury may occur. ●Passengers must refrain from sticking hands or their heads out through the sunroof. Otherwise, severe injury or even death may occur. CAUTION ●Trying to open the sunroof in outside temperatures below 0℃ or when it is covered in snow or frost may damage the sunroof or its motor. Initialization ●With the ignition on, the signal remains valid and the sunroof is in the uninitialized state, try the following steps for initialization: ●Press the close button to the fully closed position and hold on for five seconds to initialize the sunroof/ sunshade. ●If the sunroof/sunshade does not close fully, calibrate manually. Press and hold the sunroof/sunshade close button, and release it when the sunroof/sunshade stops moving. Hold the button again for at least five seconds, and release it until the sunroof/sunshade is fully closed and a click sound is heard. ●The sunroof and sunshade are initialized separately. Interior Light Switch Front Interior Lights Left interior light button Right interior light button ●With the ignition on, if DOOR option is selected and any door is open, interior lighting switches between high and low brightness with touches on the light switch. ●With the ignition off and DOOR option selected, interior lights will go off

Ambient Lights

Halaman 81

after the door have remained open for a period of time. If there are other operations during this period, the timer will be restarted. ●To turn on or off the "DOOR" gear, slide down the top status bar on the infotainment touchscreen to display the shortcut page. Second-row interior lights The operation of the second-row interior light switch is the same as that of the front interior light switch. Rear-row interior lights ●The operation of the rear-row interior light switches ① and ② is the same as that of the front interior light switch. ●The lighting angle of rear-row interior lights can be adjusted by rotating the switch ① manually. Ambient Lights To control the brightness, color and area of the ambient light, go to infotainment → Vehicle → Ambient Light. touchscreen 03 CONTROLLER OPERATION

Ambient Lights

Halaman 82

82

Using and Driving

Halaman 83

04 USING AND DRIVING Charging/Discharging...................... 84 Battery...............................................98 Usage Precautions..........................103 Starting and Driving........................110 Driver Assistance............................ 117 Other Main Functions.....................149

Charging Safety Warnings

Halaman 84

Charging/ Discharging Charging Instructions Charging Safety Warnings ●The charging connector uses high- voltage current. Minors are prohibited to charge the vehicle or touch the charging equipment. Keep them away from the vehicle during charging. ●Charge the vehicle in a safe environment, and avoid charging in thunderstorms, or areas with hazardous liquids, fire or heat sources, or flammable or explosive items. ●To reduce the risk of electric shock and personal injury, never operate the equipment with wet hands or touch the exposed metal of the charge port or charge base. ●Since charging may affect medical electronic devices and even cause serious personal injury or death, if you use any medical electronic device (such as implantable pacemaker or implantable cardiovascular defibrillator), before charging, confirm with the device manufacturer whether charging affects the normal operation of the device. Warnings for charging equipment ●Use charging equipment that complies with local standards: ●To avoid charging failure or fire, do not modify, disassemble, or repair the charging equipment and related ports. Contact a DENZA authorized dealer or service provider for handling if there is a fault. ●Ensure the quality of charging equipment. ●Never use the charging equipment if the household power strip cable becomes soft, if the charging connector cable is worn out, if the insulation layer is cracked, or in case of any other damage. ●Never use the equipment when the charging connector, power plug, or power strip is disconnected or broken, or if there is any sign of surface damage. ●Charging equipment grounding instructions: ●The equipment must be properly grounded. In the event of failure of or damage to the equipment, the ground cable provides a minimum impedance to circuit discharge and thereby reducing the risk of electric shock. ●The equipment comes with a ground cable connecting its ground point with that of the power plug, which must match a properly installed and well-grounded power supply outlet. ●When charging, do not place the equipment in the trunk, under the front of the vehicle, or near the tires. Warnings before charging ●Before charging, ensure that there is no water or foreign materials in the charge ports of the vehicle, power supply equipment, and charging equipment, and no damage or bad effect caused by metal terminal rust or corrosion. In the event of any of the situations above, do not charge. Warnings during charging ●To prevent serious personal injury, pay attention to the following precautions during charging: ●Do not touch the metal connection of the charge port, charging connector, or plug.

Charging Precautions

Halaman 85

●Do not charge or touch the vehicle in a thunderstorm. Lightning strikes may cause damage to the charging equipment or personal injuries. ●Before charging, ensure that there is no water or foreign materials in the charge ports of the vehicle, power supply equipment, and charging equipment, and no damage or bad effect caused by metal terminal rust or corrosion. In the event of any of the situations above, do not charge. ●If anything abnormal is found in the vehicle or charging equipment during charging, stop immediately and contact a DENZA authorized dealer or service provider. ●Do not carry out maintenance work during charging. Warnings after charging ●Always unplug the charging and discharging equipment and close the charge port door before driving. Charging Precautions ●When the State of Charge (SOC) bar on the instrument cluster turns red, the high-voltage battery is about to be exhausted. Please charge it immediately, otherwise the service life of the high-voltage battery will be reduced. ●Mode 2 charging means charging with an AC charging connector. It is recommended to use the dedicated AC lines and power sockets meeting local standards to avoid line damage and protective trip due to high-power charging, affecting the normal use of other equipment. ●Avoiding damage to the charging equipment (precautions for charging equipment): ●Prevent the charging equipment from suffering any mechanical impact. ●Do not place the charging equipment near heaters or other heat sources. ●Before charging: ●Make sure that the charging connector and charge port are free of foreign objects, and that the protective cap of the charging connector terminal does not get loose or deformed. ●Hold the charging connector, align the connector with the charge port and push it in, making sure that they are properly connected. 04 USING AND DRIVING ●When charging is complete: ●Stop charging first and make sure the charge port is unlocked. ●Pull the connector. ●Do not force the charging connector out while the charge port is locked, otherwise the charge port may be damaged. ●Try to power off the vehicle before charging. ●Precautions: ●The A/C can be used as normal while the vehicle is being charged. To ensure the charging power, it is recommended not to turn on the A/C. ●It is recommended that no one stay in the vehicle during charging. ●It is recommended to park the vehicle in a ventilated area during charging. ●The vehicle system automatically stops charging when the high-voltage battery is fully charged. ●To stop AC or DC charging, turn off the charger before disconnecting

Charging Precautions

Halaman 86

the charging connector. In Mode 2 charging, remove the charging connector and then the power plug. ●When charging is complete and the charging connector is unplugged, make sure that the charge port's cap and door are closed, otherwise water or foreign materials may enter the port and affect its normal use. ●Before starting the vehicle, ensure that the charging equipment is disconnected. The vehicle may be ready to run even if the charging connector is left plugged but not fully locked, which may damage the charging equipment and the vehicle. ●When the vehicle is not used for an extended period, it is recommended that it should be fully charged before driving. During long-term parking, charging the vehicle every three months is recommended for prolonging service life. (For details, see P99) ●Excessive and insufficient temperature may stop the vehicle from charging. ●In low-temperature regions, it is better to charge the vehicle in a heated space indoors. ●In high-temperature regions, charging in a cool, ventilated place is recommended. ●When the heating or cooling function is enabled during charging, it is normal that both charging time and power consumption increase slightly. ●During charging, battery cooling may start, and the compressor, fan and other components work when necessary. It is normal that there will be some noise under the hood. ●During charging, when the battery cooling or heating is activated, it is normal that the charging power displayed by the instrument cluster decreases or fluctuates for a short time. ●Before the charging is complete, for longer battery life, battery equalization is activated and thus the charging time may be longer. ●During charging, the estimated remaining time to full charge is displayed on the instrument cluster. It is normal that the remaining time to full charge may vary slightly depending on the temperatures, SOC, and charging facilities. ●If the charge port door is frozen due to weather or other reasons, do not force it open. ●In case of high-temperature high- power DC charging, the performance of battery temperature control system may be affected by the A/C in the passenger compartment, and the charging performance may degrade, resulting in an extended charging time. To ensure charging efficiency, it is recommended to keep the A/C off during charging. CAUTION ●Do not open the charge port door forcibly when it is locked. ●Do not forcibly insert the connector with the electric lock engaged. ●Do not close the charge port door when the port cap is fully open. ●When the vehicle is charged with an external power supply, it is normal that the cooling fan and A/C compressor may operate automatically for the high-voltage battery to cool down.

General Charging Troubleshooting

Halaman 87

Charging Method The pure electric vehicle is driven by electric energy supplied from the high- voltage battery. To prevent insufficient power of the high-voltage battery affecting the vehicle driving experience, it is very important to charge the vehicle in time and estimate the power demand before driving. Vehicle Charging Method: 1. Using Mode 2 Charging Cable* 2. Using AC Charging Piles 3. Using DC Chargers ●Use charging equipment that complies with local standards. Charging Mode 1. Charging Reservation (Only AC): Charge the vehicle regularly at a General Charging Troubleshooting Fault Possible Cause Solution High-voltage battery is full When the high-voltage battery is fully charged, the charging will stop automatically. High-voltage battery temperature is too high or too low Keep the vehicle in an environment with appropriate temperature and charge it when the temperature becomes normal. Charger is connected, charge starts, but battery will not charge. Low-voltage battery over-discharges. Replace the low-voltage battery. If it is verified that the charging equipment's power indicator is working properly, or that there are no other unusual indications, change the charging equipment or contact the charging equipment supplier. Charging equipment fails. Verify that there is a charging system fault message on the instrument cluster, then stop the charging. It is recommended to contact a DENZA authorized dealer or service provider. Vehicle display fails. scheduled charging time set by the user. See P94reservation charging for detailed settings. REMINDER The vehicle's power will increase while waiting for the reservation charging. It is normal for long waiting to result in a reduction of the vehicle's power and driving range. 2. Immediate charging: Charging starts after the charging connector is connected. 04 USING AND DRIVING

Using Mode 2 Charging Cable*

Halaman 88

Fault Possible Cause Solution During AC charging, if power supply resumes after short-time outage of the external power grid, DENZA charging equipment will re-start charging automatically and no re-connection of the charging equipment is required. The power grid goes down. Charging cable is not connected properly. Verify that the charging connection cable is not loosely connected. Charging stops midway. If the charging connection switch is pressed, the charging will stop. The charging connection should be connected again to start charging. Charging connection switch is pressed. If there is any fault prompt for the charging pile or the vehicle, it is recommended to contact a DENZA authorized dealer or service provider. Vehicle or charging pile fails. Charging ●Check before charging: ●Check the charging device for abnormalities such as cracked housing, worn cable, rusted plug, or foreign materials. ●Do not charge when the charging connection becomes loose. ●Make sure the port is clear of fluids or foreign objects, and its metal terminals are not rusty or corroded. ●In any of these cases, do not charge. Otherwise, personal injury may occur due to short circuit or electric shock. Using Mode 2 Charging Cable* 1. Equipment ●Connect the vehicle to an outlet that meets local standards to charge the vehicle. ●A household socket meeting local standards must be used in order to avoid line damage or tripping due to high-power charging, which may affect the normal use of other devices. ●This EV Mode 2 charging cable includes a power plug, a charging connector, a control box, and a charging cable. The plug is connected to a standard household power socket, and the charging connector to the vehicle's charge port. ●Charging time: Refer to the charging time message on the instrument cluster. WARNING ●See charging safety warnings P84 for details in section Charging Instructions. ●The highest working temperature allowed for the product is 50°C. Store the product in a cool and dry place when it is not in use. ●When charging, do not place the equipment in the trunk, under the front of the vehicle, or near the tires. ●When using the equipment, prevent it from getting rolled over by the vehicle, dropped, or trampled on.

Using Mode 2 Charging Cable*

Halaman 89

WARNING ●Never drop the equipment or move it by pulling it directly by the cable. Take caution when moving the equipment. ●It is strictly prohibited to modify, disassemble, or repair the charging equipment and its ports. If a fault occurs, it is recommended to contact a DENZA authorized dealer or service provider. ●It is not recommended to use any additional wire or adapter/ connector. ●Never use the charging equipment if the household power strip cable becomes soft, if the charging connector cable is worn out, if the insulation layer is cracked, or in case of any other damage. ●Never use the equipment when the charging connector, power plug, or power strip is disconnected or broken, or if there is any sign of surface damage. CAUTION ●The charging cable must not be placed in a spiral during charging, as this will affect heat dissipation. ●See the charging instructions for specific charging precautionsP85. REMINDER ●It is recommended to contact a DENZA authorized dealer or service provider or local electrician to select an appropriate power supply REMINDER according to requirements of the charging equipment. ●Charging equipment grounding instructions: The equipment must be properly grounded. In the event of failure or damage to the equipment, the grounding cable provides a minimum impedance to circuit discharge and thereby reducing the risk of electric shock. The equipment comes with a ground cable connecting its ground point with that of the power plug, which must match a properly installed and well- grounded power supply outlet. 04 USING AND DRIVING 2. Charging ●Unlock the charge port door, then open the port door and cap. ●Open the charge port door: With the vehicle unlocked, press the AC charge port door on the right side of the vehicle to open the door. ●Open the charge port cap, and make sure that no obstacles exist between the head of the charging connector and the end of the charging socket.

Using Mode 2 Charging Cable*

Halaman 90

●Connect the power supply terminal: ●Plug the Mode2 equipment into a household socket and its power indicator lights (red light) is solid on, if the charging is completed, the indicator turns solid green. ●Connect the vehicle port: ●Plug the charging connector into the port and make sure it is tight. ●After the charging connector is inserted, the charging connection indicator lights up on the instrument cluster. Mode 2 equipment charging indicator flashes green. ●In the charging process, charging parameters and the charging sign are displayed on the instrument cluster. ●At this point, you can schedule charging on the infotainment touchscreen. See P94 Reservation Charging for the configuration process. 3. Stopping charging ●End the charging: ●The charging automatically ends when the vehicle is fully charged. ●To end the charging early, proceed to the next step. ●Unplug the charging connector: Press the unlock button on the smart key or press the door handle microswitch while carrying the smart key and pull out the charging connector. REMINDER ●To unlock the vehicle, press the unlock button on the key (when charging the vehicle with ignition switched off) or press the microswitch on the door handle (when the key is nearby). ●Unlock the vehicle to deactivate the anti-theft lock before pulling out the charging connector. The connector has to be pulled out within 30 seconds, or the port will re-lock. ●You can activate the anti- theft lock on the infotainment touchscreen, as detailed in P95. ●If the charging connector cannot be removed after unlocking, try a few more unlocking attempts. If that does not work, try emergency unlocking. For the operating procedure, see P96.

Using AC Charging Piles

Halaman 91

REMINDER ●Reservation charging cannot be used when the remaining battery is too low. ●Disconnect the power plug. ●Close the charge port cap and the port door. ●Store Mode 2 equipment in the luggage storage box. Using AC Charging Piles 1. Equipment ●Charge the vehicle using a single- phase AC charging pile in a public place. Since some charging piles are not equipped with charging connectors, AC charging connectors need to be prepared. ●Use a standard-compliant household charging box. For how to use the charging equipment, refer to its user manual and follow the operating steps. ●AC charging box: consists of a charging box, a charging connector, and a connecting cable. For information on circuit breaker and emergency stop switch, see the charging box user manual. ●AC connection device: It comprises a charging connector, a connector cover, and a connecting cable that conform to national standards. called Mode 3 charging cable. The plug is connected to the power outlet, and the charging connector to the vehicle's charge port. ●For the use of charging equipment, refer to its user manual and follow the operating steps. ●Charging time: Refer to the charging time message on the instrument cluster. WARNING ●See section "Charging Instructions" for charging safety warningsP84. CAUTION ●The charging cable has a limited reach. Do not excessively stretch the cable. ●If you need to stop charging before the battery is fully charged, try to use early stop set for the charger first instead of directly unplugging the charger. 04 ●See the charging instructions for specific charging precautionsP85. USING AND DRIVING ●The AC charging power is subject to the actual charging power of the vehicle. REMINDER ●If power supply resumes after short-time outage of the external power grid, DENZA charging equipment will re-start charging automatically and no re-connection of the charging equipment is required. 2. Charging Connect the vehicle to the AC charge pile/box by the charging connector of this pile/box to begin charging. Instant charging method: ●Unlock the charge port door, then open the port door and cap: ●See instructionsP88 to unlock the charge port door, open the port door and cap. ●Connect the power supply terminal:

Using DC Chargers*

Halaman 92

●Skip this step if an AC charging pile equipped with a charging connector is used. ●Use Mode 3 charging cable to connect your vehicle to the AC charging pile if no charging connector is provided. ●Connect the vehicle port: ●Plug the charging connector into the port and make sure it is tight. ●Charging settings: ●Skip this step if a public AC charging pile without any setting option is used. ●For public single-phase AC charging pile/box with settings, swipe the card or scan the QR code. See the user manual for charging pile/box details. ●The charging connection indicator lights up on the instrument cluster. ●In the charging process, the instrument cluster displays relevant charging parameters and the charging sign. ●At this point, you can schedule charging on the infotainment touchscreen. See P94Reservation Charging for the configuration process. 3. Stopping charging ●End the charging: ●Charging ends automatically when early stop time is due or charging is complete. ●Unplug the charging connector: ●SeeP88 Unplug the charging connector. ●Disconnect the power plug. ●If Mode 3 charging cable is used, it is recommended to unplug the charging connector from the vehicle first and then the plug from the charging point. ●Skip this step if an AC charging pile equipped with a charging connector is used. ●Close the charge port cap and the port door (seeP88). ●Store the equipment properly. ●If using an AC charging pile/box, place the charging connector in its designated location in the charging pile/box. ●Store the equipment properly. WARNING ●Never drop the equipment or move it by pulling it directly by the cable. Take caution when moving the equipment. Using DC Chargers* 1. Equipment ●Use the DC battery charger in public places to charge the vehicle. Generally, it is installed in a specific charging station. ●Equipment specifications: Please check the instructions for the charger. ●Charging time: Refer to the charging time message on the instrument cluster. 2. Charging DC charging is achieved by connecting the vehicle to a DC charger via its connector. Instant charging method: ●Before discharging, unlock the vehicle (disarm the anti-theft alarm system).

Using DC Chargers*

Halaman 93

●Unlock the charge port door, then open the port door and cap: ●See instructionsP88 to unlock the charge port door, open the port door and cap. ●Connect the vehicle port: ●Plug the charging connector into the port and lock it. ●Operate the charging equipment to start charging. ●The charging connection indicator lights up on the instrument cluster. ●In the charging process, the instrument cluster displays relevant charging parameters and the charging sign. REMINDER ●During charging, the estimated remaining time to full charge is displayed on the instrument cluster. It is normal that the remaining time to full charge may vary slightly depending on the temperatures, SOC, and charging facilities. ●After the DC charging, the battery cooling may still be in the working state, and the instrument cluster will display "The intelligent temperature control system of the power battery is working". During charging, battery cooling may start, and the compressor, REMINDER fan and other components work when necessary. It is normal that there will be some noise under the hood. ●When using different models or different specifications of DC chargers for charging, the charging capacity will be slightly different, which is a normal phenomenon. 3. Stopping charging 04 ●End the charging: ●Charging ends automatically when early stop time is due or the charging is complete. USING AND DRIVING ●Press the unlock button twice within three seconds or press the microswitch on the door handle to stop charging. ●Unplug the charging connector: ●Press the unlock button on the smart key or press the door handle microswitch while carrying the smart key and pull out the charging connector. ●When the DC charging pile charging is complete, organize the charging equipment and store the charging connector in its designated position properly. ●Reinsert the DC charge port cap and close the port door. WARNING ●See charging safety warningsP84.

Reservation Charging

Halaman 94

CAUTION ●After charging, if the charging connector cannot be pulled out, please contact our customer service immediately. ●To unlock the charge port after DC charging, press the unlock button twice within three seconds for the operation to be successful. ●See specific charging precautionsP85. Reservation Charging ●The charging mode can be set on the infotainment system. To access the setting: ●Go to infotainment touchscreen → Energy. The reservation charging screen is displayed. ●To exit the Reservation Charging page, tap the back button or the home button . Reservation charging settings ●The factory default setting is to charge the vehicle immediately and reservation charging is disabled. ●To schedule a charging, toggle the reservation charging ON, set the charging start time and repeat cycle, and save the settings. ●After the reservation is set up, if you connect the charging connector or press the power button to power off the vehicle during the charge waiting period, you will be reminded through the infotainment touchscreen that reservation charging has been set. Switch to instant charging if needed. ●You can tap the reservation charging setting icon to turn off the charging connector connected alert and power- off alert in the Reservation Charging Alert. CAUTION ●The reservation charging function is developed for DENZA's slow AC charging equipment only. Please disable this function when using slow AC charging equipment that is not certified by DENZA. Otherwise, scheduled or immediate charging may fail due to no response from the equipment, resulting in low SOC or even low voltage of the high- voltage battery. REMINDER ●The instant charging option on the reminder screen is valid for the current reservation only. To cancel all reservations, toggle charging reservation off on the corresponding setting screen. ●In the event of low battery, the vehicle is charged to the minimum level before scheduled

Charge Port Anti-theft Lock

Halaman 95

REMINDER charging begins. In this process, the infotainment system still gives reminder messages for power-off and charging connector connection, and a related message is displayed at the lower part of the instrument cluster. Intelligent Charging When the low-voltage battery detector detects that the low-voltage battery is too low, it can be charged by the high-voltage battery. REMINDER ●When the vehicle is stored for a long time, the smart charging function may be activated, which is normal and not a vehicle failure. ●Power for intelligent charging comes from the high-voltage battery pack, so it is normal that an SOC decrease is noticed when the vehicle is powered on. Charge Port Anti-theft Lock In order to prevent the charging connector from being stolen, the No. Charge Port Anti- theft Lock Status Vehicle Door Anti- theft Lock Status Charging Connector Removable or Not 1 Enabled Locking No 2 Enabled Start Yes 3 Disabled Locking Yes 4 Disabled Start Yes vehicle charge port is anti-theft during charging and discharging. This function is deactivated by default. Go to infotainment touchscreen → Energy → Charging and Discharging to activate or deactivate charging port anti-theft lock. 04 ●The charging connector will be locked by a current over 16 A. Please unlock the vehicle before unplugging the charge plug (See P49). USING AND DRIVING Unlocking ●When the function is enabled, unlock the vehicle and unplug the charging connector during charging in the following ways: ●Press the unlock button on the smart key to unlock. ●Press the microswitch next to the exterior handle of the driver's side door to unlock (with the smart key nearby). ●Press the central unlock button under the driver's window to unlock.

Driving Range Display Mode Settings*

Halaman 96

●As shown in the table below, if the vehicle is in state 2/3/4, apart from the above-mentioned unlocking operations, you can unlock and pull out the charging connector by pressing its button. However, this may affect the service life of the charge port or charging connector. This is an emergency action that is not recommended to take frequently. CAUTION ●The connector needs to be pulled out within 30 seconds after it is unlocked. Otherwise, the electric lock will lock again. ●After the vehicle is fully charged, the charging connector will be automatically unlocked when the anti-theft mode of the charge port is disabled. When this mode is enabled, the charging connector must be manually unlocked following the above steps. Emergency Unlocking of Charge Port ●When charging connector cannot be unplugged due to failure of the anti- theft lock, unlock the charge port manually. ●The anti-theft lock latch is on the right hubcap. Open the right wheel fender liner. Pull the latch to unlock the charging connector. CAUTION ●The emergency unlocking function is usable for AC charging connectors only. Driving Range Display ●The range display mode can be set to improve driving experience. The default setting is standard mode. ●The corresponding settings can be made on the infotainment touchscreen → Energy → Energy → Range Display Mode. ●Standard mode: displays the driving range based on the result of comprehensive working condition test. ●Dynamic mode: displays the estimated driving range based on the available battery power and current average energy consumption. ●The set driving range display mode is memorized by the system. ●When the vehicle is powered off and then on, the display mode set last time will be maintained. REMINDER ●When the Dynamic driving range display mode is set: ●The driving range actually displayed will be adjusted based on the state of the vehicle's air conditioner, the driving mode (ECO, NORMAL, SPORT, etc.) selected, and the driver's driving habits, so as to match the vehicle's actual driving range.

VTOL Discharging

Halaman 97

REMINDER ●This vehicle is equipped with vehicle-to-load (VTOL) feature. Discharging Instructions* ●This vehicle is equipped with vehicle- to-load (VTOL) feature. WARNING ●Do not touch any metal terminal of the discharging socket or the vehicle charge port during discharging. ●Stop discharging immediately if there are any abnormalities such as peculiar smell and smoke. ●See Charging InstructionsP84 for charging safety warnings. ●Store the product in a cool and dry place when it is not in use. ●When discharging, do not place the equipment in the trunk, under the front of the vehicle, or near the tires to prevent it from falling and being rolled over by the vehicle and trampled on. ●When using the equipment, prevent it from getting rolled over by the vehicle, dropped, or trampled on. ●Never use the charging equipment if the power strip cable becomes soft, the charging connector cable is worn out, the insulation layer is cracked, or any other damage occurs. ●Never use the equipment when the discharging connector or power strip is disconnected or WARNING broken, or when there is any sign of surface damage. CAUTION ●For precautions concerning use of the discharge connection device, please refer to the precautions for charging equipment included in item 3 of P85Charging Precautions. ●Before discharging, please confirm the vehicle SOC and estimate the remaining driving range. 04 USING AND DRIVING ●Before VTOL discharging, ensure that the load is turned off. REMINDER ●When the vehicle is powered off, the static power consumption of the vehicle will increase if the VTOL connection device is connected for an extended period without any output. Therefore, removing the discharging/charging connector when the device is not used is recommended. VTOL Discharging 2. Discharging ●Before discharging, unlock the vehicle (disarm the anti-theft alarm system). ●Unlock the charge port door, then open the port door and cap. ●See Unlocking the charge port doorP88 to open the port door and cap. ●Check before discharging:

Battery Properties

Halaman 98

●Ensure that the battery capacity of the vehicle to be discharged is not below 15%. ●Ensure the VTOL connecting device casing is not cracked, and its plug is free from rust or obstructions. ●Ensure that there is no water or foreign material inside the charge port and that metal terminals are not damaged and free from rust or corrosion. ●Do not discharge if any of the above conditions is found; otherwise, short circuit or electric shock so caused could lead to personal injury. ●Connect the discharge connection device: ●Connect the VTOL discharging connector to the charge port and confirm that it is connected in place. ●Discharging starts: ●After the switch button on the discharging socket is pressed, the socket indicator stays on (red), indicating that the socket can be used. ●After the connection is made, discharge begins and respective information is displayed on the instrument cluster. 3. Stopping discharging ●End the charging: ●Press the switch on the discharging socket. ●In an emergency, proceed directly to the next step (not recommended). ●Disconnect the discharge connection device: ●Press the mechanical button on the discharging connector and remove the connector from the charge port. ●Close the charge port cap and the port door (see P88). ●Organizing the equipment: ●Store the discharge equipment in the luggage storage box after discharging is complete. Battery High-Voltage Battery ●The vehicle is powered by a high- voltage battery that can be charged and discharged repeatedly. The high- voltage battery is charged by an external power source or through energy recovery when the vehicle brakes or coasts. ●The high-voltage battery is located under the vehicle floor, so be careful and slow down to avoid bumping when driving on bumpy or uneven roads. If bumping occurs, go to a DENZA authorized dealer or service provider for maintenance. Battery Properties ●It is normal that vehicle performance is affected by battery electrochemical properties and self-protection and varies to some extent in the following conditions: ●When SOC is high, the regenerative braking performance may decline. ●The vehicle switches to trickle charging mode at high SOC. If the charging time is prolonged, the estimated remaining charging time displayed on the instrument cluster may not be accurate. ●When SOC is low, the acceleration performance may decline.

Battery Usage Tips

Halaman 99

●When the high-voltage battery is low, VTOL* cannot be used as normal. Charge the battery promptly. ●At high or low temperatures, it is normal that the charging and discharging capabilities of the high- voltage battery decline, and the charging time is prolonged. For fast charging, high-power charging equipment is recommended. Power performance may also decline under extreme temperatures. ●When charging in low temperatures, the temperature control system can significantly improve charging capability. For details, see Charging Precautions. ●When the vehicle is used at low temperatures, the battery's temperature control system will start heating the battery as appropriate to ensure the driving power and discharging performance and improve your driving experience. When the vehicle is driven over short distances, heating may be ineffective, which increases power consumption and decreases driving range. ●When the high-voltage battery is normal, the driving range of the vehicle varies with the following factors: ●Driving habit: For example, the range in frequent acceleration or deceleration is shorter than that at constant speeds, and the range is shorter when driving at high speeds than when at low speeds. ●Road conditions: For example, the range driven in rough conditions or on long slopes is shorter than that in normal conditions and on even roads. ●Temperature: The driving range at low temperatures is shorter than that at ambient temperatures. ●Use of electric equipment: For example, the range driven with A/C on is shorter than that with A/C off. ●Usable capacity of the high-voltage battery is lower in cold weather and reduces as the temperature decreases. If the vehicle with high battery level is charged at low temperatures, the SOC may quickly jump to 100%. Battery Usage Tips ●It is recommended to use the vehicle at temperatures between -10℃ to 40℃. When SOC is low, timely charge the vehicle to ensure enough driving range and good acceleration performance. 04 USING AND DRIVING ●To ensure long term performance, avoid driving in extreme temperatures for over 24 hours. ●In low ambient temperatures, if the vehicle must be stored for a long time, it can be placed in an underground garage or other warmer area to reduce loss of battery heat, maintaining vehicle performance. ●Frequent and sudden acceleration or deceleration should be avoided. Drive the vehicle on flat and dry roads. When necessary, turn off high-power equipment such as A/C or adjust the A/C temperature to reduce power consumption of such devices and increase the driving range. ●Low-power charging contributes to the service life of high-voltage battery. ●When the vehicle is used for the first time or after a long idle period, the SOC displayed on the instrument cluster may not be correct. It is recommended to fully charge the vehicle first. ●It is recommended to fully charge the vehicle at a regular basis (at least once

Recycling the High-Voltage Battery

Halaman 100

a week), and fully charge it from low battery (SOC <10%) once every three to six months. ●Under extreme working conditions (such as frequent sudden acceleration/ deceleration) that cause battery overheating, if the temperature of high-voltage battery is excessively high, it is normal for discharging capability to decrease gradually. If the battery temperature keeps rising, the fault warning light will light up on the instrument cluster. In that case, it is recommended to contact a DENZA authorized dealer or service provider. ●When the battery SOC increases or decreases abnormally, it is recommended to contact a DENZA authorized dealer or service provider for inspection. WARNING In the event of an emergency or accident, be aware of the following warnings: ●To avoid personal injury, do not touch the high-voltage battery directly. ●Contact a DENZA authorized dealer or service provider as soon as possible. ●If the high-voltage battery is damaged and leaking fluid, avoid any contact with the fluid. If it comes into contact with skin or eyes, rinse immediately with plenty of water, and seek immediate medical attention. ●If the vehicle catches fire, use dedicated fire extinguishers instead of water-based fire extinguishers. CAUTION ●To ensure safety of the high- voltage battery, stop the vehicle away from flammable and explosive materials, ignition sources and various hazardous chemicals. ●The available battery capacity decreases as the vehicle is used over time. ●Prolonged exposure to heat sources and direct sunlight reduce the service life of the high-voltage battery. ●When the vehicle is not to be operated for an extended period (over seven days), it is recommended that the battery SOC should be kept at 40%-60% to prolong its service life. When the vehicle is not to be operated for over three months, the high- voltage battery must be fully charged and then discharged to 40%-60% every three months. Otherwise, over-discharge may lead to battery performance degradation or even damage. Any vehicle fault or damage so caused will not be warranted. ●As the high-voltage battery is arranged at the bottom of the vehicle, careful driving is recommended in case of bumpy roads. ●If there is a collision with the high-voltage battery, contact a DENZA authorized dealer or service provider immediately for maintenance. Recycling the High-Voltage Battery How to scrap an NEV:

Low-Voltage Battery

Halaman 101

1. Take the vehicle to the DENZA authorized dealer or service provider, and the after-sales service provider will help the recycling organization assess the residual value of the high-voltage battery. 2. After confirming the recycling, the DENZA authorized dealer or service provider will disassemble the battery. 3. The wasted battery will be returned to a recycling organization for further handling. WARNING ●New energy car owners have the responsibility and obligation to hand over waste power batteries to the recycling service outlet. Those who hand over waste power batteries to other organizations or individuals for dismantling or disassembly without authorization, thus causing environmental pollution or accidents, shall bear the corresponding responsibilities. Low-Voltage Battery ●Battery working modes include "Normal", "Sleep", "Ultra-low Power", "Low-Voltage Protection". The purpose is to protect the battery cell from damage. If the vehicle system is in good condition, the vehicle switches between these modes automatically, having no effect on your use of the vehicle. ●To avoid low-voltage battery feed, the smart charging function will be actively triggered if conditions (hood closed, ignition "OFF", high-voltage battery discharging allowed, and low- voltage battery level lower than the design value) are met. ●When the intelligent charging function is triggered, the low-voltage battery is charged through the high-voltage battery. Therefore, it is normal that the SOC or the pure-electric driving range displayed on the instrument cluster decreases, when the vehicle is started after being idle. ●If smart charging fails, the low-voltage battery may cut off the vehicle's power supply. If you find before use that the vehicle is not powered, try to activate the low-voltage battery by pressing the driver's door microswitch continuously, and immediately power on the vehicle to charge the low- voltage battery. It is recommended to charge it for more than one hour. 04 USING AND DRIVING REMINDER ●The low-voltage battery contains relays. Thus, it is normal that relay operating sounds may be emitted from the battery. ●The low-voltage battery shall be charged with professional charging tools, and shall not be removed for recharging without permission. ●Do not jump-start the vehicle with another fuel vehicle, as this may damage the low-voltage battery. ●The low-voltage battery is a battery on low-voltage platform that is different from an ordinary lead-acid battery. Please read the instructions for use in this manual in detail. ●The low-voltage battery contains a power manager. To prevent damage to the battery or injury, do not disassemble or repair the battery without authorization.

Waking up the Vehicle from Low SOC

Halaman 102

REMINDER ●The low-voltage battery needs to communicate with the vehicle for normal use, so it is important to connect its connector and wiring harness correctly. Waking up the Vehicle from Low SOC ●Wake-up by the driver's door microswitch ●The low-voltage battery features the dormancy wakeup function. The low- voltage battery may have entered a dormant state after long-term parking. In that case, the vehicle cannot be located or unlocked with the smart key. At this time, press the microswitch on the driver's door handle (See P50) to activate the low- voltage battery. After the vehicle is unlocked, it can be used normally. ●Wake-up by jump starting ●When the vehicle cannot be woken up and unlocked by the driver's door microswitch, use the mechanical key to open the door. Then, use a 12V power supply to start the vehicle by two specially designed cables for the jump start. In this case, the low-voltage battery SOC is low. The instrument cluster may display "The low-voltage battery SOC is low, and the vehicle is going to be powered off", and the vehicle will become dormant again. Start the vehicle immediately and keep it started for over 15 minutes to ensure that the low-voltage battery is fully charged. ●The jump start can only be carried out through the special interface of the under-hood PDB. The connection terminals for the jump start in the under-hood PDB are shown in the figure. ① Negative terminal for jump starting ② Positive terminal for the jump starting of the under-hood low voltage distribution box ●If the vehicle cannot be woken up and started by the above steps, it is recommended to contact a DENZA authorized dealer or service provider in time. WARNING ●Do not connect the vehicle with other vehicles for a jump start before it is powered on. Otherwise, the low-voltage battery may be damaged. ●If the low-voltage battery SOC is too low or the battery fails, jump starting may be required. Please carefully read and strictly follow the jump starting instructions in this manual. ●The low-voltage battery contains an intelligent control module. To prevent battery damage, do not disassemble or damage this battery without permission, except in an emergency. ●Disconnect the negative terminal of the low-voltage battery before performing parts replacement and vehicle repairs.

Driving Safety Precautions

Halaman 103

CAUTION ●It is recommended that the jump starting be done under the guidance of professionals, as the space for operating the under- hood PDB is limited and circuit- based risks are present. ●Do not clean the low-voltage battery with liquid to prevent ingress. Usage Precautions Break-in Period ●If the powertrain is hard to start or frequently stops turning, inspect the vehicle immediately. ●If the powertrain makes any abnormal sounds, stop the vehicle for inspection. ●If the powertrain has severe coolant and oil leakage, stop the vehicle for inspection. ●The powertrain needs break-in. This should preferably be done within the first 2,000 km in economic mode. Steady driving instead of high-speed driving is recommended. The following practices effectively prolong vehicle service life: ●Avoid flooring the accelerator pedal when starting and driving the vehicle. ●Avoid speeding. ●Avoid emergency braking within the first 300 km. ●Do not maintain a high or low speed for too long. ●Do not use the vehicle to tow other vehicles within the first 2,000 km of mileage. Trailer Towing ●This vehicle is designed to carry passengers. Do not overload it or use it to tow other vehicles. ●Towing other vehicles has an adverse impact on the maneuverability, performance, braking, endurance, driving economy, power consumption, and other aspects of performance of the vehicle itself. 04 ●Driving safety and comfort totally depend on equipment usage and good driving habits. USING AND DRIVING ●BYD does not provide free warranty for the damage or faults resulted from the trailer towing. Driving Safety Precautions No Drunk Driving Even a small amount of alcohol can reduce a driver's ability to respond to traffic condition changes. The higher the level of alcohol, the less responsive the driver will be. Therefore, never drive while under the influence. No Speeding Speeding is a major cause of fatal accidents. Faster speeds generally entail higher risk. Therefore, maintain a speed safe for the road traffic conditions. Keeping the Vehicle Safe for Driving Tire bursts and mechanical faults are extremely dangerous. To reduce the possibility of such faults, frequently check

Vehicle Precautions

Halaman 104

the vehicle's condition, and regularly complete the specified inspections. CAUTION ●Any driver must possess a driver's license before driving a vehicle. ●Do not drive when fatigued. ●Always follow the traffic regulations when driving a vehicle. ●During driving, please focus on driving, and avoid activity unrelated to driving (such as making / receiving phone calls and adjusting buttons). Vehicle Use Suggestions Suggestions for prolonging the battery usage: ●When the vehicle is not to be operated for an extended period (over seven days), it is recommended that the battery SOC should be kept at 40%-60%, or it will reduce high-voltage battery service life. ●When the vehicle is not to be operated for over three months, the high-voltage battery must be fully charged and then discharged to 40%-60%. Otherwise, over-discharge may lead to battery performance degradation or even damage. Any vehicle fault or damage so caused will not be warranted. ●During operation of the vehicle, if the instrument cluster displays the pure electric driving mileage as 0, it indicates the battery SOC is low. In this case, charge the high-voltage battery in time and avoid operating the vehicle with low SOC for a long time. ●For optimal battery performance, use a charging connector to fully charge the battery regularly, and the recommended frequency is once a week at least. ●To maintain long-term performance, avoid continuously exposing the vehicle to an environment with a temperature above 60°C or below -30°C for over 24 hours. ●If the tray dented inward or there is scarification under the battery package tray, it is suggested to check at a DENZA authorized dealer or service provider. ●During operation of the vehicle, avoid repeated rapid acceleration or deceleration whenever possible. ●During operation of the vehicle, avoid operating the vehicle continuously for a long time whenever possible; otherwise, the excessively high battery temperature will affect vehicle performance. ●If the instrument cluster malfunctions when driving, it is recommended to contact a DENZA authorized dealer or service provider for inspection as soon as possible. ●When the high-voltage battery temperature is high, the vehicle performance will be limited to some extent. In this case, stop the vehicle and wait until the temperature drops before operating. REMINDER ●If the battery meter drops to 0, the vehicle must be recharged. If it is not recharged within seven days, the battery may suffer permanent damage. Such damage is not covered by DENZA warranty terms. ●Driving range depends on many factors, such as the vehicle's

Saving Energy and Extending Vehicle Service Life

Halaman 105

REMINDER available power, vehicle age (current battery life), weather, temperature, road conditions and driving habits. Compared with under normal temperatures, the pure-electric driving range is somewhat reduced and power performance will also be affected in low or high temperature environments. Saving Energy and Extending Vehicle Service Life ●Saving energy is simple and easy, and it helps prolong the vehicle's service life. ●Here are some tips for saving energy and repair cost: 1. Regenerative braking setting: ●The vehicle is provided with an energy recovery function. To set the energy recovery intensity, go to Vehicle Settings in the infotainment touchscreen or toggle the switch on the panel. In high energy recovery mode, more energy is recovered during vehicle braking and coasting. Please set to suit to your driving habits. 2. Maintaining constant speed: ●Constant speeds save energy. Sudden acceleration, sharp turns and emergency braking increase consumption. ●Speeds should be kept constant according to traffic conditions. Additional energy is consumed each time the accelerator is pushed. ●Use cruise control* under proper driving conditions for energy saving. ●Acceleration should be gradual. Avoid sudden startup, acceleration, or deceleration. ●Prevent emergency braking, and subsequent brake wear, by keeping an appropriate distance from vehicles ahead, and paying attention to traffic lights. ●Congested roads increase energy consumption. ●Keep moderate speeds in motorways. The higher the speed, the higher the consumption. Maintaining vehicle speed within the economical speed range can save power. 04 USING AND DRIVING 3. Reducing load: ●Consumption is higher when air conditioning is used. Turn off the A/C to reduce power consumption. When outside temperatures are moderate, use fresh air mode. ●Do not overload the vehicle unnecessarily. Excessive weights will add the load of vehicle, increasing energy consumption. 4. Other tips: ●Make sure tire pressure is correct. Low tire pressure increases energy consumption and wear. ●Keep front wheels properly aligned, avoid driving into curbstones, and drive slowly in rough terrain. Misalignment of the front wheels not only increases tire wear, but also increases load on the powertrain and power consumption. ●Keep the bottom of the vehicle clean and mud free. This reduces vehicle weight and prevents corrosion.

Loading the Trunk

Halaman 106

CAUTION ●Never coast in "N" while driving. Carrying Luggage ●This vehicle has multiple storage spaces. Overloading or improper accommodation may affect maneuverability, stability and normal operation of the vehicle, and reduce its safety. ●The glove box, storage boxes on interior trim panels and seatback pockets are designed for small and light objects, while the trunk for large and heavy objects. ●Long items can be loaded by folding the rear seat backrests. Overloading or improper accommodation may affect maneuverability, stability and normal operation of the vehicle, and reduce its safety. ●Make sure the vehicle's total load (vehicle + passengers + luggage) remains within the specified maximum weight. WARNING ●Overloading and improper accommodation may affect stability and vehicle control, which may lead to accidents. ●Observe the maximum weight limit and other loading guidelines in this manual. ●Do not carry highly magnetic items, as they might interfere in the vehicle's operating functions. Carrying Luggage in the Passenger Area ●All items that could be thrown inwards and thus injure occupants in case of a collision must be properly placed and secured. ●Do not place any objects on the inner side of rear windshield. Otherwise, these objects will block the driver's line of sight and will be thrown here and there inside the vehicle in case of collision. ●Ensure that objects placed on the floor behind the front seat do not roll under the seat, so as to avoid affecting the driver's ability to control the pedals or normal seat adjustment. Do not stack items to a height taller than the front seats' seatbacks. ●Make sure the glove box is always closed while driving. If the glove box is open, the occupant's knees may be injured in case of a collision or an emergency stop. REMINDER ●Do not pile up toys in the vehicle, as this may affect driving safety and present a hazard to the children, especially in case of emergency braking or collision. Loading the Trunk ●Place luggage evenly in the trunk. Put heavier items at the bottom and as far in as possible. ●Secure items with ropes or straps so that they will not move while driving. Do not stack items to a height taller than seatbacks. ●For trunk strapping or fastening supplies, contact a DENZA authorized dealer or service provider.

Wading into Water Precautions

Halaman 107

Wading into Water ●Check water depth - it must not exceed the vehicle's lower edge - before driving into flooded areas. ●If crossing a flooded area is necessary, turn off the air conditioner and keep acceleration steady to slowly cross over. ●Do not park the vehicle in water for a long time. ●Driving through deep water may wet brakes. To keep brakes dry, drive carefully and press the brake pedal gently. ●After crossing over, press the brake pedal several times to dry out the disks and recover brake performance. WARNING ●Drive carefully to avoid accident when there is any water or slurry on the brake disc surface, as this may increase the brake response time thus extending the braking distance. ●Carefully apply any wet brake, and remove ice or water on it. ●Avoid emergency braking as far as possible after driving through any waterlogged road section. WARNING ●If the vehicle drives on the waterlogged road. Avoid prolonged water ingress in high- voltage components. Any vehicle fault or damage so caused will not be covered by the quality warranty. ●After the vehicle is driven through waterlogged road sections, vehicle components, such as drive system, driving system and automotive electric system, may also be damaged seriously. Such damage is not covered by the vehicle's warranty either. 04 ●Be sure to find a sheltered place when charging the vehicle on rainy days. If the vehicle is immersed in water or wades through water over the doorsill, which may cause water ingress in high-voltage components, promptly contact a DENZA authorized dealer or service provider for testing and troubleshooting. USING AND DRIVING ●Do not drive the vehicle on the road where the depth of accumulated water exceeds half of the tires. Influence of water ingress in high- voltage components: ●Water getting into high-voltage components, which are electronic devices, may not be fully dried out by any means. ●Water ingress seriously compromises insulation of high-voltage components, and conductive substances in water may lead to short circuit of high-voltage components or such risk in the entire high-voltage system. This significantly affects the

Fire Prevention Instructions

Halaman 108

safety and service performance of the vehicle. ●Water in high-voltage components reduces ingress protection rating and voltage withstanding performance, posing a high safety risk. Fire Prevention To prevent vehicle fires in a timely and effective manner, pay attention to the following during use of the vehicle: ●Do not press the accelerator pedal continuously. Otherwise, the drive motor will always run at a high speed. ●No flammable or explosive items are allowed in the vehicle. ●Temperatures may reach over 70°C in a vehicle exposed to direct sunlight in summer. Therefore, flammable and explosive items, such as lighters, cleaning agents and perfumes, stored in the vehicle can cause a fire or even explosion easily. ●Make sure cigarettes are thoroughly put out. ●Smoking is not only harmful to your health, but can also may cause a fire. Cigarettes that not thoroughly put out may cause a fire. ●It is recommended to go to a DENZA authorized dealer or service provider for regular vehicle checks. ●Check vehicle wiring, connections, wiring harnesses, insulation, fixed position regularly. Deal with identified problems promptly. ●Do not refit vehicle wiring or add any unauthorized electrical appliance. ●The addition of extra electrical appliances, such as high-power audio systems, light fixtures, etc., may overload and overheat the wiring harness and increase the risk of fire. Improper refitting of electrical appliances or wiring may cause a fire due to contact resistance and abnormal heating. ●Fuses or other replacement wires in excess of relevant electrical rating are strictly prohibited. ●Select a proper parking location. ●When the vehicle is parked, especially in summer, do check whether there are any flammables such as dry grasses, dead woods, leaves or wheat straws under the vehicle. If any, a fire may be caused. ●When the vehicle is running, avoid driving on the road sections piled up with flammables such as dry leaves, wheat straws and grasses, or immediately stop the vehicle to check whether any flammables are carried along after passing such road sections. When parking the vehicle, try to avoid sun exposure. ●Disconnect the negative cable of the low-voltage battery when the vehicle is being repaired or serviced. ●Keep a lightweight fire extinguisher in the vehicle and know how to use it. ●In order to ensure vehicle safety, a fire extinguisher should be equipped in the vehicle, and be checked and replaced regularly. Also, you should familiarize yourself with use of the fire extinguisher and be prepared for any accidents. ●In the event of a fire in the vehicle, take effective measures in a timely and calm manner to minimize any losses. ●Fires typically show initial warning signs, such as abnormal noises and odors in the vehicle body. When abnormal conditions are found, turn off and stop the vehicle immediately. Try to put out the fire if possible.

Snow Chain Instructions

Halaman 109

●Call a fire emergency number. Then contact a DENZA authorized dealer or service provider and your insurance provider. ●Look for the ignition point. If the cabin smokes, do not open the hood immediately. (This will let a large amount of air in and cause fire spreading. There is limited comburent in the cabin. Keeping the hood closed can control the fire so that the fire can be easily put out). ●If the fire brigade is involved, ask for a duty performance certificate and a description of fire cause. ●After occurrence of the accident, contact the insurance company for post-event handling in a timely manner. REMINDER ●In order to mitigate losses in the event of an accident, the purchase of commercial insurance (fire loss, theft, etc.) is recommended. Snow Chains ●Snow chains are only for emergencies or areas where they are permitted by laws. ●Snow chains should be installed on front wheels. Be careful when driving the vehicle installed with snow chains on snow-covered roads. Use thin snow chains. Some snow chains may damage tires, wheels, suspensions, and the vehicle body. The recommended snow chains are no larger than 10 mm in thickness or diameter, which provides enough space between tires and other parts in the hubcap. ●Read the component assembly drawings and other instructions provided by the snow chain manufacturer carefully. ●Before purchasing and installing snow chains, consult the DENZA authorized dealer or service provider where your vehicle was purchased. ●In order to minimize wear of tires and snow chains, do not travel with snow chains on roads without snow. CAUTION ●Driving speed must not exceed 30 km/h or the speed limit specified by the snow chain manufacturer. 04 ●Drive carefully, paying attention to bumps, potholes, and sharp turns that can cause the vehicle to bounce. USING AND DRIVING ●For vehicles with snow chains, avoid sharp turns or braking with locked wheels, and slow down the vehicle before entering a curve to avoid accidents due to loss of control. ●Install the chains symmetrically and remove them immediately after driving on snowy or muddy roads. ●If an abnormal sound is heard from the snow chain, please stop the vehicle immediately to check whether the vehicle components such as suspension, body or brake lines are normal, and ensure that there is no contact between them and the snow chains. ●Do not install snow chains with low tire pressure.

Remote Start

Halaman 110

Starting and Driving Starting the Vehicle In normal cases, start the vehicle as below: ●Carry a valid smart key with you, depress the brake pedal ① and press the START/STOP button ② at the same time, and then the OK indicator on the instrument cluster illuminates, indicating that the vehicle is ready for driving. ●Shift to "D" or "R" position, and then the electrical parking brake will be released automatically. Do not start driving the vehicle until hearing a motor release sound from the electrical parking brake system. The vehicle cannot power on when ●The vehicle cannot power on when: ●After you press the START/STOP button, the smart key warning light turns on, a beep sounds, and the message "No key detected" is displayed on the instrument cluster. This means that the key is not in the vehicle or cannot be detected due to interference. ●The key is somewhere unsuitable for detection, such as on the floor, in the cup holder, trunk, or storage compartment. Starting the vehicle in emergencies: ●Engage the parking brake firmly. ●Turn off all unnecessary lights and accessories. ●The gearshift lever is on "P". ●Switch the ignition off. ●The electronic smart key is in the vehicle. ●Press and hold the START/STOP button for more than 15 seconds to start the vehicle. CAUTION ●Do not touch the START/STOP button while driving. Remote Start with the Electronic Smart Key 1. Press and hold the remote start/stop button on the electronic smart key for two seconds to start the vehicle. After it is started, turn signals will flash three times. 2. If there is no valid operation within 10 minutes after remote start, the vehicle stops and powers off, and turn signals flash twice. 3. Press and hold the remote start/stop button on the electronic smart key for

DiSus-C*

Halaman 111

two seconds. The vehicle powers off, and turn signals flash twice. Driving Safety Check before Driving Exterior ●Tires: Check tire pressure and carefully inspect tires for any cut, damage, foreign material, anomaly, and excessive wear. ●Lug nuts: Ensure all nuts are fitted and tightened. ●Lighting: Verify that headlights, parking lights, position lights, turn signals, and other lights are all working. Check headlight intensity. Interior ●Seat Belts: Check whether seat belts can be properly fastened. Verify that seat belts are not worn or scratched. ●Instrument cluster: Particularly, verify that maintenance indicator, instrument cluster lighting, and defroster work properly. ●Braking: Verify that there is enough space for the brake pedal to work. ●Low-voltage battery and cables: Check connectors for any corrosion or looseness and any cracks in the battery housing. In the engine compartment ●Spare fuses: Verify that spare fuses of all rated charges in the fuse box are available. ●Coolant level: Verify that coolant level is correct. ●Brake fluid level: Confirm that the brake fluid level is correct. Preparations before Driving ●Check the surroundings before getting into the vehicle. ●Adjust seat position, seatback angle, cushion height, headrest height, and the steering wheel angle and height. ●Adjust interior rearview mirror and side mirrors. ●Close all doors. ●Fasten the seat belts. Intelligent Chassis Control System (DiSus-C)* 04 USING AND DRIVING ●The DiSus-C system is an electronically controlled shock absorber suspension system, which adjusts the driving comfort and stability by controlling the damping force of the electronically controlled shock absorber. Go to the infotainment touchscreen → Vehicle→ Intelligent Chassis → DiSus-C to select Comfort or Sport. Comfort control ●Comfort control: During acceleration and deceleration, the vehicle pitching caused by load transfer is controlled by the coordination of the electronically controlled suspension damping and the brake end pressure, which improves the driving comfort. ●Go to the infotainment touchscreen → Vehicle → Intelligent Chassis to

Gear Shift Controls

Halaman 112

enable or disable comfort control and choose Weak/Moderate/Strong. CAUTION ●In case of emergency braking, its effect may be reduced. Gear Shift Controls ●The gear position of the gear actuator is marked on the gearshift lever. ●"P" gear is for parking, press this button to park the vehicle and the parking indicator will light up. Press the brake pedal to start the vehicle, you may shift from "P" to another position. CAUTION ●To avoid injury, press the "P" button only after the vehicle has completely stopped. ●"R": Reverse, used only when the vehicle has come to a complete stop. ●"N": Neutral, used for temporary stop. Under all circumstances, always shift to "P" before getting out. ●"D": Drive, shift to D position to drive the vehicle normally. ●If the shift is successful, the lever returns to its middle position after it is released. ●Turn the ignition on before shifting into "D". ●Shifting out of "P" or into "D" gear requires pressing the brake pedal. For details, see the prompt message on the instrument cluster. ●To prevent unintended vehicle movement, press the "P" button once the vehicle has stopped completely. The electronic parking brake (EPB) is automatically applied and the EPB indicator lights up. WARNING ●If the motor is turned off and the vehicle travels for a long time after it is in the "N" gear, the transmission may be severely damaged due to lack of lubrication. ●When the motor is running and the vehicle is in the "R"/"D" gear, always stop the vehicle by stepping on the brake pedal, as there is still force transmitted from the actuator and the vehicle can travel slowly even in its idle condition. ●If you want to shift a gear while driving forward, do not step on the accelerator pedal to prevent accidents. ●Never shift to "R" or press the "P" button while the vehicle is moving, in order to prevent accidents. ●Never coast downhill in "N" or "P", even if the motor is not running. ●If the EPB indicator does not come on after shifting into P, enable the EPB on the shortcut menu or by going to infotainment touchscreen → ADAS → Safety Assist. In this case, contact

Automatic EPB Release upon Vehicle Start

Halaman 113

WARNING a DENZA authorized dealer or service provider for inspection. Electronic Parking Brake (EPB) EPB Switch Be sure to engage the Electronic Parking Brake (EPB) every time before parking and leaving the vehicle. Engaging EPB Manually Set EPB on the "EPB" option on infotainment touchscreen, when you press the brake pedal and EPB is released, EPB applies an appropriate parking force, the indicator on the instrument cluster flashes and then is steady on, indicating that EPB is engaged. In addition, a text prompt "EPB activated" is displayed. CAUTION ●When flashes, EPB is working. If the vehicle is on a slope, do not release the brake pedal until is steady on. Otherwise the vehicle may move down. Engaging EPB Automatically Engaging EPB automatically when the ignition is switched off ●When the ignition is switched off, EPB engages automatically and lights up on the instrument cluster. Engaging EPB automatically when shifting into "P" ●Press the brake pedal to stop the vehicle and shift into Park. EPB is engaged automatically. Do not release the brake pedal until the indicator on the instrument cluster stops flashing and becomes steady on and the "EPB activated" message is displayed. CAUTION ●The EPB is not automatically engaged if you switch off the ignition immediately after pressing the EPB switch. ●When the vehicle needs to be pushed, or towed after breaking down, or its brake pad needs to be repaired or replaced, enable the EPB trailer mode on the infotainment touchscreen → Service → Overhaul → EPB towing. 04 USING AND DRIVING ●This function is designed to improve vehicle safety. Excessive reliance on or frequent use of the function is not recommended. For safety reasons, make sure that the vehicle is shifted into "P" or the EPB is engaged before getting off. ●The EPB system conducts power- up self-check within several seconds after the vehicle is started. In this process, the system does not respond to any function. Automatic EPB Release upon Vehicle Start Releasing by shifting gear: ●On a flat road or small slope (gradient less than 10°), with the vehicle parked, start the vehicle, press and hold the brake pedal, and shift the gear from "P" or "N" into a driving gear like "D" or "R". EPB is released automatically, the indicator turns off, and a "EPB released" message is displayed.

EPB Operating Sound

Halaman 114

CAUTION ●Be sure to always press and hold the brake pedal when shifting gears. Release the pedal only after the intended gear is displayed on the instrument cluster. ●The EPB system conducts power- up self-check within several seconds after the vehicle is started. In this process, the system does not respond to any function. Releasing by pressing the accelerator pedal ●When the vehicle has been started and the gear is in a driving gear such as Drive or Reverse, engage EPB on the infotainment touchscreen, then simply press the accelerator pedal slowly to a certain degree. EPB is released automatically and turns off with the message "EPB released" displayed. Emergency Braking When Brake Pedal Fails ●If braking fails or is blocked, continue to press the "P" button for over two seconds for emergency braking. WARNING ●For safety considerations, refrain from using the EPB for braking in normal driving. If the brake pedal fails or is blocked, use the emergency braking function while you can always keep the vehicle under control and drive normally. ●For safety considerations, refrain from using EPB for braking in normal driving. It is preferred to be used when the brake pedal fails or is blocked. WARNING ●As the EPB cannot go beyond the physical limit of road adhesion, activating the emergency brake function may result in vehicle drift, sideslip, or deflection when the vehicle passes through bends or dangerous/heavy-traffic road sections, or when the vehicle is driven under severe weather conditions. Be careful to avoid any possible accident. EPB System Indicator ●When the vehicle is powered on, if the EPB is engaged, is solid on on the instrument cluster. ●When the vehicle is powered off, if the EPB is engaged, comes on and then turns off in about three seconds. ●When the vehicle is powered on, the EPB system starts self-check. turns on and then turns off in about three seconds. If it does not, the EPB or braking system may be faulty. It is recommended to contact a DENZA authorized dealer or service provider immediately. EPB Operating Sound ●EPB motor noises can be heard while the EPB is being engaged or released. ●If there is a burning smell or unusual noises after emergency braking is activated, contact a DENZA authorized dealer or service provider immediately. WARNING ●To prevent the vehicle from moving, the gearshift is not to be used to replace EPB when

AVH Switch

Halaman 115

WARNING parking. EPB must be used instead, and the vehicle must be in "P" gear. ●The EPB switch must not be operated when the vehicle is moving. ●When the EPB switch is pulled or released, the brake pedal must be pressed to prevent the vehicle from moving, and the subsequent locking of the gearshift that occurs because EPB cannot provide a sufficient parking force. Automatic Vehicle Hold (AVH) Auto Vehicle Hold (AVH): The automatic vehicle hold (AVH) is activated automatically when the moving vehicle needs to be stationary for longer periods of time, such as in traffic jams on a slope or waiting at traffic lights. AVH standby ●When the ignition is on, press the AVH switch to enable the function. The AVH standby indicator is displayed on the instrument cluster. ●Press the AVH switch again to disable AVH. AVH activated ●When the AVH standby indicator is solid on, press and hold the brake pedal until the vehicle stops (vehicle speed reduces to zero) to activate AVH. At this time, the vehicle is in AVH state with displayed on the instrument cluster. CAUTION ●For AVH to be activated, all of the following conditions must be met: ●The driver's seat belt is fastened and the doors are closed. 04 ●Intelligent power braking system and electronic park brake (EPB) systems are normal. USING AND DRIVING ●Pressing the accelerator pedal, shifting into Park, or engaging the EPB manually can make AVH exit to the standby status. ●The AVH is off by factory default. AVH running ●The AVH function runs normally when it is activated, brake lights and the high-mount brake light are on, and the AVH indicator is solid on on the instrument cluster. ●The AVH function exits to the standby mode after the vehicle stops for 10 minutes, with the AVH standby indicator lighting up and gear shifted into Park. ●To activate AVH function, shift into Drive to enable the vehicle to move normally, and then press and hold the brake pedal until the vehicle stops (vehicle speed reduces to zero). AVH exits ●When the AVH function runs normally, the following actions make AVH exit

Driving Instructions

Halaman 116

and shift the vehicle from Drive to Park automatically: ●Open the driver's door. ●Unlock the driver's seat belt. ●The gear status is in Drive when the vehicle stops, and EPB is enabled. ●Press the AVH switch to disable AVH when releasing the brake pedal. AVH suppressed ●Shifting into Reverse, AVH goes into slow-moving condition. When the vehicle is reversing (R gear) or traveling (shift into D gear from R gear) at a low speed, AVH cannot be activated and stays in standby status to improve vehicle motion. ●To exit slow-moving mode, press the AVH switch or drive at a speed above 10 km/h. The AVH function is on standby and can be activated normally. Slow-Moving Conditions ●When the gear is shifted into Reverse and the vehicle moves slowly, AVH goes into slow-moving condition. When the vehicle is reversing (R gear) or traveling (D gear) at a low speed, AVH is suppressed to improve vehicle motion. ●To exit slow-moving mode, push the AVH switch or drive at a speed above 10km/h. Then the AVH function can be activated normally. Driving Precautions ●Drive slowly and carefully along gravel roads. To prevent tire damage, do not drive over sharp-edged obstacles. ●Slow down on bumpy or uneven roads. Otherwise, the impact may seriously damage wheels. ●Avoid driving through flooded areas as much as possible. ●Slow down when driving against strong winds. ●Drive carefully on slippery roads, such as roads covered in ice, snow or sand, or surfaces such as wet ceramic tiles or epoxy resin. Avoid parking on slopes to prevent vehicle sliding. REMINDER ●The battery is located in the vehicle's chassis. Make sure to avoid bumping when driving. ●Before driving, make sure that EPB is fully released and that the EPB indicator light is off. ●Do not leave the vehicle when the drive motor is running. ●Do not rest your feet on the brake pedal and accelerator pedal for a long time during driving. Otherwise, this will cause overheating, wear and waste of electric energy. ●Remember to carry the smart key when leaving the vehicle. ●Slow down when driving down steep slopes, and avoid braking too frequently to prevent disc overheating, which affects brake performance. ●Be careful when accelerating or braking on slippery roads. Quick acceleration or sudden braking will cause the vehicle to skid or deviate. ●Make sure no occupant sticks their head or hands outside the vehicle, specially when it comes to children.

Adaptive Cruise Control (ACC)

Halaman 117

REMINDER ●Large amounts of water entering the engine compartment can cause damage to the power system and electrical components. WARNING ●Drivers must ensure the safety of all vehicle occupants, and show them how to handle the vehicle's functions properly. Winter Driving Precautions ●Make sure the coolant is freeze-proof. ●Use coolant of the same type as the one used originally. Fill up coolant into the cooling system based on ambient temperature. ●Improper coolant damages the cooling system. ●Check batteries and cables conditions. ●The low-voltage battery's capacity is lower in cold weather, so they must be fully charged in winter. ●Avoid door frost. ●Spray some deicing agent or glycerin in the lock hole to prevent freezing. ●Use anti-freeze washer fluid. ●These can be found in DENZA authorized dealers or service providers and the auto parts stores. ●The water and anti-freeze ratio must conform to manufacturer instructions. CAUTION ●Use special washer fluid to prevent paint damage. ●Prevent ice and snow from going under the fender liner. ●Steering is difficult with ice or snow accumulating under the fender liners. When driving in cold weather, stop from time to time and check for snow and ice under the fender liners. ●It is recommended to carry emergency tools or items for different road conditions. 04 ●It is advisable to have snow chains, window scraper, bags of sand and salt, flashing signal, a shovel and connecting cables in the vehicle. USING AND DRIVING Driver Assistance Adaptive Cruise Control (ACC) ●The Adaptive Cruise Control (ACC) system, an extension of traditional cruise control, uses a front mmWave radar and a front camera to detect the relative distance and speed of a vehicle ahead, so as to control vehicle speed accordingly for automatic cruise control. The system switches between regular cruise control and ACC depending on whether there is a vehicle ahead. ●Cruise speed and time interval from the vehicle ahead can be set by using the cruise buttons. You can set the cruise control speed within the 30–130 km/h (20–80mph) range, or set a fixed distance from the vehicle ahead to cruise at speeds between 0 and 130 km/h (0–80mph).

Adaptive Cruise Control (ACC)

Halaman 118

Status Description ●ACC standby: ●Once enabled, the system is on standby by default and can be manually activated. If the vehicle does not meet activation conditions, it must be checked until such conditions are met. At this time, (with a variable cruise speed value) is displayed on the instrument cluster. ●ACC activated: ●The system is operational. It maintains the set speed or automatically adjusts the distance from the vehicle ahead. At this time, (with a variable cruise speed value) is displayed on the instrument cluster. ●Over speed: ●When you step the accelerator pedal while ACC is active, the vehicle responds to your acceleration action so that the ACC is temporarily deactivated until you release the pedal. ●ACC failure: ●There has been a failure in the system. No operation can be performed, and the ACC failure indicator is diaplayed on the instrument cluster. Contact a DENZA authorized dealer or service provider. ACC Activation Conditions ●The EPB is released. ●The vehicle is in Drive. ●The vehicle does not slide backwards. ●The trunk, hood, and all doors are closed. ●Driver seat belt is fastened. ●The ESC system is on, but not activated yet. ●Vehicle speed is not greater than 130 km/h (80 mph). ●Brake pedal is pressed at speed 0; or brake pedal is not pressed at speeds above 0. ●There is no vehicle network communication failure prompt on the instrument cluster. ●The AEB function is not activated. Cruise Button Operation ACC activation/exit button ●Press button ① to activate or exit ACC. (The system is in standby when activation conditions are met). (By default, ACC activation by pressing button ① sets the current speed as the cruise speed. If the current speed is below 30 km/h, the cruise speed is set to 30 km/h.) Resetting ACC ●When the ACC system is on standby within the same ignition cycle, the system memorizes the last speed setting (on the instrument cluster). Push up the lever ④ to revert to the stored speed prior to exiting the cruise system. If the system does not memorizes any vehicle speed (ACC is activated for the first time in this cycle), the "RESET" button will not activate the ACC.

Adaptive Cruise Control (ACC)

Halaman 119

Increasing/Decreasing target speed ●When ACC is active, set the vehicle to a speed within the 30-130 km/h range by moving the lever ④. Toggle the lever ④ up/down to increase/ decrease the vehicle speed by 5 km/h. Press and hold the lever up/down to continuously increase/decrease the vehicle speed by 1 km/h. Exiting ACC ●While ACC is active, pressing button ① for a second time or pressing the brake pedal makes the ACC system go on standby. Setting vehicle distance ●The driver must select a safe vehicle distance. ●The system adjusts vehicle speed to keep a suitable distance from the vehicle ahead on the same lane. Pressing buttons ② and ③ on the steering wheel adjusts vehicle distance to any of the four available levels. At each level, vehicle distance is in direct proportion to vehicle speed. The faster the speed, the longer the distance. Increasing/Decreasing speed with ACC active ●When ACC is activated, you can press the accelerator pedal to reach the set target cruise speed in advance. The system then enters over speed mode. At the target cruise speed, if you accelerate without performing any other operations, the vehicle accelerates and then returns to target cruise speed after the accelerator pedal is released. If the you press the brake pedal to slow down the vehicle speed continuously, ACC goes into standby mode. After the brake is released, ACC will need to be reactivated. Follow-to-stop/start ●Controlled by ACC, the vehicle can stop when the vehicle ahead stops in normal driving conditions and resume driving automatically following the vehicle ahead if the stop is less than 30 seconds. ●If the vehicle stops for 30 seconds to three minutes, press the accelerator pedal or the button ① to start the vehicle. ●If the vehicle stops for more than three minutes, the ACC system enters standby mode, with EPB engaged. 04 System Limitations ●The front mmWave radars are installed in the front of the vehicle. Blockage of its detection area by contaminants can disturb the intended function. In particular, if the sensor is covered by snow completely, the ACC system exits and informs of this on the instrument cluster. System function will recover after blockage is removed and the vehicle is restarted or runs on normal roads for a while. USING AND DRIVING ●Front mmWave radar sensors may have a transient function failure from limited detection if the vehicle runs under special conditions, such as circular ramps or tunnels, for an extended period. The function can be recovered by restarting the vehicle or driving on normal roads for a while. ●Reaching or leaving a curve may delay or disturb target selection. In such cases, the ACC vehicle may not brake as expected or may brake late. ●On roads with sharp curves, such as winding roads, the vehicle ahead may be out of ACC sensor detection for several seconds due to sensor vision limitations, possibly causing the ACC vehicle to accelerate automatically.

Adaptive Cruise Control (ACC)

Halaman 120

●Traffic flow and weather conditions - such as rain and fog - must be heeded for setting vehicle distance on the ACC system. After the ACC system is properly set, the driver must ensure to decelerate or stop the vehicle at any time. ●The ACC system may not be able to identify stationary or slow-moving objects, such as vehicles, the end of traffic, toll booths, bicycles, or pedestrians. This means a risk of collision and requires the driver to beware of the surroundings. ●The ACC system cannot identify pedestrians or oncoming vehicles. ●The ACC system can only achieve limited braking instead of emergency braking. ●Metal objects, such as rail or metal plates used in road construction, may interfere with front mmWave radars, making it malfunction. ●Performance of front mmWave radar sensors may be affected by vibration or collision. Contact a DENZA authorized dealer or service provider. ●ACC cannot be activated if special driving modes* such as tow/ snow/mud/sand/terrain are enabled. Precautions ●ACC is a comfort system rather than a safety system, obstacle detector or collision warning system. The driver must keep control of vehicle at all times and be fully responsible for the vehicle. ●The ACC assists the driver, but is not a substitute for the driver. Drivers must abide by traffic rules and keep vehicle control at all times and be fully responsible for their vehicles. ●For safety reasons, ACC cannot be activated with ESC disabled. ●The ACC is suitable for highways and roads in good conditions, rather than complex urban or meandering roads. ●It is the driver's responsibility to keep distance from the vehicle ahead. The ACC system's vehicle distance meets the minimum distance required in driving environments in the country. ●Vehicle control is transferred to the driver if the accelerator or brake pedal is pressed with ACC active. As a result, the ACC system cannot keep a safe distance from the vehicle ahead. ●The ACC may have no or slow responses to a vehicle ahead that brakes suddenly (emergency stop), resulting in a risk of late braking. In such cases, there will be no take-over request. ●In some cases, such as when the vehicle ahead is going too slow, when lane change is too fast, or when the safe distance from the vehicle ahead is too short, there is no adequate time for the system to decrease the relative speed, so response has to come from the driver. The system cannot give audio or visual warnings in every case. ●If ACC is activated with the vehicle stationary, the system identifies any stationary obstacle ahead and keeps the vehicle still to ensure a safe startup and prevent collision. However, this function cannot identify all the obstacles, so the driver must be alert to the front obstacles or other traffic participants. ●A short distance from an adjacent lane (or a vehicle on an adjacent lane that is too close to the ACC vehicle's lane) may trigger ACC to brake. ●Vehicles coming into the ACC vehicle's lane and within the detection range of

Intelligent Cruise Control (ICC)

Halaman 121

its front mmWave radars are identified as target vehicles and prompt a response accordingly, which may lead to hard or late braking. ●Detection may be affected or delayed in some environments. If the radar cross section of the target (a bicycle, four-wheeler, or pedestrian, for example) is too small, the system may not be able to establish its distance, resulting in either late or no response to those vehicles. In such cases, vehicle speed must be controlled by the driver. In addition, detection may also be affected or delayed by noise or electromagnetic interference. ●ACC cannot target vehicles with too small contact ratio, so the driver must keep control of the vehicle. ●When the vehicle stops as it follows a vehicle ahead, in rare cases, the system does not recognize the end of the vehicle ahead but the lower end of the target (for example, the rear axle of a truck with a high chassis or a vehicle bumper). In such cases, the system cannot ensure proper stop distance, so the driver must stay alert and be ready to brake. ●Changing the vehicle structure, such as lowering the chassis or changing the front license mounting plate, may affect the ACC system. ●Do not use the ACC system when visibility is poor, or when driving on slopes, winding roads, or wet roads (covered in ice/snow or flooded). ●When ACC is activated and the vehicle is stationary behind another vehicle, if the steering wheel is turned at a large angle, ACC will judge that the driver wants to change lanes and start, and ACC will exit. ●When AVH is activated (the vehicle is stationary), the activation of ACC will cause the AVH to exit. Press the ICC/ACC/RESET+ button again, and the vehicle will idle (ACC exits) or cruise (ACC does not exit). ●Make sure to go to a DENZA authorized dealer or service provider for professional calibration and checking of front mmWave radars or the front camera in any of the following situations: ●The front mmWave radar, front bumper, or front windshield has been removed. ●Wheel alignment has been carried out. 04 ●The vehicle has experienced a collision. USING AND DRIVING ●ACC system performance has degraded or the instrument cluster has prompted an system error. WARNING ●ACC serves as a driver assistance function only, so the driver is fully responsible for driving safety. ●Influence of weather, road conditions, and other factors may cause ACC to fail. ●Use ACC based on your needs, traffic, and road conditions. Intelligent Cruise Control (ICC) ●The intelligent cruise control (ICC) integrates ACC and lane centering control (LCC). It helps control the vehicle both longitudinally and laterally at speeds between 0 and 130 km/h, easing the driving burden and enhancing driving safety and comfort.

Intelligent Cruise Control (ICC)

Halaman 122

●When the function is enabled, the driver must always hold the steering wheel and control the vehicle when necessary. ●Longitudinal assistance, driven by the ACC system, keeps the vehicle at a fixed speed or a fixed distance from the road user ahead. ICC Activation Conditions ●The EPB is released. ●The vehicle is in Drive. ●The vehicle does not slide backwards. ●The trunk, hood, and all doors are closed. ●Driver seat belt is fastened. ●The ESC system is on, but not activated yet. ●Vehicle speed is not greater than 130 km/h. ●Brake pedal is pressed at speed 0; or brake pedal is not pressed at speeds above 0. ●There is no vehicle network communication failure prompt on the instrument cluster. ●The AEB function is not activated. ●Two-way lane lines are clear and the vehicle is at the center of the lane. How to Use ●Enable or disable ICC on the infotainment touchscreen → ADAS → Driving Assist. This function can only be disabled on the infotainment touchscreen when the vehicle is in Park. When the vehicle is started, the system defaults to previous settings. ●With ICC enabled on the infotainment touchscreen, press the button* on the steering wheel to activate or exit ICC. ●(By default, when the function is activated, the current speed is set as the cruise speed. If the current speed is below 30 km/h, the cruise speed is set to 30 km/h.) When the speed is between 30-130 km/h, set the speed by Res+ and Set- on the steering wheel, short press to increase/decrease by 5 km/h, long press to continuously increase/decrease by 1 km/h. ●When the ICC function is enabled, the standby state indicator lights up on the instrument cluster. . ●When the ICC function is activated, the activated state indicator lights up on the instrument cluster. . When ICC is operational, the vehicle drives by the set speed or by automatically adjusting the distance from the vehicle ahead. Precautions ●ICC integrates ACC and LCC. Therefore, ACC function precautions must be followed during use. ●When ICC is turned on and activated at vehicle speeds between 0 km/h and 130 km/h:

Forward Collision Warning (FCW) and Automatic Emergency Braking (AEB)

Halaman 123

●If there is no lane lines ahead, transverse ICC control is suppressed and only ACC works. In that case, ICC system is standby. ●If lane lines ahead are clear and recognizable, transverse ICC control is activated automatically. In that case, ICC system is activated. ●The ICC system is a driving assistance system, not an automatic driving system. The driver should keep control of the vehicle at all times, and their hands should not leave the steering wheel for a long time. Otherwise, the system will exit after prompting the driver to take over the control. ●The ICC system can be affected by weather conditions, lighting and clarity of lane lines. Performance degrades significantly in situations such as backlighting, sunset, snow covered roads, and severely damaged roads. ●Do not use the ICC system on winding roads with sharp turns, icy and slippery bends, or under weather conditions, such as dense fog, heavy rain and heavy snow, liable to hinder the sensing operation of front mmWave radars or the front camera. ●ICC cannot be activated if special driving modes* such as tow/ snow/mud/sand/terrain are enabled. ●Situations where ICC cannot be used include: ●The sensor is blocked. ●The vehicle is running under severe weather conditions. ●Active safety function has been triggered. ●Vehicle speed exceeds the specified range. ●The road is too curvy. CAUTION ●ICC serves as a driver assistance function only, so the driver must be fully responsible for driving safety. ●Influence of weather, road conditions, and other factors may cause ICC to fail. ●When the vehicle passes through a too curvy road, it may exceed the system's ability to pass through the curve and automatically exit the ICC function. The driver should always be aware to the road environment and function status. 04 USING AND DRIVING ●Use ICC based on your needs, traffic, and road conditions. Forward Collision Warning (FCW) and Automatic Emergency Braking (AEB) Forward Collision Warning (FCW) and Automatic Emergency Braking (AEB) detect vehicles and pedestrians ahead by using front mmWave radar and a camera. When detecting a risk of collision, the system gives audible and visual alarms to alert the driver and improves the potential braking pressure for better response timing. If detecting increased risk of collision, the system automatically applies braking pressure to assist in collision avoidance or impact reduction. How to Use ●To enable or disable FCW and Automatic Emergency Braking (AEB), go to the infotainment touchscreen →ADAS→Safety Assist.

Forward Collision Warning (FCW) and Automatic Emergency Braking (AEB)

Halaman 124

●PCW gives alarms in forms of audio, messages, and intermittent braking. ●When FCW is activated, or is displayed on the instrument cluster depending on the level of emergency, and audible and textual prompts are given. ●When AEB is triggered, and audible and textual prompts are displayed on the instrument cluster. ●When the function is disabled, is displayed on the instrument cluster. ●In the event of malfunction, is displayed on the instrument cluster. FCW Activation Conditions All the following conditions must be met: ●This function has been turned on in Vehicle Settings. ●Vehicle speed is within the 30~150km/h. ●The vehicle is in Drive. AEB activation conditions All the following conditions must be met: ●This function has been turned on in Vehicle Settings. ●Vehicle speed is within the 4~150km/h. ●The EPB is released. ●The vehicle is in Drive. ●The vehicle does not slide backwards. ●The trunk, hood, and all doors are closed. ●Driver seat belt is fastened. ●The ESC system is on, but not activated yet. System Limitations ●Detection may be affected or delayed in some environments. If the radar cross section of the target (a bicycle, three-wheelers, four-wheeler, or motorized bicycle, or motorcycle, for example) is too small, the system may not be able to establish its distance, resulting in either late or no response to those vehicles. ●PCW and AEB may be affected or give no response in the following cases: ●On rainy, snowy or foggy days, or exposure to direct sunlight or glaring lights, or significantly varying lighting conditions. ●Dirty, hazy, damaged or blocked sensor. ●Malfunction of front mmWave radars due to interference from other front millimeter-wave radar sources such as strong radar reflection in multi- story parking lots. ●In complex traffic, the system may be unable to properly respond to the following circumstances: ●Pedestrians or vehicles move too quickly into the sensor's detection range. ●Pedestrians are obscured by other objects. ●Pedestrian outlines are indistinguishable from the surroundings. ●Pedestrians are not detected, due to, for example, coverage by special clothing or other materials. ●The vehicle is on a sharp curve. Precautions ●The AEB system cannot ensure zero collision. In complex traffic, the system cannot always clearly identify all the

Forward Collision Warning (FCW) and Automatic Emergency Braking (AEB)

Halaman 125

vehicles or pedestrians. It may trigger unnecessary warning or braking action for well covers, iron plates or road signs. ●Make sure to drive safely and observe surrounding traffic conditions. The AEB is not a substitute for normal braking operation in any event. ●Do not overly rely on the PEB system as this may result in severe injuries or deaths. The system is only an auxiliary safety tool. The driver must always keep a safe distance from vehicles ahead, control the speed, and be ready to brake or steer away when necessary. The driver must keep control of the vehicle at all times and be fully responsible for safe driving. ●The AEB system is activated only when it exceeds certain speeds. Careful driving is always required, because the system may not be triggered correctly. ●The AEB system is activated at vehicle speeds above 4 km/h, but it can only reduce vehicle speed by up to 60 km/h. Careful driving is always required, because the system may not be triggered correctly. ●The AEB system cannot work normally when the ESC function is disabled or the fault light is on. ●If FCW gives an alarm, the driver must brake based on traffic conditions to decrease vehicle speed or steer away from obstacles. ●If the vehicle travels too close to the vehicle ahead for too long, a safety distance warning will be given. If the vehicle ahead brakes suddenly, collision may be unavoidable. ●The system will not trigger AEB when the driver is aware of an emergency warning but turns the steering wheel, accelerates or brakes. ●Front mmWave radar sensors may have a transient function failure from limited detection if the vehicle runs under special conditions, such as circular ramps or tunnels, for an extended period. The function can be recovered by restarting the vehicle or driving on normal roads for a while. ●Sometimes the surfaces of front mmWave radars or the front camera are dirty or obscured by foreign objects. In this case, a message is displayed on the instrument cluster(dirt or foreign objects on the surface may blind the sensors), the foreign objects on the sensors should be removed. The functions will return normal after the sensor is cleaned. 04 USING AND DRIVING ●As the pedestrian protection function is limited by certain physical conditions, the driver must take timely and effective control of the vehicle under dangerous conditions. ●The system cannot completely protect pedestrians or avoid accidents and severe injuries on its own. ●Under certain complex conditions, such as on winding roads, the pedestrian protection function may trigger unnecessary warning or braking. ●System failure may trigger unnecessary warnings or braking. This may be caused, for example, by the misalignment of the front mmWave radar or front camera. ●The brake pedal becomes harder if AEB is triggered. A large amount of hydraulic pressure will be required to push the caliper in a short time and there will be a sizzling noise. ●The PCW system is triggered only when the doors are closed and the seat belt is fastened. In the following circumstances, it will fail to work in the following cases:

Forward Collision Warning (FCW) and Automatic Emergency Braking (AEB)

Halaman 126

●Any door is not closed or it is opened when the vehicle is moving. ●The seat belt is not fastened or it is unfastened when the vehicle is moving. ●The driver accelerates or decelerates rapidly or turns the steering wheel quickly. ●System performance may be reduced in the following cases: ●Strong front bumper impact from accidents or other causes. ●Improperly inflated or worn out tires. ●Unqualified tires installed. ●Snow chains installed. ●Use of a small spare tire or tire repair kit. ●Make sure to go to a DENZA authorized dealer or service provider for professional calibration of front mmWave radars or the front camera in any of the following situations: ●The front mmWave radar or front camera has been removed. ●Toe-in or rear camber has been adjusted during wheel alignment. ●The vehicle experienced a collision. ●ACC system performance has degraded or become abnormal. ●Do not attempt to test the PEB system on your own using objects such as carton, iron plate, dummy, etc. The system may not work properly and thus result in accidents. CAUTION ●FCW and AEB serve as driver assistance functions only, so the driver is fully responsible for driving safety. CAUTION ●Influence of weather, road conditions, and other factors may cause FCW and AEB to fail. ●Use FCW and AEB based on your needs, traffic, and road conditions. Front Cross Traffic Alert (FCTA) and Front Cross Traffic Brake (FCTB) Front cross traffic alert (FCTA) and front cross traffic braking (FCTB) detects vehicles crossing the driveway at the front through mmWave radars on both sides of the front bumper to alert the driver and engage the brake if necessary. At low vehicle speeds, when the system detects a risk of collision with a vehicle crossing the driveway at the front, it provides the driver with visual and audible alerts; in the event of an impending collision, the vehicle brakes automatically. How to Use ●Enable or disable the FCTA and FCTB on the infotainment touchscreen → ADAS → Safety Assist. When the vehicle is started, the system defaults to previous settings. ●When FCTA is activated, an audible alarm sounds. ●When FCTB is activated, is displayed on the instrument cluster and an audible alarm sounds, with AEB automatically braking the vehicle. ●In the event of FCTA/FCTB malfunction, is displayed on the instrument cluster.

Traffic Sign Recognition (TSR)*

Halaman 127

Precautions ●While the system provides assistance in monitoring front left and right sides, it cannot replace the driver's observation and judgment. The driver must keep control of vehicle at all times and drive properly and is fully responsible for the vehicle. ●When a target vehicle is approaching from the side at a high speed, the FCTA/FCTB system may not be able to provide adequate warning. ●The driver must ensure the normal operation of the system, keeping mmWave radars on both side of the bumper in good condition. For example, dirt, snow, or other obstructions need to be cleared right away. ●In addition, detection may also be affected or delayed by noise or electromagnetic interference. ●Under some circumstances, it is difficult for the system to assist the driver, and detection may be affected or delayed. Possible circumstances include, but are not limited to: ●The vehicle coming from the side suddenly changes the lane. ●The target vehicle is obscured. ●The radar cross section of the target (for example, a bicycle or electric moped) is too small. ●The vehicle is running under severe weather, such as rain or snow. ●MmWave radar(s) come off, are loosely installed, or are blocked. ●The vehicle encounters complex metal guardrails or similar road conditions. ●The system does not work when: ●Targets are outside the mmWave radar's detection range. ●FCTA or FCTB is switched off. ●The vehicle is not in Drive. ●Four doors are open. ●System initialization has not been complete yet. ●MmWave radar(s) fail. ●Vehicles coming from the front left or right side are detected too late at sharp turns, slopes, or other settings. ●Influence of vibration or collision on mmWave radar sensor calibration can degrade system performance. In this case, contact a DENZA authorized dealer or service provider. 04 USING AND DRIVING WARNING ●FCTA/FCTB serves as a driver assistance function only, so the driver must be fully responsible for driving safety. ●Influence of weather, road conditions, and other factors may cause FCTA/FCTB to fail or lead to late braking. ●Use FCTA/FCTB based on your needs, traffic, and road conditions. Traffic Sign Recognition (TSR)* Traffic Sign Recognition (TSR) system recognizes speed limit signs through the front view camera. It displays such signs on the current road on the instrument cluster and emits alarms when the vehicle speed exceeds the detected speed limit.

Intelligent Speed Limit Control (ISLC)*

Halaman 128

How to Use ●Enable or disable TSR on the infotainment touchscreen → ADAS → Safety Assist. When the vehicle is started, the system defaults to previous settings. ●When the TSR system identifies the current traffic sign, the identified speed limit icon is displayed on the instrument cluster (for example, ). ●When the TSR system is disabled or identifies no traffic sign, no icon is displayed on the instrument cluster. Precautions ●The speed limit icon disappears from the instrument cluster within a certain distance after system recognition. The driver must control speed within range. ●The TSR system can identify speed limit signs only, and will not control speed. The control over the vehicle always vests in the driver. Please drive properly. ●When there are several speed limit signs on side-by-side lanes, the system recognizes the limit sign of current lane to display the speed limit alert icon. The driver must remain in the correct lane. ●Weight limit signs not in standard size as per national regulations may mistakenly be identified as speed limit signs. ●If a speed limit sign is unclear or distorted, inclined, reflective, partly blocked or covered, the camera may be unable to recognize the sign completely or clearly. ●TSR performance depends on weather conditions, lighting, and sign visibility. The system may fail to or incorrectly identify the sign at night or sunset, in rainy, foggy, hazy, snowy or dusty environment, when light is coming from the back of the vehicle, or when there is a sudden change in lighting. ●In case there is a collision or the camera sensor has been reassembled, it is recommended to go to a DENZA authorized dealer or service provider for sensor calibration so as to avoid affecting system performance. WARNING ●TSR serves as a driver assistance function only, so the driver must be fully responsible for driving safety. ●Influence of weather, road conditions, and other factors may cause TSR to fail or lead to late alarms. ●Use TSR based on your needs, traffic, and road conditions. Intelligent Speed Limit Control (ISLC)* ●The intelligent speed limit control (ISLC) system integrates the functions of ACC and TSR. After the system is activated, when a speed limit sign is identified and the vehicle is speeding, the system will issue a prompt to ask whether to adjust the ACC cruise speed to the recognized speed limit value. After confirmation from the driver, the system will automatically set the ACC cruise speed to the recognized speed limit value and sensitivity, so that the vehicle will not overspeed. ●This function is accessible at the 30-150 km/h speed range.

Intelligent High Beam Control (IHBC)

Halaman 129

How to Use ●Enable or disable ISLC on the infotainment touchscreen → ADAS→Safety Assist→TSR. When the vehicle is started, the system defaults to previous settings. ●When TSR is disabled, ISLC also ceases to function. ●With TSR on, ISLC can be enabled or disabled depending on your needs. ●ISLC can be activated provided that ACC is active. Precautions ●ISLC integrates ACC and TSR. Therefore, ACC and TSR function precautions must be followed during use. ●The intelligent cruise control system is a driving assistance system, so the driver should keep control of vehicle at all times. ●ISLC performance depends on weather conditions, lighting, and traffic sign visibility. The system may fail to or incorrectly identify the sign at night or sunset, in rainy, foggy, hazy, snowy or dusty environment, when light is coming from the back of the vehicle, or when there is a sudden change in lighting. WARNING ●ISLC only serves as a driver assistance function, so the driver must be fully responsible for driving safety. ●Influence of weather, road conditions, and other factors may cause ISLC to fail or lead to late alarms. WARNING ●Use ISLC based on your needs, traffic, and road conditions. Intelligent High Beam Control (IHBC) Intelligent High Beam Control (IHBC) system assesses current driving conditions by using front camera sensors and automatically activates or deactivates the high beam accordingly, when vehicle speed exceeds 35 km/h. 04 How to Use USING AND DRIVING ●Enable or disable IHBC on the infotainment touchscreen → ADAS → Safety Assist. When the vehicle is started, the system defaults to previous settings. ●With the function enabled, when you set the light switch to the Auto position, the light meets conditions and vehicle speed exceeds 35 km/h, the system automatically switches between low and high beams based on the current driving environment. When the function is activated, the IHBC icon will light up on the instrument cluster. ●When the IHBC function is enabled, the standby state indicator lights up on the instrument cluster. ●When the IHBC function is activated, the activated state indicator lights up on the instrument cluster. ●When the IHBC malfunctions, the fault indicator lights up on the instrument cluster.

Lane Support System (LSS)*

Halaman 130

Precautions ●The IHBC system is an auxiliary light control function. While it is recommended to use the system at high vehicle speeds, the system cannot completely replace the driver's judgment. The driver must observe road regulations and actively switch between high and low beams according to road condition changes at all times. ●Beam switching is suppressed if the vehicle is in a high dynamic state, for example when ABS or ESC is activated. ●IHBC system exits when you turn fog lights or all-weather lights on, set wipers to fast mode, are backing up, or set the light switch to a position other than auto lights, or when the environment has too much lighting. ●Even when IHBC is working, the driver must respond to possible situations where the IHBC is triggered in error or fails to work due to unavoidable environmental factors and conditions. Typical situations are: ●The driver's stick operation to switch to the high beam is prioritized. ●The weather, such as fog, rain or snow, is extremely terrible for driving. ●There are traffic participants with poor lighting (such as pedestrians and bicycles), railways or waterways nearby, or wild animals on the roads. ●There are strongly reflective objects around, such as traffic signs on highways and water reflection on the road surface. ●The front windshield is dirty, covered in mist, or blocked by stickers or decorations. ●In case there is a collision or the sensor has been reassembled, it is recommended to go to a DENZA authorized dealer or service provider for sensor calibration so as to avoid affecting system performance. WARNING ●HMA serves as a driver assistance function only, so the driver must be fully responsible for driving safety. ●Influence of weather, road conditions, and other factors may cause HMA to fail. ●Use HMA based on your needs, traffic, and road conditions. Lane Departure Assist (LDA)* Lane Departure Assist (LDA) contains two sub-functions: Lane Departure Warning (LDW) and Lane Departure Prevention (LDP). LDW and LDP work within the speed of 60–150km/h. ●Lane departure warning (LDW) ●The function identifies the front lane lines by the front camera on the upper front windshield. When the driver unconsciously departs from the current lane, the system issues instrument icons, buzzer sounds, or steering wheel vibration alarms to alert the driver by computing the relative distance between the vehicle and lane lines and considering the surroundings. ●LDW is turned on by factory default, and the alarm mode defaults to steering wheel vibration. When lane lines are detected, instrument lanes are white or gray; when LDW is activated, instrument lanes of departure side will turn red. ●Lane departure prevention (LDP)

Lane Support System (LSS)*

Halaman 131

●The function identifies the front lane lines by the front camera on the upper front windshield. When the driver unconsciously departs from the current lane, the system controls the steering wheel to correct lane departure after calculating the relative position of the vehicle and lane lines and considering the surroundings. ●LDP is turned off by factory default and can be activated manually. ●During the activation of LDP, the system gives an alarm when the driver's hands are off the steering wheel. Hands-off alarm includes prompt messages, icons, and sounds. How to Use ●To enable or disable LDW and LDP, go to infotainment touchscreen → ADAS → Safety Assist → Lane Support System (LSS). When the vehicle is started, the system defaults to previous settings. ●To adjust the alerting way of LDW and LDP, go to infotainment touchscreen → ADAS → Safety Assist → Lane Assist System. Warnings of LDW and LDP include: Sound, touch (steering wheel vibration) or both. ●When LDW or LDP is enabled, is displayed on the instrument cluster. When LDW and LDP are both enabled, the icon disappears on the instrument cluster. ●LDP activates with the lane lines of departure side turning blue on the instrument cluster. ●After LDP is activated, if the driver's hands are off the steering wheel, a prompt message is displayed on the instrument cluster to remind the driver to hold the steering wheel. Hands-off alarm varies with the driver's hands-off frequency in a short time. The message "Please turn the steering wheel gently" displays on the instrument cluster for the first hands-off; "Please hold the steering wheel" for the second; "Please take over immediately" for the third and above. ●When LDW or LDP fails, is displayed on the instrument cluster with a reminder sound and a pop-up prompt message. 04 System Limitations The detection of lane lines by the front camera is easily interfered by the environment. The following situations may lead to failure or performance degradation of the system: USING AND DRIVING ●Poor visibility on snowy, rainy, or foggy days ●Dirty or fogged front windshield, or blocked front camera. ●Glaring from direct sunlight, reflection in puddles, or oncoming vehicles ●Sudden changes in light, such as when the vehicle is entering or exiting a tunnel ●Lane lines obscured by tree shadows on roads in direct sunlight on sunny days Precautions ●LDW will be suppressed if a turn signal is used and the vehicle changes lane as indicated by the turn signal. ●LDW may be suppressed if the vehicle travels over lane lines, or lane lines are unclear, too thin, worn, blurred or covered by dirt/snow.

Emergency Lane Keeping Assist (ELKA)*

Halaman 132

●LDW may be suppressed if the lane is too wide or too narrow, the number of lanes increases or decreases, lane markings change suddenly on ramps or exits, or in situations of complex line arrangements. ●LDW may be suppressed on slopes or winding roads when the vehicle travels too close to the vehicle ahead or when the vehicle ahead obscures lane lines. ●LDW may be suppressed when the vehicle jolts, accelerates or decelerates too quickly, or takes a sharp turn. ●The system operation may be affected if the windshield within the camera visual field is cracked, if the glass is dyed or inadequately coated; or if any reflecting object is placed on the dashboard or any other object interferes with camera sight. ●LDA system tries to keep the vehicle from deviating from its own lane, but it cannot keep the vehicle running in the middle of the lane. ●For safety reasons, do not test LDW function on your own. The view of front camera cannot be blocked by obejects or exposed to strong light. The function will be temporarily exit if the view is temporarily covered and disturbed by strong light and will recover once conditions return to normal. If it does not, it is recommended to contact a DENZA authorized dealer or service provider. ●Disabling the LDW is recommended under any of the following circumstances: ●Driving in a sporty style. ●Severe weather conditions. ●On uneven roads ●Situations where lane lines may not be identified include, but are not limited to: ●Unclear lane lines ●Incomplete lane lines ●Situations that may result in detection failure of the camera or late activation of the function include but are not limited to: ●Camera coming off, loosely installed, or blocked. ●The vehicle is running under extreme weather, such as rain, snow, or smog. ●Partially or completely blocked camera lens. WARNING ●LDA serves as a driver assistance function only, so the driver must be fully responsible for driving safety. ●Influence of weather, road conditions, and other factors may cause LDA to fail. ●Use LDA based on your needs along with traffic and road conditions. Emergency Lane Keeping Assist (ELKA)* The Emergent Lane Keeping Assist (ELKA) system identifies lane lines ahead through the high-definition camera installed on the front windshield and identifies vehicles approaching from behind on the adjacent lanes through rear corner mmWave radars. It works when the driver unconsciously departs from lane lines or starts to change lanes, so as to avoid the unintentional crossing of road edges and collisions with oncoming vehicles in the opposite direction or the overtaking vehicles on the adjacent lanes. When the system

Emergency Lane Keeping Assist (ELKA)*

Halaman 133

judges that there is a risk of deviation or collision between the vehicle and the target vehicles, it activates the Electrical Power Steering (EPS) to provide reverse torque to keep the vehicle in the current lane. ●ELKA works within the speed of 60km/ h~150km/h. ●During the activation of ELKA, the system gives an alarm when the driver's hands are off the steering wheel. Hands-off alarm includes prompt messages, icons, and buzzer sounds. How to Use To enable or disable ELKA by going to infotainment touchscreen → ADAS → Safety Assist. The system is off by default. ●When ELKA is enabled, is displayed on the instrument cluster with a prompt message and a buzzer sound. ●When ELKA is enabled, if the driver's hands are off the steering wheel, an icon is displayed on the instrument cluster to alert the driver. ●In the event of ELKA malfunction, is displayed on the instrument cluster. Contact a DENZA authorized dealer or service provider. System Limitations ELKA may detect incorrect or no lane lines in complex traffic. In the following cases, the system may fail to work or its performance degrades significantly. ●Poor visibility on snowy, rainy, or foggy days ●Dirty or fogged windshield, or blocked multi-purpose camera. ●Glaring from direct sunlight, reflection in puddles, or oncoming vehicles ●Sudden changes in light, such as when the vehicle is entering or exiting a tunnel ●Lane lines obscured by tree shadows on roads in direct sunlight on sunny days ●Unidentifiable road boundary with grass, soil, or curb Precautions ●Situations where lane lines may not be identified include, but are not limited to: 04 ●Pedestrians, animals, and specialty or specially-shaped vehicles USING AND DRIVING ●Unclear or incomplete lane lines ●Situations that may result in detection failure of the camera or late alarm include but are not limited to: ●Camera coming off, loosely installed, or blocked. ●The vehicle is running under extreme weather, such as rain, snow, or smog. ●Partially or completely blocked camera lens. ●Situations that may result in detection failure of mmWave radars or late alarms include, but are not limited to: ●MmWave radar(s) come off, are loosely installed, or are blocked. ●The vehicle is running under extreme weather, such as rain, snow, or smog. ●The vehicle encounters certain metal guardrails or similar road conditions.

Blind Spot Assist (BSA)

Halaman 134

WARNING ●ELKA serves as a driving assistance function only, so the driver is fully responsible for driving safety. ●Influence of weather, road conditions, and other factors may cause ELKA to fail. ●Use ELKA based on your needs, traffic, and road conditions. Blind Spot Assist (BSA) Blind Spot Assist (BSA) includes Door Open Warning (DOW), Rear Collision Warning (RCW)*, Rear Collision Traffic Alert (RCTA), Rear Cross Traffic Braking (RCTB)* and Rear Cross Traffic Braking (RCTB)*. It detects environment behind the vehicle through radars installed on both sides of the rear bumper so as to remind the driver of safe driving. Blind Spot Detection (BSD) ●At vehicle speeds between 15-150 km/h, if a rear corner mmWave radar detects a vehicle in blind spots on an adjacent lane or a vehicle approaching quickly on the adjacent lane, the indicator on the corresponding side mirror lights up. If the turn signal for the same side is turned on at this moment, the alarm indicator on the side mirror flashes to alert the driver of a risky lane change, please drive safely. Rear Cross Traffic Alert (RCTA)* ●When the vehicle is reversing at a speed no more than 15 km/h, the RCTA system detects the vehicles traveling in the blind spot at the back through rear corner mmWave radars. If the system determines that a vehicle approaching from behind poses a risk of collision, the side mirror warning indicators flash and an audible alarm is given to alert the driver, reducing the possibility of collision. Rear Cross Traffic Braking (RCTB)* ●When the vehicle is reversing at a speed no more than 9 km/h, the RCTA system detects the vehicles traveling in the blind spot at the back through rear corner mmWave radars. If the system determines that a vehicle approaching from behind poses a risk of collision, it performs emergency braking automatically. Rear collision warning (RCW) ●At vehicle speeds between 5 km/h and 146 km/h, if the rear corner mmWave radar detects a risk of collision with a vehicle approaching quickly from behind on the current lane, the hazard warning light turns on to warn the driver in that vehicle against a possible collision. Door open warning (DOW) ●DOW is realized with rear corner mmWave radars installed on both sides of the rear bumper. When the vehicle is stationary with doors unlocked, the system keeps indicators on side mirrors solid on to warn the driver if moving objects, such as bicycles or automobiles, approach from behind on an adjacent lane. At the same time, a prompt message is displayed on the instrument cluster. If the driver attempts to open the door at this time, indicators on side mirrors begin to flash and a chime sounds.

Blind Spot Assist (BSA)

Halaman 135

How to Use To enable or disable BSD, DOW*, RCW, RCTA or RCTB, use the physical switch* or go to the infotainment touchscreen → ADAS→ Safety Assist. When the vehicle is started, the system defaults to previous settings. ●When the BSA functions are disabled, no indicator lights up on the instrument cluster. ●When the BSA function is enabled, the standby state indicator lights up on the instrument cluster. ●When the BSA function is activated, the activated state indicator lights up on the instrument cluster. ●When the BSA malfunctions, is displayed on the instrument cluster. Precautions ●While the BSD system provides assistance in monitoring blind spots of rearview mirrors, it cannot replace the driver's observation and judgment. The driver must keep control of vehicle at all times and drive properly and is fully responsible for the vehicle. ●The BSD system may be unable to provide adequate warning on target vehicles approaching from behind at a high speed. ●The driver must ensure the normal operation of the BSD system, keeping its rear corner mmWave radars in good condition. For example, dirt, snow, or other obstructions need to be cleared right away. ●Detection may be affected or delayed in some environments. If the radar cross section of the target vehicle is too small (a bicycle, electric moped, or pedestrian, for example), the system may fail to identify targets and raise false alarms. In addition, detection may also be affected or delayed by noise or electromagnetic interference. ●If unrelated targets at the rear side or in the rear (such as large roadside barriers used during road repair, large billboards by the road, reflectors in tunnels, or other objects with a large reflection cross-sectional area) are wrongly selected as target vehicles, the BSD system will give an alert. ●Targets that may not be responded include, but are not limited to, Pedestrians, animals, and vehicles traveling in opposite direction. 04 ●Situations where lane lines may not be identified include, but are not limited to: motorcycles, scooters, tricycles, bicycles, and pedestrians. USING AND DRIVING System Limitations ●Under some circumstances, it is difficult for the system to assist the driver, and detection may be affected or delayed. Possible circumstances include, but are not limited to: ●The vehicle coming from behind changes the lane suddenly. ●Vehicles coming from behind are detected too late at sharp turns, slopes, or other settings. ●Vehicles come from behind at a relative speed above 60 km/h. ●The target vehicle is obscured. ●The vehicle is on a curve which is too sharp, or is entering or exiting a curve. ●The vehicle is running under severe weather, such as rain or snow. ●Rear corner mmWave radar(s) come off, are loosely installed, or are blocked.

Driver Monitoring Systems (DMS)*

Halaman 136

●The vehicle encounters certain metal guardrails or similar road conditions. ●Targets that may not be responded include, but are not limited to, pedestrians and animals. ●The environment contains electromagnetic interference or other influences. ●Vibration or collision influence on sensor calibration of BSD's rear corner mmWave radars can degrade system performance. In this case, contact a DENZA authorized dealer or service provider. WARNING ●Blind spot assist serves as a driver assistance function only, so the driver must be fully responsible for driving safety. ●Influence of weather, road conditions, and other factors may cause blind spot assist to fail or lead to late alarms. ●Use blind spot assist based on your needs, traffic, and road conditions. Driver Monitoring Systems (DMS)* Driver monitoring system (DMS), including fatigue and distraction warning, is designed to monitor and assess the driving status by taking photos of the cabin with a camera. The photos will not be saved or uploaded to the server. Instead, they will be deleted immediately after the judgement is complete. Based on the assessment results, the system reminds the driver of safe and careful driving. The icon of DMS status is displayed in the status bar on the instrument cluster to prompt the user of its current status. How to Use ●The camera for DMS is mounted on the A-pillar of the driver's side. Make sure the slide cover* is open and the camera is unobstructed before use. If the camera is obstructed, no valid photos can be taken although the camera is still operational. Therefore, the function fails to work properly. ●When the ignition switched on, set the driver monitoring systems on the infotainment touchscreen → Vehicle → Cabin Perception. ●When the function is disabled, the camera is monitoring normally, but does not send any reminder to the driver. Driver fatigue warning ●With the vehicle speed meeting the system activation condition, driver monitoring systems enabled and

Head-up Display (HUD)

Halaman 137

the camera unobstructed, when the system detects signs of fatigue, such as closing eyes, yawning, or driving for a long time, it alerts the driver promptly through a visual warning on the instrument cluster, or through intelligent voice or an audible alarm. Driver distraction warning ●With the vehicle speed meeting the system activation condition, driver distraction warning enabled and the camera unobstructed, when the system detects signs of distraction, for example, the sight deviates from the front for a long time, and there is no steering action or the turn signals are not turned on, it alerts the driver promptly through a visual warning on the instrument cluster, or through intelligent voice or an audible alarm. REMINDER ●Clean the DMS camera lens with a clean and soft cloth and exercise caution to prevent any damage to the surface. Precautions ●The driver monitoring system is only an auxiliary system and is not capable of effective recognition and alarm-raising in all situations. It cannot completely replace the driver's subjective observation and judgment. The driver must maintain control of the vehicle at all times, complying with all road laws and regulations, and taking full responsibility for the vehicle. ●The proper functioning and accuracy of the driver monitoring assistance can be affected by a number of situations, including but not limited to: ●Driver monitoring system is disabled. ●The camera is obstructed or the slide cover is not fully open. ●The camera is directly exposed to strong light. ●Part of the driver's face is exposed to light or the complete facial features are hard to recognize. ●The driver wears infrared-blocking glasses. ●The driver wears a mask or something that covers the mouth. ●The driver is not properly seated or the driver's face is in the blind spot of the camera. 04 WARNING USING AND DRIVING ●The driver should pull over the vehicle as soon as possible when feeling tired. Head-up Display (HUD)* Head-Up Display (HUD): The head-up display (HUD) function projects important information, including vehicle speed, navigation, speed limit, ACC, lane departure, and BSD into the driver's field of view on the front windshield. It improves driving safety by preventing the driver from frequently changing the focus of their eyes. How to Use ●To enable or disable HUD, go to infotainment touchscreen → Vehicle. ●By factory default, the switch is toggled on and a HUD image is displayed. When the switch is toggled off, no HUD image is displayed. The system defaults to the previous settings when the vehicle restarts.

Tire Pressure Monitoring System

Halaman 138

●Height adjusting: Used to adjust the height of HUD virtual image in between -10 and 10. A total of 21 values are available, and the default value is 0. ●Brightness Adjusting: Used to adjust the height of HUD virtual image in between 1 and 11. A total of 11 values are available, and the default value is 6. ●Whirling Adjusting: adjust the angle of HUD virtual image. A total of 11 values are available, and the default value is 0°. ●Mode Setting: select Classic (default setting) or Snow mode according to the environment of the vehicle. ●Settings optional for display: safe driving assistance or navigation. They are enabled by default. Tap the button to select the setting for HUD display. Tap the button again to deselect and close the item. CAUTION ●Please make sure HUD is not blocked. ●Wipe the dust on the dust-proof board with soft cotton cloth or paper towel. ●No water or other liquid is allowed to flow into the opening of the head-up display. Tire Pressure Monitoring ●The direct tire pressure monitoring system is an auxiliary system that monitors tire pressure in real time to improve vehicle safety and comfort and reduce tire wear and energy consumption due to insufficient tire pressure. ●You can access the instrument cluster menu by pressing the button on the steering wheel, navigate to the driving information bar by pressing the and buttons, and then select the tire pressure display screen using the scroll button. Tire pressure system alarm ●When the pressure of any tire is lower than 75% of the standard tire pressure and the system is running, the tire pressure fault warning light lights up and the tire pressure value turns yellow. In that case, it is recommended to stop the vehicle to check for slow air leakage and inflate the tire to the correct pressure value. ●When the temperature of any tire is above 85°C for three consecutive minutes, the tire pressure system gives a high temperature alarm, and the temperature value of the corresponding tire turns yellow. You are then recommended to stop the vehicle and wait for the tire temperature to decrease before further driving. ●When the system is running, if a fault occurs, the tire pressure fault warning light is solid on after flashing, and the message “Abnormal signal" or "Please check TPMS" is displayed on the instrument cluster. In that case, check the tire pressure monitoring module, and check for any surrounding electromagnetic source nearby. If the alarm persists for a

Acoustic Vehicle Alerting System (AVAS)

Halaman 139

long time, please contact a DENZA authorized dealer or service provider. WARNING ●The system does not stop vehicle traveling in the event of abnormal tire pressure. Therefore, each time before driving, ensure that the tire pressure conforms to the requirements specified by the manufacturer. If not, do not drive, otherwise vehicle damage or personal injury can occur. ●If pressure is found to be abnormal while driving, check the tire pressure immediately. If the low pressure warning light comes on, avoid sharp turns or emergency braking, and reduce vehicle speed, pull it over to the curb and stop as soon as possible. Driving with low tire pressure can cause permanent damage to tires and increase the likelihood of tire scrapping. Serious tire damage can lead to traffic accidents, resulting in serious injuries or deaths. CAUTION ●The running time of the tire pressure monitoring module is related to the daily travel distance and other factors. ●The monitoring module regularly transmits tire pressure and other information to the display. Therefore, if the tire pressure drops suddenly or there is a flat tire, the monitoring module will not transmit data to the display until the next monitoring. In this case, the vehicle may be out of control. If there is a flat tire and monitoring fails to inform, or if you feel that there are CAUTION some tire problems, stop driving immediately instead of waiting for the display to signal an alarm. ●Incorrectly installed monitoring module affects the air tightness of the tire. It is recommended that the installation and replacement of the pressure monitoring module be carried out by professional technicians of a DENZA authorized dealer or service provider in accordance with the requirements of the installation manual. 04 ●Since tire pressure varies with regional temperatures, inflate or deflate the tires according to the values displayed on the instrument cluster and the standard tire pressure values. USING AND DRIVING ●The tire pressure monitoring system may be disturbed by non-DENZA approved electrical accessories on the vehicle. This is not a tire pressure system failure. ●The tire pressure system needs to be matched again after replacement of wheel rims or spare tires* or tire rotations. Please go to a DENZA authorized dealer or service provider to re- match the tire pressure. Acoustic Vehicle Alert System (AVAS) System Function The Acoustic Vehicle Alerting System (AVAS) refers to the broadcast to pedestrians near the vehicle when it is traveling at low speed. ●When driving forward:

Panoramic View System

Halaman 140

●The broadcast volume increases with vehicle speed in the range of 0 km/h<V≤20 km/h. ●The broadcast volume decreases with vehicle speed in the range of 20 km/h<V≤30 km/h. ●At speeds above 30 km/h, the broadcast sound stops automatically. ●The vehicle makes a continuous and balanced prompt sound when moving in reverse. How to Use To turn on or off AVAS, slide down the top status bar on the infotainment touchscreen to display the shortcut page (some countries and regions forcibly require the AVAS to be turned on, there is no option to turn it off.). AVAS has two sound sources: standard and brand. To choose a sound source, go to infotainment touchscreen → → Vehicle Settings → Notification. After a sound source is chosen, tap PLAY to get an acoustic impression. WARNING ●The AVAS pause switch can only be used if there are no other road users within a short distance, and no audio prompt is needed considering the surroundings (for example, in a traffic jam or on the motorway). As long as pedestrians may appear around the vehicle, the AVAS needs to be turned on. ●If the vehicle is running at low speed with AVAS turned off, it is unable to alert pedestrians to the vehicle approaching, decreasing vehicle safety. ●If the AVAS prompt sound cannot be heard when driving at a low speed, stop the vehicle in a relatively safe and quiet place, open the window, then drive at a constant speed of 20 km/h in D gear and check whether an audio prompt can be heard from the front of the vehicle. If it is confirmed that there is no sound, contact a DENZA authorized dealer or service provider to deal with it. Panoramic View System To enable the panoramic view, tap Vehicle View on the infotainment system homepage, press the button on the steering wheel or shift into Reverse.

Panoramic View System

Halaman 141

●On the bottom of the infotainment touchscreen, tap the icon for front, rear, right, or left view. View of the selected area is displayed in the image section. ●In the single front and rear views, double-tap the image section to switch to a full screen. ●Tap the radar icon in the panoramic view to enable the radar display, and tap it again to disable. When the radar display is enabled, a warning is displayed as the vehicle is approaching an obstacle. ●Slowly tap the body image on the left to switch between visible and invisible body. ●After the vehicle starts, the image before last power-off is displayed on the transparent panoramic view screen. Foreign bodies shown may be inconsistent with the actual ones in the underbody and surrounding blind areas. The underbody image update will begin only after the vehicle has started to run and will be complete when the vehicle has been driven beyond its length. WARNING ●This system uses wide-angle fisheye cameras, so the object on the display screen may appear somewhat deformed in comparison with the actual object. ●The panoramic view system is only to be used for parking/ driving assistance. It is not safe to rely solely on this system to park or drive the vehicle, because there are some blind spots in front of and behind the vehicle. The surroundings of the car should be observed in other ways during the parking/driving process, so as to avoid accidents. 04 USING AND DRIVING ●When the side mirrors are not extended in place, do not use the panoramic view system; and when the panoramic view system is used for parking/driving, ensure that all the car doors are closed. ●The distance to an object displayed on the panoramic view screen may be different from the distance perceived subjectively, especially when the object is closer to the vehicle. Assess the distance in various ways. ●Cameras are installed above the front bumper, the lower parts of the side mirrors, and the rear license plate. Make sure the cameras are unobstructed. ●To prevent affecting camera performance, avoid spraying directly on the cameras when washing the vehicle body with high-pressure water. Wipe any water or dust off the camera in time.

Sensor Type

Halaman 142

WARNING ●Protect the cameras from any impact to prevent damage or malfunction. ●After the vehicle is powered on, if you press the panoramic view start button or shift into reverse while the infotainment system is not fully activated, the output on the panoramic view screen will be delayed or the screen will flash. This is a normal part of the camera power-on process. ●When the vehicle runs at a low speed, the transparent panoramic view function is affected by speed fluctuation or multiple stops, so there will be misalignment between the images below the vehicle and that outside the vehicle. Parking Assist System ●During vehicle parking, the parking assist system detects obstacles by sensors, and prompts the driver with the proximity of obstacles by an image on the infotainment touchscreen* and a speaker alarm. ●The parking assist system helps with reversing. Pay attention to the environment behind and around the vehicle during reversing. ●When you reverse the vehicle, a reversing image will be displayed on the infotainment touchscreen automatically. ●For your driving safety, when the reversing image is displayed, all buttons will be disabled except some volume and calls-related buttons. ●After reversing ends, the interface will be restored. WARNING ●When the vehicle speed is over 10 km/h, the parking assist system will cease to operate. ●Do not place any articles within the sensors' working range. ●To prevent sensor malfunction, do not wash the sensor area with water or steam. Parking Radar Switch ●Turn the parking radar system on or off with the parking radar switch* or on the infotainment touchscreen → ADAS → Parking Assist. ●When the ignition is switched on and EPB is released, the parking assist system is enabled automatically. ●When enabled, the system raises an alarm if obstacles are found surrounding the vehicle; when disabled, it does not. Sensor Type ●When the sensor detects an obstacle, an image is displayed on the infotainment touchscreen* according to the location of the obstacle and its distance from the vehicle. ●When the driver conducts parallel parking or reverse parking, the

Working Sensors and Detection Range

Halaman 143

sensor measures the distance between the vehicle and the obstacle and communicates this information through the infotainment touchscreen and the speaker. Be aware of the surroundings when using this system. Front outside sensors Front middle sensors Rear outside sensors Rear middle sensors Working Example of Center Sensors Approximate Distance (mm) Touchscreen Display Example Alarm Sound About 700 to 1,200 About 300 to 700 About 0 to 300 Working Sensors and Detection Range All sensors are activated upon reversing. The figure shows the sensors' detection range. Sensors have a range limitation, so Distance Display and Speaker When the sensor detects an obstacle, the location of the obstacle and its approximate distance from the vehicle are displayed on the infotainment touchscreen, and the speaker beeps. 04 USING AND DRIVING Slow Fast Continuous the driver must check the surroundings before slowly reversing the vehicle. ① About 1,200 mm ② About 600 mm

Working Sensors and Detection Range

Halaman 144

REMINDER ●The parking assist system is only for assistance, and is not a substitute for personal judgment. Be sure to operate the vehicle based on your observations. ●Sensors will not work properly if accessories or other objects are placed within their detection range. ●In some cases, the system cannot operate properly and will fail to detect certain objects as the vehicle approaches them. Therefore, be sure to observe the vehicle's surroundings at all times. Do not rely solely upon the system. Sensor detection information ●Certain vehicle conditions and surroundings may affect the sensors' ability to accurately detect obstacles. Detection accuracy may be affected if: ●There is dirt, water or fog on the sensor. ●There is snow or frost on the sensor. ●The sensor is masked in any way. ●The vehicle leans significantly to one side or is overloaded. ●The vehicle is moving on particularly bumpy roads, slopes, gravel or grass. ●The sensor has been repainted. ●The vicinity is noisy due to honking of vehicles, motorcycle engines, air brakes of large vehicles, or other noises that produce ultrasonic waves. ●There's another vehicle with parking assist system nearby. ●The vehicle is fitted with a tow eye. ●The bumper or the sensor was hit hard. ●The vehicle is approaching a high or zigzag curb. ●The vehicle is driving in the sun or in the cold. ●The vehicle is fitted with non- original, lower suspension. ●Except as described above, sensors may not be able to correctly determine the actual distance due to the shape of the object. ●The shape and material of obstacles may prevent sensors from detecting them, especially the following: ●Electric wires, fences, and ropes ●Cotton, snow, and other materials that absorb radio waves ●Any object with sharp edges and corners ●Low obstacles ●High obstacles facing outwards towards the vehicle ●Any object under the bumper ●Any object close to the vehicle ●Persons near the vehicle (depending on the type of clothing) ●If an image is displayed on the infotainment touchscreen* or there is a beep, it may be that the sensor detects

Intelligent Power Braking System

Halaman 145

an obstacle or is interfered. If the issue persists, it is recommended to go to a DENZA authorized dealer or service provider for a service. CAUTION ●To prevent sensor malfunction, do not rinse or apply steam to the sensor area. Driving Safety Systems For better driving safety, the following driving safety systems works automatically based on driving conditions. However, these systems only provide assistance, and excessive reliance on them is not recommended. Intelligent Power Braking System ●The intelligent power braking system is an advanced decoupled electro- hydraulic brake system, incorporating vacuum booster, electronic vacuum pump, Antilock Braking System (ABS), ESC and other features. ●The system assists vehicle braking according to the driver's demands. It offers advanced control functions such as anti-lock braking system (ABS), electronic brake force distribution (EBD), traction control system (TCS), vehicle dynamic control (VDC), adaptive cruise control (ACC), automatic emergency braking (AEB), comfort parking (CST), cooperaive regenerative brake systems (CRBS) to improve vehicle stability and comfort, and the recovery efficiency of brake energy. Vehicle Dynamics Control (VDC) When the vehicle turns suddenly while running, the VDC system determines the driver's intention based on such information as steering wheel's angle and vehicle speed, and continuously compares with the actual condition. If the vehicle swerves from the normal lane, the VDC corrects the situation by engaging brakes to the corresponding wheels to help the driver control skidding and maintain directional stability. Traction Control System (TCS) TCS prevents the drive wheels from skidding during acceleration by reducing the motor power, and, when necessary, applies braking forces to prevent drive wheels from spinning. It makes it easy for the vehicle to start, accelerate, and climb under adverse driving conditions. 04 WARNING USING AND DRIVING ●TCS may not work effectively in the following situations: ●On slippery roads, even if TCS is working properly, it may not be able to control the direction and meet power requirements. ●Do not drive in conditions where the vehicle may lose its stability and power. Hill Hold Control (HHC) After the brake pedal is released, HHC maintains brake pressure for one second to prevent backward sliding. Hydraulic Brake Assist (HBA) When you press the brake pedal quickly, HBA detects that the vehicle is in emergency condition. It quickly increases the brake pressure to the maximum so that ABS can intervene more quickly and shorten the braking distance effectively. Controller Deceleration Parking (CDP) When "P" button or EPB switch* is pressed and held, CDP starts to work and the vehicle brakes at a constant deceleration until the vehicle comes to a

Intelligent Power Braking System

Halaman 146

stop. If the driver releases "P" button or EPB switch*, CDP stops functioning. Hill Descent Control (HDC) ●Working principle: HDC is a value- added function of the ESC system to improve vehicle comfort. You can enable or disable HDC on the infotainment touchscreen → ADAS → Safety Assist. HDC mainly works for assisting in uphill and downhill slow driving through active braking. When HDC is working, ABS is activated when the wheel slip exceeds the ABS triggering threshold, allowing you to safely and smoothly go downhill, or even reverse. ●Activate HDC: ●When the speed is below 38 km/h, you can also enable hill descent control function by pressing the HDC switch. When the function is enabled, its status indicator on the instrument cluster is steady on. ●HDC speed control: ●HDC works at speeds between 11 km/h and 38 km/h, within which you can adjust the speed by pressing/ releasing the accelerator or brake pedal. The vehicle speed is set when the accelerator or brake pedal is released. The HDC status indicator flashes to indicate that the HDC is working. ●Deactivating HDC: ●Press the HDC switch again to disable the function, and the indicator turns off. ●HDC also automatically stops when the speed exceeds about 65 km/h. ●HDC malfunction: ●In some special cases such as long downhill, the HDC function may be temporarily disabled due to the high temperature of the brake. ●A "Please check the HDC system" message is displayed on the instrument cluster for safety. To restore the function, stop the vehicle until the brake temperature cools down. Intelligent power braking system has the following new functions compared with the original ESC system: ●Brake assist mode ●The brake assist mode is used to adjust the brake pedal feel. The relation curve between the brake pedal depth and the vehicle deceleration varies across different modes for the driver to choose their preferred pedal feel. ●You can select Comfort/Sport brake assist mode on the infotainment touchscreen → Vehicle → Intelligent Chassis. ●Brake disc wiping ●Brake disc wiping function: When the wiper switch is on or the rain sensor detects rain, the integrated brake control system applies a small brake pressure to all four brakes so that pads come into contact with discs to remove the water film from the discs. This shortens brake response time and braking distance. ●As long as the system detects rain or the wiper ON signal, the brake discs are repeatedly wiped at certain intervals to improve safety. ESC operation instructions ●ESC working ●If there is a risk of skidding or backsliding when the vehicle starts on a slope, or if either drive wheel is

Anti-lock Braking System

Halaman 147

spinning, the ESC indicator flashes to indicate that ESC system is working. ●Disabling ESC ●If the vehicle gets stuck in snow or mud, ESC may reduce power output from the motor to the wheels. In this case, you may need to turn off the system to get out of the jam. ●Turning off ESC ●To turn off ESC, press and release the ESC OFF button. ESC also checks its operating status in real time. If ESC OFF switch is pressed while ESC system is working, the system will complete the active intervention control rather than executes the "shutdown" command immediately. ESC is disabled only after the intervention control is complete. ●Some functions of the ESC system may be re-enabled if you press the ESC OFF switch again or the vehicle speed exceeds the threshold (80 km/h). In order to prevent ESC from being turned off suddenly, ESC can be activated again only when it is not in a vehicle dynamic intervention state. ●ESC OFF switch mis-operation* ●ESC is considered to be mis-operated if the ESC OFF switch* is pressed and held for more than 10 seconds. In that case, all internal ESC functions continue to work. ●Restarting ESC system ●When the ESC system has been turned off, restarting the vehicle will automatically restart ESC system. ●ESC system start and speed linkage ●If the ESC system is turned off, when the vehicle becomes extremely unstable as the speed increases and exceeds the threshold (80 km/h), the ESC system starts on its own. ●With ESC system activated ●If the ESC fault indicator flashes, drive with caution. ●With ESC system disabled ●Be careful when ESC is disabled, and drive at speeds suitable for road conditions. The ESC system ensures vehicle stability and its driving force. Never turn it off unless necessary. ●Replacing Tires 04 ●Make sure all tires are of the same size, brand, tread pattern, and total load. In addition, be sure to inflate tires to the recommended pressure. USING AND DRIVING ●Neither ABS nor ESC will work properly if the vehicle is fitted with different tires. ●For details on tire or wheel replacement, it is recommended to contact a DENZA authorized dealer or service provider. ●Tire and suspension handling ●The use of any defective tire or modified suspension affects the driving safety system and may cause the system to fail. Anti-lock Braking System ●The ABS hydraulic system has two separate circuits, Each circuit runs diagonally through the vehicle (the right front wheel brake is connected to the left rear wheel brake). If one circuit fails, two wheels can still be braked. ●ABS helps maintain the steering control by preventing the wheels from locking when brake is engaged suddenly or on slippery roads.

Anti-lock Braking System

Halaman 148

●When the ABS is working, the ESC indicator will flash and the brake pedal will vibrate, which may produce noise. This is normal because the ABS is pulsating the brake quickly. In this situation, you should press and hold the brake pedal instead of pumping the brakes, or ABS will not work normally. While steering away from danger, a firm and steady pressure should always be maintained on the brake pedal for the ABS to work. WARNING ●ABS cannot work effectively under the following conditions: ●Tires with inadequate grip are used (for example, excessively worn tires used on snow- covered roads). ●The vehicle skids when driving at a high speed on slippery roads. ●ABS is not designed to reduce the braking distance of the vehicle. Always keep a safe distance from the vehicle ahead on: ●Driving on slippery, muddy, sandy or snowy roads. ●Driving on roads with multiple potholes or on uneven roads. ●Bumpy roads. CAUTION ●If the ABS fault warning light is still on while the braking system warning light is on, immediately park the vehicle in a safe place. It is recommended to contact a DENZA authorized dealer or service provider. ●In this case, if brakes are applied, the ABS will not work and the vehicle will become extremely unstable. ●ABS does not reduce the time and distance required to stop the vehicle. This device only helps you control steering when braking. Please always keep a safe distance from other vehicles. ●ABS does not prevent decrease in stability. When applying the brake in an emergency, the steering should be moderate. A large or sharp turn during the driving can cause the vehicle to swerve into oncoming traffic or run off the road. ●ABS cannot prevent skidding caused by sudden direction change, such as trying to make a sharp turn or change lanes suddenly. Always drive carefully at a safe speed, regardless of road and weather conditions. ●When driving on wet or soft or uneven roads (such as waterlogged concrete roads, waterlogged epoxy painted roads, sandy roads, snowy roads), vehicles equipped with ABS may require longer braking distances than vehicles without ABS. In such cases, slow down and keep a long distance from other vehicles.

Streaming Rearview Mirror*

Halaman 149

Other Main Functions Interior Rearview Mirror Move the interior rearview mirror up or down, left or right to a suitable position. WARNING ●Do not hang heavy objects from the interior rearview mirror, or shake or drag it with force. ●When manually adjusting the interior rearview mirror, do not forcibly adjust the stuck mirror to avoid the mirror falling off. ●Adjusting the interior rearview mirror before driving. Do not adjust the rearview mirror while driving. This may distract your attention, causing accidents. Streaming Rearview Mirror* There are two working modes of streaming media rearview mirror: streaming media and traditional interior rearview mirror. Streaming media mode ●Enable or disable streaming media rearview mirror by switch (on the back of the rearview mirror) or on the infotainment touchscreen → Vehicle → Streaming rearview mirror. ●When enabled, real-time images captured by the rear camera can be displayed on the streaming rearview mirror screen, open screen adjustment on the infotainment touchscreen → Vehicle → Streaming rearview mirror and adjust the view height, screen luminance and image size by the right button ① and ③ on the steering wheel and adjust the gear by the scroll button ②. 04 USING AND DRIVING REMINDER ●The infotainment touchscreen is only used as a prompt, and the streaming media rearview mirror cannot be adjusted on it. Please use the button on the right side of the steering wheel to adjust the streaming rearview mirror according to the prompt information on the infotainment system. ●Because the rearview mirror is partly the traditional flat mirror, the mirror effect and streaming image will appear at the same time in strong light environment, resulting in ghosting phenomenon. At this time, it is necessary to manually adjust the angle of the interior

Side Mirror Adjustment Buttons

Halaman 150

REMINDER rearview mirror to avoid ghosting and improve the visual field effect. Rearview mirror mode ●When the streaming mode is turned off, the rearview mirror enters the rearview mirror mode. In this mode, the rearview mirror presents the mirror effect. Automatic Anti-glare Interior Rearview Mirror* The automatic anti-glare interior rearview mirror is equipped with electronic anti-glare function, which automatically adjusts the lens color of the mirror according to the surroundings to reduce the interference of rear glare on the driver's field of vision. Manual Anti-glare Interior Rearview Mirror* Interior rearview mirror has two working modes: normal mode and anti-glare mode. ●Normal mode: Rotate the control lever to ① to get the clearest mirror image. ●Anti-glare mode: Rotate the control lever to ② to effectively reduce interference from headlights of rear vehicles at night. Note that anti-glare may lower the clarity of rear visual field. Power Side Mirrors Folding side mirrors with power ●Press the fold button to fold both left and right side mirrors, which will return to their pre-folding position if this button is pressed again. ●The left side mirror can be selected by pressing the corresponding auto regulation switch . ●The right side mirror can be selected by pressing the corresponding auto regulation switch . ●There are four directions (i.e. up, down, left and right) for regulating lens directions to adjust the side mirrors.

Replacing Wiper Blades

Halaman 151

REMINDER ●If the side mirrors get frozen, do not operate the controller or scrape their surface. Deicing spray should be used. ●Adjusting side mirrors before driving. Do not adjust the side mirrors while driving. This may distract your attention, causing accidents. Wipers Replacing Wiper Blades When the vehicle is powered on, enable or disable the front/rear wiper check function on the infotainment touchscreen → Service → Overhaul. When the corresponding wiper check function is enabled, the wipers rotate out automatically for easy maintenance and replacement. Replacing front wiper 1. Pull up the wiper arm at the driver side, and then pull up the other at the passenger side. 2. Press the wiper lock button ①. 3. Hold the wiper blade and pull it out along the indicated direction ②. 4. When installing a new wiper blade, follow the reverse procedure. Replacing rear wiper 1. Pull up the wiper arm. 2. Hold the wiper in position ①, and pull the blade out vertically along the indicated direction ②. 3. When installing a new wiper blade, follow the reverse procedure. 04 USING AND DRIVING CAUTION ●Do not open the hood when the wiper arms are pulled up, as this may damage the hood and wiper arms. ●Lower the wipers slowly and avoid direct impact onto the windshield. ●Do not bend the wiper blade, and do not obstruct the wiper blade when the wiper is in operation. ●When replacing the wiper blade, after raising the wiper arm, hold it steady and gently lower it after replacing the wiper blade. Otherwise, before the wiper blade is installed, any external force could make the wiper arm snap back on the glass and risk breaking it.

Replacing Wiper Blades

Halaman 152

152

In-Vehicle Devices

Halaman 153

05 **IN-VEHICLE DEVICES** Infotainment System.........................................154 A/C............................................................160 DENZA App...................................................166 Storage........................................................168 Other Devices...............................................171 Refrigerator..................................................176

Nap Mode*

Halaman 154

Infotainment System Infotainment System ●A warning is displayed when the infotainment system starts for the first time. Tap Agree to enter the system. ●When the infotainment system is started, the screen is automatically displayed, containing status bar, navigation bar, and desktop widgets. ●The top status bar displays the function status icons. Icons in the status bar include two types: operable* and display only. ●Shortcut menu Swiping down from the top of the touchscreen opens the shortcut menu. ●Navigation Bar : returns to the previous page or exits the program. ● : returns to the homepage. ● Touch and hold this button to switch between wallpaper and map desktops base on preferences. : goes to vehicle setting screen. ● : goes to the app list screen. ● : splits screen if applications support. ● : enables screen saver. ● ●Task management center Swiping up from the bottom of the touchscreen opens the task management center. ●Desktop widget: The components on the desktop are customized by factory default, and users can add, delete or change the location of widgets according to their preferences. REMINDER ●The shortcut menu on your actual vehicle may differ. Nap Mode* ●When you needs a short rest, activate the nap mode and set the duration from the drop-down menu on the infotainment touchscreen. Tap "OK" to activate the mode, and tap "End Now" to exit the mode. ●In the nap mode, the driver's seat is automatically lowered to the default position, the A/C is turned on, the vehicle is locked, and the windows and sunroof are closed. ●There will be an alarm at the end of the nap time. Tap "Cancel" to end it. If the user does not have any operation, the alarm will delay for a period of time by default and ring again when the time is up. CAUTION ●Make sure the vehicle is in Park before activating the nap mode. ●Close all doors and the tailgate before activating the nap mode to ensure safety. ●Pay attention to the vehicle's driving range before activating the nap mode to avoid inconvenience. ●For hybrid vehicles, do not activate the nap mode in a poorly ventilated environment.

Infotainment Touchscreen

Halaman 155

CAUTION ●Do not take a nap in the vehicle while it is being charged or discharged. ●To prevent rear passengers from being pinched or items from being damaged, ensure that no passengers and items are on the rear seats before you take a nap. ●The vehicle will automatically exit the nap mode in some cases, such as when the vehicle is not in Park or is powered off, which is normal. Infotainment Touchscreen When the ignition is on, the initial screen is displayed for several seconds and the infotainment system starts to work. To better experience infotainment functions, such as intelligent voice control, apps and video call, the system must be used after network connection. ① Infotainment touchscreen ② Scroll button ●Scroll up to turn volume up or down to turn volume down. Volume ranges from 0 to 39. A mute icon is displayed when volume is 0. ●With the infotainment system on, press the scroll button to mute the sound and enter the screen saver interface or turn off the screen (set the screen saver through the infotainment touchscreen → System → Display). Press the scroll button again to turn off the mute and turn on the screen. ●Press and hold the scroll button for three seconds to restart the infotainment system. WARNING ●Do not use a high-power inverter in the vehicle, as this may cause infotainment system malfunction. ●Do not format or root the device without authorization, as this may cause infotainment system or vehicle malfunction. 05 CAUTION ●To prevent damage to the touchscreen: IN-VEHICLE DEVICES ●Touch the screen gently. If there is no response, remove finger from the screen, then touch it again. ●Clean the screen with a soft damp cloth. Do not use any cleaning product. ●Using the touchscreen ●When the screen temperature is low, the image displayed may be darker or the system may work slightly slower than normal. ●The screen may be dark or difficult to see when you are wearing sunglasses. In that case, change the viewing angle or take off the sunglasses. ●The touchscreen buttons that are grayed out cannot be operated.

OTA Upgrade

Halaman 156

CAUTION ●The touchscreen interface shown here is for reference only. Vehicle Setting of the Infotainment System Vehicle setting of the infotainment system mainly includes: Search, System, ADAS, Energy, Vehicle, Service and other functional modules. Reset to factory settings ●This function factory resets the infotainment system. ●During the process, do not touch any infotainment button or turn off the power supply, or errors may occur. ●The process takes two to five minutes, please wait patiently. Gestures and Responses Gestures and associated system responses are: ●Tapping: opens applications, selects functions, clicks icons on the touchscreen, or types characters. ●Dragging: touching and dragging an icon, thumbnail, or preview to the target position to change its location. ●Swiping: operational on homepage and app screens. ●Double-tapping: zooms in or out an image and double tap to get back. ●Spreading/pinching: zooms in or out an image with two fingers. ●Swiping left/right on the touchscreen with three fingers: regulates A/C fan speed. ●Swiping up/down on the touchscreen with three fingers: regulates A/C temperature. ●Swiping down from the top of the touchscreen: opens the shortcut menu. ●Swiping up from the bottom of the touchscreen: opens the task management center. OTA Upgrade ●The vehicle supports Over-the-Air (OTA) update. You can update the infotainment system by tapping infotainment touchscreen → System → Version → Vehicle Version → Upgrade. ●When a vehicle software needs to be updated, there will be a prompt message. You can upgrade it immediately, schedule an upgrade, or upgrade it by mobile phone according to your use of the vehicle. CAUTION ●Do not move the vehicle during the OTA upgrade. ●Before the OTA upgrade, make sure the vehicle is parked in a safe area with the gear in "P", and the mobile communication network connection is normal. ●Make sure your vehicle is fully charged before the OTA upgrade. ●Do not install any third-party devices at the vehicle's OBD port before or during the OTA upgrade. ●The vehicle cannot be charged or discharged during an upgrade. Make sure your vehicle is fully charged before the upgrade.

My Car

Halaman 157

CAUTION ●During the OTA upgrade, all functions are not available except the smart key/microswitch unlocking/locking, interior light switch, hazard warning light, and window switches. ●If the OTA upgrade fails, try it again. If it also fails, contact a DENZA authorized dealer or service provider for handling. Calling DENZA Assistant Voice Assistant supports your voice commands, such as requesting navigation, playing music/jokes/radio station, turning on the A/C, and making a phone call. To wake up Voice Assistant, press the button on the steering wheel, tap on the infotainment system, or saying the wake-up word. Say the wake-up word: "Hi, DENZA." Say "Hi, DENZA" to wake up the Voice Assistant and begin the voice recognition. the voice icon Your speech instruction can be recognized after the wake-up. Give any instructions. Bluetooth Call Connection 1. On Bluetooth Call screen, tap Please connect Bluetooth to establish connection. 2. Tap Scan for device to search for available devices. 3. Pair the available device, and make sure the paring code displayed on your phone is consistent with the code on the touchscreen. 4. Set Bluetooth when connection is complete. Bluetooth Call Go to the dialing screen when Bluetooth is connected. ●Tap Contacts, Call log, and Missed calls, or use dial keypad to make a call. ●Slide the call card upwards or tap any empty space to minimize the dialing screen. ●In panoramic view screen, a small window pops up to inform driver of a call. My Car 05 ●Vehicle control consists of shortcut control and 3D model control. IN-VEHICLE DEVICES ●Shortcut control: Shortcut control can be achieved by the left shortcut bar and the shortcut function of the card entrance at the bottom. ●3D vehicle model control: Users can click the hot area to operate the vehicle control. It includes sunroof, sunshade, windows, tailgate and the side sliding door. (The specific vehicle control function is subject to the actual configuration of the vehicle.) ●Body color change: You can switch the body color by tapping the corresponding icon. ●Vehicle control customization: Users can click more to view all shortcut functions according to their using frequency, and long press the shortcut function to drag the position. (The specific vehicle control function is subject to the actual configuration of the vehicle.)

Armrest Screen Instructions

Halaman 158

REMINDER ●The loaded application is subject to the actual configuration of the vehicle. 1 Music 2 Seats 3 A/C System 4 Lighting 5 Refrigerator 6 Sunroof Armrest Screen* Armrest Screen Function Instructions 7 Settings 8 Screen lock 9 Shortcut button of doors and windows 10 A/C temperature 11 Seats interface 12 Status bar Music Tap the music application on the armrest screen to enter the music operation interface: The music functions of the infotainment touchscreen (without head support screen) and the head support screen* can be adjusted, such as the switching of the sound source or music. Seats Tap the seat application on the armrest screen to enter the seat operation interface: Users can not only adjust seat, massage*, and vent/heat in the operation interface, but also adjust seat position or seatback angle with the mechanical button on the side of the armrest screen. Users can click the "boss key" to enter the corresponding interface and adjust the passenger seat position or the backrest posture. Press "Position 1"/ "Position 2" for a long time to save the current seat position and posture, and the corresponding text prompt will be displayed on the armrest screen; click "Position 1/Position 2" to restore the saved seat position and posture.

Armrest Screen Instructions

Halaman 159

Tap the "Zero Gravity" button for the seat to return to the zero gravity position. Tap the "Reset" button for the seat to return to its initial position. REMINDER ●The seat can be interrupted by other operations (such as manually adjusting the seat position) in the process of position recovery. The text prompt of "Recovery interruption" would be displayed on the armrest screen. ●During the vehicle startup and in a ignition cycle, when the sliding door is opened for the first time and the second-row seat is seated, the system directly displays the seat adjustment interface for your quicker adjustment of seat position. ●During the process of returning to the zero gravity position or the initial position, the seatback is put down or straightened. Pay attention to the safety when using the seat. Refrigerator Users can control the extension/ retraction of the refrigerator, turn on/off the sterilization and power off memory function, select its powering off/refrigeration/heating/fresh- keeping operation, and set the delayed power-off time in the refrigerator operation interface. Sunroof To adjust the relevant functions of the sunroof, sunroof sunshade and canopy sunshade, go to the sunroof operation interface. Settings To set the armrest screen lock time and read the system version information, go to the setting interface. Shortcut button of doors and windows ●When the screen is not locked, slide the screen to open/close the sliding doors after tapping the button for a long time. ●When the screen is not locked, tap the button to enter the control interface for the opening/closing of the sliding doors and windows. REMINDER ●The function is disabled with the mechanical child protection lock activated, and there is a corresponding prompt message. 05 IN-VEHICLE DEVICES A/C When the screen is not locked, tap A/C and slide the screen to adjust the temperature. Seats interface When the screen is not locked, tap the seat interface entrance for the quick access to the interface before the last exit. Drop-down menu Users can access the shortcut interface through the drop-down menu to set related functions, such as screen brightness, vehicle volume, activation/ deactivation of the second-row wireless charger, and screen quick lock. Shortcut ●When the screen is not locked, swipe upwards and downwards with two fingers to quickly adjust the temperature. ●When the screen is not locked, swipe horizontally with two fingers to quickly adjust the fan speed.

Front A/C Operation Interface

Halaman 160

●Swipe a finger from the edge of the screen to the inside (left to right/right to left) to quickly exit the current screen. Status bar Through the status bar, users can know the current working status of functions like seat massage, wireless charger, and refrigerator heating/refrigeration. A/C A/C Panel Front A/C buttons: A/C Operation Interface Front A/C Operation Interface 1 Ventilator 2 Circulation mode 3 Defroster for rear windshield & side mirrors ① AUTO ② A/C ON/OFF ③ Front windshield defroster 10 Vent/Heating 11 Air purification 12 A/C setting

Function Definition

Halaman 161

Front windshield defroster 5 Max cooling 6 Cooling 7 Auto mode 8 A/C ON/OFF 9 A/C operation interface Function Definition Auto mode ●After tapping this button, its indicator lights up on the front A/C panel, and compressor status, fan speed and air distribution can be adjusted automatically. ●The vehicle exits auto control if fan speed or air distribution is set, and other functions remain in auto mode except for those that have been operated. A/C ON/OFF ●Tap this button to disable the A/C if it is ON. ●Tap this button to enable the A/C if it is OFF. A/C button (cooling/heating button) ●Tap this button to turn on the A/C (cooling/heating), the icon lights up and cooling or heating begins. Tap this button again to turn off the A/C compressor. The icon goes out and the compressor stop working. Cooling ●Tap this button for cooling. ●Tap this button a second time to disable it. Circulation mode Front passenger's temperature control 14 ION 15 Air distribution 16 Fan speed control 17 Driver's temperature control 18 DUAL ●Tap this button. is displayed, and the circulation mode is recirculation. ●Tap this button for the second time. is displayed, and the air inlet mode is fresh air mode. 05 REMINDER IN-VEHICLE DEVICES ●When the "automatic recirculation when parking" function is enabled, to ensure air quality in the vehicle and prevent the vehicle exhaust from entering the vehicle, the recirculation mode is switched on automatically after you shift into "P". Ventilator ●Tap this button to activate A/C ventilation control. The outlet air is natural air. ●Tap this button again to exit. Temperature controls ●A/C temperature regulation ●Tap the upside arrow or slide it down to increase the temperature. Tap the downside arrow or slide it up to lower the temperature. ●When the temperature is set to the lowest, "Lo" is displayed. When it is set to the highest, "Hi" is displayed.

Usage Precautions

Halaman 162

Front windshield defroster ●Tap this button to enter the front windshield defrost mode, distributing air to the front windshield. The corresponding button indicator lights up. ●Tap this button again to deactivate and exit the front windshield defroster control mode. The corresponding button indicator turns off. Defroster for rear windshield & side mirrors* ●Tap this button, and the heating panel in side mirrors will quickly clear the side mirrors. The function is automatically deactivated after 15- minute inactivity of the associated button. ●Tap this button a second time to disable the function. ●This function is not to be used to dry raindrops or melt snow. WARNING ●Do not touch the side mirrors when the rear defroster is activated, because their surfaces will be hot. REMINDER ●Using the side mirror electric heating defrosting function for a long time may cause the mirror to wear out faster. Turn off the defrost button when it is not needed. Fan speed control ●Fan speed control ●Tap the chosen position. The more bars illuminated, the faster the fan speed. Air distribution ●Tap an icon on the infotainment touchscreen to select the corresponding air distribution mode. ●You can turn on multiple air distribution modes at a time (up to three). ●Adjustments can be made according to the air supply illustration. : Air flows to the face level. : Air flows to the foot level. : Air flows to the front windshield and side windows. Usage Precautions ●To quickly cool down the interior after long exposure to sunlight, drive for a few minutes with the windows open. to exhaust hot air and speed up A/C cooling. ●To speed up cooling, adjust the temperature to "Lo" and use the recirculation mode for a few minutes. ●Make sure that the air intake grille in front of the windshield is not blocked (for example, leaves or snow). ●Avoid blowing cool air onto the windshield in humid weather. The inner and outer temperature difference can cause glass fogging. ●Keep the space under the front seats clear to improve air circulation. ●In cold weather, run the fan at high speed for one minute to remove snow or moisture from the intake passage and reduce fogging. ●Use recirculation mode for a few minutes for quick heating in cold weather, and switch to fresh air mode

Front Side Vents

Halaman 163

to prevent fogging after cabin is heated up. ●In dusty or windy driving conditions, close all windows, switch on the recirculation mode, and turn on the A/C. ●In heating mode, press the cooling button to reduce airflow moisture and the button lights up (the compressor is on). ●In the ventilation mode, the system introduces the natural wind from outside, which is suitable for spring and autumn. REMINDER ●A/C odor: ●It is normal that there may be a damp and moldy smell just after the A/C is turned on. During the operation of the automobile A/C, A/C condensation often remains in the evaporator, and the wet evaporator can easily absorb unfiltered body sweat, smokes, etc., inside the vehicle. Condensation not blown dry makes the dark and damp evaporator surface prone to mold, which is very likely to produce unpleasant odors by long-term fermentation. ●How to prevent A/C odors: ●Inspect, clean, or replace the A/C filter regularly. ●Try to keep the cabin clean and fresh. ●If the A/C odor prevention methods are useless, it is recommended to contact a DENZA authorized dealer or service provider for repair. REMINDER ●In order to reduce odors from the A/C, if the A/C is already turned on, the A/C blower may keep running for a while after the vehicle is powered off and locked. That is because the condensed water on the surface of the evaporator needs to be dried to prevent mold fermentation. It is normal for the A/C blower to start running automatically when you lock the vehicle. No need to worry about it. Vents 05 Front Center Vent IN-VEHICLE DEVICES ●Toggle the vent stick to adjust the outlet angle or air flow. Toggle left/ right to their limits to close the air outlet. Front Side Vents ●Use the vent stick to adjust the outlet angle.

Air Purification System

Halaman 164

Roof Vents* ●Use the vent stick to adjust the outlet angle or close the vent. A/C Settings ① A/C Settings Interface ●Press this button to display A/C Settings screen. ② Auto A/C mode ●Two options are available: Economical and Comfort. ③ Remotely controlled air conditioner running time ●Tap this button to set the time for remote A/C running. ④ Automatic purification ●Tap this button to enable auto purification function. ●Tap this button a second time to disable it. ⑤ Auto air recirculation when parking ●Tap this button to enable this setting. ●Tap this button a second time to disable it. ⑥ Auto Fan Speed Reduction during Bluetooth Calls ●Tap this button to enable this setting. ●Tap this button a second time to disable it. ⑦ Intelligent Partition ●Intelligent partition on/off setting. Air Purification System The air purification system purifies airborne PM2.5 particles. When A/C is turned on, the system thoroughly removes PM2.5 particles from the air blown into the cabin.

PM2.5 value and level

Halaman 165

Air Purification Operation Interface Tap Air purification on the infotainment touchscreen, the air purification interface is displayed. 1 Air purification button 2 PM2.5 detection 3 Quick purification PM2.5 Detection Button ●Tap on the "PM2.5 detection" button to activate and detect PM2.5 concentration inside/outside in realtime, which will be displayed in real time on the infotainment touchscreen. ●PM2.5 detection will stop if the button is tapped on again. Quick Purification Button ●This function can quickly reduce the concentration of PM2.5 particles in the air inside the compartment in a short time. Here is a reference of air quality grade: 05 IN-VEHICLE DEVICES 4 ION 5 Exterior purification 6 Interior purification ●Tap on this button to activate and enable the function; and tap on the button again to exit. PM2.5 value and level ●Displays the PM2.5 value and level outside/inside the vehicle. ●The Particulate Matter 2.5 (PM2.5) value detected by the on-board air purification (PM2.5) detector is the PM2.5 value in the air near the vehicle carrying the device in a short time, which should be different from the daily or real-time PM2.5 value declared by national and relevant government authorities.

Account Registration

Halaman 166

Range of PM2.5 Values Air Quality Grade 0-35 Good 36-75 Moderate 76-115 Detrimental to sensitive groups 116-150 Unhealthy 151-250 Very unhealthy 251-999 Hazardous REMINDER ●The frequency of PM2.5 detection should be reduced in the following environments: ●Sandstorms and other such extremely harsh environments. ●Cold regions (with ambient temperature below -20°C). ●High humidity environments (relative humidity >90%). ●Environments with a change in temperature (prone to condensation), such as driving in from a cold environment to a high-temperature indoor environment or parking lot. ●Running maximum air flow speed in internal circulation mode can quickly reduce the concentration of fine particles in the air inside the vehicle. DENZA App DENZA App ●DENZA app is a mobile application of Internet of Vehicle (IoV) developed by DENZA independently. It allows you to control the vehicle remotely and check vehicle conditions, delivering cloud era experience of IoV. ●Search for "DENZA" in Google Play or App Store to download and install DENZA app. Account Registration App guidance and the following steps give instructions on signing up and logging in after DENZA App installation. 1. Open the app, tap Sign up to go to the registration screen. 2. Enter email address registered in the authorized dealer, tap Send email to receive verification code, and then enter the code in app. 3. Set your password in password setting screen to complete the registration, and then the homepage is displayed. CAUTION ●Provide the email address registered at the authorized dealer, or registration will fail. ●In the app, select a country or region on upper right corner of the screen. The default setting depends on your phone setting. If it is not where you make the

NFC Digital Key*

Halaman 167

CAUTION purchase, choose the right one, otherwise your data will not be accessible. ●The control function of the app is mainly for remote use. To use this function, ensure your phone and vehicle are connected to the Internet. Vehicle Condition and Control The app homepage provides information and control items of the vehicle. 1. The homepage shows remaining driving range, SOC, vehicle error information, vehicle driving status, charging, A/C system, door and window status, seat ventilator and tire pressure. 2. Tap lock, unlock, light flashing & honking, or light flashing button to activate the corresponding function. 3. Turn on or off A/C on the homepage, or tap the card to enter A/C control page to access other settings, such as temperature regulation, see P160 for details. 4. At the bottom of the homepage, tap the icon of seats, doors and windows, or tires to go to the associated screen and check their status. 5. If you have multiple vehicles on an account, tap the vehicle name in the upper left corner of the screen to switch between vehicles. CAUTION ●The control function of the app is mainly for remote use. To use this function, ensure your phone CAUTION and vehicle are connected to the Internet. Individual Center and Vehicle Management Tap the icon on the upper right corner to go to the individual center. ●Vehicle management: changes vehicle name and license plate number. ●Account and security: gets back or changes password. ●Settings: sets message reception, automatic login, and other items. 05 ●About: includes privacy policy and information to contact us and give feedback. IN-VEHICLE DEVICES NFC Digital Key* ●NFC key* is a digital key function provided by DENZA. You can register mobile phones* as vehicle keys to unlock, lock and start the vehicle. ●Before activating the NFC digital key, observe the following conditions: ●The vehicle has been equipped with DENZA Cloud Service. ●The vehicle supports NFC digital key. ●Some mobile phones support DENZA NFC digital keys (consult a DENZA authorized dealer or service provider for specific models). Activating the NFC digital key of mobile phone Download DENZA App in App Store, then register and log in. Tap digital key to enable the function according to the instructions.

Rear Phone Holder*

Halaman 168

Using NFC digital key When using the NFC digital key, enable the NFC function of the mobile phone. The usage is as follows: ●Carry a mobile phone or wearable device with a valid NFC digital key, put its NFC antenna area close to the NFC sign on the driver's side mirror, and unlock or lock the vehicle (consult the manufacturers for details of the NFC antenna area). ●Get into the vehicle, place the mobile phone or wearable device at the NFC sign to obtain the permission. CAUTION ●With permission, start the vehicle as soon as possible. If the vehicle is not started in time, place the mobile phone or wearable device at the NFC sign again to obtain the permission. Removing the NFC digital key Open DENZA App, enter the digital key management page, tap the digital key to be removed, enter the password and remove the using device. Change NFC digital key Open DENZA App, enter the digital key management page, tap "Change the phone" in detailed page, enter the password and remove the using device. Jump to the digital key activation page to reactivate the key with the new device. Storage Glove Box ●Pull to open the glove box. ●Push the lid up to close it. REMINDER ●To reduce risk of injury in the event of an accident or emergency braking, keep the glove box closed while driving. Bill Box ●Lift the bill box handle upward and outward to reach the bill box. ●Do not put large or heavy objects in the bill box to avoid closing failure. ●Keep the bill box closed while the vehicle is in motion. Rear Phone Holder* ●The side door of third-row seats is equipped with a phone holder for phones or other small items.

Second-Row Seatback Pockets

Halaman 169

Door Bin ●There is a door bin on each door for storage of beverage bottles or small items. Center Console Cubby ●The center console cubby opens to the left and right. To open it, press the button on the front of the cubby to automatically turn covers. ●Press down on the cover of center console cubby to close it. REMINDER ●To reduce risk of injury in the event of an accident or emergency braking, keep the center console cubby closed while driving. Glasses Case ●Press the lid of the case to open it. 05 IN-VEHICLE DEVICES Seatback Pockets ●There are seatback pockets at the back of the front seats for storing magazines, newspapers, or similar objects. ●There are seatback pockets at the back of the second-row seats for storing magazines, newspapers, or similar objects.

Rear Seat Cup Holder

Halaman 170

Cup Holder Front Seat Cup Holder ●The front seat cup holder is located inside the auxiliary dashboard. Tap the cup holder cover to let it open automatically. Door Side Cup Holder ●Door side cup holders are located on both sides of the power slide door. ●The silicone coaster inside the cup holder can be taken out for cleaning. ●When installing the cup holder, the buckles shown in the illustration should be installed correctly with outward direction. Second-Row Seat Cup Holder Second-Row Seat Cup Holder Illustration Rear Seat Cup Holder ●The rear seat cup holders are located on the left and right sides of the rear seat. CAUTION ●Do not start or brake the vehicle suddenly when the cup holders

Auxiliary Handles

Halaman 171

CAUTION are being used to prevent spillage or scalding. ●Do not place an open cup or untightened beverage bottle in the cup holder, so as to avoid liquid spillage while you are driving, opening or closing a door. ●To ensure safe driving, the driver is strictly prohibited from taking the cup out or placing it in the cup holder while driving. Other Devices Sun Visor ① Sun visor ●To block sunlight from the front, pull the sun visor down. ●To block sunlight from a side, remove the swivel sleeve from the fixed support and turn the visor towards the side window. ② Vanity mirror ●Flip down the sun visor and slide the mirror cover for use. REMINDER ●Correct use of the sun visor improves driving safety and comfort. Grab Handles ●Pull the grab handle down for use. The handle returns to its original position when released. 05 IN-VEHICLE DEVICES CAUTION ●Do not hang any heavy objects from the grab handles. Auxiliary Handles ●Auxiliary handles on the pillars can help passengers get on or off the vehicle, or hang light items temporarily.

12V Auxiliary Power

Halaman 172

USB Ports Front-Row USB Ports There are two ports installed in the lower layer of the auxiliary console. ① Type-C port, only for charging ② Type-A port for data transfer The power outlet can be used only when the ignition is on. CAUTION ●It is recommended to use a USB storage device with a partition format of FAT32 and a memory of 8~128G. ●Do not use substandard or special USB storage devices to avoid damaging the infotainment system or data in the USB device. Second-Row USB Ports ●The second-row USB port is located on the seat armrest side. ●The power outlet can be used only when the ignition is on. Rear-Row USB Ports ●These ports are for charging only and cannot be used for access to the infotainment system. ●The power outlet can be used only when the ignition is on. 12V Auxiliary Power ●It is used for accessories with 12V DC working voltage and no more than 10A working current. ●The 12V auxiliary power is available only when the ignition has been switched on. Lift the cover to use it.

Wireless Phone Charger

Halaman 173

Wireless Phone Charger The charger charges phones without a cable connection through electromagnetic wave induction. Front-row wireless charger ●After starting the vehicle, place a smartphone screen-up in the wireless charging area to activate the wireless charger. At this time, the wireless charging icon in the upper right corner of the infotainment touchscreen is on, indicating that the phone is being charged. ●To disable the wireless charger: On the infotainment touchscreen, slide down shortcut menu and tap the wireless charging icon. The indicator turns off and the wireless charging function is disabled. Second-row wireless charger ●After starting the vehicle, place a smartphone in the wireless charging area with its screen facing out and the camera facing up to activate the wireless charger. At this time, the wireless charging icons in the upper right corner of the corresponding seat armrest screen, indicating that the phone is being charged. ●To disable the wireless charger: On the seat armrest screen, slide down shortcut menu and tap the wireless charging icon. The icon goes out and the wireless charging function is disabled. 05 IN-VEHICLE DEVICES CAUTION ●Ensure your smart key is more than 25 cm away from the wireless charger area when the wireless charger system is working. ●To avoid wireless charger dysfunction or even accidents, do not place coins, metal keys, metal rings, or other articles containing metal in the wireless charger area together with the phone. ●To avoid damage to the charger area, do not place heavy objects on it. If the phone wireless charger system is faulty and does not work properly, it is recommended to contact a DENZA authorized dealer or service provider. ●BYD will not assume any responsibility for any problems caused by improper use. If

Wireless Phone Charger

Halaman 174

CAUTION the product is disassembled or modified, the free warranty will be terminated. ●For safety reasons, do not leave an unattended phone being charged in the vehicle. ●For safety reasons, refrain from checking phone charging status while driving. ●If a metal item is found between the device and the charger during charging, remove the phone immediately, and do not remove the metal item until it has cooled to prevent burning. ●The center of the phone coil must be aligned with the center of wireless charger (indicated with text in the charging area), or charging may fail. ●Prevent any fluid from coming into contact with the charger area. The wireless charger will malfunction if water enters the wireless charger. ●Charging may stop at high temperatures, and will resume once the temperature drops. ●BYD makes no commitments for problems caused by external wireless charging coils. Please use with caution. ●The wireless phone charging system can charge Qi-certified phones, and non-Qi-certified phones are not guaranteed for normal charging. ●To avoid burning cards with chips, such as NFC cards and bank cards, do not place them between the CAUTION phone case and the phone during charging. REMINDER ●Only one phone can be charged at a time. ●A phone case that is too thick may prevent charging. ●On bumpy roads, the wireless phone charging may intermittently stop and then resume. ●Try to ensure that the surface on which a mobile phone is placed is parallel to the charging module. If the phone moves from the wireless charger area and stops charging, move it back. ●If the phone cannot be charged properly, ensure that there are no foreign objects in the wireless charger area, or wait for the wireless charger area to cool down before trying again. If it is still impossible to charge the phone, contact a DENZA authorized dealer or service provider. ●After power-off, if the phone is still charging and the driver's door is opened, the instrument cluster sounds an alarm and the message "Please take your cell phone with you" is displayed for five seconds. ●When the sliding doors on both sides are closed and the mobile phone is charging wirelessly in the second row, if the passenger opens the sliding door and leaves the seat, there will be a voice announcement "the mobile

Tray Table*

Halaman 175

REMINDER phone is still charging, please do not leave it behind". ●Phones must always be positioned horizontally in the charging area, whether for charging or not, otherwise gear shifting may be affected. ●When the phone is placed in the second-row wireless charging holder, make sure that the screen is facing outward and the camera is facing upward to ensure the stability and continuity of wireless charging. ●For the purpose of compatibility, the in-vehicle wireless fast charging* module may be slower than the original charger provided by your phone’s manufacturer. ●Certain phones may carry outdated charging programs that are not capable of fast charging*. Window Sunshade* ●The window sunshade is used for privacy and direct sunlight protection. ●Hold the handle ① to pull up the sunshade vertically, and clip both bulging sides into the grooved hanging pedestal ② above. ●Do the reverse to pull down the sunshade vertically, and the handle can be stowed in the groove on the cover plate. WARNING ●Do not operate the sunshade while the sliding door is moving. CAUTION 05 ●Do not pull on both ends of the sunshade when using it. IN-VEHICLE DEVICES Tray Table Tray Table* The tray table is folded at the back of the front seats. Unfold the tray table: 1. Press the unlock button. 2. Hold the edge of the tray table, lift it up to the limit position, and unfold it. Fold the tray table:

Refrigerator Operation Interface

Halaman 176

1. Hold the edge of the tray table, lift it up slightly to the limit position. 2. Push it forward to the locking position. WARNING When using the table, make sure to observe the following precautions to prevent injury or even death in the event of an accident or emergency braking. ●During operation, put your hands away from the folding area and the rotating mechanism to prevent pinching. ●Do not use the tray table when the vehicle is running. ●Do not lean or place items over 10 kg on the tray table. ●Fold the table when it is not in use. CAUTION ●Do not press the table to prevent damage. Seat Side Table There is a removable panel in the second- row rear right seat side which functions as a cup holder and temporary table. Refrigerator Operation Interface (PAD) ●Pull up the handle to unfold the table. ●Press the handle to fold the table. CAUTION When using the table, make sure to observe the following precautions to prevent injury in the event of an accident or emergency braking. ●Do not place heavy objects on or lean on the table. ●The maximum weight the table can carry is 15kg. ●Fold the table when it is not in use. REMINDER ●Do not press the table to prevent damage. Refrigerator Refrigerator Operation Interface

Refrigerator Instructions

Halaman 177

1 Refrigerator door switch button 2 Refrigerator working mode Refrigerator control buttons ① Refrigerator screen child protection lock ② Refrigerator Power Switch ③ Fresh-keeping ④ Refrigeration ⑤ A/C temperature regulation ⑥ Heat ⑦ Sterilization ⑧ Refrigerator door switch 05 3 Power off memory button IN-VEHICLE DEVICES 4 Sterilization button Refrigerator Instructions During operation of the vehicle, food and drinks can be warm and fresh in the vehicle refrigerator. To control the refrigerator, go to infotainment touchscreen → Vehicle → Refrigerator or by the rear armrest screen or by voice. Refrigerator screen child protection lock ●When the child lock function of the refrigerator screen is turned on, the refrigerator screen will light up the screen lock icon, all keys of the refrigerator screen cannot be operated, and the screen lock icon will flash when touched. Refrigerator door switch button ●Press this button, it will be highlighted, and the refrigerator door will be

Refrigerator Instructions

Halaman 178

opened; press the button again, it will be grayed out, and the refrigerator door will be closed. ●Long press this button to learn the range of the refrigerator electric slide rail. Refrigerator temperature controls Refrigerator temperature control settings include function settings and temperature settings. ●Function settings include: turn off, refrigerate, keep fresh, and heat. ●Turn off: When the function is enabled, the temperature cannot be adjusted and the refrigerator is shut down. ●Refrigerate and keep fresh: When the function is enabled, the temperature can be set to start refrigeration. ●Heating: When the function is enabled, the temperature can be set to start heating. ●Temperature settings: ●When the refrigerator is turned off, the temperature cannot be adjusted. ●During refrigeration mode, the temperature can be adjusted between -6 ℃ and 6 ℃. Adjusting to the right increases the set temperature, and adjusting to the left decreases the set temperature. ●During fresh-keeping mode, the temperature can be adjusted between 8 ℃ and 10 ℃. Adjusting to the right increases the set temperature, and adjusting to the left decreases the set temperature. ●During heating mode, the temperature can be adjusted between 35℃ and 50℃. Adjusting to the right increases the set temperature, and adjusting to the left decreases the set temperature. Delayed power off ●When the function is enabled, the refrigerator continues to operate for a set period of time after the vehicle is powered off, which consumes additional vehicle power. The duration can be set at 1–12h. ●When the function is disabled, the refrigerator stops working after the vehicle is powered off. ●When the duration is set, the refrigerator continues to operate for the set period of time after the vehicle is powered off. Power off memory button ●Press this button, it will be highlighted, and the "power off memory" function is enabled. If the vehicle is restarted after powering off, the refrigerator is in the same state as that before powering off. ●Press this button, it will be grayed out, and the "power off memory" function is disabled. If the vehicle is restarted after powering off, the refrigerator remains off. Sterilization button ●Press this button, it will be highlighted, and the "ultraviolet lamp" will be turned on. If there is no other operation, it will be turned off automatically after 30 minutes of operation. ●Press a second time to turn off the ultraviolet lamp, and the button turns gray. CAUTION ●Before heating, make sure that there are no flammable and explosive items, and no items that expand, deteriorate or volatilize

Refrigerator Instructions

Halaman 179

CAUTION easily when heated (like lighter, cola, alchohol or wet wipes). ●With the vehicle running, make sure the refrigerator door is closed to prevent articles from flying out of the refrigerator. ●Do not put sharp objects in the refrigerator, and do not scrape the inner wall with sharp objects. ●Refrigerators need to be cleaned frequently and kept clean and hygienic. If there is condensed water in the refrigerator, please clean it in time and keep it dry to avoid bacterial growth and other problems. 05 IN-VEHICLE DEVICES

Refrigerator Instructions

Halaman 180

180

Maintenance

Halaman 181

# 06 MAINTENANCE Maintenance Information................................. 182 Regular Maintenance....................................... 187 Self-Maintenance............................................. 192

Maintenance Schedule

Halaman 182

Maintenance Information Maintenance Cycle and Items Maintenance Plan ●The maintenance plan is designed to ensure stable driving, failure reduction, safe and economical driving. ●Drivers can refer to the maintenance plan for scheduled maintenance intervals, depending on the odometer reading or time interval, whichever comes first. ●For overdue maintenance items, the same time interval should be used for maintenance. ●Rubber hoses (for systems such as cooling, heating, and braking systems) must be checked by professional technicians according to the maintenance schedule. ●These are particularly important maintenance items whose maintenance intervals are recorded in the maintenance schedule. Hoses with any degradation or damage should be replaced immediately. Maintenance Schedule Vehicle maintenance is performed based on the mileages or months, whichever comes first. Item Interval Chassis screws Check and fasten them at three months or 5,000 km for the first time, at 12 months or 20,000 km for the second time, and every 12 months or 20,000 km afterwards. Check them at three months or 5,000 km for the first time, at 24 months or 40,000 km for the second time, and every 24 months or 40,000 km afterwards. In severe driving conditions, check them at 12 months or 20,000 km for the Brake pedal and EPB switch ●The maintenance schedule lists all the maintenance items that are necessary to keep the vehicle in optimum condition at all times. Maintenance Schedule Requirements The vehicle must be maintained according to the regular maintenance schedule. If the vehicle is operated under one or more of the following special conditions, certain maintenance items need to be performed more frequently. ●Road conditions ●Muddy, sandy, or snowy roads. ●Dusty roads ●Driving conditions ●Use of towed trailer, camping trailer, or roof rack ●Within 8 km, repeated short distances are driven or the outside temperature is below freezing. ●Long idling or long distance driving at low speed, for example, using the vehicle as a police car or taxis, or using it for transporting goods.

Maintenance Schedule

Halaman 183

Item Interval first time, at 12 months or 20,000 km for the second time, and every 12 months or 20,000 km afterwards. Brake friction block and disc Check and fasten them at three months or 5,000 km for the first time, at 12 months or 20,000 km for the second time, and every 12 months or 20,000 km afterwards. Check them at three months or 5,000 km for the first time, at 24 months or 40,000 km for the second time, and every 24 months or 40,000 km afterwards. In severe driving conditions, check them at 12 months or 20,000 km for the first time, at 12 months or 20,000 km for the second time, and every 12 months or 20,000 km afterwards. Brake piping and hoses Guide pin of brake caliper assembly Check for it at 12 months or 20,000 km for the first time, and every 24 months or 40,000 km afterwards. Check them at three months or 5,000 km for the first time, at 24 months or 40,000 km for the second time, and every 24 months or 40,000 km afterwards. In severe driving conditions, check them at 12 months or 20,000 km for the first time, at 12 months or 20,000 km for the second time, and every 12 months or 20,000 km afterwards. Steering wheel and tie rod Check them at three months or 5,000 km for the first time, at 24 months or 40,000 km for the second time, and every 24 months or 40,000 km afterwards. In severe driving conditions, check them at 12 months or 20,000 km for the first time, at 12 months or 20,000 km for the second time, and every 12 months or 20,000 km afterwards. Drive shaft boot Check them at three months or 5,000 km for the first time, at 24 months or 40,000 km for the second time, and every 24 months or 40,000 km afterwards. In severe driving conditions, check them at 12 months or 20,000 km for the first time, at 12 months or 20,000 km for the second time, and every 12 months or 20,000 km afterwards. Ball pin and boot Check them at three months or 5,000 km for the first time, at 24 months or 40,000 km for the second time, and every 24 months or 40,000 km afterwards. In severe driving conditions, check them at 12 months or 20,000 km for the first time, at 12 months or 20,000 km for the second time, and every 12 months or 20,000 km afterwards. Front and rear suspensions Check and fasten them at three months or 5,000 km for the first time, at 12 months or 20,000 km for the second time, and every 12 months or 20,000 km afterwards. Tire condition and pressure, incl. TPMS 06 MAINTENANCE

Maintenance Schedule

Halaman 184

Item Interval Check them at three months or 5,000 km for the first time, at 24 months or 40,000 km for the second time, and every 24 months or 40,000 km afterwards. In severe driving conditions, check them at 12 months or 20,000 km for the first time, at 12 months or 20,000 km for the second time, and every 12 months or 20,000 km afterwards. Front and rear wheel alignment Tire wear (Check tire pressure and condition at least once a month) Check during maintenance and rotate when necessary; Under severe working conditions, check more frequently and rotate when necessary Check it at three months or 5,000 km for the first time, at 12 months or 20,000 km for the second time, and every 12 months or 20,000 km afterwards. Remove dust from the tie rod with a wet soft cloth, apply 0.3-0.8 g grease to the tie rod, riveted joints, and rotating shaft. Door brake Check them at three months or 5,000 km for the first time, at 24 months or 40,000 km for the second time, and every 24 months or 40,000 km afterwards. In severe driving conditions, check them at 12 months or 20,000 km for the first time, at 12 months or 20,000 km for the second time, and every 12 months or 20,000 km afterwards. Wheel bearing clearance Check and fasten them at three months or 5,000 km for the first time, at 12 months or 20,000 km for the second time, and every 12 months or 20,000 km afterwards. Coolant level in expansion tank Drive motor coolant Replace the long-acting organic acid coolant every four years or 100,000 km Brake fluid Check and fasten them at three months or 5,000 km for the first time, at 12 months or 20,000 km for the second time, and every 12 months or 20,000 km afterwards. Brake fluid Replace it every two years or 40,000 km. Check and fasten them at three months or 5,000 km for the first time, at 12 months or 20,000 km for the second time, and every 12 months or 20,000 km afterwards. Vehicle module DTCs (to be cleared after recording) High-voltage battery tray, shield, impact bar, and mount point torque (QH) Check and fasten them at three months or 5,000 km for the first time, at 12 months or 20,000 km for the second time, and every 12 months or 20,000 km afterwards. Check and replace the gear oil and filter in the transmission (BYDNT36 Replace the gear oil and filter at 24 months or 40,000 km for the first time, and every 24 months or 48,000 km afterwards.

Maintenance Schedule

Halaman 185

Item Interval precursor asynchrony/NT13 rear-guard transmission) Powertrain leaks or bumps Check and fasten them at three months or 5,000 km for the first time, at 12 months or 20,000 km for the second time, and every 12 months or 20,000 km afterwards. Check and fasten them at three months or 5,000 km for the first time, at 12 months or 20,000 km for the second time, and every 12 months or 20,000 km afterwards. Loose high-voltage wiring harnesses and connectors Check and fasten them at three months or 5,000 km for the first time, at 12 months or 20,000 km for the second time, and every 12 months or 20,000 km afterwards. Deformation of or oil stains on the high-voltage module Foreign materials on or ablation of charging connector interface Check and fasten them at three months or 5,000 km for the first time, at 12 months or 20,000 km for the second time, and every 12 months or 20,000 km afterwards. Check it at three months or 5,000 km for the first time, at 12 months or 20,000 km for the second time, and every 12 months or 20,000 km afterwards, whichever comes first, and replace it if necessary. In severe driving conditions, check it every six months and replace it if necessary. HEPA filter* Lamp and LED lighting Check and fasten them at three months or 5,000 km for the first time, at 12 months or 20,000 km for the second time, and every 12 months or 20,000 km afterwards. Headlight dimming Check and fasten them at three months or 5,000 km for the first time, at 12 months or 20,000 km for the second time, and every 12 months or 20,000 km afterwards. Initial down tilt of low beam Calibrate it every 10,000 km. Foreign materials on or ablation of the EPS GND point Check and fasten them at three months or 5,000 km for the first time, at 12 months or 20,000 km for the second time, and every 12 months or 20,000 km afterwards. Check and fasten them at three months or 5,000 km for the first time, at 12 months or 20,000 km for the second time, and every 12 months or 20,000 km afterwards. EPS connector looseness and connector pin ablation EPS ECU corrosion Check and fasten them at three months or 5,000 km for the first time, at 24 months or 40,000 km for the second time, and every 24 months or 40,000 km afterwards. Check and fasten them at three months or 5,000 km for the first time, at 12 months or 20,000 km for the second time, and every 12 months or 20,000 km afterwards. Foreign materials or corrosion on connections 06 MAINTENANCE

Maintenance Schedule

Halaman 186

Item Interval between the EPS ECU and motor* Check and fasten them at three months or 5,000 km for the first time, at 12 months or 20,000 km for the second time, and every 12 months or 20,000 km afterwards. Vehicle module software update (update if any) Check and fasten them at three months or 5,000 km for the first time, at 12 months or 20,000 km for the second time, and every 12 months or 20,000 km afterwards. Wading marks on high- voltage parts Check and fasten them at three months or 5,000 km for the first time, at 12 months or 20,000 km for the second time, and every 12 months or 20,000 km afterwards. Lock nut torque of wiper arm Hood lock and fasteners Check them every 12 months. In order to better use the power sliding door and prolong its service life, it is recommended to clean the guide rail out of sand and dust and apply lubricating grease after 50,000 km or 3-5 months. Check the sliding door guide rail pulley for wear Check the rubber parts of the guiding mechanism movable assembly on the sliding door every 12 months or 20,000 km, and replace them if obvious wear is found. Check the sliding door guide for wear Check whether the cooling system pipeline leaks, and whether the clamp is seriously rusted or peeled Check it every 48 months or 80,000 km, at two years or 40,000 km for the second time, whichever comes first, and replace it if necessary. In severe driving conditions, check it every one year and replace it if necessary. Note: When checking Item 1, replace chassis parts in a timely manner if any abnormal damage is found. REMINDER ●To keep the high-voltage battery in optimal condition, please fully charge and discharge the vehicle regularly (at least every six months or 72,000 km) for battery self-calibration. You can also go to a DENZA authorized dealer or service provider for test and calibration. Severe driving conditions include: ●Frequent driving in dusty areas or frequent exposure to salt-laden air. ●Frequent driving on bumpy, puddled, or mountain roads. ●Driving in cold weather. ●Frequent and sudden braking. ●Frequent use of a towed trailer. ●Use as a taxi. ●Driving in congested urban areas at temperatures above 32°C for more than 50% of total travel time. ●Driving at speeds over 120 km/h at temperatures above 30°C for more than 50% of total travel time.

Vehicle Corrosion Prevention

Halaman 187

●Frequent overloading. Regular Maintenance Regular Maintenance Vehicle Servicing ●Pay attention to vehicle performance, sound changes, and visual evidence that indicates service is required. Under any of the following circumstances, the vehicle may need to be adjusted or repaired. Therefore, you are recommended to send the vehicle to a DENZA authorized dealer or service provider as soon as possible: ●Motor start produces unusual noises. ●Coolant remains overheated, is stagnated or leaks. ●Motor jams and produces unexpected noise. ●The motor runs with excessive vibration. ●The motor fails to get started. ●Electric assembly leaks oil. ●Electric assembly emits odors. ●Power declines significantly. ●Water leaks from under the vehicle (A/C condensate is normal). ●Tire deflates; tires make excessive noises at turns; tire wear is uneven. ●Vehicle leads to one side when driving straight on a flat surface. ●Suspension unit movement leads to unusual noises. ●Loss of braking effect; sponge feeling on the brake pedal or clutch pedal; pedal almost contacts the floor; vehicle leads to one side when braking. ●Motor coolant temperature remains high. ●Battery capacity decreases significantly. ●High battery temperature or overheat protection persists, or there is no power output. CAUTION ●Do not continue driving a vehicle that has not been inspected, as this may result in serious vehicle damage and personal injury. 06 Vehicle Corrosion Prevention MAINTENANCE The most common causes of vehicle corrosion are: ●The underbody of the vehicle is covered in salt, dust, or moisture. ●The vehicle or some of its parts are exposed to high humidity and high temperature for a long time. ●The paint layer or underlayer is scratched by minor collision or by stones and gravel. The following rules should be observed to prevent vehicle corrosion: ●Wash the vehicle frequently. ●If driving on saline roads in winter or living in coastal areas, wash the landing area of the vehicle at least once a month, and clean the chassis and hubcap with a high-pressure water jet or steam to

Exterior Cleaning

Halaman 188

reduce corrosion. Wash the chassis thoroughly after winter. ●Check vehicle paint and trims. ●Any chip or crack found on the paint must be repaired immediately to prevent corrosion. If fragments or cracks peel off from the metal surface, it is recommended to go to a DENZA authorized dealer or service provider for repair. ●Check interior vehicle. ●Moisture and dust buildup under the carpet can cause corrosion. Check the undersides of carpets frequently to make sure these areas are dry. ●Special care should be taken when the vehicle is transporting chemicals, detergents, fertilizers, salt, and other substances. Such substances should be kept in appropriate containers for transportation. If spillage or leakage is found, clean immediately and keep dry. ●Use fender liners. ●Fender liners protect vehicles in saline areas or on gravel roads. The bigger and closer to the ground the fender liner, the better. ●Park in a well-ventilated and dry area. Paint Maintenance Tips ●Clean the vehicle in time. ●Do not perform secondary painting if there are no obvious scratches on the finish, so as to prevent mismatch or color incompatibility. ●When the vehicle is not used for a long period, it should be parked in a garage or a well-ventilated place, and special body cover should be used in winter. Choose a shady place for parking temporarily. ●Prevent strong impacts, knocks, or scratches on the paint. If the paint is scratched, dented or if it peels, it should be repaired in time, preferably by professional auto beauty provider. ●Do not touch the paint with a greasy hand or cloth. Do not place greasy tools or rub with organic solvents on the vehicle body so as to avoid chemical reactions. ●The vehicle must be waxed once a month or whenever water resistance performance of the vehicle degrades and be taken to an auto beauty provider for maintenance once every three months. ●High quality polish and wax must be used. If body finish is severely weathered, use a car cleaning polish in addition to the wax. Carefully follow the manufacturer's instructions and precautions. Chrome finish should be polished and waxed as well as painted finish. CAUTION ●When the vehicle is repainted and placed in a high-temperature paint waxing workshop, the vehicle’s plastic bumper must be removed to avoid damage caused by high temperatures. Exterior Cleaning ●The vehicle must be cleaned in time under the following circumstances which will cause peeling of paint layer or corrosion of body and parts: ●Driving along the coast. ●Driving on a road on which anti- freeze has been scattered. ●Driving on roads covered with coal tar.

Automatic Vehicle Washing

Halaman 189

●Resin, bird droppings and insect carcasses get stuck. ●Driving in areas with a large amount of smoke, soot, dust, iron filings or chemicals. ●Vehicles visibly soiled by dust or mud. ●After raining. Manual Vehicle Washing Before washing the vehicle, park it in the shade, and wait for the vehicle to cool down sufficiently. ●Hose off loose dirt, including all muds or road salts at the bottom of the vehicle and on wheel pits. ●Wash the vehicle with neutral agents, the mixing of which should be carried out according to the manufacturer's instructions. Soak a soft cloth with cleaning solution and gently wipe it down along the direction of the water flow. Do not wipe in a circular motion or horizontally. ●Rinse well—Dried washing agent forms markings. After washing the vehicle in hot weather, rinse all parts properly. ●Dry the vehicle with a clean soft towel to prevent stay water marks. In order to prevent scratching, do not rub or apply excessive force on the paint. CAUTION ●Do not use any alkaline washing powder, soapy water, detergents, de-waxing detergents or volatile substance (gasoline, kerosene, or solvent). ●When cleaning the lights, avoid using alcohol-based products (like alcohol and windshield washer fluid), ketones (such as lacquer thinner and insect remover), or CAUTION other chemical solvents (including gasoline, thinner, and carbon tetrachloride), as these can cause the light casings to crack. ●It is recommended that vehicles traveling in coastal or heavily polluted areas be washed once a day. ●When washing the vehicle, make sure that the high-pressure water jets are at a sufficient distance from the vehicle, and do not aim them directly at the sealing strips, to prevent high pressure from distorting and even damaging the strips and water from leaking into the vehicle. ●Do not use blades or gasoline to remove hard dirt from the vehicle body. The plastic wheel trim is easily damaged by organic matter. If any organic matter splashes on the vehicle trim, remove it with water and check whether the trim is damaged. Replace any seriously damaged plastic wheel trim in a timely manner. Otherwise, the trim may fall from the wheel during vehicle movement and cause an accident. 06 MAINTENANCE ●Do not use abrasive cleaning agents to scrub the bumper. ●Clean polished metal parts with carbon cleaner and wax them regularly for protection. ●Be careful when cleaning the chassis to avoid cutting hands. Automatic Vehicle Washing When choosing an automated car wash service, be aware of certain types of brushes, unfiltered rinsing water, or

A/C Control Panel, Vehicle Speakers, Dashboard, Control Panel and Switches

Halaman 190

machine-specific rinsing procedures that may scratch the paint and affect its gloss and durability, especially darker colors. Before washing the vehicle, it is best to consult the service provider to understand which washing procedures are the safest for the paint finish. Interior Cleaning REMINDER ●Prevent direct water splash onto the dashboard or floor when washing the vehicle, as these may cause electrical faults. ●In order to prevent corrosion, do not wash the vehicle's floor. Carpet ●Clean carpets with a good foam detergent. ●Use a vacuum cleaner to remove as much dust as possible. Several types of foam detergents can be used. Some are in spray cans, and the others are powders or liquids, which produce foam when mixed with water. Clean the carpets with foam soaked sponge or a brush, scrubbing in a circular motion. ●Do not use plain water, and keep the carpets as dry as possible. Seat Belt Maintenance ●The seat belts can be cleaned with neutral soapy water or lukewarm water. ●Scrub the seat belts with a sponge or soft cloth. Check the seat belts for excessive wear, tear, or cut marks. WARNING ●Do not clean the seat belt with colorant or bleach. These substances may decrease the seat belt’s strength. ●Do not use any seat belt that is not dry. Doors and Windows ●Doors and windows can be cleaned with any ordinary detergent. ●Check the door checks regularly. If the check lever is found with visible dust accumulation, wipe it with a wet soft cloth. Then apply 0.3 - 0.8 g of lubricant between the bracket and the pull rod riveting shaft, and between the pull rod and the sliding block. CAUTION ●When cleaning the inside of the rear windows, take care not to scratch or damage electric heating wires or junctions. A/C Control Panel, Car Speakers, Dashboard, Control Panel and Switches ●Clean the A/C control panel, car speakers, dashboard, control panel and switches with a wet soft cloth. ●Wipe dust off gently with a clean soft cloth soaked in lukewarm water. CAUTION ●Do not use any organic matter (such as solvents, kerosene, alcohol, gasoline) or acid-base solutions. These chemicals can cause discoloration, staining, or flaking.

Power Sliding Door Maintenance

Halaman 191

CAUTION ●Please confirm that the detergent or polishing agent to be used does not contain the above substances. ●If a new liquid washing agent is used, do not splash it onto the interior surface of the vehicle, because it may contain the above substances. Clear any splashed liquid quickly. ●Keep the control panel free of oil stain or water stain to prevent affecting the touch sensitivity. It is recommended to use a dust-free cloth instead of a paper towel or towel for wiping and maintenance to prevent affecting the timeliness of the fingerprint-resistant and oil- resistant function of the control panel. Leather ●Leather trimmings can be cleaned with a neutral detergent for woolen. ●Use a soft cloth with a neutral detergent solution to wipe off the dust, and then use a clean, wet cloth to wipe the remaining detergent thoroughly. ●If leather gets wet, wipe it with a clean soft cloth and air dry it in a cool, ventilated place. ●For any questions about vehicle cleaning, please consult a local DENZA authorized dealer or service provider. CAUTION ●If dirt cannot be cleaned off using a neutral detergent, clean it with a detergent that does not contain organic solvents. ●Do not clean leather with any organic material such as volatile CAUTION oil, alcohol, gasoline, acid or alkali, these may cause leather fading. ●Do not clean leather with a nylon brush or synthetic fiber cloth, as these may scratch the fine patterns on the leather surface. ●Mold may grow on dirty leather trimmings. Special care must be taken to avoid oil stains and trimmings must always be kept clean. ●Prolonged exposure to sunlight will cause leather to harden or shrink, so the vehicle should be parked in a shady and cool place, especially in the summer. 06 ●In hot weather, avoid placing vinyl or waxy items on the trimmings, or the hot temperature may metl the material to stick to the leather. MAINTENANCE ●Improper cleaning of leather trimmings may cause discoloration or spots. Power Sliding Door Maintenance Maintenance of guide rail, pulley and middle guide rail wear plate ●Regularly check whether there is dust, deformation, depression or embedded foreign matter on the surface of the upper, middle and lower pulleys, guide rails and wear-resistant plates of the sliding door; ●If there is dust and foreign matter on the surface, use an air gun to clean inner wall of the guide rail and the pulley surface, or use a damp cloth to

Self-Maintenance Precautions

Halaman 192

clean wear plate surface of the center guide rail. CAUTION ●Before the maintenance of guide rail, pulley and wear plate, please turn off the power sliding door function; ●After cleaning, please open and close the door for three times, if there is obvious abnormal sound in the pulley, guide rail and wear- resistant plate, it is recommended to go to a DENZA authorized dealer or service provider for maintenance. Tracking mechanism maintenance ●The buffer pad of the movable assembly of the guiding mechanism is made of synthetic rubber, which is a wearing part. The wear of the guiding mechanism buffer pad varies with different use conditions and frequency. Please pay attention to the following matters in order to prevent the power sliding door from producing shaking noise during driving: ●Regularly check the surface of the rubber pad of the tracking mechanism movable component, it is recommended to go to a DENZA authorized dealer or service provider for maintenance if there is a noticeable wear. ●If there is obvious shaking in the guiding mechanism during driving, it is recommended to go to a DENZA authorized dealer or service provider for maintenance. Self-Maintenance Self-Maintenance Self-Maintenance Precautions ●If maintenance is to be carried out by the owner, be sure to follow the correct steps specified in this section. ●Note that improper and incomplete maintenance will affect the good use of the vehicle. ●This section only lists instructions on simple maintenance items that can be done by the owner. However, there are many items that must be done by qualified technicians with special tools. ●Special care must be taken in maintaining vehicles to prevent accidental injuries. Make sure to obey the followings: WARNING ●If the motor is very hot, do not remove or loosen the expansion tank cover to prevent burns. ●Do not smoke in or near the vehicle to avoid sparks or open flames that may cause fire. ●Be very careful when handling the low-voltage battery, as it contains toxic and corrosive sulfuric acid. ●Never get under a vehicle supported only by a jack. Be sure to prop the vehicle up using both a jack and a vehicle stand before going underneath the vehicle. ●When working inside or under the vehicle, always wear goggles to protect your eyes against flying or falling objects or splashing liquid.

Lights

Halaman 193

WARNING ●As brake fluid may damage the skin or eyes, be careful when filling it. If your skin or eyes are exposed to brake fluid, immediately flush with clean water. Seek medical attention immediately if discomfort persists. CAUTION ●Beware of short circuits, as some circuits and vehicle components carry high current or voltage. ●If any brake fluid overflows, rinse it with water to prevent damage to components or vehicle paint. ●When replacing wiper blades, do not allow the wipers to scratch the glass surface. ●Before closing the hood, check whether any tool or wipe cloth is left in the engine compartment. Self-check The following items should be checked according to usage or specified mileage: ●Coolant level: The radiator and expansion tank should be checked at each charge. ●Windshield washer fluid: The residual amount of washer liquid in the tank should be checked monthly. When washer liquid is frequently used, the residual amount of liquid should be checked more often. ●Windshield wiper: Check the wiper condition monthly. If the wiper does not work, check it for wear, cracking, or other damage. ●Brake fluid level: Check the level monthly. ●Brake pedal: Check whether the brake pedal can be operated freely and whether the brake light switch limiting pad is aged or damaged. ●EPB switch: Check whether the switch is functional. ●Low-voltage battery: Check the battery and terminals condition for corrosion monthly. ●A/C system: Check the operation of A/C units weekly. ●Tires: Check tire pressure monthly. Check tread wear and whether there are foreign bodies embedded. ●Windshield defrosters: Check the defroster vent monthly. 06 ●Lights: Check the condition of headlights, position lights, tail lights, high mount brake light, turn signals, rear fog lights, brake lights and license plate light monthly. MAINTENANCE ●Doors: Check whether the trunk lid and all other doors (including rear doors) can be opened freely and locked securely. ●Horn: Check whether the horn is functioning properly. WARNING ●Do not continue driving a vehicle that has not been inspected, as this may result in serious vehicle damage and personal injury. Lights Headlight adjustment ●Headlights are aligned before vehicle delivery. If the vehicle carries heavy load frequently, headlights may need

Sunroof Maintenance

Halaman 194

to be realigned. It is recommended to have the headlights aligned by a DENZA authorized dealer or service provider. Fogging of lights ●Combination lights, tail lights, and turn signals on the side mirrors may become foggy after heavy rain or cleaning. This is similar to condensation on the side window during rain. It does not mean any problem with your vehicle. ●The lights are in a relatively enclosed and narrow space. The temperature is very high when they light up (the mask and reflector could be burned and deformed easily), so they need heat dissipation. There are heat dissipation holes on the lamp housing for convection. The greater the temperature difference is, the more active the convection is. During the convection, the moisture in the air inevitably enters a lamp. Factors such as exposure to sunlight, convection, and bulb heating can cause the moisture in the air to condense into fog or water beads easily on the lamp surface at low temperatures. This is called fogging of lights. WARNING ●The headlight bulb becomes very hot when illuminated. Grease, sweat, or scratches on the surface of the bulb glass cause the bulb to overheat and break. REMINDER ●If fog presents inside the headlight and inside the turn signals on side mirrors, it may be due to high air humidity or significant temperature difference between the vehicle and its surroundings. REMINDER In that case, turn on the headlight or turn signal while driving. The fog will evaporate after a short period of driving. ●If there is a noticeable amount of water inside the lights, it is recommended to drive the vehicle to a DENZA authorized dealer or service provider for maintenance. Sunroof Maintenance 1. Wipe off dust or sand on the sealing strips of the sunroof with a wet cloth to avoid scratching them, which may affect their sealing performance. 2. Wipe off dust or sand around the roof metal sheet with a wet cloth to prevent abrasion of sealing strips when the sunroof is closed, which may affect the sunroof sealing performance. 3. Frequently clean the rails, front sash and other parts to avoid the accumulation of dust, sand, and leaves, and prevent the drainage holes from being blocked by such debris, resulting in water leakage into the vehicle. 4. When washing the vehicle, do not aim high-pressure water jets directly at the sealing strips, to prevent high pressure from distorting even damaging the strips and water from leaking into the vehicle. 5. The sunroof freezes easily in winter. Forcibly opening the frozen sunroof will damage sealing strips or other parts. Instead, warm up the vehicle and turn on the A/C system to accelerate the melting of snow and ice on the sunroof. Try to open the sunroof after the temperature inside reaches a certain level. Dry the residual

Closing the Hood

Halaman 195

moisture on the sunroof to prevent it from freezing. 6. Do not open the sunroof fully on extremely bumpy roads. Vibration between the sunroof and the rail may deform related parts and even damage the motor. In addition, do not open the sunroof when it rains or the vehicle is being washed. Vehicle Storage ●If the vehicle needs to be parked for a long time (more than a month), the following preparations should be made. Proper preparation helps prevent degradation and ensure easy use of the vehicle. If possible, park the vehicle indoors. ●Charge the vehicle on time. ●Thoroughly clean and dry the body surface. ●Clean the interior of the vehicle to ensure that carpets and mats are completely dry. ●Release the parking brake and set the gearshift lever in parking gear. ●Open one window slightly (if the vehicle is stored indoors). ●Disconnect the negative terminal of the low-voltage battery. ●Pad the front wiper arm with a folded towel or cloth to keep it out of contact with the windshield. ●To reduce adhesion, apply silicone lubricant to all door seals and body wax to the painted surface where the door seals meet. ●Cover the body with a breathable covering made of a "porous material" such as cotton. Non-porous materials, such as plastic sheeting, can build up moisture and damage the paint. ●If possible, start the vehicle regularly (preferably once every month). If the vehicle has been parked for a year or more, go to a DENZA authorized dealer or service provider for comprehensive maintenance. Hood Opening the Hood ●1. Pull the handle on the left under the dashboard twice. The hood unlocks and opens slightly. 06 MAINTENANCE ●2. Raise the hood to an appropriate height; then it will automatically rise to the open state. Closing the Hood ●1. Pull the hood down to a certain height, push it down with a little force until it is half-locked, and then slowly press the blue area in the picture with both hands until the hood is fully locked and closed. Keep your hands at a certain distance and do not press the ridges. ●2. After closing the hood, check whether the latch is securely locked. REMINDER ●Ensure that the hood is closed and locked firmly. Otherwise, the

Braking System

Halaman 196

REMINDER hood may suddenly open during driving, resulting in an accident. ●Do not force down the hood. ●as this may concentrate the force in one area and cause damage to the hood. ●Do not press the front edge of the hood to prevent damage to the vehicle. Cooling System ●It is required that the liquid level should be between the Maximum (MAX) and Minimum (MIN) marker lines of the expansion tank. ●The coolant must always be of the same specification as the original, without adding any mixture. Different brands and types of coolant should not be mixed. ●Refill coolant to the MAX line if the level is below the MIN line. Check the cooling system for leakage. REMINDER ●Opening the coolant expansion tank when the motor has not yet fully cooled down may cause REMINDER coolant to squirt out, resulting in severe burns. ●Battery coolant may fade in color when exposed to high ultraviolet rays such as sunlight. If the hood needs to be opened in the process of vehicle use and maintenance, direct sunlight should be avoided. The performance parameters of coolant do not change after it fades, and normal use is not affected. CAUTION ●Do not add any rust inhibitor or other additives to the cooling system for they may be incompatible with the coolant or the motor components. ●Before opening the reservoir cap, make sure that the motor, high-voltage electronic control assembly, refrigerant reservoir and radiator are all cooled down. ●It is recommended to go to a DENZA authorized dealer or service provider for adding the special type of coolant that is compatible with the battery. Braking System ●Check the level in the fluid tank monthly, and change the brake fluid according to the travel time and mileage specified in Maintenance Schedule. ●Be sure to use the brake fluid of the same specifications as the original brake fluid, and different types of brake fluid must not be mixed.

A/C System

Halaman 197

●It is required that the level in the fluid tank should be between "MAX" (maximum level) and "MIN" (minimum level) marks. ●If the level is below the MIN mark, check if the braking system leaks and the brake friction blocks are worn. Washer ●During normal use, check the liquid level of the windshield washer reservoir at least monthly. ●If the windshield washer is used frequently, the level of the washer reservoir should be checked more frequently. ●High quality windshield washer fluid should be added to improve stain removal and prevent freezing in cold weather. ●When refilling the washer fluid, use a clean cloth dipped in the windshield washer fluid to clean the windshield wiper blade, thus helping keep the wiper blade in good condition. CAUTION ●Do not inject vinegar-water solution into the windshield washer fluid reservoir. ●It is recommended to use certified windshield washing fluid. A/C System ●The A/C system is a closed system, and any important maintenance work should be performed by professionals from a DENZA authorized dealer or service provider. ●The following practices help ensure that the A/C system works effectively. 06 ●Check the radiator and A/C condenser regularly. Remove leaves, insects, and dust from the front surface. These deposits will hinder the air flow and reduce the cooling effect. It is recommended to contact a DENZA authorized dealer or service provider to deal with it. MAINTENANCE ●In cold months, turn the A/C on once a week for at least 10 minutes to circulate the lubricating oil in the refrigerant unit. ●If A/C cooling efficiency decreases, go to a DENZA authorized dealer or service provider for maintenance. CAUTION ●Whenever the A/C system is maintained, the maintenance station should use a refrigerant recycling system. ●The system can recycle refrigerant to avoid environmental pollution

Tire

Halaman 198

CAUTION caused by directly discharging refrigerant. Wiper Blades The blade strip, made of synthetic rubber, is a vulnerable part. Various service environment of the vehicle and usage habits of drivers can damage the blades. Therefore, please observe the following to ensure the service life of blades and driving safety: ●Do not use a blade to remove ice from the windshield surface. Use a customized ice scraper. ●Do not scrape the windshield surface if it is dirty, greasy or waxy. ●Keep the windshield surface clean. Do not scrape dust, sand, insects, or foreign bodies on the windshield surface. ●During vehicle washing and body paint maintenance, there is no need to wax the windshield, as the wax layer reflects light in bad light, affecting the line of sight and driving safety. After washing the vehicle, rinse the blade with plain water, and use special windshield wax cleaner to remove the wax layer on the windshield. ●Do not wash the blades directly with a water jet to prevent excessive water pressure from damaging the blades. Maintenance Rules ●Clean windshield and blade regularly (preferably once a week or once every two weeks). ●Wipe the wiper regularly (preferably once a day or once every two days) even if it doesn't rain. ●When using a blade to wipe the windshield, keep the windshield fully wet (when there is no rain, the washer liquid must be sprayed in advance). ●Clean the windshield with a special windshield washer fluid. ●Promptly clean mud and insect carcasses stuck to the windshield with a rag. ●When there are marks on the windshield caused by gravel, maintenance should be carried out timely (it is recommended that windshield repair resin products should be used and the windshield should be replaced if marks are too large or too many.) ●Replace the wiper blades regularly, preferably once every six months. ●When cleaning the windshield, raise the wiper arm in advance. The specific operation method is as follows: 1. Go to infotainment system and tap Vehicle Health to enable front/ rear wiper maintenance. The wipers rotate out. 2. Grasp the upper end of the wiper arm and carefully lift the wiper arm and blade assembly. Tire ●For safe driving, tires must be made and sized to fit the vehicle, with good tread and standard tire pressure. ●The following pages provide details on how to check tire pressure, damage to and wear of tires, and the operating method for tire transposition.

Maintenance

Halaman 199

WARNING ●Using tires with excessive wear or insufficient/excessive pressure can result in accidents, severe injury, or death. ●Please follow all instructions in this manual regarding tire inflation and maintenance. Tire Inflation ●Keep tires properly inflated to provide the best combination of maneuverability, tread life, and driving comfort. ●Under-inflated tires can cause uneven tire wear, affect steerability and energy consumption, and are prone to leakage due to overheating. ●Over-inflated tires reduce riding comfort and are prone to damage from uneven roads. In severe cases, the risk of tire bursting poses severe threats to the safety of the entire vehicle. Over- inflation will also cause uneven wear and tear of tires, affecting tire service life. ●The vehicle is equipped with a tire pressure gauge. When tires are cold, you can decide whether to replenish tire pressure according to the tire pressure values displayed on the instrument cluster. ●Tire pressure should be measured while tires are at ambient temperatures. This means that it should be measured at least three hours after stop. If you must drive the vehicle before the tire pressure is measured, tires can still be considered at ambient temperatures as long as the traveled distance is not more than 1.6 km. ●It is normal that tire pressure reading measured while tires are hot (after travel of several kilometers) is 30-40 kPa (0.3-0.4 kgf/cm²) higher than when tires are cold. In that case, do not deflate tires in order to achieve the specified cold tire pressure reading; otherwise, the tire pressure will be insufficient. REMINDER ●The recommended cold tire pressure is indicated on the label affixed to the driver's door frame. ●Tubeless tires can self-seal punctures. However, as leakage is usually very slow, the leaks should be carefully identified as soon as the tire begins to depressurize. 06 Maintenance ●In addition to proper inflation, proper wheel alignment also helps reduce tread wear. MAINTENANCE ●If uneven tire wear is found, go to a DENZA authorized dealer or service provider to check the wheel alignment. ●Although the vehicle has been balanced in the factory, it needs to be re-balanced after running for a period of time. ●If there is some kind of continuous vibration at high vehicle speeds (above 80 km/h), but not at low vehicle speeds, go to a DENZA authorized dealer or service provider for tire checks. ●If a tire has been repaired, be sure to re-balance it. ●When installing a new tire or replacing a new wheel, always perform tire balancing.

Replacing Tires and Wheels

Halaman 200

CAUTION ●Improper wheel balancers can become loose and fall off, which damages the vehicle or surrounding objects during vehicle travel. ●Improper wheel balancers damage the aluminium rims of the vehicle. Therefore, it is recommended to use original wheel balancers. Tire Inspection ●Whenever checking tire inflation, check tires for damage, foreign body piercing and wear. ●Replace the tire if bumps, or tread or side damage are found. Tires must be replaced if any of the case happens. ●Replace the tire if there are cracks on its side or if its fabric or cord can be seen. ●Replace tires with excessive tread wear. ●Wear marks are cast inside tire treads. When the tread is worn at this point, a band mark is shown across the tread, indicating the tread thickness is less than 1.6 mm. The adhesion of tires worn to this extent is very small on wet roads. ●Tires with exposed wear bars are experiencing serious performance loss and therefore must be replaced. Tire Rotation In order to make tires wear the same and prolong their service life, it is recommended to check the wheel tread wear inside and outside every 10,000 km and rotate tires and conduct four-wheel alignment if necessary. ●Do not rotate tires when a spare tire is used for the vehicle. ●When purchasing replacement tires, you may find that some tires are "directional," which can only be rotated in one direction. If directional tires are used, only the front and rear wheels can be swapped in tire rotation. See the illustration. ① Non-directional tires and wheels. ② Directional tires and wheels. ●After tire replacement, go to a DENZA authorized dealer or service provider for tire pressure matching. Replacing Tires and Wheels ●Original tires maximize performance, while providing the best combination of maneuverability, driving comfort and service life. ●It is recommended to replace with original tires at a DENZA authorized dealer or service provider. ●Replacement of tires with different sizes, road ranges, rated speeds and maximum cold pressures (marked on the tire side) or mixed use of radial tires and diagonal tires can reduce braking ability, driving force (ground adhesion) and steering accuracy. ●The installation of unsuitable tires can affect the maneuverability and

Fuse Location

Halaman 201

stability of the vehicle, and may lead to accidents. ●Replace four tires at the same time whenever possible. If this is impossible or unnecessary, replace front or rear tires at the same time. Do not replace only one tire; otherwise it will seriously affect the maneuverability of the vehicle. ●ABS works by comparing wheel speed. When replacing a tire, use a tire of the same size as the original tire. The size and structure of the tire can affect wheel speed and may lead to uncoordinated system operation. ●If the wheel needs to be replaced, ensure that the specifications of the new wheel match those of the original wheel. New wheels are available for purchase at DENZA authorized dealers or service providers. Please consult a DENZA authorized dealer or service provider before replacing the wheels. ●If your vehicle is equipped with silent tires*, it is recommended to replace with original tires at a DENZA authorized dealer or service provider. If you want to replace with ordinary tires, take accessories such as inflator and tire sealant to provide your vehicle with the ability of emergency driving. WARNING Please observe the following precautions to ensure proper vehicle performance and control. ●Do not mix radial tires, bias belted tires, or diagonal ply tires on the vehicle. WARNING ●Do not use tires with dimensions other than those recommended by the manufacturer. Fuses All vehicle circuits are provided with fuses to prevent short circuit or overloading. These fuses are mounted in four fuse boxes respectively. ●The under-hood PDB is located beside the left fender of the engine compartment. ●Remove the upper cover of the under-hood PDB, and turn over it to view the PDB label. 06 ●The dashboard PDB is located in the shield under the dashboard. ●The rear compartment fuse box is located on the left side of the trunk. MAINTENANCE ●The positive fuse box is under the front passenger's seat and beside the low- voltage battery. REMINDER ●Do not use fuses with amperage higher than the rated ampere value or any other solution to replace the fuses, as this can cause serious damage or even a fire. ●Replacement of blown fuses with ones of higher amperage can significantly increase the likelihood of damage to the electrical system. ●If there is no spare fuse of the same amperage, use a fuse with lower amperage instead.

Dashboard PDB Nameplate

Halaman 202

Dashboard PDB Nameplate No. Ampere (A) Protected Component or Circuit 01 30 Universal controller 02 30 Universal controller 03 5 Seat lumbar support 04 10 Diagnosis port 05 5 Head-up display (HUD) 06 - - 07 5 Gearshift panel 08 20 Infotainment system CPU 09 7.5 T-BOX 10 7.5 Wireless charger 11 7.5 Combination switch

Dashboard PDB Nameplate

Halaman 203

| No. | Ampere (A) | Protected Component or Circuit | |-----|------------|-------------------------------------------------| | 12 | 30 | ECU of power sliding doors | | 13 | 30 | Left middle power seat | | 14 | 20 | Front left window | | 15 | 20 | Right front window | | 16 | 25 | External amplifier | | 17 | 25 | External amplifier | | 18 | 15 | Integrated thermal management module | | 19 | 20 | Right rear window | | 20 | 7.5 | ETC | | 21 | - | - | | 22 | - | - | | 23 | - | - | | 24 | - | - | | 25 | - | - | | 26 | - | - | | 27 | - | - | | 28 | - | - | | 29 | - | - | | 30 | - | - | | 31 | - | - | 06 MAINTENANCE 203

Rear Compartment Fuse Box Nameplate

Halaman 204

Rear Compartment Fuse Box Nameplate ! 注意 NOTICE 只准使用指定规格的保险丝和继电器 USE THE DESIGNATED FUSES AND RELAYS ONLY 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 09 08 07 06 05 04 03 02 01 B+ | No. | Ampere (A) | Protected Component or Circuit | |-----|------------|------------------------------------| | 01 | 30 | Rear body control module | | 02 | - | - | | 03 | 15 | Suspension ECU | | 04 | 10 | Motor controller | | 05 | 5 | High-frequency module | | 06 | 10 | Motor controller | | 07 | 7.5 | Second-row seat armrest screen | | 08 | 5 | ECU of power sliding doors | | 09 | 7.5 | Rear entertainment screen | | 10 | 7.5 | ADAS | 204

Rear Compartment Fuse Box Nameplate

Halaman 205

| No. | Ampere (A) | Protected Component or Circuit | | :-- | :--------- | :----------------------------- | | 11 | 7.5 | Rear entertainment screen | | 12 | 30 | Left power sliding door | | 13 | 30 | Left middle power seat | | 14 | 20 | Left rear window | | 15 | - | - | | 16 | 20 | Rear blower | | 17 | 10 | Rear left combination light | | 18 | 10 | Rear right combination light | | 19 | 30 | Rear body control module | | 20 | 30 | Rear body control module | | 21 | - | - | | 22 | - | - | | 23 | - | - | | 24 | - | - | | 25 | - | - | | 26 | - | - | | 27 | - | - | | 28 | - | - | | 29 | - | - | | 30 | - | - | | 31 | - | - | 06 MAINTENANCE 205

Rear Compartment Fuse Box Nameplate

Halaman 206

206

When Faults Occur

Halaman 207

07 WHEN FAULTS OCCUR When Faults Occur..........................208

Emergency Shutdown System

Halaman 208

When Faults Occur Reflective vest The reflective vest is in the tool kit. In case of emergency, always wear the reflective vest properly before you check for faults or handle accidents to ensure your safety. If Smart Key Battery Is Exhausted If the smart key indicator does not flash and the vehicle cannot be started using the start function, the smart key battery may be exhausted. It is recommended to contact a DENZA authorized dealer or service provider for battery change as soon as possible. In this case, you may start the vehicle in no power mode. CAUTION ●Do not place the smart key in a position exposed to high temperature. ●Check for nearby radio stations, substations or airport radio transmitters that may interfere with the normal operation of electronic smart keys. ●After locking the vehicle and arming its anti-theft alarm system, keep the key away from the vehicle if you do not use the vehicle; otherwise the automatic card finding of the vehicle will consume the power of the low- voltage battery and the smart key. 1. Use the mechanical key to unlock the vehicle. 2. Press the brake pedal and the START/ STOP button. The smart key warning light comes on and the speaker in the vehicle gives a beep. 3. Keep the smart key close to the no- power mode sign on the auxiliary dashboard within 30 seconds after the speaker beeps. The speaker beeps again, the smart key warning light turns out, and the vehicle can be started. 4. Start the vehicle within five seconds after the speaker beeps again. Emergency Shutdown System ●The emergency shutdown system is activated and the high-voltage system is automatically shut down when the following conditions are met: ●Any air bag fails to deploy after a front collision. ●Some rear collisions. ●Vehicle system failure. ●The OK indicator goes off if any of the above situations occurs. ●Activating the emergency shutdown system in the noted types of collision minimizes the risk of injuries or accidents. The vehicle system cannot be switched into the OK status once the emergency shutdown system is activated. In that case, it is recommended to contact a DENZA

If a Collision Occurs

Halaman 209

authorized dealer or service provider. Even if the ignition switch is set to the OK position, the system will be turned off immediately. Therefore, contact a DENZA authorized dealer or service provider as soon as possible. Vehicle Fire Rescue In case of fire, continue to operate the vehicle as follows according to the actual situation: 1. Switch the ignition off, and leave the vehicle. 2. On the precondition that personal safety is ensured, if the fire is small and slow, use a dry powder fire extinguisher to put out the fire, and call for help immediately. 3. If the fire is large and growing quickly, stay away from the vehicle and wait for rescue. CAUTION ●Wear insulated gloves during vehicle disassembly. Use fire extinguishers of designated type. Water or incorrect fire extinguishers may cause electric shock. ●In the event of other special conditions that cause flying projectiles (such as interior trims and glass), stay away from the vehicle and promptly ask a DENZA authorized dealer or service provider to come to the site for handling. If a Collision Occurs In case of collision, operate the vehicle as follows according to the actual situation: 1. Switch the ignition off, and disconnect the low-voltage battery if conditions permit. 2. Call immediately a DENZA authorized dealer or service provider for rescue. 3. Carry out a simple inspection, if conditions permit: Check whether any edge of the high-voltage battery tray is cracked and whether any obvious liquid flows out. ●Damage to high-voltage components is not identifiable in all cases. Do not handle damaged components or touch them with jewelry or other metal objects. ●If skin comes in contact with leaked fluid, wash it immediately with plenty of water for 10-15 minutes. If there is still any discomfort, apply 2.5% calcium gluconate ointment, or soak in 2% to 2.5% calcium gluconate solution. If the condition does not get better or discomfort persists, seek medical help immediately. 07 ●Do not touch the orange high- voltage cables or other high-voltage components. Only authorized repair personnel is allowed to work on high- voltage systems. WHEN FAULTS OCCUR ●Do not damage, modify, disassemble, or disconnect the orange high- voltage cables from the high-voltage grid. ●Inform the firemen and rescue personnel that the vehicle is equipped with a high-voltage battery pack. WARNING ●Do not touch any spilled liquid, and stay away from a leaking vehicle or high-voltage battery.

If the Vehicle Needs Towing

Halaman 210

WARNING ●Do not dispose of the leaked fluid into the water or soil or other environment. ●The vehicle system operates with high-voltage DC power. It generates a lot of heat before and after vehicle start-up and when the vehicle is powered off. Watch out for high pressures and high temperatures. ●Do not disassemble, move, or alter high-voltage battery components and connecting cables as their connectors can cause serious burns or electric shock and may result in personal injury or death. The orange cables are part of high-voltage wiring harness. Users must not repair the vehicle's high-voltage system by themselves. If any repair is required, it is recommended to go to a DENZA authorized dealer or service provider for repair. ●The remote control key and high- voltage components of the vehicle may affect and harm people carrying medical devices. After a collision, if there is battery leakage, an acrid smell inside the vehicle, visible acid flow outside the vehicle, or any smoke with the battery pack: 1. Switch the ignition off, and disconnect the low-voltage battery if conditions permit. 2. It is recommended to call immediately a DENZA authorized dealer or service provider for rescue. If the Vehicle Needs Towing If the vehicle needs towing, it is recommended to contact a DENZA authorized dealer or service provider, a professional towing service, or the organization you joined for roadside assistance. CAUTION ●Do not allow other vehicles to pull your car with only ropes or chains. Recommended towing methods: ●Flatbed device ●If the vehicle fails and needs towing, a flatbed is recommended. When the vehicle is being towed, keep its four wheels off the ground. Towing the vehicle on front or rear wheels alone may damage high-voltage components. CAUTION ●When moving a vehicle on a flat trailer, make sure that the vehicle being moved is properly secured to prevent it from sliding back. ●It is recommended to use professional tire straps and tighteners, and over-the-wheel

Tow Eye

Halaman 211

CAUTION binding is recommended for securing moved vehicles. ●When fixing the vehicle, do not pass the fixtures such as straps and ropes through the wheels or tie them on the chassis, suspension and other body parts to prevent damaging the vehicle. ●When transporting a vehicle, make sure that the wheels of the moved vehicle cannot turn to avoid damage to the vehicle. Tow Eye The installation point of vehicle tow eye is shown in the illustration. 1. Press the upper left corner of the tow eye cover to open it. 2. Install the tow eye in the tow eye opening. ●If the vehicle needs rescue, call a professional rescue or the customer service number. ●In emergency situations where the vehicle needs resue using the tow eye, observe the following to avoid vehicle damage or personal injuries. ●The towing vehicle must be in good conditions, with a tow speed no more than 5 km/h. ●Never use jerking actions to pull the vehicle. ●The towed vehicle must not carry any person except for the driver or tow any trailer. ●Both towing and towed vehicles must have their hazard warning lights on. ●To avoid damages to the vehicle, only the in-vehicle tow eye can be used. ●The distance between the towing and towed vehicles must be more than 4 meters but less than 10 meters. ●The width and weight of the towed vehicle must not be greater than those of the towing vehicle. ●When towing the vehicle, ensure its surroundings are unobstructed and have enough space and no person is close to the towing device. ●When freeing the vehicle, control to make it travel in the direction of tow force. Dragging the vehicle from the side or vertically is prohibited. 07 ●The towed vehicle must be controlled by a driver inside the cabin, with the steering and braking systems in normal conditions. WHEN FAULTS OCCUR CAUTION ●Never rescue a stuck or high- centered vehicle with tow eyes. Call a professional rescue or the customer service number. ●If the steering or braking system of the towed vehicle fails, contact a professional rescue or call the customer service number. Do not tow the vehicle directly.

In-Vehicle Tools

Halaman 212

If a Tire Goes Flat ●Maintain the lane position and gradually slow down the vehicle. Drive the vehicle off the busy road to a safe place. Park on solid, flat ground and avoid highway forks. Park on solid, flat ground and avoid motorway forks. ●Engage the EPB and press the "P" button. ●Power off the vehicle and turn on the hazard warning light. ●Be sure to have all passengers get off the vehicle and ask them to go to a safe place away from crowded traffic. ●To prevent slipping, secure the vehicle by wedging the tire diagonally against the flat tire. CAUTION ●Do not continue driving with a flat tire. Even a short distance of driving with flat tire can cause irreparable damage. In-Vehicle Tools ●These tools are stored in a tool box under the trunk cover flap. ① Warning triangle ② Reflective vest ③ Lug nut remover ④ Tire repair kit ⑤ Tow eye ●In an emergency where you need to service the vehicle yourself, you must know how to use these in-vehicle tools and their locations. Placing the Warning Triangle REMINDER ●Before repairing the vehicle while stopped on a public road, remember to place a warning triangle in the lane where your vehicle is located, 100-200 m behind the vehicle, red side facing vehicles oncoming from behind, in order to warn them and prevent accidents. After the repair, recover the warning triangle for future use. The warning triangle is used to warn vehicles coming from behind and to avoid collisions due to high speed or late braking. How to use the warning triangle: 1. Take the warning triangle out of its box. 2. Attach the ends to form a triangle. 3. Mount the supports as shown.

Using Tire Repair Kit*

Halaman 213

Using Tire Repair Kit* ●The tire repair kit is used to seal small cuts, especially cuts in tread pattern. It is just an emergency solution for you to drive to the nearest service center, and only for short emergency stretches, even if the tire is not deflated. ●The tire repair kit is in the trunk and can be taken out from the interior trim panel. ●The tire repair kit includes: sealant, inflator, and adhesive sticker with marked maximum allowable speed and instructions. WARNING ●The tire repair kit is only suitable for minor damages of tires. If a wheel is damaged, tyre puncture sealant kit is prohibited. ●Tire sealant is highly flammable and harmful to health. Take necessary precautions to prevent fire and avoid contact with skin, eyes, and clothing; keep away from children; and do not inhale its vapor. In case of contact with tire sealant: ●If tire sealant comes into contact with the skin or gets into the eyes, thoroughly flush the WARNING affected body part immediately with plenty of clean water. ●Change contaminated clothing immediately. ●In case of an allergic reaction, seek medical attention immediately. ●If tire sealant is ingested by accident, rinse mouth thoroughly and drink plenty of water immediately. Do not induce vomiting, but seek medical attention immediately. Using the tire repair kit ●Refer to labels on the inflator for usage of the kit. ●If the inflator needs to be connected to a power source, plug the inflator into the vehicle's 12V socket, start the vehicle, and turn on the inflator. The tire sealant is then filled through the inflator hose into the tire along with air. 07 WHEN FAULTS OCCUR REMINDER ●Make sure the inflator switch is off when you plugging the power supply into the 12V socket in the vehicle. ●Do not use the inflator continuously for more than 10 minutes at a time. ●Before using the power plug, make sure that its voltage and power do not exceed the 12 V and 120 W limits marked on the backup power supply. Exceeding these limits poses a safety hazard. ●Observe the tire pressure reading on the inflator.

Using Tire Repair Kit*

Halaman 214

●If the tire pressure does not reach 180 kPa within 10 minutes (red area shown in the illustration), turn off the inflator. You are recommended to contact a DENZA authorized dealer or service provider. ●If the tire pressure reaches between 180 and 320 kPa (green and yellow areas shown in the illustration), remove the kit as soon as possible and drive at a speed below 80 km/h within one minute, with the furthest driving distance not exceeding 10 km, so that the tire sealant is evenly distributed within the tire. ●Pull over the vehicle and check the tire pressure on the instrument cluster. ●If the tire pressure is greater than 220 kPa, drive to the nearest service center at a speed below 80 km/h. ●If the tire pressure is between 130 and 220 kPa, repeat the process to fill the tire sealant into the tire and observe the tire pressure gauge reading on the inflator. ●If the tire pressure does not reach 130 kPa, it is recommended to contact a DENZA authorized dealer or service provider. REMINDER ●Using tire repair kit on damaged tires is only an emergency solution. Please change the tires at a professional repair center as soon as possible. It is recommended that you contact a DENZA authorized dealer or service provider and inform the maintenance technician that tire sealant has been used. ●Avoid hard acceleration and high- speed turns. ●Abide by the maximum vehicle speed limit of 80 km/h. Do not continue driving if any strong vibration, driving instability, or noise occurs while the vehicle is running. ●When the tire sealant is about to expire (see the label on the canister for exact date), replace it with a new one. ●After using the tire repair kit, it is recommended to purchase a new tire sealant at a DENZA authorized dealer or service provider.

Specifications

Halaman 215

# 08 SPECIFICATIONS Data............................................... 216 Information......................................... 221 Declarations of Conformity...................... 222

Vehicle Data

Halaman 216

Data Vehicle Data Dimensions Item Parameter Drive type Front-wheel drive AWD Length (mm) 5250 5250 Width (mm, excluding side mirrors) 1960 1960 Height (mm) 1920 1920 Wheelbase (mm) 3110 3110 Front track (mm) 1675 1675 Rear track (mm) 1675 1675 Front overhang (mm) 985 985 Rear overhang (mm) 1155 1155 Approach angle (°) 15 15 Departure angle (°) 15 15 Vehicle mass Item Parameter Drive type Front-wheel drive AWD Curb weight (kg) 2764 2865 Front axle load (kg) 1360 1380 Rear axle load (kg) 1404 1485 Max. allowable total mass (kg) 3338 3439 Front axle load at max. allowable total mass (kg) 1470 1491 Rear axle load at max. allowable total mass (kg) 1868 1948

Vehicle Data

Halaman 217

Item Parameter Number of occupants (persons) 7 7 Drive motor Item Parameter Drive type Front-wheel drive AWD Model Front control module: TZ220XYD Type Permanent magnet synchronous motor Permanent magnet synchronous motor Rated power/speed/torque (kW/rpm/N•m) 70/4456/150 Front: 70/4456/150 Peak power/revolving speed/torque (kW/rpm/ N•m) 230/16000/360 Front: 230/16000/360 Vehicle power performance and economic efficiency Item Parameter Drive type Front-wheel drive AWD Max. design speed (km/h) 180 180 Max. gradeability (%) 30 40 Power consumption per 100 km under NEDC comprehensive working conditions (kWh/100 km) 20.5 21.3 Power consumption per 100 km under comprehensive working conditions (kWh/100 km) 22.4 25.6 Wheels and tires Front control module: TZ220XYD Rear control module: TZ180XSN Rear: 25/4775/50 Rear: 45/15000/110 08 SPECIFICATIONS

Vehicle Data

Halaman 218

Item Parameter Drive type Front-wheel drive AWD Tire specification 235/60 R18 235/60 R18 Tire pressure (kPa) Front/Rear: 260/260 (R18) Front/Rear: 260/260 (R18) Wheel dynamic balance requirement (g) 5 5 Wheel alignment values (at curb weight) Item Parameter Front camber-side (°) -0.5±0.75 Front toe-in-side (°) 0±0.08 Kingpin inclination angle-side (°) 12.5±0.75 Kingpin caster angle-side (°) 4.7±0.75 Rear camber-side (°) -0.5±0.5 Rear wheel toe-in-side (°) 0.067±0.08 Braking system Item Parameter Free stroke of brake pedal (mm) 1~5 Front brake disc thickness (mm) 28~30 Rear brake disc thickness (mm) 23-25 Front friction plate thickness (mm) 2~11 Rear friction plate thickness (mm) 2.5-6.5 High-voltage battery Item Parameter Type Lithium iron phosphate battery High-voltage battery rated capacity (Ah) 170 Seats:

Vehicle Data

Halaman 219

Item Parameter Forward and backward moving spaces for front seat (seat cushion depth measured) 30 mm forward from the farthest slide rail stroke Seatback angle of front seats (cushion depth measured) 25 ° Normal service conditions of front seatbacks Forward and backward moving space for the second-row seat (seat cushion depth measured) Seatback angle of second-row seats (cushion depth measured) 27 ° Normal service conditions of second-row seatbacks 28° forward, 43° backward Forward and backward moving spaces for third row seat (seat cushion depth measured) Seatback angle of the third-row seats (cushion depth measured) 25 ° Normal service conditions of the third-row seatbacks 45° forward, 3.75° backward Fluid Item Parameter Drive type Front-wheel drive AWD Gear transmission oil type Castrol BOT-383, W5 Castrol BOT-383, W5 Front drive gear transmission oil amount (L) 1.5±0.05 1.5±0.05 Rear drive gear transmission oil type Castrol BOT-384 Castrol BOT-384 Rear drive gear oil amount (L) / 0.5±0.05 Brake fluid type DOT4 DOT4 Brake fluid amount (L) 1.1±0.02 1.1±0.02 25° forward and 50° backward from the designed position; slide rail: 200mm forward and 60mm backward; slide rail inclination: 2.5° 30 mm forward from the farthest slide rail stroke 30 mm forward from the farthest slide rail stroke 08 SPECIFICATIONS

Model and Serial Number of Drive Motor

Halaman 220

Item Parameter Motor controller battery coolant type Ethylene glycol long-acting anti-rust antifreeze Ethylene glycol long-acting anti-rust antifreeze Motor controller battery coolant amount (L) 3.8±0.5 6.8±0.5 Vehicle Identification Vehicle Identification Number (VIN) ① Attached on the gearbox ② Attached on the VIN slot on the upper cover of the front windshield cross sill ③ Attached to the pillar of the rear windshield. ④ Attached on the sheet metal clad of the right rear wheel envelope ⑤ Attached on the sheet metal surface inside the right rear door sill. ⑥ Attached on the sheet metal surface at the lower right corner of the front left door ⑦ Attached on the sheet metal surface inside the hood ⑧ Attached on the sheet metal surface of the front anti-impact beam VIN is engraved on the lower beam of the front right seat. After connecting the VDS, Vehicle Identification Number (VIN) can be found in the upper right corner of the screen for the corresponding model. For details, please refer to the VDS operation manual. Vehicle Nameplate The vehicle nameplate is attached to the lower part of the right B-pillar: Model and Serial Number of Drive Motor ① The model and number of the drive motor are located near the lock ring right under the hood. ② The rear motor* model and serial number are located near the lower mounting bracket of the power spring on the left side of the back door.

Warning Label Location

Halaman 221

Information Warning Labels Side airbag warning label Side airbag warning labels are attached below the lock rings on the left and right front doors. Tire pressure indication label The tire pressure indication label is attached below the left side airbag warning label. Labels on the engine compartment ① The air conditioner filling and cooling fan indication label is attached on the inner engine compartment cap and the right lock ring. ② The battery location indication label is on the inner engine compartment cap, attached on the left lock ring. The DC charging indication & reminding label The DC charging indication & reminding label is attached to the middle of the DC charge port door. 08 SPECIFICATIONS Power trunk lid label Power trunk lid label is attached on the metal plate of the trunk lid.

Declarations of Conformity

Halaman 222

Transponder Mounting The transponder mounting position is located in the upper right of the front windshield. Declarations of Conformity Declarations of Conformity MmWave Radar Certification Country Model Certification Marks 77V12FLR Singapore 77V13CRN 77V12FLR Indonesia 77V13CRN 77V12FLR Malaysia 77V13CRN CAUTION ●Do not overlap the sticker transponder with the glass frame or other objects.

Declarations of Conformity

Halaman 223

Smart Key Certification Country Model Certification Marks EU countries MRH-3791200A Thailand MRH-3791200A NBTC Compliance Radar 08 SPECIFICATIONS Thailand Model: BYD intelligent cockpit system

Declarations of Conformity

Halaman 225

Numerics 12V Auxiliary Power...................... 172 A A/C Buttons................................... 160 A/C Control Panel, Car Speakers, Dashboard, Control Panel and Switches........................................ 190 Account Registration.................... 166 Acoustic Vehicle Alerting System (AVAS)............................................ 139 Adaptive Cruise Control (ACC)...... 117 Adjusting Front-Seat Head Supports ......................................................... 64 Adjusting Middle and Rear Seat Head Supports.......................................... 65 Adjusting Rear Seats....................... 63 Adjusting Second-Row Seats.......... 62 Adjusting the Steering Wheel Manually.......................................... 70 Air Purification System................. 164 Airbag Overview.............................. 15 Anti-lock Braking System............. 147 Anti-theft Alarm System................. 27 Automatic Vehicle Hold (AVH)...... 115 Automatic Vehicle Washing.......... 189 B Battery Leakage Rescue............... 210 Bill Box........................................... 168 Blind Spot Assist (BSA)................. 134 Brake fluid..................................... 196 Break-in Period............................. 103 C Carpet............................................ 190 Carrying Luggage.......................... 106 Center Console Cubby.................. 169 Charge Port Anti-theft Lock............ 95 Charging Precautions..................... 85 Charging Safety Warnings.............. Check Before Charging................... Child Protection Lock..................... 59 Child Restraint System Classification ......................................................... 23 Closing the Hood.......................... 195 Coolant.......................................... 196 Cup Holder.................................... 170 D Data Collection and Processing..... 28 Declarations of Conformity.......... 222 Direct Tire Pressure Monitoring System........................................... 138 Discharge Instructions.................... 97 Door Bin........................................ 169 Doors and Windows...................... 190 Driver Assistance Switches............. 77 Driver Monitoring Systems (DMS)*.... 136 Driver's Door Switches................... 75 Driving Precautions...................... 116 Driving Safety Precautions........... 103 Driving Safety Systems................. 145 E Electronic Smart Key...................... 46 Emergency Lane Keeping Assist (ELKA)*.......................................... 132 Emergency Vehicle Locking with Mechanical Key............................... 54 EPB Switch.................................... 113 F Fire Prevention............................. 108 Forward Collision Warning (FCW) and Automatic Emergency Braking (AEB) ....................................................... 123 Front Cross Traffic Alert (FCTA) and Front Cross Traffic Brake (FCTB)*. 126 Front Interior Lights........................ 80

Declarations of Conformity

Halaman 226

Front Windshield Wipers and Washer ......................................................... Function Definition....................... 161 G Gear Shift Controls....................... 112 General Charging Troubleshooting 87 Glasses Case.................................. 169 Glove Box...................................... 168 Grab Handles................................ 171 H Hazard Warning Light Switch......... 78 Head-up Display (HUD)*............... 137 High-Voltage Battery...................... 98 I Indicators and Warning Lights....... 35 Infotainment Touchscreen........... 155 Installing Child Restraint Systems with ISOFIX Rigid Anchor................ 24 Intelligent Charging........................ 95 Intelligent Cruise Control (ICC).... 121 Intelligent High Beam Control (IHBC) ....................................................... 129 Interior Cleaning........................... 190 Interior Rearview Mirror............... 149 L Lane Departure Assist (LDA)*....... 130 LCD Instrument Cluster.................. 34 Leather.......................................... 191 Light Switches................................. 70 Lights............................................. 193 Locking/Unlocking with Mechanical Key................................................... 49 Locking/Unlocking with Smart Key ......................................................... 49 Low-voltage battery...................... 101 M Maintenance Plan......................... 182 Manual Vehicle Washing............... 189 Mode Switches................................ 78 O Odometer Switch............................ 77 Opening the Hood........................ 195 Other Instrument Cluster Fault Prompts........................................... 43 P Paint Maintenance Tips................ 188 Panoramic View System............... 140 Parking Assist System*................. 142 Phone Holder................................ 168 Power-Assisted Steering Mode Settings........................................... 70 R Regular Maintenance.................... 187 Reservation Charging..................... 94 Roof Vents*.................................... 164 S Saving Energy and Extending Vehicle Service Life.................................... 105 Seat Belt Maintenance.................. 190 Seat Belt Overview......................... 12 Seat Precautions............................. 60 Seat Side Table............................. 176 Seatback Pockets.......................... 169 Self-Maintenance Precautions..... 192 Side Mirror Adjustment................ 150 Smart Access and Start System...... 58 Snow Chains................................. 109 Starting the Vehicle....................... 110 Steering Wheel Switches................ 67

Declarations of Conformity

Halaman 227

Sun Visor....................................... Sunroof Maintenance................... Sunroof Switch............................... 79 Sunshade...................................... 175 T Traffic Sign Recognition (TSR)*.... 127 Trailer Towing............................... 103 Transponder Mounting................. 222 Tray Table*.................................... 175 U USB Ports...................................... 172 Using AC Charging Piles.................. 91 Using DC Chargers*......................... 92 Using Mode 2 Charging Cable*....... 88 Using Seat Belts.............................. 12 V Vehicle Cleaning........................... 188 Vehicle Corrosion Prevention....... 187 Vehicle Fire Rescue....................... 209 Vehicle Identification.................... 220 Vehicle Storage Precautions......... 195 Vehicle Use Suggestions............... 104 VTOL Discharging............................ 97 W Wading into Water........................ 107 Warning Labels............................. 221 Washer........................................... 197 Window Control Switch on Passenger Side.................................................. 77 Winter Driving Precautions.......... 117 Wireless Phone Charger............... 173

Abbreviations

Halaman 229

Abbreviations Abbreviations Termin ology Full Name Termin ology Full Name ECU Electronic Control Unit ISOFIX International Standards Organization Fix EDR Event Data Recorder ABS Antilock Braking System ESC Electronic Stability Controller NFC Near Field Communication USB Universal Serial Bus SOC State of Charge EPB Electronic Parking Brake AVH Auto Vehicle Hold ACC Adaptive Cruise Control FCW Forward Collision Warning AEB Automatic Emergency Braking TSR Traffic Sign Recognition IHBC Intelligent High Beam Control LDA Lane Departure Assist LDW Lane Departure Warning LDP Lane Departure Prevention ELKA Emergent Lane Keeping Assist EPS Electrical Power Steering BSA Blind Spot Assist DOW Door Open Warning RCW Rear Collision Warning RCTA Rear Collision Traffic Alert RCTB Rear Cross Traffic Braking HUD Head-Up Display AVAS Acoustic Vehicle Alerting System CST Comfort Parking EBD Electronic Brakeforce Distribution EV Electric Vehicle VDC Vehicle Dynamics Control TCS Traction Control System HHC Hill Hold Control HBA Hydraulic Brake Assist CDP Controller Deceleration Parking HDC Hill Descent Control OTA Over-the-Air PM2.5 Particulate Matter 2.5 MAX Maximum MIN Minimum VIN Vehicle Identification Number
