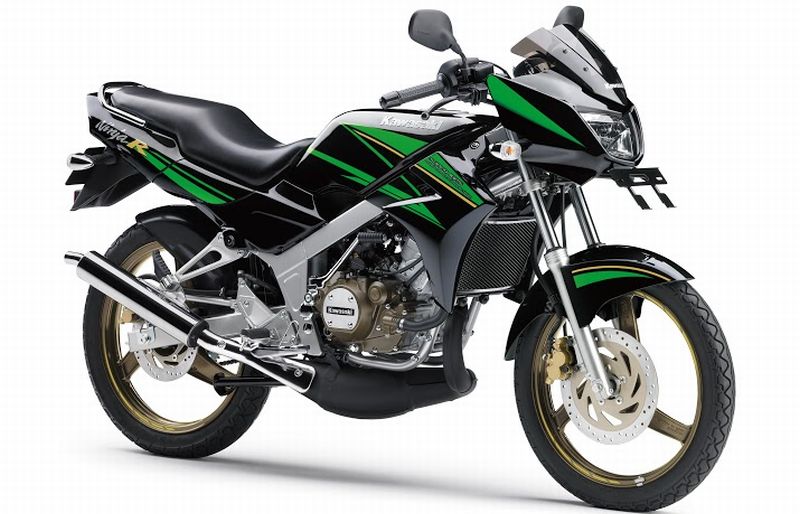

Parts Catalog Kawasaki Ninja R KR150LDF — Isi Lengkap 93 Halaman

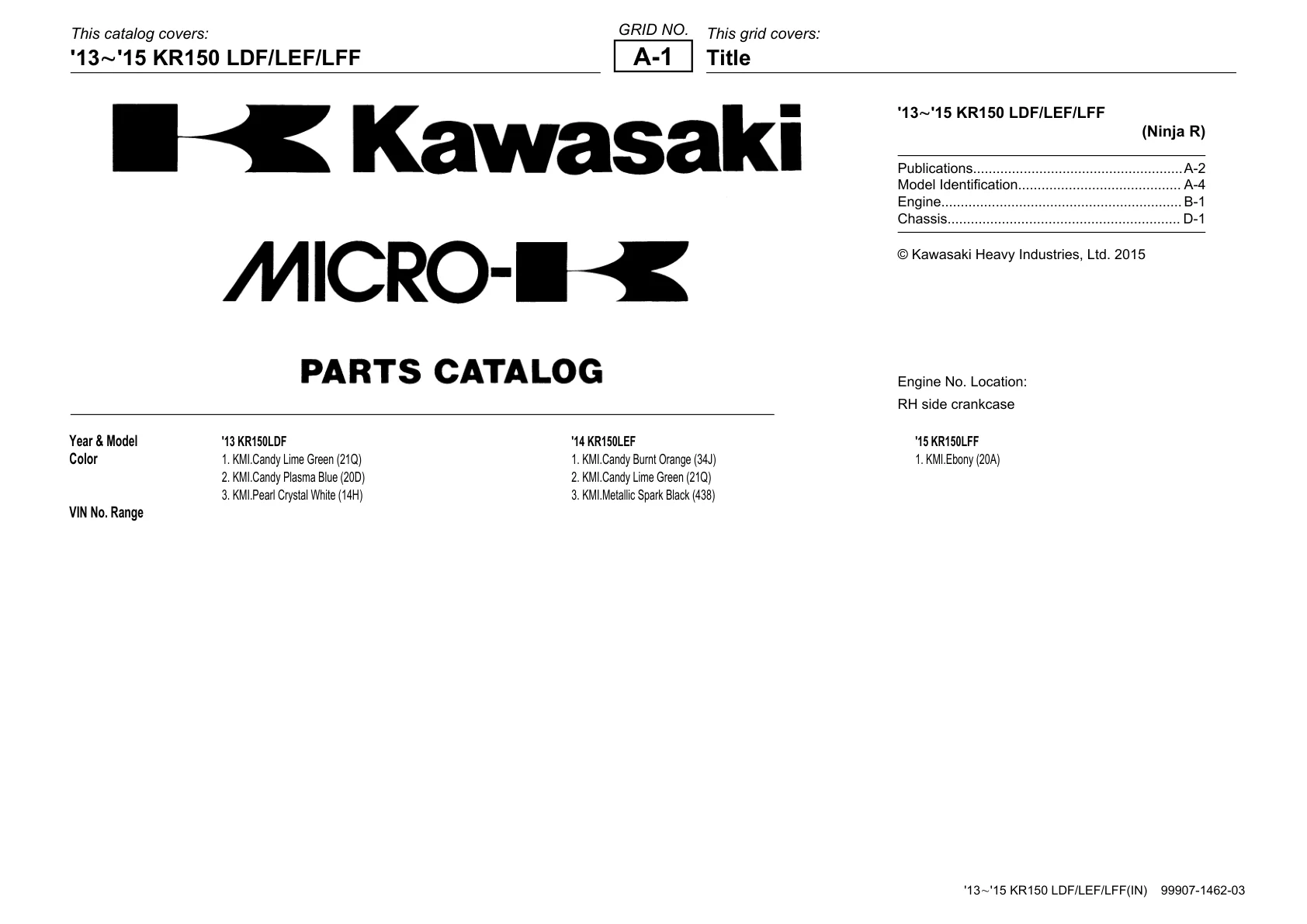

'13 '15 KR150 LDF/LEF/LFF Title
Halaman 1
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF
A-1
Year & Model
'13 KR150LDF
'14 KR150LEF
'15 KR150LFF
Color
1. KMI.Candy Lime Green (21Q)
1. KMI.Candy Burnt Orange (34J)
1. KMI.Ebony (20A)
2. KMI.Candy Plasma Blue (20D)
2. KMI.Candy Lime Green (21Q)
3. KMI.Pearl Crystal White (14H)
3. KMI.Metallic Spark Black (438)
VIN No. Range
Title
'13∼'15 KR150 LDF/LEF/LFF
(Ninja R)
Publications......................................................A-2
Model Identification.......................................... A-4
Engine.............................................................. B-1
Chassis............................................................ D-1
© Kawasaki Heavy Industries, Ltd. 2015
Engine No. Location:
RH side crankcase
'13∼'15 KR150 LDF/LEF/LFF(IN)
99907-1462-03
'13 '15 KR150 LDF/LEF/LFF Publications
Halaman 2
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF
A-2
Year & Model
Owner's Manual
A&P Manual
Service Manual
Microfiche
General
Supplement
Basic
Supplement
2013 KR150LDF
2014 KR150LEF
2015 KR150LFF
Publications
PARTS LIST INFORMATION
Halaman 3
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF
A-3
Parts List Infomation
PARTS LIST INFORMATION
This parts catalog lists parts and sub-assemblies provided as spare parts.
When it becomes necessary to replace parts always use KAWASAKI GENUINE PARTS. Strict inspection assures
quality and performance of KAWASAKI GENUINE PARTS.
HOW TO PLACE AN ORDER FOR PART
When ordering parts be sure to use the catalog for the correct model and year of the vehicle. Include the following
items exactly as listed in this catalog on your parts order.
Part Number
Part Name
Color Code
Specify the color using both color code (which is part of the part number) and name when ordering painted
parts.
Example:
51001-5074-H8
TANK-COMP-FUEL,EBONY
Parts not shown disassembled in the illustrations of this parts catalog are not sold separately; only the complete
units or next higher assemblies illustrated, are supplied, as spare parts.
EXPLANATION OF PARTS CATALOG FORMAT
1.
2.
A.
Year & Model Title
This title describes the year(s) and model(s) contained in this catalog.
Part Group Title
A representative name for the group of parts illustrated on this page.
Referernce Number
The reference number is listed on the illustration and parts list. It is the link between the illustration and the
parts list.
Part Number
The number assigned to a part for the purpose of parts ordering.
B.
C.
D.
E.
Description
Describes the main function of the part and includes data such as size, number of teeth, color,etc.
List of Abbreviations
(+)..................................................Plus
HEX ....................................Hexagonal
REF..................................... Reference
(-) ...............................................Minus
ID =............................. Inside Diameter
RH .....................................Right Hand
& ................................................... And
KPH.....................Killometers Per Hour
RPM ...............Revolutions Per Minute
2ND .........................................Second
L.....................................................Link
RR................................................ Rear
3RD..............................................Third
L =............................................. Length
STD ...................................... Standard
4TH............................................Fourth
L/ ..................................................Less
T..................................................Teeth
AR ................................... As Required
LH.........................................Left Hand
T = .......................................Thickness
ASSY ...................................Assembly
LWR........................................... Lower
U/S .................................... Under Size
CA ........................................Cut Away
MM........................................Millimeter
UPP............................................Upper
CNT...........................................Center
MPH ............................ Miles Per Hour
V.....................................................Volt
COMP ..................................Complete
NA...................................Not Available
W.................................................. Watt
D...............................................Degree
O/S ...................................... Over Size
W/..................................................With
FR ...............................................Front
OD =.........................Outside Diameter
WD .....................................With Decal
G ................................................ Gram
PR........................................Ply Rating
WOD .............................Without Decal
F.
Quantity
Specifies how many of a part are required at the indicated position on the illustration.
Year & Model
Indicates which parts are used for a specific vehicle year and model.
Additional Information
Additional Information is shown as follows:
1) (OPTION) Part is not installed as original equipment, but is available separately.
2) (RACING USE ONLY) Part is to be used for closed course racing only on this vehicle.
3) (OFF-ROAD USE ONLY) Part is for off-road use only this vehicle.
4) (LOCAL PROCUREMENT ITEM) Part is obtainable from a local source. No part number is listed.
5) Technical relationships between old part numbers and new part numbers are shown as follows:
INTERCHANGE - Old part or new part can be used.
SUBSTITUTE - New part replaces old part. Old part cannot be used in place of new part.
6) Mid-Year part number changes on a vehicle are noted by engine or frame number references.
Affected units are from beginning of model year production up to
and including this engine number.
Affected units are from this frame number to the end of model
year production.
Affected units are in this engine number range.
Specification Code
Identifies the specification of the vehicle for which the part applies. If no spec code is listed, that means the
part is used for all specifications.
G.
H.
(
- KZ400DE001181)
(KZ400D-008111 -
)
(KZ400DE008181 - KZ400DE018888)
I.
Spec Code
Specification
'13
'14
'15
LDF
LEF
LFF
IN
Indonesia
O
O
O
KR150LDF KR150LEF
Halaman 4
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF
A-4
KR150LDF
Left Side View
Right Side View
Model I.D. '13∼'14 KR150 LDF/LEF
KR150LEF
Left Side View
Right Side View
This grid covers:
Halaman 5
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF
A-5
KR150LFF
Left Side View
Right Side View
Model I.D. '15 KR150LFF
'13 KR150LDF
Halaman 6
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF
A-6
Color Combination Parts List
'13 KR150LDF
O : Applicable
× : Not applicable
Color: KMI.Candy Lime Green (21Q )
(1)
Part No.
Description
Spec.Code
IN
14091-0784-21Q
COVER,TAIL,C.L.GREEN
O
32160-0235-458
FRAME-COMP,P.SILVER
O
32190-1207-458
BRACKET-ENGINE,FR,P.SILVER
O
33001-0115-458
ARM-COMP-SWING,P.SILVER
O
34011-1203-10
STAND-CENTER,BLACK
O
34024-1409-458
STAND-SIDE,P.SILVER
O
35001-0063-21Q
,C.L.GREEN
O
35063-1113-458
STAY,RR,LH,P.SILVER
O
35063-1114-458
STAY,RR,RH,P.SILVER
O
35063-1229-458
STAY,FR,LH,P.SILVER
O
35063-1245-458
STAY,FR,RH,P.SILVER
O
36001-1563-21W
COVER-SIDE,RR,LH,EBONY/GREEN
O
36001-1564-21W
COVER-SIDE,RR,RH,EBONY/GREEN
O
39093-0005-458
PIPE-COMP-SUSP,FORK OUT,LH,SIL
O
39093-0006-458
PIPE-COMP-SUSP,FORK OUT,RH,SIL
O
41073-1522-21V
WHEEL-ASSY,FR,G.BLACK
O
41073-1523-21V
WHEEL-ASSY,RR,G.BLACK
O
43007-0004-458
ROD-TORQUE,P.SILVER
O
43041-0201-27Q
CALIPER-ASSY,GOLD
O
44071-0337-458
DAMPER-ASSY,FORK,LH,P.SILVER
O
44071-0338-458
DAMPER-ASSY,FORK,RH,P.SILVER
O
45014-0173-10
SHOCKABSORBER,BLACK
O
49125-0026-20A
SHROUD,LH,EBONY
O
49125-0027-20A
SHROUD,RH,EBONY
O
51001-0313-21Q
TANK-COMP-FUEL,C.L.GREEN
O
53066-0152-MA
SEAT-ASSY,DUAL,BLACK
O
55028-0161-21Q
COWLING,UPP,C.L.GREEN
O
'13 KR150LDF
Halaman 7
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF
A-7
Color Combination Parts List
'13 KR150LDF
O : Applicable
× : Not applicable
Color: KMI.Candy Plasma Blue (20D )
(1)
Part No.
Description
Spec.Code
IN
14091-0784-20D
COVER,TAIL,C.P.BLUE
O
32160-0235-458
FRAME-COMP,P.SILVER
O
32190-1207-458
BRACKET-ENGINE,FR,P.SILVER
O
33001-0115-458
ARM-COMP-SWING,P.SILVER
O
34011-1203-10
STAND-CENTER,BLACK
O
34024-1409-458
STAND-SIDE,P.SILVER
O
35001-0063-20D
,C.P.BLUE
O
35063-1113-458
STAY,RR,LH,P.SILVER
O
35063-1114-458
STAY,RR,RH,P.SILVER
O
35063-1229-458
STAY,FR,LH,P.SILVER
O
35063-1245-458
STAY,FR,RH,P.SILVER
O
36001-1563-34M
COVER-SIDE,RR,LH,EBONY/BLUE
O
36001-1564-34M
COVER-SIDE,RR,RH,EBONY/BLUE
O
39093-0005-458
PIPE-COMP-SUSP,FORK OUT,LH,SIL
O
39093-0006-458
PIPE-COMP-SUSP,FORK OUT,RH,SIL
O
41073-1522-21V
WHEEL-ASSY,FR,G.BLACK
O
41073-1523-21V
WHEEL-ASSY,RR,G.BLACK
O
43007-0004-458
ROD-TORQUE,P.SILVER
O
43041-0201-27Q
CALIPER-ASSY,GOLD
O
44071-0337-458
DAMPER-ASSY,FORK,LH,P.SILVER
O
44071-0338-458
DAMPER-ASSY,FORK,RH,P.SILVER
O
45014-0173-10
SHOCKABSORBER,BLACK
O
49125-0026-20A
SHROUD,LH,EBONY
O
49125-0027-20A
SHROUD,RH,EBONY
O
51001-0313-20D
TANK-COMP-FUEL,C.P.BLUE
O
53066-0152-MA
SEAT-ASSY,DUAL,BLACK
O
55028-0161-20D
COWLING,UPP,C.P.BLUE
O
'13 KR150LDF
Halaman 8
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF
A-8
Color Combination Parts List
'13 KR150LDF
O : Applicable
× : Not applicable
Color: KMI.Pearl Crystal White (14H )
(1)
Part No.
Description
Spec.Code
IN
14091-0784-14H
COVER,TAIL,P.C.WHITE
O
32160-0235-458
FRAME-COMP,P.SILVER
O
32190-1207-458
BRACKET-ENGINE,FR,P.SILVER
O
33001-0115-458
ARM-COMP-SWING,P.SILVER
O
34011-1203-10
STAND-CENTER,BLACK
O
34024-1409-458
STAND-SIDE,P.SILVER
O
35001-0063-14H
,P.C.WHITE
O
35063-1113-458
STAY,RR,LH,P.SILVER
O
35063-1114-458
STAY,RR,RH,P.SILVER
O
35063-1229-458
STAY,FR,LH,P.SILVER
O
35063-1245-458
STAY,FR,RH,P.SILVER
O
36001-1563-34E
COVER-SIDE,RR,LH,WHITE/EBONY
O
36001-1564-34E
COVER-SIDE,RR,RH,WHITE/EBONY
O
39093-0005-458
PIPE-COMP-SUSP,FORK OUT,LH,SIL
O
39093-0006-458
PIPE-COMP-SUSP,FORK OUT,RH,SIL
O
41073-1522-21V
WHEEL-ASSY,FR,G.BLACK
O
41073-1523-21V
WHEEL-ASSY,RR,G.BLACK
O
43007-0004-458
ROD-TORQUE,P.SILVER
O
43041-0201-27Q
CALIPER-ASSY,GOLD
O
44071-0337-458
DAMPER-ASSY,FORK,LH,P.SILVER
O
44071-0338-458
DAMPER-ASSY,FORK,RH,P.SILVER
O
45014-0173-10
SHOCKABSORBER,BLACK
O
49125-0026-20A
SHROUD,LH,EBONY
O
49125-0027-20A
SHROUD,RH,EBONY
O
51001-0313-14H
TANK-COMP-FUEL,P.C.WHITE
O
53066-0152-MA
SEAT-ASSY,DUAL,BLACK
O
55028-0161-14H
COWLING,UPP,P.C.WHITE
O
'14 KR150LEF
Halaman 9
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF
A-9
Color Combination Parts List
'14 KR150LEF
O : Applicable
× : Not applicable
Color: KMI.Candy Burnt Orange (34J )
(1)
Part No.
Description
Spec.Code
IN
14091-0784-20A
COVER,TAIL,EBONY
O
32160-0235-458
FRAME-COMP,P.SILVER
O
32190-1207-458
BRACKET-ENGINE,FR,P.SILVER
O
33001-0115-458
ARM-COMP-SWING,P.SILVER
O
34011-1203-10
STAND-CENTER,BLACK
O
34024-1409-458
STAND-SIDE,P.SILVER
O
35001-0063-34J
,C.B.ORANGE
O
35063-1113-458
STAY,RR,LH,P.SILVER
O
35063-1114-458
STAY,RR,RH,P.SILVER
O
35063-1229-458
STAY,FR,LH,P.SILVER
O
35063-1245-458
STAY,FR,RH,P.SILVER
O
36001-1563-20A
COVER-SIDE,RR,LH,EBONY
O
36001-1564-20A
COVER-SIDE,RR,RH,EBONY
O
39093-0005-458
PIPE-COMP-SUSP,FORK OUT,LH,SIL
O
39093-0006-458
PIPE-COMP-SUSP,FORK OUT,RH,SIL
O
41073-1522-21V
WHEEL-ASSY,FR,G.BLACK
O
41073-1523-21V
WHEEL-ASSY,RR,G.BLACK
O
43007-0004-458
ROD-TORQUE,P.SILVER
O
43041-0201-27Q
CALIPER-ASSY,GOLD
O
44071-0337-458
DAMPER-ASSY,FORK,LH,P.SILVER
O
44071-0338-458
DAMPER-ASSY,FORK,RH,P.SILVER
O
45014-0173-10
SHOCKABSORBER,BLACK
O
49125-0026-20A
SHROUD,LH,EBONY
O
49125-0027-20A
SHROUD,RH,EBONY
O
51001-0313-34J
TANK-COMP-FUEL,C.B.ORANGE
O
53066-0152-MA
SEAT-ASSY,DUAL,BLACK
O
55028-0161-34J
COWLING,UPP,C.B.ORANGE
O
'14 KR150LEF
Halaman 10
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF
A-10
Color Combination Parts List
'14 KR150LEF
O : Applicable
× : Not applicable
Color: KMI.Candy Lime Green (21Q )
(1)
Part No.
Description
Spec.Code
IN
14091-0784-20A
COVER,TAIL,EBONY
O
32160-0235-458
FRAME-COMP,P.SILVER
O
32190-1207-458
BRACKET-ENGINE,FR,P.SILVER
O
33001-0115-458
ARM-COMP-SWING,P.SILVER
O
34011-1203-10
STAND-CENTER,BLACK
O
34024-1409-458
STAND-SIDE,P.SILVER
O
35001-0063-21Q
,C.L.GREEN
O
35063-1113-458
STAY,RR,LH,P.SILVER
O
35063-1114-458
STAY,RR,RH,P.SILVER
O
35063-1229-458
STAY,FR,LH,P.SILVER
O
35063-1245-458
STAY,FR,RH,P.SILVER
O
36001-1563-20A
COVER-SIDE,RR,LH,EBONY
O
36001-1564-20A
COVER-SIDE,RR,RH,EBONY
O
39093-0005-458
PIPE-COMP-SUSP,FORK OUT,LH,SIL
O
39093-0006-458
PIPE-COMP-SUSP,FORK OUT,RH,SIL
O
41073-1522-21V
WHEEL-ASSY,FR,G.BLACK
O
41073-1523-21V
WHEEL-ASSY,RR,G.BLACK
O
43007-0004-458
ROD-TORQUE,P.SILVER
O
43041-0201-27Q
CALIPER-ASSY,GOLD
O
44071-0337-458
DAMPER-ASSY,FORK,LH,P.SILVER
O
44071-0338-458
DAMPER-ASSY,FORK,RH,P.SILVER
O
45014-0173-10
SHOCKABSORBER,BLACK
O
49125-0026-20A
SHROUD,LH,EBONY
O
49125-0027-20A
SHROUD,RH,EBONY
O
51001-0313-21Q
TANK-COMP-FUEL,C.L.GREEN
O
53066-0152-MA
SEAT-ASSY,DUAL,BLACK
O
55028-0161-21Q
COWLING,UPP,C.L.GREEN
O
'14 KR150LEF
Halaman 11
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF
A-11
Color Combination Parts List
'14 KR150LEF
O : Applicable
× : Not applicable
Color: KMI.Metallic Spark Black (438 )
(1)
Part No.
Description
Spec.Code
IN
14091-0784-438
COVER,TAIL,M.S.BLACK
O
32160-0235-458
FRAME-COMP,P.SILVER
O
32190-1207-458
BRACKET-ENGINE,FR,P.SILVER
O
33001-0115-458
ARM-COMP-SWING,P.SILVER
O
34011-1203-10
STAND-CENTER,BLACK
O
34024-1409-458
STAND-SIDE,P.SILVER
O
35001-0063-438
,M.S.BLACK
O
35063-1113-458
STAY,RR,LH,P.SILVER
O
35063-1114-458
STAY,RR,RH,P.SILVER
O
35063-1229-458
STAY,FR,LH,P.SILVER
O
35063-1245-458
STAY,FR,RH,P.SILVER
O
36001-1563-438
COVER-SIDE,RR,LH,M.S.BLACK
O
36001-1564-438
COVER-SIDE,RR,RH,M.S.BLACK
O
39093-0005-458
PIPE-COMP-SUSP,FORK OUT,LH,SIL
O
39093-0006-458
PIPE-COMP-SUSP,FORK OUT,RH,SIL
O
41073-1522-21V
WHEEL-ASSY,FR,G.BLACK
O
41073-1523-21V
WHEEL-ASSY,RR,G.BLACK
O
43007-0004-458
ROD-TORQUE,P.SILVER
O
43041-0201-27Q
CALIPER-ASSY,GOLD
O
44071-0337-458
DAMPER-ASSY,FORK,LH,P.SILVER
O
44071-0338-458
DAMPER-ASSY,FORK,RH,P.SILVER
O
45014-0173-10
SHOCKABSORBER,BLACK
O
49125-0026-438
SHROUD,LH,M.S.BLACK
O
49125-0027-438
SHROUD,RH,M.S.BLACK
O
51001-0313-438
TANK-COMP-FUEL,M.S.BLACK
O
53066-0152-MA
SEAT-ASSY,DUAL,BLACK
O
55028-0161-438
COWLING,UPP,M.S.BLACK
O
'15 KR150LFF
Halaman 12
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF
A-12
Color Combination Parts List
'15 KR150LFF
O : Applicable
× : Not applicable
Color: KMI.Ebony (20A )
(1)
Part No.
Description
Spec.Code
IN
14093-5067-20A
COVER,TAIL,EBONY
O
32160-0756-458
FRAME-COMP,P.SILVER
O
32190-1207-458
BRACKET-ENGINE,FR,P.SILVER
O
33001-0115-458
ARM-COMP-SWING,P.SILVER
O
34011-1203-10
STAND-CENTER,BLACK
O
34024-1409-458
STAND-SIDE,P.SILVER
O
35001-0063-20A
,EBONY
O
35063-1113-458
STAY,RR,LH,P.SILVER
O
35063-1114-458
STAY,RR,RH,P.SILVER
O
35063-1229-458
STAY,FR,LH,P.SILVER
O
35063-1245-458
STAY,FR,RH,P.SILVER
O
36001-1563-20A
COVER-SIDE,RR,LH,EBONY
O
36001-1564-20A
COVER-SIDE,RR,RH,EBONY
O
39093-0005-458
PIPE-COMP-SUSP,FORK OUT,LH,SIL
O
39093-0006-458
PIPE-COMP-SUSP,FORK OUT,RH,SIL
O
41073-1522-14A
WHEEL-ASSY,FR,M.M.GOLD
O
41073-1523-14A
WHEEL-ASSY,RR,M.M.GOLD
O
43007-0004-458
ROD-TORQUE,P.SILVER
O
43041-0201-27Q
CALIPER-ASSY,GOLD
O
44071-0337-458
DAMPER-ASSY,FORK,LH,P.SILVER
O
44071-0338-458
DAMPER-ASSY,FORK,RH,P.SILVER
O
45014-0528-10
SHOCKABSORBER,BLACK
O
49133-5023-20A
SHROUD,LH,EBONY
O
49133-5024-20A
SHROUD,RH,EBONY
O
51089-5207-20A
TANK-COMP-FUEL,EBONY
O
53066-0152-MA
SEAT-ASSY,DUAL,BLACK
O
55056-5200-20A
COWLING,UPP,EBONY
O
'13 '15 KR150 LDF/LEF/LFF Engine Pictorial Index
Halaman 13
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Engine
B-1
B-3
Cylinder Head
B-4
Cylinder(1/2)
B-6
Air Cleaner(LDF)
B-7
Air Cleaner(LEF/LFF)
Pictorial Index
B-5
Cylinder(2/2)
B-8
Muffler(s)
'13 '15 KR150 LDF/LEF/LFF Engine Pictorial Index
Halaman 14
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Engine
B-2
B-9
Crankshaft/Piston(s)
B-10
Kickstarter Mechanism
B-12
Transmission
B-13
Gear Change Drum/Shift Fork(s)
Pictorial Index
B-11
Clutch
B-14
Gear Change Mechanism
'13 '15 KR150 LDF/LEF/LFF Engine Pictorial Index
Halaman 15
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Engine
C-1
C-3
Crankcase
C-4
Engine Cover(s)
C-6
Carburetor(2/2)
C-7
Oil Pump
Pictorial Index
C-5
Carburetor(1/2)
C-8
Generator
'13 '15 KR150 LDF/LEF/LFF Engine Pictorial Index
Halaman 16
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Engine
C-2
C-9
Ignition System
C-10
Radiator
Pictorial Index
'13 '15 KR150 LDF/LEF/LFF Chassis Pictorial Index
Halaman 17
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
D-1
D-3
Frame
D-4
Engine Mount
D-6
Swingarm
D-7
Suspension/Shock Absorber
Pictorial Index
D-5
Frame Fittings
D-8
Footrests
'13 '15 KR150 LDF/LEF/LFF Chassis Pictorial Index
Halaman 18
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
D-2
D-9
Fenders
D-10
Stand(s)
D-12
Front Hub
D-13
Rear Hub
Pictorial Index
D-11
Tires
D-14
Brake Pedal
'13 '15 KR150 LDF/LEF/LFF Chassis Pictorial Index
Halaman 19
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
E-1
E-3
Front Master Cylinder
E-4
Front Brake
E-6
Rear Brake
E-7
Handlebar
Pictorial Index
E-5
Rear Master Cylinder
E-8
Front Fork
'13 '15 KR150 LDF/LEF/LFF Chassis Pictorial Index
Halaman 20
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
E-2
E-9
Fuel Tank
E-10
Oil Tank
E-12
Meter(s)
E-13
Cables
Pictorial Index
E-11
Seat
E-14
Side Covers
'13 '15 KR150 LDF/LEF/LFF Chassis Pictorial Index
Halaman 21
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
F-1
F-3
Headlight(s)
F-4
Taillight(s)
F-6
Chassis Electrical Equipment
F-7
Ignition Switch
Pictorial Index
F-5
Turn Signals
F-8
Owner's Tools
'13 '15 KR150 LDF/LEF/LFF Chassis Pictorial Index
Halaman 22
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
F-2
F-9
Labels
F-10
Decals(Green)(LDF)
F-12
Decals(White)(LDF)
F-13
Decals(Orange)(LEF)
Pictorial Index
F-11
Decals(Blue)(LDF)
F-14
Decals(Green)(LEF)
'13 '15 KR150 LDF/LEF/LFF Chassis Pictorial Index
Halaman 23
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
G-1
G-3
Decals(Black)(LEF)
G-4
Decals(Ebony)(LFF)
Pictorial Index
G-5
Cowling
'13 '15 KR150 LDF/LEF/LFF Chassis Pictorial Index
Halaman 24
This grid covers:
This catalog covers:
GRID NO.
Pictorial Index
'13∼'15 KR150 LDF/LEF/LFF Chassis
G-2
'13 '15 KR150 LDF/LEF/LFF Engine Cylinder Head
Halaman 25
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Engine
B-3
Cylinder Head
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
11001
11001-0132
HEAD-CYLINDER
1
1
1
92015
92015-1151
NUT,CAP,8MM
5
5
5
92055
92055-0721
RING-O,66.6MM
1
1
1
92055A 92055-1368
RING-O,109.2X2.3
1
1
1
92066
92066-1118
PLUG,SENSOR,WATER
1
1
1
551
551R0408
PIN-DOWEL
2
2
2
670
670B1508
O RING,8MM
5
5
5
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Engine Cylinder(1/2)
Halaman 26
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Engine
B-4
Cylinder(1/2)
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
11005
11005-1855
1
1
1
11010
11010-0040
1
1
1
11013
11013-0009
ELEMENT-AIR FILTER
1
1
1
11061
11061-0146
GASKET,CYLINDER BASE
1
1
1
11061A 11061-0190
GASKET
2
2
2
11065
11065-1075
CAP
1
1
1
12005
12005-1255
VALVE-EXHAUST
2
2
2
12021
12021-0010
,SECONDARY AIR
1
1
1
13070
13070-1206
GUIDE
1
1
1
13168
13168-1519
LEVER,GOVERNOR
1
1
1
13168A 13168-1520
LEVER,LH
1
1
1
13168B 13168-1521
LEVER,RH
1
1
1
13236
13236-1139
LEVER-COMP,GOVERNOR
1
1
1
13271
13271-0347
PLATE,VALVE ASSY
1
1
1
13271A 13271-0348
PLATE
1
1
1
14014
14014-1133
PLATE-POSITION
1
1
1
14020
14020-1103
RETAINER,LH
1
1
1
14020A 14020-1104
RETAINER,RH
1
1
1
14041
14041-0019
COVER-COMP
1
1
1
14041A 14041-1124
COVER-COMP
1
1
1
14090
14090-1435
COVER,RESONATOR,RH
1
1
1
39129
39129-1020
1
1
1
49002
49002-1133
GUIDE-VALVE
2
2
2
49006
49006-1289
BOOT,GOVERNOR SHAFT
1
1
1
49006A 49006-1328
BOOT
1
1
1
49016
49016-1173
COVER-SEAL
1
1
1
49111
49111-1055
WEIGHT
1
1
1
49114
49114-1076
SHAFT-GOVERNOR
1
1
1
49114A 49114-1095
SHAFT-GOVERNOR
1
1
1
59051
59051-1208
GEAR-SPUR,GOVERNOR,24T
1
1
1
92002
92002-1863
BOLT,6X20
1
1
1
92004
92004-0036
STUD,8X40
5
5
5
92009
92009-1155
SCREW,TAPPING,4X8
2
2
2
92009A 92009-1540
SCREW,5X12
2
2
2
92015
92015-1151
NUT,CAP,8MM
4
4
4
92015A 92015-1572
NUT,LEFT HANDED,6MM
3
3
3
92022
92022-1827
WASHER,6X12.8X1.2
1
1
1
92026
92026-1238
SPACER,15X28X1
2
2
2
92027
92027-1839
COLLAR,15.2X17X4
1
1
1
92043
92043-1256
PIN,3X12.8
1
1
1
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Engine Cylinder(2/2)
Halaman 27
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Engine
B-5
Cylinder(2/2)
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
92043A 92043-1293
PIN,2X9.8
1
1
1
92043B 92043-1319
PIN,3X19.8
1
1
1
92045
92045-1356
BEARING-BALL
1
1
1
92046
92046-1052
BEARING-NEEDLE,AXK1102
2
2
2
92049
92049-1207
SEAL-OIL,SDO8144
1
1
1
92049A 92049-1471
SEAL-OIL
2
2
2
92055
92055-1343
RING-O,5.5X1.5
1
1
1
92093
92093-0025
SEAL
1
1
1
92143
92143-1577
COLLAR
1
1
1
92150
92150-1888
BOLT,SOCKET,4X8
2
2
2
92154
92154-1219
BOLT,FLANGED,6X20
6
6
6
92170
92170-1167
CLAMP
1
1
1
92170A 92170-1989
CLAMP
1
1
1
92172
92172-0056
SCREW-PAN-CROS,5X25
2
2
2
92192
92192-0136
TUBE,12X16X25
1
1
1
92192A 92192-0137
TUBE,12X17X35
1
1
1
92200
92200-1168
WASHER,8X14X3.2
2
2
2
92210
92210-0714
NUT,FLANGED,6MM
1
1
1
120
120CA0612
BOLT-SOCKET,6X12
2
2
2
130
130BA0630
BOLT-FLANGED,6X30
2
2
2
172
172BA0822
BOLT-STUD,8X22
2
2
2
220
220AA0306
SCREW-PAN-CROS,3X6
1
1
1
551
551R0408
PIN-DOWEL
2
2
2
600
600A1200
BALL-STEEL,3/8
4
4
4
670
670E2016
O RING,16MM
4
4
4
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Engine Air Cleaner(LDF)
Halaman 28
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Engine
B-6
Air Cleaner(LDF)
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
11010
11010-1636
1
11013
11013-1212
ELEMENT-AIR FILTER
1
13183
13183-1355
PLATE
1
14073
14073-1374
DUCT,INTAKE
1
14073A 14073-1488
DUCT
1
92001
92001-1950
BOLT,6X16
3
92093
92093-1274
SEAL,AIR FILTER
1
92160
92160-1559
DAMPER
1
92170
92170-1130
CLAMP
1
92170A 92170-1167
CLAMP
1
92171
92171-0585
CLAMP,55MM
1
224
224AA0620
,6X20
6
703
703A07100
TUBE-RUBBER
1
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Engine Air Cleaner(LEF/LFF)
Halaman 29
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Engine
B-7
Air Cleaner(LEF/LFF)
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
11010
11010-0796
1
1
11012
11012-1686
CAP,AIR FILTER
1
1
11013
11013-1115
ELEMENT-AIR FILTER
1
1
11013A 11013-1212
ELEMENT-AIR FILTER
1
1
13183
13183-1355
PLATE
1
1
14073
14073-1374
DUCT,INTAKE
1
1
14073A 14073-1488
DUCT
1
1
92001
92001-1950
BOLT,6X16
3
3
92093
92093-1274
SEAL,AIR FILTER
1
1
92160
92160-1559
DAMPER
1
1
92170
92170-1130
CLAMP
1
1
92173
92173-0198
CLAMP,11.6MM
1
1
92173A 92173-1392
CLAMP,55MM
1
1
224
224AA0620
,6X20
6
6
703
703A07100
TUBE-RUBBER
1
1
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Engine Muffler(s)
Halaman 30
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Engine
B-8
Muffler(s)
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
11061
11061-0290
GASKET,EXHAUST PIPE
1
1
1
11061A 11061-0372
GASKET,6.2X11.5X1.5
4
4
4
18090
18090-1976
1
1
1
18120
18120-0015
1
18120A 18120-0019
1
1
18140
18140-1051
GASKET-MUFFLER
1
1
1
49106
49106-1221
COVER-MUFFLER
1
1
1
92002
92002-1108
BOLT,6X14
1
1
1
92002A 92002-1200
BOLT,FLANGED,8X16
1
1
1
92015
92015-1233
NUT,FLANGED,6MM,BLACK
1
1
1
92075
92075-1788
DAMPER,STAND
1
1
1
92160
92160-1843
DAMPER
1
1
1
92210
92210-0004
NUT,FLANGED,8MM
2
2
2
132
132BB0614
,6X14
3
3
3
225
225AA0612
,6X12
2
2
2
461
461DB0600
WASHER-SPRING,6MM
3
3
3
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Engine Crankshaft/Piston(s)
Halaman 31
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Engine
B-9
Crankshaft/Piston(s)
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
13001
13001-1399
PISTON-ENGINE
1
1
1
13002
13002-1091
PIN-PISTON
1
1
1
13008
13008-0030
1
1
1
13031
13031-0734
1
1
1
13033
13033-1062
BEARING-SMALL END
1
1
1
13034
13034-1070-B4
BEARING-BIG END,B4
1
1
1
13035
13035-0559
PIN-CRANK
1
1
1
13037
13037-1368
CRANKSHAFT,RH
1
1
1
13037A 13037-1389
CRANKSHAFT,LH
1
1
1
13041
13041-1095
BALANCER
1
1
1
13044
13044-5079
SET-CONNECTING ROD
1
1
1
13045
13045-1052
RECEIVER-OIL
1
1
1
13097
13097-1264
GEAR-PRIMARY SPUR
1
1
1
13216
13216-1141
GEAR-COMP,BALANCER
1
1
1
14014
14014-1095
PLATE-POSITION
1
1
1
14022
14022-1075
CAP-BEARING
1
1
1
59051
59051-1209
GEAR-SPUR,BALANCER,37T
1
1
1
92015
92015-1426
NUT,12MM
3
3
3
92022
92022-1831
WASHER
2
2
2
92022A 92022-304
WASHER,6.2X11X1
1
1
1
92026
92026-1136
SPACER,22.2X37X1.0
2
2
2
92036
92036-005
RING-SNAP
2
2
2
92038
92038-0001
KEY,WOODRUFF
2
2
2
92045
92045-1230
BEARING-BALL,16007
1
1
1
92055
92055-086
RING-O,18.8X1.9
1
1
1
92055A 92055-3018
RING-O,59.6X2.4
1
1
1
92143
92143-1289
COLLAR,22X30X9.5
1
1
1
120
120Q0608
BOLT-SOCKET,6X8
1
1
1
132
132BA0614
,6X14
2
2
2
220
220AA0508
SCREW-PAN-CROS,5X8
3
3
3
510
510A3200
KEY-WOODRUFF
1
1
1
601
601A6005
BEARING-BALL
1
1
1
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Engine Kickstarter Mechanism
Halaman 32
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Engine
B-10
Kickstarter Mechanism
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
13061
13061-1869
BOSS,KICK,PEDAL
1
1
1
13063
13063-002
DAMPER,PEDAL
1
13064
13064-0072
,PEDAL
1
1
13064A 13064-1217
,PEDAL
1
13066
13066-1098
SHAFT-KICK
1
1
1
13070
13070-1035
GUIDE,KICK SHAFT
1
1
1
13078
13078-1062
RATCHET
1
1
1
13206
13206-1002
GUIDE-KICK
1
1
1
59051
59051-0737
GEAR-SPUR,KICKSTARTER,27T
1
1
1
92002
92002-1438
BOLT,8X25
1
92009
92009-1266
SCREW-PAN-CROS,6X16
2
2
2
92022
92022-1496
WASHER,13.3X20X1
1
1
1
92022A 92022-1534
WASHER,14X24X1.8
1
1
1
92022B 92022-315
WASHER,16.8X22X0.5
3
3
3
92033
92033-1166
RING-SNAP,10MM
1
1
1
92055
92055-0089
RING-O,11.5X1.5
2
2
2
92081
92081-122
SPRING,RATCHET
1
1
1
92145
92145-0348
SPRING
1
1
1
92145A 92145-0482
SPRING,KICK STARTER
1
1
1
92161
92161-1500
DAMPER
1
1
115
115BB0825
,8X25
1
1
480
480J1600
CIRCLIP-TYPE-C,16MM
3
3
3
600
600A0800
BALL-STEEL,1/4
1
1
1
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Engine Clutch
Halaman 33
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Engine
B-11
Clutch
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
13087
13087-1118
HUB-CLUTCH
1
1
1
13088
13088-1085
PLATE-FRICTION
1
1
1
13088A 13088-1098
PLATE-FRICTION
5
5
5
13089
13089-1076
PLATE-CLUTCH
5
5
5
13095
13095-0067
1
1
1
13102
13102-1119
1
1
1
13187
13187-1072
PLATE-CLUTCH OPERATING
1
1
1
14044
14044-1081
HOLDER-CABLE
1
1
1
16007
16007-1162
SEAT-SPRING
1
1
1
46102
46102-1336
ROD,PUSH
1
1
1
92015
92015-072
NUT,LOCK,16MM
1
1
1
92022
92022-1356
WASHER,16.3X29X1.75
1
1
1
92025
92025-1573
SHIM,20.3X28X0.15
AR AR AR
92025A 92025-1574
SHIM,20.3X28X0.20
AR AR AR
92045
92045-1235
BEARING-BALL,6001C3ML01
1
1
1
92046
92046-0034
BEARING-NEEDLE,HK1210FM
1
1
1
92046A 92046-1218
BEARING-NEEDLE,K20X24X11
1
1
1
92046B 92046-1219
BEARING-NEEDLE,K20X24X13
1
1
1
92081
92081-1492
SPRING,CLUTCH
4
4
4
92144
92144-1522
SPRING
1
1
1
92144A 92144-1727
SPRING,CLUTCH RELEASE
1
1
1
92150
92150-1715
BOLT,6X20,WASHER
4
4
4
92200
92200-1174
WASHER,12.5X22X1.2
1
1
1
92200A 92200-1440
WASHER
1
1
1
132
132BA0612
,6X12
2
2
2
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Engine Transmission
Halaman 34
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Engine
B-12
Transmission
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
13127
13127-0649
INPUT,10T
1
1
1
13128
13128-0680
OUTPUT
1
1
1
13144
13144-1206
,14T
1
1
1
13262
13262-0953
GEAR,OUTPUT 2ND,29T
1
1
1
13262A 13262-0954
GEAR,OUTPUT 3RD,26T
1
1
1
13262B 13262-0975
GEAR,INPUT 3RD&4TH,20T&22T
1
1
1
13262C 13262-0976
GEAR,OUTPUT LOW,27T
1
1
1
13262D 13262-0977
GEAR,INPUT 5TH,21T
1
1
1
13262E 13262-0978
GEAR,INPUT TOP,22T
1
1
1
13262F 13262-0979
GEAR,OUTPUT 4TH,24T
1
1
1
13262G 13262-0980
GEAR,INPUT 2ND,17T
1
1
1
13262H 13262-0981
GEAR,OUTPUT 5TH,20T
1
1
1
13262I
13262-0982
GEAR,OUTPUT TOP,19T
1
1
1
13271
13271-1052
PLATE,SPROCKET
1
1
1
59051
59051-0736
GEAR-SPUR,KICKSTARTER,35T
1
1
1
92022
92022-1033
WASHER,TOOTHED,20.3X24X0.5
2
2
2
92022A 92022-252
WASHER,20.5X25.5X0.5
1
1
1
92033
92033-1259
RING-SNAP
6
6
6
92033A 92033-1260
RING-SNAP
1
1
1
92055
92055-022
RING-O,17.5X1.5
1
1
1
92143
92143-1291
COLLAR,SPROCKET
1
1
1
120
120Q0608
BOLT-SOCKET,6X8
2
2
2
480
480J1500
CIRCLIP-TYPE-C,15MM
2
2
2
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Engine Gear Change Drum/Shift Fork(s)
Halaman 35
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Engine
B-13
Gear Change Drum/Shift Fork(s)
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
13140
13140-1247
FORK-SHIFT,2ND-4TH
1
1
1
13140A 13140-1264
FORK-SHIFT,LOW-3RD
1
1
1
13140B 13140-1265
FORK-SHIFT,5TH-TOP
1
1
1
13141
13141-0061
DRUM-CHANGE
1
1
1
13145
13145-1084
CAM-CHANGE DRUM
1
1
1
13151
13151-1080
SWITCH-COMP,NEUTRAL
2
2
2
13183
13183-1066
PLATE,CHANGE
1
1
1
13236
13236-0739
LEVER-COMP,DRUM POSITION
1
1
1
14014
14014-1113
PLATE-POSITION,DRUM
1
1
1
49047
49047-1068
ROD-SHIFT
1
1
1
92009
92009-1266
SCREW-PAN-CROS,6X16
1
1
1
92009A 92009-1360
SCREW,6X16
1
1
1
92022
92022-1792
WASHER
1
1
1
92022A 92022-1827
WASHER,6X12.8X1.2
1
1
1
92026
92026-1217
SPACER
1
1
1
92065
92065-058
GASKET,10.5X16X1
2
2
2
92145
92145-0349
SPRING
1
1
1
172
172BA0612
BOLT-STUD,6X12
1
1
1
311
311BA0600
NUT-HEX,6MM
1
1
1
510
510A3200
KEY-WOODRUFF
1
1
1
551
551A0306
PIN-DOWEL,3X6
2
2
2
601
601B6003U
BEARING-BALL,#6003UC3
1
1
1
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Engine Gear Change Mechanism
Halaman 36
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Engine
B-14
Gear Change Mechanism
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
13157
13157-004
DAMPER,CHANGE PEDAL
1
1
1
13161
13161-1132
SHAFT
1
1
1
13165
13165-1034
PAWL,CHANGE LEVER
1
1
1
13242
13242-0118
,LINK
1
1
13242A 13242-1376
,LINK
1
13242B 13242-1396
,PEDAL
1
1
1
39111
39111-0319
ROD-TIE
1
1
39111A 39111-1086
ROD-TIE
1
92002
92002-1237
BOLT,6X20
1
1
1
92004
92004-0728
STUD
1
1
1
92015
92015-1178
NUT,LEFT HANDED,6MM
1
92022
92022-1593
WASHER,12.5X22X1.2
2
2
2
92033
92033-1178
RING-SNAP,TYPE-E,10MM
1
1
1
92081
92081-1829
SPRING,CHANGE LEVER
1
1
1
92144
92144-1345
SPRING,CHANGE PEDAL RETURN
1
1
1
92153
92153-0720
BOLT,8X15.5
1
1
1
92210
92210-0846
NUT,6MM
1
1
92210A 92210-0847
NUT,LEFT HANDED,6MM
1
1
311
311BB0600
NUT-HEX,6MM
1
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Engine Crankcase
Halaman 37
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Engine
C-3
Crankcase
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
11009
11009-1941
GASKET,REED VALVE
1
1
1
12021
12021-1094
1
1
1
12022
12022-1068
VALVE-REED
2
2
2
13183
13183-1392
PLATE
1
1
1
14002
14002-1647
CRANKCASE,LH
1
1
1
14002A 14002-1796
CRANKCASE,RH
1
1
1
14069
14069-003
BREATHER
1
1
1
92009
92009-1014
SCREW,REED VALVE
6
6
6
92009A 92009-1021
SCREW,TAPPING,4X10
2
2
2
92043
92043-0099
PIN,6.2X8X14
4
4
4
92043A 92043-0100
PIN,8.2X10X14
2
2
2
92043B 92043-0101
PIN,11.5X14X14
2
2
2
92045
92045-0148
BEARING-BALL,
1
1
1
92045A 92045-1169
BEARING-BALL,6202X19
1
1
1
92045B 92045-1243
BEARING-BALL,63/22X50JR2
1
1
1
92049
92049-1186
SEAL-OIL,TB13205
1
1
1
92049A 92049-1431
SEAL-OIL
1
1
1
92049B 92049-1478
SEAL-OIL
1
1
1
92049C 92049-1479
SEAL-OIL
1
1
1
92050
92050-013
SEAL-OIL,SC25376
1
1
1
92065
92065-058
GASKET,10.5X16X1
1
1
1
92150
92150-1893
BOLT,10X80
1
1
1
92190
92190-1223
TUBE,6X9X410
1
1
1
132
132BA0640
,6X40
2
2
2
132A 132BA0650
,6X50
2
2
2
132B 132BA0660
,6X60
5
5
5
132C 132BA0670
,6X70
1
1
1
132D 132BA0675
,6X75
4
4
4
172
172BA0830
BOLT-STUD,8X30
4
4
4
290
290Q0506
,5X6
1
1
1
601
601A6204Z
BEARING-BALL
1
1
1
601A 601A6304
BEARING-BALL,#6304
1
1
1
601B 601B6202
BEARING-BALL,#6202C3
1
1
1
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Engine Engine Cover(s)
Halaman 38
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Engine
C-4
Engine Cover(s)
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
11061
11061-0149
GASKET,GENERATOR COVER
1
1
1
11061A 11061-0150
GASKET,CLUTCH COVER
1
1
1
14026
14026-0033
COVER-CHAIN
1
1
1
14031
14031-1377
1
1
1
14032
14032-0080
COVER-CLUTCH
1
1
1
14090
14090-1166
COVER,CLUTCH COVER
1
1
1
14090A 14090-1167
COVER,GENERATOR COVER
1
1
1
14090B 14090-1328
COVER,OIL PUMP
1
1
1
16115
16115-1053
CAP-OIL FILLER
1
1
1
52005
52005-1009
GAUGE,OIL LEVEL
1
1
1
92009
92009-1763
SCREW,6X12
8
8
8
92049
92049-0744
SEAL-OIL
1
1
1
92049A 92049-1271
SEAL-OIL,TB12205.5
1
1
1
92055
92055-012
RING-O
2
2
2
92055A 92055-1146
RING-O,20X2
1
1
1
92066
92066-1535
PLUG
1
1
1
92066A 92066-1536
PLUG,GOVERNOR
1
1
1
92075
92075-1808
DAMPER,6X10X15
1
1
1
92154
92154-1134
BOLT
4
4
4
92154A 92154-1249
BOLT,FLANGED,6X30
9
9
9
92160
92160-1329
DAMPER,CLUTCH COVER
1
1
1
92160A 92160-1336
DAMPER,GENERATOR COVER
1
1
1
92170
92170-1116
CLAMP
1
1
1
92200
92200-1127
WASHER,8.2X12.5X1.0
8
8
8
132
132BA0650
,6X50
3
3
3
132A 132BA0665
,6X65
1
1
1
220
220AA0508
SCREW-PAN-CROS,5X8
2
2
2
220A 220AA0612
SCREW-PAN-CROS,6X12
1
1
1
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Engine Carburetor(1/2)
Halaman 39
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Engine
C-5
Carburetor(1/2)
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
13091
13091-1880
HOLDER,NEEDLE JET
1
1
1
13183
13183-1162
PLATE
1
1
1
13270
13270-1806
PLATE,NEEDLE CLIP
1
1
1
13271
13271-1054
PLATE
1
1
1
15004
15004-0022
,PWL26
1
1
1
16005
16005-1077
TOP-CHAMBER
1
1
1
16014
16014-1077
SCREW-PILOT AIR
1
1
1
16016
16016-1028
PLUNGER,STARTER
1
1
1
16017
16017-1395
JET-NEEDLE
1
1
1
16021
16021-1218
SCREW-THROTTLE STOP
1
1
1
16025
16025-1211
VALVE-THROTTLE
1
1
1
16030
16030-1057
VALVE-FLOAT
1
1
1
16031
16031-1095
FLOAT
1
1
1
16065
16065-1162
1
1
1
16065A 16065-1252
1
1
1
16181
16181-0007
TANK-RESONATOR
1
1
1
16187
16187-1209
NEEDLE-JET,N5LD
1
1
1
52014
52014-1078
ELBOW,
1
1
1
92009
92009-1095
SCREW,DRAIN,M6X1.0
1
1
1
92036
92036-018
RING-SNAP
1
1
1
92037
92037-1142
CLAMP,TUBE
1
1
1
92037A 92037-1396
CLAMP,TUBE
1
1
1
92037B 92037-147
CLAMP,TUBE
2
2
2
92037C 92037-1991
CLAMP,FLOAT
1
1
1
92055
92055-1053
RING-O
3
3
3
92055A 92055-1504
RING-O
1
1
1
92063
92063-1013
JET-MAIN,#140
1
1
1
(OPTION)
92063A 92063-1014
JET-MAIN,#135
1
1
1
(OPTION)
92063B 92063-1015
JET-MAIN,#138
1
1
1
92063C 92063-1016
JET-MAIN,#142
1
1
1
(OPTION)
92063D 92063-1076
JET-MAIN,#132
1
1
1
(OPTION)
92064
92064-1193
JET-PILOT,#45
1
1
1
92144
92144-1738
SPRING,PILOT ADJUST SCREW
1
1
1
92145
92145-0483
SPRING,THROTTLE VALVE
1
1
1
92145A 92145-1142
SPRING,COMPRESSION
1
1
1
92153
92153-1378
BOLT,6X16
1
1
1
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Engine Carburetor(2/2)
Halaman 40
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Engine
C-6
Carburetor(2/2)
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
92154
92154-1219
BOLT,FLANGED,6X20
6
6
6
92170
92170-1640
CLAMP
3
3
3
92171
92171-0584
CLAMP
1
1
1
92191
92191-1014
TUBE,5.3X10.5X180
1
1
1
92191A 92191-1142
TUBE,3.5X6.5X298
1
1
1
92191B 92191-1259
TUBE,AIR VENT
1
1
1
92192
92192-0401
TUBE,14X20X45
1
1
1
223
223AB0416
,4X16
2
2
2
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Engine Oil Pump
Halaman 41
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Engine
C-7
Oil Pump
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
11060
11060-1155
GASKET,6X12X1.13
6
6
6
11061
11061-0215
GASKET,8X16.5X0.5
1
1
1
13107
13107-0800
SHAFT,OIL PUMP
1
1
1
16002
16002-0001
ADJUSTER-CABLE
1
1
1
16082
16082-0710
PUMP-ASSY-OIL
1
1
1
41060
41060-1115
GEAR-METER SCREW,TACHOMETER
1
1
1
59051
59051-1212
GEAR-SPUR,OIL PUMP,22T
1
1
1
92015
92015-1840
NUT,7MM
1
1
1
92022
92022-1827
WASHER,6X12.8X1.2
1
1
1
92036
92036-018
RING-SNAP
1
1
1
92037
92037-1601
CLAMP
2
2
2
92043
92043-1319
PIN,3X19.8
1
1
1
92045
92045-1232
BEARING-BALL,699C3
1
1
1
92045A 92045-1305
BEARING-BALL,608MC3
1
1
1
92049
92049-1315
SEAL-OIL
1
1
1
92055
92055-055
RING-O,19.5X1.5
1
1
1
92055A 92055-1149
RING-O,10MM
1
1
1
92071
92071-1176
GROMMET
1
1
1
92087
92087-1055
BUSHING-METER GEAR
1
1
1
92150
92150-1982
BOLT,BANJO,6X16
3
3
3
92170
92170-2043
CLAMP
1
1
1
92190
92190-1072
TUBE,4.5X9X215
1
1
1
92190A 92190-1074
TUBE
1
1
1
92190B 92190-1288
TUBE,OIL
1
1
1
132
132BA0614
,6X14
1
1
1
220
220AA0516
SCREW-PAN-CROS,5X16
2
2
2
482
482J6000
CIRCLIP-TYPE-E,6MM
1
1
1
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Engine Generator
Halaman 42
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Engine
C-8
Generator
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
21003
21003-1328
STATOR
1
1
1
21007
21007-0571
ROTOR
1
1
1
21066
21066-0715
1
1
1
26001
26001-1965
HARNESS,NEUTRAL & TOP
1
1
1
120
120CA0530
BOLT-SOCKET,5X30
3
3
3
132
132BA0614
,6X14
1
1
1
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Engine Ignition System
Halaman 43
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Engine
C-9
Ignition System
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
21119
21119-1592
IGNITER
1
1
1
21121
21121-1206
COIL-IGNITION
1
1
1
21130
21130-1062
CAP-SPARK PLUG
1
1
1
59026
59026-1111
COIL-PULSING
1
1
1
92015
92015-1700
NUT
2
2
2
92070
92070-0027
PLUG-SPARK,B9ES(NGK)
1
1
1
92070A 92070-3011
PLUG-SPARK,B8ES(NGK),SOLID
1
1
1
(OPTION)
92072
92072-0054
BAND
1
1
1
92143
92143-1046
COLLAR
2
2
2
180
180BA0645
BOLT-UPSET-WS,6X45
2
2
2
223
223AA0512
,5X12
2
2
2
235
235AA0620
,6X20
2
2
2
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Engine Radiator
Halaman 44
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Engine
C-10
Radiator
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
11054
11054-1122
BRACKET
1
1
1
11054A 11054-1492
BRACKET,SHROUD LWR,LH
1
1
1
11054B 11054-1493
BRACKET,SHROUD LWR,RH
1
1
1
11061
11061-0151
GASKET,PUMP COVER
1
1
1
11065
11065-0203
CAP
1
1
1
13107
13107-1234
SHAFT,PUMP
1
1
1
14037
14037-1181
SCREEN,(14037-A005)
1
1
1
16142
16142-1164
COVER-PUMP
1
1
1
39062
39062-0203
HOSE-COOLING
1
1
1
39062A 39062-1432
HOSE-COOLING,RADIATOR-PUMP
1
1
1
39062B 39062-1437
HOSE-COOLING,HEAD-RADIATOR
1
1
1
39194
39194-1047
RADIATOR-ASSY(SUB)
1
1
1
43078
43078-1111
RESERVOIR
1
1
1
49063
49063-1055
,WATER
1
1
1
49085
49085-1059
,P=1.6
1
1
1
59051
59051-1185
GEAR-SPUR,WATER PUMP,31T
1
1
1
59256
59256-1063
IMPELLER
1
1
1
92001
92001-1763
BOLT,W/SP,6X16
2
2
2
92022
92022-1488
WASHER,8.2X14X1.0
1
1
1
92037
92037-1505
CLAMP,TUBE
2
2
2
92037A 92037-1589
CLAMP,COOLING HOSE
4
4
4
92043
92043-1129
PIN,3.5X23.8
1
1
1
92049
92049-1259
SEAL-OIL,12X28.55X5
1
1
1
92075
92075-209
DAMPER
3
3
3
92152
92152-0345
COLLAR
3
3
3
92154
92154-1156
BOLT,FLANGED,6X25
3
3
3
92154A 92154-1219
BOLT,FLANGED,6X20
3
3
3
92161
92161-0413
DAMPER
2
2
2
92172
92172-0845
SCREW,5X8
4
4
4
92210
92210-0714
NUT,FLANGED,6MM
1
1
1
132
132BA0810
,8X10
1
1
1
132A 132BB0610
,6X10
1
1
1
482
482J0100
CIRCLIP-TYPE-E,10MM
1
1
1
551
551R0408
PIN-DOWEL
2
2
2
601
601B6201
BEARING-BALL,#6201C3
1
1
1
670
670B1506
O RING,6MM
1
1
1
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Frame
Halaman 45
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
D-3
Frame
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
11012
11012-1861
CAP,STEERING STEM
1
1
1
32160
32160-0235-458
FRAME-COMP,P.SILVER
1
1
32160A 32160-0756-458
FRAME-COMP,P.SILVER
1
92001
92001-1488
BOLT,FLANGED,16X22
1
1
1
92047
92047-011
RACE,STEERING STEM BEARING
1
1
1
92048
92048-006
RACE,STEERING STEM BEARING
1
1
1
92048A 92048-008
RACE,STEERING STEM BEARING
1
1
1
92090
92090-007
NUT,30MM
1
1
1
600
600A0800
BALL-STEEL,1/4
39
39
39
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Engine Mount
Halaman 46
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
D-4
Engine Mount
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
32190
32190-0291
BRACKET-ENGINE,HEAD,LH
1
1
1
32190A 32190-0292
BRACKET-ENGINE,HEAD,RH
1
1
1
32190B 32190-1207-458
BRACKET-ENGINE,FR,P.SILVER
2
2
2
32190C 32190-1280
BRACKET-ENGINE,RR,LWR,RH
1
1
1
92001
92001-1719
BOLT,FLANGED,10X110
1
1
1
92002
92002-1182
BOLT,8X50
4
4
4
92002A 92002-1764
BOLT,FLANGED,10X80
1
1
1
92015
92015-1428
NUT,FLANGED,10MM
3
3
3
92150
92150-1230
BOLT,FLANGED,10X95
1
1
1
92153
92153-1782
BOLT,FLANGED,8X80
2
2
2
92210
92210-0773
NUT,8MM
6
6
6
130
130BA0814
BOLT-FLANGED,8X14
2
2
2
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Frame Fittings
Halaman 47
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
D-5
Frame Fittings
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
11012
11012-1720
CAP,SWING ARM BRACKET
2
2
2
11049
11049-1997
BRACKET,ELECTRIC
1
1
1
11050
11050-1051
BRACKET,REGURATER
1
1
1
11054
11054-1087
BRACKET,IGNITER
1
1
1
11065
11065-1172
CAP
2
2
2
14024
14024-1740
COVER,BATTERY
1
1
1
27012
27012-1401
HOOK,BATTERY CASE
1
1
1
32097
32097-1134
CASE-BATTERY
1
1
1
32098
32098-1089
CASE-TOOL
1
1
1
35011
35011-1806
STAY
1
1
1
92002
92002-1884
BOLT,UPSET-WP,6X12
1
1
1
92066
92066-1368
PLUG
2
2
2
92066A 92066-1455
PLUG
2
2
2
92072
92072-1257
BAND
1
1
1
92072A 92072-1342
BAND
1
1
1
92152
92152-0343
COLLAR
2
2
2
92160
92160-1422
DAMPER
2
2
2
130
130AA0614
BOLT-FLANGED,6X14
1
1
1
130A 130BA0610
BOLT-FLANGED,6X10
2
2
2
130B 130BA0812
BOLT-FLANGED,8X12
4
4
4
130C 130BA0825
BOLT-FLANGED,8X25
2
2
2
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Swingarm
Halaman 48
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
D-6
Swingarm
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
11012
11012-1860
CAP,CHAIN ADJUSTER
2
2
2
33001
33001-0115-458
ARM-COMP-SWING,P.SILVER
1
1
1
33032
33032-1149
SHAFT-SWING ARM
1
1
1
33040
33040-0019
ADJUSTER-CHAIN
2
2
2
33040A 33040-1162
ADJUSTER-CHAIN,OUTSIDE
2
2
2
42036
42036-0011
SLEEVE,SWING ARM,L=186
1
1
1
55020
55020-1330
GUARD,CHAIN
1
1
1
92015
92015-1364
NUT,8MM
2
2
2
92015A 92015-1407
NUT,14MM
1
1
1
92046
92046-1110
BEARING-NEEDLE,BM202726
2
2
2
92049
92049-1109
SEAL-OIL,ARM
2
2
2
92143
92143-1019
COLLAR,L=7.4
2
2
2
92210
92210-0773
NUT,8MM
2
2
2
130
130BB0612
BOLT-FLANGED,6X12
2
2
2
410
410AA1400
,14MM
1
1
1
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Suspension/Shock Absorber
Halaman 49
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
D-7
Suspension/Shock Absorber
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
13326
13326-1004
BUSHING-COMP,SHOCKABSORBER
1
1
1
39007
39007-1173
ARM-SUSP,UNI TRAK
1
1
1
39111
39111-1155
ROD-TIE
2
2
2
42036
42036-1165
SLEEVE,10.1X18X68
2
2
2
42036A 42036-1249
SLEEVE,10.1X18X60
1
1
1
45014
45014-0173-10
SHOCKABSORBER,BLACK
1
1
45014A 45014-0528-10
SHOCKABSORBER,BLACK
1
92015
92015-1429
NUT,LOCK,10MM
4
4
4
92028
92028-1187
BUSHING,SUSPENSION
6
6
6
92153
92153-1167
BOLT,FLANGED,10X85
1
1
1
92153A 92153-1802
BOLT,FLANGED,10X90
2
2
2
92153B 92153-1803
BOLT,FLANGED,10X50
2
2
2
670
670B2018
O RING,18MM
6
6
6
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Footrests
Halaman 50
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
D-8
Footrests
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
34028
34028-0035
STEP,FR,LH
1
1
1
34028A 34028-0036
STEP,FR,RH
1
1
1
34028B 34028-0056
STEP,FR,RUBBER
2
2
2
34028C 34028-0155
STEP,RR,LH
1
1
1
34028D 34028-0156
STEP,RR,RH
1
1
1
35063
35063-1113-458
STAY,RR,LH,P.SILVER
1
1
1
35063A 35063-1114-458
STAY,RR,RH,P.SILVER
1
1
1
35063B 35063-1229-458
STAY,FR,LH,P.SILVER
1
1
1
35063C 35063-1245-458
STAY,FR,RH,P.SILVER
1
1
1
92002
92002-1742
BOLT,BANK SENSOR
2
2
2
92009
92009-1404
SCREW,5X14
4
4
4
92033
92033-0742
RING-SNAP,10MM
2
2
2
92043
92043-0186
PIN,12X42.5
2
2
2
92043A 92043-1328
PIN,6X38.5
2
2
2
92144
92144-1567
SPRING,STEP RETURN
1
1
1
92144A 92144-1568
SPRING,STEP RETURN
1
1
1
92153
92153-1804
BOLT,SOCKET,8X25
4
4
4
92154
92154-0194
BOLT,SOCKET,8X25
4
4
4
92200
92200-0185
WASHER,19.5X28X2
2
2
2
482
482EA5000
CIRCLIP-TYPE-E
2
2
2
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Fenders
Halaman 51
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
D-9
Fenders
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
35001
35001-0063-14H
,P.C.WHITE
1
35001A 35001-0063-20A
,EBONY
1
35001B 35001-0063-20D
,C.P.BLUE
1
35001C 35001-0063-21Q
,C.L.GREEN
1
1
35001D 35001-0063-34J
,C.B.ORANGE
1
35001E 35001-0063-438
,M.S.BLACK
1
35023
35023-1233
FENDER-REAR,FR
1
1
1
35023A 35023-1234
FENDER-REAR,RR
1
1
1
35023B 35023-1331
FENDER-REAR,FR,SIDE
1
1
1
92002
92002-1242
BOLT,6X16
5
5
5
92002A 92002-1884
BOLT,UPSET-WP,6X12
4
4
4
92037
92037-1898
CLAMP,HOSE
1
1
1
92170
92170-1385
CLAMP,HOSE
1
1
1
92171
92171-0022
CLAMP,CABLE
1
1
1
92210
92210-0181
NUT,LOCK,FLANGED,6MM
1
1
1
130
130BB0814
BOLT-FLANGED,8X14
4
4
4
132
132BB0608
,6X8
1
1
1
132A 132BB0612
,6X12
1
1
1
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Stand(s)
Halaman 52
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
D-10
Stand(s)
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
34011
34011-1203-10
STAND-CENTER,BLACK
1
1
1
34024
34024-1409-458
STAND-SIDE,P.SILVER
1
1
1
92002
92002-1813
BOLT,SIDE STAND
1
1
1
92015
92015-1962
NUT,LOCK,10MM
1
1
1
92144
92144-1385
SPRING,CENTER STAND
1
1
1
92145
92145-0127
SPRING,SIDE STAND
1
1
1
92150
92150-1231
BOLT,CENTER STAND
2
2
2
92190
92190-1106
TUBE,16X19X80
1
1
1
554
554DA1000
PIN-SNAP,10MM
2
2
2
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Tires
Halaman 53
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
D-11
Tires
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
41002
41002-1965
TIRE,FR,2.75-17 4PR,NR25
1
1
1
41009
41009-1157
TIRE,RR,3.00-18 NR25
1
1
1
41022
41022-1163
TUBE-TIRE,FR,2.75-17
1
1
1
41022A 41022-1193
TUBE-TIRE,RR,3.00-18
1
1
1
41075
41075-0014
BALANCER-WHEEL,10G,SILVER
AR AR AR
41075A 41075-0015
BALANCER-WHEEL,20G,SILVER
AR AR AR
41075B 41075-0016
BALANCER-WHEEL,30G,SILVER
AR AR AR
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Front Hub
Halaman 54
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
D-12
Front Hub
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
41060
41060-1133
GEAR-METER SCREW,20T
1
1
1
41060A 41060-1134
GEAR-METER SCREW,8T
1
1
1
41068
41068-1273
AXLE,FR
1
1
1
41073
41073-1522-14A
WHEEL-ASSY,FR,M.M.GOLD
1
41073A 41073-1522-21V
WHEEL-ASSY,FR,G.BLACK
1
1
41078
41078-0059
GEAR
1
1
1
92015
92015-1765
NUT,CASTLE,14MM
1
1
1
92022
92022-1510
WASHER,20X29X1.0
1
1
1
92022A 92022-1511
WASHER,5X9.5X0.8
1
1
1
92027
92027-1504
COLLAR,L=48
1
1
1
92033
92033-1160
RING-SNAP,19MM
1
1
1
92043
92043-1220
PIN,SPRING,2X14
1
1
1
92045
92045-0750
BEARING-BALL,15X35X11
2
2
2
92049
92049-1173
SEAL-OIL,SD42 50 6
1
1
1
92049A 92049-1348
SEAL-OIL,22X35X8
1
1
1
92087
92087-1051
BUSHING-METER GEAR
1
1
1
92143
92143-1288
COLLAR,FR AXLE,L=25.5
1
1
1
410
410AA1400
,14MM
1
1
1
481
481J3500
CIRCLIP-TYPE-C,35MM
1
1
1
550
550AA3025
PIN-COTTER,3.0X25
1
1
1
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Rear Hub
Halaman 55
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
D-13
Rear Hub
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
41068
41068-1370
AXLE,RR
1
1
1
41073
41073-1523-14A
WHEEL-ASSY,RR,M.M.GOLD
1
41073A 41073-1523-21V
WHEEL-ASSY,RR,G.BLACK
1
1
42033
42033-0006
COUPLING-ASSY,RR HUB
1
1
1
42036
42036-030
SLEEVE,RR HUB COUPLING
1
1
1
42037
42037-029
COLLAR,15X26X12.5
1
1
1
42041
42041-0102
SPROCKET-HUB,42T
1
1
1
92015
92015-1765
NUT,CASTLE,14MM
1
1
1
92045
92045-0750
BEARING-BALL,15X35X11
1
1
1
92049
92049-1203
SEAL-OIL,BJNC2 25425
1
1
1
92050
92050-060
SEAL-OIL,26X42X8
1
1
1
92057
92057-0575
CHAIN,RK428HSBX122L
1
1
1
92143
92143-1021
COLLAR,L=13
1
1
1
92143A 92143-1460
COLLAR,RR HUB,L=77
1
1
1
92150
92150-1348
BOLT,8X41
6
6
6
92161
92161-1327
DAMPER,REAR HUB SHOCK
1
1
1
92210
92210-0140
NUT,LOCK,FLANGED,8MM
6
6
6
410
410AA1400
,14MM
1
1
1
550
550AA3025
PIN-COTTER,3.0X25
1
1
1
601
601B6004G
BEARING-BALL,#6004G
1
1
1
601A 601B6302UG
BEARING-BALL,#6302UG
1
1
1
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Brake Pedal
Halaman 56
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
D-14
Brake Pedal
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
43001
43001-0042
LEVER-BRAKE,PEDAL
1
1
1
43001A 43001-1280
LEVER-BRAKE
1
1
1
43007
43007-0004-458
ROD-TORQUE,P.SILVER
1
1
1
92015
92015-1962
NUT,LOCK,10MM
2
2
2
92022
92022-1540
WASHER,SPRING,10MM
2
2
2
92081
92081-1313
SPRING,BRAKE PEDAL
1
1
1
92150
92150-1901
BOLT,10X37
2
2
2
92192
92192-0451
TUBE,16X19X25
1
1
1
130
130BA0825
BOLT-FLANGED,8X25
1
1
1
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Front Master Cylinder
Halaman 57
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
E-3
Front Master Cylinder
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
13271
13271-0692
PLATE
1
1
1
27010
27010-0025
SWITCH,BRAKE
1
1
1
43015
43015-0064
,FR
1
1
1
43020
43020-1095
1
1
1
43022
43022-1010
STOPPER-BRAKE,PISTON
1
1
1
43026
43026-1080
CAP-BRAKE
1
1
1
43028
43028-1061
DIAPHRAGM
1
1
1
43034
43034-1016
HOLDER-BRAKE,MASTER CYLINDER
1
1
1
43095
43095-0249
HOSE-BRAKE,FR
1
1
1
46092
46092-1192
LEVER-GRIP,FRONT BRAKE
1
1
1
49006
49006-1067
BOOT,DUST
1
1
49006A 49006-1309
BOOT,BRAKE LEVER
1
1
1
49016
49016-1044
COVER-SEAL,MASTER CYLINDER
1
1
1
49091
49091-0001
WASHER-SEAL,10.1X14.5X1.5
4
4
4
92001
92001-1728
BOLT,FRONT BRAKE LEVER
1
1
1
92002
92002-1323
BOLT,SCREW,4X12
1
1
1
92009
92009-1458
SCREW,4MM
2
2
2
92071
92071-0055
GROMMET,15X20X16
1
1
1
92072
92072-1195
BAND,L=202
1
1
1
92153
92153-0029
BOLT,OIL,L=23
2
2
2
92170
92170-1614
CLAMP,HOSE
1
1
1
92210
92210-0006
NUT,LOCK,6MM
1
1
1
130
130AA0610
BOLT-FLANGED,6X10
1
1
1
132
132BB0625
,6X25
2
2
2
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Front Brake
Halaman 58
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
E-4
Front Brake
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
41080
41080-1421
DISC,FR
1
1
1
43041
43041-0201-27Q
CALIPER-ASSY,GOLD
1
1
1
43045
43045-1010
SHAFT-CALIPER
1
1
1
43048
43048-1068
PISTON-CALIPER
2
2
2
43049
43049-1060
PACKING,PISTON SEAL
2
2
2
43049A 43049-1061
PACKING,PISTON SEAL
2
2
2
43056
43056-1056
BREATHER-BRAKE
1
1
1
43057
43057-1001
CAP-BREATHER
1
1
1
43082
43082-0085
PAD-ASSY-BRAKE
1
1
1
49006
49006-1088
BOOT,CALIPER
1
1
1
49006A 49006-1242
BOOT,CALIPER
1
1
1
92001
92001-1837
BOLT,FLANGED,8X36
2
2
2
92022
92022-1373
WASHER,WAVE
1
1
1
92043
92043-1416
PIN,HANGER
2
2
2
92144
92144-1557
SPRING,PAD
1
1
1
92150
92150-1728
BOLT,8X30
5
5
5
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Rear Master Cylinder
Halaman 59
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
E-5
Rear Master Cylinder
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
13159
13159-1056
CONNECTOR
1
1
1
43010
43010-1059
ROD-ASSY-BRAKE
1
1
1
43015
43015-1412
,RR
1
1
1
43020
43020-1113
1
1
1
43026
43026-1062
CAP-BRAKE
1
1
1
43027
43027-1053
1
1
1
43028
43028-1065
DIAPHRAGM
1
1
1
43059
43059-1562
HOSE-BRAKE
1
1
1
43059A 43059-1673
HOSE-BRAKE,RR
1
1
1
43064
43064-006
GROMMET,HOSE CLAMP
2
2
2
43078
43078-1080
RESERVOIR
1
1
1
49091
49091-0001
WASHER-SEAL,10.1X14.5X1.5
4
4
4
92002
92002-1242
BOLT,6X16
1
1
1
92033
92033-0079
RING-SNAP,20.9X24.6X1.2
1
1
1
92033A 92033-1186
RING-SNAP,20.5MM
1
1
1
92037
92037-1710
CLAMP
2
2
2
92041
92041-0008
COTTER,2.0X15
1
1
1
92043
92043-0104
PIN,8X17
1
1
1
92055
92055-0741
RING-O,14.8X2.4
1
1
1
92081
92081-1737
SPRING,MASTER CYLINDER
1
1
1
92153
92153-0029
BOLT,OIL,L=23
2
2
2
92154
92154-0194
BOLT,SOCKET,8X25
2
2
2
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Rear Brake
Halaman 60
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
E-6
Rear Brake
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
41080
41080-1431
DISC,RR
1
1
1
43034
43034-1114
HOLDER-BRAKE,REAR CALIPER
1
1
1
43041
43041-0201-27Q
CALIPER-ASSY,GOLD
1
1
1
43045
43045-1010
SHAFT-CALIPER
1
1
1
43048
43048-1068
PISTON-CALIPER
2
2
2
43049
43049-1060
PACKING,PISTON SEAL
2
2
2
43049A 43049-1061
PACKING,PISTON SEAL
2
2
2
43056
43056-1056
BREATHER-BRAKE
1
1
1
43057
43057-1001
CAP-BREATHER
1
1
1
43082
43082-0085
PAD-ASSY-BRAKE
1
1
1
49006
49006-1088
BOOT,CALIPER
1
1
1
49006A 49006-1242
BOOT,CALIPER
1
1
1
92022
92022-1373
WASHER,WAVE
1
1
1
92043
92043-1416
PIN,HANGER
2
2
2
92144
92144-1557
SPRING,PAD
1
1
1
92150
92150-1728
BOLT,8X30
4
4
4
120
120CB0816
BOLT-SOCKET,8X16
2
2
2
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Handlebar
Halaman 61
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
E-7
Handlebar
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
13042
13042-1005
WEIGHT,HANDLE
2
2
2
13280
13280-0164
HOLDER,CLUTCH LEVER
1
1
1
46003
46003-0097
HANDLE,LH
1
1
1
46003A 46003-0098
HANDLE,RH
1
1
1
46019
46019-0012
GRIP-ASSY,THROTTLE
1
1
1
46075
46075-1131
GRIP,LH
1
1
1
46076
46076-0029
,CLUTCH
1
1
1
46091
46091-1500
,LH
1
1
1
46091A 46091-1840
,RH
1
1
1
46092
46092-1188
LEVER-GRIP,CLUTCH
1
1
1
49006
49006-1308
BOOT,CLUTCH LEVER
1
1
1
49006A 49006-1310
BOOT,THROUGH CLUTCH
1
1
1
56001
56001-1459
MIRROR-ASSY,LH
1
1
1
56001A 56001-1460
MIRROR-ASSY,RH
1
1
1
92002
92002-1442
BOLT,SOCKET,8X25
2
2
2
92009
92009-1134
SCREW,CABLE ADJUST,8MM,BLACK
1
1
1
92009A 92009-1257
SCREW,8X45
2
2
2
92015
92015-1197
NUT,CABLE ADJUST LOCK,8MM,BLK
1
1
1
92066
92066-1220
PLUG
2
2
2
92072
92072-1195
BAND,L=202
2
2
2
92143
92143-1774
COLLAR
1
1
1
92150
92150-1682
BOLT,LEVER SET
1
1
1
92210
92210-0006
NUT,LOCK,6MM
1
1
1
120
120CB0625
BOLT-SOCKET,6X25
1
1
1
132
132BA0618
,6X18
2
2
2
220
220AB0522
SCREW-PAN-CROS,5X22
2
2
2
220A 220AB0525
SCREW-PAN-CROS,5X25
2
2
2
410
410AA0800
,8MM
AR AR AR
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Front Fork
Halaman 62
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
E-8
Front Fork
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
11012
11012-1699
CAP,FORK TOP
2
2
2
39093
39093-0005-458
PIPE-COMP-SUSP,FORK OUT,LH,SIL
1
1
1
39093A 39093-0006-458
PIPE-COMP-SUSP,FORK OUT,RH,SIL
1
1
1
44013
44013-0062
PIPE-FORK INNER
2
2
2
44023
44023-1064
2
2
2
44026
44026-0089
SPRING-FRONT FORK
2
2
2
44029
44029-1012
SEAT-FORK SPRING
2
2
2
44029A 44029-1136
SEAT-FORK SPRING
2
2
2
44037
44037-0048
HOLDER-FORK UNDER
1
1
1
44039
44039-0045
HOLDER-FORK UPPER
1
1
1
44043
44043-057
RING,OIL SEAL STOPPER
2
2
2
44045
44045-051
GASKET,FORK CYLINDER BOLT
2
2
2
44071
44071-0337-458
DAMPER-ASSY,FORK,LH,P.SILVER
1
1
1
44071A 44071-0338-458
DAMPER-ASSY,FORK,RH,P.SILVER
1
1
1
92001
92001-1464
BOLT,FORK CYLINDER
2
2
2
92022
92022-231
WASHER,30.5X50X0.6
1
1
1
92026
92026-1365
SPACER
2
2
2
92033
92033-1023
RING-SNAP
2
2
2
92047
92047-012
RACE,STEERING STEM BEARING
1
1
1
92049
92049-1340
SEAL-OIL,FORK OUTER TUBE
2
2
2
92055
92055-1367
RING-O,FORK TOP
2
2
2
92056
92056-003
SEAL-OIL,STEERING STEM
1
1
1
92093
92093-1280
SEAL,FORK OUTER TUBE
2
2
2
92143
92143-1311
COLLAR,FORK
2
2
2
92150
92150-1387
BOLT,SOCKET,10X25
2
2
2
92150A 92150-1511
BOLT,SOCKET
1
1
1
130
130BA0840
BOLT-FLANGED,8X40
2
2
2
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Fuel Tank
Halaman 63
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
E-9
Fuel Tank
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
11009
11009-2526
GASKET,FUEL CUP
1
1
1
14024
14024-1978
COVER,TANK CAP
1
1
1
27010
27010-0042
SWITCH,FUEL LEVEL
1
1
1
32052
32052-1279
BRACKET-TANK,RR
1
1
1
43049
43049-1091
PACKING,TAP VALVE
1
1
1
43058
43058-1004
RING,FUEL LEVEL SWITCH
1
1
1
51001
51001-0313-14H
TANK-COMP-FUEL,P.C.WHITE
1
51001A 51001-0313-20D
TANK-COMP-FUEL,C.P.BLUE
1
51001B 51001-0313-21Q
TANK-COMP-FUEL,C.L.GREEN
1
1
51001C 51001-0313-34J
TANK-COMP-FUEL,C.B.ORANGE
1
51001D 51001-0313-438
TANK-COMP-FUEL,M.S.BLACK
1
51023
51023-1261
TAP-ASSY,FUEL
1
1
1
51049
51049-0018
CAP-TANK,FUEL
1
51049A 51049-0050
CAP-TANK,FUEL
1
1
51089
51089-5207-20A
TANK-COMP-FUEL,EBONY
1
92022
92022-1023
WASHER,5.2X10X1.5
2
2
2
92037
92037-1601
CLAMP
1
1
1
92055
92055-1112
RING-O,FUEL TAP PACKING
1
1
1
92055A 92055-1419
RING-O,TAP LEVER
1
1
1
92075
92075-015
DAMPER
2
2
2
92075A 92075-1057
DAMPER
1
1
1
92075B 92075-1115
DAMPER,FUEL TANK,FR
2
2
2
92152
92152-0344
COLLAR
1
1
1
92153
92153-1195
BOLT,FLANGED,6X20
2
2
2
92200
92200-0177
WASHER,6.5X11.5X0.8
2
2
2
120
120CB0512
BOLT-SOCKET,5X12
7
7
7
130
130AA0610
BOLT-FLANGED,6X10
4
4
4
130A 130AA0625
BOLT-FLANGED,6X25
1
1
1
220
220AB0508
SCREW-PAN-CROS,5X8
1
1
1
220A 220AD0514
SCREW-PAN-CROS,5X14
2
2
2
702
702A06690
TUBE-RUBBER,6X9X690
1
1
1
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Oil Tank
Halaman 64
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
E-10
Oil Tank
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
51049
51049-1004
CAP-TANK,OIL
1
1
1
52001
52001-1078
TANK-OIL
1
1
1
92001
92001-1763
BOLT,W/SP,6X16
2
2
2
92037
92037-1601
CLAMP
1
1
1
92190
92190-1297
TUBE,5X9X300
1
1
1
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Seat
Halaman 65
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
E-11
Seat
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
14091
14091-0784-14H
COVER,TAIL,P.C.WHITE
1
14091A 14091-0784-20A
COVER,TAIL,EBONY
1
14091B 14091-0784-20D
COVER,TAIL,C.P.BLUE
1
14091C 14091-0784-21Q
COVER,TAIL,C.L.GREEN
1
14091D 14091-0784-438
COVER,TAIL,M.S.BLACK
1
14093
14093-5067-20A
COVER,TAIL,EBONY
1
23036
23036-0009
BRACKET-TAIL LAMP
1
1
1
53066
53066-0152-MA
SEAT-ASSY,DUAL,BLACK
1
1
1
92015
92015-1094
NUT,6MM
2
2
2
92152
92152-0542
COLLAR,6.5X9.5X14
4
4
4
92161
92161-0501
DAMPER,10X22X12
2
2
2
92161A 92161-0502
DAMPER
2
2
2
92200
92200-1087
WASHER,6.5X22X1.6
4
4
4
130
130BA0614
BOLT-FLANGED,6X14
4
4
4
130A 130BB0625
BOLT-FLANGED,6X25
2
2
2
130B 130BB0630
BOLT-FLANGED,6X30
2
2
2
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Meter(s)
Halaman 66
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
E-12
Meter(s)
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
14092
14092-1004
COVER
1
1
1
14092A 14092-1006
COVER
1
1
1
23008
23008-0137
SOCKET-ASSY
1
1
1
25005
25005-0108
SPEEDOMETER,KPH
1
1
1
25008
25008-0036
BRACKET-METER
1
1
1
25015
25015-0014
TACHOMETER
1
1
1
25023
25023-0082
COVER-METER CASE,UPP
1
1
1
25031
25031-0431
METER-ASSY,KPH
1
1
1
28011
28011-0584
METER,TEMP
1
1
1
92009
92009-1142
SCREW,TAPPING,4X12,BLACK
4
4
4
92009A 92009-1158
SCREW,4X16,BLACK
3
3
3
92009B 92009-1172
SCREW,2X6,BLACK
1
1
1
92009C 92009-1293
SCREW,3X22
3
3
3
92009D 92009-1592
SCREW,TAPPING,3X14
6
6
6
92022
92022-263
WASHER,5.2X16X1.2
2
2
2
92069
92069-1059
BULB,12V 1.7W,T10
3
3
3
92069A 92069-1070
BULB,12V 1.7W,T6.5
6
6
6
92077
92077-1056
KNOB,METER
1
1
1
130
130BB0612
BOLT-FLANGED,6X12
2
2
2
311
311B0500
NUT-HEX,5MM
2
2
2
461
461F0500
WASHER-SPRING,5MM
2
2
2
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Cables
Halaman 67
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
E-13
Cables
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
54001
54001-0006
1
1
1
54011
54011-0074
CABLE-CLUTCH
1
1
1
54012
54012-1520
CABLE-THROTTLE
1
1
1
54018
54018-0001
1
1
1
92072
92072-1195
BAND,L=202
1
1
1
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Side Covers
Halaman 68
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
E-14
Side Covers
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
36001
36001-1563-20A
COVER-SIDE,RR,LH,EBONY
1
1
36001A 36001-1563-21W
COVER-SIDE,RR,LH,EBONY/GREEN
1
36001B 36001-1563-34E
COVER-SIDE,RR,LH,WHITE/EBONY
1
36001C 36001-1563-34M
COVER-SIDE,RR,LH,EBONY/BLUE
1
36001D 36001-1563-438
COVER-SIDE,RR,LH,M.S.BLACK
1
36001E 36001-1564-20A
COVER-SIDE,RR,RH,EBONY
1
1
36001F 36001-1564-21W
COVER-SIDE,RR,RH,EBONY/GREEN
1
36001G 36001-1564-34E
COVER-SIDE,RR,RH,WHITE/EBONY
1
36001H 36001-1564-34M
COVER-SIDE,RR,RH,EBONY/BLUE
1
36001I
36001-1564-438
COVER-SIDE,RR,RH,M.S.BLACK
1
49125
49125-0026-20A
SHROUD,LH,EBONY
1
1
49125A 49125-0026-438
SHROUD,LH,M.S.BLACK
1
49125B 49125-0027-20A
SHROUD,RH,EBONY
1
1
49125C 49125-0027-438
SHROUD,RH,M.S.BLACK
1
49133
49133-5023-20A
SHROUD,LH,EBONY
1
49133A 49133-5024-20A
SHROUD,RH,EBONY
1
92022
92022-1143
WASHER,6.5X16X1
2
2
2
92071
92071-056
GROMMET
4
4
4
92161
92161-0353
DAMPER
2
2
2
92172
92172-0194
SCREW
2
2
2
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Headlight(s)
Halaman 69
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
F-3
Headlight(s)
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
23007
23007-0085
LENS-COMP,HEAD LAMP
1
1
1
23008
23008-1690
SOCKET-ASSY,HEAD LAMP
1
1
1
49016
49016-1193
COVER-SEAL,HEAD LAMP
1
1
1
92027
92027-1856
COLLAR,6.8X10X20
2
2
2
92069
92069-0050
BULB,12V 60/55W,H4
1
1
1
92069A 92069-1007
BULB,12V 3.4W,T10
1
1
1
92075
92075-1690
DAMPER,10X24X12
2
2
2
92143
92143-1825
COLLAR,6.8X10X13
2
2
2
92161
92161-0503
DAMPER
2
2
2
92200
92200-0359
WASHER,6.5X20X3.2
4
4
4
92200A 92200-1087
WASHER,6.5X22X1.6
4
4
4
92210
92210-0218
NUT,6MM
4
4
4
130
130BB0630
BOLT-FLANGED,6X30
2
2
2
130A 130BB0640
BOLT-FLANGED,6X40
2
2
2
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Taillight(s)
Halaman 70
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
F-4
Taillight(s)
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
11036
11036-1040
BRACKET-A,LICENSE PLATE
1
1
1
23025
23025-1257
LAMP-TAIL
1
1
1
39145
39145-0030
TRIM-SEAL,L=260
1
1
1
39145A 39145-0031
TRIM-SEAL,L=140
1
1
1
92015
92015-1367
NUT,FLANGED,6MM
4
4
4
92022
92022-125
WASHER,6.5X20X1.6
2
2
2
92022A 92022-1557
WASHER,6.5X20X1.6
2
2
2
92075
92075-1690
DAMPER,10X24X12
2
2
2
92143
92143-1825
COLLAR,6.8X10X13
2
2
2
130
130AA0614
BOLT-FLANGED,6X14
2
2
2
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Turn Signals
Halaman 71
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
F-5
Turn Signals
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
23040
23040-0019
LAMP-SIGNAL,RR,RH
1
1
1
23040A 23040-0020
LAMP-SIGNAL,RR,LH
1
1
1
23040B 23040-0071
LAMP-SIGNAL,FR,LH
1
1
1
23040C 23040-0072
LAMP-SIGNAL,FR,RH
1
1
1
23048
23048-1198
LENS-SIGNAL LAMP
4
4
4
92009
92009-1775
SCREW,TAPPING,3X13
4
4
4
92015
92015-1428
NUT,FLANGED,10MM
4
4
4
92069
92069-1124
BULB,12V 10W
4
4
4
92152
92152-0072
COLLAR,10.3X12.7X12.9
4
4
4
92161
92161-0477
DAMPER,SIGNAL LAMP
4
4
4
92200
92200-0046
WASHER,SIGNAL LAMP
4
4
4
92200A 92200-0355
WASHER,10.3X20X1
4
4
4
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Chassis Electrical Equipment
Halaman 72
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
F-6
Chassis Electrical Equipment
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
21061
21061-1003
RECTIFIER
1
1
1
26004
26004-1100
FUSE-ASSY
1
1
1
26006
26006-1071
FUSE,15A,L=30
2
2
2
26011
26011-1436
WIRE-LEAD,BATTERY(-)
1
1
1
26011A 26011-1647
WIRE-LEAD,BATTERY(+)
1
1
1
26012
26012-0101
BATTERY,GM3-3A(GS),12V 3AH
1
1
1
26031
26031-0410
HARNESS,FRONT SUB
1
1
1
26031A 26031-1374
HARNESS,MAIN
1
1
1
27002
27002-1057
RELAY-ASSY,TURN SIGNAL
1
1
1
27003
27003-1400
HORN
1
1
1
92072
92072-1195
BAND,L=202
2
2
2
92072A 92072-1237
BAND,L=250
2
2
2
92171
92171-1425
CLAMP,WIRING HARNESS,L=60
1
1
1
130
130AA0812
BOLT-FLANGED,8X12
1
1
1
130A 130BB0608
BOLT-FLANGED,6X8
1
1
1
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Ignition Switch
Halaman 73
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
F-7
Ignition Switch
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
21007
21007-5061
ROTOR,LOCK,TANK CAP
1
1
1
27005
27005-1176
1
1
1
27008
27008-1034
KEY-LOCK,BLANK,#A
1
1
1
(OPTION)
27008A 27008-1035
KEY-LOCK,BLANK,#B
1
1
1
(OPTION)
27010
27010-0048
SWITCH,REAR BRAKE
1
1
1
27010A 27010-1049
SWITCH,OIL LEVEL
1
1
1
27016
27016-5336
LOCK-ASSY,TOOL CASE
2
2
2
27016A 27016-5337
LOCK-ASSY,HELMET
1
1
1
27045
27045-5239
SWITCH-ASSY
1
1
1
28012
28012-1076
1
1
1
92015
92015-1259
NUT,FLANGED,5MM
1
1
1
92144
92144-1373
SPRING,REAR BRAKE SWITCH
1
1
1
92160
92160-1115
DAMPER
2
2
2
92172
92172-0299
SCREW,5X12
1
1
1
92210
92210-0131
NUT,22MM
2
2
2
130
130BA0618
BOLT-FLANGED,6X18
2
2
2
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Owner's Tools
Halaman 74
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
F-8
Owner's Tools
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
56007
56007-0031
TOOL-KIT
1
1
1
56008
56008-1081
BAG,TOOL
1
1
1
92104
92104-1065
GASKET-LIQUID,TB1215,GRAY
1
1
1
92104A 92104-2068
GASKET-LIQUID,TB1207B,BLACK
1
1
1
92106
92106-1053
GRIP-SCREW DRIVER
1
1
1
92107
92107-1058
TOOL-DRIVER,
1
1
1
92110
92110-1189
TOOL-WRENCH,OPEN END,10X12
1
1
1
92110A 92110-1190
TOOL-WRENCH,OPEN END,14X17
1
1
1
92110B 92110-1191
TOOL-WRENCH,BOX END,22MM
1
1
1
92110C 92110-1194
TOOL-WRENCH,BOX,21MM
1
1
1
92110D 92110-1195
TOOL-WRENCH,BOX END,19MM
1
1
1
92111
92111-1057
TOOL-BAR
1
1
1
92112
92112-1055
TOOL-PLIERS
1
1
1
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Labels
Halaman 75
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
F-9
Labels
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
56033
56033-0198
LABEL-MANUAL,CHAIN
1
1
1
56037
56037-1755
,TIRE
1
1
1
56070
56070-1135
LABEL-WARNING,BATTERY VENT
1
1
1
56070A 56070-1136
LABEL-WARNING,2T OIL
1
1
1
56070B 56070-1137
LABEL-WARNING,COOLANT
1
1
1
56071
56071-0006
LABEL,UNLEADED PETROL ONLY
1
1
1
56071A 56071-0297
LABEL-WARNING,RULE
1
1
1
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Decals(Green)(LDF)
Halaman 76
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
F-10
Decals(Green)(LDF)
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
56052
56052-0220
MARK,FUEL TANK,KAWASAKI
2
56052A 56052-0987
MARK,SEAT COVER,KAWASAKI
1
56052B 56052-1918
MARK,AIR FILTER,HSAS
1
56054
56054-1470
MARK,KAWASAKI
1
56069
56069-2973
PATTERN,FUEL TANK,LH
1
56069A 56069-2974
PATTERN,FUEL TANK,RH
1
56069B 56069-2975
PATTERN,TAIL COVER,LH
1
56069C 56069-2976
PATTERN,TAIL COVER,RH
1
56069D 56069-2977
PATTERN,SHROUD,FR,LH
1
56069E 56069-2978
PATTERN,SHROUD,RR,LH
1
56069F 56069-2979
PATTERN,SIDE COVER,LH
1
56069G 56069-2980
PATTERN,SHROUD,FR,RH
1
56069H 56069-2981
PATTERN,SIDE COVER,RH
1
56069I
56069-2982
PATTERN,COWLING,LH
1
56069J
56069-2983
PATTERN,COWLING,RH
1
56069K 56069-3931
PATTERN,SHROUD,RR,RH
1
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Decals(Blue)(LDF)
Halaman 77
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
F-11
Decals(Blue)(LDF)
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
56052
56052-0220
MARK,FUEL TANK,KAWASAKI
2
56052A 56052-0987
MARK,SEAT COVER,KAWASAKI
1
56052B 56052-1918
MARK,AIR FILTER,HSAS
1
56054
56054-1470
MARK,KAWASAKI
1
56069
56069-2984
PATTERN,FUEL TANK,LH
1
56069A 56069-2985
PATTERN,FUEL TANK,RH
1
56069B 56069-2986
PATTERN,TAIL COVER,LH
1
56069C 56069-2987
PATTERN,TAIL COVER,RH
1
56069D 56069-2988
PATTERN,SHROUD,FR,LH
1
56069E 56069-2989
PATTERN,SHROUD,RR,LH
1
56069F 56069-2990
PATTERN,SIDE COVER,LH
1
56069G 56069-2991
PATTERN,SHROUD,FR,RH
1
56069H 56069-2992
PATTERN,SHROUD,RR,RH
1
56069I
56069-2993
PATTERN,SIDE COVER,RH
1
56069J
56069-2994
PATTERN,COWLING,LH
1
56069K 56069-2995
PATTERN,COWLING,RH
1
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Decals(White)(LDF)
Halaman 78
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
F-12
Decals(White)(LDF)
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
56052
56052-0220
MARK,FUEL TANK,KAWASAKI
2
56052A 56052-0987
MARK,SEAT COVER,KAWASAKI
1
56052B 56052-1918
MARK,AIR FILTER,HSAS
1
56054
56054-1470
MARK,KAWASAKI
1
56069
56069-2996
PATTERN,FUEL TANK,LH
1
56069A 56069-2997
PATTERN,FUEL TANK,RH
1
56069B 56069-2998
PATTERN,TAIL COVER,LH
1
56069C 56069-2999
PATTERN,TAIL COVER,RH
1
56069D 56069-3893
PATTERN,SHROUD,FR,LH
1
56069E 56069-3894
PATTERN,SHROUD,RR,LH
1
56069F 56069-3895
PATTERN,SIDE COVER,LH
1
56069G 56069-3896
PATTERN,SHROUD,FR,RH
1
56069H 56069-3897
PATTERN,SHROUD,RR,RH
1
56069I
56069-3898
PATTERN,SIDE COVER,RH
1
56069J
56069-3899
PATTERN,COWLING,LH
1
56069K 56069-3900
PATTERN,COWLING,RH
1
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Decals(Orange)(LEF)
Halaman 79
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
F-13
Decals(Orange)(LEF)
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
56052
56052-0987
MARK,SEAT COVER,KAWASAKI
1
56052A 56052-1918
MARK,AIR FILTER,HSAS
1
56054
56054-1121
MARK,FUEL TANK,KAWASAKI
2
56054A 56054-1470
MARK,KAWASAKI
1
56069
56069-7401
PATTERN,FUEL TANK,LH
1
56069A 56069-7402
PATTERN,FUEL TANK,RH
1
56069B 56069-7403
PATTERN,SEAT COVER,LH
1
56069C 56069-7404
PATTERN,SEAT COVER,RH
1
56069D 56069-7405
PATTERN,SHROUD,LH,FR
1
56069E 56069-7406
PATTERN,SHROUD,LH,RR
1
56069F 56069-7407
PATTERN,SHROUD,RH,FR
1
56069G 56069-7408
PATTERN,SHROUD,RH,RR
1
56069H 56069-7409
PATTERN,SIDE COVER,LH
1
56069I
56069-7410
PATTERN,SIDE COVER,RH
1
56069J
56069-7411
PATTERN,COWLING,LH
1
56069K 56069-7412
PATTERN,COWLING,RH
1
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Decals(Green)(LEF)
Halaman 80
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
F-14
Decals(Green)(LEF)
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
56052
56052-0987
MARK,SEAT COVER,KAWASAKI
1
56052A 56052-1918
MARK,AIR FILTER,HSAS
1
56054
56054-1121
MARK,FUEL TANK,KAWASAKI
2
56054A 56054-1470
MARK,KAWASAKI
1
56069
56069-7377
PATTERN,FUEL TANK,LH
1
56069A 56069-7378
PATTERN,FUEL TANK,RH
1
56069B 56069-7379
PATTERN,SEAT COVER,LH
1
56069C 56069-7380
PATTERN,SEAT COVER,RH
1
56069D 56069-7381
PATTERN,SHROUD,LH,FR
1
56069E 56069-7382
PATTERN,SHROUD,LH,RR
1
56069F 56069-7383
PATTERN,SHROUD,RH,FR
1
56069G 56069-7384
PATTERN,SHROUD,RH,RR
1
56069H 56069-7385
PATTERN,SIDE COVER,LH
1
56069I
56069-7386
PATTERN,SIDE COVER,RH
1
56069J
56069-7387
PATTERN,COWLING,LH
1
56069K 56069-7388
PATTERN,COWLING,RH
1
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Decals(Black)(LEF)
Halaman 81
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
G-3
Decals(Black)(LEF)
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
56052
56052-0987
MARK,SEAT COVER,KAWASAKI
1
56052A 56052-1918
MARK,AIR FILTER,HSAS
1
56054
56054-1121
MARK,FUEL TANK,KAWASAKI
2
56054A 56054-1470
MARK,KAWASAKI
1
56069
56069-7389
PATTERN,FUEL TANK,LH
1
56069A 56069-7390
PATTERN,FUEL TANK,RH
1
56069B 56069-7391
PATTERN,SEAT COVER,LH
1
56069C 56069-7392
PATTERN,SEAT COVER,RH
1
56069D 56069-7393
PATTERN,SHROUD,LH,FR
1
56069E 56069-7394
PATTERN,SHROUD,LH,RR
1
56069F 56069-7395
PATTERN,SHROUD,RH,FR
1
56069G 56069-7396
PATTERN,SHROUD,RH,RR
1
56069H 56069-7397
PATTERN,SIDE COVER,LH
1
56069I
56069-7398
PATTERN,SIDE COVER,RH
1
56069J
56069-7399
PATTERN,COWLING,LH
1
56069K 56069-7400
PATTERN,COWLING,RH
1
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Decals(Ebony)(LFF)
Halaman 82
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
G-4
Decals(Ebony)(LFF)
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
56052
56052-0986
MARK,SEAT COVER,KAWASAKI
1
56052A 56052-1918
MARK,AIR FILTER,HSAS
1
56054
56054-1470
MARK,KAWASAKI
1
56054A 56054-1750
MARK,FUEL TANK
2
56054B 56054-1777
MARK,FUEL TANK,NINJA
1
56075
56075-0250
PATTERN,FR FENDER,LH
1
56075A 56075-0251
PATTERN,FR FENDER,RH
1
56075B 56075-0252
PATTERN,WHEEL,LH,GOLD,6X1328
2
56075C 56075-0253
PATTERN,WHEEL,RH,GOLD,6X1328
2
56075D 56075-0255
PATTERN,FUEL TANK,LH,UPP
1
56075E 56075-0256
PATTERN,FUEL TANK,LH,LWR
1
56075F 56075-0257
PATTERN,FUEL TANK,RH,UPP
1
56075G 56075-0258
PATTERN,FUEL TANK,RH,LWR
1
56075H 56075-0259
PATTERN,SEAT COVER,LH
1
56075I
56075-0260
PATTERN,SEAT COVER,RH
1
56075J
56075-0261
PATTERN,SHROUD,LH,FR,UPP
1
56075K 56075-0262
PATTERN,SHROUD,LH,FR,LWR
1
56075L 56075-0263
PATTERN,SHROUD,LH,RR
1
56075M 56075-0264
PATTERN,SIDE COVER,LH
1
56075N 56075-0265
PATTERN,SHROUD,RH,FR,UPP
1
56075O 56075-0266
PATTERN,SHROUD,RH,FR,LWR
1
56075P 56075-0267
PATTERN,SHROUD,RH,RR
1
56075Q 56075-0268
PATTERN,SIDE COVER,RH
1
56075R 56075-0269
PATTERN,COWLING,LH
1
56075S 56075-0270
PATTERN,COWLING,RH
1
57001
57001-1752
RIM STRIPE APPLICATOR
AR
(OPTION)
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Chassis Cowling
Halaman 83
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF Chassis
G-5
Cowling
Quantity-KR150
Ref.
No.
Part No.
Description
Spec Code
'13
'14
'15
LDF LEF LFF
11054
11054-0333
BRACKET,UNDER HOLDER
1
1
1
11054A 11054-0343
BRACKET,WINDSHIELD
1
1
1
23062
23062-0054
BRACKET-COMP,LICENSE
1
1
1
39137
39137-0028
STAY-COMP,UPP COWLING
1
1
1
39145
39145-0019
TRIM-SEAL,WINDSHIELD
1
1
1
39154
39154-0019
WINDSHIELD
1
1
1
55028
55028-0161-14H
COWLING,UPP,P.C.WHITE
1
55028A 55028-0161-20D
COWLING,UPP,C.P.BLUE
1
55028B 55028-0161-21Q
COWLING,UPP,C.L.GREEN
1
1
55028C 55028-0161-34J
COWLING,UPP,C.B.ORANGE
1
55028D 55028-0161-438
COWLING,UPP,M.S.BLACK
1
55056
55056-5200-20A
COWLING,UPP,EBONY
1
92015
92015-1692
NUT,RUBBER,6MM
2
2
2
92022
92022-1521
WASHER,NYLON,5.3X11.5X1.5
4
4
4
92153
92153-0370
BOLT,SOCKET,5X18
4
4
4
92210
92210-0001
NUT,5MM
4
4
4
92210A 92210-0555
NUT,FLANGED,8MM
2
2
2
130
130BB0612
BOLT-FLANGED,6X12
2
2
2
130A 130BB0616
BOLT-FLANGED,6X16
2
2
2
130B 130BB0630
BOLT-FLANGED,6X30
2
2
2
DEC.17,2014
'13 '15 KR150 LDF/LEF/LFF Numerical Parts Index
Halaman 84
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF
L-13
Part No.
Grid No.
Part No.
Grid No.
Part No.
Grid No.
Part No.
Grid No.
Part No.
Grid No.
Part No.
Grid No.
11001-0132 .................B-3
11005-1855 .................B-4
11009-1941 .................C-3
11009-2526 .................E-9
11010-0040 .................B-4
11010-0796 .................B-7
11010-1636 .................B-6
11012-1686 .................B-7
11012-1699 .................E-8
11012-1720 .................D-5
13002-1091 .................B-9
13008-0030 .................B-9
13031-0734 .................B-9
13033-1062 .................B-9
13034-1070-B4 ........... B-9
13035-0559 .................B-9
13037-1368 .................B-9
13037-1389 .................B-9
13041-1095 .................B-9
13042-1005 .................E-7
130BB0630 .................G-5
130BB0640 ................. F-3
130BB0814 .................D-9
13102-1119 ...............B-11
13107-0800 .................C-7
13107-1234 ...............C-10
13127-0649 ...............B-12
13128-0680 ...............B-12
13140-1247 ...............B-13
13140-1264 ...............B-13
11012-1860 .................D-6
11012-1861 .................D-3
11013-0009 .................B-4
11013-1115 .................B-7
11013-1212 .................B-6
11013-1212 .................B-7
11036-1040 .................F-4
11049-1997 .................D-5
11050-1051 .................D-5
11054-0333 ................ G-5
13044-5079 .................B-9
13045-1052 .................B-9
13061-1869 ...............B-10
13063-002 .................B-10
13064-0072 ...............B-10
13064-1217 ...............B-10
13066-1098 ...............B-10
13070-1035 ...............B-10
13070-1206 .................B-4
13078-1062 ...............B-10
13140-1265 ...............B-13
13141-0061 ...............B-13
13144-1206 ...............B-12
13145-1084 ...............B-13
13151-1080 ...............B-13
13157-004 .................B-14
13159-1056 .................E-5
13161-1132 ...............B-14
13165-1034 ...............B-14
13168-1519 .................B-4
11054-0343 ................ G-5
11054-1087 .................D-5
11054-1122 ...............C-10
11054-1492 ...............C-10
11054-1493 ...............C-10
11060-1155 .................C-7
11061-0146 .................B-4
11061-0149 .................C-4
11061-0150 .................C-4
11061-0151 ...............C-10
13087-1118 ...............B-11
13088-1085 ...............B-11
13088-1098 ...............B-11
13089-1076 ...............B-11
13091-1880 .................C-5
13095-0067 ...............B-11
13097-1264 .................B-9
130AA0610 ................. E-3
130AA0610 ................. E-9
130AA0614 .................D-5
13168-1520 .................B-4
13168-1521 .................B-4
13183-1066 ...............B-13
13183-1162 .................C-5
13183-1355 .................B-6
13183-1355 .................B-7
13183-1392 .................C-3
13187-1072 ...............B-11
13206-1002 ...............B-10
13216-1141 .................B-9
11061-0190 .................B-4
11061-0215 .................C-7
11061-0290 .................B-8
11061-0372 .................B-8
11065-0203 ...............C-10
11065-1075 .................B-4
11065-1172 .................D-5
115BB0825 ............... B-10
12005-1255 .................B-4
12021-0010 .................B-4
130AA0614 ................. F-4
130AA0625 ................. E-9
130AA0812 ................. F-6
130BA0610 .................D-5
130BA0614 ............... E-11
130BA0618 ................. F-7
130BA0630 ................. B-5
130BA0812 .................D-5
130BA0814 .................D-4
130BA0825 ...............D-14
13236-0739 ...............B-13
13236-1139 .................B-4
13242-0118 ...............B-14
13242-1376 ...............B-14
13242-1396 ...............B-14
13262-0953 ...............B-12
13262-0954 ...............B-12
13262-0975 ...............B-12
13262-0976 ...............B-12
13262-0977 ...............B-12
12021-1094 .................C-3
12022-1068 .................C-3
120CA0530 .................C-8
120CA0612 .................B-5
120CB0512 .................E-9
120CB0625 .................E-7
120CB0816 .................E-6
120Q0608 ................. B-12
120Q0608 ................... B-9
13001-1399 .................B-9
130BA0825 .................D-5
130BA0840 ................. E-8
130BB0608 ................. F-6
130BB0612 .................D-6
130BB0612 ............... E-12
130BB0612 .................G-5
130BB0616 .................G-5
130BB0625 ............... E-11
130BB0630 ............... E-11
130BB0630 ................. F-3
13262-0978 ...............B-12
13262-0979 ...............B-12
13262-0980 ...............B-12
13262-0981 ...............B-12
13262-0982 ...............B-12
13270-1806 .................C-5
13271-0347 .................B-4
13271-0348 .................B-4
13271-0692 .................E-3
13271-1052 ...............B-12
Numerical Parts Index
13271-1054 .................C-5
13280-0164 .................E-7
132BA0612 ............... B-11
132BA0614 ................. B-9
132BA0614 .................C-7
132BA0614 .................C-8
132BA0618 ................. E-7
132BA0640 .................C-3
132BA0650 .................C-3
132BA0650 .................C-4
14091-0784-21Q .......E-11
14091-0784-438 ........E-11
14092-1004 ...............E-12
14092-1006 ...............E-12
14093-5067-20A ....... E-11
15004-0022 .................C-5
16002-0001 .................C-7
16005-1077 .................C-5
16007-1162 ...............B-11
16014-1077 .................C-5
224AA0620 ................. B-6
224AA0620 ................. B-7
225AA0612 ................. B-8
23007-0085 .................F-3
23008-0137 ...............E-12
23008-1690 .................F-3
23025-1257 .................F-4
23036-0009 ...............E-11
23040-0019 .................F-5
23040-0020 .................F-5
132BA0660 .................C-3
132BA0665 .................C-4
132BA0670 .................C-3
132BA0675 .................C-3
132BA0810 ...............C-10
132BB0608 .................D-9
132BB0610 ...............C-10
132BB0612 .................D-9
132BB0614 ................. B-8
132BB0625 ................. E-3
16016-1028 .................C-5
16017-1395 .................C-5
16021-1218 .................C-5
16025-1211 .................C-5
16030-1057 .................C-5
16031-1095 .................C-5
16065-1162 .................C-5
16065-1252 .................C-5
16082-0710 .................C-7
16115-1053 .................C-4
23040-0071 .................F-5
23040-0072 .................F-5
23048-1198 .................F-5
23062-0054 ................ G-5
235AA0620 .................C-9
25005-0108 ...............E-12
25008-0036 ...............E-12
25015-0014 ...............E-12
25023-0082 ...............E-12
25031-0431 ...............E-12
13326-1004 .................D-7
14002-1647 .................C-3
14002-1796 .................C-3
14014-1095 .................B-9
14014-1113 ...............B-13
14014-1133 .................B-4
14020-1103 .................B-4
14020-1104 .................B-4
14022-1075 .................B-9
14024-1740 .................D-5
16142-1164 ...............C-10
16181-0007 .................C-5
16187-1209 .................C-5
172BA0612 ............... B-13
172BA0822 ................. B-5
172BA0830 .................C-3
18090-1976 .................B-8
180BA0645 .................C-9
18120-0015 .................B-8
18120-0019 .................B-8
26001-1965 .................C-8
26004-1100 .................F-6
26006-1071 .................F-6
26011-1436 .................F-6
26011-1647 .................F-6
26012-0101 .................F-6
26031-0410 .................F-6
26031-1374 .................F-6
27002-1057 .................F-6
27003-1400 .................F-6
14024-1978 .................E-9
14026-0033 .................C-4
14031-1377 .................C-4
14032-0080 .................C-4
14037-1181 ...............C-10
14041-0019 .................B-4
14041-1124 .................B-4
14044-1081 ...............B-11
14069-003 ...................C-3
14073-1374 .................B-6
18140-1051 .................B-8
21003-1328 .................C-8
21007-0571 .................C-8
21007-5061 .................F-7
21061-1003 .................F-6
21066-0715 .................C-8
21119-1592 .................C-9
21121-1206 .................C-9
21130-1062 .................C-9
220AA0306 ................. B-5
27005-1176 .................F-7
27008-1034 .................F-7
27008-1035 .................F-7
27010-0025 .................E-3
27010-0042 .................E-9
27010-0048 .................F-7
27010-1049 .................F-7
27012-1401 .................D-5
27016-5336 .................F-7
27016-5337 .................F-7
14073-1374 .................B-7
14073-1488 .................B-6
14073-1488 .................B-7
14090-1166 .................C-4
14090-1167 .................C-4
14090-1328 .................C-4
14090-1435 .................B-4
14091-0784-14H .......E-11
14091-0784-20A ....... E-11
14091-0784-20D .......E-11
220AA0508 ................. B-9
220AA0508 .................C-4
220AA0516 .................C-7
220AA0612 .................C-4
220AB0508 ................. E-9
220AB0522 ................. E-7
220AB0525 ................. E-7
220AD0514 .................E-9
223AA0512 .................C-9
223AB0416 .................C-6
27045-5239 .................F-7
28011-0584 ...............E-12
28012-1076 .................F-7
290Q0506 ...................C-3
311B0500 ..................E-12
311BA0600 ............... B-13
311BB0600 ............... B-14
32052-1279 .................E-9
32097-1134 .................D-5
32098-1089 .................D-5
'13 '15 KR150 LDF/LEF/LFF Numerical Parts Index
Halaman 85
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF
L-14
Part No.
Grid No.
Part No.
Grid No.
Part No.
Grid No.
Part No.
Grid No.
Part No.
Grid No.
Part No.
Grid No.
32160-0235-458 ......... D-3
32160-0756-458 ......... D-3
32190-0291 .................D-4
32190-0292 .................D-4
32190-1207-458 ......... D-4
32190-1280 .................D-4
33001-0115-458 ......... D-6
33032-1149 .................D-6
33040-0019 .................D-6
33040-1162 .................D-6
39129-1020 .................B-4
39137-0028 ................ G-5
39145-0019 ................ G-5
39145-0030 .................F-4
39145-0031 .................F-4
39154-0019 ................ G-5
39194-1047 ...............C-10
41002-1965 ...............D-11
41009-1157 ...............D-11
41022-1163 ...............D-11
43028-1065 .................E-5
43034-1016 .................E-3
43034-1114 .................E-6
43041-0201-27Q .........E-4
43041-0201-27Q .........E-6
43045-1010 .................E-4
43045-1010 .................E-6
43048-1068 .................E-4
43048-1068 .................E-6
43049-1060 .................E-4
34011-1203-10 ......... D-10
34024-1409-458 ....... D-10
34028-0035 .................D-8
34028-0036 .................D-8
34028-0056 .................D-8
34028-0155 .................D-8
34028-0156 .................D-8
35001-0063-14H .........D-9
35001-0063-20A .........D-9
35001-0063-20D .........D-9
41022-1193 ...............D-11
41060-1115 .................C-7
41060-1133 ...............D-12
41060-1134 ...............D-12
41068-1273 ...............D-12
41068-1370 ...............D-13
41073-1522-14A .......D-12
41073-1522-21V .......D-12
41073-1523-14A .......D-13
41073-1523-21V .......D-13
43049-1060 .................E-6
43049-1061 .................E-4
43049-1061 .................E-6
43049-1091 .................E-9
43056-1056 .................E-4
43056-1056 .................E-6
43057-1001 .................E-4
43057-1001 .................E-6
43058-1004 .................E-9
43059-1562 .................E-5
35001-0063-21Q .........D-9
35001-0063-34J ..........D-9
35001-0063-438 ......... D-9
35011-1806 .................D-5
35023-1233 .................D-9
35023-1234 .................D-9
35023-1331 .................D-9
35063-1113-458 ......... D-8
35063-1114-458 ......... D-8
35063-1229-458 ......... D-8
41075-0014 ...............D-11
41075-0015 ...............D-11
41075-0016 ...............D-11
41078-0059 ...............D-12
41080-1421 .................E-4
41080-1431 .................E-6
410AA0800 ................. E-7
410AA1400 ...............D-12
410AA1400 ...............D-13
410AA1400 .................D-6
43059-1673 .................E-5
43064-006 ...................E-5
43078-1080 .................E-5
43078-1111 ...............C-10
43082-0085 .................E-4
43082-0085 .................E-6
43095-0249 .................E-3
44013-0062 .................E-8
44023-1064 .................E-8
44026-0089 .................E-8
35063-1245-458 ......... D-8
36001-1563-20A ....... E-14
36001-1563-21W ...... E-14
36001-1563-34E ....... E-14
36001-1563-34M .......E-14
36001-1563-438 ........E-14
36001-1564-20A ....... E-14
36001-1564-21W ...... E-14
36001-1564-34E ....... E-14
36001-1564-34M .......E-14
42033-0006 ...............D-13
42036-0011 .................D-6
42036-030 .................D-13
42036-1165 .................D-7
42036-1249 .................D-7
42037-029 .................D-13
42041-0102 ...............D-13
43001-0042 ...............D-14
43001-1280 ...............D-14
43007-0004-458 ....... D-14
44029-1012 .................E-8
44029-1136 .................E-8
44037-0048 .................E-8
44039-0045 .................E-8
44043-057 ...................E-8
44045-051 ...................E-8
44071-0337-458 ..........E-8
44071-0338-458 ..........E-8
45014-0173-10 ........... D-7
45014-0528-10 ........... D-7
36001-1564-438 ........E-14
39007-1173 .................D-7
39062-0203 ...............C-10
39062-1432 ...............C-10
39062-1437 ...............C-10
39093-0005-458 ..........E-8
39093-0006-458 ..........E-8
39111-0319 ...............B-14
39111-1086 ...............B-14
39111-1155 .................D-7
43010-1059 .................E-5
43015-0064 .................E-3
43015-1412 .................E-5
43020-1095 .................E-3
43020-1113 .................E-5
43022-1010 .................E-3
43026-1062 .................E-5
43026-1080 .................E-3
43027-1053 .................E-5
43028-1061 .................E-3
46003-0097 .................E-7
46003-0098 .................E-7
46019-0012 .................E-7
46075-1131 .................E-7
46076-0029 .................E-7
46091-1500 .................E-7
46091-1840 .................E-7
46092-1188 .................E-7
46092-1192 .................E-3
46102-1336 ...............B-11
Numerical Parts Index
461DB0600 .................B-8
461F0500 ..................E-12
480J1500 .................. B-12
480J1600 .................. B-10
481J3500 ..................D-12
482EA5000 .................D-8
482J0100 ..................C-10
482J6000 ....................C-7
49002-1133 .................B-4
49006-1067 .................E-3
52005-1009 .................C-4
52014-1078 .................C-5
53066-0152-MA ........ E-11
54001-0006 ...............E-13
54011-0074 ...............E-13
54012-1520 ...............E-13
54018-0001 ...............E-13
55020-1330 .................D-6
55028-0161-14H .........G-5
55028-0161-20D .........G-5
56054-1470 ...............F-13
56054-1470 ...............F-14
56054-1470 ................ G-3
56054-1470 ................ G-4
56054-1750 ................ G-4
56054-1777 ................ G-4
56069-2973 ...............F-10
56069-2974 ...............F-10
56069-2975 ...............F-10
56069-2976 ...............F-10
49006-1088 .................E-4
49006-1088 .................E-6
49006-1242 .................E-4
49006-1242 .................E-6
49006-1289 .................B-4
49006-1308 .................E-7
49006-1309 .................E-3
49006-1310 .................E-7
49006-1328 .................B-4
49016-1044 .................E-3
55028-0161-21Q ........ G-5
55028-0161-34J ......... G-5
55028-0161-438 ......... G-5
55056-5200-20A .........G-5
550AA3025 ...............D-12
550AA3025 ...............D-13
551A0306 ..................B-13
551R0408 ................... B-3
551R0408 ................... B-5
551R0408 ................. C-10
56069-2977 ...............F-10
56069-2978 ...............F-10
56069-2979 ...............F-10
56069-2980 ...............F-10
56069-2981 ...............F-10
56069-2982 ...............F-10
56069-2983 ...............F-10
56069-2984 ...............F-11
56069-2985 ...............F-11
56069-2986 ...............F-11
49016-1173 .................B-4
49016-1193 .................F-3
49047-1068 ...............B-13
49063-1055 ...............C-10
49085-1059 ...............C-10
49091-0001 .................E-3
49091-0001 .................E-5
49106-1221 .................B-8
49111-1055 .................B-4
49114-1076 .................B-4
554DA1000 ...............D-10
56001-1459 .................E-7
56001-1460 .................E-7
56007-0031 .................F-8
56008-1081 .................F-8
56033-0198 .................F-9
56037-1755 .................F-9
56052-0220 ...............F-10
56052-0220 ...............F-11
56052-0220 ...............F-12
56069-2987 ...............F-11
56069-2988 ...............F-11
56069-2989 ...............F-11
56069-2990 ...............F-11
56069-2991 ...............F-11
56069-2992 ...............F-11
56069-2993 ...............F-11
56069-2994 ...............F-11
56069-2995 ...............F-11
56069-2996 ...............F-12
49114-1095 .................B-4
49125-0026-20A ....... E-14
49125-0026-438 ........E-14
49125-0027-20A ....... E-14
49125-0027-438 ........E-14
49133-5023-20A ....... E-14
49133-5024-20A ....... E-14
51001-0313-14H .........E-9
51001-0313-20D .........E-9
51001-0313-21Q .........E-9
56052-0986 ................ G-4
56052-0987 ...............F-10
56052-0987 ...............F-11
56052-0987 ...............F-12
56052-0987 ...............F-13
56052-0987 ...............F-14
56052-0987 ................ G-3
56052-1918 ...............F-10
56052-1918 ...............F-11
56052-1918 ...............F-12
56069-2997 ...............F-12
56069-2998 ...............F-12
56069-2999 ...............F-12
56069-3893 ...............F-12
56069-3894 ...............F-12
56069-3895 ...............F-12
56069-3896 ...............F-12
56069-3897 ...............F-12
56069-3898 ...............F-12
56069-3899 ...............F-12
51001-0313-34J ..........E-9
51001-0313-438 ..........E-9
51023-1261 .................E-9
51049-0018 .................E-9
51049-0050 .................E-9
51049-1004 ...............E-10
51089-5207-20A ......... E-9
510A3200 ..................B-13
510A3200 ....................B-9
52001-1078 ...............E-10
56052-1918 ...............F-13
56052-1918 ...............F-14
56052-1918 ................ G-3
56052-1918 ................ G-4
56054-1121 ...............F-13
56054-1121 ...............F-14
56054-1121 ................ G-3
56054-1470 ...............F-10
56054-1470 ...............F-11
56054-1470 ...............F-12
56069-3900 ...............F-12
56069-3931 ...............F-10
56069-7377 ...............F-14
56069-7378 ...............F-14
56069-7379 ...............F-14
56069-7380 ...............F-14
56069-7381 ...............F-14
56069-7382 ...............F-14
56069-7383 ...............F-14
56069-7384 ...............F-14
'13 '15 KR150 LDF/LEF/LFF Numerical Parts Index
Halaman 86
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF
L-15
Part No.
Grid No.
Part No.
Grid No.
Part No.
Grid No.
Part No.
Grid No.
Part No.
Grid No.
Part No.
Grid No.
56069-7385 ...............F-14
56069-7386 ...............F-14
56069-7387 ...............F-14
56069-7388 ...............F-14
56069-7389 ................ G-3
56069-7390 ................ G-3
56069-7391 ................ G-3
56069-7392 ................ G-3
56069-7393 ................ G-3
56069-7394 ................ G-3
56075-0268 ................ G-4
56075-0269 ................ G-4
56075-0270 ................ G-4
57001-1752 ................ G-4
59026-1111 .................C-9
59051-0736 ...............B-12
59051-0737 ...............B-10
59051-1185 ...............C-10
59051-1208 .................B-4
59051-1209 .................B-9
92002-1813 ...............D-10
92002-1863 .................B-4
92002-1884 .................D-5
92002-1884 .................D-9
92004-0036 .................B-4
92004-0728 ...............B-14
92009-1014 .................C-3
92009-1021 .................C-3
92009-1095 .................C-5
92009-1134 .................E-7
56069-7395 ................ G-3
56069-7396 ................ G-3
56069-7397 ................ G-3
56069-7398 ................ G-3
56069-7399 ................ G-3
56069-7400 ................ G-3
56069-7401 ...............F-13
56069-7402 ...............F-13
56069-7403 ...............F-13
56069-7404 ...............F-13
59051-1212 .................C-7
59256-1063 ...............C-10
600A0800 ..................B-10
600A0800 ................... D-3
600A1200 ....................B-5
601A6005 ....................B-9
601A6204Z ................. C-3
601A6304 ................... C-3
601B6003U ...............B-13
601B6004G ...............D-13
92009-1142 ...............E-12
92009-1155 .................B-4
92009-1158 ...............E-12
92009-1172 ...............E-12
92009-1257 .................E-7
92009-1266 ...............B-10
92009-1266 ...............B-13
92009-1293 ...............E-12
92009-1360 ...............B-13
92009-1404 .................D-8
56069-7405 ...............F-13
56069-7406 ...............F-13
56069-7407 ...............F-13
56069-7408 ...............F-13
56069-7409 ...............F-13
56069-7410 ...............F-13
56069-7411 ...............F-13
56069-7412 ...............F-13
56070-1135 .................F-9
56070-1136 .................F-9
601B6201 ................. C-10
601B6202 ................... C-3
601B6302UG ............D-13
670B1506 ................. C-10
670B1508 ....................B-3
670B2018 ................... D-7
670E2016 ....................B-5
702A06690 ..................E-9
703A07100 ..................B-6
703A07100 ..................B-7
92009-1458 .................E-3
92009-1540 .................B-4
92009-1592 ...............E-12
92009-1763 .................C-4
92009-1775 .................F-5
92015-072 .................B-11
92015-1094 ...............E-11
92015-1151 .................B-3
92015-1151 .................B-4
92015-1178 ...............B-14
56070-1137 .................F-9
56071-0006 .................F-9
56071-0297 .................F-9
56075-0250 ................ G-4
56075-0251 ................ G-4
56075-0252 ................ G-4
56075-0253 ................ G-4
56075-0255 ................ G-4
56075-0256 ................ G-4
56075-0257 ................ G-4
92001-1464 .................E-8
92001-1488 .................D-3
92001-1719 .................D-4
92001-1728 .................E-3
92001-1763 ...............C-10
92001-1763 ...............E-10
92001-1837 .................E-4
92001-1950 .................B-6
92001-1950 .................B-7
92002-1108 .................B-8
92015-1197 .................E-7
92015-1233 .................B-8
92015-1259 .................F-7
92015-1364 .................D-6
92015-1367 .................F-4
92015-1407 .................D-6
92015-1426 .................B-9
92015-1428 .................D-4
92015-1428 .................F-5
92015-1429 .................D-7
56075-0258 ................ G-4
56075-0259 ................ G-4
56075-0260 ................ G-4
56075-0261 ................ G-4
56075-0262 ................ G-4
56075-0263 ................ G-4
56075-0264 ................ G-4
56075-0265 ................ G-4
56075-0266 ................ G-4
56075-0267 ................ G-4
92002-1182 .................D-4
92002-1200 .................B-8
92002-1237 ...............B-14
92002-1242 .................D-9
92002-1242 .................E-5
92002-1323 .................E-3
92002-1438 ...............B-10
92002-1442 .................E-7
92002-1742 .................D-8
92002-1764 .................D-4
92015-1572 .................B-4
92015-1692 ................ G-5
92015-1700 .................C-9
92015-1765 ...............D-12
92015-1765 ...............D-13
92015-1840 .................C-7
92015-1962 ...............D-10
92015-1962 ...............D-14
92022-1023 .................E-9
92022-1033 ...............B-12
Numerical Parts Index
92022-1143 ...............E-14
92022-125 ...................F-4
92022-1356 ...............B-11
92022-1373 .................E-4
92022-1373 .................E-6
92022-1488 ...............C-10
92022-1496 ...............B-10
92022-1510 ...............D-12
92022-1511 ...............D-12
92022-1521 ................ G-5
92037-1589 ...............C-10
92037-1601 .................C-7
92037-1601 ...............E-10
92037-1601 .................E-9
92037-1710 .................E-5
92037-1898 .................D-9
92037-1991 .................C-5
92038-0001 .................B-9
92041-0008 .................E-5
92043-0099 .................C-3
92049-1315 .................C-7
92049-1340 .................E-8
92049-1348 ...............D-12
92049-1431 .................C-3
92049-1471 .................B-5
92049-1478 .................C-3
92049-1479 .................C-3
92050-013 ...................C-3
92050-060 .................D-13
92055-0089 ...............B-10
92022-1534 ...............B-10
92022-1540 ...............D-14
92022-1557 .................F-4
92022-1593 ...............B-14
92022-1792 ...............B-13
92022-1827 ...............B-13
92022-1827 .................B-4
92022-1827 .................C-7
92022-1831 .................B-9
92022-231 ...................E-8
92043-0100 .................C-3
92043-0101 .................C-3
92043-0104 .................E-5
92043-0186 .................D-8
92043-1129 ...............C-10
92043-1220 ...............D-12
92043-1256 .................B-4
92043-1293 .................B-5
92043-1319 .................B-5
92043-1319 .................C-7
92055-012 ...................C-4
92055-022 .................B-12
92055-055 ...................C-7
92055-0721 .................B-3
92055-0741 .................E-5
92055-086 ...................B-9
92055-1053 .................C-5
92055-1112 .................E-9
92055-1146 .................C-4
92055-1149 .................C-7
92022-252 .................B-12
92022-263 .................E-12
92022-304 ...................B-9
92022-315 .................B-10
92025-1573 ...............B-11
92025-1574 ...............B-11
92026-1136 .................B-9
92026-1217 ...............B-13
92026-1238 .................B-4
92026-1365 .................E-8
92043-1328 .................D-8
92043-1416 .................E-4
92043-1416 .................E-6
92045-0148 .................C-3
92045-0750 ...............D-12
92045-0750 ...............D-13
92045-1169 .................C-3
92045-1230 .................B-9
92045-1232 .................C-7
92045-1235 ...............B-11
92055-1343 .................B-5
92055-1367 .................E-8
92055-1368 .................B-3
92055-1419 .................E-9
92055-1504 .................C-5
92055-3018 .................B-9
92056-003 ...................E-8
92057-0575 ...............D-13
92063-1013 .................C-5
92063-1014 .................C-5
92027-1504 ...............D-12
92027-1839 .................B-4
92027-1856 .................F-3
92028-1187 .................D-7
92033-0079 .................E-5
92033-0742 .................D-8
92033-1023 .................E-8
92033-1160 ...............D-12
92033-1166 ...............B-10
92033-1178 ...............B-14
92045-1243 .................C-3
92045-1305 .................C-7
92045-1356 .................B-5
92046-0034 ...............B-11
92046-1052 .................B-5
92046-1110 .................D-6
92046-1218 ...............B-11
92046-1219 ...............B-11
92047-011 ...................D-3
92047-012 ...................E-8
92063-1015 .................C-5
92063-1016 .................C-5
92063-1076 .................C-5
92064-1193 .................C-5
92065-058 .................B-13
92065-058 ...................C-3
92066-1118 .................B-3
92066-1220 .................E-7
92066-1368 .................D-5
92066-1455 .................D-5
92033-1186 .................E-5
92033-1259 ...............B-12
92033-1260 ...............B-12
92036-005 ...................B-9
92036-018 ...................C-5
92036-018 ...................C-7
92037-1142 .................C-5
92037-1396 .................C-5
92037-147 ...................C-5
92037-1505 ...............C-10
92048-006 ...................D-3
92048-008 ...................D-3
92049-0744 .................C-4
92049-1109 .................D-6
92049-1173 ...............D-12
92049-1186 .................C-3
92049-1203 ...............D-13
92049-1207 .................B-5
92049-1259 ...............C-10
92049-1271 .................C-4
92066-1535 .................C-4
92066-1536 .................C-4
92069-0050 .................F-3
92069-1007 .................F-3
92069-1059 ...............E-12
92069-1070 ...............E-12
92069-1124 .................F-5
92070-0027 .................C-9
92070-3011 .................C-9
92071-0055 .................E-3
'13 '15 KR150 LDF/LEF/LFF Numerical Parts Index
Halaman 87
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF
L-16
Part No.
Grid No.
Part No.
Grid No.
Part No.
Grid No.
Part No.
Grid No.
Part No.
Grid No.
Part No.
Grid No.
92071-056 .................E-14
92071-1176 .................C-7
92072-0054 .................C-9
92072-1195 ...............E-13
92072-1195 .................E-3
92072-1195 .................E-7
92072-1195 .................F-6
92072-1237 .................F-6
92072-1257 .................D-5
92072-1342 .................D-5
92143-1577 .................B-5
92143-1774 .................E-7
92143-1825 .................F-3
92143-1825 .................F-4
92144-1345 ...............B-14
92144-1373 .................F-7
92144-1385 ...............D-10
92144-1522 ...............B-11
92144-1557 .................E-4
92144-1557 .................E-6
92154-0194 .................E-5
92154-1134 .................C-4
92154-1156 ...............C-10
92154-1219 .................B-5
92154-1219 ...............C-10
92154-1219 .................C-6
92154-1249 .................C-4
92160-1115 .................F-7
92160-1329 .................C-4
92160-1336 .................C-4
92075-015 ...................E-9
92075-1057 .................E-9
92075-1115 .................E-9
92075-1690 .................F-3
92075-1690 .................F-4
92075-1788 .................B-8
92075-1808 .................C-4
92075-209 .................C-10
92077-1056 ...............E-12
92081-122 .................B-10
92144-1567 .................D-8
92144-1568 .................D-8
92144-1727 ...............B-11
92144-1738 .................C-5
92145-0127 ...............D-10
92145-0348 ...............B-10
92145-0349 ...............B-13
92145-0482 ...............B-10
92145-0483 .................C-5
92145-1142 .................C-5
92160-1422 .................D-5
92160-1559 .................B-6
92160-1559 .................B-7
92160-1843 .................B-8
92161-0353 ...............E-14
92161-0413 ...............C-10
92161-0477 .................F-5
92161-0501 ...............E-11
92161-0502 ...............E-11
92161-0503 .................F-3
92081-1313 ...............D-14
92081-1492 ...............B-11
92081-1737 .................E-5
92081-1829 ...............B-14
92087-1051 ...............D-12
92087-1055 .................C-7
92090-007 ...................D-3
92093-0025 .................B-5
92093-1274 .................B-6
92093-1274 .................B-7
92150-1230 .................D-4
92150-1231 ...............D-10
92150-1348 ...............D-13
92150-1387 .................E-8
92150-1511 .................E-8
92150-1682 .................E-7
92150-1715 ...............B-11
92150-1728 .................E-4
92150-1728 .................E-6
92150-1888 .................B-5
92161-1327 ...............D-13
92161-1500 ...............B-10
92170-1116 .................C-4
92170-1130 .................B-6
92170-1130 .................B-7
92170-1167 .................B-5
92170-1167 .................B-6
92170-1385 .................D-9
92170-1614 .................E-3
92170-1640 .................C-6
92093-1280 .................E-8
92104-1065 .................F-8
92104-2068 .................F-8
92106-1053 .................F-8
92107-1058 .................F-8
92110-1189 .................F-8
92110-1190 .................F-8
92110-1191 .................F-8
92110-1194 .................F-8
92110-1195 .................F-8
92150-1893 .................C-3
92150-1901 ...............D-14
92150-1982 .................C-7
92152-0072 .................F-5
92152-0343 .................D-5
92152-0344 .................E-9
92152-0345 ...............C-10
92152-0542 ...............E-11
92153-0029 .................E-3
92153-0029 .................E-5
92170-1989 .................B-5
92170-2043 .................C-7
92171-0022 .................D-9
92171-0584 .................C-6
92171-0585 .................B-6
92171-1425 .................F-6
92172-0056 .................B-5
92172-0194 ...............E-14
92172-0299 .................F-7
92172-0845 ...............C-10
92111-1057 .................F-8
92112-1055 .................F-8
92143-1019 .................D-6
92143-1021 ...............D-13
92143-1046 .................C-9
92143-1288 ...............D-12
92143-1289 .................B-9
92143-1291 ...............B-12
92143-1311 .................E-8
92143-1460 ...............D-13
92153-0370 ................ G-5
92153-0720 ...............B-14
92153-1167 .................D-7
92153-1195 .................E-9
92153-1378 .................C-5
92153-1782 .................D-4
92153-1802 .................D-7
92153-1803 .................D-7
92153-1804 .................D-8
92154-0194 .................D-8
92173-0198 .................B-7
92173-1392 .................B-7
92190-1072 .................C-7
92190-1074 .................C-7
92190-1106 ...............D-10
92190-1223 .................C-3
92190-1288 .................C-7
92190-1297 ...............E-10
92191-1014 .................C-6
92191-1142 .................C-6
Numerical Parts Index
92191-1259 .................C-6
92192-0136 .................B-5
92192-0137 .................B-5
92192-0401 .................C-6
92192-0451 ...............D-14
92200-0046 .................F-5
92200-0177 .................E-9
92200-0185 .................D-8
92200-0355 .................F-5
92200-0359 .................F-3
92200-1087 ...............E-11
92200-1087 .................F-3
92200-1127 .................C-4
92200-1168 .................B-5
92200-1174 ...............B-11
92200-1440 ...............B-11
92210-0001 ................ G-5
92210-0004 .................B-8
92210-0006 .................E-3
92210-0006 .................E-7
92210-0131 .................F-7
92210-0140 ...............D-13
92210-0181 .................D-9
92210-0218 .................F-3
92210-0555 ................ G-5
92210-0714 .................B-5
92210-0714 ...............C-10
92210-0773 .................D-4
92210-0773 .................D-6
92210-0846 ...............B-14
92210-0847 ...............B-14
'13 '15 KR150 LDF/LEF/LFF Part Name Index
Halaman 88
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF
B-16
Air Cleaner(LDF) .............................................................................. B-6
Air Cleaner(LEF/LFF) ....................................................................... B-7
Brake Pedal ....................................................................................D-14
Cables ............................................................................................ E-13
Carburetor ................................................................................. C-5/C-6
Chassis Electrical Equipment ........................................................... F-6
Clutch ............................................................................................. B-11
Cowling ............................................................................................ G-5
Crankcase ........................................................................................ C-3
Crankshaft ........................................................................................ B-9
Cylinder ......................................................................................B-4/B-5
Cylinder Head ...................................................................................B-3
Decals(Black)(LEF) .......................................................................... G-3
Decals(Blue)(LDF) .......................................................................... F-11
Decals(Ebony)(LFF) .........................................................................G-4
Decals(Green)(LDF) ....................................................................... F-10
Decals(Green)(LEF) ....................................................................... F-14
Decals(Orange)(LEF) ..................................................................... F-13
Decals(White)(LDF) ........................................................................ F-12
Engine Cover(s) ............................................................................... C-4
Engine Mount ................................................................................... D-4
Fenders ............................................................................................ D-9
Footrests .......................................................................................... D-8
Frame ............................................................................................... D-3
Frame Fittings .................................................................................. D-5
Front Brake .......................................................................................E-4
Front Fork ......................................................................................... E-8
Front Hub ....................................................................................... D-12
Front Master Cylinder ....................................................................... E-3
Fuel Tank ..........................................................................................E-9
Part Name Index
Gear Change Drum ........................................................................ B-13
Gear Change Mechanism ...............................................................B-14
Generator ......................................................................................... C-8
Handlebar ......................................................................................... E-7
Headlight(s) ...................................................................................... F-3
Ignition Switch ...................................................................................F-7
Ignition System .................................................................................C-9
Kickstarter Mechanism ................................................................... B-10
Labels ............................................................................................... F-9
Meter(s) .......................................................................................... E-12
Muffler(s) .......................................................................................... B-8
Oil Pump ...........................................................................................C-7
Oil Tank .......................................................................................... E-10
Owner's Tools ...................................................................................F-8
Piston(s) ........................................................................................... B-9
Radiator ..........................................................................................C-10
Rear Brake ....................................................................................... E-6
Rear Hub ........................................................................................ D-13
Rear Master Cylinder ........................................................................E-5
Seat ................................................................................................ E-11
Shift Fork(s) .................................................................................... B-13
Shock Absorber ................................................................................D-7
Side Covers .................................................................................... E-14
Stand(s) ..........................................................................................D-10
Suspension .......................................................................................D-7
Swingarm ......................................................................................... D-6
Taillight(s) ......................................................................................... F-4
Tires ............................................................................................... D-11
Transmission .................................................................................. B-12
Turn Signals ......................................................................................F-5
'13 '15 KR150 LDF/LEF/LFF Part Name Index
Halaman 89
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF
C-16
Air Cleaner(LDF) .............................................................................. B-6
Air Cleaner(LEF/LFF) ....................................................................... B-7
Brake Pedal ....................................................................................D-14
Cables ............................................................................................ E-13
Carburetor ................................................................................. C-5/C-6
Chassis Electrical Equipment ........................................................... F-6
Clutch ............................................................................................. B-11
Cowling ............................................................................................ G-5
Crankcase ........................................................................................ C-3
Crankshaft ........................................................................................ B-9
Cylinder ......................................................................................B-4/B-5
Cylinder Head ...................................................................................B-3
Decals(Black)(LEF) .......................................................................... G-3
Decals(Blue)(LDF) .......................................................................... F-11
Decals(Ebony)(LFF) .........................................................................G-4
Decals(Green)(LDF) ....................................................................... F-10
Decals(Green)(LEF) ....................................................................... F-14
Decals(Orange)(LEF) ..................................................................... F-13
Decals(White)(LDF) ........................................................................ F-12
Engine Cover(s) ............................................................................... C-4
Engine Mount ................................................................................... D-4
Fenders ............................................................................................ D-9
Footrests .......................................................................................... D-8
Frame ............................................................................................... D-3
Frame Fittings .................................................................................. D-5
Front Brake .......................................................................................E-4
Front Fork ......................................................................................... E-8
Front Hub ....................................................................................... D-12
Front Master Cylinder ....................................................................... E-3
Fuel Tank ..........................................................................................E-9
Part Name Index
Gear Change Drum ........................................................................ B-13
Gear Change Mechanism ...............................................................B-14
Generator ......................................................................................... C-8
Handlebar ......................................................................................... E-7
Headlight(s) ...................................................................................... F-3
Ignition Switch ...................................................................................F-7
Ignition System .................................................................................C-9
Kickstarter Mechanism ................................................................... B-10
Labels ............................................................................................... F-9
Meter(s) .......................................................................................... E-12
Muffler(s) .......................................................................................... B-8
Oil Pump ...........................................................................................C-7
Oil Tank .......................................................................................... E-10
Owner's Tools ...................................................................................F-8
Piston(s) ........................................................................................... B-9
Radiator ..........................................................................................C-10
Rear Brake ....................................................................................... E-6
Rear Hub ........................................................................................ D-13
Rear Master Cylinder ........................................................................E-5
Seat ................................................................................................ E-11
Shift Fork(s) .................................................................................... B-13
Shock Absorber ................................................................................D-7
Side Covers .................................................................................... E-14
Stand(s) ..........................................................................................D-10
Suspension .......................................................................................D-7
Swingarm ......................................................................................... D-6
Taillight(s) ......................................................................................... F-4
Tires ............................................................................................... D-11
Transmission .................................................................................. B-12
Turn Signals ......................................................................................F-5
'13 '15 KR150 LDF/LEF/LFF Part Name Index
Halaman 90
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF
D-16
Air Cleaner(LDF) .............................................................................. B-6
Air Cleaner(LEF/LFF) ....................................................................... B-7
Brake Pedal ....................................................................................D-14
Cables ............................................................................................ E-13
Carburetor ................................................................................. C-5/C-6
Chassis Electrical Equipment ........................................................... F-6
Clutch ............................................................................................. B-11
Cowling ............................................................................................ G-5
Crankcase ........................................................................................ C-3
Crankshaft ........................................................................................ B-9
Cylinder ......................................................................................B-4/B-5
Cylinder Head ...................................................................................B-3
Decals(Black)(LEF) .......................................................................... G-3
Decals(Blue)(LDF) .......................................................................... F-11
Decals(Ebony)(LFF) .........................................................................G-4
Decals(Green)(LDF) ....................................................................... F-10
Decals(Green)(LEF) ....................................................................... F-14
Decals(Orange)(LEF) ..................................................................... F-13
Decals(White)(LDF) ........................................................................ F-12
Engine Cover(s) ............................................................................... C-4
Engine Mount ................................................................................... D-4
Fenders ............................................................................................ D-9
Footrests .......................................................................................... D-8
Frame ............................................................................................... D-3
Frame Fittings .................................................................................. D-5
Front Brake .......................................................................................E-4
Front Fork ......................................................................................... E-8
Front Hub ....................................................................................... D-12
Front Master Cylinder ....................................................................... E-3
Fuel Tank ..........................................................................................E-9
Part Name Index
Gear Change Drum ........................................................................ B-13
Gear Change Mechanism ...............................................................B-14
Generator ......................................................................................... C-8
Handlebar ......................................................................................... E-7
Headlight(s) ...................................................................................... F-3
Ignition Switch ...................................................................................F-7
Ignition System .................................................................................C-9
Kickstarter Mechanism ................................................................... B-10
Labels ............................................................................................... F-9
Meter(s) .......................................................................................... E-12
Muffler(s) .......................................................................................... B-8
Oil Pump ...........................................................................................C-7
Oil Tank .......................................................................................... E-10
Owner's Tools ...................................................................................F-8
Piston(s) ........................................................................................... B-9
Radiator ..........................................................................................C-10
Rear Brake ....................................................................................... E-6
Rear Hub ........................................................................................ D-13
Rear Master Cylinder ........................................................................E-5
Seat ................................................................................................ E-11
Shift Fork(s) .................................................................................... B-13
Shock Absorber ................................................................................D-7
Side Covers .................................................................................... E-14
Stand(s) ..........................................................................................D-10
Suspension .......................................................................................D-7
Swingarm ......................................................................................... D-6
Taillight(s) ......................................................................................... F-4
Tires ............................................................................................... D-11
Transmission .................................................................................. B-12
Turn Signals ......................................................................................F-5
'13 '15 KR150 LDF/LEF/LFF Part Name Index
Halaman 91
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF
E-16
Air Cleaner(LDF) .............................................................................. B-6
Air Cleaner(LEF/LFF) ....................................................................... B-7
Brake Pedal ....................................................................................D-14
Cables ............................................................................................ E-13
Carburetor ................................................................................. C-5/C-6
Chassis Electrical Equipment ........................................................... F-6
Clutch ............................................................................................. B-11
Cowling ............................................................................................ G-5
Crankcase ........................................................................................ C-3
Crankshaft ........................................................................................ B-9
Cylinder ......................................................................................B-4/B-5
Cylinder Head ...................................................................................B-3
Decals(Black)(LEF) .......................................................................... G-3
Decals(Blue)(LDF) .......................................................................... F-11
Decals(Ebony)(LFF) .........................................................................G-4
Decals(Green)(LDF) ....................................................................... F-10
Decals(Green)(LEF) ....................................................................... F-14
Decals(Orange)(LEF) ..................................................................... F-13
Decals(White)(LDF) ........................................................................ F-12
Engine Cover(s) ............................................................................... C-4
Engine Mount ................................................................................... D-4
Fenders ............................................................................................ D-9
Footrests .......................................................................................... D-8
Frame ............................................................................................... D-3
Frame Fittings .................................................................................. D-5
Front Brake .......................................................................................E-4
Front Fork ......................................................................................... E-8
Front Hub ....................................................................................... D-12
Front Master Cylinder ....................................................................... E-3
Fuel Tank ..........................................................................................E-9
Part Name Index
Gear Change Drum ........................................................................ B-13
Gear Change Mechanism ...............................................................B-14
Generator ......................................................................................... C-8
Handlebar ......................................................................................... E-7
Headlight(s) ...................................................................................... F-3
Ignition Switch ...................................................................................F-7
Ignition System .................................................................................C-9
Kickstarter Mechanism ................................................................... B-10
Labels ............................................................................................... F-9
Meter(s) .......................................................................................... E-12
Muffler(s) .......................................................................................... B-8
Oil Pump ...........................................................................................C-7
Oil Tank .......................................................................................... E-10
Owner's Tools ...................................................................................F-8
Piston(s) ........................................................................................... B-9
Radiator ..........................................................................................C-10
Rear Brake ....................................................................................... E-6
Rear Hub ........................................................................................ D-13
Rear Master Cylinder ........................................................................E-5
Seat ................................................................................................ E-11
Shift Fork(s) .................................................................................... B-13
Shock Absorber ................................................................................D-7
Side Covers .................................................................................... E-14
Stand(s) ..........................................................................................D-10
Suspension .......................................................................................D-7
Swingarm ......................................................................................... D-6
Taillight(s) ......................................................................................... F-4
Tires ............................................................................................... D-11
Transmission .................................................................................. B-12
Turn Signals ......................................................................................F-5
'13 '15 KR150 LDF/LEF/LFF Part Name Index
Halaman 92
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF
F-16
Air Cleaner(LDF) .............................................................................. B-6
Air Cleaner(LEF/LFF) ....................................................................... B-7
Brake Pedal ....................................................................................D-14
Cables ............................................................................................ E-13
Carburetor ................................................................................. C-5/C-6
Chassis Electrical Equipment ........................................................... F-6
Clutch ............................................................................................. B-11
Cowling ............................................................................................ G-5
Crankcase ........................................................................................ C-3
Crankshaft ........................................................................................ B-9
Cylinder ......................................................................................B-4/B-5
Cylinder Head ...................................................................................B-3
Decals(Black)(LEF) .......................................................................... G-3
Decals(Blue)(LDF) .......................................................................... F-11
Decals(Ebony)(LFF) .........................................................................G-4
Decals(Green)(LDF) ....................................................................... F-10
Decals(Green)(LEF) ....................................................................... F-14
Decals(Orange)(LEF) ..................................................................... F-13
Decals(White)(LDF) ........................................................................ F-12
Engine Cover(s) ............................................................................... C-4
Engine Mount ................................................................................... D-4
Fenders ............................................................................................ D-9
Footrests .......................................................................................... D-8
Frame ............................................................................................... D-3
Frame Fittings .................................................................................. D-5
Front Brake .......................................................................................E-4
Front Fork ......................................................................................... E-8
Front Hub ....................................................................................... D-12
Front Master Cylinder ....................................................................... E-3
Fuel Tank ..........................................................................................E-9
Part Name Index
Gear Change Drum ........................................................................ B-13
Gear Change Mechanism ...............................................................B-14
Generator ......................................................................................... C-8
Handlebar ......................................................................................... E-7
Headlight(s) ...................................................................................... F-3
Ignition Switch ...................................................................................F-7
Ignition System .................................................................................C-9
Kickstarter Mechanism ................................................................... B-10
Labels ............................................................................................... F-9
Meter(s) .......................................................................................... E-12
Muffler(s) .......................................................................................... B-8
Oil Pump ...........................................................................................C-7
Oil Tank .......................................................................................... E-10
Owner's Tools ...................................................................................F-8
Piston(s) ........................................................................................... B-9
Radiator ..........................................................................................C-10
Rear Brake ....................................................................................... E-6
Rear Hub ........................................................................................ D-13
Rear Master Cylinder ........................................................................E-5
Seat ................................................................................................ E-11
Shift Fork(s) .................................................................................... B-13
Shock Absorber ................................................................................D-7
Side Covers .................................................................................... E-14
Stand(s) ..........................................................................................D-10
Suspension .......................................................................................D-7
Swingarm ......................................................................................... D-6
Taillight(s) ......................................................................................... F-4
Tires ............................................................................................... D-11
Transmission .................................................................................. B-12
Turn Signals ......................................................................................F-5
'13 '15 KR150 LDF/LEF/LFF Part Name Index
Halaman 93
This grid covers:
This catalog covers:
GRID NO.
'13∼'15 KR150 LDF/LEF/LFF
G-16
Air Cleaner(LDF) .............................................................................. B-6
Air Cleaner(LEF/LFF) ....................................................................... B-7
Brake Pedal ....................................................................................D-14
Cables ............................................................................................ E-13
Carburetor ................................................................................. C-5/C-6
Chassis Electrical Equipment ........................................................... F-6
Clutch ............................................................................................. B-11
Cowling ............................................................................................ G-5
Crankcase ........................................................................................ C-3
Crankshaft ........................................................................................ B-9
Cylinder ......................................................................................B-4/B-5
Cylinder Head ...................................................................................B-3
Decals(Black)(LEF) .......................................................................... G-3
Decals(Blue)(LDF) .......................................................................... F-11
Decals(Ebony)(LFF) .........................................................................G-4
Decals(Green)(LDF) ....................................................................... F-10
Decals(Green)(LEF) ....................................................................... F-14
Decals(Orange)(LEF) ..................................................................... F-13
Decals(White)(LDF) ........................................................................ F-12
Engine Cover(s) ............................................................................... C-4
Engine Mount ................................................................................... D-4
Fenders ............................................................................................ D-9
Footrests .......................................................................................... D-8
Frame ............................................................................................... D-3
Frame Fittings .................................................................................. D-5
Front Brake .......................................................................................E-4
Front Fork ......................................................................................... E-8
Front Hub ....................................................................................... D-12
Front Master Cylinder ....................................................................... E-3
Fuel Tank ..........................................................................................E-9
Part Name Index
Gear Change Drum ........................................................................ B-13
Gear Change Mechanism ...............................................................B-14
Generator ......................................................................................... C-8
Handlebar ......................................................................................... E-7
Headlight(s) ...................................................................................... F-3
Ignition Switch ...................................................................................F-7
Ignition System .................................................................................C-9
Kickstarter Mechanism ................................................................... B-10
Labels ............................................................................................... F-9
Meter(s) .......................................................................................... E-12
Muffler(s) .......................................................................................... B-8
Oil Pump ...........................................................................................C-7
Oil Tank .......................................................................................... E-10
Owner's Tools ...................................................................................F-8
Piston(s) ........................................................................................... B-9
Radiator ..........................................................................................C-10
Rear Brake ....................................................................................... E-6
Rear Hub ........................................................................................ D-13
Rear Master Cylinder ........................................................................E-5
Seat ................................................................................................ E-11
Shift Fork(s) .................................................................................... B-13
Shock Absorber ................................................................................D-7
Side Covers .................................................................................... E-14
Stand(s) ..........................................................................................D-10
Suspension .......................................................................................D-7
Swingarm ......................................................................................... D-6
Taillight(s) ......................................................................................... F-4
Tires ............................................................................................... D-11
Transmission .................................................................................. B-12
Turn Signals ......................................................................................F-5
