Halaman 1

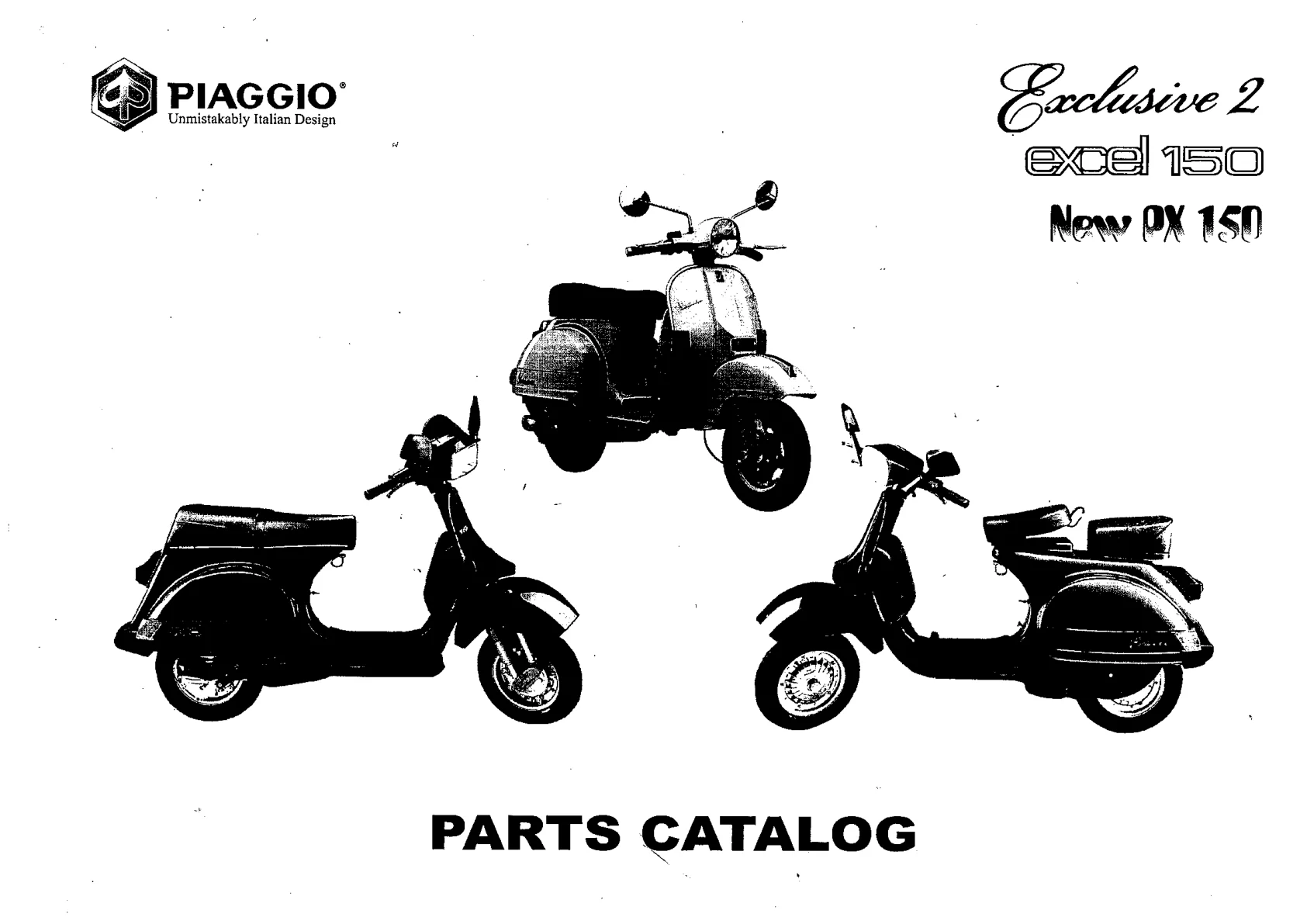

~PIAGG10· • Unmistakably Italian Design ~~2 PARTS ~ATALOG ·~115□ ~mv~-15~ '
Parts Catalog Vespa Excel 150 1995
/ 84
100%
Memuat halaman 1...
Panduan Cepat dari Manual
Diambil langsung dari isi dokumen — jawaban ini mengutip halaman spesifik dari PDF manual ini.
Vespa Excel 150 Parts Catalog berisi panduan penggunaan, keselamatan, perawatan, dan referensi teknis. Manual ini memiliki sekitar 84 halaman yang bisa dipakai sebagai rujukan saat mencari prosedur atau data tertentu.
Pertanyaan Umum
Jawaban seputar perawatan dan perbaikan Vespa Excel 150 1995 berdasarkan buku pedoman ini.
Suku cadang asli Vespa Excel 150 dapat dipesan melalui dealer resmi atau distributor yang menyediakan suku cadang Danmotor asli. Katalog ini menekankan penggunaan suku cadang asli untuk menjamin kualitas dan kemampuan.
Ya, parts catalog ini diterbitkan untuk memfasilitasi pencarian dan pemesanan suku cadang pengganti untuk Vespa Excel 150 dan model terkait. Ketersediaan spesifik dapat dikonfirmasi dengan dealer atau distributor resmi.
Penggunaan suku cadang asli Danmotor menjamin kualitas dan kemampuan yang telah ditetapkan oleh PT Danmotor Indonesia, memastikan performa dan keandalan optimal untuk Vespa Excel 150 Anda.
Vespa Excel 150 menggunakan mesin 150 cc, seperti yang disebutkan dalam parts catalog ini bersama model Exclusive-2 150 cc dan New PX 150 cc.
Parts catalog ini mencakup suku cadang untuk Vespa Excel 150, Exclusive-2 150 cc, dan New PX 150 cc. Ini menunjukkan adanya beberapa kesamaan atau bagian yang dapat digunakan bersama, namun detail spesifik perlu merujuk pada daftar part.
Untuk mengetahui nomor part yang benar, Anda harus mencantumkan nomor parts dan nama parts yang telah ditetapkan dalam parts catalog ini saat melakukan pemesanan suku cadang.
Komponen utama mesin Vespa Excel 150 meliputi crankcase, silinder piston & pin, kopling (clutch), mixer otomatis, grup gigi (gear group), magnet flywheel, karburator, dan sistem pengapian elektronik.
Berdasarkan parts catalog, busi yang direkomendasikan untuk Vespa Excel 150 adalah tipe ND W 14 EX-U.
Ya, parts catalog ini mencantumkan 'STARTING MOTOR' sebagai salah satu komponen dalam grup mesin (E-19), mengindikasikan Vespa Excel 150 dilengkapi dengan sistem starter elektrik.
Tangki bahan bakar (FUEL TANK) terdaftar dalam grup bodi pada bagian B-1, sedangkan tangki oli (OIL TANK) terdaftar pada bagian B-4 dalam parts catalog ini.
Parts catalog ini mencantumkan komponen untuk rem tromol depan (B-20) dan belakang (E-7), serta komponen rem cakram (B-21) dan caliper (B-22), yang mengindikasikan adanya variasi atau opsi pada model-model yang dicakup.
Grup kelistrikan Vespa Excel 150 mencakup wire harness, lampu depan & belakang, baterai (L-5), lampu sein (blinker), dan berbagai sakelar (switches).
Parts catalog ini menyebutkan adanya 'FUEL TANK' (B-1), namun tidak merinci kapasitasnya. Secara umum, Vespa Excel 150 memiliki kapasitas tangki bahan bakar sekitar 8 liter.
Parts catalog mencantumkan 'OIL TANK' (B-4) dan 'AUTOMATIC MIXER' (E-6), namun tidak merinci kapasitas oli sampingnya. Umumnya, tangki oli samping Vespa Excel 150 memiliki kapasitas sekitar 1,5 hingga 2 liter.
Ya, parts catalog secara eksplisit mencantumkan 'AUTOMATIC MIXER' (E-6), yang mengonfirmasi bahwa Vespa Excel 150 dilengkapi dengan sistem pencampuran oli otomatis.
Bagian bodi utama yang tercantum meliputi tangki bahan bakar, tangki oli, jok ganda, jok tunggal, rak barang, karpet karet, rangka bodi, penutup kolom kemudi, kotak perkakas depan, dan spakbor (mudguard).
Parts catalog mencantumkan 'DUAL SADDLE EXCEL' (B-6), 'DUAL SADDLE NEW PX' (B-7), dan 'SINGLE SEAT' (B-8), menunjukkan bahwa Vespa Excel 150 memiliki opsi jok ganda atau tunggal.
Untuk mencari atau memesan suku cadang pengganti, Anda harus menggunakan parts catalog ini dan mencantumkan nomor serta nama parts yang telah ditetapkan. PT Danmotor Indonesia merekomendasikan selalu menggunakan suku cadang asli.
Tidak, PT Danmotor Indonesia tidak menyediakan suku cadang yang sudah dalam bentuk pengecatan; hanya warna dasar saja (primer) yang tersedia, seperti yang dijelaskan dalam parts catalog ini.
Apakah konten ini membantu?
Parts Catalog Vespa Excel 150 1995 — Isi Lengkap 84 Halaman
Halaman 2
PETUNJUK PENGGUNAAN Bl,IKU PARTS CATALOG · Buku catalog ini berisikan daftar part yang telah ditetapkan sebagai spare parts oleh PT Danmotor Indonesia, Jika penggantian spare parts diperlukan, gunakan selalu spare parts Danmotor asli. Pemeriksaan yang teliti menjamin kualitas dan kemampuan spare parts Danmotor asli. Gunakan selalu parts catalog ini dalam memesan atau mencari parts pengganti untuk Vespa type Excel 150, Exclusive-2 150 cc dan New PX 150 cc. 1. Cara Memesan Parts Untuk,setiap pemesanan parts harus mencantumkan nomor parts dan nama parts yang telah ditetapkan dalam parts catalog inL Danmotor tidak menyediakan suku cadang yang sudah dalam bentuk pengecatan hanya warna dasar saja (primer). 2. Penjelasan Format Parts Catalog A B C D E ~ GEAR GROUP ~ 1Alt'l'NO b~lP'TlDN ' aca ,.,_, NfWP.< ' 143154 C0MPt.ETI: DUST RIHG ' ' ' , '"' um◄ 4THGEAF.,JST ' ' ' 1 2 3 ◄ ' • , . ' " • Ull.13 ;!ll0G!All,l8T ' ' ' l[~~j!J ORc.l? ' ' ' ' 145255 Bf.lRlrll:i,fibl-12RS ' ' ' < 118058 OllS!'Al ' ' ' ' 152!05 2tl)G!:AA,12T ' ' ' • 22.HJI ISTGEAA,57r ' ' ' • 111~96 SIO.Jllll;R WM!iER. 1.0 MM , , ' • IU<Kle 5HOUWl:R WASHER, 1,1 ~! , , , • lllOO'l SIIOUlDER WMIIER. l.l MH , , , - ~ ' 9101 Cll!ClJP , , ' ~~~ ---r F 1~ lll2ll SELEcrOR SPmOLE ' ' ' u 235968 Dijl\'l: Sf!AFT, 2Tf , ' ' " 123225 SElKTOll SP!DtR ' ' ' " SSO?l& O)MPI.E'IE DRIVE SIWT ' ' ' '" " u. '" A. Kelompok Parts ,. · Kelompok parts ini mewakili .nama untuk kelompok parts dalam gambar ilustrasi pada halaman yang bersangkutan. Adapun dalam pengelompokan parts untuk kelompok parts Engine menggunakan huruf E, kelompok parts Body menggunakan huruf B dan kelompok parts kelistrikan menggunakan huruf L. _B. Nomor Nomor referensi ini tercantum dalam parts list dan gambar ilustrasi yang merupakan hubungan antara list dan garribar ilustrasi. C. Nomor Part · Nomor yang diberikan pada setiap part yang telah ditetapkan sebagai spare parts oleh PT Danmotor Indonesia baik spare parts engine, bodi dan kelistrikan, D. Deskripsi Merupakan nama part termasuk informasi seperti : type bearing, jumlah watt, jumlah gigi, ketebalan dan lain-lain Singkatan-singkatan : 1ST 2ND 3RD 4TH LH RH V w EXCEL EXCL-2 NEW PX: FIRST SECOND THIRD FOURTH LEFT HAND RIGHT HAND VOLT WATT EXCEL 150 CC (KODE NO MESIN : VLXlM) EXCLUSIVE-2 150 CC (KODE NO MESIN : VLXlM) NEW PX 150 CC (KODE NO MESIN : VLXlM) E. Model Menjelaskan penggunaan part untuk unit dari model yang bersangkutan seperti Excel,- Exclusive-2 maupun New PX. F. Jumlah Menjelaskan berapa banyak part yang dibutuhkan pada suatu bagian dari yang bersangkutan. 3. Perubahan-perubahan Setelah parts catalog ini mengalami modifikasi-modifikasi atau perubahan- perubahan yang cukup banyak, maka pada suatu waktu akan diterbitkan edisi bani'" yang telah disesuaikan dengan perubahan-perubahan yang terjadi. Kami menganjurkan agar Anda selalu memiliki parts catalog edisi yang terbaru agar informasi part yang Anda miliki selalu lengkap dan benar.
ENGINE GROUP
Halaman 3
ENGINE GROUP | E-1 | ENGINE | E-2 | CRANKCASE | E-3 | BEARING | | :-- | :----- | :-- | :-------- | :-- | :------ | | E-4 | CYLINDER PISTON & PIN | E-5 | CLUTCH | E-6 | AUTOMATIC MIXER |
ENGINE GROUP
Halaman 4
ENGINE GROUP | E-7 REAR BRAKE DRUM | E-8 GEAR GROUP | E-9 KICK STARTER | | :------------------ | :------------------ | :---------------- | | | | | | E-10 SPRING GEAR | E-11 FLYWHEEL MAGNETO | E-12 CARBURETTOR | ii
ENGINE GROUP
Halaman 5
# ENGINE GROUP | E-13 | CUP COVER | E-14 | CARBURETTOR COMPONENT | E-15 | GEAR SELECTOR | | :--- | :--------------------- | :--- | :-------------------- | :--- | :-------------------- | | E-16 | GEAR SELCTOR NEW PX | E-17 | OIL PLUG | E-18 | ELECTRONIC IGNITION |
ENGINE GROUP
Halaman 6
ENGINE GROUP t I E-19 J STARTINGMOTOR J E-20 I MUFFLER iv I
BODY GROUP
Halaman 7
# BODY GROUP | Section | Description | | :------ | :------------------ | | B-1 | FUEL TANK | | B-2 | FUEL GAUGE | | B-3 | FUEL GAUGE NEW PX | | B-4 | OIL TANK | | B-5 | OIL TANK NEW PX | | B-6 | DUAL SADDLE EXCEL | V
BODY GROUP
Halaman 8
# BODY GROUP ### B-7 DUAL SADDLE NEW PX ### B-8 SINGLE SEAT ### B-9 LUGGAGE CARRIER ### B-10 RUBBER MAT ### B-11 RUBBER MAT NEW PX ### B-12 BODY vi
BODY GROUP
Halaman 9
BODY GROUP | | | | |---|---|---| | **B-13** STEERING COLUMN COVER | **B-14** FRONT TOOL BOX | **B-15** COWL | | | | PX 150 | | **B-16** CENTRAL STAND | **B-17** FRONT SHOCKABSORBER | **B-18** REAR SHOCKABSORBER | vii
BODY GROUP
Halaman 10
# BODY GROUP | B-19 BRAKE JAW HOLDER | B-20 FRONT BRAKE DRUM | B-21 DISC BRAKE | |---|---|---| | B-22 CALIPER | B-23 STEERING COLUMN | B-24 MUDGUARD |
BODY GROUP
Halaman 11
# BODY GROUP | B-25 HANDLE BAR EXCLUSIVE-2 | B-26 HANDLE BAR EXCEL | B-27 HANDLE BAR NEW PX | | :-------------------------- | :-------------------- | :--------------------- | | B-28 BACK VIEW MIRROR | B-29 GEAR SLEEVE | B-30 THROTTLE TUBE | ix
1=:
Halaman 12
# BODY GROUP | B-31 MASTER CYLINDER | B-32 SPEEDOMETER EXCLUSIVE-2 | B-33 SPEEDOMETER EXCEL | | :------------------- | :--------------------------- | :--------------------- | | B-34 REAR BRAKE PEDAL | B-35 TRANSMISSION CABLE | B-36 WHEEL & TOOL KIT |
1=:
Halaman 13
ELECTRICAL GROUP | L-1 WIRE HARNESS | L-2 HEAD & TAIL LAMP EXCEL | L-3 HEAD & TAIL LAMP EXCLUSIVE-2 | | :---------------- | :------------------------ | :------------------------------ | | L-4 HEAD & TAIL LAMP NEW PX | L-5 BATTERY | L-6 BLINKER | | | | | xi |
1=:
Halaman 14
ELECTRICAL GROUP L-7 I SWITCHES l l f l f '· i
E - ENGINE
Halaman 15
E - 1 ENGINE | NO | PART NO | DESCRIPTION | QUANTITY | | | |----|---------|-----------------|----------|-----|--------| | | | | EXCEL | EXCL-2 | NEW PX | | 1 | 500536 | COMPLETE ENGINE | 1 | | | | 1 | 500793 | COMPLETE ENGINE | | 1 | | | 1 | 500949 | COMPLETE ENGINE | | | 1 | 1
E - 2 CRANKCASE
Halaman 16
E - 2 CRANKCASE | NO | PART NO | DESCRIPTION | QUANTITY | | | |----|---------|---------------------------------|----------|-------|--------| | | | | EXCEL | EXCL-2| NEW PX | | 1 | 20107 | NUT, 7.0 MM | 4 | 4 | 4 | | 2 | 16407 | SPRING WASHER | 4 | 4 | 4 | | 3 | 3057 | PLAIN WASHER | 4 | 4 | 4 | | 4 | 11288 | STUD, 7.0 X 50.0 MM | 4 | 4 | 4 | | 5 | 47945 | SPACER | 1 | 1 | 1 | | 6 | 59588 | BUFFER | 1 | 1 | 1 | | 7 | 47944 | INNER TUBE, 17.5 X 209.0 MM | 1 | 1 | 1 | | 8 | 59590 | WASHER | 1 | 1 | 1 | | 9 | 59589 | BUFFER | 1 | 1 | 1 | | 10 | 48988 | SPACER | 1 | 1 | 1 | | 11 | 223604 | TUBE, 10.0 X 48.0 MM | 1 | 1 | 1 | | 12 | 40316 | BUFFER | 1 | 1 | 1 | | 13 | 246392 | COMPLETE CRANKCASE | 1 | | 1 | | 13 | 500791 | COMPLETE CRANKCASE | | 1 | | 2
E - 2 CRANKCASE
Halaman 17
E - 3 BEARING | NO | PART NO | DESCRIPTION | QUANTITY | |----|---------|---------------------------------|-----------------| | | | | EXCEL | EXCL-2 | NEW PX | | 1 | 3972 | STUD, 8.0 X 32.0 MM | 3 | | 3 | | 2 | 16408 | SPRING WASHER | 3 | | 3 | | 3 | 20108 | NUT, 8.0 MM | 3 | | 3 | | 4 | 158962 | OIL SEAL FLY WHEEL SIDE | 1 | 1 | 1 | | 5 | 133068 | RADIAL BEARING | 1 | 1 | 1 | | | | | | | | | 6 | 242549 | OIL SEAL | 1 | 1 | 1 | | 7 | 6662 | CIRCLIP | 1 | 1 | 1 | | 8 | 097804 | BEARING | 1 | 1 | 1 | | 9 | 133157 | GASKET, 0.3 MM | 1 | 1 | 1 | | 10 | 20107 | NUT, 7.0 MM | 12 | 12 | 12 | | | | | | | | | 11 | 16407 | SPRING WASHER | 8 | 8 | 8 | | 12 | 3057 | PLAIN WASHER | 12 | 12 | 12 | | 13 | 12485 | BOLT, 7.0 X 52.0 MM | 6 | 6 | 6 | | 14 | 8419 | BOLT, 7.0 X 83.0 MM | 1 | 1 | 1 | | 15 | 14565 | BOLT, 7.0 X 97.0 MM | 1 | 1 | 1 | | | | | | | | | 16 | 1447 | SPACER NUT | 1 | 1 | 1 | | 17 | 6977 | SPRING WASHER | 4 | 4 | 4 | | 18 | 150656 | STUD, 7.0 X 141.0 MM | 4 | 4 | 4 | 3
E - 2 CRANKCASE
Halaman 18
! !1; I. 1:!'' E-4 CYLINDER PISTON & PIN !'.j \!:: l'D PART NO DESCRIPTION QUANTITY ::i EXCEL EXCL-2 NEW PX i , I !Ii i/j 1 21112 NUT, 12.0 MM 1 1 1 I'· ! ii'! ' r 1111 3 267 KEY 1 1 1 l,11, ' I' 22 . 4 2415903 CRANKSHAFT 1 1 1 1 iii i 11111 20~, iii 6 829342 FLANGED HEXAGONAL NUT, 12.0 MM 1 1 1 . G»---6 7 6615 CIRCLIP 2 2 2 l &' .-; },, 11 ·1 8 241612 PISTON RING, O/S 2 2 2 2 :I [11 8 241613 PISTON RING, O/S 3 2 2 2 ! c;::-., 9 12 9 13127 PIN 1 1 1 19 9 )11 11 . 10 700058 PISTON PIN ASSY, O/S 2 1 1 1 iii 18 '1 10 700059 PISTON PIN ASSY, O/S 3 1 1 1 1· 11 244169 CYLINDER PISTON PIN ASSY 1 1 1 I 17~ 12 700060 CYLINDER PISTON PIN 1 1 1 ;; i;· I,, ,.;$)' 13 ASSY WITH RING !ii 13 242380 CYLINDER HEAD 1 1 1 I' fi ' 14 500720 COOLING HOOD 1 .1 1 iii i 14 11i : 15 6977 PLAIN WASHER 1 1 1 111 16 15522 BOLT 1 1 1 15 17 500678 SPARK PLUG, ND W 14 EX-U 1 1 1 18 500873 PACKING, 0.2 MM 1 1 1 I 19 500872 PACKING, 0.3 MM 1 1 1 I I 16 ROLLER CAGE I 20 500043 1 1 1 I 21 58652 SHOULDER WASHER, 0.5 MM .2 2 2 22 241591 CON ROD CRANK PIN ASSY 1 1 1 2 12555 STAR WASHER 1 l 1 J 5 97 KEY 1 1 1 8 235234 PISTON RING, STD 2 2 2 8 241611 PISTON RING, O/S 1 2 2 2 I 10 700056 PISTON PIN ASSY, STD 1 1 1 10 700057 PISTON PIN ASSY, O/S 1 1 1 1
E - 2 CRANKCASE
Halaman 19
E - 5 CLUTCH | NO | PART NO | DESCRIPTION | QUANTITY | | | |:---|:--------|:--------------------------|:---------|:-------|:-------| | | | | EXCEL | EXCL-2 | NEW PX | | 1 | 2458325 | CLUTCH ASSY | 1 | 1 | 1 | | 2 | 34877 | CIRCLIP | 1 | 1 | 1 | | 3 | 50721 | DRIVING PLATE | 1 | 1 | 1 | | 4 | 93745 | DRIVEN PLATE | 2 | 2 | 2 | | 5 | 59388 | DRIVING PLATE | 2 | 2 | 2 | | 6 | 2356465 | ENGINE GEAR ASSY, 21T | 1 | 1 | 1 | | 7 | 59109 | WASHER | 1 | 1 | 1 | | 8 | 2/59365 | BUSH | 1 | 1 | 1 | | 9 | 1598535 | CLUTCH BACK PLATE | 1 | 1 | 1 | | 10 | 22821 | SPRING | 7 | 7 | 7 | | 11 | 21868 | CUP | 7 | 7 | 7 | | 12 | 2458295 | CLUTCH BOX | 1 | 1 | 1 | | 13 | 215809 | PRESSURE PLATE | 1 | 1 | 1 | | 14 | 14457 | SPRING CLIP | 1 | 1 | 1 | | 15 | 2/89858 | ACTUATING PAD | 1 | 1 | 1 | | 16 | 83806 | INNER LEVER | 1 | 1 | 1 | | 17 | 17781 | PACKING RING, 2.1 X 123.0 MM | 1 | 1 | 1 | | 18 | 19301 | BREATHER ASSY | 1 | 1 | 1 | | 19 | 3056 | PLAIN WASHER | 3 | 3 | 3 | | 20 | 16406 | SPRING WASHER | 3 | 3 | 3 | | 21 | 30050 | BOLT, 6.0 X 29.0 MM | 3 | 3 | 3 | | 22 | 113995 | CLUTCH COVER | 1 | 1 | 1 | | 23 | 6708 | PACKING, 1.78 X 8.73 MM | 1 | 1 | 1 | | 24 | 46740M | SPRING | 1 | 1 | 1 | | 25 | 97984 | OUTER LEVER | 1 | 1 | 1 | | 26 | 700054 | DRIVING PLATE ASSY | 1 | 1 | 1 | 5
E - 6 AUTOMATIC MIXER
Halaman 20
E - 6 AUTOMATIC MIXER | NO | PART NO | DESCRIPTION | QUANTITY | |----|---------|---------------------------------|---------------| | | | | EXCEL | EXCL-2 | NEW PX | | 1 | 8339 | SCREW,4.0 X 16.5 MM | 3 | 3 | 3 | | 2 | 6964 | SPRING WASHER | 3 | 3 | 3 | | 3 | 238873 | OIL PIPE ASSY | 1 | 1 | 1 | | 4 | 238932 | METERING DEVICE ASSY | 1 | 1 | 1 | | 5 | 134914 | PACKING, 0.3 MM | 1 | 1 | 1 | | 6 | 241461 | PUMPING ELEMENT, 46T | 1 | 1 | 1 | | 7 | 6708 | PACKING, 1.78 X 8.73 MM | 2 | 1 | 1 | | 8 | 400282 | PLAIN WASHER | 1 | 1 | 1 | | 9 | 165260 | SPRING | 1 | 1 | 1 | | 10 | 236402 | GEAR ASSY, 47T | 1 | 1 | 1 | | 11 | 6408 | CIRCLIP, 7.4 MM | 1 | 1 | 1 | | 12 | 133223 | PLAIN WASHER | 2 | 2 | 2 | | 13 | 287038 | GEAR CONTROL MIXER, 33T | 1 | 1 | 1 | | 14 | 287014 | MIXER CONTROL AXLE, 13-10T | 1 | 1 | 1 | 6
E - 6 AUTOMATIC MIXER
Halaman 21
E - 7 REAR BRAKE DRUM | NO | PART NO | DESCRIPTION | QUANTITY | | :-- | :-------- | :---------------------------- | :------------------ | | | | | EXCEL | EXCL-2 | NEW PX | | 1 | 500509 | PTD. RR BRAKE DRUM ASSY | 1 | 1 | 1 | | 2 | 229796 | STUD BOLT, 8.0 X 30.0 MM | 5 | 5 | 5 | | 3 | 16408 | SPRING WASHER | 5 | 5 | 5 | | 4 | 446014 | NUT, 8.0 MM | 5 | 5 | 5 | | 5 | 500978 | BRAKE DRUM PLUG | | | 1 | | 5 | 182546 | BRAKE DRUM PLUG | 1 | 1 | | | 6 | 12789 | SPLIT PIN | 1 | 1 | 1 | | 7 | 194423 | NUT RETAINER CAP | 1 | 1 | 1 | | 8 | 194424 | REAR AXLE NUT, 16.0 MM | 1 | 1 | 1 | | 9 | 500703 | PLAIN WASHER | 1 | 1 | 1 | | 10 | 501007 | BRAKE JAW ASSY | 2 | 2 | 2 | | 11 | 61 | CIRCLIP, 8.5 MM | 1 | 1 | 1 | | 12 | 78168 | AXLE | 1 | 1 | 1 | | 13 | 78522 | SPRING | 1 | 1 | 1 | | 14 | 6714 | PACKING RING, 1.78 X 11.11 MM | 2 | 2 | 2 | | 15 | 12761 | SPLIT PIN | 1 | 1 | 1 | | 16 | 4/100101 | BRAKE LEVER | 1 | 1 | 1 | | 17 | 3208 | SPLIT PIN | 1 | 1 | 1 | | 18 | 15317 | NUT, 9.0 MM | 1 | 1 | 1 | | 19 | 12539 | SPRING WASHER | 1 | 1 | 1 | | 20 | 13940 | PLAIN WASHER | 1 | 1 | 1 | | 21 | 42047 | PLATED PLATE | 1 | 1 | 1 | | 22 | 94779 | PLATED BRAKE LINK | 1 | 1 | 1 | | 23 | 90306 | ANCHOR PIN | 1 | 1 | 1 | | 24 | 15510 | BOLT, 9.0 X 18.5 MM | 1 | 1 | 1 | | 25 | 121668 | SCREW, 3.5 X 12.1 MM | 3 | 3 | 3 | | 26 | 78482 | PAINTED DUST COVER | 1 | 1 | 1 | | 27 | 78163 | PACKING RING, 2.0 X 57.5 MM | 1 | 1 | 1 | | 28 | 139433 | PACKING RING, 3.0 X 19.0 MM | 3 | 3 | 3 | | 29 | 78521 | RETURN SPRING | 1 | 1 | 1 | 7
E - 8 GEAR GROUP
Halaman 22
E - 8 GEAR GROUP | NO | PART NO | DESCRIPTION | QUANTITY | | | |----|---------|----------------------------|----------------------|------|---------| | | | | EXCEL | EXCL-2 | NEW PK | | 1 | 243154 | COMPLETE DUST RING | 1 | 1 | 1 | | 2 | 6647 | CIRCLIP, 50.5 MM | 1 | 1 | 1 | | 3 | 245255 | BEARING, 6204 2RS | 1 | 1 | 1 | | 4 | 118058 | OIL SEAL | 1 | 1 | 1 | | 5 | 223234 | 4TH GEAR, 35T | 1 | 1 | 1 | | 6 | 223233 | 3RD GEAR, 38T | 1 | 1 | 1 | | 7 | 152805 | 2ND GEAR, 42T | 1 | 1 | 1 | | 8 | 223231 | 1ST GEAR, 57T | 1 | 1 | 1 | | 9 | 111996 | SHOULDER WASHER, 1.0 MM | 2 | 2 | 2 | | 9 | 112008 | SHOULDER WASHER, 1.1 MM | 2 | 2 | 2 | | 9 | 112009 | SHOULDER WASHER, 1.2 MM | 2 | 2 | 2 | | 10 | 9101 | CIRCLIP, 44.0 MM | 2 | 2 | 2 | | 11 | 223232 | SELECTOR SPINDLE | 1 | 1 | 1 | | 12 | 235908 | DRIVE SHAFT, 27T | 1 | 1 | 1 | | 13 | 223225 | SELECTOR SPIDER | 1 | 1 | 1 | | 14 | 550716 | COMPLETE DRIVE SHAFT | 1 | 1 | 1 | 8
E - 9 KICK STARTER
Halaman 23
E - 9 KICK STARTER | NO | PART NO | DESCRIPTION | QUANTITY | | | |----|---------|-------------|----------|---------|----------| | | | | EXCEL | EXCL-2 | NEW PX | | 1 | 106956 | ROLLER CAGE, SCE 188 | 1 | 1 | 1 | | 2 | 82385M | PLATED PLATE ASSY | 1 | 1 | 1 | | 3 | 241867 | PAINTED KICK STARTER LEVER ASSY | 1 | 1 | | | 3 | 501002 | KICK STARTER LEVER ASSY | | | 1 | | 4 | 500950 | KICK STARTER LEVER | | | 1 | | 4 | 241863 | PAINTED KICK STARTER LEVER | 1 | 1 | | | 5 | 241004 | KICK STARTER SHEATH | 1 | 1 | 1 | | 6 | 47218 | RETAINER SPRING | 1 | 1 | 1 | | 7 | 14857 | STARTER SECTOR ASSY, 10T | 1 | 1 | 1 | | 8 | 6721 | PACKING, 2.62 X 21.12 MM | 1 | 1 | 1 | | 9 | 15861 | BOLT, 8.0 X 15.5 MM | 1 | 1 | 1 | | 10 | 20008 | NUT, 8.0 MM | 1 | 1 | 1 | | 11 | 16408 | SPRING WASHER | 1 | 1 | 1 | | 12 | 3038 | PLAIN WASHER | 1 | 1 | 1 | | 13 | 146129 | CONVEYOR RIB | 1 | 1 | 1 | | 14 | 178338 | BUFFER | 2 | 2 | 2 | 9
E -
Halaman 24
E - SPRING GEAR 1 2 3 4 6 7 14 15 16 5 30209 BEARING, 6302 1 1 1 16 174514 CUP FOR LAY SHAFT 1 1 1 8 9 10 11 12 13 · 1. 'i L_ ___________________ .1..._.1..._ __ _.L_ _________ --..1..._....J_ _ _L___J r I ' ' I.· QUANTITY NO PART NO DESCRIPTION EXCEL EXCL-2 NEW PX 1 15231 NUT, 9.0 MM 1 1 1 2 16612 PLAIN WASHER 1 1 1 3 16305 STOP WASHER 1 1 1 4 6642 CIRCLIP, 45. 5 MM 1 1 1 6 174515 LAYSHAFT 1 1 1 7 2457 ROLLER 21 21 21 8 077371 INNER RING 1 1 1 9 550174 GEAR CLUSTER WITH CROWN GEAR 1 1 1 10 78853 SPRING 6 6 6 11 077370 OUTER RING 1 1 1 12 5765 RIVET 6 6 6 13 174735 SPRING GEAR ASSY 1 1 1 14 113526 STARTER GEAR, 12T 1 1 1 15 139100 SPRING 1 1 1
IE - I FLYWHEEL MAGNETO
Halaman 25
IE - I FLYWHEEL MAGNETO 1 256136 COMPLETE STATOR 1 1 1 14 15 16 18 22 2 218721 LT. COIL 2 2 2 3 231095 LT. COIL '· 2 2 2 4 166980 COIL SUPPORT ASSY 1 1 1 5 231089 IGNITION COIL 1 1 1 l!f §'" 6 165805 SPACER 1 1 1 I 7 166969 BRACKET 1 1 1 8 193161 PLATE 2 2 2 9 3053 WASHER 1 1 1 -~--'\-~ 10 166982 RIVET 1 1 1 ~;~®j 11 15737 SCREW, 5.0 X 15.8 MM 1 1 1 12 196549 PICK UP 1 1 1 13 2/88010 STRAP 1 1 1 1 17 19 21 20 21 14 3055 PLAIN WASHER 3 3 3 24 · 15 6965 SPRING WASHER 3 3 3 2 3 16 15585 SCREW, 5.0 X 16.0 MM 3 3 3 21 15946 SCREW, 6.0 X 16.5 MM 4 4 4 12 ~, 5 22 500951 FAN COVER 1 !Ii 2 17 501012 ROTOR WITH FAN 1 1 1 18 166366 ROTOR COVER 1 1 1 4 19 16406 SPRING WASHER 1 1 1 20 78307 SPRING WASHER 1 1 1 13 {lJJ 3 1 11 CJ 6 22 179506 PAINTED FAN COVER 1 1 q 7 23 6976, SPRING WASHER 1 1 24 500735 COMPLETE GENERATOR 1 1 1 11:3 8 , 10 '-----1 9 I'() PART NO OESCRIPTION QUANTITY EXCEL EXCL-2 NEW PX
E - 12 CARBURETTOR
Halaman 26
E - 12 CARBURETTOR | NO | PART NO | DESCRIPTION | QUANTITY | |----|---------|---------------------------------|---------------| | | | | EXCEL | EXCL-2 | NEW PX | | 1 | 235747 | SCREW, 5.0 X 50.0 MM | 2 | 2 | 2 | | 2 | 239030 | PAINTED AIR CLEANER COVER | 1 | 1 | 1 | | 3 | 58853 | PACKING | 1 | 1 | 1 | | 4 | 30251 | SCREW, 5.0 X 30.0 MM | 1 | 1 | 1 | | 5 | 16405 | SPRING WASHER | 1 | 1 | 1 | | 6 | 113125 | COMPLETE AIR FILTER | 1 | 1 | 1 | | 7 | 181476 | BELLOW | 1 | 1 | 1 | | 8 | 2613 | NUT ADJUSTER SCREW | 1 | 1 | 1 | | 9 | 2612 | ADJUSTER SCREW | 1 | 1 | 1 | | 10 | 133578 | BUSH | 1 | 1 | 1 | | 11 | 113076 | PLUG | 1 | 1 | 1 | | 12 | 14246 | BALL | 1 | 1 | 1 | | 13 | 113291 | SPRING | 1 | 1 | 1 | | 14 | 133238 | DOWEL | 1 | 1 | 1 | | 15 | 239168 | AIR CLEANER BOX ASSY | 1 | 1 | 1 | | 16 | 113060 | GROMMET | 1 | 1 | 1 | | 17 | 500871 | PACKING | 1 | 1 | 1 | | 18 | 146086 | SCREW, 5.0 X 8.0 MM | 1 | 1 | 1 | | 19 | 146087 | LOCK PLATE | 1 | 1 | 1 | | 20 | 113059 | GROMMET | 1 | 1 | 1 | | 21 | 239017 | GROMMET | 1 | 1 | 1 | | 22 | 2/85123 | SCREW, 6.0 X 12.0 MM | 1 | 1 | 1 | | 23 | 239367 | PACKING | 1 | 1 | 1 | | 24 | 13762 | PLAIN WASHER | 2 | 2 | 2 | | 25 | 16409 | SPRING WASHER | 2 | 2 | 2 | | 26 | 239265 | SCREW, 7.0 X 49.0 MM | 2 | 2 | 2 | | 27 | 247873 | CARBURETTOR ASSY | 1 | 1 | 1 | | 28 | 14743 | AIR CLEANER HOUSING SCREW | 1 | 1 | 1 | | 29 | 500465 | GROMMET | 1 | 1 | 1 | | 30 | 87975 | PLUG | 1 | 1 | 1 | 12
E - 12 CARBURETTOR
Halaman 27
E - 13 CUP COVER | NO | PART NO | DESCRIPTION | QUANTITY | | | |----|---------|----------------|----------|--------|---------| | | | | EXCEL | EXCL-2 | NEW PX | | 1 | 92395 | BOLT | 1 | 1 | 1 | | 2 | 97645 | BOLT | 1 | 1 | 1 | | 3 | 92410 | SPRING WASHER | 2 | 2 | 2 | | 4 | 85296 | PACKING | 1 | 1 | 1 | | 5 | 85295 | FUEL PIPE | 1 | 1 | 1 | | | | | | | | | 6 | 85288 | PACKING | 1 | 1 | 1 | | 7 | 85294 | BOLT | 1 | 1 | 1 | | 8 | 85291 | FLOAT PIN | 1 | 1 | 1 | | 9 | 150131 | PACKING, 0.8 MM| 1 | 1 | 1 | | 10 | 247652 | FLOAT NEEDLE | 3D1306 | 1 | 1 | | | | | | | | | 11 | 85293 | FLOAT | 1 | 1 | 1 | | 12 | 242276 | CUP COVER | 1 | 1 | 1 | | 13 | 82931 | PETROL FILTER | 1 | 1 | 1 | | 14 | 242278 | PACKING | 1 | 1 | 1 | | 15 | 82933 | CAP | 1 | 1 | 1 | | | | | | | | | 16 | 242277 | PACKING | 1 | 1 | 1 | | 17 | 82934 | SCREW | 1 | 1 | 1 | | 18 | 242275 | CUP COVER ASSY | 1 | 1 | 1 | 13
E - 12 CARBURETTOR
Halaman 28
E - 14 CARBURETTOR COMPONENT | NO | PART NO | DESCRIPTION | QUANTITY | |----|---------|----------------------------|----------------| | | | | EXCEL | EXCL-2 | NEW PK | | 1 | 239089 | AIR ADJUSTER SCREW | 1 | 1 | 1 | | 2 | 85285 | SPRING | 1 | 1 | 1 | | 3 | 85467 | PACKING | 1 | 1 | 1 | | 4 | 195001 | THROTTLE SLIDE | 1 | 1 | 1 | | 5 | 85304 | SPRING | 1 | 1 | 1 | | 6 | 85286 | PACKING | 1 | 1 | 1 | | 7 | 113010 | THROTTLE LINK | 1 | 1 | 1 | | 8 | 85418 | SCREW | 2 | 2 | 2 | | 9 | 150044 | COVER | 1 | 1 | 1 | | 10 | 2604 | SCREW | 1 | 1 | 1 | | 11 | 152133 | STARTER DEVICE | 1 | 1 | 1 | | 12 | 92712 | STARTER JET, 60 | 1 | 1 | 1 | | 13 | 26018 | SPRING | 1 | 1 | 1 | | 14 | 85299 | ADJUSTER SCREW | 1 | 1 | 1 | | 15 | 89145 | MAIN JET, 100 | 1 | 1 | 1 | | 16 | 194517 | MIXER | 1 | 1 | 1 | | 17 | 241558 | SLOW RUNNING JET, 42-140 | 1 | 1 | 1 | | 18 | 182731 | AIR GAUGE OF MIXER, 150 | 1 | 1 | 1 | 14
E - 12 CARBURETTOR
Halaman 29
E - GEAR SELECTOR EXCEL EXCL-2 NEW PX ' 1 138865 PLATED SELECTOR COVER ASSY 1 1 2 46612 PIN 1 1 - 3 2/46613 SLIDING BLOCK 1 1 ~--~ 1 4 92176 LEVER 1 1 -:7m 5 13010 PIN 1 1 2 'i1~3 6 1998046 COMP. SELECTOR WITH LEVER & PIN 1 1 7 59407 PIN 1 1 ~ ;,6 8 285452 COMPLETE ROLLER SUPPORT. 1 1 9 59410 SPRING 1 1 16 20105 NUT ADJUSTER, 5.0 MM 11 2 2 7 12 199803 GEAR CONTROL BRACKET W/ N. SWITCH 1 1 ~ ~. "/,==5 8 12 13 188776 BUSH 1 1 15 ~ 9 14 188778 SPRING 1 1 15 189130 COMPLETE NEUTRAL SWITCH 1 1 e: . ,_,. ~ 10 14 ~ 16 167609 PIN 1 1 ~® 11 • 13 q$ ' Ml PART NO DESCRIPTION QUANTITY 10 500484 ADJUSTER SCREW, 5.0 X 31.0 MM 2 2 .
E - 12 CARBURETTOR
Halaman 30
E - GEAR SELECTOR NEW PX 1 1 500952 SELECTOR COVER ASSY (CHROME) 1 2 46612 PIN 1 3 2/46613 SLIDING BLOCK 1 2 4 92176 LEVER 1 5 13010 PIN 1 3 6 1998046 COMP. SELECTOR WITH LEVER 1 ',! 7 59407 PIN 1 6 8 285452 COMPLETE ROLLER SUPPORT 1 9 59410 SPRING 1 10 500484 ADJUSTER SCREW, 5.0 X 31.0 MM 2 4 11 20105 NUT ADJUSTER, 5.0 MM 2 12 501005 GEAR CONTROL BRACKET 1 5 7 ·s 12 9 /' 10 @ 11 i' I I'll PART NO DESCRIPTION QUANTITY EXCEL EXCL-2 NEW PX
E - 12 CARBURETTOR
Halaman 31
E - 17 OIL PLUG | NO | PART NO | DESCRIPTION | QUANTITY | |----|---------|-----------------------|--------------------| | | | | EXCEL | EXCL-2 | NEW PX | | 1 | 397 | PACKING RING | 2 | 2 | 2 | | 2 | 138345 | PLUG | 1 | 1 | 1 | | 3 | 30280 | PLUG | 1 | 1 | 1 | | 4 | 3057 | PLAIN WASHER | 2 | 2 | 2 | | 5 | 16407 | SPRING WASHER | 2 | 2 | 2 | | 6 | 20107 | NUT, 7.0 MM | 2 | 2 | 2 | | 7 | 47162 | PACKING, 0.15 MM | 1 | 1 | 1 | | 8 | 11288 | STUD, 7.0 X 50.0 MM | 2 | 2 | 2 | 17
E - 18 ELECTRONIC IGNITION
Halaman 32
E - 18 ELECTRONIC IGNITION | NO | PART NO | DESCRIPTION | QUANTITY | |----|---------|-----------------------|----------| | | | | EXCEL | EXCL-2 | NEW PX | | 1 | 15881 | SCREW, 5.0 X 40.0 MM | 1 | 1 | 1 | | 2 | 500496 | LT. SOCKET | 1 | 1 | 1 | | 3 | 161125 | INSULATING CAP | 2 | 2 | 2 | | 4 | 500553 | CDI UNIT ASSY | 1 | 1 | 1 | | 5 | 141589 | BUSH, 8.0 X 7.0 MM | 1 | 1 | 1 | | | | | | | | | 6 | 30251 | SCREW, 5.0 X 30.0 MM | 1 | 1 | 1 | | 7 | 60201 | PLAIN WASHER | 2 | 2 | 2 | | 8 | 500645 | HT. COIL ASSY | 1 | 1 | 1 | | 9 | 89198 | SCREW | 2 | 2 | 2 | | 10 | 500514 | SUPPORT | 1 | 1 | 1 | | | | | | | | | 11 | 6018 | PLAIN WASHER | 3 | 3 | 3 | | 12 | 16405 | SPRING WASHER | 3 | 3 | 3 | | 13 | 20105 | NUT, 5.0 MM | 3 | 3 | 3 | 18
E - 18 ELECTRONIC IGNITION
Halaman 33
-~ i. . I E - STARTING MOTOR ~ ,\ EXCEL EXCL-2 NEW PX 1 1 249235 STARTER MOTOR 1 1 / ' 2 248461 TRANSMISSION ASSY 1 1 f 6 3 248293 PINION SET, 11T 1 1 4 225811 SET FOR REPAIR 1 1 7-· 5 179510 ROLLER BEARING ·1 1 2 6 31091 SCREW, 6.0 X 22.0 MM 2 2 3 i 5 7 16406 SPRING WASHER 2 2 8 225572 BOLT 3 3 ~ V '1 / ' . ,~. (jr[ J!J](I I ,t»(l$0 < t - . r-B .11 179521 CONICAL GEAR,15T 1 1 _ .. - 9 12 225127 MOTOR 1 1 22 10 13 179516 BRACKET 1 1 1~ }" 14 16406 SPRING WASHER 1 1 11 15 31086 BOLT, 6.0 X 12.0 MM 1 1 21 ~ 20 l~ r--9 16 225797 COVER 1 1 17 225812 PACKING 1 1 19 ~· ~ 18 ?25564 CARBON BRUSH 1 1 ~13 18 @ 14 17 0 22 225813 PIN 1 1 15 ~ 19 NO PART NO DESCRIPTION QUANTITY 9 319043 STAR WASHER 3 3 10 225171 SPACER, 0.2 MM 1 1 19 217421 CAP 1 1 20 20105 NUT, 5.0 MM 1 1 21 16405 SPRING WASHER 1 1 '·
E - 20 MUFFLER
Halaman 34
E - 20 MUFFLER | NO | PART NO | DESCRIPTION | QUANTITY | | | |----|-----------|-----------------------|------------------|-------|--------| | | | | EXCEL | EXCL-2| NEW PX | | 1 | 500944 | CLAMP ASSY | 1 | 1 | 1 | | 2 | 2/162032 | PAINTED MUFFLER ASSY | 1 | 1 | 1 | | 3 | 16410 | SPRING WASHER | 1 | 1 | 1 | | 4 | 14691 | BOLT, 10.0 X 87.0 MM | 1 | 1 | 1 | 20
B - 1 FUEL TANK
Halaman 35
# B - 1 FUEL TANK | NO | PART NO | DESCRIPTION | QUANTITY | | |----|---------|---------------------|-------------------|-------| | | | | EXCEL | EXCL-2 | NEW PX | | 1 | 102585 | OIL TUBE CAP | 1 | 1 | 1 | | 2 | 500447 | RUBBER BUFFER | 1 | 1 | 1 | | 3 | 500613 | FUEL TANK CAP ASSY | 1 | 1 | 1 | | 4 | 500144 | PRIMED FUEL TANK ASSY | 1 | | | | 4 | 700046 | PRIMED FUEL TANK ASSY | | 1 | 1 | | 5 | 31118 | BOLT, 8.0 X 20.0 MM | 2 | | | | 5 | 500761 | BOLT, 8.0 X 25.0 MM | | 2 | 2 | | 6 | 16408 | SPRING WASHER | 2 | 2 | 2 | | 7 | 3058 | PLATED PLAIN WASHER | 2 | 2 | 2 | | 8 | 230365 | PLATE | | 1 | 1 | | 9 | 500736 | PVC PACKING | | 1 | 1 | | 10 | 550316 | OIL STICKER | 1 | 1 | 1 | | 11 | 159804 | PACKING | 1 | 1 | 1 | | 12 | 138935 | NUT, 24.0 MM | 1 | 1 | 1 | | 13 | 139933 | PACKING | 1 | 1 | 1 | | 14 | 15467 | SPRING CLIP | 1 | 1 | 1 | | 15 | 83139 | SLEEVE | 1 | 1 | 1 | | 16 | 500870 | FUEL COCK ROD | 1 | 1 | 1 | | 17 | 194631 | PACKING | 1 | 1 | 1 | | 18 | 158793 | FUEL COCK | 1 | 1 | 2 | | 19 | 10011 | SCREW | 2 | 2 | | | 20 | 158893 | SPRING | 1 | 1 | 1 | | 21 | 46168 | COVER | 1 | 1 | 1 | | 22 | 13836M | PACKING | 1 | 1 | 1 | | 23 | 175330 | STRAP | 1 | 1 | 1 | | 24 | 138934 | FILTER | 1 | 1 | 1 | | 25 | 97248 | SPRING CLIP | 1 | 1 | 1 | | 26 | 2/87116 | FUEL HOSE | 1 | 1 | 1 | | 27 | 84262 | GROMMET | 1 | 1 | 1 | 21
B - 2 FUEL GAUGE
Halaman 36
B - 2 FUEL GAUGE | NO | PART NO | DESCRIPTION | QUANTITY | |----|-----------|------------------------|-------------------| | | | | EXCEL | EXCL-2 | NEW PX | | 1 | 500814 | SCREW, 5.0 X 12.0 MM | 4 | 4 | | | 2 | 16405 | SPRING WASHER | 4 | 4 | | | 3 | 3055 | PLAIN WASHER | 4 | 4 | | | 4 | 2/218585 | COMPLETE FUEL GAUGE | 1 | 1 | | | 5 | 2070014 | PACKING | 1 | 1 | | 22
B - 3 FUEL GAUGE NEW PX
Halaman 37
# B - 3 FUEL GAUGE NEW PX | NO | PART NO | DESCRIPTION | EXCEL | EXCL-2 | NEW PX | |----|---------|--------------------|-------|--------|--------| | 1 | 219002 | COVER | | | 1 | | 2 | 228086 | CABLE HARN | | | 1 | | 3 | 218152 | GROMMET | | | 1 | | 4 | 228354 | PACKING | | | 1 | | 5 | 228090 | FUEL LEVEL GAUGE | | | 1 | 23
B - 4 OIL TANK
Halaman 38
## B - 4 OIL TANK | NO | PART NO | DESCRIPTION | QUANTITY | | | |----|---------|---------------------------------|----------|-------|--------| | | | | EXCEL | EXCL-2| NEW PX | | 1 | 500046 | OIL TANK | 1 | 1 | | | 2 | 15478 | GROMMET | 1 | 1 | | | 3 | 104296 | SPRING CLIP | 2 | 2 | | | 4 | 104294 | OIL HOSE, 10.0 X 450.0 MM | 1 | 1 | | | 5 | 156490 | RING NUT | 1 | 1 | | | 6 | 156491 | PACKING, 7.0 X 38.0 MM | 1 | 1 | | | 7 | 500444 | OIL GAUGE | 1 | 1 | | | 8 | 21210 | NUT, 10.0 MM | 1 | 1 | | | 9 | 156039 | PACKING, 1.0 X 35.0 MM | 2 | 2 | | | 10 | 245451 | PLAIN WASHER, 2.0 X 35.0 MM | 1 | 1 | | | 11 | 156038 | UNION PIPE ASSY | 1 | 1 | |
B - 5 OIL TANK NEW PX
Halaman 39
B - 5 OIL TANK NEW PX | NO | PART NO | DESCRIPTION | QUANTITY | |----|---------|----------------------------|----------------| | | | | EXCEL | EXCL-2 | NEW PX | | 1 | 297175 | TANK | | | 1 | | 2 | 102586 | PACKING | | | 1 | | 3 | 155526 | TELL TALE LAMP | | | 1 | | 4 | 102587 | PACKING | | | 1 | | 5 | 15478 | GROMMET | | | 1 | | 6 | 104296 | SPRING CLIP | | | 2 | | 7 | 104294 | OIL HOSE, 10.0 X 450.0 MM | | | 1 | | 8 | 156490 | RING NUT | | | 1 | | 9 | 156491 | PACKING, 7.0 X 38.0 MM | | | 1 | | 10 | 21210 | NUT, 10.0 MM | | | 1 | | 11 | 156039 | PACKING, 1.0 X 35.0 MM | | | 1 | | 12 | 245451 | PLAIN WASHER, 2.0 X 35.0 MM| | | 1 | | 13 | 156038 | UNION PIPE ASSY | | | 1 | 25
B - 5 OIL TANK NEW PX
Halaman 40
B-6 DUAL SADDLE EXCEL >-------20 .J;_ 19 ~@1-18 22 ----- 17 ----- 16 "''------ 15 10 11 12 13 14 QUANTITY NO PARTNO DESCRIPTION EXCEL EXCL-2 NEW PX 1 31118 2 16408 3 3058 4 500887 5 20105 BOLT, 8.0 X 20.0 MM SPRING WASHER PLAIN WASHER PAINTED HOOK HELMET NUT, 5.0 MM 3 3 3 1 2 2 1 1 2 4 6 16405 7 57371 8 2/87083 9 14415 10 500563 SPRING WASHER PLATED PLATE HOOK FOR BAG ASSY SCREW, 5.0 X 16.0 MM BUFFER 11 31117 12 16408 13 3058 14 226890 15 31087 BOLT, 8.0 X 14.0 MM SPRING WASHER PLATED PLAIN WASHER PLATED LOCK BRACKET BOLT, 6.0 X 14.0 MM 2 2 2 1 2 t SPRING WASHER PLAIN WASHER LOCK HOUSING ASSY LOCK BRACKET BOX ASSY COVER SEAT 2 2 1 1 1 16 16406 17 3056 18 500286 19 227412 20 500841 21 228205 22 500799 PAINTED HINGE ASSY DUAL SADDLE ASSY 1 1
B -
Halaman 41
B - DUAL SADDLE NEW PX 19 ~-17 g--~ n1 10 11 12 13 14 ~ ~--16 A ~--15 QUANTITY 00 PARTNO DESCRIPTION EXCEL EXCL-2 NEW PX 1 31118 2 16408 3 3058 4 500887 5 20105 BOLT, 8.0 X 20.0 MM SPRING WASHER PLAIN WASHER HOOK HELMET NUT, 5.0 MM 3 3 3 1 2 6 16405 7 57371 8 2/87083 9 14415 10 500563 SPRING WASHER PLATE HOOK FOR BAG ASSY SCREW, 5.0 X 16.0 MM BUFFER 2 1 1 2 4 11 240165 12 16408 13 3058 14 240166 15 31027 LOCK PIN SPRING WASHER PLATED PLAIN WASHER STOP WASHER BOLT, 4.0 X 12.0 MM 1 6 6 1 3 16 16404 17 178898 18 178887 19 500990 20 501009 SPRING WASHER PLATE LOCK HOUSING ASSY DUAL SADDLE ASSY PAINTED HINGE ASSY 3 1 1 1 1
J,-:
Halaman 42
B - 8 SINGLE SEAT | NO | PART NO | DESCRIPTION | QUANTITY | |----|-------------|---------------------------------|---------------| | | | | EXCEL | EXCL-2 | NEW PX | | 1 | 500900 | FRONT SEAT | 1 | | | | 2 | 48201 | BOLT, (10.0 X 150.0 MM) | 1 | | | | 3 | 48973 | MAIN SPRING | 1 | | | | 4 | 25854 | RETAINER CAP | 1 | | | | 5 | 20210 | NUT, 10.0 MM | 1 | | | | 6 | 2/217886 | RIVET, NST 5.6 | 3 | | | | 7 | 2/88029 | LOCK HOUSING | 1 | | | | 8 | 500153 | PRIMED SADDLE SUPPORT ASSY | 1 | | | | 9 | 2/217428 | BUFFER | 2 | | | | 10 | 31090 | BOLT, 6.0 X 20.0 MM | 2 | | | | 11 | 16406 | SPRING WASHER | 2 | | | | 12 | 500154 | PRIMED HINGE ASSY | 1 | | | | 13 | 31090 | BOLT, 6.0 X 20.0 MM | 2 | | | | 14 | 16406 | SPRING WASHER | 2 | | | | 15 | 16408 | SPRING WASHER | 1 | | | | 16 | 3058 | PLATED PLAIN WASHER | 1 | | | | 17 | 500761 | BOLT, 8.0 X 25.0 MM | 1 | | | | 18 | 16408 | SPRING WASHER | 2 | | | | 19 | 31117 | BOLT, 8.0 X 18.0 MM | 2 | | | 28
LUGGAGE CARRIER
Halaman 43
B - 9 LUGGAGE CARRIER | NO | PART NO | DESCRIPTION | QUANTITY | |----|---------|-----------------------|--------------------| | | | | EXCEL | EXCL-2 | NEW PX | | 1 | 500919 | PILLION SEAT ASSY | 1 | | | | 2 | 500761 | BOLT, 8.0 X 25.0 MM | 3 | | | | 3 | 16408 | SPRING WASHER | 3 | | | | 4 | 500155 | PRIMED LUGGAGE CARRIER| 1 | | | 29
LUGGAGE CARRIER
Halaman 44
B - 10 RUBBER MAT | NO | PART NO | DESCRIPTION | EXCEL | EXCL-2 | NEW PX | |----|---------|---------------------------------|-------|--------|--------| | 1 | 15911 | SCREW, 4.2 X 16 MM | 4 | 4 | | | 2 | 226111 | LH FLOOR MAT | 1 | 1 | | | 3 | 226093 | CENTER MAT | 1 | 1 | | | 4 | 8432 | SCREW, 3.5 X 9.5 MM | 2 | 2 | | | 5 | 3054 | PLAIN WASHER | 2 | 2 | | | 6 | 8080 | PLATE | 4 | 4 | | | 7 | 226102 | SPOILER | 1 | 1 | | | 8 | 13763 | PLAIN WASHER | 4 | 4 | | | 9 | 8455 | SCREW, 4.2 X 13.0 MM | 4 | 4 | | | 10 | 2/86201 | CLAMP | 2 | 2 | | | 11 | 226110 | RH FLOOR MAT | 1 | 1 | | | 12 | 2/86198 | SCREW | | | 4 | | 13 | 3055 | PLAIN WASHER | | | 4 | | 14 | 500997 | PAINTED RR LICENCE PLATE HOLDER | | | 1 |
LUGGAGE CARRIER
Halaman 45
## B - 11 RUBBER MAT NEW PX | NO | PART NO | DESCRIPTION | EXCEL | EXCL-2 | NEW PX | |----|---------|-----------------------|-------|--------|--------| | 1 | 008455 | SCREW, 4.2 X 13.0 MM | | | 4 | | 2 | 182144 | RIVET | | | 8 | | 3 | 182174 | NIPPLE | | | 12 | | 4 | 182302 | RIVET | | | 4 | | 5 | 154778 | STRIP | | | 6 | | 6 | 258826 | RIVET | | | 26 | | 7 | 179776 | PACKING | | | 1 | | 8 | 179778 | PACKING | | | 1 | | 9 | 179780 | PACKING | | | 1 | | 10 | 226093 | CENTER MAT | | | 1 | | 11 | 179775 | PACKING | | | 1 | | 12 | 179777 | PACKING | | | 1 | | 13 | 179779 | PACKING | | | 1 | 31
LUGGAGE CARRIER
Halaman 46
B - 12 BODY | NO | PART NO | DESCRIPTION | QUANTITY (EXCEL) | QUANTITY (EXCL-2) | QUANTITY (NEW PX) | |----|------------|----------------------|------------------|-------------------|-------------------| | 1 | 574682 | WINDSHIELD BEADING | | | 1 | | 1 | 226097 | WINDSHIELD BEADING | 1 | 1 | | | 2 | 500433 | VESPA NAME PLATE | 1 | 1 | | | 2 | 500964 | VESPA NAME PLATE | | | 1 | | 3 | 500347 | PRIMED BODY ASSY | 1 | | | | 3 | 500543 | PRIMED BODY ASSY | | 1 | | | 3 | 500954 | PRIMED BODY ASSY | | | 1 | | 4 | 242092 | CHASIS COVER | 1 | 1 | 1 | | 5 | 233005 | REAR PROTECTION | 1 | | | | 5 | 500308 | REAR PROTECTION | | 1 | | | 5 | 5769690090 | REAR PROTECTION | | | 1 | | 6 | 181475 | SPRING PLATE | 2 | 2 | 1 | | 7 | 156946 | GROMMET | 1 | 1 | 1 | | 8 | 70286 | GROMMET | 1 | 1 | 1 | | 9 | 84788 | BUSH | 2 | 2 | 2 | | 10 | 56654 | BUFFER | 2 | 2 | 2 | | 11 | 008108 | PLATE | | | 2 | | 12 | 271710 | WASHER | | | 2 |
rv-8
Halaman 47
B - 13 STEERING COLUMN COVER | NO | PART NO | DESCRIPTION | QUANTITY | |----|---------|------------------------------|--------------| | | | | EXCEL | EXCL-2 | NEW PX | | 1 | 199190 | PLUG | 1 | | 1 | | 2 | R576968 | STEERING COLUMN COVER | | 2 | | | 2 | 232893 | STEERING COLUMN COVER | 1 | | 1 | | 2 | 500811 | STEERING COLUMN COVER | | 1 | | | 3 | 15729 | SCREW, 3.5 X 22.0 MM | 1 | | 1 | | | | | | | | | 3 | 8372 | SCREW, 3.5 X 16.0 MM | 2 | | | | 3 | 8432 | SCREW, 3.5 X 9.5 MM | | 2 | 2 | | 4 | 180587 | SPRING PLATE | | 1 | | | 5 | 232895 | PIAGGIO NAME PLATE | 1 | | 1 | | 5 | 181329 | PIAGGIO NAME PLATE | | | | | | | | | | | | 6 | 15891 | SCREW, 2.9 X 9.5 MM | | 1 | | | 7 | 576464 | PIAGGIO EMBLEM | | | 1 | | 7 | 500880 | PIAGGIO EMBLEM | 1 | | | | 7 | 500878 | PIAGGIO EMBLEM | | 1 | | | 8 | 500961 | NUMBER PLATE HOLDER ASSY | | | 1 | | | | | | | | | 8 | 87099 | NUMBER PLATE HOLDER ASSY | 1 | | | | 8 | 700041 | NUMBER PLATE HOLDER ASSY | | 1 | | | 9 | 3056 | PLAIN WASHER | | | 2 | | 10 | 31086 | BOLT, 6.0 X 12.0 MM | | | 2 | | 11 | 576967 | GRILL | | | 1 | | | | | | | | | 11 | 232894 | GRILL | 1 | | | | 12 | 18585 | SCREW, 4.2 X 19.0 MM | 2 | 2 | 2 | | 13 | 3055 | PLAIN WASHER | 2 | 2 | 2 | | 14 | 226820 | PLATE NUT | 2 | 2 | 2 | | 15 | 500962 | PAINTED PLATE ASSY | | | 1 | | | | | | | | 33
B - 14 FRONT TOOL BOX
Halaman 48
B - 14 FRONT TOOL BOX | NO | PART NO | DESCRIPTION | QUANTITY | |----|---------|----------------------------|------------------| | | | | EXCEL | EXCL-2 | NEW PX | | 1 | 14726 | SCREW, 5.0 X 25.0 MM | 2 | 2 | 2 | | 2 | 12528 | SPRING WASHER | 4 | 4 | 4 | | 3 | 20105 | NUT, 5.0 MM | 8 | 8 | 8 | | 4 | 183540 | PACKING | 1 | 1 | 1 | | 5 | 12218M | SPRING | 1 | 1 | 1 | | | | | | | | | 6 | 30387 | SCREW, 5.0 X 20.0 MM | 2 | 2 | 2 | | 7 | 500230 | PRIMED LID ASSY | 1 | 1 | 1 | | 8 | 500429 | SPLIT PIN | 2 | 2 | 2 | | 9 | 700000 | PRIMED FRONT TOOL BOX ASSY | 1 | 1 | 1 | | 10 | 73111 | SPRING | 1 | 1 | 1 | | | | | | | | | 11 | 178960 | TOOL BOX LOCK HOUSING | 1 | 1 | 1 | | 12 | 73260 | SPRING CLIP | 1 | 1 | 1 | | 13 | 177835 | SPRING PLATE | 1 | 1 | 1 | | 14 | 178961 | TOOL BOX LEVER | 1 | 1 | 1 | | 15 | 198560 | TOOL BOX LOCK | 1 | 1 | 1 | | | | | | | | | 16 | 550317 | PRESSURE TYRE STICKER | 1 | 1 | 1 | | 17 | 149908 | BUFFER | 4 | 4 | 4 | 34
B - 15 COWL
Halaman 49
B - 15 COWL | NO | PART NO | DESCRIPTION | QUANTITY | | | |----|-----------|-------------------------------|----------|-----------|---------| | | | | EXCEL | EXCL-2 | NEW PX | | 1 | 161995 | PACKING RH | 1 | 1 | 1 | | 2 | 216053 | COMPLETE BUSH | 2 | 2 | 2 | | 3 | 161994 | PACKING LH | 1 | 1 | 1 | | 4 | 500729 | PRIMED SPARE WHEEL COWL ASSY | 1 | 1 | 1 | | 5 | 2/218814 | SPARE WHEEL PROTECTION | 1 | 1 | 1 | | | | | | | | | 6 | 6968 | SPRING WASHER | 1 | 1 | 1 | | 7 | 159873 | BOLT, 8.0 X 73.0 MM | 1 | 1 | 1 | | 8 | 2/87010 | EXCEL STICKER | 1 | | | | 9 | 500756 | EXCLUSIVE-2 STICKER | | 1 | | | 10 | 500969 | PX 150 STICKER | | | 1 | | | | | | | | | 11 | 10764 | RIVET | 4 | 4 | 4 | | 12 | 500773 | LACTH ASSY | 2 | 2 | 2 | | 13 | 500727 | PRIMED ENGINE COWL ASSY | 1 | 1 | | | 13 | 700045 | PRIMED ENGINE COWL ASSY | | | 1 | | 14 | 577081 | VESPA NAME PLATE | | | 1 | | | | | | | | | 15 | 008108 | PLATE | | | | | 16 | 18074 | RIVET | 2 | 2 | 2 | | 17 | 500432 | CABLE BLINKER | 2 | 2 | | | 17 | 500968 | CABLE BLINKER | | | 2 | | 18 | 178689 | PROTECTION SHEAT | 2 | 2 | 2 | | | | | | | | | 19 | 178209 | SLIDE BUSH | 2 | 2 | 2 | | 20 | 178321 | SPRING LH | 1 | 1 | 1 | | 20 | 178316 | SPRING RH | 1 | 1 | 1 | | 21 | 700003 | COMPLETE LH COWL LOCK LEVER | 1 | 1 | 1 | | 21 | 700002 | COMPLETE RH COWL LOCK LEVER | 1 | 1 | 1 | | | | | | | | | 22 | 15736 | SCREW, 4.8 X 9.5 MM | 4 | 4 | 4 | | 23 | 12532 | STAR WASHER | 4 | 4 | 4 | 35
B - 16 CENTRAL STAND
Halaman 50
B - 16 CENTRAL STAND | NO | PART NO | DESCRIPTION | QUANTITY | |----|---------|------------------------|-------------------| | | | | EXCEL | EXCL-2 | NEW PX | | 1 | 174773 | BUFFER | 1 | 1 | 1 | | 2 | 500888 | PTD. CENTRAL STAND ASSY | 1 | 1 | | | 2 | 500604 | PTD. CENTRAL STAND ASSY | | | 1 | | 3 | 176166 | RUBBER PAD ASSY | 2 | 2 | 2 | | 4 | 176444 | SPRING | 2 | 2 | 2 | | | | | | | | | 5 | 31089 | BOLT, 6.0 X 18.0 MM | 4 | 4 | 4 | | 6 | 3056 | PLAIN WASHER | 4 | 4 | 4 | | 7 | 176168 | PLATED RH BRACKET | 1 | 1 | 1 | | 7 | 258733 | PLATED LH BRACKET | 1 | 1 | 1 | | 8 | 16406 | SPRING WASHER | 4 | 4 | 4 | | | | | | | | | 9 | 20006 | NUT, 6.0 MM | 4 | 4 | 4 | | 10 | 258555 | SPRING PLATE | 2 | 2 | 2 | 36
B - 16 CENTRAL STAND
Halaman 51
B - FRONT SHOCKABSORBER 1-------- ·U i ..-.,..Q-----24 ~ED~~ 1--~ l I ~----_-_ --~; 6 26f 9: ' ·'---------20 -=---------- 19 .,,_ __________ 18 0 .---...--------17 . j 15 """----------14 ----------11 .---""-<'l '-----------13 m1-----------12 ,-----------11 " 1 QUANTITY JID PARTNO DESCRIPTION EXCEL EXCL-2 NEW PX 1 226156 1 11109 2 226208 3 55986 4 77024 RING NUT RING NUT 1 1 1 1 1 1 1 1 1 1 1 1 PLATED STOP WASHER UPPER RING NUT BALL CAGE, 20 BALL 5 56641 6 92667 7 2/77023 8 55989 9 19264M OUTER UPPER TRACK OUTER TRACK BALL CAGE, 17 BALL INNER TRACK DUST COVER 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 4 1 4 1 2 4 1 4 1 2 4 1 4 1,.. 10 30074 11 16408 12 174049 13 20108 1-;[ 174806 BOLT, 8.0 X 40.0 MM SPRING WASHER FRONT SHOCKABSORBER NUT PLATED PLATE ASSY BOLT, 8.0 X 20.0 MM BUFFER PLAIN WASHER STAR WASHER NUT, 10.0 MM 2 2 1 1 1 2 2 1 1 1 2 2 1 1 1 15 31118 16 174085 17 174088 Hi 12535 19 21210 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 20 216808 21 178562 22 178559 23 .178592 24 179292 PACKING LOCK CONNECTOR SPRING PLATE SECURITY LOCK BODY TUMBLER WITH KEYS 1 1 1 1 1 1 25 56002R 26 56003R BEARING BALL TRACK UPPER BEARING BALL TRACK LOWER
B - 18 REAR SHOCKABSORBER
Halaman 52
B - 18 REAR SHOCKABSORBER | NO | PART NO | DESCRIPTION | QUANTITY | |:---|:----------|:-----------------------|:------------------| | | | | EXCEL | EXCL-2 | NEW PX | | 1 | 16409 | SPRING WASHER | 1 | 1 | 1 | | 2 | 2/199685 | REAR SHOCKABSORBER ASSY | 1 | 1 | 1 | | 3 | 30104 | BOLT, 10.0 X 75.0 MM | 1 | 1 | 1 | | 4 | 81803 | BOLT, 14.0 X 234.0 M | 1 | 1 | 1 | | 5 | 20008 | NUT, 8.0 MM | 1 | 1 | 1 | | 6 | 16408 | SPRING WASHER | 1 | 1 | 1 | | 7 | 60536 | SPRING SUPPORT | 1 | 1 | 1 | | 8 | 16410 | SPRING WASHER | 1 | 1 | 1 | | 9 | 20210 | NUT, 10.0 MM | 1 | 1 | 1 | | 10 | 16414 | SPRING WASHER | 1 | 1 | 1 | | 11 | 21214 | NUT, 14.0 MM | 1 | 1 | 1 | 38
r.,
Halaman 53
# B - 19 BRAKE JAW HOLDER | NO | PART NO | DESCRIPTION | QUANTITY | | |----|---------|-------------------------------|----------|--------| | | | | EXCEL | EXCL-2 | NEW PX | | 1 | 031054 | BOLT, 5.0 X 10.0 MM | 1 | 1 | | | 2 | 016405 | SPRING WASHER | 1 | 1 | | | 3 | 500980 | PLATED PLATE | 1 | 1 | | | 4 | 174129 | BUFFER | 1 | 1 | | | 5 | 174128 | PINION SUPPORT | 1 | 1 | | | 6 | 177508 | SPEEDOMETER DRIVE PINION | 1 | 1 | | | 7 | 177494 | OIL SEAL | 1 | 1 | | | 8 | 500069 | PTD. BRAKE JAW HOLDER ASSY | 1 | 1 | | | 9 | 500484 | ADJUSTER SCREW, 5.0 X 31.0 MM | 1 | 1 | | | 10 | 20105 | NUT, 5.0 MM | 1 | 1 | | | 11 | 2036 | BOLT, 7.0 X 12.0 MM | 1 | 1 | | | 12 | 97108 | PLATED PLATE | 1 | 1 | | | 13 | 177436 | ROLLER BEARING, 2212 | 1 | 2 | | | 14 | 181822 | RETURN SPRING | 1 | 1 | | | 15 | 174025 | PLATED BRAKE LEVER ASSY | 1 | 1 | | | 16 | 20207 | NUT, 7.0 MM | 1 | 1 | | | 17 | 90305 | PIN | 1 | 1 | | | 18 | 12761 | SPLIT PIN | 1 | 1 | | | 19 | 83608 | PLATED PLATE | 1 | 1 | | 39
B - 20 FRONT BRAKE DRUM
Halaman 54
B - 20 FRONT BRAKE DRUM | NO | PART NO | DESCRIPTION | QUANTITY | | | |----|-----------|-------------------------------|----------|-------|-------| | | | | EXCEL | EXCL-2 | NEW PX | | 1 | 177610 | BEARING, 6202 RS | 1 | 1 | | | 2 | 6635 | CIRCLIP, 37.8 MM | 1 | 1 | | | 3 | 2/197983 | BRAKE DRUM PLUG | 1 | 1 | | | 4 | 12787 | SPLIT PIN | 1 | 1 | | | 5 | 177609 | PLATED CAP | 1 | 1 | | | 6 | 21114 | NUT, 14.0 MM | 1 | 1 | | | 7 | 229796 | STUD BOLT, 8.0 X 30.0 MM | 5 | 5 | | | 8 | 500774 | PAINTED FRONT BRAKE DRUM | 1 | 1 | | | 9 | 16408 | SPRING WASHER | 5 | 5 | | | 10 | 446014 | SPACER NUT, 8.0 MM | 5 | 5 | | | 10 | 20108 | NUT, 8.0 MM | 2 | 2 | | | 11 | 61 | CIRCLIP, 8.5 MM | 1 | 1 | | | 12 | 177442 | ROLLER BEARING, 2016 | 1 | 1 | | | 13 | 177443 | OIL SEAL | 1 | 1 | | | 14 | 177414 | SKIMMING WASHER | 1 | 1 | | | 15 | 6422 | CIRCLIP, 20.5 MM | 1 | 1 | | | 16 | 78522 | SPRING | 1 | 1 | | | 17 | 501007 | BRAKE JAW ASSY | 2 | 2 | | 40
B - 20 FRONT BRAKE DRUM
Halaman 55
B - 21 DISC BRAKE | NO | PART NO | DESCRIPTION | QUANTITY | | | |----|---------|---------------------------------|----------|--------|---------| | | | | EXCEL | EXCL-2 | NEW PX | | 1 | 16408 | SPRING WASHER | | | 5 | | 2 | 446014 | SPACER NUT, 8.0 MM | | | 1 | | 3 | 21114 | NUT, 14.0 MM | | | 1 | | 4 | 177609 | PLATED CAP | | | 1 | | 5 | 500978 | BRAKE DRUM PLUG (CHROME) | | | 1 | | 6 | 12787 | SPLIT PIN | | | 1 | | 7 | 177443 | OIL SEAL | | | 1 | | 8 | 177442 | ROLLER BEARING, 2016 | | | 1 | | 9 | 177414 | SKIMMING WASHER | | | 1 | | 10 | 6422 | CIRCLIP | | | 1 | | 11 | 271147 | SCREW | | | 5 | | 12 | 6966 | WASHER | | | 5 | | 13 | 563246 | BRAKE PLATE | | | 1 | | 14 | 563873 | RING GEAR, 17 T | | | 1 | | 15 | 229796 | STUD BOLT, 8.0 X 30.0 MM | | | 5 | | 16 | 563762 | BRAKE DRUM | | | 1 | | 17 | 177610 | BEARING, 6202 RS | | | 1 | | 18 | 6635 | CIRCLIP, 37.8 MM | | | 1 | 41
·'C_:
Halaman 56
B - 22 CALIPER | NO | PART NO | DESCRIPTION | QUANTITY | |----|---------|----------------|---------------------| | | | | EXCEL | EXCL-2 | NEW PX | | 1 | 177494 | WASHER | | | 1 | | 2 | 177436 | DRAWN CAP | | | 2 | | 3 | 563804 | BRACKET | | | 1 | | 4 | 494762 | BRAKE PADS KIT | | | 1 | | 5 | 563800 | CALIPER | | | 1 | | | | | | | | | 6 | 501014 | SCREW | | | 2 | | 7 | 709047 | WASHER | | | 2 | | 8 | 127927 | PACKING | | | 2 | | 9 | 265451 | SCREW | | | 1 | | 10 | 563806 | TUBE | | | 1 | | | | | | | | | 11 | 031120 | BOLT | | | 2 | | 12 | 006968 | WASHER | | | 2 | | 13 | 177508 | PINION | | | 1 | | 14 | 564053 | BRACKET | | | 1 | | 15 | 016405 | WASHER | | | 1 | | | | | | | | | 16 | 031056 | SCREW | | | 1 | | 17 | 500980 | PLATE | | | 1 | | 18 | 500979 | BUFFER | | | 1 | 42
·'C_:
Halaman 57
T B - STEERING COLUMN 1 1 500642 PAINTED STEERING COLUMN ASSY 1 1 500589 PAINTED STEERING COLUMN ASSY 1 2 1 500975 PAINTED STEERING COLUMN ASSY 1 2 198513 ROLLER CAGE, EA 68106 2 2 2 3 3 119219 OIL SEAL, 3.5 X 20.5 MM 2 2 2 4 6731 PACKING, 3.5 X 30.4 MM 2 2 2 4 5 177451 GUDGEON PIN 1 1 1 11 6 500067 PAINTED FRONT SUSPENTION ARM 1 1 1 4 7 177450 FRONT WHEEL AXLE 1 1 1 8 177445 SKIMMING WASHER 1 1 1 :~O• 9 177408 RUBBER RING, 1.78 X 38.21 MM 1 1 1 10 564222 TLS SWINGING ARM COVER 1 10 2/178048 TLS SWINGING ARM COVER 1 1 11 700004 GUDGEON PIN WITH CAGE 1 1 1 12 500504 FRONT SUSPENTION ARM ASSY 1 1 1 12{; ·-s :~ 10 L_ _____________________ [__L_ __ _L ____ '----'------'----'---'---' N) PART NO DESCRIPTION QUANTITY EXCEL EXCL-2 NEW PX
B - 24 MUDGUARD
Halaman 58
B - 24 MUDGUARD | NO | PART NO | DESCRIPTION | QUANTITY | QUANTITY | QUANTITY | |:---|:---|:--------------------------|:-------|:-------|:-------| | | | | EXCEL | EXCL-2 | NEW PX | | 1 | 500146 | PRIMED MUDGUARD ASSY | 1 | 1 | | | 1 | 700047 | PRIMED MUDGUARD ASSY | | | 1 | | 2 | 20105 | NUT, 5.0 MM | 1 | 1 | 1 | | 3 | 60201 | PLAIN WASHER | 1 | 1 | 1 | | 4 | 500652 | SCREW, 5.0 X 16.0 MM | 1 | 1 | 1 | | 5 | 99335 | SPACER WASHER | 1 | 1 | 1 | | 6 | 12528 | SPRING WASHER | 1 | 1 | 1 | | 7 | 84262 | GROMMET | | | 1 | | 8 | 573918 | CLAMP | | | 1 | | 9 | 20106 | NUT, 6.0 MM | 3 | 3 | 3 | | 10 | 30050 | BOLT, 6.0 X 25.0 MM | 3 | 3 | 3 | | 11 | 13880 | PLAIN WASHER | 6 | 6 | 6 | | 12 | 16406 | SPRING WASHER | 3 | 3 | 3 | | 13 | 217280 | STRAP | | | 1 | | 14 | 8432 | SCREW, 3.5 X 9.5 MM | | | 2 | | 15 | 192598 | CAP | | | 2 | | 16 | 564219 | MUDGUARD CREST | | | 1 | 44
B - 25 HANDLE BAR EXCLUSIVE-2
Halaman 59
B - 25 HANDLE BAR EXCLUSIVE-2 | NO | PART NO | DESCRIPTION | QUANTITY | | | |:---|:--------|:----------------------------|:---------|:------|:-------| | | | | EXCEL | EXCL-2| NEW PX | | 1 | 500166 | PRIMED HANDLE BAR UPPER | 1 | | | | 2 | 139912 | THROTTLE CONTROL TERMINAL | 1 | | | | 3 | 139913 | GEAR CONTROL TERMINAL | 2 | | | | 4 | 500164 | PRIMED HANDLE BAR LOWER | 1 | | | | 5 | 3055 | PLAIN WASHER | 4 | | | | 6 | 15835 | SCREW, 5.0 X 35.0 MM | 4 | | | | 7 | 70620 | NUT, 10.0 MM | 1 | | | | 8 | 15542 | BOLT, 10.0 X 67.0 MM | 1 | | | 45
B - 26 HANDLE BAR EXCEL
Halaman 60
B - 26 HANDLE BAR EXCEL | NO | PART NO | DESCRIPTION | QUANTITY | | | |----|---------|-----------------------|----------|-------|-------| | | | | EXCEL | EXCL-2 | NEW PX | | 1 | 226209 | VISOR | 1 | | | | 2 | 226235 | HANDLE BAR COVER | 1 | | | | 3 | 226234 | HANDLE BAR UPPER PART | 1 | | | | 4 | 500634 | HANDLE BAR BOX | 1 | | | | 5 | 500639 | HANDLE BAR LOWER PART | 1 | | | | 6 | 13763 | PLAIN WASHER | 10 | | | | 7 | 18585 | SCREW, 4.2 X 19.0 MM | 6 | | | | 8 | 226820 | PLATE NUT | 4 | | | | 9 | 15735 | SCREW, 4.2 X 25.0 MM | 4 | | |
B - 27 HANDLE BAR NEW PX
Halaman 61
# B - 27 HANDLE BAR NEW PX | NO | PART NO | DESCRIPTION | QUANTITY | | | |----|-----------|-------------------------------|----------|---------|---------| | | | | EXCEL | EXCL-2 | NEW PX | | 1 | KS600910 | RH/LH DRIVING MIRROR | | | 1 | | 2 | 266813 | NUT | | | 1 | | 3 | 244126 | PACKING | | | 2 | | 4 | 581675 | BRACKET | | | 2 | | 5 | 007609 | WASHER | | | 2 | | 6 | 563796 | SPEEDOMETER TRANSMISSION | | | 1 | | 7 | 15542 | BOLT, 10.0 X 67.0 MM | | | 1 | | 8 | 70620 | NUT, 10.0 MM | | | 1 | | 9 | 15835 | SCREW, 5.0 X 35.0 MM | | | 4 | | 10 | 3055 | PLAIN WASHER | | | 4 | | 11 | 139913 | THROTTLE CONTROL TERMINAL | | | 1 | | 12 | 5637895 | HANDLE BAR LOWER | | | 1 | | 13 | 139912 | GEAR CONTROL TERMINAL | | | 1 | | 14 | R581517 | HANDLE BAR UPPER | | | 1 | | 15 | 179230 | PACKING | | | 1 | | 16 | 214191 | BULB SOCKET | | | 4 | | 17 | 164634 | BULB | | | 4 | | 18 | 583074 | SPEEDOMETER KMS | | | 1 | 47
B - 27 HANDLE BAR NEW PX
Halaman 62
B - 28 BACK VIEW MIRROR | NO | PART NO | DESCRIPTION | QUANTITY | |----|-------------|----------------------------------|------------------| | | | | EXCEL | EXCL-2 | NEW PX | | 1 | 2/86184 | BLACK PLATED SCREW, 10.0 x 20 MM | 2 | | | | 1 | 2/87089 | BLACK PLATED SCREW | | 2 | | | 2 | KS600980L/R | BACK VIEW MIRROR | 2 | | | | 2 | KS400620L/R | BACK VIEW MIRROR | | 2 | | | 3 | 500105 | PTD. RH BRACKET MIRROR | 1 | | | | 3 | 500106 | PTD. LH BRACKET MIRROR | 1 | | | | 3 | 500158 | PTD. RH/LH BRACKET MIRROR | | 2 | | | 4 | 2/85042 | RING CUP | 2 | | | | 5 | 2/87054B | BLACK PLATED S. WASHER | 2 | | | | 6 | 2/86185B | BLACK PLATED NUT, 10.0 MM | 2 | | | | 6 | 2/85075 | BLACK PLATED NUT, 10.0 MM | | 2 | | | 7 | 20108 | NUT, 8.0 MM | 4 | | | | 8 | 16408 | BLACK PLATED S. WASHER | 4 | | | | 9 | 16410 | SPRING WASHER | 1 | | | | 10 | 330065 | SCREW, 10.0 x 45.0 MM | 1 | | | | 11 | 2/86182B | BLACK PLATED SPACER, 8.0 x 55.0 MM | 2 | | | | 11 | 2/86183B | BLACK PLATED SPACER, 8.0 x 38 MM | 2 | | | | 12 | 16408B | BLACK PLATED SPACER | 4 | | | | 12 | 16408 | SPRING WASHER | | 4 | | | 13 | 2/86275B | BLACK PLATED BOLT, 8.0 x 20.0 MM | 4 | | | | 13 | 2/86275 | BLACK PLATED BOLT, 8.0 x 20.0 MM | | 4 | | 48
B - 29 GEAR SLEEVE
Halaman 63
B - 29 GEAR SLEEVE | NO | PART NO | DESCRIPTION | QUANTITY | | | |----|-----------|-------------------------------|----------|--------|------| | | | | EXCEL | EXCL-2 | NEW PX | | 1 | 179833 | TWIST GRIP | 1 | 1 | | | 1 | 582324 | GRIP | | | 1 | | 2 | 150235 | SCREW, 5.0 X 19.5 MM | 1 | 1 | 1 | | 3 | 17492 | SPRING WASHER | 1 | 1 | 1 | | 4 | 97734 | PLAIN WASHER | 1 | 1 | 1 | | 5 | 97733 | PLAIN WASHER | 1 | 1 | 1 | | 6 | 219727 | NUT, 5.0 MM | 1 | 1 | 1 | | 7 | 500259 | PRIMED GEAR SLEEVE ASSY | 1 | | | | 7 | 500165 | PRIMED GEAR SLEEVE ASSY | | 1 | | | 7 | 500984 | PRIMED GEAR SLEEVE ASSY | | | 1 | | 8 | 101474 | PLATED PLAIN WASHER | 2 | 2 | 2 | | 9 | 137267 | SPRING CLIP | 1 | 1 | 1 | | 10 | 101473 | SPRING WASHER | 1 | 1 | 1 | | 11 | 139912 | TERMINAL | | 1 | | | 12 | 139796 | GEAR CONTROL PULLY | 1 | 1 | 1 | | 13 | 500987 | BRAKE / CLUTCH LEVER | 1 | | | | 13 | 2/219366 | BRAKE / CLUTCH LEVER | | 1 | | | 14 | 18699 | END FERRULE | 1 | 1 | 1 | | 15 | 219337 | SAFETY SWITCH | 1 | 1 | | | 15 | 583330 | SAFETY SWITCH | | | 1 | | 16 | 219343 | ELECTRICAL CABLE | 1 | | 1 | 49
B - 30 THROTTLE TUBE
Halaman 64
B - 30 THROTTLE TUBE | NO | PART NO | DESCRIPTION | EXCEL | EXCL-2 | NEW PX | |----|---------|--------------------------|-------|--------|--------| | 1 | 179833 | TWIST GRIP | 1 | 1 | | | 2 | 500390 | PLATED THROTTLE TUBE ASSY| 1 | 1 | | | 3 | 137267 | SPRING CLIP | 1 | 1 | | | 4 | 101473 | SPRING WASHER | 1 | 1 | | | 5 | 101474 | PLATED PLAIN WASHER | 1 | 1 | | | 6 | 139797 | THROTTLE CONTROL PULLY | 1 | 1 | | | 7 | 150235 | SCREW, 5.0 X 19.5 MM | 1 | 1 | | | 8 | 17492 | SPRING WASHER | 1 | 1 | | | 9 | 97734 | PLAIN WASHER | 1 | 1 | | | 10 | 97733 | PLAIN WASHER | 1 | 1 | | | 11 | 219727 | NUT,5.0 MM | 1 | 1 | | | 12 | 2/219366| BRAKE / CLUTCH LEVER | 1 | 1 | | | 13 | 18699 | TERMINAL | 1 | 1 | | | 14 | 175369 | THROTTLE RETURN SPRING | 1 | 1 | | 50
B - 30 THROTTLE TUBE
Halaman 65
B - 31 MASTER CYLINDER | NO | PART NO | DESCRIPTION | QUANTITY | |----|---------|----------------------------|----------------| | | | | EXCEL | EXCL-2 | NEW PX | | 1 | 139797 | THROTTLE CONTROL PULLY | | | 1 | | 2 | 101474 | PLATED PLAIN WASHER | | | 1 | | 3 | 101473 | SPRING WASHER | | | 1 | | 4 | 137267 | SPRING CLIP | | | 1 | | 5 | 175369 | THROTTLE RETURN SPRING | | | 1 | | 6 | 500390 | ✓ PLATED THROTTLE TUBE ASSY | | | 1 | | 7 | 582324 | TWIST GRIP | | | 1 | | 8 | 563788 | MASTER CYLINDER | | | 1 | | 9 | 494804 | LEVER | | | 1 | | 10 | 498373 | COVER | | | 1 | | 11 | 295822 | SCREW | | | 2 | | 12 | 709047 | SPRING WASHER | | | 2 | | 13 | 582964 | CABLE HARNESS | | | 1 | | 14 | 327145 | BELLOW | | | 1 | | 15 | 580953 | STOP SWITCH | | | 1 | 51
B - 30 THROTTLE TUBE
Halaman 66
B - SPEEDOMETER EXCLUSIVE-2 1 500847 SPEEDOMETER CABLE 1 0 8 3 139914 BRACKET 1 4 2/330060 PACKING 1 5 5513709PX SOCKET WITH HARNESS 1 n 6 7 7 500549 SPEEDOMETER 1 9 t "~ 8 2/330119·03 GLASS 1 ' 9 2/330041 SCREW, 4.0 X 10.0 MM 1 1 5 10 16404 SPRING WASHER 1 11 3 0 4 11 500430 BRACKET 1 12 aJ) )~ 3 13 3055 PLAIN WASHER 1 ~ 14 700 SCREW, 5.0 X 8.0 MM 1 ' ,1 13 + 2 15 932000 INNER SPEEDOMETER CABLE 1 14 15 L_ ______________________ ,L__L_ ___ L_ __________ __,__........!. _ _JL,...____J 00 PART NO DESCRIPTION QUANTITY EXCEL EXCL·2 NEW PX 2 139915 NUT, 16.0 MM 1 6 5540016 INDICATOR LAMP 12V 1.7 W 8 12 16405 SPRING WASHER 1
B - 33 SPEEDOMETER EXCEL
Halaman 67
B - 33 SPEEDOMETER EXCEL | NO | PART NO | DESCRIPTION | QUANTITY | | | |----|---------|-----------------------|----------|-------|-------| | | | | EXCEL | EXCL-2| NEW PX| | 1 | 700009 | GLASS | 1 | | | | 2 | 164634 | BULB 12V 1.2W | 8 | | | | 3 | 217900 | BULB SOCKET | 1 | | | | 4 | 500516 | SPEEDOMETER | 1 | | | | 5 | 500847 | SPEEDOMETER CABLE | 1 | | | | 6 | 932000 | INNER SPEEDOMETER CABLE | 1 | | | 53
B - 34 REAR BRAKE PEDAL
Halaman 68
## B - 34 REAR BRAKE PEDAL | NO | PART NO | DESCRIPTION | QUANTITY (EXCEL) | QUANTITY (EXCL-2) | QUANTITY (NEW PX) | |----|---------|---------------------------|------------------|-------------------|-------------------| | 1 | 182051 | RUBBER SLEEVE | 1 | 1 | 1 | | 2 | 42047 | PLATED PLATE | 2 | 2 | 2 | | 3 | 13940 | PLAIN WASHER | 1 | 1 | 1 | | 4 | 15317 | NUT, 9.0 MM | 1 | 1 | 1 | | 5 | 12539 | SPRING WASHER | 1 | 1 | 1 | | 6 | 15510 | BOLT, 9.0 X 18.5 MM | 1 | 1 | 1 | | 7 | 8818 | PIN | 1 | 1 | 1 | | 8 | 138474 | BRAKE PEDAL SUPPORT | 1 | 1 | 1 | | 9 | 70994 | SPRING | 1 | 1 | 1 | | 10 | 182872 | NUT, 6.0 MM | 1 | 1 | 1 | | 11 | 3056 | PLAIN WASHER | 3 | 3 | 3 | | 12 | 16406 | SPRING WASHER | 3 | 3 | 3 | | 13 | 31090 | BOLT, 6.0 X 20.0 MM | 1 | 1 | 1 | | 14 | 12761 | SPLIT PIN | 1 | 1 | 1 | | 15 | 71165 | PIN | 1 | 1 | 1 | | 16 | 182049 | BRAKE PEDAL | 1 | 1 | 1 | | 17 | 194380 | PVC WASHER | 1 | 1 | 1 | | 18 | 31091 | BOLT, 6.0 X 22.0 MM | 2 | 2 | 2 | | 19 | 13880 | PLAIN WASHER | 2 | 2 | 2 | | 20 | 183124 | PLATED BRAKE PEDAL PIN | 1 | 1 | 1 | | 21 | 20106 | NUT, 6.0 MM | 2 | 2 | 2 | 54
B - 34 REAR BRAKE PEDAL
Halaman 69
B - TRANSIMISSION CABLE 2 ~ 1 500701 FRONT BRAKE CABLE W / STOP SWITCH 1 1 3 r, t.~ 2 175120-P FRONT BRAKE SWITCH 1 1 3 920130 INNER FRONT BRAKE CABLE 1 1 4 500476 COMPLETE THROffiE CABLE, 1667 MM 1 4 500475 COMPLETE THROTTLE CABLE, 1670 MM 1 1 4{ I 5 912130 INNER THROTTLE CABLE 1 1 1 5 ' 6 156401 PROTECTION 1 1 1 7 500482 ADJUSTER SCREW 1 1 1 1{ 6 I ' } 8 20105 NUT 1 1 1 i ·,-,. 20 21 9 90541 PROTECTION SLEEVE 1 1 1 :SJ I 1 ,i::::: 11 77055 PROTECTION SLEEVE 1 1 1 I 1 }19 I 18 13 183321 SPRING CUP 1 1 1 if:; ! ,$§§;/ i . l ii 14 50207 SPRING CUP 1 1 1 ' 15 925130 INNER REAR BRAKE CABLE 1 1 1 9 17 ~ 16 500471 REAR BRAKE CABLE ASSY, 880 MM 1 1 1 I ' }16 17 153198 CABLE NIPPLE ASSY 2 2 2 I . !•-,/· ,. I 15 18 915130 INNER GEAR CABLE 2 2 2 19 500473 COMPLETE GEAR CABLE, 1891 MM 1 13 19 500486 COMPLETE GEAR CABLE 1 1 ' r ,1 ◄ 14 ' I 10{ ~~ 19 500487 COMPLETE GEAR CABLE 1 1 12 20 917130 INNER CLUTCH CABLE 1 1 1 21 500472 CLUTCH CABLE ASSY, 1695 MM 1 1 1 11 r,o PART NO DESCRIPTION QUANTITY EXCEL EXCL-2 NEW PX 10 500778 CHOKE CABLE ASSY, 707 MM 1 1 1 12 90574 TIE ROD WITH BALL GRIP 1 1 1 19 500474 COMPLETE GEAR CABLE, 1905 MM 1
B - 34 REAR BRAKE PEDAL
Halaman 70
B - WHEEL & TOOL KIT 1 2/87040 SCREW 10 2 446013 WHEEL COVER LID 2 10 11 3 700013 WHEEL COVER WITH LID 2 ' A ' 4' i 4 446014 NUT, 8.0 MM 10 3 5 139466 BOLT, 8.0 X 13.5 MM 15 15 15 ~ ,---A---,_ 7 8 9 2 J~, ~~ 6 500102 WHEEL FLANGE ASSY 2 2 2 lJ 11 84631 WHEEL ASSY, 2.10 X 10" 3 3 3 ~El 12 500752 TUBE, 3.50 X 10" 3 3 3 "'<,I\', 13 500751 TYRE, 3.50 X 10" 3 3 3 ' . . . . . . . . . 14 195565 COMPLETE TOOL KIT 1 1 1 ....... 12 13 1~ )14 ,31-~ ~~ f jL 00 PART NO DESCRIPTION QUANTITY EXCEL EXCL-2 NEW PX 7 500101 WHEEL RIM 2 2 2 8 16408 SPRING WASHER 15 15 15 9 20108 NUT, 8.0 MM 15 15 15 10 700014 WHEEL COVER ASSY 2
L - 1 WIRE HARNESS
Halaman 71
# L - 1 WIRE HARNESS | NO | PART NO | DESCRIPTION | QUANTITY EXCEL | QUANTITY EXCL-2 | QUANTITY NEW PX | |----|---------|-------------------------|----------------|-----------------|-----------------| | 1 | 500547 | HANDLE BAR WIRE HARNESS | 1 | | | | 1 | 582964 | HANDLE BAR WIRE HARNESS | | 1 | 1 | | 2 | 500861 | MAIN WIRE HARNESS | 1 | | | | 2 | 500994 | MAIN WIRE HARNESS | | 1 | 1 | | 3 | 15098 | GROMMET | 2 | 2 | 2 | | 4 | 104430 | GROMMET | 2 | 2 | | | 5 | 142300 | GROMMET | 2 | 2 | | | 6 | 500531 | STARTER HARNESS | 1 | | 1 | | 7 | 148134 | INSULATING TUBE | 2 | 2 | 2 | 57
L-2
Halaman 72
L-2 HEAD & TAIL LAMP EXCEL 9 1 500857 TAIL LAMP ASSY WITH BULB 1 2 500040 GLASS FOR REAR LAMP 1 10 3 15729 SCREW, 3.5 X 22.0 MM 2 11 13 4 181747 POSITION LAMP 12V SW 1 5 181746 STOP LAMP 12V l0W 1 ~12 . 6 232775 PACKING 1 ' 7 03056 PLAIN WASHER 2 @ 14 8 015932 BOLT, 6.0 X 16.0 MM 2 \ 15 10 163015 BULB 12V 4W 1 16 11 2/129952 REGULAR BULB 12V 45/45W 1 12 500941 HEAD LAMP LENS 1 , 1 3 2 4 5 6 l l I (\ 8 7 NO PART NO DESCRIPTION QUANTITY EXCEL EXCL-2 NEW PX 9 233622 SOCKET 1 13 500943 HEAD LAMP LENS WITH BULB 1 14 13763 PLAIN WASHER 1 15 18586 SCREW, 4.2 X 13.0 MM 1 . !' 16 233255 NUT, 4.0 MM 2 17 233260 SCREW, 4.0 X 10.0 M 2
L-2
Halaman 73
T I i ! L-3 HEAD & TAIL LAMP EXCLUSIVE-2 ~ 1 i i NO ';}, ~l 6 11 7 8 12 7 8 8 7 1 3 2 4 5 6 l ~~, Tl .7 8 PART NO DESCRIPTION QUANTITY EXCEL EXCL-2 NEW PX 1 2 3 4 5 500834 TAIL LAMP ASSY WITH BULB 1 162741 GLASS FOR REAR LAMP 1 15884 SCREW, 3.5 X 32.0 MM 2 181747 POSITION LAMP 12V SW 1 181746 STOP LAMP 12V lOW 1 162743 PACKING 1 03056 PLAIN WASHER 2 12532 STAR WASHER 2 031089 BOLT, 6.0 X 18.0 MM 2 500814 SCREW, 5.0 X 12.0 MM 2 181747 BULB 12V 4W 1 102111 REGULAR BULB 12V 40/4SW 1 500680 WASHER 1 031027 SCREW 1 9 10 11 12 13 230349 HEAD LAMP LENS WITH BULB 1
L-4
Halaman 74
L-4 HEAD & TAIL LAMP NEW PX 9 1 583081 TAIL LAMP ASSY WITH BULB 1 2 219094 GLASS FOR REAR LAMP 1 10 ~ I 4 181747 POSITION LAMP 12V SW 1 5 181746 STOP LAMP 12V 10W 1 ' r \'.~ .. 6 219093 PACKING 1 ~-, 7 03056 PLAIN WASHER 2 16 8 015932 BOLT 2 13 f 9 582946 HEADLAMP 1 1~ 15 10 199370 BULB SOCKET 1 1 3 2 l...,,,- 8 7 L_ _____________________ L_.l..,_ __ __L __________ __, _ __Ji___Ji___J NO PART NO DESCRIPTION QUANTITY EXCEL EXCL·2 NEW PX 3 15994 SCREW 2 11 102111 BULB 1 12 181747 BULB 1 13 012532 STAR WASHER 1 14 500814 SCREW, 5.0 X 12.0 MM 1 15 031027 SCREW 1 16 500680 WASHER 1 J:
L-4
Halaman 75
T ' \ L-5 BATTERY I I I I j I i I 1 2 3 4 4 .. • 5 6 7 5 7 8 ~ ~ ~ . ) ,J; l_/ ./ 2 ' ~ • , .•11,. d [ ~I 6 8 9 10 7 4-1~1., 7 • ,;rllli.. - •. ~ r 8 9 10 PART NO DESCRIPTION QUANTITY 00 EXCEL EXCL-2 NEW PX 500550 FUSE HOLDER 1 1 1 31086 BOLT, 6.0 X 12.0 MM 4 4 4 6976 SPRING WASHER 4 4 4 230750 PAINTED BATTERY BOX 1 1 500511 PAINTED BATTERY BOX 1 500515 CABLE HARNESS BATTERY 1 1 188761 GROMMET 1 1 218812 BAND FOR BATTERY 1 1 500513 BAND FOR BATTERY 1 500863 COMPLETE BATTERY, 12V lOAh 1 1 500551 COMPLETE BATTERY, 12V 4Ah 1 230051 BUFFER 4 4 4 216895 BUFFER 2 2 2
L - 6 BLINKER
Halaman 76
L - 6 BLINKER | NO | PART NO | DESCRIPTION | QUANTITY | | | |----|---------|---------------------|----------|-------|--------| | | | | EXCEL | EXCL-2| NEW PX | | 1 | 500445 | REGULATOR | 1 | 1 | 1 | | 2 | 500454 | FLASHER RELAY | 1 | 1 | 1 | | 3 | 164343 | RUBBER, SUPPORT | 1 | 1 | 1 | | 4 | 20004 | NUT, 4.0 MM | 8 | 8 | 8 | | 5 | 12532 | STAR WASHER | 10 | 10 | 10 | | 6 | 13763 | PLAIN WASHER | 2 | 2 | | | 7 | 500665 | BOLT, 4.0 X 16.0 MM | 4 | 4 | | | 8 | 2/N-1RH/LH| RH/LH YELLOW REFLECTOR | 2 | 2 | | | 9 | N-9 | BULB SOCKET END CAP | | | 2 | | 10 | 500967 | BULB 12V 10W | | | 2 | | 10 | 181746 | BULB 12V 10W | 2 | 2 | | | 11 | 500521 | RH REAR BLINKER ASSY| 1 | 1 | | | 11 | 500966 | RH REAR BLINKER ASSY| | | 1 | | 11 | 500970 | LH REAR BLINKER ASSY| | | 1 | | 11 | 500524 | LH REAR BLINKER ASSY| 1 | 1 | | | 12 | M - 5 | BULB SOCKET END CAP | 2 | 2 | | | 13 | 700007 | BULB SOCKET | | | 1 | | 14 | 181746 | BULB 12V 10W | 2 | 2 | | | 14 | 500967 | BULB 12V 10W | | | 2 | | 15 | 2/M-1RH/LH| RH/LH YELLOW REFLECTOR | 2 | 2 | | | 16 | M - 13 | BOLT, 4.0 X 32.6 MM | 4 | 4 | 4 | | 17 | 500788 | LH FRONT BLINKER ASSY| | | 1 | | 17 | 500995 | LH FRONT BLINKER ASSY| 1 | 1 | | | 17 | 500996 | RH FRONT BLINKER ASSY| | | 1 | | 17 | 500787 | RH FRONT BLINKER ASSY| 1 | 1 | | | 18 | 3056 | PLAIN WASHER | 2 | 2 | 2 | | 19 | 16406 | SPRING WASHER | 2 | 2 | 2 | | 20 | 8375 | SCREW, 6.0 X 15.0 MM| 2 | 2 | 2 | 62
•{'4
Halaman 77
L-7 SWITCHES | NO | PART NO | DESCRIPTION | QUANTITY | | |----|-------------|------------------------|-------------------|-------------| | | | | EXCEL | EXCL-2 | NEW PX | | 1 | 2/233284 | MAIN SWITCH | 1 | | | | 1 | 500548 | MAIN SWITCH | | 1 | | | 1 | 500986 | MAIN SWITCH | | | 1 | | 2 | 232240-07 | SCREW | 1 | 1 | 1 | | 3 | 217316 | STARTING BUTTON | 1 | 1 | 1 | | 4 | 18527 | SCREW | 2 | | 2 | | 5 | 16406 | SPRING WASHER | 3 | | 2 | | 6 | 218824 | REMOTE CONTROL SWITCH | 1 | | 1 | | 7 | 3056 | PLAIN WASHER | 3 | | 2 | | 8 | 2/88011 | SCREW | 2 | | 2 | | 9 | 500771 | BOLT, 4.0 X 25.0 MM | 1 | 1 | 1 | | 10 | 16406 | SPRING WASHER | 1 | 1 | 1 | | 11 | 3054 | PLAIN WASHER | 1 | 1 | 1 | | 12 | 181881 | STOP SWITCH | 1 | 1 | 1 | | 13 | 70144 | PACKING | 1 | 1 | 1 | | 14 | 500456 | DC. HORN ASSY | 1 | 1 | 1 | | 15 | 2/86140 | BOLT, 6.0 X 10 MM | 1 | 1 | 1 | | 16 | 16406 | SPRING WASHER | 1 | 1 | 1 | | 17 | 231024 | COMPLETE SWITCH | 1 | 1 | 1 | | 18 | 18515 | DOWEL | 1 | 1 | 1 | | 19 | 231849-04 | SCREW | 1 | 1 | 1 | | 20 | 231851 | BLINKER SWITCH | 1 | 1 | 1 | 63
PART NUMBER INDEX
Halaman 78
# PART NUMBER INDEX | PART NO | GROUP | | :------ | :--------- | | 61 | E - 7 - 11 | | 61 | B - 20 - 11 | | 97 | E - 4 - 5 | | 267 | E - 4 - 3 | | 397 | E - 17 - 1 | | 700 | B - 32 - 14 | | 1447 | E - 3 - 16 | | 2036 | B - 19 - 11 | | 2457 | E - 10 - 7 | | 2604 | E - 14 - 10 | | 2612 | E - 12 - 9 | | 2613 | E - 12 - 8 | | 3038 | E - 9 - 12 | | 3053 | E - 11 - 9 | | 3054 | B - 10 - 5 | | 3054 | L - 7 - 11 | | 3055 | E - 11 - 14 | | 3055 | B - 2 - 3 | | 3055 | B - 13 - 13 | | 3055 | B - 25 - 5 | | 3055 | B - 27 - 10 | | 3055 | B - 32 - 13 | | 3055 | B - 10 - 13 | | 3056 | E - 5 - 19 | | 3056 | B - 6 - 17 | | 3056 | B - 16 - 6 | | 3056 | B - 34 - 11 | | 3056 | L - 6 - 18 | | 3056 | L - 7 - 7 | | 3056 | B - 13 - 9 | | 3057 | E - 2 - 3 | | 3057 | E - 3 - 18 | | 3057 | E - 17 - 4 | | 3058 | B - 1 - 7 | | 3058 | B - 6 - 3 | | 3058 | B - 6 - 13 | | 3058 | B - 7 - 3 | | 3058 | B - 7 - 13 | | 3058 | B - 8 - 16 | | 3058 | B - 7 - 13 | | 3208 | E - 7 - 17 | | PART NO | GROUP | | :------ | :--------- | | 3972 | E - 3 - 1 | | 5765 | E - 10 - 12 | | 6018 | E - 18 - 11 | | 6408 | E - 6 - 11 | | 6422 | B - 20 - 15 | | 6422 | B - 21 - 10 | | 6615 | E - 4 - 7 | | 6635 | B - 20 - 2 | | 6635 | B - 21 - 18 | | 6642 | E - 10 - 4 | | 6647 | E - 8 - 2 | | 6662 | E - 3 - 7 | | 6708 | E - 5 - 23 | | 6708 | E - 6 - 7 | | 6714 | E - 7 - 14 | | 6721 | E - 9 - 8 | | 6731 | B - 23 - 4 | | 6964 | E - 6 - 2 | | 6965 | E - 11 - 15 | | 6968 | B - 15 - 6 | | 6976 | E - 11 - 23 | | 6976 | L - 5 - 3 | | 6977 | E - 3 - 17 | | 6977 | E - 4 - 15 | | 8080 | B - 10 - 6 | | 8339 | E - 6 - 1 | | 8372 | B - 13 - 3 | | 8375 | L - 6 - 20 | | 8419 | E - 3 - 14 | | 8432 | B - 10 - 4 | | 8432 | B - 13 - 3 | | 8432 | B - 24 - 14 | | 8455 | B - 10 - 9 | | 8818 | B - 34 - 7 | | 9101 | E - 8 - 10 | | 10011 | B - 1 - 19 | | 10764 | B - 15 - 11 | | 11109 | B - 17 - 1 | | 11288 | E - 2 - 4 | | 11288 | E - 17 - 8 | | PART NO | GROUP | | :------ | :--------- | | 12485 | E - 3 - 13 | | 12528 | B - 14 - 2 | | 12528 | B - 24 - 6 | | 12532 | B - 15 - 23 | | 12532 | L - 3 - 7 | | 12532 | L - 6 - 5 | | 12535 | B - 17 - 18 | | 12539 | E - 7 - 19 | | 12539 | B - 34 - 5 | | 12555 | E - 4 - 2 | | 12761 | E - 7 - 15 | | 12761 | B - 19 - 18 | | 12761 | B - 34 - 14 | | 12787 | B - 20 - 4 | | 12787 | B - 21 - 6 | | 12789 | E - 7 - 6 | | 13010 | E - 15 - 5 | | 13010 | E - 16 - 5 | | 13127 | E - 4 - 9 | | 13762 | E - 12 - 24 | | 13763 | B - 10 - 8 | | 13763 | L - 2 - 14 | | 13763 | B - 26 - 6 | | 13763 | L - 6 - 6 | | 13880 | B - 24 - 11 | | 13880 | B - 34 - 19 | | 13940 | E - 7 - 20 | | 13940 | B - 34 - 3 | | 14246 | E - 12 - 12 | | 14415 | B - 6 - 9 | | 14415 | B - 7 - 9 | | 14457 | E - 5 - 14 | | 14565 | E - 3 - 15 | | 14691 | E - 20 - 4 | | 14726 | B - 14 - 1 | | 14743 | E - 12 - 28 | | 14857 | E - 9 - 7 | | 15098 | L - 1 - 3 | | 15231 | E - 10 - 1 | | PART NO | GROUP | | :------ | :--------- | | 15317 | E - 7 - 18 | | 15317 | B - 34 - 4 | | 15467 | B - 1 - 14 | | 15478 | B - 4 - 2 | | 15478 | B - 5 - 5 | | 15510 | E - 7 - 24 | | 15510 | B - 34 - 6 | | 15522 | E - 4 - 16 | | 15542 | B - 25 - 8 | | 15542 | B - 27 - 7 | | 15585 | E - 11 - 16 | | 15729 | B - 13 - 3 | | 15729 | L - 2 - 3 | | 15735 | B - 26 - 9 | | 15736 | B - 15 - 22 | | 15737 | E - 11 - 11 | | 15835 | B - 25 - 6 | | 15835 | B - 27 - 9 | | 15861 | E - 9 - 9 | | 15881 | E - 18 - 1 | | 15884 | L - 3 - 3 | | 15891 | B - 13 - 6 | | 15911 | B - 10 - 1 | | 15946 | E - 11 - 21 | | 15994 | L - 4 - 3 | | 16305 | E - 10 - 3 | | 16404 | B - 7 - 16 | | 16404 | B - 32 - 10 | | 16404 | L - 7 - 10 | | 16405 | E - 12 - 5 | | 16405 | E - 18 - 12 | | 16405 | E - 19 - 21 | | 16405 | E - 19 - 20 | | 16405 | B - 2 - 2 | | 16405 | B - 6 - 6 | | 16405 | B - 7 - 6 | | 16405 | B - 32 - 12 | | 16406 | E - 5 - 20 | | 16406 | E - 11 - 19 | | 16406 | E - 19 - 7 | | PART NO | GROUP | | :------ | :--------- | | 16406 | E - 19 - 14 | | 16406 | B - 6 - 16 | | 16406 | B - 8 - 11 | | 16406 | B - 8 - 14 | | 16406 | B - 24 - 12 | | 16406 | B - 16 - 8 | | 16406 | B - 24 - 12 | | 16406 | B - 34 - 12 | | 16406 | L - 6 - 19 | | 16406 | L - 7 - 5 | | 16406 | L - 7 - 16 | | 16407 | E - 2 - 2 | | 16407 | E - 17 - 5 | | 16408 | E - 3 - 2 | | 16408 | E - 7 - 3 | | 16408 | E - 9 - 11 | | 16408 | B - 1 - 6 | | 16408 | B - 6 - 2 | | 16408 | B - 6 - 12 | | 16408 | B - 7 - 2 | | 16408 | B - 7 - 12 | | 16408 | B - 8 - 15 | | 16408 | B - 8 - 18 | | 16408 | B - 9 - 3 | | 16408 | B - 17 - 11 | | 16408 | B - 18 - 6 | | 16408 | B - 20 - 9 | | 16408 | B - 21 - 1 | | 16408 | B - 28 - 8 | | 16408 | B - 28 - 12 | | 16408 | B - 36 - 8 | | 16409 | E - 12 - 25 | | 16409 | B - 1 - 1 | | 16410 | E - 20 - 3 | | 16410 | B - 8 - 8 | | 16410 | B - 18 - 10 | | 16414 | B - 28 - 9 | | 16414 | B - 18 - 10 | | 16612 | E - 10 - 2 | | 17492 | B - 29 - 3 | | 17492 | B - 30 - 8 | | 17781 | E - 5 - 17 | 65
PART NUMBER INDEX
Halaman 79
# PART NUMBER INDEX | PART NO | GROUP | PART NO | GROUP | PART NO | GROUP | PART NO | GROUP | PART NO | GROUP | | :--- | :--- | :--- | :--- | :--- | :--- | :--- | :--- | :--- | :--- | | 18074 | B - 15 - 16 | 21210 | B - 5 - 10 | 46612 | E - 16 - 2 | 78163 | E - 7 - 27 | 92176 | E - 15 - 4 | | 18515 | L - 7 - 18 | 21210 | B - 17 - 19 | 47162 | E - 17 - 7 | 78168 | E - 7 - 12 | 92176 | E - 16 - 4 | | 18527 | L - 7 - 4 | 21214 | B - 18 - 11 | 47218 | E - 9 - 6 | 78307 | E - 11 - 20 | 92395 | E - 13 - 1 | | 18585 | B - 13 - 12 | 21868 | E - 5 - 11 | 47944 | E - 2 - 7 | 78482 | E - 7 - 26 | 92410 | E - 13 - 3 | | 18585 | B - 26 - 7 | 22821 | E - 5 - 10 | 47945 | E - 2 - 5 | 78521 | E - 7 - 29 | 92667 | B - 17 - 6 | | 18586 | B - 26 - 10 | 25854 | B - 8 - 4 | 48201 | B - 8 - 2 | 78522 | E - 7 - 13 | 92712 | E - 14 - 12 | | 18586 | L - 2 - 15 | 26018 | E - 14 - 13 | 48973 | B - 8 - 3 | 78522 | B - 20 - 16 | 93745 | E - 5 - 4 | | 18699 | B - 29 - 14 | 30050 | E - 5 - 21 | 48988 | E - 2 - 10 | 78853 | E - 10 - 10 | 94779 | E - 7 - 22 | | 18699 | B - 30 - 13 | 30050 | B - 24 - 10 | 50207 | B - 35 - 14 | 81803 | B - 18 - 4 | 97108 | B - 19 - 12 | | 19301 | E - 5 - 18 | 30074 | B - 17 - 10 | 50721 | E - 5 - 3 | 82931 | E - 13 - 13 | 97248 | B - 1 - 25 | | | | | | | | | | | | | 20004 | L - 6 - 4 | 30104 | B - 18 - 3 | 55986 | B - 17 - 3 | 82933 | E - 13 - 15 | 97645 | E - 13 - 2 | | 20006 | B - 16 - 9 | 30209 | E - 10 - 5 | 55989 | B - 17 - 8 | 82934 | E - 13 - 17 | 97733 | B - 29 - 5 | | 20008 | E - 9 - 10 | 30251 | E - 12 - 4 | 56641 | B - 17 - 5 | 83139 | B - 1 - 15 | 97733 | B - 30 - 10 | | 20008 | B - 18 - 5 | 30251 | E - 18 - 6 | 56654 | B - 12 - 10 | 83608 | B - 19 - 19 | 97734 | B - 29 - 4 | | 20105 | E - 19 - 20 | 30280 | E - 17 - 3 | 57371 | B - 6 - 7 | 83806 | E - 5 - 16 | 97734 | B - 30 - 9 | | 20105 | E - 15 - 11 | 30387 | B - 14 - 6 | 57371 | B - 7 - 7 | 84262 | B - 1 - 27 | 97984 | E - 5 - 25 | | 20105 | E - 16 - 11 | 31027 | L - 3 - 12 | 58652 | E - 4 - 21 | 84262 | B - 24 - 7 | 99335 | B - 24 - 5 | | 20105 | E - 18 - 13 | 31027 | B - 7 - 15 | 58853 | E - 12 - 3 | 84631 | B - 36 - 11 | 101473 | B - 29 - 10 | | 20105 | B - 6 - 5 | 31086 | E - 19 - 15 | 59109 | E - 5 - 7 | 84788 | B - 12 - 9 | 101473 | B - 30 - 4 | | 20105 | B - 7 - 5 | 31086 | L - 5 - 2 | 59388 | E - 5 - 5 | 85285 | E - 14 - 2 | 101473 | B - 31 - 3 | | | | | | | | | | | | | 20105 | B - 14 - 3 | 31086 | B - 13 - 10 | 59407 | E - 15 - 7 | 85286 | E - 14 - 6 | 101474 | B - 29 - 8 | | 20105 | B - 19 - 10 | 31087 | B - 6 - 15 | 59407 | E - 16 - 7 | 85288 | E - 13 - 6 | 101474 | B - 30 - 5 | | 20105 | B - 24 - 2 | 31089 | B - 16 - 5 | 59410 | E - 15 - 9 | 85291 | E - 13 - 8 | 101474 | B - 31 - 2 | | 20105 | B - 35 - 7 | 31090 | B - 8 - 10 | 59410 | E - 16 - 9 | 85293 | E - 13 - 11 | 102111 | L - 3 - 11 | | 20106 | B - 24 - 9 | 31090 | B - 8 - 13 | 59588 | E - 2 - 6 | 85294 | E - 13 - 7 | 102111 | L - 4 - 11 | | 20106 | B - 34 - 21 | 31090 | B - 34 - 13 | 59589 | E - 2 - 9 | 85295 | E - 13 - 5 | 102585 | B - 1 - 1 | | 20107 | E - 2 - 1 | 31091 | E - 19 - 6 | 59590 | E - 2 - 8 | 85296 | E - 13 - 4 | 102586 | B - 5 - 2 | | 20107 | E - 17 - 6 | 31091 | B - 34 - 18 | 60201 | E - 18 - 7 | 85299 | E - 14 - 14 | 102587 | B - 5 - 4 | | 20108 | E - 3 - 3 | 31117 | B - 6 - 11 | 60201 | B - 24 - 3 | 85304 | E - 14 - 5 | 104294 | B - 4 - 4 | | 20108 | B - 17 - 13 | 31117 | B - 8 - 19 | 60536 | B - 18 - 7 | 85418 | E - 14 - 8 | 104294 | B - 5 - 7 | | | | | | | | | | | | | 20108 | B - 28 - 7 | 31118 | B - 1 - 5 | 70144 | L - 7 - 13 | 85467 | E - 14 - 3 | 104296 | B - 4 - 3 | | 20108 | B - 36 - 9 | 31118 | B - 17 - 15 | 70286 | B - 12 - 8 | 86275 | B - 28 - 13 | 104296 | B - 5 - 6 | | 20108 | B - 20 - 10 | 31118 | B - 6 - 1 | 70620 | B - 25 - 7 | 87099 | B - 13 - 8 | 104430 | L - 1 - 4 | | 20207 | B - 19 - 16 | 31118 | B - 7 - 1 | 70620 | B - 27 - 8 | 87975 | E - 12 - 30 | 106956 | E - 9 - 1 | | 20210 | B - 8 - 5 | 34877 | E - 5 - 2 | 70994 | B - 34 - 9 | 89145 | E - 14 - 15 | 111996 | E - 8 - 9 | | 20210 | B - 18 - 9 | 40316 | E - 2 - 12 | 71165 | B - 34 - 15 | 89198 | E - 18 - 9 | 112008 | E - 8 - 9 | | 21112 | E - 4 - 1 | 42047 | E - 7 - 21 | 73111 | B - 14 - 10 | 90305 | B - 19 - 17 | 112009 | E - 8 - 9 | | 21114 | B - 20 - 6 | 42047 | B - 34 - 2 | 73260 | B - 14 - 12 | 90306 | E - 7 - 23 | 113010 | E - 14 - 7 | | 21114 | B - 21 - 3 | 46168 | B - 1 - 21 | 77024 | B - 17 - 4 | 90541 | B - 35 - 9 | 113059 | E - 12 - 20 | | 21210 | B - 4 - 8 | 46612 | E - 15 - 2 | 77055 | B - 35 - 11 | 90574 | B - 35 - 12 | 113060 | E - 12 - 16 | 66
PART NUMBER INDEX
Halaman 80
# PART NUMBER INDEX | PART NO | GROUP | |:--------|:------------| | 113076 | E - 12 - 11 | | 113125 | E - 12 - 6 | | 113291 | E - 12 - 13 | | 113526 | E - 10 - 14 | | 113995 | E - 5 - 22 | | 118058 | E - 8 - 4 | | 119219 | B - 23 - 3 | | 121668 | E - 7 - 25 | | 133068 | E - 3 - 5 | | PART NO | GROUP | |:--------|:------------| | 133157 | E - 3 - 9 | | 133223 | E - 6 - 12 | | 133238 | E - 12 - 14 | | 133578 | E - 12 - 10 | | 134914 | E - 6 - 5 | | 137267 | B - 29 - 9 | | 137267 | B - 30 - 3 | | 137267 | B - 31 - 4 | | 138345 | E - 17 - 2 | | 138474 | B - 34 - 8 | | PART NO | GROUP | |:--------|:------------| | 138865 | E - 15 - 1 | | 138934 | B - 1 - 24 | | 138935 | B - 1 - 12 | | 139100 | E - 10 - 15 | | 139433 | E - 7 - 28 | | 139466 | B - 36 - 5 | | 139796 | B - 29 - 12 | | 139797 | B - 30 - 6 | | 139797 | B - 31 - 1 | | 139797 | B - 25 - 2 | | 139912 | B - 27 - 13 | | 139912 | B - 29 - 11 | | 139913 | B - 25 - 3 | | 139913 | B - 27 - 11 | | 139914 | B - 32 - 3 | | 139915 | B - 32 - 2 | | 139933 | B - 1 - 13 | | 141589 | E - 18 - 5 | | 142300 | L - 1 - 5 | | 146086 | E - 12 - 18 | | PART NO | GROUP | |:--------|:------------| | 146087 | E - 12 - 19 | | 146129 | E - 9 - 13 | | 148134 | L - 1 - 7 | | 149908 | B - 14 - 17 | | 150044 | E - 14 - 9 | | 150131 | E - 13 - 9 | | 150235 | B - 29 - 2 | | 150235 | B - 30 - 7 | | 150656 | E - 3 - 18 | | 152133 | E - 14 - 11 | | PART NO | GROUP | |:--------|:------------| | 152805 | E - 8 - 7 | | 153198 | B - 35 - 17 | | 154778 | B - 11 - 5 | | 155526 | B - 5 - 3 | | 156038 | B - 4 - 11 | | 156038 | B - 5 - 13 | | 156039 | B - 4 - 9 | | 156039 | B - 5 - 11 | | 156401 | B - 35 - 6 | | 156490 | B - 4 - 5 | | PART NO | GROUP | |:--------|:------------| | 156490 | B - 5 - 8 | | 156491 | B - 4 - 6 | | 156491 | B - 5 - 9 | | 156946 | B - 12 - 7 | | 158793 | B - 1 - 18 | | 158893 | B - 1 - 20 | | 158962 | E - 3 - 4 | | 159804 | B - 1 - 11 | | 159873 | B - 15 - 7 | | 161125 | E - 18 - 3 | | PART NO | GROUP | |:--------|:------------| | 161994 | B - 15 - 3 | | 161995 | B - 15 - 1 | | 162741 | L - 3 - 2 | | 162743 | L - 3 - 6 | | 163015 | L - 2 - 10 | | 164343 | L - 6 - 3 | | 164634 | B - 27 - 17 | | 164634 | B - 33 - 2 | | 165260 | E - 6 - 9 | | 165805 | E - 11 - 6 | | PART NO | GROUP | |:--------|:------------| | 166366 | E - 11 - 18 | | 166969 | E - 11 - 7 | | 166980 | E - 11 - 4 | | 166982 | E - 11 - 10 | | 167609 | E - 15 - 16 | | 174025 | B - 19 - 15 | | 174049 | B - 17 - 12 | | 174085 | B - 17 - 16 | | 174088 | B - 17 - 17 | | 174128 | B - 19 - 5 | | PART NO | GROUP | |:--------|:------------| | 174514 | E - 10 - 16 | | 174515 | E - 10 - 6 | | 174735 | E - 10 - 13 | | 174773 | B - 16 - 1 | | 174806 | B - 17 - 14 | | 175330 | B - 1 - 23 | | 175369 | B - 30 - 14 | | 175369 | B - 31 - 5 | | 176166 | B - 16 - 3 | | 176168 | B - 16 - 7 | | PART NO | GROUP | |:--------|:------------| | 176444 | B - 16 - 4 | | 177408 | B - 23 - 9 | | 177414 | B - 20 - 14 | | 177414 | B - 21 - 9 | | 177436 | B - 19 - 13 | | 177436 | B - 22 - 2 | | 177442 | B - 20 - 12 | | 177442 | B - 21 - 8 | | 177443 | B - 20 - 13 | | 177443 | B - 21 - 7 | | PART NO | GROUP | |:--------|:------------| | 177445 | B - 23 - 8 | | 177450 | B - 23 - 7 | | 177451 | B - 23 - 5 | | 177494 | B - 19 - 7 | | 177494 | B - 22 - 1 | | 177508 | B - 19 - 6 | | 177508 | B - 22 - 13 | | 177609 | B - 20 - 5 | | 177609 | B - 21 - 4 | | 177610 | B - 20 - 1 | | PART NO | GROUP | |:--------|:------------| | 177610 | B - 21 - 17 | | 177735 | B - 14 - 14 | | 177835 | B - 14 - 15 | | 178209 | B - 15 - 19 | | 178316 | B - 15 - 20 | | 178321 | B - 15 - 20 | | 178338 | E - 9 - 14 | | 178559 | B - 17 - 22 | | 178562 | B - 17 - 21 | | 178592 | B - 17 - 23 | | 178689 | B - 15 - 18 | | PART NO | GROUP | |:--------|:------------| | 178887 | B - 7 - 18 | | 178898 | B - 7 - 17 | | 178960 | B - 14 - 11 | | 178961 | B - 14 - 15 | | 179230 | B - 27 - 15 | | 179292 | B - 17 - 24 | | 179506 | E - 11 - 22 | | 179510 | E - 19 - 5 | | 179516 | E - 19 - 13 | | 179521 | E - 19 - 11 | | PART NO | GROUP | |:--------|:------------| | 179775 | B - 11 - 11 | | 179776 | B - 11 - 7 | | 179777 | B - 11 - 12 | | 179778 | B - 11 - 8 | | 179779 | B - 11 - 13 | | 179780 | B - 11 - 9 | | 179833 | B - 29 - 1 | | 179833 | B - 30 - 1 | | 180587 | B - 13 - 4 | | 181329 | B - 13 - 5 | | PART NO | GROUP | |:--------|:------------| | 181475 | B - 12 - 6 | | 181476 | E - 12 - 7 | | 181746 | L - 2 - 5 | | 181746 | L - 3 - 6 | | 181746 | L - 4 - 5 | | 181746 | L - 6 - 4 | | 181746 | L - 6 - 10 | | 181746 | L - 6 - 14 | | 181747 | L - 2 - 4 | | 181747 | L - 3 - 4 | | 181747 | L - 3 - 12 | | PART NO | GROUP | |:--------|:------------| | 181747 | L - 4 - 4 | | 181747 | L - 4 - 12 | | 181822 | B - 19 - 14 | | 181881 | L - 7 - 12 | | 182049 | B - 34 - 16 | | 182144 | B - 11 - 2 | | 182302 | B - 34 - 10 | | 183124 | B - 34 - 20 | | 183321 | B - 35 - 13 | | 183540 | B - 14 - 4 | | 188761 | L - 5 - 6 | | 188776 | E - 15 - 13 | | 188778 | E - 15 - 14 | | 189130 | E - 15 - 15 | | 192598 | B - 24 - 15 | | PART NO | GROUP | |:--------|:------------| | 193161 | E - 11 - 8 | | 194380 | B - 34 - 17 | | 194423 | E - 7 - 7 | | 194424 | E - 7 - 8 | | 194517 | E - 14 - 16 | | 194631 | B - 1 - 17 | | 195001 | E - 14 - 4 | | 195565 | B - 36 - 14 | | 195849 | E - 11 - 12 | | 196549 | B - 14 - 7 | | PART NO | GROUP | |:--------|:------------| | 198560 | B - 14 - 15 | | 199190 | B - 13 - 1 | | 199370 | L - 4 - 10 | | 199803 | E - 15 - 12 | | 214191 | B - 27 - 16 | | 215809 | E - 5 - 13 | | 216053 | B - 15 - 2 | | 216808 | B - 17 - 20 | | 216895 | L - 5 - 10 | | 217280 | B - 24 - 13 | 67
PART NUMBER INDEX
Halaman 81
PART NUMBER INDEX | PART NO | GROUP | | :------ | :------ | | 217316 | L - 7 - 3 | | 217421 | E - 19 - 19 | | 217900 | B - 33 - 3 | | 218152 | B - 3 - 3 | | 218721 | E - 11 - 2 | | 218812 | L - 5 - 7 | | 218824 | L - 7 - 6 | | 219002 | B - 3 - 1 | | 219093 | L - 4 - 6 | | 219094 | L - 4 - 2 | | | | | 219337 | B - 29 - 15 | | 219343 | B - 29 - 16 | | 219727 | B - 29 - 6 | | 219727 | B - 30 - 11 | | 223225 | E - 8 - 13 | | 223231 | E - 8 - 8 | | 223232 | E - 8 - 11 | | 223233 | E - 8 - 6 | | 223234 | E - 8 - 5 | | 223604 | E - 2 - 11 | | | | | 225127 | E - 19 - 12 | | 225171 | E - 19 - 10 | | 225564 | E - 19 - 18 | | 225572 | E - 19 - 8 | | 225797 | E - 19 - 16 | | 225811 | E - 19 - 4 | | 225812 | E - 19 - 17 | | 225813 | E - 19 - 22 | | 226093 | B - 10 - 3 | | 226093 | B - 11 - 10 | | | | | 226097 | B - 12 - 1 | | 226102 | B - 10 - 7 | | 226110 | B - 10 - 11 | | 226111 | B - 10 - 2 | | 226156 | B - 17 - 1 | | 226208 | B - 17 - 2 | | 226209 | B - 26 - 1 | | 226234 | B - 26 - 3 | | 226235 | B - 26 - 2 | | 226280 | B - 13 - 14 | | PART NO | GROUP | | :------ | :------ | | 226820 | B - 26 - 8 | | 226890 | B - 6 - 14 | | 227412 | B - 6 - 19 | | 228086 | B - 3 - 2 | | 228090 | B - 3 - 5 | | 228205 | B - 6 - 21 | | 228354 | B - 3 - 4 | | 229796 | E - 7 - 2 | | 229796 | B - 20 - 7 | | 229796 | B - 21 - 15 | | | | | 230051 | L - 5 - 9 | | 230349 | L - 3 - 13 | | 230365 | B - 1 - 8 | | 230750 | L - 5 - 4 | | 231024 | L - 7 - 17 | | 231089 | E - 11 - 5 | | 231095 | E - 11 - 3 | | 231851 | L - 7 - 20 | | 232775 | L - 2 - 6 | | 232893 | B - 13 - 2 | | | | | 232894 | B - 13 - 7 | | 232895 | B - 13 - 5 | | 233005 | B - 12 - 5 | | 233255 | L - 2 - 16 | | 233260 | L - 2 - 17 | | 233622 | L - 2 - 9 | | 235234 | E - 4 - 8 | | 235747 | E - 12 - 1 | | 235908 | E - 8 - 12 | | 236402 | E - 6 - 10 | | | | | 238873 | E - 6 - 3 | | 238932 | E - 6 - 4 | | 239017 | E - 12 - 21 | | 239030 | E - 12 - 2 | | 239089 | E - 14 - 1 | | 239168 | E - 12 - 15 | | 239265 | E - 12 - 26 | | 239367 | E - 12 - 23 | | 240165 | B - 7 - 11 | | 240166 | B - 7 - 14 | | PART NO | GROUP | | :------ | :------ | | 241004 | E - 9 - 5 | | 241461 | E - 6 - 6 | | 241558 | E - 14 - 17 | | 241591 | E - 4 - 22 | | 241611 | E - 4 - 8 | | 241612 | E - 4 - 8 | | 241613 | E - 4 - 8 | | 241863 | E - 9 - 4 | | 241867 | E - 9 - 3 | | 242092 | B - 12 - 4 | | | | | 242275 | E - 13 - 18 | | 242276 | E - 13 - 12 | | 242277 | E - 13 - 16 | | 242278 | E - 13 - 14 | | 242380 | E - 4 - 13 | | 242549 | E - 3 - 6 | | 243154 | E - 8 - 1 | | 244126 | B - 27 - 3 | | 244169 | E - 4 - 11 | | 245255 | E - 8 - 3 | | | | | 245451 | B - 4 - 10 | | 245451 | B - 5 - 12 | | 246392 | E - 2 - 13 | | 247652 | E - 13 - 10 | | 247873 | E - 12 - 27 | | 248293 | E - 19 - 3 | | 248461 | E - 19 - 2 | | 249235 | E - 19 - 1 | | 256136 | E - 11 - 1 | | 258555 | B - 16 - 10 | | | | | 258733 | B - 16 - 7 | | 258826 | B - 11 - 6 | | 265451 | B - 22 - 9 | | 266813 | B - 27 - 2 | | 271147 | B - 21 - 11 | | 271710 | B - 12 - 12 | | 285452 | E - 15 - 8 | | 285452 | E - 16 - 8 | | 287014 | E - 6 - 14 | | 287038 | E - 6 - 13 | | PART NO | GROUP | | :------ | :------ | | 295822 | B - 31 - 11 | | 297175 | B - 5 - 1 | | 319043 | E - 19 - 9 | | 327145 | B - 31 - 14 | | 330065 | B - 28 - 10 | | 400282 | E - 6 - 8 | | 446013 | B - 36 - 2 | | 446014 | E - 7 - 4 | | 446014 | B - 20 - 10 | | 446014 | B - 21 - 2 | | | | | 446014 | B - 36 - 4 | | 494762 | B - 22 - 4 | | 494804 | B - 31 - 9 | | 498373 | B - 31 - 14 | | 500040 | L - 2 - 2 | | 500043 | E - 4 - 20 | | 500046 | B - 4 - 1 | | 500067 | B - 23 - 6 | | 500069 | B - 19 - 8 | | 500101 | B - 36 - 7 | | | | | 500102 | B - 36 - 6 | | 500105 | B - 28 - 3 | | 500106 | B - 28 - 3 | | 500144 | B - 1 - 4 | | 500146 | B - 24 - 1 | | 500153 | B - 8 - 8 | | 500154 | B - 8 - 12 | | 500155 | B - 9 - 4 | | 500158 | B - 28 - 3 | | 500164 | B - 25 - 4 | | | | | 500165 | B - 29 - 7 | | 500166 | B - 25 - 1 | | 500230 | B - 14 - 7 | | 500259 | B - 29 - 7 | | 500286 | B - 6 - 18 | | 500308 | B - 12 - 5 | | 500347 | B - 12 - 3 | | 500390 | B - 30 - 2 | | 500390 | B - 31 - 6 | | 500429 | B - 14 - 8 | | PART NO | GROUP | | :------ | :------ | | 500430 | B - 32 - 11 | | 500432 | B - 15 - 17 | | 500433 | B - 12 - 2 | | 500444 | B - 4 - 7 | | 500445 | L - 6 - 1 | | 500454 | B - 1 - 2 | | 500454 | L - 6 - 2 | | 500456 | L - 7 - 14 | | 500465 | E - 12 - 29 | | 500471 | B - 35 - 16 | | | | | 500472 | B - 35 - 21 | | 500473 | B - 35 - 19 | | 500474 | B - 35 - 19 | | 500475 | B - 35 - 4 | | 500476 | B - 35 - 4 | | 500482 | B - 35 - 7 | | 500484 | E - 15 - 10 | | 500484 | E - 16 - 10 | | 500484 | B - 19 - 9 | | 500486 | B - 35 - 19 | | | | | 500487 | B - 35 - 19 | | 500496 | E - 18 - 2 | | 500504 | B - 23 - 12 | | 500509 | E - 7 - 1 | | 500511 | L - 5 - 7 | | 500513 | L - 5 - 7 | | 500514 | E - 18 - 10 | | 500515 | L - 5 - 5 | | 500516 | B - 33 - 4 | | 500521 | L - 6 - 11 | | | | | 500524 | L - 6 - 11 | | 500531 | L - 1 - 6 | | 500536 | E - 1 - 1 | | 500543 | B - 12 - 3 | | 500547 | L - 1 - 1 | | 500548 | B - 32 - 7 | | 500549 | B - 32 - 7 | | 500550 | L - 5 - 1 | | 500551 | L - 5 - 8 | | 500553 | E - 18 - 4 |
PART NUMBER INDEX
Halaman 82
## PART NUMBER INDEX | PART NO | GROUP | |---|---| | 500563 | B - 6 - 10 | | 500563 | B - 7 - 10 | | 500589 | B - 23 - 1 | | 500613 | B - 1 - 3 | | 500634 | B - 26 - 4 | | 500639 | B - 26 - 5 | | 500642 | B - 23 - 1 | | 500645 | E - 18 - 8 | | 500652 | B - 24 - 4 | | 500665 | L - 6 - 7 | | PART NO | GROUP | |---|---| | 500678 | E - 4 - 17 | | 500680 | L - 4 - 16 | | 500680 | L - 3 - 11 | | 500701 | B - 35 - 1 | | 500703 | E - 7 - 9 | | 500720 | E - 4 - 14 | | 500727 | B - 15 - 13 | | 500729 | B - 15 - 4 | | 500735 | E - 11 - 24 | | 500736 | B - 1 - 9 | | PART NO | GROUP | |---|---| | 500751 | B - 36 - 13 | | 500752 | B - 36 - 12 | | 500756 | B - 15 - 9 | | 500761 | B - 1 - 5 | | 500761 | B - 8 - 17 | | 500761 | B - 9 - 2 | | 500771 | L - 7 - 9 | | 500773 | B - 15 - 12 | | 500774 | B - 20 - 8 | | 500778 | B - 35 - 10 | | PART NO | GROUP | |---|---| | 500787 | L - 6 - 17 | | 500788 | L - 6 - 17 | | 500791 | E - 2 - 13 | | 500793 | E - 1 - 1 | | 500799 | B - 6 - 22 | | 500811 | B - 13 - 2 | | 500814 | B - 2 - 1 | | 500814 | L - 3 - 8 | | 500814 | L - 4 - 14 | | 500834 | L - 3 - 1 | | PART NO | GROUP | |---|---| | 500841 | B - 6 - 20 | | 500847 | B - 32 - 1 | | 500847 | B - 33 - 5 | | 500857 | L - 2 - 1 | | 500861 | L - 1 - 2 | | 500863 | L - 5 - 8 | | 500870 | B - 1 - 16 | | 500871 | E - 12 - 17 | | 500872 | E - 4 - 19 | | 500873 | E - 4 - 18 | | PART NO | GROUP | |---|---| | 500878 | B - 13 - 7 | | 500880 | B - 13 - 7 | | 500887 | B - 6 - 4 | | 500887 | B - 7 - 4 | | 500888 | B - 16 - 2 | | 500900 | B - 8 - 1 | | 500919 | B - 9 - 1 | | 500941 | L - 2 - 12 | | 500943 | L - 2 - 13 | | 500944 | E - 20 - 1 | | PART NO | GROUP | |---|---| | 500949 | E - 1 - 1 | | 500950 | E - 9 - 4 | | 500951 | E - 11 - 22 | | 500952 | E - 16 - 1 | | 500954 | B - 12 - 3 | | 500961 | B - 13 - 8 | | 500962 | B - 13 - 15 | | 500964 | B - 12 - 2 | | 500966 | L - 6 - 11 | | 500967 | L - 6 - 10 | | PART NO | GROUP | |---|---| | 500967 | L - 6 - 14 | | 500968 | B - 15 - 17 | | 500969 | B - 15 - 10 | | 500970 | L - 6 - 11 | | 500975 | B - 23 - 1 | | 500978 | E - 7 - 5 | | 500978 | B - 21 - 5 | | 500979 | B - 19 - 4 | | 500980 | B - 19 - 3 | | 500980 | B - 22 - 18 | | PART NO | GROUP | |---|---| | 500980 | B - 22 - 17 | | 500984 | B - 29 - 7 | | 500986 | L - 7 - 1 | | 500987 | B - 29 - 13 | | 500990 | B - 7 - 19 | | 500994 | L - 1 - 2 | | 500995 | L - 6 - 17 | | 500996 | L - 6 - 17 | | 501002 | E - 9 - 3 | | PART NO | GROUP | |---|---| | 501005 | E - 16 - 12 | | 501007 | E - 7 - 10 | | 501007 | B - 20 - 17 | | 501009 | B - 7 - 20 | | 501012 | E - 11 - 17 | | 501014 | B - 22 - 6 | | 550174 | E - 10 - 9 | | 550316 | B - 1 - 10 | | 550317 | B - 14 - 16 | | 550716 | E - 8 - 14 | | PART NO | GROUP | |---|---| | 563246 | B - 21 - 13 | | 563762 | B - 21 - 16 | | 563788 | B - 31 - 8 | | 563796 | B - 27 - 6 | | 563800 | B - 22 - 5 | | 563804 | B - 22 - 3 | | 563806 | B - 22 - 10 | | 563873 | B - 21 - 14 | | 564053 | B - 22 - 14 | | 564219 | B - 24 - 16 | | PART NO | GROUP | |---|---| | 564222 | B - 23 - 10 | | 573918 | B - 24 - 8 | | 574682 | B - 12 - 1 | | 576464 | B - 13 - 7 | | 576967 | B - 13 - 11 | | 577081 | B - 15 - 14 | | 580953 | B - 31 - 15 | | 581675 | B - 27 - 4 | | 582324 | B - 29 - 1 | | 582324 | B - 31 - 7 | | PART NO | GROUP | |---|---| | 582946 | L - 4 - 9 | | 582964 | B - 31 - 13 | | 582964 | L - 1 - 1 | | 583074 | B - 27 - 18 | | 583081 | L - 4 - 1 | | 583330 | B - 29 - 15 | | 700000 | B - 14 - 9 | | 700002 | B - 15 - 21 | | 700003 | B - 15 - 21 | | 700004 | B - 23 - 11 | | PART NO | GROUP | |---|---| | 700007 | L - 6 - 13 | | 700009 | B - 33 - 1 | | 700013 | B - 36 - 3 | | 700014 | B - 36 - 10 | | 700041 | B - 13 - 8 | | 700045 | B - 15 - 13 | | 700046 | B - 1 - 4 | | 700047 | B - 24 - 1 | | 700056 | E - 4 - 10 | | 700057 | E - 4 - 10 | | PART NO | GROUP | |---|---| | 700058 | E - 4 - 10 | | 700059 | E - 4 - 10 | | 700060 | E - 4 - 12 | | 709047 | B - 22 - 7 | | 709047 | B - 31 - 12 | | 700054 | E - 5 - 26 | | 829342 | E - 4 - 6 | | 852965 | E - 13 - 5 | | 912130 | B - 35 - 5 | | 915130 | B - 35 - 18 | | PART NO | GROUP | |---|---| | 917130 | B - 35 - 20 | | 920130 | B - 35 - 3 | | 925130 | B - 35 - 15 | | 932000 | B - 32 - 15 | | 932000 | B - 33 - 15 | | 1598535 | E - 5 - 9 | | 1998046 | E - 15 - 6 | | 1998046 | E - 16 - 6 | | 2070014 | B - 2 - 5 | | 2356465 | E - 5 - 6 | | PART NO | GROUP | |---|---| | 2415903 | E - 4 - 4 | | 2458295 | E - 5 - 12 | | 2458325 | E - 5 - 1 | | 5637895 | B - 27 - 12 | | 5769690090 | B - 12 - 5 | | 006966 | B - 21 - 12 | | 006968 | B - 22 - 12 | | 007609 | B - 27 - 5 | | 008108 | B - 12 - 11 | | 008108 | B - 15 - 15 | | PART NO | GROUP | |---|---| | 008455 | B - 11 - 1 | | 012532 | L - 4 - 13 | | 013763 | L - 4 - 16 | | 015585 | L - 4 - 14 | | 015932 | L - 2 - 8 | | 015932 | L - 4 - 8 | | 016405 | B - 19 - 2 | | 016405 | B - 22 - 15 | | 03056 | L - 2 - 7 | | 03056 | L - 3 - 7 | | PART NO | GROUP | |---|---| | 03056 | L - 4 - 7 | | 031027 | L - 4 - 15 | | 031027 | L - 3 - 12 | | 031054 | B - 19 - 1 | | 031056 | B - 22 - 16 | | 031089 | L - 3 - 8 | | 031120 | B - 22 - 11 | | 077370 | E - 10 - 11 | | 077371 | E - 10 - 8 | | 097804 | E - 3 - 8 | | PART NO | GROUP | |---|---| | 12218-M | B - 14 - 5 | | 13836-M | B - 1 - 22 | | 16408-B | B - 28 - 12 | | 19264-M | B - 17 - 9 | | 2/46613 | E - 15 - 3 | | 2/46613 | E - 16 - 3 | | 2/80275-B | B - 28 - 11 | | 2/85075 | B - 28 - 6 | | 2/129952 | L - 2 - 11 | | 2/162032 | E - 20 - 2 | 69
PART NUMBER INDEX
Halaman 83
## PART NUMBER INDEX | PART NO | GROUP | |:---------------|:-------------| | 2/178048 | B - 23 - 10 | | 2/197983 | B - 20 - 3 | | 2/199685 | B - 18 - 2 | | 2/217428 | B - 8 - 9 | | 2/217886 | B - 8 - 6 | | 2/218585 | B - 2 - 4 | | 2/218814 | B - 15 - 5 | | 2/219366 | B - 29 - 13 | | 2/219366 | B - 30 - 12 | | 2/233284 | L - 7 - 1 | | 2/330041 | B - 32 - 9 | | 2/330060 | B - 32 - 4 | | 2/33011903 | B - 32 - 8 | | 2/59365 | E - 5 - 8 | | 2/77023 | B - 17 - 7 | | 2/85042 | B - 28 - 4 | | 2/85123 | E - 12 - 22 | | 2/86140 | L - 7 - 15 | | 2/86182-B | B - 28 - 11 | | 2/86183-B | B - 28 - 11 | | 2/86184 | B - 28 - 1 | | 2/86185-B | B - 28 - 6 | | 2/86198 | B - 10 - 12 | | 2/86201 | B - 10 - 10 | | 2/86275 | B - 28 - 13 | | 2/87010 | B - 15 - 8 | | 2/87040 | B - 36 - 1 | | 2/87054-B | B - 28 - 5 | | 2/87083 | B - 6 - 8 | | 2/87083 | B - 7 - 8 | | 2/87089 | B - 28 - 1 | | 2/87116 | B - 1 - 26 | | 2/88010 | E - 11 - 13 | | 2/88011 | L - 7 - 8 | | 2/88029 | B - 8 - 7 | | 2/89858 | E - 5 - 15 | | 2/M-1RH/LH | L - 6 - 15 | | 2/N-1RH/LH | L - 6 - 8 | | 231849-04 | L - 7 - 19 | | 232240-07 | L - 7 - 2 | | PART NO | GROUP | |:----------------|:------------| | 4/100101 | E - 7 - 16 | | 46740-M | E - 5 - 24 | | 551-3709-PX | B - 32 - 5 | | 554-0016 | B - 32 - 6 | | 56002-R | B - 17 - 25 | | 56003-R | B - 17 - 26 | | 82385-M | E - 9 - 2 | | 175120-P | B - 35 - 2 | | KS400620L/RB | - 28 - 2 | | KS600910 | B - 27 - 1 | | KS600980L/RB | - 28 - 2 | | M - 13 | L - 6 - 16 | | M - 5 | L - 6 - 12 | | N - 9 | L - 6 - 9 | | R576968 | B - 13 - 2 | | R581517 | B - 27 - 14 | 70
PART NUMBER INDEX
Halaman 84
PT Danmotor Indonesia 501030 Maret 2005
