Owner's Manual BYD ATTO 3

Halaman 1

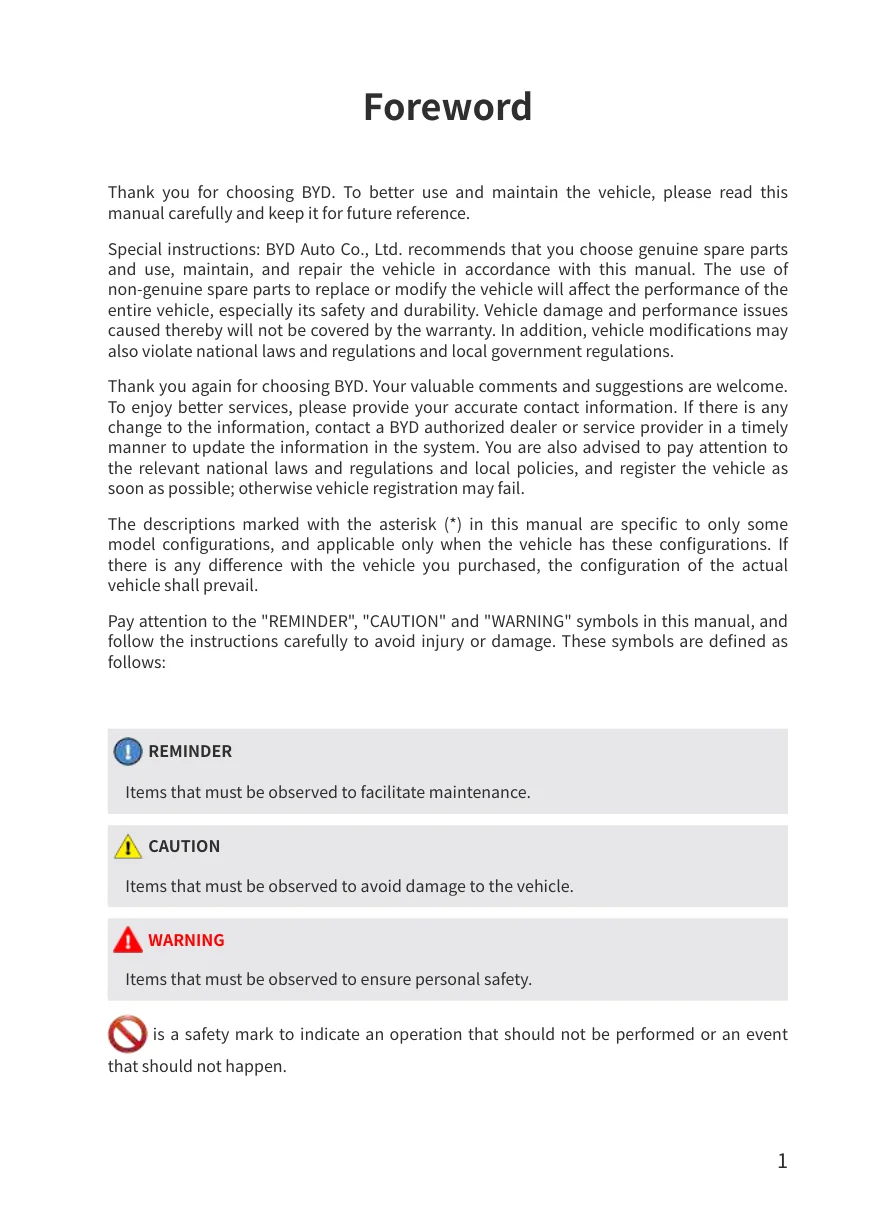

Foreword Thank you for choosing BYD. To better use and maintain the vehicle, please read this manual carefully and keep it for future reference. Special instructions: BYD Auto Co., Ltd. recommends that you choose genuine spare parts and use, maintain, and repair the vehicle in accordance with this manual. The use of non-genuine spare parts to replace or modify the vehicle will affect the performance of the entire vehicle, especially its safety and durability. Vehicle damage and performance issues caused thereby will not be covered by the warranty. In addition, vehicle modifications may also violate national laws and regulations and local government regulations. Thank you again for choosing BYD. Your valuable comments and suggestions are welcome. To enjoy better services, please provide your accurate contact information. If there is any change to the information, contact a BYD authorized dealer or service provider in a timely manner to update the information in the system. You are also advised to pay attention to the relevant national laws and regulations and local policies, and register the vehicle as soon as possible; otherwise vehicle registration may fail. The descriptions marked with the asterisk (*) in this manual are specific to only some model configurations, and applicable only when the vehicle has these configurations. If there is any difference with the vehicle you purchased, the configuration of the actual vehicle shall prevail. Pay attention to the "REMINDER", "CAUTION" and "WARNING" symbols in this manual, and follow the instructions carefully to avoid injury or damage. These symbols are defined as follows: REMINDER Items that must be observed to facilitate maintenance. CAUTION Items that must be observed to avoid damage to the vehicle. WARNING Items that must be observed to ensure personal safety. is a safety mark to indicate an operation that should not be performed or an event that should not happen.

Halaman 2

This manual is expected to help you use the product correctly, and does not provide any description of the configuration and software version of this product. For details about the product configuration and software version, please refer to the contract (if any) related to this product, or consult the dealer who sold the product to you. Copyright © BYD Auto Co., Ltd. All rights reserved. No part of this document may be reproduced, copied, stored, translated, or transmitted electronically or in any other form without prior written consent and authorization of BYD Auto Co., Ltd. All rights reserved

Halaman 3

Illustration Index Exterior..............................................7 Dashboard......................................... 8 Center Console...................................9 Doors...............................................10 Safety Seat Belts.........................................12 Seat Belt Overview.................................. 12 Using Seat Belts.......................................12 Airbags............................................ 15 Airbag Overview...................................... 15 Driver and Front Passenger Airbags....... 16 Front Seat Side Airbags*......................... 16 Side Curtain Airbags................................17 Airbag Triggering Conditions..................18 Child Restraint Systems.................... 23 Child Restraint Systems.......................... 23 Anti-theft Alarm System....................28 Anti-theft Alarm System..........................28 Data Collection and Processing......... 28 Data Collection and Processing..............28 Instrument Cluster Instrument Cluster........................... 34 Instrument Cluster View..........................34 Instrument Cluster Indicators.................35 Controller Operation Doors and Keys.................................46 Key Overview...........................................46 Locking/Unlocking Doors....................... 51 Smart Access and Start System.............. 57 Child Protection Lock..............................59 Seats................................................59 Seat Precautions..................................... 59 Adjusting Front Seats.............................. 60 Folding Rear Seats...................................61 Head Supports.........................................61 Steering Wheel................................. 63 Steering Wheel.........................................63 Wipers............................................. 66 Wiper Switch............................................66 Replacing Wiper Blades.......................... 68 Rearview Mirrors.............................. 69 Interior Rearview Mirror..........................69 Power Side Mirrors.................................. 69 Switches.......................................... 70 Light Switches......................................... 70 Driver's Door Switches............................ 74 Odometer Switch.................................... 76 Driver Assistance Switches..................... 77 Window Control Switch on Passenger Side........................................ 77 Hazard Warning Light Switch..................77 Mode Switches........................................ 78 Emergency Call (E-Call)*......................... 78 PAB Switch*............................................. 79 Sunroof Switch*.......................................80 Interior Light Switch................................82 Using and Driving Discharging Instructions...................84 Charging Instructions..............................84 Charging...................................................88 Discharging Device*................................ 92

Halaman 4

Charge Port Anti-theft Lock.................... 94 Driving Range Display Settings*............. 94 Energy Regeneration Settings................ 95 Batteries.......................................... 96 High-Voltage Battery............................... 96 Low-Voltage Battery................................98 Usage Precautions.......................... 100 Break-in Period......................................100 Trailer Towing........................................101 Driving Safety Precautions....................101 Suggestions for Vehicle Use..................101 Saving Energy and Extending Vehicle Service Life................................102 Carrying Luggage.................................. 103 Wading into Water.................................104 Fire Prevention...................................... 105 Snow Chains..........................................107 Starting and Driving........................107 Starting the Vehicle............................... 107 Driving....................................................108 Gear Shift Controls................................ 109 Electronic Parking Brake (EPB).............110 Automatic Vehicle Hold (AVH)...............113 Driving Precautions...............................114 Driver Assistance............................ 115 Cruise Control*......................................115 Adaptive Cruise Control (ACC)*.............116 Intelligent Cruise Control (ICC)*........... 120 Forward Collision Warning (FCW) and Automatic Emergency Braking (AEB)*.....................................................122 Traffic Sign Recognition (TSR)*.............125 Intelligent Speed Limit Control (ISLC)*.................................................... 126 High Beam Assist (HMA)*...................... 127 Lane Departure Assist (LDA)*................128 Emergency Lane Keeping Assist (ELKA)*...................................................130 Blind Spot Assist (BSA)*........................ 131 Driver Attention Warning (DAW)*..........133 Tire Pressure Monitoring.......................134 Acoustic Vehicle Alert System (AVAS)... 136 Around View Monitor (AVM)*.................136 Parking Assist System........................... 138 Driving Safety Systems..........................141 0-100 km/h: Full Throttle Experience... 145 Other Main Functions......................146 Driving Recorder....................................146 In-Vehicle Devices Infotainment System...................... 150 Infotainment Touchscreen....................150 Navigation Bar.......................................151 Gestures and Responses.......................151 OTA Upgrade*........................................ 151 BYD Assistant.........................................152 Bluetooth call........................................ 152 File Management...................................152 A/C System..................................... 153 A/C Panel................................................153 A/C Operation Interface........................ 153 Function Definition............................... 155 Vents...................................................... 158 Switching on A/C with Cloud Service App............................................158 BYD App......................................... 159 BYD App................................................. 159 Account Registration............................. 159 Vehicle Condition and Control..............159 Individual Center and Vehicle Management..........................................159

Halaman 5

Storage.......................................... 160 Door Bins............................................... 160 Glove Box...............................................160 Center Console Cubby...........................160 Seatback Pockets.................................. 160 Cup Holder.............................................160 Other Devices................................. 161 Sun Visor................................................161 Grab Handles.........................................161 USB Ports...............................................162 12V Auxiliary Power...............................162 Wireless Phone Charger Location*....... 162 Cargo Cover*..........................................164 Maintenance Regular Maintenance...................... 166 Regular Maintenance............................ 166 Vehicle Corrosion Prevention............... 166 Paint Maintenance Tips.........................167 Exterior Cleaning................................... 167 Interior Cleaning....................................168 Maintenance Information................170 Maintenance Cycle and Items...............170 Maintenance System*........................... 175 Self-Maintenance............................175 Self-Maintenance.................................. 175 Sunroof Maintenance............................177 Vehicle Storage......................................177 Hood...................................................... 178 Cooling System......................................179 Braking System......................................179 Washer................................................... 179 A/C System.............................................180 Wiper Blades..........................................180 Tires....................................................... 181 Fuses...................................................... 184 When Faults Occur When Faults Occur.......................... 186 If Smart Key Battery Is Exhausted.........186 Emergency Shutdown System..............186 Vehicle Fire Rescue................................187 Battery Leakage Rescue........................187 If the Vehicle Needs Towing..................188 If a Tire Goes Flat...................................190 If the Vehicle Needs Support................ 191 Specifications Data............................................... 194 Vehicle Data...........................................194 Vehicle Identification............................ 197 Information....................................198 Warning Labels......................................198 Transponder Mounting Position...........200 Declarations of Conformity............. 201 Declarations of Conformity...................201 Abbreviations Abbreviations.................................209

Halaman 6

6

Halaman 7

Illustration Index Exterior 1 Locking/Unlocking the Trunk P54 Carrying Luggage P103 In-Vehicle Tools P190 2 Rear Wiper P68 3 Side Mirror Switches P69 4 Using Mode 2 Charging Cable P88 Using AC Charging Piles P90 Using DC Chargers P91 External Discharging P93 5 Doors P51 6 Combination Light P70 7 Opening the Hood P178 Coolant P179 Brake Fluid P179

Halaman 8

Dashboard 1 Infotainment Touchscreen P150 A/C Settings Interface P153 A/C Function Definitions P155 2 A/C Vents P158 3 Glove Box P160 4 START/STOP Button P107 5 Automatic Vehicle Hold (AVH) Switch P113 6 EPB Switch P110 7 Adjusting the Steering Wheel P66 Steering Wheel Switches P63 8 Instrument Cluster P34 9 Front Windshield Wipers and Washer P66 Rear Windshield Wipers and Washer P67 10 Interior Rearview Mirror P69

Halaman 9

# Center Console | | | | :--- | :--- | | 1 &nbsp;&nbsp; Light Adjustment Switch ***P70*** | 4 &nbsp;&nbsp; Center Console Cubby ***P160*** | | 2 &nbsp;&nbsp; Gear Shift Controls ***P109*** | 5 &nbsp;&nbsp; Using Seat Belts ***P12*** | | 3 &nbsp;&nbsp; Cup Holder ***P160*** | 6 &nbsp;&nbsp; Mode Switches ***P78*** | <br> <div align="right">9</div>

Halaman 10

Doors 1 Opening with Interior Door Handle P51 2 Power Window Switches P74 Window Lock Button P76 Central Locking P76 Adjusting the Side Mirror P69 3 Hood Handle P178 4 Locking/Unlocking the Trunk P54

Safety

Halaman 11

01 SAFETY Seat Belts.......................................... 12 Airbags.............................................. 15 Child Restraint Systems................... 23 Anti-theft Alarm System................... 28 Data Collection and Processing....... 28

Using Seat Belts

Halaman 12

Seat Belts Seat Belt Overview Studies show that proper use of seat belts can significantly reduce casualties in emergency braking, sudden steering or collisions. Read the following information carefully and observe it strictly. CAUTION ●Before driving, make sure all occupants are properly buckled up to prevent serious injury or death in emergency braking or in a collision. ●The seat belts are designed primarily to fit adults and are not intended for children. Make sure to choose a child restraint system appropriate for your child's age and size (see P23 for details).. ●If a seat belt is damaged or malfunctions, immediately contact a BYD authorized dealer or service provider for confirmation and handling. Until then, do not use the corresponding seat. ●All occupants should always fasten their seat belts while in the vehicle to avoid personal injury or death in case of an accident. ●The installed seat belts are designed for adults. Appropriate seat belt selections are necessary for different situations. ●Children must sit in the rear seat and must fasten seat belts for protection. Accident statistics indicate that a child who sits in the rear seat and properly uses a child restraint device is much safer than a child sitting in the front seat. ●Do not allow children to travel standing or kneeling on the rear seat, nor sitting on someone's lap, for there is a high risk of serious injury in case of emergency braking or collision. Emergency Locking Retractor (ELR) ●When the driver turns sharply or brakes suddenly, when there is a collision, or when the occupant leans forward too quickly, the seat belt automatically locks to effectively restrain and protect the occupant. ●When the vehicle travels smoothly, seat belts are pulled out and retracted as the occupants move slowly and smoothly, allowing the occupants to move freely. ●If the seat belt locks due to sudden retraction, pull on the seat belt webbing to create retractable slack to pull out the seat belt. Pretensioner and Force Limiter Function* When a severe front collision occurs and the triggering conditions of the pretensioner are met, the pretensioner quickly retracts part of the seat belt and locks it to improve the protection of the occupant. The force limiter limits the seat-belt restraint force to the occupant's body to a certain extent so as to avoid injury to the occupant due to an excessive restraint force. Using Seat Belts 1. Adjust the seat position and seatback angle (see P60). 2. Adjust the position of the three-point seat belt. ●Keeping a proper sitting posture, pull the seat belt out so that it is diagonally

Using Seat Belts

Halaman 13

across the chest. The belt should not go under the arm or across the back of the neck. ●Keep the lap section of the belt as close as possible to the hips. 3. Insert the latch into the buckle until it clicks, and then pull it back to make sure it is firmly locked. Do not fasten the belt with any part of the strap twisted. 4. Adjust the height of the (front) seat belts for optimum comfort and protection. ① Press the adjuster release button. ② Move the adjuster up or down to the intended position. Release the button to lock the adjuster. 01 SAFETY 5. Pull the belt firmly to check that the adjuster is locked. WARNING ●The shoulder belt should cross the center of the shoulder, far from the neck and not liable to slip from the shoulder. otherwise, it cannot function well in the event of emergency braking or accident and may even cause severe injury. ●The lap belt should be positioned as low as possible around the hips to avoid serious injury due to the intense lap belt forces against the abdomen in an accident. ●The seat belt should be fitted tight to the body for better protection. 6. Unlock the seat belt. ●Press the red unlock button on the buckle. The latch plate pops out, and the seat belt automatically retracts. ●If the seat belt does not retract smoothly and automatically, pull it out and check whether it is twisted.

Seat Belt Reminders

Halaman 14

WARNING ●One seat belt is for one occupant only. Do not allow multiple occupants (including children) to share a seat belt. ●Avoid traveling with the seatback leaning too far back. The seat belt protection performs best when the seatback is upright. ●Make sure that no seat belt or its spring bolt/buckle becomes pressed by the door or rear seatback; otherwise, the seat belt may be damaged. ●Check the seat belts regularly for cuts, wear, looseness, and other abnormalities. If any problem is found, contact a BYD authorized dealer or service provider for confirmation and handling. Until then, do not use the corresponding seat. ●Do not remove, disassemble or modify the seat belts without permission. ●After an accident, have the seat belts checked at a BYD authorized dealer or service provider. If the pretensioner function is activated, the seat belt must be replaced. Use an approved model whenever you replace the seat belt. ●In the event of a serious accident, even if there is no WARNING apparent damage, the seat belt should be replaced along with the seat assembly. The airbag system should also be thoroughly inspected. ●Pregnant women need to fasten the seat belts properly and position the lap belt as low as possible around the hips to avoid serious injury from the intense lap belt forces against the abdomen in an accident. ●The method of wearing a rear seat belt is the same as that for a front seat belt. For normal functioning of the rear seat belt, ensure that its latch is inserted into the corresponding buckle during use. The driver should remind passengers to wear seat belts properly. ●Do not insert coins, clips, or other foreign objects that object proper connection between the latch and buckle. Seat Belt Reminders If any occupant has not buckled up after the vehicle is started, visual and audible alarms go off and continue until the corresponding seat belt is properly fastened. ●Seat belt reminder indicator This indicator flashes if any seat belt is not fastened. ●Display of unfastened belt's seat The indicator for the seat with unfastened seat belt lights up. ●Unfastened seat belt reminder*

Airbag Overview

Halaman 15

If any vehicle occupant has not buckled up after the ignition is switched on, the seat belt reminder indicator and the indicator associated with the corresponding seat* light up. If the seat belt remains unfastened while driving, in addition to the reminder indicator, an audible alarm is given to alert the driver and the occupants. ●When the driver and the passengers fastened their seat belts, the seat belt reminder indicator turns off and all indicators displayed for the corresponding seats* turn off. WARNING ●In the event of abnormality or function failure, contact a BYD authorized dealer or service provider. Do not use the corresponding seat until the functions return to normal. ●When driving, make sure all occupants have their seat belts properly fastened to prevent serious injury or death in emergency braking or in a collision. Airbags Airbag Overview ●The airbag system is a part of auxiliary restraint system and also a supplement to seats and seat belts. When the vehicle is involved in a serious collision and the airbag system meets its deployment conditions, relevant airbags will rapidly deploy and, along with seat belts, provide additional protection for heads and chests of the driver and occupants, to reduce likelihood of personal injury or even death. ●Airbags are divided into front and side types according to the type of collision. The front airbags include a driver airbag and a front passenger airbag, while the side airbags include front seat side airbags and side curtain airbags. 01 SAFETY ●As an integral part of the vehicle's passive safety protection system, the airbag system does not replace seat belts, and must be used in combination with seat belts to maximize protection. Multi-Collision Brake (MCB) ●In case of a vehicle collision, MCB activates to avoid further collisions. ●If the driver is unable to make proper judgment in first collision, the system triggers the MCB control logic based on the type of collision from the airbag control unit to mitigate vehicle impact, slow down, or even stop the vehicle. This can reduce potential damage to the vehicle in further collisions or avoid collisions with another vehicle. CAUTION ●Occupants must sit in a proper position to maximize the protection provided by seat belts and the airbag system. ●Do not disassemble or assemble airbag components. ●Non-BYD genuine seat covers may worsen the airbag performance or result in injury. Do not place anything between the side airbag and the occupant. ●Do not apply excessive force to the side of seats equipped with side airbags.

Seat Side Airbags

Halaman 16

CAUTION ●After a crash, even if the airbag did not deploy and the pretensioner did not lock the seat belt, contact a BYD authorized dealer or service provider for inspection as soon as possible to ensure that the airbag system functions correctly. Driver and Front Passenger Airbags ●This vehicle is equipped with driver and front passenger airbags, when the airbag system Electronic Control Unit (ECU) detects a moderate to severe front impact during driving and the triggering conditions are met, the airbags deploy to minimize the injury. Front airbag deployment ●In moderate to severe frontal crashes, the sensor sends a signal to the ECU to trigger the front airbags when detecting a sharp deceleration. ●When there is a frontal crash, the seat belt secures the occupant's lower body and torso in place. The airbag cushions and protects the occupant's head and chest. ●When the severity of the impact does not reach the airbag deployment threshold, seat belts provide enough protection. ●The front airbag deflates immediately after inflation, without affecting the driver's vision and ability to operate the steering wheel or other controls. ●The airbag deploys within a thousandth of a second to further protect drivers and occupants in an accident. ●A loud noise will be heard when the airbag deploys. It will not cause injury, but it may cause tinnitus or temporary deafness which recover quickly. ●A cloud of dust from the airbag surface may come off when the airbag deploys. Although such powder is non-toxic, individuals with respiratory problem might experience some temporary discomfort. ●The front passenger airbag is controlled by the passenger airbag (PAB) switch. For details, see P79. WARNING ●No accessories, such as telephone holders, cups, ashtrays, can be installed on airbag covers or within their impact range. Otherwise, airbag deployment will increase the risk of injury in an accident. Front Seat Side Airbags* The vehicle is equipped with side airbags for the left and right front seats (installed in the outer edges of the front-row seatbacks and marked with "AIRBAG", as shown in the illustration):

Side Curtain Airbags

Halaman 17

●When a moderate to severe side impact is detected during vehicle travel and the triggering conditions are met, the airbag on the struck side deploys to help protect the occupant's chest. ●Generally, only the airbag on the impacted side deploys in the event of a side impact. ●If the impact occurs on the passenger side, the airbag on the passenger side deploys even if there is no passenger in the seat. ●For optimal side airbag protection, occupants must have their seat belts fastened and sit upright against the seatback. Front far side airbag: ●The vehicle is equipped with front far side airbags for the front seats (installed in the inner side edge of the driver seat and marked with "AIRBAG", as shown in the illustration). ●When a moderate to severe front or side impact is detected during vehicle travel and the triggering conditions are met, the far side airbag deploys to protect the heads and shoulders of the driver and the front passenger. 01 ●If the impact occurs on the front passenger's side, the far side airbag deploys even if there is no passenger in the seat. SAFETY ●For optimum protection from the driver far side airbag, the occupant must have the seat belt fastened and sit in an upright position. In a vehicle equipped with seat side airbags: ●Prevent the seatbacks from getting wet. If they get wet from rain or splashes, the side airbag system may not work properly. ●Do not cover or replace seatback covers on you own. Unsuitable seatback covers may prevent airbag deployment. Side Curtain Airbags ●The vehicle is equipped with left and right side curtain airbags (mounted at the junction of the side wall and the ceiling, with the A, B and C- pillar shields marked with "AIRBAG" as shown). ●When a moderate to severe side impact is detected by ECU and the triggering conditions are met, the side curtain airbag deploys to protect the head of the occupant on the struck side.

Cases When Airbags May Be Deployed

Halaman 18

●Generally, only the airbag on the impacted side deploys in the event of a side impact. ●For optimum curtain airbag protection, the occupant must be buckled up and sit in an upright position. Airbag Triggering Conditions ●Airbag triggering conditions: Airbags may only deploy in certain crashes, depending on factors such as crash energy, crash type, impact angle, obstacle type, and vehicle speed. ●The airbag system does not always work in any accident, and generally it will not be triggered in the event of a minor frontal collision, side collision, rear collision or rollover. In this case, the driver and passengers are protected by their properly fastened seat belts. ●Determinants of airbag system triggering: Decision is made by comparing the deceleration curve, generated in the collision and obtained by the electronic control unit (ECU) and the set value. If signals, such as the deceleration curve generated and measured in the collision, are lower than the respective reference values preset in the ECU, the airbag system will not be triggered even if the vehicle may have been seriously deformed in the accident. ●The ECU of the BYD airbag system has been set up with considerations of common misuse and road conditions. However, due to the increasing changes in causes and forms of vehicle collisions, for your safety, please strictly follow this user manual, use the vehicle correctly, and avoid its misuse. Otherwise, there is no guarantee that the airbags will achieve their expected effect. Cases When Airbags May Be Deployed The vehicle's nose hits the ground when crossing a deep groove. The vehicle hits a bump or curbstone. The vehicle's nose hits the ground when going down a steep slope.

Cases When Airbags May Not Be Deployed

Halaman 19

One side of the vehicle is hit by another vehicle. Cases When Airbags May Not Be Deployed The vehicle hits a concrete column, tree, or other slim objects. The vehicle goes under a truck or another large vehicle. 01 SAFETY The tail of the vehicle is hit by another vehicle. The vehicle rolls over. The vehicle hits a wall or a vehicle at a side other than the front side.

Cases When Airbags May Not Be Deployed

Halaman 20

Parts other than the passenger compartment receive side impact. The lateral side of the vehicle is hit diagonally. The lateral side of the vehicle hits a columnar object. WARNING ●Airbags are designed for specific models. Any changes to suspension, tire size, bumpers, chassis and factory-equipped devices may adversely affect the airbag system. Never use any parts of the airbag system on other vehicles; this may lead to failure of the airbag system and even the personal injury. ●Drivers should maintain a distance of at least 25 cm between their chest and the steering wheel, in order for the system to provide the most effective driver protection. ●When the airbag system deploys, the airbag reaction high temperature gas will be discharged from the airbag vent. Drivers should avoid touching its parts and keep hands holding the steering wheel in the correct position, otherwise there is a possibility of burns when the airbag deploys. ●Fasten your seat belt and sit properly while the vehicle is in motion. If the seat belt is not fastened, if the occupant is leaning forward or sitting improperly, airbag deployment can increase the risk of injury.

Cases When Airbags May Not Be Deployed

Halaman 21

WARNING ●Do not paste stickers, cover or decorate the button area or the center cap of the steering wheel, the right side surface of the dashboard at and near the location of the airbag, the surface of A, B, and C-pillar trims, or the surface at and near the location of seat side airbags with any object. Clean these surfaces with a dry or damp cloth, without applying too much pressure. ●A child is not to be seated in the front passenger seat, nor are they to ride sitting on a front passenger's lap, to prevent serious injury or even casualty caused by airbag deployment. ●Side airbags and side curtain airbags deploy quickly with high impact forces. Occupants must not lean against the doors of vehicles equipped with these airbags while these vehicles are in motion. Failure to do so could result in serious injury or even death. ●Do not modify or replace seats or trims of the seats with side airbags. These changes may prevent normal deployment of side airbags, and thereby cause airbag system failure or unintended deployment of side airbags, resulting in serious injury or death. ●Do not place any other accessories or items within the action range of side curtain airbags, including the windshield, side door glass, A-pillar trim, ceiling, B-pillar trim, C-pillar trim and auxiliary handles. When the side curtain airbag deploys, WARNING the accessories or items will be thrown by the impact force from the side air curtain airbag, or the side curtain airbag may not deploy normally, resulting in serious injury or even death. 01 SAFETY ●When transferring vehicle ownership, make sure to pass on all of the vehicle's documents and keep the new ownership informed of airbag conditions and replacement dates. ●Do not disassemble or repair the A-pillar trim, ceiling, B-pillar trim or C-pillar trim, which contain side curtain airbags. These changes can cause failure of the airbag system or accidental deployment of curtain airbags, which may cause serious injury or even death. ●Do not change any component of the airbag system, including its labels. It is recommended that any operation done to the airbags be performed by a BYD authorized dealer or service provider. ●Airbags can only provide one-time accident protection. Once the airbag is triggered or damaged, the airbag system must be replaced. ●Follow safety regulations and procedures related to the scrapping of parts of the vehicle or its airbag system. ●The airbag system has strong anti- interference and anti-disturbance resistance to electromagnetic fields around it. However, to avoid accidents, do not use the vehicle in an electromagnetic

Cases When Airbags May Not Be Deployed

Halaman 22

WARNING environment that violates national regulations. ●The airbag system of this vehicle is designed with full consideration of common misuses and road conditions. However, in order to avoid accidents, do not have the bottom of the vehicle impacted or drive roughly in harsh road conditions. ●This vehicle's airbag system has been fully verified to match the vehicle's original wiring harness system. Any wiring harness modification or alteration may cause the airbags to deploy mistakenly under normal conditions or fail to deploy in the event of a collision. It is recommended to contact a BYD authorized dealer or service provider immediately if any of the following situations occurs. ●The airbag has deployed. ●Instrument cluster airbags warning light lights up abnormally. If any of the following events occurs, the airbag system is faulty. Please contact a BYD authorized dealer or service provider immediately. ●When the ignition is switched on but the warning light goes off. ●When the ignition is switched on but the warning light does not go off after five seconds, or goes off and then on again. ●When the ignition is switched off but the warning light turns on. ●This warning light turns on or flashes during driving. ●There is a collision with the front of the vehicle (highlighted area shown), but the front airbags do not deploy. ●The airbag cover has been scratched, cracked or otherwise damaged. ●Airbags need to be removed, disassembled, installed or repaired. ●Side airbags and curtain airbags have deployed. ●An impact to a vehicle door in an accident is not adequate to cause the airbag to deploy. ●The surface of the seat with a side airbag is scratched, cracked, or damaged similarly. ●Decorative (liner) parts at A-pillar with built-in curtain airbags, roof beam and C-pillar are scratched, cracked, or damaged similarly.

Installing Child Restraint Systems

Halaman 23

Child Restraint Systems Child Restraint Systems Choose a suitable child restraint system for your child's age and stature. ●Please choose a suitable child restraint system for your child. A child who cannot use a protection device for size reason must sit in the rear seat and have the seat belt fastened properly. When the child restraint system is not in use ●Fix the child restraint system to the seat correctly. Do not place it on the passenger seat or in the trunk. CAUTION ●Be sure to use a seat belt or child restraint system for a child based on his/her age and size, so as to effectively protect the child in an accident or emergency stop. Holding a child in arms is not a substitute for a child restraint system. In an accident, the child may be crushed against the windshield or between you and the cabin. ●Vehicle with curtain airbags: Even though a child is in the child restraint system, do not allow his/her head or any other body part against any door, seat, front/ rear pillar or roof side beam (which will be affected when side curtain airbags deploy). Otherwise, the considerable impact force generated when the curtain airbags deploy will cause severe injury or even life threat to the child. CAUTION ●Please follow the instructions provided with the child restraint system to make sure the child restraint it is properly installed in the vehicle. Otherwise, emergency parking or an accident may result in serious injury to the child or even death. 01 SAFETY REMINDER ●BYD strongly suggests you to install child restraint systems. Researches indicate that it is safer to install child restraints on the rear seats than the front seats. ●Secure it to the rear outboard seat according to its installation instructions provided by the manufacturer. ●Secure the top tether when installing the child restraint system. Installing Child Restraint Systems ●A special anchorage is provided on the rear outboard seat (the label showing the anchorage is attached to the seat). ●Rear outboard seats are equipped with tether strap anchorages on the back. Middle seat anchorage depends on configuration.

Installing Child Restraint Systems

Halaman 24

●The use of top tether anchorage point with a belted child restraint is allowed in specific markets only. Installing a child restraint 1. Check the position of the special anchorage and install the child restraint on the seat. REMINDER ●The anchorage is installed in the clearance between the seat and seat back. 2. Lift the head support, engage the hook tightly to the anchorage at the back of the seatback, and tighten the top tether so that it is fastened. ① Top tether ② Anchorage 3. Adjust the head support to a proper position. ●After the seat head support is removed, keep it in the trunk. ●BYD recommends installing the child restraint system to the ISOFIX anchorages on board. ●If the driver' seat obstructs or interferes with the correct installation of the child restraint, install it on the right rear seat. Child restraint systems installed on the front passenger seat* ●When using a rear-facing child restraint, switch off the front passenger seat airbag by the PAB switch. ●See "PAB Switch*" for details. ●Check the position of the special anchorage and install the child restraint on the seat. ●ISOFix/i-Size anchorage points are available for the front passenger seat and the label indicating an anchorage point location is attached to the seatback above the relevant anchorage

Installing Child Restraint Systems

Halaman 25

●An anchorage is provided for child restraint installation at the back of the front passenger seat. WARNING ●Never install a rear-facing child restraint on the seat protected by a front airbag (in the active state). ●When the front passenger airbag is disabled, it is not allowed to seat in the front seat(including adults and children). ●When a forward facing child restraint system is used on the front passenger seat, ensure the seat is positioned fully rearward away from the active airbag. ●Before seating a child, ensure the child restraint system is securely installed and does not rotate or move away from the seat. When using a child restraint system always ensure: the anchorages are not obstructed; the seat belt is in the correct position; and the child restraint system is securely installed. ●Please follow the instructions provided with the child restraint system to make sure the child restraint is properly installed in the vehicle, otherwise emergency parking or an accident may result WARNING in serious or even fatal injury to the child. ●Child restraint anchorages are designed to withstand only those loads imposed by correctly fitted child restraints. Under no circumstances are they to be used for adult seat belts, harnesses, or for attaching other items or equipment to the vehicle. 01 SAFETY CAUTION ●If the top tether length is not enough, the belt may be extended to connect the anchorage. ●Before installing an R3 size child restraint system, make sure that the front passenger seat is adjusted to the rearmost position. ●Where applicable to use a top tether strap with the child restraint system, ensure the strap is routed through the hole in the head support before attaching and tensioning the strap to the anchorage point at the base of the seat. CAUTION ●Install the top tether according to the figure.

Installing Child Restraint Systems

Halaman 26

●For details about installing the child restraint system on the front passenger seat, see the preceding description. Securing a child restraint with the seat belt* Rear Seats Front passenger front airbag ON Group Child Weight Group 0 Up to 10 kg X U U Group 0+ Up to 13 kg X U U Rear-facing 9~18 kg X U U Group 1 Front-facing 9~18 kg U X U Group 2 15~25 kg U X U Group 3 22~36 kg U X U Note: Table definitions: U: universal X: X: seat position not suitable for installing a child restraint for this weight group ISOFIX and i-Size quick installation guide* Front Passenger Seat* Child Seat Orientatio n Size class/ ISOFIX class Front passenger front airbag ON Group Group 0: Rear-facing E/R1 X IL-SU IL-SU X Up to 10 kg E/R1 Group 0+: Rear-facing X IL-SU IL-SU X D/R2 Up to 13 kg C/R3 Group 1: Rear-facing D/R2 X IL-SU IL-SU X ●Installation options are shown in the table below. Front Passenger Seat* Front passenger front airbag OFF ●The identification mark of ISOFIX or i- Size anchorage points is specified by the corresponding country/region. ●Suitability of ISOFIX seating positions for ISOFIX child restraint systems: Rear Outboard Seat Rear Middle Seat Front passenger front airbag OFF

Installing Child Restraint Systems

Halaman 27

Front Passenger Seat* Child Seat Orientatio n Size class/ ISOFIX class Front passenger front airbag ON Group C/R3 B/F2X 9~18 kg Front- facing IL-SU, IUF X IL-SU, IUF X B1/F2X A/F3 Group 2: Front- facing - IL-SU X IL-SU X 15~25 kg Group 3: Front- facing - IL-SU X IL-SU X 22~36 kg Rear-facing –/R2 X i-U i-U X i-Size child restraint system Front- facing –/B2, F2X i-U X i-U X Booster seat Front- facing –/B2, B3 i-B X i-B X Size class: ●The size class shown corresponds to the applicable weight range of the child restraint. ●The size class of the child restraint applicable to the universal group or semi-universal group is indicated on the ECE approval label. ●The child restraint is attached with a size description. X： ●The seat is not suitable for installing an ISOFIX or i-Size child restraint. IL-SU: ●The seat is suitable for installing a semi-universal ISOFIX child restraint. Rear Outboard Seat Rear Middle Seat Front passenger front airbag OFF 01 SAFETY ●Please note the list of applicable models provided by the child restraint manufacturer. IUF: ●The seat is suitable for installing a universal ISOFIX child restraint. i-U: ●The seat is suitable for installing a universal front-facing or rear-facing i- Size child restraintt. i-UF: ●The seat is suitable for installing a universal front-facing i-Size child restraint. i-B: ●The seat is suitable for installing a front-facing ISOFIX booster cushion

Data Collection and Processing

Halaman 28

of Groups 2/3 and a front-facing i- Size child restraint for children with a height of 100 ~ 150 cm. Anti-theft Alarm System Anti-theft Alarm System Arming the system 1. Switch the ignition off. 2. All occupants get off the vehicle. 3. Lock all doors. This makes the anti-theft indicator steady on. The anti-theft alarm system will arm automatically after 10 seconds, and the anti-theft indicator will then begin to flash. 4. You can leave the vehicle after confirming that the indicator begins to flash. Since unlocking the door from inside the vehicle will activate the system, never let anyone stay in the vehicle with the system enabled. Triggering the alarm ●The system, when armed, will raise an alarm* with flashing turn signals in any of the following situations: ●Any door, trunk lid or hood is unlocked without using the smart key access function. Use the mechanical key to unlock the vehicle. ●The vehicle is powered on without using the smart key start function. Disarming the system ●Anti-theft alarm can be stopped by: ●Unlocking the door with a valid smart key. ●Use of an NFC to unlock the vehicle. ●Use of the microswitch to unlock the vehicle. ●Use of a valid smart key to remotely unlock the trunk. ●Starting the vehicle remotely with a valid smart key. ●Pressing the "START/STOP" button inside the vehicle while carrying a valid smart key. WARNING ●Do not modify the anti-theft alarm system by means of alteration or addition. Otherwise, the system may fail. Anti-theft Indicator* When the alarm is armed, the anti-theft indicator is solid on for about 10 seconds. Data Collection and Processing Data Collection and Processing ●This section provides you with some important information on how personal data is collected and processed when you use a BYD vehicle.

Vehicle Data Processing

Halaman 29

●For a more detailed overview on data processing, data protection and data subject rights, please refer to the current version of the privacy policy available in the infotainment system ( System → General → Agreement and Statement). ●This vehicle is equipped with an event data recording (Event Data Recorder (EDR)) system. EDR mainly records data in the event of a crash or near- crash (for example, airbag deployment or hitting on a roadside obstacle) to help comprehend the vehicle system operation, such as: ●Vehicle velocity ●Tire pressure condition ●Adaptive cruise control (ACC) system status ●Whether the seat belt is fastened ●The vehicle records EDR data only when there is a crash or when a near-crash event reaches a certain extent. The EDR does not record any data during the normal driving of the vehicle. ●The data recorded by the EDR system provides an understanding of the state of the vehicle's safety-related systems when an accident occurs, so that relevant parties can analyze the accident. ●The EDR data needs to be accessed and read by special equipment. BYD discloses your personal data to third parties only if this is legally permissible or you have consented to it. In addition to the vehicle manufacturer, third-party agencies with professional equipment (such as government agencies) can also read the EDR data if they have access to the vehicle EDR and equipment (for example, they can read the data of SRS control unit to clarify the accident). Vehicle Data Processing ●Data is collected when the vehicle is used, such as data collected or transmitted by vehicle sensors or control units, which is necessary for the safe functioning of your vehicle. 01 SAFETY ●In some cases, the data is used to support driving (driver assistance systems) or to enable a specific comfort or infotainment function. ●Personal data that is collected and processed mainly include in-vehicle data, remote-services-related data, and other data, as further specified below. In-vehicle data Operation data ●When the vehicle is used, various vehicle status data (e.g., speed, battery level, and braking system) or environment (e.g., distance sensors and temperature) data is collected and processed. ●This data is not usually stored, but there are control units, sensors or other components installed in the vehicle that record such data, for example, to record maintenance requirements, error messages, or other information. ●The in-vehicle data will only be stored in the equipment in the vehicle but can be read out via the legally required OBD ("On Board Diagnostics") interface, for example, by BYD authorized dealer or service provider or other third parties. ●In case this access takes place during vehicle maintenance, the information can also be transmitted to BYD engineers for quality assurance,

Vehicle Data Processing

Halaman 30

product defect reports, or customer claim verification. Remote-services-related data Remote monitoring services ●The vehicle has remote monitoring services. ●These include remote monitoring services such as remote diagnosis and over-the-air (OTA) updates and upgrades for security and safety purposes (subject to owner's approval). ●These monitoring services serve the following purposes: service provision (remote support/diagnostics), product development, and security/public safety. ●Depending on the country and setup, various vehicle information can be transmitted to BYD's data center in corresponding market for the above purposes, including vehicle location information, vehicle status, such as energy consumption, vehicle speed, gear position, power mode, ESC status, steering system status, battery status, powertrain status, and overall vehicle performance status. Other Infotainment system ●Depending on vehicle configuration, data can be added to the infotainment system by the users themselves, such as media data for playing video on the infotainment system, address data for use in the navigation system, or data for use in online services. ●Depending on vehicle configuration, individual settings in and on the vehicle can also be entered. ●Data stored in the vehicle can be deleted at any time. ●BYD has no control over data transferred to third parties (from the use of third party content, in particular as part of online services). Integration of mobile devices ●Depending on vehicle configurations, mobile devices can be connected and controlled through the vehicle's infotainment system. ●It may be necessary that the device's screen or audio is displayed/played through the infotainment system or transmitted to it. ●Additional data like positioning or vehicle information can be transmitted through applications for use in certain navigation systems, communication, or other third-party services. ●The specific type of data processing depends on the respective function and is controlled by the user or third parties such as the provider of the devices or corresponding services. Internet access and connected services ●Depending on vehicle configurations, the Internet can be accessed for certain functions or BYD services through the vehicle's infotainment system network devices. ●BYD is not liable for any such services provided by any other party. ●In such cases, please obtain information about the use of data from the provider of the respective online service. Camera image recording/surrounding area monitoring ●Your vehicle is equipped with a number of cameras/sensors. ●The reason for this is that some vehicle functionalities require the vehicle's path to be detected and assessed which is done by cameras that detect

Your Data Protection Rights

Halaman 31

objects in the vehicle's surroundings (e.g., obstacles). ●The images are transmitted to the respective control module for further analytics required to operate the systems. ●Some images are just processed on a volatile basis (RAM), others may be stored, depending on vehicle equipment. ●The vehicle may be equipped with an outward-facing camera (OFC) that can be used to take footage of the surrounding (dashcam). ●The vehicle may also be equipped with an inward-facing camera (IFC), which can be used to take footage inside the vehicle. ●Both OFC and IFC footage will be stored. ●You are responsible to check the laws of your residence if you turn the camera on. ●Please be aware of corresponding laws before turning on your OFC or IFC (for instance, in some countries consent is required for the use of IFC, and in others OFC is strictly restricted to dashcam purposes). ●For more camera details, see sections "Driving Recorder" and "Panoramic View System" in this manual. Permanent Vehicle Transfer to Third Parties and Offline Mode ●In case of a permanent vehicle transfer, i.e., second hand vehicle, or vehicle transfer by a third party for permanent use, it must be noted that any personalization/user settings made via the infotainment system (e.g. address list, navigation system, etc.) may be accessed by the new owner. ●You can also restrict your vehicle's communication with the BYD data server and the processing of vehicle- related and personal data by setting the vehicle to offline mode. ●On the infotainment touchscreen, tap 01 to turn Wi-Fi off. SAFETY ●This can also be done by tapping → System → Connection → WLAN → OFF. Disclosure of Personal Data to Authorities ●BYD will not disclose your personal data to third parties unless this is legally permissible or you have consented to it. ●However, subject to applicable laws, government agencies may be authorized to read out data from vehicles (for example, data can be read from the airbag control unit to clarify an accident). ●If required by law, BYD may also be obliged to disclose data upon request to governmental authorities in your country, such as in the investigation of a criminal offence. Your Data Protection Rights ●BYD has staunch respect for its customer's privacy, and strictly complies with all data protection laws, in particular the General Data Protection Regulation (GDPR) and applicable local laws. ●According to these laws, owners have specific rights when their personal data is processed: ●Data subjects have the right of information and access, to rectification, erasure of personal data

Your Data Protection Rights

Halaman 32

("right to be forgotten") and the right to object to the processing of personal data or to restrict it (or to withdraw consent given earlier, as well as the right to data portability). ●These rights may be limited in some cases. For example, if we can show that we have a legal obligation to process your data, or if providing the information to you would disclose personal data about another person, or if we are legally prevented from disclosing that information. ●In some cases, this may mean that we can retain the data even if you withdraw your consent. ●For more information on data processing, data protection, and any rights you may have, please visit the latest version of the Privacy Policy available at the infotainment system (System → General → Agreement and Statement).

Instrument Cluster

Halaman 33

02 INSTRUMENT CLUSTER Instrument Cluster............................34

Instrument Cluster

Halaman 34

Instrument Cluster Instrument Cluster View Instrument Cluster  1. Time 2. Power meter 3. Speedometer 4. State of charge (SOC) 5. Outside temperature 6. Total mileage 7. Remaining driving range 8. Gear status 9. Drive mode information 10. Energy regeneration information 34

Indicators and Warning Lights

Halaman 35

Instrument Cluster Indicators Indicators and Warning Lights Turn signal indicator OK indicator SPORT indicator Discharge indicator HDC indicator* ACC speed indicator* PCW indicator (green) ICC indicator* Towing mode indicator* HMA indicator* Rear fog light indicator Position light indicator 02 ECO indicator INSTRUMENT CLUSTER Lane keeping indicator* AVH indicator Regular cruise control main indicator* ACC status indicator* Regular cruise control indicator* ELKA status indicator* High beam indicator Driver monitoring assistance system fault warning light* AVAS fault indicator*

Indicators and Warning Lights

Halaman 36

| Icon | Description | Icon | Description | |---|---|---|---| |  | AEB fault warning light\* |  | Smart key warning light | |  | Tire pressure fault warning light |  | Main alarm indicator | |  | ESC OFF warning light |  | ESC fault warning light | |  | ABS fault warning light |  | Driving power limit warning light | |  | Headlight fault warning light |  | Snow mode indicator | |  | High-voltage battery low SOC warning light |  | ACC fault warning light\* | |  | BSD indicator\* |  | AVH standby indicator (gray) | |  | Speed limit release indicator\* |  | ACC standby indicator (gray)\* | |  | Steering system fault warning light |  | TSR indicator\* | |  | PCW warning light (red) |  | Powertrain fault warning light | |  | Seat belt reminder |  | Airbag fault warning light | |  | EPB indicator |  | Parking brake system fault warning light | 36

Warning Lights/Indicators Description

Halaman 37

Low-voltage power system fault warning light High-voltage battery fault warning light Coolant overheating indicator Warning Lights/Indicators Description Smart key warning light ●If the key is not in the vehicle when you press the START/STOP button, this warning light comes on for a few seconds, a beep sounds, and the message "No key detected, please confirm if the key is in the vehicle" is displayed on the instrument cluster. ●If you press the START/STOP button while an electronic smart key matching the model is in the vehicle, this warning light does not light up. The vehicle can now be powered on. ●If the warning light flashes after you press the START/STOP button, it indicates low battery of the key. ●If the key is not in the vehicle, the instrument cluster prompts "No key detected, please confirm if the key is in the vehicle". Antilock Braking System (ABS) fault warning light ●This warning light comes on when the ignition is on. If the anti-lock braking system (ABS) is working properly, the light goes out in a few seconds. Thereafter, if the system fails, the light lights up again until the fault is cleared. High-voltage battery charging connection indicator High-voltage battery overheating warning light 02 ●When the ABS fault warning light is on (with the parking brake system fault warning light off), the braking system continues to operate whereas the ABS does not. INSTRUMENT CLUSTER ●When the ABS fault warning light is on (with the parking brake system fault warning light off), since the ABS system does not operate, the wheels will be locked in case of emergency braking or braking on a slippery road. ●If any of the following cases occurs, it means there is a fault in components monitored by the warning light system. In that case, contact a BYD authorized dealer or service provider for vehicle inspection as soon as possible. ●This warning light does not come on or is steady on when the ignition is on. ●This warning light is steady on while driving. REMINDER ●A warning light that lights up briefly during operation does not indicate a problem. ●If the ABS fault warning light is still on while the parking brake system fault warning light is on, immediately park the vehicle in a safe place. It is recommended to contact a BYD authorized dealer

Warning Lights/Indicators Description

Halaman 38

REMINDER or service provider. In this case, if brakes are applied, the ABS will not work and the vehicle will become extremely unstable. ●If both the ABS indicator and the braking system indicator come on and the electronic parking brake (EPB) is fully released, the braking force distribution system of front and rear wheels has also failed. Tire pressure fault warning light ●This warning light comes on when the ignition is on. It turns off in a few seconds if the tire pressure monitoring system is working properly. If the system fails, this warning light turns on again. ●When the tire pressure fault warning light comes on or flashes, the message "Please check TPMS" is displayed on the instrument cluster, and the tire pressure is displayed as "---", it indicates that the tire pressure system is faulty. ●When the tire pressure value displays "No Signal", it indicates that the tire pressure signal at this location of the vehicle may be disturbed or the tire pressure monitoring module is damaged. ●When the tire pressure fault warning light is solid on and one or more values turn yellow on the tire pressure screen on the instrument cluster, the corresponding tire is in under-pressure condition. When the temperature value of one or more tires turns yellow, it indicates that the tire temperature is too high. In the event of any of the situations above, it is recommended to contact a BYD authorized dealer or service provider for inspection as soon as possible. ESC fault warning light ●This warning light comes on when the ignition is on. If electronic stability control (ESC) functions properly, the light goes out in a few seconds. If the system fails, this warning light turns on again until the system fault is cleared. ●If the ESC warning light flashes temporarily while the vehicle is in motion, it indicates the ESC system is working. ●When the ESC warning light turns on (with the ABS fault warning light and the parking system fault warning light off), the ESC fails, but the ABS and the braking system continue to operate normally. ●When the ESC warning light turns on (with the ABS fault warning light and the parking system fault warning light off), the ESC system does not work. This means the vehicle is extremely unstable at sharp turns or when the driver steers away from obstacles ahead. ●If any of the following cases occurs, it means there is a fault in components monitored by the warning light system. In that case, contact a BYD authorized dealer or service provider for vehicle inspection as soon as possible. ●This warning light remains off (self- check not performed) after the vehicle is powered on. ●This warning light is steady on while driving.

Warning Lights/Indicators Description

Halaman 39

REMINDER ●A warning light that lights up briefly during operation does not indicate a problem. ●If the ESC warning light remains on while the warning lights for the ABS and the braking system are on, immediately stop the vehicle in a safe place and contact a BYD authorized dealer or service provider. This is because braking at this time can render the vehicle extremely unstable, and the anti- lock braking system does not work at all. ESC OFF warning light ●When the ESC OFF switch is pressed, this warning light should remain steady on and the ESC system will not operate. When the ESC OFF switch is pressed again, this warning light should turn off and the ESC system resumes its normal operation. REMINDER ●While the ESC OFF warning light is on, the driver must stay alert and keep driving at a lower speed when making a sharp turn and when avoiding an obstacle which appears suddenly, because braking at this time can render the vehicle unstable, given the malfunction of ESC system. Driving power limit warning light When the power of the vehicle is limited, this warning light will come on. In this case, contact a BYD authorized dealer or service provider in time. Headlight fault warning light ●When the warning light is yellow, it indicates the headlight is faulty, and it is recommended to bring the vehicle to a BYD authorized dealer or service provider for inspection. 02 Main alarm indicator INSTRUMENT CLUSTER ●If this indicator goes on, check the fault prompt or warning on the instrument cluster. Seat belt reminder ●When the ignition is on, if any occupant on the front seats or rear seats* has not buckled up, the unfastened seat belt indicators* light up. It remains on until the seat belt is fastened. Airbag fault warning light ●With the ignition switched on, this warning light turns on and then goes off in a few seconds if the airbag system is working properly. This warning light system is used to monitor the airbag ECU, collision sensors, inflation devices, indicators, connections, and power supply. ●If any of the following cases occurs, it means there is a fault in components monitored by the warning light system. In that case, contact a BYD authorized dealer or service provider for vehicle inspection as soon as possible. ●When the ignition is switched on, this warning light remains off or is solid on after the ignition is switched on.

Warning Lights/Indicators Description

Halaman 40

●This warning light turns on during driving. Parking break system fault warning light When the brake fluid level is low and the braking system is faulty, this warning light lights up. If any of the following conditions occurs, immediately park the vehicle in a safe place. It is recommended to contact a BYD authorized dealer or service provider. ●This warning light comes on when the ignition is switched on and the brake fluid level is low. REMINDER ●When the brake fluid level is low, park the vehicle because it is dangerous to continue driving. ●This warning light is solid on although after starting the vehicle, the brake fluid level and EPB system operation are normal (the EPB is engaged and released normally, and the message "Please check the EPB" is not displayed). ●Fault fault warning lights for parking brake and ABS come on simultaneously. REMINDER ●A warning light that lights up briefly during operation does not indicate a problem. Steering system fault warning light ●When the steering system is faulty, this warning light is steady on. It is recommended to bring the vehicle to a BYD authorized dealer or service provider for inspection. REMINDER ●The steering system features an electric motor to reduce the force required to turn the steering wheel. ●When turning the steering wheel, a hum may be heard from the running motor. This does not indicate that the motor is faulty. ●Do not turn the steering wheel to its limit position for more than five seconds, otherwise the temperature protection will be activated and the steering system will be damaged or steering will become heavy. ●If you have turned the steering wheel frequently with the vehicle staying put for a long time, the steering wheel may become difficult to turn even if the warning light does not turn on. This is not a fault. ●To prevent steering system overheating, the power assist effect will be reduced if the steering wheel has been frequently turned with the vehicle staying put for a long time. As a result, the steering wheel become difficult to turn. In this case, reduce steering frequency or power off the vehicle. The system will recover within 10 minutes. WARNING ●If the steering system warning light goes on, immediately park the vehicle safely, and contact a BYD authorized dealer or service provider. Low-voltage power system fault warning light

Warning Lights/Indicators Description

Halaman 41

●This light is used to warn about the operating state of the DC module and the low-voltage battery module when the vehicle is not being charged or discharging. ●In charging state, this warning light indicates failure of the charging system. ●If this warning light turns on while the vehicle is in motion, it indicates that there is a problem with the DC system or the low-voltage power system. In this case, turn off the A/C and fans, immediately park the vehicle safely, and contact a BYD authorized dealer or service provider. Powertrain fault warning light ●If the powertrain fails, this warning light turns on. ●If any of the following cases occurs, it means there is a fault in components monitored by the warning light system. In that case, contact a BYD authorized dealer or service provider for vehicle inspection as soon as possible. ●This warning light is steady on when the ignition is switched on. ●This warning light turns on during driving. CAUTION ●Try not to drive the vehicle when the warning light is on. Contact a BYD authorized dealer or service provider to check the problem as soon as possible. High-voltage battery overheating warning light ●If this indicator is on, it indicates that the high-voltage battery temperature is too high and the vehicle must be stopped to cool down. When the warning light flashes, it is recommended to immediately stop the vehicle safely and leave the vehicle as soon as possible. ●The high-voltage battery may overheat under the following operating conditions: 02 ●Driving up a slope for a long time in hot weather. INSTRUMENT CLUSTER ●Long period of stop-and-go traffic condition, frequent rapid acceleration, frequent hard braking, or vehicle running for a long time without pause. High-voltage battery fault warning light ●This warning light comes on when the ignition is switched on. If the high-voltage battery system is working properly, this warning light will turn off in a few seconds. Thereafter, if the system fails, this light will light up again. It is recommended to contact a BYD authorized dealer or service provider for inspection as soon as possible. ●If any of the following cases occurs, it means that there are faults in the components monitored by the warning light system. In such case, it is recommended to contact a BYD authorized dealer or service provider for vehicle inspection as soon as possible. ●This warning light is steady on when the ignition is on. ●This warning light is steady on or occasionally turns on while driving.

Other Instrument Cluster Fault Prompts

Halaman 42

Other Instrument Cluster Fault Prompts The instrument cluster may display the following fault prompts. Handle them as recommended. Symbol Error message Response The on-board charging system is faulty. Check the charging connection, and reconnect the charging equipment. If the fault persists, contact a BYD authorized dealer or service provider. Please check the OBC system The vehicle may be disconnected from the data network. In this case, park the vehicle immediately, and contact a BYD authorized dealer or service provider. Vehicle network error, please pull over safely and contact BYD service Please check the headlight The headlight is faulty. In this case, contact a BYD authorized dealer or service provider. The PCW system is faulty. In this case, park the vehicle, and contact a BYD authorized dealer or service provider. Please check the PCW system*. The AEB system is faulty. In this case, park the vehicle, and contact a BYD authorized dealer or service provider. The AEB function is limited* The BSD system for lane change is faulty. In this case, park the vehicle, and contact a BYD authorized dealer or service provider. Please check the BSD system* The BSD function is limited. In this case, park the vehicle, and contact a BYD authorized dealer or service provider. The BSD function is limited* The shifter controller is faulty. In this case, park the vehicle immediately, and contact a BYD authorized dealer or service provider. Please check the gear The multi-purpose camera is faulty. In this case, park the vehicle, and contact a BYD authorized dealer or service provider. Please check the multi- purpose camera* The function of the multi-purpose camera is limited. In this case, park the vehicle, and contact a BYD authorized dealer or service provider. The function of the multi- purpose camera is limited*

Other Instrument Cluster Fault Prompts

Halaman 43

Symbol Error message Response Intelligent-camera is not available due to poor condition* Please check the LDWS* Please check the ICC or LKS* The function of the ICC or LKS is limited* The intelligent-camera is unavailable. In this case, park the vehicle, and contact a BYD authorized dealer or service provider. The lane departure warning system (LDWS) is faulty. In this case, park the vehicle, and contact a BYD authorized dealer or service provider. 02 The intelligent cruise control (ICC) or lane keeping system (LKS) is faulty. In this case, park the vehicle, and contact a BYD authorized dealer or service provider. INSTRUMENT CLUSTER The ICC or LKS function is limited. In this case, park the vehicle, and contact a BYD authorized dealer or service provider.

Other Instrument Cluster Fault Prompts

Halaman 44

44

Controller Operation

Halaman 45

03 CONTROLLER OPERATION Doors and Keys.................................46 Seats..................................................59 Steering Wheel..................................63 Wipers............................................... 66 Rearview Mirrors...............................69 Switches............................................70

Electronic Smart Key

Halaman 46

Doors and Keys Key Overview The vehicle is equipped with keys, including electronic smart key, mechanical key (installed in the electronic smart key), bluetooth digital key* and NFC key*. Electronic Smart Key Lock or unlock all doors by pressing the driver's door microswitch while carrying the electronic smart key. Buttons on the key help you lock or unlock doors, open the trunk, and start the vehicle remotely. ①Indicator ②Lock button ③Unlock button ④Trunk release button ⑤Start/Stop button ⑥Mechanical Key WARNING ●The button (coin) battery in the smart key is hazardous and both new and used batteries are to be kept away from children at all times. WARNING ●If swallowed or placed inside any part of the body, a lithium button battery can cause severe or fatal injuries in two hours or less. ●Medical attention should be sought immediately if it is suspected the button battery has been swallowed or placed inside any part of the body. CAUTION ●The smart key is an electronic component. Observe the following instructions to prevent damage to the key: ●Do not place the smart key in a position exposed to high temperature, such as on the dashboard in the summer sun. ●Do not disassemble the smart key. ●Do not let the smart key hit other objects or fall down. ●Do not immerse the key in water or clean it in the ultrasonic scrubber. ●Do not place smart keys with devices that emit electromagnetic waves, such as the mobile phone. ●Do not attach to the smart key any objects (such as a metal seal) capable of cutting off electromagnetic wave signals. ●You can register a spare key for the same vehicle. In this case, contact a BYD authorized dealer or service provider immediately. ●If the electronic smart key cannot operate the door within the

Mechanical Key

Halaman 47

CAUTION normal distance, or the key indicator light is dim or off: ●Check for nearby radio stations or airport radio transmitters that interfere with the normal operation of electronic smart keys. ●The smart key battery may be exhausted. Check the battery inside the electronic smart key. It is recommended to contact a BYD authorized dealer or service provider for battery change. ●If you lose your smart key, it is recommended to contact a BYD authorized dealer or service provider as soon as possible to reduce the risk of vehicle theft or accidents. ●Do not change the transmission frequency arbitrarily, increase the transmission power (including additional transmission frequency amplifier), or arbitrarily connect the external detection antenna or switch to other transmitting detection antennas. ●The use of the smart key must not cause harmful interference to legal radio communication services. Once interference is found, stop using the key immediately and take measures to eliminate the interference before continuing to use. ●The use of micropower radio equipment must endure the interference of various radio services or the radiation interference of industrial, scientific, and medical equipment. CAUTION ●Do not use it near airplanes or airports. ●People implanted with pacemakers or defibrillators should stay away from the detection antennas of intelligent entry and start systems, as electromagnetic waves can affect the normal use of such devices. In addition to people implanted with pacemakers or defibrillators, those who use other electronic medical devices should also consult the manufacturer on the use of such devices under the influence of electromagnetic waves. Electromagnetic waves may bring unknown consequences to the use of such medical devices. 03 CONTROLLER OPERATION ●When leaving the vehicle, always carry your key and lock the vehicle. Never leave anyone (especially children) alone in the vehicle. Mechanical Key Use the mechanical key (inside the smart key) to lock or unlock the driver's door. Insert the mechanical key back into the smart key when it is not in use. Taking out the mechanical key ●Press the latch ②, pull the locking structure in the desired direction ①, open the key's back cover upward, and take out the mechanical key.

Bluetooth Digital Key*

Halaman 48

Reinstall the mechanical key ●Press the latch ② and insert the mechanical key back into the smart key when it is not in use. Bluetooth Digital Key* Control the vehicle through a close-range Bluetooth connection, including locking or unlocking the doors. ●You can download and install the latest BYD App in the app market. The function of Bluetooth digital key can be found in the app. ●The Bluetooth digital keys of supporting vehicles are automatically activated after the remote services are enabled. ●Bluetooth digital key account, device authorization and management are consistent with romote services. ●After turning on the Bluetooth in the app, it will be connected automatically when you are close to the vehicle, or you can connect the Bluetooth manually. ●The key is effective after Bluetooth is connected. ●Please use the Bluetooth digital key for functions such as door unlocking, door locking, opening the trunk, closing the trunk, flashing the lights, flashing the lights and honking, and closing the windows when the vehicle is turned off. ●After unlocking the vehicle with a Bluetooth digital key, you will have one keyless start permission within a certain period of time and can press the START button to start and drive the vehicle; The permission is useless after timeout or other operations, and can be regained after Bluetooth digital key unlocking. ●Select the operation, that is, send commands for control. CAUTION ●The specific functions supported by the key are subject to the vehicle configuration. ●Before activating the Bluetooth digital key, ensure that the vehicle network signal is good. If the activation fails, try to move the vehicle to a place with good network and activate the key again in the application. ●When using the Bluetooth digital key for the first time, you need to set or verify the login password. ●The number of Bluetooth digital key-authorized devices is consistent with the remote service, and all are uniformly managed by the vehicle owner under "Authorized Device Management." ●Before activating the Bluetooth digital key, ensure that the vehicle network is well connected. ●The keyless start permission lasts for up to 10 minutes. ●After the vehicle is unlocked with a Bluetooth digital key, the doors

NFC Digital Key*

Halaman 49

CAUTION will lock automatically if there is no operation in a short time. ●When the Bluetooth connection or operation fails for many times, you can turn the Bluetooth off and then on, or restart the application. Vehicles started remotely support only one Bluetooth unlock per start. Multiple locks are allowed before the unlock. ●Limited by the vehicle environment, the effective distance of the Bluetooth digital key will be reduced in case of dense vehicles. ●There are a few mobile phones that are not compatible with Bluetooth digital keys. NFC Key Card The NFC key card, based on the near field communication method, can be used to unlock/lock the vehicle and authorize vehicle start. ●Hold your NFC card close to the NFC sign on the driver's side mirror to unlock/lock the vehicle. ●Get into the vehicle, place the card at the NFC sign to authorize the vehicle start. CAUTION ●NFC key card is an electronic product. The following instructions must be observed to prevent function failure of or damage to the card: ●Do not attach any object (such as a metal seal or metal phone case) that can block CAUTION electromagnetic waves, when using the NFC card. ●Do not place the NFC card in a position exposed to high temperature, such as on the dashboard. ●Do not bend the card with force. ●Do not place the card with other hard objects. 03 ●NFC key cards use near- field communication technology, requiring a detection distance of less than 2 cm. Hold your NFC card close to the side mirror for 1-2 seconds. CONTROLLER OPERATION ●It is recommended to carry the NFC card at all times to avoid situations where you may be unable to use the vehicle due to loss or malfunction of your phone or smart key. ●To ensure vehicle safety, handle it with care. If it is lost, it is recommended to go to a BYD authorized dealer or service provider immediately for report and re-configuration of the lost card. NFC Digital Key* The NFC digital key is a function provided by BYD for users. You can register smartphones or wearable devices as vehicle keys to unlock, lock, and start the vehicle. ●Before activating the NFC digital key, observe the following conditions: ●You have registered BYD Cloud Service for the vehicle. ●The vehicle supports NFC digital key.

NFC Digital Key*

Halaman 50

●Some mobile phones and wearable devices support BYD NFC digital keys (consult a BYD authorized dealer or service provider for other supported wearable devices). Activating the NFC digital key on smartphones Before activating, start the vehicle and shift into Park with a valid smart key. You can activate the NFC digital key in any of the three ways: ●Via BYD App: ●Please go to the mobile APP store to download BYD APP, and complete registration and login. Tap digital key to enable the function according to the instructions. ●Via email links: ●Log into the email account reserved during vehicle purchase on the phone, and then activate the key following the instructions in the activation email from [email protected]. ●Via the infotainment touchscreen: ●On the infotainment touchscreen, tap → Locks → Locks and follow the instructions to activate the key. Activating the NFC digital key on wearable devices Supported wearable devices include Apple Watch (consult a BYD authorized dealer or service provider for other supported wearable devices), and there are two ways for activating: ●Synchronize the key from iPhone to Apple Watch: ●After successful key activation on iPhone, the device prompts to add the NFC digital key to a paired Apple Watch which is nearby and unlocked. Follow the prompts to complete activation. ●Via Watch App: ●If the iPhone NFC key is active but not synced to Apple Watch, ●Open the Watch on the iPhone, select "Wallet", find the corresponding key and tap "Add" to activate the key according to the instructions. Using the NFC digital key When using the NFC digital key, enable the NFC function of the mobile phone or wearable device. Here is how to use: ●Carry a mobile phone or wearable device with a valid NFC digital key, put its NFC antenna area close to the NFC sign on the driver's side mirror, and unlock or lock the vehicle. Consult the manufacturers for details of the NFC antenna area. ●Place the mobile phone or wearable device at the NFC sign in the vehicle to obtain the vehicle start permission. CAUTION ●With permission, start the vehicle as soon as possible. or you need to place the device at the NFC sign again to reauthorize. Removing the NFC digital key There are three ways: ●Via the BYD app: ●Open BYD App, enter the digital key management page, tap the key to be removed, and enter the operation password to remove it. ●Via the infotainment touchscreen: ●With a valid smart key inside the vehicle, go to the infotainment touchscreen → → Locks →

Locking/Unlocking with Smart Key

Halaman 51

Locks. Tap the key to be removed and operate as instructed. ●Via the Wallet app: ●Open the Wallet on the phone, select the digital key, and remove it according to the instructions. CAUTION ●Some smartphone and wearable device models do not support NFC digital keys. Locking/Unlocking Doors Locking/Unlocking with Mechanical Key Insert the key into the key hole, turn and remove the key, and pull the door handle to open the door. ●Unlock the driver's door: Turn the key counterclockwise. ●Lock the driver's door: Turn the key clockwise. CAUTION ●After removing the mechanical key, pull the driver's door handle to open the door. Opening with Interior Door Handle ●When the vehicle is unlocked, pull the handle once to open the door from inside the vehicle. ●When the vehicle is locked, pull the handle twice to open the door from inside the vehicle. 03 CONTROLLER OPERATION WARNING ●Do not allow children to play with the door handle, so as to avoid the door opening while driving. ●If there are children in the vehicle, make sure to enable the child protection lock function. CAUTION ●As this vehicle is equipped with a child protection lock, the rear doors can only be opened with the interior door handle when the child protection lock is disabled. Locking/Unlocking with Smart Key ●The wireless remote control is used to unlock or lock all doors at a close distance, and complete additional functions. ●When you enter the active area while carrying a registered smart key, press the button on the smart key slowly and firmly to lock or unlock all doors.

Raising/Lowering Windows with Smart Key

Halaman 52

Locking: ●When all the doors, the trunk, and the hood are closed, press the lock button to lock all the doors. Check whether all doors are securely locked. ●When the ignition is switched off, the side mirrors fold in (the switch is set to Automation (AUTO)), and the turn signals flash once. ●If the ignition is switched on, the side mirrors will not fold, the turn signals will not flash, and the alarm will sound once. ●If any door, the hood or the trunk is not closed, the side mirrors do not fold, the turn signals do not flash and the alarm sounds once. Unlocking: ●With the doors locked, press the unlock button of the valid smart key. All doors will unlock, side mirrors unfold*, and turn signals flash twice. ●When you unlock all the doors with the smart key, even if no door is opened, the interior lights will stay on for 15 seconds and then go out. ●If the anti-theft alarm system is armed, open any door within 30 seconds after unlocking with the smart key or all doors will relock automatically. ●If the key is in the vehicle or trunk when the doors are closed and locked, the vehicle will unlock automatically and the turn signals will flash twice. ●When the vehicle is equipped with four-door anti-pinch function, pressing and holding the lock/unlock button to rise/lower the windows, and pressing briefly to lock/unlock the doors. Opening the trunk with smart key ●Double-press the trunk release button on the smart key. The turn signals then flash twice. REMINDER ●Remember to carry the smart key when leaving the vehicle. Finding the Vehicle with Smart Key ●When the vehicle is in anti-theft status, press the lock button, the vehicle will emit a long sound and the turn signal will flash 15 times. Use this function to locate the vehicle when it cannot be found. ●When the vehicle is in car search mode, press the lock button again. The vehicle enters the next car search mode. Raising/Lowering Windows with Smart Key ●When the ignition is switched off: ●Press and hold the lock button on the smart key to raise the four windows. ●Press and hold the unlock button on the smart key to lower the four windows. WARNING ●When using the remote control function to raise windows, pay

Locking/Unlocking with NFC Key Card*

Halaman 53

WARNING attention to the safety of occupants in the vehicle, and use this function only after making sure the windows are clear from pinching anyone. REMINDER ●To enable or disable key unlocking/locking/opening/ closing window functions, go to → Locks → Locks. (Configurations of the actual vehicle prevail.) Locking/Unlocking with Microswitch Locking ●When the ignition is switched off and all doors are closed but not locked, press the microswitch on the front door handle while carrying the smart key. All doors will be locked and turn signals flash once. ●If a door, the hood or the trunk is not closed, pressing the microswitch will still lock the closed doors, but the horn will only sound once, and the turn signals will not flash. Unlocking ●When doors are locked, press the microswitch on the front door handle while carrying the smart key close to the activated area. All doors unlock and turn signals flash twice. ●If the anti-theft alarm system is armed, open a door within 30 seconds after the unlocking. or all doors will relock automatically. ●Pressing the microswitch does not work if: ●This is performed while a door is being opened or closed. 03 ●The smart key is left in the vehicle. CONTROLLER OPERATION REMINDER ●If the smart key is too close to an exterior door handle or window, it may not be possible to activate the entry function. Raising/Lowering Windows with Microswitch ●When the ignition is switched off, press and hold the microswitch while carrying the smart key to roll up or down all windows. (To enable or disable this function, go to the infotainment touchscreen → → Locks.) Locking/Unlocking with NFC Key Card* ●Hold your NFC card close to the sign on the side mirror on the driver's side. Locking doors: ●With the ignition switched off and all doors closed but not locked, place the NFC key card close to the designated area on the driver's side mirror to simultaneously lock all the doors. The turn signals flash once. Unlocking doors:

Locking/Unlocking the Trunk

Halaman 54

●With the anti-theft alarm system armed, place the NFC key card close to the designated area on the driver's side mirror to simultaneously unlock all the doors. The turn signals flash twice. ●If the alarm is armed, open a door within 30 seconds after unlocking with the NFC key card, or all doors will relock automatically. ●After the unlocking, user activation permission is provided for four minutes and is revoked when the ignition is switched off. ●In any of the following cases, doors are not locked/unlocked when the NFC card is held close to the NFC sign on the side mirror on the driver's side: ●The NFC key card is placed close to the designated area on the driver's side mirror while a door is being opened or closed. ●The ignition is not switched off. CAUTION ●The keyless start permission lasts for up to four minutes. Locking/Unlocking the Trunk Opening/Closing trunk with smart key ●When the vehicle is equipped with the electric tailgate system, double-press the trunk release button on the smart key to open the trunk. The turn signals then flash twice. Press this button again to stop opening. Then double press it to close the trunk. REMINDER ●If the trunk release button is pressed again while the lid is in motion, it will stop at its current position. Opening/Closing the trunk from inside the vehicle* ●When the trunk lid is closed, pull the switch once, and the lid will automatically unlock and open to the set height (maximum height by default). ●While the trunk lid is opening, pull this switch again to freeze it in place. ●When the trunk is open and the switch is pulled for more than one second, the lid closes automatically. Release the switch to freeze the closing motion. Opening the trunk with exterior switch ●With the vehicle unlocked, press the exterior trunk switch to open the trunk.

Emergency Trunk Releasing from the Inside

Halaman 55

●With the vehicle locked, unlock the vehicle with the smart key and press the exterior switch to open the trunk. REMINDER ●If the switch is pressed again while the lid is in motion, it will stop at its current position. Closing the trunk automatically* ① Trunk close button* ●When the trunk lid is open and stationary, press the trunk close button to close this lid. ●Press this button a second time to stop the lid at the current position. Press this button again to have the lid move in the opposite direction. ② Vehicle lock button* ●When the ignition is off and the trunk is open, pressing the lock switch while carrying a valid smart key closes the trunk, locks the entire vehicle, and arms the anti-theft alarm system. Closing the trunk manually* ●When the vehicle is unlocked, the trunk can be closed manually. Opening/Closing trunk with BYD Assistant* ●The trunk can be opened or closed by BYD Assistant after system wake-up. 03 CAUTION ●Before closing the trunk electronically, make sure doors, windows and sunroof are properly closed. CONTROLLER OPERATION Emergency Trunk Releasing from the Inside ●There is an emergency unlocking cover just above the trunk lock. Open the cover and pull the emergency unlocking rope or lever to open the trunk in an emergency. REMINDER ●When the vehicle is powered off, the trunk lid can be unlocked from the inside in case of emergency. Setting trunk opening height* ●Open the trunk manually or automatically to the desired position,

Locking/Unlocking with Central Locking

Halaman 56

keep it at this position, and then press and hold the interior trunk button for over three seconds. The speaker sounds for one second, indicating that the opening height is successfully set to the current position. ●Set the trunk opening height in → Locks. Anti-pinch function ●The trunk will open or stop moving if it contacts any obstacle while closing or opening. When the trunk fails to act automatically ●Manually and completely close the trunk for recovery. When reconnecting the low-voltage battery ●Manually close the trunk to ensure the power trunk lid functions normally. WARNING ●In order to prevent serious injury, make sure to observe the following precautions: ●Never try to deliberately activate the anti-pinch function. ●Make sure to alert people nearby of the lid motion. ●Make sure hands and fingers are clear from the lid area when it is closing. ●Make sure the surrounding area is safe when opening or closing the trunk. ●Make sure the trunk is properly closed before driving the vehicle. ●Make sure to remove any ice or snow from the area before WARNING opening the trunk, otherwise the lid may close again. ●Do not manually interfere in lid motion when it is opening or closing. ●Be mindful of windy conditions when opening or closing the trunk. ●The anti-pinch function may fail to work if an object is caught right before the trunk is fully closed. ●The lid may start closing before fully opening. Opening or closing the trunk on slopes is more difficult than on level ground. Be mindful of the possibility of the lid to move on its own in such conditions. Before loading or unloading the trunk, make sure the lid is fully open and secure. ●The anti-pinch function may fail depending on the object shape. Be especially careful about hand and fingers. Locking/Unlocking with Central Locking Locking or unlocking the vehicle with the central locking See P76 in "Driver's Door Switches" in this chapter. Locking or unlocking doors automatically ●When this function has been turned on through the infotainment touchscreen and the ignition has been switched on, if the vehicle speed increases to over 8 km/h with all doors closed but any

Start-up

Halaman 57

of them unlocked, the central locking locks all doors with power. ●Press the START/STOP button to switch the ignition off and then all doors are unlocked automatically. Locking/unlocking all doors concurrently ●With the anti-theft alarm system disarmed, the backlight of the central lock button turns on if the vehicle is locked and off if the vehicle is unlocked. ●Pressing the central lock button locks all doors so that any attempt to open any door from the outside fails. At this time, pull the interior handle to unlock a door and pull a second time to open it. Emergency Vehicle Locking with Mechanical Key When the central locking system or the smart key fails, use the mechanical key for emergency locking or unlocking. Locking 1. Remove the mechanical key from the smart key. 2. Open all doors other than the driver's door and move down the slider with the mechanical key as shown. You can then lock the doors by closing the them. 3. After locking the three doors, open the driver's door. 4. Insert the mechanical key into the keyhole, turn it counterclockwise as far as it can go, return it to the initial position and pull it out. (See P51 in this Chapter.) Unlocking 1. Remove the mechanical key from the smart key. 2. Insert the mechanical key into the keyhole, turn it clockwise as far as it can go, return it to the initial position and pull it out. 03 CONTROLLER OPERATION 3. Pull the interior handle twice to unlock the three other doors. Smart Access and Start System Use the smart key to unlock or lock the vehicle doors and start the vehicle. Access Use the key fob to unlock or lock the vehicle doors （See P51 for details）。 Start-up With the smart key inside, press the brake pedal and the START/STOP button to start the vehicle (See P107). Antenna positions ① Interior antenna ② Exterior antenna

Start-up

Halaman 58

Active area The smart access and start functions take effect only when the registered key fob is within the active area. ① Active area of the access function: about one meter from the front door handle and the exterior trunk switch. ② Active area of the start function: inside the cabin. If another key fob is near this vehicle's key fob, unlocking may take longer than usual, which is normal. REMINDER In the following situation, smart access and start system may not work normally: ●There is a strong electromagnetic field nearby, such as TV towers, power stations, and broadcasting stations. REMINDER ●The key fob is being carried along with a communication device, such as a two-way radio or mobile phone. ●The key fob is in contact with or covered by a metal object. ●The door handle is operated too quickly. ●The key fob is too close to the handle. ●Another wireless remote control function is being used nearby. ●When the key fob battery runs out. ●The key fob is close to high- voltage equipment or equipment that produces noise. ●The smart key is being carried along with another smart key or radio-wave-emitting device. ●Even within the active area, the smart key may not work properly in certain locations, for example, on the dashboard, in the glove box, or on the floor. ●If the smart access system is not working properly and it is impossible to enter the vehicle, the mechanical key can be used to lock/unlock the driver's door, or the wireless remote control function can be used to lock/ unlock all doors. ●Pressing the Start/Stop button may not enable the start function due to: ●Key fob failure. If the key fob warning light comes on and a message ("Low key battery, please replace the battery soon") is displayed on the instrument cluster, the battery of the key may be exhausted.

Instructions for Seats

Halaman 59

●If the smart access and start system cannot work properly due to system failures, bring all key fobs to a BYD authorized dealer or service provider for repair. Saving battery power ●The key fob communicates with the vehicle even when the vehicle is not running. Therefore, do not leave the key fob in the vehicle or within two meters from the vehicle. ●Receiving strong electromagnetic waves for a long time drains the battery of the key fob quickly. The key fob must be kept at least one meter away from electrical equipment that generates a magnetic field, such as the following devices: ●TVs ●PCs ●Phone charger ●Electroliers ●Fluorescent desk lamps Child Protection Lock Child protection locks are designed to prevent children in rear seats from accidentally opening rear doors. Such locks are provided on the sides of the left and right rear doors. ①Activating the child protection lock ②Deactivating the child protection lock When the child protection lock is activated, the rear doors cannot be opened from inside. The rear doors can only be opened with the exterior door handles. CAUTION 03 ●Before driving, especially when a child is in the vehicle, ensure that the doors are closed and the child protection lock function is enabled. CONTROLLER OPERATION ●Proper use of seat belts and the child protection lock helps prevent the driver and passengers from being thrown out of the vehicle in the event of an accident, and prevent the doors from being opened accidentally. Seats Seat Precautions When the vehicle is moving, all passengers in the vehicle must fasten their seat belts, and rest their backs upright against the seatback. WARNING ●Do not drive the vehicle until occupants are seated properly. ●Sitting on a folded seatback, in the trunk, or on cargo is prohibited. Improper seating position or improperly fastened seat belts can result in personal

Adjusting Front Seat with Power*

Halaman 60

WARNING injuries in case of emergency braking or a collision. ●It is prohibited to stand or move around the seats when driving, or passengers may get injured in case of emergency braking or a collision. CAUTION ●Adjust the driver's seat so that the pedals, steering wheel, and dashboard controls are all within the driver's easy control. REMINDER ●Adjust the seat position before fastening the seat belt. ●Do not adjust the driver’s seat while the vehicle is in motion, as unpredictable seat movement can cause the loss of vehicle control at this time. ●While adjusting a seat, do not let it hit against any passenger or the luggage. ●After manually adjusting the seat, always check that it is securely locked into place by attempting to push it forward and backward. ●After adjusting the seatback, lean back to confirm the seatback has been locked. ●Do not place any items under the seats. The driver may lose control of the vehicle because items placed there affect the seat locking mechanism or accidentally push up the seat position adjustment lever, causing the seat to move suddenly. REMINDER ●When adjusting the seat, do not place your hand under the seat or near its operating parts, to prevent being crushed. Adjusting Front Seats Adjusting Front Seat with Power* Power front seat adjustment include seat position adjustment, cushion height adjustment*, and seatback angle adjustment. Choose the following methods according to the actual configuration of your vehicle. ① Seat position adjustment switch ●Toggle the seat position adjustment switch back or forth to move the seat backward or forward. ●Move the rear end of the switch up or down to raise or lower the seat. ② Seatback angle adjustment switch ●Toggle the upper end of the seatback angle adjustment switch to adjust the seatback angle. CAUTION ●Releasing the switch stops the seat in this position. Do not place anything under the seat as

Adjusting Head Supports

Halaman 61

CAUTION this may prevent the seat from operating. ●Do not move the front seats too far forward to avoid contact with the roof or sun visor. Ventilation and Heating System* ●Tap the corresponding controls on the infotainment touchscreen to enable and disable front seat heating or ventilation. ●Find the seat heating and ventilation setting button from the drop-down menu on the infotainment homepage. Heating adjustment ●Seat heating: Control the operation mode of the heating pad by using the seat heating switch. The heating function has two modes. ●After each power-on, the driver's seat defaults to the previous settings, and the heating for the front passenger's seat is off. ●Tap the button to select the operation mode of the seat heater in the 1st gear or 2nd gear. ●Tap OFF to deactivate the heating function. Ventilation adjustment* ●Seat ventilation: Control the operation mode of the ventilation fan by using the seat ventilation switch. Seat ventilation has two modes. ●After each power-on, the driver's seat defaults to the previous settings, and the ventilation for the front passenger's seat is off. ●Tap the button to select the operation mode of the seat ventilation in the 1st gear or 2nd gear. ●Tap OFF to deactivate the ventilation function. Ventilation and heating functions cannot be turned on at the same time. ●Press the heating switch to make the heater work; if the ventilation switch is then pressed, the heater will stop and the ventilator will start to work. ●Press the ventilation switch to make the ventilator work; if the heating switch is then pressed, the ventilator will stop and the heater will start to work. 03 CONTROLLER OPERATION Folding Rear Seats ●Flipping and lowering the seatback ●Pull the cord to straighten the seatback. ●Push the seatback forward/backward to fold it. You can fold the seatback forward until the back touches the cushion, or you can fold it backward until reaching the locking position (with a locking click). Head Supports Adjusting Head Supports ●Lifting a head support

Adjusting Head Supports

Halaman 62

Lift the head support to a proper position, and release it after hearing a locking sound. ●Lowering a head support Press and hold the head support adjustment button, lower the head support to a proper position, and then release the button after hearing a locking sound. ●Removing a head support Press and hold the head support adjustment button, remove the head support and release the button. ●Installing a head support Insert the head support levers into the bushing with the grooves facing forward. Press the head support adjustment button, push down the head support to a proper position, and then release the button. REMINDER ●Head supports protect vehicle occupants from head and neck injuries. Adjust the head support so that its center aligns with the back of your head for maximum protection. Adjust the head support to the proper position based on your actual height. ●When adjusting head support height, align the occupant's ear tip line with the center line of the head support. ●After adjusting the head support, ensure that it is locked into position. ●Do not drive the vehicle without head supports. ●Do not attach any objects to the head support levers.

Steering Wheel Switches

Halaman 63

Steering Wheel Steering Wheel Steering Wheel Switches 1 Panoramic view* 2 Screen mode 3 Cruise control switch or +/Reset or -/Set 4 Distance +* 5 Rocker switch 6 Distance -* 7 ICC The audio control switch is operational when the ignition is switched on. Left-hand buttons 03 CONTROLLER OPERATION 8 Call 9 Speech recognition 10 Right 11 Mode 12 Scroll button 13 Instrument cluster/Back 14 Left Panoramic view*

Steering Wheel Switches

Halaman 64

●Turns panoramic view off if already in panoramic view mode, or on if not in panoramic view mode. Screen mode ●Switches between the landscape and portrait mode of the infotainment system touchscreen. ACC switch* ●Turns the ACC system on or off. +/Reset* ●Activates the Adaptive Cruise Control (ACC) system and uses the previous system settings. -/SET* ●Sets the current speed to the target cruise speed. Distance +* ●Increases the distance by one notch when the ACC function is enabled. A total of four notches are available. Distance -* ●Reduces the distance from the vehicle ahead by one notch when the ACC function is enabled. A total of four notches are available. ICC ●Turns ICC on or off. REMINDER ●For instructions on using cruise control, see P116 and P120. Right-hand buttons Scroll button ●Adjusting infotainment system volume when the instrument cluster is not in menu mode: ●Roll the button upward to increase the volume. The button is non- operational when the volume reaches the highest. ●Roll the button downward to decrease the volume. The button is non-operational when the volume reaches the lowest. ●Press down the button to mute. ●When the instrument cluster is in menu mode: ●Roll the button upward to select the upper level-2 or level-3 menu items. ●Roll the button downward to select the lower level-2 or level-3 menu items. ●Press down the button to go to the next-level menu or confirm the current setting. CAUTION ●The infotainment system is muted once the instrument cluster is set to the menu mode. To adjust infotainment system volume, exit the instrument cluster menu mode first. Left/Right ●When the infotainment system is in radio mode: ●Press and hold the button to automatically search for the previous radio station with a strong signal (turning frequency down). ●Press the button to select the pre- saved radio station upward. ●Press and hold the button to automatically search for the next radio station with a strong signal (turning frequency up).

Steering Wheel Switches

Halaman 65

●Press the button to select the pre- saved radio station downward. ●When the infotainment system is in USB/Bluetooth music/third-party music app/other modes: ●Press the button to play the previous track (track number -1). ●Press the button to select a record upward on the Bluetooth call record or phonebook screen. ●Press the button to play the next track (track number +1). ●Press the button to select a record downward on the Bluetooth call record or phonebook screen. ●When the instrument cluster is in menu mode: ●Press the button to switch to level-1 menu and its submenus on the left. ●Press the button to switch to level-1 menu and its submenus on the right. Call ●Press this button to make or receive a call. (The audio system is muted at the same time.) ●When a Bluetooth-unrelated screen is currently displayed, press this button to switch to the phone selection screen if Bluetooth is disconnected, or to the Dial screen if Bluetooth is connected. ●After entering a phone number on the dial screen or selecting a record on the call log or contacts screen, press this button to dial the number. ●When Bluetooth is connected, but no phone number is entered on the dial screen, press this button to switch to the call log screen. Press this button again to call the first dialed number on the call history. Speech recognition ●Press this button for the infotainment touchscreen to switch to the voice recognition screen. ●Press a second time to exit the screen. Instrument cluster/Back ●When the instrument cluster is not in the menu mode, press this button to view the instrument cluster menu. 03 ●When the instrument cluster is in menu mode, press this button to return to the upper-level screen, or to exit the menu if there is no upper-level screen. CONTROLLER OPERATION ●When on the Bluetooth call screen, press this button to end the call. Mode ●Selecting a mode: Press the Mode button to switch between media apps, peripherals, and pre-installed third- party audio/video apps. ●If speakers are turned off, press this button to turn them on and enter the memory playback mode, or switch to the radio mode if there is no playback source (for example, no external audio equipment) in the memory playback mode. Horn ●Press the horn button area to honk the horn, and release to stop honking. CAUTION ●Avoid pressing honking for too long, as the horn may be damaged.

Front Windshield Wipers and Washer

Halaman 66

REMINDER ●Observe the traffic laws and use the horn properly. Adjusting the Steering Wheel Manually To adjust the steering wheel position, hold it and operate as follows: ●Press the steering wheel adjustment handle, move the steering wheel to the desired angle, or adjust it to the desired axial position, and restore the handle to the locked position. WARNING ●Never adjust the steering wheel while driving, as this is under risk of impaired vehicle control, which can lead to accidents. ●After adjusting the steering wheel, move it up and down to verify that it is securely locked. Steering Assist Mode Settings ●The level of steering assistance can be adjusted to individual preferences. ●To set the steering assist mode, go to → Vehicle → Driving Control → Steering Assist Mode, and select the Comfortable or Sport mode. REMINDER ●Setting the steering mode to sport mode is suggested if the steering wheel feels light when the vehicle is running at a high speed. Wipers Wiper Switch ●The lever is used to control the windshield wipers and washer. It has five modes: : Fast ● : Slow ● : Intermittent ● : Off ● : Point-wiping ● ●Push up or pull down the lever to select a mode. ●In slow and fast modes, the wiper operates continuously. ●Pulling down the lever from the position activates the point-wiping mode . The wipers wipe at a low speed until you release the lever.

Rear Windshield Wipers and Washer

Halaman 67

●The INT knob determines the frequency at which the intermittent mode wipes. Front windshield washer ●The front windshield washer spray and wiper are activated when the stick is pulled back towards the steering wheel. ●The washer spray will stop when the stick is released, or when it is held for over 10 seconds. The wipers will operate once or twice further after the spray has stopped, and once more after five seconds to remove excess water. Rear Windshield Wipers and Washer ●Set the wiper switch to to activate the rear windshield wiper; set it to or open the trunk to stop the wiper. ●Set the wiper switch to to activate the rear windshield wiper and washer simultaneously. 03 CONTROLLER OPERATION ●Set the wiper switch to and release it. The wiper will operate once or twice after washing fluid has been sprayed. Link between rear wiper and trunk ●The wiper/washer won't work with the trunk opened and the vehicle powered on. If the wiper is working and the trunk is opened, it will stop and resume operation five seconds after the trunk is closed. If the front wiper is operating and the gear is shifted to "R",

Replacing Wiper Blades

Halaman 68

the rear wiper will be automatically activated. CAUTION ●Do not operate the washer for over 10 seconds, or when the washer fluid tank is empty, as those may cause motor overheating or damage. REMINDER ●Check and clean the wiper blades at regular intervals. ●Do not start the wipers while rain is starting, as the windshield cannot be cleaned and rainwater mixed with sand and dust may instantly blur your view, affecting driving safety. ●Use cleaning agent for glass. The use of water, or another type of detergent, may damage the washer motor. Replacing Wiper Blades Inspect front/rear wiper blades for cracks or partial hardening at least every six months. If they are noted, replace wiper blades. Otherwise, the windshield will streak or will be left unclean after wiping. Replacing Wiper Blades When the vehicle is powered on, enable or disable the front/rear wiper check on the infotainment touchscreen → → Service → Overhaul →Front Wiper Check. When the corresponding wiper check function is enabled, the wipers rotate out automatically for easy maintenance and replacement. Replacing front wiper 1. Pull up the wiper arm at the driver side, and then pull up the other at the passenger side. 2. Press the wiper lock button ①. 3. Hold the wiper blade and pull it out along the indicated direction ②. 4. When installing a new wiper blade, follow the reverse procedure. Replacing rear wiper 1. Pull up the wiper arm. 2. Hold the wiper in position ①, and pull the blade out vertically along the indicated direction ②. 3. When installing a new wiper blade, follow the reverse procedure. CAUTION ●Do not open the hood when the wiper arms are pulled up, as this may damage the hood and wiper arms.

Side Mirror Switches

Halaman 69

CAUTION ●Lower the wipers slowly and avoid direct impact onto the windshield. ●Do not bend the wiper blade, and do not obstruct the wiper blade when the wiper is in operation. ●When replacing the wiper blade, after raising the wiper arm, hold it steady and gently lower it after replacing the wiper blade. Otherwise, before the wiper blade is installed, any external force could make the wiper arm snap back on the glass and risk breaking it. Rearview Mirrors Interior Rearview Mirror Automatic Anti-glare Interior Rearview Mirror* The automatic anti-glare interior rearview mirror is equipped with electronic anti-glare function, which automatically adjusts the lens color of the mirror according to the surroundings to reduce the interference of rear glare on the driver's field of vision. WARNING ●Do not hang heavy objects from the interior rearview mirror, or shake or drag it with force. ●When manually adjusting the interior rearview mirror, do not forcibly adjust the stuck mirror to avoid the mirror falling off. ●Adjusting the interior rearview mirror before driving. Do not adjust the rearview mirror while driving. This may distract your attention, causing accidents. 03 CONTROLLER OPERATION Manual Anti-glare Interior Rearview Mirror* ●Normal mode: Rotate the control stick left to get the clearest mirror image. ●Anti-glare mode: Rotate the control stick right to effectively reduce interference from rear vehicle headlights. Note that anti-glare may lower the clarity of rear visual field. Power Side Mirrors Side Mirror Switches Folding side mirrors manually Push the outer edge of a side mirror to rotate it around the folding axis to the locked position.

Light Switches

Halaman 70

Folding side mirrors with power Press the fold button to fold both left and right side mirrors, which will return to their pre- folding positions if this button is pressed again. ● The left side mirror can be selected by pressing the corresponding auto regulation switch . ● ●Side mirror auto-fold can be controlled by tapping → Vehicle → Comfort Driving → Side Mirror → Auto-fold. The right side mirror can be selected by pressing the corresponding auto regulation switch . ● There are four directions (i.e. up, down, left and right) for regulating lens directions to adjust the side mirrors. ● REMINDER ●If the side mirrors get frozen, do not operate the controller or scrape their surface. Deicing spray should be used. ●Adjusting side mirrors before driving. Do not adjust the side mirrors while driving. This may distract your attention, causing accidents. Switches Light Switches Set the light switch to to turn off all lights except for daytime running lights. Auto lights Set the light switch to . The body control module captures the brightness data from the light intensity sensor to automatically turn the position lights and low beam on or off.

Light Switches

Halaman 71

CAUTION ●The light intensity sensor is located at the top of the dashboard panel. Do not block the sensor or let anything splash on it Position lights Set the light switch to to turn on position lights and license plate light. Low beam Set the light switch to to turn on the low beam. Rear fog lights 03 Set the light switch to and rotate CONTROLLER OPERATION the fog light dial to to turn on rear fog lights. High beam Set the light switch to and push the lever from the normal position forward (away from the steering wheel). After the lever is restored to the initial position, high beam is activated and the high beam indicator lights up on the cluster. Pull front or back the lever, turn off low beam, or exit OK status to deactivate high beam.

Light Switches

Halaman 72

Overtaking light Pull up the lever (toward the steering wheel) to turn on the overtaking light. Release the lever for the light switch to automatically reset. The overtaking light turns off. Turn signals ●Push up the lever to signal right turn. The right turn signal and its indicator on the instrument cluster flash. ●Pull down the lever to signal left turn. The left turn signal and its indicator on the instrument cluster flash. ●Once turned on, turn signals continue flashing even after the lever is released. They will turn off after the turn is complete. Depending on the driver's habit, the turn signal will reset after the vehicle turns around under some extreme conditions. Auto light off ●Conditions to activate the auto light off function: To activate this function, set the light switch to or and switch off the vehicle power. ●When the function is activated, the headlights and position lights turn off in 10 seconds if the driver's door is closed. ●When the function is activated, the headlights and position lights turn off in 10 minutes if the driver's door is open. ●After the lights turn off automatically, if the light status changes, these lights come on in the new status. If the conditions to activate the auto light off function are still met, the function is activated again. ●Disabling of the auto light off function: When the vehicle is powered on, the auto light off function is disabled, and the light switch can be operated normally. ●If the auto light off function has turned off the lights and the anti-theft alarm system has been armed, disarming the alarm system makes the lights come on again automatically. If the driver's door remains closed, the lights go off again after 10 seconds. But if any door is open, it turns off the light in 10 minutes. Lighting delay

High Beam Assist (HMA)

Halaman 73

●When the vehicle is powered on, tap → Light → Couresy Light to set the delay time. ●Follow me home headlight: ●The lighting delay is 10 seconds by default and can be set on the infotainment touchscreen. With the light switch set to , , or , when you power off the vehicle, lock four doors, and are leaving the vehicle, the corresponding lights keep on for 10 seconds (or the set time period). ●Headlights before entering: ●The lighting delay is 10 seconds by default and can be set on the infotainment touchscreen. With the light switch set to , , or , when you unlock and are approaching the vehicle, the corresponding lights keep on for 10 seconds (or the set time period). High Beam Assist (HMA) ●The HMA system uses a multi-purpose camera on the front windshield to determine current driving conditions and, if necessary, automatically switches between high and low beams. → Light → Exterior Light to turn on HMA. Tap Activating HMA ●Set the light switch to . When the vehicle speed is above 35 km/h and the light meets conditions, HMA is automatically activated and switches between low beam and high beam based on the current driving environment. REMINDER ●When HMA is activated, the HAM indicator light up on the instrument cluster. 03 CONTROLLER OPERATION Deactivating HMA ●How to deactivate HMA: ●Set the light switch to any position except . ●Tap → Light → Exterior Light or use the shortcut menu to turn off HMA. ●Manually activate high beam. System suppression conditions ●The intelligent high & low beam system is suppressed in any of the following situations: ●The vehicle speed is below 35 km/h. ●Fog lights or turn signals are turned on, or the vehicle makes a sharp turn. System Limitations ●HMA may be unexpectedly activated or fail to activate in the following cases (in such cases, drivers are advised to control the lights manually): ●There are traffic participants with poor lighting (such as pedestrians and bicycles), railways or waterways nearby, or wild animals on the roads.

Power Window Switches

Halaman 74

●The front windshield is dirty, covered in mist, or blocked by stickers or decorations. ●There are strongly reflective objects around, such as traffic signs on highways and water reflection on the road surface. CAUTION ●In case there is a collision or sensors have been reinstalled, contact a BYD authorized dealer or service provider to calibrate the sensors, so as to avoid affecting system performance. Loading Conditions Recommended Lighting Level One person in the driver seat 0~2 The driver, plus one passenger in the front seat All the seats occupied 0~2 All seats occupied, plus an evenly distributed load in the trunk 1~3 Driver, plus an evenly distributed load in the trunk 1~3 ●Vehicle loading conditions may differ. Adjust accordingly. Driver's Door Switches Power Window Switches ●When the ignition is on, all the window switches can roll up or down the window. After the vehicle is powered OFF, no power windows can be regulated. ●The window control switch at the driver's side contains four buttons to roll up or down windows on four doors, respectively. Adjusting Headlight Height → Light → Exterior Light → Headlight Height on the infotainment touchscreen to adjust the vertical beam angle of the headlights. When the low beam is on, tap ●Press a switch to roll the window down. ●Pull a switch to roll the window up. ●While using the switch, release it to stop window halfway.

Anti-pinch function

Halaman 75

●Rolling down: Press a switch to the second notch and release. The corresponding window rolls down automatically. ●Rolling up: Pull a switch to the second notch and release. The corresponding window rolls up automatically. ●To stop the window halfway, gently push the switch in the opposite direction. Delay function* ●After the vehicle is powered off, if the front doors are not open, the four- door window controller has a 10min delay period. During this period, the windows can still be rolled up and down. ●If a front door is opened, the window switches won't work. Smart window control function* ●Smart Key: This function can be enabled in the infotainment system. When the remote control key unlock button is pressed and held, the windows will roll down automatically. When the lock button is pressed and held, the windows will roll up automatically. If the button is released while windows are in motion, they will stop. ●Microswitch: This function can be enabled in the infotainment system. When the microswitch is pressed and held while carrying the smart key, the windows will roll down automatically. When the microswitch is pressed and held again, the windows will roll up automatically. If the button is released while windows are in motion, they will stop. ●If functions are disabled in the infotainment system, and when the switch status is OFF, all windows will roll up when the vehicle is locked. WARNING ●Before closing a power window, ensure occupants' hands are not placed upon the window glass; pinching of hands can result in serious injuries. Anti-pinch Function Anti-pinch function 03 If someone or an object is caught by the window when it is rolling up, the window stops and rolls down automatically. CONTROLLER OPERATION Initialization of anti-pinch function ●Close the window, release the switch, and then operate the switch and hold it for at least 400 ms. WARNING Please follow the precautions below to prevent serious injury or death from window closing: ●Before operating the power windows, ensure that all passengers do not have any body parts that can be caught in the window. ●Do not allow a child to operate the power windows. CAUTION ●Excessively frequent activation of the anti-pinch function can activate the regulator motor's overheat protection. ●Do not intentionally activate the anti-pinch function by jamming any part of your body into the window.

Odometer Switch

Halaman 76

CAUTION ●If the low-voltage battery is disconnected while a window is being rolled up or down, the automatic rolling-up and anti- pinch functions both cease to work. ●The anti-pinch function may not work if an object is jammed into the window when it is almost completely closed. ●Contacting a BYD authorized dealer or service provider for maintenance is recommended if the windows' automatic closing function or anti-pinch function is not working normally. Window Lock Button* ●Pressing this button deactivates the window switches on the rear row. The window switches on the sides of the driver and the front passenger remain operational. ●Press the switch a second time. The indicator goes out, and the window switches on the rear row work normally. Central Locking ●The driver's door is equipped with power door lock switches to lock or unlock all doors. Locking ●Press the central lock button. All doors are locked and the red lock indicator lights up. ②Unlocking ●Press the central unlock button. All doors are unlocked and the red lock indicator turns off. ●All doors unlock automatically when the vehicle suffers a strong impact, depending on the impact intensity and accident type. Trunk Switch ●Press this button to open or close the trunk from inside the vehicle. Odometer Switch ●Press the odometer switch to switch between "Total Mileage" - "Mileage 1" - "Mileage 2" - "Total Mileage".

Hazard Warning Light Switch

Halaman 77

The switching status is displayed accordingly on the instrument cluster. ●Press and hold "Mileage 1" and "Mileage 2" to clear the mileage information. Driver Assistance Switches The center console also features a reversing radar switch*, BSA switch*, and AVH switch*. ①Reversing radar switch* Press this switch to activate parking radar. See P138 for details. ②BSA switch* Press this switch to activate blind spot assist. See P131 for details. ③AVH switch* Press this switch to activate automatic vehicle hold. See P113 for details. Window Control Switch on Passenger Side When the ignition is on, the window control switches near passengers can be used to roll the associated windows up or down. 03 CONTROLLER OPERATION Hazard Warning Light Switch When the button is pressed, all turn signals and turn signal indicators on the instrument cluster start flashing. They all stop flashing when the button is pressed again. CAUTION ●The hazard warning lights are used to alert drivers and pedestrians of possible risks.

Emergency Call (E-Call)*

Halaman 78

Mode Switches These switches enable drivers to select from the different regenerative braking, snow, and ECO, SPORT or NORMAL modes. ① Regenerative braking mode button ●The default setting is the standard regenerative braking mode. ●Toggle up the lever ① to increase regenerative braking force. ② Snow mode button ●Press down the snow mode switch ② to put the vehicle in snow mode. ●This mode is recommended on fairly strong surfaces covered in slippery materials such as grass, snow, ice, or gravel. ●Although snow mode optimizes traction, driving performance, and maneuverability, it is recommended to avoid sudden acceleration or high speed. ③ MODE switch ●The default setting is ECO mode. ●Move up the lever ③ to switch the vehicle to the SPORT mode. ●Move down the lever ③ to switch the vehicle to the NORMAL mode. ●Move down the lever ③ repeatedly to cycle through NORMAL → SPORT → ECO → NORMAL mode. ●Move up the lever ③ repeatedly to cycle through NORMAL → ECO → SPORT → NORMAL mode. ●Ecology, Conservation, Optimization (ECO): moderate vehicle power, comfortable driving and riding experience, and better economy. ●Normal (NORMAL): Proper balance between power and energy efficiency. ●Sport (SPORT ): The vehicle shows good power performance, but its acceleration performance is reduced at low State of Charge (SOC), or too high or low temperatures. CAUTION ●Because ESC activation limits the engine torque, momentarily deactivating ESC may help if the vehicle is stuck in deep snow. The ESC system must be restarted after conditions are back to normal. REMINDER ●When the driver switches modes and releases the accelerator pedal, the vehicle's power output characteristics will change according to the driver's needs. Make sure to drive safely. ●All modes have a power-off memory function. The vehicle will be in the same mode as it was when it was powered off. Emergency Call (E-Call)* ●E-Call* refers to emergency call. Pressing and holding the SOS button

PAB Switch*

Halaman 79

for a maximum of 10 seconds triggers the E-Call system manually, and pressing and holding the button for 10-20 seconds does not. ●To cancel an emergency call made by mistake, press the SOS button a second time within five seconds. ●The E-Call system activates automatically in the event of airbag deployment or the detection of a severe collision. Status LED Indicator Beeping Ignition off or E-Call system failure Off \ Power-on self-check mode Flashing fast - 2 Hz \ Ignition on and self-check passed Solid on if self-check is passed \ E-Call connecting Flashing - 1 Hz A beep E-Call connected Flashing - 1 Hz A beep E-Call ended Solid on Two beeps after E-Call ends Callback time (60 minutes by default) Flashing extremely slowly - 0.2 Hz \ PAB Switch* ●The front passenger airbag can be deactivated if the vehicle is equipped with a passenger airbag (PAB) switch. ●When triggered, the system automatically makes an emergency call and communicates standard information to a public safety answering point. CAUTION ●The SOS button will be considered to be short-circuited (button stuck) if you press and hold the SOS button for over 20 seconds. In that case, the E-Call cannot be triggered manually. 03 ●The dialed emergency call cannot be canceled manually. The E- Call system will begin 60-minute callback time after the call is hung up by the public safety answering point or is not answered when it has been dialed 10 consecutive times. CONTROLLER OPERATION ●The switch is located on the passenger side of the dashboard and is accessible when the passenger's door is open.

Panoramic Sunroof

Halaman 80

●Check that the switch is in the required position. ●Enable or disable the front passenger airbag according to the use of the front passenger seat: ●When the switch is in ON, the passenger airbag is enabled and the touchscreen status bar displays . The front passenger airbag deploys in the event of a moderate to severe collision that meets the necessary deployment conditions. ●When the switch is in OFF, the passenger airbag is enabled and the touchscreen status bar displays . The front passenger airbag does not deploy in the event of moderate to severe collisions that meet the necessary deployment conditions. WARNING ●Never use a rear-facing child restraint on the front passenger seat if the airbag is activated. ●The passenger airbag must always be activated when a forward- facing occupant rides in the front passenger seat. ●If the requirements above are not followed, there is a high risk of WARNING serious passenger injury or even casualty. CAUTION ●To prevent damage to the airbag system, only operate the passenger airbag switch when the ignition is switched off. ●It is the driver's responsibility to confirm that the passenger airbag switch is in the correct position for the person sitting in the front passenger seat. Sunroof Switch* Panoramic Sunroof The sunroof can only be operated when the vehicle is powered on or when the power-off delay has not expired. Opening the sunroof ●Press and hold the sunroof open button ① to open the sunroof. Release the button midway to stop the sunroof at its current position. ●If the sunroof has been initialized, pressing the sunroof open button ① and release it immediately, the sunroof tilts up for ventilation. Pressing the button again will set the sunroof to open automatically by about 80%. Touching the button once more will open the sunroof completely. If button ① or ② is pressed when the sunroof is opening, the sunroof will stop at its current position.

Sunroof Anti-pinch

Halaman 81

Closing the sunroof ●Press and hold the button ② to close the sunroof and release the button midway to stop it. ●If the sunroof has been initialized, releasing the button ② immediately after pressing it closes the sunroof automatically. For the sunroof to stop, press button ① or ② midway. Sunshade Opening the sunshade ●Press and hold the sunshade open button ① to open the sunshade. Release the button midway to stop the sunshade. ●Release the button ① immediately after pressing it to open the sunshade automatically. For the sunshade to stop, press button ① or ② midway. Closing the sunshade ●Press and hold the button ② to close the sunshade and release the button midway to stop it. ●If the sunshade has been initialized, releasing the button ② immediately after pressing it closes the sunshade automatically. For the sunshade to stop, press button ① or ② midway. CAUTION ●When opening or closing the sunshade, avoid forceful contact with its curtain, to prevent damage. 03 CONTROLLER OPERATION Sunshade linkage ●When the sunroof is opened, the sunshade will be opened together with the sunroof. Sunroof Anti-pinch If the sunroof or sunshade closing process is obstructed by anything, it will stop and slightly retract. WARNING ●Keep clear of the sunroof when it is opening or closing, or severe injury may occur. ●Passengers must refrain from sticking hands or their heads out through the sunroof. Otherwise, severe injury or even death may occur. CAUTION ●Trying to open the sunroof in outside temperatures below 0℃ or when it is covered in snow or frost may damage the sunroof or its motor.

Smart Ambient Lights*

Halaman 82

Initialization ●With the ignition on, the signal remains valid and the sunroof is in the uninitialized state, try the following steps for initialization: ●Press the close button to the fully closed position and hold on for at least 0.5 seconds to initialize the sunroof/sunshade. ●If the sunroof/sunshade does not close fully, calibrate manually. Press and hold the sunroof/sunshade close button, and release it when the sunroof/sunshade stops moving. Hold the button again for at least seven seconds, and release it until the sunroof/sunshade is fully closed and a click sound is heard. ●The sunroof and sunshade are initialized separately. Interior Light Switch Front Interior Lights ●Press the interior light buttons to turn on left/right interior lights. Press again to turn them off. Rear Interior Light Switches* ●With the vehicle in any power mode, press this button to turn on the left/ right interior light. ●Press again to turn off the left/right interior light. Rear Interior Lights* ●Press button ① to turn on the left light. Press button ① to turn off the left light. ●Press button ② to turn on the right light. Press button ② to turn off the right light. Smart Ambient Lights* When the door is opened, the smart interior ambient lights turn on automatically to create a pleasant environment in the cabin. ●Tap → Light → Ambient Light to set: ●Ambient light colors ●Ambient light brightness ●Ambient light adjustment area ●Dynamic ambient light

Using and Driving

Halaman 83

04 USING AND DRIVING Discharging Instructions.................. 84 Batteries............................................96 Usage Precautions..........................100 Starting and Driving........................107 Driver Assistance............................ 115 Other Main Functions.....................146

Charging Safety Warnings

Halaman 84

Discharging Instructions Charging Instructions ●Charging equipment uses high-voltage current. Minors are prohibited to charge the vehicle or touch the charging equipment. Keep them away from the vehicle during charging. ●Charging may affect medical or implanted electronic devices. Consult the device manufacturer before charging. ●Charge the vehicle in a relatively safe environment, and avoid charging in damp areas, or areas with fire or heat sources. ●Protect the charging equipment against water contact on rainy days. ●Before charging: ●Ensure that power supply equipment, charging connector, charge port, and charging connection device are free of defects, such as cable wear, rusted ports, cracked casings, or foreign objects in the ports. ●Do not charge the vehicle when the charging connector's or port's plug, socket, or metal terminals are loose or damaged by rust or corrosion. ●When the charging connector, port, power plug, or socket is visibly stained or damp, wipe them with a dry and clean cloth to ensure the connection is dry and clean. ●Use a standard-compliant charging equipment. ●To avoid charging failure or fire, do not modify, disassemble, or repair the charging equipment and related ports. Contact a BYD authorized dealer or service provider for handling if there is a fault. ●Do not use charging equipment that does not meet safety standards or has potential safety hazards. Do not allow children to use the charging equipment and keep animals away from the vehicle while charging. ●Never drop the equipment or move it by pulling it directly by the cable. Take caution when moving and using the equipment. ●Ensure that your hands are properly dry before charging. ●If anything abnormal is found in the vehicle or charging equipment during charging, stop immediately and contact a BYD authorized dealer or service provider. ●Always observe the following charging precautions to prevent damage to the vehicle: ●Do not shake the charging connector, otherwise the vehicle charge port may be damaged. ●Whenever possible, do not charge the vehicle in a thunderstorm, or there will be a risk of lightning strikes. ●Do not open the hood for maintenance while charging. ●After charging, do not disconnect the charging equipment with wet hands or while standing on any wet surface. ●Before driving, ensure that the charging equipment is disconnected from the charge port. Vehicle compatibility and charging infrastructure ●These signs are located on the vehicle charging socket and charging

Charging Precautions

Halaman 85

infrastructure components (e.g., charging stations and sockets). ●These signs refer to standardized charging systems in accordance with DIN EN 62196. Charging Precautions ●When the SOC bar on the instrument cluster turns red, the high-voltage battery is about to be exhausted. Please charge it immediately, otherwise the service life of the high- voltage battery will be reduced. ●Mode 2 charging means charging with an AC charging connector. Use a dedicated AC line and power outlet that meets local standards. The purpose of using a dedicated line is to protect the line from tripping due to line breakage or high-power charging of the high-voltage battery. Using a line other than dedicated lines may affect proper operation of other devices on the line. ●Avoiding damage to the charging equipment (precautions for charging equipment): ●Prevent the charging equipment from any mechanical impact, such as falling and colliding with other objects. ●Do not place the charging equipment near heaters or other heat sources. ●Before charging: ●Make sure that the charging connector and charge port are free of foreign objects, and that the protective cap of the charging connector terminal does not get loose or deformed. ●Hold the charging connector with one hand, align the connector with the charge port and push it in, making sure that they are properly connected. ●When charging is complete: ●Stop charging first and make sure the charge port is unlocked. ●Pull out the charging connector. ●Do not force the charging connector out while the charge port is locked, otherwise the charge port may be damaged. 04 USING AND DRIVING ●The vehicle can be powered on to use A/C while charging. To ensure the charging power, it is recommended to turn off the A/C. ●It is recommended that no one stay in the vehicle during charging. ●It is recommended to park the vehicle in a ventilated area during charging. ●The vehicle system automatically stops charging when the high-voltage battery is fully charged. The charge port is equipped with an electronic lock. Unlock it before unplugging the charging equipment. ●To stop DC charging, turn off the charger before disconnecting the charging connector. In Mode 2 charging, remove the charging connector and then the power plug. ●When charging is complete and the charging connector is unplugged, make sure that the charge port's cap and door are closed, otherwise water or foreign materials may enter the port and affect its normal use. ●Before starting the vehicle, check that the charging equipment is

Charging Precautions

Halaman 86

disconnected. When the charging connector is loosely inserted, you may still be able to power on the vehicle and drive it off. This will damage the charging equipment and the vehicle. ●Battery temperatures that are too low or too high compromise vehicle charging performance. ●The temperature control system can improve low-temperature charging capacity of the battery. Due to output capacity limitations of charging piles, the charging time is extended, the heating time becomes longer and the power consumption of heating is increased. This is a normal phenomenon. ●For faster low-temperature DC charging, charging from low SOC is recommended because, due to the low battery temperature, the charging current is small for vehicles with high SOC in low-temperature environments. ●To improve your experience at low temperatures, it is recommended to charge the vehicle immediately after using it, as the battery is relatively hot and has better charging performance. ●Turning A/C on during low- temperature charging affects the performance of the battery temperature control system and charging. ●It is normal that when the battery temperature control system is working during charging, the charging power displayed on the instrument cluster may fluctuate temporarily. ●Before charging is complete, battery equalization is activated for longer battery life and thus the charging time may be longer. ●The use of A/C may worsen battery temperature control system performance in DC charging at high temperatures, resulting in lower charging performance and longer charging time. To ensure charging efficiency, it is recommended to keep the A/C off during charging. ●When the heating or cooling function is enabled during charging, it is normal that both charging time and power consumption increase slightly. ●To ensure optimum battery temperature, the battery cooling system may continue working after charging is complete. ●During charging, the estimated remaining time to full charge is displayed on the instrument cluster or infotainment touchscreen. It is normal that this charging time may vary slightly across temperatures, SOC, and charging facilities. Before charging is completed, "Calculating..." is displayed on the instrument cluster. ●If you leave the vehicle parked for longer periods of time, it is recommended to charge it every three months in order to prolong its service life, and fully charge it before use again. REMINDER ●Do not open the charge port door forcibly when it is locked. ●Do not close the charge port door when the port cap is fully open. ●When the vehicle is charged, it is normal that the cooling fan and A/C compressor may operate automatically for the high-voltage battery to cool down.

General Charging Troubleshooting

Halaman 87

General Charging Troubleshooting Fault Possible Cause Solution Charging card in arrears or faulty charging pile. Consult card balance or contact charging station staff. The AC charging connector is not properly plugged in. Ensure the charger switch has come up. Check cable length and connection correctness. Connect the vehicle to another 12V low-voltage battery to charge its own low-voltage battery after the vehicle is powered on. Low-voltage battery over-discharges. Charger is connected and charge starts, but battery cannot be charged. The local standard socket has no power supply. Ensure the power supply is under overload protection. Use an outlet that complies with local standards. Check for power system fault warning light or charging system fault message on the instrument cluster. If found, stop charging and contact a BYD authorized dealer or service provider. Vehicle or AC charging connector failure Warm up or cool down the high-voltage battery. Keep the vehicle in an environment with appropriate temperature and charge it when the temperature becomes normal. High-voltage battery temperature above or below specification The high-voltage battery has been fully charged. When the high-voltage battery is fully charged, the charging will stop automatically. Charging cable is not connected properly. Verify that the charging connection cable is not loosely connected. Charging will restart automatically a while after AC supply returns to normal. If it doesn't, reinsert the charging connector. AC grid outage Charging stops midway. Charging stops automatically if the high-voltage battery overheating warning light comes out on the instrument cluster. Charge the vehicle when the battery temperature returns to a normal level. The high-voltage battery temperature is too high. If there is any fault prompt for the charging pile or the vehicle, it is recommended to contact a BYD authorized dealer or service provider. Vehicle or charging pile fails. 04 USING AND DRIVING

Using Mode 2 Charging Cable

Halaman 88

Charging ●Before charging: ●Check the charging device for abnormalities such as cracked housing, worn cable, rusted plug, or foreign materials. ●Do not charge when the charging connection becomes loose. ●Make sure the port is clear of fluids or foreign objects, and its metal terminals are not rusty or corroded. ●In any of these cases, do not charge. Otherwise, personal injury may occur due to short circuit or electric shock. Using Mode 2 Charging Cable 1. Equipment ●Connect the vehicle to a socket that meets local standards to charge the vehicle. ●A household socket meeting local standards must be used in order to avoid line damage or tripping due to high-power charging, which may affect the normal use of other devices. ●This Mode 2 charging cable includes a power plug (complying with local standards), a charging connector, a control box, and a charging cable. The plug is connected to a standard household power socket, and the charging connector to the vehicle's charge port. ●Charging time: Refer to the charging time message on the instrument cluster or infotainment touchscreen. WARNING ●See for charging safety warnings. WARNING ●The highest working temperature allowed for the product is 50°C. Store it in a cool and dry place when it is not in use. ●When charging, do not place the equipment in the trunk, under the front of the vehicle, or near the tires. ●When using the equipment, prevent it from getting rolled over by the vehicle, dropped, or trampled on. ●Never drop the equipment or move it by pulling it directly by the cable. Take caution when moving the equipment. ●It is not recommended to use any additional wire or adapter/ connector. If an additional adapter is required, choose a suitable cable diameter (≥1.5 mm²) and the adapter/ connector parameters must meet requirements. ●Never use the charging equipment if the household power strip cable becomes soft, the charging connector cable is worn out, the insulation layer is cracked, or any other damage occurs. ●Never use the equipment when the charging connector, power plug, or power strip is disconnected, broken, or there is any sign of surface damage. ●To prevent failure of the charge port door, do not open and close it repeatedly.

Using Mode 2 Charging Cable

Halaman 89

CAUTION ●Contact a BYD authorized dealer or service provider to select the appropriate power supply according to the charging equipment requirements. ●Charging equipment grounding instructions: The equipment must be properly grounded. In the event of failure or damage to the equipment, the grounding cable provides a minimum impedance to circuit discharge and thereby reducing the risk of electric shock. ●The power plug must match a properly installed and well- grounded power supply outlet. REMINDER ●The charging cable must not be placed in a spiral during charging, as this will affect heat dissipation. ●See "Charging Instructions" for charging safety warnings. 2. Charging ●Power off the vehicle. ●With the doors unlocked, press the charge port door to open. ●Open the charge port cap and the protective cover* of the charging connector, and make sure that no obstacles exist between the head of the charging connector and the end of the charging socket. ●Connect the power supply terminal: 04 ●Plug the Mode 2 charging cable into a household socket. USING AND DRIVING ●Connect the vehicle port: ●Plug the charging connector correctly into the port. ●After the charging connector is inserted, the charging connection indicator lights up on the instrument cluster or infotainment touchscreen. CAUTION ●In the charging process, the instrument cluster displays relevant charging parameters and the charging sign. ●At this time, you can go to → Energy → Charge/Discharging to set smart charging. ●During charging, the estimated remaining time to full charge is displayed on the instrument cluster. It is normal that the remaining time to full charge may vary slightly depending on the temperatures, SOC, and charging facilities.

Using AC Charging Piles *

Halaman 90

CAUTION ●Smart charging cannot be used when the remaining battery is too low. 3. Stopping charging ●End the charging: ●The charging automatically ends when the vehicle is fully charged. ●To end the charging early, proceed to the next step. ●Unplug the charging connector: ●Press the unlock button on the smart key or press the door handle microswitch while carrying the smart key and pull out the charging connector. REMINDER ●To unlock the vehicle, press the unlock button on the key (when charging the vehicle with ignition switched off) or press the microswitch on the door handle (when the key is nearby). ●To pull out charging connector and end charging, unlock the vehicle to deactivate the anti- theft lock before pulling out the charging connector. The connector has to be pulled out within 30 seconds, or the port will relock. ●You can set the anti-theft lock on the infotainment touchscreen → Energy → Charge/ Discharging, as detailed in P94. ●If the charging connector cannot be removed after unlocking, try a few more unlocking attempts. If that does not work, try emergency REMINDER unlocking. For the operating procedure, see P94 in "Charge Port Anti-theft Lock". ●Disconnect the power plug. ●Close the charge port cap and the port door. ●Store the charging equipment properly. REMINDER ●Do not close the charge port door when the port cap is fully open. Using AC Charging Piles * 1. Equipment ●Single-phase AC charging box* ●Use a standard-compliant household charging box. For how to use the charging equipment, refer to its user manual and follow the operating steps. ●The single-phase AC charging box： consists of a charging box, a charging connector, and a connecting cable. For information on circuit breaker and emergency stop switch, see the charging box user manual. ●Single-phase AC charging pile

Using DC Chargers

Halaman 91

●Charge the vehicle with an AC charging pile in a public place. ●Charging time: Refer to the charging time message on the instrument cluster or infotainment touchscreen. 2. Charging ●Unlock the vehicle and open the charge port door: ●See P88 for unlocking and opening the charge port door. ●Connect the vehicle port: ●Plug the charging connector into the port and make sure it is tight. ●Charging settings: ●For AC charging pile/box subject to authentication, swipe the card or scan the QR code. For details, see the user manual for charging pile/box. ●The charging connection indicator lights up on the instrument cluster. ●In the charging process, the instrument cluster displays relevant charging parameters and the charging sign. ●At this time, you can schedule smart charging on the infotainment system. 3. Stopping charging ●End the charging: ●Charging stops automatically when it is interrupted by the user, or when the battery is fully charged. ●Unplug the charging connector: ●See P88 for unplugging the charging connector. ●Close the AC charge port door (see P88). ●Store the equipment properly. ●If using an AC charging pile/box, place the charging connector in its designated location in the charging pile/box. Using DC Chargers 1. Equipment descriptions ●Use the DC battery charger in public places to charge the vehicle. Generally, it is installed in a specific charging station. ●Equipment specifications: Please check the instructions for the charger. ●Charging time: Refer to the charging time message on the instrument cluster or infotainment touchscreen. 04 2. Charging USING AND DRIVING DC charging is achieved by connecting the vehicle to a DC charger via its connector. ●Unlock the charge port door, then open the port door and cap. ●Connect the vehicle port: ●Plug the connector into the port, making sure it is tight. ●Operate the charging equipment to start charging. ●The charging connection indicator lights up on the instrument cluster. ●In the charging process, the instrument cluster or infotainment touchscreen displays relevant charging parameters and the charging sign.

Discharging Device*

Halaman 92

3. Stopping charging ●End the charging: ●Charging ends automatically when early stop time is due or the charging is complete. You can end charging through charging app or swiping a card. ●Double-pressing the unlock button of driver's door or on the smart key within three seconds to stop charging. ●When the DC charging pile charging is complete, organize the charging equipment and store the charging connector in its designated position properly. ●Close the DC charge port cap and the port door. WARNING ●See P84 for charging safety warnings. CAUTION ●If the charging connector cannot be removed after charging, try a few more unlocking attempts. If that does not work, try emergency unlocking. For the operating procedure, see P94 in "Charging Port Immobilizer System". ●To unlock the charge port after DC charging, press the unlock button twice within three seconds for the operation to be successful. ●See P85 for charging precautions. REMINDER ●When the port cap is fully open, do not close the charge port door. Intelligent Charging ●When the manager detects that the low voltage battery capacity is low, the low voltage battery can be charged by the high-voltage battery, so it is normal that the SOC and driving range displayed decrease when the vehicle is powered on after an idle period. REMINDER ●When the vehicle lies idle for long periods, it is normal that intelligent charging takes place. ●Power for intelligent charging comes from the high-voltage battery pack, so it is normal that an SOC decrease is noticed when the vehicle is powered on. Discharging Device* ●This vehicle features a vehicle to load (VTOL) function. WARNING ●Do not touch any metal terminal of the discharging socket or the vehicle charge port during discharging. ●Stop discharging immediately if there are any abnormalities such as peculiar smell and smoke. ●See Charging Instructions for discharging safety warnings. ●Store the product in a cool and dry place when it is not in use. ●When discharging, do not place the equipment in the trunk, under the front of the vehicle, or near the tires to prevent it from falling

External Discharging

Halaman 93

WARNING and being rolled over by the vehicle and trampled on. ●Never use the discharging equipment if the power strip cable becomes soft, the discharging connector cable is worn out, the insulation layer is cracked, or any other damage occurs. ●Never use the equipment when the discharging connector or power strip is disconnected or broken, or when there is any sign of surface damage. CAUTION ●For precautions concerning use of the discharge connection device, please refer to the precautions for charging equipment included in item 3 of "Charging Precautions". ●Before discharging, please confirm the vehicle SOC and estimate the remaining driving range. REMINDER ●The V2L function is recommended only when SOC is high. ●The V2L function is restricted when the vehicle SOC is low. External Discharging Starting discharging ●Before discharging, disarm the anti- theft alarm system. ●Unlock the charge port door switch, then open the port door and cap. ●Check before discharging: ●Ensure that the battery capacity of the vehicle to be discharged is not below 15%. ●Ensure the V2L connection device casing is not cracked, and its plug is free from rust or obstructions. ●Ensure that there is no water or foreign material inside the charge port and that metal terminals are not damaged and free from rust or corrosion. ●Do not discharge if any of the above conditions is found; otherwise, short circuit or electric shock so caused could lead to personal injury. 04 ●Connect the discharge connection device: USING AND DRIVING ●Connect the V2L discharge device to the charge port. The power strip indicator lights up when the strip is powered and ready for use. ●Discharging starts: ●After the connection is made, discharge begins and respective information is displayed on the instrument cluster. Stopping discharging ●Stop discharging: ●Disconnect the load. ●Disconnect the discharge connection device: ●Unplug the discharging device. ●Close the charge port cap and the port door (see P88). ●Organizing the equipment: ●Store the equipment properly after discharging.

Driving Range Display Mode Settings*

Halaman 94

Charge Port Anti-theft Lock ●In order to prevent the charging connector from being stolen, the vehicle charge port is anti-theft during charging and discharging. The charging port immobilizer system is disabled by default. To enable it, go to the infotainment touchscreen → → Energy → Charge/Discharging . ●When the function is enabled, unlock the vehicle and unplug the charging connector during charging in the following ways: ●When it is on OFF status, press the unlock button on the smart key to unlock. ●Press the microswitch next to the exterior handle of the driver's side door to unlock (with the smart key nearby). ●Press the central unlock button under the window on the driver's door to unlock. CAUTION ●After unlocking the charging connector, it can be pulled out within 30 seconds. After 30 seconds, it will lock again. Emergency Unlocking of Charge Port ●When charging connector cannot be unplugged due to failure of the anti- theft lock, unlock the charge port manually. ●Open the hood. A lock latch can be found inside. Pull the latch to unlock the charging connector. Configuration 1 Configuration 2 Driving Range Display Settings* ●The range display mode can be set to improve driving experience. The default setting is standard mode. ●The corresponding settings are accessible on the infotainment touchscreen → → Audio Display → Instrument → Range Display Mode.

Energy Regeneration Intensity Settings

Halaman 95

●Standard mode: displays the driving range based on the result of comprehensive working condition test. ●Dynamic mode: displays the estimated driving range based on the available battery power and current average energy consumption. ●The set driving range display mode is memorized by the system. ●When the vehicle is powered off and then on, the display mode set last time will be maintained. REMINDER ●When the dynamic driving range display mode is set: ●The driving range that is displayed after a full charge may vary, depending on calculations of the energy consumed the last time the vehicle is used. ●The driving range actually displayed will be adjusted based on the state of the vehicle's air conditioner, the driving mode (ECO, NORMAL, SPORT, etc.) selected, and the driver's driving habits, so as to match the vehicle's actual driving range. Energy Regeneration Settings ●Regenerative braking: In this process, the motor will generate reverse torque when the vehicle is decelerating, and the generated energy will be recovered and reused to improve the energy utilization rate of the vehicle. ●Braking regeneration: ●When the vehicle is running in Drive, if you completely release the accelerator pedal and depress the brake pedal, and the vehicle is in a stable state, priority is given to responding to motor regeneration for deceleration during braking and deceleration. When the motor capacity is insufficient, the hydraulic brake will actively intervene to maintain the deceleration demand of the vehicle, and the generated energy will be recovered to improve the vehicle economy. ●Sliding regeneration: ●When the vehicle is running in Drive, if you release the accelerator pedal at a certain depth, the motor will output reverse torque to decelerate the vehicle, and the generated energy will be recovered to improve the vehicle economy. 04 USING AND DRIVING ●During driving, energy is recovered by the regenerative brake when the vehicle decelerates. For higher efficiency, do not accelerate or decelerate the vehicle unnecessarily. ●The regenerative braking intensity can be set with the regenerative mode button or on the infotainment touchscreen. ●Standard: When the accelerator pedal is released, the motor controller recovers energy in the standard level, and the vehicle deceleration is in the standard level. ●High: When the accelerator pedal is released, the motor controller recovers more energy, and the vehicle deceleration is high. ●The corresponding settings are accessible in the infotainment touchscreen → → Energy → Energy Manager → Regenerative Braking. ●You can select the regeneration intensity based on the deceleration

Battery Properties

Halaman 96

sense when releasing the accelerator pedal. Different deceleration senses deliver different driving experiences. ●The set regenerative braking intensity will be memorized. When the vehicle is powered off and then on, the regenerative braking mode set last time will be maintained. ●The power of the whole vehicle is weaker at low battery level than that at high battery level. REMINDER ●Do not set the regeneration intensity when driving at high speed, This may obstruct the control of the vehicle, resulting in accidents. Batteries High-Voltage Battery ●The vehicle is powered by a high- voltage battery that can be charged and discharged repeatedly. The high- voltage battery is charged by an external power source or through energy recovery when the vehicle brakes or coasts. ●The high-voltage battery is located at the vehicle's chassis, so be careful to avoid bumping when driving on bumpy or uneven roads. Battery Properties ●The charging and discharging power of the high-voltage battery is related to the state of the battery pack, which is mainly affected by its SOC and the temperature of the battery cell. ●It is normal that vehicle performance is affected by battery electrochemical properties and self-protection and varies to some extent in the following conditions: ●When SOC is high, the regenerative braking performance may decline. ●The vehicle switches to trickle charging mode at high SOC. If the charging time is prolonged, the estimated remaining charging time displayed on the instrument cluster may not be accurate. ●When SOC is low, the acceleration performance may decline. ●When the high-voltage battery is low, V2L/VTOV* cannot be used as normal. Charge the battery promptly. ●At high or low temperatures, it is normal that the charging and discharging capabilities of the high- voltage battery decline, and the charging time is prolonged. For fast charging, high-power charging equipment is recommended. Power performance may also decline under extreme temperatures. ●When charging at low temperatures, the temperature control system can significantly improve the battery's charging capability. For details regarding low-temperature charging, see P85. ●When the vehicle is used at low temperatures, the battery's temperature control system will start heating the battery as appropriate to ensure the driving power and discharging performance and improve your driving experience. When the vehicle is driven over short distances, heating may be ineffective, which increases power consumption and decreases driving range.

Battery Usage Tips

Halaman 97

●When the high-voltage battery is normal, the driving range of the vehicle varies with the following factors: ●Driving habit: For example, the range in frequent acceleration or deceleration is shorter than that at constant speeds, and the range is shorter when driving at high speeds than when at low speeds. ●Road conditions: For example, the range driven in rough conditions or on long slopes is shorter than that in normal conditions and on even roads. ●Temperature: The driving range at low temperatures is shorter than that at ambient temperatures. ●Use of electric equipment: For example, the range driven with A/C on is shorter than that with A/C off. ●Usable capacity of the high-voltage battery is lower in cold weather and reduces as the temperature decreases. If the vehicle with high battery level is charged at low temperatures, the SOC may quickly jump to 100%. ●The available battery capacity decreases as the vehicle is used over time. Battery Usage Tips ●It is recommended to use the vehicle at temperatures between -10℃ to 40℃. When SOC is low, timely charge the vehicle to ensure enough driving range and good acceleration performance. ●To ensure long-term performance, do not expose the vehicle to extreme temperatures (above 60°C or below 30°C) for over 24 hours. ●In low ambient temperatures, if the vehicle must be stored for a long time, it can be placed in an underground garage or other warmer area to reduce loss of battery heat, maintaining vehicle performance. ●Frequent and sudden acceleration or deceleration should be avoided. Drive the vehicle on flat and dry roads. When necessary, turn off high-power equipment such as A/C or adjust the A/C temperature to reduce power consumption of such devices and increase the driving range. ●When the vehicle is used for the first time or after a long idle period, the SOC displayed on the instrument cluster may not be correct. It is recommended to fully charge the vehicle first. 04 USING AND DRIVING ●For optimal battery performance, it is recommended to fully charge the vehicle at a regular basis (at least once a week), and fully charge it from low battery (SOC <10%) once every three to six months. ●Under extreme working conditions (such as frequent sudden acceleration/ deceleration) that cause battery overheating, if the temperature of high-voltage battery is excessively high, it is normal for discharging capability to decrease gradually. If the battery temperature keeps rising, the fault warning light lights up on the instrument cluster. In that case, it is recommended to contact a BYD authorized dealer or service provider. ●When the battery SOC increases or decreases abnormally, it is recommended to contact a BYD authorized dealer or service provider for inspection. WARNING In the event of an emergency or accident, be aware of the following warnings:

Low-Voltage Battery

Halaman 98

WARNING ●To avoid personal injury, do not touch the high-voltage battery directly. ●Please contact a BYD authorized dealer or service provider as soon as possible. ●If the high-voltage battery is damaged and leaking fluid, avoid any contact with the fluid. If it comes into contact with skin or eyes, rinse immediately with plenty of water, and seek immediate medical attention. ●If the vehicle catches fire, use dedicated fire extinguishers instead of water-based fire extinguishers. CAUTION ●To ensure safety of the high- voltage battery, stop the vehicle away from flammable and explosive materials, ignition sources and various hazardous chemicals. ●The available battery capacity decreases as the vehicle is used over time. ●Prolonged exposure to heat sources and direct sunlight reduce the service life of the high-voltage battery. ●When the vehicle is not to be operated for an extended period (over seven days), it is recommended that the battery SOC should be kept at 40%-60% to prolong its service life. When the vehicle is not to be operated for over three months, the high- voltage battery must be fully charged and then discharged to CAUTION 40%-60% every three months. Otherwise, over-discharge may lead to battery performance degradation or even damage. Any vehicle fault or damage so caused will not be warranted. ●If there is a collision with the high-voltage battery, contact a BYD authorized dealer or service provider immediately for maintenance. ●Do not add battery coolant by users themselves. If needed, please contact a BYD authorized dealer or service provider. Low-Voltage Battery The 2 poles of the low-voltage battery are positive terminal ("+") and negative terminal ("–"). ●To prevent the SOC of the low- voltage battery becoming too low, the intelligent charging function is triggered automatically when conditions are met (ignition off, high- voltage battery discharging allowed, and low-voltage battery level below the design value). ●If the battery voltage is too low, it may not be able to power on the vehicle. In that case, contact the BYD authorized dealer or service provider promptly. ●Check the conditions of the low- voltage battery once a month, including corrosion of its poles. If the poles are corroded, disconnect the negative terminal and apply soda solution (adequate to cover the poles) on them. Then the water bubbles and turns brown. When the bubbles dissipate, clean the poles with pure

Waking up the Vehicle from Low SOC

Halaman 99

water, wipe them dry, and apply some grease to prevent further corrosion. ●If the connector becomes loose, tighten the clamp nut, but do not overtighten it. Tighten the pressing tool until it securely fixes the low-voltage battery in place. Overtightening will damage the battery box. WARNING ●The low-voltage battery contains a corrosive solution. To prevent damage to the battery or injury, do not disassemble or repair the battery. ●Do not disassemble or dismantle the low-voltage battery. Any organization or individual to do so shall bear the responsibility for environmental pollution or accidents. ●Since the low-voltage battery may produce combustible and explosive hydrogen gas, use tools in such a manner that the battery would not produce sparks. Do not smoke or use open flames near the battery. ●Avoid electrolyte contact with eyes, skin or clothing. In case that happens, use baking soda water to clean the skin, and plenty of water to rinse the eyes, and immediately seek medical attention. ●In case of mouth contact with the electrolyte, seek medical attention immediately. ●Keep children away from the low- voltage battery. CAUTION ●When checking the low-voltage battery, remove the ground cable from the negative terminal (-) first, and reconnect it last. ●When cleaning the low-voltage battery, make sure to avoid any fluid getting inside. REMINDER ●It is normal that intelligent charging with the ignition off produces a noise similar to when the ignition is switched on. 04 ●Do not carry out maintenance work during intelligent charging. USING AND DRIVING ●When leaving the vehicle, make sure the doors are closed and all electrical devices have been turned off. ●If the vehicle needs to be parked for a long time, please disconnect the negative terminal wire. Waking up the Vehicle from Low SOC Wake-up by the driver's door microswitch*: ●The low-voltage battery features the dormant/wake-up function. The low- voltage battery may have entered a dormant state after long-term parking. In that case, the vehicle cannot be located or unlocked with the smart key. To wake up the vehicle, hold the smart key close to the driver's door and press the microswitch on the door. When unlocked, the vehicle can be used as normal. If these actions cannot wake up the vehicle, the low-voltage battery may have been exhausted. Wake-up by jump starting*:

Break-in Period Instructions

Halaman 100

If the vehicle cannot be waked up by using the microswitch, use a 12V power supply and two specially designed cables to jump start the vehicle. ●Positive terminal for jump starting: inside the under-hood power distribution box (PDB) ●Negative terminal for jump starting: Unpainted metal on the motor assembly such as bolts as shown. WARNING ●Never jump start another vehicle. This may damage the low-voltage battery. ●If the low-voltage battery SOC is too low or the battery fails, jump starting may be required. Please carefully read and strictly follow the jump starting instructions in this manual. ●The low-voltage battery contains an intelligent control module. To prevent battery damage, do WARNING not disassemble or damage this battery, except in an emergency. ●Disconnect the negative terminal of the low-voltage battery before performing parts replacement and vehicle repairs. ●Do not clean the low-voltage battery with water, but wipe it with a cloth instead. CAUTION ●It is recommended that the jump starting be done under the guidance of professionals, as the space for operating the under- hood PDB is limited and circuit- based risks are present. Usage Precautions Break-in Period ●If the powertrain is hard to start or frequently stops turning, inspect the vehicle immediately. ●If the powertrain makes any abnormal sounds, stop the vehicle for inspection. ●If the powertrain has severe coolant and oil leakage, stop the vehicle for inspection. ●The powertrain needs break-in. This should preferably be done within the first 2,000 km in economic mode. Steady driving instead of high-speed driving is recommended. The following practices effectively prolong vehicle service life:

Vehicle Usage Tips

Halaman 101

●Avoid flooring the accelerator pedal when starting and driving the vehicle. ●Do not maintain a high or low speed for too long. ●Avoid emergency braking within the first 300 km. Trailer Towing ●This vehicle is designed to carry passengers. Do not overload it or use it to tow other vehicles. ●Towing other vehicles has an adverse impact on the maneuverability, performance, braking, endurance, driving economy, power consumption, and other aspects of performance of the vehicle itself. ●Driving safety and comfort totally depend on equipment usage and good driving habits. ●BYD does not provide free warranty for the damage or faults resulted from the trailer towing. Driving Safety Precautions No Drunk Driving Even a small amount of alcohol can reduce a driver's ability to respond to traffic condition changes. The higher the level of alcohol, the less responsive the driver will be. Therefore, never drive while under the influence. No Speeding Speeding is a major cause of fatal accidents. Faster speeds generally entail higher risk. Therefore, maintain a speed safe for the road traffic conditions. Keeping the Vehicle Safe for Driving Tire bursts and mechanical faults are extremely dangerous. To reduce the possibility of such faults, frequently check the vehicle's condition, and regularly complete the specified inspections. CAUTION ●Any driver must possess a driver's license before driving a vehicle. ●Do not drive when fatigued. ●Always follow the traffic regulations when driving a vehicle. 04 ●During driving, please focus on driving, and avoid activity unrelated to driving (such as making / receiving phone calls and adjusting buttons). USING AND DRIVING Suggestions for Vehicle Use Suggestions for prolonging the battery usage: ●When the vehicle is not to be operated for an extended period (over seven days), it is recommended that the battery SOC should be kept at 40%-60%, or it will reduce high-voltage battery service life. ●When the vehicle is not to be operated for over three months, the high-voltage battery must be fully charged and then discharged to 40%-60%. Otherwise, over-discharge may lead to battery performance degradation or even damage. Any vehicle fault or damage so caused will not be warranted. ●During operation of the vehicle, if the instrument cluster displays the pure electric driving mileage as 0, it indicates the battery SOC is low. In this

Saving Energy and Extending Vehicle Service Life

Halaman 102

case, charge the high-voltage battery in time and avoid operating the vehicle with low SOC for a long time. ●For optimal battery performance, use a charging connector to fully charge the battery regularly, and the recommended frequency is once a week at least. ●To maintain long-term performance, avoid continuously exposing the vehicle to an environment with a temperature above 60°C or below -30°C for over 24 hours. ●If the tray dented inward or there is scarification under the battery package tray, it is suggested to check at a BYD authorized dealer or service provider. ●During operation of the vehicle, avoid repeated rapid acceleration or deceleration whenever possible. ●During operation of the vehicle, avoid operating the vehicle continuously for a long time whenever possible; otherwise, the excessively high battery temperature will affect vehicle performance. ●If the instrument cluster malfunctions when driving, it is recommended to contact a BYD authorized dealer or service provider for inspection as soon as possible. ●When the high-voltage battery temperature is high, the vehicle performance will be limited to some extent. In this case, stop the vehicle and wait until the temperature drops before operating. REMINDER ●If the meter drops to 0, the battery must be recharged. If it is not recharged within 7 days, the battery may suffer permanent damage. Such damage is not covered by BYD warranty terms. REMINDER ●Driving range depends on many factors, such as the vehicle's available power, vehicle age (current battery life), weather, temperature, road conditions and driving habits. Compared with under normal temperatures, the pure-electric driving range is somewhat reduced and power performance will also be affected in low or high temperature environments. Saving Energy and Extending Vehicle Service Life ●Saving energy is simple and easy, and it helps prolong the vehicle's service life. ●Here are some tips for saving energy and repair cost: 1. Regenerative braking setting: ●The vehicle is provided with an energy regeneration function. To set the energy regeneration intensity, operate the regenerative braking mode button or go to the infotainment touchscreen. In high energy recovery mode, more energy is recovered during vehicle braking and coasting. Please set to suit to your driving habits. 2. Maintaining constant speed: ●Constant speeds save energy. Sudden acceleration, sharp turns and emergency braking increase consumption. ●Speeds should be kept constant according to traffic conditions. Additional energy is consumed each time the accelerator is pushed.

Carrying Luggage in the Passenger Area

Halaman 103

●Acceleration should be gradual. Avoid sudden startup, acceleration, or deceleration. ●Prevent emergency braking, and subsequent brake wear, by keeping an appropriate distance from vehicles ahead, and paying attention to traffic lights. ●Congested roads increase energy consumption. ●Keep moderate speeds in motorways. The higher the speed, the higher the consumption. Maintaining vehicle speed within the economical speed range can save power. 3. Reducing load: ●Consumption is higher when air conditioning is used. Turn off the A/C to reduce power consumption. When outside temperatures are moderate, use fresh air mode. ●Do not overload the vehicle unnecessarily. Excessive weights will add the load of vehicle, increasing energy consumption. 4. Other tips: ●Make sure tire pressure is correct. Low tire pressure increases energy consumption and wear. ●Keep front wheels properly aligned, avoid driving into curbstones, and drive slowly in rough terrain. Misalignment of the front wheels not only increases tire wear, but also increases load on the powertrain and power consumption. ●Keep the bottom of the vehicle clean and mud free. This reduces vehicle weight and prevents corrosion. REMINDER ●Do not coast in neutral gear. Carrying Luggage ●This vehicle has multiple storage spaces. Overloading or improper accommodation may affect maneuverability, stability and normal operation of the vehicle, and reduce its safety. ●The glove box, storage boxes on interior trim panels and seatback pockets are designed for small and light objects, while the trunk for large and heavy objects. ●Long items can be loaded by folding the rear seat backrests. Overloading or improper accommodation may affect maneuverability, stability and normal operation of the vehicle, and reduce its safety. 04 USING AND DRIVING ●Make sure the vehicle's total load (vehicle + passengers + luggage) remains within the specified maximum weight. WARNING ●Overloading and improper accommodation may affect stability and vehicle control, which may lead to accidents. ●Observe the maximum weight limit and other loading guidelines in this manual. ●Do not carry highly magnetic items, as they might interfere in the vehicle's operating functions. Carrying Luggage in the Passenger Area ●All items that could be thrown inwards and thus injure occupants in case of a collision must be properly placed and secured. ●Do not place any objects on the inner side of rear windshield. Otherwise,

Instructions for Wading into Water

Halaman 104

these objects will block the driver's line of sight and will be thrown here and there inside the vehicle in case of collision. ●Ensure that objects placed on the floor behind the front seat do not roll under the seat, so as to avoid affecting the driver's ability to control the pedals or normal seat adjustment. Do not stack items to a height taller than the front seats' seatbacks. ●Make sure the glove box is always closed while driving. If the glove box is open, the occupant's knees may be injured in case of a collision or an emergency stop. REMINDER ●Do not pile up toys in the vehicle, as this may affect driving safety and present a hazard to the children, especially in case of emergency braking or collision. Loading the Trunk ●Place luggage evenly in the trunk. Put heavier items at the bottom and as far in as possible. ●Secure items with ropes or straps so that they will not move while driving. Do not stack items to a height taller than seatbacks. ●For trunk strapping or fastening supplies, contact a BYD authorized dealer or service provider. Roof Rack* ●Storing luggage on the roof rack will increase overall energy consumption and change the way the vehicle drives and handles. ●Do not open the sunroof with luggage on the roof rack, or you may risk damaging the sunroof and other components with the beam or the luggage. ●When installing the roof rack, please read and follow the manufacturer's instructions. ●Try to load the roof rack evenly and keep the center of gravity low. Loads on the roof rack elevate the overall center of gravity, which might alter your driving experience. ●When driving a heavily loaded vehicle, take extra precautions, drive slowly, and increase your following distance. ●The maximum recommended load evenly distributed over the beam is: 50 kg. CAUTION ●Luggage must not be put on the roof metal sheet directly. The roof metal sheet is not designed for loading. ●Use the roof rack properly and fasten the luggage on the beam. ●Make sure the luggage is securely fastened on the roof rack before driving and during parking. Wading into Water ●Check water depth - it must not exceed the vehicle's lower edge before driving into flooded areas. ●If crossing a flooded area is necessary, turn off the air conditioner and keep acceleration steady to slowly cross over.

Fire Prevention Instructions

Halaman 105

●Never stop, back up, or turn off the vehicle in flooded areas. ●After crossing over, press the brake pedal several times to dry out the disks and recover brake performance. ●Be careful when driving through deep water, as brakes may get wet. WARNING ●The presence of water, mud, or silt in the braking system may delay brake response and extend braking distance. ●Drive carefully and avoid emergency braking after crossing flooded areas. ●The motor will be seriously damaged if it is submerged when crossing a flooded area. Such damaged is not covered by the vehicle's warranty ●Other systems like transmission, driving and electrical systems may also be seriously damaged upon submersion. Such damage is not covered by the vehicle's warranty either. Influence of water ingress in high- voltage components: ●Water getting into high-voltage components, which are electronic devices, may not be fully dried out by any means. ●Water ingress seriously compromises insulation of high-voltage components, and conductive substances in water may lead to short circuit of high-voltage components or such risk in the entire high-voltage system. This significantly affects the safety and service performance of the vehicle. ●The reduced ingress protection rating and voltage withstanding performance due to water in high- voltage components pose a high safety risk. ●Be sure to find a sheltered place when charging the vehicle on rainy days. If the vehicle is immersed in water or wades through water over the doorsill, which may cause water ingress in high-voltage components, promptly contact a BYD authorized dealer or service provider for testing and troubleshooting. Do not drive on roads where the depth of accumulated water exceeds half of the tires. 04 USING AND DRIVING Fire Prevention To prevent vehicle fires in a timely and effective manner, pay attention to the following during use of the vehicle: ●No flammable or explosive items are allowed in the vehicle. ●Temperatures may reach 60-70°C in a vehicle exposed to direct sunlight in summer. Therefore, flammable and explosive items, such as lighters, cleaning agents and perfumes stored in the vehicle can cause a fire or even explosion easily. ●Make sure cigarettes are thoroughly put out. ●Smoking is harmful to your health and may cause a fire. Cigarettes that

Fire Prevention Instructions

Halaman 106

not thoroughly put out may cause a fire. ●It is recommended to go to a BYD authorized dealer or service provider for regular vehicle checks. ●Check vehicle wiring, connections, wiring harnesses, insulation, and fixed position regularly. Deal with identified problems promptly. ●Do not refit vehicle wiring or add any unauthorized electrical appliance. ●The addition of extra electrical appliances, such as high-power audio systems and light fixtures may overload and overheat the wiring harness and increase the risk of fire. ●Improper refitting of electrical appliances or wiring may cause a fire due to contact resistance and abnormal heating. Fuses or other replacement wires in excess of relevant electrical rating are strictly prohibited. ●Select a proper parking location. ●When parking the vehicle, try to avoid sun exposure. ●Keep a lightweight fire extinguisher in the vehicle and know how to use it. ●To ensure vehicle safety, a fire extinguisher should be equipped in the vehicle, and be checked and replaced regularly. Also, you should familiarize yourself with use of the fire extinguisher in case of an accident. ●Disconnect the negative cable of the low-voltage battery when the vehicle is being serviced or repaired. ●In the event of a fire in the vehicle, take effective measures in a timely and calm manner to minimize any losses: ●Fires typically show initial warning signs, such as abnormal noises and odors in the vehicle body. When abnormal conditions are found, turn off and stop the vehicle immediately. It is best to park the vehicle in a windproof place, and then put out the fire using the fire extinguisher in the vehicle. ●Call the fire alarm in time, and also dial the insurance company's reporting number and ask the company to come to the fire site for handling. ●Look for the ignition point. If the cabin is smoking, do not open the hood immediately. (Doing so will let a large amount of air in and cause fire spreading. There is limited comburent in the cabin. Keeping the hood closed can control the fire so that the fire can be easily put out). Point the on-board fire extinguisher at the ignition point from the hood gap to put the fire out, or seek help from the passing cars. If you can borrow more fire extinguishers, open the hood to put it out when you cannot see any flame from outside. ●If the fire brigade is involved, ask for a duty performance certificate and a description of fire cause. ●After occurrence of the accident, contact the insurance company for post-event handling in a timely manner. REMINDER ●In order to mitigate losses in the event of an accident, the purchase of commercial insurance (fire loss, theft, etc.) is recommended.

Starting inside the Vehicle

Halaman 107

Snow Chains ●Snow chains are only for emergencies or areas where they are permitted by laws. ●Snow chains should be installed on front wheels. Be careful when driving the vehicle installed with snow chains on snow-covered roads. Use thin snow chains. Some snow chains may damage tires, wheels, and the vehicle body. The recommended snow chains are no larger than 10 mm in thickness or diameter, which provides enough space between tires and other parts in the hubcap. ●Read the component assembly drawings and other instructions provided by the snow chain manufacturer carefully. ●Before purchasing and installing snow chains, consult a BYD authorized dealer or service provider where your vehicle was purchased. ●In order to minimize wear of tires and snow chains, do not travel with snow chains on roads without snow. REMINDER ●Driving speed must not exceed 30 km/h or the speed limit specified by the snow chain manufacturer. ●Drive carefully, paying attention to bumps, potholes, and sharp turns that can cause the vehicle to bounce. ●For vehicles with snow chains, avoid sharp turns or braking with locked wheels, and slow down the vehicle before entering a curve to avoid accidents due to loss of control. ●Install the chains symmetrically and remove them immediately REMINDER after driving on snowy or muddy roads. ●If an abnormal sound is heard from the snow chain, please stop the vehicle immediately to check whether the vehicle components such as suspension, body or brake lines are normal, and ensure that there is no contact between them and the snow chains. Starting and Driving 04 USING AND DRIVING Starting the Vehicle In normal cases, start the vehicle as below: ●Engage the parking brake firmly. ●Shift to Park or Neutral. ●Carry the correct smart key with you. ●Press the START/STOP button ② while pressing the brake pedal ①. ●The vehicle is ready to drive when the OK indicator lights up on the instrument cluster. The vehicle cannot power on when:
