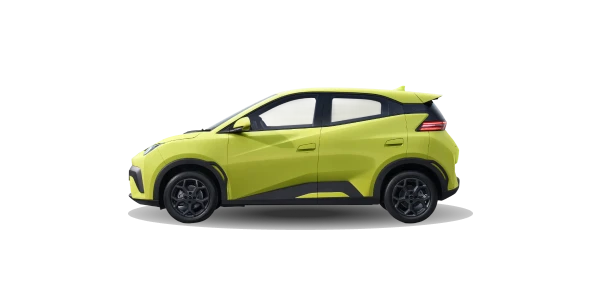

Owner's Manual BYD ATTO 1 — Isi Lengkap 184 Halaman
Contents
Halaman 1
Foreword
Thank you for choosing BYD. To better use and maintain the vehicle, please read this
manual carefully and keep it for future reference.
Special instructions: BYD Auto Industry Co., Ltd. recommends that you choose genuine
spare parts and use, maintain, and repair the vehicle in accordance with this manual.
The use of non-genuine spare parts to replace or modify the vehicle will affect the
performance of the entire vehicle, especially its safety and durability. Vehicle damage
and performance issues caused thereby will not be covered by the warranty. In addition,
vehicle modifications may also violate national laws and regulations and local government
regulations.
Thank you again for choosing BYD. Your valuable comments and suggestions are welcome.
In order to ensure better service for you, please be sure to provide accurate contact
information. If there is any change, please contact the authorized service shop of BYD
Automobile in time to update the system. At the same time, please pay attention to the
relevant national laws and regulations and local policies and regulations in time, and
license the vehicle as soon as possible, otherwise there may be a risk of failure to license.
The descriptions marked with the asterisk (*) in this manual are specific to only some
model configurations, and applicable only when the vehicle has these configurations. If
there is any difference with the vehicle you purchased, the configuration of the actual
vehicle shall prevail.
Pay attention to the "WARNING", "CAUTION" and "REMINDER" symbols in this manual, and
follow the instructions carefully to avoid injury or damage. The hint types are defined as
follows:
WARNING
WARNING
Items that must be observed to ensure personal safety.
CAUTION
CAUTION
Items that must be observed to avoid damage to the vehicle.
REMINDER
REMINDER
Items that must be observed to facilitate maintenance.
Contents
Halaman 2
is a safety mark to indicate an operation that should not be performed or an event
that should not happen.
This manual is expected to help you use the product correctly, and does not provide any
description of the configuration and software version of this product. For details about the
product configuration and software version, please refer to the contract (if any) related to
this product, or consult the dealer who sold the product to you.
Copyright © BYD Auto Co., Ltd. All rights reserved.
Contents
Halaman 3
No part of this document may be reproduced, copied, stored, translated, or
transmitted electronically or in any other form without prior written consent and
authorization of BYD Auto Industry Co., Ltd.
All rights reserved
Contents
Halaman 4
4
Contents
Halaman 5
Illustration Index
Exterior..............................................9
Dashboard....................................... 10
Interior............................................ 11
Doors...............................................12
Safety
Seat Belts.........................................14
Seat Belt Overview.................................. 14
Using Seat Belts.......................................14
Airbags............................................ 16
Airbag Overview...................................... 16
Driver and Front Passenger Airbags....... 17
Front Seat Side Airbags...........................17
Side Curtain Airbags................................18
Airbag Triggering Conditions and
Precautions..............................................18
Child Restraint Systems.................... 22
Child Restraint Systems.......................... 22
Child Safety:.............................................22
Anti-theft Alarm System....................26
Anti-theft Alarm System..........................26
Event Data Recorder System............. 27
Event Data Recorder System...................27
Instrument Cluster
Instrument Cluster........................... 32
Instrument Cluster View..........................32
Instrument Cluster Indicators.................33
Controller Operation
Doors and Keys.................................40
Keys..........................................................40
Locking/Unlocking Doors....................... 43
Smart Access and Start System.............. 47
Child Protection Lock..............................48
Seat................................................. 49
Seat Precautions..................................... 49
Adjusting Front Seats.............................. 50
Folding Rear Seats...................................52
Rear Seat Head Supports........................52
Steering Wheel................................. 53
Adjusting the Steering Wheel..................53
Steering Wheel Switches.........................54
Wipers............................................. 57
Wiper Switch............................................57
Replacing Wiper Blades.......................... 58
Side Mirror....................................... 59
Interior Rearview Mirror..........................59
Side Mirrors..............................................59
Switches.......................................... 61
Light Switches......................................... 61
Driver's Door Switches............................ 63
Window Control Switch on
Passenger Side........................................ 65
Odometer Switch.................................... 65
Driver Assistance Switches..................... 65
Hazard Warning Light Switch..................66
Interior Light Switch................................66
Using and Driving
Charging/Discharging.......................68
Charging Instructions..............................68
Charging...................................................72
Charge Port Anti-theft Lock.................... 78
Discharging Device*................................ 79
Contents
Halaman 6
Battery.............................................82
Power Battery and Charging System......82
Low Voltage Battery................................ 84
Charge Preheating...................................86
Usage Precautions............................86
Break-in Period........................................86
Suggestions for Vehicle Use....................87
Trailer Towing..........................................88
Driving Safety Precautions......................88
Carrying Luggage.................................... 88
Fire Prevention........................................ 89
Saving Energy and Extending
Vehicle Service Life..................................90
Snow Chains............................................91
Starting and Driving......................... 92
Starting the Vehicle................................. 92
Remote Start............................................94
Gear Shift Controls..................................94
Electronic Parking Brake (EPB)...............95
Automatic Vehicle Hold (AVH).................97
Driving Precautions.................................98
Driver Assistance............................ 101
Adaptive Cruise Control (ACC)
System*..................................................101
Intelligent Cruise Control (ICC)
System................................................... 105
Forward Collision Warning (FCW)* &
Automatic Emergency Braking (AEB)*..107
Traffic Sign Recognition (TSR)*.............109
Intelligent High Beam Assist System *. 110
Lane Departure Assist (LDA)................. 112
Acoustic Vehicle Alerting System
(AVAS).....................................................113
Panoramic View System*...................... 114
Driver Monitoring Systems (DMS).........116
Parking Assist System........................... 117
Tire Pressure Monitoring.......................120
Driving Safety Systems..........................123
In-Vehicle Devices
Infotainment System...................... 128
Infotainment Button............................. 128
Navigation Bar.......................................129
Gestures and Responses.......................129
OTA Updates.......................................... 129
BYD Assistant.........................................130
Bluetooth Call........................................131
External Applications............................ 131
BYD App......................................... 131
About BYD App.......................................131
Account Registration............................. 132
Vehicle Condition and Control..............132
Individual Center and Vehicle
Management..........................................132
BYD Mobile Phone Bluetooth Digital
Key*........................................................133
A/C System..................................... 133
A/C ON/OFF............................................133
A/C Operation Interface........................ 134
Function Definition............................... 134
Vents...................................................... 137
Storage.......................................... 137
Door Bins............................................... 137
Glove Box...............................................137
Center Console Storage
Compartment........................................137
Cup Holder.............................................138
Seatback Pockets.................................. 138
Other Devices................................. 138
Sun visor................................................ 138
Vanity Mirror.......................................... 139
Contents
Halaman 7
Grab Handles.........................................139
USB Ports...............................................139
SD Card Slot...........................................139
12V Auxiliary Power...............................139
Wireless Phone Charger*...................... 140
Hook.......................................................141
Maintenance
Maintenance Information................144
Maintenance Cycle and Items...............144
Regular Maintenance...................... 146
Regular Maintenance............................ 146
Vehicle Corrosion Prevention............... 147
Paint Maintenance Tips.........................148
Exterior Cleaning................................... 148
Interior Cleaning....................................149
Self-Maintenance............................151
Self-Maintenance.................................. 151
Vehicle Storage......................................153
Hood...................................................... 154
Cooling System......................................154
Braking System......................................154
Washer................................................... 155
A/C System.............................................155
Wiper Blades..........................................155
Tire......................................................... 156
Fuses...................................................... 159
When Faults Occur
When Faults Occur.......................... 162
Reflective vest........................................162
If Smart Key Battery Is Exhausted.........162
Emergency Shutdown System..............162
Vehicle Fire Rescue................................163
Battery Leakage Rescue........................163
If the Vehicle Needs Towing..................164
If a Tire Goes Flat...................................165
Specifications
Data............................................... 170
Vehicle Data...........................................170
Information....................................174
Vehicle Identification............................ 174
Warning Labels......................................175
Transponder Mounting Position...........176
Declarations of Conformity............. 177
Declarations of Conformity...................177
Abbreviations
Abbreviations.................................183
Contents
Halaman 8
8
Contents
Halaman 9
# Illustration Index
## Exterior
| | |
| :--- | :--- |
| 1 Trunk Lid ***P45*** | 6 Combination Lights ***P152*** |
| 2 Charging Port Cover ***P78*** | 7 Hood ***P154*** |
| 3 Doors ***P44*** | Cooling System ***P154*** |
| 4 Electric Side Mirrors ***P59*** | Washer ***P155*** |
| 5 Tires ***P156*** | Brake Fluid ***P154*** |
<div style="text-align: right; margin-top: 50px;">9</div>
Contents
Halaman 10
# Dashboard
[Dashboard Diagram]
| | |
| :--- | :--- |
| **1** Vents ***P137*** | **7** Driver Assistance Switch Group ***P65*** |
| **2** Multimedia Touchscreen ***P128*** |   Hazard Warning Light Switch ***P66*** |
| **3** Wiper Switches ***P57*** |   Automatic Vehicle Hold (AVH) ***P97*** |
| **4** Instrument Cluster ***P32*** |   A/C ON/OFF ***P133*** |
| **5** Light Switches ***P61*** |   Multimedia Buttons ***P128*** |
| **6** Steering Wheel ***P53*** | **8** Glovebox ***P137*** |
|   Steering Wheel Switch Group ***P54*** | |
10
Contents
Halaman 11
# Interior
| | | | |
| :--- | :--- | :--- | :--- |
| 1 | 12V Standby Power ***P139*** | 4 | Cup Holder ***P138*** |
| 2 | Start-up Function ***P92*** | 5 | USB Ports ***P139*** |
| 3 | Smartphone Wireless Charging* ***P140*** | | |
<br>
<p align="right">11</p>
Contents
Halaman 12
Doors
1
Opening with Interior Door Handle
P43
2
Door Bins P137
3
Driver's Door SwitchesP63
Window Lock Button P65
Central Door Lock P64
4
Hood Opening Handle P154
Safety
Halaman 13
# 01 SAFETY
Seat Belts......................................................... 14
Airbags............................................................ 16
Child Restraint Systems............................................ 22
Anti-theft Alarm System............................................ 26
Event Data Recorder System......................................... 27
Using Seat Belts
Halaman 14
Seat Belts
Seat Belt Overview
Studies have shown that proper use
of seat belts can significantly reduce
casualties in emergency braking, sudden
steering, or collisions. Please read
the following information carefully and
observe it strictly.
●BYD has highly emphasized that driver
and occupants should always fasten
their seat belts while in the vehicle.
●Before and during the driving of the
vehicle,, ensure all passengers in the
vehicle fasten the seat belts. Failure to
do so increases the risk of injury in
case of an accident.
●The seat belts on the vehicle are
mainly designed according to the body
size of adults, and are not suitable for
children. Please select an appropriate
child safety seat according to the age
and body size of children (see P22).
●If the seat belt is damaged or
dysfunctional, immediately contact a
BYD authorized service provider for
confirmation and handling. Do not
use the corresponding seat before the
contact.
●It is recommended that children be
seated in rear seats and always
use seat belts and suitable child
restraints. In emergency braking or
collision, unprotected children may be
seriously injured and their lives may
be endangered. Likewise, do not allow
children to sitting on someone's lap,
for there is insufficient protection.
Pretensioner and Force Limiter
Function*
When the vehicle suffers a severe
frontal collision and the activating
conditions of the pretensioner are met,
the pretensioner quickly retracts some
of the seat belt and locks it to further
protect the driver and passengers. The
pretensioner limits the seat-belt restraint
force to the occupant's body to a certain
extent so as to avoid injury to the
occupant due to an excessive restraint
force.
WARNING
●If the pretensioner function is
activated, the seat belt must be
replaced.
Using Seat Belts
1. Adjust the seat position and seatback
angle See P50.
2. Adjust the position of the seat belt
properly.
●Keep a proper sitting posture and pull
the seat belt out to wear it diagonally
from the shoulder to the chest. The
belt should not go under the arm or
across the back of the neck. Keep the
belt lap part as close as possible to the
hip bone.
WARNING
●The shoulder belt should cross
the center of the shoulder. The
seat belt should be far from the
Using Seat Belts
Halaman 15
WARNING
neck and not liable to slip from
the shoulder; otherwise, it cannot
function well in the event of
emergency braking or accident
and may even cause severe injury.
●The lap belt should be positioned
as low as possible across the hip
to prevent any injury caused by
pressing against the abdomen in
case of an accident.
●The seat belt should be fitted tight
to the body for better protection.
3. Insert the latch into the buckle until it
clicks and then pull it back to make sure it
is firmly locked. Do not fasten the belt if it
twisted.
4. Unbuckling Seat Belts
●Press the red unlock button on the
buckle. The latch plate pops out, and
the seat belt automatically retracts. If
the seat belt cannot retract smoothly
and automatically, pull it out to check
whether it is twisted.
01
SAFETY
WARNING
●One seat belt is for one occupant
only. Do not allow multiple
occupants (including children) to
share one seat belt.
●Avoid traveling with the seatback
leaning too far back. The seat belt
protection performs best when
the seatback is upright.
●Make sure that no seat belt or
its spring bolt/buckle becomes
pressed by the door or seatback;
otherwise, the seat belt may be
damaged.
●Check the seat belts regularly
for cuts, wear, looseness, and
other abnormalities. If any
problem is found, contact a
BYD authorized dealer or service
provider for confirmation and
handling. Until then, do not use
the corresponding seat.
●Do not remove, disassemble or
modify the seat belts.
●After an accident, have the seat
belts checked at a BYD authorized
dealer or service provider.
●In the event of a severe accident,
regardless of whether the seat
belt has an apparent damage,
replace it together with the seat
assembly, and thoroughly check
the airbag system.
Airbag Overview
Halaman 16
WARNING
●Pregnant women should also
fasten their seat belt properly.
Particularly, be sure to position
the lap belt as low across the
hip as possible to prevent serious
injury.
●Do not insert foreign objects such
as coins and clips into the buckle
as they prevent proper connection
between the latch and buckle.
REMINDER
●For normal functioning of the rear
seat belt, ensure that its latch is
inserted into the corresponding
buckle during use. The driver
should remind occupants to wear
seat belts properly.
●The driver should ensure that all
occupants are wearing seat belts
before driving the vehicle.
Seat Belt Reminders
If any occupant has not buckled up
after the vehicle is started, visual and
audible alarms go off and continue until
the corresponding seat belt is properly
fastened.
●Seat belt reminder indicator
When any seat's belt is not fastened,
the unfastened seat belt indicator
flashes.
●Display of unfastened belt's seat
When a seat belt is not fastened, the
indicator will light up and remain on
in case of abnormal conditions in the
vehicle.
●Unfastened seat belt reminder
If any vehicle occupant has not
buckled up after the ignition is
switched on, the seat belt reminder
indicator lights up. If the seat belt
remains unfastened while driving, in
addition to the reminder indicator, an
audible alarm is given to alert the
driver and the occupants.
●When all the occupants have buckled
up, the seat belt reminder indicator
turns off.
WARNING
●If the above functions are
abnormal or fail, contact a
BYD authorized dealer or service
provider. Do not use the
corresponding seat before the
functions return to normal.
●When driving, make sure all
occupants have their seat belts
properly fastened or in emergency
braking or collision, passengers
are more likely to be seriously
injured and their lives may be
endangered.
Airbags
Airbag Overview
●The airbag system, a part of the
supplemental restraint system (SRS),
is designed to supplement the seats
and seat belts. When SRS deployment
conditions are met in a serious
collision accident, the airbag system
deploys quickly to protect heads and
chests of both drivers and passengers
together with seat belts, thus reducing
the severity of injuries.
●The airbag system cannot replace the
seat belt. It is an integral part of the
whole passive safety protection system
Front Seat Side Airbags
Halaman 17
of the vehicle. Only when the airbag
works together with the fastened seat
belt can the airbag system provide
maximum protection.
●According to the collision type, the
airbag is generally divided into frontal
airbag and side airbag. The frontal
airbag includes the driver airbag and
front passenger airbag, and the side
airbag includes the front side airbag
and curtain airbag.
WARNING
●Only when the airbag works
together with the fastened seat
belt can the airbag system provide
maximum protection.
●Do not disassemble or assemble
the airbag components without
permission.
●After a collision, although the
airbag module is not deployed
and the pre-tensioner seat belt is
not locked, the airbag computer
may be encrypted to protect the
passengers from high voltage.
In this case, contact a BYD
authorized dealer or service
provider for inspection.
Driver and Front
Passenger Airbags
The driver airbag and front passenger
airbag can deploy to reduce the extent
of any injuries when the airbag system
ECU detects a moderate to severe head-
on collision during vehicle operation and
other airbag system triggering conditions
are also met.
01
SAFETY
WARNING
●Accessories, such as telephone
holders, cups, ashtrays, must not
be installed on airbag covers
or within their action range.
Otherwise, airbag deployment will
increase the risk of injury in an
accident.
Front Seat Side Airbags
If the model is equipped with one side
airbag for the front left seat and one
for the front right seat, (as shown in
the figure) the airbag is mounted on the
outside of each front seat backrest where
the word "AIRBAG" is marked.
●When the airbag triggering conditions
are met due to a moderate to
severe side impact during driving, the
airbag deploys to assist in protecting
the chest of the passenger on the
impacted side to reduce the degree of
injury.
Airbag Triggering Conditions
Halaman 18
●Generally, only the airbag on the
impacted side deploys in the event of
a side impact.
●If the collision occurs on the passenger
side, the airbag on the passenger side
deploys even if there is no passenger in
the seat.
●In order to obtain the best protection
from the seat side airbag, the
passenger must fasten the seat belt
and sit upright against the seat back.
Seats Equipped with Side Airbags
1. Do not wet the seat backrest with
water. If the backrest is wet by rain or
water spray, the function of the side
airbag system may be hindered.
2. Do not cover or replace the
seat backrest cover by yourself.
Inappropriate seat backrest cover
replacement or covering hinders the
deployment of seat side airbags in the
event of a collision.
Side Curtain Airbags
●If the model is equipped with left
and right side airbags(as shown in
the figure airbags are installed at
the connection between the side
wall and the roof, and the words
"Curtain Airbag" are marked on the
A-pillar shield, B-pillar shield, and C-
pillar shield), When the ECU detects
a moderate or severe impact and the
trigger conditions are met, the side
curtain seat belt bag is deployed to
protect the occupant's head.
●In the event of a side impact, the
airbags on both sides will deploy.
●In order to obtain the best protection
from the side airbag, the passenger
must fasten the seat belt and sit
upright against the seat back.
Airbag Triggering
Conditions and
Precautions
Airbag Triggering Conditions
●The airbag triggering conditions are:
In the event of a vehicle collision,
whether an airbag will be triggered
is decided by factors such as the
amount of collision energy, accident
type, collision angle, obstacles, and
vehicle speed. The airbag system may
be triggered in special collisions.
●The airbag system does not always
work in any accident, and generally it
will not be triggered in the event of
a minor frontal collision, rear collision
or rollover. In this case, the driver
and passengers are protected by their
properly fastened seat belts.
●Determinants of airbag system
triggering: During a collision,
a comprehensive and intelligent
comparison is made between the
deceleration curve obtained by the
electronic control unit (ECU) and
the set value. If the signal such as
Cases When Airbags May Not Be Deployed
Halaman 19
the deceleration curve generated and
measured during the collision is below
the preset reference value in the
ECU, airbags do not deploy, even if
the vehicle may have been severely
deformed in an accident.
●The ECU of the BYD airbag system
has been set up with considerations of
common misuse and road conditions.
However, due to the increasing
changes in causes and forms of vehicle
collisions, for your safety, please
strictly follow this user manual, use the
vehicle correctly, and avoid its misuse.
Otherwise, there is no guarantee that
the airbags will achieve their expected
effect.
Cases When Airbags May Be Deployed
① The vehicle's nose hits the ground
when crossing a deep groove.
② The vehicle hits a bump or curbstone.
③ The vehicle's nose hits the ground
when going down a steep slope.
④ One side of the vehicle is hit by another
vehicle.
Cases When Airbags May Not Be
Deployed
① The vehicle hits a concrete column,
tree, or other slim objects.
② The tail of the vehicle is hit by another
vehicle.
③ The vehicle goes under a truck or
another large vehicle.
④ The vehicle rolls over.
01
SAFETY
⑤The vehicle hits a wall or a vehicle at a
side other than the front side.
⑥Parts other than the passenger
compartment receive side impact.
⑦The lateral side of the vehicle is hit
diagonally.
⑧The lateral side of the vehicle hits a
columnar object.
WARNING
●Airbags are designed for
specific models. Any changes to
suspension, tire size, bumpers,
chassis and factory-equipped
devices may adversely affect the
airbag system. Do not use any
component of the airbag system
on other models; otherwise, the
airbag system may fail and cause
personal injury.
Cases When Airbags May Not Be Deployed
Halaman 20
WARNING
●Drivers should maintain a distance
of at least 25 cm between their
chest and the steering wheel,
in order for the system to
provide the most effective driver
protection.
●Fasten your seat belt and sit
properly while the vehicle is
in motion. If the seat belt is
not fastened, and the occupant
is leaning forward or sitting
improperly, airbag deployment
can increase the risk of injury.
●Do not paste stickers, cover or
decorate the hub cover of the
steering wheel, the right side
surface of the dashboard or the
surface of A, B, and C pillar trims.
Clean these surfaces with a dry or
damp cloth, without applying too
much pressure.
●A child is not to be seated in
the front passenger seat, nor
are they to ride sitting on a
front passenger's lap, to prevent
serious injury or even casualty
caused by airbag deployment.
●Side curtain airbags and side
airbags deploy quickly with high
impact forces. Occupants must
not lean against the doors of
vehicles equipped with these
airbags while these vehicles are
in motion. Failure to do so could
result in serious injury or even
death.
●Do not place any other
accessories or items within the
action range of side curtain
airbags, including the windshield,
side door glass, A-pillar trim,
ceiling, B-pillar trim, C-pillar trim
and auxiliary handles. When
the side curtain airbag deploys,
WARNING
the accessories or items will
be thrown by the impact force
from the side air curtain airbag,
or the side curtain airbag may
not deploy normally, resulting in
serious injury or even death.
●When transferring vehicle
ownership, make sure to pass on
all of the vehicle's documents
and keep the new ownership
informed of airbag conditions and
replacement dates.
●Do not modify or replace seats
or trims of the seats with
side airbags. These changes
may prevent normal deployment
of side airbags, and thereby
cause airbag system failure or
unintended deployment of side
airbags, resulting in serious injury
or death.
●Do not disassemble or repair the
A-pillar trim, ceiling, B-pillar trim
or C-pillar trim, which contain side
curtain airbags. These changes
can cause failure of the airbag
system or accidental deployment
of curtain airbags, which may
cause serious injury or even
death.
●Do not change any component
of the airbag system, including
any corresponding label. It is
recommended that any operation
done to the airbags be performed
by a BYD authorized dealer or
service provider.
●Airbags can only provide one-time
accident protection. Once the
airbag is triggered or damaged,
the airbag system must be
replaced.
Cases When Airbags May Not Be Deployed
Halaman 21
WARNING
●Follow safety regulations and
procedures related to the
scrapping of parts of the vehicle
or its airbag system.
●The airbag system has strong anti-
interference and anti-disturbance
resistance to electromagnetic
fields around it. However, to
avoid accidents, do not use the
vehicle in an electromagnetic
environment that violates
national regulations.
●The airbag system of this vehicle
is designed with full consideration
of common misuses and road
conditions. However, in order to
avoid accidents, do not have the
bottom of the vehicle impacted
or drive roughly in harsh road
conditions.
●This vehicle's airbag system has
been fully verified to match
the vehicle's original wiring
harness system. Any wiring
harness modification or alteration
may cause the airbags to
deploy mistakenly under normal
conditions or fail to deploy in the
event of a collision.
It is recommended that you contact
a BYD authorized dealer or service
provider immediately if any of the
following situations occurs.
●The airbag has deployed.
●Instrument cluster airbag warning light
lights up abnormally.
●Airbags do not deploy when the front
part (shaded part in the figure) of the
vehicle suffers a collision.
01
SAFETY
●The airbag cover has been scratched,
cracked or otherwise damaged.
●An impact to a vehicle door (shaded
part in the figure) in an accident is not
adequate to cause the curtain airbag to
deploy.
●The trimming (liner) of A-pillar,
roof rail, and C-pillar with curtain
airbag inside is scratched, cracked, or
damaged.
●Airbags need to be removed,
disassembled, installed or repaired.
Installing Child Restraint Systems
Halaman 22
●The surface of the seat with a
side airbag is scratched, cracked, or
damaged similarly.
Child Restraint
Systems
Child Restraint Systems
Child restraint devices provide good
protection for child occupants in an
accident. For your child's safety, read
the child restraint instructions and the
instructions in this manual carefully
before installing the child restraint.
WARNING
●Never hold a child on your lap
while traveling in a car.
●Please choose a suitable
protection device for the child.
●Follow the instructions provided
with the child restraints and the
instructions in this manual to
ensure that the child restraints are
properly installed in the vehicle.
●When removing the child restraint
from the seat, make sure it is
stored securely.
●Failure to follow the advice given,
or the instructions from the child
restraint system manufacturer,
can endanger life or lead to
serious personal injury.
A suitable child restraint system should
be used and it is recommended that
the child be seated in the rear outboard
seating position. Children should be
seated comfortably and safely, and
children of all ages and sizes must always
be seated correctly in the vehicle.
Important Considerations for Selecting
Child Protective Equipment
●The type and size of the child
protection device is suitable for the
child.
●The child restraint is the correct type
for the seat position.
●Child protective devices must be ECE
R44 or ECE R129 approved.
Child Safety:
It is recommended that the child be
seated in the rear outboard seating
position and installed in accordance with
the child seat installation instructions
provided by the child seat manufacturer.
●The child seat should be secured with
a top tether, if appropriate.
●The back of the child seat must lie as
flat as possible against the vehicle seat
back.
●Adjust the seat back angle as needed
and place the child seat flat on the
back.
●If the child seat comes into contact
with the headrest after installation
and cannot be placed flat on the
backrest, raise the headrest completely
or remove it and store it safely in the
vehicle.
For additional installation instructions,
read the instructions provided with the
child restraints.
Installing Child Restraint Systems
Installation in the front seat
●Do not use rear-facing child restraints
on seats protected by active airbags in
the front, as this may result in death or
serious injury to the child.
Installing Child Restraint Systems
Halaman 23
●When a forward-facing child restraint
system is used on the front passenger
seat, ensure that the seat is positioned
fully rearward away from the airbag.
1. Adjust the front passenger seat
rearward so that a child sitting in the
front passenger seat has no contact
with the interior of the vehicle.
2. Adjust the front passenger seat back
to make firm contact with the child
restraint system.
WARNING
●Never use a rear-facing child
seat in the front passenger seat
with the front passenger airbag
activated.
●Failure to follow the advice given,
or the instructions from the child
restraint system manufacturer,
can endanger life or lead to
serious personal injury.
●A forward facing passenger (child
or adult) must not be seated in
the front passenger seat with the
passenger airbag deactivated.
●When a forward-facing child
restraint system is used on the
front passenger seat, ensure
that the seat is positioned fully
rearward away from the active
airbag.
Installation in the rear seat
●The anchorage locations are identified
by a marking (see the illustration)
located on the seat cushion, directly in
front of the associated anchorages.
01
SAFETY
●The rear seats are equipped with
ISOFIX/i-Size anchorages.
CAUTION
●The anchorages are located in the
gap between the seat cushion and
the seatback.
●The rear seats are equipped with top
tether strap anchorages on the back.
●When the child restraint system is
installed on any rear seat, The front
seats can be adjusted forward, and the
front seatback angle can be rotated, to
Installing Child Restraint Systems
Halaman 24
ensure there is no contact of the front
seats to the child.
●To ensure that the vehicle seat back
is able to safely support the child
restraint, the head restraint can be
adjusted or removed.
●When the child restraint is installed
with a top tether on a rearoutboard
seat:
●Route it at the outside of each head
restraint rod.
WARNING
●If the child restraint is a booster
pad only, without a seat back,
Seating position (or other positions)
1
3
4b)
5b)
6b)
Seating
position
suitable for
Universal
belted
X
X
YES
N/A
YES
Seating
position
suitable for i-
Size
X
X
YES
N/A
YES
Largest
suitable
Lateral child
X
X
NO
N/A
NO
WARNING
the head restraint must not be
removed and must be placed at
the proper height.
Installing CRS:
●① Rear right seat
●② Rear left seat
The following table shows the installation
options for ISOFIX or i-Size child restraint
system at the ISOFIX or i-Size anchorage
points of the individual vehicle seating
locations.
Installing Child Restraint Systems
Halaman 25
Seating position (or other positions)
1
3
4b)
5b)
6b)
restraint
system
Largest
suitable
Rearward
child
restraint
system
X
X
R1/R2X/R2/R
3
N/A
R1/R2X/R2/R
3
Largest
suitable
Forward
child
restraint
system
X
X
F2X/F2/F3
N/A
F2X/F2/F3
Suitable for
booster seat
X
X
B2/B3
N/A
B2/B3
Suitable for
support leg
X
X
YES
N/A
YES
a)： If necessary, to ensure the child restraint system has direct contact to the rear
seatback, the head restraint should be adjusted or removed.
X： Seat position not suitable for securing a child restraint system.
Suggested Child Restraint Systems (Group
and child stature according to ECE R129).
Group
Child Stature
(cm)
Manufacturer
Child Restraint
Systems
Remarks
0
＜ 83
Maxi-Cosi
Pebble 360
Belted
0+/1
76-105
Britax Römer
Trifix 2 i-Size
ISOFIX and
2
＜ 135
Britax Römer
Kidfix i-Size a)
ISOFIX and
3
＜ 150
Osann
Booster Boost
Belted
a)Ensure:
01
SAFETY
belted
belted
Anti-theft Alarm System
Halaman 26
Group
Child Stature
(cm)
Manufacturer
Child Restraint
Systems
Remarks
●The lap belt is in the safety guard.
●The diagonal belt is not in the safety guard.
●SICT components are installed correctly.
① Group 0
② Group 0+/1
③ Group 2
④ Group 3
Anti-theft Alarm
System
Anti-theft Alarm System
If the vehicle is in anti-theft state and any
door is opened, the system will sound an
alarm and the turn signals will flash to
prevent the vehicle from being stolen.
Enabling anti-theft system
1. Power off the vehicle.
2. Have all occupants exit the vehicle.
3. Lock all doors. After 8s since all doors
have locked, the anti-theft system is
automatically activated.
4. Before leaving, confirm the anti-theft
function is activated. Make sure no
passengers are in the vehicle while
setting the alarm. Unlocking any door
from the inside can activate the
system.
Triggering the Alarm
●The anti-theft alarm is triggered when:
●a door or trunk lid is unlocked
without the smart key;
Releasing the alarm
●The anti-theft alarm is released when:
●Doors are unlocked with the smart
key.
●Doors are unlocked with the NFC key;
Vehicle Data Processing
Halaman 27
●a door is unlocked with the
microswitch;
●The vehicle is started remotely with
the smart key.
●the START/STOP button is pressed
with the smart key inside the vehicle.
WARNING
●Do not modify the anti-theft
system by means of alteration or
addition. Otherwise, the system
may fail.
Event Data
Recorder System
Event Data Recorder
System
●This section provides you with
some important information on how
personal data is collected and
processed when you use a BYD vehicle.
●For a more detailed overview on data
processing, data protection and data
subject rights, please read the current
version of the privacy policy for the
vehicle available at the multimedia
system (Vehicle Settings → System
Settings→ More → Privacy Policy).
●This vehicle is equipped with an
event data recording (EDR) system.
EDR mainly records data in the
event of a crash or near-crash
(for example, airbag deployment or
hitting on a roadside obstacle) to
help comprehend the vehicle system
operation, such as:
●Vehicle Velocity:
●Tire pressure condition
●Adaptive cruise control (ACC) system
status
●Whether the seat belt is fastened
●The vehicle records EDR data only
when there is a crash or when a
near-crash event reaches a certain
extent. The EDR does not record any
data during the normal driving of the
vehicle.
01
SAFETY
●The data recorded by the EDR system
provides an understanding of the
state of the vehicle's safety-related
systems when an accident occurs, so
that relevant parties can analyze the
accident.
●The EDR data needs to be accessed
and read by special equipment.
BYD discloses your personal data to
third parties only if this is legally
permissible or you have consented
to it. In addition to the vehicle
manufacturer, third-party agencies
with professional equipment (such as
government agencies) can also read
the EDR data if they have access to
the vehicle EDR and equipment (for
example, The data from the airbag
control unit can be read out to clarify
the accident).
Vehicle Data Processing
●Data is collected when the vehicle
is used, such as data collected or
transmitted by vehicle sensors or
control units, which is necessary for
the safe functioning of your vehicle.
●In some cases, the data is used
to support driving (driver assistance
systems) or to enable a specific
comfort or multimedia function.
●Personal data that is collected and
processed mainly include in-vehicle
data, remote-services-related data,
and other data, as further specified
below.
Vehicle Data Processing
Halaman 28
In-vehicle Data
Operation data
●When the vehicle is used, various
vehicle status data (e.g., speed,
battery level, and braking system) or
environment (e.g., distance sensors,
rain sensor, and temperature) data is
collected and processed.
●This data is not usually stored,
but there are control units, sensors
or other components installed in
the vehicle that record such data,
for example, to record maintenance
requirements, error messages, or other
information.
●The in-vehicle data will only be
stored in the equipment in the
vehicle but can be read out via
the legally required OBD ("On Board
Diagnostics") interface, for example,
by BYD authorized dealer or service
provider or other third parties.
●In case this access takes place
during vehicle maintenance, the
information can also be transmitted to
BYD engineers for quality assurance,
product defect reports, or customer
claim verification.
Remote-Services-Related Data
Remote monitoring services
●The vehicle has remote monitoring
services.
●These include remote monitoring
services such as remote diagnosis
and over-the-air (OTA) updates
and upgrades for security and
safety purposes (subject to owner's
approval).
●These monitoring services serve the
following purposes: service provision
(remote support/diagnostics), product
development, and security/public
safety.
●Depending on the country and setup,
various vehicle information can be
transmitted to BYD's data center in
corresponding market for the above
purposes, including vehicle location
information, vehicle status, such as
energy consumption, vehicle speed,
gear position, power mode, ESC status,
steering system status, battery status,
powertrain status, and overall vehicle
performance status.
Other
Multimedia system
●Depending on vehicle configuration,
data can be added to the multimedia
system by the users themselves, such
as media data for playing video on the
multimedia system, address data for
use in the navigation system, or data
for use in online services.
●Depending on vehicle configuration,
individual settings in and on the
vehicle can also be entered.
●Data stored in the vehicle can be
deleted at any time.
●BYD has no control over data
transferred to third parties (from the
use of third party content, in particular
as part of online services).
Integration of mobile devices
●Depending on vehicle configurations,
mobile devices can be connected
and controlled through the vehicle's
multimedia system.
●It may be necessary that the device's
screen or audio is displayed/played
through the multimedia system or
transmitted to it.
●Additional data like positioning or
vehicle information can be transmitted
through applications for use in certain
navigation systems, communication,
or other third-party services.
Permanent Vehicle Transfer to Third Parties and Offline Mode
Halaman 29
The
specific
type of data processing
●
depends on the respective function
and is controlled by the user or third
parties such as the provider of the
devices or corresponding services.
Internet access and connected services
Depending on vehicle
configurations,
●
the Internet can be accessed for certain
functions or BYD services
through the vehicle's multimedia
system network devices.
BYD is not liable for any such services
●
provided by any other party.
In such cases, please obtain
●
information about the use of data from
the provider of the respective online
service.
Camera image recording/surrounding
area monitoring
Your vehicle is equipped with a
●
number of cameras/sensors.
The reason for this is that some vehicle
●
functionalities require the vehicle's
path to be detected and assessed
which is done by cameras that detect
objects in the vehicle's surroundings
(e.g., obstacles).
The images are transmitted to the
●
respective control module for further
analytics required to operate the
systems.
Some images are just processed on
●
a volatile basis (RAM), others may
be stored, depending on vehicle
equipment.
The vehicle may be equipped with
●
an outward-facing camera (OFC) that
can be used to take footage of the
surrounding (dashcam).
The vehicle may also be equipped with
●
an inward-facing camera (IFC), which
can be used to take footage inside the
vehicle.
●Both OFC and IFC footage is stored.
●You are responsible to check the laws
of your residence if you turn the
camera on.
●Please be aware of corresponding laws
before turning on your OFC or IFC (for
instance, in some countries consent
is required for the use of IFC, and
in others OFC is strictly restricted to
dashcam purposes).
01
SAFETY
●For more camera details, see section
"Around View Monitor"P114 in this
manual.
Permanent Vehicle Transfer to Third
Parties and Offline Mode
●In case of a permanent vehicle transfer,
i.e., second hand vehicle, or vehicle
transfer by a third party for permanent
use, it must be noted that any
personalization/user settings made via
the multimedia system (e.g. address
list, navigation system, etc.) may be
accessed by the new owner.
REMINDER
●When the vehicle is scrapped or
transferred, it is recommended
that you restore the factory
settings to protect your privacy.
●You can also restrict your vehicle's
communication with the BYD data
server and the processing of vehicle-
related and personal data by setting
the vehicle to offline mode.
●On the multimedia touchscreen, tap
to turn Wi-Fi off.
●This can also be done by: Tapping
System → System Settings → Interlink
→ WLAN → Off.
Your Data Protection Rights
Halaman 30
Disclosure of Personal Data to
Authorities
●BYD discloses your personal data to
third parties only if this is legally
permissible or you have consented to
it.
●However, according to applicable
laws, government agencies may be
authorized to read data from the
vehicle (e.g., data can be read from
an airbag control unit to clarify an
incident).
●According to law, BYD may also
be obliged to disclose data
to governmental authorities in
your country/region upon request,
for example, during criminal
investigations.
Your Data Protection Rights
●BYD has staunch respect for its
customer's privacy, and strictly
complies with all data protection
laws, in particular the General Data
Protection Regulation (GDPR) and
applicable local laws.
●According to these laws, owners have
specific rights when their personal
data is processed:
●Data subjects have the right
of information and access, to
rectification, erasure of personal data
("right to be forgotten") and the right
to object to the processing of personal
data or to restrict it (or to withdraw
consent given earlier, as well as the
right to data portability).
●These rights may be limited in some
cases. For example, if we can show
that we have a legal obligation to
process your data, or if providing the
information to you would disclose
personal data about another person,
or if we are legally prevented from
disclosing that information.
●In some cases, this may mean that
we can retain the data even if you
withdraw your consent.
●For more information on data
processing, data protection, and any
rights you may have, please visit the
latest version of the Privacy Policy
available at the multimedia system
(Vehicle Settings → System Settings →
More → Privacy Policy).
Instrument Cluster
Halaman 31
02
INSTRUMENT
CLUSTER
Instrument Cluster............................32
Instrument Cluster View
Halaman 32
Instrument Cluster
Instrument Cluster View
1
Electric driving mileage
2
Power meter
3
Time
4
The Area of Information Display
5
Gear status
6
Total range
7
Feedback mode
8
Speedometer
9
SOC
Indicators and Warning Lights
Halaman 33
Instrument Cluster
Indicators
Turn signal indicator
Hill descend control indicator*
High beam indicator
ECO mode indicator
OK indicator
AVH indicator (The indicator
shows white in standby status.)
Tire pressure fault warning light
Main alarm indicator
ABS fault warning light
ESC fault warning light
Seat belt reminder
EPB indicator
Position light indicator
02
Low beam indicator
INSTRUMENT CLUSTER
Rear fog light indicator
Sport mode indicator
Cruise control main indicator *
High-voltage battery low
Driving power limit warning
light
Smart key warning light
ESC OFF warning light
Headlight fault warning light
Airbag fault warning light
Parking system fault warning
light
Indicators/Warning Lights Description
Halaman 34
Steering system fault warning
light
Towing bike mode indicator
Low-voltage power system fault
warning light
High-voltage battery fault
warning light
Snow mode indicator
Outdoor exhibition vehicle
mode
Indicators and Warning Lights
Parking system fault warning
light
This warning light is on in case of
low brake fluid level and brake system
fault. In any of the following cases, park
the vehicle in a safe place immediately
and contact a BYD authorized dealer or
service provider.
●This warning light comes on when the
ignition is switched on and the brake
fluid level is low;
●When the motor is running, this
warning light stays on if the brake fluid
level is normal and the EPB system
works normally (the EPB switch is
pulled up and released normally, and
there is no prompt of "Please check
the EPB system").
●The parking system fault warning light
and ABS fault warning light go on at
the same time.
Motor coolant overheating/low-
level indicator
High-voltage battery charging
connection indicator
High-voltage battery
overheating warning light
Powertrain fault warning light
Indoor exhibition vehicle mode
DMS indicator
REMINDER
●Momentary illumination of this
warning light during operation
does not indicate a problem.
Seat belt reminder
If the safety belts of the driver and
the occupant are not fastened with the
power OK he indicator light of the safety
belt is not fastened until the driver and
the occupant fasten the safety belts,
otherwise the indicator light will continue
to light up.
Charging system warning light
If this indicator is on during driving, it
indicates that there is a problem with the
charging. In this case, turn off the A/C and
fan, and drive the vehicle to the nearest
BYD authorized dealer or service provider
for maintenance.
Indicators/Warning Lights Description
Halaman 35
Steering system fault warning
light
●When the warning light stays on, it
indicates that the steering system is
faulty. In this case, drive the vehicle
to a BYD authorized dealer or service
provider for inspection.
REMINDER
●A motor is used to reduce the
force required to turn the steering
wheel.
●When turning the steering wheel,
you may hear the motor humming
when it is working. But it
does not mean that the motor
malfunctions.
●The duration of turning the
steering wheel to the limit
position does not exceed 5s.
Otherwise, the temperature
protection is activated, resulting
in heavy steering or damage.
●When the steering wheel is turned
frequently in situ for a long time,
the steering system fault warning light
does not go on, but it feels hard to
turn. This phenomenon is a non-failure
mode.
●If the steering wheel is turned
frequently in place for a long
time, the steering system boosting
effect will decrease to prevent over
temperature of the system, resulting
in heavy steering when operating the
steering wheel. In this case, avoid
frequently turning the steering wheel
or stopping the vehicle; the system
will return to normal in 10 min.
WARNING
●If the steering system fault
warning light goes on,
immediately park the vehicle
in a safe place and contact a
BYD authorized dealer or service
provider.
02
Powertrain fault warning light
●If the powertrain is faulty, this warning
light goes on.
INSTRUMENT CLUSTER
●If any of the following conditions
occurs, it indicates a fault in a
component monitored by the warning
light system. In this case, contact a BYD
authorized dealer or service provider
for inspection as soon as possible:
●With the vehicle powered on, this
warning light stays on.
●This warning light turns on during
driving.
REMINDER
●Please do not drive the vehicle
with the warning light on. It is
recommended to drive to the
BYD authorized dealer or service
provider as soon as possible to
check and confirm the problem.
High-voltage battery overheating
warning light
●If this indicator is on, it indicates that
the high-voltage battery is too hot.
Should this occur, stop the vehicle
immediately to let it cool down.
●The high-voltage battery may be
overheated under the following
operating conditions. For example:
●Long-distance climbing in hot
weather.
Indicators/Warning Lights Description
Halaman 36
●Long stop-and-go traffic state,
frequent rapid acceleration and
braking, or continuous running
without rest.
High-voltage battery fault
warning light
●With the vehicle powered on, this
warning light stays on. If the power
battery system works properly, it
goes out after a few seconds. If the
system is faulty, it goes on again.
It is recommended to contact a BYD
authorized dealer or service provider
for inspection as soon as possible.
●If any of the following conditions
occurs, it indicates a fault in a
component monitored by the warning
light system. In this case, contact a BYD
authorized dealer or service provider
for inspection as soon as possible:
●With the vehicle powered on, this
warning light stays on.
●This indicator stays on or lights up
from time to time during driving.
Smart key warning light
●Press the START/STOP button. If the
smart key is not inside the vehicle,
the warning light lights up for several
seconds, the speaker sounds once, and
the display screen displays "No key is
detected. Please confirm whether it is
inside the vehicle”.
●If the START/STOP button is pressed
with the smart key inside the vehicle,
this warning light does not light up,
and the vehicle can be powered on.
●If the smart key is brought into the
car within a few seconds when the
warning light is on, the warning light
goes out and can be powered on and
started.
●If the warning light flashes when
the START/STOP button is pressed, it
indicates low battery of the key.
ABS fault warning light
●With the vehicle gear at OK, this
warning light stays on. If the ABS (anti-
lock braking system) works properly,
the light goes off in a few seconds. If
the system fails, it lights up again until
the fault is eliminated.
●When the ABS fault warning light is
on (the parking system fault warning
light goes out), the ABS does not work,
but the parking system still works
normally.
●When the ABS fault warning light is on
(with the parking system fault warning
light off), since the anti-lock braking
system does not operate, the wheels
will be locked in case of emergency
braking or braking on a slippery road.
●If any of the following conditions
occurs, it indicates a fault in a
component monitored by the warning
light system. In this case, contact a BYD
authorized dealer or service provider
for inspection as soon as possible:
●With the vehicle gear at “OK”, this
warning light does not light up or
stays on.
●This warning light turns on during
driving.
REMINDER
●Momentary illumination of this
warning light during operation
does not indicate a problem.
●If the braking fault warning
light and ABS fault warning
light go on at the same time,
immediately park the vehicle
in a safe place and contact a
Indicators/Warning Lights Description
Halaman 37
REMINDER
BYD authorized dealer or service
provider. Because if the brake
operation is performed at this
time, not only the ABS does
not work, but the vehicle also
becomes extremely unstable.
●If both the ABS indicator and the
braking system indicator are on and
the electronic parking brake (EPB)
is fully released, the braking force
distribution system of front and rear
wheels has also failed.
●Gently press the brake pedal to feel if it
is normal:
●If the brake pedal is normal, check
the level of brake fluid. If the liquid
level is low, it is recommended to
contact BYD Auto Authorized Service
Store in time to check whether the
brake system has leakage and the
wear degree of brake friction plates.
If the liquid level is normal, the
system is normal.
●If the brake pedal feels abnormal,
measures should be taken
immediately. It is recommended to
contact a BYD authorized dealer or
service provider for maintenance as
soon as possible.
SRS fault warning light
●OKWith the vehicle powered on, this
warning light is on. If the airbag system
works normally, it goes out after a
few seconds. If the airbag system fails,
it is always on. This warning light is
used to monitor the SRS ECU, collision
sensor, inflator, warning light, wiring
and power supply.
●If any of the following conditions
occurs, it indicates a fault in a
component monitored by the warning
light system. In this case, contact a BYD
authorized dealer or service provider
for inspection as soon as possible:
●With the vehicle gear at “OK”, the
self-test of this warning light will not
be on or will be on continuously after
it is powered on.
●This warning light lights up or flashes
while driving.
02
Tire pressure fault warning light
INSTRUMENT CLUSTER
With the vehicle gear at “OK”, this
warning light stays on. It turns off in a few
seconds if the tire pressure monitoring
system is working properly. If the system
fails, this warning light turns on again.
●When the tire pressure fault warning
light lights up or flashes and the
information display on the instrument
cluster reads "Please check the
tire pressure monitoring system", it
indicates that the tire pressure system
is faulty.
In any of the above cases, contact a BYD
authorized dealer or service provider for
inspection as soon as possible.
ESC fault warning light
●With the vehicle gear at OK, this
warning light is on. If the airbag system
works normally, it goes out after a
few seconds. If the system fails, this
warning light turns on again.
●If the ESC fault warning light flashes
while the vehicle is traveling, it
indicates that the ESC is working.
●When the ESC warning light turns on
(with the ABS fault warning light and
the parking system fault warning light
off), the ESC fails, but the ABS and
the braking system continue to operate
normally.
Indicators/Warning Lights Description
Halaman 38
●When the ESC warning light turns on
(with the ABS fault warning light and
the parking system fault warning light
off), the ESC system does not work.
This means the vehicle is extremely
unstable at sharp turns or when the
driver steers away from obstacles
ahead.
●If any of the following conditions
occurs, it indicates a fault in a
component monitored by the warning
light system. In this case, contact a BYD
authorized dealer or service provider
for inspection as soon as possible:
●With the vehicle gear at “OK”, the
self-test of this warning light will not
be on or will be on continuously after
it is powered on.
●This warning light stays on during
driving.
●If the ESC fault warning light flashes
while the vehicle is traveling, it
indicates that the ESC is working.
REMINDER
●Momentary illumination of this
warning light during operation
does not indicate a problem.
●If thewarning lights of the ESC, the
ABS and the braking system are
on, immediately stop the vehicle
in a safe place and contact a
BYD authorized dealer or service
provider. Because the vehicle
becomes extremely unstable and
the ABS does not work when the
vehicle is braked.
ESC OFF warning light
●With the vehicle gear at “OK”, this
warning light goes out after a few
seconds..
●When the "ESC OFF" button is pressed,
the light should illuminate and stay on
and the ESC system would not work.
When the "ESC OFF" switch is pressed
again, it shall go out, and the ESC
system functions normally.
REMINDER
●If the OFF warning light of ESC
is on, the driver must be vigilant
and keep driving at a low speed
when making emergency turns to
avoid sudden obstacles. Because
braking the vehicle in such a
situation may cause the ESC
system to malfunction and the
vehicle to become unstable.
Driving power limit warning light
This light turns on when the high-voltage
battery is so low that the motor power is
limited.
Main alarm indicator
If this indicator is on, it indicates that
there is a fault prompt or warning
information in the information display
area.
Headlight fault warning light
When the warning light is yellow, it
indicates that the headlight is faulty. In
this case, drive the vehicle to a BYD
authorized dealer or service provider for
inspection.
Controller Operation
Halaman 39
03
CONTROLLER
OPERATION
Doors and Keys.................................40
Seat................................................... 49
Steering Wheel..................................53
Wipers............................................... 57
Side Mirror........................................ 59
Switches............................................61
Electronic Smart Key
Halaman 40
Doors and Keys
Keys
Electronic Smart Key
Electronic smart key - Lock/Unlock all
doors by pressing the driver’s door
microswitch while carrying the electronic
smart key. Buttons on the smart key help
you lock/unlock doors, open the trunk lid,
perform a remote start, and locate your
vehicle.
Model: D0-92/D1-92
Operating power supply: button cell
battery
Battery Model: CR2032
Nominal voltage: 3V
Operating voltage: 2.9V~3.3V
Normal operating current: 8 mA (nominal
current)
Low frequency resonance frequency:
125KHZ
Key operating frequency: 434MHz
FCC ID:2A5DH-DAEA-92
① Indicator
② Lock button
③ Unlock button
④ Open Trunk Lid Button
⑤ START/STOP button
⑥ Mechanical Key
WARNING
●The button (coin) battery in the
vehicle key is hazardous and any
batteries must always be kept
away from children.
●If swallowed or placed inside any
part of the body, a lithium battery
can cause severe or fatal injuries
in 2 hours or less.
●Medical attention should be
sought immediately if it is
suspected the battery has been
swallowed or placed inside any
part of the body.
CAUTION
●The electronic smart key is
an electronic component. The
following instructions should be
observed to prevent damage to
the electronic smart key.
●Do not place the smart key
in a position exposed to high
temperature, such as on the
dashboard.
●Do not tamper with the smart
key.
NFC Key
Halaman 41
CAUTION
●Do not hit other objects with the
smart key or drop it.
●Do not inmmerse the key in
water or clean it in the ultrasonic
scrubber.
●Do not place smart keys
with devices that emit
electromagnetic waves, such as
the mobile phone.
●Do not attach any objects (such
as a metal seal) which cut off
electromagnetic wave signals
when using the card.
●You can register a spare key for
the same vehicle. In this case,
contact a BYD authorized dealer
or service provider immediately.
●If the electronic smart key cannot
operate the door within the
normal distance, or the key
indicator light is dim or off:
●Chekc for nearby radio stations
or airport radio transmitters
that interfere with the normal
operation of electronic smart
keys.
●The battery of an electronic
smart key may be exhausted.
Check the battery inside the
electronic smart key. It is
recommended to contact a BYD
authorized dealer or service
provider for inspection as soon
as possible.
Mechanical Key
Mechanical key (in the smart key) -
Unlock/Lock the driver's door. Insert the
mechanical key back into the smart key
when it is not in use.
●When using the mechanical key in the
electronic intelligent key, as shown in
the figure, press the "PUSH" button
② on the intelligent key and take out
the mechanical key in the direction of
arrow ①.
●After using the mechanical key, press
the "PUSH" button and insert the
mechanical key.
●The information shown here is for
reference only.
03
CONTROLLER OPERATION
Bluetooth Key*
Bluetooth Key*----Through the proximity
Bluetooth connection to the vehicle,to
realize the control of the vehicle,including
the control of the door unlocking,locking
and so on.
NFC Key
Locking:
With the ignition switched off and all
doors closed but not locked, place the
NFC phone close to the designated
area on the driver's side mirror to
simultaneously lock all the doors. The
turn signals flash once.
Unlocking:
●When the anti-theft system is
activated, carry the NFC phone close
to sensing area with the NFC mark
on the front right external mirror. All
NFC Digital Key
Halaman 42
doors unlock simultaneously. The turn
signals flash twice.
●When the anti-theft system is
activated, please open the door within
30 seconds after unlocking with the
phone NFC. Otherwise, all doors will
relock automatically.
●After the phone NFC is used to unlock,
the user's start permission is provided
within a certain period of time, and the
permission is unlocked at the "OFF"
position.
●Place the NFC phone close to sensing
area with the NFC mark on the front
right external mirror does not work if:
●When opening or closing the door,
the phone NFC is close to the
command area on the front right
exterior rearview mirror.
●The vehicle is not powered off.
CAUTION
●Some smartphones do not
support the NFC key function.
●Please avoid long-term or
frequent use when the
smartphone is dead.
●Phone NFC uses near-field
communication technology,
requiring the identification
distance less than 2 cm. During
identification, it is recommended
to put the phone NFC close to the
exterior rearview mirror for 1-2s.
NFC Digital Key
NFC Digital Key Introduction
NFC is a digital key system provided by
BYD. It allows you to register your phone
or wearable device as your vehicle key,
and unlock, lock and start your vehicle
safely and easily.
●The following conditions are required
to use the NFC digital key. Please
ensure that all conditions are met
before using it:
●The vehicle has enabled the BYD Cloud
service;
●The vehicle is configured and supports
NFC digital key function;
●Relevant mobile phone or wearable
device supports BYD NFC digital key
function (please consult your BYD
distributor and provider for specific
supported device models).
Enabling NFC Digital Key
You can turn on through the BYD APP.
Before activating it, please enter the
vehicle with the physical key, start the
vehicle and keep it in “P” gear.
BYD APP:
●Please go to the mobile APP store
to download BYD APP, complete
registration and login. Click "NFC/
Digital key" and follow the prompts.
Enabling the NFC digital key with
wearable device
Wearable devices support Apple Watch
(for other wearable devices, please
consult the distributor and provider), it
can be enabled in any of the following
ways:
Sync the iPhone to the Apple Watch
after successful activation:
●Activate the iPhone digital key after
wearing the unlocked watch. After
the iPhone is successfully activated,
the prompts can be synchronized to
nearby Apple Watch to add the digital
key, and complete the activation steps
accordingly.
Watch APP activation:
●It applies to the case that the iPhone
digital key is not synchronized to the
Opening with Interior Door Handle
Halaman 43
Apple Watch when it is activated.
Please open the Watch APP, select
"Wallet", find the corresponding key,
and click "Add" to complete activation
steps accordingly.
The Usage of NFC digital key
When using, please turn on the NFC
function switch of the device and use it
according to the following tips:
●Take the mobile phone/wearable
device with the NFC digital key and put
its NFC antenna area close to the NFC
identification of the outside rearview
mirror on the driver's side to unlock/
lock the vehicle (NFC antenna area,
please consult your device provider for
details).
●After entering the vehicle, please place
the mobile phone or wearable device
in the area where the mobile phone
NFC is opened, and then you can get
the vehicle start permission.
CAUTION
●Please start the vehicle as soon as
possible after obtaining the start
permission by using the mobile
phone NFC vehicle key. If the
vehicle is not started in time, it
is necessary to put the mobile
phone or wearable device again in
the area where NFC is opened to
obtain the start permission.
The Removal of NFC Digital Key
The digital key can be deleted in any of
the following methods:
Delete Digital Key in BYD App
●Open BYD APP to enter the digital key
management page, click the digital key
to be deleted, and enter the operation
password to complete the deletion;
Delete Digital Key in the Wallet
●Open the system wallet, find the digital
key card that needs to be deleted, and
complete the deletion according to the
system prompts.
Locking/Unlocking Doors
Locking/Unlocking with Mechanical
Key
Lift the outer handle of driver's door
upward, insert the key into the lock hole,
and turn it.
03
●Unlocking: turn the key
counterclockwise.
CONTROLLER OPERATION
●After the vehicle gets unlocked with
the mechanical key, it is necessary to
pull out the key and pull the outer
handle to open the door.
●Locking: turn the key clockwise.
●Close the driver's door, make sure
that it is flush with or lower than the
rear right door, press the door, and
turn the key clockwise to lock.
Opening with Interior Door Handle
●When the vehicle is unlocked, pull the
handle once to open the door from
inside the vehicle.
●When the vehicle is locked, pull the
handle twice to open the door from
inside the vehicle.
Locking/Unlocking/Finding the Vehicle with Smart Key
Halaman 44
Locking/Unlocking/Finding the Vehicle
with Smart Key
●The wireless remote control function
is used to unlock or lock all doors at
a short range and realize additional
functions.
●When carrying the registered smart
key into the activation area, press the
button on the key to lock or unlock all
doors.
Locking
●When the vehicle is powered OFF with
all doors and the hood closed, press
the lock button to lock all doors. The
turn signals flash once. Ensure that all
doors are locked securely.
●If any door is not closed, turn signals
do not flash, and the alarm sounds
once.
Unlocking
●Press the unlock button to unlock all
doors simultaneously. The turn signals
flash twice.
●If the vehicle is not powered off, the
doors cannot be unlocked/locked with
the unlock/lock button.
●When the smart key is used to unlock
all doors simultaneously, even if the
doors are not opened, if the "DOOR"
switch is turned on, the interior light
goes on for 15s and then goes out (the
user can slide down the status bar on
the top of the Multimedia touchscreen
to open the Quick interface and turn
on or off the "DOOR" switch).
●After unlocking the vehicle in anti-theft
mode with a intelligent key, open any
door within 30 seconds. Otherwise, all
doors lock automatically.
●If the lock or unlock button is pressed
and held, the locking or unlocking
function is not repeated. Release the
button and press it to realize the
function again.
Unlocking of the Boot Lid with the
Microswitch
Double press the unlocking button of the
smart key to open the trunk lid. Turn
signals flash twice.
●Anti-forget key function
●If the key is placed in the locked
vehicle and the boot lid is closed,
the vehicle will get unlocked
automatically and the turn signals
flash twice.
Vehicle locating
Interior emergency unlocking of boot lid
Halaman 45
●When the vehicle is in the anti-theft
state, if the lock button is pressed, the
vehicle makes a long sound, and the
turn signals flash 15 times. When the
vehicle cannot be found, this function
can be used to locate it.
●When the vehicle is in the vehicle
locating state, press the lock button
again to activate the vehicle locating
function again.
Unlocking/Locking Doors with
Microswitch
Locking
●With the ignition switched off and
doors closed but not locked, press the
microswitch on the front door handle.
All doors lock at the same time, The
turn signals flash once.
●If any door, the hood, or the trunk lid
is not closed, pressing the microswitch
still locks the closed doors, but the
horn only sounds once, and the turn
signals do not flash.
Unlocking
●In the anti-theft state, when carrying
the smart key into the activation
area, press the microswitch on the
front door handle to unlock all doors
simultaneously. The turn signals flash
twice.
●In the anti-theft state, please open
the doors within 30s after using
the unlocking function. Otherwise, all
doors are locked automatically again.
●Pressing the microswitch does not
unlock/lock doors in the following
cases:
●This is performed while a door is
being opened or closed.
●The vehicle is not powered off.
●The key is in the vehicle.
Rolling down
03
Press and hold the microswitch on the
front door handle to unlock the door and
open the window.
CONTROLLER OPERATION
REMINDER
●If the smart key is too close to an
exterior door handle or window,
it may not be possible to activate
the entry function.
●The function of opening/closing
the window by pressing and
holding the microswitch can be
turned on or off in infotainment
touchscreen → Settings → Locks
→ Windows. The information
shown here is for reference only.
Unlock the trunk lid with microswitch
●If the vehicle is in a locked state,
carrying a valid key and pressing the
"rear microswitch" will unlock the
trunk lid.
●If the vehicle is unlocked, pressing the
"rear microswitch" will open the trunk
lid.
Interior emergency unlocking of boot
lid
1. Remove the access cover of the trunk
lid lock from the lid guard.
Emergency Vehicle Locking with Mechanical Key
Halaman 46
2. Unlocking of boot lid by toggling the
lever.
REMINDER
●When the entire vehicle is
powered off, the trunk can be
unlocked from inside the vehicle.
Locking/Unlocking with Central Lock
Locking or unlocking the vehicle with
the central locking
See P46.
Locking or unlocking doors
automatically
●All doors are automatically locked
when the vehicle speed is above 8
km/h.
●Press the START/STOP button to switch
the ignition off. Then, all doors unlock
automatically.
Locking/unlocking All Doors
Concurrently
●When the vehicle is not in the anti-theft
mode, the backlight of the central door
lock button turns on after the vehicle is
locked, and turns offt if the vehicle is
unlocked.
●Press the lock button of the
central door lock to lock all doors
simultaneously. At this time, the door
cannot be opened from the outside. To
open the door, pull the inner handle
once to unlock the door, and then pull
it again to open the door.
REMINDER
●All doors unlock automatically
when the vehicle suffers a strong
impact, depending on the impact
intensity and accident type.
Emergency Vehicle Locking with
Mechanical Key
●When the center console lock fails, use
the mechanical key to lock the driver's
door and turn emergency lock knobs
of right side doors anti-clockwise and
the knobs of left side doors clockwise
to the locked positions, and then close
these doors. The vehicle goes to the
locked state, and doors cannot be
opened with exterior handles.
●To unlock the doors, unlock the
driver's door with the mechanical key
first, then enter the vehicle, and pull
the inner handles of other doors. To
open these, pull their outer handles
Start-up
Halaman 47
Or pull the inner buckle hand once to
unlock, and then pull it again to open
the door.
REMINDER
●Prevent excessive force from
distorting or breaking the key
during the operation.
Smart Access and Start
System
Entry Function
Use the smart key to unlock or lock the
vehicle doors. (For details, please refer to
P44 or P45).
●If the PEPS system does not work
normally and you cannot enter the
vehicle, the mechanical key concealed
in the smart key can be used to unlock
and lock the driver's door, or the
wireless remote control function can
be used to unlock and lock all doors.
Start-up Function
With the smart key inside, press the brake
pedal and the START/STOP button to start
the vehicle.
START/STOP Button
●Possible causes for the failure of
the normal start function when the
"START/STOP" button is pressed:
●Starting the drive motor repeatedly
in a short time requires the driver to
wait for 10s first.
●If the smart key does not work,
the smart key warning light on the
instrument cluster goes on, and the
information display screen on the
instrument cluster displays a prompt
about the low SOC of the key battery,
the battery SOC of the key may have
run out.
03
REMINDER
CONTROLLER OPERATION
The smart access and start system
may not work properly when:
●There is a strong electromagnetic
field nearby, such as TV towers,
power stations, and broadcasting
stations.
●The smart key is being carried
along with a communication
device, such as a two-way radio or
mobile phone.
●The smart key is in contact with or
covered by a metal object.
●The door handle is operated too
quickly.
●The smart key is too close to the
handle.
●Another wireless remote control
function is being used nearby.
●The battery runs out.
●The smart key is close
to highvoltage equipment or
equipment that produces noise.
●When the smart key is being
carried along with another
smart key or radio-wave-emitting
device,
Child Protection Lock
Halaman 48
REMINDER
●even in the activation area, the
smart key may not work normally
in some positions (e.g., on the
dashboard, in the glove box, or on
the floor).
Antenna Position
① Interior detection antenna
② Exterior detection antenna (Driver side
antenna*)
Activation Area
The PEPS function takes effect only when
the registered intelligent key is in the
activation area.
① The entry function activation area
(driver side antenna)* is about 1 m away
from the door handles on driver side and
the external boot lid release button.
② The start function activation area is
located in the compartment.
●If the intelligent key of the vehicle
is near the intelligent keys of other
vehicles, it may take a bit longer than
usual to unlock the doors, which is
normal.
●If the electronic smart key indicator
does not flash, and the vehicle cannot
be started with the start function, the
battery may be exhausted, it should be
replaced as soon as possible.
Power Saving of the Smart Key
●Communication between the key and
the vehicle occurs even when the
vehicle is parked. Therefore, do not
leave the key in the vehicle or within
2 m from the vehicle.
●If the smart key receives strong
electromagnetic waves for a long time,
the battery runs out rapidly. The smart
key must be kept at least 1 m away
from the following equipment:
●TV set
●Personal computer
●Mobile phone charger
●Light stand
●Fluorescent light
Child Protection Lock
Child protection locks are designed to
prevent children in rear seats from
accidentally opening rear doors. Such
locks are provided on the sides of the left
and right rear doors.
The door cannot be opened from inside
the vehicle while the latch is locked. To
open this door, use the exterior handle.
Seat Precautions
Halaman 49
CAUTION
●Before driving, especially when
a child is in the vehicle, ensure
that the doors are closed and the
child protection lock function is
enabled.
●Proper use of seat belts and
activation of child protection lock
helps prevent the driver and
passengers from being thrown out
of the vehicle in an accident, and
also prevents a door from being
opened accidentally.
Seat
Seat Precautions
●Adjust the driver's seat so that the
pedal, steering wheel and dashboard
controller are easy to control for the
driver.
●During driving, the most effective
protective measure is to keep the seat
backrest upright, always lean on the
backrest and adjust the seat belt to a
proper position.
●Do not fold in the rear seats during
driving.
●Secure the baggage properly to
prevent it from sliding or moving. Do
not place baggage higher than the seat
backrest.
WARNING
●Do not sit on the upper part of
the folded seat backrest or on the
goods. Otherwise, people may be
seriously injured due to improper
sitting on the seat or improper
fastening of the seat belt in case
of emergency braking or collision.
03
●Do not place objects under
the seat to avoid affecting
the seat locking mechanism
or accidentally pushing the
seat position adjustment lever
upward, resulting in sudden
movement of the seat and loss
of control of the vehicle by the
driver.
CONTROLLER OPERATION
●When adjusting the seat, do not
put your hands under the seat or
near the operating parts to avoid
injuries.
●After adjusting the seat backrest,
lean back to confirm that it
is locked. If not fully locked,
personal injury may be caused
in case of an accident or sudden
braking.
●Do not lay down the seat backrest
when the vehicle is moving. As
the upper shoulder strap of the
seat belt cannot be properly
attached to the body, in case
of an accident, the driver and
passengers may hit the shoulder
strap, causing serious injuries to
the neck or other parts, or slide
out of the lap portion, causing
serious injuries.
●During driving, no one is allowed
to sit in the boot area or on
the folded seat. Using these
areas without proper protective
Adjusting Front Seat with Power*
Halaman 50
WARNING
measures may cause serious
injuries in case of an accident or
sudden braking.
●Do not adjust the seat while
the vehicle is in motion, as
unpredictable seat movement can
cause the loss of vehicle control at
this time.
●Do not drive the vehicle until the
passengers are properly seated.
●Before laying the rear seats down,
check the positions of the rear
headrests and the front seats, to
avoid interference among the rear
seats, the front seats and central
passage.
REMINDER
●Please do not damage the seat
belt when folding the rear seats,
and check that the buckle is
properly placed in the buckle card
slot on the seat cushion.
●Please adjust the seat to the
proper position before fastening
the seat belt.
●When adjusting the seat, be
careful not to let the seat hit
passengers or baggage.
●During the measurement of seat
cushion depth, the front and rear
positions of the seat are the
rearmost positions of the slide
rail, and the design angle of the
backrest is 23°.
●During the measurement of seat
cushion width, adjust the backrest
angle to the designed state (the
backrest angle of the second
row seats is 27°), and adjust the
seat slide rail* to the rearmost
position. For the separable and
REMINDER
combinable seats in the same row,
measure the cushion width as a
whole row of seats.
Adjusting Front Seats
Front Seats - Electric Adjustment*
Electrical front seat adjustment includes
the adjustment of front and rear distance,
seat cushion height*, and backrest angle.
There are the following adjustment
methods according to the functions
equipped with the actual vehicle.
② Seat Adjustment Switch
●Move this switch forward or backward
to slide the seat forward or backward.
●Move the rear end of the switch up or
down to adjust the height of the seat
cushion*.
① Seatback angle adjustment switch
●Push this switch forward or backward
to adjust the backrest angle.
REMINDER
●Releasing the switch stops the
seat in this position. Do not
place anything under the seat as
Seat Heating*
Halaman 51
REMINDER
this may prevent the seat from
operating.
Adjusting Front Seats Manually*
The manual adjustment of front seats
includes the adjustment of front and
rear distance and backrest angle. There
are the following adjustment methods
according to the functions equipped with
the actual vehicle.
Seat position adjustment lever
●Hold the middle of the adjustment
lever and pull it up, then slide the seat
back and forth to the desired position
with slight body pressure, and then
release the lever.
●After adjusting the seat position
forward and backward, slide the seat
back and forth to ensure that a slide
rail locking sound is heard and confirm
that the seat is locked in place.
Backrest Adjustment Handle
●Pull up the adjustment handle, lean
the backrest forward or backward
with your back, adjust the backrest to
the desired position, and release the
handle.
Seat heating*
03
●The heating system enters the relevant
setting interface through the seat
heating control module of the air
conditioning interface to turn on or off
the seat heating system.
CONTROLLER OPERATION
Heating system adjustment
●Seat heating: The user controls the
gear of seat heating by operating
the heating switch on the multimedia
touchscreen. The heating system of
the driver and front passenger seats is
controlled separately, and the heating
function is divided into two gears:
1 and 2. At the same time, the
drop-down menu interface of the
touchscreen also has a heating control
button, which can also be used to
adjust the seat heating function.
●The heating indicator is off by default
after each power-on.
●When the switch is touched for the
first time, the seat heater operates in
the second gear, and the second gear
icon lights up.
●If the switch is touched for the
second time, the seat heating is
adjusted to the first gear, the second
gear icon is off, and the first gear icon
is on.
●Touch the switch for the third time to
turn off the heating function, and the
icons of gear 1 and gear 2 are all off.
Rear Seat Head Supports
Halaman 52
Folding Rear Seats
To fold in the rear seat backrest, pull up
the folding webbing on the rear seats.
REMINDER
●Please fold or unfold the rear
seats at a moderate speed. Avoid
quickly lowering or pulling up
seatbacks to prevent damage to
or malfunction of rear seats and
the seat belts.
●When unfolding a rear seat, do
not push the seatback hard;
otherwise, the seatback will be
pre-stressed and impossible to
unlock.
●When unfolding a seatback, check
that the buckle position is proper
to expose the reserved opening
on the seat.
●Do not turn over the seat when
the seat belt latch is inserted into
the buckle.
Rear Seat Head Supports
1. Lifting headrests
Pull up the headrest to the desired
position in the direction of the headrest
rod, and release it after hearing a "click".
2. Lowering
Press and hold the headrest height
adjustment button to lower the headrest
to a proper position, and then release this
button.
3. Removing a head support
Press and hold the headrest height
adjustment button to pull out the
headrest, and then release this button.
4. Installation
Insert the headrest links into the bushing
with the groove facing forward. Press
and hold the headrest height adjustment
button to lower the headrest to a proper
position, and then release this button.
REMINDER
●Headrests protect vehicle
occupants from head and neck
injuries. Adjust the headrest so
that its center aligns with the
back of your head for maximum
protection. Adjust the head
support to the proper position
based on your actual height.
●When adjusting head support
height, align the occupant's ear
tip line with the center line of the
head support.
●After adjusting the head support,
ensure that it is locked into
position.
Power-Assisted Steering Mode Settings
Halaman 53
REMINDER
●Do not drive the vehicle without
headrests.
●Do not attach any object to the
headrest lever.
Steering Wheel
Adjusting the Steering
Wheel
To adjust the steering wheel position,
hold it and operate as follows:
●Press the adjustment handle
downward to tilt the steering wheel to
the desired position, and then restore
the handle to the locking position.
WARNING
03
●Never adjust the steering wheel
while driving, as this is under risk
of impaired vehicle control, which
can lead to accidents.
CONTROLLER OPERATION
●After adjusting the steering wheel,
move it up and down to verify that
it is securely locked.
Steering Assist Mode Settings
●The hand feeling of steering assist
differs among people, and different
users have different evaluations and
demands on the feeling.
●Choose Comfort/Sport steering mode
by going to the infotainment
touchscreen→ Vehicle → Driving
Control → Steering Assist Mode.
Left buttons
Halaman 54
REMINDER
●When the vehicle is running at
high speed, if the steering wheel
feels light, it is recommended that
you set the steering power mode
to sport mode.
1
Panoramic view button
2
Customize Keys
3
Adaptive Cruise Control (ACC)
Switches
4
Distance + button
5
Scroll button
6
Distance - button
7
Intelligent Cruise Control (ICC)
System Switches
Left buttons
Panoramic view button
Steering Wheel Switches
8
Call
9
Voice recognition button
10
Right buttons
11
“MODE” Button
12
Scroll button
13
Instrument cluster/Back
14
Left button
●Turns panoramic view off if already in
panoramic view mode, or on if not in
panoramic view mode.
Right buttons
Halaman 55
Custom button
●Press and hold this button to
display the customization interface.
Customized functions include the
rotating Multimedia touchscreen,
radio, music and air conditioning
functions*.
●If the custom button has been
customized to a certain function,
press this button to activate the
function, and press and hold this
button to display the customization
interface to customize again or cancel
customization.
Distance +
●Adjust the distance from the vehicle
ahead in the following function and
increase one level.
Adaptive Cruise Control (ACC) Switches
●+
●Pull up the lever and press this
button to increase at a certain speed;
Press and hold it to continuously
increase the speed. Activate the
cruise control system and resume to
the previously set speed.
●-
●Pull down the lever and press
this button to decrease at a
certain speed; Press and hold it to
continuously decrease the speed. Set
the current speed to the target cruise
speed.
Distance - button
●Adjust the following distance to the
vehicle ahead in the following function
and decrease one level.
Intelligent Cruise Control (ICC) System
A/C ON/OFF
●Press this button to deactivate/activate
the ICC status.
Right buttons
Phone button
●Press to make/receive a call. (The
multimedia system is muted after
pressing this button.)
●When the system is in a Bluetooth
unrelated interface and Bluetooth is
disconnected, press this button for
the system to skip to the Bluetooth
Connected interface. If Bluetooth is
connected, press this button for the
system to skip to the main dialing
interface.
03
CONTROLLER OPERATION
●When a number is input in the dialing
interface, or an entry from the Call
History or Contacts is selected, press
this button to start dialing.
●While under the main dialing interface
with Bluetooth connected and no
number input, press this button for the
system to directly skip to the Outgoing
Calls interface under the Call History
interface. Press it again for the system
to automatically call the first entry in
the Outgoing Calls interface.
Voice recognition
●Press this button to switch the
Multimedia touchscreen to the voice
recognition interface and realize the
voice function.
Left/Right buttons
Multimedia system
●In radio mode:
●Press
to play the previous radio
station.
●Press
to play the next radio
station.
●In USB/Bluetooth music/third-party
music APP and other modes:
Horn Button
Halaman 56
●Press
to play the previous track
(track number -1).
●Press
to select the previous
entry in the Bluetooth Call History
and Contacts interfaces.
●Press
to play the next track
(track number +1).
●Press
to select the previous
entry in the Bluetooth Call History
and Contacts interfaces.
Instrument cluster
●In instrument cluster menu mode:
●Press
to switch it to a left menu
and its submenus.
●Press
to switch it to a right
menu and its submenus.
“MODE” Button
●Mode selection: press the mode
button to switch between media
applications, peripheral applications
and pre-installed third-party audio and
video applications.
Roller
Multimedia system
●Roll up the roller: increase the volume
in a single step until the maximum
volume (12 gears in a circle).
●Roll down the roller: decrease the
volume in a single step until the
minimum volume (12 gears in a circle).
●Press the roller downward: mute
function.
Instrument cluster
●Roll up the roller:
●Select the secondary/tertiary menu
items upward in the instrument
cluster menu mode.
●Roll down the roller:
●Select the secondary/tertiary menu
items downward in the instrument
cluster menu mode.
●Press the roller:
●In the instrument cluster menu
mode, enter the menu next to the
current option or confirm the current
setting.
Instrument cluster menu/return button
●When the instrument cluster is not
in menu mode, press this buttonto
display the menu on the instrument
cluster.
●When the instrument cluster is in menu
mode, press this button to return to
the upper-level screen, or to exit the
menu if there is no upper-level screen.
●On the Bluetooth call screen, press it to
end the call.
Horn Button
Press the pad to sound the horn.
Wiper Switch
Halaman 57
CAUTION
●Avoid pressing honking for too
long, as the horn may be
damaged.
REMINDER
●Observe the traffic laws and use
the horn properly.
Wipers
Wiper Switch
●This lever is used to control the
windshield wipers and washers. It has
five modes:
: High-speed wiper mode
●
: Low-speed wiper mode
●
: Auto Wipers/Intermittent
●
: Stop
●
: MIST level
●
●To select the level, move the lever
upward or downward.
●At low- and high- speed modes, the
wiper operates continuously.
●To let wipers work in the spot-wiping
mode “
”, pull the lever from the
“
” position. In this mode, the
front windshield wipers operate at a
low speed until the lever is released.
Auto Wipers/Intermittent
●The rain sensor automatically controls
the operation mode of wipers based on
the rainfall, and it is located in front
of the interior rearview mirror on the
front windshield inside the vehicle.
03
●To activate the automatic wiper
function, turn the switch to the
automatic wiper mode, and enable the
function with the "Automatic Wiper"
button via touchscreen
CONTROLLER OPERATION
→ Settings
→ Vehicle → Confort Driving → Auto
Wiper.
●To activate the wiper intermittent
mode, turn the switch to the
automatic wiper mode, and disable
the automatic wiper function with the
"Automatic Wiper" button via
→
Vehicle Settings → Greeting from the
touchscreen.
●The automatic wiper function has four
sensitivity levels. The higher the lever,
the higher the sensitivity. When using
the automatic wiper function, change
the sensitivity by adjusting the toggle
based on real-time rain conditions. If
the wiper reacts to rain too quickly,
reduce the sensitivity; if the wiper
reacts to rain too slowly, increase the
sensitivity.
Replacing Wiper Blades
Halaman 58
Front Windshield Washer
●To clean the front windshield, please
pull the wiper lever backward (towards
the steering wheel). In this case, the
washer sprays water all the time, and
the wiper works simultaneously.
●The front windshield wiper wipes once
after the current wiping if the wiper
lever is held for less than 1 s, and twice
if more than 1 s.
CAUTION
●Due to differences in vehicle
equipment, the specific details
of wiper function vary between
vehicles.
REMINDER
●Check the wiper blade regularly to
remove the dirt on it.
●If the wiper is turned on as soon
as it rains, rainwater mixing with
sand and dust will not clean the
windshield, but cause a blurred
vision in an instant, affecting
driving safety.
●Use cleaning agent for glass. The
use of water or other types of
detergent may cause damage to
the washer motor.
Replacing Wiper Blades
Inspect wiper blades for cracks or partial
hardening at least every six months. If
any of these are found, the wiper blades
should be replaced.
Replacing Wiper Blades
The user can go to Multimedia system
→ Vehicle Health →Overhaul to activate
the wiper maintenance function. After the
function is activated, the wiper runs to
a high position and then stop, so as to
facilitate maintenance and replacement
of the wiper. After maintenance, the
wiper returns to the reset position
after the wiper maintenance function is
deactivated.
1. Lift the rear wiper arm from the rear
windshield to a certain angle.
2. Remove the wiper blade by pushing
it downward to disengage from the
wiper arm joint.
3. Install the new wiper blades through
the opposite order.
CAUTION
●Do not open the hood when the
wiper arms are pulled up.
●Lower the wipers slowly and avoid
direct impact onto the windshield.
Side Mirror Adjustment
Halaman 59
CAUTION
●Do not bend the wiper blade, and
do not obstruct the wiper blade
when the wiper is in operation.
Side Mirror
Interior Rearview Mirror
Manual Anti-glare Function
The interior rearview mirror can be
adjusted to two positions, suitable for day
and nighttime respectively. The nighttime
driving position reduces the glare from
vehicles in the rear.
●For daytime driving - adjust the control
lever to position ①, where the image
on the rearview mirror is the clearest.
●For nighttime driving - adjusting the
control lever to position ② helps
reduce the interference from the cars
behind. Remember that rear view
image clarity decreases when glare is
reduced.
Adjusting the Rearview Mirror Manually
Move the interior rearview mirror up or
down, left or right to a suitable position.
WARNING
03
●Adjusting interior rearview mirrors
before driving. Do not adjust the
interior rearview mirrors while
driving. This may distract your
attention, causing accidents.
CONTROLLER OPERATION
●Do not hang heavy objects on the
interior rearview mirror, or shake
or pull it vigorously.
●When the interior rearview mirror
gets stuck, do not adjust it
violently by hand, as this may
cause it to fall off.
Side Mirrors
Side Mirror Adjustment
The driver can adjust the electric side
mirror via its switch to a position where
the driver can just see the side of the
vehicle in the side mirror.
Selection button
Left side mirror adjustment button
●
Right side mirror adjustment
button
●
Adjustment button
Press this button to adjust the side
mirrors to a proper position.
Folding Side Mirrors
Halaman 60
REMINDER
●If the side mirrors get frozen,
do not operate the controller or
scrape their surface. Deicing spray
should be used.
Manually adjust the side mirror
Press the edge of the mirror by hand to
rotate the mirror around the center and
adjust it to a proper position.
Folding Side Mirrors
Side Mirrors Manually Folding*
Press the outer edge of the side mirror
hard to rotate the mirror body around the
folding shaft to the locking position.
Side Mirrors Electric Folding*
●Press the
button to fold the
external rearview mirror electrically
and press it again to unfold it.
●When the anti-theft function is
activated, the two external rearview
mirrors fold automatically.When the
anti-theft function is released, they
unfold automatically.
REMINDER
●Adjusting side mirrors before
driving. Do not adjust the side
mirrors while driving. This may
distract your attention, causing
accidents.
●Using the side mirror electric
heating defrosting function for a
long time may cause the mirror
to wear out faster. Turn off the
defrost button when it is not
needed.
Light Switches
Halaman 61
Switches
Light Switches
Rotate the knob at the end of the light
switch to
to turn off all lights (except
for daytime running lights).
Auto Lights
". BCM collects
the brightness value acquired by the light
intensity sensor and automatically turns
on/off position lights and low beams.
Turn this knob to "
Clearance Light
to turn on position
lights.
Turn this knob to
Low Beam
03
to turn on the low
beams.
Rotate this knob to
CONTROLLER OPERATION
Rear Fog Light
Rotate this knob to
and rotate the fog
to turn on the rear fog
lights.
light knob to
Overtaking Light
Pull up the light switch handle (toward
the steering wheel) to turn on the
overtaking light. Release the handle for
the light switch to automatically reset.
The overtaking light turns off.
Light Switches
Halaman 62
High Beam
Turn the knob at the end of the light
switch to the "
" position, turn the
switch away from the steering wheel to
turn on the high beam, and turn off the
high beam again.
Turn Signal
●Push up the light handle to signal
right turn.The right turn signal and
its indicator on the instrument cluster
flash.
●Push down the light switch lever, and
then the left turn signals and the
turn signal indicator on the instrument
cluster start flashing simultaneously.
●After turn signals are turned on, they
flash continuously even if the light
switch is released. Turn signals go out
automatically after the vehicle finishes
turning the corner. Because of different
driving habits for drivers, the light
switch needs to be rotated for a round
to reset in some extreme cases.
Auto Off
●Conditions for enabling the auto off
function: Conditions for enabling the
auto off function: This function is
enabled when the light switch is
rotated to the
, and the
power supply is switched from "Start"
to "Stop".
or
●With the auto off function activated, if
the right door is closed, this function
automatically turns off headlights and
position lights after 10 s.
●With the auto off function activated, if
the right door is opened, this function
automatically turns off headlights and
position lights after 10 min.
●After auto off, if the light mode
changes, lights will be turned on
according to the new state. If the
conditions for enabling the auto off
function are met after that, the auto off
function will be activated again.
●Disabling the auto off function: After
the vehicle is powered on, the auto off
function is disabled, and the light knob
can be operated normally.
Power Window Switches
Halaman 63
●The auto off function turns off the
lights. If the anti-theft state is activated
and then deactivated, the lights turned
off before are automatically turned on
again. If the right door is not opened,
this function turns off the lights again
after 10 s. If the door is opened, the
auto off function turns off the lights
after 10 min.
Lighting delay function
●Highlights after Exit:
●The user can go to the "Follow me
home delay" setting interface via
the Multimedia → Vehicle settings →
Light & ambient to set the time of
follow me home. The default time is
10 s. When the light switch is rotated
to the
position, and
the owner powers off the vehicle,
locks the four doors, and tries to
leave the vehicle, the corresponding
lights continue to light up for 10 s
(or a set time) to provide the lighting
source.
,
or
●Headlights before Enter:
●The user can go to the "Follow me
home delay" setting interface via
the Multimedia → Vehicle settings
→ Light & ambient to set the time
of follow me home. The default
time is 10 s. When the light switch
is rotated to the
,
or
position, and the owner unlocks the
vehicle and tries to get close to it,
the corresponding lights continue to
light up for 10 s (or a set time) to
provide the lighting source.
CAUTION
●The lighting on and off time
can be changed through the
multimedia interface → Light →
Welcome Light interface.
Driver's Door Switches
Power Window Switches
●The front left door is equipped
with four switches to correspondingly
control the four windows.
●There are two gears of window
control.
03
CONTROLLER OPERATION
Automatic operation
●Rolling down: press the button to
the second position and release it to
automatically roll down the window.
●Rolling-up: pull up the button to the
second position and release it to
automatically roll up the window *.
●To stop the window at its current
position, slightly operate the switch
once in the direction opposite to the
rolling direction.
Manual Rolling
●Rolling down: press the button to
the first position and hold it to
continuously roll down the window.
●Rolling-up: pull up the button to
the first position and hold it to
continuously roll up the window.
Delay Function
●After the power withdrawal, if the
front door is not opened, the four-
door window control switch has a
lifting delay function of about 10min
Central Locking
Halaman 64
and can continue to operate the
window lifting. During this period, if
the front door is opened and the delay
function is cancelled, the four-door
window control can no longer allow
the window lifting.
WARNING
●Before closing a power window,
ensure occupants' hands are not
placed upon the window glass;
pinching of hands or fingers can
result in serious injuries.
Right Front Window Anti-pinch*
When the window is obstructed by a
person or an object while rolling up, it
stops and rolls down to allow for the
obstruction to be removed.
Failure of automatic rising function and
anti-pinch function of window
●If the low-voltage battery is
disconnected while a window is being
rolled up or down, the automatic
rolling-up and anti-pinch functions
both cease to work. The initialization
shall be performed as follows:
●Pull up and hold the window switch
so that the window glass reaches the
top position and stalls there for 0.5
seconds.
●In models equipped with the one-
press closing function, if the window
is almost closed and the upper
window edge undergoes certain
resistance, the window moves back
down to prevent pinching.
WARNING
●Excessively frequent activation of
the right front anti-pinch function
can activate the regulator motor's
overheat protection.
WARNING
●Never try to deliberately
activate the right-front anti-pinch
function.
CAUTION
●The right front anti-pinch function
may not work if an object is
jammed into the window when it
is almost completely closed.
●Contacting a BYD authorized
dealer or service provider for
maintenance is recommended if
the windows' automatic closing
function or right front anti-pinch
function is not working normally.
Central Door Lock
The front left door is equipped with
buttons for locking and unlocking all
doors.
Locking
Press the central lock button to lock all
doors. Once doors are locked, the button
indicator goes on.
Unlocking
Press the central unlock button to unlock
all doors. Once doors are unlocked, the
button indicator goes off.
Driver Assistance Mode Switch Group
Halaman 65
Window Lock Button
●When the window lock button is
pressed, the red indicator of window
lock goes on. Only the switch on the
driver's side can control the window
regulation of four doors, while the
rear window switch cannot control the
window regulation.
●When this button is pressed again, the
red indicator of window lock goes out,
and the rear window switch returns to
normal operation.
Window Control Switch
on Passenger Side
When the ignition is on, use the front
left and rear door window switches to
operate the respective windows.
Odometer Switch
●Press the "ODO/TRIP" button to switch
ODO -- TRIP A -- TRIP B -- ODO.
The instrument cluster simultaneously
displays all corresponding mileages.
●Mileage information is cleared.
Driver Assistance
Switches
Mode Switch Group
Roll the roller switch to the eco/normal/
sport modes.
03
CONTROLLER OPERATION
Snow Mode Switch
●Roll the roller switch up to activate this
mode. Roll the roller switch down to
exit this mode.
●This mode is recommended for firm
roads covered with a layer of loose
and slippery substances such as
grass, snow, ice, or gravel.
●Although snow mode optimizes
traction, driving performance, and
maneuverability, it is recommended
to avoid sudden acceleration or high
speed.
CAUTION
●ESC system may limit the vehicle's
torque. Therefore, temporarily
shutting down the system may
help if the vehicle skids and
gets stuck in soft snow. The
ESC system must be restarted
after conditions are back to
Interior Light Switch
Halaman 66
CAUTION
normal (see P123ESC operation
instructions).
Hazard Warning Light
Switch
Roll the roller switch up or down
,
all turn signals start to flash, and the turn
signal indicator on the instrument cluster
flashes synchronously. Roll it again
to stop flashing.
Interior Light Switch
In any power mode, turn on front interior
lights by touching their covers.
REMINDER
●When the vehicle is powered on
any gear and the "DOOR" switch
is turned on, the interior light
switches from high to low light
if this switch is pressed with the
door open.
●When the vehicle is powered off
and the "DOOR" switch is turned
on, the light goes out after a
period of time if the door is
opened.
Using and Driving
Halaman 67
04
USING AND
DRIVING
Charging/Discharging...................... 68
Battery...............................................82
Usage Precautions............................86
Starting and Driving..........................92
Driver Assistance............................ 101
Charging Precautions
Halaman 68
Charging/
Discharging
Charging Instructions
●The charging equipment is a high-
voltage electrical device. Minors are
prohibited to charge or touch it. Keep
minors away from the vehicle when
charging.
●Charging may affect medical or
implanted electronic devices. Consult
the device manufacturer before
charging.
●Charge the vehicle in a relatively safe
environment, and avoid charging in
damp areas, or areas with fire or heat
sources.
●Protect the charging equipment
against water contact on rainy days.
●Before charging:
●Ensure that power supply
equipment, charging connector,
charge port, and charging connection
device are free of defects, such as
cable wear, rusted ports, cracked
casings, or foreign objects in the
ports.
●Do not charge the vehicle when the
charging connector's or port's plug,
socket, or metal terminals are loose
or damaged by rust or corrosion.
●When there is obvious staining or
moisture on the charger/charging
port and the power plug/outlet,
please wipe it with a dry, clean cloth
to ensure that the joint is dry and
clean.
●Use only certified charging equipment
specifically designed for electric
vehicles and consistent with applicable
national standards:
●To avoid charging failure or fire, do
not modify, disassemble, or repair
the charging equipment and related
ports. Contact a BYD authorized
dealer or service provider for
handling if there is a fault.
●Uncertified products are strictly
prohibited.
●Ensure that your hands are properly
dry before charging.
●If anything abnormal is found in
the vehicle or charging equipment
when charging, stop immediately and
contact a BYD authorized dealer or
service provider.
●Always observe the following charging
precautions to prevent damage to the
vehicle:
●Do not shake the charging connector,
otherwise the vehicle charge port
may be damaged.
●When there is a thunderstorm, it
is recommended not to charge the
vehicle. Lightning strike may cause
damage to the vehicle and personal
injury.
●Do not open the hood for maintenance
while charging.
●After charging, do not disconnect the
charging equipment with wet hands or
while standing on any wet surface.
●Before driving, check that the
charging equipment is disconnected
from the charge port and the charge
port door is closed.
Charging Precautions
●When the SOC bar on the
instrument cluster turns red, the
high-voltage battery is about to
be exhausted. Please charge it
immediately, otherwise the service life
Charging Precautions
Halaman 69
of the high-voltage battery and your
driving experience will be affected.
●Precautions for avoiding damage to
charging equipment:
●Prevent the charging equipment
from any mechanical impact, such
as falling and colliding with other
objects.
●Do not place the charging equipment
near heaters or other heat sources.
●Before charging:
●Make sure that the charging
connector and charge port are
free of foreign objects, and that
the protective cap of the charging
connector terminal does not get
loose or deformed.
●Hold the charging connector, align
the connector with the charge port
and push it in, making sure that they
are properly connected.
●When charging is complete:
●Stop charging first and make sure the
charge port is unlocked.
●Pull out the charging connector.
●Do not force the charging connector
out while the charge port is locked,
otherwise the charge port may be
damaged.
●Never drop the equipment or move it
by pulling it directly by the cable. Take
caution when moving the equipment.
●AC or DC charging is available in any
power mode. To ensure safety, it is
recommended to power off the vehicle
before charging.
●The A/C can be used as normal while
the vehicle is being charged. To ensure
the charging power, it is recommended
not to turn on the A/C.
●The vehicle should be parked in a
ventilated area, and there should not
be any occupant inside when charging.
●When the power battery is fully
charged, the system will automatically
stop charging. When the battery power
is extremely low, to extend the service
life of the power battery and improve
the success rate of charging, it is
recommended that you prioritize using
an AC charging station to charge your
car, or use a DC charging station with
a minimum output voltage of 150
V (or lower). As the charging port
is equipped with an electronic lock,
please pull out the charging plug after
unlocking.
04
●When DC charging is finished, turn off
the charging pile and then disconnect
the charging post. When household
portable AC charging is charged,
disconnect the vehicle charging
connector and then disconnect the
power plug at the power supply end.
USING AND DRIVING
●When charging is complete and the
charging connector is unplugged,
make sure that the charge port's cap
and door are closed, otherwise water
or foreign materials may enter the port
and affect its normal use.
●Before starting the vehicle, make sure
that the charging equipment has been
disconnected. If the chargr is not fully
inserted, the vehicle may be able to
run in gear, resulting in damage to
both the charging equipment and the
vehicle.
●Battery temperatures that are too low
or too high can compromised vehicle
charging performance.
●In the case of low-temperature
charging, battery thermal
management can improve the
lowtemperature charging ability, but
the charging time is prolonged and
the heating power consumption
General Charging Troubleshooting
Halaman 70
is increased. These are normal
phenomenons.
●In the event of low-temperature
DC charging under a high SOC,
the charging current is low due to
the low-temperature characteristics
of the battery. Therefore, at a low
battery mode, it is recommended to
charge the vehicle under a low SOC
to improve the charging speed.
●In cold regions, it is recommended
to charge the vehicle indoors with
heating.
●In hot regions, it is recommended
to charge the vehicle in a cool and
ventilated place.
●A/C turned on during low temperature
charging can affect the performance
of battery temperature control system
and charging performance.
●It is normal that when the battery
temperature control system is working
during charging, the charging power
displayed on the instrument cluster
may fluctuate temporarily.
●Before charging is completed, battery
equalization is activated to improve
the service life, which may prolong the
charging time.
●In case of high-temperature high-
power DC charging, the performance
of battery temperature control system
may be affected by the A/C in
the passenger compartment, and the
charging performance may degrade,
resulting in an extended charging time.
To ensure charging efficiency, it is
recommended to keep the A/C off
during charging.
Fault
Possible Causes
Solutions
Charging
cannot be
started. The
High-voltage battery
fully charged
When the high-voltage battery is fully charged,
the charging will stop automatically.
●When the heating or cooling function is
enabled during charging, it is normal
that both charging time and power
consumption increase slightly.
●During charging, battery cooling
may start, and the compressor, fan
and other components work when
necessary. It is normal that there will
be some noise under the hood.
●During charging, the estimated
remaining time to full charge
is displayed on the instrument
cluster or the multimedia. The
remaining time for a full charge may
vary depending on such different
conditions as temperature, SOC, and
charging facilities. It is normal for
the instrument cluster to display
“Calculating ..." before charging ends.
●If the charging port hatch and charger
are frozen, do not forcibly open the
charging port hatch.
REMINDER
●When the charging port hatch is
locked, do not force it open.
●Do not forcibly attempt to insert
the charger when the electric lock
is locked.
●Do not close the charge port with
the charge port cap open.
●When the vehicle is charged, it
is normal that the cooling fan
and A/C compressor may operate
automatically for the high-voltage
battery to cool down.
General Charging Fault Diagnosis
General Charging Troubleshooting
Halaman 71
High-voltage battery
temperature is too high
or too low
Keep the vehicle in an environment with
appropriate temperature and charge it when the
temperature becomes normal.
Connect the 12V power supply from other
vehicles. After the vehicle is started, the battery
will be replenished. It is recommended to
replace the battery for subsequent use.
Low-voltage battery
over-discharges.
Confirm that the power indicator of the
charging equipment is normal or there is no
other abnormal prompt, otherwise replace the
charging equipment for charging or contact the
supplier of the charging equipment.
Charging equipment
failure
physical
connection is
complete,
but charging
has not
started.
If powertrain fault warning light on the
instrument cluster is on or charging system
fault message is displayed, stop charging
immediately and contact a BYD authorized
dealer or service provider.
Vehicle displays the fail.
Confirm that the AC charger is connected in
place, and pay attention to the length and
connection position of the charger plug of the
charging equipment.
Improper connection of
AC charging adapter
Standard single-phase,
two-pole, grounded
receptable has no
power.
Confirm whether the overload protection of the
power supply has been triggered. Please use the
specific charging power supply standard single-
phase two-pole with grounding socket.
Charging cable is not
connected properly.
Verify that the charging connection cable is not
loosely connected.
Touch the key,
microswitch, window
control switch or
vehicle start button by
mistake
If the vehicle is unlocked by mistake, the
charging will be suspended for 30 seconds, and
the charging can be resumed after 30 seconds.
Charging
interrupted
Power Failure
After the power supply is restored within a
certain period of time, charging is automatically
restarted.
When the temperature warning indicator on the
instrument cluster lights on, the charging stops
automatically. Then charge the battery after it
cools down.
High-voltage battery
is at the stage of
overtemperature.
04
USING AND DRIVING
Using Mode 2 Charging Cable
Halaman 72
Check if there is any charging pile or vehicle fault
prompt, and contact a BYD authorized dealer or
service provider if necessary.
Vehicle or charging
equipment fault
Charging Method
Pure electric vehicles are driven by the
electric energy provided by the power
battery. In order to avoid power loss
of power battery and affect the car
experience, it is very important to charge
in time and estimate the power demand
before driving.
Vehicle Charging Method:
1. Household Portable AC Charging
2. Using AC Charging Piles
3. Charging with DC Charging Piles
CAUTION
●The time required to complete
the charging of the power
battery varies with the charging
mode, remaining capacity, real-
time temperature, use time,
ambient temperature and other
conditions.
Charging Mode
1. Charging Reservation (Only AC):
Choose Reservation charging start
time and end time via
touchscreen→Settings→Energy→Char
ge/Discharge→Smart Charging.
2. AC Charging Current Limit (Only AC):
Choose charging current via
touchscreen→Settings→Energy→Char
ge/Discharge→AC Charging Current
Limit.
3. Instant Charging: Charging starts after
the charging connector is connected.
Charging
●Inspection before Charging:
●Check the charging device for
abnormalities such as cracked
housing, worn cable, rusted plug, or
foreign materials.
●Do not charge when the charging
connection becomes loose.
●Make sure the port is clear of fluids
or foreign objects, and its metal
terminals are not rusty or corroded.
●In any of these cases, do not charge.
Otherwise, personal injury may occur
due to short circuit or electric shock.
Household Portable AC Charging
1. Equipment descriptions
●The AC charging connection
equipment consists of a power plug
(complying with National Standards),
charger, plug/charger protection cover,
a connecting cable, referred to as
3-to-7 adapter. The power plug is
connected to the standard household
power socket, and the charger is
connected to the charging port of the
vehicle (The figure is for reference
only).
Using Mode 2 Charging Cable
Halaman 73
●Equipment specifications: 100-250V
50/60Hz 8A
●Charging time: Refer to the charging
time prompt on the instrument cluster
or touchscreen.
●The power socket shall be a household
socket conforming to relevant national
standards to avoid circuit damage
and tripping caused by high-power
charging, so as not to affect the normal
use of other equipment.
WARNING
●See P68 in section "Charging
Instructions" for charging safety
warnings.
●The highest working temperature
allowed for the product is 50°C.
Store it in a cool and dry place
when it is not in use.
●When charging, do not place the
equipment in the trunk, under the
front of the vehicle, or near the
tires.
●When using the equipment,
prevent it from getting rolled
over by the vehicle, dropped, or
trampled on.
●Do not modify, disassemble, or
repair the charging equipment
and ports.
●Additional wires or
adapters/connectors are not
recommended. If additional
adapters are necessary, select
the appropriate wire diameter (≥
1.5 square milimeter), and the
adapter parameters should meet
the requirements.
●Do not use the charging
equipment when the household
power socket cable gets softened
and the charger is damaged, like
WARNING
worn cables and broken insulating
layers.
●Do not use the equipment when
the charging connector or power
socket experiences a breakage,
crack or other exposed damage.
●To prevent the charging port cover
from malfunction, do not open
and close the cover repeatedly.
CAUTION
04
●The charging cable must not be
placed in a spiral during charging,
as this will affect heat dissipation.
USING AND DRIVING
●For specific charging precautions,
see P68.
REMINDER
●Please contact a BYD authorized
service provider or local
electrician and select an
appropriate power supply as
required for the charging
equipment.
●Grounding instructions for
charging equipment: The
equipment must be properly
grounded. In the event of failure
or damage to the equipment,
the grounding cable provides a
minimum impedance to circuit
discharge and thereby reducing
the risk of electric shock. The
equipment comes with a ground
cable connecting its ground point
with that of the power plug, which
must match a properly installed
and well-grounded power supply
outlet.
2. Charging Instructions
Using Mode 2 Charging Cable
Halaman 74
●It is recommended that the vehicle is
powered off.
●With the doors unlocked, press the
charge port door to open.
●Open the plug cover of the charging
gun and the vehicle socket to ensure
that there is no obstacle at the end
of the charging gun and the charging
socket. For AC charging, only the upper
charging port plug can be removed,
and the lower plug can be kept in a
blocked state.
●Connect the power supply port:
●Plug the 3-to-7 power supply plug
into the household socket and
the indicator is red. (Pictures for
reference only. The actual local plug
standard prevails.)
●Connect the vehicle charging port:
●Plug the charging connector correctly
into the port.
●Once the charger is connected
properly, the charging connection
indicator on the instrument cluster
or Multimedia goes on. The charging
indicator of the 3-7 connector will
flash (green).
REMINDER
●Do not forcibly attempt to insert
the charger when the electric lock
is locked.
●In the charging process, the
instrument cluster displays
relevant charging parameters and
the charging sign.
●Set the Scheduled Charging on
the infotainment touchscreen →
Settings → Energy → Charge/
Discharge. See P77 for detail.
Using Mode 2 Charging Cable
Halaman 75
REMINDER
●Set the AC charging current limit
on the infotainment touchscreen
→ Settings → Energy →Charge/
Discharge. See P78 for detail.
●During charging, the estimated
remaining time to full
charge is displayed on
the instrument cluster or
infotainment touchscreen. The
remaining time for a full
charge may vary depending
on such different conditions as
temperature, SOC, and charging
facilities.
●Reservation charging cannot be
used when the remaining battery
is too low.
3. Stopping charging
●End the charging:
●When the vehicle is fully charged,
charging stops automatically.
●To stop charging in advance, go to
the next step.
Disconnect the charger from the charging
port:
●Press the unlock button on the key or
the microswitch on the door handle
(when the key is nearby), and pull out
the charger in 30s.
REMINDER
●To unlock the vehicle, press the
unlocking button on the key
(during charging in the OFF gear)
or the microswitch on the door
handle (when the key is nearby).
●Unlock the vehicle to deactivate
the anti-theft lock before pulling
out the charging connector. The
connector has to be pulled out
within 30 seconds, or the port will
re-lock.
●The anti-theft lock can be set
on the touchscreen →Energy →
Charge/Discharge.
04
●If the charging connector cannot
be removed after unlocking, try a
few more unlocking attempts. If
that does not work, try emergency
unlocking. For the operating
procedure, see P79.
USING AND DRIVING
●Disconnect the power plug.
●Close the charge port cap and charging
port.
●Store the equipment in charging
package properly.
REMINDER
●Do not close the charge port with
the charge port cap open.
Using DC Chargers
Halaman 76
Using DC Chargers
1. Equipment descriptions
●Charge the vehicle with DC charging
piles in public places, which are
generally installed in specific charging
stations.
●Equipment specifications: Please
check the instructions for the charger.
●Charging time: Refer to the charging
time message on the instrument
cluster or infotainment touchscreen.
2. Charging Instructions
Connect the vehicle to a DC charging pile
by the charging connector of this pile to
begin DC charging.
●Unlock and open the charging port
cover, and then open the charging port
cap. When opening the charging port
cover, take off the upper cover first,
and then take off the lower one.
●Connect the vehicle charging port:
●Connect the charging connector of
the charging pile to the charge port,
and lock it securely in place.
●Operate the charging equipment to
start charging.
●The charging connection indicator
on the instrument cluster lights
up.
●In the charging process, the instrument
cluster displays relevant charging
parameters and the charging sign.
3. Stopping charging
●Stop charging:
●The charging pile stops charging auto
matically when it is set to stop
charging in advance or when the
cahrging is finished.
●During the charging process, pressing
unlock button of the key or the
central control switch twice in 3
seconds will automatically end the
charging.
●Disconnect the charger from the
charging port:
●After the instrument cluster displays
that charging is completed, pull out
the charging connector.
●After the DC charging of charger
is finished, arrange the charging
equipment and place it properly, and
put the charger in the designated
position of the charging pile.
●Close the DC charging port cap and
charging cover: when the charging port
cover is closed, insert the lower cap
first, and then insert the upper cap.
WARNING
●For specific charging safety
warnings, seeP68.
CAUTION
●After charging, if the charging
connector cannot be pulled out,
unlock and pull it out by
emergency unlock function.
●For specific charging precautions,
see P68.
Reservation Charging
Halaman 77
REMINDER
●Do not close the charge port door
when the port cap is fully open.
Reservation Charging
●The charging mode of the vehicle
can be set through the Multimedia
touchscreen or intelligent voice
assistant:
●Set the Scheduled Charging on the
multimedia touchscreen → Settings
→ Energy → Charge/Discharge. See
for detail.
●Go to the setting interface by calling
"Hi, BYD. Turn on the Reservation
Charging"; "Hi, BYD. I want to use
the Reservation Charging"; and "Hi,
BYD. Please turn on the Reservation
Charging".
●The vehicle can exit the reservation
charging page by clicking the back
button
/home button
.
●By calling "Hi, BYD. Turn off the
Reservation Charging"; "Hi, BYD. Exit
the Reservation Charging".
Setting Page
①Scheduled charging switch
② Charging time
③ Repeat cycle
④ Settings
●The factory setting mode is the Instant
Charging, so Reservation Charging is
turned off.
●To schedule a charging, toggle the
reservation charging ON ①, set the
charging start time ② and repeat cycle
③, then save the settings.
●After successful setting of the
Reservation Charging, a prompt of
the charging start time is given by
the multimedia system if the charger
is connected or the power button is
pressed within the charging waiting
time to power off the vehicle; at
this time, you can switch to Instant
Charging as needed.
04
●You can tap the reservation charging
setting icon ④ to turn off the charging
connector connected alert and power-
off alert in the Reservation charging.
USING AND DRIVING
CAUTION
●The reservation charging function
is only developed for the AC slow
charging equipment distributed
by BYD. When the vehicle owner
uses the AC slow charging
equipment that is not certified
by BYD, this function should
be turned off. Otherwise, the
charging equipment may not
respond, resulting in the failure
of reservation or immediate
charging, resulting in insufficient
battery power or even power loss.
REMINDER
●In the process of waiting for
reservation charging, the power
consumption of the whole vehicle
increases. After waiting for a
long time, the vehicle power and
driving mileage will be slightly
reduced, which is a normal
phenomenon.
Charge Port Anti-theft Lock*
Halaman 78
REMINDER
●The instant charging on PAD is
effective only for current preset.
To cancel all presets, please turn
off the preset charging switch on
the setting interface.
●When the battery level is low, the
vehicle is charged at the minimum
level before the reservation,
during which the multimedia
may still display the "Power off"
reminder and "Plug in charger"
reminder, and the corresponding
prompt appears in the lower part
of the instrument cluster.
●The schedule setting is invalid
for DC charging. Charging begins
immediately after a DC charging
connector is connected.
AC Charging Current Limit Function
●The AC charging current limit can
be set through the touchscreen or
intelligent voice assistant:
●Multimedia interface → Setting →
Energy → Charge/Discharge.
●Go to the setting interface by calling
“Hi, BYD. Turn on the AC Charging
Current Limit Function” or “Hi,
BYD. I want to set the AC Charging
Current Limit Function”.
●The vehicle can exit the AC Charging
Current Limit Function page by clicking
the back button
/home button
.
●Go to the setting interface by
calling “Hi, BYD. Turn off the AC
Charging Current Limit Function”
or “Hi, BYD. I want to exit the
AC Charging Current Limit Function
setting page”.
●AC Charging Current Limit (A):
6/8/10/16/MAX. The factory setting is
MAX.
●The AC charging current can be limited
as required. Click the open button
according to the corresponding current
value to set it.
REMINDER
●The charging time may be long,
which is a normal phenomenon.
●The actual charging current of
the vehicle is also related to
the capacity of the power supply
equipment and the capacity of the
power grid.
Charge Port Anti-theft
Lock
●The charging port of the vehicle has
an anti-theft function to prevent theft.
This function is deactivated by default.
To set up the control function, go
to Multimedia system → Settings →
Energy → Charging Port Anti-theft Lock
Settings and select Activate.
●During the charging process, when
the anti-theft is in “Activate” or
“Deactivate” mode, the charger will
be in the locking state. At this time,
the charger will be locked. In the
Deactivated Mode, users can unlock
and unplug the charger directly after
pressing the mechanical switch. In the
Activate Mode, users can unlock and
Discharging Device*
Halaman 79
unplug the charger in the following
ways during charging:
●Press the unlock button on the smart
key when the vehicle is powered off.
●Press the microswitch next to the
exterior handle of the driver's side
door to unlock (with the smart key
nearby).
No.
Electric Lock Anti-
theft Mode Status
Four-door anti-
theft lock state
1
Activated
Locking
No
2
Activated
Unlocked
Yes
3
Disabled
Locking
Yes
4
Disabled
Unlocked
Yes
CAUTION
●After unlocking the charging
connector, it can be pulled out
within 30 seconds. After 30
seconds, it will lock again.
Emergency Unlocking of the Charge
Port
●When the charge port anti-theft lock
fails and the charging connector
cannot be pulled out, use the
emergency pull lock for unlocking, and
then try to pull out the connector.
●Open the front compartment cover,
there is a pull ring in the right front
of the vehicle gutter, and pull the pull
ring to unlock.
●Press the central door lock below the
window inside the driver's door.
●When the vehicle is fully charged,
the charging port anti-theft lock
is automatically unlocked in the
"Deactivated" mode, and must be
manually unlocked in the "Activated"
mode using the above methods.
Whether the
charger can be
unplugged
04
USING AND DRIVING
WARNING
●The emergency zipper can only be
used in emergency situations.
●When using the emergency zipper,
do not pull it violently in an
instant. When the resistance is
large after pulling, it indicates that
it has been completely unlocked
in place. At this time, the charging
gun can be pulled out.
Discharging Device*
●The vehicle supports the discharging
function*: Vehicle To Load (VTOL)*
VTOL Method*
Halaman 80
WARNING
●Do not touch any metal terminal
of the discharging socket or
the vehicle charge port during
discharging.
●Stop discharging immediately if
there are any abnormalities such
as peculiar smell and smoke.
●For discharge safety warnings, see
P68.
●Store the product in a cool and
dry place when it is not in use.
●When charging, do not place the
equipment in the trunk, under the
front of the vehicle, or near the
tires.
●When using the equipment,
prevent it from getting rolled
over by the vehicle, dropped, or
trampled on.
●Never use the charging equipment
if the power strip cable becomes
soft, the charging connector cable
is worn out, the insulation layer
is cracked, or any other damage
occurs.
●Never use the equipment when
the discharging connector or
power strip is disconnected or
broken, or when there is any sign
of surface damage.
CAUTION
●Disconnect the discharging
equipment refers to:P68.
●Before discharging, confirm the
vehicle SOC and estimate the
remaining driving range.
●Before V2L discharging, ensure
that the load is turned off.
REMINDER
●Try to use this function when the
SOC is high.
●The V2L function is restricted
when the vehicle SOC is low.
●When the "OFF" gear is connected
to the VTOL connection device for
a long time without output, the
static power consumption of the
whole vehicle will increase. It is
recommended that the user pull
out the discharge gun/charging
gun when the equipment is not in
use.
VTOL Method*
1. Equipment descriptions
●VTOL equipment:
●Off-vehicle discharges through VTOL
connection. (Pictures for reference
only. The actual local plug standard
prevails.)
●Equipment specifications: Rated 250V
50Hz 16A, maximum discharge power
4kW (actual discharge power is related
to charger and load).
2. Discharging Instructions
●Before discharging, deactivate the
anti-theft function.
●Unlock and open the charging
cover,only remove the upper cap of the
VTOL Method*
Halaman 81
charging port and keep the lower cap
closed to prevent the lower port from
plugging water under water conditions
during discharging.
●Inspection before discharging:
●Ensure that the battery capacity of
the vehicle to be discharged is not
below 15%.
●Ensure the VTOL adapter is free
of any abnormalities such as
shell rupture, plug rust or foreign
materials.
●Make sure that the charging port
is free of water or foreign matters,
and that the metal terminals are
not damaged or affected by rust or
corrosion.
●In any of these cases, do not charge.
Otherwise, personal injury may occur
due to short circuit or electric shock.
●Connect the VTOL equipment: Connect
the VTOL discharger into the charging
port firstly, then insert the external
plug into the discharging outlet (Be
sure the external plug is safety
positioned and the head face of plug is
in contact with the head face of outlet).
At this moment the outlet indicator
stays on in red, it indicates that the
outlet can be used.
●When using the discharging strip, press
the switch on the discharging outlet
and wait for a few seconds. If the outlet
indicator stays on in red, it indicates
that the outlet can be used. (Pictures
for reference only. The actual local
plug standard prevails.)
●Start discharging:
04
●After the connection is made,
discharge begins and respective
information is displayed on the
instrument cluster.
USING AND DRIVING
3. Instructions for Stopping Discharging
●Stop discharging:
●Pressing unlock button of the key or
the central control switch twice in 3
seconds will disconnect the load.
●Pull out the discharging equipment.
●Close the charge port cap and door
(refer to P72).
●After discharging, put the VTOL
equipment into the storage box of the
trunk.
Battery Properties
Halaman 82
Battery
Power Battery and
Charging System
●The vehicle is powered by a high-
voltage battery that can be charged
and discharged repeatedly. The high-
voltage battery is charged by an
external power source or through
energy recovery when the vehicle
brakes or coasts.
●The high-voltage battery is located
vehicle's chassis, so be careful to avoid
bumping when driving on bumpy or
uneven roads.
Battery Properties
●It is normal that vehicle performance
is affected by battery electrochemical
properties and self-protection and
varies to some extent in the following
conditions:
●When SOC is high, the regenerative
braking performance may decline.
●The vehicle switches to trickle
charging mode at high SOC. If the
charging time is prolonged, the
estimated remaining charging time
displayed on the instrument cluster
may not be accurate.
●When SOC is low, the acceleration
performance may decline.
●When the high-voltage battery SOC is
low, VTOL* cannot be used normally.
Please charge the battery as soon as
possible.
●It is normal for the charging/
discharging capacity of the high-
voltage battery to decrease and
for the charging time to extend at
high or low temperatures. Power
performance may also decline under
extreme temperatures.
●When charging at low temperatures,
the temperature control system can
significantly improve the battery's
charging capability. For details
regarding low-temperature charging,
see P68.
●When the vehicle is used at
low temperatures, the battery's
temperature control system will start
heating the battery as appropriate
to ensure the driving power
and discharging performance and
improve your driving experience.
When the vehicle is driven over short
distances, heating may be ineffective,
which increases power consumption
and decreases driving range.
●When the high-voltage battery is
normal, the driving range of the vehicle
varies with the following factors:
●Driving habit: For example, the
range in frequent acceleration or
deceleration is shorter than that at
constant speeds, and the range is
shorter when driving at high speeds
than when at low speeds.
●Road conditions: For example, the
range driven in rough conditions or
on long slopes is shorter than that
in normal conditions and on even
roads.
●Temperature: The driving range at
low temperatures is shorter than that
at ambient temperatures.
●Use of electric equipment: For
example, the range driven with A/C
on is shorter than that with A/C off.
●Available power of the high-voltage
battery is lower in cold weather
and reduces as the temperature
decreases. When the vehicle is
parked at high power and charged
Battery Usage Tips
Halaman 83
in low temperature environment, the
SOC may jump to 100%.
●The available battery capacity
decreases as the vehicle is used over
time.
Battery Usage Tips
●It is recommended to use the vehicle at
temperatures between -10℃ to 40℃.
When SOC is low, timely charge the
vehicle to ensure enough driving range
and good acceleration performance.
●To ensure long term performance,
avoid driving in extreme temperatures
for over 24 hours.
●In low ambient temperatures, if the
vehicle must be stored for a long time,
it can be placed in an underground
garage or other warmer area to reduce
loss of battery heat, maintaining
vehicle performance.
●Frequent and sudden acceleration or
deceleration should be avoided. Drive
the vehicle on flat and dry roads.
When necessary, turn off high-power
equipment such as A/C or adjust
the A/C temperature to reduce power
consumption of such devices and
increase the driving range.
●Low-power charging contributes to the
service life of high-voltage battery.
●When the vehicle is used for the
first time or after a long idle period,
the SOC displayed on the instrument
cluster may not be correct. It is
recommended to fully charge the
vehicle first.
●It is recommended to fully charge the
vehicle at a regular basis (at least once
a week), and fully charge it from low
battery (SOC <10%) once every three to
six months.
●Under extreme working conditions
(such as frequent sudden acceleration/
deceleration) that cause battery
overheating, if the temperature of
high-voltage battery is excessively
high, it is normal for discharging
capability to decrease gradually. If
the battery temperature keeps rising,
the fault warning light lights up on
the instrument cluster. In that case,
it is recommended to contact a BYD
authorized dealer or service provider.
●When the battery SOC increases
or decreases abnormally, it is
recommended to contact a BYD
authorized dealer or service provider
for inspection.
04
WARNING
In the event of an emergency or
accident, be aware of the following
warnings:
USING AND DRIVING
●To avoid personal injury, do not
touch the high-voltage battery
directly.
●It is recommended to contact a
BYD authorized dealer or service
provider as soon as possible.
●If the high-voltage battery is
damaged and leaking fluid, avoid
any contact with the fluid.
If it comes into contact with
skin or eyes, rinse immediately
with plenty of water, and seek
immediate medical attention.
●If the vehicle catches fire,
use dedicated fire extinguishers
instead of water-based fire
extinguishers.
CAUTION
●To ensure safety of the high-
voltage battery, stop the vehicle
away from flammable and
explosive materials, ignition
Low Voltage Battery
Halaman 84
CAUTION
sources and various hazardous
chemicals.
●The available battery capacity
decreases as the vehicle is used
over time.
●Prolonged exposure to heat
sources and direct sunlight
will reduce high-voltage battery
service life.
●When the vehicle is not to
be operated for an extended
period (over seven days), it is
recommended that the battery
SOC should be kept at 40%-60%
to prolong its service life. When
the vehicle is not to be operated
for over three months, the high-
voltage battery must be fully
charged and then discharged to
40%-60% every three months.
Otherwise, over-discharge may
lead to battery performance
degradation or even damage. Any
vehicle fault or damage so caused
will not be warranted.
●If there is a collision with
the high-voltage battery, contact
a BYD authorized dealer or
service provider immediately for
maintenance.
●Do not add battery coolant*
by users themselves. If needed,
please contact a BYD authorized
dealer or service provider.
Recycling the High-Voltage Battery
When the new energy vehicle is to be
scrapped, please follow the following
procedures:
1. Send the vehicle to a BYD recycling
service outlet, which evaluates the
scrap value of the high-voltage battery.
2. After the evaluation, send the
vehicle to a vehicle recycling and
disassembling enterprise to remove its
high-voltage battery.
3. After the high-voltage battery is
removed, hand over it to the recycling
service outlet for repurchasing.
WARNING
●Owners of new energy vehicles
have the responsibility and
obligation to hand over waste
power batteries to service outlets.
Anyone who hands over a
used high-voltage battery to any
other organization or individual,
or removes/disassembles a
high-voltage battery without
authorization, shall be liable for
any environmental pollution or
safety incident so caused.
Low Voltage Battery
●The low-voltage battery used in
this vehicle is a BYD self-developed
lithium iron phosphate battery. The
smart charging function of low-voltage
battery make the high-voltage battery
with sufficient SOC to charge the low-
voltage battery, so as to extend the
endurance of the low-voltage battery.
① Positive pole
② Negative pole
Low Voltage Battery
Halaman 85
REMINDER
●When the vehicle is powered off
for smart charging, it makes such
a normal sound as when the
vehicle is powered on.
●Make sure that all electrical
equipment is turned off and the
doors are closed when leaving the
vehicle.
Wakeup in case of low vehicle battery
SOC
Wake-up by the driver's door
microswitch:
●The low-voltage battery features the
dormant/ wakeup function. After long-
term parking, if the vehicle locating
and unlocking cannot be realized with
the smart key, the low-voltage battery
may be in a dormant state. Then, press
the microswitch on the driver’s door
handle to wake up the low-voltage
battery. After the vehicle is unlocked,
it can be used normally.
Wakeup by Jump Start:
●When the vehicle cannot be waked
up and unlocked by the driver’s
door microswitch, use the mechanical
key to open the door. Then, a 12V
power supply can be used to start the
vehicle through two special cables for
the jump start. In this case, the low-
voltage battery SOC is low and the
vehicle may become dormant again.
Start the vehicle immediately and keep
it started for over 15 minutes to ensure
that the low-voltage battery is fully
charged.
●The jump start can only be carried
out through the special interface of
the front compartment fuse box. The
connection terminals for the jump start
are shown in the right figure.
① Positive terminal for the jump start in
the front compartment fuse box
② Negative terminal for the jump start
04
USING AND DRIVING
If the vehicle cannot be woken up and
started by the above operations, please
contact a BYD authorized dealer or
service provider immediately.
WARNING
●It is strictly prohibited to connect
the vehicle with other vehicles
for a jump start when its “OK”
indicator is off; otherwise, the 12V
battery may be damaged.
●If the low-voltage battery SOC is
too low or the battery fails, jump
starting may be required. Please
carefully read and strictly follow
the jump starting instructions in
this manual.
●The low-voltage battery contains
an intelligent control module.
To prevent battery damage,
Break-in Period Instructions
Halaman 86
WARNING
do not disassemble or damage
this battery without permission,
except in an emergency.
●Please disconnect the negative
terminal of the low-voltage
battery before replacing the parts
and repairing and checking the
vehicle.
●Do not clean the 12V battery with
liquid to avoid ingress of liquid
into the battery.
CAUTION
●The operation space of the front
compartment distribution box is
limited, and there are certain
circuit safety risks at the same
time. It is recommended to carry
out the operation under the
guidance of professionals.
Smart Charging
●Low-voltage battery SOC triggers the
smart charging function to extend the
battery endurance.
●The vehicle supports the smart
charging function, so it is not
necessary to disconnect the negative
terminal from the low-voltage battery
for long-term parking.
CAUTION
●Low-voltage battery SOC triggers
the smart charging function,
resulting in a decrease of the high-
voltage battery SOC or the driving
range in pure electric mode
displayed on the instrument
cluster, which is normal.
Charge Preheating
High-voltage battery preheating is
designed to shorten the DC charging time
in low temperatures.
Charging：
●Enter the battery preheating interface
by the infotainment touchscreen
→Energy → Charging and Discharging.
●Enable or disable battery preheating in
this screen.
REMINDER
●This function is disabled by
factory default.
●This function turns off
automatically when battery
temperature reaches appropriate
range and needs to be turned on
next time.
●Charge preheating cannot be used
during charging.
Usage Precautions
Break-in Period
●If the powertrain is hard to start or
frequently stops turning, inspect the
vehicle immediately.
●If the powertrain makes any abnormal
sounds, stop the vehicle for inspection.
●If the powertrain has severe coolant
and oil leakage, stop the vehicle for
inspection.
●The powertrain needs break-in. This
should preferably be done within the
first 2,000 km in economic mode.
Steady driving instead of high-speed
driving is recommended. The following
Suggestions for Vehicle Use
Halaman 87
practices effectively prolong vehicle
service life:
●Avoid flooring the accelerator pedal
when starting and driving the vehicle.
●Avoid speeding.
●Do not drive fast or slow at a single
speed for a long time.
Suggestions for Vehicle
Use
In order to delay the battery
life,the following recommendations are
available:
●Before the vehicle is used for the first
time, it is recommended to do a full
charge of the vehicle. If the full charge
has not been completed after picking
up the vehicle, charge the vehicle in
time after the power is less than 5%
when using it.
●When a vehicle is placed for a long
time (more than 7 days), the power
must be kept to 40%-60%; otherwise,
the service life of the high-voltage
battery is shortened.
●When the vehicle is not to be operated
for over three months, the high-voltage
battery must be fully charged and then
discharged to 40%-60% every three
months. Otherwise, over-discharge
may lead to battery performance
degradation or even damage. Any
vehicle fault or damage so caused will
not be warranted.
●If the meter shows that the pure
electric driving mileage is 0 and the
battery power has been sufficient,
please charge it in time to avoid long
time low power use.
●To keep the battery at its best, charge
it fully with a charging adapter on a
regular basis (at least once a week).
●To ensure long-term performance,
avoid exposing the vehicle to
temperatures greater than 60℃ or less
than -30℃ for more than 24 hours on a
continuous basis.
●After an accident, have the seat belts
checked at a BYD authorized dealer or
service provider.
●Repeated acceleration and rapid
deceleration should be avoided as
much as possible when the vehicle is
in use.
●When the vehicle is in use, it
should be avoided for a long period
of continuous use, as prolonged
operation may cause the battery
temperature to become too high,
affecting the performance of the
vehicle.
04
USING AND DRIVING
●Contact a BYD authorized dealer or
service provider for inspection as soon
as possible in the event of the fault
prompt.
●The vehicle performance will be
limited when the battery temperature
is high. Please have the vehicle placed
until the battery temperature drops
before using it.
REMINDER
●If the meter display drops to
0, it must be recharged. If
it is not recharged within 7
days,it will result in permanent
damage to the battery. And the
resulting damage to the high-
voltage battery pack will not be
honored by BYD under the terms
of the warranty.
●The range depends on the
vehicle’s available power, age
(current battery life), weather,
temperature, road conditions,
driving habits, etc. In cold
Instructions for Carrying Luggage
Halaman 88
REMINDER
or hot environments, electric
range is reduced compared to
room temperature, and power
performance is also affected.
Trailer Towing
●This vehicle is designed to carry
passengers. Do not overload it or use
it to tow other vehicles.
●Towing other vehicles has an adverse
impact on the maneuverability,
performance, braking, endurance,
driving economy, power consumption,
and other aspects of performance of
the vehicle itself.
●Driving safety and comfort totally
depend on equipment usage and good
driving habits.
●Damage or malfunction caused by
towing the trailer is not covered by the
warranty.
●When moving a vehicle on a flat trailer,
make sure that the vehicle being
moved is properly secured to prevent
it from sliding back.
Driving Safety
Precautions
No driving after drink
Even a small amount of alcohol reduces
the reaction capability to different traffic
conditions. The more one drinks, the
slower he acts to traffic conditions. No
driving after drink.
Control the speed of the vehicle
Speeding is the main cause of car
crashes. Generally speaking, the faster
the speed, the greater the risk. Please
keep a safe speed according to the road
traffic conditions.
Keeping the vehicle in a safe driving
state
Tire burst or mechanical failure is
extremely dangerous. To reduce the
possibility of such failure, the vehicle
condition should be checked frequently
and the specified inspection items should
be completed regularly.
CAUTION
●Drivers must obtain a driver's
license before driving a vehicle.
●Fatigue driving is not allowed.
●Drivers must obey the traffic rules
when driving a vehicle.
●When driving, please pay
attention to driving. Do not
perform operations unrelated to
driving (such as answering and
calling, adjusting buttons, etc.).
Carrying Luggage
●This vehicle features several
different spaces for convenient
storage of articles. Overloading or
improper accommodation may affect
maneuverability, stability and normal
operation of the vehicle, and reduce its
safety.
●For loading baggage, the total mass
of the vehicle body, all passengers,
and baggage shall not exceed the
maximum allowable mass.
WARNING
●Overloading and improper
accommodation may affect
Fire Prevention Instructions
Halaman 89
WARNING
stability and vehicle control,
which may lead to accidents.
●Observe the maximum weight
limit and other loading guidelines
in this manual.
●Do not carry highly magnetic
items, as they might interfere in
the vehicle's operating functions.
Carrying Luggage in the Passenger Area
●Properly place or fix all articles to
prevent them from getting loose and
hurting passengers in the vehicle in
case of collision.
●Do not store any items on the rear sill
plate that will obstruct and interfere
with your view and will be thrown
around inside the vehicle in the event
of a collision.
●Make sure that the articles placed on
the floor behind the front seats do
not roll under the seat, so as not to
affect the driver to operate the pedal
or normal adjustment of the seat. Do
not stack the articles higher than the
backrests of the front seats.
●During driving, always keep the
glovebox closed. If the glovebox
is open, knees of passengers may
be injured in case of collision or
emergency braking.
REMINDER
●There are potential safety hazards
in the car full of children's
toys, especially in the case of
emergency braking or collision,
which will not only affect the
safety of driving, but also may
cause harm to children.
Loading Baggage in the Trunk
●Place the baggage evenly on the boot
lid, and put the heaviest luggage at the
bottom and put it forward as far as
possible.
●Secure the articles with ropes or chains
to make sure they do not move during
driving. Do not stack the articles higher
than the seat backrests.
Fire Prevention
To effectively prevent vehicle fires,
please take the following precautions:
04
●No flammable or explosive items are
allowed in the vehicle.
USING AND DRIVING
●Temperatures may reach 60-70°C in a
vehicle exposed to direct sunlight in
summer. Therefore, flammable and
explosive items, such as lighters,
cleaning agents and perfumes stored
in the vehicle can cause a fire or even
explosion easily.
●Make sure cigarettes are thoroughly
put out.
●Smoking is harmful to your health
and may cause a fire. Cigarettes that
not thoroughly put out may cause a
fire.
●It is recommended to go to a BYD
authorized dealer or service provider
for regular vehicle checks.
●Check vehicle wiring, connections,
wiring harnesses, insulation, and
fixed position regularly. Deal with
identified problems promptly.
●Do not modify the vehicle's wiring
or install any additional electrical
appliances.
●Installing other electrical appliances
(such as high-power audio systems
and lights) causes excessive wiring
Saving Energy and Extending Vehicle Service Life
Halaman 90
load, resulting in heating of the
wiring harness and fires.
●Improper modification of electrical
appliances and wirings causes
abnormal heating and fires due to
contact resistance. Do not replace
fuses with those beyond the rated
specification of electrical appliances
or with other metal wires.
●Park the vehicle in a proper place.
●Do not park the vehicle in a place
exposed to the sun.
●Always keep portable fire extinguishers
on the vehicle and know how to use.
●To ensure vehicle safety, a fire
extinguisher should be equipped
in the vehicle, and be checked
and replaced regularly. Also, you
should familiarize yourself with use
of the fire extinguisher in case of an
accident.
●Disconnect the negative cable of the
low-voltage battery when the vehicle is
being serviced or repaired.
●In the event of a fire in the vehicle,
take effective measures in a timely and
calm manner to minimize any losses:
●Fires typically show initial warning
signs, such as abnormal noises and
odors in the vehicle body. When
abnormal conditions are found, turn
off and stop the vehicle immediately.
It is best to park the vehicle in a
windproof place, and then put out
the fire using the fire extinguisher in
the vehicle.
●Dial (fire emergency number) to
notify the authorities and insurance
company. Call the insurance
company to report the case, and ask
the insurance company to deal with it
on the spot.
●Find out the origin of the fire. In
case of any smoke in the front
compartment, do not open the
hood immediately (because this
aggravates the combustion and
spread of the fire due to air ingress.
There are limited combustibles in
the front compartment, so the hood
shall be kept closed to control
the flames, which is conducive to
firefighting). The fire extinguisher in
the vehicle can be used to put out
the fire from the front hatch gap
against the fire parts. Or the driver
is supposed to ask for help from the
passing vehicles. If more than one
extinguisher can be borrowed, the
user is supposed to open the front
hatch and fight against the fire.
●After the fire brigade put out the fire,
ask them for a rescue certificate and
statement of fire cause.
●After the accident, contact the
insurance company in time for post-
accident handling.
REMINDER
●In order to mitigate losses in the
event of an accident, the purchase
of commercial insurance (fire loss,
theft, etc.) is recommended.
Saving Energy and
Extending Vehicle Service
Life
●Saving power is simple and easy, and
it helps prolong the vehicle's service
life. Energy saving and cost of repairs
saving tips:
1. Regenerative Braking Setting:
●This vehicle has energy recovery
function and energy recovery intensity
setting function, which can be set on
the touchscreen→Settings → Energy
→ Energy Manager. When the energy
Snow Chain Instructions
Halaman 91
recovery mode is set to a larger gear,
it can increase the energy collected
during braking and sliding of the
vehicle. Please set it according to your
driving habits.
2. Maintaining Constant Speed:
●Constant speeds help save energy.
Sudden acceleration, sharp turns
and emergency braking increase the
energy consumption.
●Speeds should be kept constant
as much as possible according to
traffic conditions. Additional energy is
consumed each time when the vehicle
speeds up.
●Acceleration should be constantly
slow. Avoid the sudden startup,
acceleration, or deceleration.
●Prevent emergency braking, and
subsequent brake wear, by keeping
an appropriate distance from vehicles
ahead, and paying attention to traffic
lights.
●Do not drive on congested roads as
much as possible.
●Keep moderate speeds on motorways.
The higher the speed, the higher
the power consumption. Maintaining
vehicle speed within the economical
speed range can save power.
3. Reduce Load:
●The use of the A/C brings additional
load to the motor, resulting in large
power consumption. Turn off the A/C
to reduce power consumption. In nice
weather, it is recommended to use the
fresh air mode for ventilation.
●Do not load unnecessary weight on the
vehicle. Excessive weights will add the
load of vehicle, increasing the power
consumption.
4. Other Tips:
●Maintain proper tire pressure. Low tire
pressure increases power consumption
and tire wear.
●Keep front wheels properly aligned.
Avoid driving into curbstones, and
drive slowly in rough terrain.
Misalignment of the front wheels not
only increases tire wear, but also
increases load on the powertrain and
power consumption.
●Keep the chasis of the vehicle clean
and mud free. This reduces vehicle
weight and prevents corrosion.
04
REMINDER
●Do not coast in neutral gear.
USING AND DRIVING
Snow Chains
●Snow chains are for emergencies or
areas where they are permitted by
laws only.
●Snow chains are to be fitted to
the front wheels and extra care is
required for driving a vehicle fitted
with snow chains on icy roads.
Some snow chains may damage the
tires, wheels, suspension and body
of the vehicle.Therefore, thin snow
chains should be selected to provide
sufficient free space between the tires
and other parts in the wheel cover.
●Install the chains symmetrically and
remove them immediately after driving
on snowy or muddy roads.
●Please carefully check and read the
component assembly drawing and
other instructions of the anti-skid
chain manufacturer.
●Before purchasing and installing snow
chains, consult a BYD authorized
dealer or service provider where your
vehicle was purchased.
Starting inside the Vehicle
Halaman 92
●In order to minimize wear of wheels
and snow chains, do not travel with
snow chains on roads without snow.
●Do not drive above 30 km/h or the limit
speed specified by the snow chain
manufacturer, whichever is lower.
●Do not install snow chains with low tire
pressure.
WARNING
●If an abnormal sound is heard
from the snow chain, please stop
the vehicle immediately to check
whether the vehicle components
such as suspension, body or brake
lines are normal, and ensure that
there is no contact between them
and the snow chains.
●For vehicles with snow chains,
avoid sharp turns or braking with
locked wheels, and slow down the
vehicle before entering a curve
to avoid accidents due to loss of
control.
●Drive carefully, paying attention
to bumps, potholes, and sharp
turns that can cause the vehicle to
bounce.
Starting and
Driving
Starting the Vehicle
In normal cases, start the vehicle as
below:
●Engage the parking brake firmly.
●Turn off all unnecessary lights and
accessories.
●Place the gearshift lever in the P or N
position.
●Carry a valid smart key ①.
●Press the brake pedal ② and START/
STOP button ③.
●The vehicle is ready to drive when
the OK indicator lights up on the
instrument cluster.
The vehicle cannot power on when:
●The vehicle cannot power on when:
●When pressing the Start/Stop button,
if the smart key system indicator
lights up, the vehicle horn makes
a sound, and the information
display screen of the instrument
cluster displays "No key detected",
it indicates that the electronic smart
key is not in the vehicle or cannot be
detected due to interference.
●Even if the electronic smart key is
inside the vehicle, the vehicle may
not be started either when the key
is on the floor, in the boot, or in the
right glovebox.
Preparations before Driving
Halaman 93
Starting the vehicle in emergencies
when the braking signals are missed or
wrong:
●Engage the parking brake firmly.
●Turn off all unnecessary lights and
accessories.
●Place the gearshift lever in the P or N
position.
●Ensure the vehicle is powered off.
●Make sure the electronic intelligent key
is inside the vehicle.
●Press and hold the START/STOP button
for more than 15 seconds to start the
vehicle.
REMINDER
●Do not touch the power button
while driving.
Safety inspection before driving
General Exterior Iinspections of Vehicle
●Tire: check the tire pressure and
carefully check whether there are
cuts, damages, or foreign matters on
the tread, and whether the tires are
abnormally or excessively worn. In
case of excessive wear or eccentric
wear, drive the vehicle to a BYD
authorized dealer or service provider
for four-wheel alignment and relevant
inspection as soon as possible.
●Wheel nuts: Confirm whether nuts are
loose or missing.
●Leakage: check underneath the vehicle
for leakage of oil, coolant or other
liquids (except water droplets from A/C
condensation) after the vehicle stops
for a while.
●Lighting: Confirm that headlights,
position lights, turn signals, and other
lighting facilities all work normally.
Check the light intensity of headlights.
General Interior Inspections of Vehicle
●Seat belt: Check whether the buckle
can be fastened. Confirm that the seat
belt is not worn or scratched.
●Instrument cluster: confirm that the
maintenance indicator, instrument
cluster lighting and defroster work
normally.
●Brake pedal: Confirm that the
brake pedal has enough space for
movement.
04
Inspections Inside the Hood
●Spare fuses: Verify that spare fuses of
all rated charges in the fuse box are
available.
USING AND DRIVING
●Coolant level: Confirm that the coolant
level is correct.
●Brake fluid level: Confirm that the
brake fluid level is correct.
●Low-voltage battery and cables:
Check the connector for corrosion or
looseness, and check the shell of the
battery for cracks.
Inspections after vehicle startup
●Instrument cluster: Confirm that
the maintenance indicator and
speedometer work normally.
●Brake: Test the vehicle in a safe
place to determine whether the vehicle
deflects toward any direction during
braking.
●Other abnormalities: check for loose
parts, leakage and abnormal noise.
Preparation before driving
●Check the surroundings of the vehicl
before getting on the vehicle.
Gear Shift Controls
Halaman 94
●Adjust the seat position, seat backrest
angle, seat cushion height, head
restraint height, and steering wheel
angle and height.
●Adjust the rearview mirrors.
●Make sure all doors are closed.
●Fasten the seat belt.
Remote Start
Remote Start with the Electronic Smart
Key
●Press and hold the start/stop button
on the smart key to start the vehicle.
After the vehicle is started successfully,
the turn signals flash 3 times.
●Press and hold the start/stop button
on the smart key to start the vehicle.
After the vehicle is started successfully,
the turn signals flash 2 times.
●If there is no operation within 10
minutes after remote start, the vehicle
stops and powers off, and turn signals
flash twice.
REMINDER
●Do not pile up children's toys
in the vehicle. Such toys may
affect the driving safety in case of
emergency braking or collision.
Gear Shift Controls
Gear positions of the transmission are
marked on the instrument switch group,
as the figure indicates.
●"R": Reverse. Shift to R only after the
vehicle stops.
●“N”: Neutral. Used for temporary
stop. The Parking gear must be
engaged whenever the driver leaves
the vehicle.
●“D”: Drive. This gear is engaged for
normal driving.
●“P”: Park.This gear shall be engaged
before the vehicle is started or after the
vehicle is parked. Start the vehicle and
press the brake pedal to shift the lever
from P to another position.
WARNING
●If the motor is shut down, do not
move the vehicle after shifting to
Engaging EPB Automatically
Halaman 95
WARNING
the "N" gear to avoid accidents
due to insufficient braking force.
●If the motor is running and the
vehicle is in R/D, be sure to
press the brake pedal to stop
the vehicle. Because even under
idle conditions, the transmission
can still transmit power, and the
vehicle may move forward slowly.
●During driving, do not press the
accelerator pedal while shifting
gears to avoid accidents.
●To avoid accidents, do not shift
lever to the "R" gear or press the
"P" button during driving.
●Never coast downhill in "N” gear,
even if the motor is not running.
●To prevent the moving of the
vehicle, pull up the EPB after the
vehicle stops stably and press the
"P" button.
CAUTION
●To prevent damaging the
transmission, press the "P"
button only after the vehicle has
completely stopped.
Electronic Parking Brake
(EPB)
Be sure to engage the EPB every time
before parking and leaving the vehicle.
Engaging EPB Manually
Set EPB on the "EPB" option on
infotainment touchscreen, when you
press the brake pedal and EPB is
released, EPB applies an appropriate
parking force, the indicator on the
instrument cluster flashes and then is
steady on, indicating that EPB is engaged.
In addition, a text prompt "EPB activated"
is displayed.
CAUTION
●When
flashes, EPB is
working. If the vehicle is on a
slope, do not release the brake
pedal until
is steady on.
Otherwise the vehicle may move
down.
04
Engaging EPB Automatically
This function is designed to improve
the vehicle safety. Excessive reliance on
or frequent use of the function is not
recommended. To ensure safety, make
sure that the transmission is shifted to P
or the EPB is engaged before leaving the
vehicle.
USING AND DRIVING
●Switching the power from OK to OFF
engages the EPB automatically. The
indicator
on the instrument cluster
lights up.
●Press the brake pedal to stop the
vehicle and shift into Park. EPB is
engaged automatically. Do not release
the brake pedal until the indicator
on the instrument cluster
stops
flashing and becomes steady on
and the "EPB activated" message is
displayed.
●Press the brake pedal to stop the
vehicle and shift into Park. EPB is
engaged automatically. Do not release
the brake pedal until the indicator
on the instrument cluster
stops
flashing and becomes steady on
and the "EPB activated" message is
displayed.
EPB System Indicator
Halaman 96
Automatic EPB Release upon Vehicle
Start
●When the vehicle is parked, start the
vehicle, press and hold the brake
pedal, and shift to D or R from P or
N to automatically release EPB. The
indicator goes out, and a text prompt
reading "EPB released" is displayed.
CAUTION
●Please follow the correct shift
instructions and keep depressing
the brake pedal throughout the
shifting process. Do not release
the brake pedal until the gear
position shown on the instrument
cluster is the target one.
●Within several seconds after the
vehicle is started, the EPB system
will conduct self-check upon
power-up. In this process, the EPB
will not respond to any function.
●When the vehicle has been started and
the gear is in a driving gear such as
Drive or Reverse, engage EPB on the
infotainment touchscreen, then simply
press the accelerator pedal slowly
to a certain degree. EPB is released
automatically and
turns off with
the message "EPB released" displayed.
Emergency Braking When Brake Pedal
Fails
●During driving, if the brake is blocked
or fails, press the "P" gear switch
continuously for more than 2 s to
realize emergency braking.
CAUTION
●For safety considerations, refrain
from using EPB for braking in
normal driving. It is preferred to
CAUTION
be used when the brake pedal
fails or is blocked.
●Because EPB cannot exceed
the physical limit of road
adhesion, using the emergency
braking function when passing
through curves, dangerous roads,
and traffic congestion sections,
or driving in severe weather
conditions may cause the vehicle
to drift, slip or deviate, so
attention should be paid to avoid
accidents.
CAUTION
●To ensure driving safety,
avoid using the "P" button
for emergency braking under
normal circumstances. In case
of emergencies such as power-
assisted brake failure or brake
pedal blockage, the driver must
always maintain control of the
vehicle and properly use the
emergency braking function.
EPB System Indicator
●When the vehicle is powered on, if the
EPB is engaged, the indicator
on
the instrument cluster stays on.
●When the power of the vehicle is
turned off, if the EPB is turned on, the
indicator
light on the instrument
will turn off after a few seconds.
●When the vehicle is powered on, the
EPB system performs self-inspection.
The indicator
on the instrument
cluster lights up for a few seconds and
then goes out. If it does not go out,
it indicates that the EPB system or
braking system may be faulty. Contact
AVH Standby Preconditions (All Must Be Met)
Halaman 97
a BYD authorized dealer or service
provider immediately.
EPB Operating Sound
●EPB motor noises can be heard while
the EPB is being engaged or released.
●After the emergency braking function
is activated, if burning smell or
abnormal noise appears, contact a BYD
authorized dealer or service provider
immediately.
WARNING
●To prevent the vehicle from
moving, the gearshift is not to
be used to replace EPB when
parking. EPB must be used
instead, and the vehicle must be
in "P" gear.
●The Electronic Parking Brake
(EPB) switch must not be
operated when the vehicle
is moving to prevent severe
accidents.
●When the EPB switch is pulled
or released, the brake pedal
must be pressed to prevent
the vehicle from moving, and
the subsequent locking of the
gearshift that occurs because
EPB cannot provide a sufficient
parking force.
●Avoid using the EPB system to
stop the vehicle. The emergency
braking function can only be
activated in case of emergency
situations such as pedal brake
failure or brake pedal blocked.
●Because EPB cannot exceed
the physical limit of road
adhesion, using the emergency
braking function when passing
through curves, dangerous roads,
and traffic congestion sections,
or driving in severe weather
WARNING
conditions may cause the vehicle
to drift, slip or deviate, so
attention should be paid to avoid
accidents.
Automatic Vehicle Hold
(AVH)
Automatic vehicle hold (AVH) is a feature
designed to hold the vehicle stationary
when it comes to a stop, under conditions
such as getting stuck in traffic or waiting
at a traffic light. AVH automatically
activates when the brake pedal is pressed
to stop the vehicle (vehicle speed
decreases to zero) on the premise that
the conditions for AVH standby state are
met.
04
USING AND DRIVING
Press the AVH button to turn AVH on.
CAUTION
●To exit the activated AVH and set
it to the standby mode, press the
accelerator pedal or shift to P. If
the AVH standby state are not met,
it will be off.
AVH Standby Preconditions (All Must Be
Met)
With the AVH function activated:
●The driver seat belt is fastened.
Driving Safety Precautions
Halaman 98
●The driver's door is closed.
●The vehicle is started.
●ESC are free from any fault.
CAUTION
●The AVH is off by factory default.
Conditions for AVH function
●The AVH function is standby.
●The brake pedal has been pressed to
bring the vehicle to a stop.
●After hard depressing of the brake
pedal, the AVH function has been
activated and the AVH indicator has
turned green.
●The vehicle automatically requests
that the EPB be engaged 10 minutes
after AVH activation. After the EPB
has been engaged, the AVH function
returns to standby mode.
CAUTION
●For AVH to be activated, all the
conditions must be met at the
same time.
●For AVH to be activated, all
conditions of automatic parking
function must be met.
●When you shift from "R" to "D"
or "N", the system automatically
enters slow-moving condition, in
which AVH is deactivated. When
the vehicle speed exceeds 10
km/h, it exits the slow-moving
condition automatically.
Driving Precautions
●When driving on the road with
curbstone, drive slowly and keep the
correct angle as far as possible. Avoid
driving on objects with high sharp
edges or other road obstacles, which
will cause serious tire damage.
●Slow down when driving on bumpy
roads or rough roads. Otherwise, the
impact may seriously damage the
wheel.
●Avoid driving through flooded areas as
much as possible.
WARNING
●The driver shall ensure the
safety of all passengers in the
vehicle, guide them to properly
use vehicle features, and prevent
misuses by passengers such as
children.
REMINDER
●The battery is located in the
vehicle's chassis, so be careful to
avoid bumping when driving.
●Before driving, make sure that
EPB is fully released and the EPB
indicator is off.
●When the vehicle is at the stage of
OK, do not get out of it.
●Remember to bring the key when
leaving the vehicle.
●Slow down when driving down
long steep slopes. and avoid
braking too frequently to prevent
disc overheating, which affects
brake performance.
●Drive with care when accelerating
or braking on slick roads. Quick
acceleration or sudden braking
will cause the vehicle to skid or
deviate.
●To avoid traffic accidents or even
life-threatening injuries, make
sure no one extends any body
Driving Safety Precautions
Halaman 99
REMINDER
part out of any window when the
vehicle is running. Stay vigilant,
especially when any child is in the
vehicle.
●Avoid driving through flooded
areas as much as possible.
●Large amounts of water
entering the engine compartment
can cause damage to the
power system and electrical
components.
Precautions after driving through
waterlogged road stretches:
●The depth of water must be
ascertained to ensure it will not exceed
the lower edge of the vehicle body.
●Before driving through a waterlogged
road section, turn off the A/C and shift
to a low gear. Then gently press and
hold the accelerator pedal to drive
through the section at a slow and
steady speed.
●Do not park the vehicle in water, or
reverse the vehicle and turn off the
motor in water.
●Drive carefully as driving through deep
water may wet the brakes. Press the
braking pedal slightly and make the
brake dry.
●After driving through the flooded area,
press the brake pedal several times
continuously and gently to evaporate
the water on the brake disc, so as to
restore normal braking performance as
soon as possible.
WARNING
●If there is any water or mud
on the brake disc, it may result
in delayed brake reaction and
extended braking distance, so
attention should be paid to
preventing accidents.
●Caution! The ice or water on the
brakes must be cleaned.
04
●Avoid emergency braking as much
as possible after driving through
waterlogged road stretches.
USING AND DRIVING
●If the vehicle drives on the
waterlogged road. If the vehicle
is running on a low-lying and
waterlogged road, prevent water
ingress into the motor; otherwise,
the motor may be seriously
damaged. The resulting vehicle
fault and damage may not be
covered by the warranty.
●After the vehicle is driven through
the waterlogged road stretches,
the transmission system, driving
system, electrical system, and
other vehicle components may
also be seriously damaged.
The resulting vehicle fault and
damage may not be covered by
the warranty.
Influence of water ingress on high-
voltage components
●High-voltage components are
electronic devices. After the vehicle
is soaked in water, drying the high-
voltage components in the sun or air
cannot ensure the full evaporation of
water.
Winter Tires
Halaman 100
●Water ingress may also greatly
affect the insulation of high-voltage
components; at the same time, the
conductive substances contained in
water may cause internal short circuits
of high-voltage components or high-
voltage systems. In this case, the safety
and service performance of the vehicle
may be seriously affected.
●Water ingress into high-voltage
components has a severe impact on
the product's IP rating, ability to
withstand voltage and other areas of
performance, which poses great safety
risks. Should this occur, contact a BYD
authorized dealer or service provider
immediately.
Winter Driving Precautions
1. Make sure the coolant is freeze-proof.
●Use coolant of the same type as the
one used originally. Fill up coolant
into the cooling system based on
ambient temperature.
●Improper coolant will damage the
cooling system.
2. Check the battery and cable
conditions.
●In winter, ensure that the 12V battery
has sufficient charge to start the
vehicle, as low temperatures can lead
to a decrease in the battery's energy
output.
3. Avoid the door lock frozen by ice and
snow.
●Spray some deicing agent or glycerin
into the door lock hole to prevent
icing.
4. Use washer fluid containing antifreeze.
●Such products are available in
BYD authorized dealers or service
providers and all auto parts stores.
●The mixing ratio of water and
antifreeze shall comply with the
manufacturer's instructions.
CAUTION
●To prevent damage to the
vehicle's paintwork, use a special
washer fluid.
5. Avoid accumulation of ice and snow
under the mudguard.
●The accumulation of ice and snow
under the mudguard may make
steering difficult. When driving in
cold winter, pull over the vehicle
often to check whether there is ice
and snow accumulated under the
mudguard.
6. It is recommended to carry several
necessary emergency tools or items
according to different road conditions.
●It is advisable to have snow chains,
window scraper, bags of sand and
salt, flashing signal, a shovel and
connecting cables in the vehicle.
Winter Tires
●Winter tires provide better traction
on snowy roads. The special rubber
tread pattern makes the tires less
affected by low temperatures and
delivers excellent braking performance
to improve driving safety.
Usage tips
●It is recommended to use winter
tires in snow or ice conditions or
at temperatures below 7°C. When
temperatures rise to above 7°C, install
summer or all-season tires instead for
driving safety and better performance.
●Winter tires must be the same size,
load index, and speed rating as those
originally provided by BYD.
ACC System Activation Conditions
Halaman 101
●Winter tires must have adequate tread
depth. Tires with a tread depth less
than 4 mm do not perform well in
winter conditions.
●Winter or summer tires are designed
for specific acceleration conditions.
Use them in the corresponding
seasons to avoid poor traction or
braking performance.
●Do not exceed the speed rating of
winter tires, which is relatively low.
●After installing winter tires, inflate
them to the design pressures.
Driver Assistance
Adaptive Cruise Control
(ACC) System*
●The Adaptive Cruise Control (ACC)
system, an extension of traditional
cruise control, uses a front mmWave
radar and a front camera to detect
the relative distance and speed of a
vehicle ahead, and controls the speed
of the own vehicle according to the
following distance and target cruise
speed set by the driver, so as to
achieve the purpose of adaptive cruise.
If the front of the vehicle is clear,
the ACC will maintain the set cruising
speed and drive forward. If another
vehicle is detected in front, ACC will
adjust the vehicle speed according to
the following time set by the driver.
Description of working state
●ACC standby state:
●After the system is turned on, it
is in standby mode by default and
can be activated through the driver's
active operation. However, it is also
possible that the vehicle does not
meet the conditions for activation. In
this case, the driver should actively
check the vehicle to make it meet the
activation conditions. At this time,
is displayed on the instrument
cluster.
●ACC activation state:
●The system is in a normal working
state. The vehicle can run at a
fixed speed or automatically adjust
the distance from the target vehicle
ahead for stable following.
is then
displayed on the instrument cluster
(cruise speed is variable).
●State of cruise control acceleration:
04
●When ACC is activated, the driver
can press the accelerator pedal to
accelerate, and ACC stops working
until the driver releases the pedal.
USING AND DRIVING
●ACC fault state:
●The system is in a fault state and
cannot be operated, and the ACC
system fault state indicator
on
the instrument cluster lights up. It
is recommended to contact a BYD
authorized dealer or service provider.
Preconditions for ACC System
Activation
●EPB is released.
●The vehicle is in D gear.
●The vehicle does not slide backwards.
●The trunk, hood, and all doors are
closed.
●Driver seat belt is fastened.
●ESC system is turned on but not
activated.
●The vehicle speed is not greater than
150 km/h.
●Brake pedal is pressed at speed 0; or
brake pedal is not pressed at speeds
above 0.
System Limitations
Halaman 102
●There is no vehicle network
communication failure prompt on the
instrument cluster.
●The AEB function is not activated.
Cruise Control Button Operation
Activating/Deactivating ACC
●Press ① to activate the ACC function.
Resetting ACC
●When the ACC system is on standby
within the same ignition cycle, the
system memorizes the last speed
setting. Push up the lever ②to restore
to the stored speed prior to exiting the
cruise system.
Increasing/Decreasing target speed
●When ACC is active, set the vehicle to
a speed within the 30~150 km/h range
by moving the lever ②. Toggle the
lever ② up/down to increase/decrease
the target speed in 5 km/h increments.
Exiting ACC
●Press Button ① or Button ③, or the
brake pedal to deactivate ACC and set
it to the standby mode.
Setting Following Distance
●The driver is responsible for selecting a
safe following distance.
●This ACC system can adjust the vehicle
speed to maintain a proper distance
from a target vehicle ahead in the
same lane. The distance (four levels)
is adjusted by pressing Button ④ and
Button ⑤. At each level, the following
distance is in direct proportion to the
vehicle speed. The faster the speed,
the longer the distance.
Active Acceleration/Deceleration While
ACC Is Activated
●When ACC is activated, press the
accelerator pedal to increase the
vehicle speed to reach the set target
speed in advance, and the system
enters a state of cruise control
acceleration mode. When the vehicle
is already traveling at the target cruise
speed and the accelerator pedal is
pressed, the vehicle will take the
current speed as the target speed;
if the brake pedal is pressed, ACC
automatically enters standby status,
and needs to be re-activated after the
brake pedal is released.
Follow-to-Stop/Start
●Controlled by ACC, the vehicle
stops when other vehicles ahead
stop in normal driving conditions
and it resumes driving automatically
following the vehicles ahead if the stop
is less than 30 seconds.
●If the stop time is between 30 seconds
and 3 minutes, the driver needs to
either press the accelerator pedal or
pull up the lever ② to activate ACC.
●If the stop time is more than 3 minutes,
ACC automatically enters standby and
the EPB switch engages.
System limitations
●The front mmWave radars and cameras
are installed in the front of the vehicle.
Blockage of its detection area by
contaminants can disturb the intended
function. In particular, if the sensor is
covered by snow completely, the ACC
system exits The system transmits the
Precautions
Halaman 103
message of its exit on the infotainment
touchscreen. System function will
recover after blockage is removed and
the vehicle is restarted or runs for a
while.
●Front mmWave radar sensors and
cameras may have a transient function
failure from limited detection if the
vehicle runs under special conditions,
such as circular ramps or tunnels, for
an extended period. The function can
be recovered by restarting the vehicle
or driving on normal roads for a while.
●Reaching or leaving a curve may delay
or disturb target selection. In such
cases, the ACC vehicle may not brake
as expected or may brake late.
●On roads with sharp curves, such as
winding roads, the vehicle ahead may
be out of ACC sensor detection for
several seconds due to sensor vision
limitations, possibly causing the ACC
vehicle to accelerate automatically.
●Traffic flow and weather conditions,
such as rain and fog, must be heeded
for setting vehicle distance on the
ACC system. After ACC is properly
set, the driver should make sure that
the vehicle can be decelerated to a
complete stop at any time.
●The ACC system may not be able
to identify stationary or slow-moving
objects, such as vehicles, the end
of traffic, toll booths, bicycles, or
pedestrians. This means a risk of
collision and requires the driver to
beware of the surroundings.
●The ACC system cannot identify
pedestrians or oncoming vehicles.
●The ACC system can only achieve
limited braking instead of emergency
braking.
●Performance of front mmWave radar
sensors and cameras may be affected
by vibration or collision. In this case,
it is recommended to contact a BYD
authorized dealer or service provider.
●ACC cannot be activated when
the vehicle is in any special
driving mode (Trailer/Snow/Mud/
Sand/Mountain mode).
Precautions
●ACC is a comfort system rather than
a safety system, obstacle detector or
collision warning system. The driver
must keep control of vehicle at all
times and be fully responsible for the
vehicle.
04
●The ACC assists the driver, but is not
a substitute for the driver. Drivers
must abide by traffic rules and keep
vehicle control at all times and be fully
responsible for their vehicles.
USING AND DRIVING
●For safety reasons, ACC cannot be
activated with ESC disabled.
●The ACC is suitable for highways and
roads in good conditions, rather than
complex urban or meandering roads.
●It is the driver's responsibility to keep
distance from the vehicle ahead. The
ACC system's vehicle distance meets
the minimum distance required in
driving environments in the country.
●Vehicle control is transferred to the
driver if the accelerator or brake pedal
is pressed with ACC active. As a result,
the ACC system cannot keep a safe
distance from the vehicle ahead.
●ACC may have no or slow responses to
a vehicle ahead that brakes or stops
suddenly, resulting in a risk of late
braking. In this case, the driver will not
receive a takeover request.
●In some cases (when a vehicle ahead
is running slowly relative to the
vehicle, changing lanes too suddenly,
or keeping excessively short safety
distance), ACC may not have enough
Precautions
Halaman 104
time to decreasethe relative speed.
In such cases, the driver must react
appropriately. The system cannot give
audio or visual warnings in every case.
●If ACC is activated with the vehicle
stationary, the system identifies any
stationary obstacle ahead and keeps
the vehicle still to ensure a safe startup
and prevent collision. However, this
function cannot cover all obstacles,
so the driver must ensure that there
are no obstacles or other traffic
participants in front of the vehicle.
●When enabled, ACC may apply braking
if a vehicle in an adjacent lane is too
close to the vehicle.
●If another vehicle changes to the
lane on which the vehicle with ACC
activated is running and falls within
the detection range of the front view
camera, it may be recognized as a
target vehicle, and a response may
be triggered correspondingly. In this
event, forced braking or late braking
may occur.
●Detection may be affected or delayed
in some environments. The system
may not be able to estimate its
distance with vehicle ahead, resulting
in either late or no response to those
vehicles. In these cases, vehicle speed
must be controlled by the driver.
●ACC cannot target vehicles with too
small contact ratio, so the driver must
keep control of the vehicle.
●When the vehicle stops as it follows
a vehicle ahead, in rare cases, the
system does not recognize the end of
the vehicle ahead but the lower end of
the target (for example, the rear axle of
a truck with a high chassis or a vehicle
bumper). In such cases, the system
cannot ensure proper stop distance, so
the driver must stay alert and be ready
to brake.
●Modifying the vehicle structure, such
as lowering the chassis or replacing
the front Windshield, may affect the
ACC system.
●Do not use the ACC system when
driving on roads with poor visibility,
ramps, and multiple curves, or slippery
and wet roads with snow, ice, and
water gathered.
●ACC cannot be activated when
the vehicle is in any special
driving mode (Trailer/Snow/Mud/
Sand/Mountain mode).
●It is recommended to visit a
BYD authorized service provider
for professional calibration and
verification of the front view camera in
any of the following situations:
●Dismantle the front view camera or
front windshield washer.
●Wheel alignment has been carried
out.
●The vehicle has experienced a
collision.
●ACC system performance has
degraded or the instrument cluster
has prompted an system error.
WARNING
●ACC serves as a driver assistance
function only, so the driver is fully
responsible for driving safety.
●Influence of weather, road
conditions, and other factors may
cause ACC to fail.
●Use ACC based on your needs,
traffic, and road conditions.
Intelligent Cruise Control (ICC) System
Halaman 105
Intelligent Cruise Control
(ICC) System
●The intelligent cruise control (ICC)
system integrates ACC and LCC. It can
assist the driver with longitudinal and
lateral control at a speed between
0 km/h and 130 km/h. It relieves
driver burden and ensures safety and
comfort.
●When the function is enabled, the
driver must always hold the steering
wheel and control the vehicle when
necessary.
●Longitudinal auxiliary control is
realized by ACC function, which
maintains the vehicle at a fixed speed
or at a fixed interval with the road user
in front.
Description of working state
●ICC standby:
●After the system is turned on, it
is in standby mode by default and
can be activated through the driver's
active operation. However, it is also
possible that the vehicle does not
meet the conditions for activation. In
this case, the driver should actively
check the vehicle to make it meet the
activation conditions. Then, the icon
is displayed on the instrument
cluster.
●ICC activated:
●The system is in a normal working
state. The vehicle can run at a
fixed speed or automatically adjust
the distance from the target vehicle
ahead for stable following. Then,
the icon
is displayed on the
instrument cluster.
●ICC fault state:
●ICC fails and cannot be used. The
ACC fault state indicator
on the
instrument cluster lights up.
Preconditions for ICC system activation
●EPB is released.
●The vehicle is in D gear.
●The vehicle does not slide backwards.
●The trunk, hood, and all doors are
closed.
●Driver seat belt is fastened.
●The ESC system is on, but not activated
yet.
04
●The vehicle speed is ≤130km/h.
USING AND DRIVING
●Brake pedal is pressed at speed 0; or
brake pedal is not pressed at speeds
above 0.
●No vehicle network communication
fault prompt is displayed on the
instrument cluster.
●The AEB function is not activated.
●Two-way lane lines are clear and the
vehicle is at the center of the lane.
Disabling/Enabling the System
●Use the button on the steering wheel
to activate or deactivate ICC. (When
activated, ICC sets the current vehicle
speed as the cruise speed by default.
When the current speed is less than
30 km/h, the cruise speed is set to 30
km/h.)
Intelligent Cruise Control (ICC) System
Halaman 106
●Refer to the use of ACC (see the
previous chapter for details) for
setting the cruise speed and following
distance.
●Users can also turn ICC on or off
on touchscreen→ Settings → ADAS →
Driving Assist. (If already toggled on on
the infotainment touchscreen, ICC can
be toggled off only when the vehicle is
in P gear.) When the vehicle is started,
this switch defaults to the state before
the last power-off.
Precautions
●As ICC integrates ACC and LCC, follow
precautions for ACC while using ICC
(see the previous chapter for details).
●When ICC is turned on and activated
at vehicle speeds between 0 km/h and
130 km/h:
●If no lane lines are detected ahead,
ICC suppresses its transverse control
feature and only engages ACC. The
ICC working status indicator on the
instrument cluster turns gray.
●If lane lines ahead are clear
and identifiable, ICC automatically
activates its transverse control
feature. The ICC working status
indicator on the instrument cluster
lights up.
●ICC is designed to assist drivers, not
replace them. Drivers must therefore
always maintain control of the vehicle
and never remove their hands from the
steering wheel for extended periods
of time. Otherwise, the system is
deactivated after prompting the driver
to take control of the vehicle.
●ICC is affected by the weather, lighting
and clarity of lane lines. Performance
degrades significantly in situations
such as backlighting, sunsets, snow-
covered roads, and severely damaged
roads.
●Do not use the ICC system on
winding roads with sharp turns,
icy and slippery bends, or under
weather conditions, such as dense fog,
heavy rain and heavy snow, liable to
hinder the sensing operation of front
mmWave radars or the multifunctional
video controller.
●ICC cannot be activated when
the vehicle is in any special
driving mode* (Trailer/Snow/Mud/
Sand/Mountain mode).
●ICC cannot be used if:
●The sensor is blocked.
●The vehicle is running under severe
weather conditions.
●Active safety function has been
triggered.
●Vehicle speed exceeds the specified
range.
●A sharp or continuous turn.
WARNING
●ICC serves as a driver assistance
function only, so the driver must
be fully responsible for driving
safety.
●Influence of weather, road
conditions, and other factors may
cause ICC to fail.
System Limitations
Halaman 107
WARNING
●ICC may be automatically
disabled should its turning
capacity be exceeded when the
vehicle is passing through a sharp
bend. The driver must always pay
attention to road conditions and
ICC states.
●Use ICC based on your needs,
traffic, and road conditions.
Forward Collision
Warning (FCW)* &
Automatic Emergency
Braking (AEB)*
●FCW and AEB use the front
view camera to detect vehicles and
pedestrians ahead. Once a collision
risk is detected, the system emits
audible and visual alarms to urge the
driver to take avoidance measures,
while also increasing the potential
braking pressure to provide sufficient
reaction time for the driver. If detecting
increased risk of collision, the system
automatically applies braking pressure
to assist in collision avoidance or
impact reduction.
●Users can turn on or off the Forward
Collision Warning (FCW) and Automatic
Emergency Braking (AEB) functions
through the Settings → ADAS → Safety
Assist interface. By default, the system
is switched on when the vehicle is
started.
●FCW has three alarm modes: audible
alarm, text alarm and cadence braking
alarm.
●When FCW is activated, the instrument
cluster displays green
or red
depending on the severity of the
situation, as well as a text prompt.
●When AEB is triggered,
and a
prompt message are displayed on the
instrument cluster.
●When the system fails, the indicator on
the instrument cluster lights up:
.
Contact a BYD authorized dealer or
service provider.
FCW Activation Conditions
All the following conditions should be
met:
●This function has been enabled from
the touchscreen.
04
●The vehicle speed is no less than
30km/h.
●The vehicle is in Drive.
USING AND DRIVING
●The vehicle does not slide backwards.
AEB Activation Conditions
All of the following conditions are met:
●This function has been enabled from
the touchscreen.
●The vehicle speed is no less than
5km/h.
●EPB is released.
●The vehicle is in D gear.
●The vehicle does not slide backwards.
●The trunk, hood, and all doors are
closed.
●Driver seat belt is fastened.
●The ESC system is on, but not activated
yet.
System Limitations
●In certain environments, detection
may be affected or delayed. For
example, when the radar reflective
cross-sectional area of the target is
too small (which could be a bicycle,
tricycle, four-wheeled carriage, electric
Precautions
Halaman 108
bicycle or motorbike), the system may
have a risk of failing to identify the
distance to the target ahead, which
may result in a delayed or failed
response to this type of vehicles.
●In the following cases, the FCW and
AEB may be affected or fail to work:
●In rainy, snowy or foggy days, there
exists exposure to direct sunlight or
glaring lights, or environments where
lighting varies significantly;
●Dirty, hazy, damaged or blocked
sensor.
●In complex traffic, the system may
be unable to properly respond to the
following circumstances:
●Pedestrians or vehicles are entering
the sensor detection range fast.
●Pedestrians are obscured by other
objects.
●Pedestrian outlines are
indistinguishable from the
surroundings.
●Pedestrians are not detected, due
to, for example, coverage by special
clothing or other materials.
●The vehicle travels on a curve with a
small turning radius.
Precautions
●The FCW and AEB system cannot
ensure zero collision. In complex
traffic, the system cannot always
clearly identify all the vehicles
or pedestrians. It may trigger
unnecessary warning or braking action
for well covers, iron plates or road
signs.
●Be sure to drive safely and keep eyes
on the surrounding traffic conditions.
Under no circumstances shall AEB be
used as a substitute for normal braking
operation.
●Do not overly rely on the FCW and AEB
system as this may result in serious
accidents leading to severe injuries or
deaths. The system is only an auxiliary
safety tool. The driver must always
keep a safe distance from vehicles
ahead, control the speed, and be ready
to brake or steer away when necessary.
The driver must keep control of vehicle
at all times and be fully responsible for
safe driving.
●The FCW and AEB system is
activated only when it exceeds certain
speeds. Careful driving is always
required, because the system may
not be triggered correctly under any
condition.
●When the ESC function is disabled
or ESC fault indicator is on, the AEB
system cannot work normally.
●Whenever FCW gives a warning, the
driver must apply the brake based on
current traffic conditions to decelerate
or turn the steering wheel to avoid
obstacles.
●If the vehicle travels too close to
the vehicle ahead for too long, a
safety distance warning will be given.
If the vehicle ahead brakes suddenly,
collision may be unavoidable.
●The system will not trigger AEB when
the driver is aware of an emergency
warning, but turns the steering wheel,
presses the throttle pedal hard or
brakes hard.
●If the vehicle drives in special road
conditions such as circular parking lot
and tunnel for a long time, the sensor
may have short-term functional failure
due to its detection characteristics.
At this time, the user can restart the
vehicle or drive along the normal road
for a certain distance to make the
function return to normal.
●Sometimes the surfaces of front view
camera or radars are dirty or obscured
Traffic Sign Recognition (TSR)*
Halaman 109
by foreign objects, which can cause the
sensor to become blind. In this case,
the instrument cluster display shows
corresponding information. Therefore,
foreign objects shall be removed from
sensor surfaces as required. When
a sensor fails, both FCW and AEB
become deactivated and return to
normal after the fault is eliminated.
●As the pedestrian protection function
is limited by certain physical
conditions, the driver must take timely
and effective control of the vehicle
under dangerous conditions.
●The system cannot completely protect
pedestrians or avoid accidents and
severe injuries on its own.
●Under certain complex conditions,
such as on winding roads, the
pedestrian protection function may
trigger unnecessary warning or
braking.
●System failure may trigger wrong
warnings or braking, such as angular
misalignment of the front view camera
or radars.
●FCW and AEB intervene only when all
doors are closed and the seat belts
are fastened. Note that FCW and AEB
do not work in any of the following
circumstances.
●Any door is not closed or is opened
while the vehicle is in motion.
●The seat belt is not fastened or it
is unfastened when the vehicle is
moving.
●The driver accelerates or decelerates
rapidly or turns the steering wheel
quickly.
●System performance may be reduced
in the following cases:
●The front bumper is strongly
impacted due to an accident or other
reasons.
●Tires are not properly inflated or
excessively worn. Unqualified tires
installed.
●Snow chains installed.
●Use of a small spare tire or tire repair
kit.
●It is recommended to visit a
BYD authorized service provider
for professional calibration and
verification of the front view camera in
any of the following situations:
●Dismantle the front view camera.
●The toe-in or rear axle wheel camber
has been adjusted during four-wheel
alignment. A collision happens.
04
●A collision happens.
USING AND DRIVING
●Do not try to use cartons, iron plates,
dummies and other objects to test the
FCW and AEB. The system may not
work normally, resulting in accidents.
WARNING
●PCW and AEB are only used as
driving assistance functions, and
the driver is fully responsible for
driving safety.
●PCW and AEB may fail due to
several factors such as weather
and road environment.
●Use PCW and AEB based on
your needs, traffic, and road
conditions.
Traffic Sign Recognition
(TSR)*
The traffic sign recognition (TSR) system
recognizes speed limit signs through the
front view camera. It displays relevant
speed limit signs of the current road on
the instrument cluster and emits alarms
Intelligent High Beam Assist System *
Halaman 110
when the vehicle speed exceeds the
detected speed limit.
How to Use
●To enable or disable TSR, go to
touchscreen→ settings → ADAS →
Safety Assist → TSR. The system
defaults to the previous settings when
the vehicle starts.
●When TSR is disabled or recognizes no
the current traffic sign, the instrument
cluster displays no icon.
Precautions
●The speed limit icon disappears from
the cluster within a certain distance
after system recognition. The driver
must control speed within range.
●The traffic sign recognition system can
identify speed limit signs only, and will
not control speed. The control over
the vehicle always vests in the driver.
Please drive properly.
●When there are multiple speed limit
signs on side-by-side lanes, the system
identifies the highest speed limit and
lights up the speed limit indicator. The
driver shall ensure that the vehicle is
running on the correct lane.
●The performance of TSR is influenced
by weather, illumination level, and
visual quality of road signs. Conditions
such as night, backlighting, sunset,
rain, fog, haze, snow and ice cover,
surface dust, and sudden changes
in brightness may result in reduced
recognition capability or failure to
recognize the speed limit signs.
●When a collision occurs on the vehicle
or the camera sensor is reassembled,
it is recommended to contact a
BYD authorized service provider to
calibrate the sensor to avoid affecting
the performance of the system.
●If a weight limit sign is not
standardized and does not meet the
size requirements specified by the
state, it may be misidentified as a
speed limit sign by TSR.
●If a speed limit sign is unclear or
distorted, inclined, reflective, partly
blocked or covered, the camera may
be unable to recognize the sign
completely or clearly.
WARNING
●TSR only serves as a driving
assistance function, so the driver
must be fully responsible for
driving safety.
●Influence of weather, road
conditions, and other factors may
cause TSR to fail or lead to late
alarms.
●Use TSR based on your needs,
traffic, and road conditions.
Intelligent High Beam
Assist System *
The IHBC system uses a sensor of the
front view camera to determine current
driving conditions and, when the vehicle
speed is above 35km/h, it automatically
activated and switch between low and
high beams.
IHBC standby state:
When the function is enabled but not
activated yet, the icon
is displayed on
the instrument cluster.
IHBC activation state:
After being enabled, IHBC is activated
when the light switch is in Auto,
necessary lighting conditions are met,
and the vehicle speed is above 35 km/h.
At this time,
is displayed on the
cluster.
Precautions
Halaman 111
IHBC Fault state:
is displayed on the
cluster. It is recommended to contact a
BYD authorized dealer or service provider.
When IHBC fails,
How to Use
●To activate or deactivate IHBC, go to
touchscreen→ Light → Exterior Light
interface. The system defaults to the
previous settings when the vehicle
starts.
●With the function enabled, when you
set the light switch to the auto lights
position, the light meets conditions
and vehicle speed exceeds 35 km/h,
the system automatically switches
between low and high beams based on
the current driving environment.
Precautions
●The Intelligent High Beam Control
(IHBC) system is an auxiliary
light control function. While it is
recommended to use the system at
high vehicle speeds, the system cannot
completely replace the driver. The
driver must observe road regulations
and actively switch between high and
low beams according to road condition
changes at all times.
●When the vehicle is in a highly
dynamic state, such as when ABS or
ESC is activated, beam switching is
suppressed.
●IHBC system will exit when the driver
turns on the fog lamp, steering lamp,
high speed wiper gear, reverse driving,
the light gear is in non-Auto gear, and
the ambient light is too strong.
●Even when IHBC is working, the driver
must respond to possible situations
where the IHBC is triggered in error
or fails to work due to unavoidable
environmental factors and conditions.
Typical conditions are as follows:
●The driver's stick operation to switch
to the high beam is prioritized.
●The vehicle is running in extremely
unfavorable weather, such as heavy
fog, heavy rain, or heavy snow.
04
●There are traffic participants with
poor lighting (such as pedestrians
and bicycles), railways or waterways
nearby, or wild animals on the roads.
USING AND DRIVING
●There are highly reflective objects
around (e.g., traffic signs on
highways, water reflection on the
road surface, etc.).
●The front windshield is dirty, covered
in mist, or blocked by stickers or
decorations.
●In case there is a collision or the
sensor has been reassembled, it
is recommended to go to a BYD
authorized dealer or service provider
for sensor calibration so as to avoid
affecting system performance.
WARNING
●HMA serves as a driver assistance
function only, so the driver is fully
responsible for driving safety.
●Influence of weather, road
conditions, and other factors may
cause HMA to fail.
●Use AFL based on your needs
along with traffic and road
conditions.
System Limitations
Halaman 112
Lane Departure Assist
(LDA)
Lane Departure Assist (LDA) identifies
the front lane lines by the front view
camera. When the driver unconsciously
departs from the lane, the system issues
an instrument icon, buzzer sound, or
steering wheel vibration alarm to alert
the driver to driving safety by computing
the relative distance between the vehicle
and lane lines and considering the
surroundings.
LDA works within the speed of 65km/
h-150km/h
The factory state of LDA: Activated by
default. The mode of alarm: Only the
steering wheel vibrates, and the driver's
operation can be remembered.
When the lane line is detected, the
instrument lane line displays white, and
when the LDA function is activated, the
deviation side instrument lane line icon
displays red.
How to Use
●To activate or deactivate LDW, go to
touchscreen → Settings → ADAS →
Safety Assist interface.
●The alarm mode of LDA: Visual
(instrument icon), the driver can
choose sound, vibration or sound +
vibration.
●LDA function is turned on, the
instrument displays
, and the pop-
up text prompt function is turned on.
●When the LDA function is activated,
the instrument displays a red lane line
accompanied by an audible alarm.
●When it fails, the instrument cluster
displays
, a reminder sounds
and there is also a pop-up window
reminder.
System limitations
●The front view camera tests lane
lines influenced by surroundings
sometimes. The following situations
may lead to failure or performance
degradation of the system:
●The visibility is poor in snowy, rainy
and foggy days.
●The front windshield is dirty and
foggy or there is an obstruction in
front of the front view camera.
●Glare is caused by direct sunlight,
reflections from accumulated water
on the road surface, incoming
vehicles on the opposite lane, etc.
●Sudden changes in light, such as
when the vehicle is entering or
exiting a tunnel
●Lane lines obscured by tree shadows
on roads in direct sunlight in sunny
days.
Precautions
●LDA will be suppressed if the driver
turns on the turn signals and changes
lanes in the direction indicated by the
turn signals.
●LDA may be suppressed if the vehicle
travels over lane lines, or lane lines
are unclear, too thin, worn, blurred or
covered by dirt/snow.
●LDA may be suppressed if the lane is
too wide or too narrow, the number
of lanes increases or decreases, lane
markings change suddenly on ramps
or exits, or in situations of complex line
crossings.
●LDA may be suppressed on slopes or
winding roads when the vehicle travels
too close to the vehicle ahead or the
vehicle ahead blocks lane lines.
Acoustic Vehicle Alerting System (AVAS)
Halaman 113
●LDA may be suppressed when the
vehicle jolts, accelerates or decelerates
too quickly, or takes a sharp turn.
●The proper functioning of the
system may be influenced by broken
windshields in the view of the front
view camera, tinting of the vehicle's
front windshield, the addition of non-
compliant coatings, the placement
of light-reflecting objects on the
dashboard panel, and any additional
objects that interfere with the view of
the camera.
●For driving safety, please do not test
the LDA function by yourself. The field
of view of the front view camera shall
not be blocked by objects or interfered
with by strong light. If the system is
interrupted by short time periods of
such blockage or exposure, clear the
camera's field of view to resume the
functionality. If it fails to resume on its
own, contact a BYD authorized dealer
or service provider.
●It is recommended to turn LDA off
when driving in any of the following
conditions:
●Driving in a sporty style
●Severe weather conditions
●On uneven roads.
●Situations where lane lines may not be
identified include, but are not limited
to:
●Unclear lane lines
●Incomplete lane lines
●Situations that may cause recognition
difficulty or late function activation of
the front view camera include, but are
not limited to:
●The front view camera comes off, is
loosely installed or blocked.
●The vehicle is running under extreme
weather, such as rain, snow, or smog.
●The front view camera is partially or
completely blocked.
WARNING
●The lane departure alert (LDA) is
only a driving assistance function.
The driver is fully responsible for
the driving safety.
●The lane departure alert may
fail due to some factors such as
weather and road environment.
●Please decide whether to use the
lane departure alert according to
personal needs, traffic conditions
and road environment.
04
Acoustic Vehicle Alerting
System (AVAS)
USING AND DRIVING
AVAS means that a warning sound is
made to pedestrians in the vicinity of the
vehicle when the vehicle is traveling at a
low speed.
●During driving forward:
●When the vehicle speed is above 0
km/h but does not exceed 20 km/h,
the warning sound increases with the
increase in speed.
●If the vehicle speed is above 20 km/h
but does not exceed 30 km/h, the
warning sound decreases with the
increase in speed.
Panoramic View System*
Halaman 114
●If the vehicle speed is above 30
km/h, the warning sound stops
automatically.
●When the vehicle is reversing, a
continuous warning sound is given
out.
Panoramic View System*
Ways of opening and operation interface:
●Activation method:
●Enter the panoramic view through
the panorama button
on the
steering wheel.
●Alternatively, tap the vehicle view
button on the touchscreen.
●Shifting to “R” can forcibly start the
panoramic view system.
●Operation interface:
●The front, back, left and right views
can be switched through the front,
back, left and right buttons on the
panoramic image interface;
●Transparent panoramic view: Click
the transparent switch button on
the bottom left to switch to
the transparent or non-transparent
model mode.
●2D panoramic view: Click the 3D
button at the bottom left until it
is grayed out to switch the 2D
panoramic view.
●3D Panoramic View Illustration Click
the 3D button at the bottom left to
highlight to switch the 3D panorama
view.
Non-transparent
panoramic view: Tap the
button and wait for it to
turn gray, and the non-
transparent panoramic
function is activated.
●
Transparent panoramic
view: Tap the button
and wait for it to turn
gray, and the transparent
panoramic function is
activated.
●
3D panoramic view: Tap
the button and wait
for it to turn gray
(as shown), the 3D
panoramic function is
activated.
●
2D panoramic view: Tap
the button and wait for
it to turn gray, and the
2D panoramic function is
activated.
●
Front view: Tap the
button and wait for it to
highlight, and the front
view is activated.
●
Rear view: Tap the
button and wait for it to
highlight, and the rear
view is activated.
●
Left view: Tap the button
and wait for it to
highlight, and the left
view is activated.
●
Right view: Tap the
button and wait for it to
highlight, and the right
view is activated.
●
2D left & right view: Tap
the button and wait for
●
Panoramic View System*
Halaman 115
it to light up to switch to
this view from any other
2D panoramic view. If
the left & right view
is already displayed, no
change occurs.
WARNING
●The panoramic view system can
provide transparent panoramic
view to show the image below the
vehicle. This function is only for
assisting in observation of area
below the vehicle during parking/
driving. Investigation of foreign
objects below the vehicle and
dangerous situations should be
carried out in any other manner
to ensure the safety of personnel
and the vehicle.
●When the vehicle runs at a low
speed, the transparent panoramic
view function is affected by speed
fluctuation or multiple stops,
so there will be misalignment
between the images below the
vehicle and that outside the
vehicle.
●The panoramic view system is
only to be used for parking/
driving assistance. It is not safe to
park or drive the car relying only
on this system, because there are
some blind spots in front of and
behind the car. The surroundings
of the car should be observed
in other ways during the parking/
driving process, so as to avoid
accidents.
●This system uses wide-angle
fisheye cameras, so the object
on the display screen may
appear somewhat deformed in
comparison with the actual
object.
WARNING
●When the side mirrors are not
extended in place, do not use
the panoramic view system; and
when the panoramic view system
is used for parking/driving, ensure
that all the car doors are closed.
●The distance to an object
displayed on the automatic
vehicle monitoring screen may
be different from the distance
perceived subjectively, especially
when the object is closer to the
vehicle. Assess the distance in
various ways.
04
●Cameras are installed above the
front grille, side mirrors, and the
rear license plate. Make sure the
cameras are unobstructed.
USING AND DRIVING
●To prevent affecting the
performance of cameras, avoid
directly washing these cameras
when washing the vehicle body
with high-pressure water gun.
Wipe any water or dust off the
camera in time.
●Protect the cameras from any
impact to prevent damage or
malfunction.
●After the vehicle is powered on,
if you press the panoramic view
start button or shift into reverse
while the multimedia system is
not fully activated, the output on
the panoramic view screen will
be delayed or the screen will
flash. This is a normal part of the
camera power-on process.
●After the vehicle starts, the image
before last power-off is displayed
on the invisible panoramic view
interface. At this time, the foreign
matters under the vehicle and
in the surrounding blind spots
Driver Monitoring Systems (DMS)
Halaman 116
WARNING
may be inconsistent with the
actual situation. The underbody
image will be updated in real time
only after the vehicle has moved,
which must be driven beyond its
length for a complete update.
Driver Monitoring
Systems (DMS)
The driver monitoring assistant system
(DMS) includes fatigue monitoring and
distraction monitoring functions. It
mainly monitors the driver's state in
real time through the camera of the
driver monitoring assistant system and
makes a judgment. According to the
judgment result, it reminds the driver
to drive carefully and pay attention to
driving safety. The original monitoring
data will be deleted immediately after the
judgment is completed, and will not be
saved or uploaded to the server.
How to Use
●The driver monitoring assistant system
camera is located in the A-pillar of
the main driver. The driver monitoring
assistant system camera is located in
the A-pillar of the main driver. When
the camera is blocked, the function
cannot be used normally.
Users can turn on or off the fatigue
driving warning and distraction driving
warning functions through Settings →
Vehicle → Cabin Perception, which are
turned on by default when leaving the
factory. By default, the system is switched
on each time when the vehicle is powered
on.
●In case of fatigue or distraction
monitoring alarm, press the wheel
button of the steering wheel, the
function will be inhibited within 15
minutes, and the alarm will not be
given.
Fatigue driving reminder
●When the vehicle speed meets the
function activation conditions and the
fatigue monitoring button is set to
“ON", and when the system detects
that the driver has fatigue driving (such
as closing eyes, blinking, yawning, etc.
Meet certain conditions), it will remind
the driver through the instrument,
intelligent voice, alarm sound, etc.
Distracted driving reminder
●When the vehicle speed meets the
function activation conditions and the
position of the distraction monitoring
button is "on", and when the system
detects that the driver is distracted (for
example, the driver does not looking
ahead and certain conditions are met),
it will remind the driver through the
instrument, intelligent voice, alarm
sound, etc.
REMINDER
●It is recommended to use a mild
and clean cotton cloth to wipe the
lens of the camera of the driver
monitoring assistant system, and
pay attention to avoid scratching
the lens.
Precautions
●Driver monitoring is an auxiliary
system, which can not ensure that it
can effectively identify and warn in
any case. It cannot completely replace
the driver's subjective observation
and judgment. The driver must
maintain control of the vehicle at
all times, complying with all road
laws and regulations, and taking full
responsibility for the vehicle.
Reversing Radar Power Switch
Halaman 117
●The functionality and accuracy of the
Driver Monitoring Assistance System
may be affected by a number of
factors, including but not limited to:
●The Driver Monitoring Assist function
is disabled.
●The driver monitoring system camera
is directly illuminated by strong light.
●The driver's face is partially
illuminated by light or the facial
features are incomplete.
●The driver wears infrared blocking
glasses or glasses with thick lenses
for high myopia.
●The driver wears a mask or other
objects to cover his face.
●The abnormal sitting posture of the
driver is beyond the normal driving
posture range, or the driver's face is
within the blind area of the camera.
WARNING
●The driver should pull over the
vehicle as soon as possible when
feeling tired.
Parking Assist System
●During vehicle parking, the parking
assist system (PAS) detects obstacles
by sensors, and prompts the driver
with the proximity of an obstacle by a
distance indicator on the touchscreen
and an alarm emitted through the
speaker.
●PAS is a way to help reverse the
vehicle. The driver should observe the
surroundings while reversing.
●The reverse camera status screen can
be accessed by engaging the R gear or
by clicking on the touchscreen.
●When the vehicle is shifted to R, the
touchscreen automatically displays a
reverse image.
●After reversing ends, the interface will
be restored.
WARNING
●PAS stops working when the
vehicle is in D and runs at a speed
of over 10 km/h.
●Do not place any articles within
the sensors' working range.
●Do not clean any sensor with
water or steam, as doing so may
ruin the sensor.
04
USING AND DRIVING
REMINDER
●The reversing safety line is for
distance reference only when the
vehicle is in the R gear.
●For your driving safety, when the
reversing image is displayed, all
buttons will be disabled except
some volume and phone related
buttons.
Reversing Radar Power Switch(RRPS)
●To activate or deacntivate RRPS, go
to touchscreen → settings → ADAS
→Parking Assist → Parking sensors.
●PAS is automatically activated when
the power is OK.
●When the parking assist system is
enabled, the vehicle is not in P gear,
and the EPB and AVH are released,
the obstacle detection mode of the
parking assist system is enabled. When
enabled, the system raises an alarm
if obstacles are found surrounding the
vehicle; when disabled, it does not.
Distance Display Alarm
Halaman 118
Sensor Type
●When a sensor detects an obstacle,
the corresponding image is displayed
on the touchscreen based on the
orientation of the obstacle and the
distance between the vehicle and the
obstacle.
●Sensors can measure the distance
between the vehicle and nearby
obstacles in parallel or reverse parking.
The measured distance is then
displayed on the touchscreen and an
alert is sounded by the speaker. When
using the system, be sure to pay
attention to the surroundings.
①Rear right corner sensor
② Rear central sensor
③Rear left corner sensor
Approximate distance
(mm)
Display examples on the
Multimedia display screen
Alarm sound
About 700 to 1,200
About 400 to 700
About 200 to 400
Working example of corner sensors
Approximate distance
(mm)
Display examples on the
Multimedia display screen
Alarm sound
About 400 to 600
Distance Display Alarm
When the sensor detects an obstacle,
the Multimedia touchscreen displays
the orientation of the obstacle and
the approximate distance between the
vehicle and the obstacle, and the speaker
may beep.
Working examples of central sensor
Slow
Fast
Constant
Fast
Working Sensors and Detection Range
Halaman 119
Approximate distance
(mm)
Display examples on the
Multimedia display screen
Alarm sound
About 200 to 400
CAUTION
●0-200mm is the blind area of the
system, the detection accuracy
is poor, and the alarm prompt
information is not accurate
enough, so the alarm prompt of
this distance is for reference only.
Working Sensors and Their Detection
Range
All sensors work when reversing.
●The sensor working detection range
is shown in the figure. The detection
range is limited. Before reversing,
check the surroundings of the vehicle
and then slowly reverse.
●The maximum detection range
directly behind the vehicle is 1.2m.
●The maximum detection range of the
left and right sides of the vehicle is
0.6m.
Constant
REMINDER
●The sensors may fail to detect
obstacles that are very close to
the vehicle.
●The parking assist system is
only for assistance, and is not a
substitute for personal judgment.
Make sure to maneuver the
vehicle based on observation.
04
USING AND DRIVING
●Do not place accessories or other
objects where the sensor detects
obstacles, as this will affect the
normal operation of the system.
●In some cases, the system does
not work properly, and the system
cannot detect when the vehicle is
close to certain objects. Therefore,
be sure to observe the vehicle's
surroundings at all times. Do not
rely solely upon the system.
●When the reversing radar system
fails, the instrument failure
prompts "
please contact
BYD service shop as soon as
possible for reversing radar
system failure", and the buzzer
gives an alarm. In that case,
contact a BYD authorized dealer
or service provider for inspection
as soon as possible.
Sensor Detecting Information
●Certain vehicle conditions and
surroundings may affect the sensors'
ability to accurately detect obstacles.
Detection accuracy may be affected if:
System Function
Halaman 120
●There is dirt, water or fog on the
sensor.
●There is snow on the sensor or it is
frozen.
●The sensor is masked in any way.
●The vehicle is significantly tilted or
excessively overloaded.
●The vehicle is moving on particularly
bumpy roads, slopes, macadam or
grass.
●The sensor has been repainted.
●It is very noisy in the vicinity of
the vehicle due to the sound of
vehicle horns, motorbike engines,
the screech of brakes of large
vehicles, or ultrasounds.
●There's another vehicle equipped
with parking assist system nearby.
●The vehicle is fitted with a towing
ring.
●The bumper or sensor is strongly
impacted.
●The vehicle is approaching a high or
zigzag curb.
●The vehicle is in the hot sun or
severely cold weather.
●The installed suspension is not
original and lower than the original
ones.
●In addition to the above, the sensor
may not be able to correctly determine
the actual distance of some objects
due to their specific shape.
●The shape and material of the
obstacle may prevent the sensor from
detecting it. Pay special attention to
the following obstacles:
●Electric wires, fences, ropes, etc.
●Cotton, snow and other materials
that absorb radio waves.
●Oobject with sharp edges and
corners.
●Low obstacles.
●High obstacles with the upper
part extending outward towards the
vehicle.
●Object under the bumper.
●Object too near the vehicle.
●People in the vicinity of the vehicle
(depending on the type of clothing).
●If an image is displayed on the
multimedia touchscreen* or if the
speaker chirps, this may be due to
the sensor detecting an obstacle or
external interference with the sensor.
If this persists, it is recommended to
have it serviced at a BYD authorized
dealer or service provider.
CAUTION
●To prevent sensor malfunction, do
not rinse or apply steam to the
sensor area.
Tire Pressure Monitoring
System Function
1. Power-on alarm
The tire is already in a low pressure state
when the vehicle is powered off. When
the vehicle is powered on again, a low
pressure alarm is given immediately to
prompt the user to inflate the tire before
driving.
2. Low tire pressure alarm
●When the pressure of any one of
the four tires is lower than 85%
of the compensated standard tire
pressure by temperature and the
system is running, the tire pressure
fault indicator lights up and the
Precautions
Halaman 121
tire pressure value turns yellow.It is
advisable to stop the vehicle and check
the corresponding tires for slow leaks
and to inflate them to a reasonable
pressure.
●When the tire pressure higher than
95% of the compensat by temperature
pressure standard value, the low
pressure alarm is canceled.
3. High temperature alarm
●High tire temperature alarm: When
the temperature of any one of the
four tires is higher than 85°C for 3
consecutive minutes, the tire pressure
system gives a high-temperature
alarm, and the corresponding tire
temperature indicator turns yellow. It
is recommended to stop the vehicle
and continue driving only after the
tire temperature cools down. When the
temperature is less than 85 ℃, the
alarm will be released.
4. Abnormal signal alarm function
If there is a fault when the system is
running, the tire pressure fault indicator
flashes and then keeps on, and the
instrument cluster displays "Abnormal
Signal". Please check whether the
corresponding tire pressure monitoring
module is normal and whether it is within
the range of a large electric field for a long
time.
5. Real-time display of tire pressure
Tire Pressure Monitor System(TPMS)can
display the information on each tire
pressure in real time when it is running.
Precautions
●The service time of the tire pressure
monitoring module is related to the
daily driving distance and other related
factors.
●The tire pressure monitoring
module transmits tire pressure and
other information to the display
regularly.Therefore, if the tire pressure
suddenly drops or there is a flat
tire, the monitoring module can only
transmit data to the display in the next
monitoring. Therefore, it may cause
the driving to be out of control. If
a damaged tire is accompanied by
the monitoring module damage and
thus no message can be sent, or if
it is suspected that a tire has been
damaged, stop driving immediately,
instead of waiting for the display to
send an alarm signal.
●Incorrect installation of the tire
pressure monitoring module affects
the air tightness of the tires. It is
recommended that the monitoring
module be installed and replaced
by professional technicians from a
BYD authorized dealer or service
provider according to the installation
instructions.
04
USING AND DRIVING
●When the tires are rotated or the
tire pressure monitoring module is
replaced, the entire tire pressure
monitoring system needs to be
rematched, which is recommended
to be performed by a professional
technician from a BYD authorized
dealer or service provider; otherwise,
this system may fail.
●Since tire pressure varies with regional
temperatures, inflate or deflate the
tires according to the values displayed
on the instrument cluster and the
standard tire pressure value.
●TPMS features wireless transmission
and its reception performance may be
worsened in environments with severe
interference.
WARNING
●If the tire pressure is abnormal,
this system does not prevent the
vehicle from driving. Therefore,
Tire Pressure Monitoring System
Halaman 122
WARNING
each time before driving, ensure
that the tire pressure conforms
to the requirements specified by
the manufacturer. If not, do not
drive, otherwise vehicle damage
or personal injury can occur.
●If pressure is found to be
abnormal while driving, check
the tire pressure immediately. If
the low pressure warning light
comes on, avoid sharp turns or
emergency braking, and reduce
vehicle speed, pull it over to the
curb and stop as soon as possible.
Driving with low tire pressure can
cause permanent damage to tires
and increase the likelihood of tire
scrapping. Serious tire damage
can lead to traffic accidents,
resulting in serious injuries or
deaths.
Direct Tire Pressure Monitoring System
●The direct TPMS is an auxiliary system
that monitors the tire pressure in
real time, improves the driving safety
and comfort of the vehicle, and
reduces the accelerated wear of tires
and the increase of vehicle energy
consumption caused by insufficient
tire pressure.
Tire pressure system alarm
●When the pressure of any one of
the four tires is lower than 85%
of the compensated standard tire
pressure by temperature and the
system is running, the tire pressure
fault indicator lights up and the
tire pressure value turns yellow.It is
advisable to stop the vehicle and check
the corresponding tires for slow leaks
and to inflate them to a reasonable
pressure.
●When the temperature of any one of
the four tires is higher than 85°C for 3
consecutive minutes, the tire pressure
system gives a high-temperature
alarm, and the corresponding tire
temperature indicator turns yellow. It
is recommended to stop the vehicle
and continue driving only after the tire
temperature cools down.
●When the system is running, if a
fault occurs, the tire pressure fault
warning light is solid on after flashing,
and the message "Abnormal signal"
or "Please check the tire pressure
monitoring system" is displayed on the
instrument cluster. In that case, please
check whether the corresponding tire
pressure monitoring module is normal
and whether it is within the range of
a large electric field for a long time.
If the alarm persists for a long time,
please contact a BYD authorized dealer
or service provider.
WARNING
●If the tire pressure is abnormal,
this system does not prevent the
vehicle from driving. Therefore,
each time before driving, the user
should start the vehicle statically
to check whether the tire pressure
meets the tire pressure value
specified by the manufacturer. If
not, do not drive the vehicle;
otherwise, vehicle damage or
personal injuries may be caused.
●If pressure is found to be
abnormal while driving, check
the tire pressure immediately. If
the low pressure warning light
comes on, avoid sharp turns or
emergency braking, and reduce
vehicle speed, pull it over to the
curb and stop as soon as possible.
Driving with low tire pressure can
cause permanent damage to tires
and increase the likelihood of tire
Intelligent Power Braking System
Halaman 123
WARNING
scrapping. Serious tire damage
can lead to traffic accidents,
resulting in serious injuries or
deaths.
CAUTION
●The service time of the tire
pressure monitoring module is
related to the daily driving
distance and other related factors.
●The tire pressure monitoring
module transmits tire pressure
and other information to the
display regularly.Therefore, if the
tire pressure suddenly drops or
there is a flat tire, the monitoring
module can only transmit data to
the display in the next monitoring.
Therefore, it may cause the
driving to be out of control. If a
damaged tire is accompanied by
the monitoring module damage
and thus no message can be sent,
or if it is suspected that a tire
has been damaged, stop driving
immediately, instead of waiting
for the display to send an alarm
signal.
●Incorrect installation of the
tire pressure monitoring module
affects the air tightness of
the tires. It is recommended
that the monitoring module
be installed and replaced by
professional technicians from
a BYD authorized dealer or
service provider according to the
installation instructions.
●Since tire pressure varies with
regional temperatures, inflate
or deflate the tires according
to the values displayed on
the instrument cluster and the
standard tire pressure value.
CAUTION
●If the vehicle is equipped
with electrical accessories not
approved by BYD, the tire
pressure monitoring system may
be disturbed. In this case, do not
misunderstand it as a tire pressure
system fault.
●For wheel rim replacement, spare
tire* installation, or tire rotation
for the four wheels, the tire
pressure system should be reset.
Please drive the vehicle to a
BYD authorized dealer or service
provider for resetting.
04
Driving Safety Systems
USING AND DRIVING
For better driving safety, the
following driving safety systems
works automatically based on driving
conditions. However, it is important to
remember that these systems are only
auxiliary and should not be relied on
excessively during driving.
Intelligent Power Braking System
Intelligent dynamic braking system
integrates three functional modules: ABS,
VDC and TCS, and also integrates value-
added sub-functions such as HHC, HBA
and CDP.
Body Dynamic Control (VDC)
When the vehicle turns suddenly
while running, the VDC system judges
the driver's intention based on such
information as steering wheel's angle
and vehicle speed, and continuously
compares with the actual condition. If
the vehicle swerves from the normal
lane, the VDC corrects the situation by
engaging brakes to the corresponding
wheels to help the driver control skidding
and maintain directional stability.
Intelligent Power Braking System
Halaman 124
Traction control system (TCS)
TCS prevents drive wheels from slipping
during acceleration by reducing the drive
motor power. It also applies braking
forces when necessary to prevent drive
wheels from idling. It makes the vehicle
easy to start, accelerate, and climb under
adverse driving conditions.
WARNING
●TCS may not work effectively in
the following situations:
●On slippery roads, even if TCS is
working properly, it may not be
able to control the direction and
meet power requirements.
●Do not drive in conditions where
the vehicle may lose its stability
and power.
Hill Hold Control (HHC)
After the brake pedal is released, HHC
maintains brake pressure for 1 second to
prevent backward sliding.
Hydraulic Brake Assit (HBA)
When you press the brake pedal quickly,
HBA detects that the vehicle is in
emergency condition. It quickly increases
the brake pressure to the maximum so
that ABS can intervene more quickly and
shorten the braking distance effectively.
Controller Deceleration Parking (CDP)
Press and hold the P button to activate
CDP. The vehicle brakes at a constant
deceleration (of 0.4 g if only the P
button is pressed and held, or 0.8 g
if the P button and brake pedal are
simultaneously pressed and held) until it
comes to a stop. Release the P button to
deactivate CDP.
ESC operation instructions
●ESC working
●If there is a risk of skidding or
backsliding when the vehicle starts
on a slope, or if either drive wheel is
spinning, the ESC indicator flashes to
indicate that ESC system is working.
●Disabling ESC
●If the vehicle gets stuck in snow or
mud, ESC may reduce the power
output from the drive motor to
wheels. In this case, you may need to
turn off the system to get out of the
jam.
●Turning off ESC
●When you need to shut down the
ESC system, press and release the
ESC OFF switch button or turn it
off in multimedia. ESC also checks
its operating status in real time. If
ESC OFF switch is pressed while
ESC system is working, the system
will complete the active intervention
control rather than executes the
"shutdown" command immediately.
ESC is disabled only after the
intervention control is complete.
●After ESC is turned off, some of its
deactivated functions will be enabled
if either the ESC OFF button is
pressed again or the vehicle speed
exceeds the threshold of 80 km/h.
In order to prevent ESC from being
turned off suddenly, ESC can be
activated again only when it is not in
a vehicle dynamic intervention state.
●ESC OFF switch mis-operation
●ESC is considered to be mis-operated
if the ESC OFF switch is pressed and
held for more than 10 seconds. In
that case, all internal ESC functions
continue to work.
●Restarting ESC after the vehicle is
powered off
●When the ESC system has been
turned off, restarting the vehicle will
automatically restart ESC system.
Anti-lock Braking System
Halaman 125
●The start of ESC is linked with the
vehicle speed.
●With ESC turned off, the vehicle
can become highly unstable at a
speed beyond 80 km/h, so ESC starts
automatically in this case.
●ESC activated
●If the ESC fault indicator
flashes, be sure to drive carefully,
because careless driving may cause
an accident. Exercise additional
caution when the indicator is
flashing.
●With ESC system disabled
●Be careful when ESC is disabled,
and drive at speeds suitable for road
conditions. The ESC system ensures
vehicle stability and its driving force.
Never turn it off unless necessary.
●Tire replacement
●Make sure all tires are of the same
size, brand, tread, and total load. In
addition, be sure to inflate tires to
the recommended pressure.
●Neither ABS nor ESC will work
properly if the vehicle is fitted with
different tires.
●For details on tire or wheel
replacement, it is recommended to
contact a BYD authorized dealer or
service provider.
●Tire and suspension handling
●The use of any defective tire or
modified suspension affects the
driving safety system and may cause
the system to fail.
Anti-lock Braking System (ABS)
●The ABS hydraulic system has two
separate circuits. Each circuit passes
through the vehicle diagonally (the
front left wheel brake is connected
with the rear right wheel brake, etc.)
and acts. If one circuit fails, two wheels
can still be braked. If one circuit fails,
two wheels can still be braked.
●In case of a sudden brake or
application of brake on a slippery road,
ABS helps to prevent the wheels from
locking or slipping, so that you can
keep the steering control.
04
USING AND DRIVING
●When the front tires skid, there is
no steering control, which means that
the vehicle still moves forward even
though the steering wheel is turned.
ABS helps to prevent locking and,
since rapid pulsating braking is much
faster than human reaction, helps to
maintain steering control.
●Do not press the brake pedal in a
pulsating manner; otherwise, ABS may
fail. When turning the steering wheel to
avoid danger, always maintain strong
and stable pressure on the brake pedal
so that ABS functions.
●When the ABS is working, the brake
pedal will vibrate, which may produce
noise. This is because the ABS is
pulsating the brake quickly, which is
normal.
Electronic Brake-force Distribution
●The EBD function is an auxiliary
function of the ABS. Before the ABS
acts, the ABS system will regulate the
braking pressure on the rear wheels if
the slip rate of the rear wheels is high,
Anti-lock Braking System
Halaman 126
so as to get a smoother and closer to
idealized brake force distribution.
WARNING
●ABS cannot work effectively under
the following conditions:
●Tires with inadequate grip are
used (for example, excessively
worn tires used on snow-
covered roads).
●The vehicle skids when driving
at a high speed on slippery
roads.
●ABS is not designed to reduce the
braking distance of the vehicle.
Always keep a safe distance from
the vehicle ahead on:
●Muddy, sandy, or snowy roads.
●Roads with potholes or uneven
roads.
●Bumpy roads.
CAUTION
●If the ABS fault warning light is
still on while the braking system
warning light is on, immediately
park the vehicle in a safe place.
It is recommended to contact a
BYD authorized dealer or service
provider.
●In this case, if brakes are applied,
the ABS will not work and the
vehicle will become extremely
unstable.
●ABS does not reduce the time
and distance required to stop the
vehicle. This device only helps you
control steering when braking.
Please always keep a safe distance
from other vehicles.
CAUTION
●ABS cannot prevent skidding
caused by sudden direction
change, such as trying to make
a sharp turn or change lanes
suddenly. Always drive carefully at
a safe speed, regardless of road
and weather conditions.
●ABS does not prevent decrease
in stability either. When applying
the brake in an emergency, the
steering should be moderate. A
large or sharp turn during the
driving can cause the vehicle to
swerve into oncoming traffic or
run off the road.
●When running on soft or uneven
surfaces (such as gravel or snow),
a vehicle with ABS may require
a longer braking distance than
a vehicle without ABS. In such
cases, slow down and keep a long
distance from other vehicles.
In-Vehicle Devices
Halaman 127
# 05 IN-VEHICLE DEVICES
Infotainment System..................................................... 128
BYD App...................................................................... 131
A/C System................................................................. 133
Storage....................................................................... 137
Other Devices.............................................................. 138
Infotainment Touchscreen
Halaman 128
Infotainment
System
Infotainment Button
When the ignition is on, the initial screen
is displayed for several seconds and
the Multimedia system starts to work.
To better use related features (such as
smart voice, App and video call) of the
①Multimedia touchscreen
②Volume wheel/audio off/Multimedia
restart button
Factory reset
●Go to touchscreen → Settings →
System → Version to reset to factory
settings.
●This function factory resets the
Multimedia system.
●During the process, do not touch any
infotainment button or turn off the
power supply, or errors may occur.
Multimedia system, it is recommended to
have the internet connected.
A warning is displayed when the
Multimedia system starts for the first
time. Tap Agree to enter the system.
You can use the customized multimedia
touchscreen as needed. A shortcut menu
is provided for your convenience, which
can include WLAN, Bluetooth, mobile
data connection, volume, light mode, and
some other vehicle controls.
●The process takes two to five
minutes.
WARNING
●To avoid faults in the multimedia
system, do not use a high-power
inverter on the vehicle.
●Do not format or root the device
without authorization, as this
may cause multimedia system or
vehicle malfunction.
OTA Updates
Halaman 129
WARNING
●In driving, please use the
multimedia system in landscape
mode wherever possible for your
safety.
CAUTION
●To prevent damage to the
touchscreen:
●Touch the screen gently. If there
is no response, remove your
finger from the screen, then
touch it again.
●Clean the screen with a soft
damp cloth. Do not use any
cleaning product.
●Using the touchscreen
●When the screen temperature is
low, the image displayed may be
darker or the system may work
slightly slower than normal.
●The screen may be dark or
difficult to see when you are
wearing sunglasses. In that case,
change the viewing angle or take
off the sunglasses.
●The touchscreen buttons that
are grayed out cannot be
operated.
●The touchscreen interface shown
here is for reference only.
●In case of Multimedia failure,
please contact a BYD authorized
dealer or service provider for
handling.
Navigation Bar
: Click to return to the previous page
or exit the program.
: Tap the Home button to return to the
home page.
: shows recently opened applications.
: Click the off button to enter the
screen saver state.
The navigation bar function supports
customization.
Gestures and Responses
Gestures and associated system
responses are:
●Tapping: opens applications, selects
functions, clicks icons on the
touchscreen, or types characters.
05
●Dragging: touching and dragging an
icon, thumbnail, or preview to the
target position to change its location.
IN-VEHICLE DEVICES
●Swiping: operational on homepage
and app screens.
●Double tapping: zoom in or out an
image.
●Spreading/pinching: Seperate the
fingers on an image to zoom in a
section and close them together to
zoom out.
●Slide down the top of the screen: Open
the Convenience Menu.
OTA Updates
●The vehicle has the function of
software upgrade. Prompt information
will be sent when the vehicle needs
software update to remind you to
upgrade the software. You can start the
system software upgrade in any way
of immediate upgrade or appointment
upgrade on the touchscreen or BYD
App according to the vehicle situation,
BYD Assistant
Halaman 130
so that your vehicle functions are in
the latest state.
●Operation mode of central control
screen: This vehicle has the function
of software upgrade. You can
upgrade the vehicle system by
clicking Touchscreen →
→
System → Version → Vehicle Version
→ Version Update, so that your
vehicle functions are in the latest
state.
●BYD App: By clicking on BYD App
→ App Interface → More Functions
→ OTA Upgrade, you can enter the
mobile phone upgrade interface.
CAUTION
●Ensure that the vehicle is
parked in a safe area, the
gear is in "P" gear, and the
mobile communication network
is connected to the normal state
before the OTA Upgrade starts.
●The vehicle cannot be charged or
discharged during the upgrade.
Please ensure that the vehicle
has sufficient power before
upgrading.
●Before or during the OTA upgrade,
do not install any third-party
equipment at the OBD port of the
vehicle.
●During OTA upgrade, all functions
are inoperable except vehicle
locking/unlocking, interior light
switch, emergency warning light
and window switch.
●If the OTA upgrade fails, please
retry it. If it fails again, please call
BYD Customer Service or contact
a BYD authorized dealer or service
provider for handling.
●If the OTA upgrade fails and
the fault warning lights (such as
CAUTION
parking brake fault warning light,
ABS fault warning light, power
system fault warning light) on
the instrument are on abnormally,
please do not drive the vehicle,
and contact the BYD authorized
dealer or service provider to check
the vehicle status as soon as
possible.
REMINDER
●The upgrade operation path may
be slightly different from the
actual path of the multimedia
system and mobile App. Please
refer to the actual path for details.
●After the OTA upgrade is
completed, some functions of the
vehicle may be changed. You can
click the new version number to
view the upgrade description and
learn about the updated functions
again.
BYD Assistant
Intelligent voice assistant supports
operations including controlling vehicle
navigation, playing music/broadcasting
program, turning on the A/C System and
calling.
●How to wake up BYD Assistant:
●On the steering wheel, press the
button (connect with switches of the
steering wheel).
●Press the desktop voice icon
.
●Say the wake-up word: Hi, BYD.
●Your speech instruction can be
recognized after the wake-up.
About BYD App
Halaman 131
●Make a request as you like.
●For example: You can say, ”Navigate
to the city center”, “paly a
song”, ”tell me a joke”,etc. The
multimedia system can recognize
instructions and react accordingly.
Bluetooth Call
Connection
1. On Bluetooth Call screen, tap
Please connect Bluetooth to establish
connection.
2. Tap ‘Scan for device’ to search for
available devices.
3. Pair the available device, and make
sure the paring code displayed on your
phone is consistent with the code on
the touchscreen.
4. Set Bluetooth when connection is
complete.
Bluetooth call
Go to the dialing screen when Bluetooth
is connected.
●Tap Contacts, Call log, and Missed
calls, or use dial keypad to make a call.
●Slide the call card upwards or tap any
empty space to minimize the dialing
screen.
●In panoramic view screen, a small
window pops up to inform driver of a
call.
External Applications
This multimedia system is an Android
development system, which is a way to
install and use external applications.
●External application installation:
1. Download the application you need;
2. Click on the application files, select
allow to install applications from
external sources, and install them.
3. When the installation is complete,
you can find the installed
application in the application list
and click to use it.
CAUTION
●Applications that are not officially
certified may not work properly.
●Installing a lot of unnecessary
software may make the system
unusable. Please use this function
with caution.
05
●External application uninstall:
1. Enter the Settings → Application
Management → Application
interface, you can see the
installed applications and select the
applications you want to uninstall.
IN-VEHICLE DEVICES
2. Click "Uninstall" and confirm.
CAUTION
●The applications on the
infotainment system cannot be
downloaded.
BYD App
About BYD App
●BYD App is a mobile application of
Internet of Vehicle (IoV) developed by
BYD independently. It allows you to
control the vehicle remotely and check
vehicle conditions, delivering cloud era
experience of IoV.
●Search for "BYD" in Google Play or App
Store to download and install “BYD”
App.
Individual Center and Vehicle Management
Halaman 132
Account Registration
App guidance and the following steps
give instructions on signing up and
logging in after BYD App installation.
1. Open the app, then tap Sign up to go
to the registration screen.
2. Fill in the mailbox registered at the
dealer when purchasing a car, click
"Send Mail" to get the verification
code, and then return to App to enter
the verification code;
3. Set your password in password setting
screen to complete the registration,
and then the homepage is displayed.
CAUTION
●Please be sure to fill in the email
address registered at the dealer,
otherwise the registration cannot
be completed.
●You can select a country in
the upper right corner of the
App, which is consistent with
the region set by your mobile
phone system by default. If the
region where you buy a car is
inconsistent with the region set by
your mobile phone system, please
select the region where you buy a
car, otherwise you will not be able
to get your data.
Vehicle Condition and
Control
The BYD App homepage provides
information and control items of the
vehicle.
1. The homepage shows remaining
driving range, SOC, vehicle error
information, and status of vehicle
driving, charging, A/C system, seat
heater, and tire pressure.
2. Tap lock, unlock, light flashing &
honking, or light flashing button to
activate the corresponding function.
3. Turn on or off A/C on the app
homepage, or tap the A/C card
to access other settings, such as
temperature regulation, see P134 for
details.
4. At the bottom of the homepage, tap
the icon of seats, doors and windows,
or tires to go to the associated screen
and check their status.
5. If you have more than one vehicle
under the same account, you can click
the vehicle name in the upper left
corner to switch vehicles.
CAUTION
●The control function of the app
is mainly for remote use. To use
this function, ensure your phone
and vehicle are connected to the
Internet.
Individual Center and
Vehicle Management
Tap the icon on the upper right corner to
go to the individual center.
●Vehicle management: changes vehicle
name and license plate number.
●Account and security: recovers or
changes your password.
●Settings: sets message reception,
automatic login, and other items.
●About: includes privacy policy and
information to contact us and give
feedback.
A/C ON/OFF
Halaman 133
BYD Mobile Phone
Bluetooth Digital Key*
BYD Bluetooth Key is connected to the
vehicle through short-range bluetooth
link to control the vehicle, including
controlling door unlocking and door
locking.
●Download and install the latest version
of "BYD Auto" App in the application
market, and integrate BYD bluetooth
key function internally.
●For vehicles with mobile phone
Bluetooth car key configuration, users
can use the Bluetooth car key after
performing a short activation process
in BYD App.
●After bluetooth is turned on at the
application, bluetooth connection will
be automatically made near the
vehicle, or bluetooth can be manually
selected for connection. After the
bluetooth connection is successful, the
bluetooth key can be used.
●The specific functions supported by
Bluetooth keys are subject to vehicle
configuration. Mobile phone Bluetooth
car key does not rely on the network,
after connecting to the mobile phone
Bluetooth car key, click on the
operation item to be carried out, App
will immediately send instructions to
control the vehicle.
●In order to ensure the use experience,
when starting the vehicle, please use
the Bluetooth key close to the main
driving position of the vehicle.
CAUTION
●Before activating the bluetooth
key, ensure that the network
signal on the vehicle is good.
If the activation fails, try to
move or restart the vehicle and
CAUTION
activate the Bluetooth key on the
application again.
●After bluetooth is unlocked, the
vehicle does not operate in a
short time, and the door will
automatically lock.
●When the mobile phone Bluetooth
car key fails to connect for many
times or fails to operate for many
times, you can try to turn off
the system Bluetooth and then
turn it on, or try to restart the
application.
●The use distance of Bluetooth
key is limited by the environment
around the vehicle, and the use
distance will be affected when the
vehicles are dense.
05
IN-VEHICLE DEVICES
●The mobile phone Bluetooth car
key requires your mobile phone
to turn on the Bluetooth switch.
In case of any problem, please
contact the dealer.
A/C System
A/C ON/OFF
① Defrosting button for front windshield
② Cooling
A/C ON/OFF Button
A/C Function Definitions
Halaman 134
1
A/C Operation Interface
2
Seat heating
3
Settings
4
Recirculation/Fresh air
5
Rear windshield defroster
6
Defrosting button for front
windshield
Function Definition
A/C button
●To turn off the A/C, tap this A/C button.
●When the A/C is off, press this button
to turn the A/C on.
A/C Operation Interface
7
Cooling
8
A/C button
9
Driver climate control
10
Blowing Mode
11
Blower speed adjustment
12
Front passenger climate control
Blower Speed Adjustment
●Tap this button to adjust the blower
speed to an appropriate level. The
higher the level is, the greater the
blower speed is.
Defrosting button for front windshield
A/C Function Definitions
Halaman 135
●Tap this button to switch the A/C
to the front defrosting control mode,
and the air mainly flows to the front
windshield and side windows. Tap
this button again to exit the front
defrosting control mode.
●Tap this button to turn on the
defroster, defogger, and A/C. That
is, the A/C is turned on regardless
of whether the compressor control
button is operated.
Climate control
●Draw down on the touchscreen or
draw left on the air conditioning
operation interface to reduce the
temperature, and draw up on the
display screen or draw right on the
air conditioning operation interface to
increase the temperature.
Cooling
●Tap this button to turn on the A/C.
At this time, the icon lights up and
the compressor starts to work. Tap
this button again to turn off the A/C
compressor. At this time, the icon goes
out and the compressor stops working.
Recirculation/Fresh air
●Tap this button to switch the air inlet
mode to internal circulation. Tap this
button again to switch the air inlet
mode to external circulation.
●When the Auto air recirculation
when parking is enabled, the vehicle
switches to the recirculation mode
automatically during parking to ensure
the air quality in the vehicle and avoid
the exhaust from entering the vehicle.
Rear Windshield Defroster
●Tap this button to activate the
rear windshield defroster and the
external rearview mirror defroster. If
there is no other operation, they
are automatically deactivated after
operating for 15 min. Tap this button
again to turn off the rear windshield
defroster and the external rearview
mirror defroster.
●This function cannot be used to dry
rain drops and melt snow.
WARNING
●Do not touch the side mirrors
when the rear defroster is
activated, because their surfaces
will be hot.
CAUTION
●To prevent the low-voltage battery
from discharging, switch off the
rear defroster when the motor is
running.
05
Blowing Mode
IN-VEHICLE DEVICES
●Tap an icon on the Multimedia
touchscreen to select the
corresponding air distribution mode.
You can turn on multiple modes (up
to three) simultaneously by using the
touchscreen.
: Air is blown onto the driver's and
passengers' upper bodies.
: Air is blown onto the driver's and
passengers' feet.
: Air is blown onto the front
windshield and side windows.
A/C Operation Precautions
Halaman 136
A/C Precautions for Operation
●To quickly cool down the vehicle
parked under the burning sun, open
the window and drive for several
minutes. In this way, the hot air can be
discharged to facilitate the A/C to cool
down the vehicle.
●To cool down quickly, adjust the
temperature to the lowest and keep
the setting in recirculation mode for
several minutes.
●Make sure that the air inlet grille in
front of the front windshield is not
blocked (by such things as leaves or
snow).
●In the wet weather, do not let cold
air blow onto the windshield. The
temperature difference between the
inside and outside of the windshield
causes fogging windshield.
●Keep the space under the front seats
unoccupied so that the air in the
vehicle can be fully circulated.
●In cold weather, the fan speed is
recommended to be set at high speed
for one minute to remove snow or
moisture from the intake channel, so
as to reduce fogging of the window.
●In cold weather, keep the setting in
recirculation mode for several minutes
for rapid heating. To prevent the
windows from fogging up, switch to
fresh air mode after the temperature in
the compartment rises.
●Close all windows when following
other vehicles on a dusty road or
driving in windy and dusty conditions.
Set the air inlet mode to recirculation,
and turn on the A/C fan.
●When heating, press the compressor
control icon to light it up (the
compressor is turned on), reducing the
moisture in the airflow.
REMINDER
●Odor of A/C:
●When the air conditioner is just
turned on, the air blown by the
air conditioner may have the
odor of damp mildew, which is
a normal phenomenon. During
the operation of the automobile
A/C, A/C condensation often
remains in the evaporator, and
the wet evaporator can easily
absorb unfiltered body sweat,
smokes, etc., inside the vehicle.
If the condensed water on the
evaporator does not dry, the
dark and humid evaporator
surface tends to breed mold,
which tends to produce a
peculiar smell after long-term
fermentation.
●Methods to prevent odor of A/C:
●Turn off the A/C and ventilate
with natural air before parking
to keep the air inside the vehicle
relatively dry.
●Check, clean or replace the filter
screen regularly.
●Try to keep the cabin clean and
fresh.
●If the odor persists after odor
prevention methods are used, it
is recommended to contact a
BYD authorized dealer or service
provider for repair.
●In order to keep the internal
working environment of A/C
system dry, the A/C blower may
automatically start for a while
after the vehicle is powered off
and locked. The purpose is to dry
the condensed water produced
on the surface of the evaporator
when the air conditioner is turned
Center Console Storage Compartment
Halaman 137
REMINDER
on, so as to avoid the growth
of mildew on the surface of
the evaporator. It is normal for
the A/C blower to start running
automatically when you lock the
vehicle. No need to worry about it.
Vents
To adjust the blower speed or venting
angle by shifting the adjusting rod Vents
can be closed by toggling adjusting
sheets to the limit.
Storage
Door Bins
Each door is equipped with a door bin to
store beverage bottles or small items.
Glove Box
●Pull the handle to open the glovebox.
●Push the glovebox up to close.
REMINDER
05
●To reduce the risk of injury in an
accident or emergency braking,
keep the glovebox closed while
driving.
IN-VEHICLE DEVICES
Center Console Storage
Compartment
The glovebox is located under the center
console.
The glovebox is located behind the center
console.
Sun visor
Halaman 138
Cup Holder
The front seat cup holder is located inside
the center console cubby.
CAUTION
●When using the cup holder, do not
start or brake the vehicle suddenly
to prevent liquid spillage and burn
you or other passengers.
●Do not place an open cup or
an untightened beverage bottle
in the cup holder to avoid liquid
spilling during the opening and
closing of the door and driving.
●In order to ensure driving safety,
it is strictly forbidden for drivers
to take out or put cups into cup
holders during driving.
Seatback Pockets
●There are seatback pockets at the
back of the front seats for storing
magazines, newspapers, and other
goods.
Other Devices
Sun visor
●To block the sunlight from the front,
pull the sun visor down.
●To block the light from the side,
remove the slewing sleeve from the
fixed support and turn sun visors to
the side window.
REMINDER
●Correct use of the sun visor
improves driving safety and
comfort.
12V Auxiliary Power
Halaman 139
Vanity Mirror
●Vanity mirrors are installed on the
driver’s and front passenger’s sun
visors.
●To access the vanity mirror, pull the
sun visor down and flip open the
mirror cover. The vanity mirror light*
is on. The light* goes out when you
close the mirror cover or fold up the
sun visor.
Grab Handles
●Pull the safety handle down for use.
The handle returns to its original
position when released.
CAUTION
●Do not hang any heavy objects
from the safety handles.
USB Ports
①USB charging port
②USB data transmission port
SD Card Slot
05
An SD card slot is provided at the lower
end of the center consol.
IN-VEHICLE DEVICES
12V Auxiliary Power
●It is used for accessories with 12V DC
working voltage and no more than 10A
working current.
●Open the cover of the 12 V backup
power to use it when the vehicle is in
the OK gear.
Wireless Phone Charger*
Halaman 140
Wireless Phone Charger*
●The wireless cell phone charging
function is to charge the cell
phone through electromagnetic wave
inductionwithout the need of wire
connection.
●On the infotainment touchscreen, slide
down the shortcut menu and light up
the wireless charger icon .
●Once the vehicle is started, place the
phone in the wireless charging area
with the phone screen facing up and
the phone will automatically enter
wirelesss charging mode.
●To disable the wireless charger: On the
infotainment touchscreen, slide down
shortcut menu and tap the wireless
charger icon. The indicator turns off
and the wireless charger function is
disabled.
CAUTION
●The smartphone wireless charging
is applicable to QI certified
smartphones only.
●Do not place cards with chips,
such as bank cards, between
the case and the phone while
charging to avoid burning the
cards.
●During wireless charging, ensure
that the intelligent key is more
than 25cm away from the
charging area.
●Do not place coins, metal keys,
metal rings, or other items
containing metal components
on the wireless charging area
together with the smartphone, so
as to avoid dysfunctions and even
safety accidents.
●Do not place heavy objects
on the charging area to avoid
damage to the charging area. If
the smartphone wireless charging
system fails, contact a BYD
authorized dealer or service
provider.
●BYD is not liable for any problems
caused by abnormal use. If the
product has been disassembled or
modified, the warranty service is
terminated.
●When leaving the vehicle, do
not place the smartphone in
the vehicle for charging to avoid
potential safety hazards.
●For safety reasons, refrain from
checking phone charging status
while driving.
●When charging the smartphone
wirelessly, if any metal object
between the smartphone and
the rubber pad is found, do not
Hook
Halaman 141
CAUTION
remove it immediately by hand to
avoid burns.
●In order to achieve better charging
effect, the center of the mobile
phone coil must be aligned with
the center of the wireless charger
(charging area character position).
●Do not spray water on the
charging area to prevent water
from entering the wireless charger
through the gap of the rubber
pad, thus avoiding charger failure.
●When the temperature is too high,
the charging of the smartphone
may stop and continues after the
temperature drops.
●BYD makes no commitments for
problems caused by external
wireless charging coils. Please use
with caution.
REMINDER
●Only one phone can be charged at
a time.
●Too thick smartphone shell may
cause charging failure.
●When the vehicle runs through
bumps, wireless charging may be
briefly interrupted.
●Try to ensure that the mobile
phone placement surface is
parallel to the charging module. If
the smartphone deviates from the
wireless charging area and stops
charging, move the smartphone
back to the wireless charging
area.
●In the event of smartphone
wireless charging failure, make
sure that there is no object
placed on the wireless charging
REMINDER
area or wait for the wireless
charging area to cool down before
charging again. If the wireless
charging still fails, please contact
a BYD authorized dealer or service
provider.
●After power-off, if the phone is
still charging and the driver's door
is opened, the instrument cluster
sounds an alarm and a warning
text is displayed for 5 seconds.
Hook
05
●Only for the goods less than 3kg.
IN-VEHICLE DEVICES
CAUTION
●Do not hang any heavy objects on
the hook to avoid damage to the
hook.
Hook
Halaman 142
142
Maintenance
Halaman 143
# 06 MAINTENANCE
* Maintenance Information...................................................... 144
* Regular Maintenance............................................................ 146
* Self-Maintenance.................................................................. 151
Maintenance Schedule Requirements
Halaman 144
Maintenance
Information
Maintenance Cycle and
Items
Maintenance Plan
●The maintenance plan is designed to
ensure stable driving, failure reduction,
safe and economical driving.
●For the planned maintenance interval,
refer to the maintenance schedule
depending on the reading of the
odometer or the time interval,
whichever comes first.
●Overdue maintenance items should
also be implemented at the same
intervals.
●Rubber hoses (for cooling and heating
systems, braking systems, etc.) should
be checked by professional technicians
according to the maintenance
schedule.
●These are particularly important
maintenance items, and the
maintenance intervals of each item are
recorded in the maintenance schedule.
The hose with any deterioration
or damage should be replaced
immediately.
●The maintenance schedule lists all the
maintenance items that are necessary
to keep the vehicle in optimum
condition at all times.
●The maintenance shall be carried out
according to BYD's standards and
specifications. It is recommended that
the maintenance be carried out by a
local BYD authorized dealer or service
provider.
●The maintenance schedule lists the
maintenance items and travel time or
distance based on the assumption that
the vehicle is used as a normal means
of transportation to carry passengers
and goods that do not exceed the
vehicle load limit.
CAUTION
●Please maintain the vehicle
regularly according to the
requirements in the Warranty and
Maintenance Service Manual of
BYD.
Maintenance Plan Requirements
The vehicle must be maintained
according to a maintenance schedule.
If the vehicle is operated mainly under
one or more of the following special
conditions, some maintenance schedule
items need to be carried out more
frequently.
●Road conditions
●Driving on rough, muddy or snowy
roads.
●Driving on dusty roads.
●Driving conditions
●The vehicle is used to tow a camping
trailer or a roof bracket is installed on
the vehicle.
●The vehicle is driven within 8
km repeatedly and driven in
an environment with temperature
below zero.
●The vehicle is driven in long-term
idling or low-speed long-distance
driving conditions. The examples
include police cars, taxis, or vehicles
carrying goods.
Maintenance Schedule
Halaman 145
Maintenance Schedule
Vehicle maintenance is performed based
on the mileages or months, whichever
comes first.
Item
Interval
Check brake pads and discs
Check them every 12 months or 20,000 km.
Check brake system pipeline and hoses
Check them every 12 months or 20,000 km.
Check steering wheel and lever
Check them every 12 months or 20,000 km.
Check drive shaft dust cover
Check them every 12 months or 20,000 km.
Check ball pin and dust cover
Check them every 12 months or 20,000 km.
Check front and rear suspensions
Check them every 12 months or 20,000 km.
Tire condition and inflation pressure, incl.
TPMS
Tire wear (check front and rear wheel
alignment when tire uneven wear is greater
than 2 mm)
Inspect EPS appearance corrosion and
foreign matters and ablation of connectors
(including wiring harness grounding)
Check them every 12 months or 20,000 km.
Check the coolant level in the expansion
tank
Check them every 12 months or 20,000 km.
Check brake fluid
Check them every 12 months or 20,000 km.
Check whether the power battery tray, anti-
collision bar, guard plate and explosion-
proof valve* are bumped and deformed,
and whether the power assembly leaks.
Check the A/C strainer and filter
Every 12 months or 20,000 km, in areas with
severe working conditions, check every 6
months and replace if necessary.
Replacing A/C coolant and battery coolant*
Replace the long-acting organic acid
coolant every 4 years or 100,000 km.
Replace high-voltage battery coolant*
Replace the low conductivity coolant
(violet) for the first 24 months or 100,000
Check it at three months or 5,000 km for the
first time, and every 12 months or 20,000
km afterwards. Replace damaged parts in a
timely manner.
06
Check during maintenance, and carry
out tire transposition if necessary; In
bad working conditions, increase the
frequency of inspection, and carry out tire
transposition if necessary
MAINTENANCE
Check them every 12 months or 20,000 km.
Vehicle Servicing
Halaman 146
Item
Interval
km, and every 24 months or 100,000 km
thereafter.
Drive motor coolant
Replace the long-acting organic acid
coolant every 4 years or 100,000 km.
Replace brake fluid
Check during maintenance, replace it every
24 months or 40,000 km.
Gear oil in transmission
Replace it at 24 months or 40,000 km for the
first time, and every 24 months or 48,000
km afterwards.
Apply 0.2-0.3g of lubricating grease to the
contact position between the U-shaped
groove of the lock tongue at the fish-mouth
of the four door locks and the lock ring after
wiping, and confirm that there is oil film on
the surface of the lock tongue. Do not apply
too much to cause accumulation.
Every 12 months or 20,000 km
Note: When checking Item 1, replace chassis parts in a timely manner if any abnormal
damage is found.
REMINDER
●To keep the high-voltage battery
in optimal condition, please fully
charge and discharge the vehicle
regularly (at least every six
months or 72,000 km, whichever
comes first) for battery self-
calibration. You can also contact
a BYD authorized dealer or service
provider for capacity testing and
calibration.
●The brake linings/brake discs are
checked at different intervals in severe
weather in extremely cold regions (e.g.
Norway, Finland, Iceland).
●For accidents vehicles or vehicles
with abnormal suspension, it is
necessary to check whether the
battery pack high-voltage wiring
harness connector is loose, and
the after-sales department sends a
technical notice to the BYD authorized
dealer or service provider.
Regular
Maintenance
Regular Maintenance
●Pay attention to vehicle performance,
sound changes, and visual evidence
that indicates service is required.
Under any of the following
circumstances, the vehicle may need
to be adjusted or repaired. Therefore,
you are recommended to send the
vehicle to a BYD authorized dealer or
service provider as soon as possible:
●Motor start produces unusual noises.
●Coolant remains overheated, is
stagnated or leaks.
Vehicle Corrosion Prevention
Halaman 147
●Motor jams and produces
unexpected noise.
●The motor runs with excessive
vibration.
●The motor fails to get started.
●Electric assembly leaks oil.
●Electric assembly emits odors.
●Power declines significantly.
●Water leaks from under the vehicle
(A/C condensate is normal).
●Tire deflates; tires make excessive
noises at turns; tire wear is uneven.
●Vehicle leads to one side when
driving straight on a flat surface.
●Suspension unit movement leads to
unusual noises.
●Loss of braking effect; sponge feeling
on the brake pedal or clutch pedal;
pedal almost contacts the floor;
vehicle leads to one side when
braking.
●Motor coolant temperature remains
high.
●Battery capacity decreases
significantly.
●High battery temperature or overheat
protection persists, or there is no
power output.
REMINDER
●Do not continue driving a vehicle
that has not been inspected, as
this may result in serious vehicle
damage and personal injury.
Vehicle Corrosion
Prevention
The most common causes of vehicle
corrosion:
●Saline and alkaline substances, dust
and moisture are accumulated on the
vehicle floor.
●The vehicle is in a high-humidity
environment or some parts of
the vehicle are in a humid and
hightemperature environment for a
long time.
●The paint layer or underlayer is
scratched by minor collision or by
stones and gravel.
To prevent vehicle corrosion, the
following guidelines shall be observed:
06
●Wash the vehicle frequently
●If you drive on a saline-alkali road
in winter or live in a coastal area,
clean the chassis and wheel guard
with a high-pressure water gun or
steam at least once a month to
reduce corrosion. After winter, wash
the chassis thoroughly.
MAINTENANCE
●Check body paint and decorative parts
●Any chip or crack found on the
paint must be repaired immediately
to prevent corrosion. If fragments
or cracks peel off from the metal
surface, it is recommended to go to
a BYD authorized dealer or service
provider for repair.
●Check the interior of the compartment
●Moisture and dust accumulated
under the carpet cause corrosion, so
the underneath of the carpet should
be regularly checked and kept dry.
●When transporting such goods as
chemicals, detergents, fertilizers, and
salts, special care should be taken,
Manual Vehicle Washing
Halaman 148
and proper containers must be used.
In the event of splashing or leakage,
clean the vehicle immediately and
keep it dry.
●Use mudguards
●If the vehicle is running in a
salinealkali area or on a gravel road,
mudguards can protect the vehicle.
The bigger and closer to the ground
the mudguards, the better.
●Park in a well-ventilated and dry area.
Paint Maintenance Tips
●Clean the vehicle in time.
●To prevent color incongruity or
rough surfaces, avoid secondary paint
spraying if the top coat has no obvious
scratches.
●If the vehicle is parked for a long time,
it should be parked in a garage or well-
ventilated place, and covered with a
special body cover in winter. Choose a
cool place for temporary parking.
●Prevent strong impact, bumps, or
scratches on paint film of the vehicle
body. If any scratch, dent, or peeling
is found on the top coat, repair it in
time, preferably at a professional auto
detailing shop.
●Do not touch the top coat with greasy
hands or scrub it with a greasy
cloth. Do not place tools or cloth
contaminated by organic solvents on
the vehicle body to avoid chemical
reactions.
●Wax the vehicle top coat for protection
once a month or when the body
surface cannot resist water well, and
go to a professional auto detailing
shop for maintenance regularly
(quarterly) to restore the brightness
and luster of the body top coat in time.
●Use high-quality polishing agent and
wax. If the polished surface of
the vehicle body has been severely
weathered, use a wax-free vehicle
cleaning and polishing agent. Carefully
follow the manufacturer's instructions
and preventive measures. The chrome-
plated surface shall be polished and
waxed as the paint surface.
CAUTION
●When the vehicle is repainted
and placed in a high-temperature
paint waxing workshop, the
vehicle’s plastic bumper must be
removed to avoid damage caused
by high temperatures.
Exterior Cleaning
●The vehicle must be cleaned in time
under the following circumstances
which will cause peeling of paint layer
or corrosion of body and parts:
●Driving along the coast.
●Driving on a road on which anti-
freeze has been scattered.
●Driving on roads covered with coal
tar.
●Resin, bird droppings and insect
carcasses get stuck.
●Driving in areas with a large amount
of smoke, soot, dust, iron filings or
chemicals.
●Vehicles visibly soiled by dust or
mud.
●After raining.
Washing the Vehicle Manually
Wait for the vehicle to cool down
sufficiently in the shade before washing
it.
Interior Cleaning
Halaman 149
1. Use a water pipe to wash off loose dirt
and all mud or saline-alkali substances
at the bottom of the vehicle and
sunken parts of wheels.
2. Clean the vehicle with a neutral
washing agent mixed according to the
manufacturer’s instructions. Soak a
soft cloth with cleaning solution and
gently wipe it down along the direction
of the water flow. Do not wipe in a
circular motion or horizontally.
3. Rinse well: It forms markings when the
washing agent dries. After washing the
vehicle in hot weather, rinse the parts
properly.
4. In order to prevent water stains, wipe
the vehicle body dry with a clean soft
towel, and avoid wiping or pressing
hard, otherwise the paint surface may
be scratched.
REMINDER
●Do not use strongly alkaline
washing powder, soapy water,
detergents, de-waxing detergents,
or organic matters (gasoline,
kerosene, volatile oil, or strong
solvent) to clean the vehicle.
●When cleaning the combination
lights, do not wipe their surface
with chemical solvents such
as gasoline, alcohol, lacquer
thinner, thinner and carbon
tetrachloride. Doing so will cause
the combination light casings to
crack.
●It is recommended that vehicles
traveling in coastal or heavily
polluted areas be washed once a
day.
●Do not use blades or gasoline to
remove hard dirt from the vehicle
body. The plastic wheel trim is
easily damaged by organic matter.
If any organic matter splashes on
REMINDER
the vehicle trim, remove it with
water and check whether the trim
is damaged. Please replace any
seriously damaged plastic wheel
trim in time. Otherwise, the trim
may fall from the wheel during
vehicle movement and cause an
accident.
●Do not use abrasive cleaning
agents to scrub the bumper.
●Clean polished metal parts with
carbon cleaner and wax them
regularly for protection.
Automatic Car Washing
Some types of brushes, unfiltered water,
or machine-defined rinse procedures
in automatic car wash stations may
scratch or damage the paint surface.
The scratches reduce the durability and
glossiness of the paint surface, especially
for dark-colored vehicles. Before washing
the vehicle, consulting the staff of the
vehicle wash station for the safest wash
procedure for the paint surface is a better
choice.
06
MAINTENANCE
Interior Cleaning
REMINDER
●When cleaning the interior
or exterior of the vehicle,
do not allow water to flow
onto the dashboard and floor,
as water entering nearby
electrical components may cause
malfunction.
●Do not wash the floor of the
vehicle with water to avoid
corrosion of the vehicle body.
Leather
Halaman 150
Carpets
●Clean carpets with a high-quality foam
detergent.
●Firstly, use a vacuum cleaner to clean
the dust as much as possible. There
are several types of foam detergents
that can be used. Some are filled in
spray cans, and others are in powder
or liquid forms, producing foam by
mixing with water. Clean carpets with
foam-soaked sponges or brushes and
scrub them in circular motions.
●Do not use plain water only, and keep
the carpets as dry as possible.
Seat Belt Cleaning
●The seat belts can be cleaned with
neutral soapy water or lukewarm
water.
●Wipe seat belts with sponge or soft
cloth. During cleaning, check the seat
belts for excessive wear, tears or cut
marks.
CAUTION
●Do not clean the seat belt
with colorant or bleach. These
substances may decrease the seat
belt's strength.
●Do not use any seat belt that is not
dry.
Doors and Windows
●Doors and windows can be cleaned
with common household detergents.
●Check the door brake regularly. If
obvious dust accumulation is found
on the brake rod, wipe it with a
wet soft cloth to remove dust on
the surface, and then apply 0.3~0.8 g
grease between the bracket and the
rod riveted shaft, and between the rod
and the sliding block.
CAUTION
●When cleaning the inside of the
rear windows, take care not to
scratch or damage electric heating
wires or junctions.
A/C Control Panel, Car Speakers,
Dashboard, Control Panel and Switches
●Clean the A/C control panel, car
speakers, dashboard, control panel
and switches with a wet soft cloth.
●Wipe dust off gently with a clean soft
cloth soaked in lukewarm water.
CAUTION
●Do not use any organic matter
(such as solvents, kerosene,
alcohol, gasoline) or acid-base
solutions. These chemicals can
cause discoloration, staining, or
flaking.
●Please confirm that the detergent
or polishing agent to be used does
not contain the above substances.
●If a new-type liquid car washer
is used, do not splash it onto
the interior surface of the vehicle,
because it may contain the above
substances. Clear any splashed
liquid quickly.
Interior Leather Trimmings
●Leather trimmings can be cleaned with
a neutral detergent for woolen.
●Use a soft cloth soaked with a neutral
detergent solution to wipe off the dust,
and then use a clean wet cloth to wipe
off the residual detergent thoroughly.
Self-Maintenance Precautions
Halaman 151
●If leather gets wet, wipe it with a clean
soft cloth. Dry the leather in a well-
ventilated, cool place.
●For any questions about vehicle
cleaning, please consult a local BYD
authorized dealer or service provider.
CAUTION
●If dirt cannot be cleaned off using
a neutral detergent, clean it with
a detergent that does not contain
organic solvents.
●Do not clean leather with any
organic material such as volatile
oil, alcohol, gasoline, acid or
alkali, as these will cause
discoloration.
●Do not clean leather with a nylon
brush or synthetic fiber cloth,
as these may scratch the fine
patterns on the leather surface.
●Mold may grow on dirty leather
trimmings. Special care must be
taken to avoid oil stains and
atrimmings must always be kept
clean.
●Prolonged exposure to sunlight
will cause leather to harden or
shrink. so the vehicle should be
parked in a shady and cool place,
especially in the summer.
●In hot weather, avoid placing vinyl
or waxy items on the trimmings,
as these may stick to leather in
high temperatures.
●Improper cleaning of leather
trimmings may cause
discoloration or spots.
Self-Maintenance
Self-Maintenance
●If you want to carry out maintenance
by yourself, make sure to correctly
follow the steps specified in this
chapter.
●It should be noted that incorrect and
incomplete maintenance will affect the
driving experience.
●This chapter only lists the instructions
for some simple maintenance
operations that the user can carry out.
However, there are still many items
that must be completed by qualified
technicians with special tools.
●Special care must be taken during
vehicle maintenance to prevent
accidental injury. The following
precautions must be observed.
06
MAINTENANCE
CAUTION
●Some circuits and parts of
vehicles have high current or high
voltage, so beware of short circuit.
●If coolant overflows, wipe it with
a dry cloth or tissue to prevent
damage to components or vehicle
paint.
●If brake fluid overflows, rinse it
with water to prevent damage to
components or vehicle paint.
●When replacing wiper blades, do
not allow the wipers to scratch the
glass surface.
●Before closing the hood, check
whether any tool or wipe cloth is
left in the engine compartment.
●When working inside or under the
vehicle, always wear goggles to
Combination Lights
Halaman 152
CAUTION
protect your eyes against flying or
falling objects or splashing liquid.
●As brake fluid may damage
the skin or eyes, be careful
when filling it. If your
skin or eyes are exposed
to brake fluid, immediately
flush with clean water. Seek
medical attention immediately if
discomfort persists.
Checks
The following items should be checked
according to service conditions or
specified mileage:
●Coolant level: The level of expansion
tank should be checked at each
charging.
●Windshield washer fluid - check the
amount of washer fluid in the fluid
reservoir once a month. If the washer
fluid is frequently used due to the
bad weather, increase the frequency of
checking.
●Windshield wipers - check the wiper
condition once a month. If the
wiper cannot clean the windshield
completely, check if any damage such
as wear and cracking exists.
●Brake fluid level - check the fluid level
at least once a month.
●Brake pedal - check whether the brake
pedal functions normally.
●EPB switch - check whether the switch
functions well.
●Low-voltage battery - Check battery
conditions and check for terminal
corrosion monthly.
●A/C system - Check the operation of
A/C units weekly.
●Tires - check tire pressure monthly.
Check the condition of wear and any
embedded objects on the tire surface.
Check tread wear and whether there
are foreign bodies embedded.
●Windshield defrosters - Check the
defroster vent monthly with heating
and air conditioning in service..
●Lights - Check the condition of
headlights, position lights, tail lights,
high mount brake light, turn signals,
rear fog lights, brake lights, charging
port light and license plate light
monthly.
●Doors - check whether the trunk lid
and doors can be opened and closed
normally and locked firmly.
●Horn - check whether the horn
functions normally.
REMINDER
●Do not continue driving a vehicle
that has not been inspected, as
this may result in serious vehicle
damage and personal injury.
Combination Lights
Front combination lights
●Front combination lights are aligned
before vehicle delivery. If the vehicle
carries heavy load frequently, front
combination lights may need to be
realigned. It is recommended to have
the front combination lights aligned
by a BYD authorized dealer or service
provider.
Fogging of lights
●After heavy rain or cleaning, fog may
appear on the covers of combination
lights, tail lights, or turn signals in
side mirrors. This is similar to the
condensation phenomenon of the
windows on one side of the vehicle
Vehicle Storage Precautions
Halaman 153
during rain, which does not indicate
that your vehicle is faulty.
●The inside space of lights is relatively
closed and narrow, so the temperature
inside the lights is very high when they
stay on, and the cover and reflector
tend to be burnt and deformed due
to high temperature.Therefore, lights
need heat dissipation. Light covers
are designed with holes for heat
dissipation through convection with
the surrounding environment. The
larger the temperature difference, the
more active the convection. In the
process of convection, the water vapor
in the air is inevitably brought inside
the water vapor in the air is inevitably
brought inside lights. Due to the
influence of sun exposure, convection,
bulb heating, and other factors, the
water vapor in the air is easy to
condense into fog or water droplets on
light surfaces with low temperatures.
That is why the fog on light covers
forms.
REMINDER
●If fog presents inside the
combination lights and inside the
turn signal on the side mirror, it
may be due to high air humidity or
significant temperature difference
between the vehicle and its
surroundings. In that case, turn
on the combination lights or turn
signal while driving. The fog will
evaporate after a short period of
driving.
●If there is a noticeable amount
of water inside the lights, it is
recommended to drive the vehicle
to a BYD authorized dealer or
service provider for maintenance.
Vehicle Storage
●If the vehicle needs to be parked for a
long time (more than one month), the
following preparations shall be made.
Proper preparation helps to prevent
deterioration of vehicle conditions and
makes it easy for the next use of the
vehicle. If possible, park the vehicle
indoors.
●Charging On Time:
●Clean and dry the vehicle body
thoroughly.
●Clean the interior of the vehicle to
ensure that the carpet and other
trimmings are completely dry.
●Engage the parking brake. Shift the
gear to P gear.
06
●Open the window on one side slightly
(when parking indoors).
●Disconnect the negative terminal of
the low-voltage battery.
MAINTENANCE
●Pad the front wiper arm with a folded
towel or cloth so as not to contact the
windshield.
●To reduce sticking, spray silicone
lubricant on the sealing parts of all
doors and the boot lid, and apply
vehicle body wax on the paint surface
where the sealing strips of doors and
boot lid contact.
●Cover the vehicle body with a
breathable covering made of porous
material such as cotton cloth. Non-
porous materials such as plastic cloth
accumulate moisture and damage the
body surface paint.
●If possible, the vehicle must be started
on time (at best once a month) If
a vehicle is parked for at least one
year, go to a BYD authorized dealer or
service provider for coolant addition.
Brake fluid
Halaman 154
Hood
Opening the hood
1. Pull the handle on the left under the
dashboard twice. The hood unlocks
and opens slightly.
2. Lift the front hatch cover up and
support the front hatch cover with a
support rod.
Closing the hood
1. When closing the front hatch cover,
lower it to a height of about 30cm
above the front grille and let go of both
hands to let it fall freely for locking.
2. After closing the hood, check whether
the latch is securely locked.
CAUTION
●Ensure that the hood is closed
and locked firmly. Otherwise, the
hood may suddenly open during
driving, resulting in an accident.
●When locking the front
compartment hood, do not lower
the front compartment hood with
force, and do not allow the hood
to fall freely when it is in a wide
opening position.
Cooling System
●The fluid level meets the requirement
when it is between the MAX (maximum
fluid level) and MIN (minimum fluid
level) marks of the expansion tank.
●Always use the coolant with
specifications same as the original
manufacturer's product. No admixture
is required. Different brands and types
of refrigerant should not be mixed.
CAUTION
●Never add any rust inhibitor or
other additives to the cooling
system. The additives may be
incompatible with coolant or
motor components.
●Before opening the auxiliary water
tank, make sure that the motor,
HV electronic control integrated
module, coolant tank and radiator
have cooled down.
REMINDER
●Go to a BYD authorized dealer
or service provider for coolant
addition.
●Opening the auxiliary water tank
cover when the motor is not
completely cooled may cause the
coolant to spray out and cause
severe burns.
Braking System
●The liquid level in the reservoir shall
be checked monthly and the brake
fluid shall be replaced according to the
travel time and mileage specified in
the periodic maintenance table.
●Be sure to use the same specifications
of brake fluid as the original
Wiper Blades
Halaman 155
manufacturer. And different types of
brake fluid cannot be mixed.
●If the liquid level is between the mark
lines of "MAX" (highest scale mark
level) and "MIN" (lowest scale mark
level) in the liquid storage tank, it
meets the requirements.
●If the fluid level is at or below the
lowest limit (MIN) mark, it is necessary
to check the brake system for leakage
and wear of brake friction plates.
Washer
●During normal use, check the fluid
level of the windshield washer
reservoir at least once a month.
●In bad weather, if the washer is often
used, check the washer fluid reservoir
level more frequently.
●High quality windshield washer fluid
should be added to improve stain
removal and prevent freezing in cold
weather.
●When you add washer fluid to the fluid
reservoir again, use a piece of clean
cloth dipped with windshield washer
fluid to clean the windshield wiper
blade, which helps keep the blade
edge in good condition.
CAUTION
●Do not inject vinegar-water
solution into the windshield
washer fluid reservoir.
●It is recommended to use certified
windshield washing fluid.
A/C System
●The A/C system is a closed system,
and any important maintenance work
should be carried out by professionals
from a BYD authorized dealer or
service provider.
●The following can be done to ensure
effective operation of the A/C system.
●Check the radiator and A/C
condenser regularly. Remove leaves,
insects and dust accumulated on
the front surface. These deposits
hinder the airflow and reduce
the cooling effect. Contact a BYD
authorized dealer or service provider
for handling.
●In cold months, it is recommended
that the A/C be turned on once
a week for at least 10 minutes to
circulate the lubricating oil in the
refrigerant unit.
●If A/C efficiency decreases, go to a BYD
authorized dealer or service provider
for maintenance.
06
CAUTION
MAINTENANCE
●Whenever the A/C system is
maintained, the maintenance
station should use a refrigerant
recycling equipment. The
equipment can recycle refrigerant
to avoid environmental pollution
caused by directly discharging
refrigerant.
Wiper Blades
The rubber strip of the wiper blade is
made of synthetic rubber, which is a
vulnerable part. The wiper blade may be
damaged in the service environment of
various vehicles and by the driver's use
habits. Therefore, in order to ensure the
service life of the wiper blade and the
driving safety of the vehicle, pay attention
to the following precautions:
●Remove the ice on the windshield
surface with a special ice scraper,
rather than with the wiper blades.
Tire Inflation
Halaman 156
●Do not wipe on dirty, oily or waxy
windshield surfaces.
●Keep the windshield surface clean. Do
not wipe dust, sand, insects, and other
objects on the windshield surface.
●Do not wax the windshield when
washing the vehicle and maintaining
the body paint, as the wax
layer reflects light in poor light,
consequently affecting the sight and
driving safety. Rinse the wiper blades
with purified water after washing the
vehicle and remove the wax layer on
the windshield with special glass wax
layer cleaning agent.
●Do not wash the wiper blade directly
with a squirt gun to prevent damage to
the wiper blade due to excessive water
pressure.
Maintenance Rules
●Clean the windshield and wiper blades
regularly (once every one or two
weeks).
●It is recommended to wipe regularly
(once a day or once in two days).
Keep the windshield fully wet when
wiping with wiper blades (when it is
not raining, the washer fluid must be
sprayed on the windshield in advance).
●Clean the windshield with special
cleaning agent.
●Wipe the windshield with a rag in time
if it is attached with soil and dead
insects.
●Maintain the windshield in time in case
of scratches by gravel knocking (it is
recommended to use resin products
for the windshield repair, and replace
the windshield in case of many or
excessive scratches).
●Replace the wiper blade regularly,
and an interval of six months is
recommended.
●Lift the wiper arms up prior to cleaning
the windshield. The specific operation
method is as follows:
1. Tap the touchscreen → Settings →
Service setting interface to repair the
wiper before opening, and rotate the
wiper to the high position.
2. Grasp the upper end of the wiper
arm and carefully lift the wiper arm
and wiper blade assembly.
Tire
●In order to drive safely, tire type and
size must be suitable for the vehicle.
The tire tread should be in good
condition and the tire pressure should
be within the standard range.
●The following is detailed description
of how to check the tire pressure, tire
damage and wear, and the operation
method of tire rotation.
WARNING
●Using tires with excessive wear
or insufficient/excessive pressure
can result in accidents, severe
injury, or death.
●Please follow all instructions
in this manual regarding tire
inflation and maintenance.
Tire Inflation
●Keeping tires properly inflated
provides the best combination of
maneuverability, tread-wear life, and
driving comfort.
●Driving with underinflated tires
leads to uneven tire wear,
affect maneuverability and energy
consumption, and even may cause air
leakage due to overheating.
Maintenance
Halaman 157
●Driving with overinflated tires reduces
the comfort of the vehicle, and is also
more likely to be damaged due to
uneven road surfaces. In severe cases,
there is a risk of tire burst, which
seriously threatens the safety of the
vehicle. At the same time, it also leads
to uneven wear of tires, thus affecting
the service life of tires.
●In a cold state (the vehicle is equipped
with a tire pressure monitoring device),
whether to inflate the tires depends on
the tire pressure values displayed on
the instrument cluster.
●Measure the tire pressures when
the tires are cold. This means the
measurement should be carried out
at least three hours after stopping the
vehicle. If you have to drive before
measuring the tire pressures, as long
as the driving distance does not exceed
1.6 km, the tires can still be considered
to be in a cold state.
●If the tire pressures are checked
when the tires are hot (after several
kilometers of driving), the pressure
readings are 30~40 kPa (0.3~0.4 bar)
higher than those in the cold state.
This is normal. Do not deflate the tires
to reach the tire pressure readings
specified for the cold state, otherwise,
the tire pressures are insufficient.
REMINDER
●The recommended cold tyre
pressure is indicated on the label
affixed to the driver's door frame.
●Tubeless tires can be self-sealed
when punctured. However, since
the air leakage is usually very
slow, carefully find out the
leaking position once the tire
depressurization occurs.
Checks
●Whenever checking tire inflation,
check tires for damage, foreign body
piercing and wear.
●Replace the tire if bumps, or tread
or side damage are found. Tires
should be replaced if any of the case
happens.
●Replace the tire if there are cracks on
its side, or if its fabric or cord can be
seen.
●Replace tires with excessive tread
wear.
06
MAINTENANCE
●When the tread is worn at this point, a
band mark is shown across the tread,
indicating the tread thickness is less
than 1.6 mm. The adhesion of tires
worn to this extent is very small on wet
roads.
●When the tread is worn to the point
where the wear mark is exposed, there
is serious performance loss so that the
tires must be replaced.
Maintenance
●In addition to proper inflation, correct
wheel alignment can also help reduce
tread wear.
●If uneven tire wear is found, drive the
vehicle to a BYD authorized dealer
or service provider to check wheel
alignment.
Replacing Tires and Wheels
Halaman 158
●The tires of a vehicle has been
balanced in the factory, but tires need
to be re-balanced after driving for a
period of time.
●If there is some kind of continuous
vibration while driving at high speeds
(above 80 km/h), but not at low
speeds, go to a BYD authorized dealer
or service provider and check the tires.
●Be sure to balance the tire again after it
is repaired.
●When installing a new tire or replacing
a new wheel, always perform tire
balancing.
CAUTION
●Improper wheel balancers will get
stuck, become loose and fall off.
While driving, this will damage the
car or surrounding objects.
●Improper wheel balancers will
damage the aluminum rims of
the vehicle. Therefore, it is
recommended to use original
wheel balancers.
Tire Rotation
●In order to make tire wear the same
and prolong the service life of tires,
it is recommended to check the wear
on the inside and outside of the tire
every 10,000 km and perform tire
rotation regularly, conduct four-wheel
alignment, inspection and adjustment
as well.
●Do not rotate tires when a spare tire is
used for the vehicle.
●When purchasing and replacing tires,
the user may find that some tires
are "directional", indicating those tires
can be rotated in only one direction.
In case of directional tires, the tire
rotation can only be carried out
between the front and rear tires on the
same side, as shown in the figure.
●After tire replacement, go to a BYD
authorized dealer or service provider
for tire pressure matching.
Replacing Tires and Wheels
●The original tires of this vehicle are
selected to maximize the performance
of the vehicle, and can provide
you with the best combination of
maneuverability, riding comfort, and
service life.
●It is recommended to drive the vehicle
to a BYD authorized dealer or service
provider for new original tires.
●If radial tires with different
dimensions, load range, rated speed
and maximum cold tire pressure
(marked on the side of the tire) from
that of the original tires are used
for replacement, or radial tires and
diagonal tires are used at the same
time, the braking capacity, driving
force (ground adhesion) and steering
accuracy of the vehicle are reduced.
●Installing improper tires affect the
operational sensitivity and stability of
the vehicle, and may cause accidents
and casualties.
●The user is supposed to replace all
four tires or the coaxial tires, because
replacing only one tire seriously affects
the maneuverability of the vehicle.
Fuse Location
Halaman 159
●ABS (Anti-lock brake system) works by
comparing the speed of wheels. When
replacing a tire, use a tire of the same
size as the original tire. The size and
structure of the tire can affect wheel
speed and may lead to uncoordinated
system operation.
●If the wheels need to be replaced,
make sure that the specifications
of the new wheels are consistent
with those of the original ones. New
wheels can be purchased from a BYD
authorized dealer or service provider.
Before replacing wheels, consult a BYD
authorized dealer or service provider.
REMINDER
Please observe the following
precautions to ensure proper vehicle
maneuverability and control.
●Do not mix radial tires, bias belted
tires, or diagonal ply tires on the
vehicle.
●Do not use tires with dimensions
other than those recommended
by the manufacturer.
Fuses
All vehicle circuits are provided with fuses
to prevent short circuit or overloading.
These fuses are mounted in the under-
hood and dashboard PDBs, respectively,
which Fuse labels are included in these
PDBs, showing the correspondence of
fuses with electrical components.
●The fuse under the hood is located on
the left rear of the front compartment.
To open it, remove the trim first, and
press the latch.
●The dashboard fuse under the front
passenger’s side of the car is located
on the left side of the dashboard, and
the fuse can be accessed by removing
the lower dashboard body.
●Replacement of blown fuses with ones
of higher amperage can significantly
increase the likelihood of damage to
the electrical system.
●If you do not have a substitution fuse
with an amperage matching the circuit,
you should replace it with a fuse with a
lower amperage.
REMINDER
●Do not use any fuse with an
amperage higher than the rated
value, or any other object to
replace fuses. Doing so can result
in serious damage and potentially
cause a fire.
●After the fuse is blown, it is
recommended to check or replace
it at a BYD authorized dealer or
service provider.
06
MAINTENANCE
Fuse Location
Halaman 160
160
When Faults Occur
Halaman 161
07
WHEN FAULTS
OCCUR
When Faults Occur..........................162
Emergency Shutdown System
Halaman 162
When Faults Occur
Reflective vest
The reflective vest is in the tool kit. In case
of emergency, always wear the reflective
vest properly before you check for faults
or handle accidents to ensure your safety.
If Smart Key Battery Is
Exhausted
If the smart key indicator does not flash,
and the vehicle cannot be started with
the start function, the battery may be
exhausted. Contact a BYD authorized
dealer or service provider for battery
replacement as soon as possible. In this
case, the vehicle can be started in the
power-off mode.
CAUTION
●Do not place the smart key
in a position exposed to high
temperature.
●Do not hit or slam the key with
hard objects.
●Magnetic fields generated by
radio stations, substations or
radio transmitters at airports may
interfere with the smart key and
affect the normal use of the
function of starting the vehicle
without electric key.
●If the vehicle is not to be
used after the vehicle enters
the anti-theft state with doors
locked, please keep the key far
away from the vehicle to avoid
low voltage battery consumption
resulting from automatic key
locating function.
1. Unlock with the mechanical key.
2. Depress the brake pedal and
meanwhile press the START/ STOP
button, and the smart key warning
light on the instrument cluster goes on,
with a beep from the speaker.
3. Press the electronic smart key close
to the power-off mode identification
within 30s after the speaker sounds,
and the speaker will sound again. At
this time, the warning light of the
smart key system will go out, and the
vehicle can be started.
4. Starting the vehicle within 5 seconds
after the humming.
Emergency Shutdown
System
●The emergency shutdown system is
activated and the high-voltage system
is automatically shut down when the
following conditions are met:
●Airbags do not deploy after a frontal
collision.
●Rear collisions.
●Vehicle system failure.
●If any of the above collisions
and vehicle system failures occurs,
the driving readiness indicator (OK
indicator) goes off.
●Activating the emergency shutdown
system in the noted types of collision
minimizes the risk of injuries or
Collision Rescue
Halaman 163
accidents. The vehicle system cannot
be switched into the OK status
once the emergency shutdown system
is activated. In that case, it is
recommended to contact a BYD
authorized dealer or service provider.
Even if the ignition switch is set to
the OK position, the system will be
turned off immediately. Therefore, it is
recommended to come to or contact
a BYD authorized dealer or service
provider as soon as possible.
Vehicle Fire Rescue
In case of fire, continue to operate the
vehicle as follows according to the actual
situation:
1. Switch the ignition off, and get out of
the vehicle.
2. If the fire is small and slow, use a
dry powder fire extinguisher to put
out the fire under the premise of
ensuring personal safety, and call for
help immediately.
3. If the fire is large and growing quickly,
stay away from the vehicle and wait for
rescue.
CAUTION
●Wear insulated gloves during
vehicle disassembly. Use fire
extinguishers of designated
type. Water or incorrect fire
extinguishers may cause electric
shock.
●In case of flying objects (such
as interior trim and glass) due
to other special circumstances,
stay away from the vehicle and
promptly notify a BYD authorized
dealer or service provider for on-
site handling.
Battery Leakage Rescue
If the battery leaks after the vehicle
collision, or there is acid smell in the
vehicle or obvious acid outflow outside
the vehicle, smoke will appear inside the
battery pack:
1. Switch the ignition off, and disconnect
the low-voltage battery if conditions
permit.
2. It is recommended to call immediately
a BYD authorized dealer or service
provider for rescue.
If a Collision Occurs
In case of collision, operate the vehicle as
follows according to the actual situation:
1. Power down the vehicle to the "OFF"
position and disconnect the low-
voltage battery if conditions permit.
2. It is recommended to call immediately
a BYD authorized dealer or service
provider for rescue.
07
3. Carry out a simple inspection, if
conditions permit: Check whether any
edge of the high-voltage battery tray
is cracked and whether any obvious
liquid flows out.
WHEN FAULTS OCCUR
●In case of accidental contact with
leaked fluid, rinse the affected area
immediately with plenty of water for
10-15 minutes. If you feel pain, apply
2.5% calcium gluconate ointment or
soak the area in 2%-2.5% calcium
gluconate solution to alleviate the
pain. If the condition does not get
better or discomfort persists, seek
medical help immediately.
WARNING
●Do not touch any spilled liquid,
and stay away from a leaking
vehicle or high-voltage battery.
Tow Eye
Halaman 164
WARNING
●Do not dispose of the leaked fluid
into the water or soil or other
environment.
●The vehicle system operates
with high-voltage DC power. It
generates a lot of heat before and
after vehicle start-up and when
the vehicle is powered off. Watch
out for high pressures and high
temperatures.
●Do not disassemble, move,
or alter high-voltage battery
components and connecting
cables as their connectors can
cause serious burns or electric
shock and may result in personal
injury or death. The orange cables
are part of high-voltage wiring
harness. Users must not repair
the vehicle's high-voltage system
by themselves. If any repair is
required, it is recommended to
go to a BYD authorized dealer or
service provider for repair.
●The remote control key and high-
voltage components of the vehicle
may affect and harm people
carrying medical devices.
If the Vehicle Needs
Towing
If the vehicle needs to be towed,
it is recommended to contact a BYD
authorized dealer or service provider or
a professional towing service provider, or
ask for assistance from the organization
that provides roadside assistance.
WARNING
●The vehicle must not be towed by
other vehicles using only ropes or
chains.
Common towing methods include:
●Flatbed device
●If the vehicle fails and needs rescue,
a flatbed is recommended. The front
or rear wheels landing alone may
damage high-voltage components.
Towing Hook
The position to fasten the front towing
hook is shown in the figure:
1. Open the cover with a straight
screwdriver.
2. Install the towing hook in the towing
hole.
In-Vehicle Tools
Halaman 165
REMINDER
●It is not recommended to use the
towing hook to tow the vehicle. It
is better to contact a professional
towing service provider or a
roadside assistance service.
●Only the in-vehicle tow eye can be
used. Otherwise, your vehicle will
be damaged.
If a Tire Goes Flat
●Maintain the lane position and
gradually slow down the vehicle. Drive
the vehicle off the busy road to a safe
place. Park on solid, flat ground and
avoid highway forks. Park on solid, flat
ground.
●Pull EPB switch and press the P button.
●Power off the vehicle and turn on the
hazard warning light.
●Be sure to have all passengers get off
the vehicle and ask them to go to a
safe place away from crowded traffic.
●To prevent slipping, secure the vehicle
by wedging the tire diagonally against
the flat tire.
CAUTION
●Do not continue driving with a flat
tire. Driving even a short distance
CAUTION
can cause too severe damage for
the tire to be repaired.
In-Vehicle Tools
These tools are stored in a vehicle tool
storage bag. In-Vehicle tools includes:
warning triangle, reflective vest, lug nut
cap removal clamp, tire repair kit, and
tow eye.
①Warning triangle
②Reflective vest
③Removal clamp for wheel nut cap
④Tire repair device
⑤Towing Hook
07
WHEN FAULTS OCCUR
●In an emergency situation，when you
need to service the vehicle yourself,
you must know how to use these in-
vehicle tools and their locations.
Placing the warning triangle
REMINDER
●When parking for repair,
remember to place the red
triangle side facing oncoming
vehicles, 100-200 meters away
from the vehicle. After the repair,
recover the warning triangle for
future use.
Tire Repair Kit
Halaman 166
The warning triangle is used to warn
drivers of vehicles coming from behind
and to avoid risk of collision with the
vehicle ahead being parked or repaired
due to high speed or late braking.
How to use the warning triangle:
1. Take the warning triangle out of its
box.
2. Open the warning triangle to form a
closed triangle.
3. Release its supports to create a pattern
as shown.
Tire Repair Kit
●The tire repair kit is used to seal
small cuts, especially cuts in tread
pattern. The tire repair device is only
for emergency purposes so that you
can drive the vehicle to the nearest
maintenance center.
WARNING
●The tire repair kit is only suitable
for minor damages of tires. If a
wheel is damaged, tyre puncture
sealant kit is prohibited.
●Tire repair kit is highly flammable
and harmful to health. Take the
necessary precautions to prevent
fire and avoid contact with skin,
eyes and clothing; keep away
from children; and do not inhale
its vapor.
WARNING
●Tire sealant is highly flammable
and harmful to health. Take
necessary precautions to prevent
fire and avoid contact with skin,
eyes, and clothing; keep away
from children; and do not inhale
its vapor.
●In case of contact with tire
sealant:
●If tire sealant comes into contact
with the skin or gets into
the eyes, thoroughly flush the
affected body part immediately
with plenty of clean water.
●Change contaminated clothing
immediately.
●In case of an allergic
reaction, seek medical attention
immediately.
●If tire sealant is ingested by
accident, rinse mouth thoroughly
and drink plenty of water
immediately. Do not induce
vomiting, and seek medical
attention immediately.
Usage of the Tire Repair Device
●Please refer to the labels on the
inflator and the tire repair fluid bottle
for the detailed usage of the tire repair
device.
●If the inflator needs to be connected
to the power supply, please connect
the power plug to the 12V outlet in
the vehicle, start the vehicle, and turn
on the inflator switch.The tire repair
device is filled into the tire together
with air through the hose of the
inflator.
Tire Repair Kit
Halaman 167
REMINDER
●Make sure the inflator switch is off
when plugging the power supply
into the 12V socket in the vehicle.
●The inflator can only be turned on
for up to 10 minutes.
●Observe the tire pressure gauge
reading on the inflator.
●If the tire pressure does not reach 180
kPa (1.8bar) within 10 minutes (red
area shown in the figure), turn off
the inflator. You are recommended to
contact a BYD authorized dealer or
service provider.
●If the tire pressure reaches between
180 and 320 kPa (1.8-3.2bar) (green
and yellow areas shown in the
illustration), remove the kit as soon as
possible and drive at a speed below
80 km/h within one minute, with the
furthest driving distance not exceeding
10 km, so that the tire sealant is evenly
distributed within the tire.
●Stop and check the repaired tire, and
observe again the tire pressure gauge
reading on the inflator.
●If the tire pressure is greater than
220 kPa (2.2 bar), drive to the nearest
service center at a speed below 80
km/h.
●If the tire pressure is between 130
and 220 kPa (1.3~2.2 bar), repeat the
process to fill the tire sealant into
the tire and observe the tire pressure
gauge reading on the inflator.
●If the tire pressure does not reach 130
kPa (1.3 bar), it is recommended to
contact a BYD authorized dealer or
service provider.
07
WHEN FAULTS OCCUR
Tire Repair Kit
Halaman 168
168
Specifications
Halaman 169
08 SPECIFICATIONS
Data.......................................... 170
Information................................... 174
Declarations of Conformity.................... 177
Vehicle Data
Halaman 170
# Data
## Vehicle Data
### Dimensions
| Item | EQEAX | EQEBX |
| :---------------------------------- | :---- | :---- |
| Product model | EQEAX | EQEBX |
| Length (mm) | 3990 | |
| Width (mm, excluding side mirrors) | 1720 | |
| Height (mm) | 1590 | |
| Wheelbase (mm) | 2500 | |
| Front track (mm) | 1500 | |
| Rear track (mm) | 1483 | |
| Front overhang (mm) | 803 | |
| Rear overhang (mm) | 687 | |
| Approach angle (°) | 15 | |
| Departure angle (°) | 23.8 | |
### Vehicle mass
| Item | EQEAX | EQEBX |
| :---------------------------------------- | :---- | :---- |
| Product model | EQEAX | EQEBX |
| Curb weight (kg) | 1294 | 1390 |
| Curb weight - front axle load (kg) | 752 | 815 |
| Curb weight - rear axle load (kg) | 542 | 575 |
| Max. allowable total mass (kg) | 1638 | 1734 |
| Front axle load at max. allowable total mass (kg) | 844 | 906 |
| Rear axle load in GCWR (kg) | 794 | 828 |
170
Vehicle Data
Halaman 171
Item
Parameters
Number of occupants
(persons)
4
4
Drive motor parameters
Item
Parameters
Product model
EQEAX
EQEBX
Drive motor model
TZ180XSX
TZ200XSAU
Drive Motor Type
Permanent magnet
synchronous motor
Permanent magnet
synchronous motor
Drive type
Front-wheel drive
Front-wheel drive
Rated power/revolving
speed/torque (kW/RPM/
N•m)
35/4775/70
60/4500/128
Peak power/revolving
speed/torque (kW/rpm/
N•m)
65/15500/175
115/16000/220
Vehicle power performance and
economic efficiency
Item
Parameters
Product model
EQEAX
EQEBX
Power consumption per 100
km under comprehensive
working conditions (kW.h/
100km)
WLTC: ≤15.6
WLTC: ≤15.6
Maximum design speed
150
150
Max. gradeability (%)
0.3
0.3
Wheels and tires
Item
Parameters
Product model
EQEAX
EQEBX
Tire specification
175/65R15 88V
185/55R16 87V
Tire pressure (kPa)
250±10
270±10
08
SPECIFICATIONS
Vehicle Data
Halaman 172
| Item | Parameters | Parameters |
| :--------------------------------- | :--------- | :--------- |
| Wheel dynamic balance requirement (g) | < 10 | < 10 |
**Wheel alignment parameters (under curb weight)**
| Item | Data |
| :------------------------- | :----------- |
| Front wheel camber (°) | -0.19±0.75 |
| Front toe-in (°) | 0.13±0.08 |
| Kingpin inclination angle (°) | 10.93±0.75 |
| Kingpin caster angle (°) | 3.08±0.75 |
| Rear wheel camber (°) | -0.63±0.75 |
| Rear wheel toe-in (°) | 0.03±0.25 |
**Braking system**
| Item | Data |
| :---------------------------------- | :------ |
| Free stroke of brake pedal (mm) | 1~5 |
| Front brake disc thickness (mm) | 23~25 |
| Rear brake disc thickness (mm) | 9~11 |
| Thickness of front brake pad (mm) | 2~8 |
| Thickness of rear brake pad (mm) | 2.5~6.5 |
**High-Voltage Battery**
| Item | Parameters | Parameters |
| :---------------------------------- | :--------------------------- | :--------------------------- |
| Product model | EQEAX | EQEBX |
| Type | Lithium iron phosphate battery | Lithium iron phosphate battery |
| High-voltage battery rated capacity (Ah) | 102 | 153 |
**Seats**
| Item | Parameters | Parameters |
| :------------ | :--------- | :--------- |
| Product model | EQEAX | EQEBX |
172
Vehicle Data
Halaman 173
Item
Parameters
Adjusting forward and
backward
240 mm
240 mm
Backrest Adjustment
54 °
54 °
Design position
Backrest Adjustment
10° forward and 44°
backward
Normal service conditions of
front seatbacks
Adjusting forward and
backward
210 mm forward and 30 mm
backward
Slide rail angle: 4.5°
(when measuring cushion
depth) Forward and
backward positions of rear
seats
Non-adjustable
Non-adjustable
Backrest angles of rear seats
(cushion depth measured)
27°
27°
Normal service conditions of
third-row seatbacks
Non-adjustable
Non-adjustable
Fluid
Item
Parameters
Product model
EQEAX
EQEBX
Recommended brake fluid
type
HZY6
DOT4/HZY6
Brake fluid amount (L)
1±0.05
1±0.05
Recommended model of
transmission gear oil
BOT384
BOT384
Amount of gearbox oil (L)
0.45±0.05
0.6±0.05
Design position
Backrest Adjustment
10° forward and 44°
backward
Adjusting forward and
backward
210 mm forward and 30 mm
backward
Driver seat height
adjustment
46mm upward and 11.7mm
downward
Slide rail angle: 4.5°
08
SPECIFICATIONS
Vehicle Identification Number (VIN)
Halaman 174
Item
Parameters
Recommended motor
coolant type
-40℃ freezing point long-
acting organic acid coolant
-40℃ freezing point long-
acting organic acid coolant
Motor coolant amount (L)
Auxiliary water tank 3.0±0.2
Auxiliary water tank 3.5±0.2
CAUTION
●The recommended oil types have
been tested and approved by
BYD. Using other oil types may
compromise vehicle performance,
and could cause malfunctions or
damage to components.
Information
Vehicle Identification
Vehicle Identification Number (VIN)
① Attached the label to the designated
area to the right of the hood latch on the
inner panel.
② Windshield column dashboard lower
right corner sheet metal groove limit
③Transmission/Motor housing
④Attached the label to the area on the
front face of the front bumper beam.
⑤Attached on the right side of the trunk
sheet metal
⑥Attached to the upper side of rear right
wheel
⑦Lower right corner of right front door
inner panel
⑧On the right rear door sill
VIN is engraved on the under of the front
right seat. After connecting the VDS, the
VIN can be found in the upper right corner
of the screen for the corresponding
model. For details, please refer to the VDS
operation manual.
Warning Labels
Halaman 175
Vehicle Nameplate
Paste on the sheet metal plane below the
right B-pillar.
Model and Serial Number of Drive
Motor
① The model number of the drive motor
are attached to the right part of the inner
panel of the hood.
Warning Labels
① Air conditioning system and cooling
fan labels
② Emergency rescue guidance label
The airbag warning label is hot stamped
on the right sun visor.
The tire pressure label is attached under
the right B-pillar locking ring.
08
SPECIFICATIONS
The label showing charging connector
removal precautions is attached to the
inner surface of the AC charge port door.
Transponder Mounting Position
Halaman 176
The charging port label is pasted on the
charging port cover rotating shaft
The boot lid opening label is pasted
above the opening switch on the right
side of the boot lid.
The vehicle energy consumption
identification is pasted at the bottom
corner of the front windshield glass below
the co-driver position.
Transponder Mounting
Position
The transponder mounting position is
located in the upper right of the front
windshield.
CAUTION
●Do not overlap the sticker
transponder with the glass frame
or other objects.
Declarations of Conformity
Halaman 177
Declarations of
Conformity
Declarations of
Conformity
Radio frequency authentication
Component name
Operating frequency
Maximum power
Tire pressure monitoring
transmitter module
434MHZ
87dBμV/m±2dB
Vehicle interior detection
antenna
125KHZ
10W
Electronic Smart Key
434MHZ
10dbm
Key HF receiver module
434MHZ
0.48W
ECALL GPS antenna
1559MHz～1605MHz
0.05W
ECALL 4G Antenna
701MHz～960MHz
0.05W
1.71GHz～2.69GHz
0.05W
NFC device
13.56 MHz
1.2W
Car Bluetooth host
2.402GHz～2.480GHz
8dBm
WIFI hotspot host
2.402GHz～2.482GHz
16dBm
5.17GHz～5.835GHz
701Mhz ~ 960MHz
/
4-in-1 Antenna (GPS, 4G,
WiFi/BT)
1.71GHz～2.69GHz
/
Network communication
host (4G)
700MHz～2600MHz
23dBm
This vehicle is equipped with different types
of radio equipment. The manufacturer
of the radio equipment declares that
the RF module complies with Directive
2014/53/EU. The full text of the EU
Declaration of Conformity is available
on the https://cn-prod.byd.com/eu/eu-doc
website.
08
SPECIFICATIONS
Declarations of Conformity
Halaman 178
| Component name | Operating frequency | Maximum power |
| :--- | :--- | :--- |
| DAB Digital Audio Broadcasting Antenna Amplifier | 76MHz~108MHz | 0.24W |
| FM audio broadcast host | 76MHz~108MHz | 0.8W |
| DAB Digital Audio Broadcasting Antenna Amplifier | 170MHz~240MHz | 0.24W |
| DAB digital audio broadcast box | 170MHz~240MHz | 1.5W |
| 4-in-1 Antenna (GPS, 4G, WiFi/BT) | 1559MHz to 1605MHz (GPS antenna)<br><br>701MHz to 960MHz & 1.71 GHz to 2.69 GHz (4G Antenna)<br><br>2.4GHz ~ 2.5GHz (WiFi/BT antenna) | 0.03W |
| MmWave Radars | 76~77 GHz | 3W |
| AM antenna amplifier | 522KHz~1800KHz | 0.6W |
| AM host | 522KHz~1800KHz | 0.8W |
### Smart key authentication
***
**Uzbekistan**
Model: D0-92/D1-92
***
**EU countries**
Model: D0-92/D1-92
***
178
Declarations of Conformity
Halaman 179
Brazil
Model: D0-92/D1-92
This equipment is not entitled to protection
against harmful interference and may
not cause interference to duly authorized
systems.
Japan
Model: D0-315/D1-315
08
SPECIFICATIONS
Declarations of Conformity
Halaman 180
180
Declarations of Conformity
Halaman 181
Numerics
12 V Auxiliary Power Outlet.......... 139
A
A/C ON/OFF................................... 133
A/C Operation Interface................ 134
A/C System.................................... 155
A/C Vents....................................... 137
AC Charging Current Limit Function
......................................................... 78
Access.............................................. 47
Account Registration.................... 132
Adjusting the Rearview Mirror
Manually.......................................... 59
Anti-theft System............................ 26
Automatic Vehicle Hold (AVH)........ 97
B
Braking System............................. 154
Break-in Period............................... 86
C
Carrying Luggage............................ 88
Charge Ports.................................. 139
Charging Port Immobilizer System*
......................................................... 78
Charging Safety Warnings.............. 68
Check Before Charging................... 72
Child Protection Lock..................... 48
Coolant.......................................... 154
Cup Holder.................................... 138
D
Data Collection and Processing..... 27
Discharging Device*........................ 79
Driver Assistance Switch Group..... 65
Driver monitoring system (DMS).. 116
E
Electronic Smart Key...................... 40
Emergency Shutdown System..... 162
EPB Switch...................................... 95
F
Fire Prevention............................... 89
Front Seats - Electric Adjustment*. 50
Fuses.............................................. 159
G
Gearshift Lever................................ 94
Glovebox....................................... 137
Grab Handles................................ 139
H
Hazard Warning Light Switch......... 66
High-Voltage Battery...................... 82
I
If a Tire Goes Flat.......................... 165
If Smart Key Battery is Exhausted 162
If the Vehicle Needs Towing......... 164
Indicators/Warning Lights.............. 33
Installing a Child Seat..................... 22
Installing Child Restraint Systems. 22
Instructions for Seats...................... 49
Instrument Cluster View................. 32
Intelligent Cruise Control (ICC)
System........................................... 105
Interior Cleaning........................... 149
Interior Light Switch....................... 66
Introduction to Airbag.................... 16
L
Light Switch.................................... 61
Declarations of Conformity
Halaman 182
Locking/Unlocking with Mechanical
Key...................................................
Locking/Unlocking/Finding the
Vehicle with Smart Key................... 44
Low Voltage Battery........................ 84
M
Maintenance Schedule................. 145
Manual Adjustment of Steering
Wheel............................................... 53
Measures for Battery Leakage...... 163
O
Odometer Toggle Switch................ 65
Opening the Hood........................ 154
OTA Upgrade................................. 129
P
Panoramic View System............... 114
Power Window Switches................ 63
R
Remote Starting of the Vehicle*..... 94
Reservation Charging..................... 77
S
Saving Power and Extending Vehicle
Service Life...................................... 90
SD Card Slot*................................. 139
Seat Belt Overview......................... 14
Seatback Pockets.......................... 138
Self-Maintenance Precautions..... 151
Side Mirror Switches....................... 59
Snow Chains................................... 91
Starting the Vehicle......................... 92
Steering Assist Mode Settings........ 53
Steering Wheel Switch Group......... 54
Suggestions for Vehicle Use...........
T
Tires............................................... 156
Trailer Towing................................. 88
Transponder Mounting Position.. 176
U
Using Seat Belts.............................. 14
V
Vehicle Cleaning........................... 148
Vehicle Corrosion Protection....... 147
Vehicle Fire Rescue....................... 163
Vehicle Identification Number (VIN)
....................................................... 174
Vehicle Servicing........................... 146
Vehicle Storage Precautions......... 153
W
Warning Labels............................. 175
Washer........................................... 155
Window Control Switch on Passenger
Side.................................................. 65
Wiper Blades................................. 155
Wiper Switch................................... 57
Wireless Phone Charger*.............. 140
Abbreviations
Halaman 183
# Abbreviations
## Abbreviations
| Terminology | Full Name | Terminology | Full Name |
| :--- | :--- | :--- | :--- |
| ECO | Ecology, Conservation, Optimization | NORMAL | Normal |
| SPORT | Sport | AVH | Auto Vehicle Hold |
| ABS | Antilock Braking System | VDC | Vehicle Dynamics Control |
| CST | Comfort Parking | | |
<br>
<p align="right">183</p>
Abbreviations
Halaman 184
184
