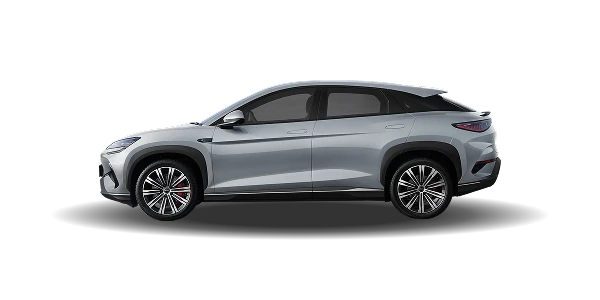

Owner's Manual BYD SEALION 7 — Isi Lengkap 216 Halaman
Contents
Halaman 1
Foreword
Thank you for choosing BYD. To better use and maintain the vehicle, please read this
manual carefully and keep it for future reference.
Special instructions: BYD Auto Co., Ltd. recommends that you choose genuine spare parts
and use, maintain, and repair the vehicle in accordance with this manual. The use of
non-genuine spare parts to replace or modify the vehicle will affect the performance of the
entire vehicle, especially its safety and durability. Vehicle damage and performance issues
caused thereby will not be covered by the warranty. In addition, vehicle modifications may
also violate national laws and regulations and local government regulations.
Thank you again for choosing BYD. Your valuable comments and suggestions are welcome.
To enjoy better services, please provide your accurate contact information. If there is any
change to the information, contact a BYD authorized dealer or service provider in a timely
manner to update the information in the system. You are also advised to pay attention to
the relevant national laws and regulations and local policies, and register the vehicle as
soon as possible; otherwise vehicle registration may fail.
The descriptions marked with the asterisk (*) in this manual are specific to only some
model configurations, and applicable only when the vehicle has these configurations. If
there is any difference with the vehicle you purchased, the configuration of the actual
vehicle shall prevail.
Pay attention to the "REMINDER", "CAUTION" and "WARNING" symbols in this manual, and
follow the instructions carefully to avoid injury or damage. These symbols are defined as
follows:
REMINDER
Items that must be observed to facilitate maintenance.
CAUTION
Items that must be observed to avoid damage to the vehicle.
WARNING
Items that must be observed to ensure personal safety.
is a safety mark to indicate an operation that should not be performed or an event that
should not happen.
Contents
Halaman 2
This manual is expected to help you use the product correctly, and does not provide any
description of the configuration and software version of this product. For details about the
product configuration and software version, please refer to the contract (if any) related to
this product, or consult the dealer who sold the product to you.
Copyright © BYD Auto Co., Ltd. All rights reserved.
No part of this document may be reproduced, copied, stored, translated, or
transmitted electronically or in any other form without prior written consent and
authorization of BYD Auto Co., Ltd.
All rights reserved
Contents
Halaman 3
Illustration Index
Exterior..............................................7
Dashboard......................................... 8
Interior.............................................. 9
Doors...............................................10
Safety
Seat Belts.........................................12
Seat Belt Overview.................................. 12
Using Seat Belts.......................................12
Airbags............................................ 15
Airbag Overview...................................... 15
Airbag Types............................................ 16
Driver and Front Passenger Airbags....... 16
Seat Side Airbags.....................................17
Side Curtain Airbags................................17
Airbag Triggering Conditions and
Precautions..............................................18
Child Restraint System......................21
Child Restraint System............................21
Anti-theft Alarm System....................25
Anti-theft Alarm System..........................25
Data Collection and Processing......... 26
Data Collection and Processing..............26
Instrument Cluster
Instrument Cluster........................... 32
Instrument Cluster View..........................32
Instrument Cluster Indicators.................33
Controller Operation
Doors and Keys.................................44
Keys..........................................................44
Locking/Unlocking Doors....................... 48
Smart Access and Start System.............. 56
Child Protection Lock..............................58
Seats................................................58
Seat Precautions..................................... 58
Adjusting Front Seats.............................. 59
Folding Rear Seats...................................61
Adjusting Rear Seat Head Supports....... 62
Steering Wheel................................. 63
Steering Wheel Switches.........................63
Adjusting the Steering Wheel..................65
Switches.......................................... 66
Light Switches......................................... 66
Wiper Switch............................................69
Driver's Door Switches............................ 70
Window Control Switch on
Passenger's Side......................................71
Odometer Switch.................................... 71
Driver Assistance Switches..................... 72
Mode Switches........................................ 72
Hazard Warning Light Switch..................73
Sunshade Switches................................. 73
Interior Light Switch................................74
Using and Driving
Charging/Discharging Instructions....76
Charging Instructions..............................76
Charging...................................................80
Discharging Instructions.........................87
Charging Port Immobilizer System.........89
Driving Range Display............................. 90
Batteries.......................................... 90
High-Voltage Battery............................... 90
Contents
Halaman 4
Low-Voltage Battery................................93
Usage Precautions............................96
Break-in Period........................................96
Trailer Towing..........................................96
Driving Safety Precautions......................97
Vehicle Use Suggestions......................... 98
Saving Energy and Extending
Vehicle Service Life..................................99
Carrying Luggage.................................... 99
Wading into Water.................................100
Fire Prevention...................................... 101
Snow Chains..........................................103
Starting and Driving........................104
Starting the Vehicle............................... 104
Driving....................................................105
Gear Shift Controls................................ 106
Electronic Parking Brake (EPB).............107
Automatic Vehicle Hold (AVH)...............109
Driving Precautions...............................111
Driver Assistance............................ 112
Adaptive Cruise Control (ACC).............. 112
Intelligent Cruise Control (ICC).............116
Forward Collision Warning (FCW)
and Automatic Emergency Braking
(AEB).......................................................118
Front Cross Traffic Alert (FCTA) and
Front Cross Traffic Brake (FCTB)........... 121
Traffic Sign Recognition (TSR).............. 122
Intelligent Speed Limit Control (ISLC)..123
Adaptive Front Light (AFL).................... 124
Lane Departure Assist (LDA)................. 125
Emergency Lane Keeping Assist
(ELKA).....................................................127
Blind Spot Assist (BSA)..........................128
Head-up Display (HUD)*....................... 130
Direct Tire Pressure Monitoring............131
Acoustic Vehicle Alerting System
(AVAS).....................................................132
Automatic Vehicle Monitoring (AVM)....133
Parking Assist System........................... 134
Driving Safety Systems..........................138
Intelligence Torque Adaption
Control (iTAC) System*..........................142
Driver Monitoring Systems (DMS).........142
Child Presence Detection (CPD)*..........144
Other Main Functions......................145
Automatic Anti-glare Interior
Rearview Mirror..................................... 145
Power Side Mirrors................................ 145
Wipers.................................................... 146
In-Vehicle Devices
Infotainment System...................... 150
Infotainment Touchscreen....................150
Navigation Bar.......................................151
Gestures and Responses.......................151
OTA Update............................................151
BYD Assistant.........................................152
Bluetooth...............................................152
Speakers................................................ 152
File Management...................................153
Phone Projection...................................153
A/C System..................................... 155
A/C Buttons............................................155
A/C Operation Interface........................ 155
Function Definition............................... 157
Vents...................................................... 159
Air Purification System..........................160
BYD App......................................... 161
About BYD App.......................................161
Account Registration............................. 161
Contents
Halaman 5
Vehicle Condition and Control..............161
Individual Center and Vehicle
Management..........................................162
Storage.......................................... 162
Engine Compartment Storage..............162
Door Bins............................................... 162
Glove Box...............................................162
Center Console Storage
Compartment........................................163
Cubby Box..............................................163
Cup Holders...........................................163
Seatback Pockets.................................. 164
Other Devices................................. 164
Sun Visor................................................164
Grab Handles.........................................164
12V Auxiliary Power...............................165
USB Ports...............................................165
Wireless Phone Charger........................ 166
Maintenance
Maintenance Precautions................170
Maintenance Cycle and Items...............170
Regular Maintenance...................... 174
Regular Maintenance............................ 174
Vehicle Corrosion Prevention............... 175
Paint Maintenance Tips.........................176
Vehicle Cleaning.................................... 176
Interior Cleaning....................................178
Self-Maintenance............................179
Self-Maintenance.................................. 179
Canopy Maintenance............................ 181
Vehicle Storage......................................182
Hood...................................................... 182
Cooling System......................................183
Braking System......................................183
Windshield Washer................................184
A/C System.............................................184
Wiper Blades..........................................185
Tires....................................................... 185
Fuses...................................................... 188
When Faults Occur
When Faults Occur.......................... 192
Reflective Vest....................................... 192
If Smart Key Battery Is Exhausted.........192
Emergency Shutdown System..............192
Vehicle Fire Rescue................................193
If the High-Voltage Battery Leaks......... 193
If the Vehicle Needs Towing..................194
If a Tire Goes Flat...................................196
Technical Data
Vehicle Data................................... 202
Specifications........................................202
Information....................................206
Vehicle Identification............................ 206
Warning Labels......................................207
Declarations of Conformity............. 208
Declarations of Conformity...................208
Abbreviations
Abbreviations.................................215
Contents
Halaman 6
6
Contents
Halaman 7
# Illustration Index
## Exterior
| | |
| :--- | :--- |
| **1** Trunk ***P52***<br> Carrying Luggage ***P99*** | **5** Tire ***P185***<br> If a Tire Goes Flat ***P196*** |
| **2** Using Mode 2 Charging Cable ***P80***<br> Using AC Charging Piles ***P83***<br> Using DC Charging Piles ***P84*** | **6** Combination Light ***P66*** |
| **3** Power Side Mirrors ***P145*** | **7** Hood ***P182***<br> Coolant ***P183***<br> Washer ***P184*** |
| **4** Locking/Unlocking Doors ***P48*** | |
<br>
<p align="right">7</p>
Contents
Halaman 8
Dashboard
1
Infotainment Touchscreen P150
2
Wiper P69
Wiper Blades P185
3
Instrument Cluster P32
4
Steering Wheel Switches P63
5
A/C Buttons P155
6
Starting the Vehicle P104
7
Driving Mode Adjustment Lever P72
8
Regenerative
braking
adjustment
Lever P72
9
Hazard Warning Light Switch P73
10
Gear Shift Controls P106
11
Glove Box P162
12
A/C Vent P159
Contents
Halaman 9
Interior
1
Cubby Box P163
2
Window
Control
Switch
on
Passenger's Side P71
3
Seats P58
4
Light Switches P66
5
Adjusting
the
Steering
Wheel
Manually P65
6
12V Auxiliary Power P165
7
USB Ports P165
8
Front Seat Cup Holder P163
9
Seat Belts P12
Contents
Halaman 10
Doors
1
Opening with Interior Door Handle
P49
2
Power Window Switches P70
Central Locking P71
Power Side Mirrors P145
3
Emergency
Vehicle
Locking
with
Mechanical Key P56
4
Locking/Unlocking the Trunk P52
Safety
Halaman 11
01
SAFETY
Seat Belts.......................................... 12
Airbags.............................................. 15
Child Restraint System..................... 21
Anti-theft Alarm System................... 25
Data Collection and Processing....... 26
Using Seat Belts
Halaman 12
Seat Belts
Seat Belt Overview
Studies have shown that proper use
of seat belts can significantly reduce
casualties in emergency braking, sudden
steering or collisions. Read the following
information carefully and observe it
strictly.
WARNING
●Before driving, make sure all
occupants are properly buckled
up to prevent serious injury or
death in emergency braking or in
a collision.
●The seat belts are designed for
adults and are not intended for
children. Make sure to choose an
appropriate child restraint system
according to your child's age and
size (see P21 in this chapter).
●If a seat belt is damaged
or malfunctions, immediately
contact a BYD authorized
dealer or service provider
for confirmation and handling.
Until then, do not use the
corresponding seat.
●BYD has highly emphasized that all
occupants should always fasten their
seat belts while in the vehicle to
prevent serious injury or death.
●It is recommended that children be
seated in rear seats and always use
seat belts and suitable child restraints.
In case of emergency braking or a
collision, unprotected children may be
seriously injured and their lives may
be endangered. Likewise, do not allow
a child to be carried on someone's
lap. This will render the children not
adequately protected.
Emergency Locking Retractor (ELR)
●When the driver turns sharply or
brakes suddenly, when there is a
collision, or when the occupant
leans forward too quickly, the seat
belt automatically locks to effectively
restrain and protect the occupant.
●When the vehicle travels smoothly,
seat belts are pulled out and retracted
as the occupants move slowly and
smoothly, allowing the occupants to
move freely.
●If the seat belt locks due to sudden
retraction, pull on the seat belt
webbing to create retractable slack in
order to pull out the seat belt.
Pretensioner and Force Limiter
Function
When a severe front collision occurs
and the triggering conditions of the
pretensioner are met, the pretensioner
quickly retracts part of the seat belt and
locks it to improve the protection of the
occupant. The force limiter limits the
seat-belt restraint force to the occupant's
body to a certain extent so as to avoid
injury to the occupant due to an excessive
restraint force.
Using Seat Belts
1. Adjust the seat position and seatback
angle (see P59).
2. Adjust the position of the three-point
seat belt.
●Keep the correct sitting posture and
pull out the shoulder belt diagonally
across the entire shoulder without
contacting the neck or falling from the
shoulder. Position the lap belt as low
as possible around the hip.
Using Seat Belts
Halaman 13
3. Insert the latch into the buckle until it
clicks, and then pull it back to make
sure it is firmly locked. Do not fasten
the belt with any part of the strap
twisted.
4. Adjust the height of the (front)
seat belts for optimum comfort and
protection.
① Press the adjuster release button.
② Move the adjuster up or down to the
intended position. Release the button to
lock the adjuster.
5. Pull the belt firmly to check that the
adjuster is locked.
WARNING
●The shoulder belt should cross
the center of the shoulder. The
seat belt should be far from the
neck and not be liable to slip
from the shoulder, otherwise, it
cannot function well in the event
of emergency braking or accident
and may even cause severe injury.
01
SAFETY
●The lap belt should be positioned
as low as possible around the hips
to avoid serious injury due to the
intense lap belt forces against the
abdomen in an accident.
●The seat belt should be fitted tight
to the body for better protection.
6. Unlock the seat belt.
●Press the red unlock button on the
buckle. The latch plate pops out, and
the seat belt automatically retracts. If
the seat belt does not retract smoothly
and automatically, pull it out and
check whether it is twisted.
WARNING
●One seat belt is for one occupant
only. Do not allow multiple
occupants (including children) to
share one seat belt.
●Avoid traveling with the seatback
leaning too far back. The seat belt
Seat Belt Reminders
Halaman 14
WARNING
protection performs best when
the seatback is upright.
●Make sure that no seat belt or
its spring bolt/buckle becomes
pressed by the door; otherwise,
the seat belt may be damaged.
●Check the seat belts regularly
for cuts, wear, looseness, and
other abnormalities. If any
problem is found, contact a
BYD authorized dealer or service
provider for confirmation and
handling. Until then, do not use
the corresponding seat.
●Do not remove, disassemble or
modify the seat belts.
●After an accident, have the seat
belts checked at a BYD authorized
dealer or service provider. If the
pretensioner function is activated,
the seat belt must be replaced.
●In the event of a serious
accident, even if there is no
apparent damage, the seat belt
should be replaced along with
the seat assembly. The airbag
system should also be thoroughly
inspected.
●Pregnant women need to fasten
the seat belts properly and
position the lapbelt as low as
possible around the hips to avoid
serious injury from the intense lap
belt forces against the abdomen
in an accident.
●The method of wearing a rear
seat belt is the same as that
for a front seat belt. For normal
functioning of the rear seat belt,
ensure that its latch is inserted
into the corresponding buckle
during use. The driver should
WARNING
remind passengers to wear seat
belts properly.
●Do not insert foreign objects such
as coins and clips into the buckle
as they prevent proper connection
between the latch and buckle.
Seat Belt Reminders
If any occupant has not buckled up
after the vehicle is started, visual and
audible alarms go on and continue until
the corresponding seat belt is properly
fastened.
●Seat belt reminder main indicator
●Any unfastened seat belt will trigger
the main indicator to flash.
●Display of unfastened seat belt
●The indicator for each corresponding
seat will light up to display the
position of the unfastened seat belt.
●Seat belt reminders
●If the driver or any passenger has
not buckled up after the ignition
is switched on, the main seat belt
reminder indicator and the indicator
for the corresponding seat light up.
When the vehicle is in motion and
the driver or any passenger has not
buckled up, the seat belt reminder
indicator flashes and an audible
alarm is given.
●When the driver and all the
passengers fasten the seat belts,
the main indicator and the
corresponding seat indicator turn off.
WARNING
●In the event of abnormality
or function failure, contact
Airbag Overview
Halaman 15
WARNING
a BYD authorized dealer or
service provider. Do not use
the corresponding seat until the
functions return to normal.
●When driving, make sure all
occupants have their seat belts
properly fastened to prevent
serious injury or death in
emergency braking or in a
collision.
Airbags
Airbag Overview
●The airbag system is a part of
supplemental restraint system and
also a supplement to seat belts. When
the vehicle is involved in a serious
collision and the airbag system meets
its deployment conditions, relevant
airbags will rapidly deploy, and along
with seat belts, provide additional
protection for heads and chests of
the occupants, reducing likelihood of
personal injuries or even death.
●Airbags are divided into front and side
types according to the type of collision.
The front airbags include a driver
airbag and a front passenger airbag,
while the side airbags include seat side
airbags and side curtain airbags.
●As an integral part of the vehicle's
passive safety protection system,
the airbag system does not replace
seat belts, and must be used in
combination with seat belts to
maximize protection.
WARNING
●Occupants must sit in a
proper position to maximize the
protection provided by seat belts
and the airbag system.
01
SAFETY
●Do not disassemble or assemble
airbag components.
●If the seatbacks get wet from
rain or splashes, the side airbag
system may not work properly.
●Do not use seat covers, as they
restrict airbag deployment on the
corresponding side in an accident.
●Do not place anything between
the side airbag and the occupant.
●Do not apply excessive force to the
side of seats equipped with side
airbags.
●After a collision, even if the
airbag did not deploy, and the
pretensioner did not lock the
seat belt, to ensure the normal
operation of the airbag system,
contact a BYD authorized dealer
or service provider for inspection
as soon as possible.
●If the vehicle is ingressed with
water (wet carpet or vehicle
submerged in water) or damaged
by water, do not start the vehicle
and the low-voltage battery needs
to be disconnected. Otherwise,
the airbags may deploy, resulting
in serious injury or death.
Driver and Front Passenger Airbags
Halaman 16
Airbag Types
① Driver and front passenger airbags
④ Rear seat side airbags
② Front seat side airbags
⑤ Side curtain airbags
③ Far side airbag
Driver and Front
Passenger Airbags
●The vehicle is equipped with driver
and front passenger airbags, when the
airbag system detects a moderate to
severe front impact during driving and
the triggering conditions are met, the
airbags deploy.
Front airbag deployment
●In moderate to severe frontal crashes,
a sensor detects a sharp deceleration
and sends a signal to the ECU to trigger
the front airbags.
●When there is a frontal crash, the seat
belt secures the occupant's lower body
and torso in place. The airbag cushions
and protects the occupant's head and
chest.
●When the severity of the impact
does not reach the airbag deployment
threshold, seat belts provide enough
protection.
●The front airbag deflates immediately
after inflation, without affecting the
Side Curtain Airbags
Halaman 17
driver's vision and ability to operate
the steering wheel or other controls.
●Airbags can inflate rapidly when
triggering conditions are satisfied to
further protect drivers and occupants
in an accident.
●A loud noise will be heard when the
airbag deploys. It will not cause injury,
but it may cause tinnitus or temporary
deafness.
●A cloud of dust from the airbag surface
may come off when the airbag deploys.
Although such powder is non-toxic,
individuals with respiratory problem
might experience some temporary
discomfort.
WARNING
●No accessories, such as telephone
holders, cups, ashtrays, may
be installed on airbag covers
or within their action range.
Otherwise, airbag deployment will
increase the risk of injury in an
accident.
Seat Side Airbags
Front/Rear seat side airbags
●The vehicle is equipped with front/
rear seat side airbags (mounted on
the outside of seat back, marked
with "AIRBAG" at both sides). When
a moderate to severe side impact
is detected during vehicle travel and
the triggering conditions are met, the
airbag deploys to protect the chest of
the occupant on the side of collision.
●Generally, only the airbag on the
impacted side deploys in the event of
a side impact.
●If the impact occurs on the passenger's
side, the airbag on the passenger's side
deploys even if there is no passenger in
the seat.
●For optimal front/rear side airbag
protection, occupants must have their
seat belts fastened and sit upright
against the seatback.
01
Far side airbag
●The vehicle is equipped with a far
side airbag (mounted on the inner side
of the driver's seatback and marked
with "AIRBAG"). When a moderate to
severe front or side impact is detected
during vehicle travel and the triggering
conditions are met, the far side airbag
deploys to protect the heads and
shoulders of the driver and the front
passenger.
SAFETY
●If the impact occurs on the front
passenger's side, the far side airbag
deploys even if there is no passenger
in the seat.
●For optimum far side airbag
protection, the occupant must have
their seat belt fastened and sit in an
upright position.
Side Curtain Airbags
●The vehicle is equipped with left and
right side curtain airbags (mounted
at the junction of the body side
trim and the ceiling and marked with
"AIRBAG" on the B-pillar and C-pillar
trims). When a moderate to severe
side impact is detected during vehicle
travel and the triggering conditions are
met, the side curtain airbag deploys to
protect the head of the occupant on
the side of collision.
●Generally, only the airbag on the
impacted side deploys in the event of
a side impact.
●For optimum curtain airbag protection,
the occupant must have their seat belt
fastened and sit in an upright position.
Cases When Airbags May Not Be Deployed
Halaman 18
Airbag Triggering
Conditions and
Precautions
Airbag Triggering Conditions
●Airbag triggering conditions: In the
event of a vehicle collision, whether an
airbag will be triggered is decided by
factors such as the amount of collision
energy, accident type, collision angle,
obstacle type, and vehicle speed. The
airbag system may be triggered in
special collisions.
●The airbag system does not always
work in any accident, and generally it
will not be triggered in the event of
a minor frontal collision, rear collision
or rollover. In this case, the driver
and passengers are protected by their
properly fastened seat belts.
●Determinants of airbag system
triggering: Decision is made by
comparing the deceleration curve,
generated in the collision and obtained
by the electronic control unit (ECU)
and the set value. If signals, such as
the deceleration curve generated and
measured in the collision, are lower
than the respective reference values
preset in the ECU, the airbag system
will not be triggered even if the vehicle
may have been seriously deformed in
the accident.
●The ECU of the BYD airbag system
has been set up with considerations of
common misuse and road conditions.
However, due to the increasing
changes in causes and forms of vehicle
collisions, for your safety, please
strictly follow this user manual, use the
vehicle correctly, and avoid its misuse.
Otherwise, there is no guarantee that
the airbags will achieve their expected
effect.
Cases When Airbags May Be Deployed
① The vehicle's nose hits the ground
when crossing a deep groove.
② The vehicle hits a bump or curbstone.
③ The vehicle's nose hits the ground
when going down a steep slope.
④ One side of the vehicle is hit by another
vehicle.
Cases When Airbags May Not Be
Deployed
① The vehicle hits a concrete column,
tree, or other slim objects.
② The vehicle goes under a truck or
another large vehicle.
③ The tail of the vehicle is hit by another
vehicle.
④ The vehicle rolls over.
⑤ The vehicle hits a wall or a vehicle at a
side other than the front side.
Cases When Airbags May Not Be Deployed
Halaman 19
⑥ Parts other than the passenger
compartment receive side impact.
⑦ The lateral side of the vehicle is hit
diagonally.
⑧ The lateral side of the vehicle hits a
columnar object.
WARNING
●Airbags are designed for
specific models. Any changes to
suspension, tire size, bumpers,
chassis and factory-equipped
devices may adversely affect the
airbag system. Users must not use
any parts of the airbag system
on other vehicle models; doing so
may lead to failure of the airbag
system.
●Drivers should maintain a distance
of at least 25 cm between their
chest and the steering wheel, in
order for the system to provide
the most effective protection.
●Fasten your seat belt and sit
properly while the vehicle is
in motion. If the seat belt is
not fastened, and the occupant
is leaning forward or sitting
improperly, airbag deployment
can increase the risk of injury.
●Do not paste stickers, cover or
decorate the hub cover of the
steering wheel, the right side
surface of the dashboard at and
WARNING
near the location of the airbag,
the surface of A, B, and C-pillar
trims, or the surface at and
near the location of seat side
airbags with any object. Clean
these surfaces with a dry or damp
cloth, without applying too much
pressure.
01
SAFETY
●Children are not to be seated
unprotected, nor are they to
ride sitting on an adult's lap,
to prevent serious injury or
even casualty caused by airbag
deployment.
●Side airbags and side curtain
airbags deploy quickly with high
impact forces. Occupants must
not lean against the doors of
vehicles equipped with these
airbags while these vehicles are
in motion, because doing so may
result in serious injuries or even
death.
●Do not place any other
accessories or items within the
action range of side curtain
airbags, including the windshield,
side door glass, A-pillar trim,
ceiling, B-pillar trim, C-pillar trim
and auxiliary handles. When
the side curtain airbag deploys,
the accessories or items will
be thrown by the impact force
from the side air curtain airbag,
or the side curtain airbag may
not deploy normally, resulting in
serious injury or even death.
●When transferring vehicle
ownership, make sure to pass on
all of the vehicle's documents and
keep the new ownership informed
of airbag conditions.
●Do not modify or replace seats
or trims of the seats with
Cases When Airbags May Not Be Deployed
Halaman 20
WARNING
side airbags. These changes
may prevent normal deployment
of side airbags, and thereby
cause airbag system failure or
unintended deployment of side
airbags, resulting in serious injury
or death.
●Do not disassemble or repair the
A-pillar trim, ceiling, B-pillar trim
or C-pillar trim, which contain side
curtain airbags. These changes
can cause failure of the airbag
system or accidental deployment
of curtain airbags, which may
cause serious injury or even
death.
●Do not change any component
of the airbag system, including
any corresponding label. It is
recommended that any operation
done to the airbags be performed
by a BYD authorized dealer or
service provider.
●Airbags can only provide one-time
accident protection. Once the
airbag is triggered or damaged,
the airbag system must be
replaced.
●Follow safety regulations and
procedures related to the
scrapping of parts of the vehicle
or its airbag system.
●The airbag system has strong anti-
interference and anti-disturbance
resistance to electromagnetic
fields around it. However, to
avoid accidents, do not use the
vehicle in an electromagnetic
environment that violates
national regulations.
●The airbag system of this vehicle
is designed with full consideration
of common misuses and road
WARNING
conditions. However, in order to
avoid accidents, do not have the
bottom of the vehicle impacted
or drive roughly in harsh road
conditions.
●This vehicle's airbag system has
been fully verified to seamlessly
match the vehicle's original
wiring harness system. Any wiring
harness modification or alteration
may cause the airbags to
deploy mistakenly under normal
conditions or fail to deploy in the
event of a collision.
It is recommended that you contact
a BYD authorized dealer or service
provider immediately if any of the
following situations occurs.
●Any airbag has deployed.
●Instrument cluster airbag warning light
lights up abnormally.
●There is a collision with the front of the
vehicle (highlighted area shown), but
the airbags do not deploy.
●The airbag cover (highlighted area
shown) has been scratched, cracked or
otherwise damaged.
Child Restraint System Anchorages
Halaman 21
●There is a collision with the doors of
the vehicle (highlighted area shown),
but the airbags do not deploy.
●Airbags need to be removed,
disassembled, installed or repaired.
●The surface of the seat with a
side airbag is scratched, cracked, or
damaged similarly.
●Decorative (liner) parts at A-pillar with
built-in curtain airbags, roof beam
and C-pillar are scratched, cracked, or
damaged similarly.
Child Restraint
System
Child Restraint System
Child restraint systems provide good
protection to your child in an accident.
For the child's safety, please carefully
read the instructions provided with the
child restraint and in this manual before
installing a child restraint.
WARNING
●Never carry a child on your lap in
a vehicle journey.
01
●Children must use a suitable
child restraint when traveling
in the vehicle. Children should
sit comfortably and safely. Make
sure that the child restraint is
positioned, mounted, and used
correctly.
SAFETY
●After the child restraint is
dismounted from the seat, store it
safely in your vehicle.
●Failure to follow the instruction
provided with the child restraint
and in this manual may cause
injuries and even death to your
child in an accident.
Important considerations for selecting
a child restraint
●The type and size is suitable for the
child.
●The type and size is suitable for the
seating position.
●The child restraint must meet the ECE
R129 standard.
WARNING
●Never install a rear-facing child
restraint on the front passenger
seat.
Child Restraint System Anchorages
The vehicle is equipped with ISOFIX/i-Size
anchorages and top tether anchorages for
child restraint systems.
●The rear outboard seats are equipped
with ISOFIX/i-Size anchorages, located
Installing Child Restraint Systems
Halaman 22
below the anchorage markings (see
illustration) on the seatback.
●The outboard rear seats are equipped
with top tether anchorages on the
back.
REMINDER
●The ISOFIX/i-Size anchorages are
located in the gap between the
seat cushion and the seatback.
Installing Child Restraint Systems
1. Check the ISOFIX/i-Size anchorage
point and install the child restraint on
the seat.
WARNING
●When using the ISOFIX/i-Size
anchorage, make sure that no
foreign objects are around the
anchoring point and that the
seat belt is not stuck behind the
child restraint; make sure that the
child restraint is securely fixed.
Otherwise, emergency parking or
an accident may result in serious
or even fatal injury to the child.
●Child restraint anchorages are
designed to withstand only
those loads imposed by correctly
fitted child restraints. Under no
circumstances are they to be used
for adult seat belts, harnesses,
or for attaching other items or
equipment to the vehicle.
2. When installing a child restraint system
with a top tether on an outboard rear
seat, route the top tether around the
outer side of the head support post,
and then tighten and secure the snap
hook to the corresponding anchorage.
① Top tether
② Snap hook
③ Anchor support
Installing Child Restraint Systems
Halaman 23
Always follow the instructions below
when using a child restraint on a rear
seat:
●When the child restraint system is
installed on any rear seats, front seats
can be adjusted forward to ensure
that the child is not in contact with
the front seats. Meanwhile, the front
seatback angle can also be adjusted to
get more space.
●The head support can be adjusted
or even removed to ensure that the
vehicle seatback can stably support
the child restraint system.
●When a child restraint is not equipped
with the backrest, never remove the
head support of the vehicle and be
sure to adjust it to the locking position.
Seating Position
2
3 b)
4 b)
5 b)
Front
Passenger
Airbag
Activated
a)
Front
Passenger
Airbag
Deactivate
d a)
Type
1
Seating
position
suitable for
universal
belt
×
x
x
Yes
Yes
Yes
(Yes/No)
●When the child restraint installed on a
rear outboard seat is with top tether,
remove the cargo cover to have access
to the top tether anchorage. Store the
cover safely in your vehicle.
●For more installation instructions,
please read the instructions provided
with your child restraint system.
01
SAFETY
Seat belt, ISOFIX or i-Size CRS installing
options in the vehicle:
① Driver seat
② Front passenger seat
③ Rear left seat
④ Rear center seat
⑤ Rear right seat
Installing Child Restraint Systems
Halaman 24
Seating Position
2
3 b)
4 b)
5 b)
Front
Passenger
Airbag
Activated
a)
Front
Passenger
Airbag
Deactivate
d a)
Type
1
i-Size
seating
position
×
x
x
Yes
No
Yes
(Yes/No)
Seating
position
suitable for
lateral
fixture
×
x
x
No
No
No
(L1/L2/No)
Largest
suitable
rearward-
facing
fixture
×
x
x
R1/R2X/R2/
R3
No
R1/R2X/R2/
R3
(R1/R2X/R2
/R3/No)
Largest
suitable
forward-
facing
fixture
×
x
x
F2X/F2/F3
No
F2X/F2/F3
(F2X/F2/F3
/No)
Largest
suitable
booster
fixture
×
x
x
B2/B3
No
B2/B3
(B2/B3/No)
a) If necessary, adjust the seat height and seatback angle of the front passenger seat to
securely install the child restraint system.
Anti-theft Alarm System
Halaman 25
Seating Position
2
3 b)
4 b)
5 b)
Front
Passenger
Airbag
Activated
a)
Front
Passenger
Airbag
Deactivate
d a)
Type
1
b) If necessary, adjust the height of the rear seat head support or remove it to avoid
interference with the child restraint system. Do not remove the head support when using
a booster cushion without a backrest. The front seats can be adjusted to ensure the child
is not in contact with them.
×: seat position not suitable for installing a child restraint for this group.
●Recommended child restraint systems:
Child Stature
(cm)
Manufacturer
Child Restraint
System
Installing method
40-83
Maxi-Cosi
Pebble 360
Belt
76-105
Britax Römer
Trifix 2 i-Size
ISOFIX and belt
100-150
Britax Römer
Kidfix i-Size a)
ISOFIX and belt
137-150
Graco
Booster Max R129
Belt
a): For better protection, SecureGuard and XP-PAD are recommended.
① 40-83 cm
② 76-105 cm
③ 100-150 cm
④ 137-150 cm
01
SAFETY
Anti-theft Alarm
System
Anti-theft Alarm System
Arming the system
1. Switch the ignition off.
2. All occupants get off the vehicle.
3. Lock all doors and the anti-theft alarm
system will arm automatically after 10
seconds.
Triggering the alarm
Data Collection and Processing
Halaman 26
●The system, when armed, will raise an
alarm* with flashing turn signals in any
of the following situations:
●Any door, trunk lid or hood is
unlocked without using the smart
key access function.
●Use the mechanical key to unlock the
vehicle.
Disarming the system
●Anti-theft alarm can be stopped by:
●Unlocking the door with a valid smart
key/NFC key/Bluetooth Digital Key*/
App.
●Using the microswitch to unlock the
door by carrying a valid smart key.
●Opening the trunk remotely with
a valid smart key/Bluetooth Digital
Key*/App.
●Starting the vehicle remotely with
a valid smart key/Bluetooth Digital
Key*/App.
●Pressing the START/STOP button
inside the vehicle while carrying a
valid smart key.
WARNING
●Do not repair, replace or modify
the components of the anti-theft
system; such modifications may
cause the system to malfunction
or affect the terms of the
insurance.
●If a fault occurs, contact a
BYD authorized dealer or service
provider.
Data Collection and
Processing
Data Collection and
Processing
●This section provides you with
some important information on how
personal data is collected and
processed when you use a BYD vehicle.
●For a more detailed overview on
data processing, data protection and
data subject rights, please refer to
the current version of the privacy
policy for the vehicle available in the
infotainment system (
→ System →
Privacy policy).
●This vehicle is equipped with an
event data recording (EDR) system.
EDR mainly records data in the
event of a crash or near-crash
(for example, airbag deployment or
hitting on a roadside obstacle) to
help comprehend the vehicle system
operation, such as:
●Vehicle velocity.
●Tire pressure condition.
●ACC status.
●Whether the seat belt is fastened.
●The vehicle records EDR data only
when there is a crash or when a
near-crash event reaches a certain
extent. The EDR does not record any
data during the normal driving of the
vehicle.
●The data recorded by the EDR system
provides an understanding of the
state of the vehicle's safety-related
systems when an accident occurs, so
that relevant parties can analyze the
accident.
Vehicle Data Processing
Halaman 27
●The EDR data needs to be accessed
and read by special equipment. BYD
will not disclose your personal data
to third parties unless this is legally
permissible or you have consented
to it. In addition to the vehicle
manufacturer, third-party agencies
with professional equipment (such as
government agencies) can also read
the EDR data if they have access
to the vehicle EDR and equipment
(for example, they can read the data
of SRS control unit to clarify the
accident).
Vehicle Data Processing
●Data is collected when the vehicle
is used, such as data collected or
transmitted by vehicle sensors or
control units, which is necessary for
the safe functioning of your vehicle.
●In some cases, the data is used
to support driving (driver assistance
systems) or to enable a specific
comfort or infotainment function.
●Personal data that is collected and
processed mainly include in-vehicle
data, remote-services-related data,
and other data, as further specified
below.
In-vehicle data
Operation data
●When the vehicle is used, various
vehicle status data (concerning speed,
battery level, and the braking system)
or environment data (including
distance sensors and temperature) are
collected and processed.
●This data is not usually stored,
but there are control units, sensors
or other components installed in
the vehicle that record such data,
for example, to record maintenance
requirements, error messages, or other
information.
●The in-vehicle data will only be
stored in the equipment in the
vehicle but can be read out via
the legally required OBD ("On Board
Diagnostics") interface, for example,
by BYD authorized dealer or service
provider or other third parties.
01
●In case this access takes place
during vehicle maintenance, the
information can also be transmitted to
BYD engineers for quality assurance,
product defect reports, or customer
claim verification.
SAFETY
Remote-services-related data
Remote monitoring services
●The vehicle has remote monitoring
services. These include remote
diagnosis and over-the-air (OTA)
updates and upgrades for security and
safety purposes (subject to owner's
approval).
●These monitoring services serve the
following purposes: service provision
(remote support/diagnostics), product
development, and security/public
safety.
●Depending on the country and setup,
various vehicle information can be
transmitted to BYD's data center in
corresponding market for the above
purposes, including vehicle location
information, vehicle status, such as
energy consumption, vehicle speed,
gear position, power mode, ESC status,
steering system status, battery status,
powertrain status, and overall vehicle
performance status.
Other
Infotainment system
●Depending on vehicle configuration,
data can be added to the infotainment
system by the users themselves, such
as media data for playing video on the
infotainment system, address data for
Permanent Vehicle Transfer to Third Parties and Offline Mode
Halaman 28
use in the navigation system, or data
for use in online services.
●Depending on vehicle configuration,
individual settings in and on the
vehicle can also be entered.
●Data stored in the vehicle can be
deleted at any time.
●BYD has no control over data
transferred to third parties (from the
use of third party content, in particular
as part of online services).
Integration of mobile devices
●Depending on vehicle configurations,
mobile devices can be connected
and controlled through the vehicle's
infotainment system.
●It may be necessary that the device's
screen or audio is displayed/played
through the infotainment system or
transmitted to it.
●Additional data like positioning or
vehicle information can be transmitted
through applications for use in certain
navigation systems, communication,
or other third-party services.
●The specific type of data processing
depends on the respective function
and is controlled by the user or third
parties such as the provider of the
devices or corresponding services.
Internet access and connected services
●Depending on vehicle configurations,
the Internet can be accessed for certain
functions or BYD services through the
vehicle's infotainment system network
devices.
●BYD is not liable for any such services
provided by any other party.
●In such cases, please obtain
information about the use of data from
the provider of the respective online
service.
Camera image recording/surrounding
area monitoring
●Your vehicle is equipped with a
number of cameras/sensors.
●The reason for this is that some vehicle
functionalities require the vehicle's
path to be detected and assessed
which is done by cameras that detect
objects in the vehicle's surroundings
such as obstacles.
●The images are transmitted to the
respective control module for further
analytics required to operate the
systems.
●Some images are just processed on
a volatile basis (RAM), others may
be stored, depending on vehicle
equipment.
●The vehicle may be equipped with
an outward-facing camera (OFC) that
can be used to take footage of the
surrounding (for example, dashcam).
●The vehicle may also be equipped with
an inward-facing camera (IFC), which
can be used to take footage inside the
vehicle.
●Both OFC and IFC footage is stored.
●You are responsible to check the laws
of your residence before turning on
your OFC or IFC (for instance, in some
countries consent is required for the
use of IFC, and in others OFC is strictly
restricted to dashcam purposes).
●For more camera details, see P133.
Permanent Vehicle Transfer to Third
Parties and Offline Mode
●In case of a permanent vehicle transfer,
that is, when you sell or give a
vehicle to a new owner for permanent
use, it must be noted that any
personalization/user settings made via
the infotainment system (including the
Your Data Protection Rights
Halaman 29
address list and the navigation system)
can be accessed by the new owner.
●You can also restrict your vehicle's
communication with the BYD data
server and the processing of vehicle-
related and personal data by setting
the vehicle to offline mode.
●On the infotainment touchscreen, tap
to turn Wi-Fi off.
●You can also disable Wi-Fi in
→
System → Link → WLAN.
Disclosure of Personal Data to
Authorities
●BYD will not discloses your personal
data to third parties unless this
is legally permissible or you have
consented to it.
●However, subject to applicable
laws, government agencies may be
authorized to read out data from
vehicles (for example, data can be read
from the airbag control unit to clarify
an accident).
●If required by law, BYD may also be
obliged to disclose data upon request
to governmental authorities in your
country, such as in the investigation of
a criminal offence.
Your Data Protection Rights
●BYD has staunch respect for its
customer's privacy, and strictly
complies with all data protection
laws, in particular the General Data
Protection Regulation (GDPR) and
applicable local laws.
●According to these laws, owners have
specific rights when their personal
data is processed:
●Data subjects have the right
of information and access, to
rectification, erasure of personal data
("right to be forgotten") and the
right to object to the processing of
personal data or to restrict it (or to
withdraw consent given earlier, as
well as the right to data portability).
01
●These rights may be limited in some
cases. For example, if we can show
that we have a legal obligation to
process your data, or if providing the
information to you would disclose
personal data about another person,
or if we are legally prevented from
disclosing that information.
SAFETY
●In some cases, this may mean that
we can retain the data even if you
withdraw your consent.
Your Data Protection Rights
Halaman 30
30
Instrument Cluster
Halaman 31
02
INSTRUMENT
CLUSTER
Instrument Cluster............................32
LCD Instrument Cluster
Halaman 32
# Instrument Cluster
## Instrument Cluster View
### LCD Instrument Cluster
*(Diagram showing the LCD Instrument Cluster with numbered callouts from 1 to 11)*
| | | | |
| :--- | :--- | :--- | :--- |
| **1** | Direction | **7** | Outside temperature |
| **2** | Time | **8** | Total mileage |
| **3** | Driving mode | **9** | Power meter |
| **4** | Speedometer | **10** | Driving range |
| **5** | Gear status | **11** | State of charge (SOC) |
| **6** | Regenerative braking | | |
<br>
32
Indicators/Warning Lights
Halaman 33
Instrument cluster view in simple mode
CAUTION
●During occasional communication
delays in the instrument cluster
system, the instrument cluster
may automatically switch to
simple mode for safe driving. In
this mode, the instrument cluster
continues to display driving-
related information normally
without affecting normal vehicle
travel. After the system becomes
normal, the instrument cluster
may automatically exit the simple
mode. If it does not, try the
following actions to switch back
to normal mode:
1. Press and hold the scroll button
on auxiliary dashboard for
three seconds to restart the
instrument cluster information
display system.
2. While vehicle safety is ensured,
operate the vehicle power
Left turn signal indicator
Light switch indicator*
02
INSTRUMENT CLUSTER
CAUTION
switch to turn off the vehicle
and then turn the ignition on.
●If the instrument cluster
remains in simple mode after
those actions have been
taken, promptly contact a BYD
authorized dealer or service
provider for inspection.
●The image of the instrument
cluster view is for reference only
and is subject to actual factory
configuration.
Instrument Cluster
Indicators
Indicators/Warning Lights
Right turn signal indicator
Low beam indicator
Indicators/Warning Lights
Halaman 34
| | Left Column | | Right Column |
| :---: | :--- | :---: | :--- |
| **OK** | OK indicator | <img src="#" alt="Position light" width="30"/> | Position light indicator |
| **(A)** | AVH indicator | <img src="#" alt="Discharge" width="30"/> | Discharge indicator |
| <img src="#" alt="High beam" width="30"/> | High beam indicator | <img src="#" alt="AFL" width="30"/> | AFL indicator |
| <img src="#" alt="AEB" width="30"/> | AEB indicator | <img src="#" alt="ICC" width="30"/> | ICC indicator |
| <img src="#" alt="LDA" width="30"/> | LDA indicator | <img src="#" alt="ACC" width="30"/> | ACC indicator |
| <img src="#" alt="AEB fault" width="30"/> | AEB fault warning light | <img src="#" alt="ICC fault" width="30"/> | ICC fault warning light |
| <img src="#" alt="LDA fault" width="30"/> | LDA fault warning light | <img src="#" alt="ACC fault" width="30"/> | ACC fault warning light |
| <img src="#" alt="Driving power limit" width="30"/> | Driving power limit warning light | **(ABS)** | ABS fault warning light |
| <img src="#" alt="High-voltage battery" width="30"/> | High-voltage battery low SOC warning light | <img src="#" alt="BSD fault" width="30"/> | BSD fault warning light |
| <img src="#" alt="AVAS OFF" width="30"/> | AVAS OFF indicator* | <img src="#" alt="Rear fog light" width="30"/> | Rear fog light indicator |
| <img src="#" alt="Tire pressure" width="30"/> | Tire pressure fault warning light | <img src="#" alt="Smart key" width="30"/> | Smart key warning light |
| <img src="#" alt="ESC OFF" width="30"/> | ESC OFF warning light* | <img src="#" alt="Main alarm" width="30"/> | Main alarm indicator |
| <img src="#" alt="ESC fault" width="30"/> | ESC fault warning light | <img src="#" alt="Headlight fault" width="30"/> | Headlight fault warning light |
<br>
34
Indicators/Warning Lights Description
Halaman 35
AEB warning light
Low-voltage power system
fault warning light
Motor overheating warning
light
Powertrain fault warning
light
Seat belt reminder indicator
EPB indicator
TSR indicator
Comfort mode indicator
Economic mode indicator
Indicators/Warning Lights Description
Smart key warning light
●If the key is not in the vehicle when
you press the START/STOP button,
this warning light comes on for a
few seconds, a beep sounds, and the
message "No key detected, please
confirm if the key is in the vehicle" is
displayed on the instrument cluster.
●If you press the START/STOP button
while an electronic smart key matching
the model is in the vehicle, this
warning light does not light up. The
vehicle can now be powered on.
High-voltage battery
charging connection
indicator
High-voltage battery fault
warning light
High-voltage battery
overheating warning light
02
INSTRUMENT CLUSTER
Coolant overheating
warning light
Airbag fault warning light
Parking brake system fault
warning light
Steering system fault
warning light
Sport mode indicator
Snow mode indicator
●If the warning light flashes after
you press the START/STOP button, it
indicates low battery of the key.
ABS fault warning light
●This warning light comes on when the
ignition is on. If the anti-lock braking
system (ABS) is working properly, the
light goes out in a few seconds.
Thereafter, if the system fails, the
light lights up again until the fault is
cleared.
●When the ABS fault warning light is
on (with the parking brake system
fault warning light off), the braking
system continues to operate whereas
ABS does not.
Indicators/Warning Lights Description
Halaman 36
●When the ABS fault warning light is on
(with the parking brake system fault
warning light off), since ABS does not
operate, the wheels will be locked in
case of emergency braking or braking
on a slippery road.
●If any of the following cases occurs,
there is a fault in components
monitored by the warning light system.
In that case, contact a BYD authorized
dealer or service provider for vehicle
inspection as soon as possible.
●This warning light does not come on
or is steady on when the ignition is
on.
●This warning light turns on during
driving.
REMINDER
●A warning light that lights up
briefly during operation does not
indicate a problem.
●If the ABS fault warning light
is still on while the parking
brake system warning light is on,
immediately park the vehicle in a
safe place. It is recommended to
contact a BYD authorized dealer
or service provider. In this case,
if brakes are applied, the ABS
will not work and the vehicle will
become extremely unstable.
●If both the ABS indicator and the
braking system indicator come on and
the electronic parking brake (EPB)
is fully released, the braking force
distribution system of front and rear
wheels has also failed.
Tire pressure fault warning light
●This warning light comes on when the
ignition is on. It turns off in a few
seconds if the tire pressure monitoring
system is working properly. If the
system fails, this warning light turns on
again.
●When the tire pressure fault warning
light comes on or flashes, the message
"Please check TPMS" is displayed
on the instrument cluster, and the
tire pressure is displayed as "---", it
indicates that the tire pressure system
is faulty.
●When the tire pressure value displays
"No Signal", it indicates that the tire
pressure signal at this location may
be interfered or the tire pressure
monitoring module is damaged.
●When the tire pressure fault warning
light flashes rapidly and one or more
values turn red on the tire pressure
screen on the instrument cluster, the
corresponding tire is leaking rapidly.
●When the tire pressure fault warning
light is solid on and one or more
values turn yellow on the tire pressure
screen on the instrument cluster, the
corresponding tire is in under-pressure
condition. When the temperature value
of one or more tires turns yellow, it
indicates that the tire temperature is
too high.
●In the event of any of the situations
above, it is recommended to contact
a BYD authorized dealer or service
provider for inspection as soon as
possible.
Electronic stability control (ESC)
fault warning light
●This warning light comes on when the
ignition is on. If electronic stability
control (ESC) functions properly, the
light goes out in a few seconds. If the
system fails, this warning light turns on
again until the system fault is cleared.
●If the ESC warning light flashes
temporarily while the vehicle is in
Indicators/Warning Lights Description
Halaman 37
motion, it indicates the ESC system is
working.
●When the ESC warning light turns on
(with the ABS fault warning light and
the parking brake system fault warning
light off), the ESC fails, but the ABS and
the braking system continue to operate
normally.
●When the ESC warning light turns
on (with the ABS fault warning light
and the parking brake system fault
warning light off), the ESC system
does not work. This means the vehicle
is extremely unstable at sharp turns
or when the driver steers away from
obstacles ahead.
●If any of the following cases occurs, it
means there is a fault in components
monitored by the warning light system.
In that case, contact a BYD authorized
dealer or service provider for vehicle
inspection as soon as possible.
●This warning light remains off (self-
check not performed) after the
vehicle is powered on.
●This warning light is steady on while
driving.
REMINDER
●A warning light that lights up
briefly during operation does not
indicate a problem.
●If the ESC warning light remains
on while the warning lights for the
ABS and the braking system are
on, immediately stop the vehicle
in a safe place and contact a
BYD authorized dealer or service
provider. This is because braking
at this time can render the vehicle
extremely unstable, and the anti-
lock braking system does not
work at all.
ESC OFF warning light
●When the ESC OFF switch is pressed,
this warning light should remain
steady on and the ESC system will
not operate. When the ESC OFF switch
is pressed again, this warning light
should turn off and the ESC system
returns to normal.
02
REMINDER
INSTRUMENT CLUSTER
●While the ESC OFF warning
light is on, the driver must
stay alert and drive at a lower
speed when making a sharp turn
and when avoiding an obstacle
which appears suddenly, because
braking at this time can render
the vehicle unstable, given the
malfunction of ESC system.
Driving power limit warning light
●When the power of the vehicle is
limited, this indicator will come on.
In this case, contact a BYD authorized
dealer or service provider in time.
Headlight fault warning light
●When the warning light is yellow, it
indicates the headlight is faulty, and it
is recommended to bring the vehicle
to a BYD authorized dealer or service
provider for inspection.
Blind spot detection (BSD) fault
warning light
●When this indicator is on, it is
recommended to bring the vehicle to
a BYD authorized dealer or service
provider for inspection.
Indicators/Warning Lights Description
Halaman 38
Main alarm indicator
●If this indicator goes on, check the fault
prompt or warning on the instrument
cluster.
Seat belt reminder indicator
●With the ignition switched on, if any
passenger on the front seats or rear
seats has not buckled up, the seat belt
reminder indicator lights up. It remains
on until the seat belt is fastened.
Airbag fault warning light
●With the ignition switched on, this
warning light turns on and then
goes off in a few seconds if the
airbag system is working properly. This
warning light is used to monitor the
airbag ECU, collision sensors, inflation
device, warning lights, connections,
and power supply.
●If any of the following cases occurs, it
means there is a fault in components
monitored by the warning light system.
In that case, contact a BYD authorized
dealer or service provider for vehicle
inspection as soon as possible.
●When the ignition is switched on, this
warning light remains off or is solid
on after the ignition is switched on.
●This warning light turns on during
driving.
Parking brake system fault
warning light
●When the brake fluid level is low
and the braking system is faulty,
this warning light lights up. If any
of the following conditions occurs,
immediately park the vehicle in a safe
place. It is recommended to contact
a BYD authorized dealer or service
provider.
●This warning light comes on when
the ignition is switched on and the
brake fluid level is low.
●This warning light is solid on
although after starting the vehicle,
the brake fluid level and EPB system
operation are normal (the EPB is
engaged and released normally, and
the message "Please check the EPB"
is not displayed). Brief flashing is
considered normal.
●Fault warning lights for parking brake
and ABS come on simultaneously.
REMINDER
●When the brake fluid level is low,
park the vehicle because it is
dangerous to continue driving.
Steering system fault warning
light
●When the steering system is faulty,
this warning light is steady on. It is
recommended to bring the vehicle to
a BYD authorized dealer or service
provider for inspection.
REMINDER
●The steering system features an
electric motor to reduce the force
required to turn the steering
wheel.
●When turning the steering wheel,
a hum may be heard from the
running motor. This does not
indicate that the motor is faulty.
●Do not turn the steering wheel
to its limit position for more
Indicators/Warning Lights Description
Halaman 39
REMINDER
than five seconds, otherwise the
temperature protection will be
activated and the steering system
will be damaged or steering will
become heavy.
●If you have turned the steering wheel
frequently with the vehicle staying put
for a long time, the steering wheel may
become difficult to turn even if the
warning light does not turn on. This is
not a fault.
●To prevent steering system
overheating, the power assist effect
will be reduced if the steering wheel
has been frequently turned with the
vehicle staying put for a long time. As
a result, the steering wheel become
difficult to turn. In this case, reduce
steering frequency or power off the
vehicle. The system will recover
within 10 minutes.
●In certain situations, disconnecting the
low-voltage battery or fuses may cause
the vehicle to lose power. After power
is restored, the ESC fault warning light
may light up. To reset the system, you
need to perform the steering angle
zero-point calibration: Slowly turn the
steering wheel all the way to the left
and hold it for 2–5 seconds, then
turn it all the way to the right and
hold for another 2–5 seconds. After
releasing the steering wheel, turn off
the vehicle and wait for at least 10
seconds. Upon restarting the vehicle,
the ESC fault warning light should turn
off, indicating that the calibration is
complete.
WARNING
●If the steering system fault
warning light goes on,
immediately park the vehicle
WARNING
safely, and contact a BYD
authorized dealer or service
provider.
Low-voltage power system fault
warning light
02
●If this warning light turns on while
the vehicle is in motion, it indicates
that there is a problem with the
DC system or the low-voltage power
system. Turn off devices such as the
A/C, fan, and radio, and pull over the
vehicle immediately if it is safe to do
so. It is recommended to contact a BYD
authorized dealer or service provider
for rescue as soon as possible.
INSTRUMENT CLUSTER
Powertrain fault warning light
●If the powertrain fails, this warning
light turns on.
●If any of the following cases occurs, it
means there is a fault in components
monitored by the warning light system.
In that case, contact a BYD authorized
dealer or service provider for vehicle
inspection as soon as possible.
●This warning light is steady on when
the ignition is switched on.
●This warning light turns on during
driving.
CAUTION
●Try not to drive the vehicle when
the warning light is on. Contact a
BYD authorized dealer or service
provider to check the problem as
soon as possible.
High-voltage battery overheating
warning light
Other Instrument Cluster Fault Prompts
Halaman 40
●If this warning light is on, it
indicates that the high-voltage battery
temperature is too high and the
vehicle must be stopped to cool down.
When the warning light flashes, it is
recommended to immediately stop the
vehicle safely and leave the vehicle as
soon as possible.
●The high-voltage battery may overheat
under the following operating
conditions:
●Driving up a slope for a long time in
hot weather
●Long period of stop-and-go
traffic condition, frequent rapid
acceleration, frequent hard braking,
or vehicle running for a long time
without pause.
High-voltage battery fault
warning light
●This warning light comes on when the
ignition has just been switched on.
If the high-voltage battery system is
working properly, this warning light
will turn off in a few seconds. If
this light lights up again thereafter,
it indicates a system failure. It is
recommended to contact a BYD
authorized dealer or service provider
for inspection as soon as possible.
●If any of the following cases occurs,
it means that there are faults in
the components monitored by the
warning light system. In such case,
it is recommended to contact a BYD
authorized dealer or service provider
Symbol
Fault Prompt
Response
The on-board charging system is faulty. Check
the charging connection, and reconnect the
charging equipment. If the fault persists,
contact a BYD authorized dealer or service
provider.
Please check the OBC system
for vehicle inspection as soon as
possible.
●This warning light is steady on when
the ignition is on.
●This warning light is steady on or
occasionally turns on while driving.
AEB warning light
●When this indicator is on or flashes,
pay attention to the distance from the
vehicle ahead, and do not get too close
to it to prevent potential collision.
Coolant overheating indicator
●If this indicator is solid on, it indicates
that the coolant temperature is too
high. Park the vehicle in a safe area
until this indicator goes out.
TSR indicator
●When this indicator lights up, it means
that the vehicle system has recognized
the speed limit value on current road
section.
Other Instrument Cluster Fault
Prompts
The instrument cluster may display the
following fault prompts. Handle them as
recommended.
Other Instrument Cluster Fault Prompts
Halaman 41
Symbol
Fault Prompt
Response
For your safety, remote drive
is suspended
Please check the vehicle
network
Please check the memory
system
EV function limited
Please check the headlamp
system
ADAS function limited
ADAS function limited
ADAS function limited
Please check the gear system
Stop using remote driving when it is
abnormal.
The vehicle may be disconnected from the
data network. Park the vehicle immediately,
and contact a BYD authorized dealer or
service provider.
02
The memory system is faulty. Contact a BYD
authorized dealer or service provider.
INSTRUMENT CLUSTER
The EV function is limited. Contact a
BYD authorized dealer or service provider
immediately.
The headlight is faulty. Contact a BYD
authorized dealer or service provider.
The forward collision warning (FCW) or
automatic emergency braking (AEB) function
is limited. Park the vehicle, and contact a BYD
authorized dealer or service provider.
The blind spot detection (BSD) function is
limited. Park the vehicle, and contact a BYD
authorized dealer or service provider.
The lane departure warning (LDW) or the
lane departure prevention (LDP) function is
limited. Park the vehicle, and contact a BYD
authorized dealer or service provider.
The shifter controller is faulty. Park the
vehicle immediately, and contact a BYD
authorized dealer or service provider.
Other Instrument Cluster Fault Prompts
Halaman 42
42
Controller Operation
Halaman 43
03
CONTROLLER
OPERATION
Doors and Keys.................................44
Seats..................................................58
Steering Wheel..................................63
Switches............................................66
Electronic Smart Key
Halaman 44
Doors and Keys
Keys
The vehicle is equipped with keys,
including the electronic smart key,
mechanical key (installed in the
electronic smart key), NFC key card*, NFC
digital key*, and Bluetooth digital key*,
to enable functions such as unlocking/
locking doors and starting the vehicles.
Electronic Smart Key
Press the left or right front door
microswitch, while carrying the smart
key, to unlock or lock all doors, or
press smart key buttons to lock/unlock
doors, open the trunk, or start the vehicle
remotely.
①Indicator
②Lock button
③Unlock button
④Trunk release button
⑤Start/Stop button
⑥Mechanical Key
WARNING
Button battery safety
alert:
WARNING
●The button (coin) battery in the
smart key is hazardous and both
new and used batteries are to be
kept away from children at all
times.
●If swallowed or placed inside any
part of the body, a lithium button
battery can cause severe or fatal
injuries in two hours or less.
●Medical attention should be
sought immediately if it is
suspected the button battery has
been swallowed or placed inside
any part of the body.
CAUTION
●The smart key is an
electronic component. Observe
the following instructions to
prevent damage to the key:
●Do not place the smart key
in a position exposed to high
temperature, such as on the
dashboard.
●Do not disassemble the smart
key without authorization.
●Do not let the smart key hit
other objects or fall down.
●Do not immerse the key in water
or clean it in the ultrasonic
scrubber.
●Do not place smart keys
with devices that emit
electromagnetic waves, such as
the mobile phone.
●Do not attach to the smart
key any objects (such as a
metal seal) capable of cutting off
electromagnetic wave signals.
Mechanical Key
Halaman 45
CAUTION
●You can register a spare key for
the same vehicle. In this case,
contact a BYD authorized dealer
or service provider immediately.
●If the electronic smart key cannot
operate the door within the
normal distance, or the key
indicator light is dim or off:
●Check for nearby radio stations
or airport radio transmitters
that interfere with the normal
operation of electronic smart
keys.
●The battery of an electronic
smart key may be exhausted.
Check the battery inside the
electronic smart key. It is
recommended to contact a BYD
authorized dealer or service
provider for battery change.
●If you lose your smart key, it
is recommended to contact a
BYD authorized dealer or service
provider as soon as possible to
reduce the risk of vehicle theft or
accidents.
●Do not change the transmission
frequency arbitrarily, increase the
transmission power (including
additional transmission frequency
amplifier), or arbitrarily connect
the external detection antenna
or switch other transmitting
detection antennas.
●The use of the smart key must
not cause harmful interference
to legal radio communication
services. Once interference is
found, stop using the key
immediately and take measures to
eliminate the interference before
continuing to use.
CAUTION
●The use of micropower radio
equipment must be free
from interference of all radio
services or from radiation of
industrial, scientific, and medical
equipment.
●Do not use it near aircraft or
airports.
●People implanted with
pacemakers or defibrillators
should stay away from the
detection antennas of intelligent
entry and start systems, as
electromagnetic waves can affect
the normal use of such
devices. In addition to people
implanted with pacemakers
or defibrillators, those who
use other electronic medical
devices should also consult the
manufacturer on the use of
such devices under the influence
of electromagnetic waves.
Electromagnetic waves may bring
unknown consequences to the
use of such medical devices.
03
CONTROLLER OPERATION
●When leaving the vehicle, always
carry your key and lock the
vehicle. Never leave anyone
(especially children) alone in the
vehicle.
Mechanical Key
Use the mechanical key (inside the smart
key) to lock or unlock the driver's door.
When the key is not used, be sure to insert
the mechanical key back into the smart
key.
●When using the mechanical key in the
electronic smart key, slide the lock-up
button in the direction of arrow ① and
push the back cover of the electronic
smart key in the direction of arrow
NFC Key Card*
Halaman 46
② to take out the mechanical key, as
shown in the illustration.
●After using the mechanical key, insert it
in the opposite direction as the arrow
② shows and close the back cover of
the smart key.
Bluetooth Digital Key*
●You can use the BYD Bluetooth digital
key to control the vehicle through a
close-range mobile phone Bluetooth
connection, including locking or
unlocking the doors.
●You can download and install the
latest BYD App in the app market. The
function of Bluetooth digital key can be
found in the app.
●For vehicles supporting Bluetooth
digital key, you can use the key after
activating it in the BYD App.
●Turn on the Bluetooth on your phone,
approach the vehicle, and open the
BYD App for automatic Bluetooth
digital key connection. You can also
connect it manually. The key is
effective after Bluetooth is connected.
●The specific functions supported by
the key are subject to the vehicle
configuration. The key can be used
without network. After the key
connection, you can select operations,
and the app will immediately send
commands to control the vehicle.
●In some countries or regions,
according to relevant regulations,
when a user starts the vehicle, the
vehicle will detect the position of the
Bluetooth digital key. The vehicle can
be started only when it detects that the
key is within two meters of it to ensure
the vehicle property safety.
CAUTION
●Before activating the Bluetooth
digital key, ensure that the vehicle
network is well connected. If the
activation fails, try to move the
vehicle to a place with good
network and activate the key
again in the application.
●After the vehicle is unlocked with
a Bluetooth digital key, the doors
will lock automatically if there is
no operation in a short time.
●When the Bluetooth key
connection or operation fails for
many times, you can turn the
Bluetooth off and then on, or
restart the application.
●Limited by the vehicle
environment and mobile phone
performance, the effective
distance of the key will be reduced
in case of dense vehicles.
●There are a few mobile phones
that are not compatible with
Bluetooth digital keys.
NFC Key Card*
●The NFC card is a key configured for
the vehicle based on the near field
communication method to unlock,
lock, and start the vehicle.
●Place the NFC key at the mark on the
left side mirror to unlock/lock all the
doors.
NFC Digital Key*
Halaman 47
●Place the NFC key on the NFC area at
the front of the cubby box to authorize
the motor start.
CAUTION
●NFC key card is an
electronic product. The following
instructions must be observed
to prevent function failure of or
damage to the card:
●Do not place the NFC card in the
charging area when the wireless
charger is on (see P166 for
details).
●Do not attach any object (such
as a metal seal or metal
phone case) that may cut off
electromagnetic waves.
●Do not place the NFC card
in a position exposed to high
temperature, such as on the
dashboard.
●Do not bend the card with force.
●Do not place the card with other
hard objects.
●NFC key cards use near-
field communication technology,
requiring a detection distance of
less than 2 cm. Hold your NFC
card close to the side mirror for
1-2 seconds.
●It is recommended to carry the
NFC card at all times to avoid
situations where you may be
unable to use the vehicle due to
loss or malfunction of your phone
or smart key.
●In order to ensure vehicle safety,
handle the NFC key card with
care. If it is lost, immediately
contact a BYD authorized dealer
or service provider for blocking of
CAUTION
the lost card and configuration of
the new card.
NFC Digital Key*
●The NFC digital key is a digital
key solution provided by BYD. You
can register smartphones or wearable
devices as vehicle keys to unlock, lock,
and start the vehicle.
03
●Before activating the NFC digital key,
ensure that:
CONTROLLER OPERATION
●You have registered BYD Cloud
Service for the vehicle.
●Your vehicle supports NFC digital key.
●Your smartphone or wearable device
supports BYD NFC digital key (contact
a BYD authorized dealer or service
provider for device compatibility).
Activating the NFC digital key on
smartphones
Before activating, start the vehicle and
shift into Park with a valid smart key. You
can activate the NFC digital key in any of
the three ways:
●Via the BYD app:
●Download and log into the BYD app.
Navigate to Digital Key and follow
the instructions to activate the key.
●Via the email link:
●Log into the email account reserved
during vehicle purchase on the
phone, and then activate the
key following the instructions
in the activation email from
[email protected].
●Via the infotainment touchscreen:
●On the infotainment touchscreen, tap
→ Vehicle → Locks → Digital
Locking/Unlocking with Mechanical Key
Halaman 48
key and follow the instructions to
activate the key.
Activating the NFC digital key on
wearable devices
Supported wearable devices include
Apple Watch (consult a BYD authorized
dealer or service provider for other
supported devices), and there are two
ways of activation:
●Synchronize the key from iPhone to
Apple Watch:
●After successful key activation on
iPhone, the device prompts to add
the NFC digital key to a paired Apple
Watch which is nearby and unlocked.
Follow the prompts to complete
activation.
●Via the Watch app:
●If the iPhone NFC key is active but
not synced to Apple Watch, open the
Watch app on iPhone, select Wallet,
find the key, and tap Add to activate
the key following the instructions.
Using the NFC digital key
Ensure the NFC function is enabled on
your device before using the NFC digital
key. Here is how to use:
●To unlock/lock the vehicle, position
the NFC antenna area of the
smartphone or wearable device near
the NFC sign on the driver side mirror.
Consult the manufacturer for the NFC
antenna area of your device.
●To authorize vehicle start, place the
smartphone or wearable device at the
NFC sign inside the vehicle.
CAUTION
●After authorizing vehicle start with
the NFC digital key, start the
vehicle promptly, or you need to
CAUTION
place the device at the NFC sign
again to reauthorize.
Removing the NFC digital key
You can remove the NFC digital key in any
of the three ways:
●Via the BYD app:
●Open the BYD app and navigate to
the digital key management screen,
select the key to remove, and enter
the password to remove it.
●Via the infotainment touchscreen:
●With a valid smart key inside
the vehicle, go to infotainment
touchscreen →
→ Vehicle →
Locks → Digital key and follow the
instructions to remove the key.
●Via the Wallet app:
●Open the Wallet app on the phone,
select the digital key, and remove it
following the instructions.
Locking/Unlocking Doors
Locking/Unlocking with Mechanical
Key
1. Push the right side of a hidden door
handle, and turn the left side to get a
finger height, holding it by a hand.
Locking/Unlocking with Smart Key
Halaman 49
2. Once the left side is extended, pull
the middle of the handle outward to
extend the handle.
3. Insert the key into the lock hole and
turn it.
●To unlock the driver's door: turn the
key counterclockwise.
●To lock the driver's door: turn the key
clockwise.
CAUTION
●After removing the mechanical
key, pull the driver's door handle
to open the door.
Opening with Interior Door Handle
●When the vehicle is unlocked, pull the
handle once to open the door from
inside the vehicle.
●When the vehicle is locked, pull the
handle twice to open the door from
inside the vehicle.
WARNING
03
●Do not allow children to play with
the door handle, so as to avoid
the door opening while driving.
CONTROLLER OPERATION
●If there are children in the vehicle,
make sure to enable the child
protection lock function.
CAUTION
●As this vehicle is equipped with
child protection locks, the rear
doors can only be opened with
the interior handle when the child
protection locks are disabled.
Locking/Unlocking with Smart Key
●The wireless remote control is used
to unlock or lock all doors at a close
distance, and complete additional
functions.
●To enable or disable this function, go
to infotainment touchscreen →
→
Vehicle → Locks.
●In the active area, press the associated
button on the registered smart key to
lock or unlock all doors.
Locking
●When all the doors, the hood, and the
trunk lid are closed, press the lock
button to lock all the doors. If the
vehicle is shut down, the side mirrors
Raising/Lowering Windows with Smart Key
Halaman 50
fold in (when side mirror auto fold is
enabled on the infotainment system)
with turn signals flashing once. If the
ignition has not been switched off, the
turn signals do not flash, and the alarm
sounds once. Check whether all doors
are securely locked.
●If any door is not closed, the side
mirrors do not fold, the turn signals
do not flash, the door handles do not
fold and the alarm sounds once.
●If the hood or trunk is not closed,
the side mirrors do not fold, the turn
signals do not flash, and the alarm
sounds once.
Unlocking
●Press the unlock button. All doors are
unlocked, the hidden door handles
automatically extend, and the turn
signal flashes twice.
●When you unlock all the doors with
the smart key, even if no door is
opened, the interior lights stay on for
15 seconds and then go out.
●If the anti-theft alarm system is armed,
open any door within 30 seconds after
unlocking with the smart key, or all
doors will relock automatically and the
four door handles retract.
●If the vehicle is equipped with four-
door anti-pinch function, Even if you
press and hold the lock or unlock
button, locking or unlocking will not
be repeated. You need to release the
button and press it again. Press and
hold the lock button to raise all four
windows.
Lockout prevention function
●If the key is left in the vehicle when
the doors are closed and locked, the
vehicle will unlock automatically and
the turn signals will flash twice to
alarm the driver to take out the key.
REMINDER
●If the ignition is in a status
other than OFF, doors cannot be
unlocked/locked with the unlock/
lock button.
Finding the Vehicle with Smart Key
●With the anti-theft alarm system
armed, pressing the lock button
sounds a beep and makes turn signals
flash 15 times. Use this function to
locate the vehicle when it cannot be
found.
●When the vehicle is in vehicle search
mode, press the lock button again. The
vehicle enters another vehicle search
mode.
Raising/Lowering Windows with Smart
Key
●When the ignition is switched off:
●Press and hold the lock button on the
smart key to raise the four windows.
●Press and hold the unlock button
on the smart key to lower the four
windows.
●To enable or disable key window
locking and closing/unlocking and
opening functions, go to infotainment
touchscreen →
→ Vehicle → Locks.
Locking/Unlocking with NFC Key
Halaman 51
CAUTION
●When using the remote control
function to raise windows, pay
attention to the safety of
occupants in the vehicle, and use
this function only after making
sure the windows are clear from
pinching anyone.
Locking/Unlocking with Microswitch
Locking
●With the doors closed but not locked,
press the microswitch on the front
door handle while carrying the smart
key, and then all doors lock and all
door handles fold automatically. If the
vehicle is shut down, the side mirrors
will fold in with turn signals flashing
once. If the ignition has not been
switched off, the side mirrors will not
fold, the turn signals will not flash, and
the alarm will sound once.
●If any door, hood, or trunk lid is not
closed, pressing the microswitch still
locks the closed doors, but the alarm
only sounds once, and the side mirror
do not flash.
Unlocking
●When the vehicle is locked, press the
microswitch on the front door handle
while carrying the smart key. All doors
unlock at the same time. The hidden
door handle extends automatically and
the turn signal flashes twice.
●If the anti-theft alarm system is
armed, open a door within 30 seconds
after the unlocking, or all doors will
relock automatically and the four door
handles retract*.
●Pressing the microswitch does not
work if:
●This is performed while a door is
being opened or closed.
●The key is left in the vehicle.
03
REMINDER
●If the electronic smart key is too
close to an exterior door handle or
window, it may not be possible to
activate the entry function.
CONTROLLER OPERATION
Raising/Lowering Windows with
Microswitch
●With the ignition off, press and
hold the microswitch while carrying
the smart key to roll up or down
all windows (By default, lifting the
window function is activated and
lowering the window function is
disabled).
●To enable or disable microswitch
window locking and closing/unlocking
and opening functions, go to
infotainment touchscreen →
→
Vehicle → Locks.
Locking/Unlocking with NFC Key
Locking
●When doors are closed but unlocked,
hold the NFC key close to the
designated area on the driver side
mirror. All doors are locked at the same
time with turn signals flashing once..
Locking/Unlocking the Trunk
Halaman 52
Unlocking
●With the anti-theft alarm system
armed, hold the NFC key close to the
designated area on the driver side
mirror to simultaneously unlock all the
doors. The turn signals flash twice.
●The locking/unlocking function is
invalid if the NFC key is placed close to
the designated area on the driver side
mirror while doors are being opened or
closed.
●To use the NFC digital key on the
phone, enable the NFC function of the
phone and hold the top back part of
the phone close to the designated area
on the driver side mirror.
REMINDER
●If the anti-theft alarm system is
armed, open a door within 30
seconds after unlocking with the
NFC key, or all doors will relock
automatically.
●Some smartphone models do not
support the use of NFC digital
keys when the device is powered
off.
●Avoid using the NFC digital key of
your phone for extended periods
or frequently when it is out of
battery or turned off.
Locking/Unlocking the Trunk
Unlocking the trunk with smart key
●Double-press the trunk release button
on the smart key. The trunk opens and
with turn signals flashing twice.
Unlocking the trunk with electronic
switch
●With the vehicle locked, press the rear
electronic switch while carrying a valid
key to unlock the trunk.
●With the vehicle unlocked, press the
rear electronic switch to open the
trunk.
Opening/Closing the trunk from inside
the vehicle
●With the vehicle unlocked, pull up the
electrical trunk lid button to open the
lid; pull up and hold the button to
close the lid.
●If the vehicle speed is greater than 3
km/h, the trunk lid cannot be opened
by pulling up the button.
Locking/Unlocking the Trunk
Halaman 53
① Trunk close button
●When the trunk lid is open and
stationary, press this button to close
the lid.
●Press this button a second time to stop
the lid at the current position. Press
this button again to have the lid move
in the opposite direction.
② Vehicle lock button
●When the ignition is off and the trunk
is open, pressing the lock switch while
carrying a valid smart key closes the
trunk, locks the entire vehicle, and
arms the anti-theft alarm system.
REMINDER
●Before closing the trunk, make
sure doors, windows and sunroof
are properly closed.
Setting trunk opening height
●Open the trunk manually or
automatically to the desired position,
keep it at this position, and then press
and hold the interior trunk button
for over three seconds. The speaker
sounds for one second, indicating that
the opening height is set to the current
position.
●Set the trunk opening height by going
to the infotainment touchscreen →
→ Vehicle→ Locks.
Anti-pinch function
●The trunk will open or stop moving if it
contacts any obstacle while closing or
opening.
03
When the trunk fails to act
automatically
CONTROLLER OPERATION
●Manually and completely close the
trunk for recovery.
When reconnecting the low-voltage
battery
●Close the trunk manually to ensure the
power trunk lid functions normally.
WARNING
●In order to prevent serious
injury, make sure to observe the
following precautions:
●Never try to deliberately activate
the anti-pinch function.
●Make sure to alert people nearby
of the lid motion.
●Make sure hands and fingers are
clear from the lid area when it is
closing.
●Make sure the surrounding area
is safe when opening or closing
the trunk.
●Make sure the trunk is properly
closed when the vehicle is in
motion.
●Make sure to remove any ice
or snow from the area before
Locking/Unlocking the Trunk
Halaman 54
WARNING
opening the trunk, otherwise
the lid may close again.
●Do not manually interfere in lid
motion when it is opening or
closing.
●Be mindful of windy conditions
when opening or closing the
trunk.
●The anti-pinch function may fail
to work if an object is caught
right before the trunk is fully
closed.
●The lid may start closing
before fully opening. Opening
or closing the trunk on slopes
is more difficult than on level
ground. Be mindful of the
possibility of the lid to move
on its own in such conditions.
Before loading or unloading the
trunk, make sure the lid is fully
open and secure.
●The anti-pinch function may fail
depending on the object shape.
Be especially careful about hand
and fingers.
Opening the trunk by automatic kick
sensing*
When you stand in the effective detection
area of the trunk lid sensor with the
valid smart key carried, raise your foot
comfortably and smoothly and make a
kicking move under the rear bumper
without touching it.
●This opens the trunk if it is closed.
●This closes the trunk if it is fully
opened.
●This freezes the trunk lid while it is
moving. Kick again to move the trunk
lid in the opposite direction.
WARNING
●Make sure to stand steadily on the
ground and keep enough distance
with the rear of the vehicle when
doing the kicking motion. Or, you
may lose balance (for example, on
the ice).
●Do not carry the smart key in case
the trunk lid pops up accidentally
in the following situations:
●You are to place or pick up an
object at the rear of the vehicle.
●You are to maintain (such as
polish) the rear of the vehicle.
REMINDER
●Complete kicking within one
second.
●Ensure the smart key is within one
meter from the trunk when using
the hands-free trunk opening
function.
●When rainwater or vehicle wash
water flows in a stream through
Locking/Unlocking with Central Locking
Halaman 55
REMINDER
the rear bumper, or snow covers
the rear bumper, there will be
a delay in opening the trunk lid
by kicking. After this situation
disappears for some time, the
hands-free access control system
will return to normal.
●When the trunk lid lock is being
actuated, there is no response to
another kicking motion.
Emergency Trunk Releasing from the
Inside
1. Pull up the folding release clasp on the
seat back to fold the rear seat back, and
then enter the truck.
2. There is an emergency unlocking
device on the inside of the trunk lid. Open
the cover of the device and pull out the
unlocking rope to open the trunk in an
emergency.
REMINDER
●When the vehicle is powered off,
the trunk lid can be unlocked from
the inside in case of emergency.
Locking/Unlocking with Central
Locking
Locking or unlocking with central
locking
03
●See P71 for details.
Locking/Unlocking all doors
automatically
CONTROLLER OPERATION
●All doors automatically lock at vehicle
speeds above 8 km/h.
●Press the START/STOP button to switch
the ignition off and then all doors are
unlocked automatically.
Locking/Unlocking all doors
concurrently
●When the vehicle is not in anti-theft
mode, the backlight of the central
locking button turns on if the vehicle
is locked and turns off if the vehicle is
unlocked.
●Pressing the central lock button locks
all doors so that any attempt to open
any door from the outside fails. At this
time, pull the interior handle to unlock
a door and pull a second time to open
it.
REMINDER
●All doors unlock automatically
when the vehicle suffers a strong
impact, depending on the impact
intensity and accident type.
Active Area
Halaman 56
Emergency Locking with Mechanical
Key
●When the central locking fails, lock the
driver's door with the mechanical key.
Use the key to turn the emergency
locking knobs of the other three doors
counterclockwise to the locked state,
and then close the doors. At this time,
all vehicle doors are locked and cannot
be opened with exterior door handles.
●To unlock the doors, unlock the
driver's door with the mechanical key
first, then enter the vehicle, and pull
other interior door handles twice to
open the doors.
REMINDER
●Prevent excessive force from
distorting or breaking the key
during the operation.
Smart Access and Start
System
Use the smart key to unlock or lock the
vehicle doors and start the vehicle.
Access
Use the smart key to lock or unlock the
vehicle doors (see P49 and P51).
REMINDER
●If the electronic smart key is too
close to an exterior door handle or
window, it may not be possible to
activate the entry function.
Start-up
With the smart key inside, press the brake
pedal and the START/STOP button to start
the vehicle (See P104).
Antenna Positions
① Interior detection antenna
② Exterior detection antenna
Active Area
The smart access and start functions take
effect only when the registered smart key
is within the active area.
① Active area of the access function:
about one meter from the front door
handle and the exterior trunk switch.
② Active area of the start function: inside
the cabin.
If another smart key is near this vehicle's
smart key, unlocking may take longer
than usual, which is normal.
Active Area
Halaman 57
REMINDER
In the following situation, smart
access and start system may not
work normally:
●There is a strong electromagnetic
field nearby, such as TV towers,
power stations, and broadcasting
stations.
●The smart key is being carried
along with a communication
device, such as a two-way radio or
mobile phone.
●The smart key is in contact with or
covered by a metal object.
●The door handle is operated too
quickly.
●The smart key is too close to the
handle.
●Another wireless remote control
function is being used nearby.
●When the smart key battery runs
out.
●The smart key is close to high-
voltage equipment or equipment
that produces noise.
●The smart key is being carried
along with another smart key or
radio-wave-emitting device.
●Even within the active area, the
smart key may not work properly
REMINDER
in certain locations, for example,
on the dashboard, in the glove
box, on the floor, in the cup
holder, or in the trunk.
●If the smart access system is not
working properly and it is impossible
to enter the vehicle, the mechanical
key can be used to lock/unlock the
driver's door, or the wireless remote
control function can be used to lock/
unlock all doors.
03
CONTROLLER OPERATION
●Pressing the START/STOP button may
not enable the start function due to:
●If the electronic smart key does not
work, the smart key system warning
indicator on the combination
instrument flashes, and the message
"Low key battery" is displayed on
the information display screen in
the middle of the combination
instrument, indicating that the key
battery may have run out.
●If the smart access and start system
cannot work properly due to system
failures, bring all smart keys to a BYD
authorized dealer or service provider
for repair.
Saving battery power
●The smart key communicates with the
vehicle even when the vehicle is not
running. Therefore, do not leave the
smart key in the vehicle or within two
meters from the vehicle.
●Receiving strong electromagnetic
waves for a long time drains the
battery of the smart key quickly. The
smart key must be kept at least one
meter away from electrical equipment
that generates a magnetic field, such
as the following devices:
●Television
Seat Precautions
Halaman 58
●Personal computer
●Phone charger
●Electroliers
●Fluorescent desk lamp
Child Protection Lock
Child protection locks on the driver's
door switches are designed to prevent
children sitting in the rear seats from
inadvertently opening the rear doors.
① Child protection lock for the rear left
door
② Child protection lock for the rear right
door
After the child protection lock is
activated, doors cannot be opened from
inside the vehicle, and the window
switch for the corresponding rear door
cannot be used to raise or lower the
window. To unlock the door, press the
child protection lock button for the
corresponding side again or use the
exterior door handle.
WARNING
●Before driving, especially when
a child is in the vehicle, ensure
that the doors are closed and the
child protection lock function is
enabled.
●Proper use of seat belts and
activation of child protection lock
WARNING
helps prevent the driver and
passengers from being thrown out
of the vehicle in an accident, and
also prevents a door from being
opened accidentally.
Seats
Seat Precautions
●Adjust the driver's seat so that the
pedals, steering wheel, and dashboard
controls are within the driver's easy
control.
●While driving, the most effective
safeguard is to keep the seatback
upright, always rest well on the
seatback, and adjust the seat belt to
the right position.
●Do not fold or unfold the rear seats
when the vehicle is in motion.
●Secure your luggage appropriately to
prevent it from skidding or moving.
Luggage in the vehicle should not be
higher than seatbacks.
●The head support can only protect
your head when it is in the proper
position. Remember to adjust it to the
proper position if it has been moved.
WARNING
●Sitting on a folded seatback,
in the trunk, or on the cargo
is prohibited. Improper seating
position or improperly fastened
seat belts can result in personal
injuries in case of emergency
braking or a collision.
●Do not place any items under
the seats. The driver may lose
Adjusting Front Seat with Power
Halaman 59
WARNING
control of the vehicle because
items placed there affect the seat
locking mechanism, causing the
seat to move suddenly.
●When adjusting the seat, do not
place your hand under the seat or
near its operating parts to prevent
being crushed.
●After adjusting the seatback, lean
back to confirm the seatback
is locked. Seatbacks that are
not fully locked can cause
personal injuries in an accident or
emergency braking.
●Do not put the seatback down
while driving or riding in the
vehicle. This makes the shoulder
strap of the seat belt not properly
attached to the body. As a result,
occupants in the vehicle could hit
the strap in an accident, causing
injuries to the neck or other parts;
or they may slip out of the waist
belt, resulting in other serious
injuries.
●Do not adjust the driver's seat
while the vehicle is in motion, as
unpredictable seat movement can
cause the loss of vehicle control.
●Do not drive the vehicle until
occupants are seated properly.
CAUTION
●Adjust the seat position before
fastening the seat belt.
●While adjusting a seat, do not let
it hit against any passenger or the
luggage.
Adjusting Front Seats
Adjusting Front Seat with Power
Power front seat adjustment include
adjustment of seatback angle, seat
position, cushion height, cushion angle*,
leg support and lumbar support*. Choose
the following methods according to the
actual configuration of your vehicle.
03
CONTROLLER OPERATION
① Seatback angle adjustment
●Toggle the seatback angle adjustment
switch front and back to adjust the
seat back angle.
② Seat position adjustment
●Move the seat position adjustment
switch back or forth to slide the seat
backward or forward.
●Move the front end of the switch up or
down to change the cushion angle*.
●Move the rear end of the switch up or
down to adjust cushion height.
③ Leg support adjustment
●Press the front or rear end of the
switch to adjust the leg support.
④ Lumbar support adjustment
●The seatback profile can be adjusted
to fit the curvature of the occupant's
lumbar spine.
●Press the front or rear portion of the
switch to increase or decrease the
curvature.
Memory System
Halaman 60
●Press the upper or lower portion of
the switch to extend the curvature up
or down.
REMINDER
●Releasing the switch stops the
seat in the set position. Do not
place anything under the seat as
this may prevent the seat from
operating.
●Do not move the front seats too
far forward to avoid contact with
the roof or sun visor.
Memory System
Memory switch position
●You can set two seat positions to
be memorized on the infotainment
touchscreen by tapping
→ Seats →
Seat adjustment.
Memory setting function
●Memory setting conditions
●The ignition has been switched on
and the vehicle speed is zero.
●The driver's seat and side mirrors
have been adjusted to the desired
positions.
●No operation is made on the driver's
seat and side mirrors.
●Memory setting method
●Press and hold any position button
on the seat memory setting interface.
Then the positions of the seats and
side mirrors will be recorded, and the
memory setting finishes.
REMINDER
●If the position button on the
memory switch has already been
REMINDER
set, the position set will be
overwritten.
Memory recall function
Memory recall function with the ignition
on
●When the vehicle is in Park, the driver's
seat memory system and side mirrors
will perform memory recall when the
memory system switch is tapped if the
following conditions are met:
●The anti-theft alarm system has
disarmed.
●The vehicle speed is zero.
●Memory switch signals are valid.
●No operation is made on the driver's
seat and side mirrors.
●You can interrupt the current memory
recall operation by the following
methods:
●Press or toggle any of the driver's
seat adjustment switches.
●Tap any position button on the
seat memory setting interface of the
infotainment system.
WARNING
●Ensure there are no obstacles
around the seat before activating
the seat memory recall function.
●Ensure that no part of your body is
within the seat's movement range
during the seat memory recall
process.
●Do not allow children to operate
the memory switches to prevent
any injury during seat movement.
Automatic driver seat
Folding Rear Seats
Halaman 61
●Automatic back
●This feature enables the seat (if
located in the front section of its full
travel) to automatically move back
for a certain distance after the driver
unlocks the vehicle with the smart
key and opens the driver's door. This
makes it easy for the driver to enter.
●For easy exiting, this feature also
works when the vehicle power is
switched from "START" to "STOP"
and the driver's door is opened.
●Automatic forward
●When the vehicle power is switched
from "STOP" to "START" and the
driver's door is closed, the seat will
automatically move forward to the
position before the last power-off
if no horizontal position adjustment
is performed after the auto-back
feature is triggered upon the last
power-off.
●If no horizontal position adjustment
is performed after the auto-back
feature is triggered for easy exiting,
the seat will automatically move
forward after the driver's door is
closed.
●User settings
●To enable or disable the automatic
driver seat, go to infotainment
touchscreen →
→ Vehicle →
Comfortable Use.
●The automatic driver seat function
can be interrupted by closing the
driver's door while the seat is moving
backward or by opening the driver's
door while the seat is moving
forward.
Ventilation and Heating System*
●To enable or disable ventilation
or heating, go to infotainment
touchscreen →
→ Ventilation/
Heating.
●You can also access the settings in
the drop-down menu on infotainment
system homepage.
Ventilation adjustment *
●Seat ventilation: On the infotainment
touchscreen, tap the seat ventilation
icon to control the fan speed.
●Tap to select the operation mode
among level 1, level 2, and OFF.
03
●Switch to OFF to disable seat
ventilation.
CONTROLLER OPERATION
Heating adjustment*
●Seat heating: On the infotainment
touchscreen, tap the seat heating icon
to control the heating level.
●Tap to select the operation mode
among level 1, level 2, and OFF.
●Switch to OFF to disable seat heating.
Ventilation and heating functions
cannot be turned on at the same time.
●Tap the ventilation icon to make the
fan work; if the heating function is then
enabled, the fan will stop working and
the heater will start to work.
●Tap the heating icon to make the
heater work; if the ventilation function
is then enabled, the heater will stop
working and the fan will start to work.
Folding Rear Seats
Pull the handle on the seatback to fold
the bench.
Adjusting Rear Seat Head Supports
Halaman 62
CAUTION
●Fold or unfold the rear seats
at a moderate speed. Avoid
quickly lowering or pulling up
seatbacks to prevent damage to
or malfunction of rear seats and
the seat belts.
●Ensure that the seat belts are not
stuck between the seats when
folding, or the seats and belts may
be damged.
Adjusting Rear Seat Head
Supports
Lifting a head support
Lift the head support to a proper position,
and release it after hearing a locking
sound.
Lowering a head support
Press and hold the head support
adjustment button, lower the head
support to a proper position, slightly lift
the head support and release the button
after hearing a locking sound.
Removing a head support
Press and hold the head support
adjustment button, remove the head
support and release the button.
Installing a head support
Insert the head support post into
the bushing with the grooves facing
forward. Press and hold the head support
adjustment button, lower the head
support to a proper position, slightly lift
the head support and release the button
after hearing a locking sound.
REMINDER
●To avoid any injury to heads and
shoulders of the occupants, align
the occupant's ear tip line with
the center of the head support
when adjusting the head support
height.
●After the adjustment, press down
the head support to make sure
that it is locked.
●Do not drive the vehicle without
head supports.
●Do not attach any objects to the
head support levers.
Steering Wheel Switches
Halaman 63
Steering Wheel
Steering Wheel Switches
1
Distance -
2
Rocker switch
3
Distance +
4
Intelligent cruise control
5
AVM
6
Driving information
Left-hand buttons
Rocker switch
●Reset/+: Activates the adaptive cruise
control (ACC) system and uses the
previous system settings.
03
CONTROLLER OPERATION
7
Left
8
Scroll button
9
Right
10
Instrument cluster/Back
11
Call
12
Speech recognition
●Settings/-: Sets the current speed to
the target cruise speed.
Distance -
●Reduces the distance from the vehicle
ahead by one level when the ACC
Steering Wheel Switches
Halaman 64
function is enabled. A total of four
levels are available.
Distance +
●Increases the distance by one level
when the ACC function is enabled. A
total of four levels are available.
REMINDER
●For instructions on using cruise
control, see P112.
Intelligent cruise control
●Press this button to enable or disable
ICC system.
AVM
●Enables or disables automatic vehicle
monitoring (AVM).
Driving information
●Press this button to switch the
driving information interface. Press
and hold to clear the relevant driving
information.
Right-hand buttons
Scroll button
●Adjusting infotainment system volume
when the instrument cluster is not in
menu mode:
●Roll the button upward to increase
the volume. The button is non-
operational when the volume
reaches the highest.
●Roll the button downward to
decrease the volume. The button is
non-operational when the volume
reaches the lowest.
●Press down the button to mute.
●When the instrument cluster is in menu
mode:
●Roll the button upward to select the
upper level-2 or level-3 menu items.
●Roll the button downward to select
the lower level-2 or level-3 menu
items.
●Press down the button to go to
the next-level menu or confirm the
current setting.
CAUTION
●The infotainment system is muted
once the instrument cluster is set
to the menu mode. To adjust
infotainment system volume, exit
the instrument cluster menu
mode first.
Left/Right button
●When the infotainment system is in
radio mode:
●Press the
button to select
previous radio station.
●Press the
button to select next
radio station.
●When the infotainment system is
in USB/Bluetooth music/third-party
music app/other modes:
●Press the
button to play the
previous track (track number -1).
●Press the
button to select a
record upward on the Bluetooth call
record or phonebook screen.
●Press the
button to play the next
track (track number +1).
●Press the
button to select a
record downward on the Bluetooth
call record or phonebook screen.
●In the menu mode:
●Press the
button to switch to
level-1 menu and its submenus on
the left.
Adjusting the Steering Wheel Manually
Halaman 65
●Press the
button to switch to
level-1 menu and its submenus on
the right.
Instrument cluster/Back
●When the instrument cluster is not in
the menu mode, press this button to
view the instrument cluster menu.
●When the instrument cluster is in menu
mode, press this button to return to
the upper-level screen, or to exit the
menu if there is no upper-level screen.
●When on the Bluetooth call screen,
press this button to end the call.
Call
●Press this button to make or receive a
call (the audio system is muted at the
same time).
●When a Bluetooth-unrelated screen is
currently displayed, press this button
to switch to the phone selection screen
if Bluetooth is disconnected, or to the
dial screen if Bluetooth is connected.
●After entering a phone number on the
dial screen or selecting a record on the
call log or contacts screen, press this
button to dial the number.
●When Bluetooth is connected, but no
phone number is entered on the Dial
screen, press this button to switch to
the call log screen. Press this button
again to call the first dialed number on
the call history.
Speech recognition
●Press this button to activate speech
recognition on the infotainment
touchscreen, with which you can
record voice commands.
●Press a second time to exit speech
recognition.
Horn
●Press the horn button area to honk the
horn, and release to stop honking.
CAUTION
●Avoid pressing honking for too
long, as the horn may be
damaged.
REMINDER
●Observe the traffic laws and use
the horn properly.
03
CONTROLLER OPERATION
Adjusting the Steering
Wheel
Adjusting the Steering Wheel Manually
●To adjust the steering wheel position,
hold it and operate as follows:
●Push down the steering wheel
adjustment handle, adjust the
steering wheel to the desired
position, and then return the handle
to its original position.
WARNING
●Never adjust the steering wheel
while driving, as this is under risk
of impaired vehicle control, which
can lead to accidents.
Light Switches
Halaman 66
WARNING
●After adjusting the steering wheel,
move it up and down to verify that
it is securely locked.
Steering Mode
●The steering feel varies from person to
person, and so do the evaluation and
needs for this feel.
●To set the steering mode, go to
infotainment touchscreen →
→
Vehicle → Intelligent Chassis →
Steering mode. Two options are
available: Comfort and Sport.
REMINDER
●Setting the steering mode to
sport mode is suggested if the
steering wheel feels light when
the vehicle is running at a high
speed. Steering mode can only be
changed in normal terrain mode
with ELKA off and a vehicle speed
lower than 80 km/h.
Steering Wheel Heating*
Enable steering wheel heating by any of
the following methods:
1. Enable or disable steering wheel
heating in the infotainment
touchscreen →
→ Ventilation/
Heating.
2. Go to the drop-down shortcut menu,
and tap the steering wheel heating
icon. Then the setting screen is
displayed.
3. Voice control: activate the voice
control to enable or disable steering
wheel heating.
Switches
Light Switches
to turn off all
lights except for daytime running lights.
Set the light switch to
Auto lights
Set the light switch to
. The position
lights and low beam automatically turn
on or off according to the brightness data
from the light intensity sensor.
REMINDER
●The light intensity sensor is
located on the top of the
windshield. Do not block the
sensor or let anything splash on it.
Position lights
Light Switches
Halaman 67
Set the light switch to
to turn on
the front and rear position lights and the
license plate light.
Low beam
Set the light switch to
to turn on the
low beam.
Rear fog lights
Set the light switch to
and rotate the
fog light dial to
to turn on rear fog
lights.
High beam
Set the light switch to
and push the
light switch lever outward (away from the
steering wheel) to turn on the high beam,
and restore the lever to the initial position
to turn it off.
03
CONTROLLER OPERATION
Overtaking light
Pull the lever inward (toward the steering
wheel) to turn on the overtaking light.
Release the lever so it returns to the initial
position and the overtaking light turns
off.
Turn signals
●Push up the lever to signal right turn.
The left turn signal and its indicator on
the instrument cluster flash.
●Pull down the lever to signal left turn.
The right turn signal and its indicator
on the instrument cluster flash.
Adjusting Headlight Height
Halaman 68
CAUTION
●Once turned on, turn signals
continue flashing even after the
lever is released. They will turn
off after the turn is complete.
Depending on the driver's habit,
the turn signal will reset after the
vehicle turns around under some
extreme conditions.
Auto light off
●Conditions to activate the auto light
off function: to activate this function,
set the light switch to
or
and
switch off the vehicle power.
●With the function is activated, the
headlight, position light, rear fog light
and high beam turn off in 10 seconds if
the driver's door is closed.
●When the function is activated, the
headlights and position lights turn off
in 10 minutes if the driver's door is
open.
●After the lights turn off automatically,
if the light status changes, these lights
come on in the new status. If the
conditions to activate the auto light off
function are still met, the function is
activated again.
●Disabling the auto light off function:
When the vehicle is powered on, the
auto light off function is disabled,
and the light switch can be operated
normally.
●If the auto light off function has turned
off the lights and the anti-theft alarm
system has been armed, disarming the
alarm system makes the lights come
on again automatically. If the driver's
door remains closed, the lights go off
again after 10 seconds. But if any door
is open, it turns off the lights in 10
minutes.
Lighting delay
●Headlights after exit:
●With the light switch set to
,
, or
, when you power off the
vehicle, lock four doors, and leave
the vehicle, the corresponding lights
keep on for 10 seconds (or the set
time period).
●You can set the time period on the
infotainment touchscreen by tapping
→ Vehicle → Light. The default
time is 10 seconds.
●Headlights before enter:
●With the light switch set to
,
or
, when you
approach and unlock the vehicle, the
corresponding lights keep on for 10
seconds (or the set time period).
●You can set the time period on the
infotainment touchscreen by tapping
→ Vehicle → Light. The default
time is 10 seconds.
Adjusting Headlight Height
●When the low beam is on, on the
infotainment touchscreen, tap
→
Vehicle → Lights → Headlights height
to adjust the height of the headlights.
Front windshield wipers and washer
Halaman 69
●Vehicle loading conditions may vary.
Adjust accordingly.
Wiper Switch
●Push up or pull down the lever to
select among the five modes:
: Fast
●
: Slow
●
: Auto/Intermittent wipers
●
: OFF
●
: Point-wiping (pulling down the
●
lever from
and the wipers wipe
at a low speed until you release the
lever).
Auto/Intermittent wipers
●The rain sensor automatically controls
the operation mode of wipers based on
the rainfall, and it is located in front
of the interior rearview mirror on the
front windshield inside the vehicle.
●To use the auto wiper function, turn
the wiper switch to the automatic
mode, and enable Auto wiper on the
infotainment touchscreen by tapping
→ Vehicle → Comfortable Use.
●To use the Intermittent wiper function,
turn the wiper switch to the automatic
mode, and disable Auto wiper on the
infotainment touchscreen by tapping
→ Vehicle → Comfortable Use.
●Turn the knob to change the rain
sensor sensitivity based on real-time
rain conditions. A total of four levels
are available.
03
CONTROLLER OPERATION
●Upward: reduces the rain sensor
sensitivity.
●Downward: increases the rain sensor
sensitivity.
Front windshield wipers and washer
●To clean the front windshield, pull the
wiper switch lever backward (towards
the steering wheel) so that the washer
sprays washing fluid while the wipers
operate.
●The washer spray will stop when the
lever is released, and the wipers will
operate twice then stop.
Power Window Switches
Halaman 70
Driver's Door Switches
Power Window Switches
●When the ignition switch is on OK, all
the window switches can lift up and
down the window. After the vehicle is
powered OFF, no power windows can
be regulated.
Window control switch on the driver
side
There are two gears of window control: ①
and ②, as shown in the illustration.
Manual operation
●Press or pull the window control
switch to position ① and hold to
lower or raise the associated window.
Release the switch to stop the window
where you want it.
Auto lifting
●Press or pull the window control
switch to position ② and release
to automatically lower or raise the
associated window all the way.
Anti-pinch function
●If someone or an object is caught
by the window when it is rolling up,
the window stops and rolls down
automatically.
Anti-pinch initialization
●If the low-voltage battery is
disconnected while a window is being
rolled up or down, the automatic
rolling-up and anti-pinch functions
both cease to work.
●Pull and hold the window control
switch to raise the window and release
it until the window stalls for 400 ms.
WARNING
Follow the precautions below to
prevent serious injuries or death
from window closing:
●Before operating the power
windows, ensure that all
passengers do not have any body
parts that can be caught in the
window.
●Do not allow a child to operate the
power windows.
CAUTION
●Excessively frequent activation
of the anti-pinch function can
activate the regulator motor's
overheat protection.
●Never try to deliberately activate
the anti-pinch function.
●The anti-pinch function may not
work if an object is jammed into
the window when it is almost
completely closed.
Odometer Switch
Halaman 71
CAUTION
●Contacting a BYD authorized
dealer or service provider for
maintenance is recommended if
the windows' automatic closing
function or anti-pinch function is
not working normally.
Delay function
●After the vehicle is powered off, if the
front doors are not open, the four-door
window controller has a roll-up/down
delay period of 10 minutes. During this
period, the windows can still be rolled
up and down. If either of the front
doors is opened during this period,
the delay function is canceled, and
the switches can no longer be used to
operate the windows.
WARNING
●Before closing a power window,
ensure occupants' hands are not
placed upon the window glass;
pinching of hands or fingers can
result in serious injuries.
Central Locking
The driver's door is equipped with power
door lock switches to lock or unlock all
doors.
① Unlocking
Press the central unlock button. All doors
are unlocked and the red lock indicator
turns off.
② Locking
Press the central lock button. All doors
are locked and the red lock indicator
lights up.
Window Control Switch
on Passenger's Side
03
CONTROLLER OPERATION
When the ignition is on, use the front
right and rear door window switches to
operate the respective windows.
Odometer Switch
●Press the odometer switch to switch
between "Total Mileage" - "Mileage
1" - "Mileage 2" - "Total Mileage".
The switching status is displayed
accordingly on the instrument cluster.
●Press and hold "Mileage 1" and
"Mileage 2" to clear the mileage
information.
Mode Switches
Halaman 72
Driver Assistance
Switches
The driver assistance switches include
blind spot detection (BSD) switch and
automatic vehicle hold (AVH) switch.
① BSD switch
Press this switch to activate blind spot
detection (see P128 for details).
② AVH Switch
Press this switch to activate automatic
vehicle hold (see P72 for details).
Mode Switches
Regenerative braking adjustment lever
●Pull the lever up to increase the
regenerative braking force.
●Pull the lever down to switch to
standard regenerative braking.
Driving mode adjustment lever
●Available driving modes include
confort, eco, sport, and snow mode.
Using the stick to choose among
different modes tailored to your
specific needs.
Snow mode
●Snow mode is designed for slippery
surfaces such as grass, snow, ice,
or gravel. It optimizes the vehicle's
traction, driving, and handling
performance.
●To ensure safety, control your speed
and gently press the accelerator pedal
on slippery roads, even when snow
mode is activated.
CAUTION
●Because ESC activation limits
the engine torque, momentarily
deactivating ESC may help if
the vehicle is stuck in deep
snow. The ESC system must be
Sunshade Switches
Halaman 73
CAUTION
restarted after conditions are back
to normal (see P138).
Hazard Warning Light
Switch
When the
button is pressed, all turn
signals and turn signal indicators on the
instrument cluster start flashing. They
all stop flashing when the
button is
pressed again.
Sunshade Switches
Opening the sunshade
●Press and hold the sunshade open
button ① to open the sunshade
manually. Release the button midway
to stop the sunshade.
●Release the sunshade open button
① immediately after touching it. The
sunshade opens automatically. For
the sunshade to stop at its current
position, touch the ① or ② button
midway.
Closing the sunshade
03
●Press and hold the sunshade close
button ② to close the sunshade
manually. Release the button midway
to stop the sunshade at its current
position.
CONTROLLER OPERATION
●If the sunshade has been initialized,
releasing the sunshade close button
② immediately after touching it closes
the sunshade automatically. For the
sunshade to stop at its current
position, touch the ① or button ②
midway.
Anti-pinch function
●If the sunshade closing process is
obstructed by anything, it will stop and
slightly retract.
Initialization
1. Press the sunshade open button open
the sunshade fully.
2. Press and hold the sunshade close
button so that the sunshade moves to
the end and release the button when it
stalls for seven seconds.
CAUTION
●When opening or closing the
sunroof sunshade, avoid forceful
contact with its curtain, to prevent
damage.
Ambient Light
Halaman 74
Interior Light Switch
●Touch the interior lights to turn on or
off the corresponding lights.
Front interior lights
Side Interior Light Switch
REMINDER
●In any ignition status, while DOOR
option is selected and any door
is open, touching on the interior
light switches it between high and
low brightness.
●With the ignition off and DOOR
option selected, interior lights
will go off after the door have
remained open for a period of
time.
Ambient Light
●To control the brightness, color and
area of the ambient light, go to
infotainment touchscreen →
→
Vehicle → Light → Ambient Light.
Using and Driving
Halaman 75
04
USING AND
DRIVING
Charging/Discharging Instructions
...........................................................76
Batteries............................................90
Usage Precautions............................96
Starting and Driving........................104
Driver Assistance............................ 112
Other Main Functions.....................145
Charging Safety Warnings
Halaman 76
Charging/
Discharging
Instructions
Charging Instructions
Charging Safety Warnings
●Charging equipment uses high-voltage
current. Minors are prohibited to
charge the vehicle or touch the
charging equipment. Keep them away
from the vehicle during charging.
●Charging may affect medical or
implanted electronic devices. Consult
the device manufacturer before
charging.
●Charge the vehicle in a safe
environment, and avoid charging in
damp areas, or areas with fire or heat
sources.
●Protect the charging equipment
against water contact on rainy days.
●Before charging:
●Ensure that the power supply
equipment, the charging connector,
the charge port, and the charging
connection device are free of defects,
such as cable wear, rusted ports,
cracked casings, or foreign objects in
the ports.
●Do not charge the vehicle when the
plug of the charging connector or
port, the socket, or metal terminals
are loose or damaged by rust or
corrosion.
●When the charging connector, the
port, the power plug, or the socket
is visibly stained or damp, wipe them
with a dry and clean cloth to ensure
the connection is dry and clean.
●Use charging equipment that complies
with local standards.
●To avoid charging failure or fire, do
not modify, disassemble, or repair
the charging equipment and related
ports. Contact a BYD authorized
dealer or service provider if there is
a fault.
●Do not use charging equipment that
does not meet safety standards or
has potential safety hazards. Do not
allow children to use the charging
equipment and keep animals away
from the vehicle while charging.
●Ensure that your hands are dry before
charging to prevent risk of personal
injuries.
●If anything abnormal is found
in the vehicle or the charging
equipment during charging, stop
charging immediately and contact
a BYD authorized dealer or service
provider.
●Always observe the following charging
precautions to prevent damage to the
vehicle:
●Do not shake the charging connector,
otherwise the vehicle charge port
may be damaged.
●Do not charge the vehicle in a
thunderstorm to prevent risk of
lightning strikes.
●Do not open the hood for maintenance
while charging.
●After charging, do not disconnect the
charging equipment with wet hands or
while standing on any wet surface.
●Before driving, ensure that the
charging equipment is disconnected
from the charge port.
Compatibility of vehicle and charging
infrastructure*
Charging Precautions
Halaman 77
●Compatibiliy signs are located on
the vehicle's charging socket, the
local charging infrastructure (charging
stations and sockets), and on the
charging cable.
●The signs refer to standardized
charging systems in accordance with
DIN EN 62196.
Charging Precautions
●When the SOC bar on the
instrument cluster turns red, the
high-voltage battery is about to
be exhausted. Please charge it
immediately, otherwise the service life
of the high-voltage battery and your
driving experience will be affected.
●Mode 2 charging means charging
with an AC charging connector. It is
recommended to use the dedicated
AC lines and power sockets meeting
local standards to avoid line damage
and protective trip due to high-power
charging, which can affect the normal
use of other equipment.
●Observe the following to prevent
damage to the charging equipment
(charging equipment precautions):
●Prevent the charging equipment
from any mechanical impact, such
as falling and colliding with other
objects.
●Do not place the charging equipment
near heaters or other heating
sources.
●Never drop the equipment or move
it by pulling it directly by the
cable. Take caution when moving the
equipment.
●Before charging:
●Make sure that the charging
connector and the charge port are
free of foreign objects, and that
the protective cap of the charging
connector terminal does not get
loose or deformed.
●Hold the charging connector, align
the connector with the charge port
and push it in, making sure that they
are properly connected.
●When charging is complete:
04
●Stop charging first and make sure the
charge port is unlocked.
USING AND DRIVING
●Pull out the charging connector.
●Do not force the charging connector
out while the charge port is locked,
otherwise the charge port may be
damaged.
●Switch the ignition off before charging.
●Precautions during charging:
●The A/C can be used as normal
while the vehicle is being charged.
To ensure the charging power, it is
recommended to turn off the A/C.
●It is recommended that no one stay
in the vehicle during charging.
●It is recommended to park the
vehicle in a ventilated area during
charging.
●The vehicle system automatically
stops charging when the high-voltage
battery is fully charged. The charge
port is equipped with an electronic
lock. Unlock it before unplugging the
charging equipment.
●To stop AC or DC charging, turn
off the charger before disconnecting
the charging connector. In Mode
Charging Precautions
Halaman 78
2 charging, remove the charging
connector and then the power plug.
●When charging is complete and the
charging connector is unplugged,
make sure that the charge port's cap
and door are closed, otherwise water
or foreign materials may enter the port
and affect its normal use.
●During DC charging, the charging
power is relatively small during the
identification period when the real
capability of the charging pile is
identified and its maximum output
capacity is exerted, thereby bringing
a better charging experience to users
(only for motor booster DC charging).
●Before starting the vehicle, ensure
that the charging equipment is
disconnected. The vehicle is ready to
drive even if the charging connector is
left plugged but not fully locked, which
may damage the charging equipment
and the vehicle.
●Too high or too low battery
temperatures compromise vehicle
charging performance.
●The temperature control system
can improve the battery's charging
capacity at low temperatures. Due
to output capacity limitations of
charging piles, the charging time is
extended, the heating time becomes
longer and the power consumption
of heating is increased. This is a
normal phenomenon.
●For faster low-temperature DC
charging, charging from low SOC
is recommended because, due to
the low battery temperature, the
charging current is small for vehicles
with high SOC in low-temperature
environments.
●To improve your experience, it is
recommended to charge the vehicle
immediately after using it, as the
battery is relatively hot and has
better charging performance.
●In low-temperature regions, it is
recommended to charge the vehicle
in a heated indoor space.
●In high-temperature regions, it is
recommended to charge in a cool
and ventilated place.
●If the battery has not been fully
charged for a long time, the
instrument cluster may prompt a
message showing "Please charge the
vehicle to full capacity to allow the
battery to balance automatically." It
is recommended to fully charge the
vehicle as soon as possible to ensure
the lifespan of the battery.
●Turning A/C on during low-
temperature charging affects the
performance of the battery
temperature control system and
charging.
●It is normal that when the battery
temperature control system is working
during charging, the charging power
displayed on the instrument cluster
may fluctuate temporarily.
●Before charging is complete, battery
equalization is activated for longer
battery life and thus the charging time
may be longer.
●The use of A/C may worsen
battery temperature control system
performance in DC charging at
high temperatures, resulting in lower
charging performance and longer
charging time. To ensure charging
efficiency, it is recommended to keep
the A/C off during charging.
●When the heating or cooling function is
enabled during charging, it is normal
that both charging time and power
consumption increase slightly.
●During charging, battery cooling
may start, and the compressor, fan
General Charging Troubleshooting
Halaman 79
and other components work when
necessary. It is normal that there will
be some noise under the hood.
●During charging, the estimated
remaining time to full charge is
displayed on the instrument cluster
and may vary slightly, depending on
the temperatures, SOC, and charging
facilities. Before charging is completed,
"Calculating..." is displayed on the
instrument cluster.
●If the charge port door is frozen due to
weather or other reasons, do not force
it open.
●If the vehicle is to be parked for a
lengthy period of time, charge it every
three months, and to prolong the
service life of the high-voltage battery,
charge fully before starting it again.
REMINDER
●Do not force the charge port door
open when it is locked.
General Charging Troubleshooting
Fault
Possible Cause
Solution
The high-voltage
battery has been fully
charged.
When the high-voltage battery is fully charged,
the charging will stop automatically.
High-voltage battery
temperature is too high
or too low.
Keep the vehicle in an environment with
appropriate temperature and charge it when the
temperature becomes normal.
The charger
is connected
but charging
does not
start.
The low-voltage battery
over-discharges.
Replace the low-voltage battery.
If it is verified that the charging equipment's
power indicator is working properly, or that
there are no other unusual indications, change
the charging equipment or contact the charging
equipment supplier.
Charging equipment
fails.
Vehicle display fails.
Verify that there is a charging system fault
message on the instrument cluster, then stop the
REMINDER
●Do not force the charging
connector in or out while the
charge port is locked.
●Do not close the charge port door
when the port cap is fully open.
●When the vehicle is charged
with an external power supply,
it is normal that the cooling fan
and A/C compressor may operate
automatically for the high-voltage
battery to cool down.
04
Charging Mode
●Scheduled charging (for AC charging
only): charge the vehicle regularly at
a scheduled charging time set by the
user. See P85 for details.
USING AND DRIVING
●Immediate charging: charging starts
after the charging connector is
connected.
Using Mode 2 Charging Cable
Halaman 80
Fault
Possible Cause
Solution
charging. It is recommended to contact a BYD
authorized dealer or service provider.
There is an AC grid
outage.
Charging will restart automatically after power is
restored.
Charging cable is not
connected properly.
Verify that the charging connection cable is not
loosely connected.
Charging
stops
midway.
Charging stops automatically if the high-voltage
battery overheating warning light on the
instrument cluster lights up. Charge the vehicle
when the battery temperature returns normal.
The high-voltage
battery temperature is
too high.
If there is any fault prompt for the charging pile
or the vehicle, it is recommended to contact a
BYD authorized dealer or service provider.
Vehicle or charging pile
fails.
Charging
●Check before charging:
●Check the charging device for
abnormalities such as cracked
housing, worn cable, rusted plug, or
foreign materials.
●Do not charge when the charging
connection becomes loose.
●Make sure the port is clear of fluids
or foreign objects, and its metal
terminals are not rusty or corroded.
●In any of these cases, do not charge.
Otherwise, personal injuries may occur
due to short circuit or electric shock.
Using Mode 2 Charging Cable
1. Equipment
●Connect the vehicle to an outlet that
meets local standards to charge the
vehicle.
●Use household sockets that meet
the local standards to prevent line
damage or tripping due to high-power
charging, which can affect the normal
use of other devices.
●This Mode 2 charging cable includes
a power plug (complying with local
standards), a charging connector, a
control box, and a charging cable.
The plug should be connected to a
standard household power socket, and
the charging connector to the vehicle's
charge port.
●Charging time: refer to the charging
time message on the instrument
cluster.
WARNING
●See "Charging Instructions" for
charging safety warnings.
●The highest working temperature
allowed for the charging
equipment is 60℃. Store it in a
cool and dry place when it is not
in use.
●When charging, do not place the
equipment in the trunk, under the
front of the vehicle, or near the
tires.
Using Mode 2 Charging Cable
Halaman 81
WARNING
●When using the equipment,
prevent it from getting rolled
over by the vehicle, dropped, or
trampled on.
●It is not recommended to use
any additional wire or adapter/
connector. If an additional
adapter is required, choose
a suitable cable diameter
(≥1.5 mm²) and the adapter/
connector specifications must
meet requirements.
●Never use the charging equipment
if the household power strip cable
becomes soft, if the charging
connector cable is worn out, if the
insulation layer is cracked, or in
case of any other damage.
●Never use the equipment if the
charging connector, power plug,
or power strip is disconnected or
broken, or if there is any sign of
surface damage.
●To prevent failure of the charge
port door, do not open and close
it repeatedly. The recommended
time interval for opening and
closing the port door is at least
one second.
CAUTION
●The charging cable must not be
placed in a spiral during charging,
as this will affect heat dissipation.
●See “Charging Instructions" for
specific charging precautions.
REMINDER
●It is recommended to contact a
BYD authorized dealer or service
REMINDER
provider or local electrician to
select an appropriate power
supply according to requirements
of the charging equipment.
●Charging equipment grounding
instructions: The equipment must
be properly grounded. In the
event of failure of or damage
to the equipment, the grounding
cable provides a minimum
impedance to circuit discharge,
reducing the risk of electric
shock. The equipment comes with
a ground cable connecting its
ground point with that of the
power plug, which must match
a properly installed and well-
grounded power supply outlet.
04
USING AND DRIVING
2. Charging
●With the vehicle doors unlocked and
preferably powered off, press the
charge port door to open it.
●Open the charge port cap
(configurations of the actual vehicle
prevail), and make sure that no
obstacles exist between the head of
the charging connector and the end of
the charging socket.
Using Mode 2 Charging Cable
Halaman 82
REMINDER
●Do not force the charge port door
open when it is locked.
●If the charge port door is frozen
due to weather or other reasons,
it is suggested to warm up it with
hot water and then open the port
door. Do not force it open.
●Connect to the power supply terminal:
●Plug the Mode 2 Charging Cable into
a household socket.
●Connect to the vehicle port:
●Plug the charging connector correctly
into the port.
●After the charging connector is
inserted, the charging connection
indicator
lights up on the
instrument cluster.
REMINDER
●Do not force the charging
connector in or out while the
charge port is locked.
●In the charging process, the instrument
cluster displays relevant charging
parameters and the charging sign.
●You can schedule charging on the
infotainment touchscreen. See P85
for details.
REMINDER
●During charging, the estimated
remaining time to full charge
is displayed on the instrument
cluster. It is normal that this
charging time may vary slightly
across temperatures, SOC, and
charging facilities.
●Scheduled charging cannot be
used when the battery is too low.
3. Stopping charging
●End charging:
●The charging automatically ends
when the vehicle is fully charged.
●To end the charging early, proceed to
the next step.
●Unplug the charging connector:
●Press the unlock button on the
smart key or press the door handle
microswitch while carrying the smart
key and then pull out the charging
connector.
REMINDER
●To unlock the vehicle, press
the unlock button on the key
(when charging the vehicle with
ignition switched off) or press the
microswitch on the door handle
(when the key is nearby).
●When the anti-theft system is
enabled, unlock the vehicle
to release the charge port
immobilizer before pulling out
the charging connector. The
connector has to be pulled out
within 30 seconds, or the port will
re-lock.
Using AC Charging Piles
Halaman 83
REMINDER
●You can activate the immobilizer
on the infotainment touchscreen,
see P89 for details.
●If the charging connector cannot
be removed after unlocking, try a
few more unlocking attempts. If
that does not work, try emergency
unlocking. For the operating
procedure, see P90.
●If you cannot pull the charging
connector out directly with the
charge port's immobilizer system
deactivated, try to unlock the
vehicle and pull it again.
●Disconnect the power plug.
●Close the charge port cap* and the
port door.
●Store the charging equipment
properly.
REMINDER
●Do not close the charge port door
when the port cap is fully open.
Using AC Charging Piles
1. Equipment
●AC charging box*:
●Use a standard-compliant household
charging box. For how to use the
charging equipment, refer to its user
manual and follow the operating
steps.
●Equipment specifications: 7 kw
single-phase charging* and 11 kw
three-phase charging are supported.
The single-phase AC charging box
consists of a charging box, a charging
connector, and a connecting cable.
For information on circuit breaker
and emergency stop switch, see the
charging box user manual.
●AC charging pile
●Charge the vehicle using a public
single-phase AC charging pile or a
BYD three-phase AC charging pile.
Since some charging piles are not
equipped with charging connectors,
AC charging connectors need to be
prepared.
04
USING AND DRIVING
●Charging time: refer to the charging
time message on the instrument
cluster.
2. Charging
●Unlock the vehicle and open the
charge port door:
●Open the charge port cap* and the
port door following instructions in
Using Mode 2 Charging Cable.
●Connect to the power supply terminal:
●Skip this step for AC charging boxes.
●Skip this step for AC charging piles
equipped with charging connectors.
●Some charging piles are not
equipped with charging connectors,
prepare AC charging connectors
in such cases. Plug the charging
connector into the socket of the
charging pile.
●Connect to the vehicle port:
●Plug the charging connector into the
port and make sure it is tight.
Using DC Charging Piles
Halaman 84
●Charging settings:
●Skip this step for single-phase AC
charging box* or a public AC charging
pile without any setting options.
●For public single-phase AC charging
pile/box with settings, swipe the card
or scan the QR code. See the user
manual for charging pile/box details.
●The charging connection indicator
lights up on the instrument cluster.
●In the charging process, the instrument
cluster displays relevant charging
parameters and the charging sign.
●You can schedule charging on the
infotainment touchscreen. See P85
for details.
3. Stopping charging
●End charging:
●Charging ends automatically when
early stop time is due or charging is
complete.
●Unplug the charging connector:
●Disconnect as per the instructions in
Using Mode 2 Charging Cable.
●Disconnect the power plug.
●Skip this step for AC charging box*.
●Skip this step for AC charging piles
equipped with charging connectors.
●If Mode 2 charging cable is used,
it is recommended to unplug the
charging connector from the vehicle
first and then the plug from the
charging point.
●Close the charge port cap* and the
port door.
●Store the equipment properly.
●If an AC charging pile/box is used,
place the charging connector in its
designated location.
Using DC Charging Piles
1. Equipment
●Charge the vehicle using a public DC
charging pile at a charging station.
●Equipment specifications: Check the
instructions of the charging piles.
●Charging time: refer to the charging
time message on the instrument
cluster.
2. Charging
●Unlock the charge port door, then
open the port door and cap.
●Connect to the vehicle port:
●Plug the charging connector into the
port and make sure it is tight.
●Operate the charging equipment
according to the instructions to start
charging.
●The charging connection indicator
lights up on the instrument cluster.
●In the charging process, the instrument
cluster displays relevant charging
parameters and the charging sign.
3. Stopping charging
●End charging:
●Charging ends automatically when
early stop time is due or charging is
complete.
●Unplug the charging connector:
Smart Charging
Halaman 85
●Pull out the charging connector.
●When charging is complete, organize
the charging equipment and store the
charging connector in its designated
position.
●Close the charge port cap and the port
door.
CAUTION
●If the charging connector cannot
be removed after unlocking, try a
few more unlocking attempts. If
that does not work, try emergency
unlocking (see P90).
●To unlock the charge port after DC
charging, press the unlock button
twice within three seconds.
●See “Charging Instructions" for
specific charging precautions.
REMINDER
●Do not close the charge port door
when the port cap is fully open.
Smart Charging
●Smart charging encompasses
scheduled charging and scheduled
departure*. Scheduled charging allows
you to customize the daily start time
of the charging session. Scheduled
departure enables you to set a desired
departure time, before which the
vehicle is fully charged, and if needed,
the cabin temperature is optimized
and the battery is preheated.
●You can access the setting screen
either through the infotainment
system or voice control:
●Go to infotainment touchscreen →
→ Energy → Charging and
Discharging → Smart charging.
●Say "Hi BYD, start smart charging/
scheduled charging/scheduled
departure", "Hi BYD, I want to
make smart charging/scheduled
charging/scheduled departure”, or
"Hi BYD, please help me start
smart charging/scheduled charging/
scheduled departure".
●To exit the setting screen:
●Tap
or
.
●Say "Hi BYD, end smart charging/
scheduled charging/scheduled
departure" or "Hi BYD, exit
smart charging/scheduled charging/
scheduled departure".
04
REMINDER
USING AND DRIVING
●Scheduled charging and
scheduled departure cannot be
activated simultaneously.
Scheduled charging
① Scheduled charging switch
② Start and end time of charging
③ Repeat cycle
④ Switch to scheduled departure*
⑤ Settings
●The factory default setting is to
charge the vehicle immediately. That
is, scheduled charging is disabled.
●To schedule a charging, toggle the
switch ① on, set the start and end time
Smart Charging
Halaman 86
② and repeat cycle ③, and save the
settings.
●After scheduled charging is set, if you
connect the charging connector or
press the START/STOP button to power
off the vehicle before the charging
start time, you will be reminded on
the infotainment touchscreen that
scheduled charging has been set.
Switch to immediate charging if
needed.
●You can tap the smart charging setting
icon ⑤ to turn off the reminder for
plugging in charger.
●Tap ④ to switch to scheduled
departure.
CAUTION
●The scheduled charging function
is developed for BYD's slow AC
charging equipment only. Disable
this function when using non-
BYD-certified slow AC charging
equipment. Otherwise, scheduled
or immediate charging may fail
due to no response from the
equipment, resulting in low SOC
or even low voltage of the high-
voltage battery.
REMINDER
●You can tap “charge now”
on the infotainment touchscreen
to charge immediately, but
this setting is valid for the
current session only. To cancel
all scheduled charging sessions,
toggle ① off on the setting screen.
●Scheduled charging is dedicated
for BYD AC charging piles. If you
need to use this function in a
public charging facility, make sure
it supports scheduling from the
vehicle system.
REMINDER
●In the event of low battery,
the vehicle is charged to the
minimum level before scheduled
charging begins. In this process,
the infotainment system still
gives reminder messages for
power-off and charging connector
connection, and a related
message is displayed on the
instrument cluster.
●The schedule setting is invalid
for DC charging. Charging begins
immediately after a DC charging
connector is connected.
Scheduled departure*
① Scheduled departure switch
② Scheduled departure time
③ Repeat cycle
④ Concessionary tariff hours
⑤ Switch to scheduled charging
●To schedule a charging for departure,
toggle the switch ① on, set the
intended departure time ②, choose
from single-use, daily, or customized
repeat cycle options at ③, fill out the
concessionary tariff hours ④, and save
the settings.
●The system optimizes charging by
utilizing off-peak hours, ensuring it
completes charging when the power
price is lower. If the remaining
charging time is longer than the
Discharging Instructions
Halaman 87
remaining travel duration or the
concessionary tariff hours, the vehicle
initiates immediate charging to
maximize the amount of energy it can
acquire.
●The preheating function ensures
the battery performs well in low-
temperature conditions, ready for
optimal performance.
●The intelligent cabin temperature
control pre-cools or warms the cabin,
ahead of the scheduled departure,
ensuring a cozy environment.
●Tap ⑤ to switch to scheduled charging.
REMINDER
●When the SOC reaches a critically
low level, the vehicle is charged
to a minimum level before
scheduled charging begins.
●Ensuring full charge, if not
complete after the concessionary
tariff hours, the vehicle continues
charging until it is fully charged.
●When the vehicle is powered
on, low-temperature battery
preheating and cabin temperature
control are deactivated, but the
concessionary tariff hours are still
in effect.
●If the current time exceeds
the scheduled departure time,
both battery preheating and
cabin temperature control are
deactivated.
●Battery preheating and cabin
temperature control incur a
temporary battery usage.
●Battery preheating and cabin
temperature control are only
available when the SOC is above
40%.
AC Charging with Limited Current*
●To set the AC charging current limit, go
to infotainment touchscreen →
→
Energy → Charging and Discharging.
The vehicle restricts its maximum AC
charging current based on your set
value.
●Upon restarting, the system retains
the prior setting. To disable the limit,
set it to MAX before or during the
charging session, enabling full capacity
charging, which is limited by the grid's
capacity.
04
REMINDER
●The actual charging current might
be lower than the set value due to
equipment and grid restrictions.
USING AND DRIVING
Discharging Instructions
●This vehicle is equipped with vehicle-
to-load (V2L) function.
WARNING
●Do not touch any metal terminal
of the discharging socket or
the vehicle charge port during
discharging.
●Stop discharging immediately if
there are any abnormalities such
as peculiar smell and smoke.
●See P76 for safety warnings.
●Store the product in a cool and
dry place when it is not in use.
●When discharging, do not place
the equipment in the trunk, under
the front of the vehicle, or near
the tires to prevent it from falling
and being rolled over by the
vehicle and trampled on.
Discharging
Halaman 88
WARNING
●Never use the equipment if the
power strip cable becomes soft,
the discharging connector cable
is worn out, the insulation layer
is cracked, or any other damage
occurs.
●Never use the equipment when
the discharging connector or
power strip is disconnected or
broken, or when there is any sign
of surface damage.
CAUTION
●For precautions concerning use of
the discharge connection device,
refer to the charging equipment
precautions in P77.
●Before discharging, confirm the
vehicle SOC and estimate the
remaining driving range.
●Before V2L discharging, ensure
that the load is turned off.
REMINDER
●The V2L function is recommended
only when the vehicle SOC is high.
●The V2L function is restricted
when the vehicle SOC is low.
●When the vehicle is powered off,
the static power consumption
of the vehicle will increase
if the V2L connection
device is connected for an
extended period without any
output. Therefore, removing the
discharging/charging connector is
recommended when the device is
not used.
Discharging
1. Equipment
●Vehicle-to-load (V2L) equipment*: The
device consists of a discharging
connector, a power strip, a cable, and
a discharge connector protective cover.
●Equipment specifications: a V2L
discharging connection device that
complies with local standards, with a
maximum discharge power of 3.3 kW.
2. Starting discharging
●Before discharging, disarm the anti-
theft alarm system.
●Unlock the charge port door, and then
open the port door and cap.
●Check before discharging:
●Ensure that the vehicle SOC is at least
15%.
●Ensure the V2L connecting device
casing is not cracked, and its plug is
free from rust or obstructions.
●Ensure that there is no water or
foreign material inside the charge
port and that metal terminals are
not damaged and free from rust or
corrosion.
●Do not discharge if the above
second or third condition is found;
otherwise, short circuit or electric
shock so caused could lead to
personal injuries.
●Connect the discharge connection
device:
●Connect the V2L discharge device
to the charge port. The power strip
indicator lights up when the strip is
powered and ready for use.
●Start discharging:
●After the device is connected,
discharge begins and discharging
Charging Port Immobilizer System
Halaman 89
information is displayed on the
instrument cluster.
3. Stopping discharging
●End discharging:
●Disconnect the load.
●Disconnect the discharge connection
device:
●Unplug the discharging device.
●Close the charge port cap and the
port door.
●Organize the equipment:
●Store the equipment properly when
discharging is complete.
Charging Port
Immobilizer System
●In order to prevent the charging
connector from being stolen, the
vehicle charge port is anti-theft
with the charging port immobilizer
system. The immobilizer is disabled
by default. To enable the function, go
to infotainment touchscreen →
→
Energy → Charging and Discharging
→ Charging port immobilizer system.
Charging Port
Immobilizer System
Status
No.
1
Enabled
Locked
No
2
Enabled
Enabled
Yes
3
Disabled
Locked
Yes
4
Disabled
Enabled
Yes
WARNING
●The connector needs to be pulled
out within 30 seconds after it is
●When the immobilizer is activated, the
charging connector will lock if charging
connector is connected and the four
doors, hood and trunk lid are locked.
To disconnect the connector, unlock
the vehicle first.
04
Unlocking
●When the immobilizer is enabled,
unlock the vehicle and unplug the
charging connector during charging in
the following ways:
USING AND DRIVING
●When it is on OFF status, press the
unlock button on the smart key to
unlock.
●Press the microswitch on the exterior
handle of the driver's door to unlock.
●Press the central unlock button on
the driver's door to unlock.
Vehicle Door Anti-
theft Lock Status
Charging Connector
Removable or Not
WARNING
unlocked. Otherwise, the electric
lock will lock again.
High-Voltage Battery
Halaman 90
Emergency Unlocking of Charge Port
●When the charging connector cannot
be unplugged due to failure of the
immobilizer system, unlock the charge
port manually and unplug the charging
connector.
Charge port lock dragline
1. Open the trunk. There is a dragline for
the charging connector on the right
side panel inside the trunk.
2. Open the cap on the panel and pull
the dragline to unlock the charging
connector.
3. Put the cap back after the connector is
pulled out.
REMINDER
●In the event of abnormality
or function failure, contact a
BYD authorized dealer or service
provider.
●The emergency unlocking
function is usable for AC charging
connectors only.
Driving Range Display
The default driving range display mode
is Standard. You can change the display
mode in infotainment touchscreen →
→ Energy → Energy → Range display
mode.
●Standard mode: displays the driving
range based on the result of
comprehensive working condition test.
●Dynamic mode: displays the estimated
driving range based on the available
battery power and current average
energy consumption.
●The set driving range display mode is
memorized by the system. When the
vehicle is powered off and then on,
the display mode set last time will be
maintained.
REMINDER
●When the Dynamic driving range
display mode is set:
●The driving range that is
displayed after a full charge may
vary, depending on calculations
of the energy consumed the last
time the vehicle is used.
●The displayed driving range is
adjusted based on whether the
A/C is on, selection of driving
mode, and the driver's driving
habits, so that this range can
be closer to the estimated
remaining range under current
use.
Batteries
High-Voltage Battery
●The vehicle is powered by a high-
voltage battery that can be charged
and discharged repeatedly. The high-
voltage battery is charged by an
external power source or through
energy recovery when the vehicle
brakes or coasts.
●The high-voltage battery is located
under the vehicle floor, so be careful
Battery Properties
Halaman 91
and slow down to avoid bumping
when driving on bumpy or uneven
roads. If bumping occurs, go to a BYD
authorized dealer or service provider
for maintenance.
CAUTION
●When the ignition is switched
on, the high-voltage lines will be
connected.
●For vehicles with normal high-
voltage battery status, the mileage
will change due to different
driving habits, road conditions,
temperatures, and whether the
electrical equipment is turned on
or off.
●To prolong the battery life
and ensure the battery safety,
the vehicle switches to trickle
charging mode at high SOC,
and the charging time may be
prolonged.
●Due to the chemical
characteristics of the battery
itself, the battery capacity of
vehicles that have been used
for a period of time has natural
degradation, and their mileage
will reduce. When you find that
the mileage of your vehicle has
decreased, it is recommended to
go to a BYD authorized dealer or
service provider for check. The
store-side inspection can confirm
whether the reduction of mileage
is normal.
Battery Properties
●It is normal that vehicle performance
is affected by battery electrochemical
properties and self-protection and
varies to some extent in the following
conditions:
●When SOC is high, the regenerative
braking performance may decline.
●The vehicle switches to trickle
charging mode at high SOC. If the
charging time is prolonged, the
estimated remaining charging time
displayed on the instrument cluster
may not be accurate.
●When SOC is low, the acceleration
performance may decline.
●When the high-voltage battery is low,
V2L is unavailable. Charge the battery
promptly.
●At high or low temperatures, it
is normal that the charging and
discharging capabilities of the high-
voltage battery decline, and the
charging time is prolonged. Power
performance may also decline under
extreme temperatures.
04
USING AND DRIVING
●When charging in low
temperatures, the temperature
control system can significantly
improve charging capability. See
"Charging Precautions" for details.
●When the vehicle is used at
low temperatures, the battery's
temperature control system will start
heating the battery as appropriate
to ensure the driving power
and discharging performance and
improve your driving experience.
When the vehicle is driven over short
distances, heating may be ineffective,
which increases power consumption
and decreases driving range.
●When the high-voltage battery is
normal, the driving range of the vehicle
varies with the following factors:
●Driving habit: For example, the
range in frequent acceleration or
deceleration is shorter than that at
constant speeds, and the range is
shorter when driving at high speeds
than when at low speeds.
Battery Usage Tips
Halaman 92
●Road conditions: For example, the
range driven in rough conditions or
on long slopes is shorter than that
in normal conditions and on even
roads.
●Temperature: The driving range at
low temperatures is shorter than that
at ambient temperatures.
●Use of electric equipment: For
example, the range driven with A/C
on is shorter than that with A/C off.
●Usable capacity of the high-voltage
battery is lower in cold weather
and reduces as the temperature
decreases. If the vehicle with high
battery level is charged at low
temperatures, the SOC may quickly
jump to 100%.
●The available battery capacity
decreases as the vehicle is used over
time.
Battery Usage Tips
●It is recommended to use the vehicle at
temperatures between -10℃ to 40℃.
When SOC is low, timely charge the
vehicle to ensure enough driving range
and good acceleration performance.
●To ensure long term performance,
avoid driving in extreme temperatures
for over 24 hours.
●In low ambient temperatures, if the
vehicle must be stored for a long time,
it can be placed in an underground
garage or other warmer area to reduce
loss of battery heat, maintaining
vehicle performance.
●Frequent and sudden acceleration
or deceleration should be avoided.
Preferably drive the vehicle on flat and
dry roads. When necessary, turn off
high-power equipment such as A/C or
adjust the A/C temperature to reduce
power consumption of such devices
and increase the driving range.
●When the vehicle is used for the
first time or after a long idle period,
the SOC displayed on the instrument
cluster may not be correct. It is
recommended to fully charge the
vehicle first.
●It is recommended to fully charge the
vehicle at a regular basis (at least once
a week), and fully charge it from low
battery (SOC <10%) once every three to
six months.
●Under extreme working conditions
(such as frequent sudden acceleration/
deceleration) that cause battery
overheating, if the temperature of
high-voltage battery is excessively
high, it is normal for discharging
capability to decrease gradually. If
the battery temperature keeps rising,
the fault warning light lights up on
the instrument cluster. In that case,
it is recommended to contact a BYD
authorized dealer or service provider.
●When the battery SOC increases
or decreases abnormally, it is
recommended to contact a BYD
authorized dealer or service provider
for inspection.
WARNING
●In the event of an emergency
or accident, be aware of the
following warnings:
●To avoid personal injuries, do
not touch the high-voltage
battery directly.
●Contact a BYD authorized dealer
or service provider as soon as
possible.
●If the high-voltage battery is
damaged and leaking fluid,
avoid any contact with the fluid.
Low-Voltage Battery
Halaman 93
WARNING
If it comes into contact with
skin or eyes, rinse immediately
with plenty of water, and seek
immediate medical attention.
●If the vehicle catches fire,
use dedicated fire extinguishers
instead of water-based fire
extinguishers.
CAUTION
●To ensure safety of the high-
voltage battery, stop the vehicle
away from flammable and
explosive materials, ignition
sources and various hazardous
chemicals.
●Prolonged exposure to heat
sources and direct sunlight reduce
the service life of the high-voltage
battery.
●As the high-voltage battery is
arranged at the bottom of
the vehicle, careful driving is
recommended in case of bumpy
roads. If there is a collision
with the high-voltage battery,
contact a BYD authorized dealer
or service provider immediately
for maintenance.
●Do not add battery coolant
by users themselves. If needed,
contact a BYD authorized dealer
or service provider.
●No one is allowed to enter the
vehicle when the battery pack
needs to be repaired.
Recycling the High-Voltage Battery
How to scrap an NEV:
1. Take the vehicle to the BYD recycling
service provider that will assess the
residual value of the high-voltage
battery.
2. Take the assessed vehicle to the
recycling organization to disassemble
the high-voltage battery.
3. Take the battery to the recycling
service provider which will buy back
the battery.
WARNING
●New energy car owners have
the responsibility and obligation
to hand over waste high-voltage
batteries to the recycling service
outlet. Anyone who hands over a
used high-voltage battery to any
other organization or individual,
or removes/disassembles a
high-voltage battery without
authorization, shall be liable for
any environmental pollution or
safety incident so caused.
04
USING AND DRIVING
Low-Voltage Battery
The low-voltage battery is located under
the left front seat.
●The battery works in normal, sleep,
ultra-low power, or low voltage
protection mode. The purpose is to
protect the battery cell from damage. If
the vehicle system is in good condition,
the vehicle switches between these
modes automatically, having no effect
on your use of the vehicle.
●To prevent the SOC of the low-
voltage battery becoming too low,
the intelligent charging function
is triggered automatically when
conditions are met (ignition off, high-
voltage battery discharging allowed,
and low-voltage battery level below
the design value).
●When the intelligent charging function
is triggered, the low-voltage battery
Waking up the Vehicle from Low SOC
Halaman 94
is charged through the high-voltage
battery. Therefore, it is normal that the
SOC or the pure-electric driving range
displayed on the instrument cluster
decreases when the vehicle is powered
on after an idle period.
●If intelligent charging fails, the low-
voltage battery may cut off the
vehicle's power supply. If you find
before use that the vehicle is not
powered, try to activate the low-
voltage battery by pressing the driver's
door microswitch continuously, and
immediately power on the vehicle to
charge the low-voltage battery. It is
recommended to charge it for more
than one hour.
WARNING
●The low-voltage battery contains
a corrosive solution. To prevent
damage to the battery or injury,
do not disassemble or repair the
battery.
●Do not disassemble or dismantle
the low-voltage battery. Any
organization or individual to do
so shall bear the responsibility
for environmental pollution or
accidents.
●Since the low-voltage battery
may produce combustible and
explosive hydrogen gas, use tools
in such a manner that the battery
would not produce sparks. Do not
smoke or use open flames near
the battery.
●Avoid electrolyte contact with
eyes, skin or clothing. In case
that happens, use baking soda
water to clean the skin, and
plenty of water to rinse the eyes,
and immediately seek medical
attention.
WARNING
●In case of mouth contact with
the electrolyte, seek medical
attention immediately.
●Keep children away from the low-
voltage battery.
CAUTION
●The low-voltage battery contains
relays. Thus, it is normal that relay
operating sounds may be emitted
from the battery.
●The low-voltage battery shall
be charged with professional
charging tools, and shall not be
removed for recharging by users
themselves.
●The low-voltage battery has a
built-in power manager. Do not
disassemble or repair the battery
to avoid damaging the battery or
causing personal injuries.
●The low-voltage battery needs to
communicate with the vehicle for
normal use, so it is important to
connect its connector and wiring
harness correctly.
Waking up the Vehicle from Low SOC
Wake-up by the driver's door
microswitch
●The low-voltage battery features the
dormant/wake-up function. The low-
voltage battery may enter a dormant
state after long-term parking. In that
case, the vehicle cannot be located
or unlocked with the smart key. Press
the microswitch on the driver's door
handle for three seconds to activate
the low-voltage battery. After the
vehicle is unlocked, it can be used
normally.
Intelligent Charging
Halaman 95
Wake-up by jump start
●When the vehicle cannot be woken
up and unlocked by the driver's door
microswitch, use the mechanical key
to open the door. Then, use a 12V
power supply to start the vehicle by
two specially designed cables for the
jump start. In this case, the low-voltage
battery SOC is low. The instrument
cluster may display "The low-voltage
battery SOC is low, and the vehicle
is going to be powered off", and the
vehicle will become dormant again.
Start the vehicle immediately and keep
it started for over 15 minutes to ensure
that the low-voltage battery is fully
charged.
●The jump start can only be carried
out through the special interface of
the under-hood PDB. The connection
terminals for the jump start in the
under-hood PDB are shown in the
illustration.
●Positive terminal ①
●Negative terminal ②
●If the vehicle cannot be woken up
and started by the above steps, it
is recommended to contact a BYD
authorized dealer or service provider
immediately.
WARNING
●Do not connect the vehicle
with other vehicles for a jump
WARNING
start before it is powered
on. Otherwise, the low-voltage
battery may be damaged.
●If the low-voltage battery SOC is
too low or the battery fails, jump
starting may be required. Please
carefully read and strictly follow
the jump starting instructions in
this manual.
●The low-voltage battery contains
an intelligent control module. To
prevent battery damage, do not
disassemble or repair this battery,
except in an emergency.
04
●Disconnect the negative terminal
of the low-voltage battery before
performing parts replacement and
vehicle repairs.
USING AND DRIVING
CAUTION
●It is recommended that the jump
start be done under the guidance
of professionals, as the space for
operating the under-hood PDB is
limited and circuit-based risks are
present.
●Do not clean the low-voltage
battery with liquid to prevent
ingress.
Intelligent Charging
●If the high-voltage battery has
sufficient power, it will charge the
low-voltage battery when the latter is
detected to be low.
REMINDER
●When the vehicle is stored for a
long time, it is normal that the
smart charging function may be
Towing Precautions
Halaman 96
REMINDER
activated with fans in the hood
working.
●Power for intelligent charging
comes from the high-voltage
battery pack, so it is normal that
an SOC decrease is noticed when
the vehicle is powered on.
Usage Precautions
Break-in Period
●If the powertrain is hard to start or
frequently stops turning, inspect the
vehicle immediately.
●If the powertrain makes any abnormal
sounds, stop the vehicle for inspection.
●If the powertrain has severe coolant
and oil leakage, stop the vehicle for
inspection.
●The powertrain needs break-in. This
should preferably be done within the
first 2,000 km in economic mode.
Steady driving instead of high-speed
driving is recommended. The following
practices effectively prolong vehicle
service life:
Item
Parameter
Note
750 kg (rear-wheel drive)
Maximum towing capacity
(braked)
1500kg (four-wheel drive)
Maximum towing capacity
(unbraked)
750 kg
75 kg (rear-wheel drive)
Maximum vertical load
150 kg (four-wheel drive)
●Avoid flooring the accelerator pedal
when starting and driving the
vehicle.
●Do not maintain a high or low speed
for too long.
●Avoid speeding.
●Do not use the vehicle to tow other
vehicles within the first 2,000 km of
mileage.
Trailer Towing
●The vehicle can tow a trailer only when
equipped with towing function.
●Do not make non-approved
modifications. Contact a BYD
authorized dealer or service provider
to install the towing kit and related
software updates. BYD does not
assume any responsibility for injuries
or damage caused by non-approved
modifications.
●The towing capacity depends on
various factors such as vehicle
specifications, loads, road conditions,
and trailer specifications. The total
towing weight must not exceed the
limits below:
Maximum total towing
capacity allowed when the
trailer is braked
Maximum total towing
capacity allowed when the
trailer is unbraked
Maximum vertical load
allowed on ball joint
Driving Safety Precautions
Halaman 97
Item
Parameter
Note
1. The maximum allowed towing capacity equals the total trailer weight, which includes
all cargo and additional equipment.
2. Maximum vertical load refers to the downward pressure exerted by the weight of the
trailer on the trailer hitch when the vehicle and the trailer are stationary.
●To tow a trailer, adjust the tire pressure
to accommodate additional loads.
Keep front tires inflated to 290 kPa and
rear tires to 310 kPa.
●Observe applicable local laws and
regulations regarding towing. For
driving safety, avoid speeding and
overloading.
●For towing, the technically permissible
maximum mass on the rear axle may
be exceeded by no more than 15% and
the technically permissible laden mass
of the vehicle may be exceeded by no
more than 100 kg. In these instances,
the vehicle speed must not exceed
100 km/h and the rear tire pressure
must be at least 20 kPa above the
tire pressure recommended for normal
use.
●Towing other vehicles will have
an adverse impact on the
vehicle, including maneuverability,
performance, braking, endurance,
economic driving or power
consumption.
●BYD does not assume any
responsibility for damage or injuries
resulting from towing a trailer due
to failure to comply with the proper
guidelines. Damage caused by towing
a trailer is not covered by the warranty.
●For detailed towing instructions,
contact a BYD authorized dealer or
service provider.
WARNING
●The tow bar is for towing trailers
only. Do not use it to get
WARNING
unstuck or tow trapped vehicles
to prevent vehicle damage and
even personal injuries.
Driving Safety
Precautions
04
USING AND DRIVING
No Drunk Driving
Even a small amount of alcohol can
reduce a driver's ability to respond to
traffic condition changes. The higher the
level of alcohol, the less responsive the
driver will be. Therefore, never drive
while under the influence.
No Speeding
Speeding is a major cause of fatal
accidents. Faster speeds generally entail
higher risk. Therefore, maintain a speed
safe for the road traffic conditions.
Keeping the Vehicle Safe for Driving
Tire bursts and mechanical faults are
extremely dangerous. To reduce the
possibility of such faults, frequently check
the vehicle's condition, and regularly
complete the specified inspections.
CAUTION
●Any driver must possess a driver's
license before driving a vehicle.
●Do not drive when fatigued.
Vehicle Usage Tips
Halaman 98
CAUTION
●Always follow the traffic
regulations when driving a
vehicle.
●During driving, please focus
on driving, and avoid activity
unrelated to driving (such as
making / receiving phone calls
and adjusting buttons).
Vehicle Use Suggestions
Suggestions for prolong the battery
usage:
●When the vehicle is not to be operated
for over seven days, it is recommended
that the battery SOC should be kept at
40%-60%, or the high-voltage battery
service life may be reduced.
●When the vehicle is not to be operated
for over three months, the high-voltage
battery must be fully charged and then
discharged to 40%-60%. Otherwise,
over-discharge may lead to battery
performance degradation or even
damage. Any vehicle fault or damage
so caused will not be warranted.
●During operation of the vehicle, if
the instrument cluster displays the
pure electric driving mileage as 0, it
indicates the battery SOC is low. In this
case, charge the high-voltage battery
in time and avoid operating the vehicle
with low SOC for a long time.
●For optimal battery performance,
use a charging connector to fully
charge the battery regularly, and the
recommended frequency is once a
week at least.
●To maintain long-term performance,
avoid continuously exposing the
vehicle to an environment with a
temperature above 60°C or below
-30°C for over 24 hours.
●If the tray dented inward or there
is scrarification under the battery
package tray, it is suggested to check
at a BYD authorized dealer or service
provider.
●During operation of the vehicle,
avoid repeated rapid acceleration or
deceleration whenever possible.
●During operation of the vehicle, avoid
operating the vehicle continuously
for a long time whenever possible;
otherwise, the excessively high
battery temperature will affect vehicle
performance.
●If the instrument cluster malfunctions
when driving, it is recommended to
contact a BYD authorized dealer or
service provider for inspection as soon
as possible.
●When the high-voltage battery
temperature is high, the vehicle
performance will be limited to some
extent. In this case, stop the vehicle
and wait until the temperature drops
before operating.
REMINDER
●If the meter drops to zero, the
battery must be recharged. If it is
not recharged within seven days,
the battery may suffer permanent
damage. Such damage is not
covered by BYD warranty terms.
●Driving range depends on many
factors, such as the vehicle's
available power, vehicle age
(current battery life), weather,
temperature, road conditions and
driving habits. Compared with
under normal temperatures, the
pure-electric driving range is
somewhat reduced and power
performance will also be affected
in low or high temperature
environments.
Instructions for Carrying Luggage
Halaman 99
Saving Energy and
Extending Vehicle Service
Life
●Saving energy is simple and easy, and
it helps prolong the vehicle's service
life.
●Here are some tips for saving energy
and repair cost:
1. Regenerative braking setting:
●The vehicle is equipped with
regenerative braking and you can set
the regenerative braking intensity in
the infotainment touchscreen →
→
Energy → Energy Manager. In high
energy recovery mode, more energy is
recovered during vehicle braking and
coasting.You can set to suit to your
driving habits.
2. Maintaining constant speed:
●Constant speeds save energy.
Sudden acceleration, sharp turns
and emergency braking increase
consumption.
●Speeds should be kept constant
according to traffic conditions.
Additional energy is consumed each
time the accelerator is pushed.
●Acceleration should be gradual. Avoid
sudden startup, acceleration, or
deceleration.
●Prevent emergency braking, and
subsequent brake wear, by keeping
an appropriate distance from vehicles
ahead, and paying attention to traffic
lights.
●Congested roads increase energy
consumption.
●Keep moderate speeds in motorways.
The higher the speed, the higher
the consumption. Maintaining vehicle
speed within the economical speed
range can save power.
3. Reducing load:
●Energy consumption is higher when air
conditioning is used. Turn off the A/C
to reduce power consumption. When
outside temperatures are moderate,
use fresh air mode.
●Do not overload the vehicle
unnecessarily. Excessive weights add
the load of vehicle, increasing energy
consumption.
4. Other tips:
04
●Make sure tire pressure is correct.
Low tire pressure increases energy
consumption and wear.
USING AND DRIVING
●Keep front wheels properly aligned,
avoid driving into curbstones, and
drive slowly in rough terrain.
Misalignment of the front wheels not
only increases tire wear, but also
increases load on the powertrain and
power consumption.
●Keep the bottom of the vehicle clean
and mud free. This reduces vehicle
weight and prevents corrosion.
REMINDER
●Do not coast in Neutral gear.
Carrying Luggage
●This vehicle has multiple
storage spaces. Overloading or
improper accommodation may affect
maneuverability, stability and normal
operation of the vehicle, and reduce its
safety.
●The glove box, storage boxes on
interior trim panels and seatback
pockets are designed for small and
light objects, while the trunk for large
and heavy objects.
Instructions for Wading into Water
Halaman 100
●Make sure the vehicle's total load
(vehicle + passengers + luggage)
remains within the specified maximum
weight.
WARNING
●Overloading and improper
accommodation may affect
stability and vehicle control,
which may lead to accidents.
●Observe the maximum weight
limit and other loading guidelines
in this manual.
●Do not carry highly magnetic
items, as they might interfere in
the vehicle's normal operations.
Carrying Luggage in the Passenger Area
●All items that could be thrown inwards
and thus injure occupants in case of a
collision must be properly placed and
secured.
●Do not place any objects on the inner
side of rear windshield. Otherwise,
these objects will block the driver's
line of sight and will be thrown here
and there inside the vehicle in case of
collision.
●Ensure that items placed on the floor
behind the front seat do not roll under
the seat, so as to avoid affecting the
driver's ability to control the pedals or
normal seat adjustment. Do not stack
items to a height taller than the front
seatbacks.
●Make sure the glove box is always
closed while driving. If the glove box
is open, the occupant's knees may be
injured in case of a collision or an
emergency stop.
REMINDER
●Do not pile up toys in the vehicle,
as this may affect driving safety
and present a hazard to the
children, especially in case of
emergency braking or collision.
Loading the Trunk
●Place luggage evenly in the trunk. Put
heavier items at the bottom and as far
in as possible.
●Secure items with ropes or straps so
that they will not move while driving.
Do not stack items to a height taller
than seatbacks.
●For trunk strapping or fastening
supplies, contact a BYD authorized
dealer or service provider.
Wading into Water
●Before driving into flooded areas,
check the water depth and make sure
it does not exceed the vehicle's lower
edge.
●If crossing a flooded area is necessary,
turn off the air conditioner and keep
acceleration steady to slowly cross
over.
●Never stop, back up, or turn off the
vehicle in flooded areas.
Fire Prevention Instructions
Halaman 101
●After crossing over, press the brake
pedal several times to dry out the disks
and recover brake performance.
●Be careful when driving through deep
water, as brakes may get wet.
●Do not wade into water unless
necessary.
WARNING
●Drive carefully to avoid accident
when there is any water or slurry
on the brake disc surface, as this
may increase the brake response
time thus extending the braking
distance.
●Carefully apply any wet brake, and
remove ice or water on it.
●Avoid emergency braking as far as
possible after driving through any
waterlogged road section.
●If the vehicle drives on
the waterlogged road. prevent
water from entering the motor,
otherwise the motor will
be damaged seriously. Such
damaged is not covered by the
vehicle's warranty
●After the vehicle drives through
waterlogged road sections,
vehicle components, such as
drive system, driving system and
automotive electric system may
also be damaged seriously. Such
damage is not covered by the
vehicle's warranty either.
●Be sure to find a sheltered
place when charging the vehicle
on rainy days. If the vehicle
is immersed in water or
wades through water over
the doorsill, which may cause
water ingress in high-voltage
components, promptly contact
a BYD authorized dealer or
WARNING
service provider for testing and
troubleshooting.
●Do not drive the vehicle on
the road where the depth of
accumulated water exceeds half
of the tires.
Influence of water ingress in high-
voltage components:
●Water getting into high-voltage
components, which are electronic
devices, may not be fully dried out by
any means.
04
●Water ingress seriously compromises
insulation of high-voltage
components, and conductive
substances in water may lead to short
circuit of high-voltage components or
such risk in the entire high-voltage
system. This significantly affects the
safety and service performance of the
vehicle.
USING AND DRIVING
●The reduced ingress protection
rating and voltage withstanding
performance due to water in high-
voltage components pose a high safety
risk.
Fire Prevention
To prevent vehicle fires in a timely and
effective manner, pay attention to the
following during use of the vehicle:
●No flammable or explosive items are
allowed in the vehicle.
●Temperatures may reach 60-70°C in a
vehicle exposed to direct sunlight in
summer. Therefore, flammable and
explosive items, such as lighters,
cleaning agents and perfumes,
stored in the vehicle can cause a fire
or even explosion easily.
Fire Prevention Instructions
Halaman 102
●Make sure cigarettes are thoroughly
put out.
●Smoking is harmful to your health
and may cause a fire. Cigarettes that
not thoroughly put out may cause a
fire.
●It is recommended to go to a BYD
authorized dealer or service provider
for regular vehicle checks.
●Check vehicle wiring, connections,
wiring harnesses, insulation, and
fixed position regularly. Deal with
identified problems promptly.
●Do not refit vehicle wiring or add any
unauthorized electrical appliance.
●The addition of extra electrical
appliances, such as high-power
audio systems, and light fixtures,
may overload and overheat the
wiring harness and increase the risk
of fire.
●Improper refitting of electrical
appliances or wiring may cause
a fire due to contact resistance
and abnormal heating. Fuses or
other replacement wires in excess of
relevant electrical rating are strictly
prohibited.
●Select a proper parking location.
●When parking the vehicle, try to
avoid sun exposure.
●When the vehicle is parked,
especially in summer, do check
whether there are any flammables
such as dry grasses, dead woods,
leaves or wheat straws under the
vehicle. If any, a fire may be caused.
●When the vehicle is running, avoid
driving on the road sections piled
up with flammables such as dry
leaves, wheat straws and grasses,
or immediately stop the vehicle to
check whether any flammables are
carried along after passing such road
sections.
●Keep a lightweight fire extinguisher in
the vehicle and know how to use it.
●In order to ensure vehicle safety, a
fire extinguisher should be equipped
in the vehicle, and be checked and
replaced regularly. Also, you should
familiarize yourself with use of the
fire extinguisher and be prepared for
any accidents.
●Disconnect the negative cable of the
low-voltage battery when the vehicle is
being serviced or repaired.
●In the event of a fire in the vehicle,
take effective measures in a timely and
calm manner to minimize any losses:
●Fires typically show initial warning
signs, such as abnormal noises and
odors in the vehicle body. When
abnormal conditions are found, turn
off and stop the vehicle immediately.
It is best to park the vehicle in a
windproof place, and then put out
the fire using the fire extinguisher in
the vehicle.
●Call the fire alarm in time, and
also dial the insurance company's
reporting number and ask the
company to come to the fire site for
handling.
●Look for the ignition point. If the
front compartment is smoking, do
not open the hood immediately.
(Doing so will let a large amount of
air in and cause fire spreading. There
is limited comburent in the front
compartment. Keeping the hood
closed can control the fire so that
the fire can be easily put out). Point
the on-board fire extinguisher at the
ignition point from the hood gap to
put the fire out, or seek help from the
passing cars. If you can borrow more
fire extinguishers, open the hood to
Snow Chain Instructions
Halaman 103
put it out when you cannot see any
flame from outside.
●If the fire brigade is involved, ask for
a duty performance certificate and a
description of fire cause.
●After occurrence of the accident,
contact the insurance company for
post-event handling in a timely
manner.
REMINDER
●In order to mitigate losses in
the event of an accident, the
purchase of commercial insurance
like fire loss and theft coverage is
recommended.
Snow Chains
●Snow chains are only for emergencies
or areas where they are permitted by
laws.
●Snow chains should be installed on
rear wheels. Be careful when driving
the vehicle installed with snow chains
on snow-covered roads. Some snow
chains may damage the tires, wheels,
suspension, or vehicle body. It is
recommended to use thin snow chains
with a thickness or diameter no greater
than 10 mm to ensure adequate
clearance between the tires and other
components inside the wheel well.
●Read the component assembly
drawings and other instructions
provided by the snow chain
manufacturer carefully.
●Before purchasing and installing snow
chains, consult a BYD authorized
dealer or service provider where your
vehicle was purchased.
●In order to minimize wear of tires and
snow chains, do not travel with snow
chains on roads without snow.
REMINDER
●Driving speed must not exceed 30
km/h or the speed limit specified
by the snow chain manufacturer.
●Drive carefully, and pay attention
to bumps, potholes, and sharp
turns that can cause the vehicle to
bounce.
●For vehicles with snow chains,
avoid sharp turns or braking with
locked wheels, and slow down the
vehicle before entering a curve
to avoid accidents due to loss of
control.
04
●Install snow chains symmetrically
on both sides and removed them
immediately after the vehicle is
leaving snowy or muddy roads.
USING AND DRIVING
●If abnormal noise is heard from
the snow chain, it indicates that
the chain may contact vehicle
components such as suspension,
body or brake lines. In this case,
stop the vehicle immediately for
inspection.
●Install snow chains after turning
off the vehicle and engaging
the parking brake firmly. Do not
Install snow chains when the tire
pressure is insufficient
●When installing the snow chain,
park the vehicle on a flat surface
away from traffic, turn on the
hazard warning lights, and place a
warning triangle at the rear of the
vehicle.
Starting the Vehicle
Halaman 104
Starting and
Driving
Starting the Vehicle
In normal cases, start the vehicle as
below:
●Carry a valid smart key with you,
depress the brake pedal ② and press
the START/STOP button ① at the same
time, and then the OK indicator on the
instrument cluster lights up, indicating
that the vehicle is ready for driving.
●Shift to Drive or Reverse, and then
the electrical parking brake will be
released automatically. Do not start
driving the vehicle until hearing
a motor release sound from the
electrical parking brake system.
Situations when the vehicle cannot
power on
●The vehicle cannot power on in the
following situations:
●After you press the "START" button,
if the smart key warning light turns
on, a beep sounds, and the message
"No key detected" is displayed on
the instrument cluster, the key may
not be in the vehicle or cannot be
detected due to interference.
●The smart key may not work properly
in certain locations, for example, on
the dashboard, in the glove box, on
the floor, in the cup holder, or in
the trunk, and the vehicle cannot be
started in such cases.
●Pressing the START button may not
enable the start function in the
following situations:
●If the electronic smart key does not
work, the smart key system warning
indicator on the instrument cluster
flashes, and the message "Low key
battery" is displayed, the key battery
may have run out. Replace the
electronic smart key battery as soon
as possible with reference to the
operation procedure given in P192.
●Except for causes mentioned above,
the smart access and start system
also fails to work normally under
some conditions due to different
service environments. See P56 for
details.
CAUTION
●The vehicle cannot be started
when the electronic key is
left stationary for more than
two minutes (depending on the
configuration of the vehicle).
Starting the vehicle in emergencies
●Engage the parking brake firmly.
●Turn off all unnecessary lights and
accessories.
●Shift to Park or Neutral.
●Switch the ignition off.
●The electronic smart key is in the
vehicle.
●Press and hold the START/STOP button
for more than 15 seconds to start the
vehicle.
Preparations Before Driving
Halaman 105
Remote Start
Before starting
●The power mode is "OFF".
●Shift into Park.
●The vehicle speed is below 5 km/h.
Starting the vehicle
1. Press and hold the remote start/stop
button on the electronic smart key for
two seconds to start the vehicle. After
it is started, turn signals will flash three
times.
2. If there is no valid operation within 10
minutes after remote start, the vehicle
stops and powers off, and turn signals
flash twice.
3. Press and hold the remote start/stop
button on the electronic smart key for
two seconds. The vehicle powers off,
and turn signals flash twice.
Driving
Safety Check before Driving
Exterior
●Tires: check tire pressure and
carefully inspect tires for any cut,
damage, foreign material, anomaly,
and excessive wear.
●Lug nuts: ensure all nuts are fitted and
tightened.
●Lighting: make sure headlights,
position lights, turn signals and all
other lights are working normally.
Check headlight intensity.
Interior
●Seat belts: Check whether seat belts
can be properly fastened. Verify that
seat belts are not worn or scratched.
●Instrument cluster: Particularly,
verify that maintenance indicator,
instrument cluster lighting, and
defroster work properly.
●Brake pedal: Verify that there is
enough space for the brake pedal to
work.
04
●Low-voltage battery and cables: Check
connectors for any corrosion or
looseness and any cracks in the low-
voltage battery housing.
USING AND DRIVING
In the engine compartment
●Spare fuses: Verify that spare fuses of
all rated charges in the fuse box are
available.
●Coolant level: Verify that coolant level
is correct.
Check after starting
●Instrument cluster: Confirm that
the maintenance indicator and the
speedometer work normally.
●Brakes: In a safe area, drive the
vehicle straight, hold the steering
wheel tightly, decelerate and apply the
brake. Verify that the vehicle maintains
a straight direction.
●Other abnormalities: Check for loose
parts, leaks, and unusual noises.
Preparations Before Driving
●Check your surroundings before
getting into vehicle.
Gear Shift Controls
Halaman 106
●Adjust seat position, seatback angle,
cushion height, headrest height, and
the steering wheel angle and height.
●Adjust interior rearview mirror and
side mirrors.
●Close all doors.
●Fasten the seat belts.
Gear Shift Controls
●The gear position of the gear shift
controls is marked on the lever.
●"P": Park, press this button to park the
vehicle and the parking indicator will
light up. Press the brake pedal to start
the vehicle, you may shift from Park to
another gear.
CAUTION
●To prevent damage, press the "P"
button only after the vehicle has
completely stopped.
●"R": Reverse, used only when the
vehicle has come to a complete stop.
●"N": Neutral, used for temporary stop.
Under all circumstances, always shift
to Park before the driver gets out.
●"D": Drive, shift to Drive gear to drive
the vehicle normally.
●If the shift is successful, the
lever returns to its middle position
automatically after it is released.
●Turn the ignition on before shifting
into Drive.
●Shifting out of Park or into a driving
gear requires pressing the brake pedal.
For details, see the prompt message on
the instrument cluster.
●To prevent unintended vehicle
movement, press the "P" button after
the vehicle has stopped completely.
The electronic parking brake (EPB) is
automatically applied and the EPB
indicator lights up.
WARNING
●When the motor is running and
the vehicle is in Park or Drive
gear, always stop the vehicle by
stepping on the brake pedal, as
there is still force transmitted
from the actuator and the vehicle
can travel slowly even in its idle
condition.
●If you want to shift a gear while
driving forward, do not step on
the accelerator pedal to prevent
accidents.
●Never shift to Reverse or press
the "P" button while the vehicle
is moving, in order to prevent
accidents.
●Never coast downhill in Neutral
or Park, even if the motor is not
running.
●If the EPB indicator does not
come on after shifting into Park,
enable EPB in
→ ADAS →
Safety Assist on the infotainment
touchscreen and contact a BYD
authorized dealer or service
provider for inspection.
Automatic EPB Release upon Vehicle Start
Halaman 107
Electronic Parking Brake
(EPB)
Be sure to engage the EPB every time
before parking and leaving the vehicle.
Engaging EPB Manually
●When the vehicle is not in Park
and EPB is released, press the brake
pedal and engage electronic parking
brake (EPB) on shortcut menu or
infotainment touchscreen →
→
ADAS → Safety Assist. Then, EPB
applies appropriate parking force,
and the indicator on the instrument
cluster flashes and then is steady
on, indicating that EPB is engaged.
In addition, a text prompt "EPB
activated" is displayed.
CAUTION
●When
flashes, EPB is working.
If the vehicle is on a slope, do not
release the brake pedal until
is
steady on. Otherwise the vehicle
may move down.
Engaging EPB Automatically
Engaging EPB automatically with the
ignition off
●When the ignition is switched off, EPB
is engaged automatically and
lights
up on the instrument cluster.
Engaging EPB automatically when
shifting into Park
●Press the brake pedal to stop the
vehicle and shift into Park and EPB is
engaged automatically. Do not release
the brake pedal until the indicator on
the instrument cluster stops flashing
and becomes steady on and the "EPB
ON" message is displayed.
CAUTION
●Do not release the brake pedal
early in the process, especially
when the vehicle is stopped on a
slope; otherwise the vehicle may
slip back.
●Engaging EPB automatically with
the ignition off is designed
to improve the vehicle safety.
Excessive reliance or frequent
use of the function may lead
to low SOC of low-voltage
battery, resulting in the risk of
vehicle slipping due to insufficient
EPB clamping force. For safety
reasons, make sure that the
vehicle is shifted into Park and the
EPB is engaged before getting off.
04
USING AND DRIVING
●EPB remains engaged when the
vehicle is switched from Park to
Neutral.
Automatic EPB Release upon Vehicle
Start
Releasing by shifting gear
●With the vehicle parked, start the
vehicle, press and hold the brake
pedal, and shift from Park or Neutral
into a driving gear such as Drive or
Reverse. EPB is released automatically,
the indicator goes off, and the "EPB
released" message is displayed.
CAUTION
●Be sure to always press and hold
the brake pedal when shifting
gears. Release the pedal only after
the intended gear is displayed on
the instrument cluster.
●Within several seconds after the
vehicle is started, the EPB system
performs a power-on self-test.
During this process, the EPB
EPB Trailer Mode
Halaman 108
CAUTION
system does not respond to any
operations.
Releasing by pressing the accelerator
pedal
●When the vehicle has been started
and in Drive or Reverse, engage EPB
by enabling Electronic Parking Brake
on the infotainment system, then
press the accelerator pedal slowly
to a certain degree. EPB is released
automatically and
turns off with
the message "EPB released" displayed.
EPB Release Failure
●If EPB release fails, enable the EPB
trailer mode in the infotainment
touchscreen →
→ Service →
Overhaul.
●If EPB can be released, drive
the vehicle to the nearest BYD
authorized dealer or service provider
for inspection as soon as possible.
●If it cannot be released, contact a BYD
authorized dealer or service provider.
Emergency Braking When Brake Pedal
Fails
●When the vehicle is in motion and
ESC system works normally, controlled
deceleration for parking (CDP) can be
used for emergency braking if braking
fails or is blocked.
●Press the "P" button for over two
seconds to force the vehicle to
brake. Pressing the brake pedal
simultaneously allows the vehicle to
decelerate faster.
●You can release the "P" button to
stop braking.
●After the vehicle stops, EPB remains
engaged and must be released again
before you can start the vehicle.
CAUTION
●When CDP is activated, if the
accelerator pedal is pressed more
deeply, CDP will exit and the
vehicle will keep running.
WARNING
●For safety considerations, refrain
from using the "P" button for
emergency braking in normal
driving. If the brake pedal fails or
is blocked, try to keep the vehicle
under control before using the
emergency braking function.
●As the EPB cannot go beyond the
physical limit of road adhesion,
activating the emergency brake
function may result in vehicle
drift, sideslip, or deflection when
the vehicle passes through bends
or dangerous/heavy-traffic road
sections, or when the vehicle
is driven under severe weather
conditions. Be careful to avoid any
accident.
EPB Trailer Mode
The EPB trailer mode is designed for
the situation when EPB is automatically
engaged with the ignition off. When the
vehicle needs to be powered off for
towing, or when it malfunctions, you can
switch on the trailer mode to exit parking
with EPB.
●To enable the EPB trailer mode, go
to infotainment touchscreen →
→
Service → Overhaul → EPB Trailer
Mode.
Automatic Vehicle Hold (AVH)
Halaman 109
●EPB trailer mode can be activated
when all the following conditions are
met:
●The vehicle is in Park.
●Press the brake pedal.
●The charging connector is not
connected, and the vehicle is not
being charged.
CAUTION
●When the activating conditions of
EPB trailer mode are not met,
a corresponding prompt message
displays on the infotainment
touchscreen.
●After activating the EPB
trailer mode, the corresponding
screen always displays on the
infotainment touchscreen unless
you tap to exit the EPB trailer
mode.
●When the vehicle is on a slope and
you need to enable the EPB trailer
mode, do not release the brake
pedal during the process to avoid
vehicle slipping.
●EPB trailer mode can exit when any of
the following conditions is met:
●Disable the EPB trailer mode on the
infotainment touchscreen.
●Press the "P" button.
●Charging starts after the charging
connector is connected.
EPB System Indicator
●When the vehicle is powered on, if the
EPB is engaged,
is solid on on the
instrument cluster.
●When the vehicle is powered off, if the
EPB is engaged,
on the instrument
cluster turns on and then turns off in
several seconds.
●When the vehicle is powered on, the
EPB performs a self-check.
turns
on and then off in several seconds on
the instrument cluster. If the indicator
does not light up, there may be a
fault in the EPB or braking system.
It is recommended to contact a BYD
authorized dealer or service provider
for inspection immediately.
EPB Operating Sound
●EPB motor noises can be heard while
the EPB is being engaged or released.
04
●If there is a burning smell or unusual
noises after emergency braking is
activated, contact a BYD authorized
dealer or service provider immediately.
USING AND DRIVING
WARNING
●To prevent the vehicle from
moving, make sure the vehicle is
in Park and EPB is engaged before
leaving the vehicle.
●To prevent serious accidents,
never allow any passenger in the
vehicle to operate the EPB button
when the vehicle is running.
●When the EPB is being engaged
or released, the brake pedal must
be pressed to prevent the vehicle
from moving, and the subsequent
locking of the gearshift that
occurs because the EPB cannot
provide a sufficient parking force.
Automatic Vehicle Hold
(AVH)
The automatic vehicle hold (AVH) is
activated automatically when the moving
vehicle needs to be stationary for longer
Automatic Vehicle Hold (AVH)
Halaman 110
periods of time, such as in traffic jams on
a slope or waiting at traffic lights.
AVH standby
●When the ignition is on, press the AVH
switch to enable the function. The AVH
standby indicator
is then displayed
on the instrument cluster.
●Press the AVH switch again to disable
AVH.
AVH activated
●When the AVH standby indicator
is solid on, press and hold the brake
pedal until the vehicle stops (vehicle
speed reduces to zero) to activate AVH.
At this time, the vehicle is in AVH state
with
displayed on the instrument
cluster.
CAUTION
●For AVH to be activated, all of the
follow conditions must be met:
●The driver's seat belt is fastened
and the doors are closed.
●Intelligent power braking system
and electronic park brake (EPB)
systems are normal.
●Pressing the accelerator pedal,
shifting into Park, powering off
the vehicle, or engaging the EPB
manually can make AVH exit to
the standby status.
CAUTION
●AVH has a memory function that
retains its previous state when the
vehicle is restarted.
AVH running
●The AVH runs normally when it is
activated, brake lights and the high-
mount brake light are on, and the
AVH indicator
is solid on on the
instrument cluster.
●The AVH exits to the standby mode
after the vehicle stops for 10 minutes,
with the AVH standby indicator
on
and the vehicle in Park.
●To activate AVH function, shift into
Drive to enable the vehicle to move
normally, and then press and hold
the brake pedal until the vehicle
stops (vehicle speed reduces to zero).
AVH exits
●When the AVH function runs normally,
the following actions make AVH exit
and shift the vehicle from Drive to Park
automatically:
●Opening the driver's door.
●Unlocking the driver's seat belt.
●Stopping the vehicle in Drive with
EPB activated.
●Pressing the AVH switch to disable
AVH when releasing the brake pedal.
AVH suppressed
●Shift into Reverse and then AVH enters
the slow-moving condition. When the
vehicle is reversing (in Reverse) or
shifts from Reverse into Drive to
travel at a low speed, AVH cannot
be activated but stays on standby to
facilitate low-speed vehicle motion.
●To exit slow-moving mode, press the
AVH switch or drive at a speed above
Winter Driving Precautions
Halaman 111
10 km/h. The AVH function is on
standby and can be activated normally.
Driving Precautions
●Slow down when driving against
strong winds.
●Drive slowly and carefully along gravel
roads. To prevent tire damage, do not
drive over sharp-edged obstacles. Or it
will severely damage the tires.
●Slow down on bumpy or uneven roads,
or the shock would damage the tires.
●Avoid driving through flooded areas as
much as possible.
●Drive carefully on slippery roads, such
as roads covered in ice, snow or sand,
or surfaces such as wet ceramic tiles or
epoxy resin. Avoid parking on slopes to
prevent vehicle sliding.
WARNING
●The driver shall ensure the riding
safety of all passengers in the
vehicle, guide them to correctly
use vehicle features, and prevent
children and other passengers
operating control switches such
as window switches in a wrong
way.
REMINDER
●The high-voltage battery is
located in the vehicle's chassis.
Make sure to avoid bumping when
driving.
●Before driving, make sure that
EPB is fully released and that the
EPB indicator light is off.
●Do not leave the vehicle when the
drive motor is running.
REMINDER
●Do not rest your feet on the
brake pedal and accelerator
pedal simultaneously for a long
time during driving to prevent
overheating, wear, or waste of
electric energy.
●Slow down when driving down
steep slopes, and avoid braking
too frequently to prevent disc
overheating, which affects brake
performance.
●Be careful when accelerating or
braking on slippery roads. Quick
acceleration or sudden braking
will cause the vehicle to skid or
deviate.
04
USING AND DRIVING
●Make sure no occupant sticks
their head or hands outside the
vehicle, specially when it comes to
children.
●Large amounts of water
entering the engine compartment
can cause damage to the
power system and electrical
components.
Winter Driving Precautions
●Make sure the coolant is freeze-proof.
●Use the same type of coolant as
the original model. Fill up the
coolant according to the ambient
temperature.
●Improper coolant damages the
cooling system.
●Check the condition of the low-voltage
battery and the cables.
●The low-voltage battery's capacity is
lower in cold weather, so it must be
fully charged when winter comes.
●Avoid door frost.
Adaptive Cruise Control (ACC)
Halaman 112
●Spray some deicing agent or glycerin
in the lock hole to prevent freezing.
●Use anti-freeze washer fluid.
●These can be purchased in the
BYD authorized dealers or service
providers and most auto parts stores.
●The water and anti-freeze ratio in
accordance with the manufacturer's
instructions.
CAUTION
●Use special washer fluid to
prevent paint damage.
●Prevent ice and snow from going under
the fender liner.
●Ice or snow accumulating under the
fender liners makes steering difficult.
When driving in cold weather, stop
from time to time and check for snow
and ice under the fender liners.
●It is recommended to have emergency
tools for different road conditions in
the vehicle.
●It is advisable to have snow chains,
window scraper, bags of sand and
salt, flashing signal, a shovel and
connecting cables in the vehicle.
Driver Assistance
Adaptive Cruise Control
(ACC)
●Adaptive cruise control (ACC), an
extension of the traditional cruise
control, uses a radar and a multi-
purpose camera to detect the relative
distance and speed of the vehicle
ahead, so as to control vehicle speed
accordingly. The system switches
between regular cruise control and
ACC depending on whether there is a
vehicle ahead.
●Cruise speed and time interval from
the vehicle ahead can be set by using
the cruise buttons. You can set the
cruise control speed within the 30-150
km/h (20~95mph) range, or set a fixed
distance from the vehicle ahead to
cruise at speeds within the 0-150 km/h
(0~95mph) range.
Status Description
●ACC standby:
●Once enabled, the system is on
standby by default and can be
manually activated. If the vehicle
does not meet activation conditions,
it must be checked until such
conditions are met. At this time,
(with a variable cruise speed value) is
displayed on the instrument cluster.
●ACC activated:
●The system is operational. It
maintains the set speed or
automatically adjusts the distance
from the vehicle ahead. At this time,
(with a variable cruise speed
value) is displayed on the instrument
cluster.
●Over speed:
●When you step the accelerator pedal
while ACC is active, the vehicle
responds to your acceleration action
so that the ACC is temporarily
deactivated until you release the
pedal.
●ACC failure:
●There has been a failure in the
system. No operation can be
performed, and the ACC failure
indicator
is displayed on the
cluster.
How to Use
Halaman 113
ACC Activation Conditions
●EPB is released.
●The vehicle is in Drive.
●The vehicle does not slide backwards.
●The trunk, hood, and all doors are
closed.
●The driver seat belt is fastened.
●The ESC system is on, but not activated
yet.
●Vehicle speed is equal to or less than
150 km/h.
●Brake pedal is pressed at speed 0; or
brake pedal is not pressed at speeds
above 0.
●There is no vehicle network
communication failure prompt on the
instrument cluster.
●The AEB function is not activated.
How to Use
ACC on/off button
●Press button ① to activate or exit
ACC. (The system is on standby when
activation conditions are met). (By
default, ACC activation by pressing
button ① sets the current speed as the
cruise speed. If the current speed is
less than 30 km/h, the cruise speed is
set to 30 km/h.)
Resetting ACC
●When the ACC system is on standby
within the same ignition cycle, the
system memorizes the last speed
setting. Push up the lever ② to revert
to the stored speed prior to exiting the
cruise system.
Increasing/Decreasing target speed
●When ACC is active, set the vehicle to a
speed within the 30–150 km/h range by
moving the lever ②. Toggling the lever
② up or down each time increases or
decreases target speed by 5 km/h.
04
WARNING
●Please strictly abide by the local
speed limit regulations, drive
safely, and do not speed.
USING AND DRIVING
Exiting ACC
●While ACC is active, pressing button
① for a second time or pressing the
brake pedal makes the ACC system go
on standby.
Setting vehicle distance
●The driver must select a safe vehicle
distance.
●The system adjusts vehicle speed to
keep a suitable distance from the
vehicle ahead on the same lane.
Pressing buttons ③ and ④ on the
steering wheel adjusts vehicle distance
to any of the four available levels. At
each level, vehicle distance is in direct
proportion to vehicle speed. The faster
the speed, the longer the distance.
Increasing/Decreasing speed with ACC
active
●When ACC is activated, you can press
the accelerator pedal to reach the
set target cruise speed in advance.
The system then enters over speed
mode. At the target cruise speed,
Precautions
Halaman 114
if you accelerate without performing
any other operations, the vehicle
accelerates and then returns to target
cruise speed after the accelerator
pedal is released.
●When you press the brake pedal
with ACC activated to slow down the
vehicle, ACC goes into standby mode.
After the brake is released, ACC will
need to be reactivated.
Follow-to-stop/start
●Controlled by ACC, the vehicle can
stop when the vehicle ahead stops in
normal driving conditions and resume
driving automatically following the
vehicle ahead if the stop is less than
30 seconds.
●If the vehicle stops for a time
period between 30 seconds and three
minutes, press the accelerator pedal or
push up lever ② to reactivate ACC.
System Limitations
●The front mmWave radars are installed
in the front of the vehicle. Blockage
of its detection area by contaminants
can disturb the intended function. In
particular, if the sensor is covered by
snow completely, the ACC system exits
and informs of this on the instrument
cluster. System function will recover
after blockage is removed and the
vehicle is restarted or runs on normal
roads for a while.
●Front mmWave radars may have a
transient function failure from limited
detection if the vehicle runs under
special conditions, such as circular
ramps or tunnels, for an extended
period. The function can be recovered
by restarting the vehicle or driving on
normal roads for a while.
●Reaching or leaving a curve may delay
or disturb target selection. In such
cases, the ACC vehicle may not brake
as expected or may brake late.
●On roads with sharp curves, such as
winding roads, the vehicle ahead may
be out of ACC sensor detection for
several seconds due to sensor vision
limitations, possibly causing the ACC
vehicle to accelerate automatically.
●Traffic flow and weather conditions -
such as rain and fog - must be heeded
for setting vehicle distance on the
ACC system. After the ACC system is
properly set, the driver must be able
to decelerate until the vehicle stops at
any time.
●The ACC system may not be
able to identify stationary or slow-
moving objects, such as vehicles,
the end of traffic, toll booths,
bicycles, motorcycles, or pedestrians.
This means a risk of collision and
requires the driver to beware of the
surroundings.
●The ACC system cannot identify
pedestrians or oncoming vehicles.
●The ACC system can only achieve
limited braking instead of emergency
braking.
●Metal objects, such as rail or metal
plates used in road construction, may
interfere with front mmWave radars,
making it malfunction.
●Performance of front mmWave radar
sensors may be affected by vibration
or collision. In this case, it is
recommended to contact a BYD
authorized dealer or service provider.
Precautions
●ACC is a comfort system rather than
a safety system, obstacle detector or
collision warning system. The driver
must keep control of vehicle at all
Precautions
Halaman 115
times and be fully responsible for the
vehicle.
●ACC assists instead of replacing the
role of the driver. The driver is
responsible for abiding by traffic rules
and keeping vehicle control.
●For safety reasons, ACC cannot be
activated with ESC disabled.
●ACC is suitable for highways and
roads in good conditions, rather than
complex urban or meandering roads.
●It is the driver's responsibility to keep
distance from the vehicle ahead. The
vehicle distance set by ACC meets the
minimum distance required in driving
environments in the country.
●Vehicle control is transferred to the
driver if the accelerator or brake pedal
is pressed with ACC active. As a result,
the ACC system cannot keep a safe
distance from the vehicle ahead.
●ACC may have no or slow responses to
a vehicle ahead that brakes or stops
suddenly, resulting in a risk of late
braking. In such cases, there will be no
take-over request.
●In some cases, such as when the
vehicle ahead is going too slow, when
lane change is too fast, or when the
safe distance from the vehicle ahead
is too short, there is no adequate time
for the system to decrease the relative
speed, so response has to come from
the driver. The system cannot give
audible or visual warnings in every
case.
●If ACC is activated with the vehicle
stationary, the system identifies any
stationary obstacle ahead and keeps
the vehicle still to ensure a safe
startup and prevent collision. However,
this function cannot identify all the
obstacles, so the driver must be alert
to the front obstacles or other traffic
participants.
●A short distance from an adjacent lane
(or a vehicle on an adjacent lane that
is too close to the ACC vehicle's lane)
may trigger ACC to brake.
●Vehicles coming into the ACC vehicle's
lane and within the detection range of
its front mmWave radars are identified
as target vehicles and prompt a
response accordingly, which may lead
to hard or late braking.
●Detection may be affected or delayed
in some environments. If the radar
cross section of the target (a
bicycle, motorcycle, four-wheeler, or
pedestrian, for example) is too small,
the system may not be able to
establish its distance, resulting in
either late or no response to those
vehicles. In such cases, vehicle speed
must be controlled by the driver.
In addition, detection may also be
affected or delayed by noise or
electromagnetic interference.
04
USING AND DRIVING
●ACC cannot target vehicles with too
small contact ratio, so the driver must
keep control of the vehicle.
●When the vehicle stops as it follows
a vehicle ahead, in rare cases, the
system does not recognize the end of
the vehicle ahead but the lower end of
the target (for example, the rear axle of
a truck with a high chassis or a vehicle
bumper). In such cases, the system
cannot ensure proper stop distance, so
the driver must stay alert and be ready
to brake.
●Modifying the vehicle structure, such
as lowering the chassis or changing
the front license mounting plate, may
affect ACC.
●Do not use ACC when visibility is poor,
or when driving on slopes, winding
roads, or wet roads (covered in ice/
snow or flooded).
Intelligent Cruise Control (ICC)
Halaman 116
●ACC cannot be activated in special
driving modes* like tow, snow, mud,
sand, or terrain.
●Make sure to go to a BYD authorized
dealer or service provider for
professional calibration and checking
of front mmWave radars or the multi-
purpose camera in any of the following
situations:
●The front mmWave radar, front
bumper, or front windshield has been
removed.
●Wheel alignment has been carried
out.
●The vehicle has experienced a
collision.
●ACC system performance has
degraded or the instrument cluster
has prompted an system error.
WARNING
●ACC serves as driver assistance
only, so the driver must be fully
responsible for driving safety.
●Influence of weather, road
conditions, and other factors may
cause ACC to fail.
●Use ACC based on your needs,
traffic, and road conditions.
Intelligent Cruise Control
(ICC)
●The intelligent cruise control (ICC)
system integrates ACC and lane
centering control (LCC). It helps control
the vehicle both longitudinally and
transversely at speeds between 0 and
120 km/h to reduce the driving burden
and provide a safe and comfortable
driving environment.
●When the function is enabled, the
driver must always hold the steering
wheel and control the vehicle when
necessary.
●Longitudinal assistance, driven by the
ACC system, keeps the vehicle at a
fixed speed or a fixed distance from the
road user ahead.
Status Description
●ICC standby:
●The system is on standby by default
and can be manually activated. If
the vehicle does not meet activation
conditions, it must be checked until
such conditions are met. At this time,
is displayed on the instrument
cluster.
●ICC activated:
●The ICC system is operational.
It maintains the set speed or
automatically adjusts the distance
from the vehicle ahead. At this time,
is displayed on the instrument
cluster.
●ICC failure:
●There has been a failure in
the system. No operation can
be performed, and the ICC fault
indicator
lights up on the
instrument cluster.
ICC Activation Conditions
●EPB is released.
●The vehicle is in Drive.
●The vehicle does not slide backwards.
●The trunk, hood, and all doors are
closed.
●The driver seat belt is fastened.
Intelligent Cruise Control (ICC)
Halaman 117
●The ESC system is on, but not activated
yet.
●Vehicle speed is not greater than 120
km/h.
●Brake pedal is pressed at speed 0; or
brake pedal is not pressed at speeds
above 0.
●There is no vehicle network
communication failure prompt on the
instrument cluster.
●The AEB function is not activated.
●Two-way lane lines are clear and the
vehicle is at the center of the lane.
How to Use
●Press the ICC button on the steering
wheel to activate or deactivate ICC
(when ICC is activated, the current
speed is set as the cruise speed by
default. If the current speed is less
than 30 km/h, the cruise speed is set
to 30 km/h).
●For how to set the cruise speed and
vehicle distance, see P112.
●You can also enable or disable ICC
through the infotainment touchscreen
→
→ ADAS→ Driving Assist (ICC
can be toggled off only when the
vehicle is in Park). When the vehicle is
just started up, ICC status before the
last power-off is maintained.
Precautions
●ICC integrates ACC and LCC. Therefore,
ACC function precautions must be
followed during use (see P112 for
details).
●When ICC is turned on and activated
at vehicle speeds between 0 km/h and
120 km/h:
●If there are no lane lines ahead,
transverse ICC control is suppressed
and only ACC works. In that case, ICC
working status indicator turns gray
on the instrument cluster.
●If lane lines ahead are clear and
recognizable, transverse ICC control
is activated automatically. In that
case, ICC working status indicator
shows activated status on the
instrument cluster.
●ICC serves as a driver assistance
system rather than an autonomous
driving system. The driver should
always maintain control of the vehicle,
and their hands should not leave the
steering wheel for too long. Otherwise,
the system will exit after prompting the
driver to take control.
04
USING AND DRIVING
●ICC can be affected by weather
conditions, lighting and clarity of
lane lines. Performance degrades
significantly in situations such as
backlighting, sunset, snow covered
roads, and severely damaged roads.
●Do not use ICC on winding roads with
sharp turns, icy and slippery bends,
or under weather conditions, such as
dense fog, heavy rain and heavy snow,
liable to hinder the sensing operation
of front mmWave radars or the multi-
purpose camera.
●Situations where ICC cannot be used
include:
●The sensor is blocked.
●The vehicle is running under severe
weather conditions.
●Active safety function has been
triggered.
●Vehicle speed exceeds the specified
range.
●ICC cannot be activated if special
driving modes* such as tow/
snow/mud/sand/terrain are enabled.
Forward Collision Warning (FCW) and Automatic Emergency Braking (AEB)
Halaman 118
WARNING
●ICC serves as driver assistance
only, so the driver must be fully
responsible for driving safety.
●Influence of weather, road
conditions, and other factors may
cause ICC to fail.
●Use ICC based on your needs,
traffic, and road conditions.
Forward Collision
Warning (FCW) and
Automatic Emergency
Braking (AEB)
Forward collision warning (FCW) and
automatic emergency braking (AEB)
detect vehicles and pedestrians ahead
by using a radar and a multi-purpose
camera. When detecting a risk of
collision, the system gives audible and
visual alarms to alert the driver and
improves the potential braking pressure
for better response timing. If detecting
increased risk of collision, the system
automatically applies braking pressure to
assist in collision avoidance or impact
reduction.
How to Use
●To enable or disable FCW and AEB, go
to infotainment touchscreen →
→
ADAS → Safety Assist.
●FCW gives alarms in forms of audio,
text, and intermittent braking.
●When FCW is activated,
or
flashes, depending on the level of
emergency, and a prompt message is
displayed on the instrument cluster.
●When AEB is triggered,
lights up
together with a prompt message on
the instrument cluster.
●In the event of malfunction,
is
displayed.
●If you disable AEB manually by
pressing buttons,
is displayed.
FCW Activation Conditions
●This function has been turned on in
Vehicle Settings.
●Vehicle speed is within the 30km/h–
150km/h.
●The vehicle is in Drive.
●The vehicle does not slide backwards.
AEB Activation Conditions
●This function has been turned on in
Vehicle Settings.
●Vehicle speed is within the 4km/
h-150km/h range.
●EPB is released.
●The vehicle is in Drive.
●The vehicle does not slide backwards.
●The trunk, hood, and all doors are
closed.
●The driver seat belt is fastened.
●The ESC system is on, but not activated
yet.
System Limitations
●Detection may be affected or delayed
in some environments. If the radar
cross section of the target (a
bicycle, three-wheelers, four-wheeler,
or motorized bicycle, or motorcycle,
for example) is too small, the system
may not be able to establish its
Forward Collision Warning (FCW) and Automatic Emergency Braking (AEB)
Halaman 119
distance, resulting in either late or no
response to those vehicles.
●FCW may be affected or give no
response in the following cases:
●On rainy, snowy or foggy days, or
exposure to direct sunlight or glaring
lights, or significantly varying lighting
conditions.
●Dirty, hazy, damaged or blocked
sensor.
●Malfunction of front mmWave radars
due to interference from other front
millimeter-wave radar sources such
as strong radar reflection in multi-
story parking lots.
●In complex traffic, the system may
be unable to properly respond to the
following circumstances:
●Pedestrians or vehicles move too
quickly into the sensor's detection
range.
●Pedestrians are obscured by other
objects.
●Pedestrian outlines are
indistinguishable from the
surroundings.
●Pedestrians are not detected, due
to, for example, coverage by special
clothing or other materials.
●The vehicle is on a sharp curve.
Precautions
●FCW cannot ensure zero collision. In
complex traffic, the system cannot
always clearly identify all the vehicles
or pedestrians. FCW may trigger
unnecessary warning or braking action
for well covers, iron plates or road
signs.
●Make sure to drive safely and observe
surrounding traffic conditions. AEB is
not a substitute for normal braking
operation in any event.
●Do not overly rely on FCW as this may
result in severe injuries or deaths. The
system is only an auxiliary safety tool.
The driver must always keep a safe
distance from vehicles ahead, control
the speed, and be ready to brake or
steer away when necessary. The driver
must keep control of the vehicle at all
times and be fully responsible for safe
driving.
●AEB is activated only when it exceeds
certain speeds. Careful driving is
always required, because the system
may not be triggered correctly.
04
●AEB cannot work normally when the
ESC function is disabled or the fault
light is on.
USING AND DRIVING
●If FCW gives an alarm, the driver must
brake based on traffic conditions to
decrease vehicle speed or steer away
from obstacles.
●If the vehicle travels too close to
the vehicle ahead for too long, a
safety distance warning will be given.
If the vehicle ahead brakes suddenly,
collision may be unavoidable.
●The system will not trigger AEB when
the driver is aware of an emergency
warning, but turns the steering wheel,
or presses the accelerator pedal or
brake pedal hard.
●Front mmWave radars may have a
transient function failure from limited
detection if the vehicle runs under
special conditions, such as circular
ramps or tunnels, for an extended
period. The function can be recovered
as the vehicle is back on normal roads
for a while.
●Sometimes the surfaces of front
mmWave radars or the multi-purpose
camera are dirty or obscured by
foreign objects. In this case, a message
Forward Collision Warning (FCW) and Automatic Emergency Braking (AEB)
Halaman 120
is displayed on the instrument cluster
(dirt or foreign objects on the surface
may blind the sensors). Remove
foreign matter from the sensor as
required. The functions will return
normal after the sensor is cleaned.
●As the pedestrian protection function
is limited by certain physical
conditions, the driver must take timely
and effective control of the vehicle
under dangerous conditions.
●The system cannot completely protect
pedestrians or avoid accidents and
severe injuries on its own.
●Under certain complex conditions,
such as on winding roads, the
pedestrian protection function may
trigger unnecessary warning or
braking.
●System failure may trigger wrong
warnings or braking. This may
be caused, for example, by the
misalignment of the front mmWave
radar or multi-purpose camera.
●The brake pedal becomes harder if
AEB is triggered. A large amount of
hydraulic pressure will be required to
push the caliper in a short time and
there will be a sizzling noise.
●The AEB system is triggered only with
doors closed and seat belts fastened. It
fails to work in the following cases:
●Any door is not closed or it is opened
when the vehicle is moving.
●The seat belt is not fastened or it
is unfastened when the vehicle is
moving.
●The driver accelerates or decelerates
rapidly or turns the steering wheel
quickly.
●System performance may be reduced
in the following cases:
●Strong front bumper impact from
accidents or other causes.
●Improperly inflated or worn out tires.
Unqualified tires installed.
●Snow chains installed.
●Use of a small spare tire or tire repair
kit.
●Go to a BYD authorized dealer
or service provider for professional
calibration of the front mmWave radar
or multi-purpose camera in any of the
following situations:
●The front mmWave radar or multi-
purpose camera has been removed.
●Toe-in or rear camber has been
adjusted during wheel alignment.
●The position of front mmWave radars
or multi-purpose camera change
after a collision.
●ACC system performance has
degraded or become abnormal.
●Do not try to test AEB with carton,
iron plate, dummy and other objects.
The system may not work properly and
thus result in accidents.
WARNING
●FCW and AEB serve as driver
assistance only, so the driver must
be fully responsible for driving
safety.
●Influence of weather, road
conditions, and other factors may
cause FCW and AEB to fail.
●Use FCW and AEB based on
your needs, traffic, and road
conditions.
Forward Collision Warning (FCW) and Automatic Emergency Braking (AEB)
Halaman 121
Front Cross Traffic Alert
(FCTA) and Front Cross
Traffic Brake (FCTB)
Front cross traffic alert (FCTA) and
front cross traffic braking (FCTB) detects
vehicles crossing the driveway at the
front through mmWave radars on both
sides of the front bumper to alert
the driver and engage the brake if
necessary. At low vehicle speeds, when
the system detects a risk of collision with
a vehicle crossing the driveway at the
front, it provides the driver with visual
and audible alerts; in the event of an
impending collision, the vehicle brakes
automatically.
How to Use
●To enable or disable FCTA/FCTB, go
to infotainment touchscreen →
→
ADAS → Safety Assist.
●When FCTA is activated, side mirror
warning indicators flash and an
audible alarm sounds.
●When FCTB is activated,
is
displayed on the instrument cluster
and an audible alarm sounds, with AEB
automatically braking the vehicle.
●In the event of FCTA/FCTB malfunction,
is displayed on the instrument
cluster.
Precautions
●While the system provides assistance
in monitoring front left and right
sides, it cannot replace the driver's
observation and judgment. The driver
must keep control of vehicle at all
times and drive properly and is fully
responsible for the vehicle.
●When a target vehicle is approaching
from the side at a high speed, the
FCTA/FCTB system may not be able to
provide adequate warning.
●The driver must ensure the normal
operation of the system, keeping
mmWave radars on both side of
the bumper in good condition.
For example, dirt, snow, or other
obstructions need to be cleared right
away.
●In addition, detection may also be
affected or delayed by noise or
electromagnetic interference.
●Under some circumstances, it is
difficult for the system to assist the
driver, and detection may be affected
or delayed. Possible circumstances
include, but are not limited to:
04
USING AND DRIVING
●The vehicle coming from the side
suddenly changes the lane.
●The target vehicle is obscured.
●The radar cross section of the target
(for example, a bicycle or electric
moped) is too small.
●The vehicle is running under severe
weather, such as rain or snow.
●MmWave radar(s) come off, are
loosely installed, or are blocked.
●The vehicle encounters complex
metal guardrails or similar road
conditions.
●The system does not work when:
●Targets are outside the mmWave
radar's detection range.
●FCTA or FCTB is switched off.
●The vehicle is not in Drive.
●Four doors are open.
●System initialization has not been
complete yet.
●MmWave radar(s) fail.
Traffic Sign Recognition (TSR)
Halaman 122
●Vehicles coming from the front left
or right side are detected too late at
sharp turns, slopes, or other settings.
●Influence of vibration or collision on
mmWave radar sensor calibration can
degrade system performance. If this
is detected, contact a BYD authorized
dealer or service provider.
WARNING
●FCTA and FCTB serve as driver
assistance only, so the driver must
be fully responsible for driving
safety.
●Influence of weather, road
conditions, and other factors may
cause FCTA or FCTB to fail or lead
to late braking.
●Use FCTA and FCTB based on
your needs, traffic, and road
conditions.
Traffic Sign Recognition
(TSR)
The traffic sign recognition (TSR) system
identifies speed limit signs through the
multi-purpose camera and map*, displays
such signs on the current road on the
instrument cluster, and sends alarm
messages to the driver when vehicle
speed exceeds the detected limit.
How to Use
●To enable or disable TSR, go to
infotainment touchscreen →
→
ADAS → Safety Assist → Traffic Sign
Recognition.
●When the TSR system identifies the
current traffic sign,
is displayed on
the instrument cluster.
●When TSR cannot identify whether the
recognized speed limit value applies to
the lane,
is displayed.
●When the TSR system experiences
reduced performance,
is displayed.
●When the TSR system has a reduced
performance and cannot identify
whether the recognized speed limit
value applies to the lane,
is
displayed.
●If the TSR system malfunctions,
is
displayed.
●If you disable TSR manually,
is
displayed.
●The specific numbers displayed in the
indicators depend on the actual traffic
signs.
Precautions
●The traffic sign recognition system can
identify speed limit signs only, and will
not control speed. The control over
the vehicle always vests in the driver.
Please drive properly.
●Weight limit signs not in standard
size as per national regulations may
mistakenly be identified as speed limit
signs.
●If a speed limit sign is unclear,
distorted, inclined, reflective, or partly
blocked or overlaid, the multi-purpose
camera may fail to or incorrectly
identify the sign.
●TSR performance depends on weather
conditions, lighting, and sign visibility.
The system may fail to or incorrectly
identify the sign at night, at sunset, or
in rainy, foggy, hazy, snowy or dusty
environment, when light is coming
from the back of the vehicle, or when
there is a sudden change in lighting.
Intelligent Speed Limit Control (ISLC)
Halaman 123
●In case the vehicle has been
involved in a collision or the multi-
purpose camera's sensor has been
reassembled, go to a BYD authorized
dealer or service provider for sensor
calibration so as to avoid affecting
system performance.
●For European models, recognition
of traffic jams, construction zones,
and accidents ahead rely on Internet
connection and is on the premise
that recognition of these signs are
supported.*
●TSR serves as a driver assistance
function only, so the driver must be
fully responsible for driving safety.
●Influence of weather, road conditions,
and other factors may cause TSR to fail
or lead to late alarms.
●Use TSR based on your needs, traffic,
and road conditions.
Intelligent Speed Limit
Control (ISLC)
●Intelligent speed limit control (ISLC)
incorporates functions of adaptive
cruise control (ACC) and traffic sign
recognition (TSR). With ISLC enabled, if
the current ACC speed is inconsistent
with the value on the recognized
speed limit sign, the system prompts
whether to adjust it to that limit value.
The setting is automatically performed
after it is confirmed (by toggling down
the rocker switch on the steering
wheel).
●This function is accessible at the
30-150 km/h range of speed.
How to Use
●To enable or disable intelligent speed
limit control and warning, go to
infotainment touchscreen →
→
ADAS → Safety Assist → Traffic Sign
Recognition.
●When TSR is disabled, ISLC also ceases
to function.
●With TSR on, ISLC can be enabled or
disabled depending on your needs.
●ISLC can be activated provided that
ACC is active.
Precautions
●ISLC integrates ACC and TSR.
Therefore, ACC and TSR function
precautions must be followed during
use (see the previous chapters for
details).
04
●ISLC is a driving assistance system,
so the driver should keep control of
vehicle at all times.
USING AND DRIVING
●ISLC performance depends on weather
conditions, lighting, and traffic sign
visibility. The system may fail to or
incorrectly identify the sign at night
or sunset, in rainy, foggy, hazy, snowy
or dusty environment, when light is
coming from the back of the vehicle,
or when there is a sudden change in
lighting.
WARNING
●ISLC serves as driver assistance
only, so the driver must be fully
responsible for driving safety.
●Influence of weather, road
conditions, and other factors may
cause ISLC to fail or lead to late
braking.
●Use ISLC based on your needs,
traffic, and road conditions.
Adaptive Front Light (AFL)
Halaman 124
Adaptive Front Light (AFL)
Adaptive front light (AFL) assesses current
driving conditions by using multi-purpose
camera sensors and automatically
activates or deactivates the high beam
accordingly, when vehicle speed exceeds
35 km/h.
Status Description
●AFL standby:
●When the function is enabled but not
activated yet,
is displayed on the
instrument cluster.
●AFL activated:
●With the function enabled, when the
light switch is on "Auto", the light
meets conditions, and vehicle speed
exceeds 35 km/h,
is displayed on
the instrument cluster.
●AFL failure:
●When AFL malfunctions,
is
displayed on the instrument cluster.
How to Use
●To enable or disable AFL, go to
infotainment touchscreen →
→
ADAS → Safety Assist. When the
vehicle is started, the system defaults
to previous settings.
●With the function enabled, when you
set the light switch to the auto lights
position, the light meets conditions
and vehicle speed exceeds 35 km/h,
the system automatically switches
between low and high beams based on
the current driving environment.
Precautions
●AFL is an auxiliary light control
function. While it is recommended
to use the system at high vehicle
speeds, the system cannot completely
replace the driver. The driver must
observe road regulations and actively
switch between high and low beams
according to road condition changes at
all times.
●When the vehicle is in a high dynamic
state, for example when the ABS or
ESC is activated, beam switching is
suppressed.
●AFL exits when you turn fog lights
or turn signals on, set wipers to fast
mode, are backing up, or set the light
switch to a position other than auto
lights, or when the environment has
too much lighting.
●Even when AFL is working, the driver
must respond to possible situations
where the AFL is triggered in error
or fails to work due to unavoidable
environmental factors and conditions.
Typical situations are:
●The driver's stick operation to switch
to the high beam is prioritized.
●The weather, such as fog, rain
or snow, is extremely terrible for
driving.
●There are traffic participants with
poor lighting (such as pedestrians
and bicycles), railways or waterways
nearby, or wild animals on the roads.
●There are strongly reflective objects
around, such as traffic signs on
highways and water reflection on the
road surface.
●The front windshield is dirty, covered
in mist, or blocked by stickers or
decorations.
●In case the vehicle has been involved
in a collision or the sensor has been
reassembled, go to a BYD authorized
dealer or service provider for sensor
calibration so as to avoid affecting
system performance.
Lane Departure Assist (LDA)
Halaman 125
WARNING
●AFL serves as driver assistance
only, so the driver must be fully
responsible for driving safety.
●Influence of weather, road
conditions, and other factors may
cause AFL to fail.
●Use AFL based on your needs,
traffic, and road conditions.
Lane Departure Assist
(LDA)
Lane Departure Warning (LDW)
Lane departure warning (LDW) detects
the lane lines ahead through a multi-
purpose camera. When the vehicle speed
is 60 - 150 km/h and the driver
unintentionally drifts out of the lane,
the LDW system warns the driver by
steering wheel vibration, a sound, and an
instrument cluster prompt.
Lane Departure Prevention (LDP)
●Lane departure prevention (LDP)
identifies lane lines ahead through a
multi-purpose camera. If the driver
unknowingly departs from the lane at
a vehicle speed between 60 km/h and
150 km/h such that the vehicle is about
to roll over lane lines, the system,
when activated, slightly turns the
steering wheel by providing reverse
torque through the electronic power
steering (EPS) system to prevent lane
departure.
●If LDP is activated for over 5 seconds,
it gives visual and audible alarms at
the fifth second and continues until
this activation ends. Alarm mode:
audible alarm, visual alarm. If the
system is activated twice or more
within a continued 180-second cycle,
the system alarms immediately. For
the third activation (and any further
ones), alarms are extended by at least
12 seconds.
How to Use
●To enable or disable LDA, go to
infotainment touchscreen →
→
ADAS → Safety Assist.
●There are three LDW modes: audible
alarm only, steering wheel vibration
only, and combination.
●When LDW or LDP is enabled,
is
04
displayed on the instrument cluster.
●When activated, LDW gives alarms
(in the form of audible alarm, visual
alarm, and steering wheel vibration).
On the instrument cluster, virtual lane
lines on the side where the vehicle rolls
over turn red.
USING AND DRIVING
●When activated, LDP gives alarms (in
the form of audible and visual alarms)
and the virtual lane lines on the side
where the vehicle rolls over lane lines
turn blue.
●When LDA is disabled,
is
displayed.
●When LDA malfunctions,
is
displayed.
System Limitations
In a complex road traffic environment,
the LDA system may detect the lane line
incorrectly or fail to detect the lane line.
In the following cases, the system may
not work or its performance may be
significantly degraded:
●Poor visibility on snowy, rainy, or foggy
days
●Dirty or fogged front windshield, or
blocked multi-purpose camera
Lane Departure Assist (LDA)
Halaman 126
●Glaring from direct sunlight, reflection
in puddles, or oncoming vehicles
●Sudden changes in light, such as when
the vehicle is entering or exiting a
tunnel
●Lane lines obscured by tree shadows
on roads in direct sunlight on sunny
days
●Unidentifiable road boundary with
grass, soil, or curb
●The function may be suppressed
in narrow lanes to prevent the
interference of its frequent activation.
Precautions
●LDW will be suppressed if a turn signal
is used and the vehicle changes lane as
indicated by the turn signal.
●LDW may be suppressed if the vehicle
travels over lane lines, or lane lines
are unclear, too thin, worn, blurred or
covered by dirt/snow.
●LDW may be suppressed if the lane is
too wide or too narrow, the number
of lanes increases or decreases, lane
markings change suddenly on ramps
or exits, or in situations of complex line
arrangements.
●LDW may be suppressed on slopes or
winding roads when the vehicle travels
too close to the vehicle ahead or when
the vehicle ahead obscures lane lines.
●LDW may be suppressed when the
vehicle jolts, accelerates or decelerates
too quickly, or takes a sharp turn.
●The system operation may be affected
if the windshield within the visual
field of the multi-purpose camera is
cracked, if the front windshield glass
is dyed or coated in a manner that
is not compliant with standards, if
any reflective object is placed on the
dashboard, or if any other object
interferes with camera sight.
●For safety reasons, do not test LDW
function on your own. The function
will be interrupted if the multi-purpose
camera is blocked by any object
or exposed to strong lights. The
function recovers once conditions
return to normal. If it does not, it
is recommended to contact a BYD
authorized dealer or service provider.
●Disabling LDW is recommended under
any of the following circumstances:
●Driving in a sporty style
●Severe weather conditions
●On uneven roads
●Situations where lane lines may not be
identified include, but are not limited
to:
●Unclear lane lines
●Incomplete lane lines
●Situations that may cause recognition
difficulty or late function activation of
the multi-purpose camera include, but
are not limited to:
●The multi-purpose camera comes off,
is loosely installed, or is blocked.
●The vehicle is running under extreme
weather, such as rain, snow, or smog.
●The multi-purpose camera is partially
or completely blocked.
WARNING
●LDA serves as driver assistance
only, so the driver must be fully
responsible for driving safety.
●Influence of weather, road
conditions, and other factors may
cause LDA to fail.
●Use LDA based on your needs,
traffic, and road conditions.
Emergency Lane Keeping Assist (ELKA)
Halaman 127
Emergency Lane Keeping
Assist (ELKA)
The emergency lane keeping assist
(ELKA) system identifies lane lines ahead
through a multi-purpose camera and
identifies vehicles approaching from
behind on the adjacent lanes through
rear corner mmWave radars. It comes
to work within the 50 km/h-150 km/h
vehicle speed range when the vehicle
drifts out of solid lane lines, is about
to cross a road edge, or has a risk
of colliding with oncoming vehicles or
vehicles that are passing it on adjacent
lines. The system activates EPS system
to provide reverse torque, keeping the
vehicle in the current lane.
How to Use
●To enable or disable ELKA, go to
infotainment touchscreen →
→
ADAS → Driving Assist.
●When ELKA is active,
flashes on the
instrument cluster.
●When ELKA malfunctions,
is
displayed.
●When ELKA is disabled,
is
displayed.
System Limitations
●ELKA may detect incorrect or no
lane lines in complex traffic. The
following situations may lead to failure
or performance degradation of the
system:
●Poor visibility on snowy, rainy, or
foggy days
●Dirty or fogged front windshield, or
blocked multi-purpose camera
●Glaring from direct sunlight,
reflection in puddles, or oncoming
vehicles
●Sudden changes in light, such as
when the vehicle is entering or
exiting a tunnel
●Lane lines obscured by tree shadows
on roads in direct sunlight on sunny
days
●Unidentifiable road boundary with
grass, soil, or curb
●The function may be suppressed
in narrow lanes to prevent
the interference of its frequent
activation.
Precautions
04
●Situations where lane lines may not be
identified include, but are not limited
to:
USING AND DRIVING
●Pedestrians, animals, and specialty
or specially-shaped vehicles
●Unclear or incomplete lane lines
●Situations that may result in detection
failure of the multi-purpose camera or
late alarms include, but are not limited
to:
●The multi-purpose camera comes off,
is loosely installed, or is blocked.
●The vehicle is running under extreme
weather, such as rain, snow, or smog.
●The multi-purpose camera is partially
or completely blocked.
●Situations that may result in detection
failure of mmWave radars or late
alarms include, but are not limited to:
●MmWave radar(s) come off, are
loosely installed, or are blocked.
●The vehicle is running under extreme
weather, such as rain, snow, or smog.
●The vehicle encounters certain metal
guardrails or similar road conditions.
Blind Spot Assist (BSA)
Halaman 128
●ELKA serves as driver assistance only,
so the driver must be fully responsible
for driving safety.
●Influence of weather, road conditions,
and other factors may cause ELKA to
fail.
●Use ELKA based on your needs, traffic,
and road conditions.
Blind Spot Assist (BSA)
●Blind spot assist (BSA) includes blind
spot detection (BSD), rear cross traffic
alert (RCTA), rear cross traffic braking
(RCTB), rear collision warning (RCW)*,
and door open warning (DOW)*.
It detects the environment behind
the vehicle through corner mmWave
radars installed on both sides of the
rear bumper so as to remind the driver
of safe driving.
Blind spot detection (BSD)*
At vehicle speeds between 15-150 km/h,
if a rear corner mmWave radar detects
a vehicle in blind spots on an adjacent
lane or a vehicle approaching quickly on
the adjacent lane, the indicator on the
corresponding side mirror lights up. If the
turn signal for the same side is turned on
at this moment, the alarm indicator on
the side mirror flashes to alert the driver
of a risky lane change.
Rear cross traffic alert (RCTA)
When the vehicle is reversing at a speed
no more than 15 km/h, RCTA detects the
vehicles traveling in the blind spot at
the back through rear corner mmWave
radars. If the system determines that a
vehicle approaching from behind poses a
risk of collision, the side mirror warning
indicators flash and an audible alarm is
given to alert the driver, reducing the
possibility of collision.
Rear cross traffic braking (RCTB)
When the vehicle is reversing at a speed
no more than 9 km/h, RCTA detects the
vehicles traveling in the blind spot at
the back through rear corner mmWave
radars. If the system determines that a
vehicle approaching from behind poses
a risk of collision, it performs emergency
braking automatically.
Rear collision warning (RCW)*
At vehicle speeds between 5 km/h and
146 km/h, if the rear corner mmWave
radar detects a risk of collision with a
vehicle approaching quickly from behind
on the current lane, the hazard warning
light turns on to warn the driver in that
vehicle against a possible collision.
Door open warning (DOW)*
DOW is realized with rear corner mmWave
radars installed on both sides of the rear
bumper. When the vehicle is stationary
with doors unlocked, the system keeps
indicators on side mirrors solid on to
warn the driver if moving objects, such as
bicycles or automobiles, on an adjacent
lane are approaching from behind. At the
same time, an icon is displayed on the
instrument cluster. If the driver attempts
to open the door at this time, indicators
on side mirrors begin to flash and a chime
sounds.
How to Use
●To enable or disable BSD, RCTA, RCTB,
RCW, or DOW, go to infotainment
Blind Spot Assist (BSA)
Halaman 129
→ ADAS → Safety
Assist. You can also enable or disable
BSD by pressing the corresponding
button. When the vehicle is started, the
system defaults to previous settings.
touchscreen →
●When the blind spot assist system is
disabled, no relevant indicators are
displayed on the instrument cluster.
●When the blind spot assist system
is standing by, if vehicle conditions,
such as speed or gear status, do not
meet the requirements of any function,
is displayed on the instrument
cluster and blind spot assist will not be
activated.
●If the blind spot assist system
malfunctions,
is displayed.
●When the blind spot assist system is
active,
is displayed, meaning that
the function has been activated and
can trigger alarms at any time.
Precautions
●While BSD provides assistance in
monitoring blind spots of rearview
mirrors, it cannot replace the driver's
observation and judgment. The driver
must keep control of vehicle at all
times and drive properly and is fully
responsible for the vehicle.
●BSD may be unable to provide
adequate warning on target vehicles
approaching from behind at a high
speed.
●The driver must ensure the normal
operation of BSD, keeping its rear
corner mmWave radars in good
condition. For example, dirt, snow, or
other obstructions need to be cleared
right away.
●BSD gives a warning if unrelated
targets at the rear side or in the
rear (such as work zone barriers,
large roadside billboards, reflectors in
tunnels, or other objects with a large
radar cross section) are mistakenly
selected as target vehicles.
●Detection may be affected or delayed
in some environments. If the radar
cross section of the target vehicle is
too small (a bicycle, electric moped or
pedestrian, for example), the system
may fail to identify targets, leading
to false alarms. In addition, detection
may also be affected or delayed by
noise or electromagnetic interference.
04
USING AND DRIVING
System Limitations
●Under some circumstances, it is
difficult for the system to assist the
driver, and detection may be affected
or delayed. Possible circumstances
include, but are not limited to:
●The vehicle coming from behind
changes the lane suddenly.
●Vehicles coming from behind are
detected too late at sharp turns,
slopes, or other settings.
●The target vehicle is obscured.
●Vehicles come from behind at a
relative speed above 80 km/h.
●The vehicle is on a curve which is
too sharp, or is entering or exiting a
curve.
●The vehicle is running under severe
weather, such as rain or snow.
Head-up Display (HUD)*
Halaman 130
●Rear corner mmWave radar(s) come
off, are loosely installed, or are
blocked.
●The vehicle encounters certain metal
guardrails or similar road conditions.
●Targets that may not be responded
include, but are not limited to,
pedestrians and animals.
●The environment contains
electromagnetic interference or
other influences.
●Vibration or collision influence on
sensor calibration of BSD's rear corner
mmWave radars can degrade system
performance. If this is detected,
contact a BYD authorized dealer or
service provider.
WARNING
●BSA serves as driver assistance
only, so the driver must be fully
responsible for driving safety.
●Influence of weather, road
conditions, and other factors may
cause BSA to fail.
●Use BSA based on your needs,
traffic, and road conditions.
Head-up Display (HUD)*
Head-up Display (HUD): HUD projects
important information, including vehicle
speed, speed limit, ACC, lane departure,
and BSD, into the driver's field of view on
the front windshield. It improves driving
safety by preventing the driver from
frequently changing the focus of eyes.
How to Use
●To enable or disable HUD, go to
infotainment touchscreen →
→
Vehicle → HUD.
●By factory default, HUD is on and the
image is displayed. When it is disabled,
no HUD image is displayed. The system
defaults to the previous settings when
the vehicle starts.
●Height adjusting: adjust the height
of HUD virtual image in between
-10 and 10. A total of 21 values are
available, and the default value is 0.
●Brightness adjusting: adjust the
brightness of HUD virtual image in
between 0 and 10. A total of 11 values
are available, and the default value is
5.
●Angle adjusting: adjust the angle of
HUD virtual image. A total of 11
values are available, and the default
value is 0°.
●Mode setting: select Classic (default
setting) or Snow mode according to
the environment of the vehicle.
●Settings optional for display: safe
driving assistance or navigation. They
are enabled by default. Tap the
button to select the setting for HUD
display. Tap the button again to
deselect and close the item.
CAUTION
●Make sure that the head-up
display is unobstructed.
●Wipe the dust on the HUD dust-
proof board with a soft cotton
cloth or paper towel.
Direct Tire Pressure Monitoring
Halaman 131
CAUTION
●Make sure no water or other liquid
flow into the opening of the head-
up display.
Direct Tire Pressure
Monitoring
●The direct tire pressure monitoring
system (TPMS) is an auxiliary system
that monitors tire pressure in real time
to improve vehicle safety and comfort
and reduce tire wear and energy
consumption due to insufficient tire
pressure.
●You can access the instrument cluster
menu by pressing the
button on the
steering wheel, navigate to the driving
information bar by pressing the
and
buttons, and then select the
tire pressure display screen using the
scroll button.
Tire pressure system alarm
●When the pressure of any tire is lower
than 80% of the standard tire pressure
(taking temperature into account) and
the system is running, the tire pressure
fault warning light lights up and the
tire pressure value turns yellow, it is
recommended to check for slow air
leakage and inflate the tire to the
correct pressure value.
●When the temperature of any tire
is above 85°C for three consecutive
minutes, the tire pressure system
gives a high temperature alarm,
and the temperature value of the
corresponding tire turns yellow, it
is recommended to stop the vehicle
and wait for the tire temperature to
decrease before further driving.
●When the system is running, if a fault
occurs, the tire pressure fault warning
light is solid on after flashing, and
the message "No Signal" or "Please
check TPMS" is displayed on the
instrument cluster. In that case, check
the tire pressure monitoring module,
and check for any surrounding
electromagnetic source nearby. If the
alarm persists for a long time, contact
a BYD authorized dealer or service
provider.
WARNING
●The system does not stop vehicle
traveling in the event of abnormal
tire pressure. Therefore, each time
before driving, check whether
the tire pressure meets the
requirements specified by the
manufacturer. If not, do not
drive, otherwise vehicle damage
or personal injuries can occur.
04
USING AND DRIVING
●If pressure is found to be
abnormal while driving, check
the tire pressure immediately. If
the low pressure warning light
comes on, avoid sharp turns or
emergency braking, and reduce
vehicle speed, pull it over to the
curb and stop as soon as possible.
Driving with low tire pressure can
cause permanent damage to tires
and increase the likelihood of tire
scrapping. Serious tire damage
can lead to traffic accidents,
resulting in serious injuries or
deaths.
CAUTION
●The running time of the tire
pressure monitoring module is
related to the daily travel distance
and other factors.
●The monitoring module regularly
transmits tire pressure and
other information to the display.
Acoustic Vehicle Alerting System (AVAS)
Halaman 132
CAUTION
Therefore, if the tire pressure
drops suddenly or there is a flat
tire, the monitoring module will
not transmit data to the display
until the next monitoring. In this
case, the vehicle may be out
of control. If there is a flat tire
and monitoring fails to inform,
or if you feel that there are
some tire problems, stop driving
immediately instead of waiting for
the display to signal an alarm.
●Incorrectly installed monitoring
module affects the air tightness of
the tire. It is recommended that
the installation and replacement
of the pressure monitoring
module be carried out by
professional technicians of a
BYD authorized dealer or service
provider in accordance with the
requirements of the installation
manual.
●Since tire pressure varies with
regional temperatures, inflate
or deflate the tires according
to the values displayed on
the instrument cluster and the
standard tire pressure values.
●The tire pressure monitoring
system may be disturbed by
non-BYD approved electrical
accessories on the vehicle. This is
not a tire pressure system failure.
●The tire pressure system needs
to be matched again after
replacement of wheel rims or
spare tires* or tire rotations. Go
to a BYD authorized dealer or
service provider to re-match the
tire pressure.
Acoustic Vehicle Alerting
System (AVAS)
●Acoustic vehicle alerting system (AVAS)
refers to the alert sound to pedestrians
near the vehicle when it is moving at a
low speed.
●When driving forward:
●The sound volume increases with
vehicle speed increase in the range of
0 km/h to 20 km/h.
●The sound volume decreases with
vehicle speed increase in the range of
20 km/h to 30 km/h.
●At speeds above 30 km/h, the sound
stops.
●The vehicle makes a continuous and
balanced sound when reversing.
How to Use
●To turn on or off the engine sound
simulator*, slide down from the
top of the infotainment touchscreen
to access the shortcut screen (not
supported in some regions).
WARNING
●The AVAS pause switch can only
be used if there are no other
road users within a short distance,
and no audio prompt is needed
considering the surroundings (for
Automatic Vehicle Monitoring (AVM)
Halaman 133
WARNING
example, in a traffic jam or on the
motorway). As long as pedestrians
may appear around the vehicle,
the AVAS needs to be turned on.
●If the vehicle is running at low
speed with AVAS turned off, it
is unable to alert pedestrians to
the approaching vehicle, which
may cause car accidents and even
casualties in severe cases.
●If the AVAS sound cannot be heard
when driving at a low speed, stop
the vehicle in a relatively safe and
quiet place, open the window, and
then drive at a constant speed
of 20 km/h in Drive and check
whether the sound can be heard.
If it is confirmed that there is
no sound, it is recommended to
contact a BYD authorized dealer
or service provider to deal with it.
Automatic Vehicle
Monitoring (AVM)
●With the ignition switched on, tap
Vehicle View on the infotainment
system homepage or press the
button on the steering wheel to access
AVM.
●Shift into Reverse and the AVM screen
is automatically displayed.
●On the bottom of the infotainment
touchscreen, tap the icon for the front,
rear, right, or left view. View of the
selected area is displayed in the image
section.
●In the single front and rear views,
double-tap the image section to switch
to a 180° perspective displayed in full
screen.
04
USING AND DRIVING
●Tap
to enable or disable the
radar. When the radar is enabled, a
warning is displayed as the vehicle is
approaching an obstacle.
●Tap the vehicle image or the switching
button
to switch between
transparent and nontransparent
vehicle images.
●After the vehicle starts, the
transparent vehicle image displays
the default view. It updates after
the vehicle moves and displays a
complete view under the vehicle
when it is driven beyond its length.
●Tap the 3D view button
to switch
to a 2D view, and tap again to return to
the 3D view.
WARNING
●The panoramic view system
provides transparent panoramic
view to show the image below the
vehicle. This function is only for
assisting in observation of area
below the vehicle during parking/
driving. Investigation of foreign
Parking Assist System
Halaman 134
WARNING
objects below the vehicle and
dangerous situations should be
carried out in any other manner
to ensure the safety of personnel
and the vehicle.
●When the vehicle runs at a low
speed, the transparent panoramic
view function is affected by speed
fluctuation or multiple stops,
so there will be misalignment
between the images below the
vehicle and that outside the
vehicle.
●The panoramic view system is
only to be used for parking/
driving assistance. It is not safe
to rely solely on this system to
park or drive the vehicle, because
there are some blind spots in
front of and behind the vehicle.
The surroundings of the vehicle
should be observed in other
ways during the parking/driving
process, so as to avoid accidents.
●This system uses wide-angle
fisheye cameras, so the object
on the display screen may
appear somewhat deformed in
comparison with the actual
object.
●When the side mirrors are not
extended in place, do not use
the panoramic view system; and
when the panoramic view system
is used for parking/driving, ensure
that all doors are closed.
●The distance to an object
displayed on the panoramic view
screen may be different from the
distance perceived subjectively,
especially when the object is
closer to the vehicle. Assess the
distance in various ways.
WARNING
●Cameras are installed above the
front grille, side mirrors, and the
rear license plate. Make sure the
cameras are unobstructed.
●To prevent affecting camera
performance, avoid spraying
directly on the cameras when
washing the vehicle body with
high-pressure water. Wipe any
water or dust off the camera in
time.
●Protect the cameras from any
impact to prevent damage or
malfunction.
●After the vehicle is powered on,
if you press the panoramic view
button or shift into Reverse while
the infotainment system is not
fully activated, the output on the
panoramic view screen will be
delayed or the screen will flash.
This is a normal part of the
camera power-on process.
●When one or more cameras in
the system are not working, the
corresponding views go black.
●When no camera is available,
a "No video signal detected"
message is displayed.
Parking Assist System
●During parking, the parking assist
system detects obstacles using sensors
and alerts the driver to their proximity
via an image on the infotainment
touchscreen and an audible alarm.
●This system aids in reversing,
but always remain aware of the
surroundings behind and around the
vehicle during reversing.
Sensor type
Halaman 135
●When you shift into Reverse,
the infotainment touchscreen will
automatically display a reversing
image.
●Once reversing is complete, the screen
will return to its previous screen.
WARNING
●When the vehicle speed is over 10
km/h, the parking assist system
will cease to operate.
●Do not place any objects within
the sensors' working range.
●To prevent sensor malfunction, do
not wash the sensor with water or
steam.
●When no camera is available,
a "No video signal detected"
message is displayed.
REMINDER
●The safety lines for reversing
provide distance reference only
when the vehicle is unloaded.
●For your driving safety, when the
reversing image is displayed, all
buttons will be disabled except
some volume and calls-related
buttons.
Parking Radar Switch
●To enable or disable the parking radar,
go to infotainment touchscreen →
→ ADAS → Parking Assistance
●When the ignition is switched on,
the parking assist system is enabled
automatically.
●When the parking assist system is
enabled, the vehicle is not in Park,
and the EPB and AVH are released,
the obstacle detection mode of the
parking assist system is enabled. When
enabled, the system raises an alarm
if obstacles are found surrounding the
vehicle; when disabled, it does not.
04
USING AND DRIVING
Sensor Type
●When the sensor detects an obstacle,
an image is displayed on the
infotainment touchscreen according to
the location of the obstacle and its
distance from the vehicle.
●When the driver conducts parallel
parking or reverse parking, the
sensor measures the distance between
the vehicle and the obstacle
and communicates this information
through the infotainment touchscreen
and the speaker. Be aware of the
surroundings when using this system.
① Front right sensor
② Front left corner sensor
③ Rear right corner sensor
④ Rear left and right middle sensors
⑤ Rear left corner sensor
Working Sensors and Detection Range
Halaman 136
Approximate Distance
Touchscreen Display
Example
Alarm
About 700 to 1,200 mm
About 400 to 700 mm
About 200 to 400 mm
Working example of corner sensors
Approximate Distance
Touchscreen Display
Example
Alarm
About 400 to 600 mm
About 200 to 400 mm
CAUTION
●The system has a blind spot
range of 0–200 mm with reduced
detection accuracy and less
precise alerts. Alerts within 0–200
mm are for reference only.
Distance Display Alarm
When the sensor detects an obstacle,
the location of the obstacle and its
approximate distance from the vehicle
are displayed on the infotainment
touchscreen, and the speaker beeps.
Working example of center sensors
Slow
Fast
Continuous
Fast
Continuous
Working Sensors and Detection Range
●All sensors are activated upon
reversing.
●The illustration shows the sensors'
detection range. Sensors have a range
limitation, so drivers must check the
Working Sensors and Detection Range
Halaman 137
surroundings before slowly reversing
the vehicle.
REMINDER
●The parking assist system is
only for assistance, and is not a
substitute for personal judgment.
Be sure to operate the vehicle
based on your observations.
●Sensors will not work properly
if accessories or other objects
are placed within their detection
range.
●In some cases, the system cannot
operate properly and will fail
to detect certain objects as
the vehicle approaches them.
Therefore, be sure to observe
the vehicle's surroundings at all
times. Do not rely solely upon the
system.
●Failure of the reversing radar
system
is indicated by
a message on the instrument
cluster and a beep, contact a
BYD authorized dealer or service
provider for inspection as soon as
possible in the event of the error
message.
Sensor detection information
●Certain vehicle conditions and
surroundings may affect the sensors'
ability to accurately detect obstacles.
Detection accuracy may be affected if:
●There is dirt, water or fog on the
sensor.
●There is snow or frost on the sensor.
●The sensor is masked in any way.
●The vehicle leans significantly to one
side or is overloaded.
●The vehicle is moving on particularly
bumpy roads, slopes, gravel or grass.
●The sensor has been repainted.
●The vicinity is noisy due to honking
of vehicles, motorcycle engines,
air brakes of large vehicles, or
other noises that produce ultrasonic
waves.
04
●There's another vehicle with parking
assist system nearby.
USING AND DRIVING
●The vehicle is fitted with a tow eye.
●The bumper or the sensor was hit
hard.
●The vehicle is approaching a high or
zigzag curb.
●The vehicle is driving in the sun or in
the cold.
●The vehicle is fitted with non-original
suspension that is lower than the
original one.
●Except as described above, sensors
may not be able to correctly determine
the actual distance due to the shape of
the object.
●The shape and material of obstacles
may prevent sensors from detecting
them, especially the following:
●Electric wires, fences, and ropes
●Cotton, snow, and other materials
that absorb radio waves
●Any object with sharp edges and
corners
●Low obstacles
Intelligent Power Braking System
Halaman 138
●High obstacles facing outwards
towards the vehicle
●Any object under the bumper
●Any object close to the vehicle
●Persons near the vehicle (depending
on the type of clothing)
●If an image is displayed on the
infotainment touchscreen or there is a
beep, it may be that the sensor detects
an obstacle or is interfered. If the issue
persists, go to a BYD authorized dealer
or service provider for inspection.
CAUTION
●To prevent sensor malfunction, do
not wash the sensor area with
water or steam.
Driving Safety Systems
For better driving safety, the
following driving safety systems
works automatically based on driving
conditions. However, these systems only
provide assistance, and excessive reliance
on them is not recommended.
Intelligent Power Braking System
●The intelligent power braking
system is an advanced decoupled
electro-hydraulic braking system,
incorporating vacuum booster,
electronic vacuum pump, and ABS/ESC
functionality.
●The system assists vehicle braking
according to the driver's demands.
It offers advanced control functions
such as ABS, electronic brake force
distribution (EBD), traction control
system (TCS), vehicle dynamic control
(VDC), comfort parking (CST), hill-
start hold control (HHC), hydraulic
brake assist (HBA), and controlled
deceleration for parking brake (CDP) to
improve vehicle stability and comfort,
and the recovery efficiency of brake
energy.
Vehicle dynamics control (VDC)
When the vehicle turns suddenly while
running, the VDC system determines
the driver's intention based on such
information as steering wheel's angle
and vehicle speed, and continuously
compares with the actual condition. If
the vehicle swerves from the normal
lane, the VDC corrects the situation by
engaging brakes to the corresponding
wheels to help the driver control skidding
and maintain directional stability.
Traction control system (TCS)
TCS prevents the drive wheels from
skidding during acceleration by reducing
the motor power, and, when necessary,
applies braking forces to prevent drive
wheels from spinning. It makes it easy for
the vehicle to start, accelerate, and climb
under adverse driving conditions.
WARNING
●TCS may not work effectively in
the following situations:
●On slippery roads, even if TCS is
working properly, it may not be
able to control the direction and
meet power requirements.
●Do not drive in conditions where
the vehicle may lose its stability
and power.
Hill hold control (HHC)
After the brake pedal is released, HHC
maintains brake pressure for one second
to prevent backward sliding.
Hydraulic brake assist (HBA)
When you press the brake pedal quickly,
HBA detects that the vehicle is in
Intelligent Power Braking System
Halaman 139
emergency condition. It quickly increases
the brake pressure to the maximum so
that ABS can intervene more quickly and
shorten the braking distance effectively.
Controlled deceleration for parking
brake (CDP)
When press and hold the "P" button
during driving, CDP starts working so
that the vehicle brakes at a constant
deceleration (0.4 g if EPB is engaged
but the brake pedal is not pressed, and
0.8 g if EPB is engaged and the brake
pedal is pressed) until the vehicle stops.
CDP stops working when the "P" button
released.
Intelligent power braking system has
the following new functions compared
with the original ESC system:
●Brake assist mode
●The brake assist mode is used
to adjust the brake pedal feel.
The relation curve between the
brake pedal depth and the vehicle
deceleration varies across different
modes for the driver to choose their
preferred pedal feel.
●To set the brake assist mode, go to
the infotainment touchscreen →
→ Vehicle → Intelligent Chassis→
Brake assist mode.
●Comfort parking (CST)
●Comfort parking: When the vehicle
decelerates to stop in a non-
emergency situation, intelligent
power braking system reduces the
stop-instant suspension pitch and
impact by controlling the brake
pressure of the four brakes, and
provides a smooth stop feeling.
●Enable or disable this function in
infotainment touchscreen →
→
Vehicle → Intelligent Chassis →
Comfort stop.
●After the function is triggered, the
braking distance may increase by 2-5
cm. Increase the distance from the
vehicle or obstacle ahead accordingly
before stopping your vehicle.
●Brake disc wiping
●Brake disc wiping function: When the
wiper switch is on or the rain sensor
detects rain, the integrated brake
control system applies a small brake
pressure to all four brakes so that
pads come into contact with discs
to remove the water film from the
discs. This shortens brake response
time and braking distance.
04
●As long as the system detects rain
or the wiper ON signal, the brake
discs are repeatedly wiped at certain
intervals to improve safety.
USING AND DRIVING
Electronic stability control (ESC)
instructions
●ESC working
●If there is a risk of skidding or
backsliding when the vehicle starts
on a slope, or if either drive wheel is
spinning, the ESC indicator flashes to
indicate that ESC system is working.
●Disabling ESC
●If the vehicle gets stuck in snow or
mud, ESC may reduce power output
from the motor to the wheels. In this
case, you may need to turn off the
system to get out of the jam.
●Turning off ESC
●To turn off the ESC system, go to
the infotainment touchscreen →
→ ADAS → Safety Assist. ESC also
checks its operating status in real
time. If ESC OFF switch is pressed
while ESC system is working, the
system will complete the active
intervention control rather than
executes the "shutdown" command
immediately. ESC is disabled only
Anti-lock Braking System (ABS)
Halaman 140
after the intervention control is
complete.
●Some ESC functions may be re-
enabled if you press the ESC OFF
switch again or the vehicle speed
exceeds the threshold (80 km/h). In
order to prevent ESC from being
turned off suddenly, ESC can be
activated again only when it is not in
a vehicle dynamic intervention state.
●Restarting ESC after the motor is
powered off
●When the ESC system is turned off,
restarting the motor automatically
restarts ESC system.
●ESC start and speed linkage
●Although already turned off, the ESC
system can start on its own if the
vehicle becomes extremely unstable
as the speed increases and exceeds
the threshold of 80 km/h.
●With ESC system activated
●If the ESC fault indicator
flashes,
drive with caution.
●With ESC system disabled
●Be careful when ESC is disabled,
and drive at speeds suitable for road
conditions. The ESC system ensures
vehicle stability and its driving force.
Never turn it off unless necessary.
●Replacing tires
●Make sure all tires are of the same
size, brand, tread pattern, and total
load. In addition, be sure to inflate
tires to the recommended pressure.
●Neither ABS nor ESC will work
properly if the vehicle is fitted with
different tires.
●For details on tire or wheel
replacement, it is recommended to
contact a BYD authorized dealer or
service provider.
●Tire and suspension handling
●The use of any defective tire or
modified suspension affects the
driving safety system and may cause
the system to fail.
Multi-collision braking (MCB)
●If an accident requires airbags
activation, the vehicle engages
automatic braking.
●Speed reduction, along with
intervention by additional driving
systems (ESC and ABS), assists the
vehicle to maintain stability and lane
position.
●Hazard and brake lights also light up
to alert oncoming traffic and prevent
further collisions.
●To support emergency service rescue
and vehicle recovery, brakes will
release and brake lights will go off after
the accident.
●The driver can interrupt the multi-
collision braking at any time by
accelerating or braking.
Anti-lock Braking System (ABS)
●The ABS hydraulic system has
two separate circuits, each running
diagonally through the vehicle (right
front wheel brake connected to the left
rear wheel brake). If one circuit fails,
two wheels can still be braked.
Anti-lock Braking System (ABS)
Halaman 141
●ABS helps maintain the steering
control by preventing the wheels
from locking or skidding when brake
is engaged suddenly or on slippery
roads.
●When the front tires skid, there is
no steering control, which means
that the vehicle still moves forward
even though the steering wheel is
turned. ABS helps prevent locking
and maintain steering control since
pulsating prompt brake is much faster
than human reaction.
●Never pulsate the brake pedal;
otherwise, ABS may malfunction.
While steering away from danger,
a firm and steady pressure should
always be maintained on the brake
pedal for the ABS to work.
●When the ABS is working, the brake
pedal will vibrate, which may produce
noise. This is normal because ABS is
pulsating the brake quickly.
Electronic brake force distribution
(EBD)
●The EBD is an auxiliary function of
ABS. Before ABS acts, if the skid rate
of rear wheel is high, ABS adjusts the
brake pressure of rear wheel for a
smoother and more ideal brake force
distribution.
WARNING
●ABS cannot work effectively under
the following conditions:
●Tires with inadequate grip are
used (for example, excessively
worn tires used on snow-
covered roads).
●The vehicle skids when driving
at a high speed on slippery
roads.
WARNING
●ABS is not designed to reduce the
braking distance of the vehicle.
Always keep a safe distance from
the vehicle ahead on:
●Driving on slippery, muddy,
sandy or snowy roads.
●Driving on roads with multiple
potholes or on uneven roads.
●Driving on bumpy roads.
CAUTION
04
●If the ABS fault warning light is
still on while the braking system
warning light is on, immediately
park the vehicle in a safe place.
It is recommended to contact a
BYD authorized dealer or service
provider. In this case, if brakes are
applied, the ABS will not work and
the vehicle will become extremely
unstable.
USING AND DRIVING
●ABS does not reduce the time
and distance required to stop the
vehicle. This device only helps you
control steering when braking.
Always keep a safe distance from
other vehicles.
●ABS cannot prevent skidding
caused by sudden direction
change, such as trying to make
a sharp turn or change lanes
suddenly. Always drive carefully at
a safe speed, regardless of road
and weather conditions.
●ABS does not prevent decrease
in stability either. When applying
the brake in an emergency, the
steering should be moderate. A
large or sharp turn during the
driving can cause the vehicle to
swerve into oncoming traffic or
run off the road.
Driver Monitoring Systems (DMS)*
Halaman 142
CAUTION
●When driving on wet or soft
or uneven roads (such as
waterlogged concrete roads,
waterlogged epoxy painted roads,
sandy roads, snowy roads),
vehicles equipped with ABS may
require longer braking distances
than vehicles without ABS. In such
cases, reduce the vehicle speed
and keep a greater distance from
other vehicles.
Intelligence Torque
Adaption Control (iTAC)
System*
●The intelligent torque adaption control
(iTAC) system employs a unique
control architecture and algorithm that
evaluates data including steering angle
and motor speed and thus identifies
the driver's driving needs and vehicle
status. It proactively adjusts the drive
torque of the front and rear axles in
real time so that the driving state of
the vehicle adapts to the driver's needs
with better performance in complex
road conditions.
●When the wheels show signs of
slipping, iTAC allocates the drive
torque rapidly to ensure the stability
of the vehicle torque, ensuring that
the vehicle remains responsive and
capable in diverse road conditions.
●Enable or disable this function in
infotainment touchscreen →
→
Energy → iTAC.
WARNING
●This function is not designed for
unbridled driving. Make sure the
WARNING
braking system works normally in
the following situations:
●Unbridled driving behaviors
such as drifting, and driving on
continuous bends.
●Muddy, sandy, or snowy roads.
●Roads with potholes or uneven
roads.
●Bumpy roads.
REMINDER
●When braking is detected, be it
through the driver pressing the
brake pedal or ESC coming into
action, iTAC exits for the priority of
braking.
Driver Monitoring
Systems (DMS)
Driver monitoring systems (DMS),
including fatigue and distraction
monitoring, is designed to monitor the
driver's driving status with a camera
and assess it. Based on the assessment,
the system alerts the driver in a timely
manner. The monitoring data will not
be saved or uploaded to the server but
instead will be deleted immediately after
the assessment is complete.
How to Use
●The camera for DMS is mounted on the
A-pillar of the driver side. Make sure
it is unobstructed before use, or DMS
may not function normally.
Driver Monitoring Systems (DMS)*
Halaman 143
●To enable or disable driver fatigue or
distraction warning (both enabled by
factory default), go to infotainment
touchscreen →
→ Vehicle → Cabin
Perception.
●When the system sounds a fatigue or
distraction warning, pressing the scroll
button on the steering wheel pauses
the warning for 15 minutes, during
which no warnings will be given.
Driver fatigue warning
●With the vehicle speed meeting the
system activation condition, driver
fatigue warning enabled and the
camera unobstructed, when the
system detects signs of fatigue, such
as closing eyes, blinking and yawning,
it alerts the driver through a visual
warning on the instrument cluster,
voice assistant, or an audible alarm.
Driver distraction warning
●With the vehicle speed meeting the
system activation condition, driver
distraction warning enabled and
the camera unobstructed, when the
system detects signs of distraction,
such as looking at side mirrors, it alerts
the driver promptly through a visual
warning on the instrument cluster,
voice assistant, or an audible alarm.
REMINDER
●Clean the DMS camera lens with a
clean and soft cloth and exercise
caution to prevent any damage to
the surface.
Precautions
●The driver monitoring system is
only an auxiliary system and is
not capable of effective recognition
and alarm-raising in all situations. It
cannot completely replace the driver's
subjective observation and judgment.
The driver must maintain control of the
vehicle at all times, complying with all
road laws and regulations, and taking
full responsibility for the vehicle.
04
USING AND DRIVING
●The proper functioning and accuracy
of the driver monitoring assistance can
be affected by a number of situations,
including but not limited to:
●Driver monitoring assistance is
disabled.
●The camera is directly exposed to
strong light.
●Part of the driver's face is exposed to
light or the complete facial features
are hard to recognize.
●The driver wears infrared-blocking
glasses or glasses with thick lenses.
●The driver wears a mask or
something that covers the face.
●The driver is not properly seated or
the driver's face is in the blind spot of
the camera.
Child Presence Detection (CPD)*
Halaman 144
WARNING
●The driver should pull over as
soon as possible when feeling
tired.
Child Presence Detection
(CPD)*
After the vehicle is powered off and the
driver's door is opened and then closed
or locked, child presence detection (CDP)
is performed to check if any child is left
inside the vehicle. If child presence is
detected, an alarm is given in the form
of light flashing and honking. The A/C will
be switched on soon after. To cancel the
alarm, unlock or open any door.
How to Use
●To access the CPD setting interface,
go to infotainment touchscreen
→ Vehicle → Cabin Perception.
Four options are provided: OFF, ON,
Standard, and Delay.
●By default, CPD is enabled with
standard alert mode each time when
the vehicle is powered on*.
●Tap Delay to extend the alarm for 5
minutes for this trip.
System Response
●When CPD enabled with standard alert
mode, if life presence is detected after
the vehicle is powered off and locked,
the initial alarm (light flashing and
honking) starts within 10 seconds and
will last for about 6 seconds.
●When CPD enabled with standard alert
mode, if life presence is detected
after the vehicle is powered off
but unlocked, the initial alarm (light
flashing and honking) starts within
5 minutes and will last for about 6
seconds.
●When CPD enabled with delay alert
mode, if life presence is detected after
the vehicle is powered off and the
doors are closed, the initial alarm
(light flashing and honking) starts
within 5 minutes and will last for about
6 seconds.
●If the alarm is not canceled, the alarm
will be upgraded in 90 seconds (light
flashing and honking) and will last for
25 minutes.
●The A/C will be switched on three
minutes after alarm escalation, and
will keep running for about 30 minutes.
●To cancel the alarm, tap the button on
the infotainment touchscreen, unlock
the vehicle, or open any door.
●You will receive messages in the BYD
app and email of every initial alarm,
alarm escalation and other system
responses.
WARNING
●While light flashing, honking, app
message prompts, email message,
and A/C operation reduce the
harm to the child(ren) in the
vehicle, they cannot completely
prevent harms.
●When a reminder is provided,
check whether any child has been
locked inside the vehicle promptly
to avoid further harms.
●CPD is only an auxiliary system
and is not capable of effective
recognition and alarm-raising in
all situations. The user must
remain alert at all times and fully
responsible for the lives in the
vehicle.
Power Side Mirrors
Halaman 145
CAUTION
●The system may misidentify
adults, pets, or other lives as
children and give false alarm.
●The alarm cannot be canceled by
unlocking the vehicle from the
app.
●The system may not be able
to trigger an alarm or switch
on the A/C if the SOC is low.
Keeping the vehicle at high SOC is
recommended.
Other Main
Functions
Automatic Anti-glare
Interior Rearview Mirror
●The interior rearview mirror is
equipped with electronic anti-glare
function, which automatically adjusts
the color of the mirror according
to the surroundings to reduce the
interference of rear glare on the
driver's field of view.
●Move the interior rearview mirror up,
down, left, or right to a suitable
position.
WARNING
●Adjust the interior rearview mirror
before driving. Do not adjust the
rearview mirror while driving. This
may distract your attention and
cause accidents.
●Do not hang heavy objects from
the interior rearview mirror, or
shake or drag it with force.
●When manually adjusting the
interior rearview mirror, do not
forcibly adjust the stuck mirror, to
prevent the mirror from falling off.
04
Power Side Mirrors
USING AND DRIVING
Use the associated switches to adjust
the side mirrors to see the sides of the
vehicle.
●Side mirror adjustment buttons:
selects the side mirror to be adjusted.
: Selects the left side mirror
●
: Selects the right side mirror
●
●Side mirror adjustment buttons
:
adjusts the side mirrors to a proper
position.
WARNING
●Adjust the side mirrors before
driving. Do not adjust the side
Replacing Wiper Blades
Halaman 146
WARNING
mirrors while driving. This may
distract your attention and cause
accidents.
REMINDER
●The power side mirrors have
reverse tilt function. The mirrors
can automatically tilt down to a
comfortable angle in reverse.
●Do not operate the controller
or scrape the surfaces of frozen
side mirrors. Use de-icer spray to
remove the ice.
Folding Side Mirrors
Folding side mirrors manually
●Push the outer edge of a side mirror to
rotate it around the folding axis to the
locked position.
Folding side mirrors with power
●Press the
button to fold the side
mirrors with power. Press the button
again to unfold the mirrors.
●Both side mirrors fold automatically
when the anti-theft alarm system is
armed, and extend automatically when
disarmed.
●To enable or disable side mirror
auto fold and auto tilt while
reversing functions, go to infotainment
touchscreen →
→ Vehicle →
Comfortable Use.
Wipers
Inspect wiper blades for cracks or partial
hardening at least every six months. If
they are noted, replace wiper blades.
Otherwise, the windshield will streak or
will be left unclean after wiping.
CAUTION
●Do not open the hood when the
wiper arms are pulled up, as this
may damage the hood and wiper
arms.
Replacing Wiper Blades
With the ignition on, enable
wiper maintenance in infotainment
touchscreen →
→ Service →
Overhaul. When this function is enabled,
the wipers rotate to the top for easy
maintenance and replacement. After
maintenance is complete, you can disable
the function to return the wipers to the
initial position.
1. Pull up the wiper arm at the driver's
side, and then pull up the other at the
passenger's side.
Replacing Wiper Blades
Halaman 147
2. Press the wiper lock button.
3. Hold the wiper blade and pull it out
along the indicated direction.
4. When installing a new wiper blade,
follow the reverse procedure.
CAUTION
●Do not open the hood when the
wiper arms are pulled up, as this
may damage the hood and wiper
arms.
●Lower the wiper blades slowly
and avoid direct impact onto the
windshield.
●Do not bend the wiper blade, and
do not obstruct the wiper blade
when the wiper is in operation.
04
USING AND DRIVING
Replacing Wiper Blades
Halaman 148
148
In-Vehicle Devices
Halaman 149
# 05 IN-VEHICLE DEVICES
* Infotainment System ............................................................. 150
* A/C System ............................................................................ 155
* BYD App ................................................................................ 161
* Storage .................................................................................. 162
* Other Devices ........................................................................ 164
Infotainment Touchscreen
Halaman 150
Infotainment
System
Infotainment Touchscreen
When the ignition is on, the initial
screen is displayed for several seconds
and the infotainment system starts to
work. To better experience infotainment
functions, such as apps and Internet calls,
the system must be used after network
connection.
①Infotainment touchscreen
②Scroll button
●Scroll the button up to turn volume up
or down to turn volume down. Volume
ranges from 0 to 39. A mute icon is
displayed when volume is 0.
●With the infotainment system on,
press the scroll button to mute the
sound and enter the screen saver
interface or turn off the screen (set the
screen saver through the infotainment
touchscreen →
→ System →
Display). Press the scroll button again
to turn off the mute and turn on the
screen.
●Press and hold the scroll button
for three seconds to restart the
infotainment system.
Reset to factory settings
●This function factory resets the
infotainment system.
●During the process, do not touch any
infotainment button or turn off the
power supply, or errors may occur.
●The process takes two to five
minutes.
WARNING
●Do not use a high-power inverter
in the vehicle, as this may cause
infotainment system malfunction.
●Do not format or root the device,
as this may cause infotainment
system or vehicle malfunction.
●For driving safety, it is
recommended to use the
infotainment system in landscape
mode while driving.
CAUTION
●To prevent damage to the
touchscreen:
●Touch the screen gently. If there
is no response, remove fingers
from the screen, then touch it
again.
●Clean the screen with a soft
cloth. Do not use any cleaning
product.
●Using the touchscreen
●When the screen temperature is
low, the image displayed may be
darker or the system may work
slightly slower than normal.
●The screen may be dark or
difficult to see when you are
wearing sunglasses. In that case,
change the viewing angle or take
off the sunglasses.
OTA Update
Halaman 151
CAUTION
●Touchscreen buttons that are
grayed out cannot be operated.
●The touchscreen interface shown
here is for reference only.
Navigation Bar
: returns to the previous screen or
exits the program.
: returns to the homepage.
: goes to the setting screen.
: goes to the app list screen.
: splits screen if applications support.
: switches between the landscape
and portrait mode of the infotainment
touchscreen.
: goes to the A/C settings screen.
REMINDER
●The shortcut menu on your
vehicle may be different.
Gestures and Responses
Gestures and associated system
responses are:
●Tapping: opens applications, selects
functions, clicks icons on the
touchscreen, or types characters.
●Dragging: touching and dragging an
icon, thumbnail, or preview to the
target position to change its location.
●Swiping: operational on homepage
and app screens.
●Double-tapping: zooms in an image.
Double-tap again to return.
●Spreading/Pinching: zooms in or out
an image with two fingers.
●Swiping left/right with three fingers:
regulates A/C fan speed.
●Swiping up/down with three fingers:
regulates A/C temperature.
●Swiping down from the top of
the touchscreen: opens the shortcut
menu.
●Swiping up from the bottom of
the touchscreen: opens the task
management center.
●Sliding from the left/right of the
touchscreen: returns to the last screen.
05
OTA Update
IN-VEHICLE DEVICES
●The vehicle supports over-the-air
(OTA) update. You can update the
infotainment system by tapping
→
System → Version→ Vehicle Version
→ Upgrade.
●When available, new updates are
prompted on the infotainment
touchscreen. You can update it
immediately, schedule an update,
or update it by mobile phone (if
supported) based on your vehicle
usage.
CAUTION
●Do not move the vehicle during
the update.
●Before the update, ensure that
the vehicle is parked safely in
Park gear with a stable network
connection.
●Ensure the vehicle has a high SOC
before starting the update.
Speakers
Halaman 152
CAUTION
●Do not install any third-party
devices in the OBD port before or
during the update.
●Make sure the vehicle has enough
battery power before the update,
as it cannot be charged or
discharged during the process.
●During the update, vehicle
functions are not available except
the following : locking/unlocking
with smart key or microswitch,
interior lights, hazard warning
light, and window controls.
●If the update fails, try again. If the
retry fails, contact BYD customer
service or a BYD authorized dealer
or service provider for assistance.
BYD Assistant
BYD Assistant is an intelligent voice
assistant that responds to your
voice commands, such as requesting
navigation, playing music/radio, making
a phone call, and controlling in-vehicle
devices.
●Waking up BYD Assistant:
●On the steering wheel, press the
button.
●On the infotainment touchscreen, tap
.
●Say the wake-up word "Hi, BYD”.
●Your voice commands can be
recognized after system wake-up.
●Give any instructions.
●This may be "Go home" (shortcut
locations set), "Play music", "Make
a call" (contacts data and Bluetooth
connection required), "Set the
temperature to 23°C", or "Turn on
the seat ventilation for the driver".
BYD Assistant then performs the
recognized instruction.
Bluetooth
Bluetooth connection
1. On Bluetooth Call screen, tap Please
connect Bluetooth to establish
connection.
2. Tap Available devices to search.
3. Pair the available device, and make
sure the paring code displayed on your
phone is consistent with the code on
the touchscreen.
4. Set Bluetooth when connection is
complete.
Bluetooth call
Go to the dialing screen when Bluetooth
is connected.
●Tap Contacts, Call log, and Missed
calls, or use dial keypad to make a call.
●Slide the call card upwards or tap any
empty space to minimize the dialing
screen.
Speakers
●The vehicle is equipped with Dynaudio
and you can set Dynaudio sound field
focus, Dynaudio sound features and
volume adjusted with speed on the
infotainment touchscreen by tapping
→ Vehicle → Audio.
Dynaudio sound field focus
●This feature allows for selecting
sound field focus including the entire
cabin, the driver's seat, the front
passenger's seat, the rear seats, the
surrounding space, or a customized
Phone Projection
Halaman 153
area. The sound focus technology
crafts a balanced sound environment
for passengers.
Dynaudio sound features
●This feature offers five modes:
acoustic, dynamic, soft, speech, and
customize, catering to a range of
auditory preferences.
Volume adjusted with speed
●When the function is enabled, it
will adaptively adjust the sense of
hearing and reduce the impact of
environmental noises of road, tire,
wind and so on. It can be set between
0–7, where 0 means turning off and
1–7 are the setting levels. The higher
the value, the more the volume is
adjusted. The default set value is 4.
File Management
New folder
●Go to file management screen to
create new folders. You can enter the
folder name and tap OK or Cancel to
perform actions.
●Tap the top of the file management
screen to change file sources.
Search
●Tap Search on the upper left corner
and enter file names to search for
target files.
Cut/Copy
●Tap and hold any file, select target files
and operation (copy, move, or delete),
and then go to the edit status.
Rename
●Tap and hold any file, select Rename in
dialog displayed, rename the selected
file, and then tap OK.
Delete
●Tap and hold any file and then tap
Delete.
Sort
●Files are sorted by name by default.
You can also sort them by size, type, or
time.
Attributes
●Tap and hold any file and then tap
Details to check its attributes.
Phone Projection
Phone projection allows you to connect
a smartphone to the vehicle and
interact with certain mobile apps on the
infotainment touchscreen.
05
WARNING
IN-VEHICLE DEVICES
●Drive safely. Avoid any possible
distractions, or accidents could
result.
REMINDER
●Make sure the vehicle is in Park
with the infotainment system
turned on, and allow time to
set up the phone projection app
before you start your drive.
●The initial setup process must
be completed on the phone:
check prompts on the phone
for security information, accept
privacy policies, and grant
necessary permissions.
●The first time you connect
wirelessly, you will need to pair
your phone and the vehicle via
Bluetooth. For best results, keep
your phone's Bluetooth, Wi-Fi,
and Location Services turned on
while you complete the setup.
Phone Projection
Halaman 154
REMINDER
●Ensure your phone is in range of
your mobile data network and has
an active data plan.
●Availability of services whose
names or logos are shown varies
by country and language, and
subscriptions for services may be
required.
Apple CarPlay
●Connecting with a cable
●Plug an iPhone to a USB data transfer
port on the vehicle with a certified
USB cable. Apple CarPlay is then
connected.
●Connecting wirelessly
1. Go to infotainment touchscreen →
application screen, tap the Apple
CarPlay icon
, and pair your
iPhone to the vehicle as prompted.
2. After that, follow on-screen
instructions to connect Apple
CarPlay.
●Switching between Apple CarPlay and
in-vehicle infotainment system
●To exit Apple CarPlay user interface,
tap the BYD icon
on this interface,
or
or
in the shortcut bar.
●To access the Apple CarPlay user
interface, tap the Apple CarPlay icon
on the infotainment system's
application screen.
●For available regions of Apple CarPlay,
visit https://www.apple.com/ios/
feature-availability/#apple-carplay.
Android Auto
●Connecting with a cable
1. Plug a smartphone to a USB data
transfer port on the vehicle with a
certified USB cable.
2. Follow the on-screen instructions to
set up Android Auto.
●Connecting wirelessly
1. Go to infotainment touchscreen
→ application screen, tap the
Android Auto icon
, and pair
your smartphone to the vehicle as
prompted.
2. After that, follow on-screen
instructions to connect Android
Auto.
●Switching between Android Auto and
in-vehicle infotainment system
●To exit Android Auto user interface,
tap
on this interface, or
or
in the shortcut bar.
●To access Android Auto user
interface, tap the Android Auto icon
on the infotainment system's
application screen.
●To use Android Auto on the
infotainment touchscreen, you need
a compatible Android smartphone.
You can check the list of compatible
smartphones at g.co/androidauto/
requirements undefined.
REMINDER
●Android Auto is integrated into
phones with Android 10 and
above. You do not need to
download it.
●For wired or wireless connection,
your phone might ask you to
update Android Auto before you
continue.
Trademark statement
A/C Settings Interface
Halaman 155
●Apple CarPlay is a trademark of Apple
Inc.
●Android and Android Auto are
trademarks of Google LLC.
A/C System
A/C Buttons
① A/C auto mode
② A/C ON/OFF
③ Front windshield defroster
A/C Operation Interface
A/C Settings Interface
●To access the A/C setting interface,
go to infotainment touchscreen
→
Vehicle → A/C.
① A/C Auto Mode
●Two options are available: Economic
and Comfort.
② Remotely A/C Schedule
●Set the time for remote A/C running.
③ Automatic Purification
●Enable or disable auto purification.
④ Auto Internal Circulation upon Parking
05
●Enable or disable auto internal
recirculation upon parking.
IN-VEHICLE DEVICES
⑤ Auto Fan Speed Reduction during
Bluetooth Calls
●Enable or disable auto fan speed
reduction during Bluetooth calls.
A/C Operation Interface
Halaman 156
A/C Operation Interface
1
A/C operation interface
2
Ventilation/Heating
3
Air purification
4
A/C setting
5
A/C ON/OFF
6
Auto mode
7
A/C button
8
Max cooling
9
Front windshield defroster
REMINDER
●A/C odor:
●It is normal that there may be
a damp and moldy smell just
after the A/C is turned on. During
the operation of the automobile
A/C, A/C condensation often
remains in the evaporator, and
the wet evaporator can easily
absorb unfiltered body sweat,
10
Defroster for rear windshield and
side mirrors
11
Circulation mode
12
Ventilation
13
Driver's temperature control
14
Air distribution
15
Front passenger's temperature
control
16
DUAL
17
Fan speed control
REMINDER
smokes, etc., inside the vehicle.
Condensation not blown dry
makes the dark and damp
evaporator surface prone to
mold, which is very likely to
produce unpleasant odors by
long-term fermentation.
●How to prevent A/C odors:
Function Definition
Halaman 157
REMINDER
●Turn off the A/C and ventilate
with natural air before parking
to keep the air inside the vehicle
relatively dry.
●Inspect, clean, or replace the
filter regularly.
●Try to keep the cabin clean and
fresh.
●If the odor persists after odor
prevention methods are used, it
is recommended to contact a
BYD authorized dealer or service
provider for repair.
Function Definition
A/C ON/OFF
●Tap this button to disable the A/C if it is
ON.
●With the A/C turned off, tap to turn on
the A/C in the memorized modes, with
the last set temperature, fan speed and
air outlet mode.
Auto mode
●Tap the auto button, its indicator lights
up on the front A/C panel and the auto
mode is activated with the fan speed
and air distribution being adjusted
automatically.
●The vehicle exits auto control if fan
speed or air distribution is set, and
other functions remain in auto mode
except for those that have been
operated.
A/C button(cooling/heating)
●Tap this button to turn on the A/C
(cooling/heating), the icon lights up
and cooling or heating begins. Tap
this button again to turn off the A/C
compressor. The icon goes out and the
compressor stops working.
Max cooling
●Tap this button to switch the A/C to
the maximum cooling control mode.
The temperature is set to "Lo", the
fan speed is set to the maximum, the
recirculation mode is activated, and air
is directed to face level. Tap this button
again to enter AUTO mode.
Front windshield defroster
●Tap this button to enter the front
windshield defrost mode which
distributes air to the front windshield.
The corresponding indicator on the
front A/C panel lights up.
05
●Tap this button again to deactivate
and exit the front windshield defrost
mode. The corresponding indicator on
the front A/C panel turns off.
IN-VEHICLE DEVICES
Defroster for rear windshield and side
mirrors
●Tap this button, and the heating panel
of side mirrors will quickly clear the
mirrors. The function is automatically
deactivated after 15-minute inactivity
of the associated button.
●Tap this button again to disable the
function.
●This function is not to be used to dry
raindrops or melt snow.
WARNING
●Do not touch the side mirrors
when the defroster is activated,
because their surfaces will be hot.
CAUTION
●Using the side mirror electric
heating defrosting function for a
long time may cause the mirror
Function Definition
Halaman 158
CAUTION
to wear out faster. Turn off the
defrost button when it is not
needed.
Ventilation
●Tap this button to activate A/C
ventilation control. The outlet air is
natural air, and the fan speed is level
one by default without cooling or
heating function. Tap this button again
to exit.
Temperature controls
●Driver's temperature control
●In the individual mode: temperature
control for the driver.
●In the relative mode: temperature
control for the driver and front
passenger.
●To increase/decrease the
temperature, tap the upper/lower
arrow on the screen, or touch the
temperature display area and then
swipe downwards/upwards.
●Front passenger's temperature control
●In the individual mode: temperature
regulation for the front passenger.
●In the relative mode: after the
temperature is adjusted for the
front passenger, the A/C system
will automatically switch to the
individual mode.
●To increase/decrease the
temperature, tap the upper/lower
arrow on the screen, or touch the
temperature display area and then
swipe downwards/upwards.
●"Lo"/"Hi" is displayed when the
temperature is set to the lowest/
highest value.
Fan speed control
●Tap the suitable fan speed level button
to set the speed at a desired level.
A higher level indicates a higher fan
speed and airflow.
DUAL
●Tap this button to switch from
individual mode to relative mode.
●Individual mode: The temperature
of the driver's side and front
passenger's side can be set
separately. The button icon will be
lighted after the individual mode is
selected.
●Relative mode: Adjust the
temperature of the driver's side
and the front passenger's side at
the same time by the driver's side
temperature control. The button icon
is gray in the relative mode.
●When the front passenger's
temperature control is operated in
relative mode, the A/C system will
automatically switch to individual
mode.
Circulation mode
●Tap this button and then
is displayed, indicating that the
circulation mode is recirculation.
●Tap this button for the second time
and then
is displayed, indicating
that the circulation mode is fresh air
mode.
Air distribution
●Tap an icon of A/C system on the
infotainment touchscreen to select the
corresponding air distribution mode.
●You can turn on multiple air
distribution modes at a time (up to
three).
●Adjustments can be made according to
the air supply illustration.
Vents
Halaman 159
Blowing face
: Air flows to the face
level.
Blowing legs
: Air flows to the foot
level.
: Air flows to the front
windshield and side windows.
Defrost
Intelligent A/C ON Method
Remote activation with smart key
●Turn on the A/C using the
smart key from a short distance,
creating a comfortable vehicle interior
environment in advance.
Voice control
●Control the A/C settings by pressing
the voice button on the steering wheel
or by saying "Hi, BYD".
Bluetooth activation
●Turn on the A/C from a short
distance on the BYD app through
Bluetooth, creating a comfortable
interior environment in advance.
Cloud service activation
●Turn on the A/C remotely on the BYD
app through Cloud Service, creating
a comfortable interior environment in
advance.
Usage Precautions
●To quickly cool down the interior after
long exposure to sunlight, drive for a
few minutes with the windows open
to exhaust hot air and speed up A/C
cooling.
●Make sure that the air intake grille in
front of the windshield is not blocked
by, for example, leaves or snow.
●Avoid blowing cool air onto the
windshield in humid weather. The
inner and outer temperature difference
can cause glass fogging.
●Keep the space under the front seats
clear to improve air circulation.
●In cold weather, run the fan at high
speed for one minute to remove snow
or moisture from the intake passage
and reduce fogging.
05
●In dusty or windy driving conditions,
close all windows, If the dust raised by
other vehicles still enters the vehicle
even if all windows are closed, it is
recommended to set the air intake
mode as recirculation mode and set
the fan speed at any position other
than "0".
IN-VEHICLE DEVICES
●To speed up cooling, adjust the
temperature to "Lo" and use the
recirculation mode for a few minutes.
●Use recirculation mode for a few
minutes for quick heating in cold
weather, and switch to fresh air mode
to prevent fogging after the cabin is
heated up.
●In heating mode, press the compressor
control button to light up the button,
which can reduce airflow moisture.
●In the ventilation mode, the system
brings in natural ourside air, suitable
for use in spring and autumn.
Vents
●Toggle the slat up or down to adjust
the outlet angle of air flow.
Air Purification System
Halaman 160
●Slide the slat left or right to adjust the
outlet angle of air flow or open/close
the vent.
Front vents
Rear vents
Air Purification System
The air purification system purifies
airborne PM2.5 particles. When A/C
is turned on, the system thoroughly
removes PM2.5 particles from the air
blown into the cabin.
Air purification operation interface
① Air purification button
② PM2.5 detection
③ Quick purification
④ ION
PM2.5 detection
●Tap this button to detect interior
and exterior air quality. The detection
values and levels are displayed on the
infotainment touchscreen in real time.
Tap this button again to turn off PM2.5
detection.
Quick purification
●Tap this button to activate quick
purification and tap a second time to
disable it.
ION
●Tap this button to activate the anion
generator. Tap a second time to
deactivate it.
REMINDER
●The PM2.5 value detected by the
on-board air purification (PM2.5)
detector is the PM2.5 value in
the air near the vehicle carrying
the device in a short time, which
should be different from the
daily or real-time PM2.5 value
declared by national and relevant
government authorities.
●Reduce the frequency of PM2.5
detection in the following
environments:
●Sandstorms and other extremely
harsh environments.
●Cold regions (with ambient
temperature below -20°C).
Vehicle Condition and Control
Halaman 161
REMINDER
●High humidity environments
(relative humidity >90%).
●Temperature fluctuating
environments (prone to
condensation), such as driving
from cold environments to
warmer indoor areas or car
parks.
●Running maximum air flow speed
in recirculation mode can quickly
reduce the concentration of fine
particles in the air inside the
vehicle.
●In order to reduce odors from
the A/C, if the A/C is already
turned on, the A/C fans may
keep running for a while after
you power off and lock the
vehicle. The main purpose is to
blow dry the condensed water
on the surface of the evaporator
to prevent mold fermentation. It
is normal for the A/C fans to
automatically start running when
you lock the vehicle. No need to
worry about it.
BYD App
About BYD App
●BYD app is a mobile application of
Internet of Vehicle (IoV) independently
developed by BYD. It allows you to
control the vehicle remotely and check
vehicle conditions, delivering cloud era
experience of IoV.
●Search for "BYD" in Google Play or App
Store to download and install BYD app.
Account Registration
Once the app is installed, follow the on-
screen instructions or the steps below to
sign up and log in.
1. Open the app, and then tap Sign up to
go to the registration screen.
2. Enter email address registered in BYD
authorized dealer, tap Send email to
receive verification code, and then
enter the code in the app.
3. Set your password in password setting
screen to complete the registration,
and then the homepage is displayed.
CAUTION
05
●Provide the email address
registered at the BYD authorized
dealer, or registration will fail.
IN-VEHICLE DEVICES
●In the app, select a country or
region on upper right corner of
the screen. The default setting
depends on your phone setting.
If it is not where you make the
purchase, choose the right one,
otherwise your data will not be
accessible.
Vehicle Condition and
Control
The BYD app homepage provides
information and control items of the
vehicle.
1. The homepage shows remaining
driving range, SOC, possible vehicle
error information, and status of vehicle
driving, charging, A/C system, seat
heater, and tire pressure.
2. Tap the lock, unlock, light flashing and
honking, or light flashing button to
activate the corresponding function.
Glove Box
Halaman 162
3. Turn on or off A/C on the app
homepage, or tap the A/C card to
perform other settings.
4. At the bottom of the homepage, tap
the icon of seats, doors and windows,
or tires to go to the associated screen
and check their status.
5. If you have multiple vehicles on an
account, tap the vehicle name in the
upper left corner of the screen to
switch between vehicles.
CAUTION
●The control function of the app
is mainly for remote use. To use
this function, ensure your phone
and vehicle are connected to the
Internet.
Individual Center and
Vehicle Management
Tap My Account to go to the individual
center.
●Tap the icon on the top right corner
of the vehicle card to edit the vehicle
name and license plate number.
●Account and Security: recovers or
changes your password.
●Settings: sets message reception,
automatic login, and other items.
●About Us: includes privacy policy and
information to contact us and give
feedback.
Storage
Engine Compartment
Storage
●Open the hood to use the engine
compartment storage.
Door Bins
●There is a door bin on each door for
storage of beverage bottles or small
items.
Glove Box
●Pull to open the glove box.
●Push the lid up to close it.
Rear seat cup holders
Halaman 163
REMINDER
●To reduce risk of injury in the
event of an accident or emergency
braking, keep the glove box closed
while driving.
Center Console Storage
Compartment
●The center console storage
compartment can be used for storage
of small items.
Cubby Box
●Pull up the front of the cubby box to
open it.
REMINDER
●Keep the cubby box closed while
the vehicle is in motion.
Cup Holders
05
Front Seat Cup Holders
IN-VEHICLE DEVICES
Front liftable cup holder
●Lowering: press the cup or directly
press the bottom of the cup holder to
lower it by 98 mm.
●Rising: press the unlock button to rise
the cup holder to the initial position.
Rear Seat Cup Holders
1. Flip the rear seat armrest.
2. Tap the cup holder cover to let it open
automatically.
Grab Handles
Halaman 164
CAUTION
●Do not start or brake the vehicle
suddenly when the cup holders
are being used to prevent spillage
or scalding.
●Do not place an open cup or loose
beverage bottle in the cup holder,
so as to avoid liquid spillage
while you are driving, opening or
closing a door.
●To ensure safe driving, the driver
is strictly prohibited from taking
the cup out or placing it in the cup
holder while driving.
●Please keep the inside of the cup
holder clean and free of debris,
such as sand, leaves, and peanut
shells.
Seatback Pockets
●There are seatback pockets at the
back of the front seats for magazines,
newspapers and phones.
Other Devices
Sun Visor
① Sun visor
●To block sunlight from the front, pull
the sun visor down.
●To block sunlight from a side, remove
the swivel sleeve from the fixed
support and turn the visor towards the
side window.
② Vanity mirror
●Flip down the sun visor and the mirror
cover for use.
REMINDER
●Correct use of the sun visor
improves driving safety and
comfort.
Grab Handles
●Pull the grab handle down for use. The
handle returns to its original position
when released.
USB Ports
Halaman 165
CAUTION
●Do not hang any heavy objects
from the grab handles.
12V Auxiliary Power
●It is used for accessories with 12V DC
working voltage and no more than 10A
working current.
●The 12V auxiliary power is available
only when the ignition has been
switched on. Lift the cover to use it.
CAUTION
●To prevent fuses from blowing,
the power consumption must not
exceed 12V/120W of total vehicle
load.
●To prevent draining the low-
voltage battery, do not use the
12V auxiliary power supply for a
long time when the drive motor is
not running.
CAUTION
●When the 12V auxiliary power is
not in use, close its cover. Do
not insert any object other than a
suitable plug into the 12V auxiliary
power socket or let any liquid
ingress the socket, as electrical
failure may result.
USB Ports
Front-row USB ports
●They are located at the hollowed-out
part below the auxiliary dashboard.
① Type-C data transmission port
05
② Type-A data transmission port
IN-VEHICLE DEVICES
CAUTION
●It is recommended to use a USB
storage device with a capacity of
8 to 128GB, formatted in FAT32,
ExFAT and NTFS.
●Do not use USB storage devices
of special catogories to prevent
damage to the infotainment
system or data in the USB device.
Rear-row USB ports
●The rear USB ports are located behind
the cubby box, and can be opened by
pressing the protective cover.
Wireless Phone Charger
Halaman 166
① Type-A charge port
② Type-C fast charge port
●The power outlet can be used only
when the ignition is on.
Wireless Phone Charger
●The wireless phone charging area is
located at the front of the center
console cubby. When the ignition
is on, put the phone on the
wireless charging area with the phone
screen facing up. Wireless charging
automatically begins, and a charging
icon is displayed on the infotainment
touchscreen.
●To enable or disable wireless charging,
go to the drop-down shortcut menu on
the infotainment touchscreen, and tap
in the Vehicle Control column.
●The wireless charger only works with
Qi-certified phones.
●Wireless phone charging uses a coil to
transmit electrical energy to a phone
battery through electromagnetic wave
induction so that the phone can be
charged without a cable connection.
CAUTION
●Ensure your smart key is more
than 25 cm away from the
wireless charger area when
the wireless charger system is
working.
●To avoid wireless charger
dysfunction or even accidents, do
not place coins, metal keys, metal
rings, or other articles containing
metal in the wireless charger area
together with the phone.
●To avoid damage to the charger
area, do not place heavy objects
on it.
●If the phone wireless charger
system is faulty and does not work
properly, it is recommended to
contact a BYD authorized dealer
or service provider.
●BYD will not assume any
responsibility for any problems
caused by improper use. If
the product is disassembled or
modified, the free warranty will be
terminated.
●For safety reasons, do not leave an
unattended phone being charged
in the vehicle.
●For safety reasons, refrain from
checking phone charging status
while driving.
●If a metal item is found between
the device and the charger during
charging, do not remove the metal
item with bare hands to prevent
burning.
Wireless Phone Charger
Halaman 167
CAUTION
●For better charging, the center
of the phone coil must be
aligned with the center of wireless
charger (indicated with text in the
charging area).
●Prevent any fluid from coming
into contact with the charger
area, or the wireless charger will
malfunction.
●Charging may stop at high
temperatures, and will resume
once the temperature drops.
●The wireless phone charger
system can charge Qi-certified
phones, and non-Qi-certified
phones are not guaranteed for
normal charging.
●BYD makes no commitments for
problems caused by external
wireless charging coils. Please use
with caution.
●To avoid burning cards with chips,
such as bank cards and NFC key
card, do not place them between
the phone case and the phone
during charging.
REMINDER
●Only one phone can be charged at
a time.
●A phone case that is too thick may
prevent charging.
●You can enable or disable wireless
charging on the infotainment
touchscreen.
●On bumpy roads, the
wireless phone charging may
intermittently stop and then
resume.
REMINDER
●Try to ensure that the surface on
which a mobile phone is placed is
parallel to the charging module.
If the phone moves from the
wireless charger area and stops
charging, move it back.
●If the phone cannot be charged
properly, ensure that there are
no foreign objects in the wireless
charger area, or wait for the
wireless charger area to cool
down before trying again. If it
is still impossible to charge the
phone, contact a BYD authorized
dealer or service provider.
05
●After power-off, if the phone is
still charging and the driver's door
is opened, the instrument cluster
sounds an alarm and a warning
text "Please take your cell phone
with you" is displayed for five
seconds.
IN-VEHICLE DEVICES
Wireless Phone Charger
Halaman 168
168
Maintenance
Halaman 169
# 06 MAINTENANCE
Maintenance Precautions.............. 170
Regular Maintenance.....................174
Self-Maintenance..........................179
Maintenance Schedule
Halaman 170
Maintenance
Precautions
Maintenance Cycle and
Items
Maintenance Plan
●The maintenance plan is designed to
ensure stable driving, failure reduction,
safe and economical driving.
●The maintenance schedule lists all the
necessary items to keep the vehicle in
optimum condition at all times.
●The items in the maintenance schedule
are important and need to be
maintained according to the time
interval.
●Hoses with any degradation or damage
should be replaced immediately.
Rubber hoses (for systems such as A/C,
heating, and braking systems) must
be checked by professional technicians
according to the maintenance
schedule.
Maintenance Schedule
Vehicle maintenance is performed based on the mileages or months, whichever comes first.
Item
Interval
Check at three months or 5,000 km for the first time, at
12 months or 20,000 km for the second time, and every
12 months or 20,000 km afterwards.
Chassis screws
Check at three months or 5,000 km for the first time, at
12 months or 20,000 km for the second time, and every
12 months or 20,000 km afterwards.
Brake friction block and disc
Check at three months or 5,000 km for the first time, at
24 months or 40,000 km for the second time, and every
24 months or 40,000 km afterwards. In severe driving
conditions, check at 12 months or 20,000 km for the first
time, at 12 months or 20,000 km for the second time,
and every 12 months or 20,000 km afterwards.
Brake pedal and EPB switch
Maintenance Schedule Requirements
The vehicle must be maintained
according to the regular maintenance
schedule.
If the vehicle is operated primarily
under one or more of the following
special conditions, certain maintenance
items may need to be performed more
frequently.
●Road conditions
●Muddy, sandy, or snowy roads.
●Dusty roads
●Driving conditions
●Use of towed trailer, camping trailer,
or roof rack*.
●Within 8 km, repeated short
distances are driven and the outside
temperature is below freezing.
●Long idling and/or long distance
driving at low speed, for example,
using the vehicle as a police car, taxis
or using it for transporting goods.
Maintenance Schedule
Halaman 171
Item
Interval
Check at three months or 5,000 km for the first time, at
24 months or 40,000 km for the second time, and every
24 months or 40,000 km afterwards. In severe driving
conditions, check at 12 months or 20,000 km for the first
time, at 12 months or 20,000 km for the second time,
and every 12 months or 20,000 km afterwards.
Brake piping and hoses
Guide pin of brake caliper
assembly
Check at 12 months or 20,000 km for the first time, and
every 24 months or 40,000 km afterwards.
Check at three months or 5,000 km for the first time, at
24 months or 40,000 km for the second time, and every
24 months or 40,000 km afterwards. In severe driving
conditions, check at 12 months or 20,000 km for the first
time, at 12 months or 20,000 km for the second time,
and every 12 months or 20,000 km afterwards.
Steering wheel and tie rod
Check at three months or 5,000 km for the first time, at
24 months or 40,000 km for the second time, and every
24 months or 40,000 km afterwards. In severe driving
conditions, check at 12 months or 20,000 km for the first
time, at 12 months or 20,000 km for the second time,
and every 12 months or 20,000 km afterwards.
Drive shaft boot
Check at three months or 5,000 km for the first time, at
24 months or 40,000 km for the second time, and every
24 months or 40,000 km afterwards. In severe driving
conditions, check at 12 months or 20,000 km for the first
time, at 12 months or 20,000 km for the second time,
and every 12 months or 20,000 km afterwards.
Ball pin and boot
Check at three months or 5,000 km for the first time, at
24 months or 40,000 km for the second time, and every
24 months or 40,000 km afterwards. In severe driving
conditions, check at 12 months or 20,000 km for the first
time, at 12 months or 20,000 km for the second time,
and every 12 months or 20,000 km afterwards.
Front and rear suspensions
Check at three months or 5,000 km for the first time, at
24 months or 40,000 km for the second time, and every
24 months or 40,000 km afterwards. In severe driving
conditions, check at 12 months or 20,000 km for the first
time, at 12 months or 20,000 km for the second time,
and every 12 months or 20,000 km afterwards.
Front and rear wheel alignment
Check at three months or 5,000 km for the first time, at
12 months or 20,000 km for the second time, and every
12 months or 20,000 km afterwards.
Tire condition and pressure,
including TPMS
06
MAINTENANCE
Maintenance Schedule
Halaman 172
Item
Interval
Tire wear (check tire pressure
and condition at least once a
month)
Check during maintenance and rotate when necessary.
In severe driving conditions, check more frequently and
rotate when necessary.
Check at three months or 5,000 km for the first time, at
24 months or 40,000 km for the second time, and every
24 months or 40,000 km afterwards. In severe driving
conditions, check at 12 months or 20,000 km for the first
time, at 12 months or 20,000 km for the second time,
and every 12 months or 20,000 km afterwards.
Wheel bearing clearance
Check at three months or 5,000 km for the first time, at
12 months or 20,000 km for the second time, and every
12 months or 20,000 km afterwards.
Foreign materials on or ablation
of the EPS GND point
Check at three months or 5,000 km for the first time, at
12 months or 20,000 km for the second time, and every
12 months or 20,000 km afterwards.
EPS connector looseness and
connector pin ablation
Check at three months or 5,000 km for the first time, at
24 months or 40,000 km for the second time, and every
24 months or 40,000 km afterwards.
EPS ECU corrosion
Foreign materials or corrosion
on connections between the
EPS ECU and motor
Check at three months or 5,000 km for the first time, at
12 months or 20,000 km for the second time, and every
12 months or 20,000 km afterwards.
Check at three months or 5,000 km for the first time, at
12 months or 20,000 km for the second time, and every
12 months or 20,000 km afterwards.
Coolant level in expansion tank
Check at three months or 5,000 km for the first time, at
12 months or 20,000 km for the second time, and every
12 months or 20,000 km afterwards.
Brake fluid
Check at three months or 5,000 km for the first time, at
12 months or 20,000 km for the second time, and every
12 months or 20,000 km afterwards.
Vehicle module DTCs (to be
cleared after recording)
High-voltage battery tray, crash
bar, shield, crash valve, thermal
insulation cotton, and mounting
torque
Check at three months or 5,000 km for the first time, at
12 months or 20,000 km for the second time, and every
12 months or 20,000 km afterwards.
Check at three months or 5,000 km for the first time, at
12 months or 20,000 km for the second time, and every
12 months or 20,000 km afterwards.
Powertrain leaks or bumps
Maintenance Schedule
Halaman 173
Item
Interval
Loose high-voltage wiring
harnesses or connectors and
connector pin ablation
Check at three months or 5,000 km for the first time, at
12 months or 20,000 km for the second time, and every
12 months or 20,000 km afterwards.
Check at three months or 5,000 km for the first time, at
12 months or 20,000 km for the second time, and every
12 months or 20,000 km afterwards.
Deformation of or oil stains on
the high-voltage module
Check at three months or 5,000 km for the first time, at
12 months or 20,000 km for the second time, and every
12 months or 20,000 km afterwards.
Foreign materials on or ablation
of charging connector interface
Check at three months or 5,000 km for the first time, at
12 months or 20,000 km for the second time, and every
12 months or 20,000 km afterwards.
Wading marks on high-voltage
parts
Check at three months or 5,000 km for the first time, at
12 months or 20,000 km for the second time, and every
12 months or 20,000 km afterwards.
Vehicle module software update
(update if any)
Check at three months or 5,000 km for the first time, at
12 months or 20,000 km for the second time, and every
12 months or 20,000 km afterwards.
Lamp and LED lighting
Check at three months or 5,000 km for the first time, at
12 months or 20,000 km for the second time, and every
12 months or 20,000 km afterwards.
Headlight dimming
Initial down tilt of low beam
Calibrate it every 10,000 km.
Check at three months or 5,000 km for the first time,
at 12 months or 20,000 km for the second time, and
every 12 months or 20,000 km afterwards, and replace if
necessary. In severe driving conditions, check every six
months and replace if necessary.
HEPA filter
Check the door brakes. Remove
the dust from the lever with
a damp soft cloth, and apply
0.3–0.8 g of grease to the lever,
riveting joint, and rotating shaft
Check at three months or 5,000 km for the first time, at
12 months or 20,000 km for the second time, and every
12 months or 20,000 km afterwards.
Hood lock and fasteners
Check every 12 months.
Check at three months or 5,000 km for the first time, at
12 months or 20,000 km for the second time, and every
12 months or 20,000 km afterwards.
Lock nut torque of wiper arm
Drive motor coolant
Replace the long-acting organic acid coolant every four
years or 100,000 km.
06
MAINTENANCE
Regular Maintenance
Halaman 174
Item
Interval
Brake fluid
Replace every 24 months or 40,000 km.
Gear oil in the transmission
Replace at 24 months or 40,000 km for the first time,
and every 24 months or 48,000 km afterwards.
Note: When checking Item 1, replace chassis parts in a timely manner if any abnormal
damage is found.
REMINDER
●To keep the high-voltage battery
in optimal condition, please fully
charge and discharge the vehicle
regularly (at least every six
months or 72,000 km, whichever
comes first) for battery self-
calibration. You can also contact
a BYD authorized dealer or service
provider for capacity testing and
calibration.
Severe driving conditions refer to:
●Frequent driving in dusty areas or
frequent exposure to salt-laden air.
●Frequent driving on bumpy, puddled,
or mountain roads.
●Driving in cold weather.
●Frequent and sudden braking.
●Frequent use of a towed trailer.
●Use as a taxi.
●Driving in congested urban areas at
temperatures above 32°C for more
than 50% of total travel time.
●Driving at speeds over 120 km/h at
temperatures above 30°C for more
than 50% of total travel time.
●Frequent driving with maximum load.
Regular
Maintenance
Regular Maintenance
●Be sure to maintain the vehicle as per
the maintenance schedule to allow it
serve in the best working efficiency
and reduce fault occurrence.
●Drivers can refer to the maintenance
plan for scheduled maintenance
intervals, depending on the odometer
reading or time interval, whichever
comes first.
●For overdue maintenance items, the
same time interval should be used for
maintenance.
●It is recommended that maintenance
be performed in accordance with the
standards and specifications of BYD
Auto Co., Ltd., and by a local BYD
authorized dealer or service provider.
●The maintenance schedule lists the
maintenance items and travel time or
distance based on the assumption that
the vehicle is used as a normal means
of transportation to carry passengers
and goods that do not exceed the
vehicle load limit.
CAUTION
●Please maintain the vehicle
regularly according to the
Vehicle Corrosion Prevention
Halaman 175
CAUTION
requirements in the Warranty and
Maintenance Service Manual of
BYD.
Vehicle Servicing
●Pay attention to vehicle performance,
sound changes, and visual evidence
that indicates service is required.
Under any of the following
circumstances, the vehicle may need
to be checked or repaired, and it is
recommended to send the vehicle to
a BYD authorized dealer or service
provider as soon as possible:
●Motor start produces unusual noises.
●Coolant remains overheated, is
stagnated or leaks.
●Motor jams and produces
unexpected noise.
●The motor runs with excessive
vibration.
●The motor fails to get started.
●Electric assembly leaks oil.
●Electric assembly emits odors.
●Power declines significantly.
●Water leaks from under the vehicle
(A/C condensate is normal).
●Tire deflates; tires make excessive
noises at turns; tire wear is uneven.
●Vehicle leads to one side when
driving straight on a flat surface.
●Suspension unit movement leads to
unusual noises.
●Loss of braking effect; sponge feeling
on the brake pedal or clutch pedal;
pedal almost contacts the floor;
vehicle leads to one side when
braking.
●Motor coolant temperature remains
high.
●Battery capacity decreases
significantly.
●High battery temperature or overheat
protection persists, or there is no
power output.
CAUTION
●Do not continue driving a vehicle
that has not been inspected, as
this may result in serious vehicle
damage and personal injuries.
Vehicle Corrosion
Prevention
The most common causes of vehicle
corrosion are:
06
●The underbody of the vehicle is
covered in salt, dust, or moisture.
MAINTENANCE
●The vehicle or some of its parts are
exposed to high humidity and high
temperature for a long time.
●The paint layer or underlayer is
scratched by minor collision or by
stones and gravel.
The following rules should be observed
to prevent vehicle corrosion:
●Wash the vehicle frequently.
●If driving on saline roads in winter
or living in coastal areas, wash
the landing area of the vehicle
at least once a month, and clean
the chassis and hubcap with a
high-pressure water jet or steam to
reduce corrosion. Wash the chassis
thoroughly after winter.
●Check vehicle paint and trims.
●Any chip or crack found on the
paint must be repaired immediately
Vehicle Cleaning
Halaman 176
to prevent corrosion. If fragments
or cracks peel off from the metal
surface, it is recommended to go to
a BYD authorized dealer or service
provider for repair.
●Check interior vehicle.
●Moisture and dust buildup under the
carpet can cause corrosion. Check
the undersides of carpets frequently
to make sure these areas are dry.
●Special care should be taken when
the vehicle is transporting chemicals,
detergents, fertilizers, salt, and other
substances. Such substances should
be kept in appropriate containers for
transportation. If spillage or leakage
is found, clean immediately and keep
dry.
●Use fender liners.
●Fender liners protect vehicles in
saline areas or on gravel roads. The
bigger and closer to the ground the
fender liner, the better.
●Park in a well-ventilated and dry area.
Paint Maintenance Tips
●Do not perform secondary painting if
there is no obvious scratches on the
finish, so as to prevent mismatch or
color incompatibility.
●When the vehicle is not used for a
long period, it should be parked in
a garage or a well-ventilated place,
and special body cover should be used
in winter. Choose a shady place for
parking temporarily.
●Prevent strong impacts, knocks, or
scratches on the paint. If the paint
is scratched, dented or if it peels, it
should be repaired in time, preferably
by professional auto beauty provider.
●Do not touch the paint with a greasy
hand or cloth. Do not place greasy
tools or rub with organic solvents
on the vehicle body so as to avoid
chemical reactions.
●The vehicle must be waxed once a
month or whenever water resistance
performance of the vehicle degrades
and be taken to an auto beauty
provider for maintenance once every
three months.
●High quality polish and wax must
be used. If body finish is severely
weathered, use a car cleaning polish
in addition to the wax. Carefully follow
the manufacturer's instructions and
precautions. Chrome finish should be
polished and waxed as well as painted
finish.
CAUTION
●When the vehicle is repainted
and placed in a high-temperature
paint waxing workshop, the
vehicle's plastic bumper must be
removed to avoid damage caused
by high temperatures.
Vehicle Cleaning
●The vehicle must be cleaned in time
under the following circumstances,
which can cause peeling of paint layer
or corrosion of the vehicle body and
parts:
●Driving along the coast.
●Driving on a road with anti-freeze.
●Driving on roads covered with coal
tar.
●Resin, bird droppings, or insect
carcasses are stuck on the vehicle.
●Driving in areas with a large amount
of smoke, soot, dust, iron filings, or
chemicals.
Automatic Vehicle Washing
Halaman 177
●The vehicle is visibly soiled by dust or
mud.
●After raining.
Manual Vehicle Washing
Before washing the vehicle, park it in the
shade, and wait for the vehicle to cool
down sufficiently.
1. Hose off loose dirt, including all mud
or road salts at the bottom of the
vehicle and on wheel pits.
2. Wash the vehicle with neutral agents,
the mixing of which should be carried
out according to the manufacturer's
instructions. Soak a soft cloth with
cleaning solution and gently wipe it
down along the direction of the water
flow. Do not wipe in a circular motion
or horizontally.
3. Rinse well—Dried washing agent forms
markings. After washing the vehicle in
hot weather, rinse all parts properly.
4. Dry the vehicle with a clean soft towel
to prevent stay water marks. In order
to prevent scratching, do not rub or
apply excessive force on the paint.
REMINDER
●Do not use any alkaline washing
powder, soapy water, detergents,
de-waxing detergents or volatile
substance (gasoline, kerosene, or
solvent).
●When cleaning the lights, do
not wipe their surface with
alcohols such as alcohol and
windshield washer fluid, ketones
such as lacquer thinner and
insect remover, or other chemical
solvents such as gasoline, thinner,
and carbon tetrachloride. Doing
so can cause the light casings to
crack.
REMINDER
●It is recommended that vehicles
traveling in coastal or heavily
polluted areas be washed once a
day.
●Do not use blades or gasoline to
remove hard dirt from the vehicle
body. The plastic wheel trim is
easily damaged by organic matter.
If any organic matter splashes on
the vehicle trim, remove it with
water and check whether the trim
is damaged. Replace any seriously
damaged plastic wheel trim in
a timely manner. Otherwise, the
trim may fall from the wheel
during vehicle movement and
cause an accident.
●Do not use abrasive cleaning
agents to scrub the bumper or
lights.
06
MAINTENANCE
●Clean polished metal parts with
carbon cleaner and wax them
regularly for protection.
Automatic Vehicle Washing
When choosing an automated car wash
service, be aware of certain types of
brushes, unfiltered rinsing water, or
machine-specific rinsing procedures that
may scratch the paint and affect its gloss
and durability, especially darker colors.
Before washing the vehicle, it is best to
consult the staff of the car wash service
provider to understand which washing
procedures are the safest for the paint
finish.
A/C Control Panel, Speakers, Dashboard, Control Panel and Switches
Halaman 178
Interior Cleaning
REMINDER
●Prevent direct water splash onto
the dashboard or floor when
washing the vehicle, as these may
cause electrical faults.
●Do not wash the vehicle's floor
with water to prevent corrosion.
Carpet
●Clean carpets with a good foam
detergent.
●Use a vacuum cleaner to remove as
much dust as possible. Several types
of foam detergents can be used. Some
are in spray cans, and the others are
powders or liquids, which produce
foam when mixed with water. Clean
the carpets with foam soaked sponge
or a brush, scrubbing in a circular
motion.
●Do not use plain water, and keep the
carpets as dry as possible.
Seat Belts
●The seat belts can be cleaned with
neutral soapy water or lukewarm
water.
●Scrub the seat belts with a sponge
or soft cloth. Check the seat belts for
excessive wear, tear, or cut marks.
CAUTION
●Do not clean the seat belt
with colorant or bleach. These
substances may decrease the seat
belt's strength.
●Do not use any seat belt that is not
dry.
Doors and Windows
●Doors and windows can be cleaned
with any ordinary detergent.
●Check the door brakes regularly. If a
door brake lever is found with visible
dust accumulation, wipe it with a wet
soft cloth.
CAUTION
●When cleaning the inside of the
rear windows, take care not to
scratch or damage electric heating
wires or junctions.
A/C Control Panel, Speakers,
Dashboard, Control Panel and Switches
●Clean the A/C control panel, speakers,
dashboard, control panel and switches
with a wet soft cloth.
●Wipe dust off gently with a clean soft
cloth soaked in lukewarm water.
CAUTION
●Do not use organic substances
(for example, solvents, kerosene,
alcohol, and gasoline) or acid or
alkali solutions. These chemicals
can cause discoloration, staining,
or flaking.
●Please confirm that the detergent
or polishing agent to be used does
not contain the above substances.
●If a new liquid washing agent is
used, do not splash it onto the
interior surface of the vehicle,
because it may contain the above
substances. If there is any spillage,
immediately clean it thoroughly.
Self-Maintenance Precautions
Halaman 179
Leather
●Leather trimmings can be cleaned with
a neutral detergent for woolen.
●Use a soft cloth with a neutral
detergent solution to wipe off the dust,
and then use a clean, wet cloth to wipe
the remaining detergent thoroughly.
●If leather gets wet, wipe it with a clean
soft cloth and air dry it in a cool,
ventilated place.
●For any questions about vehicle
cleaning, please consult a local BYD
authorized dealer or service provider.
CAUTION
●If dirt cannot be cleaned off using
a neutral detergent, clean it with
a detergent that does not contain
organic solvents.
●Do not clean leather with any
organic material such as volatile
oil, alcohol, gasoline, or acid-base
solution, as these will cause
discoloration.
●Do not clean leather with a nylon
brush or synthetic fiber cloth,
as these may scratch the fine
patterns on the leather surface.
●Mold may grow on dirty leather
trimmings. Special care must be
taken to avoid oil stains, and
trimmings must always be kept
clean.
●Prolonged exposure to sunlight
will cause leather to harden or
shrink, so the vehicle should be
parked in a shady and cool place,
especially in the summer.
●In hot weather, the temperature
inside the vehicle rises easily,
so avoid placing vinyl or waxy
items on the trimmings, as these
CAUTION
may stick to leather in high
temperatures.
●Improper cleaning of leather
trimmings may cause
discoloration or spots.
Self-Maintenance
Self-Maintenance
Self-Maintenance Precautions
●If maintenance is to be carried out by
the owner, be sure to follow the correct
steps specified in this section.
06
●Improper or incomplete maintenance
will affect the good use of the vehicle.
MAINTENANCE
●This section only lists instructions on
simple maintenance items that can be
done by the owner. However, there
are many items that must be done
by qualified technicians with special
tools.
●Special care must be taken in
maintaining vehicles to prevent
accidental injuries. Make sure to obey
the followings:
WARNING
●If the motor is very hot, do not
remove or loosen the expansion
tank cover to prevent burns.
●Do not smoke in or near the
vehicle to avoid sparks or open
flames that may cause fire.
●Practice caution when handling
the low-voltage battery, as it
contains toxic and corrosive
sulfuric acid.
Checks
Halaman 180
WARNING
●Never get under a vehicle
supported only by a jack. Be sure
to prop the vehicle up using both
a jack and a vehicle stand before
going underneath the vehicle.
●When working inside or under the
vehicle, always wear goggles to
protect your eyes against flying or
falling objects or splashing liquid.
●As brake fluid may damage
the skin or eyes, be careful
when filling it. If your
skin or eyes are exposed
to brake fluid, immediately
flush with clean water. Seek
medical attention immediately if
discomfort persists.
CAUTION
●Beware of short circuits, as some
circuits and vehicle components
carry high current or voltage.
●If coolant overflows, wipe it with
a dry cloth or tissue to prevent
damage to components or vehicle
paint.
●If brake fluid overflows, rinse it
with water to prevent damage to
components or vehicle paint.
●When replacing wiper blades, do
not allow the wipers to scratch the
glass surface.
●Before closing the hood, check
whether any tool or wipe cloth is
left in the engine compartment.
Checks
The following items should be checked
according to usage or specified mileage:
●Windshield washer fluid - Check the
residual amount of washer liquid in
the tank monthly. When washer liquid
is frequently used, check the residual
amount at each charge.
●Windshield wiper - Check wiper
conditions monthly. If the wiper does
not work, check it for wear, cracking, or
other damage.
●Brake fluid level - Check the level
monthly.
●Brake pedal - Check whether the brake
pedal is operating properly.
●EPB switch - Check whether the switch
is functional.
●Low-voltage battery - Check battery
conditions and check for terminal
corrosion monthly.
●A/C system - Check the operation of
A/C units weekly.
●Tires - Check tire pressure monthly.
Check tread wear and whether there
are foreign bodies embedded.
●Windshield defrosters - Check the
defroster vent monthly.
●Lights - Check the condition of
headlights, position lights, tail lights,
high mount brake light, turn signals,
rear fog lights, brake lights and license
plate light monthly.
●Doors - Check whether the trunk lid
and all other doors (including rear
doors) can be opened freely and
locked securely.
●Horn - Check whether the horn is
functioning properly.
REMINDER
●Do not continue driving a vehicle
that has not been inspected, as
Canopy Maintenance
Halaman 181
REMINDER
this may result in serious vehicle
damage and personal injury.
Combination Lights
Front combination lights
●Front combination lights are aligned
before vehicle delivery. If the vehicle
carries heavy load frequently, front
combination lights may need to be
realigned. It is recommended to have
the front combination lights aligned
by a BYD authorized dealer or service
provider.
Fogging of lights
●Combination lights, tail lights, and
turn signals on the side mirrors
may become foggy after heavy
rain or cleaning. This is similar to
condensation on the side window
during rain. It does not mean any
problem with your vehicle.
●The lights are a relatively enclosed
and narrow space. The temperature
is very high when they light up
(the mask and reflector could be
burned and deformed easily), so
they need heat dissipation. There are
heat dissipation holes on the lamp
housing for convection. The greater
the temperature difference is, the more
active the convection is. During the
convection, the moisture in the air
inevitably enters a lamp. Factors such
as exposure to sunlight, convection,
and bulb heating can cause the
moisture in the air to condense into
fog or water beads easily on the lamp
surface at low temperatures. This is
called fogging of lights.
REMINDER
●If fog presents inside the headlight
and inside the turn signals on
side mirrors, it may be due to
high air humidity or significant
temperature difference between
the vehicle and its surroundings.
In that case, turn on the headlight
or turn signal while driving. The
fog will evaporate after a short
period of driving.
●Do not wax the light casings to
prevent damage.
●If there is a noticeable amount
of water inside the lights, it is
recommended to drive the vehicle
to a BYD authorized dealer or
service provider for maintenance.
06
Canopy Maintenance
MAINTENANCE
●Wipe off dust or sand on the outer
sealing strips of the sunroof with
a damp cloth to avoid scratches,
which may reduce sunroof sealing
performance.
●Wipe off dust or sand on the molding
edges of the front glass with a damp
cloth to avoid scratches, which may
reduce sunroof sealing performance.
●Clean the rails on both sides and the
front channels frequently to avoid the
accumulation of foreign materials like
dust, sand, and leaves, and prevent
such debris from blocking drainage
holes, which could result in poor
drainage of the sunroof.
●When washing the vehicle, make sure
that the high-pressure water jets are at
a sufficient distance from the vehicle,
do not aim them directly at the
sealing strips, to prevent high pressure
from distorting even damaging the
Hood
Halaman 182
strips and water from leaking into the
vehicle.
Vehicle Storage
●If the vehicle needs to be parked for
a long time (more than a month),
the following preparations should
be made. Proper preparation helps
prevent degradation and ensure easy
use of the vehicle. If possible, park the
vehicle indoors.
●Charge the vehicle on time.
●Thoroughly clean and dry the body
surface.
●Clean the interior of the vehicle to
ensure that carpets and mats are
completely dry.
●Release the parking brake and set the
gearshift lever in parking gear.
●Open one window slightly (if the
vehicle is stored indoors).
●Disconnect the negative terminal of
the low-voltage battery.
●Pad the front wiper arm with a folded
towel or cloth to keep it out of contact
with the windshield.
●To reduce adhesion, apply silicone
lubricant to all door seals and body
wax to the painted surface where the
door seals meet.
●Cover the vehicle body with a
breathable covering made of a "porous
material", such as cotton. Non-porous
materials, such as plastic sheeting, can
build up moisture and damage the
paint.
●If possible, start the vehicle regularly
(preferably once every month). If the
vehicle has been parked for a year or
more, go to a BYD authorized dealer
or service provider for comprehensive
maintenance.
Hood
Opening the Hood
1. Pull the handle under the dashboard
twice. The hood unlocks and opens
slightly.
2. Raise the hood to an appropriate
height; then it will automatically rise to
the open state.
Closing the Hood
1. To close the hood, lower it to a proper
height and push it slightly until it
partially locks. Then press slowly and
evenly on the blue area as shown in
the illustration with both hands to fully
lock it. Keep your hands at a certain
distance and do not press the ridges.
Brake Fluid
Halaman 183
2. After closing the hood, check whether
the latch is securely locked.
REMINDER
●Ensure that the hood is closed
and locked firmly. Otherwise, the
hood may suddenly open during
driving, resulting in an accident.
●Do not force down the hood.
●Do not close the hood with
a single hand, as this may
concentrate the force in one area
and cause damage to the hood.
●Do not press the front edge of the
hood to prevent damage to the
vehicle.
Cooling System
●It is required that the liquid level
should be between the Maximum(MAX)
and Minimum(MIN) marker lines of the
expansion tank.
●The coolant must always be of the
same specification as the original,
without adding any mixture. Different
brands and types of coolant should not
be mixed.
●Refill coolant to the MAX line if the
level is below the MIN line. Check the
cooling system for leakage.
CAUTION
●Do not add any rust inhibitor
or other additives to the
cooling system for they may be
incompatible with the coolant or
the motor components.
06
●Before opening the reservoir
cap, make sure that the motor,
high-voltage electronic control
assembly, refrigerant reservoir
and radiator are all cooled down.
Opening the coolant expansion
tank when the motor has not
yet fully cooled down may cause
coolant to squirt out, resulting in
severe burns.
MAINTENANCE
Braking System
●Check the level in the fluid tank
monthly, and change the brake fluid
according to the travel time and
mileage specified in Maintenance
Schedule.
●Be sure to use the brake fluid of the
same specifications as the original
brake fluid, and different types of
brake fluid must not be mixed.
●It is required that the level in the
fluid tank should be between "MAX"
A/C System Maintenance
Halaman 184
(maximum level) and "MIN" (minimum
level) marks.
●If the level is below the MIN mark,
check if the braking system leaks and
the brake friction blocks are worn.
Windshield Washer
●During normal use, check the liquid
level of the windshield washer
reservoir at least monthly.
●If the windshield washer is used
frequently, the level of the washer
reservoir should be checked more
frequently.
●High quality windshield washer fluid
should be added to improve stain
removal and prevent freezing in cold
weather.
●When refilling the washer fluid, use a
clean cloth dipped in the windshield
washer fluid to clean the windshield
wiper blade. This helps keep the wiper
blade in good condition.
CAUTION
●Do not inject vinegar-water
solution into the windshield
washer reservoir.
●It is recommended to use certified
windshield washer fluid.
A/C System
●The A/C system is a closed system,
and any important maintenance work
should be performed by professionals
from a BYD authorized dealer or
service provider.
●The following practices help ensure
that the A/C system works effectively.
●Check the radiator and A/C
condenser regularly.
●Remove leaves, insects, and dust
from the front surface of the A/C
system. These deposits hinder the air
flow and reduce the cooling effect.
●In cold months, turn the A/C on at
least once a week for 10 minutes
to circulate the lubricating oil in the
refrigerant unit.
●If A/C cooling efficiency decreases, go
to a BYD authorized dealer or service
provider for maintenance.
CAUTION
●Whenever the A/C system is
maintained, the maintenance
station should use a refrigerant
recycling system. The system
can recycle refrigerants to avoid
environmental pollution caused
by directly discharging the
refrigerant.
Tires
Halaman 185
Wiper Blades
The blade strip, made of synthetic rubber,
is a vulnerable part. Various service
environment of the vehicle and usage
habits of drivers can damage the blades.
Therefore, please observe the following
to ensure the service life of blades and
driving safety:
●Do not use a blade to remove ice
from the windshield surface. Use a
customized ice scraper.
●Do not scrape the windscreen surface if
it is dirty, greasy or waxy.
●Keep the windshield surface clean.
Do not scrape dust, sand, insects,
or foreign bodies on the windshield
surface.
●During vehicle washing and body paint
maintenance, there is no need to
wax the windshield, as the wax layer
reflects light in bad light, affecting
the line of sight and driving safety.
After washing the vehicle, rinse the
blade with plain water, and use special
windscreen wax cleaner to remove the
wax layer on the windshield.
●To prevent excessive water pressure
from damaging the blades, do not
wash the blades directly with a water
jet.
Maintenance Rules
●Clean windshield and blade regularly
(preferably once a week or once every
two weeks).
●Wipe the wiper regularly (preferably
once a day or once every two days).
When using a blade to wipe the
windshield, keep the windshield fully
wet. (When there is no rain, the washer
liquid must be sprayed in advance).
●Clean the windshield with a special
windshield washer fluid.
●Promptly clean mud and insect
carcasses stuck to the windshield with
a rag.
●When there are marks on the
windshield caused by gravel,
maintenance must be carried out
timely. (It is recommended that
windshield repair resin products
should be used and the windshield
should be replaced if marks are too
large or too many.)
●Replace the wiper blades regularly,
preferably once every six months.
●When cleaning the windshield, raise
the wiper arm in advance. The specific
operation method is as follows:
1. Go to infotainment touchscreen →
→ Service → Overhaul to enable
Front wiper check. The wiper is
then rotated down.
06
2. Grasp the upper end of the wiper
arm and carefully lift the wiper arm
and blade assembly.
MAINTENANCE
Tires
●For safe driving, tires must be made
and sized to fit the vehicle, with good
tread and standard tire pressure.
●This section provide details on how
to check tire pressure, damage to
and wear of tires, and the operating
method for tire transposition.
WARNING
●Using tires with excessive wear
or insufficient/excessive pressure
can result in accidents, severe
injury, or death.
●Please follow all instructions
in this manual regarding tire
inflation and maintenance.
Checks
Halaman 186
Tire Inflation
●Keep tires properly inflated to
provide the best combination of
maneuverability, tread life, and driving
comfort.
●Under-inflated tires can cause uneven
tire wear, affect steerability and energy
consumption, and are prone to leakage
due to overheating.
●Over-inflated tires reduce riding
comfort and are prone to damage from
uneven roads. In severe cases, the risk
of tire bursting poses severe threats to
the safety of the entire vehicle. Over-
inflation will also cause uneven wear
and tear of tires, affecting tire service
life.
●When tires are cold, you can decide
whether to replenish tire pressure
according to the tire pressure values
displayed on the instrument cluster.
●Tire pressure should be measured
while tires are at ambient
temperatures. This means that it
should be measured at least three
hours after stop. If you must drive
the vehicle before the tire pressure is
measured, tires can still be considered
at ambient temperatures as long as the
traveled distance is not more than 1.6
km.
●It is normal that tire pressure reading
measured while tires are hot (after
travel of several kilometers) is 30–40
kPa (0.3–0.4 bar) higher than when
tires are cold. In that case, do not
deflate tires in order to achieve the
specified cold tire pressure reading;
otherwise, the tire pressure will be
insufficient.
REMINDER
●The recommended cold tire
pressure is indicated on the label
affixed to the driver's door frame.
REMINDER
●Tubeless tires have a self-
sealing function when they are
punctured. However, as the leak
is usually very slow, as soon as
the tire begins to depressurize,
carefully look for the leak
location.
Checks
●Whenever checking tire inflation,
check tires for damage, foreign body
piercing and wear.
●Replace the tire if bumps, or tread or
side damage are found. Tires must be
replaced if any of the cases happens.
●Replace the tire if there are cracks on
its side or if its fabric or cord can be
seen.
●Replace tires with excessive tread
wear.
●Tire treads are cast with wear bars.
When the tread is even with the wear
bar, its thickness is less than 1.6 mm.
The adhesion of tires worn to this
extent is very small on wet roads.
●Tires with exposed wear bars are
experiencing serious performance loss
and therefore must be replaced.
Replacing Tires and Wheels
Halaman 187
Maintenance
●In addition to proper inflation, proper
wheel alignment also helps reduce
tread wear.
●If uneven tire wear is found, go
to a BYD authorized dealer or
service provider and check the wheel
alignment.
●Although the vehicle has been
balanced in the factory, it needs to be
re-balanced after running for a period
of time.
●If there is some kind of continuous
vibration at high vehicle speeds (above
80 km/h), but not at low vehicle
speeds, go to a BYD authorized dealer
or service provider for tire checks.
●If a tire has been repaired, be sure to
re-balance it.
●After installing a new tire or replacing
a new wheel, always perform tire
balancing.
CAUTION
●Improper wheel balancers can
become loose and fall off,
which damages the vehicle
or surrounding objects during
vehicle travel.
●Improper wheel balancers
damage the aluminium rims
of the vehicle. Therefore, it is
recommended to use original
wheel balancers to keep balance.
Tire Rotation
●In order to make tires wear the same
and prolong their service life, it is
recommended to check the wheel
tread wear inside and outside regularly
(at intervals not exceeding 10,000
km) and rotate tires and conduct four-
wheel alignment if necessary.
●Do not rotate tires when a spare tire* is
used for the vehicle.
●After tire replacement, go to a BYD
authorized dealer or service provider
for tire pressure matching.
Directional tires and wheels
●When purchasing replacement tires,
you may find that some tires are
"directional", which can only be
rotated in one direction. If directional
tires are used, only the front and rear
wheels can be swapped when rotating
tires.
●Tire rotation for four-wheel drive
vehicles is as shown:
① Non-directional tires and wheels.
② Directional tires and wheels.
06
MAINTENANCE
WARNING
●Since rear-wheel drive vehicles
have wider rear tires, wheels can
only be switched from side to
side. If directional tires are used
on rear-wheel drive vehicles, tire
rotation is not accessible.
Replacing Tires and Wheels
●Original tires maximize performance,
while providing the best combination
of maneuverability, driving comfort
and service life.
Fuses
Halaman 188
●It is recommended to replace with
original tires at a BYD authorized
dealer or service provider.
●Replacement of tires with different
sizes, road ranges, rated speeds and
maximum cold pressures (marked on
the tire side) or mixed use of radial
tires and diagonal tires can reduce
braking ability, driving force (ground
adhesion) and steering accuracy.
●Unsuitable tires affect the
maneuverability and stability of the
vehicle, and may lead to accidents.
●Do not replace only one tire;
otherwise it will severely affect the
maneuverability of the vehicle.
●ABS works by comparing wheel speed.
When replacing a tire, use a tire of the
same size as the original tire. The size
and structure of the tire affect wheel
speed and may lead to uncoordinated
system operation.
●If the wheel needs to be replaced,
ensure that the specifications of the
new wheel match those of the original
wheel. New wheels are available for
purchase at BYD authorized dealer or
service providers. Please consult a BYD
authorized dealer or service provider
before replacing the wheels.
REMINDER
Please observe the following
precautions to ensure proper vehicle
maneuverability and control.
●Do not mix radial tires, bias belted
tires, or diagonal ply tires on the
vehicle.
●Do not use tires with dimensions
other than those recommended
by the manufacturer.
Fuses
All vehicle circuits are provided with
fuses to prevent short circuit or
overloading. Fuses are mounted in the
under-bonnet power distribution box
(PDB), the dashboard PDB, and the
rear compartment PDB. Fuse labels are
included in these PDBs, showing the
correspondence of fuses with electrical
components.
① Dashboard PDB
② Under-hood PDB
③ Rear compartment PDB
●The fuses under the hood are located
at the left rear part in the engine
compartment. To open it, remove the
trim first, and press the latch.
●The dashboard fuse under the driver's
side is located on the side of the
dashboard that is close to the door.
Take apart the lower body of the
dashboard to check the fuse.
●Replacement of blown fuses with ones
of higher amperage can significantly
increase the likelihood of damage to
the electrical system.
●If there is no spare fuse of the same
amperage, use a fuse with lower
amperage instead.
Fuses
Halaman 189
REMINDER
●Do not use fuses with amperage
higher than the rated ampere
value or any other solution to
replace the fuses, as this can
cause serious damage or even a
fire.
●If a fuse blows, it is recommended
to check or replace the fuse at a
BYD authorized dealer or service
provider.
06
MAINTENANCE
Fuses
Halaman 190
190
When Faults Occur
Halaman 191
07
WHEN FAULTS
OCCUR
When Faults Occur..........................192
Emergency Shutdown System
Halaman 192
When Faults Occur
Reflective Vest
●The reflective vest is in the tool kit.
●In case of emergency, always wear
the reflective vest properly before you
check for faults or handle accidents to
ensure your safety.
If Smart Key Battery Is
Exhausted
If the smart key indicator does not flash
and the vehicle cannot be started using
the start function, the smart key battery
may be exhausted. It is recommended
to contact a BYD authorized dealer or
service provider for battery change as
soon as possible. In this case, you may
start the vehicle in no power mode.
CAUTION
●Do not place the key in areas at
high temperatures.
●Magnetic fields generated by
nearby radio stations, substations
or airport radio transmitters
may interfere with the normal
operation of electronic smart
keys.
●After locking the vehicle and
arming its anti-theft alarm
system, keep the key away from
the vehicle if you do not use the
vehicle; otherwise the automatic
card finding of the vehicle will
consume the power of the low-
voltage battery and the smart key.
Starting the vehicle when the
electronic smart key runs out of
battery:
1. Use the mechanical key to unlock the
vehicle.
2. Put the smart key close to the no-
power sign in the cubby box.
3. Press the START/STOP button and the
brake pedal to start the vehicle.
Emergency Shutdown
System
●The emergency shutdown system is
activated and the high-voltage system
is automatically shut down when the
following conditions are met:
●The airbags do not deploy after a
frontal collision.
●There is a rear collision.
●The vehicle system is faulty.
●The OK indicator goes off if any of the
above situations occurs.
●Activating the emergency shutdown
system in the noted types of collision
minimizes the risk of injuries or
accidents.
●The vehicle system cannot be switched
into the OK status once the emergency
shutdown system is activated. In that
case, it is recommended to contact
a BYD authorized dealer or service
provider for help. The system is turned
off immediately even if the ignition is
switched on. Contact a BYD authorized
If a Collision Occurs
Halaman 193
dealer or service provider as soon as
possible.
Vehicle Fire Rescue
In case of fire, operate the vehicle as
follows according to the actual situation:
1. Switch the ignition off, and leave the
vehicle.
2. On the precondition that personal
safety is ensured, if the fire is small
and slow, use a dry powder fire
extinguisher to put it out fire, and call
for help immediately.
3. If the fire is large and growing quickly,
stay away from the vehicle and wait for
rescue.
CAUTION
●Wear insulated gloves during
vehicle disassembly. Use fire
extinguishers of designated
type. Water or incorrect fire
extinguishers may cause electric
shock.
●In the event of other special
conditions that cause flying
projectiles (such as interior trims
and glass), stay away from the
vehicle and promptly ask a
BYD authorized dealer or service
provider to come to the site for
handling.
If the High-Voltage
Battery Leaks
After a collision, if there is battery
leakage, an acrid smell inside the vehicle,
visible acid flow outside the vehicle, or
any smoke with the battery pack:
1. Switch the ignition off, and disconnect
the low-voltage battery if conditions
permit.
2. Call a BYD authorized dealer or
service provider and the fire brigade,
informing them that the vehicle is
equipped with a high-voltage battery
pack, and wait for rescue.
If a Collision Occurs
In case of collision, operate the vehicle as
follows according to the actual situation:
1. Switch the ignition off, and disconnect
the low-voltage battery if conditions
permit.
2. Call immediately a BYD authorized
dealer or service provider for rescue.
3. Carry out a simple inspection, if
conditions permit: Check whether any
edge of the high-voltage battery tray
is cracked and whether any obvious
liquid flows out.
07
●Damage to high-voltage components
is not identifiable in all cases. Do
not handle damaged components or
touch them with jewelry or other
metal objects.
WHEN FAULTS OCCUR
●If skin comes in contact with leaked
fluid, wash it immediately with
plenty of water for 10-15 minutes.
If there is still any discomfort,
apply 2.5% calcium gluconate
ointment, or soak in 2% to 2.5%
calcium gluconate solution. If the
condition does not get better or
discomfort persists, seek medical
help immediately.
●Do not touch the orange high-
voltage cables or other high-voltage
components. Only authorized repair
personnel is allowed to work on high-
voltage systems.
●Do not damage, modify, disassemble,
or disconnect the orange high-
If the Vehicle Needs Towing
Halaman 194
voltage cables from the high-voltage
grid.
●Inform the firemen and rescue
personnel that the vehicle is
equipped with a high-voltage battery
pack.
WARNING
●Do not touch any spilled liquid,
and stay away from a leaking
vehicle or high-voltage battery.
●Do not dispose of the leaked fluid
into the water or soil or other
environment.
●The vehicle system operates
with high-voltage DC power. It
generates a lot of heat before and
after vehicle start-up and when
the vehicle is powered off. Watch
out for high pressures and high
temperatures.
●Do not disassemble, move,
or alter high-voltage battery
components and connecting
cables as their connectors can
cause serious burns or electric
shock and may result in personal
injuries or death. The orange
cables are part of high-voltage
wiring harness. Users must
not repair the vehicle's high-
voltage system by themselves.
If any repair is required, it
is recommended to go to a
BYD authorized dealer or service
provider for repair.
●The remote control key and high-
voltage components of the vehicle
may affect and harm people
carrying medical devices.
If the Vehicle Needs
Towing
If the vehicle needs towing, it is
recommended to contact a BYD
authorized dealer or service provider,
a professional towing service, or the
organization you joined for roadside
assistance.
CAUTION
●The vehicle must not be towed by
other vehicles using only ropes or
chains.
Recommended towing method:
●Flatbed device
●If the vehicle fails and needs towing,
a flatbed trailer is recommended.
When the vehicle is being towed,
keep its four wheels off the ground.
Towing the vehicle on front or
rear wheels alone may damage high-
voltage components.
REMINDER
●When moving a vehicle with a
flatbed trailer, make sure that
the vehicle is properly secured to
prevent it from sliding back.
●It is recommended to use
professional tie-down straps and
tensioners, and employ the over-
Tow Eye
Halaman 195
REMINDER
the-wheel method to secure the
vehicle.
●When fixing the vehicle, avoid
routing tie-down straps, ropes, or
other securing devices through
the wheels or attaching them to
the chassis, suspension, or any
other part of the vehicle body to
prevent damage.
●Ensure the vehicle's wheels are
immobilized during transport to
prevent potential damage.
Tow Eye
The vehicle is equipped mounting holes
for the tow eye at the front and rear.
Install the tow eye as follows:
1. Open the cover.
2. Install the tow eye in the tow eye
opening.
The front mounting point is shown in the
illustration.
The rear mounting point is shown in the
illustration.
●If the vehicle needs rescue, contact a
professional rescue or the customer
service number.
●In emergency situations where the
vehicle needs rescue using the tow
eye, observe the following to avoid
vehicle damage or personal injuries.
●The towing vehicle must be in good
conditions and the towed vehicle in
Neutral gear. The towing speed must
be no more than 5km/h.
●Never use jerking actions to pull the
vehicle.
07
●The towed vehicle must not carry any
person except for the driver or tow
any trailer.
WHEN FAULTS OCCUR
●Both towing and towed vehicles must
have their hazard warning lights on.
●To avoid damages to the vehicle, only
the in-vehicle tow eye can be used.
●The distance between the towing and
towed vehicles must be more than 4
meters but less than 10 meters.
●The width and weight of the towed
vehicle must not be greater than
those of the towing vehicle.
●When the vehicle is being
towed, ensure its surroundings are
unobstructed and have enough
space and no person is close to the
towing device.
●When freeing the vehicle, control to
make it travel in the direction of tow
In-Vehicle Tools
Halaman 196
force. Dragging the vehicle from the
side or vertically is prohibited.
●The towed vehicle must be
controlled by a driver inside the
cabin, with the steering and braking
systems in normal conditions.
CAUTION
●Never rescue a stuck or high-
centered vehicle with tow eyes.
Call a professional rescue or the
customer service number.
●If the steering or braking system
of the towed vehicle fails, contact
a professional rescue or call the
customer service number. Do not
tow the vehicle directly.
If a Tire Goes Flat
●Maintain the lane position and
gradually slow down the vehicle. Drive
the vehicle off the busy road to a safe
place. Park on solid, flat ground and
avoid highway forks. Park on solid, flat
ground and avoid motorway forks.
●Please refer to the followings to
operate when parking:
1. Depress the brake pedal to stop the
vehicle smoothly, and then press the
"P" button and shift into Park. In such
case, the Park gear indicator on the
instrument cluster lights up.
2. Press START/STOP button.
●Power off the vehicle and turn on the
hazard warning light.
●Be sure to have all passengers get off
the vehicle and ask them to go to a
safe place away from crowded traffic.
●To prevent slipping, secure the vehicle
by wedging the tire diagonally against
the flat tire.
CAUTION
●Do not continue driving with a
flat tire. Even a short distance of
driving with a flat tire can cause
irreparable damage.
In-Vehicle Tools
●In-vehicle tools are stored in a tool box
under the trunk cover flap.
① Warning triangle
② Reflective vest
③ Lug nut cover removal clamp
④ Tire repair kit
⑤ Tow hook
●In an emergency where you need to
service the vehicle yourself, you must
know how to use these in-vehicle tools
and their locations.
Placing the warning triangle
Using Tire Repair Kit
Halaman 197
REMINDER
●When parking for repair,
remember to place the red
triangle side facing oncoming
vehicles, 100–200 meters away
from the vehicle. After the repair,
put the warning triangle back for
future use.
The warning triangle is used to warn
vehicles coming from behind and to
avoid collisions due to high speed or late
braking.
How to use the warning triangle:
1. Take the warning triangle out of its
box.
2. Attach the ends to form a triangle.
3. Mount the supports as shown.
Using Tire Repair Kit
●The tire repair kit is used to seal small
cuts, especially cuts in tread pattern. It
is just an emergency solution for you to
drive to the nearest service center, and
only for short emergency stretches,
even if the tire is not deflated.
WARNING
●The tire repair kit is only suitable
for minor damages of tires. If a
wheel is damaged, do not use the
tire repair kit.
WARNING
●Tire sealant is highly flammable
and harmful to health. Take
necessary precautions to prevent
fire and avoid contact with skin,
eyes, and clothing; keep away
from children; and do not inhale
its vapor.
In case of contact with tire sealant:
●If tire sealant comes into contact
with the skin or gets into
the eyes, thoroughly flush the
affected body part immediately
with plenty of clean water.
●Change contaminated clothing
immediately.
●In case of an allergic
reaction, seek medical attention
immediately.
●If tire sealant is ingested by
accident, rinse mouth thoroughly
and drink plenty of water
immediately. Do not induce
vomiting, but seek medical
attention immediately.
07
WHEN FAULTS OCCUR
Using the tire repair kit
●Refer to the labels on the inflator and
tire sealant for usage of the kit.
●If the inflator needs to be connected
to a power source, plug the inflator
into the vehicle's 12V socket, start the
vehicle, and turn on the inflator. The
tire sealant is then filled through the
inflator hose into the tire along with
air.
Using Tire Repair Kit
Halaman 198
REMINDER
●Make sure the inflator switch is
off when you plugging the power
supply into the 12V socket in the
vehicle.
●The inflator can only be turned on
for up to 10 minutes.
●Observe the tire pressure reading on
the inflator.
●If the tire pressure does not reach
180 kPa within 10 minutes (red area
shown in the illustration), turn off
the inflator. You are recommended to
contact a BYD authorized dealer or
service provider.
●If the tire pressure reaches between
180 and 320 kPa (green and yellow
areas shown in the illustration),
remove the kit as soon as possible and
drive at a speed below 80 km/h within
one minute, with the furthest driving
distance not exceeding 10 km, so that
the tire sealant is evenly distributed
within the tire.
●Stop to check the repaired tire and the
tire pressure reading on the inflator.
●If the tire pressure is greater than
220 kPa, drive to the nearest service
center at a speed below 80 km/h.
●If the tire pressure is between 130
and 220 kPa, repeat the process
to fill the tire sealant into the tire
and observe the tire pressure gauge
reading on the inflator.
●If the tire pressure does not reach 130
kPa, it is recommended to contact
a BYD authorized dealer or service
provider.
REMINDER
●Using tire repair kit on damaged
tires is only an emergency
solution. Please change the tires
at a professional repair center
as soon as possible. It is
recommended that you contact
a BYD authorized dealer or
service provider and inform the
maintenance technician that tire
sealant has been used.
●After repairing a tire with the tire
repair device, it is recommended
that you purchase new tire
sealant and inflation hoses at a
BYD authorized dealer or service
provider.
Using Tire Repair Kit
Halaman 199
REMINDER
●Avoid hard acceleration and high-
speed turns.
●Do not exceed the 80 km/h
maximum speed limit and replace
flat tires as soon as possible. Do
not drive further if the vehicle
experiences strong vibration,
unstable performance, or noise.
●When the tire sealant is about
to expire (see the label on the
canister for exact date), replace it
with a new one.
07
WHEN FAULTS OCCUR
Using Tire Repair Kit
Halaman 200
200
Technical Data
Halaman 201
# 08
# TECHNICAL DATA
Vehicle Data..................................................... 202
Information......................................................... 206
Declarations of Conformity.................................. 208
Vehicle Specifications
Halaman 202
# Vehicle Data
## Specifications
### Dimensions
| Item | Parameter |
| :--- | :---: |
| Length (mm) | 4830 |
| Width (mm, excluding side mirrors) | 1925 |
| Height (mm) | 1620 |
| Wheelbase (mm) | 2930 |
| Front track (mm) | 1660 |
| Rear track (mm) | 1660 |
| Front overhang (mm) | 900 |
| Rear overhang (mm) | 1000 |
| Approach angle (°) | 16 |
| Departure angle (°) | 19 |
### Vehicle mass
| Model | Configuration 1 | Configuration 2 |
| :--- | :---: | :---: |
| Curb weight (kg) | 2225 | 2340 |
| Front axle load (kg) | 1042 | 1151 |
| Rear axle load (kg) | 1183 | 1189 |
| Maximum allowable total mass (kg) | 2635 | 2750 |
| Front axle load at maximum allowable total mass (kg) | 1159 | 1271 |
| Rear axle load at maximum allowable total mass (kg) | 1476 | 1479 |
| Number of occupants (persons) | 5 | 5 |
202
Vehicle Specifications
Halaman 203
Drive motor
Item
Parameter
Model
Configuration 1
Configuration 2
Model
Rear: TZ200XYT
Type
Rear: Permanent magnet
synchronous motor
Drive type
RWD
4WD
Rated power/speed/torque
(kW/rpm/Nm)
Rear: 70/4456/150
Peak power/revolving
speed/torque (kW/rpm/
N•m)
Rear: 230/23000/380
Vehicle power performance and economic efficiency
Item
Parameter
Model
Configuration 1
Configuration 2
Maximum design speed
(km/h)
215
215
Maximum gradeability (%)
30
50
Power consumption
per 100 km under
comprehensive working
conditions (kWh/100 km)
17.0 (NEDC)
19.9 (WLTP)
High-voltage battery
Item
Parameter
Type
Lithium iron phosphate battery
High-voltage battery rated capacity (Ah)
150
Wheels and tires
Front: YS210XYA
Rear: TZ200XYT
Front: AC asynchronous
motor
Rear: Permanent magnet
synchronous motor
Front: 75/7958/90
Rear: 70/4456/150
Front: 160/20500/310
Rear: 230/23000/380
08
TECHNICAL DATA
17.9 (NEDC)
21.4 (WLTP)
Vehicle Specifications
Halaman 204
| Item | Parameter |
| :------------------------------------------------------ | :-------------------------------------- |
| Model | Configuration 1 | Configuration 2 |
| Tire specification | 235/50 R19; 255/45 R19 | 245/45 R20 |
| Tire pressure (kPa) | Front/Rear: 290/290 | |
| | Front/Rear (when towing a trailer): 290/310 | |
| Wheel dynamic balance requirement (g) | < 10 | |
**Wheel alignment values (at curb weight)**
| Item | Parameter |
| :--------------------------------------- | :------------------ |
| Front camber (°) | -0.5 ± 0.75 |
| Front toe-in (°) | 0.1 ± 0.08 (side) |
| Total front wheel toe-in (°) | 0.2 ± 0.16 |
| Kingpin inclination angle (°) | 8.33 ± 0.75 |
| Kingpin caster angle (°) | 6.09 ± 0.75 |
| Rear camber (°) | -1 ± 0.5 |
| Rear wheel toe-in (°) | 0.2 ± 0.08 (side) |
| Total rear wheel toe-in (°) | 0.4 ± 0.16 |
**Braking system**
| Item | Parameter |
| :------------------------------------------------ | :-------- |
| Free stroke of brake pedal (mm) | 1–5 |
| Front brake disc standard thickness (mm) | 32 |
| Front brake disc minimum thickness (mm) | 30 |
| Rear brake disc standard thickness (mm) | 20 |
| Rear brake disc minimum thickness (mm) | 18 |
| Front friction plate standard thickness (mm) | 12 |
| Front friction plate minimum thickness (mm) | 2 |
| Rear friction plate standard thickness (mm) | 6.5 |
| Rear friction plate minimum thickness (mm) | 2.5 |
204
Vehicle Specifications
Halaman 205
Seats
Item
Parameter
Forward and backward moving spaces for
front seats (seat cushion depth measured)
Seatback angle of front seats (cushion
depth measured)
23°
Normal service conditions of front
seatbacks
Forward and backward moving spaces for
rear seat (seat cushion depth measured)
Not adjustable
Seatback angle of rear seats (cushion depth
measured)
27°
Normal service conditions of rear seatbacks
Recommended oil type and amount
Item
Parameter
Model
Configuration 1
Configuration 2
Front drive gear
transmission oil type
-
Castrol BOT-383
Front drive gear
transmission oil amount (L)
-
1.6±0.05
Rear drive gear transmission
oil type
Castrol BOT-383
Rear drive gear transmission
oil amount (L)
1.55±0.05
Brake fluid type
HZY6/DOT4
Brake fluid amount (L)
1.15±0.05
Motor controller coolant
type
Glycol organic acid long-acting anti-rust antifreeze
Motor coolant amount (L)
6.05±0.2
6.65±0.2
260 mm forward from the end of slide rail
travel
16° forward and 50° backward from
the designed position; slide rail: 200mm
forward and 60mm backward; slide rail
inclination: 4.5°
6° backward and 14° forward from the
designed position. The seatbacks can be
folded forward beyond 14°.
08
TECHNICAL DATA
Vehicle Nameplate
Halaman 206
CAUTION
●The recommended oil types have
been tested and approved by
BYD. Using other oil types may
compromise vehicle performance,
and could cause malfunctions or
damage to components.
Information
Vehicle Identification
Vehicle Identification Number (VIN)
Positions of attached VIN:
① On the rear motor
② On the right of the front windshield
cross sill
③ On the right of the hood lock ring
④ On the right of the front bumper beam
⑤ On the right of the trunk lid
⑥ On the right rear wheel envelope
⑦ On the right rear door sill
⑧ On the sheet metal surface at the lower
corner of front right door
Position of engraved VIN:
VIN is engraved on the lower beam of
the front right seat. After connecting
the VDS, the VIN can be found in the
upper right corner of the screen for the
corresponding model. For details, refer to
the VDS operation manual.
Vehicle Nameplate
The vehicle nameplate is located in the
lower part of the right B-pillar.
Warning Labels
Halaman 207
Model and Serial Number of Drive
Motor
① The model and serial number of front
drive motor* are attached on the upper
part of the hood's inner panel.
② The model and serial number of rear
drive motor are attached on the left part
of the sheet metal surface on the trunk
lid.
③ The model and serial number of the
front drive motor* are engraved on the
front drive motor housing.
④ The model and serial number of the
rear drive motor are engraved on the rear
drive motor housing.
Warning Labels
① A/C system and cooling fan label
② Battery position label
Side airbag warning labels are attached
on the lower part of the left and right B-
pillars and C-pillars.
The airbag warning label is printed on the
front passenger's sun visor.
The tire pressure label is attached below
the driver's side B-pillar.
08
TECHNICAL DATA
The charging warning label is attached on
the inside the cover of the charge port.
Declarations of Conformity
Halaman 208
The energy consumption label is attached
in the lower left corner of the
windshield*.
Declarations of Conformity
Declarations of Conformity
Radio Frequency Statement
The vehicle has different types of radio
equipment. The manufacturers of the
radio equipment declare that the RF
Modules are in compliance with Directive
2014/53/EU. The full text of the EU
declaration of conformity is available at
the following Internet address: https://cn-
prod.byd.com/eu/eu-doc.
Smart Key Statement
Uzbekistan
Model: D1-92
EU countries
Model: D1-92
Brazil
Model: D1-92
This equipment is not entitled to protection
against harmful interference and may
not cause interference to duly authorized
systems.
Declarations of Conformity
Halaman 209
FCC ID: 2A5DHD1-315
MmWave Radars Statement
The United States
Model: D1-315
Japan
Model: D1-315
EU countries
Certificate ID: T.2021.08.0001
Japan
Certificate ID: 219-210015
Brazil
Certificate ID: 15210-21-03745
This equipment is not entitled to protection
against harmful interference and may
not cause interference to duly authorized
systems.
08
TECHNICAL DATA
Declarations of Conformity
Halaman 210
210
Declarations of Conformity
Halaman 211
Numerics
12V Auxiliary Power...................... 165
A
A/C Buttons................................... 155
A/C Operation Interface................ 156
A/C Settings Interface................... 155
A/C System Maintenance.............. 184
Acoustic Vehicle Alerting System
(AVAS)............................................ 132
Adaptive Cruise Control (ACC)...... 112
Adaptive Front Light (AFL)............ 124
Air Purification System................. 160
Airbag Overview.............................. 15
Anti-lock Braking System (ABS)... 140
Anti-theft Alarm System................. 25
Automatic Anti-glare Interior
Rearview Mirror............................. 145
Automatic Vehicle Hold (AVH)...... 109
Automatic Vehicle Monitoring (AVM)
....................................................... 133
B
Blind Spot Assist (BSA)................. 128
Brake Fluid.................................... 183
Break-in Period............................... 96
C
Canopy Maintenance.................... 181
Carrying Luggage............................ 99
Central Locking............................... 71
Charging Mode................................ 79
Charging Port Immobilizer System 89
Charging Precautions..................... 77
Charging Safety Warnings.............. 76
Child Presence Detection (CPD)*. 144
Child Protection Lock..................... 58
Child Restraint System................... 21
Coolant.......................................... 183
Cubby Box..................................... 163
D
Data Collection and Processing..... 26
Declarations of Conformity.......... 208
Direct Tire Pressure Monitoring... 131
Discharging..................................... 88
Discharging Instructions................ 87
Disclosure of Personal Data to
Authorities....................................... 29
Door Bins....................................... 162
Driver Assistance Switches............. 72
Driver Monitoring Systems (DMS)*....
142
Driving Precautions...................... 111
Driving Safety Precautions............. 97
Driving Safety Systems................. 138
E
Electronic Parking Brake (EPB).... 107
Electronic Smart Key...................... 44
Emergency Lane Keeping Assist
(ELKA)............................................ 127
Emergency Shutdown System..... 192
Emergency Vehicle Locking with
Mechanical Key............................... 56
F
Fire Prevention............................. 101
Forward Collision Warning (FCW) and
Automatic Emergency Braking (AEB)
....................................................... 118
Front Cross Traffic Alert (FCTA) and
Front Cross Traffic Brake (FCTB).. 121
Front Seat Cup Holders................ 163
Function Definition....................... 157
Fuses.............................................. 188
G
Gear Shift Controls....................... 106
General Charging Troubleshooting 79
Glove Box...................................... 162
Declarations of Conformity
Halaman 212
Grab Handles................................
H
Hazard Warning Light Switch......... 73
Head-up Display (HUD)*............... 130
High-Voltage Battery...................... 90
Hood.............................................. 182
I
If a Tire Goes Flat.......................... 196
If Smart Key Battery Is Exhausted 192
If the High-Voltage Battery Leaks. 193
If the Vehicle Needs Towing......... 194
Indicators/Warning Lights.............. 33
Infotainment Touchscreen........... 150
Intelligence Torque Adaption Control
(iTAC) System*............................... 142
Intelligent Cruise Control (ICC).... 116
Intelligent Speed Limit Control (ISLC)
....................................................... 123
Interior Cleaning........................... 178
Interior Light Switch....................... 74
L
Lane Departure Assist (LDA)......... 125
LCD Instrument Cluster.................. 32
Light Switches................................. 66
Locking/Unlocking with Mechanical
Key................................................... 48
Low-Voltage Battery....................... 93
M
Maintenance Plan......................... 170
Maintenance Schedule Requirements
....................................................... 170
Mode Switches................................ 72
Model and Serial Number of Drive
Motor............................................. 207
O
Odometer Switch............................ 71
P
Paint Maintenance Tips................ 176
Power Window Switches................ 70
R
Regular Maintenance.................... 174
S
Saving Energy and Extending Vehicle
Service Life...................................... 99
Seat Precautions............................. 58
Seatback Pockets.......................... 164
Self-Maintenance Precautions..... 179
Smart Access and Start System...... 56
Smart Charging............................... 85
Snow Chains................................. 103
Starting the Vehicle....................... 104
Steering Mode................................. 66
Steering Wheel Switches................ 63
Sun Visor....................................... 164
Sunshade Switches......................... 73
T
Tires............................................... 185
Traffic Sign Recognition (TSR)...... 122
U
USB Ports...................................... 165
Using AC Charging Piles.................. 83
Using DC Charging Piles................. 84
Using Mode 2 Charging Cable........ 80
Using Seat Belts.............................. 12
Declarations of Conformity
Halaman 213
### V
Vehicle Cleaning....................................... 176
Vehicle Corrosion Prevention....... 175
Vehicle Fire Rescue..................... 193
Vehicle Identification Number (VIN)
............................................................ 206
Vehicle Nameplate...................... 206
Vehicle Servicing........................ 175
Vehicle Storage Precautions......... 182
Vehicle Use Suggestions............... 98
### W
Wading into Water...................... 100
Warning Labels........................... 207
Windshield Washer..................... 184
Wiper Blades.............................. 185
Wiper Switch............................... 69
Wipers........................................ 146
Wireless Phone Charger............... 166
<br>
<p align="right">213</p>
Declarations of Conformity
Halaman 214
214
Abbreviations
Halaman 215
Abbreviations
Abbreviations
Termin
ology
Full Name
Termin
ology
Full Name
ELR
Emergency Locking Retractor
ECU
Electronic Control Unit
ISOFIX
International Standards
Organization Fix
EDR
Event Data Recorder
E-Call
Emergency Call
EPB
Electronic Parking Brake
AVH
Auto Vehicle Hold
SOC
State of Charge
ACC
Adaptive Cruise Control
ICC
Intelligent Cruise Control
FCW
Forward Collision Warning
AEB
Automatic Emergency Braking
FCTA
Front Cross Traffic Alert
FCTB
Front Cross Traffic Braking
TSR
Traffic Sign Recognition
ISLC
Intelligent Speed Limit Control
AFL
Adaptive Front Lighting
LDA
Lane Departure Assist
LDP
Lane Departure Prevention
LDW
Lane Departure Warning
ELKA
Emergent Lane Keeping Assist
BSA
Blind Spot Assist
BSD
Blind Spot Detection
RCTA
Rear Collision Traffic Alert
RCTB
Rear Cross Traffic Braking
RCW
Rear Collision Warning
DOW
Door Open Warning
VDC
Vehicle Dynamics Control
TCS
Traction Control System
HHC
Hill Descent Control
HBA
Hydraulic Brake Assist
CDP
Controlled Deceleration for
Parking Brake
CST
Comfort Parking
ESC
Electronic Stability Controller
MCB
Multi-Collision Brake
DMS
Driver Monitoring System
AVAS
Acoustic Vehicle Alerting System
HUD
Head-Up Display
TPMS
Tire Pressure Monitoring System
VIN
Vehicle Identification Number
MAX
Maximum
MIN
Minimum
Abbreviations
Halaman 216
216
