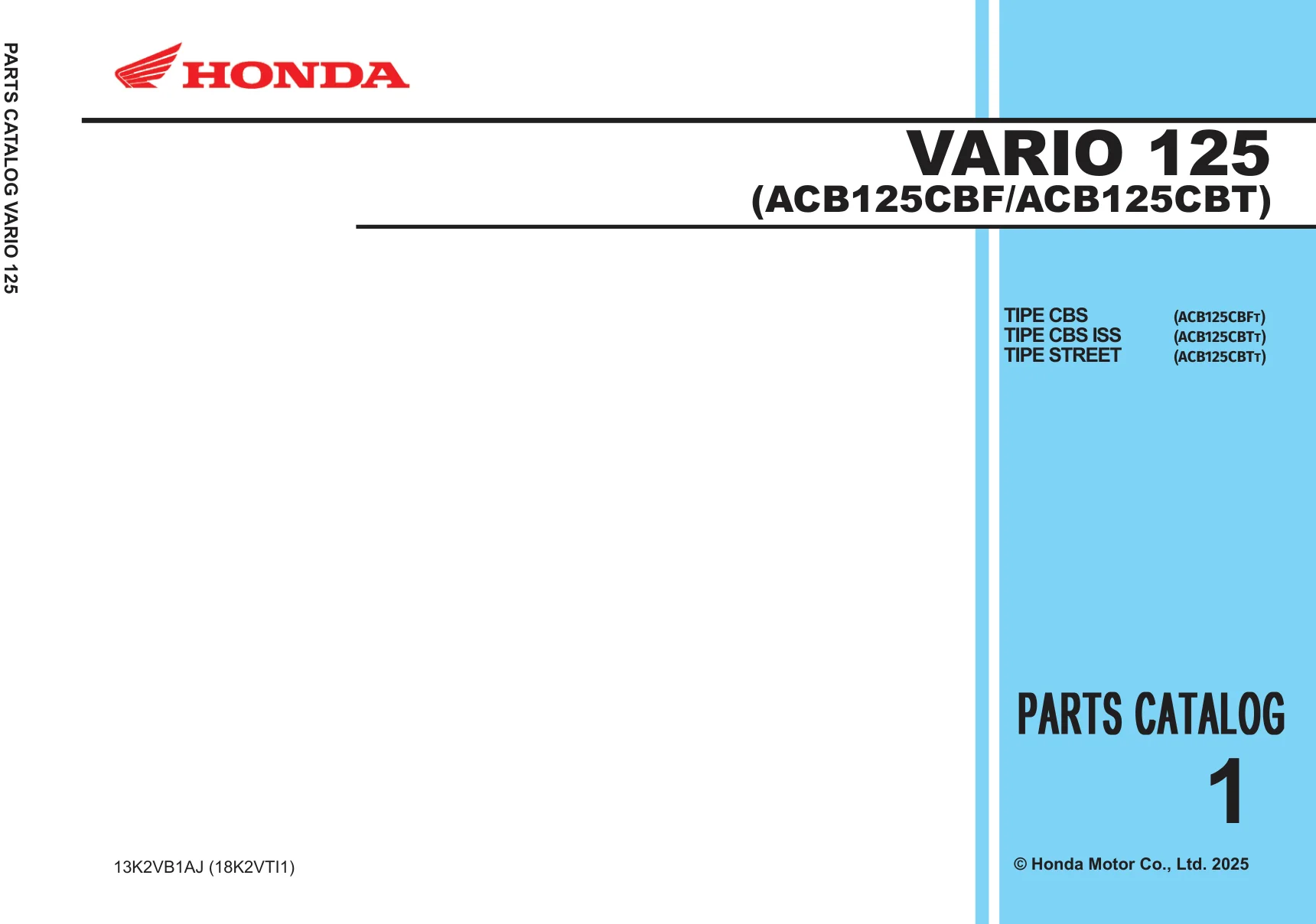

**PARTS CATALOG VARIO 125** 13K2VB1AJ (18K2VTI1) **© Honda Motor Co., Ltd. 2025** VARIO 125 (ACB125CBF/ACB125CBT) ## ## TIPE CBS **(** **ACB125CBF** **T** **)** ## ## TIPE CBS ISS **(** **ACB125CBT** **T** **)** ## ## TIPE STREET **(** **ACB125CBT** **T** **)**
11 ## ## PETUNJUK PEMAKAIAN 2 ## ## KELOMPOK MESIN ⚠ ## ## KELOMPOK RANGKA 4 ## ## INDEKS NOMOR PART 5 ## ## INDEKS NAMA PART
**Instruksi penggunaan parts catalog** ## ## DAFTAR ISI **• Parts catalog ini telah dibuat pertanggal 20 September 2025.** • Setelah tanggal ini, mungkin terjadi perubahan pada parts di dalam catalog ini, dan parts tertentu diganti dengan parts lain atau dihapus (tidak dijual lagi). • Bacalah parts catalog news untuk revisi yang dilakukan setelah 20 September 2025. **•** **Selalu beritahu nomor part sewaktu memesan part.** • Periksa model, tipe, nomor seri, warna, pabrik pembuat, dan ukuran seperlunya sebelum memesan part. • Perhatikan bahwa ilustrasi (gambar part) dapat berbeda dalam bentuknya dari part sebenarnya. Ilustrasi hanya diberikan untuk membantu anda mencari parts tersebut. • **Sewaktu terjadi modifikasi atau penambahan pada parts catalog ini,** **maka akan diterbitkan edisi yang direvisi pada waktu yang sesuai,** **yang memuat nomor revisi yang berurutan pada sampulnya. Kami** **menganjurkan agar anda mendapatkan revisi-revisi tersebut supaya** **parts catalog anda tetap mengikuti perkembangan mutakhir setiap** **waktu. Untuk mengetahui apakah revisi parts catalog telah diterbitkan,** **hubungi distributor Honda anda.** Tanggal versi penerbitan pertama 20 September 2025 **Honda Motor Co., Ltd.** 2025.09.20 1 Halaman • Instruksi penggunaan parts catalog .......................................... 1 • Cara mencari informasi part ......................................................... 2 • Struktur parts catalog ................................................................... ⚠ • Jika parts telah direvisi .................................................................. 5 • Singkatan-singkatan yang dipakai di dalam parts catalog ............ 5 • Blok part dan pengecekan nomor seri ....................................... 6 • Model, kode parts catalog dan nomor seri yang berlaku ..................................................................................... 7 • Tabel warna ....................................................................................... 8 • Selang bahan bakar, selang untuk keperluan umum dan selang vinyl ............................................................................... 14 • FLAT RATE SERVICE TIME ................................................................. 18 • Indeks gambar .................................................................................. 23 • KELOMPOK MESIN ............................................................................ 29 • KELOMPOK RANGKA ........................................................................ 53 • INDEKS NOMOR PART....................................................................... 102 • INDEKS NAMA PART........................................................................... 106 1 2 ⚠ 4 5
**Cara mencari informasi part** 1 ## ## B **Mencari parts dengan “Indeks nomor part”** **INDEKS NOMOR PART** **Nomor Part** **No. Blok Ref** **Nomor Part** **No. Blok Ref** **Nomor Part** **CYLINDER** **E-6** E-20 2 E-20 2 E-20 2 E-20 2 E-20 2 E-20 2 E-20 2 E-20 2 E-20 2 E-20 2 E-20 ⚠ E-20 ⚠ E-20 ⚠ E-20 ⚠ E-20 ⚠ E-20 ⚠ E-20 ⚠ E-20 ⚠ E-20 ⚠ E-20 ⚠ E-20 4 E-20 5 E-4 2 E-4 18 E-4 ⚠ E-4 4 E-4 5 E-4 5 E-5 1 E-4 6 E-4 6 E-4 7 E-4 7 E-4 8 E-5 2 E-21 4 E-21 5 E-22 1 E-21 6 E-21 7 E-21 8 E-21 9 E-21 10 E-22 2 E-22 ⚠ E-21 11 E-21 12 E-21 13 E-21 14 E-21 15 E-21 16 E-21 17 E-21 18 E-21 19 E-22 4 E-21 20 E-21 21 E-21 22 E-3 5 E-3 6 E-13 7 E-22 5 E-22 6 E-21 23 E-22 7 E-22 8 E-22 9 E-22 10 F-26-1 1 F-26-1 2 **No. Blok** 2 **No. Ref** **No.** **Ref.** **No. Part** **Deskripsi** **No. Seri** **Kode Parts Catalog** **Jumlah** **BEAT PGM-FI** **CW** **CBS** **SPOKE** ## ## C **Mencari parts dengan “Indeks nama part”.** 1 CYLINDER COMP. .......................... 1 1 2 GASKET, CYLINDER ........................ 1 1 ⚠ DOWEL PIN, SPECIAL, 8X14 ................ 2 2 **INDEKS NAMA PART** **Nama Part** **No. Kel** **Ref** **Nama Part** **No. Kel** BOLT, FLANGE, 5X14 E-8 6 BOLT, FLANGE, 6MM F-40 5 F-24 16 BOLT, FLANGE, 6X10 E-3 13 BOLT, FLANGE, 6X100 E-3 21 E-3-1 16 BOLT, FLANGE, 6X115 E-16 16 BOLT, FLANGE, 6X12 F-24 21 F-41 20 F-41-1 25 F-26 18 F-26-1 20 F-28-10 22 F-5 21 BOLT, FLANGE, 6X14 F-41-1 26 E-16 20 E-16 18 BOLT, FLANGE, 6X16 E-8 9 F-30 8 BOLT, FLANGE, 6X18 F-28-10 23 BOLT, FLANGE, 6X20 F-41 21 E-22 21 E-8 11 BOLT, FLANGE, 6X22 E-16 12 E-22 20 E-5 10 E-8 11 F-5 22 BOLT, FLANGE, 6X25 E-1 9 E-1-1 11 BOLT, FLANGE, 6X30 E-1-1 10 F-12 17 E-16 19 BOLT, FLANGE, 6X32 F-22-10 F-22-30 BOLT, FLANGE, 6X35 E-12 BOLT, SETTING, 6X16 F-35 BOLT, SIDE STAND PIVOT F-35 BOLT, SOCKET, 5X8 F-41 F-41-1 BOLT, SOCKET, 8MM (HT) F-17 BOLT, SOCKET, 8X30 (HT) F-17 BOLT, SPECIAL, 6MM F-11 F-12 BOLT, SPECIAL, 6X18 F-28 F-28-1 BOLT, STUD, 6X12 E-3 E-3-1 BOLT, STUD, 6X28 E-3 BOLT, STUD, 6X40 E-3-1 BOLT, SWITCH SETTING F-35 BOLT, TORX, 8X25 F-18 , 6X10 F-24 , 6X12 F-37-10 F-39 F-14 , 6X13 E-3-1 , 6X18 F-41 , 6X18 F-41-1 , 6X20 E-1 E-1-1 F-14 F-4 , 6X30 F-28-10 , 6X40 F-28 F-28-1 F-24 BOOT B F-18 BOOT COMP. F-5 BOOT, PIN BUSH(NI) F-18 BOSS, DRIVE FACE E-16 **20.08.2012** 32 **No. Hal.** 2025.09.20 **Mencari parts dengan “Indeks gambar”** ## ## A 2 **CYLINDER** **E-6** **CAM CHAIN/TENSIONER** **E-5** No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T.
**Struktur Parts Catalog** ## ## 1 **FRONT WHEEL** **F-20-40** No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. ## ## 2 1 (12,13) 710151 AXLE, FRONT WHEEL ................... 0,2 5 7101D4 FRONT WHEEL ......................... 0,8 6 710139 FRONT TIRE(SATU) .................... 0,7 7 710140 TUBE, FRONT TIRE(SATU) .............. 0,7 8 711120 DISC, FRONT BRAKE ................... 0,3 11 710115 BEARING, FRONT WHEEL(SATU) .......... 0,4 710115G .Penggantian 1 bearing tambahkan .... 0,1 ## ## 4 ## ## 5 ## ## 6 ## ## 7 ## ## 8 ## ## 9 ## ## 10 ## ## 12 ## ## 13 ## ## 11 **No.** **Ref.** **No. Part** **Deskripsi** **No. Seri** **Kode Parts Catalog** **Jumlah** **VARIO** **STD** **CBS** 1 AXLE, FR. WHEEL ........................... 1 2 COLLAR, FR. WHEEL SIDE .................... 1 ⚠ COLLAR, FR. WHEEL SIDE .................... 1 4 COLLAR, FR. DISTANCE ...................... 1 5 WHEEL SUB ASSY., FR. *NH303M* ............MAT AXIS GRAY METALLIC 1 6 TIRE, FR.(SRI)(80/90-14 M/C 40P) .......... 1 7 TUBE, TIRE(SRI) ........................... 1 8 DISK, FR. BRAKE(YUTAKA) ................... 1 DISK, FR. BRAKE(SUNSTAR) .................. 1 9 BOLT, BRAKE DISK, 8X24 .................... 4 10 NUT, U, 12MM .............................. 1 11 BEARING, RADIAL BALL, 6201(U) ..(FUJIKOSHI) 2 BEARING, RADIAL BALL, 6201U ..........(NSK) 2 BEARING, RADIAL BALL, 6201U ..........(NTN) 2 12 DUST SEAL 21X37X7(ARAI) 1 2025.09.20 1 ## ## ⚠ **2** **1** **Nama Blok Nomor Blok** **Bagian yang diservis/Flat Rate Time (F.R.T.)** **⚠** **Nomor referensi** • Nomor referensi yang diberikan tanda kurung menunjukkan bahwa ini lanjutan dari halaman sebelumnya. **4** **Nomor part Kode warna Honda** **6** **7** **5** **Deskripsi** **8** **Assembly (Susunan/rakitan)** • Bagian-bagian yang diberikan bingkai dengan garis- garis patah pada gambar terurai tersedia dalam rakitan lengkap. (tersedia pula dalam satuan terpisah). **9** **Deskripsi warna** **10** **Catatan** • Catatan ditulis dalam tanda kurung di kolom nama part. **11** **Jumlah** • Jumlah yang ditulis dalam tanda kurung menunjukkan part pilihan (optional part). • Jumlah yang ditandai dengan “N” menunjukkan part pilihan yang harus dipilih sebanyak yang diperlukan. • Jumlah yang diperlukan menunjukkan jumlah part yang dipakai di blok ini. **Nomor seri** **12** **Kode parts catalog** • Jika kolom kode parts catalog kosong, berarti bahwa part berlaku untuk semua kode. **13**
1 ## ## 16 ## ## 17 ## ## 18 ## ## 14 ## ## 15 ## ## E-16-1 ## ## (CRF100F) 2025.09.20 **14** • Part yang dikelilingi dengan garis titik-titik dijelaskan pada blok lain. **15** • Panah yang kosong di dalamnya menunjuk ke No. blok untuk part yang dikelilingi dengan garis titik-titik . **16** • Panah yang padat menunjuk ke No. blok dimana part yang bersangkutan terhubung. **17** **Informasi Identifikasi Penggantian Untuk No. Part Yang** **Ditunjuk** **Lokasi Informasi Identifikasi Penggantian Untuk No.** **Part Yang Ditunjuk** • Jika tanda panah menunjuk ke 18, part ini tidak sesuai dengan No. Part yang berbeda. • Pastikan untuk memesan part dari pabrikan yang sama, termasuk komponen part. • Untuk pemesanan, indikasi No. Part termasuk simbol yang ditampilkan pada bagian yang berlaku pada part yang akan diganti. **18**
**Jika parts telah direvisi** **Singkatan-singkatan yang dipakai di dalam parts catalog** Pastikan untuk memeriksa nomor seri!! Nomor telah dipakai sejak dari model pertama tanpa revisi. Jika diperlihatkan pada sisi kiri, maka berlaku untuk model-model dari No. 1008001 dan nomor- nomor berikutnya. Jika diperlihatkan pada sisi kanan, maka berlaku untuk model-model sampai No. 1008000. • Part yang tercantum dengan “ ## ## ## ” pada ujung nama part mempunyai jangka waktu pemasokan terbatas (part tidak dijual). 2025.09.20 1 KANAN disingkat dengan “R” (RIGHT). KIRI disingkat dengan “L” (LEFT). • “L.” atau “R.” pada uraian dari sebuah part merupakan singkatan dari sisi kiri (LEFT) atau sisi kanan (RIGHT). Kiri atau kanan ditentukan seakan-akan anda sedang duduk di tempat duduk sepeda motor/ skuter. **Singkatan-singkatan sebagai berikut dipakai di dalam parts catalog ini.** A ................ Ampere ABS............ Anti-lock brake system A.C............. Alternating current A.M............ Attaching mark ASSY.......... Assembly C.D.I. ......... Capacitive discharge Ignition COMP. ...... Complete D.C. ........... Direct current EX. ............ Exhaust FR. ............ Front G ............... Gram HEX. ......... Hexagonal IN. ............. Inlet KPH........... Kilometers per hour L. ............... Left L (100L).... Link (100 Links) L.E.D.......... Light emitted diode MM ........... Millimeter MPH ......... Miles per hour R. .............. Right RR. ............ Rear STD. .......... Standard T (22T) ...... Tooth (22 Teeth) TCS ........... Traction control system T.M. ........... Transcript mark V ................ Volt W .............. Watt WL ............ With labelling WOL ......... Without labelling
**Blok part dan pengecekan nomor seri** 1 Parts throttle body Parts mesin Parts rangka E-2~ **Blok part** E-22 F-1~ **No seri yang** **diperlukan** Nomor seri mesin Nomor seri Throttle body Nomor seri rangka **Titik** **pemeriksaan** ## ## 1 ## ## 2 ## ## ⚠ ## ## ⚠ ## ## 1 ## ## A ## ## 2 ## ## - ## ## 2 ## ## B ## ## - 2025.09.20
**Model, kode parts catalog dan nomor seri yang berlaku** Model, kode parts catalog dan No. seri yang berlaku yang diberikan di dalam parts catalog ini dapat diidentifikasi sebagai berikut. **Model** **Kode** **area** **Tipe** **Tahun** **No. Seri** **Mesin yang berlaku** **No. Seri** **Rangka yang berlaku** VARIO 125 CBS () IN CBS 2025 ~ MH1JMJ1**TK000001~ GQYKB A 3IN STREET 2025 ~ MH1JMK2**TK000001~ GQYKB A IN CBS ISS 2025 ~ MH1JMK1**TK000001~ VARIO 125 () * Dari nomor identifikasi karburator/throttle body, hanya bagian yang digaris bawahi di bawah ini yang dipakai untuk registrasi. GQ YKB A KC A B 2025.09.20 1 **No. identifikasi** **throttle body yang** **berlaku**
**Tabel warna** **•** Ketika memesan part berwarna, bacalah tabel di bawah ini dan gunakan nomor part yang terdiri dari nomor part dasar yang bersangkutan yang telah ditambahkan kode warna part. VARIO 125 () TIPE CBS 1 MODEL (TIPE CBS) WARNA Serenia mint metallic No. Ref. KODE BG-135M No. Nama parts berwarna No. part dasar BG135 NH1 R383 Model pertama yang berlaku Model akhir yang berlaku 1 BRACKET, RR. FENDER ZA F-39 ⚠ 2 COVER COMP., HANDLE RR. ZG F-9 4 ⚠ COVER SET, HANDLE TOP ZF ZB ZC F-9 5 4 COVER SET, L. BODY ZB ZA ZC F-15 6 5 COVER SET, L. FR. ZB ZA ZC F-12 7 6 COVER SET, R. BODY ZB ZA ZC F-15 4 7 COVER SET, R. FR. ZB ZA ZC F-12 6 8 COVER, CENTER ZA F-15 ⚠ 9 COVER, FR. ZQ ZN ZM F-12 1 10 COVER, FR. HANDLE ZC F-9 ⚠ 11 COVER, FR. LOWER ZA F-14 1 12 COVER, FR. TOP ZA F-12 2 13 COVER, INNER LOWER ZB F-12 9 14 COVER, INNER UPPER ZG F-12 14 15 COVER, L. BODY SIDE ZA F-15 7 16 COVER, L. UNDER SIDE ZA F-15 2 17 COVER, R. BODY SIDE ZA F-15 5 18 COVER, R. UNDER SIDE ZA F-15 1 19 COVER, RR. CENTER ZC F-15 8 20 COVER, RR. FENDER LOWER ZA F-39 8 2025.09.20 Black Valiant red Model yang berlaku No. blok yang berlaku NH-1 R-383
VARIO 125 () TIPE CBS MODEL (TIPE CBS) WARNA Serenia mint metallic No. Ref. KODE BG-135M No. Nama parts berwarna No. part dasar BG135 NH1 R383 Model pertama yang berlaku Model akhir yang berlaku 21 COVER, RR. FENDER UPPER ZB F-39 7 22 COVER, UNDER ZA F-14 ⚠ 23 FENDER A SET, RR. ZB F-39 4 24 FENDER, FR. ZM F-11 1 25 GARNISH, FR. ZA F-12 ⚠ 26 GARNISH, L. FR. ZA F-12 5 27 GARNISH, R. FR. ZA F-12 4 28 HOOK, LUGGAGE YV F-12 10 29 LID ASSY., INNER POCKET ZF F-12 8 30 LID, BATTERY ZA F-14 4 31 MARK, HONDA - ZB F-48 1 32 MARK, HONDA ZC - F-48 1 33 MARK, HONDA - ZE - F-48 1 34 MARK, HONDA ZA F-48 2 35 PLUG, HOLE ZE F-24 12 36 RAIL, RR. GRAB ZA F-24 10 37 STEP, FLOOR ZA F-14 2 38 STRIPE B, L. FR. COVER ZB ZA ZC F-48 9 39 STRIPE B, R. FR. COVER ZB ZA ZC F-48 8 40 STRIPE, L. BODY COVER ZB ZA ZC F-48 12 41 STRIPE, L. FR. COVER ZB ZA ZC F-48 7 42 STRIPE, R. BODY COVER ZB ZA ZC F-48 11 43 STRIPE, R. FR. COVER ZB ZA ZC F-48 6 44 WHEEL SUB ASSY., FR. ZD F-20-40 6 WHEEL SUB ASSY., RR. ZD F-22-30 2025.09.20 1 Black Valiant red Model yang berlaku No. blok yang berlaku NH-1 R-383
VARIO 125 () TIPE STREET............3IN MODEL (TIPE STREET) WARNA Mat gunpowder black metallic NH-436M Mat gunpowder black metallic NH-436M 1 No. Ref. KODE No. WARNA FRONT WHEEL NH436K NH436V NH436X Model pertama yang berlaku Model akhir yang berlaku Nama parts berwarna No. part dasar RED GRAPE WHITE 1 BRACKET, RR. FENDER ZA F-39 ⚠ 2 COVER SET, FR. ZC ZB ZA F-12 1 ⚠ COVER SET, HANDLE ZA F-9-1 8 4 COVER SET, L. BODY ZC ZB ZA F-15 6 5 COVER SET, L. FR. ZC ZB ZA F-12 7 6 COVER SET, METER LOWER ZB F-2-1 7 7 COVER SET, R. BODY ZC ZB ZA F-15 4 8 COVER SET, R. FR. ZC ZB ZA F-12 6 9 COVER, CENTER ZA F-15 ⚠ 10 COVER, FR. HANDLE ZB F-9-1 7 11 COVER, FR. LOWER ZA F-14 1 12 COVER, FR. TOP ZA F-12 2 13 COVER, INNER LOWER ZA F-12 9 14 COVER, INNER UPPER ZF F-12 14 15 COVER, L. BODY SIDE ZA F-15 7 16 COVER, L. UNDER SIDE ZA F-15 2 17 COVER, R. BODY SIDE ZA F-15 5 18 COVER, R. UNDER SIDE ZA F-15 1 19 COVER, RR. CENTER ZC F-15 8 20 COVER, RR. FENDER LOWER ZA F-39 8 21 COVER, RR. FENDER UPPER ZB F-39 7 22 COVER, UNDER ZA F-14 ⚠ 23 FENDER A SET, RR. ZB F-39 4 FENDER, FR. ZD F-11 GARNISH, FR. ZA F-12 2025.09.20 Mat gunpowder black metallic NH-436M Model yang berlaku No. blok yang berlaku
VARIO 125 () TIPE STREET............3IN MODEL (TIPE STREET) WARNA Mat gunpowder black metallic NH-436M Mat gunpowder black metallic NH-436M No. Ref. KODE No. WARNA FRONT WHEEL NH436K NH436V NH436X Model pertama yang berlaku Model akhir yang berlaku Nama parts berwarna No. part dasar RED GRAPE WHITE 26 GARNISH, L. FR. ZA F-12 5 27 GARNISH, R. FR. ZA F-12 4 28 HOLDER, HANDLE UPPER ZA F-9-1 5 29 HOLDER, L. HANDLE UNDER ZA F-9-1 6 30 HOLDER, R. HANDLE UNDER ZA F-9-1 4 31 HOOK, LUGGAGE YV F-12 10 32 LID ASSY., INNER POCKET ZE F-12 8 33 LID, BATTERY ZA F-14 4 34 LID, SMART EMERGENCY ZA F-12 15 35 MARK, HONDA ZA F-48-1 1 36 MARK, HONDA ZA F-48-1 2 37 PLUG, HOLE ZE F-24 12 38 RAIL, RR. GRAB ZA F-24 10 39 STEP, FLOOR ZA F-14 2 40 STRIPE A, L. FR. COVER ZC ZB ZA F-48-1 5 41 STRIPE A, R. FR. COVER ZC ZB ZA F-48-1 4 42 STRIPE B, L. FR. COVER ZC ZB ZA F-48-1 7 43 STRIPE B, R. FR. COVER ZC ZB ZA F-48-1 6 44 STRIPE, L. BODY COVER ZC ZB ZA F-48-1 11 45 STRIPE, L. FR. COVER ZC ZB ZA F-48-1 9 46 STRIPE, R. BODY COVER ZC ZB ZA F-48-1 10 47 STRIPE, R. FR. COVER ZC ZB ZA F-48-1 8 48 WHEEL SUB ASSY., FR. ZB ZC ZE F-20-40 6 WHEEL SUB ASSY., RR. ZB ZC ZE F-22-30 2025.09.20 Mat gunpowder black metallic NH-436M 1 Model yang berlaku No. blok yang berlaku
VARIO 125 () TIPE CBS-ISS............IN MODEL (TIPE CBS ISS) 1 WARNA Peacock blue metallic Mat gunpowder black metallic NH-436M No. Ref. KODE B-251M No. Nama parts berwarna No. part dasar B251 NH436 R423 Model pertama yang berlaku Model akhir yang berlaku 1 BRACKET, RR. FENDER ZA F-39 ⚠ 2 COVER COMP., HANDLE RR. ZF F-9 4 ⚠ COVER SET, FR. ZA ZC ZB F-12 1 4 COVER SET, HANDLE TOP ZD ZA ZE F-9 5 5 COVER SET, L. BODY ZD ZC ZE F-15 6 6 COVER SET, L. FR. ZD ZF ZE F-12 7 7 COVER SET, R. BODY ZA ZC ZB F-15 4 8 COVER SET, R. FR. ZD ZF ZE F-12 6 9 COVER, CENTER ZA F-15 ⚠ 10 COVER, FR. HANDLE ZC F-9 ⚠ 11 COVER, FR. LOWER ZA F-14 1 12 COVER, FR. TOP ZA F-12 2 13 COVER, INNER LOWER ZA F-12 9 14 COVER, INNER UPPER ZF F-12 14 15 COVER, L. BODY SIDE ZA F-15 7 16 COVER, L. UNDER SIDE ZA F-15 2 17 COVER, R. BODY SIDE ZA F-15 5 18 COVER, R. UNDER SIDE ZA F-15 1 19 COVER, RR. CENTER ZC F-15 8 20 COVER, RR. FENDER LOWER ZA F-39 8 21 COVER, RR. FENDER UPPER ZB F-39 7 22 COVER, UNDER ZA F-14 ⚠ 23 EMBLEM ZC F-48 10 24 FENDER A SET, RR. ZB F-39 4 25 FENDER, FR. ZN ZD ZL F-11 1 2025.09.20 Mat russell red metalic Model yang berlaku No. blok yang berlaku R-423M
VARIO 125 () TIPE CBS-ISS............IN MODEL (TIPE CBS ISS) WARNA Peacock blue metallic Mat gunpowder black metallic NH-436M No. Ref. KODE B-251M No. Nama parts berwarna No. part dasar B251 NH436 R423 Model pertama yang berlaku Model akhir yang berlaku 26 GARNISH, FR. ZA F-12 ⚠ 27 GARNISH, L. FR. ZA F-12 5 28 GARNISH, R. FR. ZA F-12 4 29 HOOK, LUGGAGE YV F-12 10 30 LID ASSY., INNER POCKET ZE F-12 8 31 LID, BATTERY ZA F-14 4 32 LID, SMART EMERGENCY ZA F-12 15 33 MARK, HONDA - ZA - F-48 1 34 MARK, HONDA ZA - ZB F-48 1 35 MARK, HONDA ZA F-48 2 36 MARK, HONDA - ZB - F-48 ⚠ 37 MARK, HONDA ZB - ZC F-48 ⚠ 38 MARK, IDLE STOP ZA ZC ZB F-48 5 39 PLUG, HOLE ZE F-24 12 40 RAIL, RR. GRAB ZA F-24 10 41 STEP, FLOOR ZA F-14 2 42 WHEEL SUB ASSY., FR. ZA F-20-40 6 43 WHEEL SUB ASSY., RR. ZA F-22-30 2 2025.09.20 1 Mat russell red metalic Model yang berlaku No. blok yang berlaku R-423M
**Selang bahan bakar, selang untuk keperluan umum dan selang vinyl** • Selang bahan bakar, selang pemakaian umum dan selang vinyl yang standar dapat diganti dengan part borongan yang dijual dalam bentuk gulungan. • Sewaktu memesan part pengganti untuk selang bahan bakar, selang pemakaian umum dan selang vinyl yang standar, pakailah nomor part borongan yang dicantumkan pada parts catalog dalam tanda kurung ( ) di bawah nama part, atau pakailah catalog di bawah. (Panjang standar part borongan adalah 1 m, akan tetapi, yang dicantumkan di dalam catalog dengan < > tersedia dalam panjang 3 m dan 8 m) • Sewaktu akan memasang selang borongan pengganti, potong dalam panjang yang sama seperti pada part standar. (Untuk cara pemotongan part borongan, dan cara pemesanan dsb., bacalah manual servis dan instruksi yang diberikan pada part borongan) • Daftar di bawah adalah catalog dari nomor part standar dan nomor part borongan. Perhatikan bahwa nomor-nomor itu hanya berlaku untuk part pengganti yang terdaftar saja. 1 **Selang/Pipa bahan bakar** **Part borongan** **No. part** **standar** **No. part** **borongan** **Diameter** **dalam (mm)** **Panjang** **(m)** 95001-30xxx-2x 3,0 1 95001-30xxx-3x 3,0 1 95001-30xxx-4x 3,0 1 95001-35xxx-2x 1 <> ⚠ 3,5 95001-35xxx-3x <> 3,5 1 95001-35xxx-4x 1 <> ⚠ 3,5 95001-35xxx-5x 1 <> ⚠ 3,5 3,5 7,5 95001-35xxx-6x 1 <> ⚠ 95001-45xxx-2x 1 <> ⚠ 4,5 95001-45xxx-3x 1 <> ⚠ <> 8 4,5 1 95001-45xxx-4x <> ⚠ <> 8 4,5 1 95001-45xxx-5x <> ⚠ 4,5 1 95001-45xxx-6x <> ⚠ <> 8 4,5 1 95001-55xxx-2x <> <> 5,5 2025.09.20 **Selang/Pipa bahan bakar** **Part borongan** **No. part** **standar** **No. part** **borongan** **Diameter** **dalam (mm)** **Panjang** **(m)** 1 95001-55xxx-3x <> 5,5 ⚠ <> 8 1 95001-55xxx-4x <> 5,5 ⚠ <> 8 1 95001-55xxx-5x <> 5,5 ⚠ <> 8 1 95001-55xxx-6x <> 5,5 ⚠ <> 8 95001-75xxx-2x 1 <> ⚠ 1 95001-75xxx-3x <> 7,5 ⚠ <> 8 1 95001-75xxx-4x <> 7,5 ⚠ <> 8 95001-75xxx-5x 1 <> 7,5 ⚠ 1 95001-75xxx-6x <> 7,5 ⚠ <> 8 95001-80xxx-2x 8,0 1 95001-80xxx-3x 8,0 1 95001-80xxx-4x 8,0 1 95001-80xxx-5x 8,0 95001-80xxx-6x 8,0
**Pipa vinyl** **Pipa vinyl** **Part borongan** **No. part** **standar** **No. part** **borongan** **No. part** **standar** **No. part** **borongan** **Diameter** **dalam** **(mm)** **Panjang** **(m)** **Diameter** **luar** **(mm)** 95003-01xxx-3x 1 <> ⚠ 95003-14xxx-1x 1 <> ⚠ 2,9 6,8 95003-01xxx-60 1 <> ⚠ 95003-14xxx-20 1 <> ⚠ 2,9 6,8 95003-03xxx-3x 1 <> ⚠ 3,0 6,0 95003-14xxx-3x 1 <> ⚠ 95003-03xxx-60 1 <> ⚠ 95003-17xxx-1x 1 <> ⚠ 3,0 6,0 1 95003-05xxx-3x <> ⚠ <> 8 95003-19xxx-1x 1 <> 7,0 11,0 ⚠ <> 8 3,5 6,5 1 95003-05xxx-60 <> ⚠ <> 8 95003-19xxx-20 1 <> 7,0 11,0 ⚠ <> 8 3,5 6,5 1 95003-07xxx-1x <> 4,0 7,0 ⚠ <> 8 95003-19xxx-3x 1 <> 7,0 11,0 ⚠ <> 8 1 95003-07xxx-20 <> 4,0 7,0 ⚠ <> 8 1 95003-19xxx-60 <> 7,0 11,0 ⚠ <> 8 1 95003-07xxx-3x <> 4,0 7,0 ⚠ <> 8 95003-21xxx-1x <> 95003-21xxx-20 1 <> ⚠ 1 95003-07xxx-60 <> 4,0 7,0 ⚠ <> 8 95003-23xxx-1x 1 <> ⚠ 1 95003-07xxx-7x <> 4,0 7,0 ⚠ <> 8 95003-23xxx-20 1 <> ⚠ 1 95003-08xxx-1x <> 4,5 6,5 ⚠ <> 8 1 95003-23xxx-3x <> 8,0 12,0 ⚠ <> 8 95003-09xxx-3x 1 <> ⚠ 95003-23xxx-60 1 <> 8,0 12,0 ⚠ <> 8 4,5 8,0 95003-09xxx-60 1 <> ⚠ 4,5 8,0 95003-25xxx-1x 1 <> ⚠ 95003-10xxx-1x 1 <> ⚠ 5,0 8,0 95003-25xxx-20 1 <> ⚠ 95003-10xxx-20 <> 5,0 8,0 1 95003-25xxx-3x 1 <> ⚠ 95003-10xxx-3x 1 <> ⚠ 5,0 8,0 95003-25xxx-7x 1 <> ⚠ 95003-10xxx-60 1 <> ⚠ 5,0 8,0 95003-27xxx-1x 1 <> ⚠ 1 95003-11xxx-3x <> 5,0 9,0 ⚠ <> 8 95003-27xxx-20 1 <> ⚠ 95003-11xxx-60 1 <> 5,0 9,0 ⚠ <> 8 95003-27xxx-3x 1 <> ⚠ 95003-27xxx-60 1 <> ⚠ 1 95003-12xxx-1x <> 5,0 7,0 ⚠ <> 8 95003-33xxx-1x 1 <> ⚠ 95003-12xxx-20 <> 5,0 7,0 <> 95003-33xxx-20 <> 2025.09.20 **Pipa vinyl** **Part borongan** **Part borongan** **No. part** **standar** **No. part** **borongan** **Diameter** **dalam** **(mm)** **Panjang** **(m)** **Diameter** **luar** **(mm)** **Diameter** **dalam** **(mm)** **Panjang** **(m)** **Diameter** **luar** **(mm)** 1 95003-36xxx-1x 1 <> ⚠ <> 8 6,0 9,0 11,0 13,0 6,0 9,0 95003-36xxx-20 1 <> ⚠ <> 8 11,0 13,0 6,0 9,0 95003-37xxx-3x 1 > ⚠ 11,0 15,0 7,0 9,0 95003-37xxx-60 1 <> ⚠ 11,0 15,0 95003-38xxx-1x 1 <> ⚠ 12,0 13,0 95003-38xxx-20 1 <> ⚠ 12,0 13,0 95003-39xxx-1x 1 <> ⚠ 12,0 14,0 95003-39xxx-20 1 <> ⚠ 12,0 14,0 95003-40xxx-20 1 <> ⚠ 12,0 16,0 8,0 9,0 1 95003-40xxx-3x 1 <> ⚠ 12,0 16,0 6,0 9,0 95003-40xxx-60 1 <> ⚠ 12,0 16,0 8,0 12,0 1 95003-43xxx-1x <> ⚠ <> 8 13,0 15,0 8,0 12,0 95003-43xxx-20 1 <> ⚠ <> 8 13,0 15,0 95003-45xxx-1x 1 <> ⚠ <> 8 14,0 18,0 1 95003-45xxx-20 <> ⚠ <> 8 14,0 18,0 9,0 11,0 95003-50xxx-1x 1 <> ⚠ 9,0 11,0 16,0 19,0 95003-50xxx-20 1 <> ⚠ 9,0 11,0 16,0 19,0 95003-50xxx-3x 1 <> ⚠ 9,0 11,0 16,0 19,0 95003-55xxx-1x 1 <> ⚠ 9,0 13,0 17,5 20,5 95003-55xxx-20 1 <> ⚠ 9,0 13,0 17,5 20,5 95003-60xxx-1x 1 <> ⚠ 9,0 13,0 22,0 27,0 95003-60xxx-20 1 <> ⚠ 9,0 13,0 22,0 27,0 95003-60xxx-3x 1 <> ⚠ 10,0 14,0 22,0 27,0 95003-60xxx-60 <> 10,0 14,0 22,0 27,0
**Selang pemakaian umum** **Part borongan** **No. part** **standar** **No. part** **borongan** 1 **Diameter** **dalam (mm)** **Panjang** **(m)** 95005-11xxx-3x 11,0 1 95005-11xxx-5x 11,0 1 95005-12xxx-1x 1 <> ⚠ 95005-12xxx-2x 12,0 1 95005-12xxx-3x 12,0 1 95005-12xxx-5x 12,0 1 95005-14xxx-1x 14,0 1 95005-14xxx-2x 1 <> ⚠ 95005-14xxx-3x 14,0 1 95005-14xxx-5x 14,0 1 95005-17xxx-1x 17,0 1 95005-17xxx-2x 17,0 1 95005-17xxx-3x 17,0 1 95005-17xxx-5x 17,0 1 95005-30xxx-3x 3,0 1 95005-30xxx-5x 3,0 1 1 95005-35xxx-1x <> 3,5 ⚠ <> 8 95005-45xxx-4x 1 <> 4,5 ⚠ <> 8 95005-45xxx-5x 4,5 1 95005-50xxx-3x 1 <> ⚠ 95005-50xxx-5x 5,0 1 1 95005-55xxx-1x <> 5,3 ⚠ <> 8 95005-55xxx-2x 1 <> ⚠ 95005-55xxx-4x 1 <> 5,3 ⚠ <> 8 95005-65xxx-1x 1 <> ⚠ 95005-65xxx-2x 6,5 1 95005-70xxx-3x 1 <> ⚠ 95005-70xxx-5x 7,0 1 95005-75xxx-1x 1 <> ⚠ 95005-75xxx-2x 7,3 1 95005-80xxx-1x 1 <> ⚠ 95005-80xxx-2x 8,0 1 95005-80xxx-3x 8,0 1 95005-80xxx-5x 8,0 1 95005-91xxx-3x 12,0 1 95005-91xxx-5x 12,0 1 95005-92xxx-3x 12,0 1 95005-92xxx-5x 12,0 1 12,0 14,0 95005-35xxx-2x 3,5 1 95005-35xxx-3x 3,5 1 95005-35xxx-4x 1 <> 3,5 ⚠ <> 8 95005-35xxx-5x 3,5 1 1 95005-45xxx-1x <> 4,5 ⚠ <> 8 95005-45xxx-2x 4,5 1 95005-45xxx-3x 4,5 1 **HATI-HATI** **:** **BERBAHAYA sekali apabila selang bahan bakar tertukar dengan selang pemakaian umum atau selang vinyl.** Jangan sekali-kali menggunakan selang pemakaian umum atau selang vinyl sebagai pengganti selang bahan bakar atau sebaliknya. Selalu pakai nomor part borongan yang tepat pada parts catalog, mengikuti service manual atau instruksi-instruksi yang menyertai part borongan. 2025.09.20 **Selang pemakaian umum** **Part borongan** **No. part** **standar** **No. part** **borongan** **Diameter** **dalam (mm)** **Panjang** **(m)** 5,0 5,3 6,5 7,0 7,3 8,0 CATATAN: X ditampilkan untuk mewakili angka yang dihilangkan dan huruf-huruf alfabet romawi.
**•** **Nomor part borongan untuk selang bahan bakar, selang pemakaian umum dan selang vinyl.** (Contoh) 9 5 0 0 1 - 7 5 0 0 1 - 5 0 M Nomor part borongan: Menunjuk ke part borongan. Kode penandaan (tipe selang): (selang bahan bakar dan selang pemakaian umum). Ubah kode (untuk selang tambahan): (Selang vinyl) • Menunjukkan tanda nomor atau urutan perubahan, namun, kode untuk part borongan harus benar- benar 0 (nol). Tipe kode: Selang bahan bakar 2: Kepangan merah di luar (dia. dalam 3 mm saja) 5: Kepangan hitam di dalam 3: Merah (dia. dalam 3 mm saja) 4: Abu-abu dengan garis merah (dia. dalam 3 mm saja) 6: Hitam Panjang: 001: 1 m (standar) 003: 3 m 008: 8 m Kode D.D.: (selang bahan bakar dan selang pemakaian umum) 30: 3,0 mm 11: 11 mm 35: 3,5 mm 91: 12 mm (dia. luar 15) mm 45: 4,5 mm 92: 12 mm (dia. luar 16) mm 50: 5,0 mm 12: 12 mm (dia. luar 17) mm 55: 5,3 mm, 5,5 mm 14: 14 mm 65: 6,5 mm 17: 17 mm 70: 7,0 mm 75: 7,3 mm, 7,5 mm 80: 8,0 mm Kode D.D./D.L.: (selang vinyl) 01: D.D. 2,9 D.L. 6,8 mm 14: D.D. 6,0 D.L. 9,0 mm 37: D.D. 11,0 D.L. 15,0 mm 03: D.D. 3,0 D.L. 6,0 mm 17: D.D. 7,0 D.L. 9,0 mm 38: D.D. 12,0 D.L. 13,0 mm 05: D.D. 3,5 D.L. 6,5 mm 19: D.D. 7,0 D.L. 11,0 mm 39: D.D. 12,0 D.L. 14,0 mm 07: D.D. 4,0 D.L. 7,0 mm 21: D.D. 8,0 D.L. 9,0 mm 40: D.D. 12,0 D.L. 16,0 mm 08: D.D. 4,5 D.L. 6,5 mm 23: D.D. 8,0 D.L. 12,0 mm 43: D.D. 13,0 D.L. 15,0 mm 09: D.D. 4,5 D.L. 8,0 mm 25: D.D. 9,0 D.L. 11,0 mm 45: D.D. 14,0 D.L. 18,0 mm 12: D.D. 5,0 D.L. 7,0 mm 27: D.D. 9,0 D.L. 13,0 mm 50: D.D. 16,0 D.L. 19,0 mm 10: D.D. 5,0 D.L. 8,0 mm 33: D.D. 10,0 D.L. 14,0 mm 55: D.D. 17,5 D.L. 20,5 mm 11: D.D. 5,0 D.L. 9,0 mm 36: D.D. 11,0 D.L. 13,0 mm 60: D.D. 22,0 D.L. 27,0 mm Tipe selang: 1: Selang bahan bakar 3: Selang vinyl 5: Selang umum 2025.09.20 1 • Selang vinyl 1: Tembus pandang • Selang umum 1: Abu-abu 2: Abu-abu 3: Hitam 5: Hitam 2: Hitam 3: Merah muda 6: Merah muda 7: Hitam pucat
**FLAT RATE SERVICE TIME** 1 untuk menyervis sebuah sepeda motor/skuter, yang terdaftar di dalam parts catalog ini untuk membantu AHASS mengontrol proses kerja yang sesungguhnya dan menghitung biaya servis dengan memakai FRT sebagai patokan. Flat rate service time (FRT) adalah waktu standar yang diperlukan **Sistem penentuan FRT** Waktu servis sesungguhnya Pelepasan, Pembongkaran/perakitan kembali, Pemasangan Pemeriksaan, Pengukuran, Penyetelan, Konfirmasi Pendiagnosaan/troubleshooting (Sistem kelistrikan) Pemeriksaan akhir Waktu jeda Persiapan (Pemeriksaan proses, Konfirmasi penyusunan tools yang diperlukan). Pekerjaan yang berhubungan (Pemindahan kendaraan). * Waktu jeda ditentukan dengan mengalikan waktu servis sesungguhnya dengan koefisien tertentu. 2025.09.20 **Metode Penulisan** Bagian-bagian yang diservis yang diperlihatkan di dalam teks yang tercantum dengan waktu pekerjaan part-part yang diganti sebagai subyeknya. Bagian-bagian lain yang diservis yang tidak menggunakan penggantian parts (pelepasan/pemasangan, penyetelan, pemeriksaan/ pengukuran, dan pekerjaan lain) tercantum secara bersama pada bagian pendahuluan yang digolongkan menurut jenis pekerjaan. **Standar penentuan FRT** • Sistem desimal (dalam satuan 0,1) dipakai untuk menentukan FRT oleh karena mudah untuk menghitung upah. Contoh: (0,1) 6 menit, (0,2) 12 menit [Ongkos jasa per jam] x [FRT] = [Upah] • FRT ditentukan dengan tool (perkakas) tangan. • Bagian-bagian yang diservis dan FRT dapat berubah tergantung pada pengembangan tools dan peralatan servis serta perbaikan pada prosedur servis.
**Prosedur kerja** **Bagian yang diservis yang tidak ada FRTnya** • Oleh karena prosedur kerja ditentukan berdasarkan waktu kerja dengan metode kerja yang diuraikan di dalam Buku Pedoman Reparasi, pakailah Buku ini sebagai pegangan. • Aksesori dan parts yang diservis yang tidak terdaftar di dalam parts catalog ini. • Lokasi-lokasi yang mengalami sedikit sekali pemburukan kondisi atau kerusakan dalam pemakaian normal. • Pekerjaan servis yang memerlukan waktu singkat harus tetap memperhatikan keamanan pekerjaan dan garansi dari sepeda motor/skuter dalam penentuan bagian-bagian yang diservis yang tidak dimuat di dalam Buku Pedoman Reparasi. • Pekerjaan servis yang dapat diselesaikan dengan sekali sentuh. • Pekerjaan servis yang jarang sekali dilakukan (yaitu yang jarang sekali mengalami masalah dan frekuensi servis). • Pada dasarnya pekerjaan dilakukan oleh satu orang, dan apabila diperlukan dua atau lebih orang untuk mengerjakannya, penentuan waktu kerja dilakukan sebagai waktu total untuk sejumlah orang tersebut. * Jika FRT tidak tercantum, hitunglah upah kerja berdasarkan perkiraan waktu kerja sesungguhnya. • Nilai yang ditentukan untuk tingkat kemampuan seorang pekerja adalah tiga tahun pengalaman dalam perbaikan kendaraan-kendaraan Honda sebagai standar. **Pekerjaan yang tidak ada FRTnya** • Pembuangan oli dan cairan coolant, Waktu tunggu untuk pemanasan mesin dan sebagainya. • Special tools dan peralatan servis yang dipakai dalam penentuan FRT adalah yang ditentukan atau dianjurkan di dalam Buku Pedoman Reparasi. • Pekerjaan tambahan yang meliputi pelepasan/pemasangan perlengkapan luar yang standar. • Waktu tidak langsung untuk melakukan servis dengan mendatangi pembeli sepeda motor/skuter, tukar tambah, dan pengiriman sepeda motor/skuter. • Waktu tidak langsung yang diperlukan untuk pemesanan dan penyerahan parts. • Ongkos untuk bahan perekat, grease, dsb. yang dipakai untuk pekerjaan servis. 2025.09.20 1
**Penjelasan FRT dengan menggunakan contoh** **(Contoh mungkin berbeda dari item yang tercantum)** 1 **1** No. Referensi dari gambar part yang menunjukkan lokasi kerja untuk penggantian. **2** FRT adalah singkatan dari Flat Rate Time menunjukkan waktu servis standar yang dibutuhkan untuk penggantian. **⚠** LON adalah singkatan dari Labor Operation Number, yaitu klasifikasi dari item servis dengan kode unit kerja. Kode kerja yang sama digunakan tidak tergantung dari model. Pengerjaan standar ditandai dengan kode 6 digit, dan pengerjaan tambahan ditandai dengan kode 7 digit. **4** **5** Menyatakan penggantian camshaft dan FRT4,5. Menyatakan bahwa FRT1,0 akan ditambahkan jika pekerjaan tambahan (penggantian rocker arm) dilakukan sehubungan dengan penggantian camshaft. 2025.09.20 **6** Menyatakan isi pekerjaan yang termasuk di dalam bagian yang diservis. **7** Menyatakan No. referensi yang pekerjaan dan waktunya adalah sama dengan FRT4,5 untuk camshaft. (Daerah jangkauan aplikasi terbatas pada bagian-bagian yang diservis tanpa penentuan LON di dalam blok yang sama) **Cara mencari bagian yang diservis dengan memakai contoh** (penggantian camshaft) Buka ke halaman blok dimana gambar spare part camshaft diperlihatkan. Carilah gambar camshaft, dan carilah bagian yang diservis dan FRT yang sesuai dengan No. referensi.
**Tanda penunjuk untuk pencantuman bagian-bagian yang diservis yang terdapat** **lanjutan pada halaman berikutnya** Tanda yang diperlihatkan pada baris terakhir. **Blok yang tidak ada penentuan FRT** **TIDAK ADA INFORMASI** **......................................** **•** **Sistem kode LON** ## ## 1 ## ## 11 ## ## 1 ## ## 18 ## ## A **a** **b** **c** **d** **e** a) Kode golongan ........... Mesin b) Kode lokasi/fungsi ..... Bagian atas mesin c) Kode pekerjaan ........... Ganti d) Nomor urutan pekerjaan (Kode unit dapat diperlihatkan dengan abjad) ..................... camshaft (Tidak ada aturan kode tetap) e) Kode tambahan ...........Ganti rocker arm (Tidak ada aturan kode tetap) 2025.09.20 ## ## 1 ## ## 11 ## ## 1 ## ## 18 ## ## A 1 **a** **c** **a)** **Kode kategori dan klasifikasi** **Kode** **Kategori** 1 Mesin 2 Transmisi ⚠ Bahan bakar & Pembuangan gas 4 Rangka & Badan 5 Kemudi/Suspensi 6 Kelistrikan 7 Roda/Rem 8 Alat pengontrol/instrumen 9 - 0 - **c) Kode pekerjaan dan klasifikasi** **Kode** **Kategori pekerjaan** 1 Ganti, Pelepasan/Pemasangan, Ganti 2 Overhaul ⚠ Setel, Balans 4 (Pekerjaan yang berhubungan dengan pengecatan: Lapisan-atas) 5 Test, Pemeriksaan/diagnosa, Pengukuran, Pemeriksaan 6 (Pekerjaan yang berhubungan dengan overhaul: Rebore = korter) 7 (Pekerjaan yang berhubungan dengan overhaul: Reseal = perapatan kembali) 8 (Resurface = Pembentukan kembali permukaan) 9 (Pekerjaan yang berhubungan dengan pengecatan: Refinish = perhalus permukaan) Perbaikan, Pembersihan, Pembuangan angin palsu
Bagian utama yang diservis tanpa memakai spare parts Pelepasan/Pemasangan, Penyetelan, Pemeriksaan/Pengukuran, Pekerjaan lain E: Mesin, F: Rangka *** PEKERJAAN LAIN SELAIN PARTS** **•** **Pelepasan/Pemasangan** Set untuk konfigurasi dengan parts dilepaskan dari kendaraan. 1 **LON** **DESKRIPSI** **FRT** ** ASSY., MESIN -** **PELEPASAN/** TERMASUK: Semua penyetelan yang diperlukan 1101E5 1,9 3111D5 **ASSY., THROTTLE BODY -** **PELEPASAN/** 0,7 E 1101E6 **PEMISAHAN CRANKCASE** TERMASUK: Penurunan dan pemasangan mesin 4,3 F 1151E6 **ASSY., RADIATOR -** **PELEPASAN/** 0,4 **•** **Penyetelan** **LON** **DESKRIPSI** **FRT** 3143A0 **PUTARAN STASIONER MESIN - ** 0,1 6143A1 **BUSI - /** 0,2 E 1113A0 **JARAK RENGGANG KLEP - ** CATATAN: Untuk 1 kendaraan 0,8 6163A0 **LAMPU DEPAN - ** 0,1 7113A1 **REM BELAKANG - ** TIDAK TERMASUK: Penyetelan kampas rem belakang Penyetelan equalizer tambahkan 0,1 F 7113A1A 0,3 7113A1D Penyetelan equalizer tambahkan (A) 0,1 CATATAN: Tipe Street 3113A3 ** GAS - ** 0,1 2025.09.20 **•** **Pemeriksaan/Pengukuran** **LON** **DESKRIPSI** **FRT** E 1115A0 **TEKANAN KOMPRESSI - ** 0,3 6145A0 **WAKTU PENGAPIAN - ** 0,4 **BATTERY - PENGISIAN** TERMASUK: Dalam kasus jenis baterai terbuka, periksa tinggi permukaan electrolyte dan pengisian F 6105A0 0,2 **•** **Pekerjaan lain** **LON** **DESKRIPSI** **FRT** E 1130A1 **SARINGAN KASA OLI - ** 0,2 7110A0 **REM DEPAN -** ** UDARA PALSU** 0,2 1151E7 **CAIRAN PENDINGIN RADIATOR - ** 0,3 F 3115A3 **ECM LEARNING** 0,2 6155A0 **SMART CARD KEY ** 0,5 6185A0 **UPDATE ECM/PCM** 0,3
## ## KELOMPOK MESIN **E-2** **CYLINDER HEAD COVER** **E-3** **CYLINDER HEAD** **E-9** **CAM CHAIN/TENSIONER** **CYLINDER** **E-5** **E-6** **E-10** **A.C.G. STARTER** **E-11** **OIL PUMP** 2025.09.20 **E-4** **CAMSHAFT/VALVE** 2 **WATER PUMP** **E-13** **LEFT SIDE COVER**
## ## KELOMPOK MESIN **E-14** **RADIATOR** **E-16** **DRIVE FACE** 2 **E-19-20** **** **RIGHT CRANKCASE** **E-17-10** **E-19-10** **E-20** **/PISTON** **E-22** **THROTTLE BODY/FUEL INJECTOR** 2025.09.20 **E-17** **DRIVEN FACE** **LEFT CRANKCASE**
## ## KELOMPOK RANGKA **F-1** **F-2** **F-2-1** **METER (IN)** **METER (3IN)** **HEADLIGHT** **F-3** **F-4-10** **F-5-10** **HANDLE LEVER/SWITCH/CABLE** **MIRROR** **FRONT BRAKE MASTER CYLINDER** **F-9** **F-9-1** **F-10** **HANDLE PIPE/HANDLE COVER (IN)** **STEERING STEM** **HANDLE PIPE (3IN)** 2025.09.20 ⚠
## ## KELOMPOK RANGKA **F-11** **F-12** **F-14** **FRONT COVER** **FLOOR STEP** **FRONT FENDER** **F-14-10** **F-15** **F-17** **BODY COVER** **PILLION STEP** **FRONT FORK** ⚠ **F-18** **F-20-40** **F-22-30** **FRONT BRAKE CALIPER** **REAR WHEEL** **FRONT WHEEL** 2025.09.20
## ## KELOMPOK RANGKA **F-23** **F-24** **F-26** **SEAT/LUGGAGE BOX** **FUEL TANK** **SWINGARM** **F-28** **F-30** **F-35** **EXHAUST MUFFLER** **AIR CLEANER** **STAND** **F-36** **F-37** **F-38** **REAR CUSHION** **TAILLIGHT** **WINKER** 2025.09.20 ⚠
## ## KELOMPOK RANGKA **F-39** **F-40** **F-41** **BATTERY** **WIRE HARNESS** **REAR FENDER/LICENSE LIGHT** **F-42** **F-43** **F-46** **RESERVE TANK** **FRAME BODY** **TOOLS** ⚠ **F-47** **F-48** **F-48-1** **CAUTION LABEL** **MARK/STRIPE (3IN)** **MARK/STRIPE (IN)** 2025.09.20
CYLINDER HEAD COVER ## ## E-2 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog 1 COVER COMP., HEAD............... 1 2 GASKET, HEAD COVER.............. 1 ⚠ BOLT, HEAD COVER................ 4 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 1 1111C4 COVER, CYLINDER HEAD............. 0,3 2 1111D2 GASKET, CYLINDER HEAD COVER...... 0,3 2
CYLINDER HEAD ## ## E-3 2 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog 1 HEAD ASSY., CYLINDER............ 1 2 GUIDE, VALVE(O.S.).............. 2 ⚠ GASKET, CYLINDER HEAD........... 1 ............................... 1 GASKET, CYLINDER HEAD(O.S.) . (0.75/1.00) (1) 4 PIPE, IN........................ 1 5 INSULATOR, IN. PIPE............. 1 6 STAY COMP., FUEL HOSE CLAMPER . . (A) 1 7 STAY COMP., FUEL HOSE CLAMPER . . (B) 1 8 PLUG, SPARK(CPR7EA-9)(NGK)...... 1 PLUG, SPARK(U22EPR9)(DENSO)..... 1 9 SENSOR, OXYGEN.................. 1 10 SENSOR ASSY., WATER .(PANASONIC) 1 11 BOLT, STUD, 7X17................ 2 12 WASHER, 8MM..................... 4 13 O-RING, 29X2.................... 2 14 O-RING, 9.5X1.9................. 1 15 , 6X12............... 1 16 NUT, HEX., 8MM.................. 4 17 DOWEL PIN, 10X16................ 2 DOWEL PIN, 3X5.................. BOLT, FLANGE, 6X14.............. 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 1 111106 HEAD, CYLINDER................... 4,0 .TERMASUK: Penurunan dan pemasangan mesin .TERMASUK: Penyetelan valve dan reface 2 1111L9 GUIDE, INTAKE VALVE(SATU)........ 4,0 .TERMASUK: Penurunan dan pemasangan mesin .TERMASUK: Reaming .TERMASUK: Penyetelan valve dan reface 1111M0 GUIDE, EXHAUST VALVE(SATU)....... 4,0 .TERMASUK: Penurunan dan pemasangan mesin .TERMASUK: Reaming .TERMASUK: Penyetelan valve dan reface 1111M9 GUIDE, VALVE :UNTUK 1 KENDARAAN.. 4,3 .TERMASUK: Penurunan dan pemasangan mesin .TERMASUK: Reaming .TERMASUK: Penyetelan valve dan reface + 3 111115 GASKET, CYLINDER HEAD............ 3,2
CYLINDER HEAD ## ## E-3 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog 20 BOLT, FLANGE, 6X40.............. 2 21 BOLT, FLANGE, 6X95.............. 2 22 BOLT, FLANGE, 6X80.............. 2 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. + ⚠ .TERMASUK: Penurunan dan pemasangan mesin 4 (5,13) 111107 MANIFOLD, INTAKE................. 0,7 8 614130 PLUG, SPARK...................... 0,2 9 617121 SENSOR, OXYGEN................... 0,7 10 (14) 6171A9 SENSOR, WATER TEMP............... 0,6 2
CAMSHAFT/VALVE ## ## E-4 2 2 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog 1 SEAL, VALVE STEM(NOK)........... 2 SEAL, VALVE STEM(ARAI).......... 2 CAMSHAFT COMP................... 1 ⚠ SPROCKET, CAM(34T).............. 1 4 ARM COMP., IN. VALVE ROCKER..... 1 5 ARM COMP., EX. VALVE ROCKER..... 1 6 SHAFT, ROCKER ARM............... 2 7 VALVE, IN....................... 1 8 VALVE, EX....................... 1 9 SPRING, VALVE................... 2 ............................... 2 10 RETAINER, VALVE SPRING.......... 2 11 SEAT, VALVE SPRING.............. 2 12 COTTER, VALVE................... 4 13 BOLT, FLANGE, 5X12.............. 2 14 SCREW, TAPPET ADJUSTING......... 2 15 BOLT, SOCKET KNOCK, 5MM......... 2 16 NUT, TAPPET ADJUSTING........... 2 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 2 111118 CAMSHAFT......................... 2,4 .TERMASUK: Penyetelan valve ⚠ 1111Q4 SPROCKET, CAM.................... 2,2 4 (6) 1111K8 ARM, INTAKE VALVE ROCKER(SATU)... 2,3 .TERMASUK: Penyetelan valve 5 (6) 1111K9 ARM, EXHAUST VALVE ROCKER(SATU).. 2,3 .TERMASUK: Penyetelan valve 1111L8 ARM, VALVE ROCKER :UNTUK 1 KENDARAAN.............. 2,3 .TERMASUK: Penyetelan valve 7 1111N0 VALVE, INTAKE(SATU).............. 3,6 .TERMASUK: Penurunan dan pemasangan mesin .TERMASUK: Refacing 8 1111N1 VALVE, EXHAUST(SATU)............. 3,6 .TERMASUK: Penurunan dan pemasangan mesin .TERMASUK: Refacing 1111P0 VALVE :UNTUK 1 KENDARAAN......... 3,8 .TERMASUK: Penurunan dan pemasangan mesin .TERMASUK: Refacing + 9 (1,10,11,12)
CAMSHAFT/VALVE ## ## E-4 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. + 9 1111P2 INTAKE VALVE SPRING DAN/ATAU STEM SEAL(SATU)................. 3,4 .TERMASUK: Penurunan dan pemasangan mesin 1111P3 EXHAUST VALVE SPRING DAN/ATAU STEM SEAL(SATU)................. 3,4 .TERMASUK: Penurunan dan pemasangan mesin 1111Q2 VALVE SPRING DAN/ATAU STEM SEAL :UNTUK 1 KENDARAAN.............. 3,5 .TERMASUK: Penurunan dan pemasangan mesin 2 2
CAM CHAIN/TENSIONER ## ## E-5 2 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog 1 CHAIN, CAM .(DID SCZ-0404 SV-92LE) 1 2 TENSIONER ASSY.,CAM CHAIN....... 1 ⚠ LIFTER ASSY., TENSIONER......... 1 4 PIVOT, CAM CHAIN TENSIONER...... 1 5 GASKET, TENSIONER LIFTER........ 1 6 GUIDE, CAM CHAIN................ 1 7 SCREW, PAN, 6X6................. 1 8 O-RING, 1.5X9.5................. 1 9 BOLT, FLANGE, 6X22.............. 2 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 1 110140 CHAIN, CAM....................... 3,7 .TERMASUK: Penurunan dan pemasangan mesin 2 111130 TENSIONER, CAM CHAIN............. 3,7 .TERMASUK: Penurunan dan pemasangan mesin ⚠ (5) 111133 LIFTER, TENSIONER................ 0,7 6 111139 GUIDE, CAM CHAIN................. 3,2 .TERMASUK: Penurunan dan pemasangan mesin
CYLINDER ## ## E-6 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog 1 CYLINDER COMP................... 1 2 GASKET, CYLINDER................ 1 ⚠ STAY COMP., IGNITION COIL....... 1 4 WASHER, SEALING, 6.5MM.......... 1 5 DOWEL PIN, 10X16................ 2 6 BOLT, FLANGE, 6X14.............. 4 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 1 1111A5 CYLINDER......................... 3,6 .TERMASUK: Penurunan dan pemasangan mesin 2 111102 GASKET, CYLINDER................. 3,5 .TERMASUK: Penurunan dan pemasangan mesin ⚠ 6141C2 STAY, IGNITION COIL.............. 0,2 2
WATER PUMP ## ## E-9 2 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog 1 PUMP COMP., WATER............... 1 2 COVER COMP., WATER PUMP......... 1 ⚠ GASKET, WATER PUMP COVER........ 1 4 ASSY................. 1 5 O-RING.......................... 1 6 HOSE C, WATER................... 1 7 CLAMP, HOSE(D24)................ 2 CLAMP, WATER HOSE, 24MM......... 2 8 O-RING, 34X2.................... 1 9 DOWEL PIN, 8X10................. 2 10 BOLT, FLANGE, 6X20.............. 2 11 BOLT, FLANGE, 6X40.............. ⚠ 12 BOLT, FLANGE, 6X16.............. 1 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 1 1141Q0 PUMP, WATER...................... 1,4 2 1141B0 COVER, WATER PUMP................ 1,4 ⚠ 1141B1 GASKET, WATER PUMP COVER......... 1,4 4 (5) 114116 ....................... 1,5 6 114132 HOSE C, WATER.................... 1,1
A.C.G. STARTER ## ## E-10 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog 1 FLYWHEEL COMP.(MITSUBA)......... 1 2 STATOR COMP..................... 1 ⚠ BOLT, SOCKET, 6X18.............. 1 4 WASHER, 12X24X2.3............... 1 5 NUT, FLANGE, 12MM............... 1 6 BOLT, SOCKET, 6X25.............. ⚠ 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 1 613105 ROTOR ATAU FLYWHEEL.............. 0,6 2 6131A3 STATOR........................... 1,9 2
OIL PUMP ## ## E-11 2 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog 1 PUMP SET, OIL................... 1 2 GEAR, OIL PUMP DRIVEN(35T)...... 1 ⚠ BOLT, SPECIAL, 6X23.5........... 2 4 DOWEL PIN, 8X10................. 2 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 1 113105 PUMP ASSY., OIL.................. 1,0 2 1131C4 GEAR, OIL PUMP DRIVEN............ 0,9
LEFT SIDE COVER ## ## E-13 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog 1 COVER, L. SIDE.................. 1 2 GASKET, L. COVER................ 1 ⚠ DUCT, L. COVER.................. 1 4 SEAL, L. COVER DUCT............. 1 5 BOLT, SOCKET, 6X18.............. ⚠ 6 CIRCLIP, INTERNAL, 32MM......... 1 7 BEARING COMP.(6002UU)(NTN)...... 1 BEARING COMP.(6002UU)........... 1 8 DOWEL PIN, 8X14................. 2 9 BOLT, FLANGE, 6X28.............. ⚠ 10 BOLT, FLANGE, 6X40.............. 5 11 BOLT, FLANGE, 6X65.............. 2 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 1 1101A6 COVER, CRANKCASE :LEFT........... 0,5 2 1101A3 GASKET, CRANKCASE COVER :LEFT.... 0,2 ⚠ (4) 1101H4 DUCT, BELT COVER................. 0,1 7 2101H8 BEARING, :LEFT COVER SIDE................ 0,4 2
## ## E-14 RADIATOR 2 2 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog 1 JOINT COMP., WATER HOSE......... 1 2 O-RING, 15.4X2.................. 1 ⚠ CAP COMP., RADIATOR............. 1 ............................... 1 4 O-RING A........................ 1 ............................... 1 5 O-RING B........................ 1 ............................... 1 6 O-RING C........................ 1 ............................... 1 7 LABEL, RADIATOR CAP............. 1 8 RADIATOR ASSY................... 1 ............................... 1 9 SEAL, DRAIN..................... 1 O-RING.......................... 1 10 COVER COMP., RADIATOR........... 1 11 TUBE, AIR BREATHER.............. 1 12 COLLAR.......................... ⚠ 13 HOSE A, WATER................... 1 14 HOSE B, WATER................... 1 15 HOSE, BYPASS.................... 1 16 FAN COMP., COOLING.............. 1 17 NUT, FENDER SETTING............. ⚠ 18 DRAIN PLUG...................... 1 BOLT, DRAIN..................... BOLT, FLANGE, 6X22(NSHF)........ 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 1 1151L2 JOINT, 3WAY HOSE................. 0,7 ⚠ 1151B8 CAP, RADIATOR.................... 0,1 8 1151C3 RADIATOR......................... 0,4 10 115115 COVER, RADIATOR.................. 0,1 11 1141H9 TUBE, AIR BREATHER............... 0,4 13 114130 HOSE A, WATER.................... 0,4 14 114131 HOSE B, WATER.................... 0,5 15 1141B4 HOSE, WATER BYPASS............... 0,6 16 1151A6 FAN, COOLING..................... 0,5
RADIATOR ## ## E-14 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog 20 CLAMP, HOSE(D20)................ 2 ............................... 2 CLAMP, WATER HOSE, 21MM......... 2 ............................... 2 21 CLAMP, HOSE(D24)................ 2 CLAMP, WATER HOSE, 24MM......... 2 22 CLAMP, HOSE(D15.5).............. 2 ............................... 2 CLIP, HOSE...................... 2 23 , 6X25............... 4 24 CLAMP, TUBE(D10.5).............. 2 25 BOLT, FLANGE, 6X16.............. ⚠ 26 BOLT, FLANGE, 6X16.............. ⚠ 2025.09.20 2 2
DRIVE FACE ## ## E-16 2 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog 1 PIECE SET, SLIDE................ 1 2 FACE, DRIVE..................... 1 ⚠ BOSS, DRIVE FACE................ 1 4 FACE COMP., MOVABLE DRIVE....... 1 5 ROLLER SET, WEIGHT.............. 1 6 PLATE, RAMP..................... 1 7 WASHER, 15X29X7................. 1 8 OIL SEAL, 24X31X3.5(ARAI)....... 1 9 NUT, HEX., 14MM................. 1 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 2 2111A0 FACE, DRIVE...................... 0,4 4 2111A1 FACE, MOVABLE DRIVE.............. 0,4 5 (1,6) 2111A4 ROLLER, WEIGHT................... 0,4
DRIVEN FACE ## ## E-17 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog 1 OUTER COMP., CLUTCH............. 1 2 PLATE COMP., DRIVE(FCC)......... 1 ⚠ PLATE, CLUTCH SIDE.............. 1 4 SPRING, CLUTCH.................. ⚠ 5 WEIGHT SET, CLUTCH.............. 1 6 RUBBER, CLUTCH DAMPER........... ⚠ 7 BELT, DRIVE..................... 1 8 FACE SET, DRIVEN(FCC)........... 1 9 FACE SET, MOVABLE DRIVEN........ 1 10 PIN, ROLLER GUIDE............... ⚠ 11 ROLLER, GUIDE................... ⚠ 12 SPRING, DRIVEN FACE............. 1 13 COLLAR, SEAL.................... 1 14 COLLAR, SPRING.................. 1 15 NUT, SPECIAL, 28MM.............. 1 16 WASHER, 12.2X29X2.5............. 1 17 CIRCLIP, 7MM.................... ⚠ 18 BEARING, NEEDLE, 20X29X18(NTN).. 1 BEARING, NEEDLE, 20X29X18 .() 1 19 BEARING, RADIAL BALL, 6902U . (NTN) 1 BEARING, RADIAL BALL, 6902U .(F.C.C.) 1 ............................... ............................... 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 1 2121A0 OUTER, CLUTCH.................... 0,3 5 (2,4) 2121A6 WEIGHT SET, CLUTCH............... 0,8 7 2111B2 BELT, DRIVE...................... 0,4 8 (10,11,13) 2111A2 FACE, DRIVEN..................... 0,7 9 (20,21) 2111A3 FACE, MOVABLE DRIVEN............. 0,8 12 (14) 2111A7 SPRING, DRIVEN FACE.............. 0,6 18 (19) 2111A8 BEARING, DRIVEN FACE............. 0,9 2111A8A .Ganti 1 bearing tambahkan....... 0,1 2
DRIVEN FACE ## ## E-17 2 2 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog 19) BEARING, RADIAL BALL, 6902U . (NSK) 1 20 SEAL, DRIVEN FACE, 34X41X4 .(F.C.C.) 2 SEAL, DRIVEN FACE, 34X41X4 .(ARAI) 2 21 O-RING, 38.8X1.9................ 2 22 NUT, HEX., 12MM................. 1 23 CIRCLIP, INTERNAL, 28MM......... 1 2025.09.20
## ## E-17-10 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog 1 SLEEVE, RR. BRAKE CAM........... 1 2 TUBE, MISSION BREATHER.......... 1 ⚠ CASE COMP., MISSION............. 1 4 GASKET, CASE....... 1 5 (17T)................. 1 6 (13T)............... 1 7 GEAR, COUNTER(53T).............. 1 8 GEAR COMP., FINAL............... 1 9 WASHER, SEALING, 8MM............ 1 10 BEARING, RADIAL BALL, 6202(NTN). 1 BEARING, RADIAL BALL, 6202 . (FUJIKOSHI) 1 BEARING, RADIAL BALL, 6202...... 1 11 BEARING, RADIAL BALL, 6201...... 1 BEARING, RADIAL BALL, 6201(NTN). 1 BEARING, RADIAL BALL, 6201 . (FUJIKOSHI) 1 12 BEARING, RADIAL BALL, .6205-2NSG(FUJIKOSHI) 1 BEARING, RADIAL BALL, 6205UU.... 1 BEARING, RADIAL BALL, 6205UU . (NTN) 1 13 OIL SEAL, 14X20X3.2(ARAI)....... 2 14 OIL SEAL, 34X52X7(ARAI)......... 1 OIL SEAL, 34X52X7(NOK).......... 1 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. ⚠ 2101A2 CASE, ............... 1,2 4 2101A3 GASKET, CASE........ 0,8 5 2101E9 SHAFT, DRIVE..................... 1,1 6 210142 , ....... 0,8 7 2101A5 GEAR, COUNTER.................... 0,8 8 210170 SHAFT, FINAL GEAR................ 0,8 10 2101F1 BEARING, :RIGHT....... 1,0 2101J1 BEARING, :KEDUANYA.... 1,2 11 2101C8 BEARING, :RIGHT..... 1,0 2101C9 BEARING, :KEDUANYA. 1,1 12 (14) 2101E6 BEARING, FINAL GEAR SHAFT :RIGHT.......................... 1,0 2101J0 BEARING, FINAL GEAR SHAFT :KEDUANYA....................... 1,1 2 2
## ## E-17-10 2 2 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog 15 DOWEL PIN, 10X12................ 2 16 CLIP, TUBE(C9).................. 1 17 BOLT, FLANGE, 8X45.............. 5 18 BOLT, FLANGE, 8X55.............. 2 2025.09.20
RIGHT CRANKCASE ## ## E-19-10 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog 1 CRANKCASE COMP., R.............. 1 2 BUSH, ENGINE HANGER RUBBER .(HOKUSHIN) 1 BUSH, ENGINE HANGER RUBBER...... 1 ⚠ PLUG, BEARING PUSH.............. 1 4 SPRING, BEARING PUSH............ 1 5 PLATE, BEARING PUSH............. 1 6 BUSH, MAIN STAND................ 1 ............................... 1 7 BASE, STATOR.................... 1 8 GASKET, STATOR BASE............. 1 9 GAUGE, OIL LEVEL................ 1 10 CLAMPER, A.C. GENERATOR CORD.... 1 11 BOLT A, STUD, 8X200.5........... 2 12 BOLT, RADIATOR DISTANCE......... 4 13 BOLT, DRAIN PLUG, 12X15......... 1 14 DOWEL PIN, SPECIAL, 6.3X10X30... 2 15 OIL SEAL, 20.8X32X6(ARAI)....... 1 OIL SEAL, 20.8X32X6(NOK)........ 1 16 O-RING, 18X3.................... 1 17 WASHER, DRAIN PLUG, 12MM........ 1 18 DOWEL PIN, 8X10................. 2 19 BOLT, FLANGE, 6X25.............. 6 20 BOLT, FLANGE, 6X65.............. 4 BOLT, FLANGE, 6X80.............. 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 1 110120 CRANKCASE :RIGHT................. 4,5 .TERMASUK: Penurunan dan pemasangan mesin 1101A2 CRANKCASE :KEDUANYA ............. 5,6 .TERMASUK: Penurunan dan pemasangan mesin 7 6131A4 BASE, STATOR..................... 0,9 8 6131B5 O-RING, STATOR BASE.............. 0,8 15 110132 OIL SEAL, :RIGHT...... 0,9 1101H3 OIL SEAL, :KEDUANYA... 4,8 .TERMASUK: Penurunan dan pemasangan mesin 2 2
RIGHT CRANKCASE ## ## E-19-10 2 2 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog 22 BOLT, FLANGE, 6X130............. 4 23 BOLT, FLANGE, 6X16.............. 1 2025.09.20
LEFT CRANKCASE ## ## E-19-20 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog 1 BUSH, ENGINE HANGER RUBBER .(HOKUSHIN) 1 BUSH, ENGINE HANGER RUBBER...... 1 2 CRANKCASE COMP., L.............. 1 ⚠ BUSH, RR. CUSHION UNDER RUBBER.. 1 BUSH, RR. CUSHION UNDER RUBBER .(HOKUSHIN) 1 4 BUSH, MAIN STAND................ 1 ............................... 1 5 TUBE, DRAIN..................... 1 6 CAP, TAPPET ADJUSTING HOLE...... 1 7 SCREEN, OIL FILTER.............. 1 ............................... 1 8 SPRING, OIL FILTER SCREEN....... 1 9 PROTECTOR, SPEED SENSOR......... 1 10 GROMMET, SPEED SENSOR PROTECTOR. 1 11 SENSOR ASSY., SPEED............. 1 12 BOLT, SOCKET, 6X18.............. 2 13 BOLT B, STUD, 8X206............. 2 14 WASHER, SEALING, 8MM............ 1 15 BEARING, RADIAL BALL SPECIAL, . 6207(FUJIKOSHI) 1 BEARING, RADIAL BALL SPECIAL, . 6207(NSK) 1 BEARING, RADIAL BALL, 6204...... 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 2 110115 CRANKCASE :LEFT.................. 5,4 .TERMASUK: Penurunan dan pemasangan mesin 1101A2 CRANKCASE :KEDUANYA.............. 5,6 .TERMASUK: Penurunan dan pemasangan mesin 7 (6,8,21) 1131B5 SCREEN, OIL FILTER............... 0,2 11 (22) 617197 SENSOR, WHEEL SPEED :REAR........ 0,5 15 1101B6 BEARING, :LEFT........ 4,7 .TERMASUK: Penurunan dan pemasangan mesin 16 2101F0 BEARING, :LEFT........ 1,1 2101J1 BEARING, :KEDUANYA.... 1,2 17 2101C7 BEARING, :LEFT...... 1,0 2101C9 BEARING, :KEDUANYA. 1,1 18 2101E5 BEARING, FINAL GEAR SHAFT 2 2 :LEFT........................... 1,0 2101J0 BEARING, FINAL GEAR SHAFT :KEDUANYA....................... 1,1 19 110131 OIL SEAL, :LEFT....... 4,7 .TERMASUK: Penurunan dan pemasangan mesin + 1101H3 OIL SEAL, :KEDUANYA... 4,8
LEFT CRANKCASE ## ## E-19-20 2 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog 16) BEARING, RADIAL BALL, 6204(NTN). 1 BEARING, RADIAL BALL, 6204 . (FUJIKOSHI) 1 17 BEARING, RADIAL BALL, 6301...... 1 BEARING, RADIAL BALL, 6301(NTN). 1 BEARING, RADIAL BALL, 6301 . (FUJIKOSHI) 1 18 BEARING, RADIAL BALL, 6302...... 1 BEARING, RADIAL BALL, 6302(NTN). 1 BEARING, RADIAL BALL, 6302 . (FUJIKOSHI) 1 19 OIL SEAL, 26X45X6............... 1 20 OIL SEAL, 20X32X6(ARAI)......... 1 OIL SEAL, 20X32X6(NOK).......... 1 21 O-RING, 30.8MM.................. 1 22 O-RING B........................ 1 23 CLIP, TUBE(C12)................. 1 24 BOLT, FLANGE, 6X16.............. 1 25 BOLT, FLANGE, 8X16.............. 1 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. +19 .TERMASUK: Penurunan dan pemasangan mesin 20 2101E7 OIL SEAL, ............. 1,1
/PISTON ## ## E-20 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog 1 COMP................. 1 2 RING SET, PISTON(STD.)(TPR)..... 1 RING SET, PISTON(STD.)(RIKEN)... 1 RING SET, PISTON(0.25)(TPR)..... (1) RING SET, PISTON(0.25)(RIKEN)... (1) RING SET, PISTON(0.50)(TPR)..... (1) RING SET, PISTON(0.50)(RIKEN)... (1) RING SET, PISTON(0.75)(TPR)..... (1) RING SET, PISTON(0.75)(RIKEN)... (1) RING SET, PISTON(1.00)(TPR)..... (1) RING SET, PISTON(1.00)(RIKEN)... (1) ⚠ PISTON(STD.).................... 1 ............................... 1 PISTON(O.S. 0.25)............... (1) PISTON(O.S. 0.50)............... (1) PISTON(O.S. 0.75)............... (1) PISTON(O.S. 1.00)............... (1) 4 PIN, PISTON..................... 1 ............................... 1 5 CLIP, PISTON PIN, 13MM.......... 2 6 KEY, WOODRUFF, 4MM.............. 1 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 1 1101B5 ....................... 4,9 .TERMASUK: Penurunan dan pemasangan mesin ⚠ (2,4,5) 111103 PISTON RING DAN/ATAU PISTON(SATU) 3,6 .TERMASUK: Penurunan dan pemasangan mesin 2
THROTTLE BODY/FUEL INJECTOR ## ## E-22 2 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog 1 SCREW SET....................... 1 2 O-RING, THROTTLE BODY........... 1 ⚠ O-RING, 1.9X20.4................ 1 4 SCREW, TORX, 5X8.7.............. 2 5 STAY, WIRE...................... 1 6 THROTTLE BODY ASSY.(GQYKB A).... 1 7 BODY SET........................ 1 8 INJECTOR ASSY., FUEL............ 1 9 RING, SEAL...................... 1 10 SOLENOID........................ 1 11 SEAT SET........................ 1 12 JOINT COMP., INJECTOR........... 1 13 BOLT, FLANGE, 6X22(NSHF)........ 2 14 O-RING, 6.3X2.2................. 1 15 , 5X12.............. 1 16 BOLT, FLANGE, 6X25.............. 2 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 6 (2) 311132 BODY ASSY., THROTTLE............. 0,7 7 311130 BODY, THROTTLE................... 0,8 8 (9,12,14) 311145 INJECTOR, FUEL................... 0,7 10 (3,11) 311125 VALVE, STARTER................... 0,3
HEADLIGHT ## ## F-1 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ 1 LIGHT ASSY., FR. .... 1 2 SCREW, PAN, 5X13................ 6 ⚠ NUT, CLIP, 5MM.................. 2 4 , 6X16............... 2 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 1 6161A7 HEADLIGHT UNIT................... 0,5
METER (IN) ## ## F-2 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ 1 METER ASSY., (KPH)... 1 - ............................... - 1 -------- -------- IN 2 PACKING......................... 1 -------- -------- IN ⚠ ROD, TRIP....................... 2 -------- -------- IN 4 METER COMP.(KPH)................ 1 - ............................... - 1 -------- -------- IN 5 CASE ASSY....................... 1 -------- -------- IN 6 LENS ASSY....................... 1 -------- -------- IN 7 SCREW, TAPPING, 3X14............ 10 -------- -------- IN 8 SCREW, TAPPING, 5X16............ ⚠ -------- -------- IN 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 1 8121A1 METER ASSY., ......... 0,4 4 8121A2 METER, ............... 0,5 5 (2) 8121B3 CASE, METER...................... 0,4 6 8121B7 LENS, METER...................... 0,3
METER (3IN) ## ## F-2-1 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ 1 METER ASSY., (KPH)... - 1 -------- -------- 3IN 2 PACKING......................... - 1 -------- ⚠ ROD, TRIP....................... - 2 -------- 4 METER COMP.(KPH)................ - 1 -------- 5 CASE ASSY., UPPER............... - 1 -------- 6 CASE ASSY., LOWER............... - 1 -------- -------- 3IN 7 COVER SET, METER LOWER(WL) *TYPE1*........................ - 1 -------- -------- 3IN 8 NUT, SPRING, 4MM................ - 2 -------- 9 SCREW, TAPPING, 3X14............ - 10 -------- 10 SCREW, TAPPING, 4X12............ - 2 -------- 11 SCREW, TAPPING, 5X14(PO)........ - ⚠ -------- -------- 3IN 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 1 8121A5 METER ASSY., (A)...... 0,3 4 8121H4 METER, (A)............ 0,3 5 8121B4 CASE, METER :UPPER............... 0,2 6 8121B5 CASE, METER :LOWER............... 0,2 7 4131Q2 COVER, METER :LOWER.............. 0,1
MIRROR ## ## F-3 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ 1 CAP, LOCK NUT................... 2 MIRROR COMP., R................. 1 ⚠ MIRROR COMP., L................. 1 4 BOLT, ADAPTER, 10MM............. 2 5 NUT, HEX., 10MM . .(LEFT HAND THREAD) 2 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. TIDAK ADA INFORMASI .............
HANDLE LEVER/SWITCH/CABLE ## ## F-4-10 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ 1 CABLE COMP. A, THROTTLE......... 1 -------- -------- IN 1 -------- -------- IN CABLE COMP. A, THROTTLE......... - 1 -------- 2 CLAMPER, THROTTLE CABLE......... 1 ⚠ CABLE COMP. B, THROTTLE......... 1 -------- -------- IN 1 -------- -------- IN CABLE COMP. B, THROTTLE......... - 1 -------- 4 BAND B1, WIRE................... - 2 -------- 5 SWITCH ASSY., STARTER........... 1 - SWITCH ASSY., STARTER & IDLE.... - 1 -------- -------- 3IN ............................... - 1 -------- -------- IN 6 SWITCH ASSY., DIMMER & HORN & .WINKER 1 -------- -------- IN ............................... - 1 -------- 7 SWITCH ASSY., FR. STOP.......... 1 -------- -------- IN ............................... - 1 -------- 8 CABLE COMP., FR. BRAKE . 1 -------- -------- IN ............................... - 1 -------- 9 CABLE COMP., RR. BRAKE.......... 1 -------- -------- IN ............................... - 1 -------- 10 CLAMPER B, RR. BRAKE CABLE...... 1 11 HOLDER, MIRROR.................. 1 12 GRIP COMP., THROTTLE............ 1 13 GRIP, L. HANDLE................. 1 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 1 (3) 811100 CABLE, THROTTLE.................. 1,5 .CATATAN: Waktu sama untuk dua unit 8111D4 CABLE, THROTTLE(A)............... 1,4 .CATATAN: Waktu sama untuk dua unit .CATATAN: Tipe Street 5 615116 SWITCH, STARTER.................. 0,6 6151G1 SWITCH, STARTER(A)............... 0,5 .CATATAN: Tipe Street 6 615118 SWITCH, WINKER................... 0,3 6151G5 SWITCH, WINKER(A)................ 0,2 .CATATAN: Tipe Street 7 6151B3 SWITCH, REAR STOP :LEVER SIDE.... 0,4 6151B6 SWITCH, STOP :KEDUANYA........... 0,7 8 8111B9 CABLE, FRONT BRAKE .... 0,5 9 811130 CABLE, REAR BRAKE................ 1,4 8111C8 CABLE, REAR BRAKE(A)............. 1,3 .CATATAN: Tipe Street 12 810150 GRIP, THROTTLE................... 0,5 8101J5 GRIP, THROTTLE(A)................ 0,4 .CATATAN: Tipe Street 13 8101C0 GRIP, HANDLE :LEFT............... 0,1
HANDLE LEVER/ SWITCH/CABLE ## ## F-4-10 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ 14 BRACKET, L. BRAKE LEVER......... 1 15 LEVER, L. STEERING HANDLE....... 1 -------- -------- IN ............................... - 1 -------- 16 EQUALIZER....................... 1 17 LEVER COMP., BRAKE LOCK......... 1 18 PIN, BRAKE LOCK LEVER........... 1 19 SPRING, BRAKE LOCK ARM RETURN... 1 20 PIN, BRAKE CABLE STOPPER........ 1 21 SCREW, HANDLE LEVER PIVOT....... 1 22 SCREW, HANDLE LEVER PIVOT....... 1 23 NUT, U, 5MM..................... 2 24 CLAMP, HARNESS.................. - 1 -------- -------- 3IN 25 , 5X20.............. 4 26 E-RING, 3MM..................... 1 27 BOLT, FLANGE, 6X12.............. 1 28 BOLT, FLANGE, 6X22.............. 2 -------- -------- IN ............................... - 2 -------- 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 14 8101C8 BRACKET, HANDLE LEVER :LEFT...... 0,6 8101H7 BRACKET, HANDLE LEVER(A) :LEFT... 0,5 .CATATAN: Tipe Street 15 8101C6 LEVER, HANDLE :LEFT.............. 0,3 8101F5 LEVER, HANDLE :KEDUANYA.......... 0,3 16 8101D1 EQUALIZER, BRAKE CABLE........... 0,5 17 8101D2 LEVER, REAR BRAKE LOCK........... 0,2 8101N6 LEVER, REAR BRAKE LOCK(A)........ 0,1 .CATATAN: Tipe Street
FRONT BRAKE MASTER CYLINDER ## ## F-5-10 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ 1 SWITCH ASSY., FR. STOP(OMRON)... 1 -------- -------- IN 2 SWITCH ASSY., FR. STOP(ALPS).... - 1 -------- ⚠ HOSE COMP., FR. BRAKE........... 1 -------- -------- IN ............................... - 1 -------- 4 CLAMPER COMP. A, BRAKE HOSE..... 1 5 CLAMPER B, BRAKE HOSE........... 1 6 CYLINDER ASSY., FR. BRAKE .MASTER 1 -------- -------- IN ............................... - 1 -------- 7 BOOT COMP....................... 1 8 PROTECTOR....................... 1 9 CAP, MASTER CYLINDER............ 1 10 HOLDER, MIRROR.................. 1 11 DIAPHRAGM....................... 1 12 PLATE, DIAPHRAGM................ 1 13 CYLINDER SET, FR. MASTER .(NISSIN) 1 14 LEVER, R. STEERING HANDLE....... 1 -------- -------- IN ............................... - 1 -------- 15 SPRING, RETURN.................. 1 16 SPRING, BRAKE LEVER RETURN...... 1 17 BOLT, HANDLE LEVER.............. 1 18 BOLT, OIL, 10X22................ 2 BOLT, OIL, 10X22(NISSIN)........ 2 19 WASHER, OIL BOLT................ 4 CIRCLIP, INTERNAL, 18.8MM....... 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 1 (2) 6151B2 SWITCH, FRONT STOP............... 0,5 6151B6 SWITCH, STOP :KEDUANYA........... 0,7 ⚠ 7121A0 HOSE, FRONT BRAKE................ 0,6 .TERMASUK: Pembuangan udara palsu 6 712105 CYLINDER, FRONT BRAKE MASTER..... 0,7 .TERMASUK: Pembuangan udara palsu 7121K9 CYLINDER, FRONT BRAKE MASTER (A)............................. 0,5 .TERMASUK: Pembuangan udara palsu .CATATAN: Tipe Street 11 7121G6 DIAPHRAGM, FRONT BRAKE MASTER CYLINDER........................ 0,1 13 7121G9 PISTON SET, FRONT BRAKE MASTER... 0,7 .TERMASUK: Pembuangan udara palsu 7121K8 PISTON SET, FRONT BRAKE MASTER (A)............................. 0,5 .TERMASUK: Pembuangan udara palsu .CATATAN: Tipe Street 14 8101C7 LEVER, HANDLE :RIGHT............. 0,2 8101F5 LEVER, HANDLE :KEDUANYA.......... 0,3
FRONT BRAKE MASTER CYLINDER ## ## F-5-10 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ ⚠ 21 SCREW, FLAT, 4X12............... 2 22 , 4X12.............. 1 23 NUT, FLANGE, 6MM................ 1 24 BOLT, FLANGE, 6X12.............. 2 25 BOLT, FLANGE, 6X22.............. 2 -------- -------- IN ............................... - 2 -------- 2025.09.20
HANDLE PIPE/HANDLE COVER (IN) ## ## F-9 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ 1 PIPE COMP., STEERING HANDLE..... 1 -------- -------- IN 2 WEIGHT A, HANDLE................ 2 -------- -------- IN ⚠ COVER, FR. HANDLE *TBLACK*..................BLACK 1 -------- -------- IN 4 COVER COMP., HANDLE RR.(WL) *NH1*.....................BLACK 1 - *NH436M* .MAT GUNPOWDER BLACK METALLIC - 1 -------- -------- IN 5 COVER SET, HANDLE TOP(WL) *TYPE3*........................ 1 - *TYPE1*........................ 1 - *TYPE2*........................ 1 - *TYPE4*........................ - 1 -------- -------- IN *TYPE6*........................ - 1 -------- -------- IN *TYPE5*........................ - 1 -------- -------- IN 6 EMBLEM, PRODUCT(MARUI).......... 1 -------- -------- IN EMBLEM, PRODUCT(UEHARA)......... 1 -------- -------- IN EMBLEM, PRODUCT................. 1 -------- -------- IN EMBLEM, PRODUCT(SHINKO)......... 1 -------- -------- IN 7 BOLT, FLANGE, 10X48............. 1 -------- -------- IN 8 SCREW, OVAL, 6X45............... 2 -------- -------- IN ............................... 2 -------- -------- IN 9 NUT, SPRING, 4MM................ 4 -------- -------- IN 10 NUT, U, 10MM(FUJI SEIMITSU)..... 1 -------- -------- IN NUT, FLANGE, 10MM(PT)........... 1 -------- -------- IN COLLAR A, HANDLE SETTING........ -------- -------- IN ............................... -------- -------- IN 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 1 810100 PIPE, STEERING HANDLE............ 0,8 ⚠ 4131B5 COVER, HANDLE :FRONT............. 0,2 4 4131B6 COVER, HANDLE :REAR.............. 0,3 4131U1 COVER, HANDLE :KEDUANYA.......... 0,4 5 8121E6 COVER, ............... 0,1 ⚠
HANDLE PIPE/HANDLE COVER (IN) ## ## F-9 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ ⚠ 12 COLLAR B, HANDLE SETTING........ 1 -------- -------- IN ............................... 1 -------- -------- IN 13 CLIP, SNAP FITTING(PO).......... 1 -------- -------- IN ............................... 1 -------- -------- IN 14 SCREW, TAPPING, 4X12............ 4 -------- -------- IN 15 SCREW, TAPPING, 4X12............ 4 -------- -------- IN 16 SCREW, TAPPING, 5X16............ 1 -------- -------- IN 2025.09.20
HANDLE PIPE (3IN) ## ## F-9-1 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ 1 PIPE COMP., HANDLE.............. - 1 -------- -------- 3IN 2 COVER, HANDLE END............... - 2 -------- ⚠ POST COMP., HANDLE.............. - 1 -------- 4 HOLDER, R. HANDLE UNDER *NH1*.....................BLACK - 1 -------- -------- 3IN 5 HOLDER, HANDLE UPPER *NH1*.....................BLACK - 1 -------- -------- 3IN 6 HOLDER, L. HANDLE UNDER . *NH1*.....................BLACK - 1 -------- -------- 3IN 7 COVER, FR. HANDLE . *TBLACK*..................BLACK - 1 -------- -------- 3IN 8 COVER SET, HANDLE(WL) *TBLACK*..................BLACK - 1 -------- -------- 3IN 9 EMBLEM, PRODUCT................. - 1 -------- EMBLEM, PRODUCT(MARUI).......... - 1 -------- EMBLEM, PRODUCT(UEHARA)......... - 1 -------- 10 BOLT, FLANGE, 10X48............. - 1 -------- 11 SCREW, SPECIAL, 5MM............. - 2 -------- -------- 3IN 12 SCREW, SPECIAL, 6MM............. - 2 -------- 13 NUT, U, 10MM(FUJI SEIMITSU)..... - ⚠ -------- NUT, FLANGE, 10MM(PT)........... - ⚠ -------- 14 COLLAR A, HANDLE SETTING........ - 1 -------- ............................... - 1 -------- 15 WASHER, 10MM.................... - 2 -------- COLLAR B, HANDLE SETTING........ - -------- -------- 3IN ............................... - -------- 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 1 8101H9 PIPE, STEERING HANDLE(A)......... 0,4 ⚠ 5101C8 POST, HANDLE..................... 0,7 4 (6) 8101B9 HOLDER, HANDLE :LOWER............ 0,5 .CATATAN: Waktu sama untuk dua unit 7 4131AP COVER, HANDLE(A) :FRONT.......... 0,1 8 4131AQ COVER, HANDLE(A) :REAR........... 0,4 4131AR COVER, HANDLE(A) :KEDUANYA....... 0,4 ⚠
HANDLE PIPE (3IN) ## ## F-9-1 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ ⚠ 17 CAP, SOCKET BOLT................ - 4 -------- -------- 3IN 18 BOLT, SOCKET, 8X32.............. - 4 -------- 2025.09.20
STEERING STEM ## ## F-10 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ 1 BALL SET, STEEL, ## 6X23.......... 1 2 BALL SET, STEEL, ## 6X29.......... 1 ⚠ RACE, STEERING TOP BALL......... 1 4 RACE, STEERING BOTTOM BALL...... 1 5 NUT, STEERING STEM LOCK......... 1 6 RACE, STEERING TOP CONE......... 1 7 RACE, STEERING BOTTOM CONE...... 1 8 DUST SEAL, STEERING HEAD........ 1 9 STEM SUB ASSY., STEERING........ 1 10 THREAD COMP., STEERING HEAD TOP. 1 11 BOLT, FLANGE, 10X45............. 4 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. ⚠ (1) 5101A0 RACE, STEERING BALL :UPPER....... 1,4 4 5101A1 RACE, STEERING BALL :LOWER....... 1,6 5101C9 RACE, STEERING BALL :KEDUANYA.... 1,6 6 5101A9 RACE, STEERING TOP CONE.......... 1,4 7 (2,8) 5101B0 RACE, STEERING BOTTOM CONE....... 1,6 9 510100 STEM OR SHAFT ASSY., STEERING.... 1,4 10 5101B2 THREAD, STEERING HEAD TOP........ 1,2 ⚠
FRONT FENDER ## ## F-11 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ 1 FENDER, FR. *NH1*.....................BLACK 1 - *NH436M* .MAT GUNPOWDER BLACK METALLIC - 1 *R423M* .MAT RUSSELL RED METALLIC - 1 -------- -------- IN *B251M*...PEACOCK BLUE METALLIC - 1 -------- -------- IN 2 BOLT, FLANGE, 6MM............... ⚠ 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 1 4131B7 FENDER, FRONT.................... 0,1
FRONT COVER ## ## F-12 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ 1 COVER, FR.(WOL) . *R383*..............VALIANT RED 1 - *NH1*.....................BLACK 1 - *BG135M* SERENIA MINT METALLIC. 1 - COVER SET, FR.(WL) . *TYPE3*........................ - 1 -------- -------- 3IN *TYPE2*........................ - 1 -------- *TYPE1*........................ - 1 -------- *TYPE3*........................ - 1 -------- -------- IN *TYPE2*........................ - 1 -------- -------- IN *TYPE1*........................ - 1 -------- -------- IN 2 COVER, FR. TOP(WOL) *TBLACK*..................BLACK 1 ⚠ GARNISH, FR *TBLACK*..................BLACK 1 4 GARNISH, R. FR *TBLACK*..................BLACK 1 5 GARNISH, L. FR. *TBLACK*..................BLACK 1 6 COVER SET, R. FR.(WL) *TYPE3*........................ 1 - *TYPE2*........................ 1 - *TYPE1*........................ 1 - *TYPE3*........................ - 1 -------- -------- 3IN *TYPE2*........................ - 1 -------- *TYPE1*........................ - 1 -------- *TYPE3 1*.................... - -------- -------- IN *TYPE2 1*.................... - -------- -------- IN 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 1 4111E3 COVER, FRONT..................... 0,1 2 413122 COVER, FRONT CENTER.............. 0,1 ⚠ 4111BE GARNISH, FRONT COVER............. 0,5 6 (4) 4111U8 COVER, FRONT :RIGHT.............. 0,5 7 (5) 4111U7 COVER, FRONT :LEFT............... 0,5 4111U9 COVER, FRONT :KEDUANYA........... 0,5 8 411130 LOCK, POCKET LID................. 0,5 9 411150 PANEL, INNER..................... 0,5 12 4111CJ POCKET, INNER :LEFT.............. 0,5 14 4131ES COVER, FRONT INNER :CENTER....... 0,5
FRONT COVER ## ## F-12 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ (6) COVER SET, R. FR.(WL) *TYPE1 1*...................... - 1 -------- -------- IN 7 COVER SET, L. FR.(WL) *TYPE3*........................ 1 - *TYPE2*........................ 1 - *TYPE1*........................ 1 - *TYPE3*........................ - 1 -------- -------- 3IN *TYPE2*........................ - 1 -------- *TYPE1*........................ - 1 -------- *TYPE3 1*...................... - 1 -------- -------- IN *TYPE2 1*...................... - 1 -------- -------- IN *TYPE1 1*...................... - 1 -------- -------- IN 8 LID ASSY., INNER POCKET . *NH1*.....................BLACK 1 - *NH436M* .MAT GUNPOWDER BLACK METALLIC - 1 9 COVER, INNER LOWER . *TBLACK*..................BLACK 1 - *TBLACK*..................BLACK - 1 10 HOOK, LUGGAGE *TBLACK*..................BLACK 1 11 SEAL, INNER POCKET.............. 1 12 BOX, INNER UPPER................ 1 13 LATCH........................... 1 14 COVER, INNER UPPER *NH1*.....................BLACK 1 - *NH436M* .MAT GUNPOWDER BLACK METALLIC - 2025.09.20
FRONT COVER ## ## F-12 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog 15 LID, SMART EMERGENCY *TBLACK*..................BLACK - 1 16 BOLT, SPECIAL, 6MM.............. 1 17 RIVET, PUSH, 6MM................ 7 18 SCREW, TAPPING, 5X16(PO)(TORX).. 2 ............................... 2 19 NUT, SPRING, 4MM................ 8 20 NUT, CLIP, 5MM.................. 2 21 CLIP, SLIDE..................... 2 22 CLIP, SNAP FITTING(PO).......... 4 ............................... 4 23 NUT, CLIP, 5MM.................. 6 24 SCREW, PAN, 5X11.5.............. 2 25 SCREW, TAPPING, 4X12............ 11 26 SCREW, TAPPING, 4X12............ 10 2025.09.20 ⚠
FLOOR STEP ## ## F-14 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ 1 COVER, FR. LOWER *TBLACK*..................BLACK 1 2 STEP, FLOOR *TBLACK*..................BLACK 1 ⚠ COVER, UNDER *TBLACK*..................BLACK 1 4 LID, BATTERY *TBLACK*..................BLACK 1 5 SCREW, SPECIAL, 5MM............. 1 6 RIVET, PUSH, 6MM................ 2 7 NUT, SPRING, 4MM................ ⚠ 8 NUT, CLIP, 5MM.................. 1 9 , 6X12............... 4 10 SCREW, TAPPING, 4X12............ 5 11 SCREW, TAPPING, 4X12............ 2 12 BOLT, FLANGE, 6X12.............. 4 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 1 413130 COVER, FRONT LOWER............... 0,3 2 4131D2 STEP, FLOOR...................... 1,0 ⚠ 4131B4 COVER, UNDER..................... 0,5 4 6101A1 COVER, BATTERY................... 0,1
PILLION STEP ## ## F-14-10 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ 1 RUBBER, PILLION STEP............ 2 BAR, R. PILLION STEP............ 1 ⚠ BAR, L. PILLION STEP............ 1 4 PLATE, PILLION STEP SIDE........ 2 5 PIN, PILLION STEP............... 2 PIN A, PILLION STEP............. 2 6 WASHER, PLAIN, 6MM.............. 2 7 PIN, SPLIT, 1.6X15.............. 2 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 1 4101DX RUBBER, PILLION STEP :LEFT....... 0,1 4101DY RUBBER, PILLION STEP :RIGHT...... 0,1 4101DZ RUBBER, PILLION STEP :KEDUANYA... 0,2 2 4101C8 BAR, PILLION STEP :RIGHT......... 0,1 ⚠ 4101C7 BAR, PILLION STEP :LEFT.......... 0,1 4101P4 BAR, PILLION STEP :KEDUANYA...... 0,2
BODY COVER ## ## F-15 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ ⚠ 1 COVER, R. UNDER SIDE *TBLACK*..................BLACK 1 2 COVER, L. UNDER SIDE *TBLACK*..................BLACK 1 ⚠ COVER, CENTER *TBLACK*..................BLACK 1 4 COVER SET, R. BODY(WL) *TYPE3*........................ 1 - *TYPE2*........................ 1 - *TYPE1*........................ 1 - *TYPE3*........................ - 1 -------- -------- 3IN *TYPE2*........................ - 1 -------- *TYPE1*........................ - 1 -------- *TYPE3*........................ - 1 -------- -------- IN *TYPE2*........................ - 1 -------- -------- IN *TYPE1*........................ - 1 -------- -------- IN 5 COVER, R. BODY SIDE *TBLACK*..................BLACK 1 6 COVER SET, L. BODY(WL).......... *TYPE3*........................ 1 - *TYPE2*........................ 1 - *TYPE1*........................ 1 - *TYPE3*........................ - 1 -------- -------- 3IN *TYPE2*........................ - 1 -------- *TYPE1*........................ - 1 -------- *TYPE1*........................ - 1 -------- -------- IN *TYPE3 1*.................... - -------- -------- IN *TYPE2 1*.................... - -------- -------- IN 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 1 4111A6 SKIRT, FLOOR :RIGHT.............. 0,1 2 4111A5 SKIRT, FLOOR :LEFT............... 0,1 4111N5 SKIRT, FLOOR :KEDUANYA........... 0,1 ⚠ 4131R6 COVER, BODY :CENTER.............. 0,1 4 4131J0 COVER, BODY :RIGHT............... 0,6 5 4131J4 COVER, BODY SIDE :RIGHT.......... 0,5 6 4131H9 COVER, BODY :LEFT................ 0,6 4131J1 COVER, BODY :KEDUANYA............ 0,7 7 4131J3 COVER, BODY SIDE :LEFT........... 0,5 4131L6 COVER, BODY SIDE :KEDUANYA....... 0,6 8 4131J8 COVER, REAR CENTER............... 0,5
BODY COVER ## ## F-15 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog 7 COVER, L. BODY SIDE *TBLACK*..................BLACK 1 8 COVER, RR. CENTER *TBLACK*..................BLACK 1 9 SCREW, SPECIAL, 5MM............. 2 10 NUT, SPRING, 4MM................ 8 11 RUBBER, WASHER.................. 1 12 NUT, CLIP, 5MM.................. 2 13 SCREW, TAPPING, 4X12............ 18 14 SCREW, TAPPING, 4X12............ 2 2025.09.20 ⚠ ⚠
FRONT FORK ## ## F-17 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ 1 FORK ASSY., R. FR.(SHOWA)....... 1 2 SPRING, FR. FORK................ 2 ⚠ PIPE COMP., FR. FORK............ 2 4 SPRING, REBOUND(SHOWA).......... 2 5 RING, BACK UP(SHOWA)............ 2 6 CASE COMP., R. FR. BOTTOM....... 1 7 SEAL, DUST(SHOWA)............... 2 8 RING, PISTON(SHOWA)............. 2 9 SEAT B, SPRING.................. 2 10 RING, STOPPER(SHOWA)............ 2 11 RING, OIL SEAL STOPPER(SHOWA)... 2 12 PIPE, SEAT...................... 2 13 SEAL SET, FR. FORK.............. 2 SEAL SET, FR. FORK(SHOWA)....... 2 14 FORK ASSY., L. FR.(SHOWA)....... 1 15 CASE COMP., L. FR. BOTTOM....... 1 16 BOLT, SOCKET, 8MM(SHOWA)........ 2 17 WASHER, SPECIAL, 8MM(SHOWA)..... 2 18 O-RING, 16.8X2.4................ 2 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 1 5111C3 FORK ASSY., FRONT :RIGHT......... 0,3 2 5111C5 SPRING, FRONT FORK :LEFT......... 0,5 5111C6 SPRING, FRONT FORK :RIGHT........ 0,5 5111C7 SPRING, FRONT FORK :KEDUANYA..... 0,8 ⚠ (4,8,12) 5111G2 PIPE, FRONT FORK :LEFT........... 0,6 5111G3 PIPE, FRONT FORK :RIGHT.......... 0,6 5111G4 PIPE, FRONT FORK :KEDUANYA....... 1,1 6 5111D2 CASE, BOTTOM :RIGHT.............. 0,7 13 5111E7 SEAL SET, FRONT FORK :LEFT....... 0,7 5111E8 SEAL SET, FRONT FORK :RIGHT...... 0,7 5111E9 SEAL SET, FRONT FORK :KEDUANYA... 1,3 14 5111C2 FORK ASSY., FRONT :LEFT.......... 0,3 5111C4 FORK ASSY., FRONT :KEDUANYA...... 0,4 15 5111D1 CASE, BOTTOM :LEFT............... 0,7 5111D3 CASE, BOTTOM :KEDUANYA........... 1,3
FRONT BRAKE CALIPER ## ## F-18 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ 1 SEAL SET, PISTON................ 1 2 PAD SET, FR. BRAKE.............. 1 ⚠ SCREW, BLEEDER(NISSIN).......... 1 SCREW, BLEEDER.................. 1 4 CAP, BLEEDER.................... 1 5 SPRING, PAD..................... 1 6 RING, STOPPER................... 1 7 BOLT, PIN....................... 1 ............................... 1 8 BOOT, PIN BUSH(NISSIN).......... 1 9 BOOT B.......................... 1 10 CALIPER SUB ASSY., L. FR. .(NISSIN) 1 11 BRACKET SUB ASSY., FR. CALIPER.. 1 12 PIN, HANGER..................... 1 13 WASHER, WAVE.................... 1 14 PISTON.......................... 1 15 BOLT, TORX, 8X25................ 2 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 2 711115 SHOE(PAD) SET, BRAKE :FRONT...... 0,1 10 711130 CALIPER, FRONT BRAKE............. 0,4 .TERMASUK: Pembuangan udara palsu 11 7111G0 BRACKET, FRONT CALIPER........... 0,2 14 (1) 7111D1 PISTON, FRONT BRAKE CALIPER...... 0,5 .TERMASUK: Pembuangan udara palsu
FRONT WHEEL ## ## F-20-40 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ ⚠ 1 VALVE, RIM(IRC)................. 1 VALVE, RIM(LUHAI)............... 1 VALVE, RIM(PACIFIC)............. 1 VALVE, RIM(WONDER).............. 1 VALVE, RIM(TRITON).............. 1 2 AXLE, FR. WHEEL................. 1 ⚠ COLLAR, FR. WHEEL SIDE.......... 1 4 COLLAR, FR. WHEEL SIDE.......... 1 5 COLLAR, FR. DISTANCE............ 1 6 WHEEL SUB ASSY., FR . *NH303M* .MAT AXIS GRAY METALLIC 1 - *R424*..........CORAL VINYL RED - 1 -------- -------- 3IN *PB445M*...CYBER GRAPE METALLIC - 1 -------- *NH196*..............ROSS WHITE - 1 -------- *YR375M* .MAT GRIZZLY BROWN METALLIC - 1 -------- -------- IN 7 TIRE, FR.(IRC)(90/80-14M/C 43P). 1 TIRE, FR.(SRI)(90/80-14M/C 43P). 1 8 DISK, FR. BRAKE(YUTAKA)......... 1 - ............................... - 1 DISK, FR. BRAKE(NHK)............ - 1 DISK, FR. BRAKE(YUTAKA)......... - 1 DISK, FR. BRAKE(SUNSTAR)........ - 1 9 BOLT, DISK, 6X17................ 5 10 NUT, FLANGE, 12MM(PT)........... 1 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 2 (12) 710151 AXLE, FRONT WHEEL................ 0,2 6 7101D4 FRONT WHEEL...................... 0,6 7 710139 FRONT TIRE(SATU)................. 0,5 8 711120 DISC, FRONT BRAKE................ 0,3 11 710115 BEARING, FRONT WHEEL(SATU)....... 0,4 710115G .Ganti 1 bearing tambahkan....... 0,1
FRONT WHEEL ## ## F-20-40 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog 10) NUT, FLANGE, 12MM(PT)........... 1 NUT, U, 12MM(FUJI SEIMITSU)..... 1 11 BEARING, RADIAL BALL(6201U L) . (SKF) 2 BEARING, RADIAL BALL, 6201U L . (NSK) 2 BEARING, RADIAL BALL(6201U L) . (NTN) 2 BEARING, RADIAL BALL(6201U L) . (FUJIKOSHI) 2 BEARING, RADIAL BALL, 6201U L . (FAG) 2 12 DUST SEAL, 21X32X5(ARAI)........ 2 2025.09.20 ⚠ ⚠
REAR WHEEL ## ## F-22-30 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ 1 SHOE SET, BRAKE(NK)............. 1 SHOE SET, BRAKE(JB)............. 1 SHOE SET, BRAKE(ASK)............ 1 2 WHEEL SUB ASSY., RR . *NH303M* .MAT AXIS GRAY METALLIC 1 - *R424*..........CORAL VINYL RED - 1 -------- -------- 3IN *PB445M*...CYBER GRAPE METALLIC - 1 -------- *NH196*..............ROSS WHITE - 1 -------- *YR375M* . MAT GRIZZLY BROWN METALLIC - 1 -------- -------- IN ⚠ TIRE, RR.(IRC)(100/80-14M/C 48P) 1 TIRE, RR.(SRI)(100/80-14M/C 48P) 1 4 VALVE, RIM(IRC)................. 1 VALVE, RIM(LUHAI)............... 1 VALVE, RIM(PACIFIC)............. 1 VALVE, RIM(WONDER).............. 1 VALVE, RIM(TRITON).............. 1 5 CAM, RR. BRAKE.................. 1 6 SPRING, BRAKE SHOE.............. 2 7 ARM, RR. BRAKE.................. 1 8 JOINT B, BRAKE ARM.............. 1 9 NUT, BRAKE ADJUSTING............ 1 NUT B, BRAKE ROD ADJUSTING...... 1 10 SPRING, RR. BRAKE ARM........... 1 BOLT, FLANGE, 6X32.............. 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 1 711140 SHOE(PAD) SET, BRAKE :REAR....... 0,4 2 710118 REAR WHEEL....................... 0,6 ⚠ 710142 REAR TIRE(SATU).................. 0,6 5 7111B4 CAM, BRAKE :REAR................. 0,5 7 7111C4 ARM, BRAKE :REAR................. 0,5
SWINGARM ## ## F-23 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ 1 COLLAR, RR. WHEEL SIDE.......... 1 2 COLLAR B, RR. WHEEL SIDE........ 1 ⚠ SWINGARM ASSY., RR.............. 1 4 NUT, HEX., 16MM................. 1 NUT, U, 16MM.................... 1 5 CIRCLIP, INTERNAL, 40MM .(TOPY FASTENERS) 1 CIRCLIP, INTERNAL, 40MM......... 1 6 BEARING, RADIAL BALL, 6203UU L . (NSK) 1 BEARING, RADIAL BALL, 6203UU L . (NTN) 1 BEARING, RADIAL BALL, 6203UU L . (FUJIKOSHI) 1 BEARING, RADIAL BALL, 6203UU . (FAG) 1 7 DUST SEAL, 25X40X5.............. 1 8 DUST SEAL, 25X35X6.............. 1 9 WASHER, PLAIN, 10MM............. 2 10 BOLT, FLANGE, 10X40............. 2 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. ⚠ (7,8) 5121B0 SWINGARM ASSEMBLY................ 0,3 6 710133 BEARING, REAR WHEEL(SATU)........ 0,5
SEAT/LUGGAGE BOX ## ## F-24 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ 1 RUBBER, SEAL.................... 1 2 SEAT COMP., DOUBLE.............. 1 ............................... 1 ⚠ RUBBER C, SEAT SETTING.......... 2 4 PIN, SEAT HINGE................. 1 5 LOCK COMP., SEAT................ 1 6 SPRING, SEAT LOCK............... 1 7 COVER, SEAT CATCH............... 1 8 CABLE COMP., SEAT LOCK(HI-LEX).. 1 CABLE COMP., SEAT LOCK .(PT.DHARMA ) 1 9 BOX, LUGGAGE.................... 1 10 RAIL, RR. GRAB *NH303M* .MAT AXIS GRAY METALLIC 1 11 BOLT, FLANGE, 6MM............... 2 12 PLUG, HOLE *TBLACK*..................BLACK 1 13 , 6X12 .............. 1 14 SCREW, TAPPING, 4X12............ 1 15 SCREW, TAPPING, 4X12............ 2 16 WASHER, PLAIN, 8MM.............. 1 17 PIN, SPLIT, 1.6X18.............. 1 18 BOLT, FLANGE, 6X12.............. 2 BOLT, FLANGE, 8X20.............. BOLT, FLANGE, 8X55.............. 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 2 4131E4 SEAT :DOUBLE..................... 0,2 5 4131E8 CATCH, SEAT :REAR SIDE........... 0,6 8 811175 CABLE, SEAT LOCK................. 1,2 9 412102 BOX, LUGGAGE..................... 0,2 10 4131F6 RAIL, GRAB :REAR................. 0,1
FUEL TANK ## ## F-26 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ 1 PUMP UNIT, FUEL................. 1 2 O-RING(P5)...................... 1 ⚠ FILTER SET...................... 1 4 TRAY, FUEL...................... 1 5 TANK COMP., FUEL................ 1 6 RETAINER, FUEL PUMP............. 2 7 SEAL, DUST(OHTUKA POLY-TECH).... 1 SEAL, DUST .(PT. CATURINDO AGUNG JAYA RUB) 1 8 JOINT, FUEL TUBE................ 1 9 TUBE, DRAIN..................... 1 10 HOSE COMP., FUEL FEED........... 1 11 O-RING, FUEL PUMP(ARAI)......... 1 O-RING, FUEL PUMP . .(PT. INDOKARLO PERKASA) 1 12 COVER, FUEL TANK................ 1 13 CAP COMP., FUEL FILLER.......... 1 14 PACKING, FUEL FILLER CAP........ 1 15 FUEL UNIT....................... 1 16 , 6X12............... 5 17 SCREW, TAPPING, 4X16............ 2 18 NUT, FLANGE, 6MM................ 4 19 BOLT, FLANGE, 6X12.............. 2 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 1 (7,11) 310120 PUMP ASSY., FUEL................. 0,7 ⚠ (2) 3101C7 FILTER, FUEL..................... 0,8 4 3101A7 TRAY, FUEL TANK.................. 0,1 5 310100 TANK, FUEL....................... 0,6 10 310162 HOSE, FUEL FEED.................. 0,6 12 413121 COVER, FUEL TANK TOP............. 0,1 15 617105 FUEL TANK SENDING UNIT........... 0,8
AIR CLEANER ## ## F-28 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ 1 COLLAR, AIR CLEANER SETTING..... 2 ELEMENT COMP., AIR CLEANER(WOL). 1 ⚠ SEAL, AIR CLEANER............... 2 4 DUCT, AIR CLEANER............... 1 5 TUBE, BREATHER.................. 1 6 PLUG, AIR CLEANER DRAIN......... 1 7 TUBE, AIR CLEANER .... 1 8 BAND, AIR CLEANER .TUBE(44) 1 9 TUBE, DRAIN..................... 1 10 NUT, CLIP, 6MM.................. 1 11 SCREW, TAPPING, 5X20............ 7 12 CLIP, TUBE(B12.5)............... 2 13 CLAMP, TUBE(D12)................ 1 14 CLIP, TUBE(C12)................. 1 15 BOLT, FLANGE, 6X25.............. 2 16 CASE SUB ASSY., AIR CLEANER..... 1 17 COVER SUB ASSY., AIR CLEANER.... 1 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 2 (3) 312105 ELEMENT, AIR CLEANER............. 0,1 7 3121B6 TUBE, AIR CLEANER ..... 0,4 16 3121A5 CASE, AIR CLEANER................ 0,4 17 (4) 312102 COVER, AIR CLEANER CASE.......... 0,1
EXHAUST MUFFLER ## ## F-30 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ 1 PLATE, HEAT GUARD............... 1 2 GASKET, EX. PIPE................ 1 ⚠ MUFFLER COMP., EX............... 1 4 CAP, TAIL....................... 1 5 COLLAR, MUFFLER PROTECTOR....... 2 6 PROTECTOR, MUFFLER.............. 1 7 RUBBER, MOUNTING................ ⚠ 8 SCREW, PAN, 6X14................ ⚠ 9 NUT, CAP, 7MM................... 2 10 WASHER, PLAIN, 6MM.............. 2 11 BOLT, FLANGE, 10X65............. 2 12 BOLT, FLANGE, 6X16.............. 2 13 BOLT, FLANGE, 6X8............... 2 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 1 3131A6 PROTECTOR, EXHAUST PIPE.......... 0,2 2 3131B4 GASKET, EXHAUST PIPE............. 0,2 ⚠ 313120 MUFFLER.......................... 0,2 4 3131F2 CAP, MUFFLER END................. 0,1 6 313121 PROTECTOR, MUFFLER............... 0,1
STAND ## ## F-35 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ 1 SWITCH ASSY., SIDE STAND . . (ALPS ALPINE) 1 SWITCH ASSY., SIDE STAND . (PANASONIC) 1 2 STAND COMP., MAIN............... 1 ⚠ SHAFT, MAIN STAND............... 1 4 SPRING, MAIN STAND.............. 1 5 BAR COMP., SIDE STAND........... 1 6 BOLT, SIDE STAND PIVOT.......... 1 7 BOLT, SPECIAL, 6X16............. 1 8 NUT, SIDE STAND................. 1 9 WASHER, PLAIN, 10MM............. 1 10 PIN, SPLIT, 3.0X20.............. 1 11 RUBBER A, STAND STOPPER......... 1 12 SPRING A, SIDE STAND............ 1 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 1 615195 SWITCH, SIDE STAND............... 0,2 2 (3) 410175 STAND, MAIN...................... 0,3 4 410176 SPRING, MAIN STAND............... 0,2 5 410180 BAR, SIDE STAND.................. 0,2 12 410182 SPRING, SIDE STAND............... 0,1
REAR CUSHION ## ## F-36 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ 1 CUSHION ASSY., RR.(SHOWA)....... 1 2 BUSH, RUBBER(SHOWA)............. 1 ⚠ NUT, CAP, 10MM.................. 1 4 WASHER, PLAIN, 10MM............. 1 5 BOLT, FLANGE, 8X32.............. 1 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 1 512115 CUSHION ASSY., REAR.............. 0,5
WINKER ## ## F-37 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ 1 RUBBER, R. WINKER MOUNTING...... (L. SIDE) . 1 2 COLLAR, WINKER.................. 2 ⚠ RUBBER, L. WINKER MOUNTING...... (R. SIDE) . 1 4 WINKER ASSY., R. RR............. 1 5 WINKER ASSY., L. RR............. 1 6 , 5X25............... 2 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 4 6161C7 WINKER :RIGHT REAR............... 0,6 5 6161C6 WINKER :LEFT REAR................ 0,6 6161C8 WINKER :KEDUANYA REAR............ 0,6
TAILLIGHT ## ## F-38 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ 1 TAILLIGHT ASSY.................. 1 2 GROMMET, AIR CLEANER CASE....... 1 ⚠ SCREW, PAN, 5X11.5.............. 2 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 1 6161D5 TAILLIGHT UNIT................... 0,6
REAR FENDER/LICENSE LIGHT ## ## F-39 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ ⚠ 1 LIGHT ASSY., LICENSE(MITSUBA)... 1 2 REFLECTOR, REFLEX(STANLEY)...... 1 ⚠ BRACKET, RR. FENDER *NHA40M* .MAT CRYPTON SILVER METALLIC 1 4 FENDER A SET, RR.(WL) *TYPE1*........................ 1 5 FENDER B, RR.................... 1 6 COVER, RESERVE TANK............. 1 7 COVER, RR. FENDER UPPER *TBLACK*..................BLACK 1 8 COVER, RR. FENDER LOWER *TBLACK*..................BLACK 1 9 GUARD, SPLASH................... 1 10 FENDER ASSY., RR. INNER......... 1 11 SEAL, RR. INNER FENDER.......... 1 12 BOLT, SOCKET, 6X18.............. 2 13 RIVET, PUSH, 6MM................ 2 14 BOLT, FLANGE, 6MM............... 2 15 SCREW, PAN, 5X13................ 1 16 NUT, FLANGE, 5MM(PT)............ 1 NUT, U, 5MM(FUJI SEIMITSU)...... 1 17 NUT, SPRING, 4MM................ 2 18 NUT, CLIP, 5MM.................. ⚠ , 6X12............... SCREW, TAPPING, 4X12............ 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 1 6161D8 LIGHT, LICENSE................... 0,6 ⚠ 4131M7 STAY, REAR FENDER................ 0,6 4 413105 FENDER A, REAR................... 0,6 5 413110 FENDER B, REAR................... 0,6 6 1151H8 COVER, RADIATOR RESERVE TANK..... 0,1 7 6161P5 COVER, LICENSE LIGHT............. 0,6 8 4131LD COVER, REAR FENDER............... 0,6 10 4131N4 FENDER, INNER :REAR.............. 0,3
REAR FENDER/LICENSE LIGHT ## ## F-39 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog 21 SCREW, TAPPING, 4X16............ 2 22 SCREW, TAPPING, 5X12............ 2 23 BOLT, FLANGE, 6X12.............. ⚠ 2025.09.20 ⚠ ⚠
BATTERY ## ## F-40 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ 1 BATTERY(YTZ6V)(GS YUASA)........ 1 BATTERY(GTZ6V)(GS YUASA)........ 1 2 SUB HARNESS, BATTERY............ 1 - ............................... - 1 ⚠ RELAY COMP., POWER .(MICRO ISO 4P)(OMRON) 1 RELAY COMP., POWER .(MICRO ISO 4P)(PANASONIC) 1 4 RELAY COMP., POWER(HONDA LOCK).. 1 RELAY COMP., POWER(5P) . (PANASONIC) 1 5 COVER, BATTERY.................. 1 6 CAP, DUMMY(6P)(RED)............. 1 7 FUSE, MINI(7.5A)................ 6 8 FUSE, MINI(10A)................. ⚠ 9 FUSE, MINI(25A)................. 2 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 1 610100 BATTERY.......................... 0,2 2 6111F8 SUB HARNESS, BATTERY............. 1,0 ⚠ 611155 RELAY, MAIN...................... 0,2 4 6111C5 RELAY, STARTER................... 0,2
WIRE HARNESS ## ## F-41 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ 1 CONTROL UNIT, ENGINE............ 1 - ............................... - 1 2 COIL COMP., IGNITION(MP38)...... 1 ⚠ SPACER, IGNITION COIL........... 2 4 CAP ASSY., NOISE . (NGK) 1 CAP ASSY., NOISE .(YASUFUKU) 1 CAP ASSY., NOISE .(TOYO) 1 5 HARNESS, WIRE................... 1 - ............................... - 1 -------- -------- 3IN ............................... - 1 -------- -------- IN 6 SUB HARNESS, ENGINE............. 1 7 RUBBER, TAILLIGHT BRACKET....... 2 8 FOB ASSY........................ - 2 9 CONTROL UNIT SET, SMART......... - 1 10 BATTERY(CR2032)(PANASONIC)...... - 2 11 HORN COMP.(HIGH)................ 1 12 COLLAR, HORN SETTING............ 1 13 RELAY COMP., WINKER(LED)........ 1 14 BUZZER ASSY.(HONDA LOCK)........ - 1 15 CAP............................. 1 16 CHARGER UNIT, USB(TYPE-C)....... 1 BOLT, SPECIAL, 6MM.............. - BAND, WIRE(BLACK)............... 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 1 618135 ENGINE CONTROL MODULE(ECM)....... 0,6 6181B9 ENGINE CONTROL MODULE(ECM) (A)... 1,0 .TERMASUK: Memorisasi otentikasi nomor ID 2 614105 COIL, IGNITION................... 0,4 4 6141E3CAP, NOISE ............... 0,2 5 611100 HARNESS,......................... 1,3 6 611142 SUB HARNESS, ENGINE.............. 1,3 9 6181D3 CONTROL UNIT, SMART.............. 0,4 .TERMASUK: Memorisasi otentikasi nomor ID 11 616169 HORN............................. 0,4 13 6111C3 RELAY, WINKER.................... 0,2 14 6161AB BUZZER, ELECTRON................. 0,3 16 6111Z4 CHARGER UNIT, USB................ 0,4
WIRE HARNESS ## ## F-41 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ ⚠ 19 BOLT, HEX., 6X20................ 2 20 BOLT, FLANGE, 6X12.............. 1 21 BOLT, FLANGE, 6X14.............. ⚠ 22 BOLT, FLANGE, 6X16.............. 2 2025.09.20
FRAME BODY ## ## F-42 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ 1 SWITCH ASSY., HANDLE LOCK....... - 1 2 SWITCH ASSY., & LOCK. 1 - ⚠ SWITCH COMP., HANDLE LOCK....... - 1 4 SWITCH COMP., & LOCK. 1 - 5 SHUTTER, KEY.................... 1 - 6 KEY, BLANK...................... () . 1 - 7 SWITCH ASSY., SEAT OPENER....... 1 - 8 COVER, CABLE.................... 1 - 9 COVER, CABLE.................... - 1 10 SWITCH ASSY., SEAT OPENER....... - 1 11 KEY SET, EMERGENCY.............. - 1 12 BODY COMP., FRAME............... 1 13 LINK ASSY., ENGINE HANGER....... 1 14 RUBBER, LINK STOPPER............ 1 15 RUBBER, SCREEN SETTING.......... 1 16 STAY COMP., FR. COVER........... 1 - ............................... - 1 17 GUARD, DUCT..................... 1 18 SCREW, SCREEN SETTING........... 2 - 19 SCREW, OPENER SET............... - 2 20 BOLT, FLANGE, 10X270............ 1 BOLT, FLANGE, 10X238............ 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 1 (3) 6151K9 SWITCH, HANDLE LOCK.............. 1,3 4 (2) 615145 SWITCH, & LOCK....... 1,3 5 6151A2 KEY, SHUTTER..................... 1,2 .TIDAK TERMASUK: Key cutting 7 (10,11) 6151C3 SWITCH, SEAT..................... 0,2 12 410100 BODY, FRAME...................... 4,3 .TERMASUK: Penurunan dan pemasangan mesin 13 4101B5 LINK, ENGINE HANGER.............. 2,0 .TERMASUK: Penurunan dan pemasangan mesin 16 411105 STAY, FRONT COVER................ 0,3 ⚠
FRAME BODY ## ## F-42 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ ⚠ 22 BOLT, SOCKET, 5X9............... 1 - 23 SCREW, U-LOCK FLAT, 6X12........ 2 24 NUT, U, 10MM(FUJI SEIMITSU)..... 2 NUT, FLANGE, 10MM(PT)........... 2 25 SCREW, TAPPING, 4X12............ 1 26 BOLT, FLANGE, 8X45.............. 2 2025.09.20
RESERVE TANK ## ## F-43 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ 1 CAP, RESERVE TANK............... 1 2 TANK, RESERVE................... 1 ⚠ TUBE, RESERVE DRAIN............. 1 4 HOSE, RESERVE TANK.............. 1 5 SCREW, PAN, 5X11.5.............. 2 6 CLIP, TUBE(B10)................. 2 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. 2 115110 TANK, RADIATOR RESERVE........... 0,3 4 1151E5 TUBE, RADIATOR RESERVE TANK...... 0,3 ⚠
TOOLS ## ## F-46 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ 1 BAG, OWNERS MANUAL.............. 1 2 DRIVER, SCREW(NO.2 + -)......... 1 ⚠ GRIP............................ 1 4 WRENCH, SPARK PLUG.............. 1 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. TIDAK ADA INFORMASI .............
CAUTION LABEL ## ## F-47 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ 1 LABEL, COOLANT .() 1 2 LABEL, TIRE & DRIVE & CARGO..... 1 ⚠ LABEL, CBS CAUTION.............. 1 -------- -------- IN ............................... - 1 -------- 4 LABEL, FUEL()......... 1 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. TIDAK ADA INFORMASI .............
MARK/STRIPE (IN) ## ## F-48 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ ⚠ 1 MARK, HONDA(65MM) *TYPE1*........................ 1 - *TYPE1*........................ 1 - *TYPE2*........................ 1 - *TYPE2*........................ - 1 -------- -------- IN *TYPE3*........................ - 1 -------- -------- IN *TYPE2*........................ - 1 -------- -------- IN 2 MARK, HONDA *TYPE1*........................ 1 -------- -------- IN ⚠ MARK, HONDA(110MM) *TYPE1*........................ - 2 -------- -------- IN *TYPE2*........................ - 2 -------- -------- IN *TYPE1*........................ - 2 -------- -------- IN 4 MARK, ENGINE.................... 1 -------- -------- IN 5 MARK, IDLE STOP *TYPE3*........................ - 1 -------- -------- IN *TYPE2*........................ - 1 -------- -------- IN *TYPE1*........................ - 1 -------- -------- IN 6 STRIPE, R. FR. COVE *TYPE3*........................ 1 - *TYPE2*........................ 1 - *TYPE1*........................ 1 - 7 STRIPE, L. FR. COVER *TYPE3*........................ 1 - *TYPE2*........................ 1 - *TYPE1*........................ 1 - STRIPE B, R. FR. COVER *TYPE3*........................ - 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. TIDAK ADA INFORMASI .............
MARK/STRIPE (IN) ## ## F-48 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog (8) STRIPE B, R. FR. COVER *TYPE2*........................ 1 - *TYPE1*........................ 1 - 9 STRIPE B, L. FR. COVER *TYPE3*........................ 1 - *TYPE2*........................ 1 - *TYPE1*........................ 1 - 10 EMBLEM(VARIO) *TYPE1*........................ - 2 -------- -------- IN 11 STRIPE, R. BODY COVER *TYPE3*........................ 1 - *TYPE2*........................ 1 - *TYPE1*........................ 1 - 12 STRIPE, L. BODY COVER *TYPE3*........................ 1 - *TYPE2*........................ 1 - *TYPE1*........................ 1 - 2025.09.20 ⚠ ⚠
MARK/STRIPE (3IN) ## ## F-48-1 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog ⚠ ⚠ 1 MARK, HONDA *TYPE1*........................ - 1 -------- -------- 3IN 2 MARK, HONDA(45MM) . *TYPE1*........................ - 1 -------- -------- 3IN ⚠ MARK, ENGINE.................... - 1 -------- 4 STRIPE A, R. FR. COVER *TYPE3*........................ - 1 -------- -------- 3IN *TYPE2*........................ - 1 -------- *TYPE1*........................ - 1 -------- 5 STRIPE A, L. FR. COVER *TYPE3*........................ - 1 -------- -------- 3IN *TYPE2*........................ - 1 -------- *TYPE1*........................ - 1 -------- 6 STRIPE B, R. FR. COVER *TYPE3*........................ - 1 -------- -------- 3IN *TYPE2*........................ - 1 -------- *TYPE1*........................ - 1 -------- 7 STRIPE B, L. FR. COVER *TYPE3*........................ - 1 -------- -------- 3IN *TYPE2*........................ - 1 -------- *TYPE1*........................ - 1 -------- 8 STRIPE, R. FR. COVER *TYPE3*........................ - 1 -------- -------- 3IN *TYPE2*........................ - 1 -------- *TYPE1*........................ - 1 -------- 9 STRIPE, L. FR. COVER *TYPE3*........................ - -------- -------- 3IN *TYPE2*........................ - -------- 2025.09.20 No. Ref. L.O.N. (Nomor ref. relatif) Deskripsi F.R.T. TIDAK ADA INFORMASI .............
MARK/STRIPE (3IN) ## ## F-48-1 Jumlah VARIO 125 (ACB125) CBS(CBF) CBS ISS(CBT) 2025 (T) No. Ref. No. Part Deskripsi No. Seri Kode Parts Catalog (9) STRIPE, L. FR. COVER *TYPE1*........................ - 1 -------- -------- 3IN 10 STRIPE, R. BODY COVER *TYPE3*........................ - 1 -------- -------- 3IN *TYPE2*........................ - 1 -------- *TYPE1*........................ - 1 -------- 11 STRIPE, L. BODY COVER *TYPE3*........................ - 1 -------- -------- 3IN *TYPE2*........................ - 1 -------- *TYPE1*........................ - 1 -------- 2025.09.20 ⚠ ⚠
Halaman 105
INDEKS NOMOR PART Nomor part Hal. Ref. Nomor part Hal. Ref. Nomor part Hal. Ref. Nomor part Hal. Ref. Nomor part Hal. Ref. Nomor part Hal. Ref. 06000 51 2 51 2 51 2 51 2 51 2 51 2 51 ⚠ 51 ⚠ 51 ⚠ 51 ⚠ 51 ⚠ 51 ⚠ 51 4 51 4 51 5 81 1 81 2 81 ⚠ 78 1 78 1 78 1 75 1 75 2 65 1 65 2 17000 30 4 30 5 82 1 82 2 82 ⚠ 82 4 82 5 82 16 82 6 82 17 82 7 82 8 82 9 81 4 81 5 81 6 81 7 81 7 81 8 81 9 30 6 30 7 52 12 81 10 81 11 81 11 81 12 81 13 81 14 57 1 57 1 57 1 57 2 57 ⚠ 57 ⚠ 57 ⚠ 11000 47 1 47 2 49 1 47 2 49 1 47 ⚠ 47 4 47 5 49 2 49 ⚠ 49 ⚠ 45 1 47 6 49 4 47 6 49 4 45 2 39 1 49 5 47 7 47 8 39 2 14000 32 2 32 ⚠ 34 1 32 4 32 5 32 6 34 2 34 ⚠ 34 4 34 5 34 6 32 7 32 8 32 9 32 9 32 10 32 11 32 12 12000 30 1 35 1 35 2 30 2 40 1 40 2 32 1 32 1 30 ⚠ 30 ⚠ 30 ⚠ 29 1 49 6 29 2 15000 38 1 38 2 49 7 49 7 49 8 47 9 4 18000 83 1 83 2 83 ⚠ 83 4 83 5 83 6 83 7 16000 52 1 52 2 52 ⚠ 52 4 52 5 13000 19000 40 6 40 4 40 5 40 6 40 7 40 8 40 8 95 1 40 9 40 9 95 2 95 ⚠ 95 4 40 10 36 1 36 2 36 ⚠ 36 4 40 11 36 5 40 12 40 13 40 14 36 6 40 15 40 16 41 20 36 7 41 21 41 22 39 ⚠ 39 4 43 11 43 12 43 13 43 14 45 5 45 6 45 7 45 8 93 ⚠ 93 4 93 5 91 8 93 6 57 5 57 5 57 5 91 9 91 10 93 7 93 8 93 9 93 10 93 11 57 6 57 6 59 1 57 7 57 7 59 2 84 1 84 1 30000 91 1 91 1 91 2 35 ⚠ 91 ⚠ 91 4 91 4 91 4 31000 37 1 37 2 90 1 90 1 30 8 30 8 36000 30 9 37000 32000 54 1 54 1 55 1 55 2 54 2 54 ⚠ 55 ⚠ 54 4 54 4 55 4 54 5 55 5 54 6 55 6 49 11 81 15 30 10 91 5 91 5 91 5 90 2 90 2 91 6 49 9 49 10 57 4 47 10 21000 45 ⚠ 45 4 22000 42 1 43 1 42 2 42 ⚠ 42 4 42 5 42 6 43 2 43 ⚠ 43 4 43 5 43 6 33000 53 1 86 1 86 2 86 ⚠ 86 4 86 5 87 1 91 7 88 1 38000 91 11 91 12 91 13 23000 35000
Halaman 106
INDEKS NOMOR PART Nomor part Hal. Ref. Nomor part Hal. Ref. Nomor part Hal. Ref. Nomor part Hal. Ref. Nomor part Hal. Ref. Nomor part Hal. Ref. 91 16 59 ⚠ 59 ⚠ 75 7 75 7 75 8 75 9 75 10 59 4 59 5 75 11 75 12 75 13 75 14 76 8 76 8 76 8 76 8 76 8 59 6 59 6 59 7 59 8 59 9 57 11 59 10 59 11 59 12 59 13 74 11 74 12 74 13 74 13 74 14 74 15 42000 79 1 79 2 78 2 78 2 78 2 78 2 78 2 78 ⚠ 78 ⚠ 76 1 78 4 76 1 78 4 76 1 78 4 76 1 78 4 76 1 78 4 52000 79 ⚠ 85 1 85 2 53000 61 1 63 1 63 2 61 2 63 ⚠ 63 4 63 5 63 6 57 12 57 13 58 14 59 14 59 14 58 15 58 15 58 16 58 17 58 18 58 19 58 20 59 15 59 16 61 ⚠ 63 7 65 6 65 7 65 8 65 9 65 10 55 7 63 8 61 4 61 4 61 5 61 5 61 5 61 5 61 5 43000 78 5 78 6 75 ⚠ 75 ⚠ 75 4 78 7 57 8 57 8 57 9 57 9 78 8 57 10 78 9 78 10 50000 93 12 88 ⚠ 65 ⚠ 65 4 65 5 93 13 93 14 84 2 84 ⚠ 84 4 84 5 71 1 71 2 71 ⚠ 71 4 44000 76 2 76 ⚠ 76 4 76 5 76 6 76 6 76 6 76 6 76 6 76 7 51000 74 1 74 2 74 ⚠ 74 4 45000 61000 66 1 66 1 80000 86000 88 4 88 5 88 6 88 7 88 8 88 9 93 17 88 10 88 11 72 ⚠ 98 1 98 1 98 1 98 1 98 1 98 1 98 2 100 1 98 ⚠ 98 ⚠ 98 ⚠ 100 2 63 9 63 9 63 9 61 6 61 6 61 6 61 6 98 4 100 ⚠ 98 5 98 5 98 5 98 6 98 6 98 6 100 4 100 4 100 4 98 7 98 7 98 7 100 5 100 5 100 5 98 8 99 8 99 8 100 6 100 6 100 6 99 9 99 9 99 9 100 7 100 7 100 7 100 8 100 8 100 8 64000 93 15 93 16 93 16 67 1 67 1 67 1 67 1 67 1 67 1 67 1 67 1 67 1 67 2 67 ⚠ 70 1 70 2 67 4 70 ⚠ 72 1 72 2 67 5 70 4 67 6 67 6 67 6 67 6 67 6 68 6 67 6 67 6 67 6 68 7 68 7 68 7 68 7 68 7 68 7 68 7 68 7 68 7 81000 68 8 68 8 68 9 68 9 68 10 68 11 68 12 68 13 68 14 68 14 69 15 80 9 90 5 83000 72 4 72 4 72 4 72 4 72 4 72 4 72 4 72 4 72 4 72 5 72 6 72 6 72 6 72 6 72 6 72 6 72 6 72 6 72 6 87 2 73 7 96 1 4 77000 80 1 80 2 80 2 80 ⚠ 80 4 84000
Halaman 107
INDEKS NOMOR PART Nomor part Hal. Ref. Nomor part Hal. Ref. Nomor part Hal. Ref. Nomor part Hal. Ref. Nomor part Hal. Ref. Nomor part Hal. Ref. 99 11 101 10 101 10 101 10 99 12 99 12 99 12 101 11 101 11 101 11 93 20 76 9 93 21 69 16 91 17 84 6 80 11 94 22 78 11 83 8 59 17 58 21 58 22 69 17 70 6 88 13 74 16 66 2 88 14 53 2 88 15 47 13 71 5 75 15 69 18 69 18 59 18 59 18 84 7 63 12 94 23 61 8 61 8 56 5 43 15 84 8 32 16 88 16 88 16 58 23 55 8 61 9 69 19 70 7 73 10 88 17 61 10 63 13 94 24 83 9 82 10 79 4 79 4 54 7 55 9 69 20 42 7 37 4 43 16 35 4 30 12 45 9 49 14 61 11 63 14 61 11 63 14 73 11 63 15 62 12 63 16 62 12 63 16 74 17 59 19 41 22 41 20 43 17 59 20 69 21 79 5 91 18 39 6 80 12 62 13 69 22 62 13 69 22 53 ⚠ 69 23 70 8 73 12 88 18 41 22 58 24 41 20 36 7 41 21 41 20 47 14 51 6 87000 97 1 97 2 97 ⚠ 97 ⚠ 97 4 88000 56 1 56 2 56 ⚠ 89000 96 2 96 ⚠ 96 4 90000 40 18 37 ⚠ 39 5 49 12 88 12 32 13 38 ⚠ 56 4 40 19 52 13 30 11 34 7 32 14 29 ⚠ 47 11 49 13 47 12 32 15 93 18 61 7 4 91000 43 18 43 19 43 19 45 10 45 10 50 17 39 7 50 17 50 17 45 11 45 12 45 11 45 11 50 18 50 18 50 18 45 12 43 19 44 19 45 12 45 10 39 7 79 6 79 6 79 6 79 6 77 11 77 11 77 11 77 11 77 11 43 18 45 13 47 15 47 15 50 19 50 20 42 8 50 20 45 14 45 14 44 20 44 20 77 12 79 7 79 8 74 18 52 14 30 13 50 21 36 8 50 22 34 8 47 16 30 14 92000 38 4 47 18 39 8 46 15 30 17 35 5 30 18 44 23 79 5 58 26 92 19 93000 41 23 30 15 70 9 80 13 81 16 88 19 53 4 86 6 60 21 52 15 58 25 60 22 94 25 62 14 69 25 70 10 73 13 80 14 88 20 55 10 62 15 70 11 73 14 80 15 81 17 89 21 54 8 82 11 69 26 89 22 62 16 55 11 95000 95 6 82 12 41 24 82 13 46 16 50 23 82 14 84 11 84 12 78 9 71 5 58 27 70 12 80 18 81 19 92 20 89 23 30 19 35 6 92 21 41 25 50 24 92 22 36 10 34 9 47 19 82 15 31 20 36 11 47 20 47 21 31 21 48 22 50 25 80 19 46 17 46 18 80 20 79 10 83 11 94000 85 ⚠ 30 16 44 22 42 9 60 23 81 18 37 5 71 6 83 10 80 16 79 9 85 4
Halaman 108
INDEKS NOMOR PART Nomor part Hal. Ref. Nomor part Hal. Ref. Nomor part Hal. Ref. Nomor part Hal. Ref. Nomor part Hal. Ref. Nomor part Hal. Ref. 96000 83 13 60 24 36 12 41 26 48 23 58 28 60 25 58 28 60 25 52 16 39 9 39 10 39 11 31 22 64 18 37 6 98000 90 7 90 8 90 9 4
Halaman 109
INDEKS NAMA PART Hal. Ref. Nama part Hal. Ref. Nama part Hal. Ref. Nama part [ A ] BOLT, FLANGE, 10X270 ••••••••• 93 20 BOLT, FLANGE, 10X40 •••••••••• 79 10 BOLT, FLANGE, 10X45 •••••••••• 65 11 BOLT, FLANGE, 10X48 •••••••••• 61 7 63 10 BOLT, FLANGE, 10X65 •••••••••• 83 11 BOLT, FLANGE, 5X12 ••••••••••• 32 13 BOLT, FLANGE, 6MM •••••••••••• 66 2 80 11 88 14 BOLT, FLANGE, 6X12 ••••••••••• 58 27 60 24 70 12 80 18 81 19 89 23 92 20 BOLT, FLANGE, 6X130 •••••••••• 48 22 BOLT, FLANGE, 6X14 ••••••••••• 30 19 35 6 92 21 BOLT, FLANGE, 6X16 ••••••••••• 36 12 41 25 26 48 23 50 24 83 12 92 22 BOLT, FLANGE, 6X20 ••••••••••• 36 10 BOLT, FLANGE, 6X22 ••••••••••• 34 9 40 19 52 13 58 28 60 25 BOLT, FLANGE, 6X25 ••••••••••• 47 19 52 16 82 15 BOLT, FLANGE, 6X28 ••••••••••• 39 9 BOLT, FLANGE, 6X32 ••••••••••• 78 11 BOLT, FLANGE, 6X40 ••••••••••• 31 20 36 11 39 10 BOLT, FLANGE, 6X65 ••••••••••• 39 11 47 20 BOLT, FLANGE, 6X8 •••••••••••• 83 13 BOLT, FLANGE, 6X80 ••••••••••• 31 22 47 21 BOLT, FLANGE, 6X95 ••••••••••• 31 21 BOLT, FLANGE, 8X16 ••••••••••• 50 25 BOLT, FLANGE, 8X20 ••••••••••• 80 19 BOLT, FLANGE, 8X32 ••••••••••• 85 5 BOLT, FLANGE, 8X45 ••••••••••• 46 17 94 26 BOLT, FLANGE, 8X55 ••••••••••• BOLT, HANDLE LEVER ••••••••••• BOLT, HEAD COVER ••••••••••••• BOLT, HEX., 6X20 ••••••••••••• BOLT, OIL, 10X22 ••••••••••••• ARM COMP., EX. VALVE ROCKER ••• 32 5 ARM COMP., IN. VALVE ROCKER ••• 32 4 ARM, RR. BRAKE •••••••••••••••• 78 7 AXLE, FR. WHEEL ••••••••••••••• 76 2 [ B ] BAG, OWNERS MANUAL •••••••••••• 96 1 BALL SET, STEEL, ## 6X23 •••••••• 65 1 BALL SET, STEEL, ## 6X29 •••••••• 65 2 BAND B1, WIRE ••••••••••••••••• 57 4 BAND, AIR CLEANER TUBE 82 8 BAND, WIRE •••••••••••••••••••• 91 18 BAR COMP., SIDE STAND ••••••••• 84 5 BAR, L. PILLION STEP •••••••••• 71 ⚠ BAR, R. PILLION STEP •••••••••• 71 2 BASE, STATOR •••••••••••••••••• 47 7 BATTERY ••••••••••••••••••••••• 90 1 91 10 BEARING COMP. ••••••••••••••••• 39 7 BEARING, NEEDLE, 20X29X18 ••••• 43 18 BEARING, RADIAL BALL •••••••••• 77 11 BEARING, RADIAL BALL SPECIAL, 6207 49 15 BEARING, RADIAL BALL, 6205-2NSG 45 12 BEARING, RADIAL BALL, 6201 •••• 45 11 BEARING, RADIAL BALL, 6201U L • 77 11 BEARING, RADIAL BALL, 6202 •••• 45 10 BEARING, RADIAL BALL, 6203UU •• 79 6 BEARING, RADIAL BALL, 6203UU L 79 6 BEARING, RADIAL BALL, 6204 •••• 49 16 50 16 BEARING, RADIAL BALL, 6205UU •• 45 12 BEARING, RADIAL BALL, 6301 •••• 50 17 BEARING, RADIAL BALL, 6302 •••• 50 18 BEARING, RADIAL BALL, 6902U ••• 43 19 44 19 BELT, DRIVE ••••••••••••••••••• 43 7 BODY COMP., FRAME ••••••••••••• 93 12 BODY SET •••••••••••••••••••••• 52 7 , 5X25 ••••••••••••• 86 6 , 6X12 ••••••••••••• 30 15 70 9 80 13 81 16 88 19 , 6X16 ••••••••••••• 53 4 , 6X25 ••••••••••••• 41 23 BOLT A, STUD, 8X200.5 ••••••••• 47 11 BOLT B, STUD, 8X206 ••••••••••• BOLT, ADAPTER, 10MM ••••••••••• BOLT, DISK, 6X17 •••••••••••••• BOLT, DRAIN ••••••••••••••••••• BOLT, DRAIN PLUG, 12X15 ••••••• BOLT, FLANGE, 10X238 •••••••••• BOLT, PIN ••••••••••••••••••••• 75 7 BOLT, RADIATOR DISTANCE ••••••• 47 12 BOLT, SIDE STAND PIVOT •••••••• 84 6 BOLT, SOCKET KNOCK, 5MM ••••••• 32 15 BOLT, SOCKET, 5X9 ••••••••••••• 94 22 BOLT, SOCKET, 6X18 •••••••••••• 37 ⚠ 39 5 49 12 88 12 BOLT, SOCKET, 6X25 •••••••••••• 37 6 BOLT, SOCKET, 8MM ••••••••••••• 74 16 BOLT, SOCKET, 8X32 •••••••••••• 64 18 BOLT, SPECIAL, 6MM •••••••••••• 69 16 91 17 BOLT, SPECIAL, 6X16 ••••••••••• 84 7 BOLT, SPECIAL, 6X23.5 ••••••••• 38 ⚠ BOLT, STUD, 7X17 •••••••••••••• 30 11 BOLT, TORX, 8X25 •••••••••••••• 75 15 BOOT B •••••••••••••••••••••••• 75 9 BOOT COMP. •••••••••••••••••••• 59 7 BOOT, PIN BUSH •••••••••••••••• 75 8 BOSS, DRIVE FACE •••••••••••••• 42 ⚠ BOX, INNER UPPER •••••••••••••• 68 12 BOX, LUGGAGE •••••••••••••••••• 80 9 BRACKET SUB ASSY., FR. CALIPER 75 11 BRACKET, L. BRAKE LEVER ••••••• 58 14 BRACKET, RR. FENDER ••••••••••• 88 ⚠ BUSH, ENGINE HANGER RUBBER •••• 47 2 49 1 BUSH, MAIN STAND •••••••••••••• 47 6 49 4 BUSH, RR. CUSHION UNDER RUBBER 49 ⚠ BUSH, RUBBER •••••••••••••••••• 85 2 BUZZER ASSY. •••••••••••••••••• 91 14 [ C ] CABLE COMP. A, THROTTLE ••••••• 57 1 CABLE COMP. B, THROTTLE ••••••• 57 ⚠ CABLE COMP., FR. BRAKE 57 8 CABLE COMP., RR. BRAKE •••••••• 57 9 CABLE COMP., SEAT LOCK •••••••• 80 8 CALIPER SUB ASSY., L. FR. ••••• 75 10 CAMSHAFT COMP. •••••••••••••••• 32 2 CAM, RR. BRAKE •••••••••••••••• 78 5 CAP ••••••••••••••••••••••••••• 91 15 CAP ASSY., NOISE ••• 91 4 CAP COMP., FUEL FILLER •••••••• 81 13 CAP COMP., RADIATOR ••••••••••• 40 ⚠ CAP, BLEEDER •••••••••••••••••• 75 4 CAP, DUMMY •••••••••••••••••••• 90 6 CAP, LOCK NUT ••••••••••••••••• 56 1 CAP, MASTER CYLINDER •••••••••• CAP, RESERVE TANK ••••••••••••• CAP, SOCKET BOLT •••••••••••••• CAP, TAIL ••••••••••••••••••••• CAP, TAPPET ADJUSTING HOLE •••• CASE ASSY. ••••••••••••••••••••
Halaman 110
INDEKS NAMA PART Hal. Ref. Nama part Hal. Ref. Nama part Hal. Ref. Nama part CASE ASSY., LOWER ••••••••••••• 55 6 CASE ASSY., UPPER ••••••••••••• 55 5 CASE COMP., L. FR. BOTTOM ••••• 74 15 CASE COMP., MISSION ••••••••••• 45 ⚠ CASE COMP., R. FR. BOTTOM ••••• 74 6 CASE SUB ASSY., AIR CLEANER ••• 82 16 CHAIN, CAM •••••••••••••••••••• 34 1 CHARGER UNIT, USB ••••••••••••• 91 16 CIRCLIP, 7MM •••••••••••••••••• 43 17 CIRCLIP, INTERNAL, 18.8MM ••••• 59 20 CIRCLIP, INTERNAL, 28MM ••••••• 44 23 CIRCLIP, INTERNAL, 32MM ••••••• 39 6 CIRCLIP, INTERNAL, 40MM ••••••• 79 5 CLAMPER B, BRAKE HOSE ••••••••• 59 5 CLAMPER B, RR. BRAKE CABLE •••• 57 10 CLAMPER COMP. A, BRAKE HOSE ••• 59 4 CLAMPER, A.C. GENERATOR CORD •• 47 10 CLAMPER, THROTTLE CABLE ••••••• 57 2 CLAMP, HARNESS •••••••••••••••• 58 24 CLAMP, HOSE ••••••••••••••••••• 36 7 41 20 21 22 CLAMP, TUBE ••••••••••••••••••• 41 24 82 13 CLAMP, WATER HOSE, 21MM ••••••• 41 20 CLAMP, WATER HOSE, 24MM ••••••• 36 7 41 21 CLIP, HOSE •••••••••••••••••••• 41 22 CLIP, PISTON PIN, 13MM •••••••• 51 5 CLIP, SLIDE ••••••••••••••••••• 69 21 CLIP, SNAP FITTING •••••••••••• 62 13 69 22 CLIP, TUBE •••••••••••••••••••• 46 16 50 23 82 12 14 95 6 COIL COMP., IGNITION •••••••••• 91 2 COLLAR •••••••••••••••••••••••• 40 12 COLLAR A, HANDLE SETTING •••••• 61 11 63 14 COLLAR B, HANDLE SETTING •••••• 62 12 63 16 COLLAR B, RR. WHEEL SIDE •••••• 79 2 COLLAR, AIR CLEANER SETTING ••• 82 1 COLLAR, FR. DISTANCE •••••••••• 76 5 COLLAR, FR. WHEEL SIDE •••••••• 76 ⚠ 4 COLLAR, HORN SETTING •••••••••• 91 12 COLLAR, MUFFLER PROTECTOR ••••• 83 5 COLLAR, RR. WHEEL SIDE •••••••• 79 1 COLLAR, SEAL •••••••••••••••••• 43 13 COLLAR, SPRING •••••••••••••••• COLLAR, WINKER •••••••••••••••• CONTROL UNIT SET, SMART ••••••• CONTROL UNIT, ENGINE •••••••••• COTTER, VALVE ••••••••••••••••• •••••••••••••••••• COVER COMP., HANDLE RR. •••••• 61 4 COVER COMP., HEAD •••••••••••• 29 1 COVER COMP., RADIATOR •••••••• 40 10 COVER COMP., WATER PUMP •••••• 36 2 COVER SET, FR. ••••••••••••••• 67 1 COVER SET, HANDLE •••••••••••• 63 8 COVER SET, HANDLE TOP •••••••• 61 5 COVER SET, L. BODY ••••••••••• 72 6 COVER SET, L. FR. •••••••••••• 68 7 COVER SET, METER LOWER ••••••• 55 7 COVER SET, R. BODY ••••••••••• 72 4 COVER SET, R. FR. •••••••••••• 67 6 68 6 COVER SUB ASSY., AIR CLEANER • 82 17 COVER, BATTERY ••••••••••••••• 90 5 COVER, CABLE ••••••••••••••••• 93 8 9 COVER, CENTER •••••••••••••••• 72 ⚠ COVER, FR. ••••••••••••••••••• 67 1 COVER, FR. HANDLE •••••••••••• 61 ⚠ 63 7 COVER, FR. LOWER ••••••••••••• 70 1 COVER, FR. TOP ••••••••••••••• 67 2 COVER, FUEL TANK ••••••••••••• 81 12 COVER, HANDLE END •••••••••••• 63 2 COVER, INNER LOWER ••••••••••• 68 9 COVER, INNER UPPER ••••••••••• 68 14 COVER, L. BODY SIDE •••••••••• 73 7 COVER, L. SIDE ••••••••••••••• 39 1 COVER, L. UNDER SIDE ••••••••• 72 2 COVER, RESERVE TANK •••••••••• 88 6 COVER, RR. CENTER •••••••••••• 73 8 COVER, RR. FENDER LOWER •••••• 88 8 COVER, RR. FENDER UPPER •••••• 88 7 COVER, R. BODY SIDE •••••••••• 72 5 COVER, R. UNDER SIDE ••••••••• 72 1 COVER, SEAT CATCH •••••••••••• 80 7 COVER, UNDER ••••••••••••••••• 70 ⚠ CRANKCASE COMP., L. •••••••••• 49 2 CRANKCASE COMP., R ••••••••••• 47 1 COMP. ••••••••••••• 51 1 CUSHION ASSY., RR. ••••••••••• 85 1 CYLINDER ASSY., FR. BRAKE MASTER 59 6 CYLINDER COMP. ••••••••••••••• 35 1 CYLINDER SET, FR. MASTER ••••• 59 13 [ D ] DIAPHRAGM •••••••••••••••••••• 59 11 DISK, FR. BRAKE •••••••••••••• 76 8 DOWEL PIN, 10X12 ••••••••••••• 46 15 DOWEL PIN, 10X16 ••••••••••••• 30 17 DOWEL PIN, 3X5 ••••••••••••••• DOWEL PIN, 8X10 •••••••••••••• DOWEL PIN, 8X14 •••••••••••••• DOWEL PIN, SPECIAL, 6.3X10X30 • 47 14 DRAIN PLUG •••••••••••••••••••• 40 18 DRIVER, SCREW ••••••••••••••••• 96 2 •••••••••••••••••••• 45 5 DUCT, AIR CLEANER ••••••••••••• 82 4 DUCT, L. COVER •••••••••••••••• 39 ⚠ DUST SEAL, 21X32X5 •••••••••••• 77 12 DUST SEAL, 25X35X6 •••••••••••• 79 8 DUST SEAL, 25X40X5 •••••••••••• 79 7 DUST SEAL, STEERING HEAD •••••• 65 8 [ E ] ELEMENT COMP., AIR CLEANER •••• 82 2 EMBLEM •••••••••••••••••••••••• 99 10 EMBLEM, PRODUCT ••••••••••••••• 61 6 63 9 EQUALIZER ••••••••••••••••••••• 58 16 E-RING, 3MM ••••••••••••••••••• 58 26 [ F ] FACE COMP., MOVABLE DRIVE ••••• 42 4 FACE SET, DRIVEN •••••••••••••• 43 8 FACE SET, MOVABLE DRIVEN •••••• 43 9 FACE, DRIVE ••••••••••••••••••• 42 2 FAN COMP., COOLING •••••••••••• 40 16 FENDER ASSY., RR. INNER ••••••• 88 10 FENDER A SET, RR. ••••••••••••• 88 4 FENDER B, RR. ••••••••••••••••• 88 5 FENDER, FR. ••••••••••••••••••• 66 1 FILTER SET •••••••••••••••••••• 81 ⚠ FLYWHEEL COMP. •••••••••••••••• 37 1 FOB ASSY. ••••••••••••••••••••• 91 8 FORK ASSY., L. FR. •••••••••••• 74 14 FORK ASSY., R. FR. •••••••••••• 74 1 FUEL UNIT ••••••••••••••••••••• 81 15 FUSE, MINI •••••••••••••••••••• 90 7 8 9 [ G ] GARNISH, FR. •••••••••••••••••• 67 ⚠ GARNISH, L. FR. ••••••••••••••• 67 5 GARNISH, R. FR. ••••••••••••••• 67 4 GASKET, CYLINDER •••••••••••••• 35 2 GASKET, CYLINDER HEAD ••••••••• 30 ⚠ GASKET, EX. PIPE •••••••••••••• 83 2 GASKET, HEAD COVER •••••••••••• 29 2 GASKET, L. COVER •••••••••••••• 39 2 GASKET, STATOR BASE ••••••••••• 47 8 GASKET, TENSIONER LIFTER •••••• 34 5 GASKET, CASE ••••• GASKET, WATER PUMP COVER •••••• GAUGE, OIL LEVEL •••••••••••••• GEAR COMP., FINAL ••••••••••••• GEAR, COUNTER ••••••••••••••••• GEAR, OIL PUMP DRIVEN •••••••••
Halaman 111
INDEKS NAMA PART Hal. Ref. Nama part Hal. Ref. Nama part Hal. Ref. Nama part GRIP •••••••••••••••••••••••••• 96 ⚠ GRIP COMP., THROTTLE •••••••••• 57 12 GRIP, L. HANDLE ••••••••••••••• 57 13 GROMMET, AIR CLEANER CASE ••••• 87 2 GROMMET, SPEED SENSOR PROTECTOR 49 10 GUARD, DUCT ••••••••••••••••••• 93 17 GUARD, SPLASH ••••••••••••••••• 88 9 GUIDE, CAM CHAIN •••••••••••••• 34 6 GUIDE, VALVE •••••••••••••••••• 30 2 LEVER, R. STEERING HANDLE •••• 59 14 LID ASSY., INNER POCKET •••••• 68 8 LID, BATTERY ••••••••••••••••• 70 4 LID, SMART EMERGENCY ••••••••• 69 15 LIFTER ASSY., TENSIONER •••••• 34 ⚠ LIGHT ASSY., FR. • 53 1 LIGHT ASSY., LICENSE ••••••••• 88 1 LINK ASSY., ENGINE HANGER •••• 93 13 LOCK COMP., SEAT ••••••••••••• 80 5 [ M ] [ H ] MARK, ENGINE ••••••••••••••••• 98 4 100 ⚠ MARK, HONDA •••••••••••••••••• 98 1 2 ⚠ 100 1 2 MARK, IDLE STOP •••••••••••••• 98 5 METER ASSY., ••••• 54 1 55 1 METER COMP. •••••••••••••••••• 54 4 55 4 MIRROR COMP., L. ••••••••••••• 56 ⚠ MIRROR COMP., R. ••••••••••••• 56 2 MUFFLER COMP., EX. ••••••••••• 83 ⚠ HARNESS, WIRE ••••••••••••••••• 91 5 HEAD ASSY., CYLINDER •••••••••• 30 1 HOLDER, HANDLE UPPER •••••••••• 63 5 HOLDER, L. HANDLE UNDER ••••••• 63 6 HOLDER, MIRROR •••••••••••••••• 57 11 59 10 HOLDER, R. HANDLE UNDER ••••••• 63 4 HOOK, LUGGAGE ••••••••••••••••• 68 10 HORN COMP. •••••••••••••••••••• 91 11 HOSE A, WATER ••••••••••••••••• 40 13 HOSE B, WATER ••••••••••••••••• 40 14 HOSE COMP., FR. BRAKE ••••••••• 59 ⚠ HOSE COMP., FUEL FEED ••••••••• 81 10 HOSE C, WATER ••••••••••••••••• 36 6 HOSE, BYPASS •••••••••••••••••• 40 15 HOSE, RESERVE TANK •••••••••••• 95 4 [ N ] [ I ] NUT B, BRAKE ROD ADJUSTING ••• 78 9 NUT, BRAKE ADJUSTING ••••••••• 78 9 NUT, CAP, 10MM ••••••••••••••• 85 ⚠ NUT, CAP, 7MM •••••••••••••••• 83 9 NUT, CLIP, 5MM ••••••••••••••• 53 ⚠ 69 20 23 70 8 73 12 88 18 NUT, CLIP, 6MM ••••••••••••••• 82 10 NUT, FENDER SETTING •••••••••• 40 17 NUT, FLANGE, 10MM •••••••••••• 61 10 63 13 94 24 NUT, FLANGE, 12MM •••••••••••• 37 5 76 10 77 10 NUT, FLANGE, 5MM ••••••••••••• 88 16 NUT, FLANGE, 6MM ••••••••••••• 60 23 81 18 NUT, HEX., 10MM •••••••••••••• 56 5 NUT, HEX., 12MM •••••••••••••• 44 22 NUT, HEX., 14MM •••••••••••••• NUT, HEX., 16MM •••••••••••••• NUT, HEX., 8MM ••••••••••••••• NUT, SIDE STAND •••••••••••••• NUT, SPECIAL, 28MM ••••••••••• INJECTOR ASSY., FUEL •••••••••• 52 8 INSULATOR, IN. PIPE ••••••••••• 30 5 [ J ] JOINT B, BRAKE ARM •••••••••••• 78 8 JOINT COMP., INJECTOR ••••••••• 52 12 JOINT COMP., WATER HOSE ••••••• 40 1 JOINT, FUEL TUBE •••••••••••••• 81 8 [ K ] KEY SET, EMERGENCY •••••••••••• 93 11 KEY, BLANK •••••••••••••••••••• 93 6 KEY, WOODRUFF, 4MM •••••••••••• 51 6 [ L ] LABEL, CBS CAUTION •••••••••••• 97 ⚠ LABEL, COOLANT •••• 97 1 LABEL, FUEL ••••••••••••••••••• 97 4 LABEL, RADIATOR CAP ••••••••••• LABEL, TIRE & DRIVE & CARGO••• LATCH ••••••••••••••••••••••••• LENS ASSY. •••••••••••••••••••• LEVER COMP., BRAKE LOCK ••••••• LEVER, L. STEERING HANDLE ••••• NUT, SPRING, 4MM •••••••••••••• 55 8 61 9 69 19 70 7 73 10 88 17 NUT, STEERING STEM LOCK ••••••• 65 5 NUT, TAPPET ADJUSTING ••••••••• 32 16 NUT, U, 10MM •••••••••••••••••• 61 10 63 13 94 24 NUT, U, 12MM •••••••••••••••••• 77 10 NUT, U, 16MM •••••••••••••••••• 79 4 NUT, U, 5MM ••••••••••••••••••• 58 23 88 16 [ O ] OIL SEAL, 14X20X3.2 ••••••••••• 45 13 OIL SEAL, 20X32X6 ••••••••••••• 50 20 OIL SEAL, 20.8X32X6 ••••••••••• 47 15 OIL SEAL, 24X31X3.5 ••••••••••• 42 8 OIL SEAL, 26X45X6 ••••••••••••• 50 19 OIL SEAL, 34X52X7 ••••••••••••• 45 14 O-RING •••••••••••••••••••••••• 36 5 40 9 81 2 O-RING A •••••••••••••••••••••• 40 4 O-RING B •••••••••••••••••••••• 40 5 50 22 O-RING C •••••••••••••••••••••• 40 6 O-RING, 15.4X2 •••••••••••••••• 40 2 O-RING, 16.8X2.4 •••••••••••••• 74 18 O-RING, 18X3 •••••••••••••••••• 47 16 O-RING, 1.5X9.5 ••••••••••••••• 34 8 O-RING, 1.9X20.4 •••••••••••••• 52 ⚠ O-RING, 29X2 •••••••••••••••••• 30 13 O-RING, 30.8MM •••••••••••••••• 50 21 O-RING, 34X2 •••••••••••••••••• 36 8 O-RING, 38.8X1.9 •••••••••••••• 44 21 O-RING, 6.3X2.2 ••••••••••••••• 52 14 O-RING, 9.5X1.9 ••••••••••••••• 30 14 O-RING, FUEL PUMP ••••••••••••• 81 11 O-RING, THROTTLE BODY ••••••••• 52 2 OUTER COMP., CLUTCH ••••••••••• 43 1 [ P ] PACKING ••••••••••••••••••••••• 54 2 55 2 PACKING, FUEL FILLER CAP •••••• 81 14 PAD SET, FR. BRAKE •••••••••••• 75 2 PIECE SET, SLIDE •••••••••••••• 42 1 PIN A, PILLION STEP ••••••••••• PIN, BRAKE CABLE STOPPER •••••• PIN, BRAKE LOCK LEVER ••••••••• PIN, HANGER ••••••••••••••••••• PIN, PILLION STEP ••••••••••••• PIN, PISTON •••••••••••••••••••
Halaman 112
INDEKS NAMA PART Hal. Ref. Nama part Hal. Ref. Nama part Hal. Ref. Nama part PIN, ROLLER GUIDE ••••••••••••• 43 10 PIN, SEAT HINGE ••••••••••••••• 80 4 PIN, SPLIT, 1.6X15 •••••••••••• 71 7 PIN, SPLIT, 1.6X18 •••••••••••• 80 17 PIN, SPLIT, 3.0X20 •••••••••••• 84 10 PIPE COMP., FR. FORK •••••••••• 74 ⚠ PIPE COMP., HANDLE •••••••••••• 63 1 PIPE COMP., STEERING HANDLE ••• 61 1 PIPE, IN. ••••••••••••••••••••• 30 4 PIPE, SEAT •••••••••••••••••••• 74 12 PISTON •••••••••••••••••••••••• 51 ⚠ 75 14 PIVOT, CAM CHAIN TENSIONER •••• 34 4 PLATE COMP., DRIVE •••••••••••• 43 2 PLATE, BEARING PUSH ••••••••••• 47 5 PLATE, CLUTCH SIDE •••••••••••• 43 ⚠ PLATE, DIAPHRAGM •••••••••••••• 59 12 PLATE, HEAT GUARD ••••••••••••• 83 1 PLATE, PILLION STEP SIDE •••••• 71 4 PLATE, RAMP ••••••••••••••••••• 42 6 PLUG, AIR CLEANER DRAIN ••••••• 82 6 PLUG, BEARING PUSH •••••••••••• 47 ⚠ PLUG, HOLE •••••••••••••••••••• 80 12 PLUG, SPARK ••••••••••••••••••• 30 8 POST COMP., HANDLE •••••••••••• 63 ⚠ PROTECTOR ••••••••••••••••••••• 59 8 PROTECTOR, MUFFLER •••••••••••• 83 6 PROTECTOR, SPEED SENSOR ••••••• 49 9 PUMP COMP., WATER ••••••••••••• 36 1 PUMP SET, OIL ••••••••••••••••• 38 1 PUMP UNIT, FUEL ••••••••••••••• 81 1 ROLLER, GUIDE •••••••••••••••• 43 11 RUBBER A, STAND STOPPER •••••• 84 11 RUBBER C, SEAT SETTING ••••••• 80 ⚠ RUBBER, CLUTCH DAMPER •••••••• 43 6 RUBBER, LINK STOPPER ••••••••• 93 14 RUBBER, L. WINKER MOUNTING ••• 86 ⚠ RUBBER, MOUNTING ••••••••••••• 83 7 RUBBER, PILLION STEP ••••••••• 71 1 RUBBER, R. WINKER MOUNTING ••• 86 1 RUBBER, SCREEN SETTING ••••••• 93 15 RUBBER, SEAL ••••••••••••••••• 80 1 RUBBER, TAILLIGHT BRACKET •••• 91 7 RUBBER, WASHER ••••••••••••••• 73 11 [ S ] SCREEN, OIL FILTER ••••••••••• 49 7 , 4X12 ••••••••••• 60 22 , 5X12 ••••••••••• 52 15 , 5X20 ••••••••••• 58 25 SCREW SET •••••••••••••••••••• 52 1 SCREW, BLEEDER ••••••••••••••• 75 ⚠ SCREW, FLAT, 4X12 •••••••••••• 60 21 SCREW, HANDLE LEVER PIVOT •••• 58 21 22 SCREW, OPENER SET •••••••••••• 93 19 SCREW, OVAL, 6X45 •••••••••••• 61 8 SCREW, PAN, 5X11.5 ••••••••••• 69 24 87 ⚠ 95 5 SCREW, PAN, 5X13 ••••••••••••• 53 2 88 15 SCREW, PAN, 6X14 ••••••••••••• 83 8 SCREW, PAN, 6X6 •••••••••••••• 34 7 SCREW, SCREEN SETTING •••••••• 93 18 SCREW, SPECIAL, 5MM •••••••••• 63 11 70 5 73 9 SCREW, SPECIAL, 6MM •••••••••• 63 12 SCREW, TAPPET ADJUSTING •••••• 32 14 SCREW, TAPPING, 3X14 ••••••••• 54 7 55 9 SCREW, TAPPING, 4X12 ••••••••• 55 10 62 14 15 69 25 26 70 10 11 73 13 14 80 14 15 SCREW, TAPPING, 4X16 ••••••••• SCREW, TAPPING, 5X12 ••••••••• SCREW, TAPPING, 5X14 ••••••••• [ R ] RACE, STEERING BOTTOM BALL •••• 65 4 RACE, STEERING BOTTOM CONE •••• 65 7 RACE, STEERING TOP BALL ••••••• 65 ⚠ RACE, STEERING TOP CONE ••••••• 65 6 RADIATOR ASSY. •••••••••••••••• 40 8 RAIL, RR. GRAB •••••••••••••••• 80 10 REFLECTOR, REFLEX ••••••••••••• 88 2 RELAY COMP., POWER •••••••••••• 90 ⚠ 4 RELAY COMP., WINKER ••••••••••• 91 13 RETAINER, FUEL PUMP ••••••••••• 81 6 RETAINER, VALVE SPRING •••••••• 32 10 RING SET, PISTON •••••••••••••• 51 2 RING, BACK UP ••••••••••••••••• 74 5 RING, OIL SEAL STOPPER •••••••• 74 11 RING, PISTON •••••••••••••••••• 74 8 RING, SEAL •••••••••••••••••••• 52 9 RING, STOPPER ••••••••••••••••• 74 10 75 6 RIVET, PUSH, 6MM •••••••••••••• ROD, TRIP ••••••••••••••••••••• ROLLER SET, WEIGHT •••••••••••• SCREW, TAPPING, 5X16 •••••••••• 54 8 62 16 69 18 SCREW, TAPPING, 5X20 •••••••••• 82 11 SCREW, TORX, 5X8.7 •••••••••••• 52 4 SCREW, U-LOCK FLAT, 6X12 •••••• 94 23 SEAL SET, FR. FORK •••••••••••• 74 13 SEAL SET, PISTON •••••••••••••• 75 1 SEAL, AIR CLEANER ••••••••••••• 82 ⚠ SEAL, DRAIN ••••••••••••••••••• 40 9 SEAL, DRIVEN FACE, 34X41X4 •••• 44 20 SEAL, DUST •••••••••••••••••••• 74 7 81 7 SEAL, INNER POCKET •••••••••••• 68 11 SEAL, L. COVER DUCT ••••••••••• 39 4 SEAL, RR. INNER FENDER •••••••• 88 11 SEAL, VALVE STEM •••••••••••••• 32 1 SEAT B, SPRING •••••••••••••••• 74 9 SEAT COMP., DOUBLE •••••••••••• 80 2 SEAT SET •••••••••••••••••••••• 52 11 SEAT, VALVE SPRING •••••••••••• 32 11 SENSOR ASSY., SPEED ••••••••••• 49 11 SENSOR ASSY., WATER 30 10 SENSOR, OXYGEN •••••••••••••••• 30 9 SHAFT, MAIN STAND ••••••••••••• 84 ⚠ SHAFT, ROCKER ARM ••••••••••••• 32 6 SHOE SET, BRAKE ••••••••••••••• 78 1 SHUTTER, KEY •••••••••••••••••• 93 5 SLEEVE, RR. BRAKE CAM ••••••••• 45 1 SOLENOID •••••••••••••••••••••• 52 10 SPACER, IGNITION COIL ••••••••• 91 ⚠ SPRING A, SIDE STAND •••••••••• 84 12 SPRING, BEARING PUSH •••••••••• 47 4 SPRING, BRAKE LEVER RETURN •••• 59 16 SPRING, BRAKE LOCK ARM RETURN • 58 19 SPRING, BRAKE SHOE •••••••••••• 78 6 SPRING, CLUTCH •••••••••••••••• 43 4 SPRING, DRIVEN FACE ••••••••••• 43 12 SPRING, FR. FORK •••••••••••••• 74 2 SPRING, MAIN STAND •••••••••••• 84 4 SPRING, OIL FILTER SCREEN ••••• 49 8 SPRING, PAD ••••••••••••••••••• 75 5 SPRING, REBOUND ••••••••••••••• 74 4 SPRING, RETURN •••••••••••••••• 59 15 SPRING, RR. BRAKE ARM ••••••••• 78 10 SPRING, SEAT LOCK ••••••••••••• 80 6 SPRING, VALVE ••••••••••••••••• 32 9 SPROCKET, CAM ••••••••••••••••• 32 ⚠ STAND COMP., MAIN ••••••••••••• 84 2 STATOR COMP. •••••••••••••••••• 37 2 STAY COMP., FR. COVER ••••••••• 93 16 STAY COMP., FUEL HOSE CLAMPER • 30 6 STAY COMP., IGNITION COIL ••••• STAY, WIRE •••••••••••••••••••• STEM SUB ASSY., STEERING •••••• STEP, FLOOR ••••••••••••••••••• STRIPE A, L. FR. COVER ••••••••
Halaman 113
INDEKS NAMA PART Hal. Ref. Nama part Hal. Ref. Nama part Hal. Ref. Nama part STRIPE A, R. FR. COVER •••••••• 100 4 STRIPE B, L. FR. COVER •••••••• 99 9 100 7 STRIPE B, R. FR. COVER •••••••• 98 8 99 8 100 6 STRIPE, L. BODY COVER ••••••••• 99 12 101 11 STRIPE, L. FR. COVER •••••••••• 98 7 100 9 101 9 STRIPE, R. BODY COVER ••••••••• 99 11 101 10 STRIPE, R. FR. COVER •••••••••• 98 6 100 8 SUB HARNESS, BATTERY •••••••••• 90 2 SUB HARNESS, ENGINE ••••••••••• 91 6 SWINGARM ASSY., RR. ••••••••••• 79 ⚠ SWITCH ASSY., & LOCK 93 2 SWITCH ASSY., DIMMER & HORN & WINKER 57 6 SWITCH ASSY., FR. STOP •••••••• 57 7 59 1 2 SWITCH ASSY., HANDLE LOCK ••••• 93 1 SWITCH ASSY., SEAT OPENER ••••• 93 7 10 SWITCH ASSY., SIDE STAND •••••• 84 1 SWITCH ASSY., STARTER ••••••••• 57 5 SWITCH ASSY., STARTER & IDLE •• 57 5 SWITCH COMP., & LOCK 93 4 SWITCH COMP., HANDLE LOCK ••••• 93 ⚠ [ V ] VALVE, EX. ••••••••••••••••••• 32 8 VALVE, IN. ••••••••••••••••••• 32 7 VALVE, RIM ••••••••••••••••••• 76 1 78 4 [ W ] WASHER, 10MM ••••••••••••••••• 63 15 WASHER, 12X24X2.3 •••••••••••• 37 4 WASHER, 12.2X29X2.5 •••••••••• 43 16 WASHER, 15X29X7 •••••••••••••• 42 7 WASHER, 8MM •••••••••••••••••• 30 12 WASHER, DRAIN PLUG, 12MM ••••• 47 17 WASHER, OIL BOLT ••••••••••••• 59 19 WASHER, PLAIN, 10MM •••••••••• 79 9 84 9 85 4 WASHER, PLAIN, 6MM ••••••••••• 71 6 83 10 WASHER, PLAIN, 8MM ••••••••••• 80 16 WASHER, SEALING, 6.5MM ••••••• 35 4 WASHER, SEALING, 8MM ••••••••• 45 9 49 14 WASHER, SPECIAL, 8MM ••••••••• 74 17 WASHER, WAVE ••••••••••••••••• 75 13 WEIGHT A, HANDLE ••••••••••••• 61 2 WEIGHT SET, CLUTCH ••••••••••• 43 5 WHEEL SUB ASSY., FR. ••••••••• 76 6 WHEEL SUB ASSY., RR. ••••••••• 78 2 WINKER ASSY., L. RR. ••••••••• 86 5 WINKER ASSY., R. RR. ••••••••• 86 4 WRENCH, SPARK PLUG ••••••••••• 96 4 [ T ] TAILLIGHT ASSY. ••••••••••••••• 87 1 TANK COMP., FUEL •••••••••••••• 81 5 TANK, RESERVE ••••••••••••••••• 95 2 TENSIONER ASSY., CAM CHAIN •••• 34 2 ASSY. •••••••••••••• 36 4 THREAD COMP., STEERING HEAD TOP 65 10 THROTTLE BODY ASSY. ••••••••••• 52 6 TIRE, FR. ••••••••••••••••••••• 76 7 TIRE, RR. ••••••••••••••••••••• 78 ⚠ TRAY, FUEL •••••••••••••••••••• 81 4 TUBE, AIR BREATHER •••••••••••• 40 11 TUBE, AIR CLEANER •• 82 7 TUBE, BREATHER •••••••••••••••• 82 5 TUBE, DRAIN ••••••••••••••••••• 49 5 81 9 TUBE, MISSION BREATHER •••••••• TUBE, RESERVE DRAIN •••••••••••
Halaman 114
## ## PT Astra Honda Motor ## ## TECHNICAL SERVICE DIVISION Dipublikasikan oleh : Honda Motor Co., Ltd. Dicetak di Indonesia ID.XXX.XXXX.2025.09.25
