Parts Catalog Yamaha Jupiter MX 2014 — Isi Lengkap 26 Halaman

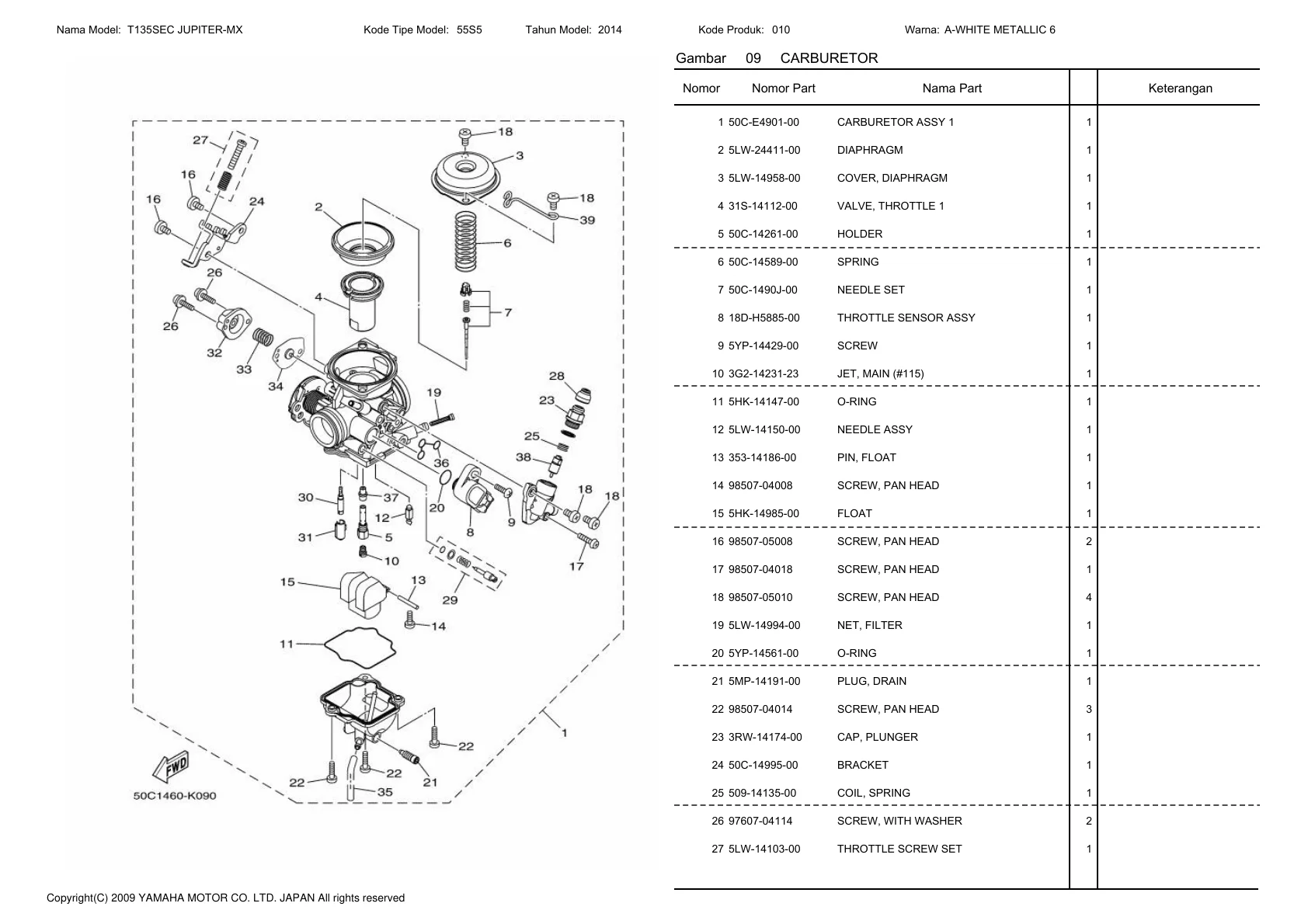

Gambar 09 CARBURETOR Nomor Nomor Part Nama Part Keterangan
Halaman 1
Nama Model:
Kode Tipe Model:
Tahun Model:
Warna:
Kode Produk:
T135SEC JUPITER-MX
55S5
2014
A-WHITE METALLIC 6
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 09 CARBURETOR
Nomor
Nomor Part
Nama Part
Keterangan
1 50C-E4901-00
1
CARBURETOR ASSY 1
2 5LW-24411-00
1
DIAPHRAGM
3 5LW-14958-00
1
COVER, DIAPHRAGM
4 31S-14112-00
1
VALVE, THROTTLE 1
5 50C-14261-00
1
HOLDER
6 50C-14589-00
1
SPRING
7 50C-1490J-00
1
NEEDLE SET
8 18D-H5885-00
1
THROTTLE SENSOR ASSY
9 5YP-14429-00
1
SCREW
10 3G2-14231-23
1
JET, MAIN (#115)
11 5HK-14147-00
1
O-RING
12 5LW-14150-00
1
NEEDLE ASSY
13 353-14186-00
1
PIN, FLOAT
14 98507-04008
1
SCREW, PAN HEAD
15 5HK-14985-00
1
FLOAT
16 98507-05008
2
SCREW, PAN HEAD
17 98507-04018
1
SCREW, PAN HEAD
18 98507-05010
4
SCREW, PAN HEAD
19 5LW-14994-00
1
NET, FILTER
20 5YP-14561-00
1
O-RING
21 5MP-14191-00
1
PLUG, DRAIN
22 98507-04014
3
SCREW, PAN HEAD
23 3RW-14174-00
1
CAP, PLUNGER
24 50C-14995-00
1
BRACKET
25 509-14135-00
1
COIL, SPRING
26 97607-04114
2
SCREW, WITH WASHER
5LW-14103-00
THROTTLE SCREW SET
Gambar 09 CARBURETOR Nomor Nomor Part Nama Part Keterangan
Halaman 2
Nama Model: T135SEC JUPITER-MX
Kode Tipe Model: 55S5
Tahun Model: 2014
Kode Produk: 010
Warna: A-WHITE METALLIC 6
Gambar 09 KARBURATOR
| Nomor | Nomor Part | Nama Part | Keterangan |
| :---- | :------------ | :---------------- | :--------- |
| 28 | 22F-14173-00 | COVER, PLUNGER CAP | 1 |
| 29 | 50C-14105-00 | PILOT SCREW SET | 1 |
| 30 | 5P0-14142-15 | JET, PILOT (# 15) | 1 |
| 31 | 4JG-14261-00 | HOLDER | 1 |
| 32 | 33S-14280-00 | COVER, KARBURETOR | 1 |
| 33 | 5HK-14275-00 | SPRING | 1 |
| 34 | 5AP-14940-00 | DIAPHRAGM ASSY | 1 |
| 35 | 5FC-14149-00 | PIPE | 1 |
| 36 | 5LW-14147-00 | O-RING | 1 |
| 37 | 5P0-14141-13 | NOZZLE, MAIN | 1 |
| 38 | 5LW-14171-10 | PLUNGER, STARTER | 1 |
| 39 | 50C-14137-00 | CLIP | 1 |
50C1460-K090
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 41 ELECTRICAL 1 Nomor Nomor Part Nama Part Keterangan
Halaman 3
| Nama Model: T135SEC JUPITER-MX | Kode Tipe Model: 55S5 | Tahun Model: 2014 | Kode Produk: 010 | Warna: A-WHITE METALLIC 6 |
| :--- | :--- | :--- | :--- | :--- |
### Gambar 41 ELECTRICAL 1
| Nomor | Nomor Part | Nama Part | Qty | Keterangan |
| :---: | :--- | :--- | :---: | :--- |
| 1 | 4US-H2310-20 | IGNITION COIL ASSY | 1 | |
| 2 | 97007-06016 | BOLT | 2 | |
| 3 | 1S7-H2370-00 | PLUG CAP ASSY | 1 | |
| 4 | 14D-H2100-00 | BATTERY ASSY (YUASA YTZ4V) | 1 | UR |
| | 14D-H2100-10 | BATTERY ASSY (GS GZ4V) | 1 | UR |
| 5 | 50C-H2150-00 | FUSE HOLDER ASSY | 1 | |
| 6 | 5TL-H2151-00 | FUSE (10A) | 1 | |
| 7 | 50C-H2116-00 | WIRE, MINUS LEAD | 1 | |
| 8 | 95027-06010 | BOLT, FLANGE | 1 | |
| 9 | 50C-XH252-02 | MAIN SWITCH SUB ASSY. | 1 | |
| 10 | 90149-06831 | SCREW | 2 | |
| 11 | 1S7-H2530-02 | STOP SWITCH ASSY | 1 | |
| 12 | 55S-H2590-10 | WIRE HARNESS ASSY | 1 | |
| 13 | 1S7-F117F-00 | COVER | 1 | |
---
**Diagram Code:** 50C1460-K430
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 42 ELECTRICAL 2 Nomor Nomor Part Nama Part Keterangan
Halaman 4
Nama Model:
Kode Tipe Model:
Tahun Model:
Warna:
Kode Produk:
T135SEC JUPITER-MX
55S5
2014
A-WHITE METALLIC 6
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 42 ELECTRICAL 2
Nomor
Nomor Part
Nama Part
Keterangan
1 50C-H5540-01
1
C.D.I. UNIT ASSY
2 50C-F8426-00
1
BRACKET 1
3 90520-04804
2
DAMPER, PLATE
4 90201-06830
2
WASHER, PLATE
5 98507-06012
2
SCREW, PAN HEAD
6 90520-96802
1
DAMPER, PLATE
7 1S7-H2540-01
1
NEUTRAL SWITCH ASSY
8 93210-21801
1
O-RING
9 98507-05016
2
SCREW, PAN HEAD
10 1S7-H5790-00
1
THERMOSENSOR ASSY
11 90430-12801
1
GASKET
12 2D5-H1960-00
1
RECTIFIER & REGULATOR ASSY
13 97607-06212
1
SCREW, WITH WASHER
14 1S7-H1940-10
1
STARTER RELAY ASSY
15 1S7-H1950-00
1
RELAY ASSY
16 90465-13152
6
CLAMP
17 3AY-H3936-10
1
BAND, SWITCH CORD
18 5TF-H3350-00
1
FLASHER RELAY ASSY
19 5TP-H3371-00
1
HORN
20 95807-06010
1
BOLT, FLANGE
21 1S7-H5752-01
1
SENDER UNIT ASSY, FUEL METER
22 5ER-H5757-00
1
RETAINER
23 4US-H5753-01
1
GASKET, SENDER UNIT
24 90119-05071
4
BOLT, WITH WASHER
Gambar 20 FENDER Nomor Nomor Part Nama Part Keterangan
Halaman 5
Nama Model:
Kode Tipe Model:
Tahun Model:
Warna:
Kode Produk:
T135SEC JUPITER-MX
55S5
2014
A-WHITE METALLIC 6
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 20 FENDER
Nomor
Nomor Part
Nama Part
Keterangan
1
1
UR SMX FOR WM6
FENDER, FRONT
2 95827-06016
4
BOLT, FLANGE
3 90201-06072
4
WASHER, PLATE
4 90387-068S1
4
COLLAR
5 4ST-F1518-00
1
HOLDER, CABLE
6 50C-F1611-00
1
FENDER, REAR
7 4XC-H5111-00
1
REFLECTOR, FRONT 1
8 90119-06044
4
BOLT, WITH WASHER
9 90183-05807
6
NUT, SPRING
10 50C-F160E-10
1
BOX
Gambar 36 FLASHER LIGHT Nomor Nomor Part Nama Part Keterangan
Halaman 6
Nama Model: T135SEC JUPITER-MX
Kode Tipe Model: 55S5
Tahun Model: 2014
Kode Produk: 010
Warna: A-WHITE METALLIC 6
## Gambar 36 FLASHER LIGHT
| Nomor | Nomor Part | Nama Part | Keterangan |
| :---- | :--------- | :-------------------------- | :--------- |
| 1 | 50C-H3310-00 | FRONT FLASHER LIGHT ASSY 1 | 1 |
| 2 | 31B-H5353-00 | BULB (12V-5W) | 1 |
| 3 | 5HV-H3311-00 | BULB (12V-10W) AMBER | 1 |
| 4 | 50C-H3332-00 | LENS, FLASHER | 1 |
| 5 | 50C-H331E-00 | CORD ASSY | 1 |
| | | | |
| 6 | 50C-H3313-00 | GASKET, FLASHER LENS | 1 |
| 7 | 50C-H3320-00 | FRONT FLASHER LIGHT ASSY 2 | 1 |
| 8 | 31B-H5353-00 | BULB (12V-5W) | 1 |
| 9 | 5HV-H3311-00 | BULB (12V-10W) AMBER | 1 |
| 10 | 50C-H3342-00 | LENS, FLASHER 2 | 1 |
| 11 | 50C-H332E-00 | CORD ASSY | 1 |
| 12 | 50C-H3313-00 | GASKET, FLASHER LENS | 1 |
| 13 | 97707-50016 | SCREW, TRUSS HEAD TAPPING | 5 |
FWD
50C1460-K380
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 19 FRAME Nomor Nomor Part Nama Part Keterangan
Halaman 7
| Nama Model: T135SEC JUPITER-MX | Kode Tipe Model: 55S5 | Tahun Model: 2014 | Kode Produk: 010 | Warna: A-WHITE METALLIC 6 |
| :--- | :--- | :--- | :--- | :--- |
### Gambar 19 FRAME
| Nomor | Nomor Part | Nama Part | Qty | Keterangan |
| :---: | :--- | :--- | :---: | :--- |
| 1 | 55S-F1110-00 | FRAME COMP. | 1 | |
| 2 | 91317-10100 | BOLT | 1 | |
| 3 | 90105-10861 | BOLT, FLANGE | 1 | |
| 4 | 90105-088D9 | BOLT, FLANGE | 1 | |
| 5 | 90105-088D8 | BOLT, FLANGE | 2 | |
| 6 | 90201-086P8 | WASHER, PLATE | 3 | |
| 7 | 90201-101J1 | WASHER, PLATE | 3 | |
| 8 | 90179-08818 | NUT | 3 | |
| 9 | 90179-10805 | NUT | 2 | |
| 10 | 1S7-F1315-00 | STAY, ENGINE 1 | 1 | |
| 11 | 1S7-F1316-00 | STAY, ENGINE 2 | 1 | |
| 12 | 1S7-F139R-00 | COVER 2 | 2 | |
| 13 | 1S7-F139X-00 | DAMPER | 1 | |
| 14 | 90480-01558 | GROMMET | 2 | |
| 15 | 50C-F112C-00 | DAMPER 2 | 1 | |
| 16 | 50C-F112D-00 | DAMPER 3 | 2 | |
| 17 | 1S7-F117G-00 | PROTECTOR | 1 | |
| 18 | 1S7-F8100-00 | TOOL KIT | 1 | |
---
**FWD**
55S1460-K190
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 24 FRONT FORK Nomor Nomor Part Nama Part Keterangan
Halaman 8
| Nama Model: T135SEC JUPITER-MX | Kode Tipe Model: 55S5 | Tahun Model: 2014 | Kode Produk: 010 | Warna: A-WHITE METALLIC 6 |
| :--- | :--- | :--- | :--- | :--- |
### Gambar 24 FRONT FORK
| Nomor | Nomor Part | Nama Part | Qty | Keterangan |
| :---: | :--- | :--- | :---: | :--- |
| 1 | 50C-F3100-01 | FRONT FORK ASSY | 1 | |
| 2 | 50C-F3136-00 | TUBE, OUTER | 1 | |
| 3 | 3AY-F3145-00 | OIL SEAL | 1 | |
| 4 | 5P0-F3156-00 | RING, SNAP | 1 | |
| 5 | 50C-F3126-00 | TUBE, OUTER (L.H) | 1 | |
| 6 | 3AY-F3145-00 | OIL SEAL | 1 | |
| 7 | 5P0-F3156-00 | RING, SNAP | 1 | |
| 8 | 50C-F3110-00 | INNER TUBE COMP.1 | 2 | |
| 9 | 5P0-F3170-00 | CYLINDER COMP., FRONT FORK | 2 | |
| 10 | 2JG-F3157-00 | RING, PISTON | 2 | |
| 11 | 5NM-F3152-00 | SPRING, SUB | 2 | |
| 12 | 509-F3158-L0 | GASKET | 2 | |
| 13 | 31B-F3181-00 | BOLT, HEXAGON SOCKET HEAD | 2 | |
| 14 | 5LM-F3144-00 | SEAL, DUST | 2 | |
| 15 | 50C-F3141-00 | SPRING, FRONT FORK | 2 | |
| 16 | 50C-F3340-01 | UNDER BRACKET COMP. | 1 | |
| 17 | 49P-F3411-00 | RACE, BALL 1 | 1 | |
| 18 | 4D0-F3346-00 | BOLT 1 | 4 | |
| 19 | 4VK-F3111-10 | BOLT, CAP | 2 | |
| 20 | 2JG-F3147-00 | O-RING | 2 | |
---
**50C1460-K240**
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 31 FRONT MASTER CYLINDER Nomor Nomor Part Nama Part Keterangan
Halaman 9
**Nama Model:** T135SEC JUPITER-MX
**Kode Tipe Model:** 55S5
**Tahun Model:** 2014
**Kode Produk:** 010
**Warna:** A-WHITE METALLIC 6
### Gambar 31 FRONT MASTER CYLINDER
| Nomor | Nomor Part | Nama Part | Qty | Keterangan |
| :---: | :--- | :--- | :---: | :--- |
| 1 | 50C-F5872-00 | HOSE, BRAKE 1 | 1 | |
| 2 | 90401-10812 | BOLT, UNION | 2 | |
| 3 | 90201-10118 | WASHER, PLATE | 4 | |
| 4 | 5P0-F583T-13 | MASTER CYLINDER ASSY (BLACK) | 1 | |
| 5 | 5P0-W0041-00 | CYLINDER KIT, MASTER | 1 | |
| 6 | 5P0-F5854-00 | DIAPHRAGM, RESERVOIR | 1 | |
| 7 | 5P0-F5852-10 | CAP, RESERVOIR (BLACK) | 1 | |
| 8 | 36Y-2589H-00 | SCREW | 2 | |
| 9 | 5TL-F5867-11 | BRACKET, MASTER CYLINDER (BLACK) | 1 | |
| 10 | 5P0-F5855-00 | BUSH, DIAPHRAGM | 1 | |
| 11 | 91317-06025 | BOLT | 2 | |
| 12 | 5TL-H3922-10 | LEVER 2 | 1 | |
| 13 | 90109-06577 | BOLT | 1 | |
| 14 | 95602-06100 | NUT, U | 1 | |
| 15 | 5D9-H3980-00 | FRONT STOP SWITCH ASSY | 1 | |
---
**50C1460-K320**
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 27 FRONT WHEEL Nomor Nomor Part Nama Part Keterangan
Halaman 10
Nama Model:
Kode Tipe Model:
Tahun Model:
Warna:
Kode Produk:
T135SEC JUPITER-MX
55S5
2014
A-WHITE METALLIC 6
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 27 FRONT WHEEL
Nomor
Nomor Part
Nama Part
Keterangan
1
1
YB FOR WM6,SMX
CAST WHEEL, FRONT
2 90560-10292
1
SPACER
3 93106-20816
1
OIL SEAL
4 93306-300YK
2
BEARING
5 94107-17823
1
UR INOUE(IRC)
TIRE (70/90-17M/C 38P NF63)
94107-17822
1
UR DUNLOP
TIRE (70/90-17M/C 38P D102FA)
6 94222-17804
1
UR INOUE(IRC)
TUBE (2.25-17 TR4)
94222-17800
1
UR DUNLOP
TUBE (2.25/2.50-17 TR4)
7 90387-10277
1
COLLAR
8 3AY-F5181-01
1
AXLE, WHEEL
9 90185-10012
1
NUT, SELF-LOCKING
10 90201-101J1
1
WASHER, PLATE
11 5TP-F5190-01
1
GEAR UNIT ASSY
Gambar 25 FUEL TANK Nomor Nomor Part Nama Part Keterangan
Halaman 11
Nama Model:
Kode Tipe Model:
Tahun Model:
Warna:
Kode Produk:
T135SEC JUPITER-MX
55S5
2014
A-WHITE METALLIC 6
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 25 FUEL TANK
Nomor
Nomor Part
Nama Part
Keterangan
1 1S7-F4110-01
1
FUEL TANK COMP.
2 1S7-F4339-00
4
GROMMET
3 1S7-F4638-00
2
COLLAR
4 1S7-F4397-00
2
COLLAR
5 97007-06025
2
BOLT
6 90119-06190
2
BOLT, WITH WASHER
7 1S7-F4141-00
1
PROTECTOR, FUEL TANK
8 90445-07812
1
HOSE
9 50C-F4311-00
1
PIPE, FUEL 1
10 50C-F4312-00
1
PIPE 2
11 90467-09006
2
CLIP
12 90467-08075
2
CLIP
13 5YP-F4500-01
1
FUEL COCK ASSY 1
14 4X8-24512-00
1
O-RING
15 90149-06011
2
SCREW
16 90202-05193
2
WASHER, PLATE
17 4YY-F4610-10
1
CAP ASSY
18 4YY-F4612-10
1
PACKING, CAP
Gambar 34 GENERATOR Nomor Nomor Part Nama Part Keterangan
Halaman 12
**Nama Model:** T135SEC JUPITER-MX
**Kode Tipe Model:** 55S5
**Tahun Model:** 2014
**Kode Produk:** 010
**Warna:** A-WHITE METALLIC 6
---
### Gambar 34 GENERATOR
| Nomor | Nomor Part | Nama Part | Qty | Keterangan |
| :---: | :--- | :--- | :---: | :--- |
| 1 | 55S-H1450-00 | ROTOR ASSY | 1 | |
| 2 | 1S7-H1410-01 | STATOR ASSY | 1 | |
| 3 | 91317-06025 | BOLT | 3 | |
| 4 | 91317-06016 | BOLT | 2 | |
| 5 | 95707-12500 | NUT, FLANGE | 1 | |
| 6 | 90201-122H1 | WASHER, PLATE | 1 | |
---
**55S1460-K340**
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 40 HANDLE SWITCH & LEVER Nomor Nomor Part Nama Part Keterangan
Halaman 13
Nama Model:
Kode Tipe Model:
Tahun Model:
Warna:
Kode Produk:
T135SEC JUPITER-MX
55S5
2014
A-WHITE METALLIC 6
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 40 HANDLE SWITCH & LEVER
Nomor
Nomor Part
Nama Part
Keterangan
1 1S7-H3973-22
1
SWITCH, HANDLE 3
2 5TL-H3941-10
1
LEVER, STARTER
3 5TL-H3947-10
1
SPRING
4 5TL-H397X-10
1
SPACER
5 9850L-06008
1
SCREW, PAN HEAD
6 1S7-H3955-00
1
BRACKET 1
7 97607-05216
2
SCREW, WITH WASHER
8 97707-50012
1
SCREW, TRUSS HEAD TAPPING
9 55C-H3976-00
1
SWITCH, HANDLE 1
10 97707-50012
1
SCREW, TRUSS HEAD TAPPING
Gambar 38 HEADLIGHT Nomor Nomor Part Nama Part Keterangan
Halaman 14
Nama Model: T135SEC JUPITER-MX | Kode Tipe Model: 55S5 | Tahun Model: 2014 | Kode Produk: 010 | Warna: A-WHITE METALLIC 6
---|---|---|---|---
### Gambar 38 HEADLIGHT
| Nomor | Nomor Part | Nama Part | Qty | Keterangan |
| :---: | :--- | :--- | :---: | :--- |
| 1 | 50C-H4310-01 | HEADLIGHT UNIT ASSY | 1 | |
| 2 | 5HV-H4314-00 | BULB (12V-32/32W) | 1 | |
| 3 | 50C-H4370-00 | HEADLIGHT UNIT ASSY | 1 | |
| 4 | 50C-H4326-00 | NUT | 1 | |
| 5 | 50C-H4312-00 | CORD ASSY | 1 | |
| 6 | 50C-H4781-00 | BRACKET 1 | 1 | |
| 7 | 97707-50016 | SCREW, TRUSS HEAD TAPPING | 1 | |
| 8 | 50C-H4782-00 | BRACKET 2 | 1 | |
| 9 | 97707-50016 | SCREW, TRUSS HEAD TAPPING | 1 | |
| 10 | 50C-H411T-00 | HOLDER, 1 | 1 | |
| 11 | 50C-H411U-00 | HOLDER, 2 | 1 | |
| 12 | 95807-06010 | BOLT, FLANGE | 1 | |
---
**Diagram Notes:**
* **FWD**
* **50C1460-K400**
---
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 33 LEG SHIELD Nomor Nomor Part Nama Part Keterangan
Halaman 15
Nama Model:
Kode Tipe Model:
Tahun Model:
Warna:
Kode Produk:
T135SEC JUPITER-MX
55S5
2014
A-WHITE METALLIC 6
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 33 LEG SHIELD
Nomor
Nomor Part
Nama Part
Keterangan
1 50C-F3391-00
1
UR FOR WM6
PANEL, FRONT
2
1
UR FOR WM6
MOLE 1
3 50C-F844E-00
2
SEAL 3
4 50C-H454E-10
1
BRACKET, NUMBER PLATE
5 95807-06055
2
BOLT, FLANGE
6 90201-06822
2
WASHER, PLATE
7 5TL-F3108-00
1
EMBLEM
8 90183-05807
2
NUT, SPRING
9 90160-05009
6
SCREW, ROUND TAPPING
10 50C-F8187-00
1
GROMMET
11 90520-05806
2
DAMPER, PLATE
12 90520-10810
2
DAMPER, PLATE
13 90480-13807
2
GROMMET
14 90480-13867
2
GROMMET
15
1
UR FOR WM6
LEG SHIELD 1
16 50C-F835J-00
1
BODY, FRONT UNDER 1
17 50C-F137U-00
1
GUIDE, AIR 1
18 90160-05009
6
SCREW, ROUND TAPPING
19 90183-05807
3
NUT, SPRING
20 90150-06021
1
SCREW, ROUND HEAD
21 90480-18418
1
GROMMET
22 90387-09802
1
COLLAR
23 95807-06020
1
BOLT, FLANGE
24 90201-06557
1
WASHER, PLATE
25
1
UR FOR WM6
LEG SHIELD 2
26 50C-F835K-00
1
BODY, FRONT UNDER 2
50C-F137V-00
GUIDE, AIR 2
Gambar 33 LEG SHIELD Nomor Nomor Part Nama Part Keterangan
Halaman 16
Nama Model:
Kode Tipe Model:
Tahun Model:
Warna:
Kode Produk:
T135SEC JUPITER-MX
55S5
2014
A-WHITE METALLIC 6
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 33 LEG SHIELD
Nomor
Nomor Part
Nama Part
Keterangan
28 50C-F8307-00
1
SEAL
29 90160-05009
5
SCREW, ROUND TAPPING
30 90183-05807
4
NUT, SPRING
31 90150-06021
1
SCREW, ROUND HEAD
32 90480-18418
1
GROMMET
33 90387-09802
1
COLLAR
34 95807-06020
1
BOLT, FLANGE
35 90201-06557
1
WASHER, PLATE
36 50C-F836K-00
1
UR FOR WM6
PANEL, INNER 1
37 90159-06817
1
SCREW, WITH WASHER
38 50C-F8273-00
1
UR FOR WM6
FIN 1
39 90160-05808
2
SCREW, ROUND TAPPING
40 50C-F8274-00
1
UR FOR WM6
FIN 2
41 90160-05808
2
SCREW, ROUND TAPPING
42 90480-01813
4
GROMMET
43 90183-05807
2
NUT, SPRING
44 90160-05009
4
SCREW, ROUND TAPPING
45 50C-F8371-00
1
DAMPER
46 50C-F837J-00
1
DAMPER 5
47 50C-F837K-00
1
DAMPER 6
48 50C-F174X-00
1
DAMPER
49 50C-F174Y-00
1
DAMPER
50 50C-F1746-00
1
DAMPER
51 50C-F1747-00
1
DAMPER
52 50C-F842N-00
1
UR FOR WM6
COVER 2
53 90150-06021
1
SCREW, ROUND HEAD
90160-05009
SCREW, ROUND TAPPING
Gambar 33 LEG SHIELD Nomor Nomor Part Nama Part Keterangan
Halaman 17
Nama Model:
Kode Tipe Model:
Tahun Model:
Warna:
Kode Produk:
T135SEC JUPITER-MX
55S5
2014
A-WHITE METALLIC 6
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 33 LEG SHIELD
Nomor
Nomor Part
Nama Part
Keterangan
55 55S-F8321-00
1
STAY 1
56 55S-F8322-00
1
STAY 2
57 95807-06020
2
BOLT, FLANGE
58 1S7-F8336-00
1
PLATE
59 90465-13152
2
CLAMP
60 55S-F832L-90
1
UR FOR WM6
GRAPHIC, 13
61 55S-F831Y-90
1
UR FOR WM6
GRAPHIC, 14
62 55S-F832B-90
1
UR FOR WM6
GRAPHIC, 15
63 55S-F832C-90
1
UR FOR WM6
GRAPHIC, 16
64 55S-F832D-90
1
UR FOR WM6
GRAPHIC 17
65 55S-F832P-90
1
UR FOR WM6
GRAPHIC, 18
66 50C-F836B-00
1
TUNING FORK MARK
67 50C-F837B-00
1
TUNING FORK MARK
Gambar 37 METER Nomor Nomor Part Nama Part Keterangan
Halaman 18
Nama Model:
Kode Tipe Model:
Tahun Model:
Warna:
Kode Produk:
T135SEC JUPITER-MX
55S5
2014
A-WHITE METALLIC 6
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 37 METER
Nomor
Nomor Part
Nama Part
Keterangan
1 55S-H3510-00
1
SPEEDOMETER ASSY
2 50C-H3511-00
1
LENS, SPEEDOMETER
3 55S-H353F-00
1
CASE, METER LOWER
4 90167-04021
2
SCREW, TAPPING
5 90159-03102
3
SCREW, WITH WASHER
6 55S-H3509-00
1
SOCKET CORD ASSY
7 2GV-83517-00
2
BULB (12V-1.7W T6.5)
8 1Y7-83517-00
7
BULB (12V-1.7W T10)
9 4NK-8357E-00
1
CLAMP
10 90164-04023
1
SCREW, TAPPING
11 42X-83517-00
2
BULB (12V-3W)
12 97707-50016
1
SCREW, TRUSS HEAD TAPPING
13 97707-50025
2
SCREW, TAPPING
14 50C-H3550-10
1
SPEEDOMETER CABLE ASSY
Gambar 22 REAR ARM & SUSPENSION Nomor Nomor Part Nama Part Keterangan
Halaman 19
| Nama Model: T135SEC JUPITER-MX | Kode Tipe Model: 55S5 | Tahun Model: 2014 | Kode Produk: 010 | Warna: A-WHITE METALLIC 6 |
| :--- | :--- | :--- | :--- | :--- |
### Gambar 22 REAR ARM & SUSPENSION
| Nomor | Nomor Part | Nama Part | Qty | Keterangan |
| :---: | :--- | :--- | :---: | :--- |
| 1 | 55S-F2110-10 | REAR ARM COMP. | 1 | |
| 2 | 3HB-F2123-00 | BUSH 1 | 2 | |
| 3 | 1S7-F2151-00 | SEAL, GUARD | 1 | |
| 4 | 95807-06012 | BOLT, FLANGE | 1 | |
| 5 | 90387-06681 | COLLAR | 1 | |
| 6 | 50C-F2141-00 | SHAFT, PIVOT | 1 | |
| 7 | 95612-12100 | NUT, U | 1 | |
| 8 | 55S-F1650-00 | REAR FENDER COMP. | 1 | |
| 9 | 95827-06014 | BOLT, FLANGE | 3 | |
| 10 | 90387-07819 | COLLAR | 3 | |
| 11 | 50C-F2210-00 | SHOCK ABSORBER ASSY, REAR | 1 | |
| 12 | 90105-10323 | BOLT, FLANGE | 2 | |
| 13 | 95602-10200 | NUT, U FLANGE | 2 | |
---
**Diagram Reference:** 55S1460-K220
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 29 REAR WHEEL Nomor Nomor Part Nama Part Keterangan
Halaman 20
Nama Model:
Kode Tipe Model:
Tahun Model:
Warna:
Kode Produk:
T135SEC JUPITER-MX
55S5
2014
A-WHITE METALLIC 6
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 29 REAR WHEEL
Nomor
Nomor Part
Nama Part
Keterangan
1
1
YB FOR WM6,SMX
CAST WHEEL, REAR
2 90560-12145
1
SPACER
3 93306-351Y3
1
BEARING
4 93306-351Y2
1
BEARING
5 93210-418G7
1
O-RING
6 1S7-F5364-00
4
DAMPER
7
1
YB FOR WM6,SMX
PLATE, BRAKE SHOE
8 1S7-F530K-00
1
BRAKE SHOE SET
9 90506-12001
1
SPRING, TENSION
10 90506-15001
1
SPRING, TENSION
11 1S7-F5355-00
1
LEVER, CAMSHAFT
12 5MX-F533A-00
1
PLATE, INDICATOR
13 3Y6-F5351-00
1
CAMSHAFT
14 90101-06278
1
BOLT
15 1S7-F5366-00
1
CLUTCH, HUB
16 90387-127Y0
1
COLLAR
17 93106-26815
1
OIL SEAL
18 93306-054YK
1
BEARING
19 4ST-F5439-00
1
SPROCKET, DRIVEN (39T)
20 90116-08017
4
BOLT, STUD
21 3HB-F5412-00
2
WASHER
22 90170-08258
4
NUT
23 94108-17823
1
UR INOUE(IRC)
TIRE (80/90-17M/C 44P NR78)
94108-17822
1
UR DUNLOP
TIRE (80/90-17M/C 44P D102A)
24 94227-17803
1
UR INOUE(IRC)
TUBE (2.75-17 TR4)
94227-17805
1
UR DUNLOP
TUBE (2.75-17 TR4)
55S-F5381-00
AXLE, WHEEL
Gambar 29 REAR WHEEL Nomor Nomor Part Nama Part Keterangan
Halaman 21
**Nama Model:** T135SEC JUPITER-MX
**Kode Tipe Model:** 55S5
**Tahun Model:** 2014
**Kode Produk:** 010
**Warna:** A-WHITE METALLIC 6
### Gambar 29 REAR WHEEL
| Nomor | Nomor Part | Nama Part | Qty | Keterangan |
| :--- | :--- | :--- | :---: | :--- |
| 26 | 95602-12200 | NUT, SELF-LOCKING | 1 | |
| 27 | 55S-F5383-00 | COLLAR, WHEEL | 1 | |
| 28 | 50C-F5388-00 | PULLER, CHAIN 1 | 1 | |
| 29 | 50C-F5389-00 | PULLER, CHAIN 2 | 1 | |
| 30 | 50C-F5377-01 | COLLAR, WHEEL | 1 | |
| 31 | 9X568-68113 | CHAIN | 1 | |
| 32 | 1S7-F5371-00 | BAR, TENSION | 1 | |
| 33 | 90109-08822 | BOLT | 1 | |
| 34 | 90202-15800 | WASHER, PLATE | 1 | |
| 35 | 90201-088N6 | WASHER, PLATE | 1 | |
| 36 | 92907-08200 | WASHER | 1 | |
| 37 | 95304-08700 | NUT | 2 | |
| 38 | 91401-20012 | PIN, COTTER | 2 | |
---
**55S4460-M290**
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 26 SEAT Nomor Nomor Part Nama Part Keterangan
Halaman 22
Nama Model:
Kode Tipe Model:
Tahun Model:
Warna:
Kode Produk:
T135SEC JUPITER-MX
55S5
2014
A-WHITE METALLIC 6
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 26 SEAT
Nomor
Nomor Part
Nama Part
Keterangan
1 50C-F4730-10
1
DOUBLE SEAT ASSY
2 50C-F470F-10
1
SEAT COVER COMP.
3 5TP-F4723-00
3
DAMPER, SEAT
4 5BP-F4741-00
4
PAD, SEAT
5 50C-F4726-00
1
HINGE, SEAT
6 1S7-F4742-00
1
GROMMET
7 90201-060A3
3
WASHER, PLATE
8 95307-06600
3
NUT
9 5TL-F4727-00
1
PIN, SEAT FITTING
10 40D-F4780-01
1
SEAT LOCK ASSY
11 98507-06012
2
SCREW, PAN HEAD
12 1S7-F4728-00
1
BRACKET, SEAT
13 90480-14872
2
GROMMET
14 90201-06071
2
WASHER, PLATE
15 95307-06600
2
NUT
16 50C-F117K-00
1
STAY, LOCK
17 90159-06033
1
SCREW, WITH WASHER
18 50C-F478E-00
1
CABLE, SEAT LOCK
19
1
UR FOR WM6
HANDLE, SEAT
20 95827-06020
4
BOLT, FLANGE
21 1S7-F4768-00
1
STOPPER
Gambar 21 SIDE COVER Nomor Nomor Part Nama Part Keterangan
Halaman 23
Nama Model:
Kode Tipe Model:
Tahun Model:
Warna:
Kode Produk:
T135SEC JUPITER-MX
55S5
2014
A-WHITE METALLIC 6
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 21 SIDE COVER
Nomor
Nomor Part
Nama Part
Keterangan
1
1
UR FOR WM6
COVER, SIDE 1
2 90183-05807
3
NUT, SPRING
3
1
UR FOR WM6
COVER, SIDE 2
4 90183-05807
3
NUT, SPRING
5 90520-02806
1
DAMPER, PLATE
6
1
SMX FOR WM6,SMX
COVER, SIDE 3
7 90183-05807
2
NUT, SPRING
8 90160-05808
6
SCREW, ROUND TAPPING
9 90159-06817
1
SCREW, WITH WASHER
10
1
SMX FOR WM6,SMX
COVER, SIDE 4
11 90183-05807
2
NUT, SPRING
12 90160-05808
6
SCREW, ROUND TAPPING
13 90159-06817
1
SCREW, WITH WASHER
14 90520-04806
2
DAMPER, PLATE
15 50C-F172E-00
1
STAY, SIDE COVER 1
16 90160-05808
2
SCREW, ROUND TAPPING
17 1S7-F1871-00
1
TANK, RECOVERY
18 90119-06044
2
BOLT, WITH WASHER
19 1S7-F172K-00
1
BRACKET 1
20 95807-06020
1
BOLT, FLANGE
21 90480-13018
1
GROMMET
22 1S7-F1875-00
1
CAP
23 1S7-F172L-00
1
BRACKET 2
24 1S7-F172M-00
1
BRACKET 3
25 50C-F1173-00
1
BOSS, WIRE HOLDER
26 1S7-F172W-00
1
COVER
90445-09823
HOSE
Gambar 21 SIDE COVER Nomor Nomor Part Nama Part Keterangan
Halaman 24
Nama Model:
Kode Tipe Model:
Tahun Model:
Warna:
Kode Produk:
T135SEC JUPITER-MX
55S5
2014
A-WHITE METALLIC 6
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 21 SIDE COVER
Nomor
Nomor Part
Nama Part
Keterangan
28 50C-F1817-00
1
PIPE 2
29 90467-08003
1
CLIP
30 90467-09006
2
CLIP
31 50C-F177G-00
1
BOX, BATTERY
32 90520-02807
1
DAMPER, PLATE
33 90183-05807
2
NUT, SPRING
34 90119-06044
2
BOLT, WITH WASHER
35 5TL-H2131-00
1
BAND, BATTERY
36 1S7-E4293-00
1
COVER 1
37 55S-F173E-90
1
UR FOR WM6
GRAPHIC 1
38 55S-F173F-90
1
UR FOR WM6
GRAPHIC 2
39 55S-F174G-90
1
UR FOR WM6
GRAPHIC 3
40 55S-F174H-90
1
UR FOR WM6
GRAPHIC 4
Gambar 32 STAND & FOOTREST Nomor Nomor Part Nama Part Keterangan
Halaman 25
Nama Model:
Kode Tipe Model:
Tahun Model:
Warna:
Kode Produk:
T135SEC JUPITER-MX
55S5
2014
A-WHITE METALLIC 6
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 32 STAND & FOOTREST
Nomor
Nomor Part
Nama Part
Keterangan
1 55S-F7111-00
1
STAND, MAIN
2 1S7-F7114-00
1
STOPPER, MAIN STAND
3 1S7-F7112-00
1
SHAFT, MAIN STAND
4 90201-163H8
1
WASHER, PLATE
5 91401-30030
1
PIN, COTTER
6 90506-35806
1
SPRING, TENSION
7 90201-158D1
1
WASHER, PLATE
8 91401-30030
1
PIN, COTTER
9 55S-F7211-00
1
PEDAL, BRAKE
10 90508-40808
1
SPRING, TORSION
11 55S-F7231-00
1
ROD, BRAKE
12 90501-10245
1
SPRING, COMPRESSION
13 90249-12008
1
PIN
14 90175-06013
1
NUT, WING
15 91401-20012
1
PIN, COTTER
16 92907-06600
1
WASHER, PLATE
17 1S7-F7311-00
1
STAND, SIDE
18 90109-08034
1
BOLT
19 95307-08700
1
NUT
20 90506-23804
1
SPRING, TENSION
21 1S7-F7411-00
1
FOOTREST 1
22 95827-08016
4
BOLT, FLANGE
23 5LM-F7413-00
2
COVER, FOOTREST
24
1
UR FOR WM6
REAR FOOTREST ASSY 1
25
1
UR FOR WM6
BRACKET, FOOTREST 1
26 5LM-F7431-00
1
FOOTREST, REAR 1
5LM-F7433-00
COVER, REAR FOOTREST
Gambar 32 STAND & FOOTREST Nomor Nomor Part Nama Part Keterangan
Halaman 26
Nama Model:
Kode Tipe Model:
Tahun Model:
Warna:
Kode Produk:
T135SEC JUPITER-MX
55S5
2014
A-WHITE METALLIC 6
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 32 STAND & FOOTREST
Nomor
Nomor Part
Nama Part
Keterangan
28 5LM-F7445-00
1
PLATE 1
29 90240-08145
1
PIN, CLEVIS
30 91401-25015
1
PIN, COTTER
31 5TP-F7314-00
1
STOPPER
32 90110-08803
2
BOLT, HEXAGON SOCKET HEAD
33
1
UR FOR WM6
REAR FOOTREST ASSY 2
34
1
UR FOR WM6
BRACKET, FOOTREST 2
35 5LM-F7441-00
1
FOOTREST, REAR 2
36 5LM-F7444-00
1
COVER, REAR FOOTREST
37 5LM-F7445-00
1
PLATE 1
38 90240-08145
1
PIN, CLEVIS
39 91401-25015
1
PIN, COTTER
40 5TP-F7314-00
1
STOPPER
41 90110-08803
2
BOLT, HEXAGON SOCKET HEAD
42 5TP-F7424-00
1
DAMPER, FOOTREST 2
43 90387-10810
1
COLLAR
