Parts Catalog Yamaha Scorpio Z 2005 — Isi Lengkap 11 Halaman

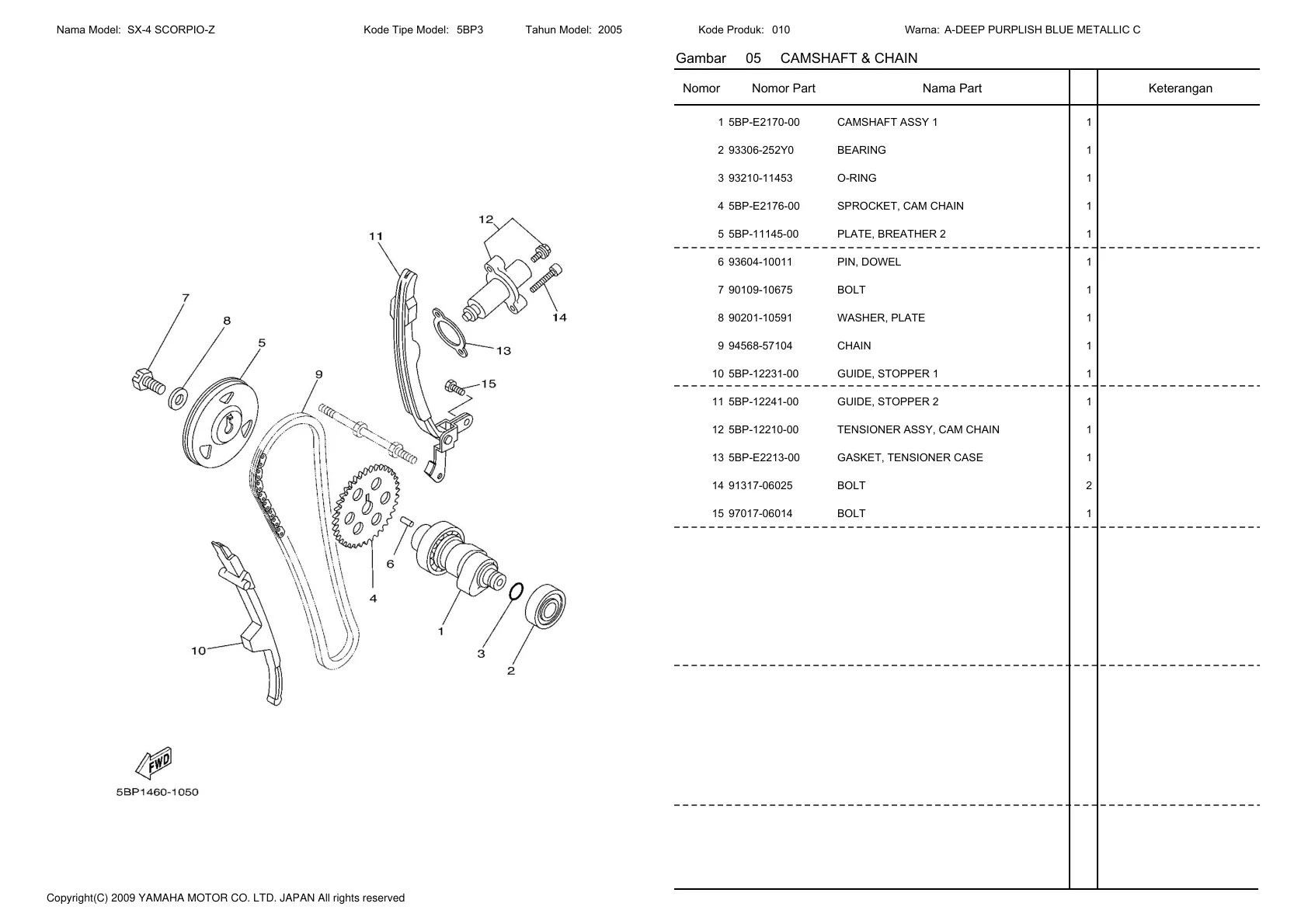

Gambar 05 CAMSHAFT & CHAIN Nomor Nomor Part Nama Part Keterangan
Halaman 1
Nama Model: SX-4 SCORPIO-Z
Kode Tipe Model: 5BP3
Tahun Model: 2005
Kode Produk: 010
Warna: A-DEEP PURPLISH BLUE METALLIC C
Gambar 05 CAMSHAFT & CHAIN
| Nomor | Nomor Part | Nama Part | Keterangan |
| :---- | :------------ | :---------------------- | :--------- |
| | | | |
| 1 | 5BP-E2170-00 | CAMSHAFT ASSY 1 | 1 |
| 2 | 93306-252Y0 | BEARING | 1 |
| 3 | 93210-11453 | O-RING | 1 |
| 4 | 5BP-E2176-00 | SPROCKET, CAM CHAIN | 1 |
| 5 | 5BP-11145-00 | PLATE, BREATHER 2 | 1 |
| ------| ------------- | ----------------------- | ---------- |
| 6 | 93604-10011 | PIN, DOWEL | 1 |
| 7 | 90109-10675 | BOLT | 1 |
| 8 | 90201-10591 | WASHER, PLATE | 1 |
| 9 | 94568-57104 | CHAIN | 1 |
| ------| ------------- | ----------------------- | ---------- |
| 10 | 5BP-12231-00 | GUIDE, STOPPER 1 | 1 |
| 11 | 5BP-12241-00 | GUIDE, STOPPER 2 | 1 |
| 12 | 5BP-12210-00 | TENSIONER ASSY, CAM CHAIN | 1 |
| 13 | 5BP-E2213-00 | GASKET, TENSIONER CASE | 1 |
| 14 | 91317-06025 | BOLT | 2 |
| 15 | 97017-06014 | BOLT | 1 |
| ------| ------------- | ----------------------- | ---------- |
| | | | |
| | | | |
| | | | |
| | | | |
| | | | |
5BP1460-1050
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 08 CARBURETOR Nomor Nomor Part Nama Part Keterangan
Halaman 2
Nama Model:
Kode Tipe Model:
Tahun Model:
Warna:
Kode Produk:
SX-4 SCORPIO-Z
5BP3
2005
A-DEEP PURPLISH BLUE METALLIC C
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 08 CARBURETOR
Nomor
Nomor Part
Nama Part
Keterangan
1 5BP-14901-01
1
CARBURETOR ASSY 1
2 22F-14991-00
1
CAP
3 3LN-14105-00
1
PILOT SCREW SET
4 46X-14984-00
1
GASKET, FLOAT CHAMBER
5 1NT-14142-17
1
JET, PILOT (#17.5)
6 620-14231-22
1
JET, MAIN (#110)
7 3G2-14231-13
1
JET, POWER (# 65)
8 137-14153-00
1
WASHER, MAIN JET
9 5BP-14141-32
1
NOZZLE, MAIN
10 4G0-14985-00
1
FLOAT
11 97607-04114
2
SCREW,WITH WASHER
12 98507-04006
1
SCREW, PAN HEAD
13 537-14186-00
1
PIN, FLOAT
14 2H0-14146-00
1
PLATE
15 4HM-14107-20
1
NEEDLE VALVE SET
16 5BP-1490J-00
1
NEEDLE SET
17 4VR-14933-00
1
SPRING, DIAPHRAGM
18 5BP-14940-00
1
DIAPHRAGM ASSY
19 5BP-1410A-00
1
STARTER SET
20 80N-14987-00
1
HOSE
21 12R-14191-00
1
PLUG, DRAIN
22 3Y3-14196-00
1
PIPE
23 5BP-14280-00
1
COVER, CARBURETOR
24 5BP-1490H-00
1
DIAPHRAGM SET 5
25 97607-04114
4
SCREW,WITH WASHER
26 5BP-14987-00
1
HOSE
5BP-1490K-00
STOP SCREW SET
Gambar 08 CARBURETOR Nomor Nomor Part Nama Part Keterangan
Halaman 3
Nama Model: SX-4 SCORPIO-Z Kode Tipe Model: 5BP3 Tahun Model: 2005
Kode Produk: 010 Warna: A-DEEP PURPLISH BLUE METALLIC C
Gambar 08 KARBURATOR
| Nomor | Nomor Part | Nama Part | Keterangan |
| :---- | :----------- | :---------------- | :--------- |
| 28 | 5BP-14995-00 | BRACKET | 1 |
| 29 | 98507-06012 | SCREW, PAN HEAD | 2 |
FWD
5BP2460-C080
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 03 CRANKSHAFT & PISTON Nomor Nomor Part Nama Part Keterangan
Halaman 4
Nama Model: SX-4 SCORPIO-Z Kode Tipe Model: 5BP3 Tahun Model: 2005 Kode Produk: 010 Warna: A-DEEP PURPLISH BLUE METALLIC C
Gambar 03 CRANKSHAFT & PISTON
| Nomor | Nomor Part | Nama Part | Keterangan |
|-------|--------------|--------------------------------|------------|
| 1 | 5BP-E1400-00 | CRANKSHAFT ASSY | 1 |
| 2 | 5BP-E1412-00 | CRANK 1 | 1 |
| 3 | 5BP-E1422-00 | CRANK 2 | 1 |
| 4 | 5BP-11681-00 | PIN, CRANK 1 | 1 |
| 5 | 93310-530X3 | BEARING | 1 |
| | | | |
| 6 | 29U-11651-00 | ROD, CONNECTING | 1 |
| 7 | 90240-07105 | PIN, CLEVIS | 1 |
| 8 | 90501-07629 | SPRING, COMPRESSION | 1 |
| 9 | 93602-13832 | PIN, DOWEL | 1 |
| 10 | 93306-37811 | BEARING | 2 |
| | | | |
| 11 | 5BP-E1631-00 | PISTON (STD) | 1 |
| | 5BP-E1636-00 | PISTON (0.50MM O/S) | 1 AP |
| | 5BP-E1638-00 | PISTON (1.00MM O/S) | 1 AP |
| 12 | 29U-11603-10 | PISTON RING SET (STD) | 1 |
| | 29U-11605-10 | PISTON RING SET (0.50MM O/S) | 1 AP |
| | 29U-11607-10 | PISTON RING SET (1.00MM O/S) | 1 AP |
| 13 | 15A-11633-00 | PIN, PISTON | 1 |
| 14 | 93450-17044 | CIRCLIP | 2 |
| 15 | 5BP-11549-00 | SPROCKET, CAM CHAIN | 1 |
| 16 | 5BP-11478-00 | COLLAR | 1 |
| | | | |
| 17 | 90105-10430 | BOLT, FLANGE | 1 |
| 18 | 90201-102R1 | WASHER, PLATE | 1 |
| 19 | 90280-05013 | KEY, WOODRUFF | 1 |
FWD
5BP1460-1030
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 01 CYLINDER HEAD Nomor Nomor Part Nama Part Keterangan
Halaman 5
Nama Model: SX-4 SCORPIO-Z
Kode Tipe Model: 5BP3
Tahun Model: 2005
Kode Produk: 010
Warna: A-DEEP PURPLISH BLUE METALLIC C
Gambar 01 CYLINDER HEAD
| Nomor | Nomor Part | Nama Part | Keterangan |
|-------|---------------|-----------------------------|------------|
| 1 | 5BP-E1102-00 | CYLINDER HEAD ASSY | 1 |
| 2 | 5H0-11133-11 | GUIDE, VALVE 1 | 2 |
| 3 | 93440-10085 | CIRCLIP | 2 |
| 4 | 90153-06803 | SCREW, HEXAGON | 1 |
| 5 | 90430-06014 | GASKET | 1 |
|-------|---------------|-----------------------------|------------|
| 6 | 5BP-E1181-00 | GASKET, CYLINDER HEAD 1 | 1 |
| 7 | 99530-14016 | PIN, DOWEL | 2 |
| 8 | 93210-13657 | O-RING | 1 |
| 9 | 90105-08195 | BOLT, FLANGE | 4 |
| 10 | 90201-08609 | WASHER, PLATE | 4 |
|-------|---------------|-----------------------------|------------|
| 11 | 91317-08045 | BOLT | 2 |
| 12 | 5BP-E1190-00 | COVER, CYLINDER HEAD 1 | 1 |
| 13 | 5BP-E1167-00 | PIPE, BREATHER 2 | 1 |
| 14 | 5BP-E1165-00 | PLATE, BREATHER | 1 |
| 15 | 5BP-E1166-00 | PIPE, BREATHER 1 | 1 |
|-------|---------------|-----------------------------|------------|
| 16 | 90467-12052 | CLIP | 2 |
| 17 | 5BP-E1196-00 | GASKET, CYLINDER HEAD SIDE | 1 |
| 18 | 92017-06010 | BOLT, BUTTON HEAD | 3 |
| 19 | 95027-06030 | BOLT, FLANGE | 1 |
| 20 | 90430-06014 | GASKET | 1 |
|-------|---------------|-----------------------------|------------|
| 21 | 93211-05471 | O-RING | 1 |
| 22 | 95027-06020 | BOLT, FLANGE | 2 |
| 23 | 5BP-E1186-00 | COVER, CYLINDER HEAD SIDE 2 | 2 |
| 24 | 93210-56589 | O-RING | 2 |
|-------|---------------|-----------------------------|------------|
| 25 | 5BP-E111F-00 | PLATE | 1 |
| 26 | 95027-06012 | BOLT, FLANGE | 2 |
| 27 | 94700-00845 | PLUG, SPARK (NGK 8P8EA) | 1 |
FWD
5BP2460-C010
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 01 CYLINDER HEAD Nomor Nomor Part Nama Part Keterangan
Halaman 6
Nama Model: SX-4 SCORPIO-Z
Kode Tipe Model: 5BP3
Tahun Model: 2005
Kode Produk: 010
Warna: A-DEEP PURPLISH BLUE METALLIC C
Gambar 01 CYLINDER HEAD
| Nomor | Nomor Part | Nama Part | Keterangan |
|-------|---------------|-----------|------------|
| 28 | 90116-08617 | BOLT, STUD| 2 |
| 29 | 99530-12016 | PIN, DOWEL| 1 |
FWD
5BP2460-C010
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 02 CYLINDER Nomor Nomor Part Nama Part Keterangan
Halaman 7
Nama Model: SX-4 SCORPIO-Z
Kode Tipe Model: 5BP3
Tahun Model: 2005
Kode Produk: 010
Warna: A-DEEP PURPLISH BLUE METALLIC C
Gambar 02 CYLINDER
| Nomor | Nomor Part | Nama Part | Keterangan |
| :---- | :------------ | :---------------- | :--------- |
| 1 | 5BP-E1310-01 | CYLINDER | 1 |
| 2 | 93210-78544 | O-RING | 1 |
| 3 | 5BP-E1351-00 | GASKET, CYLINDER | 1 |
| 4 | 93210-13657 | O-RING | 1 |
| 5 | 91317-06065 | BOLT | 2 |
FWD
5BP3460-D020
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 07 INTAKE Nomor Nomor Part Nama Part Keterangan
Halaman 8
Nama Model:
Kode Tipe Model:
Tahun Model:
Warna:
Kode Produk:
SX-4 SCORPIO-Z
5BP3
2005
A-DEEP PURPLISH BLUE METALLIC C
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 07 INTAKE
Nomor
Nomor Part
Nama Part
Keterangan
1 5BP-E3586-00
1
JOINT, CARBURETOR 1
2 93210-35895
1
O-RING
3 97007-06020
2
BOLT
4 5BP-E3575-00
1
BAND
5 5BP-E4408-00
1
AIR FILTER CASE COMP.
6 5BP-E4453-00
1
JOINT, AIR CLEANER 1
7 5BP-E4437-00
1
DUCT
8 5BP-E4451-00
1
ELEMENT, AIR CLEANER
9 5BP-E4412-00
1
CAP, CLEANER CASE 1
10 5BP-E4462-00
1
SEAL
11 97707-50520
7
SCREW, TAPPING
12 5BP-E444A-00
1
NET, FLAME ARRESTER1
13 5BP-E4422-00
1
CAP, CLEANER CASE 2
14 5BP-E4452-00
1
SEAL
15 90154-05013
4
SCREW, BINDING
16 4ST-E443E-00
2
PIPE, DRAIN
17 90467-11106
2
CLIP
18 5BP-E4458-00
1
GUIDE
19 5BP-E4472-00
1
PLATE, ELEMENT
20 5BP-H1953-00
1
STAY, RELAY
21 90267-40077
1
RIVET, BLIND
22 5BP-E4425-00
1
DAMPER 1
23 92907-04200
1
WASHER
24 90119-06114
2
BOLT, WITH WASHER
25 95827-06014
2
BOLT, FLANGE
26 90460-56105
1
CLAMP, HOSE
16G-13569-00
PLUG, BLIND
Gambar 07 INTAKE Nomor Nomor Part Nama Part Keterangan
Halaman 9
Nama Model: SX-4 SCORPIO-Z
Kode Tipe Model: 5BP3
Tahun Model: 2005
Kode Produk: 010
Warna: A-DEEP PURPLISH BLUE METALLIC C
**Gambar 07 INTAKE**
| Nomor | Nomor Part | Nama Part | Keterangan |
| :---- | :------------ | :-------- | :--------- |
| 28 | 90467-10039 | CLIP | 1 |
5BP1460-1070
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 06 OIL PUMP Nomor Nomor Part Nama Part Keterangan
Halaman 10
Nama Model: SX-4 SCORPIO-Z
Kode Tipe Model: 5BP3
Tahun Model: 2005
Kode Produk: 010
Warna: A-DEEP PURPLISH BLUE METALLIC C
**Gambar 06 OIL PUMP**
| Nomor | Nomor Part | Nama Part | Keterangan |
|-------|---------------|-----------------------------|------------|
| 1 | 5BP-E3300-00 | OIL PUMP ASSY | 1 |
| 2 | 5BP-13326-01 | GEAR, PUMP DRIVEN 2 (38T) | 1 |
| 3 | 99009-11400 | CIRCLIP | 1 |
| 4 | 5BP-E3329-00 | GASKET, PUMP COVER | 1 |
| 5 | 98507-06035 | SCREW, PAN HEAD | 3 |
| 6 | 90430-06156 | GASKET | 1 |
| 7 | 4ST-E3411-00 | STRAINER, OIL | 1 |
| 8 | 1UY-13440-02 | ELEMENT ASSY, OIL CLEANER | 1 |
| 9 | 5BP-E3447-00 | COVER, OIL ELEMENT | 1 |
| 10 | 93210-548A1 | O-RING | 1 |
| 11 | 90109-06419 | BOLT | 1 |
| 12 | 93210-07896 | O-RING | 2 |
| 13 | 95027-06070 | BOLT, FLANGE | 1 |
| 14 | 95027-06020 | BOLT, FLANGE | 1 |
| 15 | 5BP-E3161-00 | PIPE, DELIVERY 1 | 1 |
| 16 | 90401-10003 | BOLT, UNION | 1 |
| 17 | 90430-10171 | GASKET | 2 |
| 18 | 90401-08002 | BOLT, UNION | 1 |
| 19 | 90430-08119 | GASKET | 2 |
FWD
5BP1460-1060
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
Gambar 04 VALVE Nomor Nomor Part Nama Part Keterangan
Halaman 11
Nama Model: SX-4 SCORPIO-Z
Kode Tipe Model: 5BP3
Tahun Model: 2005
Kode Produk: 010
Warna: A-DEEP PURPLISH BLUE METALLIC C
Gambar 04 VALVE
| Nomor | Nomor Part | Nama Part | Keterangan |
|-------|--------------|------------------------|------------|
| 1 | 5BP-E2111-00 | VALVE, INTAKE | 1 |
| 2 | 5BP-E2121-00 | VALVE, EXHAUST | 1 |
| 3 | 4G0-12116-01 | SEAT, VALVE SPRING | 2 |
| 4 | 41H-12113-00 | SPRING, VALVE INNER | 2 |
| 5 | 11H-12114-00 | SPRING, VALVE OUTER | 2 |
| 6 | 5H0-12119-00 | SEAL, VALVE STEM | 2 |
| 7 | 4G0-12117-00 | RETAINER, VALVE SPRING | 2 |
| 8 | 4G0-12118-00 | COTTER, VALVE | 4 |
| 9 | 36X-12151-00 | ARM, VALVE ROCKER | 2 |
| 10 | 5H0-12156-00 | SHAFT, ROCKER 2 | 1 |
| 11 | 5H0-12146-00 | SHAFT, ROCKER | 1 |
| 12 | 93210-09894 | O-RING | 1 |
| 13 | 5BP-12159-01 | SCREW, VALVE ADJUSTING | 2 |
| 14 | 90170-06128 | NUT | 2 |
FWD
5BP1460-1040
Copyright(C) 2009 YAMAHA MOTOR CO. LTD. JAPAN All rights reserved
